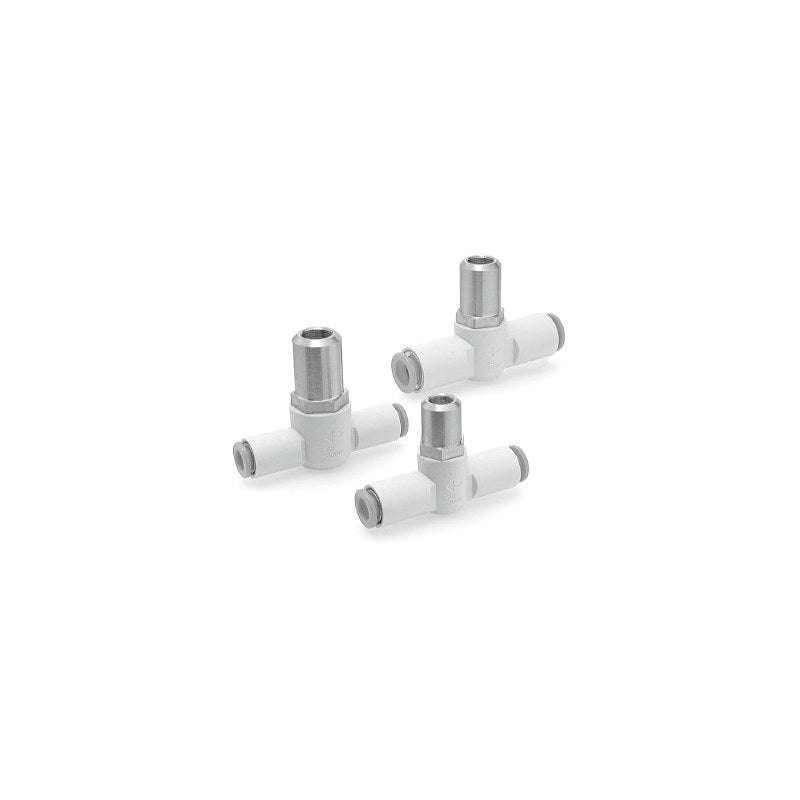

SMC AS-T In-line Speed Controller, Tamper-proof (One-touch)

SMC AS001F-T series in-line speed controller with one-touch fittings on both ends, adjustable only with the dedicated AS-T-1 tool to prevent external tampering with the flow setting.

Key features

Needle adjusted only with special tool AS-T-1 (ordered separately); prevents unauthorized adjustment
In-line body with one-touch fittings both ends for tube-to-tube installation
Five sizes AS1001F to AS4001F, metric tube ø3.2 to ø12 mm and inch tube ø1/8 to ø1/2 in
Flow up to 1390 L/min (ANR) at 0.5 MPa (AS4001F ø12)
Made to order: -X12 (vaseline), -X21 (grease-free + orifice valve), -X214 (orifice valve)

Specifications

Fluid	Air
Proof pressure	1.5 MPa
Max. operating pressure	1 MPa
Min. operating pressure	0.1 MPa
Ambient and fluid temperature	-5 to 60°C (no freezing)
Adjustment	Special tool AS-T-1 only (T type)
Body type	In-line, one-touch fitting both ends
Applicable tubing	Nylon, soft nylon, polyurethane
Source	SMC Korea catalog AS-T (SMCKR_AS________-T.pdf), PDF p. 7-9

AS1001F-23T		Body size: AS1001F \| Tube OD: ø3.2 mm (use ø1/8 in) \| Tube sizing: Metric
AS1001F-04T		Body size: AS1001F \| Tube OD: ø4 mm \| Tube sizing: Metric
AS1001F-06T		Body size: AS1001F \| Tube OD: ø6 mm \| Tube sizing: Metric
AS1001F-01T		Body size: AS1001F \| Tube OD: ø1/8 in \| Tube sizing: Inch
AS1001F-03T		Body size: AS1001F \| Tube OD: ø5/32 in \| Tube sizing: Inch
AS1001F-05T		Body size: AS1001F \| Tube OD: ø3/16 in \| Tube sizing: Inch
AS1001F-07T		Body size: AS1001F \| Tube OD: ø1/4 in \| Tube sizing: Inch
AS2001F-04T		Body size: AS2001F \| Tube OD: ø4 mm \| Tube sizing: Metric
AS2001F-06T		Body size: AS2001F \| Tube OD: ø6 mm \| Tube sizing: Metric
AS2001F-03T		Body size: AS2001F \| Tube OD: ø5/32 in \| Tube sizing: Inch
AS2001F-05T		Body size: AS2001F \| Tube OD: ø3/16 in \| Tube sizing: Inch
AS2001F-07T		Body size: AS2001F \| Tube OD: ø1/4 in \| Tube sizing: Inch
AS2051F-06T		Body size: AS2051F \| Tube OD: ø6 mm \| Tube sizing: Metric
AS2051F-08T		Body size: AS2051F \| Tube OD: ø8 mm \| Tube sizing: Metric
AS2051F-05T		Body size: AS2051F \| Tube OD: ø3/16 in \| Tube sizing: Inch
AS2051F-07T		Body size: AS2051F \| Tube OD: ø1/4 in \| Tube sizing: Inch
AS2051F-09T		Body size: AS2051F \| Tube OD: ø5/16 in \| Tube sizing: Inch
AS3001F-06T		Body size: AS3001F \| Tube OD: ø6 mm \| Tube sizing: Metric
AS3001F-08T		Body size: AS3001F \| Tube OD: ø8 mm \| Tube sizing: Metric
AS3001F-10T		Body size: AS3001F \| Tube OD: ø10 mm \| Tube sizing: Metric
AS3001F-12T		Body size: AS3001F \| Tube OD: ø12 mm \| Tube sizing: Metric
AS3001F-07T		Body size: AS3001F \| Tube OD: ø1/4 in \| Tube sizing: Inch
AS3001F-09T		Body size: AS3001F \| Tube OD: ø5/16 in \| Tube sizing: Inch
AS3001F-11T		Body size: AS3001F \| Tube OD: ø3/8 in \| Tube sizing: Inch
AS4001F-10T		Body size: AS4001F \| Tube OD: ø10 mm \| Tube sizing: Metric
AS4001F-12T		Body size: AS4001F \| Tube OD: ø12 mm \| Tube sizing: Metric
AS4001F-11T		Body size: AS4001F \| Tube OD: ø3/8 in \| Tube sizing: Inch
AS4001F-13T		Body size: AS4001F \| Tube OD: ø1/2 in \| Tube sizing: Inch
