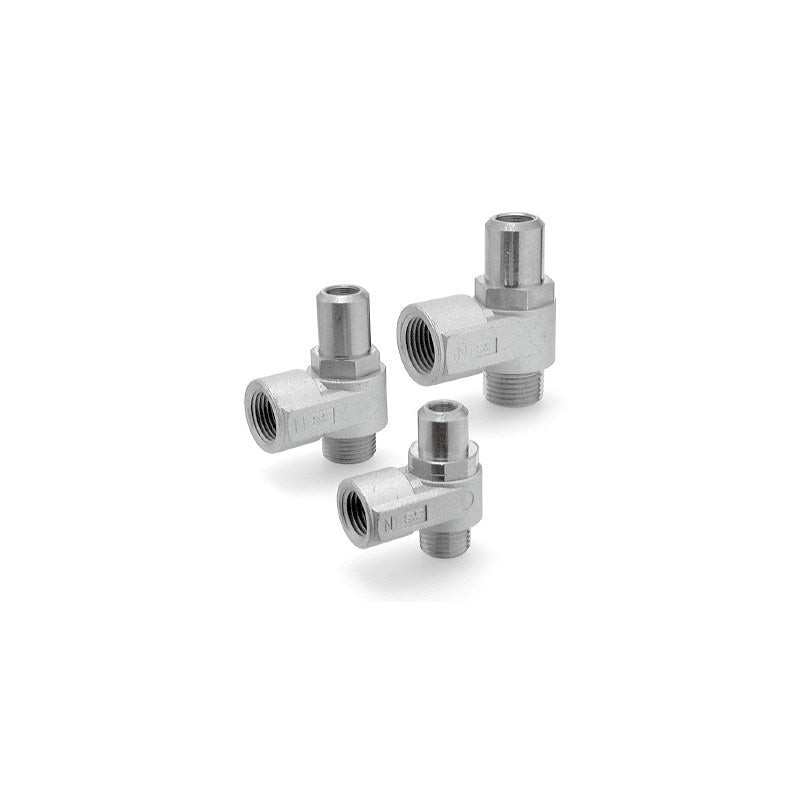

SMC AS-T Speed Controller, Tamper-proof (Standard Metal Elbow)

SMC AS-T Speed Controller, Tamper-proof (Standard Metal Elbow)

SMC AS20-T series standard metal-body elbow speed controller with male cylinder thread and female valve-side thread, adjustable only with the dedicated AS-T-1 tool to prevent external tampering with the flow setting.

Key features

  • Needle adjusted only with special tool AS-T-1 (ordered separately); prevents unauthorized adjustment
  • Metal elbow body: male R thread on cylinder side, female Rc thread on valve side
  • Sizes for M5, 1/8, 1/4 (AS22 and AS32 bodies), 3/8 and 1/2
  • Meter-out and meter-in versions identified by flow direction symbol
  • Brass parts electroless nickel plated; G (F) and NPT (N) threads available

Specifications

Fluid Air
Proof pressure 1.5 MPa
Max. operating pressure 1 MPa
Min. operating pressure 0.1 MPa
Ambient and fluid temperature -5 to 60°C (no freezing)
Adjustment Special tool AS-T-1 only (T type)
Body type Standard metal elbow, female port to valve side
Seal Sealant on R threads (S); gasket on M5
Source SMC Korea catalog AS-T standard (SMCKR_AS________-T.pdf), PDF p. 15-17
AS1200-M5-T Body size: Size 1 | Control: Meter-out | Ports (male / female): M5x0.8 / M5x0.8
AS1210-M5-T Body size: Size 1 | Control: Meter-in | Ports (male / female): M5x0.8 / M5x0.8
AS2200-01-ST Body size: Size 2 | Control: Meter-out | Ports (male / female): R1/8 / Rc1/8
AS2210-01-ST Body size: Size 2 | Control: Meter-in | Ports (male / female): R1/8 / Rc1/8
AS2200-02-ST Body size: Size 2 | Control: Meter-out | Ports (male / female): R1/4 / Rc1/4
AS2210-02-ST Body size: Size 2 | Control: Meter-in | Ports (male / female): R1/4 / Rc1/4
AS3200-02-ST Body size: Size 3 | Control: Meter-out | Ports (male / female): R1/4 / Rc3/8
AS3210-02-ST Body size: Size 3 | Control: Meter-in | Ports (male / female): R1/4 / Rc3/8
AS3200-03-ST Body size: Size 3 | Control: Meter-out | Ports (male / female): R3/8 / Rc3/8
AS3210-03-ST Body size: Size 3 | Control: Meter-in | Ports (male / female): R3/8 / Rc3/8
AS4200-04-ST Body size: Size 4 | Control: Meter-out | Ports (male / female): R1/2 / Rc1/2
AS4210-04-ST Body size: Size 4 | Control: Meter-in | Ports (male / female): R1/2 / Rc1/2
Speed ControllersSMC
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC AS-T Speed Controller, Tamper-proof (Standard Metal Elbow)

Brand SMC·Speed Controllers

Available part numbers (12)

AS1200-M5-T, AS1210-M5-T, AS2200-01-ST, AS2210-01-ST, AS2200-02-ST, AS2210-02-ST, AS3200-02-ST, AS3210-02-ST, AS3200-03-ST, AS3210-03-ST + 2 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AS1200-M5-TBody size: Size 1 | Control: Meter-out | Ports (male / female): M5x0.8 / M5x0.8
AS1210-M5-TBody size: Size 1 | Control: Meter-in | Ports (male / female): M5x0.8 / M5x0.8
AS2200-01-STBody size: Size 2 | Control: Meter-out | Ports (male / female): R1/8 / Rc1/8
AS2210-01-STBody size: Size 2 | Control: Meter-in | Ports (male / female): R1/8 / Rc1/8
AS2200-02-STBody size: Size 2 | Control: Meter-out | Ports (male / female): R1/4 / Rc1/4
AS2210-02-STBody size: Size 2 | Control: Meter-in | Ports (male / female): R1/4 / Rc1/4
AS3200-02-STBody size: Size 3 | Control: Meter-out | Ports (male / female): R1/4 / Rc3/8
AS3210-02-STBody size: Size 3 | Control: Meter-in | Ports (male / female): R1/4 / Rc3/8
AS3200-03-STBody size: Size 3 | Control: Meter-out | Ports (male / female): R3/8 / Rc3/8
AS3210-03-STBody size: Size 3 | Control: Meter-in | Ports (male / female): R3/8 / Rc3/8
AS4200-04-STBody size: Size 4 | Control: Meter-out | Ports (male / female): R1/2 / Rc1/2
AS4210-04-STBody size: Size 4 | Control: Meter-in | Ports (male / female): R1/2 / Rc1/2
