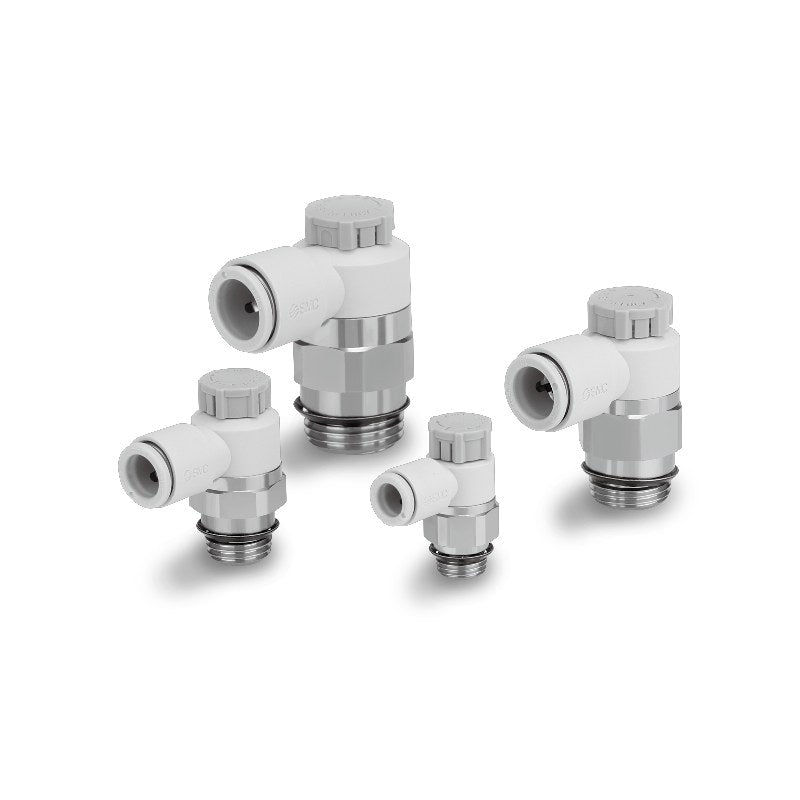

SMC AS Uni Thread Speed Controller (Push-Lock, Elbow / Universal)

SMC AS Uni Thread Speed Controller (Push-Lock, Elbow / Universal)

SMC AS1F-U push-lock speed controllers with Uni thread fit Rc, G, NPT and NPTF female ports and cut thread-tightening time to about one third.

Key features

  • Uni thread with gasket seal: one stud fits Rc, G, NPT and NPTF female threads
  • Push-lock handle: push to lock the needle, pull to unlock
  • Elbow type and 360° rotatable universal type
  • Meter-out (grey handle) and meter-in (light blue handle) versions
  • Built-in one-touch fitting for metric ø3.2-ø16 and inch ø1/8"-ø1/2" tubing

Specifications

Fluid Air
Proof pressure 1.5 MPa
Max. operating pressure 1 MPa
Min. operating pressure 0.1 MPa
Ambient and fluid temperature -5 to 60 °C (no freezing)
Applicable tubing Nylon, soft nylon, polyurethane
Seal method Gasket seal (stainless plate with NBR)
Body material PBT / brass (electroless nickel plated)
Source SMC Korea catalog AS Uni push-lock (SMCKR_AS______1F_uni_-A.pdf), p. 625-629 (PDF p. 1-5)
AS2201F-U01-23A Type: Elbow | Control: Meter-out | Port: Uni 1/8 | Tube OD: ø3.2 mm
AS2201F-U01-04A Type: Elbow | Control: Meter-out | Port: Uni 1/8 | Tube OD: ø4 mm
AS2201F-U01-06A Type: Elbow | Control: Meter-out | Port: Uni 1/8 | Tube OD: ø6 mm
AS2201F-U01-08A Type: Elbow | Control: Meter-out | Port: Uni 1/8 | Tube OD: ø8 mm
AS2201F-U01-10A Type: Elbow | Control: Meter-out | Port: Uni 1/8 | Tube OD: ø10 mm
AS2201F-U01-01A Type: Elbow | Control: Meter-out | Port: Uni 1/8 | Tube OD: ø1/8 in
AS2201F-U01-03A Type: Elbow | Control: Meter-out | Port: Uni 1/8 | Tube OD: ø5/32 in
AS2201F-U01-07A Type: Elbow | Control: Meter-out | Port: Uni 1/8 | Tube OD: ø1/4 in
AS2201F-U01-09A Type: Elbow | Control: Meter-out | Port: Uni 1/8 | Tube OD: ø5/16 in
AS2211F-U01-23A Type: Elbow | Control: Meter-in | Port: Uni 1/8 | Tube OD: ø3.2 mm
AS2211F-U01-04A Type: Elbow | Control: Meter-in | Port: Uni 1/8 | Tube OD: ø4 mm
AS2211F-U01-06A Type: Elbow | Control: Meter-in | Port: Uni 1/8 | Tube OD: ø6 mm
AS2211F-U01-08A Type: Elbow | Control: Meter-in | Port: Uni 1/8 | Tube OD: ø8 mm
AS2211F-U01-10A Type: Elbow | Control: Meter-in | Port: Uni 1/8 | Tube OD: ø10 mm
AS2211F-U01-01A Type: Elbow | Control: Meter-in | Port: Uni 1/8 | Tube OD: ø1/8 in
AS2211F-U01-03A Type: Elbow | Control: Meter-in | Port: Uni 1/8 | Tube OD: ø5/32 in
AS2211F-U01-07A Type: Elbow | Control: Meter-in | Port: Uni 1/8 | Tube OD: ø1/4 in
AS2211F-U01-09A Type: Elbow | Control: Meter-in | Port: Uni 1/8 | Tube OD: ø5/16 in
AS2301F-U01-23A Type: Universal | Control: Meter-out | Port: Uni 1/8 | Tube OD: ø3.2 mm
AS2301F-U01-04A Type: Universal | Control: Meter-out | Port: Uni 1/8 | Tube OD: ø4 mm
AS2301F-U01-06A Type: Universal | Control: Meter-out | Port: Uni 1/8 | Tube OD: ø6 mm
AS2301F-U01-08A Type: Universal | Control: Meter-out | Port: Uni 1/8 | Tube OD: ø8 mm
AS2301F-U01-01A Type: Universal | Control: Meter-out | Port: Uni 1/8 | Tube OD: ø1/8 in
AS2301F-U01-03A Type: Universal | Control: Meter-out | Port: Uni 1/8 | Tube OD: ø5/32 in
AS2301F-U01-07A Type: Universal | Control: Meter-out | Port: Uni 1/8 | Tube OD: ø1/4 in
AS2301F-U01-09A Type: Universal | Control: Meter-out | Port: Uni 1/8 | Tube OD: ø5/16 in
AS2311F-U01-23A Type: Universal | Control: Meter-in | Port: Uni 1/8 | Tube OD: ø3.2 mm
AS2311F-U01-04A Type: Universal | Control: Meter-in | Port: Uni 1/8 | Tube OD: ø4 mm
AS2311F-U01-06A Type: Universal | Control: Meter-in | Port: Uni 1/8 | Tube OD: ø6 mm
AS2311F-U01-08A Type: Universal | Control: Meter-in | Port: Uni 1/8 | Tube OD: ø8 mm
AS2311F-U01-01A Type: Universal | Control: Meter-in | Port: Uni 1/8 | Tube OD: ø1/8 in
AS2311F-U01-03A Type: Universal | Control: Meter-in | Port: Uni 1/8 | Tube OD: ø5/32 in
AS2311F-U01-07A Type: Universal | Control: Meter-in | Port: Uni 1/8 | Tube OD: ø1/4 in
AS2311F-U01-09A Type: Universal | Control: Meter-in | Port: Uni 1/8 | Tube OD: ø5/16 in
AS2201F-U02-23A Type: Elbow | Control: Meter-out | Port: Uni 1/4 | Tube OD: ø3.2 mm
AS2201F-U02-04A Type: Elbow | Control: Meter-out | Port: Uni 1/4 | Tube OD: ø4 mm
AS2201F-U02-06A Type: Elbow | Control: Meter-out | Port: Uni 1/4 | Tube OD: ø6 mm
AS2201F-U02-08A Type: Elbow | Control: Meter-out | Port: Uni 1/4 | Tube OD: ø8 mm
AS2201F-U02-10A Type: Elbow | Control: Meter-out | Port: Uni 1/4 | Tube OD: ø10 mm
AS2201F-U02-01A Type: Elbow | Control: Meter-out | Port: Uni 1/4 | Tube OD: ø1/8 in
AS2201F-U02-03A Type: Elbow | Control: Meter-out | Port: Uni 1/4 | Tube OD: ø5/32 in
AS2201F-U02-07A Type: Elbow | Control: Meter-out | Port: Uni 1/4 | Tube OD: ø1/4 in
AS2201F-U02-09A Type: Elbow | Control: Meter-out | Port: Uni 1/4 | Tube OD: ø5/16 in
AS2201F-U02-11A Type: Elbow | Control: Meter-out | Port: Uni 1/4 | Tube OD: ø3/8 in
AS2211F-U02-23A Type: Elbow | Control: Meter-in | Port: Uni 1/4 | Tube OD: ø3.2 mm
AS2211F-U02-04A Type: Elbow | Control: Meter-in | Port: Uni 1/4 | Tube OD: ø4 mm
AS2211F-U02-06A Type: Elbow | Control: Meter-in | Port: Uni 1/4 | Tube OD: ø6 mm
AS2211F-U02-08A Type: Elbow | Control: Meter-in | Port: Uni 1/4 | Tube OD: ø8 mm
AS2211F-U02-10A Type: Elbow | Control: Meter-in | Port: Uni 1/4 | Tube OD: ø10 mm
AS2211F-U02-01A Type: Elbow | Control: Meter-in | Port: Uni 1/4 | Tube OD: ø1/8 in
AS2211F-U02-03A Type: Elbow | Control: Meter-in | Port: Uni 1/4 | Tube OD: ø5/32 in
AS2211F-U02-07A Type: Elbow | Control: Meter-in | Port: Uni 1/4 | Tube OD: ø1/4 in
AS2211F-U02-09A Type: Elbow | Control: Meter-in | Port: Uni 1/4 | Tube OD: ø5/16 in
AS2211F-U02-11A Type: Elbow | Control: Meter-in | Port: Uni 1/4 | Tube OD: ø3/8 in
AS2301F-U02-04A Type: Universal | Control: Meter-out | Port: Uni 1/4 | Tube OD: ø4 mm
AS2301F-U02-06A Type: Universal | Control: Meter-out | Port: Uni 1/4 | Tube OD: ø6 mm
AS2301F-U02-08A Type: Universal | Control: Meter-out | Port: Uni 1/4 | Tube OD: ø8 mm
AS2301F-U02-10A Type: Universal | Control: Meter-out | Port: Uni 1/4 | Tube OD: ø10 mm
AS2301F-U02-03A Type: Universal | Control: Meter-out | Port: Uni 1/4 | Tube OD: ø5/32 in
AS2301F-U02-07A Type: Universal | Control: Meter-out | Port: Uni 1/4 | Tube OD: ø1/4 in
AS2301F-U02-09A Type: Universal | Control: Meter-out | Port: Uni 1/4 | Tube OD: ø5/16 in
AS2301F-U02-11A Type: Universal | Control: Meter-out | Port: Uni 1/4 | Tube OD: ø3/8 in
AS2311F-U02-04A Type: Universal | Control: Meter-in | Port: Uni 1/4 | Tube OD: ø4 mm
AS2311F-U02-06A Type: Universal | Control: Meter-in | Port: Uni 1/4 | Tube OD: ø6 mm
AS2311F-U02-08A Type: Universal | Control: Meter-in | Port: Uni 1/4 | Tube OD: ø8 mm
AS2311F-U02-10A Type: Universal | Control: Meter-in | Port: Uni 1/4 | Tube OD: ø10 mm
AS2311F-U02-03A Type: Universal | Control: Meter-in | Port: Uni 1/4 | Tube OD: ø5/32 in
AS2311F-U02-07A Type: Universal | Control: Meter-in | Port: Uni 1/4 | Tube OD: ø1/4 in
AS2311F-U02-09A Type: Universal | Control: Meter-in | Port: Uni 1/4 | Tube OD: ø5/16 in
AS2311F-U02-11A Type: Universal | Control: Meter-in | Port: Uni 1/4 | Tube OD: ø3/8 in
AS3201F-U02-06A Type: Elbow | Control: Meter-out | Port: Uni 1/4 | Tube OD: ø6 mm
AS3201F-U02-08A Type: Elbow | Control: Meter-out | Port: Uni 1/4 | Tube OD: ø8 mm
AS3201F-U02-10A Type: Elbow | Control: Meter-out | Port: Uni 1/4 | Tube OD: ø10 mm
AS3201F-U02-12A Type: Elbow | Control: Meter-out | Port: Uni 1/4 | Tube OD: ø12 mm
AS3201F-U02-07A Type: Elbow | Control: Meter-out | Port: Uni 1/4 | Tube OD: ø1/4 in
AS3201F-U02-09A Type: Elbow | Control: Meter-out | Port: Uni 1/4 | Tube OD: ø5/16 in
AS3201F-U02-11A Type: Elbow | Control: Meter-out | Port: Uni 1/4 | Tube OD: ø3/8 in
AS3211F-U02-06A Type: Elbow | Control: Meter-in | Port: Uni 1/4 | Tube OD: ø6 mm
AS3211F-U02-08A Type: Elbow | Control: Meter-in | Port: Uni 1/4 | Tube OD: ø8 mm
AS3211F-U02-10A Type: Elbow | Control: Meter-in | Port: Uni 1/4 | Tube OD: ø10 mm
AS3211F-U02-12A Type: Elbow | Control: Meter-in | Port: Uni 1/4 | Tube OD: ø12 mm
AS3211F-U02-07A Type: Elbow | Control: Meter-in | Port: Uni 1/4 | Tube OD: ø1/4 in
AS3211F-U02-09A Type: Elbow | Control: Meter-in | Port: Uni 1/4 | Tube OD: ø5/16 in
AS3211F-U02-11A Type: Elbow | Control: Meter-in | Port: Uni 1/4 | Tube OD: ø3/8 in
AS3301F-U02-06A Type: Universal | Control: Meter-out | Port: Uni 1/4 | Tube OD: ø6 mm
AS3301F-U02-08A Type: Universal | Control: Meter-out | Port: Uni 1/4 | Tube OD: ø8 mm
AS3301F-U02-10A Type: Universal | Control: Meter-out | Port: Uni 1/4 | Tube OD: ø10 mm
AS3301F-U02-12A Type: Universal | Control: Meter-out | Port: Uni 1/4 | Tube OD: ø12 mm
AS3301F-U02-07A Type: Universal | Control: Meter-out | Port: Uni 1/4 | Tube OD: ø1/4 in
AS3301F-U02-09A Type: Universal | Control: Meter-out | Port: Uni 1/4 | Tube OD: ø5/16 in
AS3301F-U02-11A Type: Universal | Control: Meter-out | Port: Uni 1/4 | Tube OD: ø3/8 in
AS3311F-U02-06A Type: Universal | Control: Meter-in | Port: Uni 1/4 | Tube OD: ø6 mm
AS3311F-U02-08A Type: Universal | Control: Meter-in | Port: Uni 1/4 | Tube OD: ø8 mm
AS3311F-U02-10A Type: Universal | Control: Meter-in | Port: Uni 1/4 | Tube OD: ø10 mm
AS3311F-U02-12A Type: Universal | Control: Meter-in | Port: Uni 1/4 | Tube OD: ø12 mm
AS3311F-U02-07A Type: Universal | Control: Meter-in | Port: Uni 1/4 | Tube OD: ø1/4 in
AS3311F-U02-09A Type: Universal | Control: Meter-in | Port: Uni 1/4 | Tube OD: ø5/16 in
AS3311F-U02-11A Type: Universal | Control: Meter-in | Port: Uni 1/4 | Tube OD: ø3/8 in
AS3201F-U03-06A Type: Elbow | Control: Meter-out | Port: Uni 3/8 | Tube OD: ø6 mm
AS3201F-U03-08A Type: Elbow | Control: Meter-out | Port: Uni 3/8 | Tube OD: ø8 mm
AS3201F-U03-10A Type: Elbow | Control: Meter-out | Port: Uni 3/8 | Tube OD: ø10 mm
AS3201F-U03-12A Type: Elbow | Control: Meter-out | Port: Uni 3/8 | Tube OD: ø12 mm
AS3201F-U03-07A Type: Elbow | Control: Meter-out | Port: Uni 3/8 | Tube OD: ø1/4 in
AS3201F-U03-09A Type: Elbow | Control: Meter-out | Port: Uni 3/8 | Tube OD: ø5/16 in
AS3201F-U03-11A Type: Elbow | Control: Meter-out | Port: Uni 3/8 | Tube OD: ø3/8 in
AS3211F-U03-06A Type: Elbow | Control: Meter-in | Port: Uni 3/8 | Tube OD: ø6 mm
AS3211F-U03-08A Type: Elbow | Control: Meter-in | Port: Uni 3/8 | Tube OD: ø8 mm
AS3211F-U03-10A Type: Elbow | Control: Meter-in | Port: Uni 3/8 | Tube OD: ø10 mm
AS3211F-U03-12A Type: Elbow | Control: Meter-in | Port: Uni 3/8 | Tube OD: ø12 mm
AS3211F-U03-07A Type: Elbow | Control: Meter-in | Port: Uni 3/8 | Tube OD: ø1/4 in
AS3211F-U03-09A Type: Elbow | Control: Meter-in | Port: Uni 3/8 | Tube OD: ø5/16 in
AS3211F-U03-11A Type: Elbow | Control: Meter-in | Port: Uni 3/8 | Tube OD: ø3/8 in
AS3301F-U03-06A Type: Universal | Control: Meter-out | Port: Uni 3/8 | Tube OD: ø6 mm
AS3301F-U03-08A Type: Universal | Control: Meter-out | Port: Uni 3/8 | Tube OD: ø8 mm
AS3301F-U03-10A Type: Universal | Control: Meter-out | Port: Uni 3/8 | Tube OD: ø10 mm
AS3301F-U03-12A Type: Universal | Control: Meter-out | Port: Uni 3/8 | Tube OD: ø12 mm
AS3301F-U03-07A Type: Universal | Control: Meter-out | Port: Uni 3/8 | Tube OD: ø1/4 in
AS3301F-U03-09A Type: Universal | Control: Meter-out | Port: Uni 3/8 | Tube OD: ø5/16 in
AS3301F-U03-11A Type: Universal | Control: Meter-out | Port: Uni 3/8 | Tube OD: ø3/8 in
AS3311F-U03-06A Type: Universal | Control: Meter-in | Port: Uni 3/8 | Tube OD: ø6 mm
AS3311F-U03-08A Type: Universal | Control: Meter-in | Port: Uni 3/8 | Tube OD: ø8 mm
AS3311F-U03-10A Type: Universal | Control: Meter-in | Port: Uni 3/8 | Tube OD: ø10 mm
AS3311F-U03-12A Type: Universal | Control: Meter-in | Port: Uni 3/8 | Tube OD: ø12 mm
AS3311F-U03-07A Type: Universal | Control: Meter-in | Port: Uni 3/8 | Tube OD: ø1/4 in
AS3311F-U03-09A Type: Universal | Control: Meter-in | Port: Uni 3/8 | Tube OD: ø5/16 in
AS3311F-U03-11A Type: Universal | Control: Meter-in | Port: Uni 3/8 | Tube OD: ø3/8 in
AS4201F-U04-10A Type: Elbow | Control: Meter-out | Port: Uni 1/2 | Tube OD: ø10 mm
AS4201F-U04-12A Type: Elbow | Control: Meter-out | Port: Uni 1/2 | Tube OD: ø12 mm
AS4201F-U04-16A Type: Elbow | Control: Meter-out | Port: Uni 1/2 | Tube OD: ø16 mm
AS4201F-U04-11A Type: Elbow | Control: Meter-out | Port: Uni 1/2 | Tube OD: ø3/8 in
AS4201F-U04-13A Type: Elbow | Control: Meter-out | Port: Uni 1/2 | Tube OD: ø1/2 in
AS4211F-U04-10A Type: Elbow | Control: Meter-in | Port: Uni 1/2 | Tube OD: ø10 mm
AS4211F-U04-12A Type: Elbow | Control: Meter-in | Port: Uni 1/2 | Tube OD: ø12 mm
AS4211F-U04-16A Type: Elbow | Control: Meter-in | Port: Uni 1/2 | Tube OD: ø16 mm
AS4211F-U04-11A Type: Elbow | Control: Meter-in | Port: Uni 1/2 | Tube OD: ø3/8 in
AS4211F-U04-13A Type: Elbow | Control: Meter-in | Port: Uni 1/2 | Tube OD: ø1/2 in
AS4301F-U04-10A Type: Universal | Control: Meter-out | Port: Uni 1/2 | Tube OD: ø10 mm
AS4301F-U04-12A Type: Universal | Control: Meter-out | Port: Uni 1/2 | Tube OD: ø12 mm
AS4301F-U04-11A Type: Universal | Control: Meter-out | Port: Uni 1/2 | Tube OD: ø3/8 in
AS4301F-U04-13A Type: Universal | Control: Meter-out | Port: Uni 1/2 | Tube OD: ø1/2 in
AS4311F-U04-10A Type: Universal | Control: Meter-in | Port: Uni 1/2 | Tube OD: ø10 mm
AS4311F-U04-12A Type: Universal | Control: Meter-in | Port: Uni 1/2 | Tube OD: ø12 mm
AS4311F-U04-11A Type: Universal | Control: Meter-in | Port: Uni 1/2 | Tube OD: ø3/8 in
AS4311F-U04-13A Type: Universal | Control: Meter-in | Port: Uni 1/2 | Tube OD: ø1/2 in
Speed ControllersSMC
144 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC AS Uni Thread Speed Controller (Push-Lock, Elbow / Universal)

Brand SMC·Speed Controllers

Available part numbers (144)

AS2201F-U01-23A, AS2201F-U01-04A, AS2201F-U01-06A, AS2201F-U01-08A, AS2201F-U01-10A, AS2201F-U01-01A, AS2201F-U01-03A, AS2201F-U01-07A, AS2201F-U01-09A, AS2211F-U01-23A + 134 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AS2201F-U01-23AType: Elbow | Control: Meter-out | Port: Uni 1/8 | Tube OD: ø3.2 mm
AS2201F-U01-04AType: Elbow | Control: Meter-out | Port: Uni 1/8 | Tube OD: ø4 mm
AS2201F-U01-06AType: Elbow | Control: Meter-out | Port: Uni 1/8 | Tube OD: ø6 mm
AS2201F-U01-08AType: Elbow | Control: Meter-out | Port: Uni 1/8 | Tube OD: ø8 mm
AS2201F-U01-10AType: Elbow | Control: Meter-out | Port: Uni 1/8 | Tube OD: ø10 mm
AS2201F-U01-01AType: Elbow | Control: Meter-out | Port: Uni 1/8 | Tube OD: ø1/8 in
AS2201F-U01-03AType: Elbow | Control: Meter-out | Port: Uni 1/8 | Tube OD: ø5/32 in
AS2201F-U01-07AType: Elbow | Control: Meter-out | Port: Uni 1/8 | Tube OD: ø1/4 in
AS2201F-U01-09AType: Elbow | Control: Meter-out | Port: Uni 1/8 | Tube OD: ø5/16 in
AS2211F-U01-23AType: Elbow | Control: Meter-in | Port: Uni 1/8 | Tube OD: ø3.2 mm
AS2211F-U01-04AType: Elbow | Control: Meter-in | Port: Uni 1/8 | Tube OD: ø4 mm
AS2211F-U01-06AType: Elbow | Control: Meter-in | Port: Uni 1/8 | Tube OD: ø6 mm
AS2211F-U01-08AType: Elbow | Control: Meter-in | Port: Uni 1/8 | Tube OD: ø8 mm
AS2211F-U01-10AType: Elbow | Control: Meter-in | Port: Uni 1/8 | Tube OD: ø10 mm
AS2211F-U01-01AType: Elbow | Control: Meter-in | Port: Uni 1/8 | Tube OD: ø1/8 in
AS2211F-U01-03AType: Elbow | Control: Meter-in | Port: Uni 1/8 | Tube OD: ø5/32 in
AS2211F-U01-07AType: Elbow | Control: Meter-in | Port: Uni 1/8 | Tube OD: ø1/4 in
AS2211F-U01-09AType: Elbow | Control: Meter-in | Port: Uni 1/8 | Tube OD: ø5/16 in
AS2301F-U01-23AType: Universal | Control: Meter-out | Port: Uni 1/8 | Tube OD: ø3.2 mm
AS2301F-U01-04AType: Universal | Control: Meter-out | Port: Uni 1/8 | Tube OD: ø4 mm
AS2301F-U01-06AType: Universal | Control: Meter-out | Port: Uni 1/8 | Tube OD: ø6 mm
AS2301F-U01-08AType: Universal | Control: Meter-out | Port: Uni 1/8 | Tube OD: ø8 mm
AS2301F-U01-01AType: Universal | Control: Meter-out | Port: Uni 1/8 | Tube OD: ø1/8 in
AS2301F-U01-03AType: Universal | Control: Meter-out | Port: Uni 1/8 | Tube OD: ø5/32 in
AS2301F-U01-07AType: Universal | Control: Meter-out | Port: Uni 1/8 | Tube OD: ø1/4 in
AS2301F-U01-09AType: Universal | Control: Meter-out | Port: Uni 1/8 | Tube OD: ø5/16 in
AS2311F-U01-23AType: Universal | Control: Meter-in | Port: Uni 1/8 | Tube OD: ø3.2 mm
AS2311F-U01-04AType: Universal | Control: Meter-in | Port: Uni 1/8 | Tube OD: ø4 mm
AS2311F-U01-06AType: Universal | Control: Meter-in | Port: Uni 1/8 | Tube OD: ø6 mm
AS2311F-U01-08AType: Universal | Control: Meter-in | Port: Uni 1/8 | Tube OD: ø8 mm
AS2311F-U01-01AType: Universal | Control: Meter-in | Port: Uni 1/8 | Tube OD: ø1/8 in
AS2311F-U01-03AType: Universal | Control: Meter-in | Port: Uni 1/8 | Tube OD: ø5/32 in
AS2311F-U01-07AType: Universal | Control: Meter-in | Port: Uni 1/8 | Tube OD: ø1/4 in
AS2311F-U01-09AType: Universal | Control: Meter-in | Port: Uni 1/8 | Tube OD: ø5/16 in
AS2201F-U02-23AType: Elbow | Control: Meter-out | Port: Uni 1/4 | Tube OD: ø3.2 mm
AS2201F-U02-04AType: Elbow | Control: Meter-out | Port: Uni 1/4 | Tube OD: ø4 mm
AS2201F-U02-06AType: Elbow | Control: Meter-out | Port: Uni 1/4 | Tube OD: ø6 mm
AS2201F-U02-08AType: Elbow | Control: Meter-out | Port: Uni 1/4 | Tube OD: ø8 mm
AS2201F-U02-10AType: Elbow | Control: Meter-out | Port: Uni 1/4 | Tube OD: ø10 mm
AS2201F-U02-01AType: Elbow | Control: Meter-out | Port: Uni 1/4 | Tube OD: ø1/8 in
AS2201F-U02-03AType: Elbow | Control: Meter-out | Port: Uni 1/4 | Tube OD: ø5/32 in
AS2201F-U02-07AType: Elbow | Control: Meter-out | Port: Uni 1/4 | Tube OD: ø1/4 in
AS2201F-U02-09AType: Elbow | Control: Meter-out | Port: Uni 1/4 | Tube OD: ø5/16 in
AS2201F-U02-11AType: Elbow | Control: Meter-out | Port: Uni 1/4 | Tube OD: ø3/8 in
AS2211F-U02-23AType: Elbow | Control: Meter-in | Port: Uni 1/4 | Tube OD: ø3.2 mm
AS2211F-U02-04AType: Elbow | Control: Meter-in | Port: Uni 1/4 | Tube OD: ø4 mm
AS2211F-U02-06AType: Elbow | Control: Meter-in | Port: Uni 1/4 | Tube OD: ø6 mm
AS2211F-U02-08AType: Elbow | Control: Meter-in | Port: Uni 1/4 | Tube OD: ø8 mm
AS2211F-U02-10AType: Elbow | Control: Meter-in | Port: Uni 1/4 | Tube OD: ø10 mm
AS2211F-U02-01AType: Elbow | Control: Meter-in | Port: Uni 1/4 | Tube OD: ø1/8 in
AS2211F-U02-03AType: Elbow | Control: Meter-in | Port: Uni 1/4 | Tube OD: ø5/32 in
AS2211F-U02-07AType: Elbow | Control: Meter-in | Port: Uni 1/4 | Tube OD: ø1/4 in
AS2211F-U02-09AType: Elbow | Control: Meter-in | Port: Uni 1/4 | Tube OD: ø5/16 in
AS2211F-U02-11AType: Elbow | Control: Meter-in | Port: Uni 1/4 | Tube OD: ø3/8 in
AS2301F-U02-04AType: Universal | Control: Meter-out | Port: Uni 1/4 | Tube OD: ø4 mm
AS2301F-U02-06AType: Universal | Control: Meter-out | Port: Uni 1/4 | Tube OD: ø6 mm
AS2301F-U02-08AType: Universal | Control: Meter-out | Port: Uni 1/4 | Tube OD: ø8 mm
AS2301F-U02-10AType: Universal | Control: Meter-out | Port: Uni 1/4 | Tube OD: ø10 mm
AS2301F-U02-03AType: Universal | Control: Meter-out | Port: Uni 1/4 | Tube OD: ø5/32 in
AS2301F-U02-07AType: Universal | Control: Meter-out | Port: Uni 1/4 | Tube OD: ø1/4 in
AS2301F-U02-09AType: Universal | Control: Meter-out | Port: Uni 1/4 | Tube OD: ø5/16 in
AS2301F-U02-11AType: Universal | Control: Meter-out | Port: Uni 1/4 | Tube OD: ø3/8 in
AS2311F-U02-04AType: Universal | Control: Meter-in | Port: Uni 1/4 | Tube OD: ø4 mm
AS2311F-U02-06AType: Universal | Control: Meter-in | Port: Uni 1/4 | Tube OD: ø6 mm
AS2311F-U02-08AType: Universal | Control: Meter-in | Port: Uni 1/4 | Tube OD: ø8 mm
AS2311F-U02-10AType: Universal | Control: Meter-in | Port: Uni 1/4 | Tube OD: ø10 mm
AS2311F-U02-03AType: Universal | Control: Meter-in | Port: Uni 1/4 | Tube OD: ø5/32 in
AS2311F-U02-07AType: Universal | Control: Meter-in | Port: Uni 1/4 | Tube OD: ø1/4 in
AS2311F-U02-09AType: Universal | Control: Meter-in | Port: Uni 1/4 | Tube OD: ø5/16 in
AS2311F-U02-11AType: Universal | Control: Meter-in | Port: Uni 1/4 | Tube OD: ø3/8 in
AS3201F-U02-06AType: Elbow | Control: Meter-out | Port: Uni 1/4 | Tube OD: ø6 mm
AS3201F-U02-08AType: Elbow | Control: Meter-out | Port: Uni 1/4 | Tube OD: ø8 mm
AS3201F-U02-10AType: Elbow | Control: Meter-out | Port: Uni 1/4 | Tube OD: ø10 mm
AS3201F-U02-12AType: Elbow | Control: Meter-out | Port: Uni 1/4 | Tube OD: ø12 mm
AS3201F-U02-07AType: Elbow | Control: Meter-out | Port: Uni 1/4 | Tube OD: ø1/4 in
AS3201F-U02-09AType: Elbow | Control: Meter-out | Port: Uni 1/4 | Tube OD: ø5/16 in
AS3201F-U02-11AType: Elbow | Control: Meter-out | Port: Uni 1/4 | Tube OD: ø3/8 in
AS3211F-U02-06AType: Elbow | Control: Meter-in | Port: Uni 1/4 | Tube OD: ø6 mm
AS3211F-U02-08AType: Elbow | Control: Meter-in | Port: Uni 1/4 | Tube OD: ø8 mm
AS3211F-U02-10AType: Elbow | Control: Meter-in | Port: Uni 1/4 | Tube OD: ø10 mm
AS3211F-U02-12AType: Elbow | Control: Meter-in | Port: Uni 1/4 | Tube OD: ø12 mm
AS3211F-U02-07AType: Elbow | Control: Meter-in | Port: Uni 1/4 | Tube OD: ø1/4 in
AS3211F-U02-09AType: Elbow | Control: Meter-in | Port: Uni 1/4 | Tube OD: ø5/16 in
AS3211F-U02-11AType: Elbow | Control: Meter-in | Port: Uni 1/4 | Tube OD: ø3/8 in
AS3301F-U02-06AType: Universal | Control: Meter-out | Port: Uni 1/4 | Tube OD: ø6 mm
AS3301F-U02-08AType: Universal | Control: Meter-out | Port: Uni 1/4 | Tube OD: ø8 mm
AS3301F-U02-10AType: Universal | Control: Meter-out | Port: Uni 1/4 | Tube OD: ø10 mm
AS3301F-U02-12AType: Universal | Control: Meter-out | Port: Uni 1/4 | Tube OD: ø12 mm
AS3301F-U02-07AType: Universal | Control: Meter-out | Port: Uni 1/4 | Tube OD: ø1/4 in
AS3301F-U02-09AType: Universal | Control: Meter-out | Port: Uni 1/4 | Tube OD: ø5/16 in
AS3301F-U02-11AType: Universal | Control: Meter-out | Port: Uni 1/4 | Tube OD: ø3/8 in
AS3311F-U02-06AType: Universal | Control: Meter-in | Port: Uni 1/4 | Tube OD: ø6 mm
AS3311F-U02-08AType: Universal | Control: Meter-in | Port: Uni 1/4 | Tube OD: ø8 mm
AS3311F-U02-10AType: Universal | Control: Meter-in | Port: Uni 1/4 | Tube OD: ø10 mm
AS3311F-U02-12AType: Universal | Control: Meter-in | Port: Uni 1/4 | Tube OD: ø12 mm
AS3311F-U02-07AType: Universal | Control: Meter-in | Port: Uni 1/4 | Tube OD: ø1/4 in
AS3311F-U02-09AType: Universal | Control: Meter-in | Port: Uni 1/4 | Tube OD: ø5/16 in
AS3311F-U02-11AType: Universal | Control: Meter-in | Port: Uni 1/4 | Tube OD: ø3/8 in
AS3201F-U03-06AType: Elbow | Control: Meter-out | Port: Uni 3/8 | Tube OD: ø6 mm
AS3201F-U03-08AType: Elbow | Control: Meter-out | Port: Uni 3/8 | Tube OD: ø8 mm
AS3201F-U03-10AType: Elbow | Control: Meter-out | Port: Uni 3/8 | Tube OD: ø10 mm
AS3201F-U03-12AType: Elbow | Control: Meter-out | Port: Uni 3/8 | Tube OD: ø12 mm
AS3201F-U03-07AType: Elbow | Control: Meter-out | Port: Uni 3/8 | Tube OD: ø1/4 in
AS3201F-U03-09AType: Elbow | Control: Meter-out | Port: Uni 3/8 | Tube OD: ø5/16 in
AS3201F-U03-11AType: Elbow | Control: Meter-out | Port: Uni 3/8 | Tube OD: ø3/8 in
AS3211F-U03-06AType: Elbow | Control: Meter-in | Port: Uni 3/8 | Tube OD: ø6 mm
AS3211F-U03-08AType: Elbow | Control: Meter-in | Port: Uni 3/8 | Tube OD: ø8 mm
AS3211F-U03-10AType: Elbow | Control: Meter-in | Port: Uni 3/8 | Tube OD: ø10 mm
AS3211F-U03-12AType: Elbow | Control: Meter-in | Port: Uni 3/8 | Tube OD: ø12 mm
AS3211F-U03-07AType: Elbow | Control: Meter-in | Port: Uni 3/8 | Tube OD: ø1/4 in
AS3211F-U03-09AType: Elbow | Control: Meter-in | Port: Uni 3/8 | Tube OD: ø5/16 in
AS3211F-U03-11AType: Elbow | Control: Meter-in | Port: Uni 3/8 | Tube OD: ø3/8 in
AS3301F-U03-06AType: Universal | Control: Meter-out | Port: Uni 3/8 | Tube OD: ø6 mm
AS3301F-U03-08AType: Universal | Control: Meter-out | Port: Uni 3/8 | Tube OD: ø8 mm
AS3301F-U03-10AType: Universal | Control: Meter-out | Port: Uni 3/8 | Tube OD: ø10 mm
AS3301F-U03-12AType: Universal | Control: Meter-out | Port: Uni 3/8 | Tube OD: ø12 mm
AS3301F-U03-07AType: Universal | Control: Meter-out | Port: Uni 3/8 | Tube OD: ø1/4 in
AS3301F-U03-09AType: Universal | Control: Meter-out | Port: Uni 3/8 | Tube OD: ø5/16 in
AS3301F-U03-11AType: Universal | Control: Meter-out | Port: Uni 3/8 | Tube OD: ø3/8 in
AS3311F-U03-06AType: Universal | Control: Meter-in | Port: Uni 3/8 | Tube OD: ø6 mm
AS3311F-U03-08AType: Universal | Control: Meter-in | Port: Uni 3/8 | Tube OD: ø8 mm
AS3311F-U03-10AType: Universal | Control: Meter-in | Port: Uni 3/8 | Tube OD: ø10 mm
AS3311F-U03-12AType: Universal | Control: Meter-in | Port: Uni 3/8 | Tube OD: ø12 mm
AS3311F-U03-07AType: Universal | Control: Meter-in | Port: Uni 3/8 | Tube OD: ø1/4 in
AS3311F-U03-09AType: Universal | Control: Meter-in | Port: Uni 3/8 | Tube OD: ø5/16 in
AS3311F-U03-11AType: Universal | Control: Meter-in | Port: Uni 3/8 | Tube OD: ø3/8 in
AS4201F-U04-10AType: Elbow | Control: Meter-out | Port: Uni 1/2 | Tube OD: ø10 mm
AS4201F-U04-12AType: Elbow | Control: Meter-out | Port: Uni 1/2 | Tube OD: ø12 mm
AS4201F-U04-16AType: Elbow | Control: Meter-out | Port: Uni 1/2 | Tube OD: ø16 mm
AS4201F-U04-11AType: Elbow | Control: Meter-out | Port: Uni 1/2 | Tube OD: ø3/8 in
AS4201F-U04-13AType: Elbow | Control: Meter-out | Port: Uni 1/2 | Tube OD: ø1/2 in
AS4211F-U04-10AType: Elbow | Control: Meter-in | Port: Uni 1/2 | Tube OD: ø10 mm
AS4211F-U04-12AType: Elbow | Control: Meter-in | Port: Uni 1/2 | Tube OD: ø12 mm
AS4211F-U04-16AType: Elbow | Control: Meter-in | Port: Uni 1/2 | Tube OD: ø16 mm
AS4211F-U04-11AType: Elbow | Control: Meter-in | Port: Uni 1/2 | Tube OD: ø3/8 in
AS4211F-U04-13AType: Elbow | Control: Meter-in | Port: Uni 1/2 | Tube OD: ø1/2 in
AS4301F-U04-10AType: Universal | Control: Meter-out | Port: Uni 1/2 | Tube OD: ø10 mm
AS4301F-U04-12AType: Universal | Control: Meter-out | Port: Uni 1/2 | Tube OD: ø12 mm
AS4301F-U04-11AType: Universal | Control: Meter-out | Port: Uni 1/2 | Tube OD: ø3/8 in
AS4301F-U04-13AType: Universal | Control: Meter-out | Port: Uni 1/2 | Tube OD: ø1/2 in
AS4311F-U04-10AType: Universal | Control: Meter-in | Port: Uni 1/2 | Tube OD: ø10 mm
AS4311F-U04-12AType: Universal | Control: Meter-in | Port: Uni 1/2 | Tube OD: ø12 mm
AS4311F-U04-11AType: Universal | Control: Meter-in | Port: Uni 1/2 | Tube OD: ø3/8 in
AS4311F-U04-13AType: Universal | Control: Meter-in | Port: Uni 1/2 | Tube OD: ø1/2 in

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
