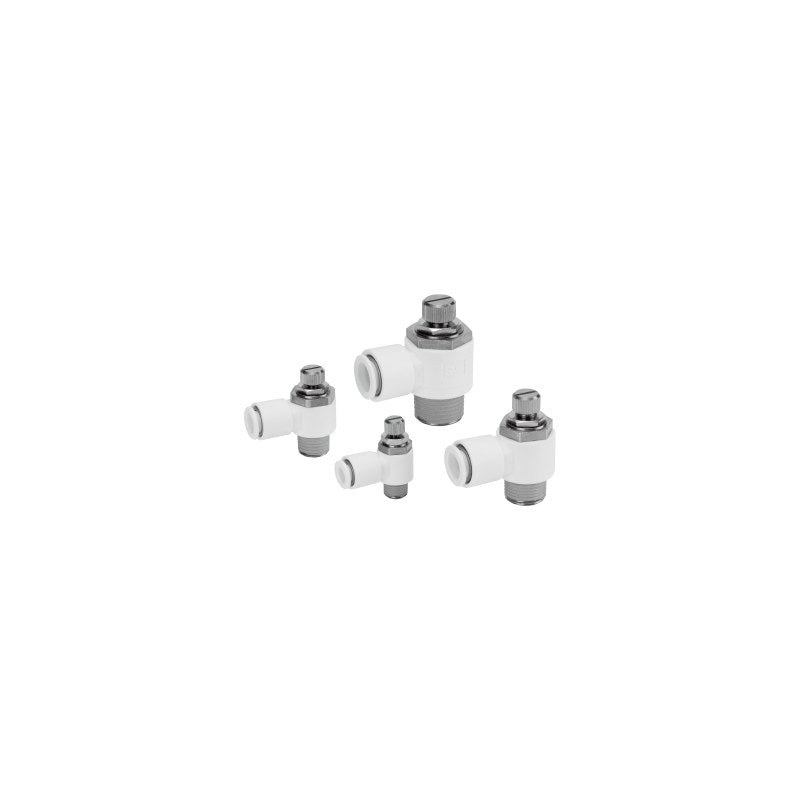

SMC AS-W2 Flame Resistant Speed Controller with One-touch Fitting (Elbow)

SMC AS-W2 Flame Resistant Speed Controller with One-touch Fitting (Elbow)

SMC AS series flame resistant (UL-94 V-0 equivalent) elbow speed controller with one-touch fitting, suffix W2.

Key features

  • Flame resistant resin parts equivalent to UL-94 V-0
  • Compact and lightweight with high flow; tube direction rotates 360°
  • Body sizes 1 to 4 for M5, R1/8, R1/4, R3/8 and R1/2 ports and ø6 to ø12 mm tubing
  • Sealant on R threads as standard; meter-out / meter-in
  • For FR double-layer / triple-layer tubing, FR soft nylon, nylon, soft nylon and polyurethane

Specifications

Fluid Air
Proof pressure 1.5 MPa
Max. operating pressure 1 MPa
Min. operating pressure 0.1 MPa
Ambient and fluid temperature -5 to 60°C (no freezing)
Applicable tubing FR double/triple layer, FR soft nylon, nylon, PU
Type Elbow
Flame resistance UL-94 V-0 equivalent
Source SMC Korea catalog AS W2 (SMCKR_AS______1F-W2.pdf), p. 603-606 (PDF p. 1-4)
AS1201F-M5-06W2 Control: Meter-out | Port: M5x0.8 | Tube OD: ø6 mm
AS1211F-M5-06W2 Control: Meter-in | Port: M5x0.8 | Tube OD: ø6 mm
AS2201F-01-06W2 Control: Meter-out | Port: R1/8 | Tube OD: ø6 mm
AS2211F-01-06W2 Control: Meter-in | Port: R1/8 | Tube OD: ø6 mm
AS2201F-01-08W2 Control: Meter-out | Port: R1/8 | Tube OD: ø8 mm
AS2211F-01-08W2 Control: Meter-in | Port: R1/8 | Tube OD: ø8 mm
AS2201F-01-10W2 Control: Meter-out | Port: R1/8 | Tube OD: ø10 mm
AS2211F-01-10W2 Control: Meter-in | Port: R1/8 | Tube OD: ø10 mm
AS2201F-02-06W2 Control: Meter-out | Port: R1/4 | Tube OD: ø6 mm
AS2211F-02-06W2 Control: Meter-in | Port: R1/4 | Tube OD: ø6 mm
AS2201F-02-08W2 Control: Meter-out | Port: R1/4 | Tube OD: ø8 mm
AS2211F-02-08W2 Control: Meter-in | Port: R1/4 | Tube OD: ø8 mm
AS2201F-02-10W2 Control: Meter-out | Port: R1/4 | Tube OD: ø10 mm
AS2211F-02-10W2 Control: Meter-in | Port: R1/4 | Tube OD: ø10 mm
AS3201F-02-06W2 Control: Meter-out | Port: R1/4 | Tube OD: ø6 mm
AS3211F-02-06W2 Control: Meter-in | Port: R1/4 | Tube OD: ø6 mm
AS3201F-02-08W2 Control: Meter-out | Port: R1/4 | Tube OD: ø8 mm
AS3211F-02-08W2 Control: Meter-in | Port: R1/4 | Tube OD: ø8 mm
AS3201F-02-10W2 Control: Meter-out | Port: R1/4 | Tube OD: ø10 mm
AS3211F-02-10W2 Control: Meter-in | Port: R1/4 | Tube OD: ø10 mm
AS3201F-02-12W2 Control: Meter-out | Port: R1/4 | Tube OD: ø12 mm
AS3211F-02-12W2 Control: Meter-in | Port: R1/4 | Tube OD: ø12 mm
AS3201F-03-06W2 Control: Meter-out | Port: R3/8 | Tube OD: ø6 mm
AS3211F-03-06W2 Control: Meter-in | Port: R3/8 | Tube OD: ø6 mm
AS3201F-03-08W2 Control: Meter-out | Port: R3/8 | Tube OD: ø8 mm
AS3211F-03-08W2 Control: Meter-in | Port: R3/8 | Tube OD: ø8 mm
AS3201F-03-10W2 Control: Meter-out | Port: R3/8 | Tube OD: ø10 mm
AS3211F-03-10W2 Control: Meter-in | Port: R3/8 | Tube OD: ø10 mm
AS3201F-03-12W2 Control: Meter-out | Port: R3/8 | Tube OD: ø12 mm
AS3211F-03-12W2 Control: Meter-in | Port: R3/8 | Tube OD: ø12 mm
AS4201F-04-10W2 Control: Meter-out | Port: R1/2 | Tube OD: ø10 mm
AS4211F-04-10W2 Control: Meter-in | Port: R1/2 | Tube OD: ø10 mm
AS4201F-04-12W2 Control: Meter-out | Port: R1/2 | Tube OD: ø12 mm
AS4211F-04-12W2 Control: Meter-in | Port: R1/2 | Tube OD: ø12 mm
Speed ControllersSMC
34 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC AS-W2 Flame Resistant Speed Controller with One-touch Fitting (Elbow)

Brand SMC·Speed Controllers

Available part numbers (34)

AS1201F-M5-06W2, AS1211F-M5-06W2, AS2201F-01-06W2, AS2211F-01-06W2, AS2201F-01-08W2, AS2211F-01-08W2, AS2201F-01-10W2, AS2211F-01-10W2, AS2201F-02-06W2, AS2211F-02-06W2 + 24 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AS1201F-M5-06W2Control: Meter-out | Port: M5x0.8 | Tube OD: ø6 mm
AS1211F-M5-06W2Control: Meter-in | Port: M5x0.8 | Tube OD: ø6 mm
AS2201F-01-06W2Control: Meter-out | Port: R1/8 | Tube OD: ø6 mm
AS2211F-01-06W2Control: Meter-in | Port: R1/8 | Tube OD: ø6 mm
AS2201F-01-08W2Control: Meter-out | Port: R1/8 | Tube OD: ø8 mm
AS2211F-01-08W2Control: Meter-in | Port: R1/8 | Tube OD: ø8 mm
AS2201F-01-10W2Control: Meter-out | Port: R1/8 | Tube OD: ø10 mm
AS2211F-01-10W2Control: Meter-in | Port: R1/8 | Tube OD: ø10 mm
AS2201F-02-06W2Control: Meter-out | Port: R1/4 | Tube OD: ø6 mm
AS2211F-02-06W2Control: Meter-in | Port: R1/4 | Tube OD: ø6 mm
AS2201F-02-08W2Control: Meter-out | Port: R1/4 | Tube OD: ø8 mm
AS2211F-02-08W2Control: Meter-in | Port: R1/4 | Tube OD: ø8 mm
AS2201F-02-10W2Control: Meter-out | Port: R1/4 | Tube OD: ø10 mm
AS2211F-02-10W2Control: Meter-in | Port: R1/4 | Tube OD: ø10 mm
AS3201F-02-06W2Control: Meter-out | Port: R1/4 | Tube OD: ø6 mm
AS3211F-02-06W2Control: Meter-in | Port: R1/4 | Tube OD: ø6 mm
AS3201F-02-08W2Control: Meter-out | Port: R1/4 | Tube OD: ø8 mm
AS3211F-02-08W2Control: Meter-in | Port: R1/4 | Tube OD: ø8 mm
AS3201F-02-10W2Control: Meter-out | Port: R1/4 | Tube OD: ø10 mm
AS3211F-02-10W2Control: Meter-in | Port: R1/4 | Tube OD: ø10 mm
AS3201F-02-12W2Control: Meter-out | Port: R1/4 | Tube OD: ø12 mm
AS3211F-02-12W2Control: Meter-in | Port: R1/4 | Tube OD: ø12 mm
AS3201F-03-06W2Control: Meter-out | Port: R3/8 | Tube OD: ø6 mm
AS3211F-03-06W2Control: Meter-in | Port: R3/8 | Tube OD: ø6 mm
AS3201F-03-08W2Control: Meter-out | Port: R3/8 | Tube OD: ø8 mm
AS3211F-03-08W2Control: Meter-in | Port: R3/8 | Tube OD: ø8 mm
AS3201F-03-10W2Control: Meter-out | Port: R3/8 | Tube OD: ø10 mm
AS3211F-03-10W2Control: Meter-in | Port: R3/8 | Tube OD: ø10 mm
AS3201F-03-12W2Control: Meter-out | Port: R3/8 | Tube OD: ø12 mm
AS3211F-03-12W2Control: Meter-in | Port: R3/8 | Tube OD: ø12 mm
AS4201F-04-10W2Control: Meter-out | Port: R1/2 | Tube OD: ø10 mm
AS4211F-04-10W2Control: Meter-in | Port: R1/2 | Tube OD: ø10 mm
AS4201F-04-12W2Control: Meter-out | Port: R1/2 | Tube OD: ø12 mm
AS4211F-04-12W2Control: Meter-in | Port: R1/2 | Tube OD: ø12 mm
