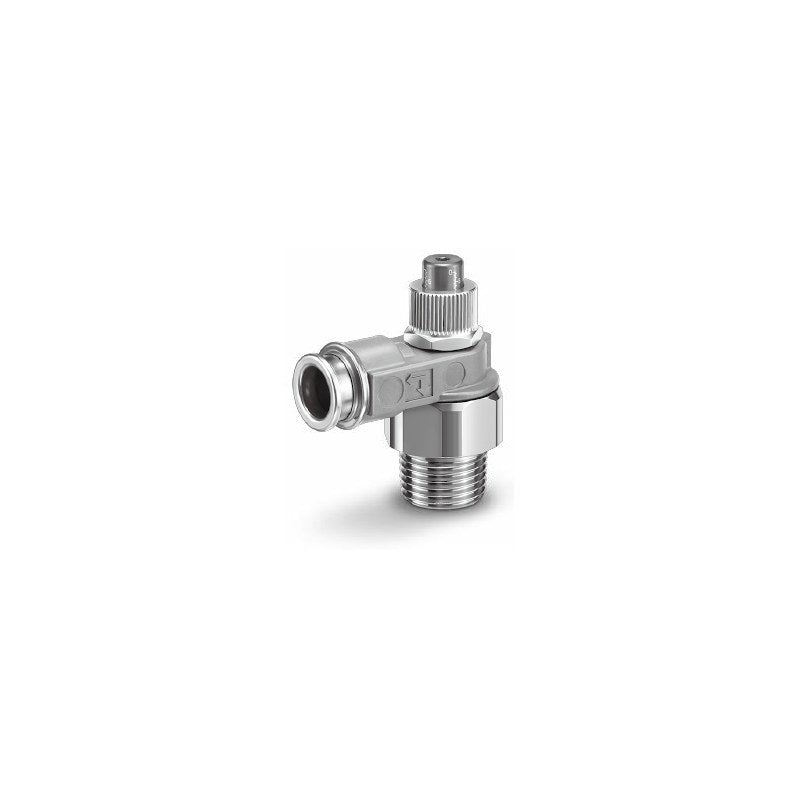

SMC ASB-H Metal Speed Controller with Scale, Hex Wrench Adjust

SMC ASB-H Metal Speed Controller with Scale, Hex Wrench Adjust

SMC ASB-H series all-metal elbow speed controller with one-touch fitting and a printed needle scale, adjusted with a hex wrench so flow can be preset and managed numerically.

Key features

  • Scale printed on the needle (0 = fully closed, line per needle turn) for numeric flow management
  • Flow can be set before cylinder installation, reducing work hours and setting errors
  • Hex wrench adjustment with needle lock nut prevents careless operation and drift
  • General environment (H, Ni plated) and welding environment (BH, unplated) versions
  • Body sizes 1 to 4 for M5, R1/8, R1/4, R3/8 and R1/2 ports, tube OD ø4 to ø12 mm
  • NPT (N), G (G) threads and inch tubes also offered

Specifications

Fluid Air
Proof pressure 1.5 MPa
Max. operating pressure 1 MPa
Min. operating pressure 0.1 MPa
Ambient and fluid temperature -5 to 60°C (no freezing)
Applicable tubing FEP, PFA, nylon, soft nylon, polyurethane, polyolefin
Exterior All-metal (brass), resistant to spatter, dust and UV
Size range M5, 1/8, 1/4, 3/8, 1/2
Body type Elbow
Adjustment Hex wrench with printed scale, needle lock nut
Source SMC Korea catalog CAT.KS20-289A (SMCKR_ASB-H.pdf), p. 1-7
ASB1201-M5-04H Control: Meter-out | Port: M5x0.8 | Tube OD: ø4 mm | Seal: Gasket seal | Version: General (H), Ni plated
ASB1201-M5-04BH Control: Meter-out | Port: M5x0.8 | Tube OD: ø4 mm | Seal: Gasket seal | Version: Welding (BH), unplated
ASB1201-M5-06H Control: Meter-out | Port: M5x0.8 | Tube OD: ø6 mm | Seal: Gasket seal | Version: General (H), Ni plated
ASB1201-M5-06BH Control: Meter-out | Port: M5x0.8 | Tube OD: ø6 mm | Seal: Gasket seal | Version: Welding (BH), unplated
ASB1211-M5-04H Control: Meter-in | Port: M5x0.8 | Tube OD: ø4 mm | Seal: Gasket seal | Version: General (H), Ni plated
ASB1211-M5-04BH Control: Meter-in | Port: M5x0.8 | Tube OD: ø4 mm | Seal: Gasket seal | Version: Welding (BH), unplated
ASB1211-M5-06H Control: Meter-in | Port: M5x0.8 | Tube OD: ø6 mm | Seal: Gasket seal | Version: General (H), Ni plated
ASB1211-M5-06BH Control: Meter-in | Port: M5x0.8 | Tube OD: ø6 mm | Seal: Gasket seal | Version: Welding (BH), unplated
ASB2201-01-06H Control: Meter-out | Port: R1/8 | Tube OD: ø6 mm | Seal: No sealant | Version: General (H), Ni plated
ASB2201-01-06BH Control: Meter-out | Port: R1/8 | Tube OD: ø6 mm | Seal: No sealant | Version: Welding (BH), unplated
ASB2201-01-06SH Control: Meter-out | Port: R1/8 | Tube OD: ø6 mm | Seal: Sealant (S) | Version: General (H), Ni plated
ASB2201-01-06SBH Control: Meter-out | Port: R1/8 | Tube OD: ø6 mm | Seal: Sealant (S) | Version: Welding (BH), unplated
ASB2201-01-08H Control: Meter-out | Port: R1/8 | Tube OD: ø8 mm | Seal: No sealant | Version: General (H), Ni plated
ASB2201-01-08BH Control: Meter-out | Port: R1/8 | Tube OD: ø8 mm | Seal: No sealant | Version: Welding (BH), unplated
ASB2201-01-08SH Control: Meter-out | Port: R1/8 | Tube OD: ø8 mm | Seal: Sealant (S) | Version: General (H), Ni plated
ASB2201-01-08SBH Control: Meter-out | Port: R1/8 | Tube OD: ø8 mm | Seal: Sealant (S) | Version: Welding (BH), unplated
ASB2211-01-06H Control: Meter-in | Port: R1/8 | Tube OD: ø6 mm | Seal: No sealant | Version: General (H), Ni plated
ASB2211-01-06BH Control: Meter-in | Port: R1/8 | Tube OD: ø6 mm | Seal: No sealant | Version: Welding (BH), unplated
ASB2211-01-06SH Control: Meter-in | Port: R1/8 | Tube OD: ø6 mm | Seal: Sealant (S) | Version: General (H), Ni plated
ASB2211-01-06SBH Control: Meter-in | Port: R1/8 | Tube OD: ø6 mm | Seal: Sealant (S) | Version: Welding (BH), unplated
ASB2211-01-08H Control: Meter-in | Port: R1/8 | Tube OD: ø8 mm | Seal: No sealant | Version: General (H), Ni plated
ASB2211-01-08BH Control: Meter-in | Port: R1/8 | Tube OD: ø8 mm | Seal: No sealant | Version: Welding (BH), unplated
ASB2211-01-08SH Control: Meter-in | Port: R1/8 | Tube OD: ø8 mm | Seal: Sealant (S) | Version: General (H), Ni plated
ASB2211-01-08SBH Control: Meter-in | Port: R1/8 | Tube OD: ø8 mm | Seal: Sealant (S) | Version: Welding (BH), unplated
ASB2201-02-06H Control: Meter-out | Port: R1/4 | Tube OD: ø6 mm | Seal: No sealant | Version: General (H), Ni plated
ASB2201-02-06BH Control: Meter-out | Port: R1/4 | Tube OD: ø6 mm | Seal: No sealant | Version: Welding (BH), unplated
ASB2201-02-06SH Control: Meter-out | Port: R1/4 | Tube OD: ø6 mm | Seal: Sealant (S) | Version: General (H), Ni plated
ASB2201-02-06SBH Control: Meter-out | Port: R1/4 | Tube OD: ø6 mm | Seal: Sealant (S) | Version: Welding (BH), unplated
ASB2201-02-08H Control: Meter-out | Port: R1/4 | Tube OD: ø8 mm | Seal: No sealant | Version: General (H), Ni plated
ASB2201-02-08BH Control: Meter-out | Port: R1/4 | Tube OD: ø8 mm | Seal: No sealant | Version: Welding (BH), unplated
ASB2201-02-08SH Control: Meter-out | Port: R1/4 | Tube OD: ø8 mm | Seal: Sealant (S) | Version: General (H), Ni plated
ASB2201-02-08SBH Control: Meter-out | Port: R1/4 | Tube OD: ø8 mm | Seal: Sealant (S) | Version: Welding (BH), unplated
ASB2201-02-10H Control: Meter-out | Port: R1/4 | Tube OD: ø10 mm | Seal: No sealant | Version: General (H), Ni plated
ASB2201-02-10BH Control: Meter-out | Port: R1/4 | Tube OD: ø10 mm | Seal: No sealant | Version: Welding (BH), unplated
ASB2201-02-10SH Control: Meter-out | Port: R1/4 | Tube OD: ø10 mm | Seal: Sealant (S) | Version: General (H), Ni plated
ASB2201-02-10SBH Control: Meter-out | Port: R1/4 | Tube OD: ø10 mm | Seal: Sealant (S) | Version: Welding (BH), unplated
ASB2211-02-06H Control: Meter-in | Port: R1/4 | Tube OD: ø6 mm | Seal: No sealant | Version: General (H), Ni plated
ASB2211-02-06BH Control: Meter-in | Port: R1/4 | Tube OD: ø6 mm | Seal: No sealant | Version: Welding (BH), unplated
ASB2211-02-06SH Control: Meter-in | Port: R1/4 | Tube OD: ø6 mm | Seal: Sealant (S) | Version: General (H), Ni plated
ASB2211-02-06SBH Control: Meter-in | Port: R1/4 | Tube OD: ø6 mm | Seal: Sealant (S) | Version: Welding (BH), unplated
ASB2211-02-08H Control: Meter-in | Port: R1/4 | Tube OD: ø8 mm | Seal: No sealant | Version: General (H), Ni plated
ASB2211-02-08BH Control: Meter-in | Port: R1/4 | Tube OD: ø8 mm | Seal: No sealant | Version: Welding (BH), unplated
ASB2211-02-08SH Control: Meter-in | Port: R1/4 | Tube OD: ø8 mm | Seal: Sealant (S) | Version: General (H), Ni plated
ASB2211-02-08SBH Control: Meter-in | Port: R1/4 | Tube OD: ø8 mm | Seal: Sealant (S) | Version: Welding (BH), unplated
ASB2211-02-10H Control: Meter-in | Port: R1/4 | Tube OD: ø10 mm | Seal: No sealant | Version: General (H), Ni plated
ASB2211-02-10BH Control: Meter-in | Port: R1/4 | Tube OD: ø10 mm | Seal: No sealant | Version: Welding (BH), unplated
ASB2211-02-10SH Control: Meter-in | Port: R1/4 | Tube OD: ø10 mm | Seal: Sealant (S) | Version: General (H), Ni plated
ASB2211-02-10SBH Control: Meter-in | Port: R1/4 | Tube OD: ø10 mm | Seal: Sealant (S) | Version: Welding (BH), unplated
ASB3201-03-08H Control: Meter-out | Port: R3/8 | Tube OD: ø8 mm | Seal: No sealant | Version: General (H), Ni plated
ASB3201-03-08BH Control: Meter-out | Port: R3/8 | Tube OD: ø8 mm | Seal: No sealant | Version: Welding (BH), unplated
ASB3201-03-08SH Control: Meter-out | Port: R3/8 | Tube OD: ø8 mm | Seal: Sealant (S) | Version: General (H), Ni plated
ASB3201-03-08SBH Control: Meter-out | Port: R3/8 | Tube OD: ø8 mm | Seal: Sealant (S) | Version: Welding (BH), unplated
ASB3201-03-10H Control: Meter-out | Port: R3/8 | Tube OD: ø10 mm | Seal: No sealant | Version: General (H), Ni plated
ASB3201-03-10BH Control: Meter-out | Port: R3/8 | Tube OD: ø10 mm | Seal: No sealant | Version: Welding (BH), unplated
ASB3201-03-10SH Control: Meter-out | Port: R3/8 | Tube OD: ø10 mm | Seal: Sealant (S) | Version: General (H), Ni plated
ASB3201-03-10SBH Control: Meter-out | Port: R3/8 | Tube OD: ø10 mm | Seal: Sealant (S) | Version: Welding (BH), unplated
ASB3211-03-08H Control: Meter-in | Port: R3/8 | Tube OD: ø8 mm | Seal: No sealant | Version: General (H), Ni plated
ASB3211-03-08BH Control: Meter-in | Port: R3/8 | Tube OD: ø8 mm | Seal: No sealant | Version: Welding (BH), unplated
ASB3211-03-08SH Control: Meter-in | Port: R3/8 | Tube OD: ø8 mm | Seal: Sealant (S) | Version: General (H), Ni plated
ASB3211-03-08SBH Control: Meter-in | Port: R3/8 | Tube OD: ø8 mm | Seal: Sealant (S) | Version: Welding (BH), unplated
ASB3211-03-10H Control: Meter-in | Port: R3/8 | Tube OD: ø10 mm | Seal: No sealant | Version: General (H), Ni plated
ASB3211-03-10BH Control: Meter-in | Port: R3/8 | Tube OD: ø10 mm | Seal: No sealant | Version: Welding (BH), unplated
ASB3211-03-10SH Control: Meter-in | Port: R3/8 | Tube OD: ø10 mm | Seal: Sealant (S) | Version: General (H), Ni plated
ASB3211-03-10SBH Control: Meter-in | Port: R3/8 | Tube OD: ø10 mm | Seal: Sealant (S) | Version: Welding (BH), unplated
ASB4201-04-10H Control: Meter-out | Port: R1/2 | Tube OD: ø10 mm | Seal: No sealant | Version: General (H), Ni plated
ASB4201-04-10BH Control: Meter-out | Port: R1/2 | Tube OD: ø10 mm | Seal: No sealant | Version: Welding (BH), unplated
ASB4201-04-10SH Control: Meter-out | Port: R1/2 | Tube OD: ø10 mm | Seal: Sealant (S) | Version: General (H), Ni plated
ASB4201-04-10SBH Control: Meter-out | Port: R1/2 | Tube OD: ø10 mm | Seal: Sealant (S) | Version: Welding (BH), unplated
ASB4201-04-12H Control: Meter-out | Port: R1/2 | Tube OD: ø12 mm | Seal: No sealant | Version: General (H), Ni plated
ASB4201-04-12BH Control: Meter-out | Port: R1/2 | Tube OD: ø12 mm | Seal: No sealant | Version: Welding (BH), unplated
ASB4201-04-12SH Control: Meter-out | Port: R1/2 | Tube OD: ø12 mm | Seal: Sealant (S) | Version: General (H), Ni plated
ASB4201-04-12SBH Control: Meter-out | Port: R1/2 | Tube OD: ø12 mm | Seal: Sealant (S) | Version: Welding (BH), unplated
ASB4211-04-10H Control: Meter-in | Port: R1/2 | Tube OD: ø10 mm | Seal: No sealant | Version: General (H), Ni plated
ASB4211-04-10BH Control: Meter-in | Port: R1/2 | Tube OD: ø10 mm | Seal: No sealant | Version: Welding (BH), unplated
ASB4211-04-10SH Control: Meter-in | Port: R1/2 | Tube OD: ø10 mm | Seal: Sealant (S) | Version: General (H), Ni plated
ASB4211-04-10SBH Control: Meter-in | Port: R1/2 | Tube OD: ø10 mm | Seal: Sealant (S) | Version: Welding (BH), unplated
ASB4211-04-12H Control: Meter-in | Port: R1/2 | Tube OD: ø12 mm | Seal: No sealant | Version: General (H), Ni plated
ASB4211-04-12BH Control: Meter-in | Port: R1/2 | Tube OD: ø12 mm | Seal: No sealant | Version: Welding (BH), unplated
ASB4211-04-12SH Control: Meter-in | Port: R1/2 | Tube OD: ø12 mm | Seal: Sealant (S) | Version: General (H), Ni plated
ASB4211-04-12SBH Control: Meter-in | Port: R1/2 | Tube OD: ø12 mm | Seal: Sealant (S) | Version: Welding (BH), unplated
Speed ControllersSMC
80 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC ASB-H Metal Speed Controller with Scale, Hex Wrench Adjust

Brand SMC·Speed Controllers

Available part numbers (80)

ASB1201-M5-04H, ASB1201-M5-04BH, ASB1201-M5-06H, ASB1201-M5-06BH, ASB1211-M5-04H, ASB1211-M5-04BH, ASB1211-M5-06H, ASB1211-M5-06BH, ASB2201-01-06H, ASB2201-01-06BH + 70 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ASB1201-M5-04HControl: Meter-out | Port: M5x0.8 | Tube OD: ø4 mm | Seal: Gasket seal | Version: General (H), Ni plated
ASB1201-M5-04BHControl: Meter-out | Port: M5x0.8 | Tube OD: ø4 mm | Seal: Gasket seal | Version: Welding (BH), unplated
ASB1201-M5-06HControl: Meter-out | Port: M5x0.8 | Tube OD: ø6 mm | Seal: Gasket seal | Version: General (H), Ni plated
ASB1201-M5-06BHControl: Meter-out | Port: M5x0.8 | Tube OD: ø6 mm | Seal: Gasket seal | Version: Welding (BH), unplated
ASB1211-M5-04HControl: Meter-in | Port: M5x0.8 | Tube OD: ø4 mm | Seal: Gasket seal | Version: General (H), Ni plated
ASB1211-M5-04BHControl: Meter-in | Port: M5x0.8 | Tube OD: ø4 mm | Seal: Gasket seal | Version: Welding (BH), unplated
ASB1211-M5-06HControl: Meter-in | Port: M5x0.8 | Tube OD: ø6 mm | Seal: Gasket seal | Version: General (H), Ni plated
ASB1211-M5-06BHControl: Meter-in | Port: M5x0.8 | Tube OD: ø6 mm | Seal: Gasket seal | Version: Welding (BH), unplated
ASB2201-01-06HControl: Meter-out | Port: R1/8 | Tube OD: ø6 mm | Seal: No sealant | Version: General (H), Ni plated
ASB2201-01-06BHControl: Meter-out | Port: R1/8 | Tube OD: ø6 mm | Seal: No sealant | Version: Welding (BH), unplated
ASB2201-01-06SHControl: Meter-out | Port: R1/8 | Tube OD: ø6 mm | Seal: Sealant (S) | Version: General (H), Ni plated
ASB2201-01-06SBHControl: Meter-out | Port: R1/8 | Tube OD: ø6 mm | Seal: Sealant (S) | Version: Welding (BH), unplated
ASB2201-01-08HControl: Meter-out | Port: R1/8 | Tube OD: ø8 mm | Seal: No sealant | Version: General (H), Ni plated
ASB2201-01-08BHControl: Meter-out | Port: R1/8 | Tube OD: ø8 mm | Seal: No sealant | Version: Welding (BH), unplated
ASB2201-01-08SHControl: Meter-out | Port: R1/8 | Tube OD: ø8 mm | Seal: Sealant (S) | Version: General (H), Ni plated
ASB2201-01-08SBHControl: Meter-out | Port: R1/8 | Tube OD: ø8 mm | Seal: Sealant (S) | Version: Welding (BH), unplated
ASB2211-01-06HControl: Meter-in | Port: R1/8 | Tube OD: ø6 mm | Seal: No sealant | Version: General (H), Ni plated
ASB2211-01-06BHControl: Meter-in | Port: R1/8 | Tube OD: ø6 mm | Seal: No sealant | Version: Welding (BH), unplated
ASB2211-01-06SHControl: Meter-in | Port: R1/8 | Tube OD: ø6 mm | Seal: Sealant (S) | Version: General (H), Ni plated
ASB2211-01-06SBHControl: Meter-in | Port: R1/8 | Tube OD: ø6 mm | Seal: Sealant (S) | Version: Welding (BH), unplated
ASB2211-01-08HControl: Meter-in | Port: R1/8 | Tube OD: ø8 mm | Seal: No sealant | Version: General (H), Ni plated
ASB2211-01-08BHControl: Meter-in | Port: R1/8 | Tube OD: ø8 mm | Seal: No sealant | Version: Welding (BH), unplated
ASB2211-01-08SHControl: Meter-in | Port: R1/8 | Tube OD: ø8 mm | Seal: Sealant (S) | Version: General (H), Ni plated
ASB2211-01-08SBHControl: Meter-in | Port: R1/8 | Tube OD: ø8 mm | Seal: Sealant (S) | Version: Welding (BH), unplated
ASB2201-02-06HControl: Meter-out | Port: R1/4 | Tube OD: ø6 mm | Seal: No sealant | Version: General (H), Ni plated
ASB2201-02-06BHControl: Meter-out | Port: R1/4 | Tube OD: ø6 mm | Seal: No sealant | Version: Welding (BH), unplated
ASB2201-02-06SHControl: Meter-out | Port: R1/4 | Tube OD: ø6 mm | Seal: Sealant (S) | Version: General (H), Ni plated
ASB2201-02-06SBHControl: Meter-out | Port: R1/4 | Tube OD: ø6 mm | Seal: Sealant (S) | Version: Welding (BH), unplated
ASB2201-02-08HControl: Meter-out | Port: R1/4 | Tube OD: ø8 mm | Seal: No sealant | Version: General (H), Ni plated
ASB2201-02-08BHControl: Meter-out | Port: R1/4 | Tube OD: ø8 mm | Seal: No sealant | Version: Welding (BH), unplated
ASB2201-02-08SHControl: Meter-out | Port: R1/4 | Tube OD: ø8 mm | Seal: Sealant (S) | Version: General (H), Ni plated
ASB2201-02-08SBHControl: Meter-out | Port: R1/4 | Tube OD: ø8 mm | Seal: Sealant (S) | Version: Welding (BH), unplated
ASB2201-02-10HControl: Meter-out | Port: R1/4 | Tube OD: ø10 mm | Seal: No sealant | Version: General (H), Ni plated
ASB2201-02-10BHControl: Meter-out | Port: R1/4 | Tube OD: ø10 mm | Seal: No sealant | Version: Welding (BH), unplated
ASB2201-02-10SHControl: Meter-out | Port: R1/4 | Tube OD: ø10 mm | Seal: Sealant (S) | Version: General (H), Ni plated
ASB2201-02-10SBHControl: Meter-out | Port: R1/4 | Tube OD: ø10 mm | Seal: Sealant (S) | Version: Welding (BH), unplated
ASB2211-02-06HControl: Meter-in | Port: R1/4 | Tube OD: ø6 mm | Seal: No sealant | Version: General (H), Ni plated
ASB2211-02-06BHControl: Meter-in | Port: R1/4 | Tube OD: ø6 mm | Seal: No sealant | Version: Welding (BH), unplated
ASB2211-02-06SHControl: Meter-in | Port: R1/4 | Tube OD: ø6 mm | Seal: Sealant (S) | Version: General (H), Ni plated
ASB2211-02-06SBHControl: Meter-in | Port: R1/4 | Tube OD: ø6 mm | Seal: Sealant (S) | Version: Welding (BH), unplated
ASB2211-02-08HControl: Meter-in | Port: R1/4 | Tube OD: ø8 mm | Seal: No sealant | Version: General (H), Ni plated
ASB2211-02-08BHControl: Meter-in | Port: R1/4 | Tube OD: ø8 mm | Seal: No sealant | Version: Welding (BH), unplated
ASB2211-02-08SHControl: Meter-in | Port: R1/4 | Tube OD: ø8 mm | Seal: Sealant (S) | Version: General (H), Ni plated
ASB2211-02-08SBHControl: Meter-in | Port: R1/4 | Tube OD: ø8 mm | Seal: Sealant (S) | Version: Welding (BH), unplated
ASB2211-02-10HControl: Meter-in | Port: R1/4 | Tube OD: ø10 mm | Seal: No sealant | Version: General (H), Ni plated
ASB2211-02-10BHControl: Meter-in | Port: R1/4 | Tube OD: ø10 mm | Seal: No sealant | Version: Welding (BH), unplated
ASB2211-02-10SHControl: Meter-in | Port: R1/4 | Tube OD: ø10 mm | Seal: Sealant (S) | Version: General (H), Ni plated
ASB2211-02-10SBHControl: Meter-in | Port: R1/4 | Tube OD: ø10 mm | Seal: Sealant (S) | Version: Welding (BH), unplated
ASB3201-03-08HControl: Meter-out | Port: R3/8 | Tube OD: ø8 mm | Seal: No sealant | Version: General (H), Ni plated
ASB3201-03-08BHControl: Meter-out | Port: R3/8 | Tube OD: ø8 mm | Seal: No sealant | Version: Welding (BH), unplated
ASB3201-03-08SHControl: Meter-out | Port: R3/8 | Tube OD: ø8 mm | Seal: Sealant (S) | Version: General (H), Ni plated
ASB3201-03-08SBHControl: Meter-out | Port: R3/8 | Tube OD: ø8 mm | Seal: Sealant (S) | Version: Welding (BH), unplated
ASB3201-03-10HControl: Meter-out | Port: R3/8 | Tube OD: ø10 mm | Seal: No sealant | Version: General (H), Ni plated
ASB3201-03-10BHControl: Meter-out | Port: R3/8 | Tube OD: ø10 mm | Seal: No sealant | Version: Welding (BH), unplated
ASB3201-03-10SHControl: Meter-out | Port: R3/8 | Tube OD: ø10 mm | Seal: Sealant (S) | Version: General (H), Ni plated
ASB3201-03-10SBHControl: Meter-out | Port: R3/8 | Tube OD: ø10 mm | Seal: Sealant (S) | Version: Welding (BH), unplated
ASB3211-03-08HControl: Meter-in | Port: R3/8 | Tube OD: ø8 mm | Seal: No sealant | Version: General (H), Ni plated
ASB3211-03-08BHControl: Meter-in | Port: R3/8 | Tube OD: ø8 mm | Seal: No sealant | Version: Welding (BH), unplated
ASB3211-03-08SHControl: Meter-in | Port: R3/8 | Tube OD: ø8 mm | Seal: Sealant (S) | Version: General (H), Ni plated
ASB3211-03-08SBHControl: Meter-in | Port: R3/8 | Tube OD: ø8 mm | Seal: Sealant (S) | Version: Welding (BH), unplated
ASB3211-03-10HControl: Meter-in | Port: R3/8 | Tube OD: ø10 mm | Seal: No sealant | Version: General (H), Ni plated
ASB3211-03-10BHControl: Meter-in | Port: R3/8 | Tube OD: ø10 mm | Seal: No sealant | Version: Welding (BH), unplated
ASB3211-03-10SHControl: Meter-in | Port: R3/8 | Tube OD: ø10 mm | Seal: Sealant (S) | Version: General (H), Ni plated
ASB3211-03-10SBHControl: Meter-in | Port: R3/8 | Tube OD: ø10 mm | Seal: Sealant (S) | Version: Welding (BH), unplated
ASB4201-04-10HControl: Meter-out | Port: R1/2 | Tube OD: ø10 mm | Seal: No sealant | Version: General (H), Ni plated
ASB4201-04-10BHControl: Meter-out | Port: R1/2 | Tube OD: ø10 mm | Seal: No sealant | Version: Welding (BH), unplated
ASB4201-04-10SHControl: Meter-out | Port: R1/2 | Tube OD: ø10 mm | Seal: Sealant (S) | Version: General (H), Ni plated
ASB4201-04-10SBHControl: Meter-out | Port: R1/2 | Tube OD: ø10 mm | Seal: Sealant (S) | Version: Welding (BH), unplated
ASB4201-04-12HControl: Meter-out | Port: R1/2 | Tube OD: ø12 mm | Seal: No sealant | Version: General (H), Ni plated
ASB4201-04-12BHControl: Meter-out | Port: R1/2 | Tube OD: ø12 mm | Seal: No sealant | Version: Welding (BH), unplated
ASB4201-04-12SHControl: Meter-out | Port: R1/2 | Tube OD: ø12 mm | Seal: Sealant (S) | Version: General (H), Ni plated
ASB4201-04-12SBHControl: Meter-out | Port: R1/2 | Tube OD: ø12 mm | Seal: Sealant (S) | Version: Welding (BH), unplated
ASB4211-04-10HControl: Meter-in | Port: R1/2 | Tube OD: ø10 mm | Seal: No sealant | Version: General (H), Ni plated
ASB4211-04-10BHControl: Meter-in | Port: R1/2 | Tube OD: ø10 mm | Seal: No sealant | Version: Welding (BH), unplated
ASB4211-04-10SHControl: Meter-in | Port: R1/2 | Tube OD: ø10 mm | Seal: Sealant (S) | Version: General (H), Ni plated
ASB4211-04-10SBHControl: Meter-in | Port: R1/2 | Tube OD: ø10 mm | Seal: Sealant (S) | Version: Welding (BH), unplated
ASB4211-04-12HControl: Meter-in | Port: R1/2 | Tube OD: ø12 mm | Seal: No sealant | Version: General (H), Ni plated
ASB4211-04-12BHControl: Meter-in | Port: R1/2 | Tube OD: ø12 mm | Seal: No sealant | Version: Welding (BH), unplated
ASB4211-04-12SHControl: Meter-in | Port: R1/2 | Tube OD: ø12 mm | Seal: Sealant (S) | Version: General (H), Ni plated
ASB4211-04-12SBHControl: Meter-in | Port: R1/2 | Tube OD: ø12 mm | Seal: Sealant (S) | Version: Welding (BH), unplated

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
