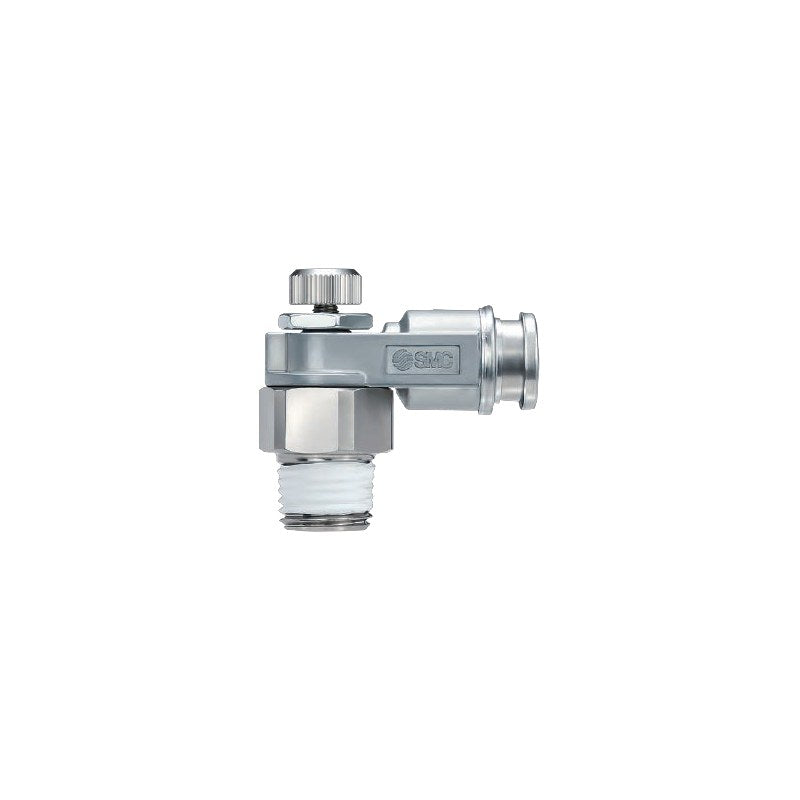

SMC ASB Metal Speed Controller with One-touch Fitting (Elbow)

SMC ASB Metal Speed Controller with One-touch Fitting (Elbow)

SMC ASB series all-metal elbow speed controller with built-in one-touch fitting, for meter-out or meter-in speed control of pneumatic cylinders in welding, dusty or UV-exposed environments.

Key features

  • Entire exterior is metal for use near weld spatter, dust and UV light
  • Tube connection raised for easy tube insertion/removal; about 28% lighter than the AS metal-body type
  • Body sizes 1 to 4 for M5, R1/8, R1/4, R3/8 and R1/2 ports, tube OD ø4 to ø12 mm
  • Electroless nickel plated standard; unplated version (B) recommended for weld spatter environments
  • Meter-out/meter-in identified by lock nut finish; round lock nut option (-J) available
  • NPT (N) and G (G, packing seal) threads and inch tubes also offered; silicone spatter cover sold separately

Specifications

Fluid Air
Proof pressure 1.5 MPa
Max. operating pressure 1 MPa
Min. operating pressure 0.1 MPa
Ambient and fluid temperature -5 to 60°C (no freezing)
Applicable tubing FEP, PFA, nylon, soft nylon, polyurethane, polyolefin
Exterior All-metal (brass), resistant to spatter, dust and UV
Size range M5, 1/8, 1/4, 3/8, 1/2
Body type Elbow
Source SMC Korea catalog CAT.KS20-266A (SMCKR_ASB.pdf), p. 1-6
ASB1201-M5-04 Control: Meter-out | Port: M5x0.8 | Tube OD: ø4 mm | Seal: Gasket seal | Version: Electroless Ni plated
ASB1201-M5-04B Control: Meter-out | Port: M5x0.8 | Tube OD: ø4 mm | Seal: Gasket seal | Version: Unplated brass (B)
ASB1201-M5-06 Control: Meter-out | Port: M5x0.8 | Tube OD: ø6 mm | Seal: Gasket seal | Version: Electroless Ni plated
ASB1201-M5-06B Control: Meter-out | Port: M5x0.8 | Tube OD: ø6 mm | Seal: Gasket seal | Version: Unplated brass (B)
ASB1211-M5-04 Control: Meter-in | Port: M5x0.8 | Tube OD: ø4 mm | Seal: Gasket seal | Version: Electroless Ni plated
ASB1211-M5-04B Control: Meter-in | Port: M5x0.8 | Tube OD: ø4 mm | Seal: Gasket seal | Version: Unplated brass (B)
ASB1211-M5-06 Control: Meter-in | Port: M5x0.8 | Tube OD: ø6 mm | Seal: Gasket seal | Version: Electroless Ni plated
ASB1211-M5-06B Control: Meter-in | Port: M5x0.8 | Tube OD: ø6 mm | Seal: Gasket seal | Version: Unplated brass (B)
ASB2201-01-06 Control: Meter-out | Port: R1/8 | Tube OD: ø6 mm | Seal: No sealant | Version: Electroless Ni plated
ASB2201-01-06B Control: Meter-out | Port: R1/8 | Tube OD: ø6 mm | Seal: No sealant | Version: Unplated brass (B)
ASB2201-01-06S Control: Meter-out | Port: R1/8 | Tube OD: ø6 mm | Seal: Sealant (S) | Version: Electroless Ni plated
ASB2201-01-06SB Control: Meter-out | Port: R1/8 | Tube OD: ø6 mm | Seal: Sealant (S) | Version: Unplated brass (B)
ASB2201-01-08 Control: Meter-out | Port: R1/8 | Tube OD: ø8 mm | Seal: No sealant | Version: Electroless Ni plated
ASB2201-01-08B Control: Meter-out | Port: R1/8 | Tube OD: ø8 mm | Seal: No sealant | Version: Unplated brass (B)
ASB2201-01-08S Control: Meter-out | Port: R1/8 | Tube OD: ø8 mm | Seal: Sealant (S) | Version: Electroless Ni plated
ASB2201-01-08SB Control: Meter-out | Port: R1/8 | Tube OD: ø8 mm | Seal: Sealant (S) | Version: Unplated brass (B)
ASB2211-01-06 Control: Meter-in | Port: R1/8 | Tube OD: ø6 mm | Seal: No sealant | Version: Electroless Ni plated
ASB2211-01-06B Control: Meter-in | Port: R1/8 | Tube OD: ø6 mm | Seal: No sealant | Version: Unplated brass (B)
ASB2211-01-06S Control: Meter-in | Port: R1/8 | Tube OD: ø6 mm | Seal: Sealant (S) | Version: Electroless Ni plated
ASB2211-01-06SB Control: Meter-in | Port: R1/8 | Tube OD: ø6 mm | Seal: Sealant (S) | Version: Unplated brass (B)
ASB2211-01-08 Control: Meter-in | Port: R1/8 | Tube OD: ø8 mm | Seal: No sealant | Version: Electroless Ni plated
ASB2211-01-08B Control: Meter-in | Port: R1/8 | Tube OD: ø8 mm | Seal: No sealant | Version: Unplated brass (B)
ASB2211-01-08S Control: Meter-in | Port: R1/8 | Tube OD: ø8 mm | Seal: Sealant (S) | Version: Electroless Ni plated
ASB2211-01-08SB Control: Meter-in | Port: R1/8 | Tube OD: ø8 mm | Seal: Sealant (S) | Version: Unplated brass (B)
ASB2201-02-06 Control: Meter-out | Port: R1/4 | Tube OD: ø6 mm | Seal: No sealant | Version: Electroless Ni plated
ASB2201-02-06B Control: Meter-out | Port: R1/4 | Tube OD: ø6 mm | Seal: No sealant | Version: Unplated brass (B)
ASB2201-02-06S Control: Meter-out | Port: R1/4 | Tube OD: ø6 mm | Seal: Sealant (S) | Version: Electroless Ni plated
ASB2201-02-06SB Control: Meter-out | Port: R1/4 | Tube OD: ø6 mm | Seal: Sealant (S) | Version: Unplated brass (B)
ASB2201-02-08 Control: Meter-out | Port: R1/4 | Tube OD: ø8 mm | Seal: No sealant | Version: Electroless Ni plated
ASB2201-02-08B Control: Meter-out | Port: R1/4 | Tube OD: ø8 mm | Seal: No sealant | Version: Unplated brass (B)
ASB2201-02-08S Control: Meter-out | Port: R1/4 | Tube OD: ø8 mm | Seal: Sealant (S) | Version: Electroless Ni plated
ASB2201-02-08SB Control: Meter-out | Port: R1/4 | Tube OD: ø8 mm | Seal: Sealant (S) | Version: Unplated brass (B)
ASB2201-02-10 Control: Meter-out | Port: R1/4 | Tube OD: ø10 mm | Seal: No sealant | Version: Electroless Ni plated
ASB2201-02-10B Control: Meter-out | Port: R1/4 | Tube OD: ø10 mm | Seal: No sealant | Version: Unplated brass (B)
ASB2201-02-10S Control: Meter-out | Port: R1/4 | Tube OD: ø10 mm | Seal: Sealant (S) | Version: Electroless Ni plated
ASB2201-02-10SB Control: Meter-out | Port: R1/4 | Tube OD: ø10 mm | Seal: Sealant (S) | Version: Unplated brass (B)
ASB2211-02-06 Control: Meter-in | Port: R1/4 | Tube OD: ø6 mm | Seal: No sealant | Version: Electroless Ni plated
ASB2211-02-06B Control: Meter-in | Port: R1/4 | Tube OD: ø6 mm | Seal: No sealant | Version: Unplated brass (B)
ASB2211-02-06S Control: Meter-in | Port: R1/4 | Tube OD: ø6 mm | Seal: Sealant (S) | Version: Electroless Ni plated
ASB2211-02-06SB Control: Meter-in | Port: R1/4 | Tube OD: ø6 mm | Seal: Sealant (S) | Version: Unplated brass (B)
ASB2211-02-08 Control: Meter-in | Port: R1/4 | Tube OD: ø8 mm | Seal: No sealant | Version: Electroless Ni plated
ASB2211-02-08B Control: Meter-in | Port: R1/4 | Tube OD: ø8 mm | Seal: No sealant | Version: Unplated brass (B)
ASB2211-02-08S Control: Meter-in | Port: R1/4 | Tube OD: ø8 mm | Seal: Sealant (S) | Version: Electroless Ni plated
ASB2211-02-08SB Control: Meter-in | Port: R1/4 | Tube OD: ø8 mm | Seal: Sealant (S) | Version: Unplated brass (B)
ASB2211-02-10 Control: Meter-in | Port: R1/4 | Tube OD: ø10 mm | Seal: No sealant | Version: Electroless Ni plated
ASB2211-02-10B Control: Meter-in | Port: R1/4 | Tube OD: ø10 mm | Seal: No sealant | Version: Unplated brass (B)
ASB2211-02-10S Control: Meter-in | Port: R1/4 | Tube OD: ø10 mm | Seal: Sealant (S) | Version: Electroless Ni plated
ASB2211-02-10SB Control: Meter-in | Port: R1/4 | Tube OD: ø10 mm | Seal: Sealant (S) | Version: Unplated brass (B)
ASB3201-03-08 Control: Meter-out | Port: R3/8 | Tube OD: ø8 mm | Seal: No sealant | Version: Electroless Ni plated
ASB3201-03-08B Control: Meter-out | Port: R3/8 | Tube OD: ø8 mm | Seal: No sealant | Version: Unplated brass (B)
ASB3201-03-08S Control: Meter-out | Port: R3/8 | Tube OD: ø8 mm | Seal: Sealant (S) | Version: Electroless Ni plated
ASB3201-03-08SB Control: Meter-out | Port: R3/8 | Tube OD: ø8 mm | Seal: Sealant (S) | Version: Unplated brass (B)
ASB3201-03-10 Control: Meter-out | Port: R3/8 | Tube OD: ø10 mm | Seal: No sealant | Version: Electroless Ni plated
ASB3201-03-10B Control: Meter-out | Port: R3/8 | Tube OD: ø10 mm | Seal: No sealant | Version: Unplated brass (B)
ASB3201-03-10S Control: Meter-out | Port: R3/8 | Tube OD: ø10 mm | Seal: Sealant (S) | Version: Electroless Ni plated
ASB3201-03-10SB Control: Meter-out | Port: R3/8 | Tube OD: ø10 mm | Seal: Sealant (S) | Version: Unplated brass (B)
ASB3211-03-08 Control: Meter-in | Port: R3/8 | Tube OD: ø8 mm | Seal: No sealant | Version: Electroless Ni plated
ASB3211-03-08B Control: Meter-in | Port: R3/8 | Tube OD: ø8 mm | Seal: No sealant | Version: Unplated brass (B)
ASB3211-03-08S Control: Meter-in | Port: R3/8 | Tube OD: ø8 mm | Seal: Sealant (S) | Version: Electroless Ni plated
ASB3211-03-08SB Control: Meter-in | Port: R3/8 | Tube OD: ø8 mm | Seal: Sealant (S) | Version: Unplated brass (B)
ASB3211-03-10 Control: Meter-in | Port: R3/8 | Tube OD: ø10 mm | Seal: No sealant | Version: Electroless Ni plated
ASB3211-03-10B Control: Meter-in | Port: R3/8 | Tube OD: ø10 mm | Seal: No sealant | Version: Unplated brass (B)
ASB3211-03-10S Control: Meter-in | Port: R3/8 | Tube OD: ø10 mm | Seal: Sealant (S) | Version: Electroless Ni plated
ASB3211-03-10SB Control: Meter-in | Port: R3/8 | Tube OD: ø10 mm | Seal: Sealant (S) | Version: Unplated brass (B)
ASB4201-04-10 Control: Meter-out | Port: R1/2 | Tube OD: ø10 mm | Seal: No sealant | Version: Electroless Ni plated
ASB4201-04-10B Control: Meter-out | Port: R1/2 | Tube OD: ø10 mm | Seal: No sealant | Version: Unplated brass (B)
ASB4201-04-10S Control: Meter-out | Port: R1/2 | Tube OD: ø10 mm | Seal: Sealant (S) | Version: Electroless Ni plated
ASB4201-04-10SB Control: Meter-out | Port: R1/2 | Tube OD: ø10 mm | Seal: Sealant (S) | Version: Unplated brass (B)
ASB4201-04-12 Control: Meter-out | Port: R1/2 | Tube OD: ø12 mm | Seal: No sealant | Version: Electroless Ni plated
ASB4201-04-12B Control: Meter-out | Port: R1/2 | Tube OD: ø12 mm | Seal: No sealant | Version: Unplated brass (B)
ASB4201-04-12S Control: Meter-out | Port: R1/2 | Tube OD: ø12 mm | Seal: Sealant (S) | Version: Electroless Ni plated
ASB4201-04-12SB Control: Meter-out | Port: R1/2 | Tube OD: ø12 mm | Seal: Sealant (S) | Version: Unplated brass (B)
ASB4211-04-10 Control: Meter-in | Port: R1/2 | Tube OD: ø10 mm | Seal: No sealant | Version: Electroless Ni plated
ASB4211-04-10B Control: Meter-in | Port: R1/2 | Tube OD: ø10 mm | Seal: No sealant | Version: Unplated brass (B)
ASB4211-04-10S Control: Meter-in | Port: R1/2 | Tube OD: ø10 mm | Seal: Sealant (S) | Version: Electroless Ni plated
ASB4211-04-10SB Control: Meter-in | Port: R1/2 | Tube OD: ø10 mm | Seal: Sealant (S) | Version: Unplated brass (B)
ASB4211-04-12 Control: Meter-in | Port: R1/2 | Tube OD: ø12 mm | Seal: No sealant | Version: Electroless Ni plated
ASB4211-04-12B Control: Meter-in | Port: R1/2 | Tube OD: ø12 mm | Seal: No sealant | Version: Unplated brass (B)
ASB4211-04-12S Control: Meter-in | Port: R1/2 | Tube OD: ø12 mm | Seal: Sealant (S) | Version: Electroless Ni plated
ASB4211-04-12SB Control: Meter-in | Port: R1/2 | Tube OD: ø12 mm | Seal: Sealant (S) | Version: Unplated brass (B)
