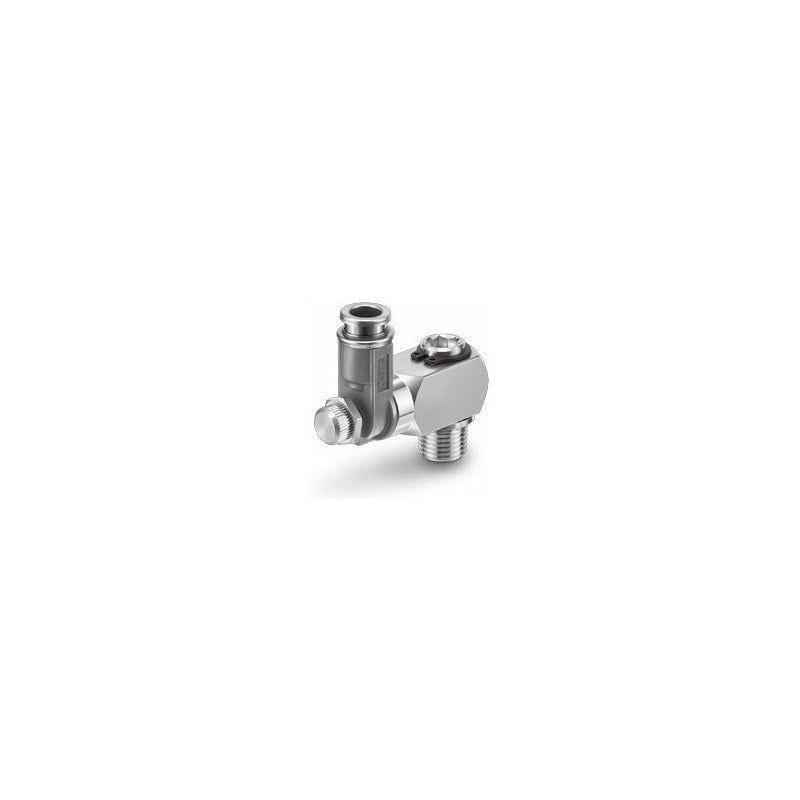

SMC ASBL Metal Speed Controller, Low Profile (Universal)

SMC ASBL Metal Speed Controller, Low Profile (Universal)

SMC ASBL series low-profile all-metal universal speed controller with one-touch fitting, about 30% lower than the ASB elbow type when installed.

Key features

  • Installed height reduced about 30% versus ASB elbow (21.2 mm vs 30.9 mm at 1/8, handle fully open)
  • Universal body rotates 360° for flexible piping direction
  • All-metal exterior (stainless, steel, zinc die-cast, brass) for spatter, dust and UV environments
  • Hex wrench adjustment improves workability
  • Electroless nickel plated standard or unplated (B) for weld spatter
  • NPT (N), G (G) threads and inch tubes also offered

Specifications

Fluid Air
Proof pressure 1.5 MPa
Max. operating pressure 1 MPa
Min. operating pressure 0.1 MPa
Ambient and fluid temperature -5 to 60°C (no freezing)
Applicable tubing FEP, PFA, nylon, soft nylon, polyurethane, polyolefin
Exterior All-metal (brass), resistant to spatter, dust and UV
Size range M5, 1/8, 1/4, 3/8, 1/2
Body type Universal, low profile (360° rotatable)
Source SMC Korea catalog CAT.KS20-304A (SMCKR_ASBL.pdf), p. 1-5
ASBL1301-M5-04 Control: Meter-out | Port: M5x0.8 | Tube OD: ø4 mm | Seal: Gasket seal | Version: Electroless Ni plated
ASBL1301-M5-04B Control: Meter-out | Port: M5x0.8 | Tube OD: ø4 mm | Seal: Gasket seal | Version: Unplated brass (B)
ASBL1301-M5-06 Control: Meter-out | Port: M5x0.8 | Tube OD: ø6 mm | Seal: Gasket seal | Version: Electroless Ni plated
ASBL1301-M5-06B Control: Meter-out | Port: M5x0.8 | Tube OD: ø6 mm | Seal: Gasket seal | Version: Unplated brass (B)
ASBL1311-M5-04 Control: Meter-in | Port: M5x0.8 | Tube OD: ø4 mm | Seal: Gasket seal | Version: Electroless Ni plated
ASBL1311-M5-04B Control: Meter-in | Port: M5x0.8 | Tube OD: ø4 mm | Seal: Gasket seal | Version: Unplated brass (B)
ASBL1311-M5-06 Control: Meter-in | Port: M5x0.8 | Tube OD: ø6 mm | Seal: Gasket seal | Version: Electroless Ni plated
ASBL1311-M5-06B Control: Meter-in | Port: M5x0.8 | Tube OD: ø6 mm | Seal: Gasket seal | Version: Unplated brass (B)
ASBL2301-01-06 Control: Meter-out | Port: R1/8 | Tube OD: ø6 mm | Seal: No sealant | Version: Electroless Ni plated
ASBL2301-01-06B Control: Meter-out | Port: R1/8 | Tube OD: ø6 mm | Seal: No sealant | Version: Unplated brass (B)
ASBL2301-01-06S Control: Meter-out | Port: R1/8 | Tube OD: ø6 mm | Seal: Sealant (S) | Version: Electroless Ni plated
ASBL2301-01-06SB Control: Meter-out | Port: R1/8 | Tube OD: ø6 mm | Seal: Sealant (S) | Version: Unplated brass (B)
ASBL2301-01-08 Control: Meter-out | Port: R1/8 | Tube OD: ø8 mm | Seal: No sealant | Version: Electroless Ni plated
ASBL2301-01-08B Control: Meter-out | Port: R1/8 | Tube OD: ø8 mm | Seal: No sealant | Version: Unplated brass (B)
ASBL2301-01-08S Control: Meter-out | Port: R1/8 | Tube OD: ø8 mm | Seal: Sealant (S) | Version: Electroless Ni plated
ASBL2301-01-08SB Control: Meter-out | Port: R1/8 | Tube OD: ø8 mm | Seal: Sealant (S) | Version: Unplated brass (B)
ASBL2311-01-06 Control: Meter-in | Port: R1/8 | Tube OD: ø6 mm | Seal: No sealant | Version: Electroless Ni plated
ASBL2311-01-06B Control: Meter-in | Port: R1/8 | Tube OD: ø6 mm | Seal: No sealant | Version: Unplated brass (B)
ASBL2311-01-06S Control: Meter-in | Port: R1/8 | Tube OD: ø6 mm | Seal: Sealant (S) | Version: Electroless Ni plated
ASBL2311-01-06SB Control: Meter-in | Port: R1/8 | Tube OD: ø6 mm | Seal: Sealant (S) | Version: Unplated brass (B)
ASBL2311-01-08 Control: Meter-in | Port: R1/8 | Tube OD: ø8 mm | Seal: No sealant | Version: Electroless Ni plated
ASBL2311-01-08B Control: Meter-in | Port: R1/8 | Tube OD: ø8 mm | Seal: No sealant | Version: Unplated brass (B)
ASBL2311-01-08S Control: Meter-in | Port: R1/8 | Tube OD: ø8 mm | Seal: Sealant (S) | Version: Electroless Ni plated
ASBL2311-01-08SB Control: Meter-in | Port: R1/8 | Tube OD: ø8 mm | Seal: Sealant (S) | Version: Unplated brass (B)
ASBL2301-02-06 Control: Meter-out | Port: R1/4 | Tube OD: ø6 mm | Seal: No sealant | Version: Electroless Ni plated
ASBL2301-02-06B Control: Meter-out | Port: R1/4 | Tube OD: ø6 mm | Seal: No sealant | Version: Unplated brass (B)
ASBL2301-02-06S Control: Meter-out | Port: R1/4 | Tube OD: ø6 mm | Seal: Sealant (S) | Version: Electroless Ni plated
ASBL2301-02-06SB Control: Meter-out | Port: R1/4 | Tube OD: ø6 mm | Seal: Sealant (S) | Version: Unplated brass (B)
ASBL2301-02-08 Control: Meter-out | Port: R1/4 | Tube OD: ø8 mm | Seal: No sealant | Version: Electroless Ni plated
ASBL2301-02-08B Control: Meter-out | Port: R1/4 | Tube OD: ø8 mm | Seal: No sealant | Version: Unplated brass (B)
ASBL2301-02-08S Control: Meter-out | Port: R1/4 | Tube OD: ø8 mm | Seal: Sealant (S) | Version: Electroless Ni plated
ASBL2301-02-08SB Control: Meter-out | Port: R1/4 | Tube OD: ø8 mm | Seal: Sealant (S) | Version: Unplated brass (B)
ASBL2301-02-10 Control: Meter-out | Port: R1/4 | Tube OD: ø10 mm | Seal: No sealant | Version: Electroless Ni plated
ASBL2301-02-10B Control: Meter-out | Port: R1/4 | Tube OD: ø10 mm | Seal: No sealant | Version: Unplated brass (B)
ASBL2301-02-10S Control: Meter-out | Port: R1/4 | Tube OD: ø10 mm | Seal: Sealant (S) | Version: Electroless Ni plated
ASBL2301-02-10SB Control: Meter-out | Port: R1/4 | Tube OD: ø10 mm | Seal: Sealant (S) | Version: Unplated brass (B)
ASBL2311-02-06 Control: Meter-in | Port: R1/4 | Tube OD: ø6 mm | Seal: No sealant | Version: Electroless Ni plated
ASBL2311-02-06B Control: Meter-in | Port: R1/4 | Tube OD: ø6 mm | Seal: No sealant | Version: Unplated brass (B)
ASBL2311-02-06S Control: Meter-in | Port: R1/4 | Tube OD: ø6 mm | Seal: Sealant (S) | Version: Electroless Ni plated
ASBL2311-02-06SB Control: Meter-in | Port: R1/4 | Tube OD: ø6 mm | Seal: Sealant (S) | Version: Unplated brass (B)
ASBL2311-02-08 Control: Meter-in | Port: R1/4 | Tube OD: ø8 mm | Seal: No sealant | Version: Electroless Ni plated
ASBL2311-02-08B Control: Meter-in | Port: R1/4 | Tube OD: ø8 mm | Seal: No sealant | Version: Unplated brass (B)
ASBL2311-02-08S Control: Meter-in | Port: R1/4 | Tube OD: ø8 mm | Seal: Sealant (S) | Version: Electroless Ni plated
ASBL2311-02-08SB Control: Meter-in | Port: R1/4 | Tube OD: ø8 mm | Seal: Sealant (S) | Version: Unplated brass (B)
ASBL2311-02-10 Control: Meter-in | Port: R1/4 | Tube OD: ø10 mm | Seal: No sealant | Version: Electroless Ni plated
ASBL2311-02-10B Control: Meter-in | Port: R1/4 | Tube OD: ø10 mm | Seal: No sealant | Version: Unplated brass (B)
ASBL2311-02-10S Control: Meter-in | Port: R1/4 | Tube OD: ø10 mm | Seal: Sealant (S) | Version: Electroless Ni plated
ASBL2311-02-10SB Control: Meter-in | Port: R1/4 | Tube OD: ø10 mm | Seal: Sealant (S) | Version: Unplated brass (B)
ASBL3301-03-08 Control: Meter-out | Port: R3/8 | Tube OD: ø8 mm | Seal: No sealant | Version: Electroless Ni plated
ASBL3301-03-08B Control: Meter-out | Port: R3/8 | Tube OD: ø8 mm | Seal: No sealant | Version: Unplated brass (B)
ASBL3301-03-08S Control: Meter-out | Port: R3/8 | Tube OD: ø8 mm | Seal: Sealant (S) | Version: Electroless Ni plated
ASBL3301-03-08SB Control: Meter-out | Port: R3/8 | Tube OD: ø8 mm | Seal: Sealant (S) | Version: Unplated brass (B)
ASBL3301-03-10 Control: Meter-out | Port: R3/8 | Tube OD: ø10 mm | Seal: No sealant | Version: Electroless Ni plated
ASBL3301-03-10B Control: Meter-out | Port: R3/8 | Tube OD: ø10 mm | Seal: No sealant | Version: Unplated brass (B)
ASBL3301-03-10S Control: Meter-out | Port: R3/8 | Tube OD: ø10 mm | Seal: Sealant (S) | Version: Electroless Ni plated
ASBL3301-03-10SB Control: Meter-out | Port: R3/8 | Tube OD: ø10 mm | Seal: Sealant (S) | Version: Unplated brass (B)
ASBL3311-03-08 Control: Meter-in | Port: R3/8 | Tube OD: ø8 mm | Seal: No sealant | Version: Electroless Ni plated
ASBL3311-03-08B Control: Meter-in | Port: R3/8 | Tube OD: ø8 mm | Seal: No sealant | Version: Unplated brass (B)
ASBL3311-03-08S Control: Meter-in | Port: R3/8 | Tube OD: ø8 mm | Seal: Sealant (S) | Version: Electroless Ni plated
ASBL3311-03-08SB Control: Meter-in | Port: R3/8 | Tube OD: ø8 mm | Seal: Sealant (S) | Version: Unplated brass (B)
ASBL3311-03-10 Control: Meter-in | Port: R3/8 | Tube OD: ø10 mm | Seal: No sealant | Version: Electroless Ni plated
ASBL3311-03-10B Control: Meter-in | Port: R3/8 | Tube OD: ø10 mm | Seal: No sealant | Version: Unplated brass (B)
ASBL3311-03-10S Control: Meter-in | Port: R3/8 | Tube OD: ø10 mm | Seal: Sealant (S) | Version: Electroless Ni plated
ASBL3311-03-10SB Control: Meter-in | Port: R3/8 | Tube OD: ø10 mm | Seal: Sealant (S) | Version: Unplated brass (B)
ASBL4301-04-10 Control: Meter-out | Port: R1/2 | Tube OD: ø10 mm | Seal: No sealant | Version: Electroless Ni plated
ASBL4301-04-10B Control: Meter-out | Port: R1/2 | Tube OD: ø10 mm | Seal: No sealant | Version: Unplated brass (B)
ASBL4301-04-10S Control: Meter-out | Port: R1/2 | Tube OD: ø10 mm | Seal: Sealant (S) | Version: Electroless Ni plated
ASBL4301-04-10SB Control: Meter-out | Port: R1/2 | Tube OD: ø10 mm | Seal: Sealant (S) | Version: Unplated brass (B)
ASBL4301-04-12 Control: Meter-out | Port: R1/2 | Tube OD: ø12 mm | Seal: No sealant | Version: Electroless Ni plated
ASBL4301-04-12B Control: Meter-out | Port: R1/2 | Tube OD: ø12 mm | Seal: No sealant | Version: Unplated brass (B)
ASBL4301-04-12S Control: Meter-out | Port: R1/2 | Tube OD: ø12 mm | Seal: Sealant (S) | Version: Electroless Ni plated
ASBL4301-04-12SB Control: Meter-out | Port: R1/2 | Tube OD: ø12 mm | Seal: Sealant (S) | Version: Unplated brass (B)
ASBL4311-04-10 Control: Meter-in | Port: R1/2 | Tube OD: ø10 mm | Seal: No sealant | Version: Electroless Ni plated
ASBL4311-04-10B Control: Meter-in | Port: R1/2 | Tube OD: ø10 mm | Seal: No sealant | Version: Unplated brass (B)
ASBL4311-04-10S Control: Meter-in | Port: R1/2 | Tube OD: ø10 mm | Seal: Sealant (S) | Version: Electroless Ni plated
ASBL4311-04-10SB Control: Meter-in | Port: R1/2 | Tube OD: ø10 mm | Seal: Sealant (S) | Version: Unplated brass (B)
ASBL4311-04-12 Control: Meter-in | Port: R1/2 | Tube OD: ø12 mm | Seal: No sealant | Version: Electroless Ni plated
ASBL4311-04-12B Control: Meter-in | Port: R1/2 | Tube OD: ø12 mm | Seal: No sealant | Version: Unplated brass (B)
ASBL4311-04-12S Control: Meter-in | Port: R1/2 | Tube OD: ø12 mm | Seal: Sealant (S) | Version: Electroless Ni plated
ASBL4311-04-12SB Control: Meter-in | Port: R1/2 | Tube OD: ø12 mm | Seal: Sealant (S) | Version: Unplated brass (B)
