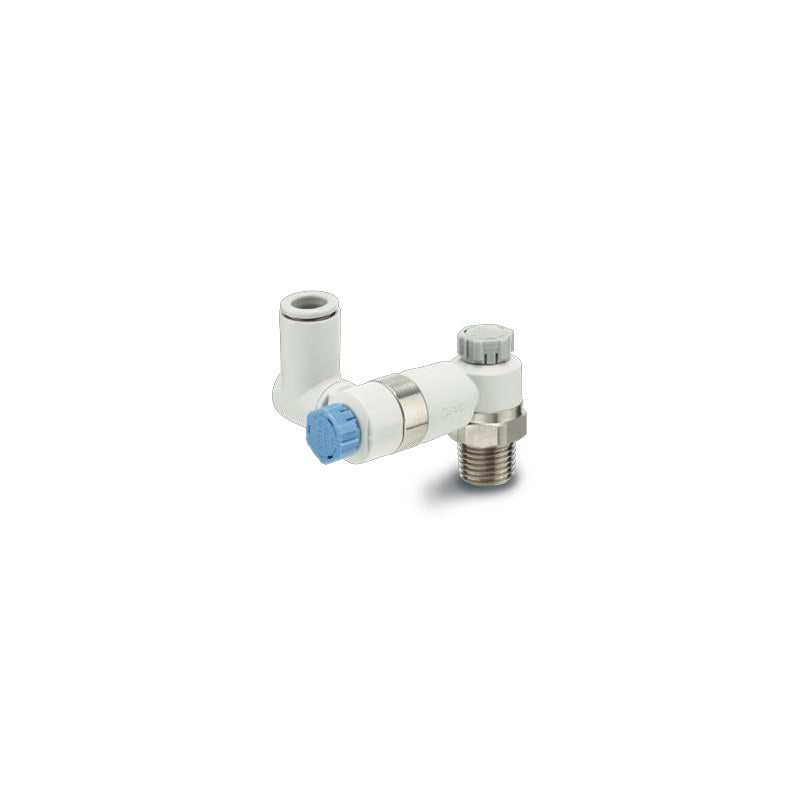

SMC ASD-A Dual Speed Controller with One-touch Fitting (Push-Lock)

SMC ASD-A series Push-Lock dual speed controller with one-touch fitting, controlling meter-in and meter-out flow simultaneously in one universal body.

Key features

Simultaneous meter-in and meter-out control: prevents cylinder lurching and controls single-acting cylinders
Handle colour identifies function: meter-out grey, meter-in blue
Tool-free Push-Lock large handles; rotation stopper for repeatable fully-closed position
About 28% lighter than the previous ASD-S (e.g. 21 g vs 29 g for ASD330F-01-06)
Tube direction rotates 360°; R threads with or without sealant (S); NPT, G and 10-32UNF also offered
Made to order -X12 (vaseline lubricant)

Specifications

Fluid	Air
Proof pressure	1.5 MPa
Max. operating pressure	1.0 MPa
Min. operating pressure	0.1 MPa
Ambient and fluid temperature	-5 to 60°C (no freezing)
Applicable tubing	Nylon, soft nylon, polyurethane, FEP, PFA
Type	Universal, dual (meter-in + meter-out)
Source	SMC Korea catalog CAT.KS20-305A (SMCKR_ASD-A.pdf), PDF p. 1-5

ASD230F-M5-04A		Body size: ASD230F \| Port: M5x0.8 \| Tube OD: ø4 mm \| Seal: Gasket seal
ASD230F-M5-06A		Body size: ASD230F \| Port: M5x0.8 \| Tube OD: ø6 mm \| Seal: Gasket seal
ASD330F-01-06A		Body size: ASD330F \| Port: R1/8 \| Tube OD: ø6 mm \| Seal: No sealant
ASD330F-01-06SA		Body size: ASD330F \| Port: R1/8 \| Tube OD: ø6 mm \| Seal: Sealant (S)
ASD330F-01-08A		Body size: ASD330F \| Port: R1/8 \| Tube OD: ø8 mm \| Seal: No sealant
ASD330F-01-08SA		Body size: ASD330F \| Port: R1/8 \| Tube OD: ø8 mm \| Seal: Sealant (S)
ASD430F-02-06A		Body size: ASD430F \| Port: R1/4 \| Tube OD: ø6 mm \| Seal: No sealant
ASD430F-02-06SA		Body size: ASD430F \| Port: R1/4 \| Tube OD: ø6 mm \| Seal: Sealant (S)
ASD430F-02-08A		Body size: ASD430F \| Port: R1/4 \| Tube OD: ø8 mm \| Seal: No sealant
ASD430F-02-08SA		Body size: ASD430F \| Port: R1/4 \| Tube OD: ø8 mm \| Seal: Sealant (S)
ASD430F-02-10A		Body size: ASD430F \| Port: R1/4 \| Tube OD: ø10 mm \| Seal: No sealant
ASD430F-02-10SA		Body size: ASD430F \| Port: R1/4 \| Tube OD: ø10 mm \| Seal: Sealant (S)
ASD530F-02-06A		Body size: ASD530F \| Port: R1/4 \| Tube OD: ø6 mm \| Seal: No sealant
ASD530F-02-06SA		Body size: ASD530F \| Port: R1/4 \| Tube OD: ø6 mm \| Seal: Sealant (S)
ASD530F-02-08A		Body size: ASD530F \| Port: R1/4 \| Tube OD: ø8 mm \| Seal: No sealant
ASD530F-02-08SA		Body size: ASD530F \| Port: R1/4 \| Tube OD: ø8 mm \| Seal: Sealant (S)
ASD530F-02-10A		Body size: ASD530F \| Port: R1/4 \| Tube OD: ø10 mm \| Seal: No sealant
ASD530F-02-10SA		Body size: ASD530F \| Port: R1/4 \| Tube OD: ø10 mm \| Seal: Sealant (S)
ASD530F-02-12A		Body size: ASD530F \| Port: R1/4 \| Tube OD: ø12 mm \| Seal: No sealant
ASD530F-02-12SA		Body size: ASD530F \| Port: R1/4 \| Tube OD: ø12 mm \| Seal: Sealant (S)
ASD530F-03-06A		Body size: ASD530F \| Port: R3/8 \| Tube OD: ø6 mm \| Seal: No sealant
ASD530F-03-06SA		Body size: ASD530F \| Port: R3/8 \| Tube OD: ø6 mm \| Seal: Sealant (S)
ASD530F-03-08A		Body size: ASD530F \| Port: R3/8 \| Tube OD: ø8 mm \| Seal: No sealant
ASD530F-03-08SA		Body size: ASD530F \| Port: R3/8 \| Tube OD: ø8 mm \| Seal: Sealant (S)
ASD530F-03-10A		Body size: ASD530F \| Port: R3/8 \| Tube OD: ø10 mm \| Seal: No sealant
ASD530F-03-10SA		Body size: ASD530F \| Port: R3/8 \| Tube OD: ø10 mm \| Seal: Sealant (S)
ASD530F-03-12A		Body size: ASD530F \| Port: R3/8 \| Tube OD: ø12 mm \| Seal: No sealant
ASD530F-03-12SA		Body size: ASD530F \| Port: R3/8 \| Tube OD: ø12 mm \| Seal: Sealant (S)
ASD630F-04-10A		Body size: ASD630F \| Port: R1/2 \| Tube OD: ø10 mm \| Seal: No sealant
ASD630F-04-10SA		Body size: ASD630F \| Port: R1/2 \| Tube OD: ø10 mm \| Seal: Sealant (S)
ASD630F-04-12A		Body size: ASD630F \| Port: R1/2 \| Tube OD: ø12 mm \| Seal: No sealant
ASD630F-04-12SA		Body size: ASD630F \| Port: R1/2 \| Tube OD: ø12 mm \| Seal: Sealant (S)

Speed ControllersSMC

32 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC ASD-A Dual Speed Controller with One-touch Fitting (Push-Lock)

Brand SMC·Speed Controllers

Available part numbers (32)

ASD230F-M5-04A, ASD230F-M5-06A, ASD330F-01-06A, ASD330F-01-06SA, ASD330F-01-08A, ASD330F-01-08SA, ASD430F-02-06A, ASD430F-02-06SA, ASD430F-02-08A, ASD430F-02-08SA + 22 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	ASD230F-M5-04A	Body size: ASD230F \| Port: M5x0.8 \| Tube OD: ø4 mm \| Seal: Gasket seal
	ASD230F-M5-06A	Body size: ASD230F \| Port: M5x0.8 \| Tube OD: ø6 mm \| Seal: Gasket seal
	ASD330F-01-06A	Body size: ASD330F \| Port: R1/8 \| Tube OD: ø6 mm \| Seal: No sealant
	ASD330F-01-06SA	Body size: ASD330F \| Port: R1/8 \| Tube OD: ø6 mm \| Seal: Sealant (S)
	ASD330F-01-08A	Body size: ASD330F \| Port: R1/8 \| Tube OD: ø8 mm \| Seal: No sealant
	ASD330F-01-08SA	Body size: ASD330F \| Port: R1/8 \| Tube OD: ø8 mm \| Seal: Sealant (S)
	ASD430F-02-06A	Body size: ASD430F \| Port: R1/4 \| Tube OD: ø6 mm \| Seal: No sealant
	ASD430F-02-06SA	Body size: ASD430F \| Port: R1/4 \| Tube OD: ø6 mm \| Seal: Sealant (S)
	ASD430F-02-08A	Body size: ASD430F \| Port: R1/4 \| Tube OD: ø8 mm \| Seal: No sealant
	ASD430F-02-08SA	Body size: ASD430F \| Port: R1/4 \| Tube OD: ø8 mm \| Seal: Sealant (S)
	ASD430F-02-10A	Body size: ASD430F \| Port: R1/4 \| Tube OD: ø10 mm \| Seal: No sealant
	ASD430F-02-10SA	Body size: ASD430F \| Port: R1/4 \| Tube OD: ø10 mm \| Seal: Sealant (S)
	ASD530F-02-06A	Body size: ASD530F \| Port: R1/4 \| Tube OD: ø6 mm \| Seal: No sealant
	ASD530F-02-06SA	Body size: ASD530F \| Port: R1/4 \| Tube OD: ø6 mm \| Seal: Sealant (S)
	ASD530F-02-08A	Body size: ASD530F \| Port: R1/4 \| Tube OD: ø8 mm \| Seal: No sealant
	ASD530F-02-08SA	Body size: ASD530F \| Port: R1/4 \| Tube OD: ø8 mm \| Seal: Sealant (S)
	ASD530F-02-10A	Body size: ASD530F \| Port: R1/4 \| Tube OD: ø10 mm \| Seal: No sealant
	ASD530F-02-10SA	Body size: ASD530F \| Port: R1/4 \| Tube OD: ø10 mm \| Seal: Sealant (S)
	ASD530F-02-12A	Body size: ASD530F \| Port: R1/4 \| Tube OD: ø12 mm \| Seal: No sealant
	ASD530F-02-12SA	Body size: ASD530F \| Port: R1/4 \| Tube OD: ø12 mm \| Seal: Sealant (S)
	ASD530F-03-06A	Body size: ASD530F \| Port: R3/8 \| Tube OD: ø6 mm \| Seal: No sealant
	ASD530F-03-06SA	Body size: ASD530F \| Port: R3/8 \| Tube OD: ø6 mm \| Seal: Sealant (S)
	ASD530F-03-08A	Body size: ASD530F \| Port: R3/8 \| Tube OD: ø8 mm \| Seal: No sealant
	ASD530F-03-08SA	Body size: ASD530F \| Port: R3/8 \| Tube OD: ø8 mm \| Seal: Sealant (S)
	ASD530F-03-10A	Body size: ASD530F \| Port: R3/8 \| Tube OD: ø10 mm \| Seal: No sealant
	ASD530F-03-10SA	Body size: ASD530F \| Port: R3/8 \| Tube OD: ø10 mm \| Seal: Sealant (S)
	ASD530F-03-12A	Body size: ASD530F \| Port: R3/8 \| Tube OD: ø12 mm \| Seal: No sealant
	ASD530F-03-12SA	Body size: ASD530F \| Port: R3/8 \| Tube OD: ø12 mm \| Seal: Sealant (S)
	ASD630F-04-10A	Body size: ASD630F \| Port: R1/2 \| Tube OD: ø10 mm \| Seal: No sealant
	ASD630F-04-10SA	Body size: ASD630F \| Port: R1/2 \| Tube OD: ø10 mm \| Seal: Sealant (S)
	ASD630F-04-12A	Body size: ASD630F \| Port: R1/2 \| Tube OD: ø12 mm \| Seal: No sealant
	ASD630F-04-12SA	Body size: ASD630F \| Port: R1/2 \| Tube OD: ø12 mm \| Seal: Sealant (S)
