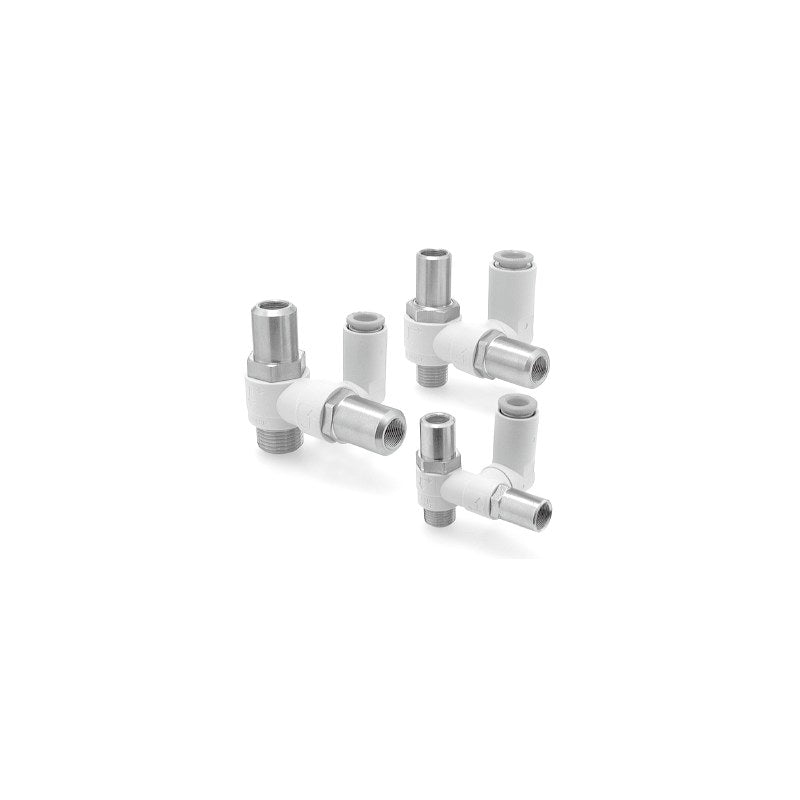

SMC ASD-T Dual Speed Controller, Tamper-proof (One-touch)

SMC ASDF-T series dual speed controller with one-touch fitting, controlling both meter-in and meter-out in one unit, adjustable only with the dedicated AS-T-1 tool to prevent external tampering with the flow setting.

Key features

Needle adjusted only with special tool AS-T-1 (ordered separately); prevents unauthorized adjustment
Meter-in and meter-out control in one universal body
Five sizes ASD230F to ASD630F for M5, R1/8, R1/4, R3/8 and R1/2 ports
Tube OD ø4 to ø12 mm; 10-32UNF, NPT and inch tube versions available
Made to order -X12 (vaseline)

Specifications

Fluid	Air
Proof pressure	1.5 MPa
Max. operating pressure	1 MPa
Min. operating pressure	0.1 MPa
Ambient and fluid temperature	-5 to 60°C (no freezing)
Adjustment	Special tool AS-T-1 only (T type)
Body type	Universal dual (meter-in + meter-out)
Applicable tubing	Nylon, soft nylon, polyurethane
Source	SMC Korea catalog ASD-T (SMCKR_AS________-T.pdf), PDF p. 10-14

ASD230F-M5-04T		Body size: ASD230F \| Port: M5x0.8 \| Tube OD: ø4 mm
ASD230F-M5-06T		Body size: ASD230F \| Port: M5x0.8 \| Tube OD: ø6 mm
ASD330F-01-06ST		Body size: ASD330F \| Port: R1/8 \| Tube OD: ø6 mm
ASD330F-01-08ST		Body size: ASD330F \| Port: R1/8 \| Tube OD: ø8 mm
ASD430F-02-06ST		Body size: ASD430F \| Port: R1/4 \| Tube OD: ø6 mm
ASD430F-02-08ST		Body size: ASD430F \| Port: R1/4 \| Tube OD: ø8 mm
ASD430F-02-10ST		Body size: ASD430F \| Port: R1/4 \| Tube OD: ø10 mm
ASD530F-02-06ST		Body size: ASD530F \| Port: R1/4 \| Tube OD: ø6 mm
ASD530F-02-08ST		Body size: ASD530F \| Port: R1/4 \| Tube OD: ø8 mm
ASD530F-02-10ST		Body size: ASD530F \| Port: R1/4 \| Tube OD: ø10 mm
ASD530F-02-12ST		Body size: ASD530F \| Port: R1/4 \| Tube OD: ø12 mm
ASD530F-03-06ST		Body size: ASD530F \| Port: R3/8 \| Tube OD: ø6 mm
ASD530F-03-08ST		Body size: ASD530F \| Port: R3/8 \| Tube OD: ø8 mm
ASD530F-03-10ST		Body size: ASD530F \| Port: R3/8 \| Tube OD: ø10 mm
ASD530F-03-12ST		Body size: ASD530F \| Port: R3/8 \| Tube OD: ø12 mm
ASD630F-04-10ST		Body size: ASD630F \| Port: R1/2 \| Tube OD: ø10 mm
ASD630F-04-12ST		Body size: ASD630F \| Port: R1/2 \| Tube OD: ø12 mm

Speed ControllersSMC

17 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC ASD-T Dual Speed Controller, Tamper-proof (One-touch)

Brand SMC·Speed Controllers

Available part numbers (17)

ASD230F-M5-04T, ASD230F-M5-06T, ASD330F-01-06ST, ASD330F-01-08ST, ASD430F-02-06ST, ASD430F-02-08ST, ASD430F-02-10ST, ASD530F-02-06ST, ASD530F-02-08ST, ASD530F-02-10ST + 7 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
