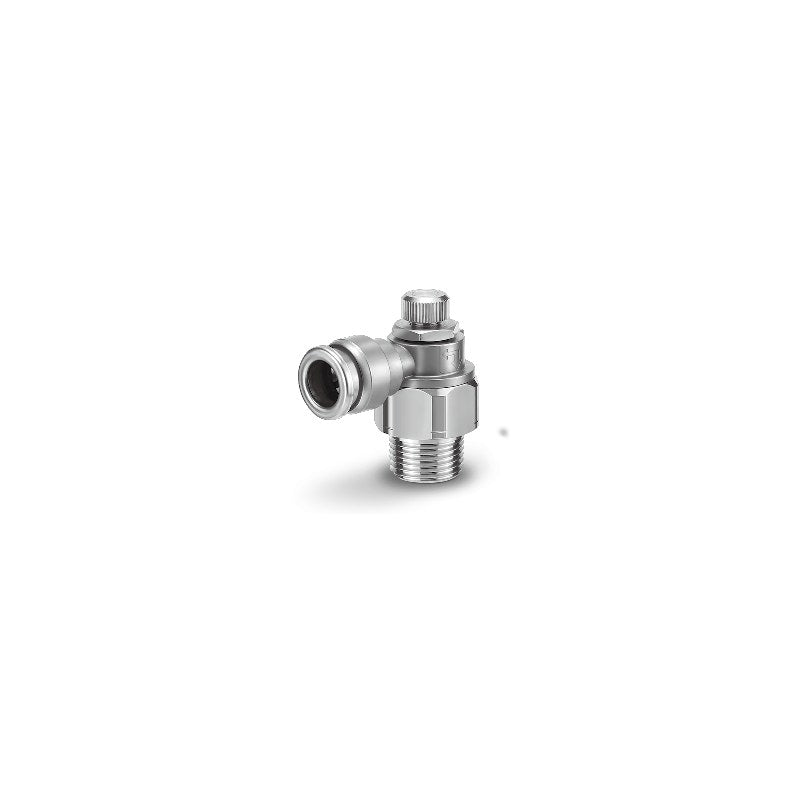

SMC ASG Stainless Steel Speed Controller with One-touch Fitting (Elbow)

SMC ASG Stainless Steel Speed Controller with One-touch Fitting (Elbow)

SMC ASG series all-stainless elbow speed controller with one-touch fitting, for corrosive, water-splash and high temperature (up to 150°C) environments.

Key features

  • All exterior parts stainless steel: body A SUS316, other metal parts SUS304; copper and zinc free
  • Max. operating temperature 150°C (inner sleeve required for high temperature or large temperature changes)
  • Compact: height reduced by 23% versus previous model (e.g. ASG22-1-01-06S)
  • Body sizes 1 to 4 for M5, R1/8, R1/4, R3/8, R1/2 ports and ø4 to ø12 mm tubing
  • R threads with or without sealant (S); M5 without sealant; NPT, G and 10-32UNF versions also offered

Specifications

Fluid Air
Proof pressure 1.5 MPa
Max. operating pressure 1 MPa
Min. operating pressure 0.1 MPa
Ambient and fluid temperature 0 to 150°C (no freezing)
Applicable tubing FEP, PFA, nylon, soft nylon, PU, polyolefin
Type Elbow
Body material SUS316 (body A), SUS304 (other metal parts)
Source SMC Korea catalog CAT.KS20-283A (SMCKR_ASG.pdf), PDF p. 1-7
ASG1201-M5-04 Control: Meter-out | Port: M5x0.8 | Tube OD: ø4 mm | Seal: No sealant
ASG1211-M5-04 Control: Meter-in | Port: M5x0.8 | Tube OD: ø4 mm | Seal: No sealant
ASG1201-M5-06 Control: Meter-out | Port: M5x0.8 | Tube OD: ø6 mm | Seal: No sealant
ASG1211-M5-06 Control: Meter-in | Port: M5x0.8 | Tube OD: ø6 mm | Seal: No sealant
ASG2201-01-06 Control: Meter-out | Port: R1/8 | Tube OD: ø6 mm | Seal: No sealant
ASG2201-01-06S Control: Meter-out | Port: R1/8 | Tube OD: ø6 mm | Seal: Sealant (S)
ASG2211-01-06 Control: Meter-in | Port: R1/8 | Tube OD: ø6 mm | Seal: No sealant
ASG2211-01-06S Control: Meter-in | Port: R1/8 | Tube OD: ø6 mm | Seal: Sealant (S)
ASG2201-01-08 Control: Meter-out | Port: R1/8 | Tube OD: ø8 mm | Seal: No sealant
ASG2201-01-08S Control: Meter-out | Port: R1/8 | Tube OD: ø8 mm | Seal: Sealant (S)
ASG2211-01-08 Control: Meter-in | Port: R1/8 | Tube OD: ø8 mm | Seal: No sealant
ASG2211-01-08S Control: Meter-in | Port: R1/8 | Tube OD: ø8 mm | Seal: Sealant (S)
ASG2201-02-06 Control: Meter-out | Port: R1/4 | Tube OD: ø6 mm | Seal: No sealant
ASG2201-02-06S Control: Meter-out | Port: R1/4 | Tube OD: ø6 mm | Seal: Sealant (S)
ASG2211-02-06 Control: Meter-in | Port: R1/4 | Tube OD: ø6 mm | Seal: No sealant
ASG2211-02-06S Control: Meter-in | Port: R1/4 | Tube OD: ø6 mm | Seal: Sealant (S)
ASG2201-02-08 Control: Meter-out | Port: R1/4 | Tube OD: ø8 mm | Seal: No sealant
ASG2201-02-08S Control: Meter-out | Port: R1/4 | Tube OD: ø8 mm | Seal: Sealant (S)
ASG2211-02-08 Control: Meter-in | Port: R1/4 | Tube OD: ø8 mm | Seal: No sealant
ASG2211-02-08S Control: Meter-in | Port: R1/4 | Tube OD: ø8 mm | Seal: Sealant (S)
ASG2201-02-10 Control: Meter-out | Port: R1/4 | Tube OD: ø10 mm | Seal: No sealant
ASG2201-02-10S Control: Meter-out | Port: R1/4 | Tube OD: ø10 mm | Seal: Sealant (S)
ASG2211-02-10 Control: Meter-in | Port: R1/4 | Tube OD: ø10 mm | Seal: No sealant
ASG2211-02-10S Control: Meter-in | Port: R1/4 | Tube OD: ø10 mm | Seal: Sealant (S)
ASG3201-03-08 Control: Meter-out | Port: R3/8 | Tube OD: ø8 mm | Seal: No sealant
ASG3201-03-08S Control: Meter-out | Port: R3/8 | Tube OD: ø8 mm | Seal: Sealant (S)
ASG3211-03-08 Control: Meter-in | Port: R3/8 | Tube OD: ø8 mm | Seal: No sealant
ASG3211-03-08S Control: Meter-in | Port: R3/8 | Tube OD: ø8 mm | Seal: Sealant (S)
ASG3201-03-10 Control: Meter-out | Port: R3/8 | Tube OD: ø10 mm | Seal: No sealant
ASG3201-03-10S Control: Meter-out | Port: R3/8 | Tube OD: ø10 mm | Seal: Sealant (S)
ASG3211-03-10 Control: Meter-in | Port: R3/8 | Tube OD: ø10 mm | Seal: No sealant
ASG3211-03-10S Control: Meter-in | Port: R3/8 | Tube OD: ø10 mm | Seal: Sealant (S)
ASG4201-04-10 Control: Meter-out | Port: R1/2 | Tube OD: ø10 mm | Seal: No sealant
ASG4201-04-10S Control: Meter-out | Port: R1/2 | Tube OD: ø10 mm | Seal: Sealant (S)
ASG4211-04-10 Control: Meter-in | Port: R1/2 | Tube OD: ø10 mm | Seal: No sealant
ASG4211-04-10S Control: Meter-in | Port: R1/2 | Tube OD: ø10 mm | Seal: Sealant (S)
ASG4201-04-12 Control: Meter-out | Port: R1/2 | Tube OD: ø12 mm | Seal: No sealant
ASG4201-04-12S Control: Meter-out | Port: R1/2 | Tube OD: ø12 mm | Seal: Sealant (S)
ASG4211-04-12 Control: Meter-in | Port: R1/2 | Tube OD: ø12 mm | Seal: No sealant
ASG4211-04-12S Control: Meter-in | Port: R1/2 | Tube OD: ø12 mm | Seal: Sealant (S)
Speed ControllersSMC
40 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC ASG Stainless Steel Speed Controller with One-touch Fitting (Elbow)

Brand SMC·Speed Controllers

Available part numbers (40)

ASG1201-M5-04, ASG1211-M5-04, ASG1201-M5-06, ASG1211-M5-06, ASG2201-01-06, ASG2201-01-06S, ASG2211-01-06, ASG2211-01-06S, ASG2201-01-08, ASG2201-01-08S + 30 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ASG1201-M5-04Control: Meter-out | Port: M5x0.8 | Tube OD: ø4 mm | Seal: No sealant
ASG1211-M5-04Control: Meter-in | Port: M5x0.8 | Tube OD: ø4 mm | Seal: No sealant
ASG1201-M5-06Control: Meter-out | Port: M5x0.8 | Tube OD: ø6 mm | Seal: No sealant
ASG1211-M5-06Control: Meter-in | Port: M5x0.8 | Tube OD: ø6 mm | Seal: No sealant
ASG2201-01-06Control: Meter-out | Port: R1/8 | Tube OD: ø6 mm | Seal: No sealant
ASG2201-01-06SControl: Meter-out | Port: R1/8 | Tube OD: ø6 mm | Seal: Sealant (S)
ASG2211-01-06Control: Meter-in | Port: R1/8 | Tube OD: ø6 mm | Seal: No sealant
ASG2211-01-06SControl: Meter-in | Port: R1/8 | Tube OD: ø6 mm | Seal: Sealant (S)
ASG2201-01-08Control: Meter-out | Port: R1/8 | Tube OD: ø8 mm | Seal: No sealant
ASG2201-01-08SControl: Meter-out | Port: R1/8 | Tube OD: ø8 mm | Seal: Sealant (S)
ASG2211-01-08Control: Meter-in | Port: R1/8 | Tube OD: ø8 mm | Seal: No sealant
ASG2211-01-08SControl: Meter-in | Port: R1/8 | Tube OD: ø8 mm | Seal: Sealant (S)
ASG2201-02-06Control: Meter-out | Port: R1/4 | Tube OD: ø6 mm | Seal: No sealant
ASG2201-02-06SControl: Meter-out | Port: R1/4 | Tube OD: ø6 mm | Seal: Sealant (S)
ASG2211-02-06Control: Meter-in | Port: R1/4 | Tube OD: ø6 mm | Seal: No sealant
ASG2211-02-06SControl: Meter-in | Port: R1/4 | Tube OD: ø6 mm | Seal: Sealant (S)
ASG2201-02-08Control: Meter-out | Port: R1/4 | Tube OD: ø8 mm | Seal: No sealant
ASG2201-02-08SControl: Meter-out | Port: R1/4 | Tube OD: ø8 mm | Seal: Sealant (S)
ASG2211-02-08Control: Meter-in | Port: R1/4 | Tube OD: ø8 mm | Seal: No sealant
ASG2211-02-08SControl: Meter-in | Port: R1/4 | Tube OD: ø8 mm | Seal: Sealant (S)
ASG2201-02-10Control: Meter-out | Port: R1/4 | Tube OD: ø10 mm | Seal: No sealant
ASG2201-02-10SControl: Meter-out | Port: R1/4 | Tube OD: ø10 mm | Seal: Sealant (S)
ASG2211-02-10Control: Meter-in | Port: R1/4 | Tube OD: ø10 mm | Seal: No sealant
ASG2211-02-10SControl: Meter-in | Port: R1/4 | Tube OD: ø10 mm | Seal: Sealant (S)
ASG3201-03-08Control: Meter-out | Port: R3/8 | Tube OD: ø8 mm | Seal: No sealant
ASG3201-03-08SControl: Meter-out | Port: R3/8 | Tube OD: ø8 mm | Seal: Sealant (S)
ASG3211-03-08Control: Meter-in | Port: R3/8 | Tube OD: ø8 mm | Seal: No sealant
ASG3211-03-08SControl: Meter-in | Port: R3/8 | Tube OD: ø8 mm | Seal: Sealant (S)
ASG3201-03-10Control: Meter-out | Port: R3/8 | Tube OD: ø10 mm | Seal: No sealant
ASG3201-03-10SControl: Meter-out | Port: R3/8 | Tube OD: ø10 mm | Seal: Sealant (S)
ASG3211-03-10Control: Meter-in | Port: R3/8 | Tube OD: ø10 mm | Seal: No sealant
ASG3211-03-10SControl: Meter-in | Port: R3/8 | Tube OD: ø10 mm | Seal: Sealant (S)
ASG4201-04-10Control: Meter-out | Port: R1/2 | Tube OD: ø10 mm | Seal: No sealant
ASG4201-04-10SControl: Meter-out | Port: R1/2 | Tube OD: ø10 mm | Seal: Sealant (S)
ASG4211-04-10Control: Meter-in | Port: R1/2 | Tube OD: ø10 mm | Seal: No sealant
ASG4211-04-10SControl: Meter-in | Port: R1/2 | Tube OD: ø10 mm | Seal: Sealant (S)
ASG4201-04-12Control: Meter-out | Port: R1/2 | Tube OD: ø12 mm | Seal: No sealant
ASG4201-04-12SControl: Meter-out | Port: R1/2 | Tube OD: ø12 mm | Seal: Sealant (S)
ASG4211-04-12Control: Meter-in | Port: R1/2 | Tube OD: ø12 mm | Seal: No sealant
ASG4211-04-12SControl: Meter-in | Port: R1/2 | Tube OD: ø12 mm | Seal: Sealant (S)
