SMC ASP-S Pilot Check Speed Controller with Scale, Residual Exhaust

SMC ASP-S Pilot Check Speed Controller with Scale, Residual Exhaust

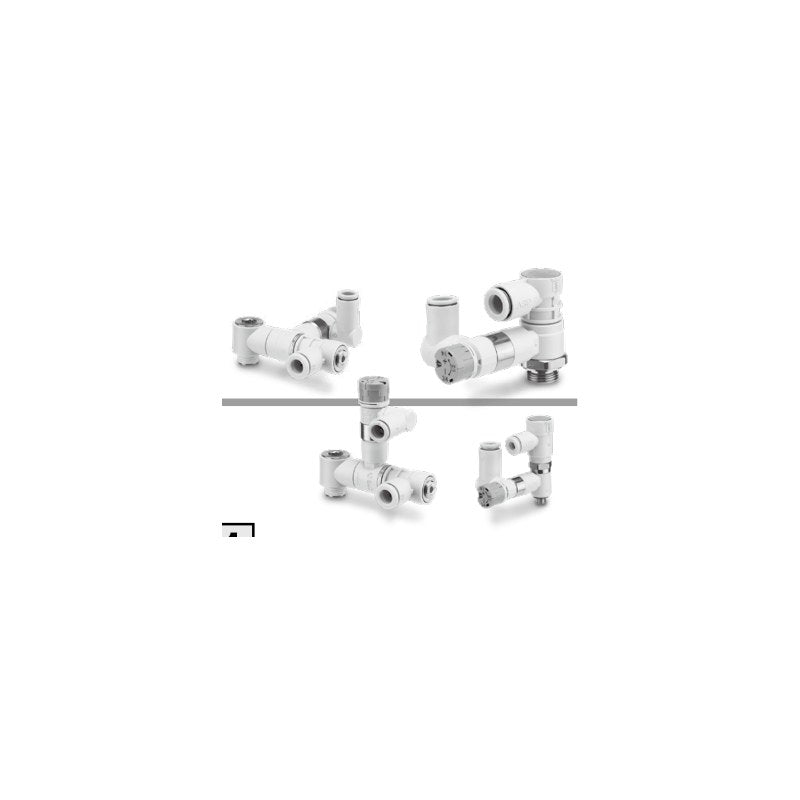

SMC ASP-S series compact scale-type speed controller with pilot check valve and optional residual pressure exhaust, with a numbered scale window for numerical flow management.

Key features

  • Scale window visible from 360°; sub-scale allows setting in 1/4-turn steps
  • Reduces setting man-hours and errors in inspection and maintenance
  • Pilot check valve with or without residual pressure exhaust valve (E)
  • Vertical (SUA) and horizontal (SUB) piping types
  • Vertical type with G thread (packing seal); horizontal with R (sealant or not), NPT or G
  • M5/10-32UNF types for use with exhaust center valves

Specifications

Fluid Air
Proof pressure 1.05 MPa
Max. operating pressure 0.7 MPa
Min. operating pressure 0.1 MPa
Pilot check valve operating pressure 50% of cylinder supply pressure min.
Ambient and fluid temperature -5 to 60°C (no freezing)
Applicable tubing Nylon, soft nylon, polyurethane, FEP, PFA
Body type Universal, compact scale handle
Material Brass metal parts
Scale 0-10 turns main scale with 1/4-turn sub-scale (M5: 8 turns)
Source SMC Korea catalog CAT.KS20-316A (SMCKR_ASP-S.pdf), p. 1-9
ASP-SUA04-M5 Piping: Vertical (SUA) | Residual exhaust: No | Cylinder port: M5x0.8 | Tube OD: ø4 mm
ASP-SUB04-M5 Piping: Horizontal (SUB) | Residual exhaust: No | Cylinder port: M5x0.8 | Tube OD: ø4 mm
ASP-SUA06-M5 Piping: Vertical (SUA) | Residual exhaust: No | Cylinder port: M5x0.8 | Tube OD: ø6 mm
ASP-SUB06-M5 Piping: Horizontal (SUB) | Residual exhaust: No | Cylinder port: M5x0.8 | Tube OD: ø6 mm
ASP-SUA06-G01 Piping: Vertical (SUA) | Residual exhaust: No | Cylinder port: G1/8 (packing seal) | Tube OD: ø6 mm
ASP-SUB06-01 Piping: Horizontal (SUB) | Residual exhaust: No | Cylinder port: R1/8 | Tube OD: ø6 mm
ASP-SUB06-01S Piping: Horizontal (SUB) | Residual exhaust: No | Cylinder port: R1/8 sealant | Tube OD: ø6 mm
ASP-SUA08-G02 Piping: Vertical (SUA) | Residual exhaust: No | Cylinder port: G1/4 (packing seal) | Tube OD: ø8 mm
ASP-SUB08-02 Piping: Horizontal (SUB) | Residual exhaust: No | Cylinder port: R1/4 | Tube OD: ø8 mm
ASP-SUB08-02S Piping: Horizontal (SUB) | Residual exhaust: No | Cylinder port: R1/4 sealant | Tube OD: ø8 mm
ASP-SUA10-G03 Piping: Vertical (SUA) | Residual exhaust: No | Cylinder port: G3/8 (packing seal) | Tube OD: ø10 mm
ASP-SUB10-03 Piping: Horizontal (SUB) | Residual exhaust: No | Cylinder port: R3/8 | Tube OD: ø10 mm
ASP-SUB10-03S Piping: Horizontal (SUB) | Residual exhaust: No | Cylinder port: R3/8 sealant | Tube OD: ø10 mm
ASP-SUA12-G04 Piping: Vertical (SUA) | Residual exhaust: No | Cylinder port: G1/2 (packing seal) | Tube OD: ø12 mm
ASP-SUB12-04 Piping: Horizontal (SUB) | Residual exhaust: No | Cylinder port: R1/2 | Tube OD: ø12 mm
ASP-SUB12-04S Piping: Horizontal (SUB) | Residual exhaust: No | Cylinder port: R1/2 sealant | Tube OD: ø12 mm
ASP-SUA04E-M5 Piping: Vertical (SUA) | Residual exhaust: Yes (E) | Cylinder port: M5x0.8 | Tube OD: ø4 mm
ASP-SUB04E-M5 Piping: Horizontal (SUB) | Residual exhaust: Yes (E) | Cylinder port: M5x0.8 | Tube OD: ø4 mm
ASP-SUA06E-M5 Piping: Vertical (SUA) | Residual exhaust: Yes (E) | Cylinder port: M5x0.8 | Tube OD: ø6 mm
ASP-SUB06E-M5 Piping: Horizontal (SUB) | Residual exhaust: Yes (E) | Cylinder port: M5x0.8 | Tube OD: ø6 mm
ASP-SUA06E-G01 Piping: Vertical (SUA) | Residual exhaust: Yes (E) | Cylinder port: G1/8 (packing seal) | Tube OD: ø6 mm
ASP-SUB06E-01 Piping: Horizontal (SUB) | Residual exhaust: Yes (E) | Cylinder port: R1/8 | Tube OD: ø6 mm
ASP-SUB06E-01S Piping: Horizontal (SUB) | Residual exhaust: Yes (E) | Cylinder port: R1/8 sealant | Tube OD: ø6 mm
ASP-SUA08E-G02 Piping: Vertical (SUA) | Residual exhaust: Yes (E) | Cylinder port: G1/4 (packing seal) | Tube OD: ø8 mm
ASP-SUB08E-02 Piping: Horizontal (SUB) | Residual exhaust: Yes (E) | Cylinder port: R1/4 | Tube OD: ø8 mm
ASP-SUB08E-02S Piping: Horizontal (SUB) | Residual exhaust: Yes (E) | Cylinder port: R1/4 sealant | Tube OD: ø8 mm
ASP-SUA10E-G03 Piping: Vertical (SUA) | Residual exhaust: Yes (E) | Cylinder port: G3/8 (packing seal) | Tube OD: ø10 mm
ASP-SUB10E-03 Piping: Horizontal (SUB) | Residual exhaust: Yes (E) | Cylinder port: R3/8 | Tube OD: ø10 mm
ASP-SUB10E-03S Piping: Horizontal (SUB) | Residual exhaust: Yes (E) | Cylinder port: R3/8 sealant | Tube OD: ø10 mm
ASP-SUA12E-G04 Piping: Vertical (SUA) | Residual exhaust: Yes (E) | Cylinder port: G1/2 (packing seal) | Tube OD: ø12 mm
ASP-SUB12E-04 Piping: Horizontal (SUB) | Residual exhaust: Yes (E) | Cylinder port: R1/2 | Tube OD: ø12 mm
ASP-SUB12E-04S Piping: Horizontal (SUB) | Residual exhaust: Yes (E) | Cylinder port: R1/2 sealant | Tube OD: ø12 mm
Speed ControllersSMC
32 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC ASP-S Pilot Check Speed Controller with Scale, Residual Exhaust

Brand SMC·Speed Controllers

Available part numbers (32)

ASP-SUA04-M5, ASP-SUB04-M5, ASP-SUA06-M5, ASP-SUB06-M5, ASP-SUA06-G01, ASP-SUB06-01, ASP-SUB06-01S, ASP-SUA08-G02, ASP-SUB08-02, ASP-SUB08-02S + 22 more — see full table ↓
