SMC ASP-U Pilot Check Speed Controller, Residual Exhaust (Push-Lock)

SMC ASP-U Pilot Check Speed Controller, Residual Exhaust (Push-Lock)

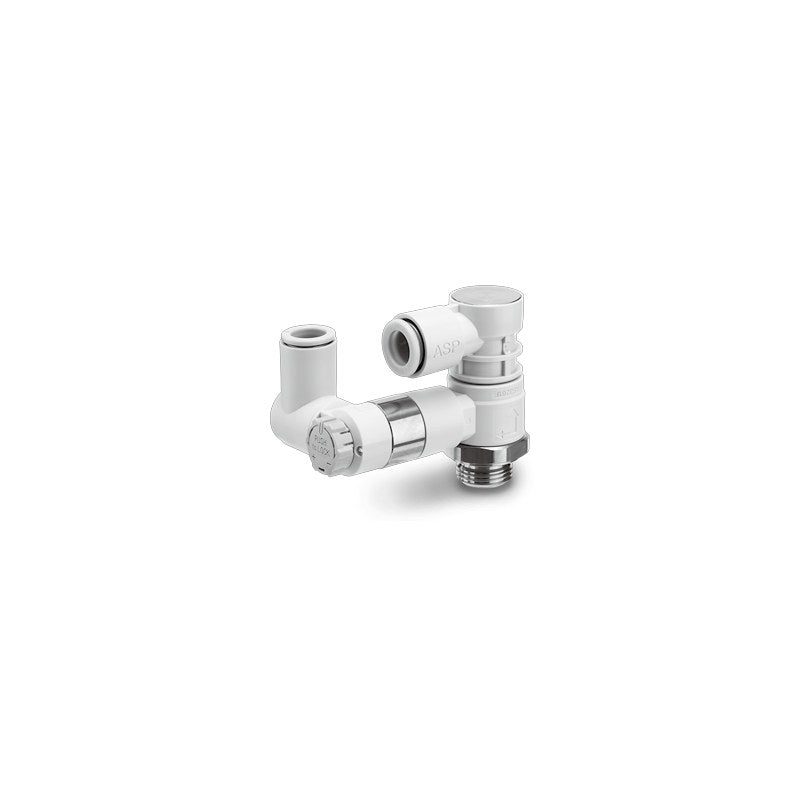

SMC ASP series universal speed controller with pilot check valve and optional built-in residual pressure exhaust valve, in vertical or horizontal piping and brass or stainless (ASP-G) versions.

Key features

  • Pilot check valve + speed controller, with or without residual pressure exhaust (E) push button
  • Enables safety circuits and temporary intermediate stopping of cylinders
  • Vertical (UA) and horizontal (UB) piping types; horizontal height 17.1 mm, hex wrench mounting
  • Push-Lock handle: lock/unlock by pushing the handle
  • ASP-G stainless type uses no copper/zinc-based materials, for secondary battery production lines
  • Vertical type uses G thread (packing seal); horizontal R (sealant or not), NPT and G available

Specifications

Fluid Air
Proof pressure 1.05 MPa
Max. operating pressure 0.7 MPa
Min. operating pressure 0.1 MPa
Pilot check valve operating pressure 50% of cylinder supply pressure min.
Ambient and fluid temperature -5 to 60°C (no freezing)
Applicable tubing Nylon, soft nylon, polyurethane, FEP, PFA
Body type Universal, Push-Lock handle
Source SMC Korea catalog CAT.KS20-298A (SMCKR_ASP-U.pdf), p. 1-13, 11-1 to 11-4
ASP-UA04-M5 Piping: Vertical (UA) | Material: Brass | Residual exhaust: No | Cylinder port: M5x0.8 | Tube OD: ø4 mm
ASP-UB04-M5 Piping: Horizontal (UB) | Material: Brass | Residual exhaust: No | Cylinder port: M5x0.8 | Tube OD: ø4 mm
ASP-UA06-M5 Piping: Vertical (UA) | Material: Brass | Residual exhaust: No | Cylinder port: M5x0.8 | Tube OD: ø6 mm
ASP-UB06-M5 Piping: Horizontal (UB) | Material: Brass | Residual exhaust: No | Cylinder port: M5x0.8 | Tube OD: ø6 mm
ASP-UA06-G01 Piping: Vertical (UA) | Material: Brass | Residual exhaust: No | Cylinder port: G1/8 (packing seal) | Tube OD: ø6 mm
ASP-UB06-01 Piping: Horizontal (UB) | Material: Brass | Residual exhaust: No | Cylinder port: R1/8 | Tube OD: ø6 mm
ASP-UB06-01S Piping: Horizontal (UB) | Material: Brass | Residual exhaust: No | Cylinder port: R1/8 sealant | Tube OD: ø6 mm
ASP-UA08-G02 Piping: Vertical (UA) | Material: Brass | Residual exhaust: No | Cylinder port: G1/4 (packing seal) | Tube OD: ø8 mm
ASP-UB08-02 Piping: Horizontal (UB) | Material: Brass | Residual exhaust: No | Cylinder port: R1/4 | Tube OD: ø8 mm
ASP-UB08-02S Piping: Horizontal (UB) | Material: Brass | Residual exhaust: No | Cylinder port: R1/4 sealant | Tube OD: ø8 mm
ASP-UA10-G03 Piping: Vertical (UA) | Material: Brass | Residual exhaust: No | Cylinder port: G3/8 (packing seal) | Tube OD: ø10 mm
ASP-UB10-03 Piping: Horizontal (UB) | Material: Brass | Residual exhaust: No | Cylinder port: R3/8 | Tube OD: ø10 mm
ASP-UB10-03S Piping: Horizontal (UB) | Material: Brass | Residual exhaust: No | Cylinder port: R3/8 sealant | Tube OD: ø10 mm
ASP-UA12-G04 Piping: Vertical (UA) | Material: Brass | Residual exhaust: No | Cylinder port: G1/2 (packing seal) | Tube OD: ø12 mm
ASP-UB12-04 Piping: Horizontal (UB) | Material: Brass | Residual exhaust: No | Cylinder port: R1/2 | Tube OD: ø12 mm
ASP-UB12-04S Piping: Horizontal (UB) | Material: Brass | Residual exhaust: No | Cylinder port: R1/2 sealant | Tube OD: ø12 mm
ASP-UA04E-M5 Piping: Vertical (UA) | Material: Brass | Residual exhaust: Yes (E) | Cylinder port: M5x0.8 | Tube OD: ø4 mm
ASP-UB04E-M5 Piping: Horizontal (UB) | Material: Brass | Residual exhaust: Yes (E) | Cylinder port: M5x0.8 | Tube OD: ø4 mm
ASP-UA06E-M5 Piping: Vertical (UA) | Material: Brass | Residual exhaust: Yes (E) | Cylinder port: M5x0.8 | Tube OD: ø6 mm
ASP-UB06E-M5 Piping: Horizontal (UB) | Material: Brass | Residual exhaust: Yes (E) | Cylinder port: M5x0.8 | Tube OD: ø6 mm
ASP-UA06E-G01 Piping: Vertical (UA) | Material: Brass | Residual exhaust: Yes (E) | Cylinder port: G1/8 (packing seal) | Tube OD: ø6 mm
ASP-UB06E-01 Piping: Horizontal (UB) | Material: Brass | Residual exhaust: Yes (E) | Cylinder port: R1/8 | Tube OD: ø6 mm
ASP-UB06E-01S Piping: Horizontal (UB) | Material: Brass | Residual exhaust: Yes (E) | Cylinder port: R1/8 sealant | Tube OD: ø6 mm
ASP-UA08E-G02 Piping: Vertical (UA) | Material: Brass | Residual exhaust: Yes (E) | Cylinder port: G1/4 (packing seal) | Tube OD: ø8 mm
ASP-UB08E-02 Piping: Horizontal (UB) | Material: Brass | Residual exhaust: Yes (E) | Cylinder port: R1/4 | Tube OD: ø8 mm
ASP-UB08E-02S Piping: Horizontal (UB) | Material: Brass | Residual exhaust: Yes (E) | Cylinder port: R1/4 sealant | Tube OD: ø8 mm
ASP-UA10E-G03 Piping: Vertical (UA) | Material: Brass | Residual exhaust: Yes (E) | Cylinder port: G3/8 (packing seal) | Tube OD: ø10 mm
ASP-UB10E-03 Piping: Horizontal (UB) | Material: Brass | Residual exhaust: Yes (E) | Cylinder port: R3/8 | Tube OD: ø10 mm
ASP-UB10E-03S Piping: Horizontal (UB) | Material: Brass | Residual exhaust: Yes (E) | Cylinder port: R3/8 sealant | Tube OD: ø10 mm
ASP-UA12E-G04 Piping: Vertical (UA) | Material: Brass | Residual exhaust: Yes (E) | Cylinder port: G1/2 (packing seal) | Tube OD: ø12 mm
ASP-UB12E-04 Piping: Horizontal (UB) | Material: Brass | Residual exhaust: Yes (E) | Cylinder port: R1/2 | Tube OD: ø12 mm
ASP-UB12E-04S Piping: Horizontal (UB) | Material: Brass | Residual exhaust: Yes (E) | Cylinder port: R1/2 sealant | Tube OD: ø12 mm
ASP-UB04GE-M5 Piping: Horizontal (UB) | Material: Stainless (ASP-G) | Residual exhaust: Yes (E) | Cylinder port: M5x0.8 | Tube OD: ø4 mm
ASP-UB06GE-M5 Piping: Horizontal (UB) | Material: Stainless (ASP-G) | Residual exhaust: Yes (E) | Cylinder port: M5x0.8 | Tube OD: ø6 mm
ASP-UB06GE-01 Piping: Horizontal (UB) | Material: Stainless (ASP-G) | Residual exhaust: Yes (E) | Cylinder port: R1/8 | Tube OD: ø6 mm
ASP-UB06GE-01S Piping: Horizontal (UB) | Material: Stainless (ASP-G) | Residual exhaust: Yes (E) | Cylinder port: R1/8 sealant | Tube OD: ø6 mm
ASP-UB08GE-02 Piping: Horizontal (UB) | Material: Stainless (ASP-G) | Residual exhaust: Yes (E) | Cylinder port: R1/4 | Tube OD: ø8 mm
ASP-UB08GE-02S Piping: Horizontal (UB) | Material: Stainless (ASP-G) | Residual exhaust: Yes (E) | Cylinder port: R1/4 sealant | Tube OD: ø8 mm
ASP-UB10GE-03 Piping: Horizontal (UB) | Material: Stainless (ASP-G) | Residual exhaust: Yes (E) | Cylinder port: R3/8 | Tube OD: ø10 mm
ASP-UB10GE-03S Piping: Horizontal (UB) | Material: Stainless (ASP-G) | Residual exhaust: Yes (E) | Cylinder port: R3/8 sealant | Tube OD: ø10 mm
ASP-UB12GE-04 Piping: Horizontal (UB) | Material: Stainless (ASP-G) | Residual exhaust: Yes (E) | Cylinder port: R1/2 | Tube OD: ø12 mm
ASP-UB12GE-04S Piping: Horizontal (UB) | Material: Stainless (ASP-G) | Residual exhaust: Yes (E) | Cylinder port: R1/2 sealant | Tube OD: ø12 mm
