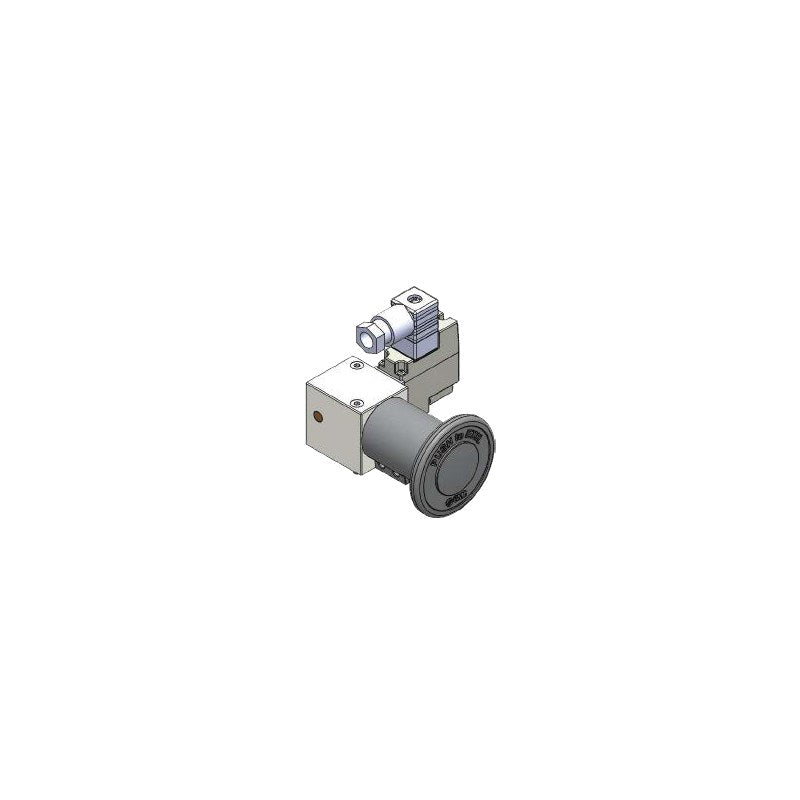

SMC AVL2000-A to AVL5000-A Lockout Soft Start-up Valve

SMC AVL2000-A to AVL5000-A Lockout Soft Start-up Valve

SMC AVL-A series lockout-type soft start-up valve with a lockable manual button, available as manual-operated or with solenoid valve.

Key features

  • Lockout button shuts off supply and exhausts downstream pressure; can be locked with a padlock during maintenance
  • Manual-operated type or solenoid valve type for soft start-up with electrical control
  • Solenoid type: DIN terminal (D/Y) or M12 connector (KOZ, DC); lamp/surge suppressor (Z) available
  • Ports 1/4 to 1 in four body sizes; connects to AC-D modular F.R.L. combinations
  • Options as code letters: bracket (B), pressure gauge with limit indicator (G), silencer (S); NPT (N) and G (F) threads

Specifications

Fluid Air
Operating pressure range 0.2 to 1.0 MPa
Proof pressure 1.5 MPa
Pressure gauge port 1/8
Ambient and fluid temperature 0 to 50°C (with solenoid valve), 0 to 60°C (manual)
Rated voltage DC24V, 12V; AC100V, 110V [115V], 200V, 220V [230V]
Power consumption DC 0.35 W (with lamp 0.45 W; M12 0.40 W)
Mass 0.62 kg (20, manual) to 1.55 kg (50, with solenoid)
Source SMC Korea catalog CAT.KS40-63B (SMCKR_AV-A.pdf), PDF p. 7-8
AVL2000-02-A Body size: AVL2000-A | Port size: Rc1/4 | Operation: Manual (lockout) | Voltage: None | Electrical entry: None
AVL2000-02-5D-A Body size: AVL2000-A | Port size: Rc1/4 | Operation: Lockout with solenoid valve | Voltage: DC24V | Electrical entry: DIN (D) with connector
AVL2000-02-5DZ-A Body size: AVL2000-A | Port size: Rc1/4 | Operation: Lockout with solenoid valve | Voltage: DC24V | Electrical entry: DIN (D) with connector, lamp/surge
AVL2000-02-5Y-A Body size: AVL2000-A | Port size: Rc1/4 | Operation: Lockout with solenoid valve | Voltage: DC24V | Electrical entry: DIN (Y) with connector
AVL2000-02-5YZ-A Body size: AVL2000-A | Port size: Rc1/4 | Operation: Lockout with solenoid valve | Voltage: DC24V | Electrical entry: DIN (Y) with connector, lamp/surge
AVL2000-02-5DO-A Body size: AVL2000-A | Port size: Rc1/4 | Operation: Lockout with solenoid valve | Voltage: DC24V | Electrical entry: DIN (D) no connector
AVL2000-02-5YO-A Body size: AVL2000-A | Port size: Rc1/4 | Operation: Lockout with solenoid valve | Voltage: DC24V | Electrical entry: DIN (Y) no connector
AVL2000-02-5KOZ-A Body size: AVL2000-A | Port size: Rc1/4 | Operation: Lockout with solenoid valve | Voltage: DC24V | Electrical entry: M12 connector, lamp/surge
AVL2000-02-6D-A Body size: AVL2000-A | Port size: Rc1/4 | Operation: Lockout with solenoid valve | Voltage: DC12V | Electrical entry: DIN (D) with connector
AVL2000-02-6DZ-A Body size: AVL2000-A | Port size: Rc1/4 | Operation: Lockout with solenoid valve | Voltage: DC12V | Electrical entry: DIN (D) with connector, lamp/surge
AVL2000-02-6Y-A Body size: AVL2000-A | Port size: Rc1/4 | Operation: Lockout with solenoid valve | Voltage: DC12V | Electrical entry: DIN (Y) with connector
AVL2000-02-6YZ-A Body size: AVL2000-A | Port size: Rc1/4 | Operation: Lockout with solenoid valve | Voltage: DC12V | Electrical entry: DIN (Y) with connector, lamp/surge
AVL2000-02-6DO-A Body size: AVL2000-A | Port size: Rc1/4 | Operation: Lockout with solenoid valve | Voltage: DC12V | Electrical entry: DIN (D) no connector
AVL2000-02-6YO-A Body size: AVL2000-A | Port size: Rc1/4 | Operation: Lockout with solenoid valve | Voltage: DC12V | Electrical entry: DIN (Y) no connector
AVL2000-02-6KOZ-A Body size: AVL2000-A | Port size: Rc1/4 | Operation: Lockout with solenoid valve | Voltage: DC12V | Electrical entry: M12 connector, lamp/surge
AVL2000-02-1D-A Body size: AVL2000-A | Port size: Rc1/4 | Operation: Lockout with solenoid valve | Voltage: AC100V | Electrical entry: DIN (D) with connector
AVL2000-02-1DZ-A Body size: AVL2000-A | Port size: Rc1/4 | Operation: Lockout with solenoid valve | Voltage: AC100V | Electrical entry: DIN (D) with connector, lamp/surge
AVL2000-02-1Y-A Body size: AVL2000-A | Port size: Rc1/4 | Operation: Lockout with solenoid valve | Voltage: AC100V | Electrical entry: DIN (Y) with connector
AVL2000-02-1YZ-A Body size: AVL2000-A | Port size: Rc1/4 | Operation: Lockout with solenoid valve | Voltage: AC100V | Electrical entry: DIN (Y) with connector, lamp/surge
AVL2000-02-1DO-A Body size: AVL2000-A | Port size: Rc1/4 | Operation: Lockout with solenoid valve | Voltage: AC100V | Electrical entry: DIN (D) no connector
AVL2000-02-1YO-A Body size: AVL2000-A | Port size: Rc1/4 | Operation: Lockout with solenoid valve | Voltage: AC100V | Electrical entry: DIN (Y) no connector
AVL2000-02-2D-A Body size: AVL2000-A | Port size: Rc1/4 | Operation: Lockout with solenoid valve | Voltage: AC200V | Electrical entry: DIN (D) with connector
AVL2000-02-2DZ-A Body size: AVL2000-A | Port size: Rc1/4 | Operation: Lockout with solenoid valve | Voltage: AC200V | Electrical entry: DIN (D) with connector, lamp/surge
AVL2000-02-2Y-A Body size: AVL2000-A | Port size: Rc1/4 | Operation: Lockout with solenoid valve | Voltage: AC200V | Electrical entry: DIN (Y) with connector
AVL2000-02-2YZ-A Body size: AVL2000-A | Port size: Rc1/4 | Operation: Lockout with solenoid valve | Voltage: AC200V | Electrical entry: DIN (Y) with connector, lamp/surge
AVL2000-02-2DO-A Body size: AVL2000-A | Port size: Rc1/4 | Operation: Lockout with solenoid valve | Voltage: AC200V | Electrical entry: DIN (D) no connector
AVL2000-02-2YO-A Body size: AVL2000-A | Port size: Rc1/4 | Operation: Lockout with solenoid valve | Voltage: AC200V | Electrical entry: DIN (Y) no connector
AVL2000-02-3D-A Body size: AVL2000-A | Port size: Rc1/4 | Operation: Lockout with solenoid valve | Voltage: AC110V [AC115V] | Electrical entry: DIN (D) with connector
AVL2000-02-3DZ-A Body size: AVL2000-A | Port size: Rc1/4 | Operation: Lockout with solenoid valve | Voltage: AC110V [AC115V] | Electrical entry: DIN (D) with connector, lamp/surge
AVL2000-02-3Y-A Body size: AVL2000-A | Port size: Rc1/4 | Operation: Lockout with solenoid valve | Voltage: AC110V [AC115V] | Electrical entry: DIN (Y) with connector
AVL2000-02-3YZ-A Body size: AVL2000-A | Port size: Rc1/4 | Operation: Lockout with solenoid valve | Voltage: AC110V [AC115V] | Electrical entry: DIN (Y) with connector, lamp/surge
AVL2000-02-3DO-A Body size: AVL2000-A | Port size: Rc1/4 | Operation: Lockout with solenoid valve | Voltage: AC110V [AC115V] | Electrical entry: DIN (D) no connector
AVL2000-02-3YO-A Body size: AVL2000-A | Port size: Rc1/4 | Operation: Lockout with solenoid valve | Voltage: AC110V [AC115V] | Electrical entry: DIN (Y) no connector
AVL2000-02-4D-A Body size: AVL2000-A | Port size: Rc1/4 | Operation: Lockout with solenoid valve | Voltage: AC220V [AC230V] | Electrical entry: DIN (D) with connector
AVL2000-02-4DZ-A Body size: AVL2000-A | Port size: Rc1/4 | Operation: Lockout with solenoid valve | Voltage: AC220V [AC230V] | Electrical entry: DIN (D) with connector, lamp/surge
AVL2000-02-4Y-A Body size: AVL2000-A | Port size: Rc1/4 | Operation: Lockout with solenoid valve | Voltage: AC220V [AC230V] | Electrical entry: DIN (Y) with connector
AVL2000-02-4YZ-A Body size: AVL2000-A | Port size: Rc1/4 | Operation: Lockout with solenoid valve | Voltage: AC220V [AC230V] | Electrical entry: DIN (Y) with connector, lamp/surge
AVL2000-02-4DO-A Body size: AVL2000-A | Port size: Rc1/4 | Operation: Lockout with solenoid valve | Voltage: AC220V [AC230V] | Electrical entry: DIN (D) no connector
AVL2000-02-4YO-A Body size: AVL2000-A | Port size: Rc1/4 | Operation: Lockout with solenoid valve | Voltage: AC220V [AC230V] | Electrical entry: DIN (Y) no connector
AVL3000-03-A Body size: AVL3000-A | Port size: Rc3/8 | Operation: Manual (lockout) | Voltage: None | Electrical entry: None
AVL3000-03-5D-A Body size: AVL3000-A | Port size: Rc3/8 | Operation: Lockout with solenoid valve | Voltage: DC24V | Electrical entry: DIN (D) with connector
AVL3000-03-5DZ-A Body size: AVL3000-A | Port size: Rc3/8 | Operation: Lockout with solenoid valve | Voltage: DC24V | Electrical entry: DIN (D) with connector, lamp/surge
AVL3000-03-5Y-A Body size: AVL3000-A | Port size: Rc3/8 | Operation: Lockout with solenoid valve | Voltage: DC24V | Electrical entry: DIN (Y) with connector
AVL3000-03-5YZ-A Body size: AVL3000-A | Port size: Rc3/8 | Operation: Lockout with solenoid valve | Voltage: DC24V | Electrical entry: DIN (Y) with connector, lamp/surge
AVL3000-03-5DO-A Body size: AVL3000-A | Port size: Rc3/8 | Operation: Lockout with solenoid valve | Voltage: DC24V | Electrical entry: DIN (D) no connector
AVL3000-03-5YO-A Body size: AVL3000-A | Port size: Rc3/8 | Operation: Lockout with solenoid valve | Voltage: DC24V | Electrical entry: DIN (Y) no connector
AVL3000-03-5KOZ-A Body size: AVL3000-A | Port size: Rc3/8 | Operation: Lockout with solenoid valve | Voltage: DC24V | Electrical entry: M12 connector, lamp/surge
AVL3000-03-6D-A Body size: AVL3000-A | Port size: Rc3/8 | Operation: Lockout with solenoid valve | Voltage: DC12V | Electrical entry: DIN (D) with connector
AVL3000-03-6DZ-A Body size: AVL3000-A | Port size: Rc3/8 | Operation: Lockout with solenoid valve | Voltage: DC12V | Electrical entry: DIN (D) with connector, lamp/surge
AVL3000-03-6Y-A Body size: AVL3000-A | Port size: Rc3/8 | Operation: Lockout with solenoid valve | Voltage: DC12V | Electrical entry: DIN (Y) with connector
AVL3000-03-6YZ-A Body size: AVL3000-A | Port size: Rc3/8 | Operation: Lockout with solenoid valve | Voltage: DC12V | Electrical entry: DIN (Y) with connector, lamp/surge
AVL3000-03-6DO-A Body size: AVL3000-A | Port size: Rc3/8 | Operation: Lockout with solenoid valve | Voltage: DC12V | Electrical entry: DIN (D) no connector
AVL3000-03-6YO-A Body size: AVL3000-A | Port size: Rc3/8 | Operation: Lockout with solenoid valve | Voltage: DC12V | Electrical entry: DIN (Y) no connector
AVL3000-03-6KOZ-A Body size: AVL3000-A | Port size: Rc3/8 | Operation: Lockout with solenoid valve | Voltage: DC12V | Electrical entry: M12 connector, lamp/surge
AVL3000-03-1D-A Body size: AVL3000-A | Port size: Rc3/8 | Operation: Lockout with solenoid valve | Voltage: AC100V | Electrical entry: DIN (D) with connector
AVL3000-03-1DZ-A Body size: AVL3000-A | Port size: Rc3/8 | Operation: Lockout with solenoid valve | Voltage: AC100V | Electrical entry: DIN (D) with connector, lamp/surge
AVL3000-03-1Y-A Body size: AVL3000-A | Port size: Rc3/8 | Operation: Lockout with solenoid valve | Voltage: AC100V | Electrical entry: DIN (Y) with connector
AVL3000-03-1YZ-A Body size: AVL3000-A | Port size: Rc3/8 | Operation: Lockout with solenoid valve | Voltage: AC100V | Electrical entry: DIN (Y) with connector, lamp/surge
AVL3000-03-1DO-A Body size: AVL3000-A | Port size: Rc3/8 | Operation: Lockout with solenoid valve | Voltage: AC100V | Electrical entry: DIN (D) no connector
AVL3000-03-1YO-A Body size: AVL3000-A | Port size: Rc3/8 | Operation: Lockout with solenoid valve | Voltage: AC100V | Electrical entry: DIN (Y) no connector
AVL3000-03-2D-A Body size: AVL3000-A | Port size: Rc3/8 | Operation: Lockout with solenoid valve | Voltage: AC200V | Electrical entry: DIN (D) with connector
AVL3000-03-2DZ-A Body size: AVL3000-A | Port size: Rc3/8 | Operation: Lockout with solenoid valve | Voltage: AC200V | Electrical entry: DIN (D) with connector, lamp/surge
AVL3000-03-2Y-A Body size: AVL3000-A | Port size: Rc3/8 | Operation: Lockout with solenoid valve | Voltage: AC200V | Electrical entry: DIN (Y) with connector
AVL3000-03-2YZ-A Body size: AVL3000-A | Port size: Rc3/8 | Operation: Lockout with solenoid valve | Voltage: AC200V | Electrical entry: DIN (Y) with connector, lamp/surge
AVL3000-03-2DO-A Body size: AVL3000-A | Port size: Rc3/8 | Operation: Lockout with solenoid valve | Voltage: AC200V | Electrical entry: DIN (D) no connector
AVL3000-03-2YO-A Body size: AVL3000-A | Port size: Rc3/8 | Operation: Lockout with solenoid valve | Voltage: AC200V | Electrical entry: DIN (Y) no connector
AVL3000-03-3D-A Body size: AVL3000-A | Port size: Rc3/8 | Operation: Lockout with solenoid valve | Voltage: AC110V [AC115V] | Electrical entry: DIN (D) with connector
AVL3000-03-3DZ-A Body size: AVL3000-A | Port size: Rc3/8 | Operation: Lockout with solenoid valve | Voltage: AC110V [AC115V] | Electrical entry: DIN (D) with connector, lamp/surge
AVL3000-03-3Y-A Body size: AVL3000-A | Port size: Rc3/8 | Operation: Lockout with solenoid valve | Voltage: AC110V [AC115V] | Electrical entry: DIN (Y) with connector
AVL3000-03-3YZ-A Body size: AVL3000-A | Port size: Rc3/8 | Operation: Lockout with solenoid valve | Voltage: AC110V [AC115V] | Electrical entry: DIN (Y) with connector, lamp/surge
AVL3000-03-3DO-A Body size: AVL3000-A | Port size: Rc3/8 | Operation: Lockout with solenoid valve | Voltage: AC110V [AC115V] | Electrical entry: DIN (D) no connector
AVL3000-03-3YO-A Body size: AVL3000-A | Port size: Rc3/8 | Operation: Lockout with solenoid valve | Voltage: AC110V [AC115V] | Electrical entry: DIN (Y) no connector
AVL3000-03-4D-A Body size: AVL3000-A | Port size: Rc3/8 | Operation: Lockout with solenoid valve | Voltage: AC220V [AC230V] | Electrical entry: DIN (D) with connector
AVL3000-03-4DZ-A Body size: AVL3000-A | Port size: Rc3/8 | Operation: Lockout with solenoid valve | Voltage: AC220V [AC230V] | Electrical entry: DIN (D) with connector, lamp/surge
AVL3000-03-4Y-A Body size: AVL3000-A | Port size: Rc3/8 | Operation: Lockout with solenoid valve | Voltage: AC220V [AC230V] | Electrical entry: DIN (Y) with connector
AVL3000-03-4YZ-A Body size: AVL3000-A | Port size: Rc3/8 | Operation: Lockout with solenoid valve | Voltage: AC220V [AC230V] | Electrical entry: DIN (Y) with connector, lamp/surge
AVL3000-03-4DO-A Body size: AVL3000-A | Port size: Rc3/8 | Operation: Lockout with solenoid valve | Voltage: AC220V [AC230V] | Electrical entry: DIN (D) no connector
AVL3000-03-4YO-A Body size: AVL3000-A | Port size: Rc3/8 | Operation: Lockout with solenoid valve | Voltage: AC220V [AC230V] | Electrical entry: DIN (Y) no connector
AVL4000-04-A Body size: AVL4000-A | Port size: Rc1/2 | Operation: Manual (lockout) | Voltage: None | Electrical entry: None
AVL4000-04-5D-A Body size: AVL4000-A | Port size: Rc1/2 | Operation: Lockout with solenoid valve | Voltage: DC24V | Electrical entry: DIN (D) with connector
AVL4000-04-5DZ-A Body size: AVL4000-A | Port size: Rc1/2 | Operation: Lockout with solenoid valve | Voltage: DC24V | Electrical entry: DIN (D) with connector, lamp/surge
AVL4000-04-5Y-A Body size: AVL4000-A | Port size: Rc1/2 | Operation: Lockout with solenoid valve | Voltage: DC24V | Electrical entry: DIN (Y) with connector
AVL4000-04-5YZ-A Body size: AVL4000-A | Port size: Rc1/2 | Operation: Lockout with solenoid valve | Voltage: DC24V | Electrical entry: DIN (Y) with connector, lamp/surge
AVL4000-04-5DO-A Body size: AVL4000-A | Port size: Rc1/2 | Operation: Lockout with solenoid valve | Voltage: DC24V | Electrical entry: DIN (D) no connector
AVL4000-04-5YO-A Body size: AVL4000-A | Port size: Rc1/2 | Operation: Lockout with solenoid valve | Voltage: DC24V | Electrical entry: DIN (Y) no connector
AVL4000-04-5KOZ-A Body size: AVL4000-A | Port size: Rc1/2 | Operation: Lockout with solenoid valve | Voltage: DC24V | Electrical entry: M12 connector, lamp/surge
AVL4000-04-6D-A Body size: AVL4000-A | Port size: Rc1/2 | Operation: Lockout with solenoid valve | Voltage: DC12V | Electrical entry: DIN (D) with connector
AVL4000-04-6DZ-A Body size: AVL4000-A | Port size: Rc1/2 | Operation: Lockout with solenoid valve | Voltage: DC12V | Electrical entry: DIN (D) with connector, lamp/surge
AVL4000-04-6Y-A Body size: AVL4000-A | Port size: Rc1/2 | Operation: Lockout with solenoid valve | Voltage: DC12V | Electrical entry: DIN (Y) with connector
AVL4000-04-6YZ-A Body size: AVL4000-A | Port size: Rc1/2 | Operation: Lockout with solenoid valve | Voltage: DC12V | Electrical entry: DIN (Y) with connector, lamp/surge
AVL4000-04-6DO-A Body size: AVL4000-A | Port size: Rc1/2 | Operation: Lockout with solenoid valve | Voltage: DC12V | Electrical entry: DIN (D) no connector
AVL4000-04-6YO-A Body size: AVL4000-A | Port size: Rc1/2 | Operation: Lockout with solenoid valve | Voltage: DC12V | Electrical entry: DIN (Y) no connector
AVL4000-04-6KOZ-A Body size: AVL4000-A | Port size: Rc1/2 | Operation: Lockout with solenoid valve | Voltage: DC12V | Electrical entry: M12 connector, lamp/surge
AVL4000-04-1D-A Body size: AVL4000-A | Port size: Rc1/2 | Operation: Lockout with solenoid valve | Voltage: AC100V | Electrical entry: DIN (D) with connector
AVL4000-04-1DZ-A Body size: AVL4000-A | Port size: Rc1/2 | Operation: Lockout with solenoid valve | Voltage: AC100V | Electrical entry: DIN (D) with connector, lamp/surge
AVL4000-04-1Y-A Body size: AVL4000-A | Port size: Rc1/2 | Operation: Lockout with solenoid valve | Voltage: AC100V | Electrical entry: DIN (Y) with connector
AVL4000-04-1YZ-A Body size: AVL4000-A | Port size: Rc1/2 | Operation: Lockout with solenoid valve | Voltage: AC100V | Electrical entry: DIN (Y) with connector, lamp/surge
AVL4000-04-1DO-A Body size: AVL4000-A | Port size: Rc1/2 | Operation: Lockout with solenoid valve | Voltage: AC100V | Electrical entry: DIN (D) no connector
AVL4000-04-1YO-A Body size: AVL4000-A | Port size: Rc1/2 | Operation: Lockout with solenoid valve | Voltage: AC100V | Electrical entry: DIN (Y) no connector
AVL4000-04-2D-A Body size: AVL4000-A | Port size: Rc1/2 | Operation: Lockout with solenoid valve | Voltage: AC200V | Electrical entry: DIN (D) with connector
AVL4000-04-2DZ-A Body size: AVL4000-A | Port size: Rc1/2 | Operation: Lockout with solenoid valve | Voltage: AC200V | Electrical entry: DIN (D) with connector, lamp/surge
AVL4000-04-2Y-A Body size: AVL4000-A | Port size: Rc1/2 | Operation: Lockout with solenoid valve | Voltage: AC200V | Electrical entry: DIN (Y) with connector
AVL4000-04-2YZ-A Body size: AVL4000-A | Port size: Rc1/2 | Operation: Lockout with solenoid valve | Voltage: AC200V | Electrical entry: DIN (Y) with connector, lamp/surge
AVL4000-04-2DO-A Body size: AVL4000-A | Port size: Rc1/2 | Operation: Lockout with solenoid valve | Voltage: AC200V | Electrical entry: DIN (D) no connector
AVL4000-04-2YO-A Body size: AVL4000-A | Port size: Rc1/2 | Operation: Lockout with solenoid valve | Voltage: AC200V | Electrical entry: DIN (Y) no connector
AVL4000-04-3D-A Body size: AVL4000-A | Port size: Rc1/2 | Operation: Lockout with solenoid valve | Voltage: AC110V [AC115V] | Electrical entry: DIN (D) with connector
AVL4000-04-3DZ-A Body size: AVL4000-A | Port size: Rc1/2 | Operation: Lockout with solenoid valve | Voltage: AC110V [AC115V] | Electrical entry: DIN (D) with connector, lamp/surge
AVL4000-04-3Y-A Body size: AVL4000-A | Port size: Rc1/2 | Operation: Lockout with solenoid valve | Voltage: AC110V [AC115V] | Electrical entry: DIN (Y) with connector
AVL4000-04-3YZ-A Body size: AVL4000-A | Port size: Rc1/2 | Operation: Lockout with solenoid valve | Voltage: AC110V [AC115V] | Electrical entry: DIN (Y) with connector, lamp/surge
AVL4000-04-3DO-A Body size: AVL4000-A | Port size: Rc1/2 | Operation: Lockout with solenoid valve | Voltage: AC110V [AC115V] | Electrical entry: DIN (D) no connector
AVL4000-04-3YO-A Body size: AVL4000-A | Port size: Rc1/2 | Operation: Lockout with solenoid valve | Voltage: AC110V [AC115V] | Electrical entry: DIN (Y) no connector
AVL4000-04-4D-A Body size: AVL4000-A | Port size: Rc1/2 | Operation: Lockout with solenoid valve | Voltage: AC220V [AC230V] | Electrical entry: DIN (D) with connector
AVL4000-04-4DZ-A Body size: AVL4000-A | Port size: Rc1/2 | Operation: Lockout with solenoid valve | Voltage: AC220V [AC230V] | Electrical entry: DIN (D) with connector, lamp/surge
AVL4000-04-4Y-A Body size: AVL4000-A | Port size: Rc1/2 | Operation: Lockout with solenoid valve | Voltage: AC220V [AC230V] | Electrical entry: DIN (Y) with connector
AVL4000-04-4YZ-A Body size: AVL4000-A | Port size: Rc1/2 | Operation: Lockout with solenoid valve | Voltage: AC220V [AC230V] | Electrical entry: DIN (Y) with connector, lamp/surge
AVL4000-04-4DO-A Body size: AVL4000-A | Port size: Rc1/2 | Operation: Lockout with solenoid valve | Voltage: AC220V [AC230V] | Electrical entry: DIN (D) no connector
AVL4000-04-4YO-A Body size: AVL4000-A | Port size: Rc1/2 | Operation: Lockout with solenoid valve | Voltage: AC220V [AC230V] | Electrical entry: DIN (Y) no connector
AVL5000-06-A Body size: AVL5000-A | Port size: Rc3/4 | Operation: Manual (lockout) | Voltage: None | Electrical entry: None
AVL5000-06-5D-A Body size: AVL5000-A | Port size: Rc3/4 | Operation: Lockout with solenoid valve | Voltage: DC24V | Electrical entry: DIN (D) with connector
AVL5000-06-5DZ-A Body size: AVL5000-A | Port size: Rc3/4 | Operation: Lockout with solenoid valve | Voltage: DC24V | Electrical entry: DIN (D) with connector, lamp/surge
AVL5000-06-5Y-A Body size: AVL5000-A | Port size: Rc3/4 | Operation: Lockout with solenoid valve | Voltage: DC24V | Electrical entry: DIN (Y) with connector
AVL5000-06-5YZ-A Body size: AVL5000-A | Port size: Rc3/4 | Operation: Lockout with solenoid valve | Voltage: DC24V | Electrical entry: DIN (Y) with connector, lamp/surge
AVL5000-06-5DO-A Body size: AVL5000-A | Port size: Rc3/4 | Operation: Lockout with solenoid valve | Voltage: DC24V | Electrical entry: DIN (D) no connector
AVL5000-06-5YO-A Body size: AVL5000-A | Port size: Rc3/4 | Operation: Lockout with solenoid valve | Voltage: DC24V | Electrical entry: DIN (Y) no connector
AVL5000-06-5KOZ-A Body size: AVL5000-A | Port size: Rc3/4 | Operation: Lockout with solenoid valve | Voltage: DC24V | Electrical entry: M12 connector, lamp/surge
AVL5000-06-6D-A Body size: AVL5000-A | Port size: Rc3/4 | Operation: Lockout with solenoid valve | Voltage: DC12V | Electrical entry: DIN (D) with connector
AVL5000-06-6DZ-A Body size: AVL5000-A | Port size: Rc3/4 | Operation: Lockout with solenoid valve | Voltage: DC12V | Electrical entry: DIN (D) with connector, lamp/surge
AVL5000-06-6Y-A Body size: AVL5000-A | Port size: Rc3/4 | Operation: Lockout with solenoid valve | Voltage: DC12V | Electrical entry: DIN (Y) with connector
AVL5000-06-6YZ-A Body size: AVL5000-A | Port size: Rc3/4 | Operation: Lockout with solenoid valve | Voltage: DC12V | Electrical entry: DIN (Y) with connector, lamp/surge
AVL5000-06-6DO-A Body size: AVL5000-A | Port size: Rc3/4 | Operation: Lockout with solenoid valve | Voltage: DC12V | Electrical entry: DIN (D) no connector
AVL5000-06-6YO-A Body size: AVL5000-A | Port size: Rc3/4 | Operation: Lockout with solenoid valve | Voltage: DC12V | Electrical entry: DIN (Y) no connector
AVL5000-06-6KOZ-A Body size: AVL5000-A | Port size: Rc3/4 | Operation: Lockout with solenoid valve | Voltage: DC12V | Electrical entry: M12 connector, lamp/surge
AVL5000-06-1D-A Body size: AVL5000-A | Port size: Rc3/4 | Operation: Lockout with solenoid valve | Voltage: AC100V | Electrical entry: DIN (D) with connector
AVL5000-06-1DZ-A Body size: AVL5000-A | Port size: Rc3/4 | Operation: Lockout with solenoid valve | Voltage: AC100V | Electrical entry: DIN (D) with connector, lamp/surge
AVL5000-06-1Y-A Body size: AVL5000-A | Port size: Rc3/4 | Operation: Lockout with solenoid valve | Voltage: AC100V | Electrical entry: DIN (Y) with connector
AVL5000-06-1YZ-A Body size: AVL5000-A | Port size: Rc3/4 | Operation: Lockout with solenoid valve | Voltage: AC100V | Electrical entry: DIN (Y) with connector, lamp/surge
AVL5000-06-1DO-A Body size: AVL5000-A | Port size: Rc3/4 | Operation: Lockout with solenoid valve | Voltage: AC100V | Electrical entry: DIN (D) no connector
AVL5000-06-1YO-A Body size: AVL5000-A | Port size: Rc3/4 | Operation: Lockout with solenoid valve | Voltage: AC100V | Electrical entry: DIN (Y) no connector
AVL5000-06-2D-A Body size: AVL5000-A | Port size: Rc3/4 | Operation: Lockout with solenoid valve | Voltage: AC200V | Electrical entry: DIN (D) with connector
AVL5000-06-2DZ-A Body size: AVL5000-A | Port size: Rc3/4 | Operation: Lockout with solenoid valve | Voltage: AC200V | Electrical entry: DIN (D) with connector, lamp/surge
AVL5000-06-2Y-A Body size: AVL5000-A | Port size: Rc3/4 | Operation: Lockout with solenoid valve | Voltage: AC200V | Electrical entry: DIN (Y) with connector
AVL5000-06-2YZ-A Body size: AVL5000-A | Port size: Rc3/4 | Operation: Lockout with solenoid valve | Voltage: AC200V | Electrical entry: DIN (Y) with connector, lamp/surge
AVL5000-06-2DO-A Body size: AVL5000-A | Port size: Rc3/4 | Operation: Lockout with solenoid valve | Voltage: AC200V | Electrical entry: DIN (D) no connector
AVL5000-06-2YO-A Body size: AVL5000-A | Port size: Rc3/4 | Operation: Lockout with solenoid valve | Voltage: AC200V | Electrical entry: DIN (Y) no connector
AVL5000-06-3D-A Body size: AVL5000-A | Port size: Rc3/4 | Operation: Lockout with solenoid valve | Voltage: AC110V [AC115V] | Electrical entry: DIN (D) with connector
AVL5000-06-3DZ-A Body size: AVL5000-A | Port size: Rc3/4 | Operation: Lockout with solenoid valve | Voltage: AC110V [AC115V] | Electrical entry: DIN (D) with connector, lamp/surge
AVL5000-06-3Y-A Body size: AVL5000-A | Port size: Rc3/4 | Operation: Lockout with solenoid valve | Voltage: AC110V [AC115V] | Electrical entry: DIN (Y) with connector
AVL5000-06-3YZ-A Body size: AVL5000-A | Port size: Rc3/4 | Operation: Lockout with solenoid valve | Voltage: AC110V [AC115V] | Electrical entry: DIN (Y) with connector, lamp/surge
AVL5000-06-3DO-A Body size: AVL5000-A | Port size: Rc3/4 | Operation: Lockout with solenoid valve | Voltage: AC110V [AC115V] | Electrical entry: DIN (D) no connector
AVL5000-06-3YO-A Body size: AVL5000-A | Port size: Rc3/4 | Operation: Lockout with solenoid valve | Voltage: AC110V [AC115V] | Electrical entry: DIN (Y) no connector
AVL5000-06-4D-A Body size: AVL5000-A | Port size: Rc3/4 | Operation: Lockout with solenoid valve | Voltage: AC220V [AC230V] | Electrical entry: DIN (D) with connector
AVL5000-06-4DZ-A Body size: AVL5000-A | Port size: Rc3/4 | Operation: Lockout with solenoid valve | Voltage: AC220V [AC230V] | Electrical entry: DIN (D) with connector, lamp/surge
AVL5000-06-4Y-A Body size: AVL5000-A | Port size: Rc3/4 | Operation: Lockout with solenoid valve | Voltage: AC220V [AC230V] | Electrical entry: DIN (Y) with connector
AVL5000-06-4YZ-A Body size: AVL5000-A | Port size: Rc3/4 | Operation: Lockout with solenoid valve | Voltage: AC220V [AC230V] | Electrical entry: DIN (Y) with connector, lamp/surge
AVL5000-06-4DO-A Body size: AVL5000-A | Port size: Rc3/4 | Operation: Lockout with solenoid valve | Voltage: AC220V [AC230V] | Electrical entry: DIN (D) no connector
AVL5000-06-4YO-A Body size: AVL5000-A | Port size: Rc3/4 | Operation: Lockout with solenoid valve | Voltage: AC220V [AC230V] | Electrical entry: DIN (Y) no connector
AVL5000-10-A Body size: AVL5000-A | Port size: Rc1 | Operation: Manual (lockout) | Voltage: None | Electrical entry: None
AVL5000-10-5D-A Body size: AVL5000-A | Port size: Rc1 | Operation: Lockout with solenoid valve | Voltage: DC24V | Electrical entry: DIN (D) with connector
AVL5000-10-5DZ-A Body size: AVL5000-A | Port size: Rc1 | Operation: Lockout with solenoid valve | Voltage: DC24V | Electrical entry: DIN (D) with connector, lamp/surge
AVL5000-10-5Y-A Body size: AVL5000-A | Port size: Rc1 | Operation: Lockout with solenoid valve | Voltage: DC24V | Electrical entry: DIN (Y) with connector
AVL5000-10-5YZ-A Body size: AVL5000-A | Port size: Rc1 | Operation: Lockout with solenoid valve | Voltage: DC24V | Electrical entry: DIN (Y) with connector, lamp/surge
AVL5000-10-5DO-A Body size: AVL5000-A | Port size: Rc1 | Operation: Lockout with solenoid valve | Voltage: DC24V | Electrical entry: DIN (D) no connector
AVL5000-10-5YO-A Body size: AVL5000-A | Port size: Rc1 | Operation: Lockout with solenoid valve | Voltage: DC24V | Electrical entry: DIN (Y) no connector
AVL5000-10-5KOZ-A Body size: AVL5000-A | Port size: Rc1 | Operation: Lockout with solenoid valve | Voltage: DC24V | Electrical entry: M12 connector, lamp/surge
AVL5000-10-6D-A Body size: AVL5000-A | Port size: Rc1 | Operation: Lockout with solenoid valve | Voltage: DC12V | Electrical entry: DIN (D) with connector
AVL5000-10-6DZ-A Body size: AVL5000-A | Port size: Rc1 | Operation: Lockout with solenoid valve | Voltage: DC12V | Electrical entry: DIN (D) with connector, lamp/surge
AVL5000-10-6Y-A Body size: AVL5000-A | Port size: Rc1 | Operation: Lockout with solenoid valve | Voltage: DC12V | Electrical entry: DIN (Y) with connector
AVL5000-10-6YZ-A Body size: AVL5000-A | Port size: Rc1 | Operation: Lockout with solenoid valve | Voltage: DC12V | Electrical entry: DIN (Y) with connector, lamp/surge
AVL5000-10-6DO-A Body size: AVL5000-A | Port size: Rc1 | Operation: Lockout with solenoid valve | Voltage: DC12V | Electrical entry: DIN (D) no connector
AVL5000-10-6YO-A Body size: AVL5000-A | Port size: Rc1 | Operation: Lockout with solenoid valve | Voltage: DC12V | Electrical entry: DIN (Y) no connector
AVL5000-10-6KOZ-A Body size: AVL5000-A | Port size: Rc1 | Operation: Lockout with solenoid valve | Voltage: DC12V | Electrical entry: M12 connector, lamp/surge
AVL5000-10-1D-A Body size: AVL5000-A | Port size: Rc1 | Operation: Lockout with solenoid valve | Voltage: AC100V | Electrical entry: DIN (D) with connector
AVL5000-10-1DZ-A Body size: AVL5000-A | Port size: Rc1 | Operation: Lockout with solenoid valve | Voltage: AC100V | Electrical entry: DIN (D) with connector, lamp/surge
AVL5000-10-1Y-A Body size: AVL5000-A | Port size: Rc1 | Operation: Lockout with solenoid valve | Voltage: AC100V | Electrical entry: DIN (Y) with connector
AVL5000-10-1YZ-A Body size: AVL5000-A | Port size: Rc1 | Operation: Lockout with solenoid valve | Voltage: AC100V | Electrical entry: DIN (Y) with connector, lamp/surge
AVL5000-10-1DO-A Body size: AVL5000-A | Port size: Rc1 | Operation: Lockout with solenoid valve | Voltage: AC100V | Electrical entry: DIN (D) no connector
AVL5000-10-1YO-A Body size: AVL5000-A | Port size: Rc1 | Operation: Lockout with solenoid valve | Voltage: AC100V | Electrical entry: DIN (Y) no connector
AVL5000-10-2D-A Body size: AVL5000-A | Port size: Rc1 | Operation: Lockout with solenoid valve | Voltage: AC200V | Electrical entry: DIN (D) with connector
AVL5000-10-2DZ-A Body size: AVL5000-A | Port size: Rc1 | Operation: Lockout with solenoid valve | Voltage: AC200V | Electrical entry: DIN (D) with connector, lamp/surge
AVL5000-10-2Y-A Body size: AVL5000-A | Port size: Rc1 | Operation: Lockout with solenoid valve | Voltage: AC200V | Electrical entry: DIN (Y) with connector
AVL5000-10-2YZ-A Body size: AVL5000-A | Port size: Rc1 | Operation: Lockout with solenoid valve | Voltage: AC200V | Electrical entry: DIN (Y) with connector, lamp/surge
AVL5000-10-2DO-A Body size: AVL5000-A | Port size: Rc1 | Operation: Lockout with solenoid valve | Voltage: AC200V | Electrical entry: DIN (D) no connector
AVL5000-10-2YO-A Body size: AVL5000-A | Port size: Rc1 | Operation: Lockout with solenoid valve | Voltage: AC200V | Electrical entry: DIN (Y) no connector
AVL5000-10-3D-A Body size: AVL5000-A | Port size: Rc1 | Operation: Lockout with solenoid valve | Voltage: AC110V [AC115V] | Electrical entry: DIN (D) with connector
AVL5000-10-3DZ-A Body size: AVL5000-A | Port size: Rc1 | Operation: Lockout with solenoid valve | Voltage: AC110V [AC115V] | Electrical entry: DIN (D) with connector, lamp/surge
AVL5000-10-3Y-A Body size: AVL5000-A | Port size: Rc1 | Operation: Lockout with solenoid valve | Voltage: AC110V [AC115V] | Electrical entry: DIN (Y) with connector
AVL5000-10-3YZ-A Body size: AVL5000-A | Port size: Rc1 | Operation: Lockout with solenoid valve | Voltage: AC110V [AC115V] | Electrical entry: DIN (Y) with connector, lamp/surge
AVL5000-10-3DO-A Body size: AVL5000-A | Port size: Rc1 | Operation: Lockout with solenoid valve | Voltage: AC110V [AC115V] | Electrical entry: DIN (D) no connector
AVL5000-10-3YO-A Body size: AVL5000-A | Port size: Rc1 | Operation: Lockout with solenoid valve | Voltage: AC110V [AC115V] | Electrical entry: DIN (Y) no connector
AVL5000-10-4D-A Body size: AVL5000-A | Port size: Rc1 | Operation: Lockout with solenoid valve | Voltage: AC220V [AC230V] | Electrical entry: DIN (D) with connector
AVL5000-10-4DZ-A Body size: AVL5000-A | Port size: Rc1 | Operation: Lockout with solenoid valve | Voltage: AC220V [AC230V] | Electrical entry: DIN (D) with connector, lamp/surge
AVL5000-10-4Y-A Body size: AVL5000-A | Port size: Rc1 | Operation: Lockout with solenoid valve | Voltage: AC220V [AC230V] | Electrical entry: DIN (Y) with connector
AVL5000-10-4YZ-A Body size: AVL5000-A | Port size: Rc1 | Operation: Lockout with solenoid valve | Voltage: AC220V [AC230V] | Electrical entry: DIN (Y) with connector, lamp/surge
AVL5000-10-4DO-A Body size: AVL5000-A | Port size: Rc1 | Operation: Lockout with solenoid valve | Voltage: AC220V [AC230V] | Electrical entry: DIN (D) no connector
AVL5000-10-4YO-A Body size: AVL5000-A | Port size: Rc1 | Operation: Lockout with solenoid valve | Voltage: AC220V [AC230V] | Electrical entry: DIN (Y) no connector
3-Port ValvesSMC
195 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC AVL2000-A to AVL5000-A Lockout Soft Start-up Valve

Brand SMC·3-Port Valves

Available part numbers (195)

AVL2000-02-A, AVL2000-02-5D-A, AVL2000-02-5DZ-A, AVL2000-02-5Y-A, AVL2000-02-5YZ-A, AVL2000-02-5DO-A, AVL2000-02-5YO-A, AVL2000-02-5KOZ-A, AVL2000-02-6D-A, AVL2000-02-6DZ-A + 185 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AVL2000-02-ABody size: AVL2000-A | Port size: Rc1/4 | Operation: Manual (lockout) | Voltage: None | Electrical entry: None
AVL2000-02-5D-ABody size: AVL2000-A | Port size: Rc1/4 | Operation: Lockout with solenoid valve | Voltage: DC24V | Electrical entry: DIN (D) with connector
AVL2000-02-5DZ-ABody size: AVL2000-A | Port size: Rc1/4 | Operation: Lockout with solenoid valve | Voltage: DC24V | Electrical entry: DIN (D) with connector, lamp/surge
AVL2000-02-5Y-ABody size: AVL2000-A | Port size: Rc1/4 | Operation: Lockout with solenoid valve | Voltage: DC24V | Electrical entry: DIN (Y) with connector
AVL2000-02-5YZ-ABody size: AVL2000-A | Port size: Rc1/4 | Operation: Lockout with solenoid valve | Voltage: DC24V | Electrical entry: DIN (Y) with connector, lamp/surge
AVL2000-02-5DO-ABody size: AVL2000-A | Port size: Rc1/4 | Operation: Lockout with solenoid valve | Voltage: DC24V | Electrical entry: DIN (D) no connector
AVL2000-02-5YO-ABody size: AVL2000-A | Port size: Rc1/4 | Operation: Lockout with solenoid valve | Voltage: DC24V | Electrical entry: DIN (Y) no connector
AVL2000-02-5KOZ-ABody size: AVL2000-A | Port size: Rc1/4 | Operation: Lockout with solenoid valve | Voltage: DC24V | Electrical entry: M12 connector, lamp/surge
AVL2000-02-6D-ABody size: AVL2000-A | Port size: Rc1/4 | Operation: Lockout with solenoid valve | Voltage: DC12V | Electrical entry: DIN (D) with connector
AVL2000-02-6DZ-ABody size: AVL2000-A | Port size: Rc1/4 | Operation: Lockout with solenoid valve | Voltage: DC12V | Electrical entry: DIN (D) with connector, lamp/surge
AVL2000-02-6Y-ABody size: AVL2000-A | Port size: Rc1/4 | Operation: Lockout with solenoid valve | Voltage: DC12V | Electrical entry: DIN (Y) with connector
AVL2000-02-6YZ-ABody size: AVL2000-A | Port size: Rc1/4 | Operation: Lockout with solenoid valve | Voltage: DC12V | Electrical entry: DIN (Y) with connector, lamp/surge
AVL2000-02-6DO-ABody size: AVL2000-A | Port size: Rc1/4 | Operation: Lockout with solenoid valve | Voltage: DC12V | Electrical entry: DIN (D) no connector
AVL2000-02-6YO-ABody size: AVL2000-A | Port size: Rc1/4 | Operation: Lockout with solenoid valve | Voltage: DC12V | Electrical entry: DIN (Y) no connector
AVL2000-02-6KOZ-ABody size: AVL2000-A | Port size: Rc1/4 | Operation: Lockout with solenoid valve | Voltage: DC12V | Electrical entry: M12 connector, lamp/surge
AVL2000-02-1D-ABody size: AVL2000-A | Port size: Rc1/4 | Operation: Lockout with solenoid valve | Voltage: AC100V | Electrical entry: DIN (D) with connector
AVL2000-02-1DZ-ABody size: AVL2000-A | Port size: Rc1/4 | Operation: Lockout with solenoid valve | Voltage: AC100V | Electrical entry: DIN (D) with connector, lamp/surge
AVL2000-02-1Y-ABody size: AVL2000-A | Port size: Rc1/4 | Operation: Lockout with solenoid valve | Voltage: AC100V | Electrical entry: DIN (Y) with connector
AVL2000-02-1YZ-ABody size: AVL2000-A | Port size: Rc1/4 | Operation: Lockout with solenoid valve | Voltage: AC100V | Electrical entry: DIN (Y) with connector, lamp/surge
AVL2000-02-1DO-ABody size: AVL2000-A | Port size: Rc1/4 | Operation: Lockout with solenoid valve | Voltage: AC100V | Electrical entry: DIN (D) no connector
AVL2000-02-1YO-ABody size: AVL2000-A | Port size: Rc1/4 | Operation: Lockout with solenoid valve | Voltage: AC100V | Electrical entry: DIN (Y) no connector
AVL2000-02-2D-ABody size: AVL2000-A | Port size: Rc1/4 | Operation: Lockout with solenoid valve | Voltage: AC200V | Electrical entry: DIN (D) with connector
AVL2000-02-2DZ-ABody size: AVL2000-A | Port size: Rc1/4 | Operation: Lockout with solenoid valve | Voltage: AC200V | Electrical entry: DIN (D) with connector, lamp/surge
AVL2000-02-2Y-ABody size: AVL2000-A | Port size: Rc1/4 | Operation: Lockout with solenoid valve | Voltage: AC200V | Electrical entry: DIN (Y) with connector
AVL2000-02-2YZ-ABody size: AVL2000-A | Port size: Rc1/4 | Operation: Lockout with solenoid valve | Voltage: AC200V | Electrical entry: DIN (Y) with connector, lamp/surge
AVL2000-02-2DO-ABody size: AVL2000-A | Port size: Rc1/4 | Operation: Lockout with solenoid valve | Voltage: AC200V | Electrical entry: DIN (D) no connector
AVL2000-02-2YO-ABody size: AVL2000-A | Port size: Rc1/4 | Operation: Lockout with solenoid valve | Voltage: AC200V | Electrical entry: DIN (Y) no connector
AVL2000-02-3D-ABody size: AVL2000-A | Port size: Rc1/4 | Operation: Lockout with solenoid valve | Voltage: AC110V [AC115V] | Electrical entry: DIN (D) with connector
AVL2000-02-3DZ-ABody size: AVL2000-A | Port size: Rc1/4 | Operation: Lockout with solenoid valve | Voltage: AC110V [AC115V] | Electrical entry: DIN (D) with connector, lamp/surge
AVL2000-02-3Y-ABody size: AVL2000-A | Port size: Rc1/4 | Operation: Lockout with solenoid valve | Voltage: AC110V [AC115V] | Electrical entry: DIN (Y) with connector
AVL2000-02-3YZ-ABody size: AVL2000-A | Port size: Rc1/4 | Operation: Lockout with solenoid valve | Voltage: AC110V [AC115V] | Electrical entry: DIN (Y) with connector, lamp/surge
AVL2000-02-3DO-ABody size: AVL2000-A | Port size: Rc1/4 | Operation: Lockout with solenoid valve | Voltage: AC110V [AC115V] | Electrical entry: DIN (D) no connector
AVL2000-02-3YO-ABody size: AVL2000-A | Port size: Rc1/4 | Operation: Lockout with solenoid valve | Voltage: AC110V [AC115V] | Electrical entry: DIN (Y) no connector
AVL2000-02-4D-ABody size: AVL2000-A | Port size: Rc1/4 | Operation: Lockout with solenoid valve | Voltage: AC220V [AC230V] | Electrical entry: DIN (D) with connector
AVL2000-02-4DZ-ABody size: AVL2000-A | Port size: Rc1/4 | Operation: Lockout with solenoid valve | Voltage: AC220V [AC230V] | Electrical entry: DIN (D) with connector, lamp/surge
AVL2000-02-4Y-ABody size: AVL2000-A | Port size: Rc1/4 | Operation: Lockout with solenoid valve | Voltage: AC220V [AC230V] | Electrical entry: DIN (Y) with connector
AVL2000-02-4YZ-ABody size: AVL2000-A | Port size: Rc1/4 | Operation: Lockout with solenoid valve | Voltage: AC220V [AC230V] | Electrical entry: DIN (Y) with connector, lamp/surge
AVL2000-02-4DO-ABody size: AVL2000-A | Port size: Rc1/4 | Operation: Lockout with solenoid valve | Voltage: AC220V [AC230V] | Electrical entry: DIN (D) no connector
AVL2000-02-4YO-ABody size: AVL2000-A | Port size: Rc1/4 | Operation: Lockout with solenoid valve | Voltage: AC220V [AC230V] | Electrical entry: DIN (Y) no connector
AVL3000-03-ABody size: AVL3000-A | Port size: Rc3/8 | Operation: Manual (lockout) | Voltage: None | Electrical entry: None
AVL3000-03-5D-ABody size: AVL3000-A | Port size: Rc3/8 | Operation: Lockout with solenoid valve | Voltage: DC24V | Electrical entry: DIN (D) with connector
AVL3000-03-5DZ-ABody size: AVL3000-A | Port size: Rc3/8 | Operation: Lockout with solenoid valve | Voltage: DC24V | Electrical entry: DIN (D) with connector, lamp/surge
AVL3000-03-5Y-ABody size: AVL3000-A | Port size: Rc3/8 | Operation: Lockout with solenoid valve | Voltage: DC24V | Electrical entry: DIN (Y) with connector
AVL3000-03-5YZ-ABody size: AVL3000-A | Port size: Rc3/8 | Operation: Lockout with solenoid valve | Voltage: DC24V | Electrical entry: DIN (Y) with connector, lamp/surge
AVL3000-03-5DO-ABody size: AVL3000-A | Port size: Rc3/8 | Operation: Lockout with solenoid valve | Voltage: DC24V | Electrical entry: DIN (D) no connector
AVL3000-03-5YO-ABody size: AVL3000-A | Port size: Rc3/8 | Operation: Lockout with solenoid valve | Voltage: DC24V | Electrical entry: DIN (Y) no connector
AVL3000-03-5KOZ-ABody size: AVL3000-A | Port size: Rc3/8 | Operation: Lockout with solenoid valve | Voltage: DC24V | Electrical entry: M12 connector, lamp/surge
AVL3000-03-6D-ABody size: AVL3000-A | Port size: Rc3/8 | Operation: Lockout with solenoid valve | Voltage: DC12V | Electrical entry: DIN (D) with connector
AVL3000-03-6DZ-ABody size: AVL3000-A | Port size: Rc3/8 | Operation: Lockout with solenoid valve | Voltage: DC12V | Electrical entry: DIN (D) with connector, lamp/surge
AVL3000-03-6Y-ABody size: AVL3000-A | Port size: Rc3/8 | Operation: Lockout with solenoid valve | Voltage: DC12V | Electrical entry: DIN (Y) with connector
AVL3000-03-6YZ-ABody size: AVL3000-A | Port size: Rc3/8 | Operation: Lockout with solenoid valve | Voltage: DC12V | Electrical entry: DIN (Y) with connector, lamp/surge
AVL3000-03-6DO-ABody size: AVL3000-A | Port size: Rc3/8 | Operation: Lockout with solenoid valve | Voltage: DC12V | Electrical entry: DIN (D) no connector
AVL3000-03-6YO-ABody size: AVL3000-A | Port size: Rc3/8 | Operation: Lockout with solenoid valve | Voltage: DC12V | Electrical entry: DIN (Y) no connector
AVL3000-03-6KOZ-ABody size: AVL3000-A | Port size: Rc3/8 | Operation: Lockout with solenoid valve | Voltage: DC12V | Electrical entry: M12 connector, lamp/surge
AVL3000-03-1D-ABody size: AVL3000-A | Port size: Rc3/8 | Operation: Lockout with solenoid valve | Voltage: AC100V | Electrical entry: DIN (D) with connector
AVL3000-03-1DZ-ABody size: AVL3000-A | Port size: Rc3/8 | Operation: Lockout with solenoid valve | Voltage: AC100V | Electrical entry: DIN (D) with connector, lamp/surge
AVL3000-03-1Y-ABody size: AVL3000-A | Port size: Rc3/8 | Operation: Lockout with solenoid valve | Voltage: AC100V | Electrical entry: DIN (Y) with connector
AVL3000-03-1YZ-ABody size: AVL3000-A | Port size: Rc3/8 | Operation: Lockout with solenoid valve | Voltage: AC100V | Electrical entry: DIN (Y) with connector, lamp/surge
AVL3000-03-1DO-ABody size: AVL3000-A | Port size: Rc3/8 | Operation: Lockout with solenoid valve | Voltage: AC100V | Electrical entry: DIN (D) no connector
AVL3000-03-1YO-ABody size: AVL3000-A | Port size: Rc3/8 | Operation: Lockout with solenoid valve | Voltage: AC100V | Electrical entry: DIN (Y) no connector
AVL3000-03-2D-ABody size: AVL3000-A | Port size: Rc3/8 | Operation: Lockout with solenoid valve | Voltage: AC200V | Electrical entry: DIN (D) with connector
AVL3000-03-2DZ-ABody size: AVL3000-A | Port size: Rc3/8 | Operation: Lockout with solenoid valve | Voltage: AC200V | Electrical entry: DIN (D) with connector, lamp/surge
AVL3000-03-2Y-ABody size: AVL3000-A | Port size: Rc3/8 | Operation: Lockout with solenoid valve | Voltage: AC200V | Electrical entry: DIN (Y) with connector
AVL3000-03-2YZ-ABody size: AVL3000-A | Port size: Rc3/8 | Operation: Lockout with solenoid valve | Voltage: AC200V | Electrical entry: DIN (Y) with connector, lamp/surge
AVL3000-03-2DO-ABody size: AVL3000-A | Port size: Rc3/8 | Operation: Lockout with solenoid valve | Voltage: AC200V | Electrical entry: DIN (D) no connector
AVL3000-03-2YO-ABody size: AVL3000-A | Port size: Rc3/8 | Operation: Lockout with solenoid valve | Voltage: AC200V | Electrical entry: DIN (Y) no connector
AVL3000-03-3D-ABody size: AVL3000-A | Port size: Rc3/8 | Operation: Lockout with solenoid valve | Voltage: AC110V [AC115V] | Electrical entry: DIN (D) with connector
AVL3000-03-3DZ-ABody size: AVL3000-A | Port size: Rc3/8 | Operation: Lockout with solenoid valve | Voltage: AC110V [AC115V] | Electrical entry: DIN (D) with connector, lamp/surge
AVL3000-03-3Y-ABody size: AVL3000-A | Port size: Rc3/8 | Operation: Lockout with solenoid valve | Voltage: AC110V [AC115V] | Electrical entry: DIN (Y) with connector
AVL3000-03-3YZ-ABody size: AVL3000-A | Port size: Rc3/8 | Operation: Lockout with solenoid valve | Voltage: AC110V [AC115V] | Electrical entry: DIN (Y) with connector, lamp/surge
AVL3000-03-3DO-ABody size: AVL3000-A | Port size: Rc3/8 | Operation: Lockout with solenoid valve | Voltage: AC110V [AC115V] | Electrical entry: DIN (D) no connector
AVL3000-03-3YO-ABody size: AVL3000-A | Port size: Rc3/8 | Operation: Lockout with solenoid valve | Voltage: AC110V [AC115V] | Electrical entry: DIN (Y) no connector
AVL3000-03-4D-ABody size: AVL3000-A | Port size: Rc3/8 | Operation: Lockout with solenoid valve | Voltage: AC220V [AC230V] | Electrical entry: DIN (D) with connector
AVL3000-03-4DZ-ABody size: AVL3000-A | Port size: Rc3/8 | Operation: Lockout with solenoid valve | Voltage: AC220V [AC230V] | Electrical entry: DIN (D) with connector, lamp/surge
AVL3000-03-4Y-ABody size: AVL3000-A | Port size: Rc3/8 | Operation: Lockout with solenoid valve | Voltage: AC220V [AC230V] | Electrical entry: DIN (Y) with connector
AVL3000-03-4YZ-ABody size: AVL3000-A | Port size: Rc3/8 | Operation: Lockout with solenoid valve | Voltage: AC220V [AC230V] | Electrical entry: DIN (Y) with connector, lamp/surge
AVL3000-03-4DO-ABody size: AVL3000-A | Port size: Rc3/8 | Operation: Lockout with solenoid valve | Voltage: AC220V [AC230V] | Electrical entry: DIN (D) no connector
AVL3000-03-4YO-ABody size: AVL3000-A | Port size: Rc3/8 | Operation: Lockout with solenoid valve | Voltage: AC220V [AC230V] | Electrical entry: DIN (Y) no connector
AVL4000-04-ABody size: AVL4000-A | Port size: Rc1/2 | Operation: Manual (lockout) | Voltage: None | Electrical entry: None
AVL4000-04-5D-ABody size: AVL4000-A | Port size: Rc1/2 | Operation: Lockout with solenoid valve | Voltage: DC24V | Electrical entry: DIN (D) with connector
AVL4000-04-5DZ-ABody size: AVL4000-A | Port size: Rc1/2 | Operation: Lockout with solenoid valve | Voltage: DC24V | Electrical entry: DIN (D) with connector, lamp/surge
AVL4000-04-5Y-ABody size: AVL4000-A | Port size: Rc1/2 | Operation: Lockout with solenoid valve | Voltage: DC24V | Electrical entry: DIN (Y) with connector
AVL4000-04-5YZ-ABody size: AVL4000-A | Port size: Rc1/2 | Operation: Lockout with solenoid valve | Voltage: DC24V | Electrical entry: DIN (Y) with connector, lamp/surge
AVL4000-04-5DO-ABody size: AVL4000-A | Port size: Rc1/2 | Operation: Lockout with solenoid valve | Voltage: DC24V | Electrical entry: DIN (D) no connector
AVL4000-04-5YO-ABody size: AVL4000-A | Port size: Rc1/2 | Operation: Lockout with solenoid valve | Voltage: DC24V | Electrical entry: DIN (Y) no connector
AVL4000-04-5KOZ-ABody size: AVL4000-A | Port size: Rc1/2 | Operation: Lockout with solenoid valve | Voltage: DC24V | Electrical entry: M12 connector, lamp/surge
AVL4000-04-6D-ABody size: AVL4000-A | Port size: Rc1/2 | Operation: Lockout with solenoid valve | Voltage: DC12V | Electrical entry: DIN (D) with connector
AVL4000-04-6DZ-ABody size: AVL4000-A | Port size: Rc1/2 | Operation: Lockout with solenoid valve | Voltage: DC12V | Electrical entry: DIN (D) with connector, lamp/surge
AVL4000-04-6Y-ABody size: AVL4000-A | Port size: Rc1/2 | Operation: Lockout with solenoid valve | Voltage: DC12V | Electrical entry: DIN (Y) with connector
AVL4000-04-6YZ-ABody size: AVL4000-A | Port size: Rc1/2 | Operation: Lockout with solenoid valve | Voltage: DC12V | Electrical entry: DIN (Y) with connector, lamp/surge
AVL4000-04-6DO-ABody size: AVL4000-A | Port size: Rc1/2 | Operation: Lockout with solenoid valve | Voltage: DC12V | Electrical entry: DIN (D) no connector
AVL4000-04-6YO-ABody size: AVL4000-A | Port size: Rc1/2 | Operation: Lockout with solenoid valve | Voltage: DC12V | Electrical entry: DIN (Y) no connector
AVL4000-04-6KOZ-ABody size: AVL4000-A | Port size: Rc1/2 | Operation: Lockout with solenoid valve | Voltage: DC12V | Electrical entry: M12 connector, lamp/surge
AVL4000-04-1D-ABody size: AVL4000-A | Port size: Rc1/2 | Operation: Lockout with solenoid valve | Voltage: AC100V | Electrical entry: DIN (D) with connector
AVL4000-04-1DZ-ABody size: AVL4000-A | Port size: Rc1/2 | Operation: Lockout with solenoid valve | Voltage: AC100V | Electrical entry: DIN (D) with connector, lamp/surge
AVL4000-04-1Y-ABody size: AVL4000-A | Port size: Rc1/2 | Operation: Lockout with solenoid valve | Voltage: AC100V | Electrical entry: DIN (Y) with connector
AVL4000-04-1YZ-ABody size: AVL4000-A | Port size: Rc1/2 | Operation: Lockout with solenoid valve | Voltage: AC100V | Electrical entry: DIN (Y) with connector, lamp/surge
AVL4000-04-1DO-ABody size: AVL4000-A | Port size: Rc1/2 | Operation: Lockout with solenoid valve | Voltage: AC100V | Electrical entry: DIN (D) no connector
AVL4000-04-1YO-ABody size: AVL4000-A | Port size: Rc1/2 | Operation: Lockout with solenoid valve | Voltage: AC100V | Electrical entry: DIN (Y) no connector
AVL4000-04-2D-ABody size: AVL4000-A | Port size: Rc1/2 | Operation: Lockout with solenoid valve | Voltage: AC200V | Electrical entry: DIN (D) with connector
AVL4000-04-2DZ-ABody size: AVL4000-A | Port size: Rc1/2 | Operation: Lockout with solenoid valve | Voltage: AC200V | Electrical entry: DIN (D) with connector, lamp/surge
AVL4000-04-2Y-ABody size: AVL4000-A | Port size: Rc1/2 | Operation: Lockout with solenoid valve | Voltage: AC200V | Electrical entry: DIN (Y) with connector
AVL4000-04-2YZ-ABody size: AVL4000-A | Port size: Rc1/2 | Operation: Lockout with solenoid valve | Voltage: AC200V | Electrical entry: DIN (Y) with connector, lamp/surge
AVL4000-04-2DO-ABody size: AVL4000-A | Port size: Rc1/2 | Operation: Lockout with solenoid valve | Voltage: AC200V | Electrical entry: DIN (D) no connector
AVL4000-04-2YO-ABody size: AVL4000-A | Port size: Rc1/2 | Operation: Lockout with solenoid valve | Voltage: AC200V | Electrical entry: DIN (Y) no connector
AVL4000-04-3D-ABody size: AVL4000-A | Port size: Rc1/2 | Operation: Lockout with solenoid valve | Voltage: AC110V [AC115V] | Electrical entry: DIN (D) with connector
AVL4000-04-3DZ-ABody size: AVL4000-A | Port size: Rc1/2 | Operation: Lockout with solenoid valve | Voltage: AC110V [AC115V] | Electrical entry: DIN (D) with connector, lamp/surge
AVL4000-04-3Y-ABody size: AVL4000-A | Port size: Rc1/2 | Operation: Lockout with solenoid valve | Voltage: AC110V [AC115V] | Electrical entry: DIN (Y) with connector
AVL4000-04-3YZ-ABody size: AVL4000-A | Port size: Rc1/2 | Operation: Lockout with solenoid valve | Voltage: AC110V [AC115V] | Electrical entry: DIN (Y) with connector, lamp/surge
AVL4000-04-3DO-ABody size: AVL4000-A | Port size: Rc1/2 | Operation: Lockout with solenoid valve | Voltage: AC110V [AC115V] | Electrical entry: DIN (D) no connector
AVL4000-04-3YO-ABody size: AVL4000-A | Port size: Rc1/2 | Operation: Lockout with solenoid valve | Voltage: AC110V [AC115V] | Electrical entry: DIN (Y) no connector
AVL4000-04-4D-ABody size: AVL4000-A | Port size: Rc1/2 | Operation: Lockout with solenoid valve | Voltage: AC220V [AC230V] | Electrical entry: DIN (D) with connector
AVL4000-04-4DZ-ABody size: AVL4000-A | Port size: Rc1/2 | Operation: Lockout with solenoid valve | Voltage: AC220V [AC230V] | Electrical entry: DIN (D) with connector, lamp/surge
AVL4000-04-4Y-ABody size: AVL4000-A | Port size: Rc1/2 | Operation: Lockout with solenoid valve | Voltage: AC220V [AC230V] | Electrical entry: DIN (Y) with connector
AVL4000-04-4YZ-ABody size: AVL4000-A | Port size: Rc1/2 | Operation: Lockout with solenoid valve | Voltage: AC220V [AC230V] | Electrical entry: DIN (Y) with connector, lamp/surge
AVL4000-04-4DO-ABody size: AVL4000-A | Port size: Rc1/2 | Operation: Lockout with solenoid valve | Voltage: AC220V [AC230V] | Electrical entry: DIN (D) no connector
AVL4000-04-4YO-ABody size: AVL4000-A | Port size: Rc1/2 | Operation: Lockout with solenoid valve | Voltage: AC220V [AC230V] | Electrical entry: DIN (Y) no connector
AVL5000-06-ABody size: AVL5000-A | Port size: Rc3/4 | Operation: Manual (lockout) | Voltage: None | Electrical entry: None
AVL5000-06-5D-ABody size: AVL5000-A | Port size: Rc3/4 | Operation: Lockout with solenoid valve | Voltage: DC24V | Electrical entry: DIN (D) with connector
AVL5000-06-5DZ-ABody size: AVL5000-A | Port size: Rc3/4 | Operation: Lockout with solenoid valve | Voltage: DC24V | Electrical entry: DIN (D) with connector, lamp/surge
AVL5000-06-5Y-ABody size: AVL5000-A | Port size: Rc3/4 | Operation: Lockout with solenoid valve | Voltage: DC24V | Electrical entry: DIN (Y) with connector
AVL5000-06-5YZ-ABody size: AVL5000-A | Port size: Rc3/4 | Operation: Lockout with solenoid valve | Voltage: DC24V | Electrical entry: DIN (Y) with connector, lamp/surge
AVL5000-06-5DO-ABody size: AVL5000-A | Port size: Rc3/4 | Operation: Lockout with solenoid valve | Voltage: DC24V | Electrical entry: DIN (D) no connector
AVL5000-06-5YO-ABody size: AVL5000-A | Port size: Rc3/4 | Operation: Lockout with solenoid valve | Voltage: DC24V | Electrical entry: DIN (Y) no connector
AVL5000-06-5KOZ-ABody size: AVL5000-A | Port size: Rc3/4 | Operation: Lockout with solenoid valve | Voltage: DC24V | Electrical entry: M12 connector, lamp/surge
AVL5000-06-6D-ABody size: AVL5000-A | Port size: Rc3/4 | Operation: Lockout with solenoid valve | Voltage: DC12V | Electrical entry: DIN (D) with connector
AVL5000-06-6DZ-ABody size: AVL5000-A | Port size: Rc3/4 | Operation: Lockout with solenoid valve | Voltage: DC12V | Electrical entry: DIN (D) with connector, lamp/surge
AVL5000-06-6Y-ABody size: AVL5000-A | Port size: Rc3/4 | Operation: Lockout with solenoid valve | Voltage: DC12V | Electrical entry: DIN (Y) with connector
AVL5000-06-6YZ-ABody size: AVL5000-A | Port size: Rc3/4 | Operation: Lockout with solenoid valve | Voltage: DC12V | Electrical entry: DIN (Y) with connector, lamp/surge
AVL5000-06-6DO-ABody size: AVL5000-A | Port size: Rc3/4 | Operation: Lockout with solenoid valve | Voltage: DC12V | Electrical entry: DIN (D) no connector
AVL5000-06-6YO-ABody size: AVL5000-A | Port size: Rc3/4 | Operation: Lockout with solenoid valve | Voltage: DC12V | Electrical entry: DIN (Y) no connector
AVL5000-06-6KOZ-ABody size: AVL5000-A | Port size: Rc3/4 | Operation: Lockout with solenoid valve | Voltage: DC12V | Electrical entry: M12 connector, lamp/surge
AVL5000-06-1D-ABody size: AVL5000-A | Port size: Rc3/4 | Operation: Lockout with solenoid valve | Voltage: AC100V | Electrical entry: DIN (D) with connector
AVL5000-06-1DZ-ABody size: AVL5000-A | Port size: Rc3/4 | Operation: Lockout with solenoid valve | Voltage: AC100V | Electrical entry: DIN (D) with connector, lamp/surge
AVL5000-06-1Y-ABody size: AVL5000-A | Port size: Rc3/4 | Operation: Lockout with solenoid valve | Voltage: AC100V | Electrical entry: DIN (Y) with connector
AVL5000-06-1YZ-ABody size: AVL5000-A | Port size: Rc3/4 | Operation: Lockout with solenoid valve | Voltage: AC100V | Electrical entry: DIN (Y) with connector, lamp/surge
AVL5000-06-1DO-ABody size: AVL5000-A | Port size: Rc3/4 | Operation: Lockout with solenoid valve | Voltage: AC100V | Electrical entry: DIN (D) no connector
AVL5000-06-1YO-ABody size: AVL5000-A | Port size: Rc3/4 | Operation: Lockout with solenoid valve | Voltage: AC100V | Electrical entry: DIN (Y) no connector
AVL5000-06-2D-ABody size: AVL5000-A | Port size: Rc3/4 | Operation: Lockout with solenoid valve | Voltage: AC200V | Electrical entry: DIN (D) with connector
AVL5000-06-2DZ-ABody size: AVL5000-A | Port size: Rc3/4 | Operation: Lockout with solenoid valve | Voltage: AC200V | Electrical entry: DIN (D) with connector, lamp/surge
AVL5000-06-2Y-ABody size: AVL5000-A | Port size: Rc3/4 | Operation: Lockout with solenoid valve | Voltage: AC200V | Electrical entry: DIN (Y) with connector
AVL5000-06-2YZ-ABody size: AVL5000-A | Port size: Rc3/4 | Operation: Lockout with solenoid valve | Voltage: AC200V | Electrical entry: DIN (Y) with connector, lamp/surge
AVL5000-06-2DO-ABody size: AVL5000-A | Port size: Rc3/4 | Operation: Lockout with solenoid valve | Voltage: AC200V | Electrical entry: DIN (D) no connector
AVL5000-06-2YO-ABody size: AVL5000-A | Port size: Rc3/4 | Operation: Lockout with solenoid valve | Voltage: AC200V | Electrical entry: DIN (Y) no connector
AVL5000-06-3D-ABody size: AVL5000-A | Port size: Rc3/4 | Operation: Lockout with solenoid valve | Voltage: AC110V [AC115V] | Electrical entry: DIN (D) with connector
AVL5000-06-3DZ-ABody size: AVL5000-A | Port size: Rc3/4 | Operation: Lockout with solenoid valve | Voltage: AC110V [AC115V] | Electrical entry: DIN (D) with connector, lamp/surge
AVL5000-06-3Y-ABody size: AVL5000-A | Port size: Rc3/4 | Operation: Lockout with solenoid valve | Voltage: AC110V [AC115V] | Electrical entry: DIN (Y) with connector
AVL5000-06-3YZ-ABody size: AVL5000-A | Port size: Rc3/4 | Operation: Lockout with solenoid valve | Voltage: AC110V [AC115V] | Electrical entry: DIN (Y) with connector, lamp/surge
AVL5000-06-3DO-ABody size: AVL5000-A | Port size: Rc3/4 | Operation: Lockout with solenoid valve | Voltage: AC110V [AC115V] | Electrical entry: DIN (D) no connector
AVL5000-06-3YO-ABody size: AVL5000-A | Port size: Rc3/4 | Operation: Lockout with solenoid valve | Voltage: AC110V [AC115V] | Electrical entry: DIN (Y) no connector
AVL5000-06-4D-ABody size: AVL5000-A | Port size: Rc3/4 | Operation: Lockout with solenoid valve | Voltage: AC220V [AC230V] | Electrical entry: DIN (D) with connector
AVL5000-06-4DZ-ABody size: AVL5000-A | Port size: Rc3/4 | Operation: Lockout with solenoid valve | Voltage: AC220V [AC230V] | Electrical entry: DIN (D) with connector, lamp/surge
AVL5000-06-4Y-ABody size: AVL5000-A | Port size: Rc3/4 | Operation: Lockout with solenoid valve | Voltage: AC220V [AC230V] | Electrical entry: DIN (Y) with connector
AVL5000-06-4YZ-ABody size: AVL5000-A | Port size: Rc3/4 | Operation: Lockout with solenoid valve | Voltage: AC220V [AC230V] | Electrical entry: DIN (Y) with connector, lamp/surge
AVL5000-06-4DO-ABody size: AVL5000-A | Port size: Rc3/4 | Operation: Lockout with solenoid valve | Voltage: AC220V [AC230V] | Electrical entry: DIN (D) no connector
AVL5000-06-4YO-ABody size: AVL5000-A | Port size: Rc3/4 | Operation: Lockout with solenoid valve | Voltage: AC220V [AC230V] | Electrical entry: DIN (Y) no connector
AVL5000-10-ABody size: AVL5000-A | Port size: Rc1 | Operation: Manual (lockout) | Voltage: None | Electrical entry: None
AVL5000-10-5D-ABody size: AVL5000-A | Port size: Rc1 | Operation: Lockout with solenoid valve | Voltage: DC24V | Electrical entry: DIN (D) with connector
AVL5000-10-5DZ-ABody size: AVL5000-A | Port size: Rc1 | Operation: Lockout with solenoid valve | Voltage: DC24V | Electrical entry: DIN (D) with connector, lamp/surge
AVL5000-10-5Y-ABody size: AVL5000-A | Port size: Rc1 | Operation: Lockout with solenoid valve | Voltage: DC24V | Electrical entry: DIN (Y) with connector
AVL5000-10-5YZ-ABody size: AVL5000-A | Port size: Rc1 | Operation: Lockout with solenoid valve | Voltage: DC24V | Electrical entry: DIN (Y) with connector, lamp/surge
AVL5000-10-5DO-ABody size: AVL5000-A | Port size: Rc1 | Operation: Lockout with solenoid valve | Voltage: DC24V | Electrical entry: DIN (D) no connector
AVL5000-10-5YO-ABody size: AVL5000-A | Port size: Rc1 | Operation: Lockout with solenoid valve | Voltage: DC24V | Electrical entry: DIN (Y) no connector
AVL5000-10-5KOZ-ABody size: AVL5000-A | Port size: Rc1 | Operation: Lockout with solenoid valve | Voltage: DC24V | Electrical entry: M12 connector, lamp/surge
AVL5000-10-6D-ABody size: AVL5000-A | Port size: Rc1 | Operation: Lockout with solenoid valve | Voltage: DC12V | Electrical entry: DIN (D) with connector
AVL5000-10-6DZ-ABody size: AVL5000-A | Port size: Rc1 | Operation: Lockout with solenoid valve | Voltage: DC12V | Electrical entry: DIN (D) with connector, lamp/surge
AVL5000-10-6Y-ABody size: AVL5000-A | Port size: Rc1 | Operation: Lockout with solenoid valve | Voltage: DC12V | Electrical entry: DIN (Y) with connector
AVL5000-10-6YZ-ABody size: AVL5000-A | Port size: Rc1 | Operation: Lockout with solenoid valve | Voltage: DC12V | Electrical entry: DIN (Y) with connector, lamp/surge
AVL5000-10-6DO-ABody size: AVL5000-A | Port size: Rc1 | Operation: Lockout with solenoid valve | Voltage: DC12V | Electrical entry: DIN (D) no connector
AVL5000-10-6YO-ABody size: AVL5000-A | Port size: Rc1 | Operation: Lockout with solenoid valve | Voltage: DC12V | Electrical entry: DIN (Y) no connector
AVL5000-10-6KOZ-ABody size: AVL5000-A | Port size: Rc1 | Operation: Lockout with solenoid valve | Voltage: DC12V | Electrical entry: M12 connector, lamp/surge
AVL5000-10-1D-ABody size: AVL5000-A | Port size: Rc1 | Operation: Lockout with solenoid valve | Voltage: AC100V | Electrical entry: DIN (D) with connector
AVL5000-10-1DZ-ABody size: AVL5000-A | Port size: Rc1 | Operation: Lockout with solenoid valve | Voltage: AC100V | Electrical entry: DIN (D) with connector, lamp/surge
AVL5000-10-1Y-ABody size: AVL5000-A | Port size: Rc1 | Operation: Lockout with solenoid valve | Voltage: AC100V | Electrical entry: DIN (Y) with connector
AVL5000-10-1YZ-ABody size: AVL5000-A | Port size: Rc1 | Operation: Lockout with solenoid valve | Voltage: AC100V | Electrical entry: DIN (Y) with connector, lamp/surge
AVL5000-10-1DO-ABody size: AVL5000-A | Port size: Rc1 | Operation: Lockout with solenoid valve | Voltage: AC100V | Electrical entry: DIN (D) no connector
AVL5000-10-1YO-ABody size: AVL5000-A | Port size: Rc1 | Operation: Lockout with solenoid valve | Voltage: AC100V | Electrical entry: DIN (Y) no connector
AVL5000-10-2D-ABody size: AVL5000-A | Port size: Rc1 | Operation: Lockout with solenoid valve | Voltage: AC200V | Electrical entry: DIN (D) with connector
AVL5000-10-2DZ-ABody size: AVL5000-A | Port size: Rc1 | Operation: Lockout with solenoid valve | Voltage: AC200V | Electrical entry: DIN (D) with connector, lamp/surge
AVL5000-10-2Y-ABody size: AVL5000-A | Port size: Rc1 | Operation: Lockout with solenoid valve | Voltage: AC200V | Electrical entry: DIN (Y) with connector
AVL5000-10-2YZ-ABody size: AVL5000-A | Port size: Rc1 | Operation: Lockout with solenoid valve | Voltage: AC200V | Electrical entry: DIN (Y) with connector, lamp/surge
AVL5000-10-2DO-ABody size: AVL5000-A | Port size: Rc1 | Operation: Lockout with solenoid valve | Voltage: AC200V | Electrical entry: DIN (D) no connector
AVL5000-10-2YO-ABody size: AVL5000-A | Port size: Rc1 | Operation: Lockout with solenoid valve | Voltage: AC200V | Electrical entry: DIN (Y) no connector
AVL5000-10-3D-ABody size: AVL5000-A | Port size: Rc1 | Operation: Lockout with solenoid valve | Voltage: AC110V [AC115V] | Electrical entry: DIN (D) with connector
AVL5000-10-3DZ-ABody size: AVL5000-A | Port size: Rc1 | Operation: Lockout with solenoid valve | Voltage: AC110V [AC115V] | Electrical entry: DIN (D) with connector, lamp/surge
AVL5000-10-3Y-ABody size: AVL5000-A | Port size: Rc1 | Operation: Lockout with solenoid valve | Voltage: AC110V [AC115V] | Electrical entry: DIN (Y) with connector
AVL5000-10-3YZ-ABody size: AVL5000-A | Port size: Rc1 | Operation: Lockout with solenoid valve | Voltage: AC110V [AC115V] | Electrical entry: DIN (Y) with connector, lamp/surge
AVL5000-10-3DO-ABody size: AVL5000-A | Port size: Rc1 | Operation: Lockout with solenoid valve | Voltage: AC110V [AC115V] | Electrical entry: DIN (D) no connector
AVL5000-10-3YO-ABody size: AVL5000-A | Port size: Rc1 | Operation: Lockout with solenoid valve | Voltage: AC110V [AC115V] | Electrical entry: DIN (Y) no connector
AVL5000-10-4D-ABody size: AVL5000-A | Port size: Rc1 | Operation: Lockout with solenoid valve | Voltage: AC220V [AC230V] | Electrical entry: DIN (D) with connector
AVL5000-10-4DZ-ABody size: AVL5000-A | Port size: Rc1 | Operation: Lockout with solenoid valve | Voltage: AC220V [AC230V] | Electrical entry: DIN (D) with connector, lamp/surge
AVL5000-10-4Y-ABody size: AVL5000-A | Port size: Rc1 | Operation: Lockout with solenoid valve | Voltage: AC220V [AC230V] | Electrical entry: DIN (Y) with connector
AVL5000-10-4YZ-ABody size: AVL5000-A | Port size: Rc1 | Operation: Lockout with solenoid valve | Voltage: AC220V [AC230V] | Electrical entry: DIN (Y) with connector, lamp/surge
AVL5000-10-4DO-ABody size: AVL5000-A | Port size: Rc1 | Operation: Lockout with solenoid valve | Voltage: AC220V [AC230V] | Electrical entry: DIN (D) no connector
AVL5000-10-4YO-ABody size: AVL5000-A | Port size: Rc1 | Operation: Lockout with solenoid valve | Voltage: AC220V [AC230V] | Electrical entry: DIN (Y) no connector

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
