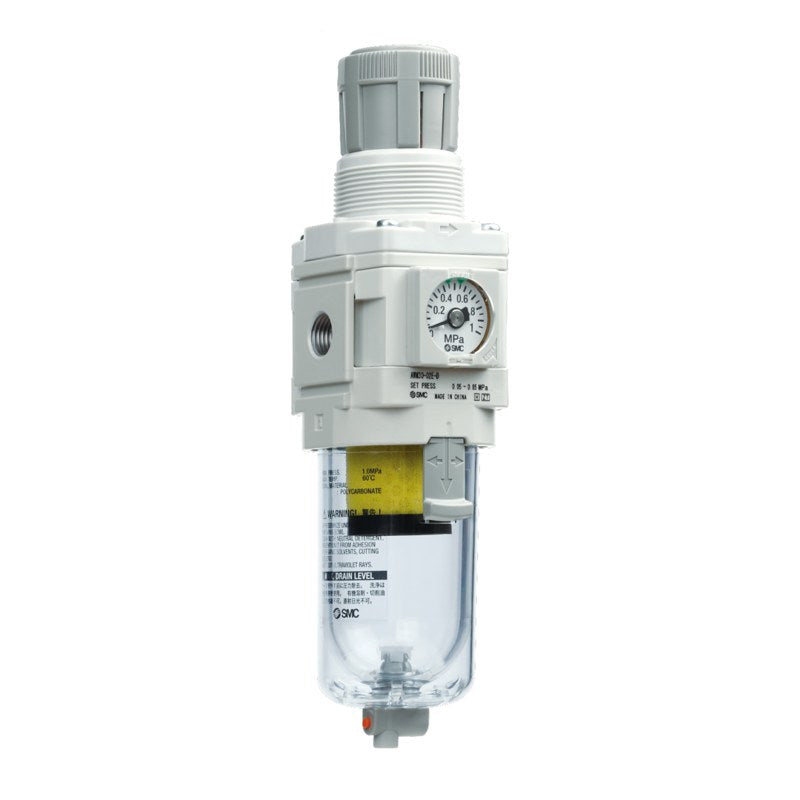

SMC AWD-D Micro Mist Separator Regulator (AWD20-D to AWD40-D, 0.01 µm)

SMC AWD-D Micro Mist Separator Regulator (AWD20-D to AWD40-D, 0.01 µm)

SMC AWD-D series micro mist separator regulator combining a regulator and a 0.01 µm micro mist separator in one unit for high-purity air blow applications.

Key features

  • Regulator and micro mist separator integrated; filtration 0.01 µm (99.9% efficiency)
  • Outlet oil mist concentration max. 0.1 mg/m³; compressed air purity class ISO 8573-1:2010 [1:4:2]
  • Float type auto drain N.C. (C) or N.O. (D, size 30 and larger) available
  • Transparent polycarbonate case guard (two-layer construction) standard on size 30 and larger
  • Options on order: bracket (B), set nut (H), gauges E/G/M, digital pressure switch E1 to E4
  • Semi-standard on order: 0.05 to 0.2 MPa setting (1), metal/nylon case, drain guide, non-relief (N), right-to-left flow (R)

Specifications

Fluid Air
Ambient and fluid temperature -5 to 60°C (no freezing)
Proof pressure 1.5 MPa
Max. operating pressure 1.0 MPa
Set pressure range 0.05 to 0.85 MPa (with auto drain: N.C. 0.1/0.15, N.O. 0.1 MPa min.)
Gauge port 1/8
Drain capacity 8 cm³ (20), 25 cm³ (30), 45 cm³ (40)
Case material Polycarbonate
Construction Relief type
Mass 0.23 kg (20), 0.35 kg (30), 0.66 kg (40)
Filtration rating 0.01 µm (99.9% efficiency)
Max. flow capacity 90 / 180 / 450 L/min (ANR) for size 20 / 30 / 40
Source SMC Korea catalog CAT.KS40-74A (SMCKR_AWM-D_AWD-D.pdf), p. 3-6 (PDF p. 4-7)
AWD20-01-D Body size: 20 | Port: Rc1/8 | Auto drain: None
AWD20-01C-D Body size: 20 | Port: Rc1/8 | Auto drain: N.C. (C)
AWD20-02-D Body size: 20 | Port: Rc1/4 | Auto drain: None
AWD20-02C-D Body size: 20 | Port: Rc1/4 | Auto drain: N.C. (C)
AWD30-02-D Body size: 30 | Port: Rc1/4 | Auto drain: None
AWD30-02C-D Body size: 30 | Port: Rc1/4 | Auto drain: N.C. (C)
AWD30-02D-D Body size: 30 | Port: Rc1/4 | Auto drain: N.O. (D)
AWD30-03-D Body size: 30 | Port: Rc3/8 | Auto drain: None
AWD30-03C-D Body size: 30 | Port: Rc3/8 | Auto drain: N.C. (C)
AWD30-03D-D Body size: 30 | Port: Rc3/8 | Auto drain: N.O. (D)
AWD40-02-D Body size: 40 | Port: Rc1/4 | Auto drain: None
AWD40-02C-D Body size: 40 | Port: Rc1/4 | Auto drain: N.C. (C)
AWD40-02D-D Body size: 40 | Port: Rc1/4 | Auto drain: N.O. (D)
AWD40-03-D Body size: 40 | Port: Rc3/8 | Auto drain: None
AWD40-03C-D Body size: 40 | Port: Rc3/8 | Auto drain: N.C. (C)
AWD40-03D-D Body size: 40 | Port: Rc3/8 | Auto drain: N.O. (D)
AWD40-04-D Body size: 40 | Port: Rc1/2 | Auto drain: None
AWD40-04C-D Body size: 40 | Port: Rc1/2 | Auto drain: N.C. (C)
AWD40-04D-D Body size: 40 | Port: Rc1/2 | Auto drain: N.O. (D)
