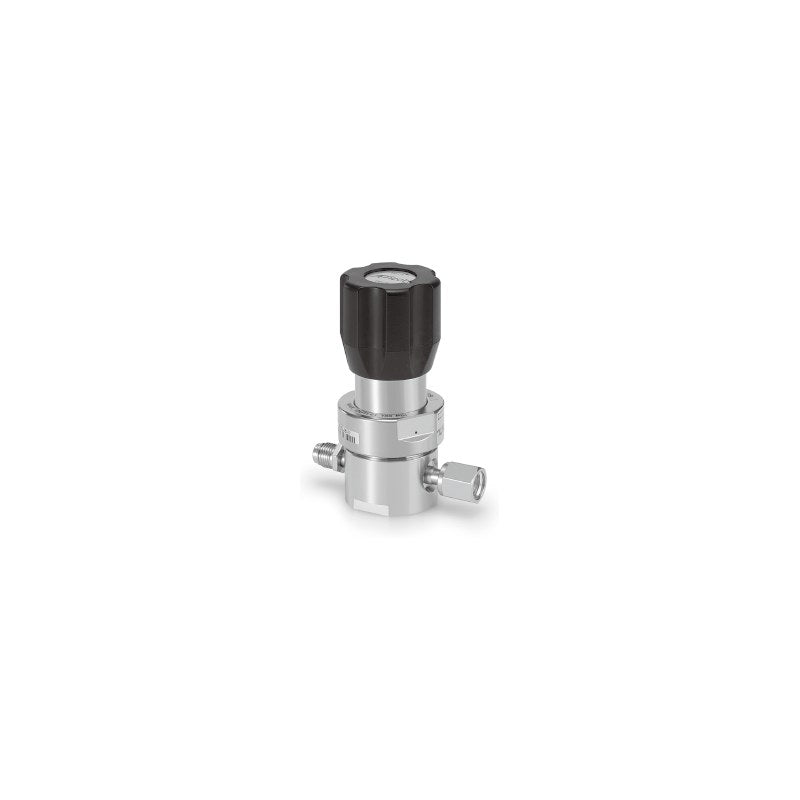

SMC AZ1000 Process Gas Regulator (Single-Stage, Low-Medium Flow)

SMC AZ1000 Process Gas Regulator (Single-Stage, Low-Medium Flow)

SMC AZ1000 series single-stage SUS316L process gas regulator for low to medium flow, inlet up to 24.1 MPa.

Key features

  • SUS316L body, internal finish Ra 0.25 um (option Q 0.62 um); precision cleaned for process gas supply
  • Inlet up to 3500 psig (24.1 MPa) (AZ1001: 2.1 MPa); flow below 30 slpm (Cv 0.09), HF option below 120 slpm (Cv 0.15)
  • Five set pressure ranges from 0.007-0.07 to 0.034-1.0 MPa
  • Material S or SHP (Ni-Cr-Mo poppet and diaphragm)
  • 2, 3 or 4-port bodies with 1/4 or 3/8 face seal or 3/8 tube weld connections
  • Listed codes: gauge ports "0" (1/4 face seal male port, no gauge); gauges (V3, L, 1, H, 2, 4, 40), MPA scale, VS/TF seat, HF high-flow and panel mount (P) are ordered as suffixes; bonnet port BP option

Specifications

Fluid Gases that do not corrode wetted parts
Leakage Inboard 2x10^-11, outboard 2x10^-10 Pa m3/s
Ambient and fluid temperature -40 to 71 C (no freezing)
Mounting Bottom mount (panel mount option P)
Internal finish Ra 0.25 um (option Q 0.62 um)
Inlet pressure Vacuum to 24.1 MPa
Pressure characteristic 0.0026 MPa rise per 0.7 MPa inlet drop
Mass 1.25 kg
Source SMC Korea catalog Process Gas Equipment (SMCKR_AP_SL_AZ_AK_BP.pdf), p. 696-697
AZ1001S2PWFV4FV4 Set pressure: 0.007 to 0.07 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal female
AZ1001S2PWMV4MV4 Set pressure: 0.007 to 0.07 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal male
AZ1001S2PWFV6FV6 Set pressure: 0.007 to 0.07 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal female
AZ1001S2PWMV6MV6 Set pressure: 0.007 to 0.07 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal male
AZ1001S2PWTW6TW6 Set pressure: 0.007 to 0.07 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 tube weld
AZ1001S3PWFV4FV40 Set pressure: 0.007 to 0.07 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AZ1001S3PWMV4MV40 Set pressure: 0.007 to 0.07 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AZ1001S3PWFV6FV60 Set pressure: 0.007 to 0.07 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AZ1001S3PWMV6MV60 Set pressure: 0.007 to 0.07 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AZ1001S3PWTW6TW60 Set pressure: 0.007 to 0.07 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AZ1001S4PWFV4FV400 Set pressure: 0.007 to 0.07 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AZ1001S4PWMV4MV400 Set pressure: 0.007 to 0.07 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AZ1001S4PWFV6FV600 Set pressure: 0.007 to 0.07 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AZ1001S4PWMV6MV600 Set pressure: 0.007 to 0.07 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AZ1001S4PWTW6TW600 Set pressure: 0.007 to 0.07 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AZ1001SHP2PWFV4FV4 Set pressure: 0.007 to 0.07 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/4 face seal female
AZ1001SHP2PWMV4MV4 Set pressure: 0.007 to 0.07 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/4 face seal male
AZ1001SHP2PWFV6FV6 Set pressure: 0.007 to 0.07 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 face seal female
AZ1001SHP2PWMV6MV6 Set pressure: 0.007 to 0.07 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 face seal male
AZ1001SHP2PWTW6TW6 Set pressure: 0.007 to 0.07 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 tube weld
AZ1001SHP3PWFV4FV40 Set pressure: 0.007 to 0.07 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AZ1001SHP3PWMV4MV40 Set pressure: 0.007 to 0.07 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AZ1001SHP3PWFV6FV60 Set pressure: 0.007 to 0.07 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AZ1001SHP3PWMV6MV60 Set pressure: 0.007 to 0.07 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AZ1001SHP3PWTW6TW60 Set pressure: 0.007 to 0.07 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AZ1001SHP4PWFV4FV400 Set pressure: 0.007 to 0.07 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AZ1001SHP4PWMV4MV400 Set pressure: 0.007 to 0.07 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AZ1001SHP4PWFV6FV600 Set pressure: 0.007 to 0.07 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AZ1001SHP4PWMV6MV600 Set pressure: 0.007 to 0.07 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AZ1001SHP4PWTW6TW600 Set pressure: 0.007 to 0.07 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AZ1002S2PWFV4FV4 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal female
AZ1002S2PWMV4MV4 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal male
AZ1002S2PWFV6FV6 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal female
AZ1002S2PWMV6MV6 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal male
AZ1002S2PWTW6TW6 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 tube weld
AZ1002S3PWFV4FV40 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AZ1002S3PWMV4MV40 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AZ1002S3PWFV6FV60 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AZ1002S3PWMV6MV60 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AZ1002S3PWTW6TW60 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AZ1002S4PWFV4FV400 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AZ1002S4PWMV4MV400 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AZ1002S4PWFV6FV600 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AZ1002S4PWMV6MV600 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AZ1002S4PWTW6TW600 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AZ1002SHP2PWFV4FV4 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/4 face seal female
AZ1002SHP2PWMV4MV4 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/4 face seal male
AZ1002SHP2PWFV6FV6 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 face seal female
AZ1002SHP2PWMV6MV6 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 face seal male
AZ1002SHP2PWTW6TW6 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 tube weld
AZ1002SHP3PWFV4FV40 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AZ1002SHP3PWMV4MV40 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AZ1002SHP3PWFV6FV60 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AZ1002SHP3PWMV6MV60 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AZ1002SHP3PWTW6TW60 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AZ1002SHP4PWFV4FV400 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AZ1002SHP4PWMV4MV400 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AZ1002SHP4PWFV6FV600 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AZ1002SHP4PWMV6MV600 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AZ1002SHP4PWTW6TW600 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AZ1006S2PWFV4FV4 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal female
AZ1006S2PWMV4MV4 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal male
AZ1006S2PWFV6FV6 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal female
AZ1006S2PWMV6MV6 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal male
AZ1006S2PWTW6TW6 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 tube weld
AZ1006S3PWFV4FV40 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AZ1006S3PWMV4MV40 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AZ1006S3PWFV6FV60 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AZ1006S3PWMV6MV60 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AZ1006S3PWTW6TW60 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AZ1006S4PWFV4FV400 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AZ1006S4PWMV4MV400 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AZ1006S4PWFV6FV600 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AZ1006S4PWMV6MV600 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AZ1006S4PWTW6TW600 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AZ1006SHP2PWFV4FV4 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/4 face seal female
AZ1006SHP2PWMV4MV4 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/4 face seal male
AZ1006SHP2PWFV6FV6 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 face seal female
AZ1006SHP2PWMV6MV6 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 face seal male
AZ1006SHP2PWTW6TW6 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 tube weld
AZ1006SHP3PWFV4FV40 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AZ1006SHP3PWMV4MV40 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AZ1006SHP3PWFV6FV60 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AZ1006SHP3PWMV6MV60 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AZ1006SHP3PWTW6TW60 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AZ1006SHP4PWFV4FV400 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AZ1006SHP4PWMV4MV400 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AZ1006SHP4PWFV6FV600 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AZ1006SHP4PWMV6MV600 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AZ1006SHP4PWTW6TW600 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AZ1010S2PWFV4FV4 Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal female
AZ1010S2PWMV4MV4 Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal male
AZ1010S2PWFV6FV6 Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal female
AZ1010S2PWMV6MV6 Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal male
AZ1010S2PWTW6TW6 Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 tube weld
AZ1010S3PWFV4FV40 Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AZ1010S3PWMV4MV40 Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AZ1010S3PWFV6FV60 Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AZ1010S3PWMV6MV60 Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AZ1010S3PWTW6TW60 Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AZ1010S4PWFV4FV400 Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AZ1010S4PWMV4MV400 Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AZ1010S4PWFV6FV600 Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AZ1010S4PWMV6MV600 Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AZ1010S4PWTW6TW600 Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AZ1010SHP2PWFV4FV4 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/4 face seal female
AZ1010SHP2PWMV4MV4 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/4 face seal male
AZ1010SHP2PWFV6FV6 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 face seal female
AZ1010SHP2PWMV6MV6 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 face seal male
AZ1010SHP2PWTW6TW6 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 tube weld
AZ1010SHP3PWFV4FV40 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AZ1010SHP3PWMV4MV40 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AZ1010SHP3PWFV6FV60 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AZ1010SHP3PWMV6MV60 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AZ1010SHP3PWTW6TW60 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AZ1010SHP4PWFV4FV400 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AZ1010SHP4PWMV4MV400 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AZ1010SHP4PWFV6FV600 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AZ1010SHP4PWMV6MV600 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AZ1010SHP4PWTW6TW600 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AZ1015S2PWFV4FV4 Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal female
AZ1015S2PWMV4MV4 Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal male
AZ1015S2PWFV6FV6 Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal female
AZ1015S2PWMV6MV6 Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal male
AZ1015S2PWTW6TW6 Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 tube weld
AZ1015S3PWFV4FV40 Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AZ1015S3PWMV4MV40 Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AZ1015S3PWFV6FV60 Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AZ1015S3PWMV6MV60 Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AZ1015S3PWTW6TW60 Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AZ1015S4PWFV4FV400 Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AZ1015S4PWMV4MV400 Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AZ1015S4PWFV6FV600 Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AZ1015S4PWMV6MV600 Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AZ1015S4PWTW6TW600 Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AZ1015SHP2PWFV4FV4 Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/4 face seal female
AZ1015SHP2PWMV4MV4 Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/4 face seal male
AZ1015SHP2PWFV6FV6 Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 face seal female
AZ1015SHP2PWMV6MV6 Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 face seal male
AZ1015SHP2PWTW6TW6 Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 tube weld
AZ1015SHP3PWFV4FV40 Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AZ1015SHP3PWMV4MV40 Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AZ1015SHP3PWFV6FV60 Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AZ1015SHP3PWMV6MV60 Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AZ1015SHP3PWTW6TW60 Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AZ1015SHP4PWFV4FV400 Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AZ1015SHP4PWMV4MV400 Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AZ1015SHP4PWFV6FV600 Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AZ1015SHP4PWMV6MV600 Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AZ1015SHP4PWTW6TW600 Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
RegulatorsSMC
150 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC AZ1000 Process Gas Regulator (Single-Stage, Low-Medium Flow)

Brand SMC·Regulators

Available part numbers (150)

AZ1001S2PWFV4FV4, AZ1001S2PWMV4MV4, AZ1001S2PWFV6FV6, AZ1001S2PWMV6MV6, AZ1001S2PWTW6TW6, AZ1001S3PWFV4FV40, AZ1001S3PWMV4MV40, AZ1001S3PWFV6FV60, AZ1001S3PWMV6MV60, AZ1001S3PWTW6TW60 + 140 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AZ1001S2PWFV4FV4Set pressure: 0.007 to 0.07 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal female
AZ1001S2PWMV4MV4Set pressure: 0.007 to 0.07 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal male
AZ1001S2PWFV6FV6Set pressure: 0.007 to 0.07 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal female
AZ1001S2PWMV6MV6Set pressure: 0.007 to 0.07 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal male
AZ1001S2PWTW6TW6Set pressure: 0.007 to 0.07 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 tube weld
AZ1001S3PWFV4FV40Set pressure: 0.007 to 0.07 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AZ1001S3PWMV4MV40Set pressure: 0.007 to 0.07 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AZ1001S3PWFV6FV60Set pressure: 0.007 to 0.07 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AZ1001S3PWMV6MV60Set pressure: 0.007 to 0.07 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AZ1001S3PWTW6TW60Set pressure: 0.007 to 0.07 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AZ1001S4PWFV4FV400Set pressure: 0.007 to 0.07 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AZ1001S4PWMV4MV400Set pressure: 0.007 to 0.07 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AZ1001S4PWFV6FV600Set pressure: 0.007 to 0.07 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AZ1001S4PWMV6MV600Set pressure: 0.007 to 0.07 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AZ1001S4PWTW6TW600Set pressure: 0.007 to 0.07 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AZ1001SHP2PWFV4FV4Set pressure: 0.007 to 0.07 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/4 face seal female
AZ1001SHP2PWMV4MV4Set pressure: 0.007 to 0.07 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/4 face seal male
AZ1001SHP2PWFV6FV6Set pressure: 0.007 to 0.07 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 face seal female
AZ1001SHP2PWMV6MV6Set pressure: 0.007 to 0.07 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 face seal male
AZ1001SHP2PWTW6TW6Set pressure: 0.007 to 0.07 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 tube weld
AZ1001SHP3PWFV4FV40Set pressure: 0.007 to 0.07 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AZ1001SHP3PWMV4MV40Set pressure: 0.007 to 0.07 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AZ1001SHP3PWFV6FV60Set pressure: 0.007 to 0.07 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AZ1001SHP3PWMV6MV60Set pressure: 0.007 to 0.07 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AZ1001SHP3PWTW6TW60Set pressure: 0.007 to 0.07 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AZ1001SHP4PWFV4FV400Set pressure: 0.007 to 0.07 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AZ1001SHP4PWMV4MV400Set pressure: 0.007 to 0.07 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AZ1001SHP4PWFV6FV600Set pressure: 0.007 to 0.07 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AZ1001SHP4PWMV6MV600Set pressure: 0.007 to 0.07 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AZ1001SHP4PWTW6TW600Set pressure: 0.007 to 0.07 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AZ1002S2PWFV4FV4Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal female
AZ1002S2PWMV4MV4Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal male
AZ1002S2PWFV6FV6Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal female
AZ1002S2PWMV6MV6Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal male
AZ1002S2PWTW6TW6Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 tube weld
AZ1002S3PWFV4FV40Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AZ1002S3PWMV4MV40Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AZ1002S3PWFV6FV60Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AZ1002S3PWMV6MV60Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AZ1002S3PWTW6TW60Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AZ1002S4PWFV4FV400Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AZ1002S4PWMV4MV400Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AZ1002S4PWFV6FV600Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AZ1002S4PWMV6MV600Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AZ1002S4PWTW6TW600Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AZ1002SHP2PWFV4FV4Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/4 face seal female
AZ1002SHP2PWMV4MV4Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/4 face seal male
AZ1002SHP2PWFV6FV6Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 face seal female
AZ1002SHP2PWMV6MV6Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 face seal male
AZ1002SHP2PWTW6TW6Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 tube weld
AZ1002SHP3PWFV4FV40Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AZ1002SHP3PWMV4MV40Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AZ1002SHP3PWFV6FV60Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AZ1002SHP3PWMV6MV60Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AZ1002SHP3PWTW6TW60Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AZ1002SHP4PWFV4FV400Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AZ1002SHP4PWMV4MV400Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AZ1002SHP4PWFV6FV600Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AZ1002SHP4PWMV6MV600Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AZ1002SHP4PWTW6TW600Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AZ1006S2PWFV4FV4Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal female
AZ1006S2PWMV4MV4Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal male
AZ1006S2PWFV6FV6Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal female
AZ1006S2PWMV6MV6Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal male
AZ1006S2PWTW6TW6Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 tube weld
AZ1006S3PWFV4FV40Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AZ1006S3PWMV4MV40Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AZ1006S3PWFV6FV60Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AZ1006S3PWMV6MV60Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AZ1006S3PWTW6TW60Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AZ1006S4PWFV4FV400Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AZ1006S4PWMV4MV400Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AZ1006S4PWFV6FV600Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AZ1006S4PWMV6MV600Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AZ1006S4PWTW6TW600Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AZ1006SHP2PWFV4FV4Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/4 face seal female
AZ1006SHP2PWMV4MV4Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/4 face seal male
AZ1006SHP2PWFV6FV6Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 face seal female
AZ1006SHP2PWMV6MV6Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 face seal male
AZ1006SHP2PWTW6TW6Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 tube weld
AZ1006SHP3PWFV4FV40Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AZ1006SHP3PWMV4MV40Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AZ1006SHP3PWFV6FV60Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AZ1006SHP3PWMV6MV60Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AZ1006SHP3PWTW6TW60Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AZ1006SHP4PWFV4FV400Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AZ1006SHP4PWMV4MV400Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AZ1006SHP4PWFV6FV600Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AZ1006SHP4PWMV6MV600Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AZ1006SHP4PWTW6TW600Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AZ1010S2PWFV4FV4Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal female
AZ1010S2PWMV4MV4Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal male
AZ1010S2PWFV6FV6Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal female
AZ1010S2PWMV6MV6Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal male
AZ1010S2PWTW6TW6Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 tube weld
AZ1010S3PWFV4FV40Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AZ1010S3PWMV4MV40Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AZ1010S3PWFV6FV60Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AZ1010S3PWMV6MV60Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AZ1010S3PWTW6TW60Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AZ1010S4PWFV4FV400Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AZ1010S4PWMV4MV400Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AZ1010S4PWFV6FV600Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AZ1010S4PWMV6MV600Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AZ1010S4PWTW6TW600Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AZ1010SHP2PWFV4FV4Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/4 face seal female
AZ1010SHP2PWMV4MV4Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/4 face seal male
AZ1010SHP2PWFV6FV6Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 face seal female
AZ1010SHP2PWMV6MV6Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 face seal male
AZ1010SHP2PWTW6TW6Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 tube weld
AZ1010SHP3PWFV4FV40Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AZ1010SHP3PWMV4MV40Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AZ1010SHP3PWFV6FV60Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AZ1010SHP3PWMV6MV60Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AZ1010SHP3PWTW6TW60Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AZ1010SHP4PWFV4FV400Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AZ1010SHP4PWMV4MV400Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AZ1010SHP4PWFV6FV600Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AZ1010SHP4PWMV6MV600Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AZ1010SHP4PWTW6TW600Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AZ1015S2PWFV4FV4Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal female
AZ1015S2PWMV4MV4Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal male
AZ1015S2PWFV6FV6Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal female
AZ1015S2PWMV6MV6Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal male
AZ1015S2PWTW6TW6Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 tube weld
AZ1015S3PWFV4FV40Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AZ1015S3PWMV4MV40Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AZ1015S3PWFV6FV60Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AZ1015S3PWMV6MV60Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AZ1015S3PWTW6TW60Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AZ1015S4PWFV4FV400Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AZ1015S4PWMV4MV400Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AZ1015S4PWFV6FV600Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AZ1015S4PWMV6MV600Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AZ1015S4PWTW6TW600Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AZ1015SHP2PWFV4FV4Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/4 face seal female
AZ1015SHP2PWMV4MV4Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/4 face seal male
AZ1015SHP2PWFV6FV6Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 face seal female
AZ1015SHP2PWMV6MV6Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 face seal male
AZ1015SHP2PWTW6TW6Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 tube weld
AZ1015SHP3PWFV4FV40Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AZ1015SHP3PWMV4MV40Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AZ1015SHP3PWFV6FV60Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AZ1015SHP3PWMV6MV60Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AZ1015SHP3PWTW6TW60Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AZ1015SHP4PWFV4FV400Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AZ1015SHP4PWMV4MV400Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AZ1015SHP4PWFV6FV600Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AZ1015SHP4PWMV6MV600Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AZ1015SHP4PWTW6TW600Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
