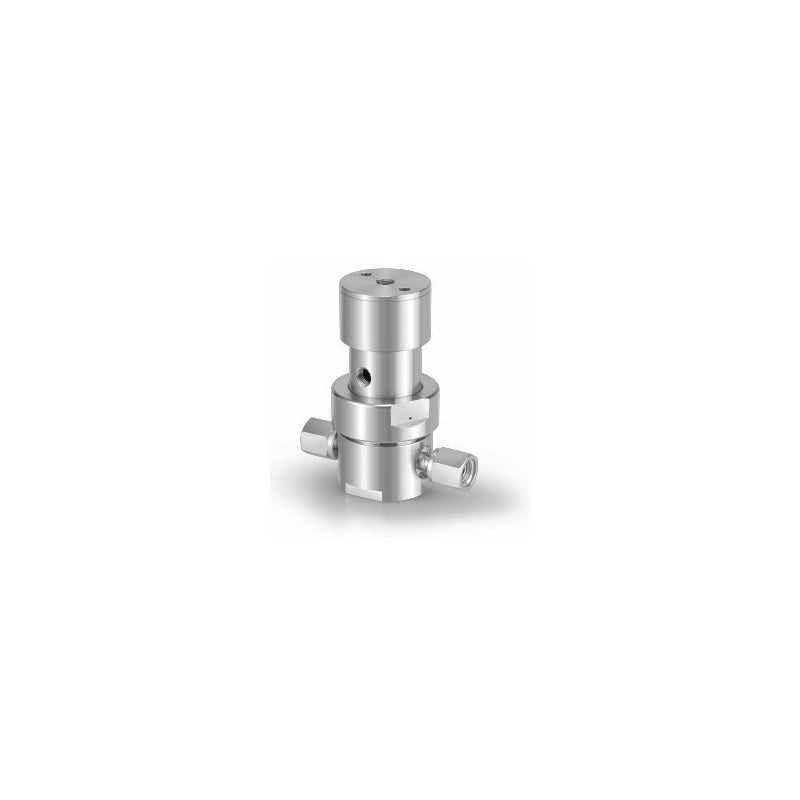

SMC AZ10PA Air-Operated Process Gas Regulator (Low-Medium Flow)

SMC AZ10PA Air-Operated Process Gas Regulator (Low-Medium Flow)

SMC AZ10PA series air-operated SUS316L process gas regulator set by pilot air, for low to medium flow, inlet up to 24.1 MPa.

Key features

  • Air-operated (dome-loaded) set point: pilot air sets outlet pressure 0.05-1.0 MPa; pilot air isolated from process gas by a double seal
  • SUS316L body, internal finish Ra 0.25 um (option Q 0.62 um); precision cleaned for process gas supply
  • Inlet up to 3500 psig (24.1 MPa); flow below 30 slpm (Cv 0.09), HF below 120 slpm
  • Material S or SHP (Ni-Cr-Mo poppet/diaphragm)
  • 2, 3 or 4-port bodies with 1/4 or 3/8 face seal or 3/8 tube weld connections
  • Listed codes: gauge ports "0" (1/4 face seal male port, no gauge); gauges (V3, L, 1, H, 2, 4, 40), MPA scale, VS/TF seat, HF high-flow and panel mount (P) are ordered as suffixes

Specifications

Fluid Gases that do not corrode wetted parts
Leakage Inboard 2x10^-11, outboard 2x10^-10 Pa m3/s
Ambient and fluid temperature -40 to 71 C (no freezing)
Set pressure 7-150 psig (0.05-1.0 MPa)
Max. pilot pressure 150 psig (1.0 MPa)
Pilot port NPT1/8
Inlet pressure Vacuum to 24.1 MPa
Internal finish Ra 0.25 um (option Q 0.62 um)
Internal volume 8 cm3
Source SMC Korea catalog Process Gas Equipment (SMCKR_AP_SL_AZ_AK_BP.pdf), p. 736-737
AZ10PAS2PWFV4FV4 Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal female
AZ10PAS2PWMV4MV4 Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal male
AZ10PAS2PWFV6FV6 Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal female
AZ10PAS2PWMV6MV6 Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal male
AZ10PAS2PWTW6TW6 Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 tube weld
AZ10PAS3PWFV4FV40 Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AZ10PAS3PWMV4MV40 Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AZ10PAS3PWFV6FV60 Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AZ10PAS3PWMV6MV60 Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AZ10PAS3PWTW6TW60 Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AZ10PAS4PWFV4FV400 Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AZ10PAS4PWMV4MV400 Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AZ10PAS4PWFV6FV600 Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AZ10PAS4PWMV6MV600 Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AZ10PAS4PWTW6TW600 Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AZ10PASHP2PWFV4FV4 Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/4 face seal female
AZ10PASHP2PWMV4MV4 Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/4 face seal male
AZ10PASHP2PWFV6FV6 Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 face seal female
AZ10PASHP2PWMV6MV6 Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 face seal male
AZ10PASHP2PWTW6TW6 Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 tube weld
AZ10PASHP3PWFV4FV40 Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AZ10PASHP3PWMV4MV40 Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AZ10PASHP3PWFV6FV60 Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AZ10PASHP3PWMV6MV60 Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AZ10PASHP3PWTW6TW60 Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AZ10PASHP4PWFV4FV400 Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AZ10PASHP4PWMV4MV400 Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AZ10PASHP4PWFV6FV600 Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AZ10PASHP4PWMV6MV600 Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AZ10PASHP4PWTW6TW600 Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
