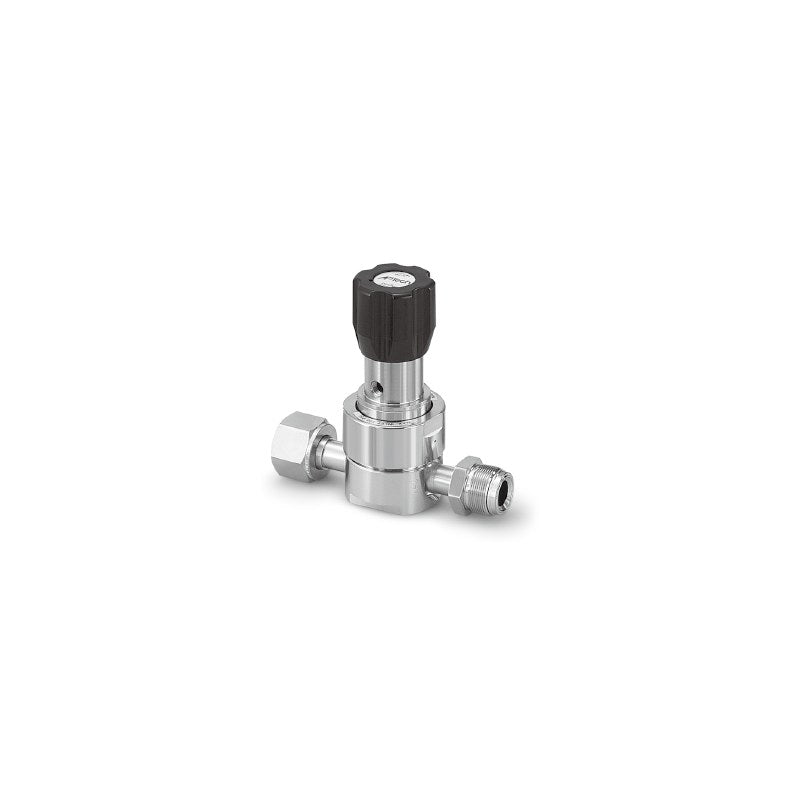

SMC AZ1200 Process Gas Regulator (High Flow, Tied Diaphragm)

SMC AZ1200 Process Gas Regulator (High Flow, Tied Diaphragm)

SMC AZ1200 series single-stage SUS316L tied-diaphragm process gas regulator for high flow, inlet up to 11.7 MPa.

Key features

  • SUS316L body, internal finish Ra 0.25 um (option Q 0.62 um); precision cleaned for process gas supply
  • Inlet up to 1700 psig (11.7 MPa), HR option 3000 psig (20.7 MPa); flow below 400 slpm (Cv 0.65), HF below 1000 slpm, FC below 1500 slpm
  • Set pressure 0.007-0.2 MPa up to 1.7 MPa (AZ1225)
  • 2, 3 or 4-port bodies with 1/4 to 1/2 face seal or tube weld connections
  • Listed codes: gauge ports "0" (1/4 face seal male port, no gauge); gauges (V3, L, 1, H, 2, 4, 40), MPA scale, VS/TF seat, HF high-flow and panel mount (P) are ordered as suffixes

Specifications

Fluid Gases that do not corrode wetted parts
Leakage Inboard 2x10^-11, outboard 2x10^-10 Pa m3/s
Ambient and fluid temperature -40 to 71 C (no freezing)
Mounting Bottom mount (panel mount option P)
Internal finish Ra 0.25 um (option Q 0.62 um)
Inlet pressure Vacuum to 11.7 MPa (HR 20.7 MPa)
Pressure characteristic 0.024 MPa rise per 0.7 MPa inlet drop
Internal volume 17.6 cm3
Mass 2.0 kg
Source SMC Korea catalog Process Gas Equipment (SMCKR_AP_SL_AZ_AK_BP.pdf), p. 704-705
AZ1202S2PWFV4FV4 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal female
AZ1202S2PWMV4MV4 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal male
AZ1202S2PWFV6FV6 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal female
AZ1202S2PWMV6MV6 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal male
AZ1202S2PWTW6TW6 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 tube weld
AZ1202S2PWFV8FV8 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/2 face seal female
AZ1202S2PWMV8MV8 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/2 face seal male
AZ1202S2PWTW8TW8 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/2 tube weld
AZ1202S3PWFV4FV40 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AZ1202S3PWMV4MV40 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AZ1202S3PWFV6FV60 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AZ1202S3PWMV6MV60 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AZ1202S3PWTW6TW60 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AZ1202S3PWFV8FV80 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/2 face seal female
AZ1202S3PWMV8MV80 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/2 face seal male
AZ1202S3PWTW8TW80 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/2 tube weld
AZ1202S4PWFV4FV400 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AZ1202S4PWMV4MV400 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AZ1202S4PWFV6FV600 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AZ1202S4PWMV6MV600 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AZ1202S4PWTW6TW600 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AZ1202S4PWFV8FV800 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 face seal female
AZ1202S4PWMV8MV800 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 face seal male
AZ1202S4PWTW8TW800 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 tube weld
AZ1202SHP2PWFV4FV4 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 1/4 face seal female
AZ1202SHP2PWMV4MV4 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 1/4 face seal male
AZ1202SHP2PWFV6FV6 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 3/8 face seal female
AZ1202SHP2PWMV6MV6 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 3/8 face seal male
AZ1202SHP2PWTW6TW6 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 3/8 tube weld
AZ1202SHP2PWFV8FV8 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 1/2 face seal female
AZ1202SHP2PWMV8MV8 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 1/2 face seal male
AZ1202SHP2PWTW8TW8 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 1/2 tube weld
AZ1202SHP3PWFV4FV40 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AZ1202SHP3PWMV4MV40 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AZ1202SHP3PWFV6FV60 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AZ1202SHP3PWMV6MV60 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AZ1202SHP3PWTW6TW60 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AZ1202SHP3PWFV8FV80 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 1/2 face seal female
AZ1202SHP3PWMV8MV80 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 1/2 face seal male
AZ1202SHP3PWTW8TW80 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 1/2 tube weld
AZ1202SHP4PWFV4FV400 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AZ1202SHP4PWMV4MV400 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AZ1202SHP4PWFV6FV600 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AZ1202SHP4PWMV6MV600 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AZ1202SHP4PWTW6TW600 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AZ1202SHP4PWFV8FV800 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 face seal female
AZ1202SHP4PWMV8MV800 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 face seal male
AZ1202SHP4PWTW8TW800 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 tube weld
AZ1206S2PWFV4FV4 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal female
AZ1206S2PWMV4MV4 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal male
AZ1206S2PWFV6FV6 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal female
AZ1206S2PWMV6MV6 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal male
AZ1206S2PWTW6TW6 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 tube weld
AZ1206S2PWFV8FV8 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/2 face seal female
AZ1206S2PWMV8MV8 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/2 face seal male
AZ1206S2PWTW8TW8 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/2 tube weld
AZ1206S3PWFV4FV40 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AZ1206S3PWMV4MV40 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AZ1206S3PWFV6FV60 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AZ1206S3PWMV6MV60 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AZ1206S3PWTW6TW60 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AZ1206S3PWFV8FV80 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/2 face seal female
AZ1206S3PWMV8MV80 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/2 face seal male
AZ1206S3PWTW8TW80 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/2 tube weld
AZ1206S4PWFV4FV400 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AZ1206S4PWMV4MV400 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AZ1206S4PWFV6FV600 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AZ1206S4PWMV6MV600 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AZ1206S4PWTW6TW600 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AZ1206S4PWFV8FV800 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 face seal female
AZ1206S4PWMV8MV800 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 face seal male
AZ1206S4PWTW8TW800 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 tube weld
AZ1206SHP2PWFV4FV4 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 1/4 face seal female
AZ1206SHP2PWMV4MV4 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 1/4 face seal male
AZ1206SHP2PWFV6FV6 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 3/8 face seal female
AZ1206SHP2PWMV6MV6 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 3/8 face seal male
AZ1206SHP2PWTW6TW6 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 3/8 tube weld
AZ1206SHP2PWFV8FV8 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 1/2 face seal female
AZ1206SHP2PWMV8MV8 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 1/2 face seal male
AZ1206SHP2PWTW8TW8 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 1/2 tube weld
AZ1206SHP3PWFV4FV40 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AZ1206SHP3PWMV4MV40 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AZ1206SHP3PWFV6FV60 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AZ1206SHP3PWMV6MV60 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AZ1206SHP3PWTW6TW60 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AZ1206SHP3PWFV8FV80 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 1/2 face seal female
AZ1206SHP3PWMV8MV80 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 1/2 face seal male
AZ1206SHP3PWTW8TW80 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 1/2 tube weld
AZ1206SHP4PWFV4FV400 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AZ1206SHP4PWMV4MV400 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AZ1206SHP4PWFV6FV600 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AZ1206SHP4PWMV6MV600 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AZ1206SHP4PWTW6TW600 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AZ1206SHP4PWFV8FV800 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 face seal female
AZ1206SHP4PWMV8MV800 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 face seal male
AZ1206SHP4PWTW8TW800 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 tube weld
AZ1210S2PWFV4FV4 Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal female
AZ1210S2PWMV4MV4 Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal male
AZ1210S2PWFV6FV6 Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal female
AZ1210S2PWMV6MV6 Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal male
AZ1210S2PWTW6TW6 Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 tube weld
AZ1210S2PWFV8FV8 Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/2 face seal female
AZ1210S2PWMV8MV8 Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/2 face seal male
AZ1210S2PWTW8TW8 Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/2 tube weld
AZ1210S3PWFV4FV40 Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AZ1210S3PWMV4MV40 Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AZ1210S3PWFV6FV60 Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AZ1210S3PWMV6MV60 Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AZ1210S3PWTW6TW60 Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AZ1210S3PWFV8FV80 Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/2 face seal female
AZ1210S3PWMV8MV80 Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/2 face seal male
AZ1210S3PWTW8TW80 Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/2 tube weld
AZ1210S4PWFV4FV400 Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AZ1210S4PWMV4MV400 Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AZ1210S4PWFV6FV600 Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AZ1210S4PWMV6MV600 Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AZ1210S4PWTW6TW600 Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AZ1210S4PWFV8FV800 Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 face seal female
AZ1210S4PWMV8MV800 Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 face seal male
AZ1210S4PWTW8TW800 Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 tube weld
AZ1210SHP2PWFV4FV4 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 1/4 face seal female
AZ1210SHP2PWMV4MV4 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 1/4 face seal male
AZ1210SHP2PWFV6FV6 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 3/8 face seal female
AZ1210SHP2PWMV6MV6 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 3/8 face seal male
AZ1210SHP2PWTW6TW6 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 3/8 tube weld
AZ1210SHP2PWFV8FV8 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 1/2 face seal female
AZ1210SHP2PWMV8MV8 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 1/2 face seal male
AZ1210SHP2PWTW8TW8 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 1/2 tube weld
AZ1210SHP3PWFV4FV40 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AZ1210SHP3PWMV4MV40 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AZ1210SHP3PWFV6FV60 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AZ1210SHP3PWMV6MV60 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AZ1210SHP3PWTW6TW60 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AZ1210SHP3PWFV8FV80 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 1/2 face seal female
AZ1210SHP3PWMV8MV80 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 1/2 face seal male
AZ1210SHP3PWTW8TW80 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 1/2 tube weld
AZ1210SHP4PWFV4FV400 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AZ1210SHP4PWMV4MV400 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AZ1210SHP4PWFV6FV600 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AZ1210SHP4PWMV6MV600 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AZ1210SHP4PWTW6TW600 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AZ1210SHP4PWFV8FV800 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 face seal female
AZ1210SHP4PWMV8MV800 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 face seal male
AZ1210SHP4PWTW8TW800 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 tube weld
AZ1215S2PWFV4FV4 Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal female
AZ1215S2PWMV4MV4 Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal male
AZ1215S2PWFV6FV6 Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal female
AZ1215S2PWMV6MV6 Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal male
AZ1215S2PWTW6TW6 Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 tube weld
AZ1215S2PWFV8FV8 Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/2 face seal female
AZ1215S2PWMV8MV8 Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/2 face seal male
AZ1215S2PWTW8TW8 Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/2 tube weld
AZ1215S3PWFV4FV40 Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AZ1215S3PWMV4MV40 Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AZ1215S3PWFV6FV60 Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AZ1215S3PWMV6MV60 Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AZ1215S3PWTW6TW60 Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AZ1215S3PWFV8FV80 Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/2 face seal female
AZ1215S3PWMV8MV80 Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/2 face seal male
AZ1215S3PWTW8TW80 Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/2 tube weld
AZ1215S4PWFV4FV400 Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AZ1215S4PWMV4MV400 Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AZ1215S4PWFV6FV600 Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AZ1215S4PWMV6MV600 Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AZ1215S4PWTW6TW600 Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AZ1215S4PWFV8FV800 Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 face seal female
AZ1215S4PWMV8MV800 Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 face seal male
AZ1215S4PWTW8TW800 Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 tube weld
AZ1215SHP2PWFV4FV4 Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 1/4 face seal female
AZ1215SHP2PWMV4MV4 Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 1/4 face seal male
AZ1215SHP2PWFV6FV6 Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 3/8 face seal female
AZ1215SHP2PWMV6MV6 Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 3/8 face seal male
AZ1215SHP2PWTW6TW6 Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 3/8 tube weld
AZ1215SHP2PWFV8FV8 Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 1/2 face seal female
AZ1215SHP2PWMV8MV8 Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 1/2 face seal male
AZ1215SHP2PWTW8TW8 Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 1/2 tube weld
AZ1215SHP3PWFV4FV40 Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AZ1215SHP3PWMV4MV40 Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AZ1215SHP3PWFV6FV60 Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AZ1215SHP3PWMV6MV60 Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AZ1215SHP3PWTW6TW60 Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AZ1215SHP3PWFV8FV80 Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 1/2 face seal female
AZ1215SHP3PWMV8MV80 Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 1/2 face seal male
AZ1215SHP3PWTW8TW80 Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 1/2 tube weld
AZ1215SHP4PWFV4FV400 Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AZ1215SHP4PWMV4MV400 Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AZ1215SHP4PWFV6FV600 Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AZ1215SHP4PWMV6MV600 Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AZ1215SHP4PWTW6TW600 Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AZ1215SHP4PWFV8FV800 Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 face seal female
AZ1215SHP4PWMV8MV800 Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 face seal male
AZ1215SHP4PWTW8TW800 Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 tube weld
AZ1225S2PWFV4FV4 Set pressure: up to 1.7 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal female
AZ1225S2PWMV4MV4 Set pressure: up to 1.7 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal male
AZ1225S2PWFV6FV6 Set pressure: up to 1.7 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal female
AZ1225S2PWMV6MV6 Set pressure: up to 1.7 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal male
AZ1225S2PWTW6TW6 Set pressure: up to 1.7 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 tube weld
AZ1225S2PWFV8FV8 Set pressure: up to 1.7 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/2 face seal female
AZ1225S2PWMV8MV8 Set pressure: up to 1.7 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/2 face seal male
AZ1225S2PWTW8TW8 Set pressure: up to 1.7 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/2 tube weld
AZ1225S3PWFV4FV40 Set pressure: up to 1.7 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AZ1225S3PWMV4MV40 Set pressure: up to 1.7 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AZ1225S3PWFV6FV60 Set pressure: up to 1.7 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AZ1225S3PWMV6MV60 Set pressure: up to 1.7 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AZ1225S3PWTW6TW60 Set pressure: up to 1.7 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AZ1225S3PWFV8FV80 Set pressure: up to 1.7 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/2 face seal female
AZ1225S3PWMV8MV80 Set pressure: up to 1.7 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/2 face seal male
AZ1225S3PWTW8TW80 Set pressure: up to 1.7 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/2 tube weld
AZ1225S4PWFV4FV400 Set pressure: up to 1.7 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AZ1225S4PWMV4MV400 Set pressure: up to 1.7 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AZ1225S4PWFV6FV600 Set pressure: up to 1.7 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AZ1225S4PWMV6MV600 Set pressure: up to 1.7 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AZ1225S4PWTW6TW600 Set pressure: up to 1.7 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AZ1225S4PWFV8FV800 Set pressure: up to 1.7 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 face seal female
AZ1225S4PWMV8MV800 Set pressure: up to 1.7 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 face seal male
AZ1225S4PWTW8TW800 Set pressure: up to 1.7 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 tube weld
AZ1225SHP2PWFV4FV4 Set pressure: up to 1.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 1/4 face seal female
AZ1225SHP2PWMV4MV4 Set pressure: up to 1.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 1/4 face seal male
AZ1225SHP2PWFV6FV6 Set pressure: up to 1.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 3/8 face seal female
AZ1225SHP2PWMV6MV6 Set pressure: up to 1.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 3/8 face seal male
AZ1225SHP2PWTW6TW6 Set pressure: up to 1.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 3/8 tube weld
AZ1225SHP2PWFV8FV8 Set pressure: up to 1.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 1/2 face seal female
AZ1225SHP2PWMV8MV8 Set pressure: up to 1.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 1/2 face seal male
AZ1225SHP2PWTW8TW8 Set pressure: up to 1.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 1/2 tube weld
AZ1225SHP3PWFV4FV40 Set pressure: up to 1.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AZ1225SHP3PWMV4MV40 Set pressure: up to 1.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AZ1225SHP3PWFV6FV60 Set pressure: up to 1.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AZ1225SHP3PWMV6MV60 Set pressure: up to 1.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AZ1225SHP3PWTW6TW60 Set pressure: up to 1.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AZ1225SHP3PWFV8FV80 Set pressure: up to 1.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 1/2 face seal female
AZ1225SHP3PWMV8MV80 Set pressure: up to 1.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 1/2 face seal male
AZ1225SHP3PWTW8TW80 Set pressure: up to 1.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 1/2 tube weld
AZ1225SHP4PWFV4FV400 Set pressure: up to 1.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AZ1225SHP4PWMV4MV400 Set pressure: up to 1.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AZ1225SHP4PWFV6FV600 Set pressure: up to 1.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AZ1225SHP4PWMV6MV600 Set pressure: up to 1.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AZ1225SHP4PWTW6TW600 Set pressure: up to 1.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AZ1225SHP4PWFV8FV800 Set pressure: up to 1.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 face seal female
AZ1225SHP4PWMV8MV800 Set pressure: up to 1.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 face seal male
AZ1225SHP4PWTW8TW800 Set pressure: up to 1.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 tube weld
RegulatorsSMC
240 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC AZ1200 Process Gas Regulator (High Flow, Tied Diaphragm)

Brand SMC·Regulators

Available part numbers (240)

AZ1202S2PWFV4FV4, AZ1202S2PWMV4MV4, AZ1202S2PWFV6FV6, AZ1202S2PWMV6MV6, AZ1202S2PWTW6TW6, AZ1202S2PWFV8FV8, AZ1202S2PWMV8MV8, AZ1202S2PWTW8TW8, AZ1202S3PWFV4FV40, AZ1202S3PWMV4MV40 + 230 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AZ1202S2PWFV4FV4Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal female
AZ1202S2PWMV4MV4Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal male
AZ1202S2PWFV6FV6Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal female
AZ1202S2PWMV6MV6Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal male
AZ1202S2PWTW6TW6Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 tube weld
AZ1202S2PWFV8FV8Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/2 face seal female
AZ1202S2PWMV8MV8Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/2 face seal male
AZ1202S2PWTW8TW8Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/2 tube weld
AZ1202S3PWFV4FV40Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AZ1202S3PWMV4MV40Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AZ1202S3PWFV6FV60Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AZ1202S3PWMV6MV60Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AZ1202S3PWTW6TW60Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AZ1202S3PWFV8FV80Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/2 face seal female
AZ1202S3PWMV8MV80Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/2 face seal male
AZ1202S3PWTW8TW80Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/2 tube weld
AZ1202S4PWFV4FV400Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AZ1202S4PWMV4MV400Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AZ1202S4PWFV6FV600Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AZ1202S4PWMV6MV600Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AZ1202S4PWTW6TW600Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AZ1202S4PWFV8FV800Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 face seal female
AZ1202S4PWMV8MV800Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 face seal male
AZ1202S4PWTW8TW800Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 tube weld
AZ1202SHP2PWFV4FV4Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 1/4 face seal female
AZ1202SHP2PWMV4MV4Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 1/4 face seal male
AZ1202SHP2PWFV6FV6Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 3/8 face seal female
AZ1202SHP2PWMV6MV6Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 3/8 face seal male
AZ1202SHP2PWTW6TW6Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 3/8 tube weld
AZ1202SHP2PWFV8FV8Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 1/2 face seal female
AZ1202SHP2PWMV8MV8Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 1/2 face seal male
AZ1202SHP2PWTW8TW8Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 1/2 tube weld
AZ1202SHP3PWFV4FV40Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AZ1202SHP3PWMV4MV40Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AZ1202SHP3PWFV6FV60Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AZ1202SHP3PWMV6MV60Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AZ1202SHP3PWTW6TW60Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AZ1202SHP3PWFV8FV80Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 1/2 face seal female
AZ1202SHP3PWMV8MV80Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 1/2 face seal male
AZ1202SHP3PWTW8TW80Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 1/2 tube weld
AZ1202SHP4PWFV4FV400Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AZ1202SHP4PWMV4MV400Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AZ1202SHP4PWFV6FV600Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AZ1202SHP4PWMV6MV600Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AZ1202SHP4PWTW6TW600Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AZ1202SHP4PWFV8FV800Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 face seal female
AZ1202SHP4PWMV8MV800Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 face seal male
AZ1202SHP4PWTW8TW800Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 tube weld
AZ1206S2PWFV4FV4Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal female
AZ1206S2PWMV4MV4Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal male
AZ1206S2PWFV6FV6Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal female
AZ1206S2PWMV6MV6Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal male
AZ1206S2PWTW6TW6Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 tube weld
AZ1206S2PWFV8FV8Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/2 face seal female
AZ1206S2PWMV8MV8Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/2 face seal male
AZ1206S2PWTW8TW8Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/2 tube weld
AZ1206S3PWFV4FV40Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AZ1206S3PWMV4MV40Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AZ1206S3PWFV6FV60Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AZ1206S3PWMV6MV60Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AZ1206S3PWTW6TW60Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AZ1206S3PWFV8FV80Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/2 face seal female
AZ1206S3PWMV8MV80Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/2 face seal male
AZ1206S3PWTW8TW80Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/2 tube weld
AZ1206S4PWFV4FV400Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AZ1206S4PWMV4MV400Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AZ1206S4PWFV6FV600Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AZ1206S4PWMV6MV600Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AZ1206S4PWTW6TW600Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AZ1206S4PWFV8FV800Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 face seal female
AZ1206S4PWMV8MV800Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 face seal male
AZ1206S4PWTW8TW800Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 tube weld
AZ1206SHP2PWFV4FV4Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 1/4 face seal female
AZ1206SHP2PWMV4MV4Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 1/4 face seal male
AZ1206SHP2PWFV6FV6Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 3/8 face seal female
AZ1206SHP2PWMV6MV6Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 3/8 face seal male
AZ1206SHP2PWTW6TW6Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 3/8 tube weld
AZ1206SHP2PWFV8FV8Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 1/2 face seal female
AZ1206SHP2PWMV8MV8Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 1/2 face seal male
AZ1206SHP2PWTW8TW8Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 1/2 tube weld
AZ1206SHP3PWFV4FV40Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AZ1206SHP3PWMV4MV40Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AZ1206SHP3PWFV6FV60Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AZ1206SHP3PWMV6MV60Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AZ1206SHP3PWTW6TW60Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AZ1206SHP3PWFV8FV80Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 1/2 face seal female
AZ1206SHP3PWMV8MV80Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 1/2 face seal male
AZ1206SHP3PWTW8TW80Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 1/2 tube weld
AZ1206SHP4PWFV4FV400Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AZ1206SHP4PWMV4MV400Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AZ1206SHP4PWFV6FV600Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AZ1206SHP4PWMV6MV600Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AZ1206SHP4PWTW6TW600Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AZ1206SHP4PWFV8FV800Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 face seal female
AZ1206SHP4PWMV8MV800Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 face seal male
AZ1206SHP4PWTW8TW800Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 tube weld
AZ1210S2PWFV4FV4Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal female
AZ1210S2PWMV4MV4Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal male
AZ1210S2PWFV6FV6Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal female
AZ1210S2PWMV6MV6Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal male
AZ1210S2PWTW6TW6Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 tube weld
AZ1210S2PWFV8FV8Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/2 face seal female
AZ1210S2PWMV8MV8Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/2 face seal male
AZ1210S2PWTW8TW8Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/2 tube weld
AZ1210S3PWFV4FV40Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AZ1210S3PWMV4MV40Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AZ1210S3PWFV6FV60Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AZ1210S3PWMV6MV60Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AZ1210S3PWTW6TW60Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AZ1210S3PWFV8FV80Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/2 face seal female
AZ1210S3PWMV8MV80Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/2 face seal male
AZ1210S3PWTW8TW80Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/2 tube weld
AZ1210S4PWFV4FV400Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AZ1210S4PWMV4MV400Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AZ1210S4PWFV6FV600Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AZ1210S4PWMV6MV600Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AZ1210S4PWTW6TW600Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AZ1210S4PWFV8FV800Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 face seal female
AZ1210S4PWMV8MV800Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 face seal male
AZ1210S4PWTW8TW800Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 tube weld
AZ1210SHP2PWFV4FV4Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 1/4 face seal female
AZ1210SHP2PWMV4MV4Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 1/4 face seal male
AZ1210SHP2PWFV6FV6Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 3/8 face seal female
AZ1210SHP2PWMV6MV6Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 3/8 face seal male
AZ1210SHP2PWTW6TW6Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 3/8 tube weld
AZ1210SHP2PWFV8FV8Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 1/2 face seal female
AZ1210SHP2PWMV8MV8Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 1/2 face seal male
AZ1210SHP2PWTW8TW8Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 1/2 tube weld
AZ1210SHP3PWFV4FV40Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AZ1210SHP3PWMV4MV40Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AZ1210SHP3PWFV6FV60Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AZ1210SHP3PWMV6MV60Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AZ1210SHP3PWTW6TW60Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AZ1210SHP3PWFV8FV80Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 1/2 face seal female
AZ1210SHP3PWMV8MV80Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 1/2 face seal male
AZ1210SHP3PWTW8TW80Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 1/2 tube weld
AZ1210SHP4PWFV4FV400Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AZ1210SHP4PWMV4MV400Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AZ1210SHP4PWFV6FV600Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AZ1210SHP4PWMV6MV600Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AZ1210SHP4PWTW6TW600Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AZ1210SHP4PWFV8FV800Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 face seal female
AZ1210SHP4PWMV8MV800Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 face seal male
AZ1210SHP4PWTW8TW800Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 tube weld
AZ1215S2PWFV4FV4Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal female
AZ1215S2PWMV4MV4Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal male
AZ1215S2PWFV6FV6Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal female
AZ1215S2PWMV6MV6Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal male
AZ1215S2PWTW6TW6Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 tube weld
AZ1215S2PWFV8FV8Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/2 face seal female
AZ1215S2PWMV8MV8Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/2 face seal male
AZ1215S2PWTW8TW8Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/2 tube weld
AZ1215S3PWFV4FV40Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AZ1215S3PWMV4MV40Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AZ1215S3PWFV6FV60Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AZ1215S3PWMV6MV60Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AZ1215S3PWTW6TW60Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AZ1215S3PWFV8FV80Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/2 face seal female
AZ1215S3PWMV8MV80Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/2 face seal male
AZ1215S3PWTW8TW80Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/2 tube weld
AZ1215S4PWFV4FV400Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AZ1215S4PWMV4MV400Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AZ1215S4PWFV6FV600Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AZ1215S4PWMV6MV600Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AZ1215S4PWTW6TW600Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AZ1215S4PWFV8FV800Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 face seal female
AZ1215S4PWMV8MV800Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 face seal male
AZ1215S4PWTW8TW800Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 tube weld
AZ1215SHP2PWFV4FV4Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 1/4 face seal female
AZ1215SHP2PWMV4MV4Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 1/4 face seal male
AZ1215SHP2PWFV6FV6Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 3/8 face seal female
AZ1215SHP2PWMV6MV6Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 3/8 face seal male
AZ1215SHP2PWTW6TW6Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 3/8 tube weld
AZ1215SHP2PWFV8FV8Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 1/2 face seal female
AZ1215SHP2PWMV8MV8Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 1/2 face seal male
AZ1215SHP2PWTW8TW8Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 1/2 tube weld
AZ1215SHP3PWFV4FV40Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AZ1215SHP3PWMV4MV40Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AZ1215SHP3PWFV6FV60Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AZ1215SHP3PWMV6MV60Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AZ1215SHP3PWTW6TW60Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AZ1215SHP3PWFV8FV80Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 1/2 face seal female
AZ1215SHP3PWMV8MV80Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 1/2 face seal male
AZ1215SHP3PWTW8TW80Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 1/2 tube weld
AZ1215SHP4PWFV4FV400Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AZ1215SHP4PWMV4MV400Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AZ1215SHP4PWFV6FV600Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AZ1215SHP4PWMV6MV600Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AZ1215SHP4PWTW6TW600Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AZ1215SHP4PWFV8FV800Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 face seal female
AZ1215SHP4PWMV8MV800Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 face seal male
AZ1215SHP4PWTW8TW800Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 tube weld
AZ1225S2PWFV4FV4Set pressure: up to 1.7 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal female
AZ1225S2PWMV4MV4Set pressure: up to 1.7 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal male
AZ1225S2PWFV6FV6Set pressure: up to 1.7 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal female
AZ1225S2PWMV6MV6Set pressure: up to 1.7 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal male
AZ1225S2PWTW6TW6Set pressure: up to 1.7 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 tube weld
AZ1225S2PWFV8FV8Set pressure: up to 1.7 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/2 face seal female
AZ1225S2PWMV8MV8Set pressure: up to 1.7 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/2 face seal male
AZ1225S2PWTW8TW8Set pressure: up to 1.7 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/2 tube weld
AZ1225S3PWFV4FV40Set pressure: up to 1.7 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AZ1225S3PWMV4MV40Set pressure: up to 1.7 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AZ1225S3PWFV6FV60Set pressure: up to 1.7 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AZ1225S3PWMV6MV60Set pressure: up to 1.7 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AZ1225S3PWTW6TW60Set pressure: up to 1.7 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AZ1225S3PWFV8FV80Set pressure: up to 1.7 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/2 face seal female
AZ1225S3PWMV8MV80Set pressure: up to 1.7 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/2 face seal male
AZ1225S3PWTW8TW80Set pressure: up to 1.7 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/2 tube weld
AZ1225S4PWFV4FV400Set pressure: up to 1.7 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AZ1225S4PWMV4MV400Set pressure: up to 1.7 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AZ1225S4PWFV6FV600Set pressure: up to 1.7 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AZ1225S4PWMV6MV600Set pressure: up to 1.7 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AZ1225S4PWTW6TW600Set pressure: up to 1.7 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AZ1225S4PWFV8FV800Set pressure: up to 1.7 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 face seal female
AZ1225S4PWMV8MV800Set pressure: up to 1.7 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 face seal male
AZ1225S4PWTW8TW800Set pressure: up to 1.7 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 tube weld
AZ1225SHP2PWFV4FV4Set pressure: up to 1.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 1/4 face seal female
AZ1225SHP2PWMV4MV4Set pressure: up to 1.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 1/4 face seal male
AZ1225SHP2PWFV6FV6Set pressure: up to 1.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 3/8 face seal female
AZ1225SHP2PWMV6MV6Set pressure: up to 1.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 3/8 face seal male
AZ1225SHP2PWTW6TW6Set pressure: up to 1.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 3/8 tube weld
AZ1225SHP2PWFV8FV8Set pressure: up to 1.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 1/2 face seal female
AZ1225SHP2PWMV8MV8Set pressure: up to 1.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 1/2 face seal male
AZ1225SHP2PWTW8TW8Set pressure: up to 1.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 1/2 tube weld
AZ1225SHP3PWFV4FV40Set pressure: up to 1.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AZ1225SHP3PWMV4MV40Set pressure: up to 1.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AZ1225SHP3PWFV6FV60Set pressure: up to 1.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AZ1225SHP3PWMV6MV60Set pressure: up to 1.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AZ1225SHP3PWTW6TW60Set pressure: up to 1.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AZ1225SHP3PWFV8FV80Set pressure: up to 1.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 1/2 face seal female
AZ1225SHP3PWMV8MV80Set pressure: up to 1.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 1/2 face seal male
AZ1225SHP3PWTW8TW80Set pressure: up to 1.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 1/2 tube weld
AZ1225SHP4PWFV4FV400Set pressure: up to 1.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AZ1225SHP4PWMV4MV400Set pressure: up to 1.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AZ1225SHP4PWFV6FV600Set pressure: up to 1.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AZ1225SHP4PWMV6MV600Set pressure: up to 1.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AZ1225SHP4PWTW6TW600Set pressure: up to 1.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AZ1225SHP4PWFV8FV800Set pressure: up to 1.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 face seal female
AZ1225SHP4PWMV8MV800Set pressure: up to 1.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 face seal male
AZ1225SHP4PWTW8TW800Set pressure: up to 1.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 tube weld

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
