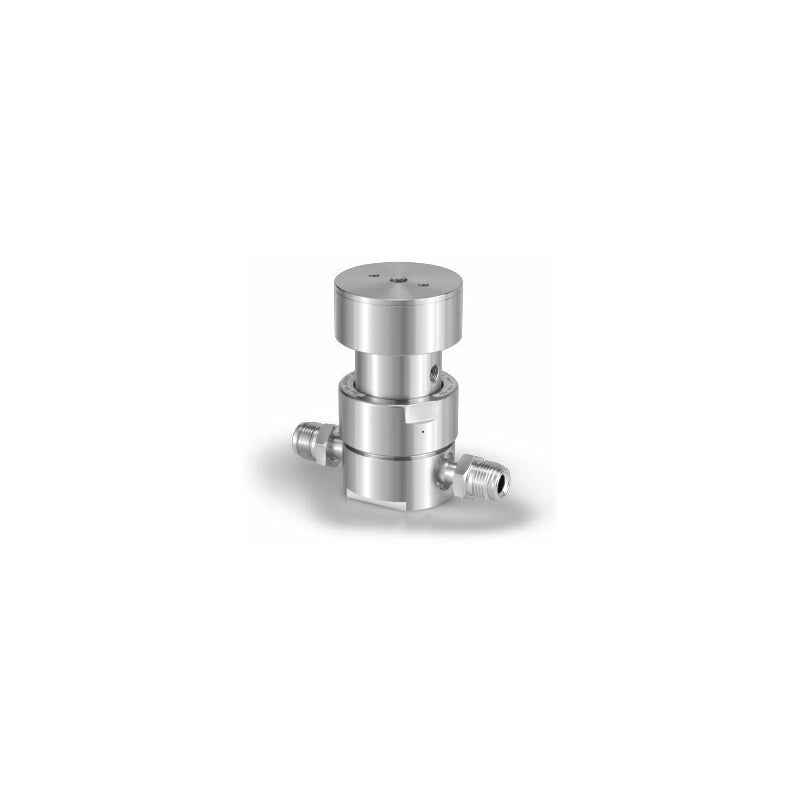

SMC AZ12PA Air-Operated Process Gas Regulator (High Flow, Tied Diaphragm)

SMC AZ12PA Air-Operated Process Gas Regulator (High Flow, Tied Diaphragm)

SMC AZ12PA series air-operated SUS316L tied-diaphragm process gas regulator set by pilot air, for high flow (below 800 slpm).

Key features

  • Air-operated (dome-loaded) set point: pilot air sets outlet pressure 0.05-1.0 MPa; pilot air isolated from process gas by a double seal
  • SUS316L body, internal finish Ra 0.25 um (option Q 0.62 um); precision cleaned for process gas supply
  • Inlet up to 1700 psig (11.7 MPa), HR option 20.7 MPa; flow below 800 slpm, HF below 1000 slpm
  • Material S or SHP (Ni-Cr-Mo poppet)
  • 2, 3 or 4-port bodies with 1/4 to 1/2 face seal or tube weld connections
  • Listed codes: gauge ports "0" (1/4 face seal male port, no gauge); gauges (V3, L, 1, H, 2, 4, 40), MPA scale, VS/TF seat, HF high-flow and panel mount (P) are ordered as suffixes

Specifications

Fluid Gases that do not corrode wetted parts
Leakage Inboard 2x10^-11, outboard 2x10^-10 Pa m3/s
Ambient and fluid temperature -40 to 71 C (no freezing)
Set pressure 7-150 psig (0.05-1.0 MPa)
Max. pilot pressure 150 psig (1.0 MPa)
Pilot port NPT1/8
Inlet pressure Vacuum to 11.7 MPa (HR 20.7 MPa)
Internal finish Ra 0.25 um (option Q 0.62 um)
Internal volume 19.6 cm3
Source SMC Korea catalog Process Gas Equipment (SMCKR_AP_SL_AZ_AK_BP.pdf), p. 742-743
AZ12PAS2PWFV4FV4 Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal female
AZ12PAS2PWMV4MV4 Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal male
AZ12PAS2PWFV6FV6 Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal female
AZ12PAS2PWMV6MV6 Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal male
AZ12PAS2PWTW6TW6 Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 tube weld
AZ12PAS2PWFV8FV8 Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/2 face seal female
AZ12PAS2PWMV8MV8 Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/2 face seal male
AZ12PAS2PWTW8TW8 Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/2 tube weld
AZ12PAS3PWFV4FV40 Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AZ12PAS3PWMV4MV40 Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AZ12PAS3PWFV6FV60 Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AZ12PAS3PWMV6MV60 Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AZ12PAS3PWTW6TW60 Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AZ12PAS3PWFV8FV80 Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/2 face seal female
AZ12PAS3PWMV8MV80 Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/2 face seal male
AZ12PAS3PWTW8TW80 Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/2 tube weld
AZ12PAS4PWFV4FV400 Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AZ12PAS4PWMV4MV400 Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AZ12PAS4PWFV6FV600 Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AZ12PAS4PWMV6MV600 Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AZ12PAS4PWTW6TW600 Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AZ12PAS4PWFV8FV800 Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 face seal female
AZ12PAS4PWMV8MV800 Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 face seal male
AZ12PAS4PWTW8TW800 Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 tube weld
AZ12PASHP2PWFV4FV4 Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 1/4 face seal female
AZ12PASHP2PWMV4MV4 Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 1/4 face seal male
AZ12PASHP2PWFV6FV6 Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 3/8 face seal female
AZ12PASHP2PWMV6MV6 Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 3/8 face seal male
AZ12PASHP2PWTW6TW6 Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 3/8 tube weld
AZ12PASHP2PWFV8FV8 Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 1/2 face seal female
AZ12PASHP2PWMV8MV8 Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 1/2 face seal male
AZ12PASHP2PWTW8TW8 Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 1/2 tube weld
AZ12PASHP3PWFV4FV40 Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AZ12PASHP3PWMV4MV40 Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AZ12PASHP3PWFV6FV60 Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AZ12PASHP3PWMV6MV60 Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AZ12PASHP3PWTW6TW60 Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AZ12PASHP3PWFV8FV80 Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 1/2 face seal female
AZ12PASHP3PWMV8MV80 Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 1/2 face seal male
AZ12PASHP3PWTW8TW80 Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 1/2 tube weld
AZ12PASHP4PWFV4FV400 Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AZ12PASHP4PWMV4MV400 Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AZ12PASHP4PWFV6FV600 Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AZ12PASHP4PWMV6MV600 Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AZ12PASHP4PWTW6TW600 Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AZ12PASHP4PWFV8FV800 Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 face seal female
AZ12PASHP4PWMV8MV800 Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 face seal male
AZ12PASHP4PWTW8TW800 Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 tube weld
RegulatorsSMC
48 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC AZ12PA Air-Operated Process Gas Regulator (High Flow, Tied Diaphragm)

Brand SMC·Regulators

Available part numbers (48)

AZ12PAS2PWFV4FV4, AZ12PAS2PWMV4MV4, AZ12PAS2PWFV6FV6, AZ12PAS2PWMV6MV6, AZ12PAS2PWTW6TW6, AZ12PAS2PWFV8FV8, AZ12PAS2PWMV8MV8, AZ12PAS2PWTW8TW8, AZ12PAS3PWFV4FV40, AZ12PAS3PWMV4MV40 + 38 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AZ12PAS2PWFV4FV4Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal female
AZ12PAS2PWMV4MV4Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal male
AZ12PAS2PWFV6FV6Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal female
AZ12PAS2PWMV6MV6Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal male
AZ12PAS2PWTW6TW6Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 tube weld
AZ12PAS2PWFV8FV8Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/2 face seal female
AZ12PAS2PWMV8MV8Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/2 face seal male
AZ12PAS2PWTW8TW8Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/2 tube weld
AZ12PAS3PWFV4FV40Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AZ12PAS3PWMV4MV40Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AZ12PAS3PWFV6FV60Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AZ12PAS3PWMV6MV60Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AZ12PAS3PWTW6TW60Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AZ12PAS3PWFV8FV80Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/2 face seal female
AZ12PAS3PWMV8MV80Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/2 face seal male
AZ12PAS3PWTW8TW80Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/2 tube weld
AZ12PAS4PWFV4FV400Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AZ12PAS4PWMV4MV400Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AZ12PAS4PWFV6FV600Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AZ12PAS4PWMV6MV600Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AZ12PAS4PWTW6TW600Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AZ12PAS4PWFV8FV800Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 face seal female
AZ12PAS4PWMV8MV800Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 face seal male
AZ12PAS4PWTW8TW800Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 tube weld
AZ12PASHP2PWFV4FV4Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 1/4 face seal female
AZ12PASHP2PWMV4MV4Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 1/4 face seal male
AZ12PASHP2PWFV6FV6Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 3/8 face seal female
AZ12PASHP2PWMV6MV6Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 3/8 face seal male
AZ12PASHP2PWTW6TW6Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 3/8 tube weld
AZ12PASHP2PWFV8FV8Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 1/2 face seal female
AZ12PASHP2PWMV8MV8Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 1/2 face seal male
AZ12PASHP2PWTW8TW8Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 1/2 tube weld
AZ12PASHP3PWFV4FV40Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AZ12PASHP3PWMV4MV40Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AZ12PASHP3PWFV6FV60Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AZ12PASHP3PWMV6MV60Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AZ12PASHP3PWTW6TW60Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AZ12PASHP3PWFV8FV80Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 1/2 face seal female
AZ12PASHP3PWMV8MV80Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 1/2 face seal male
AZ12PASHP3PWTW8TW80Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 1/2 tube weld
AZ12PASHP4PWFV4FV400Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AZ12PASHP4PWMV4MV400Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AZ12PASHP4PWFV6FV600Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AZ12PASHP4PWMV6MV600Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AZ12PASHP4PWTW6TW600Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AZ12PASHP4PWFV8FV800Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 face seal female
AZ12PASHP4PWMV8MV800Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 face seal male
AZ12PASHP4PWTW8TW800Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 tube weld
