SMC AZ1300 Process Gas Regulator (High Flow, 2.1 MPa Inlet)

SMC AZ1300 Process Gas Regulator (High Flow, 2.1 MPa Inlet)

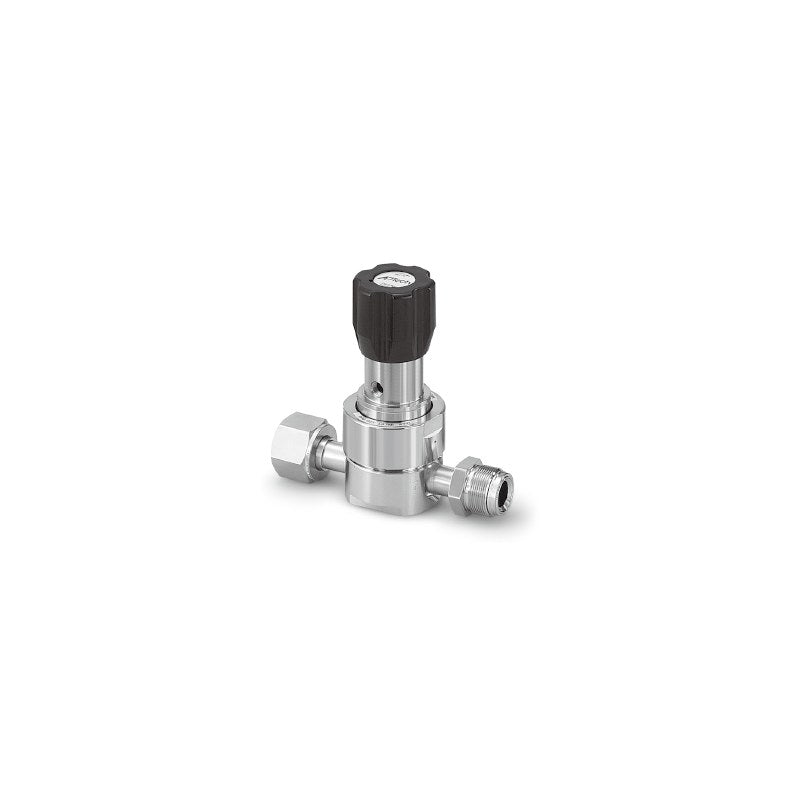

SMC AZ1300 series single-stage SUS316L process gas regulator for high flow (below 1000 slpm) with inlet up to 2.1 MPa.

Key features

  • SUS316L body, internal finish Ra 0.25 um (option Q 0.62 um); precision cleaned for process gas supply
  • Flow below 1000 slpm; inlet up to 300 psig (2.1 MPa)
  • Set pressure 0.007-0.2 to 0.034-1.0 MPa
  • 2-port or 3-port (inlet gauge) bodies with 1/4 to 1/2 face seal or tube weld connections
  • Listed codes: gauge ports "0" (1/4 face seal male port, no gauge); gauges (V3, L, 1, H, 2, 4, 40), MPA scale, VS/TF seat, HF high-flow and panel mount (P) are ordered as suffixes

Specifications

Fluid Gases that do not corrode wetted parts
Leakage Inboard 2x10^-11, outboard 2x10^-10 Pa m3/s
Ambient and fluid temperature -40 to 71 C (no freezing)
Mounting Bottom mount (panel mount option P)
Internal finish Ra 0.25 um (option Q 0.62 um)
Inlet pressure Vacuum to 2.1 MPa
Pressure characteristic 0.031 MPa rise per 0.7 MPa inlet drop
Internal volume 19.6 cm3
Mass 2.0 kg
Material SUS316L, Ni-Cr-Mo diaphragm
Source SMC Korea catalog Process Gas Equipment (SMCKR_AP_SL_AZ_AK_BP.pdf), p. 702-703
AZ1302S2PWFV4FV4 Set pressure: 0.007 to 0.2 MPa | Ports: 2 ports | Connection: 1/4 face seal female
AZ1302S2PWMV4MV4 Set pressure: 0.007 to 0.2 MPa | Ports: 2 ports | Connection: 1/4 face seal male
AZ1302S2PWFV6FV6 Set pressure: 0.007 to 0.2 MPa | Ports: 2 ports | Connection: 3/8 face seal female
AZ1302S2PWMV6MV6 Set pressure: 0.007 to 0.2 MPa | Ports: 2 ports | Connection: 3/8 face seal male
AZ1302S2PWTW6TW6 Set pressure: 0.007 to 0.2 MPa | Ports: 2 ports | Connection: 3/8 tube weld
AZ1302S2PWFV8FV8 Set pressure: 0.007 to 0.2 MPa | Ports: 2 ports | Connection: 1/2 face seal female
AZ1302S2PWMV8MV8 Set pressure: 0.007 to 0.2 MPa | Ports: 2 ports | Connection: 1/2 face seal male
AZ1302S2PWTW8TW8 Set pressure: 0.007 to 0.2 MPa | Ports: 2 ports | Connection: 1/2 tube weld
AZ1302S3PWFV4FV40 Set pressure: 0.007 to 0.2 MPa | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AZ1302S3PWMV4MV40 Set pressure: 0.007 to 0.2 MPa | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AZ1302S3PWFV6FV60 Set pressure: 0.007 to 0.2 MPa | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AZ1302S3PWMV6MV60 Set pressure: 0.007 to 0.2 MPa | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AZ1302S3PWTW6TW60 Set pressure: 0.007 to 0.2 MPa | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AZ1302S3PWFV8FV80 Set pressure: 0.007 to 0.2 MPa | Ports: 3 ports (gauge port) | Connection: 1/2 face seal female
AZ1302S3PWMV8MV80 Set pressure: 0.007 to 0.2 MPa | Ports: 3 ports (gauge port) | Connection: 1/2 face seal male
AZ1302S3PWTW8TW80 Set pressure: 0.007 to 0.2 MPa | Ports: 3 ports (gauge port) | Connection: 1/2 tube weld
AZ1306S2PWFV4FV4 Set pressure: 0.014 to 0.4 MPa | Ports: 2 ports | Connection: 1/4 face seal female
AZ1306S2PWMV4MV4 Set pressure: 0.014 to 0.4 MPa | Ports: 2 ports | Connection: 1/4 face seal male
AZ1306S2PWFV6FV6 Set pressure: 0.014 to 0.4 MPa | Ports: 2 ports | Connection: 3/8 face seal female
AZ1306S2PWMV6MV6 Set pressure: 0.014 to 0.4 MPa | Ports: 2 ports | Connection: 3/8 face seal male
AZ1306S2PWTW6TW6 Set pressure: 0.014 to 0.4 MPa | Ports: 2 ports | Connection: 3/8 tube weld
AZ1306S2PWFV8FV8 Set pressure: 0.014 to 0.4 MPa | Ports: 2 ports | Connection: 1/2 face seal female
AZ1306S2PWMV8MV8 Set pressure: 0.014 to 0.4 MPa | Ports: 2 ports | Connection: 1/2 face seal male
AZ1306S2PWTW8TW8 Set pressure: 0.014 to 0.4 MPa | Ports: 2 ports | Connection: 1/2 tube weld
AZ1306S3PWFV4FV40 Set pressure: 0.014 to 0.4 MPa | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AZ1306S3PWMV4MV40 Set pressure: 0.014 to 0.4 MPa | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AZ1306S3PWFV6FV60 Set pressure: 0.014 to 0.4 MPa | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AZ1306S3PWMV6MV60 Set pressure: 0.014 to 0.4 MPa | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AZ1306S3PWTW6TW60 Set pressure: 0.014 to 0.4 MPa | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AZ1306S3PWFV8FV80 Set pressure: 0.014 to 0.4 MPa | Ports: 3 ports (gauge port) | Connection: 1/2 face seal female
AZ1306S3PWMV8MV80 Set pressure: 0.014 to 0.4 MPa | Ports: 3 ports (gauge port) | Connection: 1/2 face seal male
AZ1306S3PWTW8TW80 Set pressure: 0.014 to 0.4 MPa | Ports: 3 ports (gauge port) | Connection: 1/2 tube weld
AZ1310S2PWFV4FV4 Set pressure: 0.014 to 0.7 MPa | Ports: 2 ports | Connection: 1/4 face seal female
AZ1310S2PWMV4MV4 Set pressure: 0.014 to 0.7 MPa | Ports: 2 ports | Connection: 1/4 face seal male
AZ1310S2PWFV6FV6 Set pressure: 0.014 to 0.7 MPa | Ports: 2 ports | Connection: 3/8 face seal female
AZ1310S2PWMV6MV6 Set pressure: 0.014 to 0.7 MPa | Ports: 2 ports | Connection: 3/8 face seal male
AZ1310S2PWTW6TW6 Set pressure: 0.014 to 0.7 MPa | Ports: 2 ports | Connection: 3/8 tube weld
AZ1310S2PWFV8FV8 Set pressure: 0.014 to 0.7 MPa | Ports: 2 ports | Connection: 1/2 face seal female
AZ1310S2PWMV8MV8 Set pressure: 0.014 to 0.7 MPa | Ports: 2 ports | Connection: 1/2 face seal male
AZ1310S2PWTW8TW8 Set pressure: 0.014 to 0.7 MPa | Ports: 2 ports | Connection: 1/2 tube weld
AZ1310S3PWFV4FV40 Set pressure: 0.014 to 0.7 MPa | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AZ1310S3PWMV4MV40 Set pressure: 0.014 to 0.7 MPa | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AZ1310S3PWFV6FV60 Set pressure: 0.014 to 0.7 MPa | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AZ1310S3PWMV6MV60 Set pressure: 0.014 to 0.7 MPa | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AZ1310S3PWTW6TW60 Set pressure: 0.014 to 0.7 MPa | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AZ1310S3PWFV8FV80 Set pressure: 0.014 to 0.7 MPa | Ports: 3 ports (gauge port) | Connection: 1/2 face seal female
AZ1310S3PWMV8MV80 Set pressure: 0.014 to 0.7 MPa | Ports: 3 ports (gauge port) | Connection: 1/2 face seal male
AZ1310S3PWTW8TW80 Set pressure: 0.014 to 0.7 MPa | Ports: 3 ports (gauge port) | Connection: 1/2 tube weld
AZ1315S2PWFV4FV4 Set pressure: 0.034 to 1.0 MPa | Ports: 2 ports | Connection: 1/4 face seal female
AZ1315S2PWMV4MV4 Set pressure: 0.034 to 1.0 MPa | Ports: 2 ports | Connection: 1/4 face seal male
AZ1315S2PWFV6FV6 Set pressure: 0.034 to 1.0 MPa | Ports: 2 ports | Connection: 3/8 face seal female
AZ1315S2PWMV6MV6 Set pressure: 0.034 to 1.0 MPa | Ports: 2 ports | Connection: 3/8 face seal male
AZ1315S2PWTW6TW6 Set pressure: 0.034 to 1.0 MPa | Ports: 2 ports | Connection: 3/8 tube weld
AZ1315S2PWFV8FV8 Set pressure: 0.034 to 1.0 MPa | Ports: 2 ports | Connection: 1/2 face seal female
AZ1315S2PWMV8MV8 Set pressure: 0.034 to 1.0 MPa | Ports: 2 ports | Connection: 1/2 face seal male
AZ1315S2PWTW8TW8 Set pressure: 0.034 to 1.0 MPa | Ports: 2 ports | Connection: 1/2 tube weld
AZ1315S3PWFV4FV40 Set pressure: 0.034 to 1.0 MPa | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AZ1315S3PWMV4MV40 Set pressure: 0.034 to 1.0 MPa | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AZ1315S3PWFV6FV60 Set pressure: 0.034 to 1.0 MPa | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AZ1315S3PWMV6MV60 Set pressure: 0.034 to 1.0 MPa | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AZ1315S3PWTW6TW60 Set pressure: 0.034 to 1.0 MPa | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AZ1315S3PWFV8FV80 Set pressure: 0.034 to 1.0 MPa | Ports: 3 ports (gauge port) | Connection: 1/2 face seal female
AZ1315S3PWMV8MV80 Set pressure: 0.034 to 1.0 MPa | Ports: 3 ports (gauge port) | Connection: 1/2 face seal male
AZ1315S3PWTW8TW80 Set pressure: 0.034 to 1.0 MPa | Ports: 3 ports (gauge port) | Connection: 1/2 tube weld
RegulatorsSMC
64 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →
