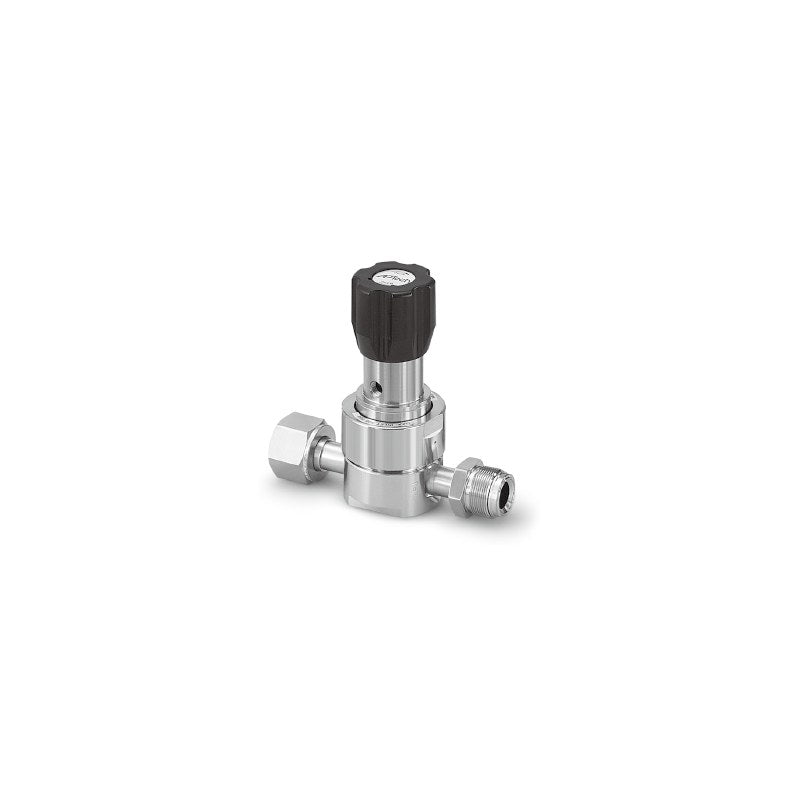

• SMC AZ1400T Process Gas Regulator (Medium Flow, Tied Diaphragm)
1 1

SMC AZ1400T Process Gas Regulator (Medium Flow, Tied Diaphragm)

SMC AZ1400T Process Gas Regulator (Medium Flow, Tied Diaphragm)

SMC AZ1400T series single-stage SUS316L tied-diaphragm process gas regulator for medium flow (below 400 slpm), inlet up to 15.9 MPa.

Key features

  • SUS316L body, internal finish Ra 0.25 um (option Q 0.62 um); precision cleaned for process gas supply; Ni-Cr-Mo poppet and diaphragm as standard
  • Inlet up to 2300 psig (15.9 MPa), HR option 3000 psig (20.7 MPa); flow below 400 slpm
  • Set pressure 0.007-0.2 to 0.034-1.0 MPa; vacuum-regulation version AZ1402T..A
  • 2, 3 or 4-port bodies with 1/4 to 1/2 face seal or tube weld connections
  • Listed codes: gauge ports "0" (1/4 face seal male port, no gauge); gauges (V3, L, 1, H, 2, 4, 40), MPA scale, VS/TF seat, HF high-flow and panel mount (P) are ordered as suffixes

Specifications

Fluid Gases that do not corrode wetted parts
Leakage Inboard 2x10^-11, outboard 2x10^-10 Pa m3/s
Ambient and fluid temperature -40 to 71 C (no freezing)
Mounting Bottom mount (panel mount option P)
Internal finish Ra 0.25 um (option Q 0.62 um)
Inlet pressure Vacuum to 15.9 MPa (HR 20.7 MPa)
Pressure characteristic 0.011 MPa rise per 0.7 MPa inlet drop
Internal volume 17.4 cm3
Mass 2.04 kg
Material SUS316L, Ni-Cr-Mo poppet/diaphragm
Source SMC Korea catalog Process Gas Equipment (SMCKR_AP_SL_AZ_AK_BP.pdf), p. 700-701
AZ1402TS2PWFV4FV4 Set pressure: 0.007 to 0.2 MPa | Ports: 2 ports | Connection: 1/4 face seal female
AZ1402TS2PWMV4MV4 Set pressure: 0.007 to 0.2 MPa | Ports: 2 ports | Connection: 1/4 face seal male
AZ1402TS2PWFV6FV6 Set pressure: 0.007 to 0.2 MPa | Ports: 2 ports | Connection: 3/8 face seal female
AZ1402TS2PWMV6MV6 Set pressure: 0.007 to 0.2 MPa | Ports: 2 ports | Connection: 3/8 face seal male
AZ1402TS2PWTW6TW6 Set pressure: 0.007 to 0.2 MPa | Ports: 2 ports | Connection: 3/8 tube weld
AZ1402TS2PWFV8FV8 Set pressure: 0.007 to 0.2 MPa | Ports: 2 ports | Connection: 1/2 face seal female
AZ1402TS2PWMV8MV8 Set pressure: 0.007 to 0.2 MPa | Ports: 2 ports | Connection: 1/2 face seal male
AZ1402TS2PWTW8TW8 Set pressure: 0.007 to 0.2 MPa | Ports: 2 ports | Connection: 1/2 tube weld
AZ1402TS3PWFV4FV40 Set pressure: 0.007 to 0.2 MPa | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AZ1402TS3PWMV4MV40 Set pressure: 0.007 to 0.2 MPa | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AZ1402TS3PWFV6FV60 Set pressure: 0.007 to 0.2 MPa | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AZ1402TS3PWMV6MV60 Set pressure: 0.007 to 0.2 MPa | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AZ1402TS3PWTW6TW60 Set pressure: 0.007 to 0.2 MPa | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AZ1402TS3PWFV8FV80 Set pressure: 0.007 to 0.2 MPa | Ports: 3 ports (gauge port) | Connection: 1/2 face seal female
AZ1402TS3PWMV8MV80 Set pressure: 0.007 to 0.2 MPa | Ports: 3 ports (gauge port) | Connection: 1/2 face seal male
AZ1402TS3PWTW8TW80 Set pressure: 0.007 to 0.2 MPa | Ports: 3 ports (gauge port) | Connection: 1/2 tube weld
AZ1402TS4PWFV4FV400 Set pressure: 0.007 to 0.2 MPa | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AZ1402TS4PWMV4MV400 Set pressure: 0.007 to 0.2 MPa | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AZ1402TS4PWFV6FV600 Set pressure: 0.007 to 0.2 MPa | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AZ1402TS4PWMV6MV600 Set pressure: 0.007 to 0.2 MPa | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AZ1402TS4PWTW6TW600 Set pressure: 0.007 to 0.2 MPa | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AZ1402TS4PWFV8FV800 Set pressure: 0.007 to 0.2 MPa | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 face seal female
AZ1402TS4PWMV8MV800 Set pressure: 0.007 to 0.2 MPa | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 face seal male
AZ1402TS4PWTW8TW800 Set pressure: 0.007 to 0.2 MPa | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 tube weld
AZ1406TS2PWFV4FV4 Set pressure: 0.014 to 0.4 MPa | Ports: 2 ports | Connection: 1/4 face seal female
AZ1406TS2PWMV4MV4 Set pressure: 0.014 to 0.4 MPa | Ports: 2 ports | Connection: 1/4 face seal male
AZ1406TS2PWFV6FV6 Set pressure: 0.014 to 0.4 MPa | Ports: 2 ports | Connection: 3/8 face seal female
AZ1406TS2PWMV6MV6 Set pressure: 0.014 to 0.4 MPa | Ports: 2 ports | Connection: 3/8 face seal male
AZ1406TS2PWTW6TW6 Set pressure: 0.014 to 0.4 MPa | Ports: 2 ports | Connection: 3/8 tube weld
AZ1406TS2PWFV8FV8 Set pressure: 0.014 to 0.4 MPa | Ports: 2 ports | Connection: 1/2 face seal female
AZ1406TS2PWMV8MV8 Set pressure: 0.014 to 0.4 MPa | Ports: 2 ports | Connection: 1/2 face seal male
AZ1406TS2PWTW8TW8 Set pressure: 0.014 to 0.4 MPa | Ports: 2 ports | Connection: 1/2 tube weld
AZ1406TS3PWFV4FV40 Set pressure: 0.014 to 0.4 MPa | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AZ1406TS3PWMV4MV40 Set pressure: 0.014 to 0.4 MPa | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AZ1406TS3PWFV6FV60 Set pressure: 0.014 to 0.4 MPa | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AZ1406TS3PWMV6MV60 Set pressure: 0.014 to 0.4 MPa | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AZ1406TS3PWTW6TW60 Set pressure: 0.014 to 0.4 MPa | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AZ1406TS3PWFV8FV80 Set pressure: 0.014 to 0.4 MPa | Ports: 3 ports (gauge port) | Connection: 1/2 face seal female
AZ1406TS3PWMV8MV80 Set pressure: 0.014 to 0.4 MPa | Ports: 3 ports (gauge port) | Connection: 1/2 face seal male
AZ1406TS3PWTW8TW80 Set pressure: 0.014 to 0.4 MPa | Ports: 3 ports (gauge port) | Connection: 1/2 tube weld
AZ1406TS4PWFV4FV400 Set pressure: 0.014 to 0.4 MPa | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AZ1406TS4PWMV4MV400 Set pressure: 0.014 to 0.4 MPa | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AZ1406TS4PWFV6FV600 Set pressure: 0.014 to 0.4 MPa | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AZ1406TS4PWMV6MV600 Set pressure: 0.014 to 0.4 MPa | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AZ1406TS4PWTW6TW600 Set pressure: 0.014 to 0.4 MPa | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AZ1406TS4PWFV8FV800 Set pressure: 0.014 to 0.4 MPa | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 face seal female
AZ1406TS4PWMV8MV800 Set pressure: 0.014 to 0.4 MPa | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 face seal male
AZ1406TS4PWTW8TW800 Set pressure: 0.014 to 0.4 MPa | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 tube weld
AZ1410TS2PWFV4FV4 Set pressure: 0.014 to 0.7 MPa | Ports: 2 ports | Connection: 1/4 face seal female
AZ1410TS2PWMV4MV4 Set pressure: 0.014 to 0.7 MPa | Ports: 2 ports | Connection: 1/4 face seal male
AZ1410TS2PWFV6FV6 Set pressure: 0.014 to 0.7 MPa | Ports: 2 ports | Connection: 3/8 face seal female
AZ1410TS2PWMV6MV6 Set pressure: 0.014 to 0.7 MPa | Ports: 2 ports | Connection: 3/8 face seal male
AZ1410TS2PWTW6TW6 Set pressure: 0.014 to 0.7 MPa | Ports: 2 ports | Connection: 3/8 tube weld
AZ1410TS2PWFV8FV8 Set pressure: 0.014 to 0.7 MPa | Ports: 2 ports | Connection: 1/2 face seal female
AZ1410TS2PWMV8MV8 Set pressure: 0.014 to 0.7 MPa | Ports: 2 ports | Connection: 1/2 face seal male
AZ1410TS2PWTW8TW8 Set pressure: 0.014 to 0.7 MPa | Ports: 2 ports | Connection: 1/2 tube weld
AZ1410TS3PWFV4FV40 Set pressure: 0.014 to 0.7 MPa | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AZ1410TS3PWMV4MV40 Set pressure: 0.014 to 0.7 MPa | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AZ1410TS3PWFV6FV60 Set pressure: 0.014 to 0.7 MPa | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AZ1410TS3PWMV6MV60 Set pressure: 0.014 to 0.7 MPa | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AZ1410TS3PWTW6TW60 Set pressure: 0.014 to 0.7 MPa | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AZ1410TS3PWFV8FV80 Set pressure: 0.014 to 0.7 MPa | Ports: 3 ports (gauge port) | Connection: 1/2 face seal female
AZ1410TS3PWMV8MV80 Set pressure: 0.014 to 0.7 MPa | Ports: 3 ports (gauge port) | Connection: 1/2 face seal male
AZ1410TS3PWTW8TW80 Set pressure: 0.014 to 0.7 MPa | Ports: 3 ports (gauge port) | Connection: 1/2 tube weld
AZ1410TS4PWFV4FV400 Set pressure: 0.014 to 0.7 MPa | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AZ1410TS4PWMV4MV400 Set pressure: 0.014 to 0.7 MPa | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AZ1410TS4PWFV6FV600 Set pressure: 0.014 to 0.7 MPa | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AZ1410TS4PWMV6MV600 Set pressure: 0.014 to 0.7 MPa | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AZ1410TS4PWTW6TW600 Set pressure: 0.014 to 0.7 MPa | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AZ1410TS4PWFV8FV800 Set pressure: 0.014 to 0.7 MPa | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 face seal female
AZ1410TS4PWMV8MV800 Set pressure: 0.014 to 0.7 MPa | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 face seal male
AZ1410TS4PWTW8TW800 Set pressure: 0.014 to 0.7 MPa | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 tube weld
AZ1415TS2PWFV4FV4 Set pressure: 0.034 to 1.0 MPa | Ports: 2 ports | Connection: 1/4 face seal female
AZ1415TS2PWMV4MV4 Set pressure: 0.034 to 1.0 MPa | Ports: 2 ports | Connection: 1/4 face seal male
AZ1415TS2PWFV6FV6 Set pressure: 0.034 to 1.0 MPa | Ports: 2 ports | Connection: 3/8 face seal female
AZ1415TS2PWMV6MV6 Set pressure: 0.034 to 1.0 MPa | Ports: 2 ports | Connection: 3/8 face seal male
AZ1415TS2PWTW6TW6 Set pressure: 0.034 to 1.0 MPa | Ports: 2 ports | Connection: 3/8 tube weld
AZ1415TS2PWFV8FV8 Set pressure: 0.034 to 1.0 MPa | Ports: 2 ports | Connection: 1/2 face seal female
AZ1415TS2PWMV8MV8 Set pressure: 0.034 to 1.0 MPa | Ports: 2 ports | Connection: 1/2 face seal male
AZ1415TS2PWTW8TW8 Set pressure: 0.034 to 1.0 MPa | Ports: 2 ports | Connection: 1/2 tube weld
AZ1415TS3PWFV4FV40 Set pressure: 0.034 to 1.0 MPa | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AZ1415TS3PWMV4MV40 Set pressure: 0.034 to 1.0 MPa | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AZ1415TS3PWFV6FV60 Set pressure: 0.034 to 1.0 MPa | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AZ1415TS3PWMV6MV60 Set pressure: 0.034 to 1.0 MPa | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AZ1415TS3PWTW6TW60 Set pressure: 0.034 to 1.0 MPa | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AZ1415TS3PWFV8FV80 Set pressure: 0.034 to 1.0 MPa | Ports: 3 ports (gauge port) | Connection: 1/2 face seal female
AZ1415TS3PWMV8MV80 Set pressure: 0.034 to 1.0 MPa | Ports: 3 ports (gauge port) | Connection: 1/2 face seal male
AZ1415TS3PWTW8TW80 Set pressure: 0.034 to 1.0 MPa | Ports: 3 ports (gauge port) | Connection: 1/2 tube weld
AZ1415TS4PWFV4FV400 Set pressure: 0.034 to 1.0 MPa | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AZ1415TS4PWMV4MV400 Set pressure: 0.034 to 1.0 MPa | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AZ1415TS4PWFV6FV600 Set pressure: 0.034 to 1.0 MPa | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AZ1415TS4PWMV6MV600 Set pressure: 0.034 to 1.0 MPa | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AZ1415TS4PWTW6TW600 Set pressure: 0.034 to 1.0 MPa | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AZ1415TS4PWFV8FV800 Set pressure: 0.034 to 1.0 MPa | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 face seal female
AZ1415TS4PWMV8MV800 Set pressure: 0.034 to 1.0 MPa | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 face seal male
AZ1415TS4PWTW8TW800 Set pressure: 0.034 to 1.0 MPa | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 tube weld
AZ1402TSA2PWFV4FV4 Set pressure: -88 kPa to 0.2 MPa (vacuum regulation) | Ports: 2 ports | Connection: 1/4 face seal female
AZ1402TSA2PWMV4MV4 Set pressure: -88 kPa to 0.2 MPa (vacuum regulation) | Ports: 2 ports | Connection: 1/4 face seal male
AZ1402TSA2PWFV6FV6 Set pressure: -88 kPa to 0.2 MPa (vacuum regulation) | Ports: 2 ports | Connection: 3/8 face seal female
AZ1402TSA2PWMV6MV6 Set pressure: -88 kPa to 0.2 MPa (vacuum regulation) | Ports: 2 ports | Connection: 3/8 face seal male
AZ1402TSA2PWTW6TW6 Set pressure: -88 kPa to 0.2 MPa (vacuum regulation) | Ports: 2 ports | Connection: 3/8 tube weld
AZ1402TSA2PWFV8FV8 Set pressure: -88 kPa to 0.2 MPa (vacuum regulation) | Ports: 2 ports | Connection: 1/2 face seal female
AZ1402TSA2PWMV8MV8 Set pressure: -88 kPa to 0.2 MPa (vacuum regulation) | Ports: 2 ports | Connection: 1/2 face seal male
AZ1402TSA2PWTW8TW8 Set pressure: -88 kPa to 0.2 MPa (vacuum regulation) | Ports: 2 ports | Connection: 1/2 tube weld
AZ1402TSA3PWFV4FV40 Set pressure: -88 kPa to 0.2 MPa (vacuum regulation) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AZ1402TSA3PWMV4MV40 Set pressure: -88 kPa to 0.2 MPa (vacuum regulation) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AZ1402TSA3PWFV6FV60 Set pressure: -88 kPa to 0.2 MPa (vacuum regulation) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AZ1402TSA3PWMV6MV60 Set pressure: -88 kPa to 0.2 MPa (vacuum regulation) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AZ1402TSA3PWTW6TW60 Set pressure: -88 kPa to 0.2 MPa (vacuum regulation) | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AZ1402TSA3PWFV8FV80 Set pressure: -88 kPa to 0.2 MPa (vacuum regulation) | Ports: 3 ports (gauge port) | Connection: 1/2 face seal female
AZ1402TSA3PWMV8MV80 Set pressure: -88 kPa to 0.2 MPa (vacuum regulation) | Ports: 3 ports (gauge port) | Connection: 1/2 face seal male
AZ1402TSA3PWTW8TW80 Set pressure: -88 kPa to 0.2 MPa (vacuum regulation) | Ports: 3 ports (gauge port) | Connection: 1/2 tube weld
AZ1402TSA4PWFV4FV400 Set pressure: -88 kPa to 0.2 MPa (vacuum regulation) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AZ1402TSA4PWMV4MV400 Set pressure: -88 kPa to 0.2 MPa (vacuum regulation) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AZ1402TSA4PWFV6FV600 Set pressure: -88 kPa to 0.2 MPa (vacuum regulation) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AZ1402TSA4PWMV6MV600 Set pressure: -88 kPa to 0.2 MPa (vacuum regulation) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AZ1402TSA4PWTW6TW600 Set pressure: -88 kPa to 0.2 MPa (vacuum regulation) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AZ1402TSA4PWFV8FV800 Set pressure: -88 kPa to 0.2 MPa (vacuum regulation) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 face seal female
AZ1402TSA4PWMV8MV800 Set pressure: -88 kPa to 0.2 MPa (vacuum regulation) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 face seal male
AZ1402TSA4PWTW8TW800 Set pressure: -88 kPa to 0.2 MPa (vacuum regulation) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 tube weld
RegulatorsSMC
120 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC AZ1400T Process Gas Regulator (Medium Flow, Tied Diaphragm)

Brand SMC·Regulators

Available part numbers (120)

AZ1402TS2PWFV4FV4, AZ1402TS2PWMV4MV4, AZ1402TS2PWFV6FV6, AZ1402TS2PWMV6MV6, AZ1402TS2PWTW6TW6, AZ1402TS2PWFV8FV8, AZ1402TS2PWMV8MV8, AZ1402TS2PWTW8TW8, AZ1402TS3PWFV4FV40, AZ1402TS3PWMV4MV40 + 110 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AZ1402TS2PWFV4FV4Set pressure: 0.007 to 0.2 MPa | Ports: 2 ports | Connection: 1/4 face seal female
AZ1402TS2PWMV4MV4Set pressure: 0.007 to 0.2 MPa | Ports: 2 ports | Connection: 1/4 face seal male
AZ1402TS2PWFV6FV6Set pressure: 0.007 to 0.2 MPa | Ports: 2 ports | Connection: 3/8 face seal female
AZ1402TS2PWMV6MV6Set pressure: 0.007 to 0.2 MPa | Ports: 2 ports | Connection: 3/8 face seal male
AZ1402TS2PWTW6TW6Set pressure: 0.007 to 0.2 MPa | Ports: 2 ports | Connection: 3/8 tube weld
AZ1402TS2PWFV8FV8Set pressure: 0.007 to 0.2 MPa | Ports: 2 ports | Connection: 1/2 face seal female
AZ1402TS2PWMV8MV8Set pressure: 0.007 to 0.2 MPa | Ports: 2 ports | Connection: 1/2 face seal male
AZ1402TS2PWTW8TW8Set pressure: 0.007 to 0.2 MPa | Ports: 2 ports | Connection: 1/2 tube weld
AZ1402TS3PWFV4FV40Set pressure: 0.007 to 0.2 MPa | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AZ1402TS3PWMV4MV40Set pressure: 0.007 to 0.2 MPa | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AZ1402TS3PWFV6FV60Set pressure: 0.007 to 0.2 MPa | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AZ1402TS3PWMV6MV60Set pressure: 0.007 to 0.2 MPa | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AZ1402TS3PWTW6TW60Set pressure: 0.007 to 0.2 MPa | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AZ1402TS3PWFV8FV80Set pressure: 0.007 to 0.2 MPa | Ports: 3 ports (gauge port) | Connection: 1/2 face seal female
AZ1402TS3PWMV8MV80Set pressure: 0.007 to 0.2 MPa | Ports: 3 ports (gauge port) | Connection: 1/2 face seal male
AZ1402TS3PWTW8TW80Set pressure: 0.007 to 0.2 MPa | Ports: 3 ports (gauge port) | Connection: 1/2 tube weld
AZ1402TS4PWFV4FV400Set pressure: 0.007 to 0.2 MPa | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AZ1402TS4PWMV4MV400Set pressure: 0.007 to 0.2 MPa | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AZ1402TS4PWFV6FV600Set pressure: 0.007 to 0.2 MPa | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AZ1402TS4PWMV6MV600Set pressure: 0.007 to 0.2 MPa | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AZ1402TS4PWTW6TW600Set pressure: 0.007 to 0.2 MPa | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AZ1402TS4PWFV8FV800Set pressure: 0.007 to 0.2 MPa | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 face seal female
AZ1402TS4PWMV8MV800Set pressure: 0.007 to 0.2 MPa | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 face seal male
AZ1402TS4PWTW8TW800Set pressure: 0.007 to 0.2 MPa | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 tube weld
AZ1406TS2PWFV4FV4Set pressure: 0.014 to 0.4 MPa | Ports: 2 ports | Connection: 1/4 face seal female
AZ1406TS2PWMV4MV4Set pressure: 0.014 to 0.4 MPa | Ports: 2 ports | Connection: 1/4 face seal male
AZ1406TS2PWFV6FV6Set pressure: 0.014 to 0.4 MPa | Ports: 2 ports | Connection: 3/8 face seal female
AZ1406TS2PWMV6MV6Set pressure: 0.014 to 0.4 MPa | Ports: 2 ports | Connection: 3/8 face seal male
AZ1406TS2PWTW6TW6Set pressure: 0.014 to 0.4 MPa | Ports: 2 ports | Connection: 3/8 tube weld
AZ1406TS2PWFV8FV8Set pressure: 0.014 to 0.4 MPa | Ports: 2 ports | Connection: 1/2 face seal female
AZ1406TS2PWMV8MV8Set pressure: 0.014 to 0.4 MPa | Ports: 2 ports | Connection: 1/2 face seal male
AZ1406TS2PWTW8TW8Set pressure: 0.014 to 0.4 MPa | Ports: 2 ports | Connection: 1/2 tube weld
AZ1406TS3PWFV4FV40Set pressure: 0.014 to 0.4 MPa | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AZ1406TS3PWMV4MV40Set pressure: 0.014 to 0.4 MPa | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AZ1406TS3PWFV6FV60Set pressure: 0.014 to 0.4 MPa | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AZ1406TS3PWMV6MV60Set pressure: 0.014 to 0.4 MPa | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AZ1406TS3PWTW6TW60Set pressure: 0.014 to 0.4 MPa | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AZ1406TS3PWFV8FV80Set pressure: 0.014 to 0.4 MPa | Ports: 3 ports (gauge port) | Connection: 1/2 face seal female
AZ1406TS3PWMV8MV80Set pressure: 0.014 to 0.4 MPa | Ports: 3 ports (gauge port) | Connection: 1/2 face seal male
AZ1406TS3PWTW8TW80Set pressure: 0.014 to 0.4 MPa | Ports: 3 ports (gauge port) | Connection: 1/2 tube weld
AZ1406TS4PWFV4FV400Set pressure: 0.014 to 0.4 MPa | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AZ1406TS4PWMV4MV400Set pressure: 0.014 to 0.4 MPa | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AZ1406TS4PWFV6FV600Set pressure: 0.014 to 0.4 MPa | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AZ1406TS4PWMV6MV600Set pressure: 0.014 to 0.4 MPa | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AZ1406TS4PWTW6TW600Set pressure: 0.014 to 0.4 MPa | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AZ1406TS4PWFV8FV800Set pressure: 0.014 to 0.4 MPa | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 face seal female
AZ1406TS4PWMV8MV800Set pressure: 0.014 to 0.4 MPa | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 face seal male
AZ1406TS4PWTW8TW800Set pressure: 0.014 to 0.4 MPa | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 tube weld
AZ1410TS2PWFV4FV4Set pressure: 0.014 to 0.7 MPa | Ports: 2 ports | Connection: 1/4 face seal female
AZ1410TS2PWMV4MV4Set pressure: 0.014 to 0.7 MPa | Ports: 2 ports | Connection: 1/4 face seal male
AZ1410TS2PWFV6FV6Set pressure: 0.014 to 0.7 MPa | Ports: 2 ports | Connection: 3/8 face seal female
AZ1410TS2PWMV6MV6Set pressure: 0.014 to 0.7 MPa | Ports: 2 ports | Connection: 3/8 face seal male
AZ1410TS2PWTW6TW6Set pressure: 0.014 to 0.7 MPa | Ports: 2 ports | Connection: 3/8 tube weld
AZ1410TS2PWFV8FV8Set pressure: 0.014 to 0.7 MPa | Ports: 2 ports | Connection: 1/2 face seal female
AZ1410TS2PWMV8MV8Set pressure: 0.014 to 0.7 MPa | Ports: 2 ports | Connection: 1/2 face seal male
AZ1410TS2PWTW8TW8Set pressure: 0.014 to 0.7 MPa | Ports: 2 ports | Connection: 1/2 tube weld
AZ1410TS3PWFV4FV40Set pressure: 0.014 to 0.7 MPa | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AZ1410TS3PWMV4MV40Set pressure: 0.014 to 0.7 MPa | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AZ1410TS3PWFV6FV60Set pressure: 0.014 to 0.7 MPa | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AZ1410TS3PWMV6MV60Set pressure: 0.014 to 0.7 MPa | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AZ1410TS3PWTW6TW60Set pressure: 0.014 to 0.7 MPa | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AZ1410TS3PWFV8FV80Set pressure: 0.014 to 0.7 MPa | Ports: 3 ports (gauge port) | Connection: 1/2 face seal female
AZ1410TS3PWMV8MV80Set pressure: 0.014 to 0.7 MPa | Ports: 3 ports (gauge port) | Connection: 1/2 face seal male
AZ1410TS3PWTW8TW80Set pressure: 0.014 to 0.7 MPa | Ports: 3 ports (gauge port) | Connection: 1/2 tube weld
AZ1410TS4PWFV4FV400Set pressure: 0.014 to 0.7 MPa | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AZ1410TS4PWMV4MV400Set pressure: 0.014 to 0.7 MPa | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AZ1410TS4PWFV6FV600Set pressure: 0.014 to 0.7 MPa | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AZ1410TS4PWMV6MV600Set pressure: 0.014 to 0.7 MPa | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AZ1410TS4PWTW6TW600Set pressure: 0.014 to 0.7 MPa | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AZ1410TS4PWFV8FV800Set pressure: 0.014 to 0.7 MPa | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 face seal female
AZ1410TS4PWMV8MV800Set pressure: 0.014 to 0.7 MPa | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 face seal male
AZ1410TS4PWTW8TW800Set pressure: 0.014 to 0.7 MPa | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 tube weld
AZ1415TS2PWFV4FV4Set pressure: 0.034 to 1.0 MPa | Ports: 2 ports | Connection: 1/4 face seal female
AZ1415TS2PWMV4MV4Set pressure: 0.034 to 1.0 MPa | Ports: 2 ports | Connection: 1/4 face seal male
AZ1415TS2PWFV6FV6Set pressure: 0.034 to 1.0 MPa | Ports: 2 ports | Connection: 3/8 face seal female
AZ1415TS2PWMV6MV6Set pressure: 0.034 to 1.0 MPa | Ports: 2 ports | Connection: 3/8 face seal male
AZ1415TS2PWTW6TW6Set pressure: 0.034 to 1.0 MPa | Ports: 2 ports | Connection: 3/8 tube weld
AZ1415TS2PWFV8FV8Set pressure: 0.034 to 1.0 MPa | Ports: 2 ports | Connection: 1/2 face seal female
AZ1415TS2PWMV8MV8Set pressure: 0.034 to 1.0 MPa | Ports: 2 ports | Connection: 1/2 face seal male
AZ1415TS2PWTW8TW8Set pressure: 0.034 to 1.0 MPa | Ports: 2 ports | Connection: 1/2 tube weld
AZ1415TS3PWFV4FV40Set pressure: 0.034 to 1.0 MPa | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AZ1415TS3PWMV4MV40Set pressure: 0.034 to 1.0 MPa | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AZ1415TS3PWFV6FV60Set pressure: 0.034 to 1.0 MPa | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AZ1415TS3PWMV6MV60Set pressure: 0.034 to 1.0 MPa | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AZ1415TS3PWTW6TW60Set pressure: 0.034 to 1.0 MPa | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AZ1415TS3PWFV8FV80Set pressure: 0.034 to 1.0 MPa | Ports: 3 ports (gauge port) | Connection: 1/2 face seal female
AZ1415TS3PWMV8MV80Set pressure: 0.034 to 1.0 MPa | Ports: 3 ports (gauge port) | Connection: 1/2 face seal male
AZ1415TS3PWTW8TW80Set pressure: 0.034 to 1.0 MPa | Ports: 3 ports (gauge port) | Connection: 1/2 tube weld
AZ1415TS4PWFV4FV400Set pressure: 0.034 to 1.0 MPa | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AZ1415TS4PWMV4MV400Set pressure: 0.034 to 1.0 MPa | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AZ1415TS4PWFV6FV600Set pressure: 0.034 to 1.0 MPa | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AZ1415TS4PWMV6MV600Set pressure: 0.034 to 1.0 MPa | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AZ1415TS4PWTW6TW600Set pressure: 0.034 to 1.0 MPa | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AZ1415TS4PWFV8FV800Set pressure: 0.034 to 1.0 MPa | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 face seal female
AZ1415TS4PWMV8MV800Set pressure: 0.034 to 1.0 MPa | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 face seal male
AZ1415TS4PWTW8TW800Set pressure: 0.034 to 1.0 MPa | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 tube weld
AZ1402TSA2PWFV4FV4Set pressure: -88 kPa to 0.2 MPa (vacuum regulation) | Ports: 2 ports | Connection: 1/4 face seal female
AZ1402TSA2PWMV4MV4Set pressure: -88 kPa to 0.2 MPa (vacuum regulation) | Ports: 2 ports | Connection: 1/4 face seal male
AZ1402TSA2PWFV6FV6Set pressure: -88 kPa to 0.2 MPa (vacuum regulation) | Ports: 2 ports | Connection: 3/8 face seal female
AZ1402TSA2PWMV6MV6Set pressure: -88 kPa to 0.2 MPa (vacuum regulation) | Ports: 2 ports | Connection: 3/8 face seal male
AZ1402TSA2PWTW6TW6Set pressure: -88 kPa to 0.2 MPa (vacuum regulation) | Ports: 2 ports | Connection: 3/8 tube weld
AZ1402TSA2PWFV8FV8Set pressure: -88 kPa to 0.2 MPa (vacuum regulation) | Ports: 2 ports | Connection: 1/2 face seal female
AZ1402TSA2PWMV8MV8Set pressure: -88 kPa to 0.2 MPa (vacuum regulation) | Ports: 2 ports | Connection: 1/2 face seal male
AZ1402TSA2PWTW8TW8Set pressure: -88 kPa to 0.2 MPa (vacuum regulation) | Ports: 2 ports | Connection: 1/2 tube weld
AZ1402TSA3PWFV4FV40Set pressure: -88 kPa to 0.2 MPa (vacuum regulation) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AZ1402TSA3PWMV4MV40Set pressure: -88 kPa to 0.2 MPa (vacuum regulation) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AZ1402TSA3PWFV6FV60Set pressure: -88 kPa to 0.2 MPa (vacuum regulation) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AZ1402TSA3PWMV6MV60Set pressure: -88 kPa to 0.2 MPa (vacuum regulation) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AZ1402TSA3PWTW6TW60Set pressure: -88 kPa to 0.2 MPa (vacuum regulation) | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AZ1402TSA3PWFV8FV80Set pressure: -88 kPa to 0.2 MPa (vacuum regulation) | Ports: 3 ports (gauge port) | Connection: 1/2 face seal female
AZ1402TSA3PWMV8MV80Set pressure: -88 kPa to 0.2 MPa (vacuum regulation) | Ports: 3 ports (gauge port) | Connection: 1/2 face seal male
AZ1402TSA3PWTW8TW80Set pressure: -88 kPa to 0.2 MPa (vacuum regulation) | Ports: 3 ports (gauge port) | Connection: 1/2 tube weld
AZ1402TSA4PWFV4FV400Set pressure: -88 kPa to 0.2 MPa (vacuum regulation) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AZ1402TSA4PWMV4MV400Set pressure: -88 kPa to 0.2 MPa (vacuum regulation) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AZ1402TSA4PWFV6FV600Set pressure: -88 kPa to 0.2 MPa (vacuum regulation) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AZ1402TSA4PWMV6MV600Set pressure: -88 kPa to 0.2 MPa (vacuum regulation) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AZ1402TSA4PWTW6TW600Set pressure: -88 kPa to 0.2 MPa (vacuum regulation) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AZ1402TSA4PWFV8FV800Set pressure: -88 kPa to 0.2 MPa (vacuum regulation) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 face seal female
AZ1402TSA4PWMV8MV800Set pressure: -88 kPa to 0.2 MPa (vacuum regulation) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 face seal male
AZ1402TSA4PWTW8TW800Set pressure: -88 kPa to 0.2 MPa (vacuum regulation) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 tube weld

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
