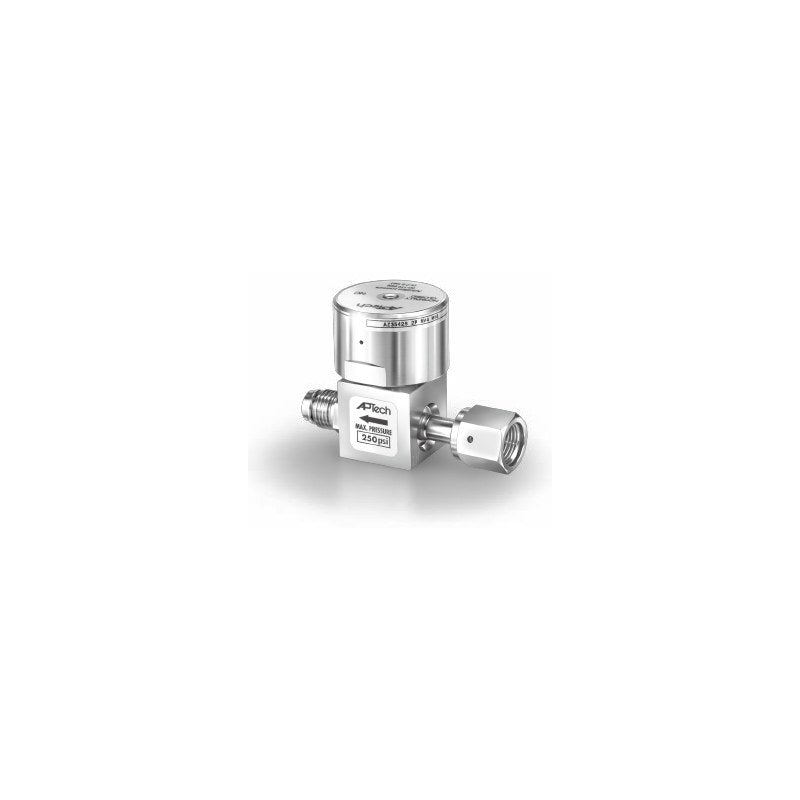

SMC AZ3542 / AZ4542 Process Gas Diaphragm Valve (Air-Operated, N.C.)

SMC AZ3542 / AZ4542 Process Gas Diaphragm Valve (Air-Operated, N.C.)

SMC AZ3542 and AZ4542 series compact air-operated normally closed diaphragm valves for high-purity process gas supply lines.

Key features

  • Compact air-operated N.C. actuator (height 55 mm, 0.22-0.24 kg); M5 operating port
  • AZ3 size Cv 0.29, AZ4 size Cv 0.5; working pressure vacuum to 0.9 MPa
  • Integral forged body (2P) or welded body (2PW); SEMI F36 compatible mounting
  • 1/4, 3/8 face seal and 1/4 to 1/2 tube weld connections; welded type allows mixed IN/OUT fittings on order
  • Helium leak tested, precision cleaned and assembled in a clean room; multi-port options (2PWA to 4PWM) on order

Specifications

Fluid Gases that do not corrode wetted parts
Body material SUS316L, electropolished and passivated
Diaphragm / seat Ni-Co alloy / PCTFE (VS polyimide option)
Leakage Inboard 2x10^-11, outboard 2x10^-10 Pa m3/s
Internal finish Ra 0.25 um
Working pressure Vacuum to 0.9 MPa
Operating pressure 0.4 to 0.76 MPa
Ambient and fluid temperature -10 to 71 C
Source SMC Korea catalog Process Gas Equipment (SMCKR_AZ.pdf), p. 804-805
AZ3542S2PMV4MV4 Size: AZ3 (Cv 0.29) | Body: Integral (2P) | Connection: 1/4 face seal male
AZ3542S2PTW4TW4 Size: AZ3 (Cv 0.29) | Body: Integral (2P) | Connection: 1/4 tube weld
AZ3542S2PWMV4MV4 Size: AZ3 (Cv 0.29) | Body: Welded (2PW) | Connection: 1/4 face seal male
AZ3542S2PWFV4FV4 Size: AZ3 (Cv 0.29) | Body: Welded (2PW) | Connection: 1/4 face seal female
AZ3542S2PWTW4TW4 Size: AZ3 (Cv 0.29) | Body: Welded (2PW) | Connection: 1/4 tube weld
AZ4542S2PMV4MV4 Size: AZ4 (Cv 0.5) | Body: Integral (2P) | Connection: 1/4 face seal male
AZ4542S2PMV6MV6 Size: AZ4 (Cv 0.5) | Body: Integral (2P) | Connection: 3/8 face seal male
AZ4542S2PTW6TW6 Size: AZ4 (Cv 0.5) | Body: Integral (2P) | Connection: 3/8 tube weld
AZ4542S2PTW8TW8 Size: AZ4 (Cv 0.5) | Body: Integral (2P) | Connection: 1/2 tube weld
AZ4542S2PWMV4MV4 Size: AZ4 (Cv 0.5) | Body: Welded (2PW) | Connection: 1/4 face seal male
AZ4542S2PWFV4FV4 Size: AZ4 (Cv 0.5) | Body: Welded (2PW) | Connection: 1/4 face seal female
AZ4542S2PWMV6MV6 Size: AZ4 (Cv 0.5) | Body: Welded (2PW) | Connection: 3/8 face seal male
AZ4542S2PWFV6FV6 Size: AZ4 (Cv 0.5) | Body: Welded (2PW) | Connection: 3/8 face seal female
AZ4542S2PWTW6TW6 Size: AZ4 (Cv 0.5) | Body: Welded (2PW) | Connection: 3/8 tube weld
