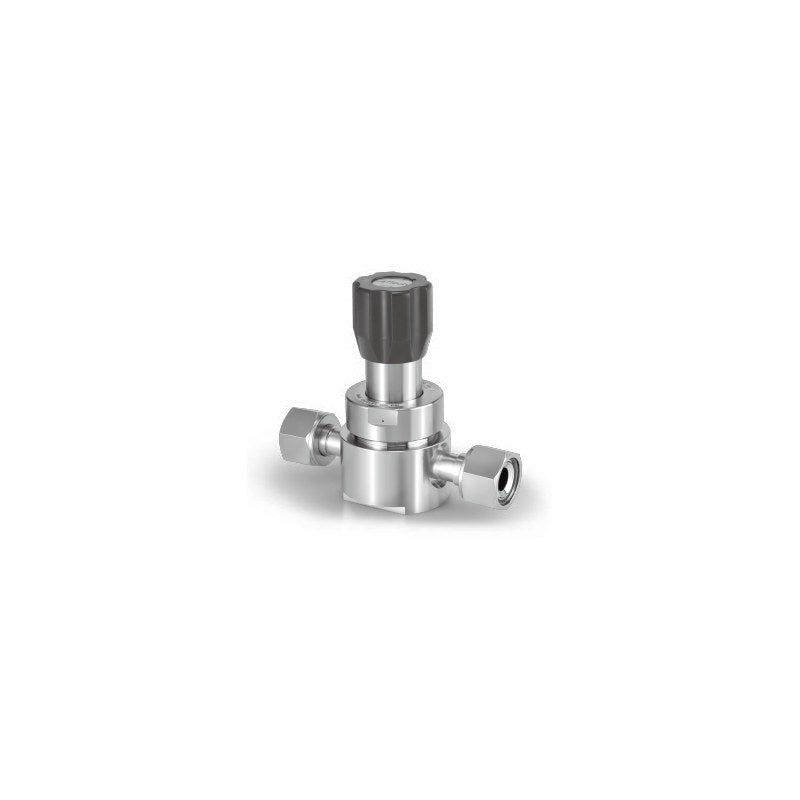

SMC AZ9200 Process Gas Regulator (Bulk Flow, 3/4 to 1 in)

SMC AZ9200 Process Gas Regulator (Bulk Flow, 3/4 to 1 in)

SMC AZ9200 series single-stage SUS316L tied-diaphragm process gas regulator for very high flow (below 2000 slpm), inlet up to 2.1 MPa.

Key features

  • SUS316L body and poppet, Ni-Cr-Mo diaphragm; internal finish Ra 0.25 um
  • Flow below 2000 slpm; inlet up to 300 psig (2.1 MPa)
  • Set pressure 0.007-0.2 to 0.034-1.0 MPa
  • 2-port or 3-port (outlet gauge) bodies with 3/4 or 1 inch face seal or tube weld connections
  • Listed 3PW codes have gauge port "0" (no gauge); gauges, MPA scale and panel mount/bonnet port (P, BP) are suffixes

Specifications

Fluid Gases that do not corrode wetted parts
Leakage Inboard 2x10^-11, outboard 2x10^-10 Pa m3/s
Ambient and fluid temperature -40 to 71 C (no freezing)
Inlet pressure Vacuum to 2.1 MPa
Internal finish Ra 0.25 um
Pressure characteristic 0.048 MPa rise per 0.7 MPa inlet drop
Internal volume 36 cm3
Material SUS316L, Ni-Cr-Mo diaphragm
Source SMC Korea catalog Process Gas Equipment (SMCKR_AP_SL_AZ_AK_BP.pdf), p. 706-707
AZ9202S2PWFV12FV12 Set pressure: 0.007 to 0.2 MPa | Ports: 2 ports | Connection: 3/4 face seal female
AZ9202S2PWMV12MV12 Set pressure: 0.007 to 0.2 MPa | Ports: 2 ports | Connection: 3/4 face seal male
AZ9202S2PWTW12TW12 Set pressure: 0.007 to 0.2 MPa | Ports: 2 ports | Connection: 3/4 tube weld
AZ9202S2PWFV16FV16 Set pressure: 0.007 to 0.2 MPa | Ports: 2 ports | Connection: 1 in face seal female
AZ9202S2PWMV16MV16 Set pressure: 0.007 to 0.2 MPa | Ports: 2 ports | Connection: 1 in face seal male
AZ9202S2PWTW16TW16 Set pressure: 0.007 to 0.2 MPa | Ports: 2 ports | Connection: 1 in tube weld
AZ9202S3PWFV12FV120 Set pressure: 0.007 to 0.2 MPa | Ports: 3 ports (gauge port) | Connection: 3/4 face seal female
AZ9202S3PWMV12MV120 Set pressure: 0.007 to 0.2 MPa | Ports: 3 ports (gauge port) | Connection: 3/4 face seal male
AZ9202S3PWTW12TW120 Set pressure: 0.007 to 0.2 MPa | Ports: 3 ports (gauge port) | Connection: 3/4 tube weld
AZ9202S3PWFV16FV160 Set pressure: 0.007 to 0.2 MPa | Ports: 3 ports (gauge port) | Connection: 1 in face seal female
AZ9202S3PWMV16MV160 Set pressure: 0.007 to 0.2 MPa | Ports: 3 ports (gauge port) | Connection: 1 in face seal male
AZ9202S3PWTW16TW160 Set pressure: 0.007 to 0.2 MPa | Ports: 3 ports (gauge port) | Connection: 1 in tube weld
AZ9206S2PWFV12FV12 Set pressure: 0.014 to 0.4 MPa | Ports: 2 ports | Connection: 3/4 face seal female
AZ9206S2PWMV12MV12 Set pressure: 0.014 to 0.4 MPa | Ports: 2 ports | Connection: 3/4 face seal male
AZ9206S2PWTW12TW12 Set pressure: 0.014 to 0.4 MPa | Ports: 2 ports | Connection: 3/4 tube weld
AZ9206S2PWFV16FV16 Set pressure: 0.014 to 0.4 MPa | Ports: 2 ports | Connection: 1 in face seal female
AZ9206S2PWMV16MV16 Set pressure: 0.014 to 0.4 MPa | Ports: 2 ports | Connection: 1 in face seal male
AZ9206S2PWTW16TW16 Set pressure: 0.014 to 0.4 MPa | Ports: 2 ports | Connection: 1 in tube weld
AZ9206S3PWFV12FV120 Set pressure: 0.014 to 0.4 MPa | Ports: 3 ports (gauge port) | Connection: 3/4 face seal female
AZ9206S3PWMV12MV120 Set pressure: 0.014 to 0.4 MPa | Ports: 3 ports (gauge port) | Connection: 3/4 face seal male
AZ9206S3PWTW12TW120 Set pressure: 0.014 to 0.4 MPa | Ports: 3 ports (gauge port) | Connection: 3/4 tube weld
AZ9206S3PWFV16FV160 Set pressure: 0.014 to 0.4 MPa | Ports: 3 ports (gauge port) | Connection: 1 in face seal female
AZ9206S3PWMV16MV160 Set pressure: 0.014 to 0.4 MPa | Ports: 3 ports (gauge port) | Connection: 1 in face seal male
AZ9206S3PWTW16TW160 Set pressure: 0.014 to 0.4 MPa | Ports: 3 ports (gauge port) | Connection: 1 in tube weld
AZ9210S2PWFV12FV12 Set pressure: 0.014 to 0.7 MPa | Ports: 2 ports | Connection: 3/4 face seal female
AZ9210S2PWMV12MV12 Set pressure: 0.014 to 0.7 MPa | Ports: 2 ports | Connection: 3/4 face seal male
AZ9210S2PWTW12TW12 Set pressure: 0.014 to 0.7 MPa | Ports: 2 ports | Connection: 3/4 tube weld
AZ9210S2PWFV16FV16 Set pressure: 0.014 to 0.7 MPa | Ports: 2 ports | Connection: 1 in face seal female
AZ9210S2PWMV16MV16 Set pressure: 0.014 to 0.7 MPa | Ports: 2 ports | Connection: 1 in face seal male
AZ9210S2PWTW16TW16 Set pressure: 0.014 to 0.7 MPa | Ports: 2 ports | Connection: 1 in tube weld
AZ9210S3PWFV12FV120 Set pressure: 0.014 to 0.7 MPa | Ports: 3 ports (gauge port) | Connection: 3/4 face seal female
AZ9210S3PWMV12MV120 Set pressure: 0.014 to 0.7 MPa | Ports: 3 ports (gauge port) | Connection: 3/4 face seal male
AZ9210S3PWTW12TW120 Set pressure: 0.014 to 0.7 MPa | Ports: 3 ports (gauge port) | Connection: 3/4 tube weld
AZ9210S3PWFV16FV160 Set pressure: 0.014 to 0.7 MPa | Ports: 3 ports (gauge port) | Connection: 1 in face seal female
AZ9210S3PWMV16MV160 Set pressure: 0.014 to 0.7 MPa | Ports: 3 ports (gauge port) | Connection: 1 in face seal male
AZ9210S3PWTW16TW160 Set pressure: 0.014 to 0.7 MPa | Ports: 3 ports (gauge port) | Connection: 1 in tube weld
AZ9215S2PWFV12FV12 Set pressure: 0.034 to 1.0 MPa | Ports: 2 ports | Connection: 3/4 face seal female
AZ9215S2PWMV12MV12 Set pressure: 0.034 to 1.0 MPa | Ports: 2 ports | Connection: 3/4 face seal male
AZ9215S2PWTW12TW12 Set pressure: 0.034 to 1.0 MPa | Ports: 2 ports | Connection: 3/4 tube weld
AZ9215S2PWFV16FV16 Set pressure: 0.034 to 1.0 MPa | Ports: 2 ports | Connection: 1 in face seal female
AZ9215S2PWMV16MV16 Set pressure: 0.034 to 1.0 MPa | Ports: 2 ports | Connection: 1 in face seal male
AZ9215S2PWTW16TW16 Set pressure: 0.034 to 1.0 MPa | Ports: 2 ports | Connection: 1 in tube weld
AZ9215S3PWFV12FV120 Set pressure: 0.034 to 1.0 MPa | Ports: 3 ports (gauge port) | Connection: 3/4 face seal female
AZ9215S3PWMV12MV120 Set pressure: 0.034 to 1.0 MPa | Ports: 3 ports (gauge port) | Connection: 3/4 face seal male
AZ9215S3PWTW12TW120 Set pressure: 0.034 to 1.0 MPa | Ports: 3 ports (gauge port) | Connection: 3/4 tube weld
AZ9215S3PWFV16FV160 Set pressure: 0.034 to 1.0 MPa | Ports: 3 ports (gauge port) | Connection: 1 in face seal female
AZ9215S3PWMV16MV160 Set pressure: 0.034 to 1.0 MPa | Ports: 3 ports (gauge port) | Connection: 1 in face seal male
AZ9215S3PWTW16TW160 Set pressure: 0.034 to 1.0 MPa | Ports: 3 ports (gauge port) | Connection: 1 in tube weld
