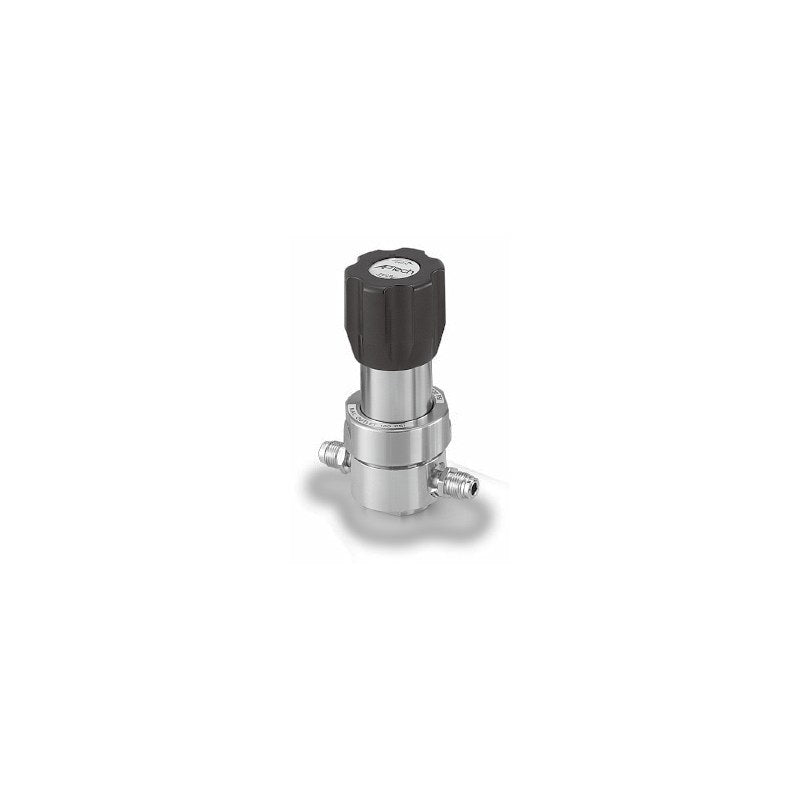

SMC BP1000 Welded High-Purity Back Pressure Valve (Face Seal)

SMC BP1000 Welded High-Purity Back Pressure Valve (Face Seal)

SMC BP1000 Welded series high-purity back pressure valve for process gas supply lines, holding upstream pressure at 0.0034 to 2.1 MPa, with face seal or tube weld connections.

Key features

  • High-purity SUS316L double-melt body, electropolished and passivated; precision cleaned and helium leak tested
  • Holds upstream (inlet) pressure at the set value; six set ranges 0.5-300 psig (0.0034-2.1 MPa)
  • Material S or SH (Ni-Cr-Mo nozzle and diaphragm)
  • 2-port or 3-port (inlet gauge) bodies with 1/4 or 3/8 face seal or tube weld connections
  • Listed 3PW codes have gauge port "0" (no gauge); gauges, MPA scale, FKM/PTFE/FFKM seat and panel mount (P) are suffixes

Specifications

Fluid Gases that do not corrode wetted parts
Leakage Inboard 2x10^-11, outboard 2x10^-10 Pa m3/s
Ambient and fluid temperature -10 to 71 C (no freezing)
Internal finish Ra max 0.4 um (options 0.25/0.18/0.13 um)
Internal volume 8 cm3
Mass 1.2 kg
Source SMC Korea catalog Process Gas Equipment (SMCKR_AP_SL_AZ_AK_BP.pdf), p. 726-727
BP1001S2PWFV4FV4 Set pressure: 0.0034 to 0.07 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal female
BP1001S2PWMV4MV4 Set pressure: 0.0034 to 0.07 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal male
BP1001S2PWTW4TW4 Set pressure: 0.0034 to 0.07 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 tube weld
BP1001S2PWFV6FV6 Set pressure: 0.0034 to 0.07 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal female
BP1001S2PWMV6MV6 Set pressure: 0.0034 to 0.07 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal male
BP1001S2PWTW6TW6 Set pressure: 0.0034 to 0.07 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 tube weld
BP1001S3PWFV4FV40 Set pressure: 0.0034 to 0.07 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
BP1001S3PWMV4MV40 Set pressure: 0.0034 to 0.07 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
BP1001S3PWTW4TW40 Set pressure: 0.0034 to 0.07 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 tube weld
BP1001S3PWFV6FV60 Set pressure: 0.0034 to 0.07 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
BP1001S3PWMV6MV60 Set pressure: 0.0034 to 0.07 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
BP1001S3PWTW6TW60 Set pressure: 0.0034 to 0.07 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
BP1001SH2PWFV4FV4 Set pressure: 0.0034 to 0.07 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 2 ports | Connection: 1/4 face seal female
BP1001SH2PWMV4MV4 Set pressure: 0.0034 to 0.07 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 2 ports | Connection: 1/4 face seal male
BP1001SH2PWTW4TW4 Set pressure: 0.0034 to 0.07 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 2 ports | Connection: 1/4 tube weld
BP1001SH2PWFV6FV6 Set pressure: 0.0034 to 0.07 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 2 ports | Connection: 3/8 face seal female
BP1001SH2PWMV6MV6 Set pressure: 0.0034 to 0.07 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 2 ports | Connection: 3/8 face seal male
BP1001SH2PWTW6TW6 Set pressure: 0.0034 to 0.07 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 2 ports | Connection: 3/8 tube weld
BP1001SH3PWFV4FV40 Set pressure: 0.0034 to 0.07 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
BP1001SH3PWMV4MV40 Set pressure: 0.0034 to 0.07 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
BP1001SH3PWTW4TW40 Set pressure: 0.0034 to 0.07 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 tube weld
BP1001SH3PWFV6FV60 Set pressure: 0.0034 to 0.07 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
BP1001SH3PWMV6MV60 Set pressure: 0.0034 to 0.07 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
BP1001SH3PWTW6TW60 Set pressure: 0.0034 to 0.07 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
BP1002S2PWFV4FV4 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal female
BP1002S2PWMV4MV4 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal male
BP1002S2PWTW4TW4 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 tube weld
BP1002S2PWFV6FV6 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal female
BP1002S2PWMV6MV6 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal male
BP1002S2PWTW6TW6 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 tube weld
BP1002S3PWFV4FV40 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
BP1002S3PWMV4MV40 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
BP1002S3PWTW4TW40 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 tube weld
BP1002S3PWFV6FV60 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
BP1002S3PWMV6MV60 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
BP1002S3PWTW6TW60 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
BP1002SH2PWFV4FV4 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 2 ports | Connection: 1/4 face seal female
BP1002SH2PWMV4MV4 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 2 ports | Connection: 1/4 face seal male
BP1002SH2PWTW4TW4 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 2 ports | Connection: 1/4 tube weld
BP1002SH2PWFV6FV6 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 2 ports | Connection: 3/8 face seal female
BP1002SH2PWMV6MV6 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 2 ports | Connection: 3/8 face seal male
BP1002SH2PWTW6TW6 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 2 ports | Connection: 3/8 tube weld
BP1002SH3PWFV4FV40 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
BP1002SH3PWMV4MV40 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
BP1002SH3PWTW4TW40 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 tube weld
BP1002SH3PWFV6FV60 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
BP1002SH3PWMV6MV60 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
BP1002SH3PWTW6TW60 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
BP1006S2PWFV4FV4 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal female
BP1006S2PWMV4MV4 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal male
BP1006S2PWTW4TW4 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 tube weld
BP1006S2PWFV6FV6 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal female
BP1006S2PWMV6MV6 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal male
BP1006S2PWTW6TW6 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 tube weld
BP1006S3PWFV4FV40 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
BP1006S3PWMV4MV40 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
BP1006S3PWTW4TW40 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 tube weld
BP1006S3PWFV6FV60 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
BP1006S3PWMV6MV60 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
BP1006S3PWTW6TW60 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
BP1006SH2PWFV4FV4 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 2 ports | Connection: 1/4 face seal female
BP1006SH2PWMV4MV4 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 2 ports | Connection: 1/4 face seal male
BP1006SH2PWTW4TW4 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 2 ports | Connection: 1/4 tube weld
BP1006SH2PWFV6FV6 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 2 ports | Connection: 3/8 face seal female
BP1006SH2PWMV6MV6 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 2 ports | Connection: 3/8 face seal male
BP1006SH2PWTW6TW6 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 2 ports | Connection: 3/8 tube weld
BP1006SH3PWFV4FV40 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
BP1006SH3PWMV4MV40 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
BP1006SH3PWTW4TW40 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 tube weld
BP1006SH3PWFV6FV60 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
BP1006SH3PWMV6MV60 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
BP1006SH3PWTW6TW60 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
BP1010S2PWFV4FV4 Set pressure: 0.034 to 0.7 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal female
BP1010S2PWMV4MV4 Set pressure: 0.034 to 0.7 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal male
BP1010S2PWTW4TW4 Set pressure: 0.034 to 0.7 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 tube weld
BP1010S2PWFV6FV6 Set pressure: 0.034 to 0.7 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal female
BP1010S2PWMV6MV6 Set pressure: 0.034 to 0.7 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal male
BP1010S2PWTW6TW6 Set pressure: 0.034 to 0.7 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 tube weld
BP1010S3PWFV4FV40 Set pressure: 0.034 to 0.7 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
BP1010S3PWMV4MV40 Set pressure: 0.034 to 0.7 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
BP1010S3PWTW4TW40 Set pressure: 0.034 to 0.7 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 tube weld
BP1010S3PWFV6FV60 Set pressure: 0.034 to 0.7 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
BP1010S3PWMV6MV60 Set pressure: 0.034 to 0.7 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
BP1010S3PWTW6TW60 Set pressure: 0.034 to 0.7 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
BP1010SH2PWFV4FV4 Set pressure: 0.034 to 0.7 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 2 ports | Connection: 1/4 face seal female
BP1010SH2PWMV4MV4 Set pressure: 0.034 to 0.7 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 2 ports | Connection: 1/4 face seal male
BP1010SH2PWTW4TW4 Set pressure: 0.034 to 0.7 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 2 ports | Connection: 1/4 tube weld
BP1010SH2PWFV6FV6 Set pressure: 0.034 to 0.7 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 2 ports | Connection: 3/8 face seal female
BP1010SH2PWMV6MV6 Set pressure: 0.034 to 0.7 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 2 ports | Connection: 3/8 face seal male
BP1010SH2PWTW6TW6 Set pressure: 0.034 to 0.7 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 2 ports | Connection: 3/8 tube weld
BP1010SH3PWFV4FV40 Set pressure: 0.034 to 0.7 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
BP1010SH3PWMV4MV40 Set pressure: 0.034 to 0.7 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
BP1010SH3PWTW4TW40 Set pressure: 0.034 to 0.7 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 tube weld
BP1010SH3PWFV6FV60 Set pressure: 0.034 to 0.7 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
BP1010SH3PWMV6MV60 Set pressure: 0.034 to 0.7 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
BP1010SH3PWTW6TW60 Set pressure: 0.034 to 0.7 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
BP1020S2PWFV4FV4 Set pressure: 0.1 to 1.4 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal female
BP1020S2PWMV4MV4 Set pressure: 0.1 to 1.4 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal male
BP1020S2PWTW4TW4 Set pressure: 0.1 to 1.4 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 tube weld
BP1020S2PWFV6FV6 Set pressure: 0.1 to 1.4 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal female
BP1020S2PWMV6MV6 Set pressure: 0.1 to 1.4 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal male
BP1020S2PWTW6TW6 Set pressure: 0.1 to 1.4 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 tube weld
BP1020S3PWFV4FV40 Set pressure: 0.1 to 1.4 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
BP1020S3PWMV4MV40 Set pressure: 0.1 to 1.4 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
BP1020S3PWTW4TW40 Set pressure: 0.1 to 1.4 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 tube weld
BP1020S3PWFV6FV60 Set pressure: 0.1 to 1.4 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
BP1020S3PWMV6MV60 Set pressure: 0.1 to 1.4 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
BP1020S3PWTW6TW60 Set pressure: 0.1 to 1.4 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
BP1020SH2PWFV4FV4 Set pressure: 0.1 to 1.4 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 2 ports | Connection: 1/4 face seal female
BP1020SH2PWMV4MV4 Set pressure: 0.1 to 1.4 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 2 ports | Connection: 1/4 face seal male
BP1020SH2PWTW4TW4 Set pressure: 0.1 to 1.4 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 2 ports | Connection: 1/4 tube weld
BP1020SH2PWFV6FV6 Set pressure: 0.1 to 1.4 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 2 ports | Connection: 3/8 face seal female
BP1020SH2PWMV6MV6 Set pressure: 0.1 to 1.4 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 2 ports | Connection: 3/8 face seal male
BP1020SH2PWTW6TW6 Set pressure: 0.1 to 1.4 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 2 ports | Connection: 3/8 tube weld
BP1020SH3PWFV4FV40 Set pressure: 0.1 to 1.4 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
BP1020SH3PWMV4MV40 Set pressure: 0.1 to 1.4 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
BP1020SH3PWTW4TW40 Set pressure: 0.1 to 1.4 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 tube weld
BP1020SH3PWFV6FV60 Set pressure: 0.1 to 1.4 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
BP1020SH3PWMV6MV60 Set pressure: 0.1 to 1.4 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
BP1020SH3PWTW6TW60 Set pressure: 0.1 to 1.4 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
BP1030S2PWFV4FV4 Set pressure: 0.1 to 2.1 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal female
BP1030S2PWMV4MV4 Set pressure: 0.1 to 2.1 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal male
BP1030S2PWTW4TW4 Set pressure: 0.1 to 2.1 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 tube weld
BP1030S2PWFV6FV6 Set pressure: 0.1 to 2.1 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal female
BP1030S2PWMV6MV6 Set pressure: 0.1 to 2.1 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal male
BP1030S2PWTW6TW6 Set pressure: 0.1 to 2.1 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 tube weld
BP1030S3PWFV4FV40 Set pressure: 0.1 to 2.1 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
BP1030S3PWMV4MV40 Set pressure: 0.1 to 2.1 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
BP1030S3PWTW4TW40 Set pressure: 0.1 to 2.1 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 tube weld
BP1030S3PWFV6FV60 Set pressure: 0.1 to 2.1 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
BP1030S3PWMV6MV60 Set pressure: 0.1 to 2.1 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
BP1030S3PWTW6TW60 Set pressure: 0.1 to 2.1 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
BP1030SH2PWFV4FV4 Set pressure: 0.1 to 2.1 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 2 ports | Connection: 1/4 face seal female
BP1030SH2PWMV4MV4 Set pressure: 0.1 to 2.1 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 2 ports | Connection: 1/4 face seal male
BP1030SH2PWTW4TW4 Set pressure: 0.1 to 2.1 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 2 ports | Connection: 1/4 tube weld
BP1030SH2PWFV6FV6 Set pressure: 0.1 to 2.1 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 2 ports | Connection: 3/8 face seal female
BP1030SH2PWMV6MV6 Set pressure: 0.1 to 2.1 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 2 ports | Connection: 3/8 face seal male
BP1030SH2PWTW6TW6 Set pressure: 0.1 to 2.1 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 2 ports | Connection: 3/8 tube weld
BP1030SH3PWFV4FV40 Set pressure: 0.1 to 2.1 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
BP1030SH3PWMV4MV40 Set pressure: 0.1 to 2.1 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
BP1030SH3PWTW4TW40 Set pressure: 0.1 to 2.1 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 tube weld
BP1030SH3PWFV6FV60 Set pressure: 0.1 to 2.1 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
BP1030SH3PWMV6MV60 Set pressure: 0.1 to 2.1 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
BP1030SH3PWTW6TW60 Set pressure: 0.1 to 2.1 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
RegulatorsSMC
144 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC BP1000 Welded High-Purity Back Pressure Valve (Face Seal)

Brand SMC·Regulators

Available part numbers (144)

BP1001S2PWFV4FV4, BP1001S2PWMV4MV4, BP1001S2PWTW4TW4, BP1001S2PWFV6FV6, BP1001S2PWMV6MV6, BP1001S2PWTW6TW6, BP1001S3PWFV4FV40, BP1001S3PWMV4MV40, BP1001S3PWTW4TW40, BP1001S3PWFV6FV60 + 134 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
BP1001S2PWFV4FV4Set pressure: 0.0034 to 0.07 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal female
BP1001S2PWMV4MV4Set pressure: 0.0034 to 0.07 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal male
BP1001S2PWTW4TW4Set pressure: 0.0034 to 0.07 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 tube weld
BP1001S2PWFV6FV6Set pressure: 0.0034 to 0.07 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal female
BP1001S2PWMV6MV6Set pressure: 0.0034 to 0.07 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal male
BP1001S2PWTW6TW6Set pressure: 0.0034 to 0.07 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 tube weld
BP1001S3PWFV4FV40Set pressure: 0.0034 to 0.07 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
BP1001S3PWMV4MV40Set pressure: 0.0034 to 0.07 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
BP1001S3PWTW4TW40Set pressure: 0.0034 to 0.07 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 tube weld
BP1001S3PWFV6FV60Set pressure: 0.0034 to 0.07 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
BP1001S3PWMV6MV60Set pressure: 0.0034 to 0.07 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
BP1001S3PWTW6TW60Set pressure: 0.0034 to 0.07 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
BP1001SH2PWFV4FV4Set pressure: 0.0034 to 0.07 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 2 ports | Connection: 1/4 face seal female
BP1001SH2PWMV4MV4Set pressure: 0.0034 to 0.07 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 2 ports | Connection: 1/4 face seal male
BP1001SH2PWTW4TW4Set pressure: 0.0034 to 0.07 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 2 ports | Connection: 1/4 tube weld
BP1001SH2PWFV6FV6Set pressure: 0.0034 to 0.07 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 2 ports | Connection: 3/8 face seal female
BP1001SH2PWMV6MV6Set pressure: 0.0034 to 0.07 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 2 ports | Connection: 3/8 face seal male
BP1001SH2PWTW6TW6Set pressure: 0.0034 to 0.07 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 2 ports | Connection: 3/8 tube weld
BP1001SH3PWFV4FV40Set pressure: 0.0034 to 0.07 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
BP1001SH3PWMV4MV40Set pressure: 0.0034 to 0.07 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
BP1001SH3PWTW4TW40Set pressure: 0.0034 to 0.07 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 tube weld
BP1001SH3PWFV6FV60Set pressure: 0.0034 to 0.07 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
BP1001SH3PWMV6MV60Set pressure: 0.0034 to 0.07 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
BP1001SH3PWTW6TW60Set pressure: 0.0034 to 0.07 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
BP1002S2PWFV4FV4Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal female
BP1002S2PWMV4MV4Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal male
BP1002S2PWTW4TW4Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 tube weld
BP1002S2PWFV6FV6Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal female
BP1002S2PWMV6MV6Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal male
BP1002S2PWTW6TW6Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 tube weld
BP1002S3PWFV4FV40Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
BP1002S3PWMV4MV40Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
BP1002S3PWTW4TW40Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 tube weld
BP1002S3PWFV6FV60Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
BP1002S3PWMV6MV60Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
BP1002S3PWTW6TW60Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
BP1002SH2PWFV4FV4Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 2 ports | Connection: 1/4 face seal female
BP1002SH2PWMV4MV4Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 2 ports | Connection: 1/4 face seal male
BP1002SH2PWTW4TW4Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 2 ports | Connection: 1/4 tube weld
BP1002SH2PWFV6FV6Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 2 ports | Connection: 3/8 face seal female
BP1002SH2PWMV6MV6Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 2 ports | Connection: 3/8 face seal male
BP1002SH2PWTW6TW6Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 2 ports | Connection: 3/8 tube weld
BP1002SH3PWFV4FV40Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
BP1002SH3PWMV4MV40Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
BP1002SH3PWTW4TW40Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 tube weld
BP1002SH3PWFV6FV60Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
BP1002SH3PWMV6MV60Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
BP1002SH3PWTW6TW60Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
BP1006S2PWFV4FV4Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal female
BP1006S2PWMV4MV4Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal male
BP1006S2PWTW4TW4Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 tube weld
BP1006S2PWFV6FV6Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal female
BP1006S2PWMV6MV6Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal male
BP1006S2PWTW6TW6Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 tube weld
BP1006S3PWFV4FV40Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
BP1006S3PWMV4MV40Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
BP1006S3PWTW4TW40Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 tube weld
BP1006S3PWFV6FV60Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
BP1006S3PWMV6MV60Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
BP1006S3PWTW6TW60Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
BP1006SH2PWFV4FV4Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 2 ports | Connection: 1/4 face seal female
BP1006SH2PWMV4MV4Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 2 ports | Connection: 1/4 face seal male
BP1006SH2PWTW4TW4Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 2 ports | Connection: 1/4 tube weld
BP1006SH2PWFV6FV6Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 2 ports | Connection: 3/8 face seal female
BP1006SH2PWMV6MV6Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 2 ports | Connection: 3/8 face seal male
BP1006SH2PWTW6TW6Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 2 ports | Connection: 3/8 tube weld
BP1006SH3PWFV4FV40Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
BP1006SH3PWMV4MV40Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
BP1006SH3PWTW4TW40Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 tube weld
BP1006SH3PWFV6FV60Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
BP1006SH3PWMV6MV60Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
BP1006SH3PWTW6TW60Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
BP1010S2PWFV4FV4Set pressure: 0.034 to 0.7 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal female
BP1010S2PWMV4MV4Set pressure: 0.034 to 0.7 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal male
BP1010S2PWTW4TW4Set pressure: 0.034 to 0.7 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 tube weld
BP1010S2PWFV6FV6Set pressure: 0.034 to 0.7 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal female
BP1010S2PWMV6MV6Set pressure: 0.034 to 0.7 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal male
BP1010S2PWTW6TW6Set pressure: 0.034 to 0.7 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 tube weld
BP1010S3PWFV4FV40Set pressure: 0.034 to 0.7 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
BP1010S3PWMV4MV40Set pressure: 0.034 to 0.7 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
BP1010S3PWTW4TW40Set pressure: 0.034 to 0.7 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 tube weld
BP1010S3PWFV6FV60Set pressure: 0.034 to 0.7 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
BP1010S3PWMV6MV60Set pressure: 0.034 to 0.7 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
BP1010S3PWTW6TW60Set pressure: 0.034 to 0.7 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
BP1010SH2PWFV4FV4Set pressure: 0.034 to 0.7 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 2 ports | Connection: 1/4 face seal female
BP1010SH2PWMV4MV4Set pressure: 0.034 to 0.7 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 2 ports | Connection: 1/4 face seal male
BP1010SH2PWTW4TW4Set pressure: 0.034 to 0.7 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 2 ports | Connection: 1/4 tube weld
BP1010SH2PWFV6FV6Set pressure: 0.034 to 0.7 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 2 ports | Connection: 3/8 face seal female
BP1010SH2PWMV6MV6Set pressure: 0.034 to 0.7 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 2 ports | Connection: 3/8 face seal male
BP1010SH2PWTW6TW6Set pressure: 0.034 to 0.7 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 2 ports | Connection: 3/8 tube weld
BP1010SH3PWFV4FV40Set pressure: 0.034 to 0.7 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
BP1010SH3PWMV4MV40Set pressure: 0.034 to 0.7 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
BP1010SH3PWTW4TW40Set pressure: 0.034 to 0.7 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 tube weld
BP1010SH3PWFV6FV60Set pressure: 0.034 to 0.7 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
BP1010SH3PWMV6MV60Set pressure: 0.034 to 0.7 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
BP1010SH3PWTW6TW60Set pressure: 0.034 to 0.7 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
BP1020S2PWFV4FV4Set pressure: 0.1 to 1.4 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal female
BP1020S2PWMV4MV4Set pressure: 0.1 to 1.4 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal male
BP1020S2PWTW4TW4Set pressure: 0.1 to 1.4 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 tube weld
BP1020S2PWFV6FV6Set pressure: 0.1 to 1.4 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal female
BP1020S2PWMV6MV6Set pressure: 0.1 to 1.4 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal male
BP1020S2PWTW6TW6Set pressure: 0.1 to 1.4 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 tube weld
BP1020S3PWFV4FV40Set pressure: 0.1 to 1.4 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
BP1020S3PWMV4MV40Set pressure: 0.1 to 1.4 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
BP1020S3PWTW4TW40Set pressure: 0.1 to 1.4 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 tube weld
BP1020S3PWFV6FV60Set pressure: 0.1 to 1.4 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
BP1020S3PWMV6MV60Set pressure: 0.1 to 1.4 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
BP1020S3PWTW6TW60Set pressure: 0.1 to 1.4 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
BP1020SH2PWFV4FV4Set pressure: 0.1 to 1.4 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 2 ports | Connection: 1/4 face seal female
BP1020SH2PWMV4MV4Set pressure: 0.1 to 1.4 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 2 ports | Connection: 1/4 face seal male
BP1020SH2PWTW4TW4Set pressure: 0.1 to 1.4 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 2 ports | Connection: 1/4 tube weld
BP1020SH2PWFV6FV6Set pressure: 0.1 to 1.4 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 2 ports | Connection: 3/8 face seal female
BP1020SH2PWMV6MV6Set pressure: 0.1 to 1.4 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 2 ports | Connection: 3/8 face seal male
BP1020SH2PWTW6TW6Set pressure: 0.1 to 1.4 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 2 ports | Connection: 3/8 tube weld
BP1020SH3PWFV4FV40Set pressure: 0.1 to 1.4 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
BP1020SH3PWMV4MV40Set pressure: 0.1 to 1.4 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
BP1020SH3PWTW4TW40Set pressure: 0.1 to 1.4 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 tube weld
BP1020SH3PWFV6FV60Set pressure: 0.1 to 1.4 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
BP1020SH3PWMV6MV60Set pressure: 0.1 to 1.4 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
BP1020SH3PWTW6TW60Set pressure: 0.1 to 1.4 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
BP1030S2PWFV4FV4Set pressure: 0.1 to 2.1 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal female
BP1030S2PWMV4MV4Set pressure: 0.1 to 2.1 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal male
BP1030S2PWTW4TW4Set pressure: 0.1 to 2.1 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 tube weld
BP1030S2PWFV6FV6Set pressure: 0.1 to 2.1 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal female
BP1030S2PWMV6MV6Set pressure: 0.1 to 2.1 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal male
BP1030S2PWTW6TW6Set pressure: 0.1 to 2.1 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 tube weld
BP1030S3PWFV4FV40Set pressure: 0.1 to 2.1 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
BP1030S3PWMV4MV40Set pressure: 0.1 to 2.1 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
BP1030S3PWTW4TW40Set pressure: 0.1 to 2.1 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 tube weld
BP1030S3PWFV6FV60Set pressure: 0.1 to 2.1 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
BP1030S3PWMV6MV60Set pressure: 0.1 to 2.1 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
BP1030S3PWTW6TW60Set pressure: 0.1 to 2.1 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
BP1030SH2PWFV4FV4Set pressure: 0.1 to 2.1 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 2 ports | Connection: 1/4 face seal female
BP1030SH2PWMV4MV4Set pressure: 0.1 to 2.1 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 2 ports | Connection: 1/4 face seal male
BP1030SH2PWTW4TW4Set pressure: 0.1 to 2.1 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 2 ports | Connection: 1/4 tube weld
BP1030SH2PWFV6FV6Set pressure: 0.1 to 2.1 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 2 ports | Connection: 3/8 face seal female
BP1030SH2PWMV6MV6Set pressure: 0.1 to 2.1 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 2 ports | Connection: 3/8 face seal male
BP1030SH2PWTW6TW6Set pressure: 0.1 to 2.1 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 2 ports | Connection: 3/8 tube weld
BP1030SH3PWFV4FV40Set pressure: 0.1 to 2.1 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
BP1030SH3PWMV4MV40Set pressure: 0.1 to 2.1 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
BP1030SH3PWTW4TW40Set pressure: 0.1 to 2.1 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 tube weld
BP1030SH3PWFV6FV60Set pressure: 0.1 to 2.1 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
BP1030SH3PWMV6MV60Set pressure: 0.1 to 2.1 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
BP1030SH3PWTW6TW60Set pressure: 0.1 to 2.1 MPa | Material: Ni-Cr-Mo nozzle/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
