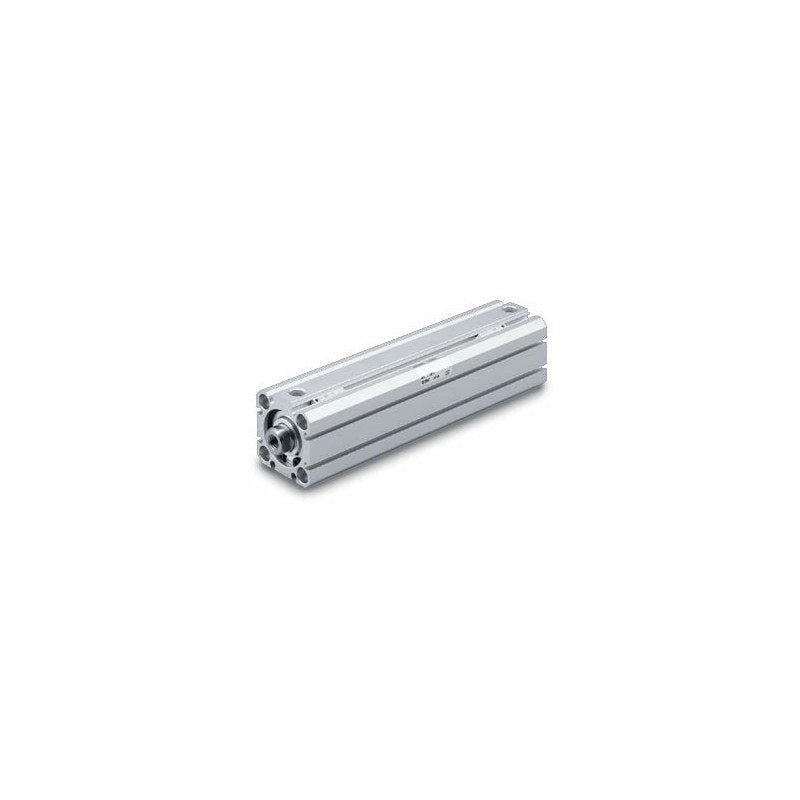

SMC C55 ISO 21287 Compact Cylinder (Single Rod, ø12 to ø40)

SMC C55 series compact (short-stroke) cylinder to ISO 21287, double acting, single rod, ø12 to ø40 mm bore, with rubber or non-adjustable air cushion and optional built-in magnet (CD55).

Key features

ISO 21287 compliant compact cylinder (ø20 to ø100); ø12, ø16 standard type outside ISO 21287
Rubber cushion (C) on both ends, or non-adjustable air cushion + rubber cushion (G, CD55 with magnet) with about 3 times the allowable kinetic energy
Bushing material change gives 1.8 times higher lateral load resistance (ø20)
Mounting: through-hole/both-end tapped common (B), foot (L), rod/head flange (F/G), single clevis (C); ø12/ø16 type B only
Rod end male thread (M), compact D-M9/D-A9 auto switches and made-to-order specs (-XA, -XB6, -XB13, -XC6, -XC35, -X1439) ordered as options
Intermediate strokes in 1 mm increments with dedicated body (e.g. C55B32-47DCZ)

Specifications

Standard	ISO 21287 (ø20 to ø100)
Action	Double acting, single rod
Fluid	Air
Proof pressure	1.5 MPa
Max. operating pressure	1.0 MPa
Min. operating pressure	C: 0.05 MPa (ø20-63), 0.03 MPa (ø80, 100); G: 0.15/0.10 MPa
Ambient and fluid temperature	-10 to 70°C without magnet, -10 to 60°C with magnet
Piston speed	50 to 500 mm/s (ø20-63), 50 to 300 mm/s (ø80, ø100)
Lubrication	Not required (non-lube)
Rod end	Female thread (standard); male thread (M) option
Source	SMC Korea catalog CAT.KS20-302B (SMCKR_C55-Z.pdf), p. 3, 9-10, 26-27 (PDF p. 4, 10-11, 27-28)

C55B12-5DCZ		Bore: ø12 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55B12-5DCZ		Bore: ø12 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
C55B12-10DCZ		Bore: ø12 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55B12-10DCZ		Bore: ø12 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
C55B12-15DCZ		Bore: ø12 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55B12-15DCZ		Bore: ø12 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
C55B12-20DCZ		Bore: ø12 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55B12-20DCZ		Bore: ø12 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
C55B12-25DCZ		Bore: ø12 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55B12-25DCZ		Bore: ø12 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
C55B12-30DCZ		Bore: ø12 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55B12-30DCZ		Bore: ø12 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
C55B12-35DCZ		Bore: ø12 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55B12-35DCZ		Bore: ø12 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
C55B12-40DCZ		Bore: ø12 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55B12-40DCZ		Bore: ø12 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
C55B12-45DCZ		Bore: ø12 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55B12-45DCZ		Bore: ø12 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
C55B12-50DCZ		Bore: ø12 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55B12-50DCZ		Bore: ø12 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
C55B12-60DCZ		Bore: ø12 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55B12-60DCZ		Bore: ø12 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
C55B12-80DCZ		Bore: ø12 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55B12-80DCZ		Bore: ø12 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
C55B12-100DCZ		Bore: ø12 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55B12-100DCZ		Bore: ø12 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
C55B16-5DCZ		Bore: ø16 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55B16-5DCZ		Bore: ø16 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
C55B16-10DCZ		Bore: ø16 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55B16-10DCZ		Bore: ø16 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
C55B16-15DCZ		Bore: ø16 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55B16-15DCZ		Bore: ø16 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
C55B16-20DCZ		Bore: ø16 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55B16-20DCZ		Bore: ø16 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
C55B16-25DCZ		Bore: ø16 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55B16-25DCZ		Bore: ø16 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
C55B16-30DCZ		Bore: ø16 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55B16-30DCZ		Bore: ø16 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
C55B16-35DCZ		Bore: ø16 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55B16-35DCZ		Bore: ø16 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
C55B16-40DCZ		Bore: ø16 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55B16-40DCZ		Bore: ø16 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
C55B16-45DCZ		Bore: ø16 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55B16-45DCZ		Bore: ø16 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
C55B16-50DCZ		Bore: ø16 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55B16-50DCZ		Bore: ø16 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
C55B16-60DCZ		Bore: ø16 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55B16-60DCZ		Bore: ø16 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
C55B16-80DCZ		Bore: ø16 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55B16-80DCZ		Bore: ø16 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
C55B16-100DCZ		Bore: ø16 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55B16-100DCZ		Bore: ø16 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
C55B20-5DCZ		Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55B20-5DCZ		Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55B20-5DGZ		Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 5 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55B20-10DCZ		Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55B20-10DCZ		Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55B20-10DGZ		Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 10 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55B20-15DCZ		Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55B20-15DCZ		Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55B20-15DGZ		Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 15 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55B20-20DCZ		Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55B20-20DCZ		Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55B20-20DGZ		Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 20 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55B20-25DCZ		Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55B20-25DCZ		Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55B20-25DGZ		Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 25 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55B20-30DCZ		Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55B20-30DCZ		Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55B20-30DGZ		Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 30 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55B20-35DCZ		Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55B20-35DCZ		Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55B20-35DGZ		Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 35 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55B20-40DCZ		Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55B20-40DCZ		Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55B20-40DGZ		Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 40 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55B20-45DCZ		Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55B20-45DCZ		Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55B20-45DGZ		Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 45 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55B20-50DCZ		Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55B20-50DCZ		Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55B20-50DGZ		Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 50 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55B20-60DCZ		Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55B20-60DCZ		Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55B20-60DGZ		Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 60 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55B20-80DCZ		Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55B20-80DCZ		Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55B20-80DGZ		Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 80 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55B20-100DCZ		Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55B20-100DCZ		Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55B20-100DGZ		Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 100 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55B20-125DCZ		Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55B20-125DCZ		Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55B20-125DGZ		Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 125 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55B20-150DCZ		Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55B20-150DCZ		Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55B20-150DGZ		Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 150 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55B20-175DCZ		Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55B20-175DCZ		Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55B20-175DGZ		Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 175 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55B20-200DCZ		Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55B20-200DCZ		Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55B20-200DGZ		Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 200 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55B20-250DCZ		Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55B20-250DCZ		Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55B20-250DGZ		Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 250 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55B20-300DCZ		Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55B20-300DCZ		Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55B20-300DGZ		Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 300 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55L20-5DCZ		Bore: ø20 mm \| Mounting: Foot \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55L20-5DCZ		Bore: ø20 mm \| Mounting: Foot \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55L20-5DGZ		Bore: ø20 mm \| Mounting: Foot \| Stroke: 5 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55L20-10DCZ		Bore: ø20 mm \| Mounting: Foot \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55L20-10DCZ		Bore: ø20 mm \| Mounting: Foot \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55L20-10DGZ		Bore: ø20 mm \| Mounting: Foot \| Stroke: 10 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55L20-15DCZ		Bore: ø20 mm \| Mounting: Foot \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55L20-15DCZ		Bore: ø20 mm \| Mounting: Foot \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55L20-15DGZ		Bore: ø20 mm \| Mounting: Foot \| Stroke: 15 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55L20-20DCZ		Bore: ø20 mm \| Mounting: Foot \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55L20-20DCZ		Bore: ø20 mm \| Mounting: Foot \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55L20-20DGZ		Bore: ø20 mm \| Mounting: Foot \| Stroke: 20 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55L20-25DCZ		Bore: ø20 mm \| Mounting: Foot \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55L20-25DCZ		Bore: ø20 mm \| Mounting: Foot \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55L20-25DGZ		Bore: ø20 mm \| Mounting: Foot \| Stroke: 25 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55L20-30DCZ		Bore: ø20 mm \| Mounting: Foot \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55L20-30DCZ		Bore: ø20 mm \| Mounting: Foot \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55L20-30DGZ		Bore: ø20 mm \| Mounting: Foot \| Stroke: 30 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55L20-35DCZ		Bore: ø20 mm \| Mounting: Foot \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55L20-35DCZ		Bore: ø20 mm \| Mounting: Foot \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55L20-35DGZ		Bore: ø20 mm \| Mounting: Foot \| Stroke: 35 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55L20-40DCZ		Bore: ø20 mm \| Mounting: Foot \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55L20-40DCZ		Bore: ø20 mm \| Mounting: Foot \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55L20-40DGZ		Bore: ø20 mm \| Mounting: Foot \| Stroke: 40 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55L20-45DCZ		Bore: ø20 mm \| Mounting: Foot \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55L20-45DCZ		Bore: ø20 mm \| Mounting: Foot \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55L20-45DGZ		Bore: ø20 mm \| Mounting: Foot \| Stroke: 45 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55L20-50DCZ		Bore: ø20 mm \| Mounting: Foot \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55L20-50DCZ		Bore: ø20 mm \| Mounting: Foot \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55L20-50DGZ		Bore: ø20 mm \| Mounting: Foot \| Stroke: 50 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55L20-60DCZ		Bore: ø20 mm \| Mounting: Foot \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55L20-60DCZ		Bore: ø20 mm \| Mounting: Foot \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55L20-60DGZ		Bore: ø20 mm \| Mounting: Foot \| Stroke: 60 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55L20-80DCZ		Bore: ø20 mm \| Mounting: Foot \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55L20-80DCZ		Bore: ø20 mm \| Mounting: Foot \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55L20-80DGZ		Bore: ø20 mm \| Mounting: Foot \| Stroke: 80 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55L20-100DCZ		Bore: ø20 mm \| Mounting: Foot \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55L20-100DCZ		Bore: ø20 mm \| Mounting: Foot \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55L20-100DGZ		Bore: ø20 mm \| Mounting: Foot \| Stroke: 100 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55L20-125DCZ		Bore: ø20 mm \| Mounting: Foot \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55L20-125DCZ		Bore: ø20 mm \| Mounting: Foot \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55L20-125DGZ		Bore: ø20 mm \| Mounting: Foot \| Stroke: 125 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55L20-150DCZ		Bore: ø20 mm \| Mounting: Foot \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55L20-150DCZ		Bore: ø20 mm \| Mounting: Foot \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55L20-150DGZ		Bore: ø20 mm \| Mounting: Foot \| Stroke: 150 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55L20-175DCZ		Bore: ø20 mm \| Mounting: Foot \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55L20-175DCZ		Bore: ø20 mm \| Mounting: Foot \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55L20-175DGZ		Bore: ø20 mm \| Mounting: Foot \| Stroke: 175 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55L20-200DCZ		Bore: ø20 mm \| Mounting: Foot \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55L20-200DCZ		Bore: ø20 mm \| Mounting: Foot \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55L20-200DGZ		Bore: ø20 mm \| Mounting: Foot \| Stroke: 200 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55L20-250DCZ		Bore: ø20 mm \| Mounting: Foot \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55L20-250DCZ		Bore: ø20 mm \| Mounting: Foot \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55L20-250DGZ		Bore: ø20 mm \| Mounting: Foot \| Stroke: 250 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55L20-300DCZ		Bore: ø20 mm \| Mounting: Foot \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55L20-300DCZ		Bore: ø20 mm \| Mounting: Foot \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55L20-300DGZ		Bore: ø20 mm \| Mounting: Foot \| Stroke: 300 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55F20-5DCZ		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55F20-5DCZ		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55F20-5DGZ		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 5 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55F20-10DCZ		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55F20-10DCZ		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55F20-10DGZ		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 10 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55F20-15DCZ		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55F20-15DCZ		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55F20-15DGZ		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 15 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55F20-20DCZ		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55F20-20DCZ		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55F20-20DGZ		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55F20-25DCZ		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55F20-25DCZ		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55F20-25DGZ		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55F20-30DCZ		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55F20-30DCZ		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55F20-30DGZ		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55F20-35DCZ		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55F20-35DCZ		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55F20-35DGZ		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 35 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55F20-40DCZ		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55F20-40DCZ		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55F20-40DGZ		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55F20-45DCZ		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55F20-45DCZ		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55F20-45DGZ		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 45 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55F20-50DCZ		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55F20-50DCZ		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55F20-50DGZ		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55F20-60DCZ		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55F20-60DCZ		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55F20-60DGZ		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 60 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55F20-80DCZ		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55F20-80DCZ		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55F20-80DGZ		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 80 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55F20-100DCZ		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55F20-100DCZ		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55F20-100DGZ		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55F20-125DCZ		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55F20-125DCZ		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55F20-125DGZ		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55F20-150DCZ		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55F20-150DCZ		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55F20-150DGZ		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55F20-175DCZ		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55F20-175DCZ		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55F20-175DGZ		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55F20-200DCZ		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55F20-200DCZ		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55F20-200DGZ		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55F20-250DCZ		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55F20-250DCZ		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55F20-250DGZ		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 250 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55F20-300DCZ		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55F20-300DCZ		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55F20-300DGZ		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 300 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55G20-5DCZ		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55G20-5DCZ		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55G20-5DGZ		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 5 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55G20-10DCZ		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55G20-10DCZ		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55G20-10DGZ		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 10 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55G20-15DCZ		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55G20-15DCZ		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55G20-15DGZ		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 15 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55G20-20DCZ		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55G20-20DCZ		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55G20-20DGZ		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 20 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55G20-25DCZ		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55G20-25DCZ		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55G20-25DGZ		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 25 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55G20-30DCZ		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55G20-30DCZ		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55G20-30DGZ		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 30 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55G20-35DCZ		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55G20-35DCZ		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55G20-35DGZ		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 35 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55G20-40DCZ		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55G20-40DCZ		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55G20-40DGZ		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 40 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55G20-45DCZ		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55G20-45DCZ		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55G20-45DGZ		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 45 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55G20-50DCZ		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55G20-50DCZ		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55G20-50DGZ		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 50 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55G20-60DCZ		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55G20-60DCZ		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55G20-60DGZ		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 60 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55G20-80DCZ		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55G20-80DCZ		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55G20-80DGZ		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 80 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55G20-100DCZ		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55G20-100DCZ		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55G20-100DGZ		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 100 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55G20-125DCZ		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55G20-125DCZ		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55G20-125DGZ		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 125 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55G20-150DCZ		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55G20-150DCZ		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55G20-150DGZ		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 150 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55G20-175DCZ		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55G20-175DCZ		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55G20-175DGZ		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 175 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55G20-200DCZ		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55G20-200DCZ		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55G20-200DGZ		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 200 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55G20-250DCZ		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55G20-250DCZ		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55G20-250DGZ		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 250 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55G20-300DCZ		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55G20-300DCZ		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55G20-300DGZ		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 300 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55C20-5DCZ		Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55C20-5DCZ		Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55C20-5DGZ		Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 5 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55C20-10DCZ		Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55C20-10DCZ		Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55C20-10DGZ		Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 10 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55C20-15DCZ		Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55C20-15DCZ		Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55C20-15DGZ		Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 15 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55C20-20DCZ		Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55C20-20DCZ		Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55C20-20DGZ		Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 20 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55C20-25DCZ		Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55C20-25DCZ		Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55C20-25DGZ		Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 25 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55C20-30DCZ		Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55C20-30DCZ		Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55C20-30DGZ		Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 30 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55C20-35DCZ		Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55C20-35DCZ		Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55C20-35DGZ		Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 35 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55C20-40DCZ		Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55C20-40DCZ		Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55C20-40DGZ		Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 40 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55C20-45DCZ		Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55C20-45DCZ		Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55C20-45DGZ		Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 45 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55C20-50DCZ		Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55C20-50DCZ		Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55C20-50DGZ		Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 50 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55C20-60DCZ		Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55C20-60DCZ		Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55C20-60DGZ		Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 60 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55C20-80DCZ		Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55C20-80DCZ		Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55C20-80DGZ		Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 80 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55C20-100DCZ		Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55C20-100DCZ		Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55C20-100DGZ		Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 100 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55C20-125DCZ		Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55C20-125DCZ		Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55C20-125DGZ		Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 125 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55C20-150DCZ		Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55C20-150DCZ		Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55C20-150DGZ		Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 150 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55C20-175DCZ		Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55C20-175DCZ		Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55C20-175DGZ		Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 175 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55C20-200DCZ		Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55C20-200DCZ		Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55C20-200DGZ		Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 200 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55C20-250DCZ		Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55C20-250DCZ		Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55C20-250DGZ		Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 250 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55C20-300DCZ		Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55C20-300DCZ		Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55C20-300DGZ		Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 300 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55B25-5DCZ		Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55B25-5DCZ		Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55B25-5DGZ		Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 5 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55B25-10DCZ		Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55B25-10DCZ		Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55B25-10DGZ		Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 10 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55B25-15DCZ		Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55B25-15DCZ		Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55B25-15DGZ		Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 15 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55B25-20DCZ		Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55B25-20DCZ		Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55B25-20DGZ		Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 20 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55B25-25DCZ		Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55B25-25DCZ		Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55B25-25DGZ		Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 25 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55B25-30DCZ		Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55B25-30DCZ		Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55B25-30DGZ		Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 30 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55B25-35DCZ		Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55B25-35DCZ		Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55B25-35DGZ		Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 35 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55B25-40DCZ		Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55B25-40DCZ		Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55B25-40DGZ		Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 40 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55B25-45DCZ		Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55B25-45DCZ		Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55B25-45DGZ		Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 45 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55B25-50DCZ		Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55B25-50DCZ		Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55B25-50DGZ		Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 50 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55B25-60DCZ		Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55B25-60DCZ		Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55B25-60DGZ		Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 60 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55B25-80DCZ		Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55B25-80DCZ		Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55B25-80DGZ		Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 80 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55B25-100DCZ		Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55B25-100DCZ		Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55B25-100DGZ		Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 100 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55B25-125DCZ		Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55B25-125DCZ		Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55B25-125DGZ		Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 125 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55B25-150DCZ		Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55B25-150DCZ		Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55B25-150DGZ		Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 150 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55B25-175DCZ		Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55B25-175DCZ		Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55B25-175DGZ		Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 175 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55B25-200DCZ		Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55B25-200DCZ		Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55B25-200DGZ		Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 200 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55B25-250DCZ		Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55B25-250DCZ		Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55B25-250DGZ		Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 250 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55B25-300DCZ		Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55B25-300DCZ		Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55B25-300DGZ		Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 300 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55L25-5DCZ		Bore: ø25 mm \| Mounting: Foot \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55L25-5DCZ		Bore: ø25 mm \| Mounting: Foot \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55L25-5DGZ		Bore: ø25 mm \| Mounting: Foot \| Stroke: 5 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55L25-10DCZ		Bore: ø25 mm \| Mounting: Foot \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55L25-10DCZ		Bore: ø25 mm \| Mounting: Foot \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55L25-10DGZ		Bore: ø25 mm \| Mounting: Foot \| Stroke: 10 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55L25-15DCZ		Bore: ø25 mm \| Mounting: Foot \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55L25-15DCZ		Bore: ø25 mm \| Mounting: Foot \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55L25-15DGZ		Bore: ø25 mm \| Mounting: Foot \| Stroke: 15 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55L25-20DCZ		Bore: ø25 mm \| Mounting: Foot \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55L25-20DCZ		Bore: ø25 mm \| Mounting: Foot \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55L25-20DGZ		Bore: ø25 mm \| Mounting: Foot \| Stroke: 20 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55L25-25DCZ		Bore: ø25 mm \| Mounting: Foot \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55L25-25DCZ		Bore: ø25 mm \| Mounting: Foot \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55L25-25DGZ		Bore: ø25 mm \| Mounting: Foot \| Stroke: 25 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55L25-30DCZ		Bore: ø25 mm \| Mounting: Foot \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55L25-30DCZ		Bore: ø25 mm \| Mounting: Foot \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55L25-30DGZ		Bore: ø25 mm \| Mounting: Foot \| Stroke: 30 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55L25-35DCZ		Bore: ø25 mm \| Mounting: Foot \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55L25-35DCZ		Bore: ø25 mm \| Mounting: Foot \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55L25-35DGZ		Bore: ø25 mm \| Mounting: Foot \| Stroke: 35 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55L25-40DCZ		Bore: ø25 mm \| Mounting: Foot \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55L25-40DCZ		Bore: ø25 mm \| Mounting: Foot \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55L25-40DGZ		Bore: ø25 mm \| Mounting: Foot \| Stroke: 40 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55L25-45DCZ		Bore: ø25 mm \| Mounting: Foot \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55L25-45DCZ		Bore: ø25 mm \| Mounting: Foot \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55L25-45DGZ		Bore: ø25 mm \| Mounting: Foot \| Stroke: 45 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55L25-50DCZ		Bore: ø25 mm \| Mounting: Foot \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55L25-50DCZ		Bore: ø25 mm \| Mounting: Foot \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55L25-50DGZ		Bore: ø25 mm \| Mounting: Foot \| Stroke: 50 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55L25-60DCZ		Bore: ø25 mm \| Mounting: Foot \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55L25-60DCZ		Bore: ø25 mm \| Mounting: Foot \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55L25-60DGZ		Bore: ø25 mm \| Mounting: Foot \| Stroke: 60 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55L25-80DCZ		Bore: ø25 mm \| Mounting: Foot \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55L25-80DCZ		Bore: ø25 mm \| Mounting: Foot \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55L25-80DGZ		Bore: ø25 mm \| Mounting: Foot \| Stroke: 80 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55L25-100DCZ		Bore: ø25 mm \| Mounting: Foot \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55L25-100DCZ		Bore: ø25 mm \| Mounting: Foot \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55L25-100DGZ		Bore: ø25 mm \| Mounting: Foot \| Stroke: 100 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55L25-125DCZ		Bore: ø25 mm \| Mounting: Foot \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55L25-125DCZ		Bore: ø25 mm \| Mounting: Foot \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55L25-125DGZ		Bore: ø25 mm \| Mounting: Foot \| Stroke: 125 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55L25-150DCZ		Bore: ø25 mm \| Mounting: Foot \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55L25-150DCZ		Bore: ø25 mm \| Mounting: Foot \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55L25-150DGZ		Bore: ø25 mm \| Mounting: Foot \| Stroke: 150 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55L25-175DCZ		Bore: ø25 mm \| Mounting: Foot \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55L25-175DCZ		Bore: ø25 mm \| Mounting: Foot \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55L25-175DGZ		Bore: ø25 mm \| Mounting: Foot \| Stroke: 175 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55L25-200DCZ		Bore: ø25 mm \| Mounting: Foot \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55L25-200DCZ		Bore: ø25 mm \| Mounting: Foot \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55L25-200DGZ		Bore: ø25 mm \| Mounting: Foot \| Stroke: 200 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55L25-250DCZ		Bore: ø25 mm \| Mounting: Foot \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55L25-250DCZ		Bore: ø25 mm \| Mounting: Foot \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55L25-250DGZ		Bore: ø25 mm \| Mounting: Foot \| Stroke: 250 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55L25-300DCZ		Bore: ø25 mm \| Mounting: Foot \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55L25-300DCZ		Bore: ø25 mm \| Mounting: Foot \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55L25-300DGZ		Bore: ø25 mm \| Mounting: Foot \| Stroke: 300 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55F25-5DCZ		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55F25-5DCZ		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55F25-5DGZ		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 5 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55F25-10DCZ		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55F25-10DCZ		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55F25-10DGZ		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 10 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55F25-15DCZ		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55F25-15DCZ		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55F25-15DGZ		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 15 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55F25-20DCZ		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55F25-20DCZ		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55F25-20DGZ		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55F25-25DCZ		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55F25-25DCZ		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55F25-25DGZ		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55F25-30DCZ		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55F25-30DCZ		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55F25-30DGZ		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55F25-35DCZ		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55F25-35DCZ		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55F25-35DGZ		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 35 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55F25-40DCZ		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55F25-40DCZ		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55F25-40DGZ		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55F25-45DCZ		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55F25-45DCZ		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55F25-45DGZ		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 45 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55F25-50DCZ		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55F25-50DCZ		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55F25-50DGZ		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55F25-60DCZ		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55F25-60DCZ		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55F25-60DGZ		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 60 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55F25-80DCZ		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55F25-80DCZ		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55F25-80DGZ		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 80 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55F25-100DCZ		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55F25-100DCZ		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55F25-100DGZ		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55F25-125DCZ		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55F25-125DCZ		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55F25-125DGZ		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55F25-150DCZ		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55F25-150DCZ		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55F25-150DGZ		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55F25-175DCZ		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55F25-175DCZ		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55F25-175DGZ		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55F25-200DCZ		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55F25-200DCZ		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55F25-200DGZ		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55F25-250DCZ		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55F25-250DCZ		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55F25-250DGZ		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 250 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55F25-300DCZ		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55F25-300DCZ		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55F25-300DGZ		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 300 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55G25-5DCZ		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55G25-5DCZ		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55G25-5DGZ		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 5 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55G25-10DCZ		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55G25-10DCZ		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55G25-10DGZ		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 10 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55G25-15DCZ		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55G25-15DCZ		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55G25-15DGZ		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 15 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55G25-20DCZ		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55G25-20DCZ		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55G25-20DGZ		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 20 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55G25-25DCZ		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55G25-25DCZ		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55G25-25DGZ		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 25 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55G25-30DCZ		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55G25-30DCZ		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55G25-30DGZ		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 30 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55G25-35DCZ		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55G25-35DCZ		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55G25-35DGZ		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 35 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55G25-40DCZ		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55G25-40DCZ		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55G25-40DGZ		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 40 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55G25-45DCZ		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55G25-45DCZ		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55G25-45DGZ		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 45 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55G25-50DCZ		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55G25-50DCZ		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55G25-50DGZ		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 50 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55G25-60DCZ		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55G25-60DCZ		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55G25-60DGZ		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 60 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55G25-80DCZ		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55G25-80DCZ		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55G25-80DGZ		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 80 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55G25-100DCZ		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55G25-100DCZ		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55G25-100DGZ		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 100 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55G25-125DCZ		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55G25-125DCZ		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55G25-125DGZ		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 125 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55G25-150DCZ		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55G25-150DCZ		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55G25-150DGZ		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 150 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55G25-175DCZ		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55G25-175DCZ		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55G25-175DGZ		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 175 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55G25-200DCZ		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55G25-200DCZ		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55G25-200DGZ		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 200 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55G25-250DCZ		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55G25-250DCZ		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55G25-250DGZ		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 250 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55G25-300DCZ		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55G25-300DCZ		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55G25-300DGZ		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 300 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55C25-5DCZ		Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55C25-5DCZ		Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55C25-5DGZ		Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 5 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55C25-10DCZ		Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55C25-10DCZ		Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55C25-10DGZ		Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 10 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55C25-15DCZ		Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55C25-15DCZ		Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55C25-15DGZ		Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 15 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55C25-20DCZ		Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55C25-20DCZ		Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55C25-20DGZ		Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 20 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55C25-25DCZ		Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55C25-25DCZ		Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55C25-25DGZ		Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 25 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55C25-30DCZ		Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55C25-30DCZ		Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55C25-30DGZ		Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 30 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55C25-35DCZ		Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55C25-35DCZ		Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55C25-35DGZ		Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 35 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55C25-40DCZ		Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55C25-40DCZ		Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55C25-40DGZ		Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 40 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55C25-45DCZ		Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55C25-45DCZ		Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55C25-45DGZ		Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 45 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55C25-50DCZ		Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55C25-50DCZ		Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55C25-50DGZ		Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 50 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55C25-60DCZ		Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55C25-60DCZ		Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55C25-60DGZ		Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 60 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55C25-80DCZ		Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55C25-80DCZ		Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55C25-80DGZ		Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 80 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55C25-100DCZ		Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55C25-100DCZ		Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55C25-100DGZ		Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 100 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55C25-125DCZ		Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55C25-125DCZ		Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55C25-125DGZ		Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 125 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55C25-150DCZ		Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55C25-150DCZ		Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55C25-150DGZ		Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 150 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55C25-175DCZ		Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55C25-175DCZ		Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55C25-175DGZ		Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 175 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55C25-200DCZ		Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55C25-200DCZ		Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55C25-200DGZ		Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 200 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55C25-250DCZ		Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55C25-250DCZ		Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55C25-250DGZ		Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 250 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55C25-300DCZ		Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
CD55C25-300DCZ		Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
CD55C25-300DGZ		Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 300 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
C55B32-5DCZ		Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55B32-5DCZ		Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55B32-5DGZ		Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 5 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55B32-10DCZ		Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55B32-10DCZ		Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55B32-10DGZ		Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 10 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55B32-15DCZ		Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55B32-15DCZ		Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55B32-15DGZ		Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 15 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55B32-20DCZ		Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55B32-20DCZ		Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55B32-20DGZ		Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 20 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55B32-25DCZ		Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55B32-25DCZ		Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55B32-25DGZ		Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 25 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55B32-30DCZ		Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55B32-30DCZ		Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55B32-30DGZ		Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 30 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55B32-35DCZ		Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55B32-35DCZ		Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55B32-35DGZ		Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 35 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55B32-40DCZ		Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55B32-40DCZ		Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55B32-40DGZ		Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 40 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55B32-45DCZ		Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55B32-45DCZ		Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55B32-45DGZ		Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 45 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55B32-50DCZ		Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55B32-50DCZ		Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55B32-50DGZ		Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 50 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55B32-60DCZ		Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55B32-60DCZ		Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55B32-60DGZ		Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 60 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55B32-80DCZ		Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55B32-80DCZ		Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55B32-80DGZ		Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 80 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55B32-100DCZ		Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55B32-100DCZ		Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55B32-100DGZ		Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 100 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55B32-125DCZ		Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55B32-125DCZ		Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55B32-125DGZ		Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 125 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55B32-150DCZ		Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55B32-150DCZ		Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55B32-150DGZ		Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 150 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55B32-175DCZ		Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55B32-175DCZ		Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55B32-175DGZ		Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 175 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55B32-200DCZ		Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55B32-200DCZ		Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55B32-200DGZ		Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 200 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55B32-250DCZ		Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55B32-250DCZ		Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55B32-250DGZ		Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 250 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55B32-300DCZ		Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55B32-300DCZ		Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55B32-300DGZ		Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 300 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55L32-5DCZ		Bore: ø32 mm \| Mounting: Foot \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55L32-5DCZ		Bore: ø32 mm \| Mounting: Foot \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55L32-5DGZ		Bore: ø32 mm \| Mounting: Foot \| Stroke: 5 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55L32-10DCZ		Bore: ø32 mm \| Mounting: Foot \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55L32-10DCZ		Bore: ø32 mm \| Mounting: Foot \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55L32-10DGZ		Bore: ø32 mm \| Mounting: Foot \| Stroke: 10 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55L32-15DCZ		Bore: ø32 mm \| Mounting: Foot \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55L32-15DCZ		Bore: ø32 mm \| Mounting: Foot \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55L32-15DGZ		Bore: ø32 mm \| Mounting: Foot \| Stroke: 15 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55L32-20DCZ		Bore: ø32 mm \| Mounting: Foot \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55L32-20DCZ		Bore: ø32 mm \| Mounting: Foot \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55L32-20DGZ		Bore: ø32 mm \| Mounting: Foot \| Stroke: 20 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55L32-25DCZ		Bore: ø32 mm \| Mounting: Foot \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55L32-25DCZ		Bore: ø32 mm \| Mounting: Foot \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55L32-25DGZ		Bore: ø32 mm \| Mounting: Foot \| Stroke: 25 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55L32-30DCZ		Bore: ø32 mm \| Mounting: Foot \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55L32-30DCZ		Bore: ø32 mm \| Mounting: Foot \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55L32-30DGZ		Bore: ø32 mm \| Mounting: Foot \| Stroke: 30 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55L32-35DCZ		Bore: ø32 mm \| Mounting: Foot \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55L32-35DCZ		Bore: ø32 mm \| Mounting: Foot \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55L32-35DGZ		Bore: ø32 mm \| Mounting: Foot \| Stroke: 35 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55L32-40DCZ		Bore: ø32 mm \| Mounting: Foot \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55L32-40DCZ		Bore: ø32 mm \| Mounting: Foot \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55L32-40DGZ		Bore: ø32 mm \| Mounting: Foot \| Stroke: 40 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55L32-45DCZ		Bore: ø32 mm \| Mounting: Foot \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55L32-45DCZ		Bore: ø32 mm \| Mounting: Foot \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55L32-45DGZ		Bore: ø32 mm \| Mounting: Foot \| Stroke: 45 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55L32-50DCZ		Bore: ø32 mm \| Mounting: Foot \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55L32-50DCZ		Bore: ø32 mm \| Mounting: Foot \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55L32-50DGZ		Bore: ø32 mm \| Mounting: Foot \| Stroke: 50 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55L32-60DCZ		Bore: ø32 mm \| Mounting: Foot \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55L32-60DCZ		Bore: ø32 mm \| Mounting: Foot \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55L32-60DGZ		Bore: ø32 mm \| Mounting: Foot \| Stroke: 60 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55L32-80DCZ		Bore: ø32 mm \| Mounting: Foot \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55L32-80DCZ		Bore: ø32 mm \| Mounting: Foot \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55L32-80DGZ		Bore: ø32 mm \| Mounting: Foot \| Stroke: 80 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55L32-100DCZ		Bore: ø32 mm \| Mounting: Foot \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55L32-100DCZ		Bore: ø32 mm \| Mounting: Foot \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55L32-100DGZ		Bore: ø32 mm \| Mounting: Foot \| Stroke: 100 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55L32-125DCZ		Bore: ø32 mm \| Mounting: Foot \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55L32-125DCZ		Bore: ø32 mm \| Mounting: Foot \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55L32-125DGZ		Bore: ø32 mm \| Mounting: Foot \| Stroke: 125 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55L32-150DCZ		Bore: ø32 mm \| Mounting: Foot \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55L32-150DCZ		Bore: ø32 mm \| Mounting: Foot \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55L32-150DGZ		Bore: ø32 mm \| Mounting: Foot \| Stroke: 150 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55L32-175DCZ		Bore: ø32 mm \| Mounting: Foot \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55L32-175DCZ		Bore: ø32 mm \| Mounting: Foot \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55L32-175DGZ		Bore: ø32 mm \| Mounting: Foot \| Stroke: 175 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55L32-200DCZ		Bore: ø32 mm \| Mounting: Foot \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55L32-200DCZ		Bore: ø32 mm \| Mounting: Foot \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55L32-200DGZ		Bore: ø32 mm \| Mounting: Foot \| Stroke: 200 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55L32-250DCZ		Bore: ø32 mm \| Mounting: Foot \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55L32-250DCZ		Bore: ø32 mm \| Mounting: Foot \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55L32-250DGZ		Bore: ø32 mm \| Mounting: Foot \| Stroke: 250 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55L32-300DCZ		Bore: ø32 mm \| Mounting: Foot \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55L32-300DCZ		Bore: ø32 mm \| Mounting: Foot \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55L32-300DGZ		Bore: ø32 mm \| Mounting: Foot \| Stroke: 300 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55F32-5DCZ		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55F32-5DCZ		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55F32-5DGZ		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 5 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55F32-10DCZ		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55F32-10DCZ		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55F32-10DGZ		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 10 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55F32-15DCZ		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55F32-15DCZ		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55F32-15DGZ		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 15 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55F32-20DCZ		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55F32-20DCZ		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55F32-20DGZ		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55F32-25DCZ		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55F32-25DCZ		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55F32-25DGZ		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55F32-30DCZ		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55F32-30DCZ		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55F32-30DGZ		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55F32-35DCZ		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55F32-35DCZ		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55F32-35DGZ		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 35 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55F32-40DCZ		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55F32-40DCZ		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55F32-40DGZ		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55F32-45DCZ		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55F32-45DCZ		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55F32-45DGZ		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 45 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55F32-50DCZ		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55F32-50DCZ		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55F32-50DGZ		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55F32-60DCZ		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55F32-60DCZ		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55F32-60DGZ		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 60 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55F32-80DCZ		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55F32-80DCZ		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55F32-80DGZ		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 80 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55F32-100DCZ		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55F32-100DCZ		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55F32-100DGZ		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55F32-125DCZ		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55F32-125DCZ		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55F32-125DGZ		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55F32-150DCZ		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55F32-150DCZ		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55F32-150DGZ		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55F32-175DCZ		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55F32-175DCZ		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55F32-175DGZ		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55F32-200DCZ		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55F32-200DCZ		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55F32-200DGZ		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55F32-250DCZ		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55F32-250DCZ		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55F32-250DGZ		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 250 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55F32-300DCZ		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55F32-300DCZ		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55F32-300DGZ		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 300 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55G32-5DCZ		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55G32-5DCZ		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55G32-5DGZ		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 5 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55G32-10DCZ		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55G32-10DCZ		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55G32-10DGZ		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 10 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55G32-15DCZ		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55G32-15DCZ		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55G32-15DGZ		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 15 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55G32-20DCZ		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55G32-20DCZ		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55G32-20DGZ		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 20 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55G32-25DCZ		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55G32-25DCZ		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55G32-25DGZ		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 25 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55G32-30DCZ		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55G32-30DCZ		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55G32-30DGZ		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 30 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55G32-35DCZ		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55G32-35DCZ		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55G32-35DGZ		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 35 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55G32-40DCZ		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55G32-40DCZ		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55G32-40DGZ		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 40 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55G32-45DCZ		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55G32-45DCZ		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55G32-45DGZ		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 45 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55G32-50DCZ		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55G32-50DCZ		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55G32-50DGZ		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 50 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55G32-60DCZ		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55G32-60DCZ		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55G32-60DGZ		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 60 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55G32-80DCZ		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55G32-80DCZ		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55G32-80DGZ		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 80 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55G32-100DCZ		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55G32-100DCZ		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55G32-100DGZ		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 100 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55G32-125DCZ		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55G32-125DCZ		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55G32-125DGZ		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 125 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55G32-150DCZ		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55G32-150DCZ		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55G32-150DGZ		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 150 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55G32-175DCZ		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55G32-175DCZ		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55G32-175DGZ		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 175 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55G32-200DCZ		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55G32-200DCZ		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55G32-200DGZ		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 200 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55G32-250DCZ		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55G32-250DCZ		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55G32-250DGZ		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 250 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55G32-300DCZ		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55G32-300DCZ		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55G32-300DGZ		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 300 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55C32-5DCZ		Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55C32-5DCZ		Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55C32-5DGZ		Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 5 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55C32-10DCZ		Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55C32-10DCZ		Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55C32-10DGZ		Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 10 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55C32-15DCZ		Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55C32-15DCZ		Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55C32-15DGZ		Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 15 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55C32-20DCZ		Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55C32-20DCZ		Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55C32-20DGZ		Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 20 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55C32-25DCZ		Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55C32-25DCZ		Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55C32-25DGZ		Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 25 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55C32-30DCZ		Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55C32-30DCZ		Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55C32-30DGZ		Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 30 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55C32-35DCZ		Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55C32-35DCZ		Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55C32-35DGZ		Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 35 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55C32-40DCZ		Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55C32-40DCZ		Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55C32-40DGZ		Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 40 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55C32-45DCZ		Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55C32-45DCZ		Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55C32-45DGZ		Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 45 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55C32-50DCZ		Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55C32-50DCZ		Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55C32-50DGZ		Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 50 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55C32-60DCZ		Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55C32-60DCZ		Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55C32-60DGZ		Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 60 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55C32-80DCZ		Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55C32-80DCZ		Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55C32-80DGZ		Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 80 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55C32-100DCZ		Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55C32-100DCZ		Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55C32-100DGZ		Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 100 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55C32-125DCZ		Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55C32-125DCZ		Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55C32-125DGZ		Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 125 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55C32-150DCZ		Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55C32-150DCZ		Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55C32-150DGZ		Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 150 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55C32-175DCZ		Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55C32-175DCZ		Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55C32-175DGZ		Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 175 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55C32-200DCZ		Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55C32-200DCZ		Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55C32-200DGZ		Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 200 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55C32-250DCZ		Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55C32-250DCZ		Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55C32-250DGZ		Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 250 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55C32-300DCZ		Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55C32-300DCZ		Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55C32-300DGZ		Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 300 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55B40-5DCZ		Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55B40-5DCZ		Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55B40-5DGZ		Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 5 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55B40-10DCZ		Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55B40-10DCZ		Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55B40-10DGZ		Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 10 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55B40-15DCZ		Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55B40-15DCZ		Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55B40-15DGZ		Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 15 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55B40-20DCZ		Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55B40-20DCZ		Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55B40-20DGZ		Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 20 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55B40-25DCZ		Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55B40-25DCZ		Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55B40-25DGZ		Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 25 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55B40-30DCZ		Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55B40-30DCZ		Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55B40-30DGZ		Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 30 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55B40-35DCZ		Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55B40-35DCZ		Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55B40-35DGZ		Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 35 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55B40-40DCZ		Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55B40-40DCZ		Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55B40-40DGZ		Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 40 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55B40-45DCZ		Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55B40-45DCZ		Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55B40-45DGZ		Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 45 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55B40-50DCZ		Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55B40-50DCZ		Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55B40-50DGZ		Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 50 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55B40-60DCZ		Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55B40-60DCZ		Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55B40-60DGZ		Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 60 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55B40-80DCZ		Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55B40-80DCZ		Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55B40-80DGZ		Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 80 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55B40-100DCZ		Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55B40-100DCZ		Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55B40-100DGZ		Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 100 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55B40-125DCZ		Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55B40-125DCZ		Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55B40-125DGZ		Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 125 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55B40-150DCZ		Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55B40-150DCZ		Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55B40-150DGZ		Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 150 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55B40-175DCZ		Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55B40-175DCZ		Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55B40-175DGZ		Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 175 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55B40-200DCZ		Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55B40-200DCZ		Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55B40-200DGZ		Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 200 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55B40-250DCZ		Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55B40-250DCZ		Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55B40-250DGZ		Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 250 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55B40-300DCZ		Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55B40-300DCZ		Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55B40-300DGZ		Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 300 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55L40-5DCZ		Bore: ø40 mm \| Mounting: Foot \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55L40-5DCZ		Bore: ø40 mm \| Mounting: Foot \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55L40-5DGZ		Bore: ø40 mm \| Mounting: Foot \| Stroke: 5 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55L40-10DCZ		Bore: ø40 mm \| Mounting: Foot \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55L40-10DCZ		Bore: ø40 mm \| Mounting: Foot \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55L40-10DGZ		Bore: ø40 mm \| Mounting: Foot \| Stroke: 10 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55L40-15DCZ		Bore: ø40 mm \| Mounting: Foot \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55L40-15DCZ		Bore: ø40 mm \| Mounting: Foot \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55L40-15DGZ		Bore: ø40 mm \| Mounting: Foot \| Stroke: 15 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55L40-20DCZ		Bore: ø40 mm \| Mounting: Foot \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55L40-20DCZ		Bore: ø40 mm \| Mounting: Foot \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55L40-20DGZ		Bore: ø40 mm \| Mounting: Foot \| Stroke: 20 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55L40-25DCZ		Bore: ø40 mm \| Mounting: Foot \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55L40-25DCZ		Bore: ø40 mm \| Mounting: Foot \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55L40-25DGZ		Bore: ø40 mm \| Mounting: Foot \| Stroke: 25 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55L40-30DCZ		Bore: ø40 mm \| Mounting: Foot \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55L40-30DCZ		Bore: ø40 mm \| Mounting: Foot \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55L40-30DGZ		Bore: ø40 mm \| Mounting: Foot \| Stroke: 30 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55L40-35DCZ		Bore: ø40 mm \| Mounting: Foot \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55L40-35DCZ		Bore: ø40 mm \| Mounting: Foot \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55L40-35DGZ		Bore: ø40 mm \| Mounting: Foot \| Stroke: 35 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55L40-40DCZ		Bore: ø40 mm \| Mounting: Foot \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55L40-40DCZ		Bore: ø40 mm \| Mounting: Foot \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55L40-40DGZ		Bore: ø40 mm \| Mounting: Foot \| Stroke: 40 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55L40-45DCZ		Bore: ø40 mm \| Mounting: Foot \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55L40-45DCZ		Bore: ø40 mm \| Mounting: Foot \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55L40-45DGZ		Bore: ø40 mm \| Mounting: Foot \| Stroke: 45 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55L40-50DCZ		Bore: ø40 mm \| Mounting: Foot \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55L40-50DCZ		Bore: ø40 mm \| Mounting: Foot \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55L40-50DGZ		Bore: ø40 mm \| Mounting: Foot \| Stroke: 50 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55L40-60DCZ		Bore: ø40 mm \| Mounting: Foot \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55L40-60DCZ		Bore: ø40 mm \| Mounting: Foot \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55L40-60DGZ		Bore: ø40 mm \| Mounting: Foot \| Stroke: 60 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55L40-80DCZ		Bore: ø40 mm \| Mounting: Foot \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55L40-80DCZ		Bore: ø40 mm \| Mounting: Foot \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55L40-80DGZ		Bore: ø40 mm \| Mounting: Foot \| Stroke: 80 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55L40-100DCZ		Bore: ø40 mm \| Mounting: Foot \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55L40-100DCZ		Bore: ø40 mm \| Mounting: Foot \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55L40-100DGZ		Bore: ø40 mm \| Mounting: Foot \| Stroke: 100 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55L40-125DCZ		Bore: ø40 mm \| Mounting: Foot \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55L40-125DCZ		Bore: ø40 mm \| Mounting: Foot \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55L40-125DGZ		Bore: ø40 mm \| Mounting: Foot \| Stroke: 125 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55L40-150DCZ		Bore: ø40 mm \| Mounting: Foot \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55L40-150DCZ		Bore: ø40 mm \| Mounting: Foot \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55L40-150DGZ		Bore: ø40 mm \| Mounting: Foot \| Stroke: 150 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55L40-175DCZ		Bore: ø40 mm \| Mounting: Foot \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55L40-175DCZ		Bore: ø40 mm \| Mounting: Foot \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55L40-175DGZ		Bore: ø40 mm \| Mounting: Foot \| Stroke: 175 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55L40-200DCZ		Bore: ø40 mm \| Mounting: Foot \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55L40-200DCZ		Bore: ø40 mm \| Mounting: Foot \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55L40-200DGZ		Bore: ø40 mm \| Mounting: Foot \| Stroke: 200 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55L40-250DCZ		Bore: ø40 mm \| Mounting: Foot \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55L40-250DCZ		Bore: ø40 mm \| Mounting: Foot \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55L40-250DGZ		Bore: ø40 mm \| Mounting: Foot \| Stroke: 250 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55L40-300DCZ		Bore: ø40 mm \| Mounting: Foot \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55L40-300DCZ		Bore: ø40 mm \| Mounting: Foot \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55L40-300DGZ		Bore: ø40 mm \| Mounting: Foot \| Stroke: 300 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55F40-5DCZ		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55F40-5DCZ		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55F40-5DGZ		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 5 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55F40-10DCZ		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55F40-10DCZ		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55F40-10DGZ		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 10 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55F40-15DCZ		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55F40-15DCZ		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55F40-15DGZ		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 15 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55F40-20DCZ		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55F40-20DCZ		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55F40-20DGZ		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55F40-25DCZ		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55F40-25DCZ		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55F40-25DGZ		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55F40-30DCZ		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55F40-30DCZ		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55F40-30DGZ		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55F40-35DCZ		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55F40-35DCZ		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55F40-35DGZ		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 35 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55F40-40DCZ		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55F40-40DCZ		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55F40-40DGZ		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55F40-45DCZ		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55F40-45DCZ		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55F40-45DGZ		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 45 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55F40-50DCZ		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55F40-50DCZ		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55F40-50DGZ		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55F40-60DCZ		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55F40-60DCZ		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55F40-60DGZ		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 60 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55F40-80DCZ		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55F40-80DCZ		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55F40-80DGZ		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 80 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55F40-100DCZ		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55F40-100DCZ		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55F40-100DGZ		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55F40-125DCZ		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55F40-125DCZ		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55F40-125DGZ		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55F40-150DCZ		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55F40-150DCZ		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55F40-150DGZ		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55F40-175DCZ		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55F40-175DCZ		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55F40-175DGZ		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55F40-200DCZ		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55F40-200DCZ		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55F40-200DGZ		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55F40-250DCZ		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55F40-250DCZ		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55F40-250DGZ		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 250 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55F40-300DCZ		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55F40-300DCZ		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55F40-300DGZ		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 300 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55G40-5DCZ		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55G40-5DCZ		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55G40-5DGZ		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 5 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55G40-10DCZ		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55G40-10DCZ		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55G40-10DGZ		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 10 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55G40-15DCZ		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55G40-15DCZ		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55G40-15DGZ		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 15 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55G40-20DCZ		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55G40-20DCZ		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55G40-20DGZ		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 20 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55G40-25DCZ		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55G40-25DCZ		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55G40-25DGZ		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 25 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55G40-30DCZ		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55G40-30DCZ		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55G40-30DGZ		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 30 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55G40-35DCZ		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55G40-35DCZ		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55G40-35DGZ		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 35 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55G40-40DCZ		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55G40-40DCZ		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55G40-40DGZ		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 40 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55G40-45DCZ		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55G40-45DCZ		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55G40-45DGZ		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 45 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55G40-50DCZ		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55G40-50DCZ		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55G40-50DGZ		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 50 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55G40-60DCZ		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55G40-60DCZ		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55G40-60DGZ		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 60 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55G40-80DCZ		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55G40-80DCZ		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55G40-80DGZ		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 80 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55G40-100DCZ		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55G40-100DCZ		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55G40-100DGZ		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 100 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55G40-125DCZ		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55G40-125DCZ		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55G40-125DGZ		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 125 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55G40-150DCZ		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55G40-150DCZ		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55G40-150DGZ		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 150 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55G40-175DCZ		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55G40-175DCZ		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55G40-175DGZ		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 175 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55G40-200DCZ		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55G40-200DCZ		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55G40-200DGZ		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 200 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55G40-250DCZ		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55G40-250DCZ		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55G40-250DGZ		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 250 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55G40-300DCZ		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55G40-300DCZ		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55G40-300DGZ		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 300 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55C40-5DCZ		Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55C40-5DCZ		Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55C40-5DGZ		Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 5 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55C40-10DCZ		Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55C40-10DCZ		Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55C40-10DGZ		Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 10 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55C40-15DCZ		Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55C40-15DCZ		Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55C40-15DGZ		Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 15 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55C40-20DCZ		Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55C40-20DCZ		Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55C40-20DGZ		Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 20 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55C40-25DCZ		Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55C40-25DCZ		Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55C40-25DGZ		Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 25 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55C40-30DCZ		Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55C40-30DCZ		Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55C40-30DGZ		Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 30 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55C40-35DCZ		Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55C40-35DCZ		Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55C40-35DGZ		Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 35 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55C40-40DCZ		Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55C40-40DCZ		Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55C40-40DGZ		Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 40 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55C40-45DCZ		Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55C40-45DCZ		Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55C40-45DGZ		Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 45 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55C40-50DCZ		Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55C40-50DCZ		Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55C40-50DGZ		Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 50 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55C40-60DCZ		Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55C40-60DCZ		Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55C40-60DGZ		Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 60 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55C40-80DCZ		Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55C40-80DCZ		Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55C40-80DGZ		Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 80 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55C40-100DCZ		Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55C40-100DCZ		Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55C40-100DGZ		Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 100 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55C40-125DCZ		Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55C40-125DCZ		Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55C40-125DGZ		Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 125 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55C40-150DCZ		Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55C40-150DCZ		Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55C40-150DGZ		Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 150 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55C40-175DCZ		Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55C40-175DCZ		Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55C40-175DGZ		Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 175 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55C40-200DCZ		Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55C40-200DCZ		Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55C40-200DGZ		Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 200 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55C40-250DCZ		Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55C40-250DCZ		Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55C40-250DGZ		Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 250 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
C55C40-300DCZ		Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
CD55C40-300DCZ		Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
CD55C40-300DGZ		Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 300 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8

Compact CylindersSMC

1192 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC C55 ISO 21287 Compact Cylinder (Single Rod, ø12 to ø40)

Brand SMC·Compact Cylinders

Available part numbers (1192)

C55B12-5DCZ, CD55B12-5DCZ, C55B12-10DCZ, CD55B12-10DCZ, C55B12-15DCZ, CD55B12-15DCZ, C55B12-20DCZ, CD55B12-20DCZ, C55B12-25DCZ, CD55B12-25DCZ + 1182 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	C55B12-5DCZ	Bore: ø12 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55B12-5DCZ	Bore: ø12 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	C55B12-10DCZ	Bore: ø12 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55B12-10DCZ	Bore: ø12 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	C55B12-15DCZ	Bore: ø12 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55B12-15DCZ	Bore: ø12 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	C55B12-20DCZ	Bore: ø12 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55B12-20DCZ	Bore: ø12 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	C55B12-25DCZ	Bore: ø12 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55B12-25DCZ	Bore: ø12 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	C55B12-30DCZ	Bore: ø12 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55B12-30DCZ	Bore: ø12 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	C55B12-35DCZ	Bore: ø12 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55B12-35DCZ	Bore: ø12 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	C55B12-40DCZ	Bore: ø12 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55B12-40DCZ	Bore: ø12 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	C55B12-45DCZ	Bore: ø12 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55B12-45DCZ	Bore: ø12 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	C55B12-50DCZ	Bore: ø12 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55B12-50DCZ	Bore: ø12 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	C55B12-60DCZ	Bore: ø12 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55B12-60DCZ	Bore: ø12 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	C55B12-80DCZ	Bore: ø12 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55B12-80DCZ	Bore: ø12 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	C55B12-100DCZ	Bore: ø12 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55B12-100DCZ	Bore: ø12 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	C55B16-5DCZ	Bore: ø16 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55B16-5DCZ	Bore: ø16 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	C55B16-10DCZ	Bore: ø16 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55B16-10DCZ	Bore: ø16 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	C55B16-15DCZ	Bore: ø16 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55B16-15DCZ	Bore: ø16 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	C55B16-20DCZ	Bore: ø16 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55B16-20DCZ	Bore: ø16 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	C55B16-25DCZ	Bore: ø16 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55B16-25DCZ	Bore: ø16 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	C55B16-30DCZ	Bore: ø16 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55B16-30DCZ	Bore: ø16 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	C55B16-35DCZ	Bore: ø16 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55B16-35DCZ	Bore: ø16 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	C55B16-40DCZ	Bore: ø16 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55B16-40DCZ	Bore: ø16 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	C55B16-45DCZ	Bore: ø16 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55B16-45DCZ	Bore: ø16 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	C55B16-50DCZ	Bore: ø16 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55B16-50DCZ	Bore: ø16 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	C55B16-60DCZ	Bore: ø16 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55B16-60DCZ	Bore: ø16 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	C55B16-80DCZ	Bore: ø16 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55B16-80DCZ	Bore: ø16 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	C55B16-100DCZ	Bore: ø16 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55B16-100DCZ	Bore: ø16 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	C55B20-5DCZ	Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55B20-5DCZ	Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55B20-5DGZ	Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 5 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55B20-10DCZ	Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55B20-10DCZ	Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55B20-10DGZ	Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 10 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55B20-15DCZ	Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55B20-15DCZ	Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55B20-15DGZ	Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 15 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55B20-20DCZ	Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55B20-20DCZ	Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55B20-20DGZ	Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 20 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55B20-25DCZ	Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55B20-25DCZ	Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55B20-25DGZ	Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 25 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55B20-30DCZ	Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55B20-30DCZ	Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55B20-30DGZ	Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 30 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55B20-35DCZ	Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55B20-35DCZ	Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55B20-35DGZ	Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 35 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55B20-40DCZ	Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55B20-40DCZ	Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55B20-40DGZ	Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 40 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55B20-45DCZ	Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55B20-45DCZ	Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55B20-45DGZ	Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 45 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55B20-50DCZ	Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55B20-50DCZ	Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55B20-50DGZ	Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 50 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55B20-60DCZ	Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55B20-60DCZ	Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55B20-60DGZ	Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 60 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55B20-80DCZ	Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55B20-80DCZ	Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55B20-80DGZ	Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 80 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55B20-100DCZ	Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55B20-100DCZ	Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55B20-100DGZ	Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 100 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55B20-125DCZ	Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55B20-125DCZ	Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55B20-125DGZ	Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 125 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55B20-150DCZ	Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55B20-150DCZ	Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55B20-150DGZ	Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 150 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55B20-175DCZ	Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55B20-175DCZ	Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55B20-175DGZ	Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 175 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55B20-200DCZ	Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55B20-200DCZ	Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55B20-200DGZ	Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 200 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55B20-250DCZ	Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55B20-250DCZ	Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55B20-250DGZ	Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 250 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55B20-300DCZ	Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55B20-300DCZ	Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55B20-300DGZ	Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 300 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55L20-5DCZ	Bore: ø20 mm \| Mounting: Foot \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55L20-5DCZ	Bore: ø20 mm \| Mounting: Foot \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55L20-5DGZ	Bore: ø20 mm \| Mounting: Foot \| Stroke: 5 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55L20-10DCZ	Bore: ø20 mm \| Mounting: Foot \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55L20-10DCZ	Bore: ø20 mm \| Mounting: Foot \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55L20-10DGZ	Bore: ø20 mm \| Mounting: Foot \| Stroke: 10 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55L20-15DCZ	Bore: ø20 mm \| Mounting: Foot \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55L20-15DCZ	Bore: ø20 mm \| Mounting: Foot \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55L20-15DGZ	Bore: ø20 mm \| Mounting: Foot \| Stroke: 15 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55L20-20DCZ	Bore: ø20 mm \| Mounting: Foot \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55L20-20DCZ	Bore: ø20 mm \| Mounting: Foot \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55L20-20DGZ	Bore: ø20 mm \| Mounting: Foot \| Stroke: 20 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55L20-25DCZ	Bore: ø20 mm \| Mounting: Foot \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55L20-25DCZ	Bore: ø20 mm \| Mounting: Foot \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55L20-25DGZ	Bore: ø20 mm \| Mounting: Foot \| Stroke: 25 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55L20-30DCZ	Bore: ø20 mm \| Mounting: Foot \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55L20-30DCZ	Bore: ø20 mm \| Mounting: Foot \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55L20-30DGZ	Bore: ø20 mm \| Mounting: Foot \| Stroke: 30 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55L20-35DCZ	Bore: ø20 mm \| Mounting: Foot \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55L20-35DCZ	Bore: ø20 mm \| Mounting: Foot \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55L20-35DGZ	Bore: ø20 mm \| Mounting: Foot \| Stroke: 35 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55L20-40DCZ	Bore: ø20 mm \| Mounting: Foot \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55L20-40DCZ	Bore: ø20 mm \| Mounting: Foot \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55L20-40DGZ	Bore: ø20 mm \| Mounting: Foot \| Stroke: 40 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55L20-45DCZ	Bore: ø20 mm \| Mounting: Foot \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55L20-45DCZ	Bore: ø20 mm \| Mounting: Foot \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55L20-45DGZ	Bore: ø20 mm \| Mounting: Foot \| Stroke: 45 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55L20-50DCZ	Bore: ø20 mm \| Mounting: Foot \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55L20-50DCZ	Bore: ø20 mm \| Mounting: Foot \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55L20-50DGZ	Bore: ø20 mm \| Mounting: Foot \| Stroke: 50 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55L20-60DCZ	Bore: ø20 mm \| Mounting: Foot \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55L20-60DCZ	Bore: ø20 mm \| Mounting: Foot \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55L20-60DGZ	Bore: ø20 mm \| Mounting: Foot \| Stroke: 60 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55L20-80DCZ	Bore: ø20 mm \| Mounting: Foot \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55L20-80DCZ	Bore: ø20 mm \| Mounting: Foot \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55L20-80DGZ	Bore: ø20 mm \| Mounting: Foot \| Stroke: 80 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55L20-100DCZ	Bore: ø20 mm \| Mounting: Foot \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55L20-100DCZ	Bore: ø20 mm \| Mounting: Foot \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55L20-100DGZ	Bore: ø20 mm \| Mounting: Foot \| Stroke: 100 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55L20-125DCZ	Bore: ø20 mm \| Mounting: Foot \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55L20-125DCZ	Bore: ø20 mm \| Mounting: Foot \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55L20-125DGZ	Bore: ø20 mm \| Mounting: Foot \| Stroke: 125 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55L20-150DCZ	Bore: ø20 mm \| Mounting: Foot \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55L20-150DCZ	Bore: ø20 mm \| Mounting: Foot \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55L20-150DGZ	Bore: ø20 mm \| Mounting: Foot \| Stroke: 150 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55L20-175DCZ	Bore: ø20 mm \| Mounting: Foot \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55L20-175DCZ	Bore: ø20 mm \| Mounting: Foot \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55L20-175DGZ	Bore: ø20 mm \| Mounting: Foot \| Stroke: 175 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55L20-200DCZ	Bore: ø20 mm \| Mounting: Foot \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55L20-200DCZ	Bore: ø20 mm \| Mounting: Foot \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55L20-200DGZ	Bore: ø20 mm \| Mounting: Foot \| Stroke: 200 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55L20-250DCZ	Bore: ø20 mm \| Mounting: Foot \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55L20-250DCZ	Bore: ø20 mm \| Mounting: Foot \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55L20-250DGZ	Bore: ø20 mm \| Mounting: Foot \| Stroke: 250 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55L20-300DCZ	Bore: ø20 mm \| Mounting: Foot \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55L20-300DCZ	Bore: ø20 mm \| Mounting: Foot \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55L20-300DGZ	Bore: ø20 mm \| Mounting: Foot \| Stroke: 300 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55F20-5DCZ	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55F20-5DCZ	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55F20-5DGZ	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 5 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55F20-10DCZ	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55F20-10DCZ	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55F20-10DGZ	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 10 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55F20-15DCZ	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55F20-15DCZ	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55F20-15DGZ	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 15 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55F20-20DCZ	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55F20-20DCZ	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55F20-20DGZ	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55F20-25DCZ	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55F20-25DCZ	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55F20-25DGZ	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55F20-30DCZ	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55F20-30DCZ	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55F20-30DGZ	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55F20-35DCZ	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55F20-35DCZ	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55F20-35DGZ	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 35 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55F20-40DCZ	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55F20-40DCZ	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55F20-40DGZ	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55F20-45DCZ	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55F20-45DCZ	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55F20-45DGZ	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 45 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55F20-50DCZ	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55F20-50DCZ	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55F20-50DGZ	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55F20-60DCZ	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55F20-60DCZ	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55F20-60DGZ	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 60 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55F20-80DCZ	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55F20-80DCZ	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55F20-80DGZ	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 80 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55F20-100DCZ	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55F20-100DCZ	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55F20-100DGZ	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55F20-125DCZ	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55F20-125DCZ	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55F20-125DGZ	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55F20-150DCZ	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55F20-150DCZ	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55F20-150DGZ	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55F20-175DCZ	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55F20-175DCZ	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55F20-175DGZ	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55F20-200DCZ	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55F20-200DCZ	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55F20-200DGZ	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55F20-250DCZ	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55F20-250DCZ	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55F20-250DGZ	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 250 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55F20-300DCZ	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55F20-300DCZ	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55F20-300DGZ	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 300 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55G20-5DCZ	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55G20-5DCZ	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55G20-5DGZ	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 5 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55G20-10DCZ	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55G20-10DCZ	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55G20-10DGZ	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 10 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55G20-15DCZ	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55G20-15DCZ	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55G20-15DGZ	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 15 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55G20-20DCZ	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55G20-20DCZ	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55G20-20DGZ	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 20 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55G20-25DCZ	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55G20-25DCZ	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55G20-25DGZ	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 25 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55G20-30DCZ	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55G20-30DCZ	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55G20-30DGZ	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 30 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55G20-35DCZ	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55G20-35DCZ	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55G20-35DGZ	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 35 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55G20-40DCZ	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55G20-40DCZ	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55G20-40DGZ	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 40 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55G20-45DCZ	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55G20-45DCZ	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55G20-45DGZ	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 45 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55G20-50DCZ	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55G20-50DCZ	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55G20-50DGZ	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 50 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55G20-60DCZ	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55G20-60DCZ	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55G20-60DGZ	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 60 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55G20-80DCZ	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55G20-80DCZ	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55G20-80DGZ	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 80 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55G20-100DCZ	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55G20-100DCZ	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55G20-100DGZ	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 100 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55G20-125DCZ	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55G20-125DCZ	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55G20-125DGZ	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 125 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55G20-150DCZ	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55G20-150DCZ	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55G20-150DGZ	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 150 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55G20-175DCZ	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55G20-175DCZ	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55G20-175DGZ	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 175 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55G20-200DCZ	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55G20-200DCZ	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55G20-200DGZ	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 200 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55G20-250DCZ	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55G20-250DCZ	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55G20-250DGZ	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 250 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55G20-300DCZ	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55G20-300DCZ	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55G20-300DGZ	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 300 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55C20-5DCZ	Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55C20-5DCZ	Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55C20-5DGZ	Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 5 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55C20-10DCZ	Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55C20-10DCZ	Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55C20-10DGZ	Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 10 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55C20-15DCZ	Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55C20-15DCZ	Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55C20-15DGZ	Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 15 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55C20-20DCZ	Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55C20-20DCZ	Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55C20-20DGZ	Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 20 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55C20-25DCZ	Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55C20-25DCZ	Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55C20-25DGZ	Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 25 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55C20-30DCZ	Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55C20-30DCZ	Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55C20-30DGZ	Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 30 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55C20-35DCZ	Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55C20-35DCZ	Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55C20-35DGZ	Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 35 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55C20-40DCZ	Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55C20-40DCZ	Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55C20-40DGZ	Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 40 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55C20-45DCZ	Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55C20-45DCZ	Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55C20-45DGZ	Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 45 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55C20-50DCZ	Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55C20-50DCZ	Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55C20-50DGZ	Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 50 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55C20-60DCZ	Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55C20-60DCZ	Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55C20-60DGZ	Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 60 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55C20-80DCZ	Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55C20-80DCZ	Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55C20-80DGZ	Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 80 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55C20-100DCZ	Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55C20-100DCZ	Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55C20-100DGZ	Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 100 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55C20-125DCZ	Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55C20-125DCZ	Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55C20-125DGZ	Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 125 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55C20-150DCZ	Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55C20-150DCZ	Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55C20-150DGZ	Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 150 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55C20-175DCZ	Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55C20-175DCZ	Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55C20-175DGZ	Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 175 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55C20-200DCZ	Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55C20-200DCZ	Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55C20-200DGZ	Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 200 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55C20-250DCZ	Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55C20-250DCZ	Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55C20-250DGZ	Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 250 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55C20-300DCZ	Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55C20-300DCZ	Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55C20-300DGZ	Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 300 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55B25-5DCZ	Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55B25-5DCZ	Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55B25-5DGZ	Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 5 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55B25-10DCZ	Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55B25-10DCZ	Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55B25-10DGZ	Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 10 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55B25-15DCZ	Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55B25-15DCZ	Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55B25-15DGZ	Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 15 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55B25-20DCZ	Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55B25-20DCZ	Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55B25-20DGZ	Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 20 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55B25-25DCZ	Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55B25-25DCZ	Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55B25-25DGZ	Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 25 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55B25-30DCZ	Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55B25-30DCZ	Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55B25-30DGZ	Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 30 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55B25-35DCZ	Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55B25-35DCZ	Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55B25-35DGZ	Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 35 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55B25-40DCZ	Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55B25-40DCZ	Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55B25-40DGZ	Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 40 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55B25-45DCZ	Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55B25-45DCZ	Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55B25-45DGZ	Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 45 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55B25-50DCZ	Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55B25-50DCZ	Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55B25-50DGZ	Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 50 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55B25-60DCZ	Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55B25-60DCZ	Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55B25-60DGZ	Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 60 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55B25-80DCZ	Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55B25-80DCZ	Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55B25-80DGZ	Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 80 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55B25-100DCZ	Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55B25-100DCZ	Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55B25-100DGZ	Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 100 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55B25-125DCZ	Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55B25-125DCZ	Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55B25-125DGZ	Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 125 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55B25-150DCZ	Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55B25-150DCZ	Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55B25-150DGZ	Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 150 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55B25-175DCZ	Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55B25-175DCZ	Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55B25-175DGZ	Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 175 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55B25-200DCZ	Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55B25-200DCZ	Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55B25-200DGZ	Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 200 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55B25-250DCZ	Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55B25-250DCZ	Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55B25-250DGZ	Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 250 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55B25-300DCZ	Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55B25-300DCZ	Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55B25-300DGZ	Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 300 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55L25-5DCZ	Bore: ø25 mm \| Mounting: Foot \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55L25-5DCZ	Bore: ø25 mm \| Mounting: Foot \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55L25-5DGZ	Bore: ø25 mm \| Mounting: Foot \| Stroke: 5 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55L25-10DCZ	Bore: ø25 mm \| Mounting: Foot \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55L25-10DCZ	Bore: ø25 mm \| Mounting: Foot \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55L25-10DGZ	Bore: ø25 mm \| Mounting: Foot \| Stroke: 10 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55L25-15DCZ	Bore: ø25 mm \| Mounting: Foot \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55L25-15DCZ	Bore: ø25 mm \| Mounting: Foot \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55L25-15DGZ	Bore: ø25 mm \| Mounting: Foot \| Stroke: 15 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55L25-20DCZ	Bore: ø25 mm \| Mounting: Foot \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55L25-20DCZ	Bore: ø25 mm \| Mounting: Foot \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55L25-20DGZ	Bore: ø25 mm \| Mounting: Foot \| Stroke: 20 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55L25-25DCZ	Bore: ø25 mm \| Mounting: Foot \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55L25-25DCZ	Bore: ø25 mm \| Mounting: Foot \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55L25-25DGZ	Bore: ø25 mm \| Mounting: Foot \| Stroke: 25 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55L25-30DCZ	Bore: ø25 mm \| Mounting: Foot \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55L25-30DCZ	Bore: ø25 mm \| Mounting: Foot \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55L25-30DGZ	Bore: ø25 mm \| Mounting: Foot \| Stroke: 30 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55L25-35DCZ	Bore: ø25 mm \| Mounting: Foot \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55L25-35DCZ	Bore: ø25 mm \| Mounting: Foot \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55L25-35DGZ	Bore: ø25 mm \| Mounting: Foot \| Stroke: 35 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55L25-40DCZ	Bore: ø25 mm \| Mounting: Foot \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55L25-40DCZ	Bore: ø25 mm \| Mounting: Foot \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55L25-40DGZ	Bore: ø25 mm \| Mounting: Foot \| Stroke: 40 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55L25-45DCZ	Bore: ø25 mm \| Mounting: Foot \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55L25-45DCZ	Bore: ø25 mm \| Mounting: Foot \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55L25-45DGZ	Bore: ø25 mm \| Mounting: Foot \| Stroke: 45 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55L25-50DCZ	Bore: ø25 mm \| Mounting: Foot \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55L25-50DCZ	Bore: ø25 mm \| Mounting: Foot \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55L25-50DGZ	Bore: ø25 mm \| Mounting: Foot \| Stroke: 50 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55L25-60DCZ	Bore: ø25 mm \| Mounting: Foot \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55L25-60DCZ	Bore: ø25 mm \| Mounting: Foot \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55L25-60DGZ	Bore: ø25 mm \| Mounting: Foot \| Stroke: 60 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55L25-80DCZ	Bore: ø25 mm \| Mounting: Foot \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55L25-80DCZ	Bore: ø25 mm \| Mounting: Foot \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55L25-80DGZ	Bore: ø25 mm \| Mounting: Foot \| Stroke: 80 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55L25-100DCZ	Bore: ø25 mm \| Mounting: Foot \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55L25-100DCZ	Bore: ø25 mm \| Mounting: Foot \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55L25-100DGZ	Bore: ø25 mm \| Mounting: Foot \| Stroke: 100 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55L25-125DCZ	Bore: ø25 mm \| Mounting: Foot \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55L25-125DCZ	Bore: ø25 mm \| Mounting: Foot \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55L25-125DGZ	Bore: ø25 mm \| Mounting: Foot \| Stroke: 125 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55L25-150DCZ	Bore: ø25 mm \| Mounting: Foot \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55L25-150DCZ	Bore: ø25 mm \| Mounting: Foot \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55L25-150DGZ	Bore: ø25 mm \| Mounting: Foot \| Stroke: 150 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55L25-175DCZ	Bore: ø25 mm \| Mounting: Foot \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55L25-175DCZ	Bore: ø25 mm \| Mounting: Foot \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55L25-175DGZ	Bore: ø25 mm \| Mounting: Foot \| Stroke: 175 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55L25-200DCZ	Bore: ø25 mm \| Mounting: Foot \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55L25-200DCZ	Bore: ø25 mm \| Mounting: Foot \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55L25-200DGZ	Bore: ø25 mm \| Mounting: Foot \| Stroke: 200 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55L25-250DCZ	Bore: ø25 mm \| Mounting: Foot \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55L25-250DCZ	Bore: ø25 mm \| Mounting: Foot \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55L25-250DGZ	Bore: ø25 mm \| Mounting: Foot \| Stroke: 250 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55L25-300DCZ	Bore: ø25 mm \| Mounting: Foot \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55L25-300DCZ	Bore: ø25 mm \| Mounting: Foot \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55L25-300DGZ	Bore: ø25 mm \| Mounting: Foot \| Stroke: 300 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55F25-5DCZ	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55F25-5DCZ	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55F25-5DGZ	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 5 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55F25-10DCZ	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55F25-10DCZ	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55F25-10DGZ	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 10 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55F25-15DCZ	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55F25-15DCZ	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55F25-15DGZ	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 15 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55F25-20DCZ	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55F25-20DCZ	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55F25-20DGZ	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55F25-25DCZ	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55F25-25DCZ	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55F25-25DGZ	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55F25-30DCZ	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55F25-30DCZ	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55F25-30DGZ	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55F25-35DCZ	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55F25-35DCZ	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55F25-35DGZ	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 35 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55F25-40DCZ	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55F25-40DCZ	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55F25-40DGZ	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55F25-45DCZ	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55F25-45DCZ	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55F25-45DGZ	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 45 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55F25-50DCZ	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55F25-50DCZ	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55F25-50DGZ	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55F25-60DCZ	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55F25-60DCZ	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55F25-60DGZ	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 60 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55F25-80DCZ	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55F25-80DCZ	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55F25-80DGZ	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 80 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55F25-100DCZ	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55F25-100DCZ	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55F25-100DGZ	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55F25-125DCZ	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55F25-125DCZ	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55F25-125DGZ	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55F25-150DCZ	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55F25-150DCZ	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55F25-150DGZ	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55F25-175DCZ	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55F25-175DCZ	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55F25-175DGZ	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55F25-200DCZ	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55F25-200DCZ	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55F25-200DGZ	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55F25-250DCZ	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55F25-250DCZ	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55F25-250DGZ	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 250 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55F25-300DCZ	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55F25-300DCZ	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55F25-300DGZ	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 300 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55G25-5DCZ	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55G25-5DCZ	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55G25-5DGZ	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 5 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55G25-10DCZ	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55G25-10DCZ	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55G25-10DGZ	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 10 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55G25-15DCZ	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55G25-15DCZ	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55G25-15DGZ	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 15 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55G25-20DCZ	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55G25-20DCZ	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55G25-20DGZ	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 20 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55G25-25DCZ	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55G25-25DCZ	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55G25-25DGZ	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 25 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55G25-30DCZ	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55G25-30DCZ	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55G25-30DGZ	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 30 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55G25-35DCZ	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55G25-35DCZ	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55G25-35DGZ	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 35 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55G25-40DCZ	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55G25-40DCZ	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55G25-40DGZ	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 40 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55G25-45DCZ	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55G25-45DCZ	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55G25-45DGZ	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 45 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55G25-50DCZ	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55G25-50DCZ	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55G25-50DGZ	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 50 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55G25-60DCZ	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55G25-60DCZ	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55G25-60DGZ	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 60 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55G25-80DCZ	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55G25-80DCZ	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55G25-80DGZ	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 80 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55G25-100DCZ	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55G25-100DCZ	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55G25-100DGZ	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 100 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55G25-125DCZ	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55G25-125DCZ	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55G25-125DGZ	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 125 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55G25-150DCZ	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55G25-150DCZ	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55G25-150DGZ	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 150 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55G25-175DCZ	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55G25-175DCZ	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55G25-175DGZ	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 175 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55G25-200DCZ	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55G25-200DCZ	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55G25-200DGZ	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 200 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55G25-250DCZ	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55G25-250DCZ	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55G25-250DGZ	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 250 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55G25-300DCZ	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55G25-300DCZ	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55G25-300DGZ	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 300 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55C25-5DCZ	Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55C25-5DCZ	Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55C25-5DGZ	Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 5 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55C25-10DCZ	Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55C25-10DCZ	Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55C25-10DGZ	Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 10 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55C25-15DCZ	Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55C25-15DCZ	Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55C25-15DGZ	Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 15 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55C25-20DCZ	Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55C25-20DCZ	Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55C25-20DGZ	Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 20 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55C25-25DCZ	Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55C25-25DCZ	Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55C25-25DGZ	Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 25 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55C25-30DCZ	Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55C25-30DCZ	Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55C25-30DGZ	Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 30 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55C25-35DCZ	Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55C25-35DCZ	Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55C25-35DGZ	Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 35 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55C25-40DCZ	Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55C25-40DCZ	Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55C25-40DGZ	Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 40 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55C25-45DCZ	Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55C25-45DCZ	Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55C25-45DGZ	Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 45 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55C25-50DCZ	Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55C25-50DCZ	Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55C25-50DGZ	Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 50 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55C25-60DCZ	Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55C25-60DCZ	Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55C25-60DGZ	Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 60 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55C25-80DCZ	Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55C25-80DCZ	Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55C25-80DGZ	Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 80 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55C25-100DCZ	Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55C25-100DCZ	Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55C25-100DGZ	Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 100 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55C25-125DCZ	Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55C25-125DCZ	Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55C25-125DGZ	Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 125 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55C25-150DCZ	Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55C25-150DCZ	Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55C25-150DGZ	Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 150 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55C25-175DCZ	Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55C25-175DCZ	Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55C25-175DGZ	Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 175 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55C25-200DCZ	Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55C25-200DCZ	Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55C25-200DGZ	Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 200 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55C25-250DCZ	Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55C25-250DCZ	Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55C25-250DGZ	Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 250 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55C25-300DCZ	Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: M5x0.8
	CD55C25-300DCZ	Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: M5x0.8
	CD55C25-300DGZ	Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 300 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: M5x0.8
	C55B32-5DCZ	Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55B32-5DCZ	Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55B32-5DGZ	Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 5 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55B32-10DCZ	Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55B32-10DCZ	Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55B32-10DGZ	Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 10 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55B32-15DCZ	Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55B32-15DCZ	Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55B32-15DGZ	Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 15 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55B32-20DCZ	Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55B32-20DCZ	Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55B32-20DGZ	Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 20 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55B32-25DCZ	Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55B32-25DCZ	Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55B32-25DGZ	Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 25 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55B32-30DCZ	Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55B32-30DCZ	Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55B32-30DGZ	Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 30 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55B32-35DCZ	Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55B32-35DCZ	Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55B32-35DGZ	Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 35 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55B32-40DCZ	Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55B32-40DCZ	Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55B32-40DGZ	Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 40 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55B32-45DCZ	Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55B32-45DCZ	Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55B32-45DGZ	Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 45 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55B32-50DCZ	Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55B32-50DCZ	Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55B32-50DGZ	Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 50 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55B32-60DCZ	Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55B32-60DCZ	Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55B32-60DGZ	Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 60 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55B32-80DCZ	Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55B32-80DCZ	Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55B32-80DGZ	Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 80 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55B32-100DCZ	Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55B32-100DCZ	Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55B32-100DGZ	Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 100 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55B32-125DCZ	Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55B32-125DCZ	Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55B32-125DGZ	Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 125 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55B32-150DCZ	Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55B32-150DCZ	Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55B32-150DGZ	Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 150 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55B32-175DCZ	Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55B32-175DCZ	Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55B32-175DGZ	Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 175 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55B32-200DCZ	Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55B32-200DCZ	Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55B32-200DGZ	Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 200 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55B32-250DCZ	Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55B32-250DCZ	Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55B32-250DGZ	Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 250 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55B32-300DCZ	Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55B32-300DCZ	Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55B32-300DGZ	Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 300 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55L32-5DCZ	Bore: ø32 mm \| Mounting: Foot \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55L32-5DCZ	Bore: ø32 mm \| Mounting: Foot \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55L32-5DGZ	Bore: ø32 mm \| Mounting: Foot \| Stroke: 5 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55L32-10DCZ	Bore: ø32 mm \| Mounting: Foot \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55L32-10DCZ	Bore: ø32 mm \| Mounting: Foot \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55L32-10DGZ	Bore: ø32 mm \| Mounting: Foot \| Stroke: 10 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55L32-15DCZ	Bore: ø32 mm \| Mounting: Foot \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55L32-15DCZ	Bore: ø32 mm \| Mounting: Foot \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55L32-15DGZ	Bore: ø32 mm \| Mounting: Foot \| Stroke: 15 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55L32-20DCZ	Bore: ø32 mm \| Mounting: Foot \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55L32-20DCZ	Bore: ø32 mm \| Mounting: Foot \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55L32-20DGZ	Bore: ø32 mm \| Mounting: Foot \| Stroke: 20 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55L32-25DCZ	Bore: ø32 mm \| Mounting: Foot \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55L32-25DCZ	Bore: ø32 mm \| Mounting: Foot \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55L32-25DGZ	Bore: ø32 mm \| Mounting: Foot \| Stroke: 25 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55L32-30DCZ	Bore: ø32 mm \| Mounting: Foot \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55L32-30DCZ	Bore: ø32 mm \| Mounting: Foot \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55L32-30DGZ	Bore: ø32 mm \| Mounting: Foot \| Stroke: 30 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55L32-35DCZ	Bore: ø32 mm \| Mounting: Foot \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55L32-35DCZ	Bore: ø32 mm \| Mounting: Foot \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55L32-35DGZ	Bore: ø32 mm \| Mounting: Foot \| Stroke: 35 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55L32-40DCZ	Bore: ø32 mm \| Mounting: Foot \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55L32-40DCZ	Bore: ø32 mm \| Mounting: Foot \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55L32-40DGZ	Bore: ø32 mm \| Mounting: Foot \| Stroke: 40 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55L32-45DCZ	Bore: ø32 mm \| Mounting: Foot \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55L32-45DCZ	Bore: ø32 mm \| Mounting: Foot \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55L32-45DGZ	Bore: ø32 mm \| Mounting: Foot \| Stroke: 45 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55L32-50DCZ	Bore: ø32 mm \| Mounting: Foot \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55L32-50DCZ	Bore: ø32 mm \| Mounting: Foot \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55L32-50DGZ	Bore: ø32 mm \| Mounting: Foot \| Stroke: 50 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55L32-60DCZ	Bore: ø32 mm \| Mounting: Foot \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55L32-60DCZ	Bore: ø32 mm \| Mounting: Foot \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55L32-60DGZ	Bore: ø32 mm \| Mounting: Foot \| Stroke: 60 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55L32-80DCZ	Bore: ø32 mm \| Mounting: Foot \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55L32-80DCZ	Bore: ø32 mm \| Mounting: Foot \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55L32-80DGZ	Bore: ø32 mm \| Mounting: Foot \| Stroke: 80 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55L32-100DCZ	Bore: ø32 mm \| Mounting: Foot \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55L32-100DCZ	Bore: ø32 mm \| Mounting: Foot \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55L32-100DGZ	Bore: ø32 mm \| Mounting: Foot \| Stroke: 100 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55L32-125DCZ	Bore: ø32 mm \| Mounting: Foot \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55L32-125DCZ	Bore: ø32 mm \| Mounting: Foot \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55L32-125DGZ	Bore: ø32 mm \| Mounting: Foot \| Stroke: 125 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55L32-150DCZ	Bore: ø32 mm \| Mounting: Foot \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55L32-150DCZ	Bore: ø32 mm \| Mounting: Foot \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55L32-150DGZ	Bore: ø32 mm \| Mounting: Foot \| Stroke: 150 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55L32-175DCZ	Bore: ø32 mm \| Mounting: Foot \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55L32-175DCZ	Bore: ø32 mm \| Mounting: Foot \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55L32-175DGZ	Bore: ø32 mm \| Mounting: Foot \| Stroke: 175 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55L32-200DCZ	Bore: ø32 mm \| Mounting: Foot \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55L32-200DCZ	Bore: ø32 mm \| Mounting: Foot \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55L32-200DGZ	Bore: ø32 mm \| Mounting: Foot \| Stroke: 200 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55L32-250DCZ	Bore: ø32 mm \| Mounting: Foot \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55L32-250DCZ	Bore: ø32 mm \| Mounting: Foot \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55L32-250DGZ	Bore: ø32 mm \| Mounting: Foot \| Stroke: 250 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55L32-300DCZ	Bore: ø32 mm \| Mounting: Foot \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55L32-300DCZ	Bore: ø32 mm \| Mounting: Foot \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55L32-300DGZ	Bore: ø32 mm \| Mounting: Foot \| Stroke: 300 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55F32-5DCZ	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55F32-5DCZ	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55F32-5DGZ	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 5 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55F32-10DCZ	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55F32-10DCZ	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55F32-10DGZ	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 10 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55F32-15DCZ	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55F32-15DCZ	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55F32-15DGZ	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 15 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55F32-20DCZ	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55F32-20DCZ	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55F32-20DGZ	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55F32-25DCZ	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55F32-25DCZ	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55F32-25DGZ	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55F32-30DCZ	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55F32-30DCZ	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55F32-30DGZ	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55F32-35DCZ	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55F32-35DCZ	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55F32-35DGZ	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 35 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55F32-40DCZ	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55F32-40DCZ	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55F32-40DGZ	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55F32-45DCZ	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55F32-45DCZ	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55F32-45DGZ	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 45 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55F32-50DCZ	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55F32-50DCZ	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55F32-50DGZ	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55F32-60DCZ	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55F32-60DCZ	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55F32-60DGZ	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 60 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55F32-80DCZ	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55F32-80DCZ	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55F32-80DGZ	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 80 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55F32-100DCZ	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55F32-100DCZ	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55F32-100DGZ	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55F32-125DCZ	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55F32-125DCZ	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55F32-125DGZ	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55F32-150DCZ	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55F32-150DCZ	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55F32-150DGZ	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55F32-175DCZ	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55F32-175DCZ	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55F32-175DGZ	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55F32-200DCZ	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55F32-200DCZ	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55F32-200DGZ	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55F32-250DCZ	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55F32-250DCZ	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55F32-250DGZ	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 250 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55F32-300DCZ	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55F32-300DCZ	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55F32-300DGZ	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 300 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55G32-5DCZ	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55G32-5DCZ	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55G32-5DGZ	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 5 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55G32-10DCZ	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55G32-10DCZ	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55G32-10DGZ	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 10 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55G32-15DCZ	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55G32-15DCZ	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55G32-15DGZ	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 15 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55G32-20DCZ	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55G32-20DCZ	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55G32-20DGZ	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 20 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55G32-25DCZ	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55G32-25DCZ	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55G32-25DGZ	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 25 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55G32-30DCZ	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55G32-30DCZ	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55G32-30DGZ	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 30 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55G32-35DCZ	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55G32-35DCZ	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55G32-35DGZ	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 35 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55G32-40DCZ	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55G32-40DCZ	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55G32-40DGZ	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 40 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55G32-45DCZ	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55G32-45DCZ	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55G32-45DGZ	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 45 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55G32-50DCZ	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55G32-50DCZ	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55G32-50DGZ	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 50 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55G32-60DCZ	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55G32-60DCZ	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55G32-60DGZ	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 60 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55G32-80DCZ	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55G32-80DCZ	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55G32-80DGZ	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 80 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55G32-100DCZ	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55G32-100DCZ	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55G32-100DGZ	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 100 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55G32-125DCZ	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55G32-125DCZ	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55G32-125DGZ	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 125 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55G32-150DCZ	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55G32-150DCZ	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55G32-150DGZ	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 150 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55G32-175DCZ	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55G32-175DCZ	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55G32-175DGZ	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 175 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55G32-200DCZ	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55G32-200DCZ	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55G32-200DGZ	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 200 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55G32-250DCZ	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55G32-250DCZ	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55G32-250DGZ	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 250 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55G32-300DCZ	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55G32-300DCZ	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55G32-300DGZ	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 300 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55C32-5DCZ	Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55C32-5DCZ	Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55C32-5DGZ	Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 5 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55C32-10DCZ	Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55C32-10DCZ	Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55C32-10DGZ	Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 10 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55C32-15DCZ	Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55C32-15DCZ	Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55C32-15DGZ	Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 15 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55C32-20DCZ	Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55C32-20DCZ	Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55C32-20DGZ	Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 20 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55C32-25DCZ	Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55C32-25DCZ	Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55C32-25DGZ	Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 25 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55C32-30DCZ	Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55C32-30DCZ	Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55C32-30DGZ	Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 30 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55C32-35DCZ	Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55C32-35DCZ	Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55C32-35DGZ	Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 35 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55C32-40DCZ	Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55C32-40DCZ	Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55C32-40DGZ	Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 40 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55C32-45DCZ	Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55C32-45DCZ	Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55C32-45DGZ	Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 45 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55C32-50DCZ	Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55C32-50DCZ	Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55C32-50DGZ	Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 50 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55C32-60DCZ	Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55C32-60DCZ	Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55C32-60DGZ	Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 60 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55C32-80DCZ	Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55C32-80DCZ	Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55C32-80DGZ	Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 80 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55C32-100DCZ	Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55C32-100DCZ	Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55C32-100DGZ	Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 100 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55C32-125DCZ	Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55C32-125DCZ	Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55C32-125DGZ	Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 125 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55C32-150DCZ	Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55C32-150DCZ	Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55C32-150DGZ	Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 150 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55C32-175DCZ	Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55C32-175DCZ	Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55C32-175DGZ	Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 175 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55C32-200DCZ	Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55C32-200DCZ	Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55C32-200DGZ	Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 200 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55C32-250DCZ	Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55C32-250DCZ	Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55C32-250DGZ	Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 250 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55C32-300DCZ	Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55C32-300DCZ	Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55C32-300DGZ	Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 300 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55B40-5DCZ	Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55B40-5DCZ	Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55B40-5DGZ	Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 5 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55B40-10DCZ	Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55B40-10DCZ	Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55B40-10DGZ	Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 10 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55B40-15DCZ	Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55B40-15DCZ	Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55B40-15DGZ	Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 15 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55B40-20DCZ	Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55B40-20DCZ	Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55B40-20DGZ	Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 20 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55B40-25DCZ	Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55B40-25DCZ	Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55B40-25DGZ	Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 25 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55B40-30DCZ	Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55B40-30DCZ	Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55B40-30DGZ	Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 30 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55B40-35DCZ	Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55B40-35DCZ	Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55B40-35DGZ	Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 35 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55B40-40DCZ	Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55B40-40DCZ	Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55B40-40DGZ	Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 40 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55B40-45DCZ	Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55B40-45DCZ	Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55B40-45DGZ	Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 45 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55B40-50DCZ	Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55B40-50DCZ	Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55B40-50DGZ	Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 50 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55B40-60DCZ	Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55B40-60DCZ	Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55B40-60DGZ	Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 60 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55B40-80DCZ	Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55B40-80DCZ	Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55B40-80DGZ	Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 80 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55B40-100DCZ	Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55B40-100DCZ	Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55B40-100DGZ	Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 100 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55B40-125DCZ	Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55B40-125DCZ	Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55B40-125DGZ	Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 125 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55B40-150DCZ	Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55B40-150DCZ	Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55B40-150DGZ	Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 150 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55B40-175DCZ	Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55B40-175DCZ	Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55B40-175DGZ	Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 175 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55B40-200DCZ	Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55B40-200DCZ	Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55B40-200DGZ	Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 200 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55B40-250DCZ	Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55B40-250DCZ	Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55B40-250DGZ	Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 250 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55B40-300DCZ	Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55B40-300DCZ	Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55B40-300DGZ	Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 300 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55L40-5DCZ	Bore: ø40 mm \| Mounting: Foot \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55L40-5DCZ	Bore: ø40 mm \| Mounting: Foot \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55L40-5DGZ	Bore: ø40 mm \| Mounting: Foot \| Stroke: 5 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55L40-10DCZ	Bore: ø40 mm \| Mounting: Foot \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55L40-10DCZ	Bore: ø40 mm \| Mounting: Foot \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55L40-10DGZ	Bore: ø40 mm \| Mounting: Foot \| Stroke: 10 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55L40-15DCZ	Bore: ø40 mm \| Mounting: Foot \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55L40-15DCZ	Bore: ø40 mm \| Mounting: Foot \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55L40-15DGZ	Bore: ø40 mm \| Mounting: Foot \| Stroke: 15 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55L40-20DCZ	Bore: ø40 mm \| Mounting: Foot \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55L40-20DCZ	Bore: ø40 mm \| Mounting: Foot \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55L40-20DGZ	Bore: ø40 mm \| Mounting: Foot \| Stroke: 20 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55L40-25DCZ	Bore: ø40 mm \| Mounting: Foot \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55L40-25DCZ	Bore: ø40 mm \| Mounting: Foot \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55L40-25DGZ	Bore: ø40 mm \| Mounting: Foot \| Stroke: 25 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55L40-30DCZ	Bore: ø40 mm \| Mounting: Foot \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55L40-30DCZ	Bore: ø40 mm \| Mounting: Foot \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55L40-30DGZ	Bore: ø40 mm \| Mounting: Foot \| Stroke: 30 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55L40-35DCZ	Bore: ø40 mm \| Mounting: Foot \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55L40-35DCZ	Bore: ø40 mm \| Mounting: Foot \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55L40-35DGZ	Bore: ø40 mm \| Mounting: Foot \| Stroke: 35 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55L40-40DCZ	Bore: ø40 mm \| Mounting: Foot \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55L40-40DCZ	Bore: ø40 mm \| Mounting: Foot \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55L40-40DGZ	Bore: ø40 mm \| Mounting: Foot \| Stroke: 40 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55L40-45DCZ	Bore: ø40 mm \| Mounting: Foot \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55L40-45DCZ	Bore: ø40 mm \| Mounting: Foot \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55L40-45DGZ	Bore: ø40 mm \| Mounting: Foot \| Stroke: 45 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55L40-50DCZ	Bore: ø40 mm \| Mounting: Foot \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55L40-50DCZ	Bore: ø40 mm \| Mounting: Foot \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55L40-50DGZ	Bore: ø40 mm \| Mounting: Foot \| Stroke: 50 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55L40-60DCZ	Bore: ø40 mm \| Mounting: Foot \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55L40-60DCZ	Bore: ø40 mm \| Mounting: Foot \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55L40-60DGZ	Bore: ø40 mm \| Mounting: Foot \| Stroke: 60 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55L40-80DCZ	Bore: ø40 mm \| Mounting: Foot \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55L40-80DCZ	Bore: ø40 mm \| Mounting: Foot \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55L40-80DGZ	Bore: ø40 mm \| Mounting: Foot \| Stroke: 80 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55L40-100DCZ	Bore: ø40 mm \| Mounting: Foot \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55L40-100DCZ	Bore: ø40 mm \| Mounting: Foot \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55L40-100DGZ	Bore: ø40 mm \| Mounting: Foot \| Stroke: 100 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55L40-125DCZ	Bore: ø40 mm \| Mounting: Foot \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55L40-125DCZ	Bore: ø40 mm \| Mounting: Foot \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55L40-125DGZ	Bore: ø40 mm \| Mounting: Foot \| Stroke: 125 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55L40-150DCZ	Bore: ø40 mm \| Mounting: Foot \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55L40-150DCZ	Bore: ø40 mm \| Mounting: Foot \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55L40-150DGZ	Bore: ø40 mm \| Mounting: Foot \| Stroke: 150 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55L40-175DCZ	Bore: ø40 mm \| Mounting: Foot \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55L40-175DCZ	Bore: ø40 mm \| Mounting: Foot \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55L40-175DGZ	Bore: ø40 mm \| Mounting: Foot \| Stroke: 175 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55L40-200DCZ	Bore: ø40 mm \| Mounting: Foot \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55L40-200DCZ	Bore: ø40 mm \| Mounting: Foot \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55L40-200DGZ	Bore: ø40 mm \| Mounting: Foot \| Stroke: 200 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55L40-250DCZ	Bore: ø40 mm \| Mounting: Foot \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55L40-250DCZ	Bore: ø40 mm \| Mounting: Foot \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55L40-250DGZ	Bore: ø40 mm \| Mounting: Foot \| Stroke: 250 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55L40-300DCZ	Bore: ø40 mm \| Mounting: Foot \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55L40-300DCZ	Bore: ø40 mm \| Mounting: Foot \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55L40-300DGZ	Bore: ø40 mm \| Mounting: Foot \| Stroke: 300 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55F40-5DCZ	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55F40-5DCZ	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55F40-5DGZ	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 5 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55F40-10DCZ	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55F40-10DCZ	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55F40-10DGZ	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 10 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55F40-15DCZ	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55F40-15DCZ	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55F40-15DGZ	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 15 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55F40-20DCZ	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55F40-20DCZ	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55F40-20DGZ	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55F40-25DCZ	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55F40-25DCZ	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55F40-25DGZ	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55F40-30DCZ	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55F40-30DCZ	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55F40-30DGZ	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55F40-35DCZ	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55F40-35DCZ	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55F40-35DGZ	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 35 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55F40-40DCZ	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55F40-40DCZ	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55F40-40DGZ	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55F40-45DCZ	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55F40-45DCZ	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55F40-45DGZ	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 45 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55F40-50DCZ	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55F40-50DCZ	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55F40-50DGZ	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55F40-60DCZ	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55F40-60DCZ	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55F40-60DGZ	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 60 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55F40-80DCZ	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55F40-80DCZ	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55F40-80DGZ	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 80 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55F40-100DCZ	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55F40-100DCZ	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55F40-100DGZ	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55F40-125DCZ	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55F40-125DCZ	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55F40-125DGZ	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55F40-150DCZ	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55F40-150DCZ	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55F40-150DGZ	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55F40-175DCZ	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55F40-175DCZ	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55F40-175DGZ	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55F40-200DCZ	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55F40-200DCZ	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55F40-200DGZ	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55F40-250DCZ	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55F40-250DCZ	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55F40-250DGZ	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 250 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55F40-300DCZ	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55F40-300DCZ	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55F40-300DGZ	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 300 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55G40-5DCZ	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55G40-5DCZ	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55G40-5DGZ	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 5 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55G40-10DCZ	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55G40-10DCZ	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55G40-10DGZ	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 10 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55G40-15DCZ	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55G40-15DCZ	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55G40-15DGZ	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 15 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55G40-20DCZ	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55G40-20DCZ	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55G40-20DGZ	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 20 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55G40-25DCZ	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55G40-25DCZ	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55G40-25DGZ	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 25 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55G40-30DCZ	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55G40-30DCZ	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55G40-30DGZ	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 30 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55G40-35DCZ	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55G40-35DCZ	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55G40-35DGZ	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 35 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55G40-40DCZ	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55G40-40DCZ	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55G40-40DGZ	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 40 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55G40-45DCZ	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55G40-45DCZ	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55G40-45DGZ	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 45 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55G40-50DCZ	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55G40-50DCZ	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55G40-50DGZ	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 50 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55G40-60DCZ	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55G40-60DCZ	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55G40-60DGZ	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 60 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55G40-80DCZ	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55G40-80DCZ	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55G40-80DGZ	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 80 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55G40-100DCZ	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55G40-100DCZ	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55G40-100DGZ	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 100 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55G40-125DCZ	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55G40-125DCZ	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55G40-125DGZ	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 125 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55G40-150DCZ	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55G40-150DCZ	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55G40-150DGZ	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 150 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55G40-175DCZ	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55G40-175DCZ	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55G40-175DGZ	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 175 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55G40-200DCZ	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55G40-200DCZ	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55G40-200DGZ	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 200 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55G40-250DCZ	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55G40-250DCZ	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55G40-250DGZ	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 250 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55G40-300DCZ	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55G40-300DCZ	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55G40-300DGZ	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 300 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55C40-5DCZ	Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55C40-5DCZ	Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55C40-5DGZ	Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 5 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55C40-10DCZ	Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55C40-10DCZ	Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55C40-10DGZ	Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 10 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55C40-15DCZ	Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55C40-15DCZ	Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55C40-15DGZ	Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 15 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55C40-20DCZ	Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55C40-20DCZ	Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55C40-20DGZ	Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 20 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55C40-25DCZ	Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55C40-25DCZ	Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55C40-25DGZ	Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 25 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55C40-30DCZ	Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55C40-30DCZ	Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55C40-30DGZ	Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 30 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55C40-35DCZ	Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55C40-35DCZ	Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55C40-35DGZ	Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 35 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55C40-40DCZ	Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55C40-40DCZ	Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55C40-40DGZ	Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 40 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55C40-45DCZ	Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55C40-45DCZ	Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55C40-45DGZ	Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 45 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55C40-50DCZ	Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55C40-50DCZ	Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55C40-50DGZ	Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 50 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55C40-60DCZ	Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55C40-60DCZ	Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55C40-60DGZ	Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 60 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55C40-80DCZ	Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55C40-80DCZ	Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55C40-80DGZ	Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 80 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55C40-100DCZ	Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55C40-100DCZ	Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55C40-100DGZ	Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 100 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55C40-125DCZ	Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55C40-125DCZ	Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55C40-125DGZ	Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 125 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55C40-150DCZ	Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55C40-150DCZ	Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55C40-150DGZ	Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 150 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55C40-175DCZ	Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55C40-175DCZ	Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55C40-175DGZ	Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 175 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55C40-200DCZ	Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55C40-200DCZ	Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55C40-200DGZ	Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 200 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55C40-250DCZ	Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55C40-250DCZ	Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55C40-250DGZ	Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 250 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8
	C55C40-300DCZ	Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: No \| Port: G1/8
	CD55C40-300DCZ	Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes \| Port: G1/8
	CD55C40-300DGZ	Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 300 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes \| Port: G1/8

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

SMC C55 ISO 21287 Compact Cylinder (Single Rod, ø12 to ø40)
