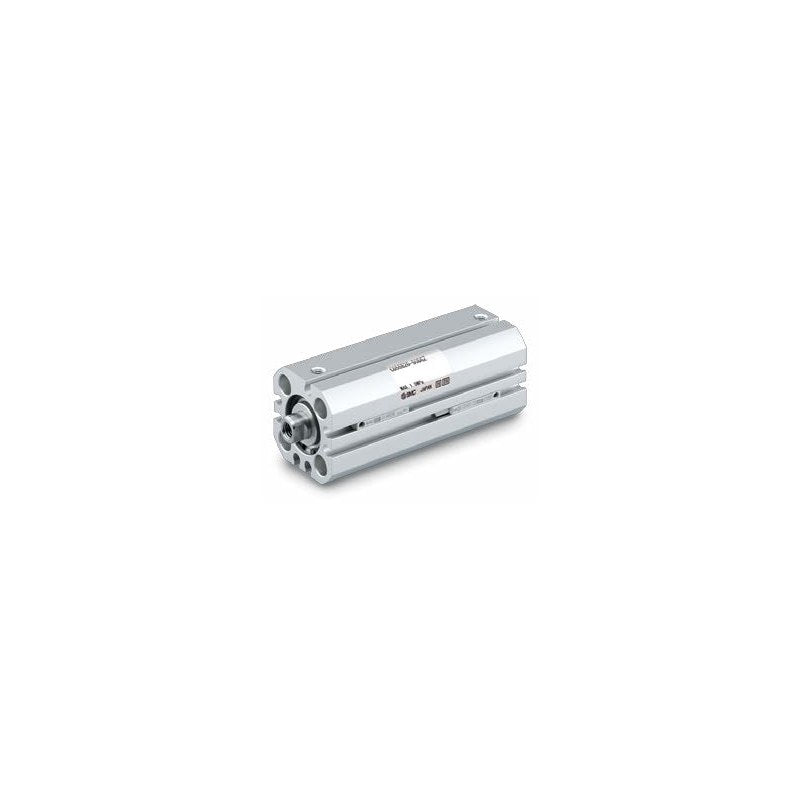

SMC C55 ISO 21287 Compact Cylinder (Single Rod, ø50 to ø100)

SMC C55 series compact (short-stroke) cylinder to ISO 21287, double acting, single rod, ø50 to ø100 mm bore, with rubber or non-adjustable air cushion and optional built-in magnet (CD55).

Key features

ISO 21287 compliant compact cylinder (ø20 to ø100); ø12, ø16 standard type outside ISO 21287
Rubber cushion (C) on both ends, or non-adjustable air cushion + rubber cushion (G, CD55 with magnet) with about 3 times the allowable kinetic energy
Bushing material change gives 1.8 times higher lateral load resistance (ø20)
Mounting: through-hole/both-end tapped common (B), foot (L), rod/head flange (F/G), single clevis (C)
Rod end male thread (M), compact D-M9/D-A9 auto switches and made-to-order specs (-XA, -XB6, -XB13, -XC6, -XC35, -X1439) ordered as options
Intermediate strokes in 1 mm increments with dedicated body (e.g. C55B32-47DCZ)

Specifications

Standard	ISO 21287 (ø20 to ø100)
Action	Double acting, single rod
Fluid	Air
Proof pressure	1.5 MPa
Max. operating pressure	1.0 MPa
Min. operating pressure	C: 0.05 MPa (ø20-63), 0.03 MPa (ø80, 100); G: 0.15/0.10 MPa
Ambient and fluid temperature	-10 to 70°C without magnet, -10 to 60°C with magnet
Piston speed	50 to 500 mm/s (ø20-63), 50 to 300 mm/s (ø80, ø100)
Lubrication	Not required (non-lube)
Rod end	Female thread (standard); male thread (M) option
Port	G1/8
Source	SMC Korea catalog CAT.KS20-302B (SMCKR_C55-Z.pdf), p. 9-10, 26-27 (PDF p. 10-11, 27-28)

C55B50-5DCZ		Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55B50-5DCZ		Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55B50-5DGZ		Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 5 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55B50-10DCZ		Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55B50-10DCZ		Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55B50-10DGZ		Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 10 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55B50-15DCZ		Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55B50-15DCZ		Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55B50-15DGZ		Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 15 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55B50-20DCZ		Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55B50-20DCZ		Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55B50-20DGZ		Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 20 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55B50-25DCZ		Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55B50-25DCZ		Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55B50-25DGZ		Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 25 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55B50-30DCZ		Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55B50-30DCZ		Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55B50-30DGZ		Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 30 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55B50-35DCZ		Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55B50-35DCZ		Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55B50-35DGZ		Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 35 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55B50-40DCZ		Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55B50-40DCZ		Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55B50-40DGZ		Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 40 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55B50-45DCZ		Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55B50-45DCZ		Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55B50-45DGZ		Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 45 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55B50-50DCZ		Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55B50-50DCZ		Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55B50-50DGZ		Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 50 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55B50-60DCZ		Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55B50-60DCZ		Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55B50-60DGZ		Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 60 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55B50-80DCZ		Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55B50-80DCZ		Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55B50-80DGZ		Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 80 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55B50-100DCZ		Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55B50-100DCZ		Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55B50-100DGZ		Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 100 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55B50-125DCZ		Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55B50-125DCZ		Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55B50-125DGZ		Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 125 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55B50-150DCZ		Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55B50-150DCZ		Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55B50-150DGZ		Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 150 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55B50-175DCZ		Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55B50-175DCZ		Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55B50-175DGZ		Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 175 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55B50-200DCZ		Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55B50-200DCZ		Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55B50-200DGZ		Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 200 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55B50-250DCZ		Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55B50-250DCZ		Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55B50-250DGZ		Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 250 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55B50-300DCZ		Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55B50-300DCZ		Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55B50-300DGZ		Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 300 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55L50-5DCZ		Bore: ø50 mm \| Mounting: Foot \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55L50-5DCZ		Bore: ø50 mm \| Mounting: Foot \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55L50-5DGZ		Bore: ø50 mm \| Mounting: Foot \| Stroke: 5 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55L50-10DCZ		Bore: ø50 mm \| Mounting: Foot \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55L50-10DCZ		Bore: ø50 mm \| Mounting: Foot \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55L50-10DGZ		Bore: ø50 mm \| Mounting: Foot \| Stroke: 10 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55L50-15DCZ		Bore: ø50 mm \| Mounting: Foot \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55L50-15DCZ		Bore: ø50 mm \| Mounting: Foot \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55L50-15DGZ		Bore: ø50 mm \| Mounting: Foot \| Stroke: 15 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55L50-20DCZ		Bore: ø50 mm \| Mounting: Foot \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55L50-20DCZ		Bore: ø50 mm \| Mounting: Foot \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55L50-20DGZ		Bore: ø50 mm \| Mounting: Foot \| Stroke: 20 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55L50-25DCZ		Bore: ø50 mm \| Mounting: Foot \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55L50-25DCZ		Bore: ø50 mm \| Mounting: Foot \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55L50-25DGZ		Bore: ø50 mm \| Mounting: Foot \| Stroke: 25 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55L50-30DCZ		Bore: ø50 mm \| Mounting: Foot \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55L50-30DCZ		Bore: ø50 mm \| Mounting: Foot \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55L50-30DGZ		Bore: ø50 mm \| Mounting: Foot \| Stroke: 30 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55L50-35DCZ		Bore: ø50 mm \| Mounting: Foot \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55L50-35DCZ		Bore: ø50 mm \| Mounting: Foot \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55L50-35DGZ		Bore: ø50 mm \| Mounting: Foot \| Stroke: 35 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55L50-40DCZ		Bore: ø50 mm \| Mounting: Foot \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55L50-40DCZ		Bore: ø50 mm \| Mounting: Foot \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55L50-40DGZ		Bore: ø50 mm \| Mounting: Foot \| Stroke: 40 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55L50-45DCZ		Bore: ø50 mm \| Mounting: Foot \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55L50-45DCZ		Bore: ø50 mm \| Mounting: Foot \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55L50-45DGZ		Bore: ø50 mm \| Mounting: Foot \| Stroke: 45 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55L50-50DCZ		Bore: ø50 mm \| Mounting: Foot \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55L50-50DCZ		Bore: ø50 mm \| Mounting: Foot \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55L50-50DGZ		Bore: ø50 mm \| Mounting: Foot \| Stroke: 50 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55L50-60DCZ		Bore: ø50 mm \| Mounting: Foot \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55L50-60DCZ		Bore: ø50 mm \| Mounting: Foot \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55L50-60DGZ		Bore: ø50 mm \| Mounting: Foot \| Stroke: 60 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55L50-80DCZ		Bore: ø50 mm \| Mounting: Foot \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55L50-80DCZ		Bore: ø50 mm \| Mounting: Foot \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55L50-80DGZ		Bore: ø50 mm \| Mounting: Foot \| Stroke: 80 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55L50-100DCZ		Bore: ø50 mm \| Mounting: Foot \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55L50-100DCZ		Bore: ø50 mm \| Mounting: Foot \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55L50-100DGZ		Bore: ø50 mm \| Mounting: Foot \| Stroke: 100 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55L50-125DCZ		Bore: ø50 mm \| Mounting: Foot \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55L50-125DCZ		Bore: ø50 mm \| Mounting: Foot \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55L50-125DGZ		Bore: ø50 mm \| Mounting: Foot \| Stroke: 125 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55L50-150DCZ		Bore: ø50 mm \| Mounting: Foot \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55L50-150DCZ		Bore: ø50 mm \| Mounting: Foot \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55L50-150DGZ		Bore: ø50 mm \| Mounting: Foot \| Stroke: 150 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55L50-175DCZ		Bore: ø50 mm \| Mounting: Foot \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55L50-175DCZ		Bore: ø50 mm \| Mounting: Foot \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55L50-175DGZ		Bore: ø50 mm \| Mounting: Foot \| Stroke: 175 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55L50-200DCZ		Bore: ø50 mm \| Mounting: Foot \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55L50-200DCZ		Bore: ø50 mm \| Mounting: Foot \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55L50-200DGZ		Bore: ø50 mm \| Mounting: Foot \| Stroke: 200 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55L50-250DCZ		Bore: ø50 mm \| Mounting: Foot \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55L50-250DCZ		Bore: ø50 mm \| Mounting: Foot \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55L50-250DGZ		Bore: ø50 mm \| Mounting: Foot \| Stroke: 250 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55L50-300DCZ		Bore: ø50 mm \| Mounting: Foot \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55L50-300DCZ		Bore: ø50 mm \| Mounting: Foot \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55L50-300DGZ		Bore: ø50 mm \| Mounting: Foot \| Stroke: 300 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55F50-5DCZ		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55F50-5DCZ		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55F50-5DGZ		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 5 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55F50-10DCZ		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55F50-10DCZ		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55F50-10DGZ		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 10 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55F50-15DCZ		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55F50-15DCZ		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55F50-15DGZ		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 15 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55F50-20DCZ		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55F50-20DCZ		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55F50-20DGZ		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55F50-25DCZ		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55F50-25DCZ		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55F50-25DGZ		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55F50-30DCZ		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55F50-30DCZ		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55F50-30DGZ		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55F50-35DCZ		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55F50-35DCZ		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55F50-35DGZ		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 35 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55F50-40DCZ		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55F50-40DCZ		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55F50-40DGZ		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55F50-45DCZ		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55F50-45DCZ		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55F50-45DGZ		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 45 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55F50-50DCZ		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55F50-50DCZ		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55F50-50DGZ		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55F50-60DCZ		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55F50-60DCZ		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55F50-60DGZ		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 60 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55F50-80DCZ		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55F50-80DCZ		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55F50-80DGZ		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 80 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55F50-100DCZ		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55F50-100DCZ		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55F50-100DGZ		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55F50-125DCZ		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55F50-125DCZ		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55F50-125DGZ		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55F50-150DCZ		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55F50-150DCZ		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55F50-150DGZ		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55F50-175DCZ		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55F50-175DCZ		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55F50-175DGZ		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55F50-200DCZ		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55F50-200DCZ		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55F50-200DGZ		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55F50-250DCZ		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55F50-250DCZ		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55F50-250DGZ		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 250 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55F50-300DCZ		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55F50-300DCZ		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55F50-300DGZ		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 300 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55G50-5DCZ		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55G50-5DCZ		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55G50-5DGZ		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 5 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55G50-10DCZ		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55G50-10DCZ		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55G50-10DGZ		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 10 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55G50-15DCZ		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55G50-15DCZ		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55G50-15DGZ		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 15 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55G50-20DCZ		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55G50-20DCZ		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55G50-20DGZ		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 20 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55G50-25DCZ		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55G50-25DCZ		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55G50-25DGZ		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 25 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55G50-30DCZ		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55G50-30DCZ		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55G50-30DGZ		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 30 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55G50-35DCZ		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55G50-35DCZ		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55G50-35DGZ		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 35 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55G50-40DCZ		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55G50-40DCZ		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55G50-40DGZ		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 40 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55G50-45DCZ		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55G50-45DCZ		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55G50-45DGZ		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 45 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55G50-50DCZ		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55G50-50DCZ		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55G50-50DGZ		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 50 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55G50-60DCZ		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55G50-60DCZ		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55G50-60DGZ		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 60 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55G50-80DCZ		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55G50-80DCZ		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55G50-80DGZ		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 80 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55G50-100DCZ		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55G50-100DCZ		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55G50-100DGZ		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 100 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55G50-125DCZ		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55G50-125DCZ		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55G50-125DGZ		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 125 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55G50-150DCZ		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55G50-150DCZ		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55G50-150DGZ		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 150 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55G50-175DCZ		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55G50-175DCZ		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55G50-175DGZ		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 175 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55G50-200DCZ		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55G50-200DCZ		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55G50-200DGZ		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 200 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55G50-250DCZ		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55G50-250DCZ		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55G50-250DGZ		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 250 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55G50-300DCZ		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55G50-300DCZ		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55G50-300DGZ		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 300 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55C50-5DCZ		Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55C50-5DCZ		Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55C50-5DGZ		Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 5 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55C50-10DCZ		Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55C50-10DCZ		Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55C50-10DGZ		Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 10 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55C50-15DCZ		Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55C50-15DCZ		Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55C50-15DGZ		Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 15 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55C50-20DCZ		Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55C50-20DCZ		Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55C50-20DGZ		Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 20 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55C50-25DCZ		Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55C50-25DCZ		Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55C50-25DGZ		Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 25 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55C50-30DCZ		Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55C50-30DCZ		Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55C50-30DGZ		Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 30 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55C50-35DCZ		Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55C50-35DCZ		Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55C50-35DGZ		Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 35 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55C50-40DCZ		Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55C50-40DCZ		Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55C50-40DGZ		Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 40 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55C50-45DCZ		Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55C50-45DCZ		Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55C50-45DGZ		Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 45 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55C50-50DCZ		Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55C50-50DCZ		Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55C50-50DGZ		Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 50 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55C50-60DCZ		Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55C50-60DCZ		Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55C50-60DGZ		Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 60 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55C50-80DCZ		Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55C50-80DCZ		Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55C50-80DGZ		Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 80 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55C50-100DCZ		Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55C50-100DCZ		Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55C50-100DGZ		Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 100 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55C50-125DCZ		Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55C50-125DCZ		Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55C50-125DGZ		Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 125 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55C50-150DCZ		Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55C50-150DCZ		Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55C50-150DGZ		Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 150 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55C50-175DCZ		Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55C50-175DCZ		Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55C50-175DGZ		Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 175 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55C50-200DCZ		Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55C50-200DCZ		Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55C50-200DGZ		Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 200 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55C50-250DCZ		Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55C50-250DCZ		Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55C50-250DGZ		Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 250 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55C50-300DCZ		Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55C50-300DCZ		Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55C50-300DGZ		Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 300 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55B63-5DCZ		Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55B63-5DCZ		Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55B63-5DGZ		Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 5 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55B63-10DCZ		Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55B63-10DCZ		Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55B63-10DGZ		Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 10 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55B63-15DCZ		Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55B63-15DCZ		Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55B63-15DGZ		Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 15 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55B63-20DCZ		Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55B63-20DCZ		Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55B63-20DGZ		Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 20 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55B63-25DCZ		Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55B63-25DCZ		Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55B63-25DGZ		Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 25 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55B63-30DCZ		Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55B63-30DCZ		Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55B63-30DGZ		Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 30 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55B63-35DCZ		Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55B63-35DCZ		Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55B63-35DGZ		Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 35 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55B63-40DCZ		Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55B63-40DCZ		Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55B63-40DGZ		Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 40 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55B63-45DCZ		Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55B63-45DCZ		Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55B63-45DGZ		Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 45 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55B63-50DCZ		Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55B63-50DCZ		Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55B63-50DGZ		Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 50 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55B63-60DCZ		Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55B63-60DCZ		Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55B63-60DGZ		Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 60 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55B63-80DCZ		Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55B63-80DCZ		Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55B63-80DGZ		Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 80 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55B63-100DCZ		Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55B63-100DCZ		Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55B63-100DGZ		Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 100 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55B63-125DCZ		Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55B63-125DCZ		Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55B63-125DGZ		Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 125 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55B63-150DCZ		Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55B63-150DCZ		Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55B63-150DGZ		Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 150 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55B63-175DCZ		Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55B63-175DCZ		Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55B63-175DGZ		Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 175 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55B63-200DCZ		Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55B63-200DCZ		Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55B63-200DGZ		Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 200 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55B63-250DCZ		Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55B63-250DCZ		Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55B63-250DGZ		Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 250 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55B63-300DCZ		Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55B63-300DCZ		Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55B63-300DGZ		Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 300 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55L63-5DCZ		Bore: ø63 mm \| Mounting: Foot \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55L63-5DCZ		Bore: ø63 mm \| Mounting: Foot \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55L63-5DGZ		Bore: ø63 mm \| Mounting: Foot \| Stroke: 5 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55L63-10DCZ		Bore: ø63 mm \| Mounting: Foot \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55L63-10DCZ		Bore: ø63 mm \| Mounting: Foot \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55L63-10DGZ		Bore: ø63 mm \| Mounting: Foot \| Stroke: 10 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55L63-15DCZ		Bore: ø63 mm \| Mounting: Foot \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55L63-15DCZ		Bore: ø63 mm \| Mounting: Foot \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55L63-15DGZ		Bore: ø63 mm \| Mounting: Foot \| Stroke: 15 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55L63-20DCZ		Bore: ø63 mm \| Mounting: Foot \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55L63-20DCZ		Bore: ø63 mm \| Mounting: Foot \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55L63-20DGZ		Bore: ø63 mm \| Mounting: Foot \| Stroke: 20 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55L63-25DCZ		Bore: ø63 mm \| Mounting: Foot \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55L63-25DCZ		Bore: ø63 mm \| Mounting: Foot \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55L63-25DGZ		Bore: ø63 mm \| Mounting: Foot \| Stroke: 25 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55L63-30DCZ		Bore: ø63 mm \| Mounting: Foot \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55L63-30DCZ		Bore: ø63 mm \| Mounting: Foot \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55L63-30DGZ		Bore: ø63 mm \| Mounting: Foot \| Stroke: 30 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55L63-35DCZ		Bore: ø63 mm \| Mounting: Foot \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55L63-35DCZ		Bore: ø63 mm \| Mounting: Foot \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55L63-35DGZ		Bore: ø63 mm \| Mounting: Foot \| Stroke: 35 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55L63-40DCZ		Bore: ø63 mm \| Mounting: Foot \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55L63-40DCZ		Bore: ø63 mm \| Mounting: Foot \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55L63-40DGZ		Bore: ø63 mm \| Mounting: Foot \| Stroke: 40 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55L63-45DCZ		Bore: ø63 mm \| Mounting: Foot \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55L63-45DCZ		Bore: ø63 mm \| Mounting: Foot \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55L63-45DGZ		Bore: ø63 mm \| Mounting: Foot \| Stroke: 45 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55L63-50DCZ		Bore: ø63 mm \| Mounting: Foot \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55L63-50DCZ		Bore: ø63 mm \| Mounting: Foot \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55L63-50DGZ		Bore: ø63 mm \| Mounting: Foot \| Stroke: 50 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55L63-60DCZ		Bore: ø63 mm \| Mounting: Foot \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55L63-60DCZ		Bore: ø63 mm \| Mounting: Foot \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55L63-60DGZ		Bore: ø63 mm \| Mounting: Foot \| Stroke: 60 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55L63-80DCZ		Bore: ø63 mm \| Mounting: Foot \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55L63-80DCZ		Bore: ø63 mm \| Mounting: Foot \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55L63-80DGZ		Bore: ø63 mm \| Mounting: Foot \| Stroke: 80 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55L63-100DCZ		Bore: ø63 mm \| Mounting: Foot \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55L63-100DCZ		Bore: ø63 mm \| Mounting: Foot \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55L63-100DGZ		Bore: ø63 mm \| Mounting: Foot \| Stroke: 100 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55L63-125DCZ		Bore: ø63 mm \| Mounting: Foot \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55L63-125DCZ		Bore: ø63 mm \| Mounting: Foot \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55L63-125DGZ		Bore: ø63 mm \| Mounting: Foot \| Stroke: 125 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55L63-150DCZ		Bore: ø63 mm \| Mounting: Foot \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55L63-150DCZ		Bore: ø63 mm \| Mounting: Foot \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55L63-150DGZ		Bore: ø63 mm \| Mounting: Foot \| Stroke: 150 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55L63-175DCZ		Bore: ø63 mm \| Mounting: Foot \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55L63-175DCZ		Bore: ø63 mm \| Mounting: Foot \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55L63-175DGZ		Bore: ø63 mm \| Mounting: Foot \| Stroke: 175 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55L63-200DCZ		Bore: ø63 mm \| Mounting: Foot \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55L63-200DCZ		Bore: ø63 mm \| Mounting: Foot \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55L63-200DGZ		Bore: ø63 mm \| Mounting: Foot \| Stroke: 200 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55L63-250DCZ		Bore: ø63 mm \| Mounting: Foot \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55L63-250DCZ		Bore: ø63 mm \| Mounting: Foot \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55L63-250DGZ		Bore: ø63 mm \| Mounting: Foot \| Stroke: 250 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55L63-300DCZ		Bore: ø63 mm \| Mounting: Foot \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55L63-300DCZ		Bore: ø63 mm \| Mounting: Foot \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55L63-300DGZ		Bore: ø63 mm \| Mounting: Foot \| Stroke: 300 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55F63-5DCZ		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55F63-5DCZ		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55F63-5DGZ		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 5 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55F63-10DCZ		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55F63-10DCZ		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55F63-10DGZ		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 10 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55F63-15DCZ		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55F63-15DCZ		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55F63-15DGZ		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 15 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55F63-20DCZ		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55F63-20DCZ		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55F63-20DGZ		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55F63-25DCZ		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55F63-25DCZ		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55F63-25DGZ		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55F63-30DCZ		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55F63-30DCZ		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55F63-30DGZ		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55F63-35DCZ		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55F63-35DCZ		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55F63-35DGZ		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 35 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55F63-40DCZ		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55F63-40DCZ		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55F63-40DGZ		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55F63-45DCZ		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55F63-45DCZ		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55F63-45DGZ		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 45 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55F63-50DCZ		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55F63-50DCZ		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55F63-50DGZ		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55F63-60DCZ		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55F63-60DCZ		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55F63-60DGZ		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 60 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55F63-80DCZ		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55F63-80DCZ		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55F63-80DGZ		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 80 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55F63-100DCZ		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55F63-100DCZ		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55F63-100DGZ		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55F63-125DCZ		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55F63-125DCZ		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55F63-125DGZ		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55F63-150DCZ		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55F63-150DCZ		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55F63-150DGZ		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55F63-175DCZ		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55F63-175DCZ		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55F63-175DGZ		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55F63-200DCZ		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55F63-200DCZ		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55F63-200DGZ		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55F63-250DCZ		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55F63-250DCZ		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55F63-250DGZ		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 250 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55F63-300DCZ		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55F63-300DCZ		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55F63-300DGZ		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 300 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55G63-5DCZ		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55G63-5DCZ		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55G63-5DGZ		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 5 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55G63-10DCZ		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55G63-10DCZ		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55G63-10DGZ		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 10 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55G63-15DCZ		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55G63-15DCZ		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55G63-15DGZ		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 15 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55G63-20DCZ		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55G63-20DCZ		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55G63-20DGZ		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 20 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55G63-25DCZ		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55G63-25DCZ		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55G63-25DGZ		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 25 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55G63-30DCZ		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55G63-30DCZ		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55G63-30DGZ		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 30 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55G63-35DCZ		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55G63-35DCZ		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55G63-35DGZ		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 35 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55G63-40DCZ		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55G63-40DCZ		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55G63-40DGZ		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 40 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55G63-45DCZ		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55G63-45DCZ		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55G63-45DGZ		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 45 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55G63-50DCZ		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55G63-50DCZ		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55G63-50DGZ		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 50 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55G63-60DCZ		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55G63-60DCZ		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55G63-60DGZ		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 60 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55G63-80DCZ		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55G63-80DCZ		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55G63-80DGZ		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 80 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55G63-100DCZ		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55G63-100DCZ		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55G63-100DGZ		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 100 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55G63-125DCZ		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55G63-125DCZ		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55G63-125DGZ		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 125 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55G63-150DCZ		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55G63-150DCZ		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55G63-150DGZ		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 150 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55G63-175DCZ		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55G63-175DCZ		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55G63-175DGZ		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 175 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55G63-200DCZ		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55G63-200DCZ		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55G63-200DGZ		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 200 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55G63-250DCZ		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55G63-250DCZ		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55G63-250DGZ		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 250 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55G63-300DCZ		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55G63-300DCZ		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55G63-300DGZ		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 300 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55C63-5DCZ		Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55C63-5DCZ		Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55C63-5DGZ		Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 5 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55C63-10DCZ		Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55C63-10DCZ		Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55C63-10DGZ		Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 10 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55C63-15DCZ		Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55C63-15DCZ		Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55C63-15DGZ		Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 15 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55C63-20DCZ		Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55C63-20DCZ		Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55C63-20DGZ		Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 20 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55C63-25DCZ		Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55C63-25DCZ		Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55C63-25DGZ		Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 25 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55C63-30DCZ		Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55C63-30DCZ		Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55C63-30DGZ		Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 30 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55C63-35DCZ		Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55C63-35DCZ		Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55C63-35DGZ		Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 35 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55C63-40DCZ		Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55C63-40DCZ		Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55C63-40DGZ		Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 40 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55C63-45DCZ		Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55C63-45DCZ		Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55C63-45DGZ		Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 45 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55C63-50DCZ		Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55C63-50DCZ		Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55C63-50DGZ		Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 50 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55C63-60DCZ		Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55C63-60DCZ		Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55C63-60DGZ		Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 60 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55C63-80DCZ		Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55C63-80DCZ		Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55C63-80DGZ		Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 80 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55C63-100DCZ		Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55C63-100DCZ		Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55C63-100DGZ		Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 100 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55C63-125DCZ		Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55C63-125DCZ		Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55C63-125DGZ		Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 125 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55C63-150DCZ		Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55C63-150DCZ		Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55C63-150DGZ		Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 150 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55C63-175DCZ		Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55C63-175DCZ		Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55C63-175DGZ		Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 175 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55C63-200DCZ		Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55C63-200DCZ		Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55C63-200DGZ		Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 200 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55C63-250DCZ		Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55C63-250DCZ		Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55C63-250DGZ		Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 250 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55C63-300DCZ		Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55C63-300DCZ		Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55C63-300DGZ		Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 300 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55B80-10DCZ		Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55B80-10DCZ		Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55B80-10DGZ		Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 10 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55B80-15DCZ		Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55B80-15DCZ		Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55B80-15DGZ		Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 15 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55B80-20DCZ		Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55B80-20DCZ		Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55B80-20DGZ		Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 20 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55B80-25DCZ		Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55B80-25DCZ		Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55B80-25DGZ		Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 25 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55B80-30DCZ		Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55B80-30DCZ		Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55B80-30DGZ		Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 30 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55B80-35DCZ		Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55B80-35DCZ		Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55B80-35DGZ		Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 35 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55B80-40DCZ		Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55B80-40DCZ		Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55B80-40DGZ		Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 40 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55B80-45DCZ		Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55B80-45DCZ		Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55B80-45DGZ		Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 45 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55B80-50DCZ		Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55B80-50DCZ		Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55B80-50DGZ		Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 50 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55B80-60DCZ		Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55B80-60DCZ		Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55B80-60DGZ		Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 60 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55B80-80DCZ		Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55B80-80DCZ		Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55B80-80DGZ		Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 80 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55B80-100DCZ		Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55B80-100DCZ		Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55B80-100DGZ		Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 100 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55B80-125DCZ		Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55B80-125DCZ		Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55B80-125DGZ		Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 125 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55B80-150DCZ		Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55B80-150DCZ		Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55B80-150DGZ		Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 150 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55B80-175DCZ		Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55B80-175DCZ		Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55B80-175DGZ		Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 175 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55B80-200DCZ		Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55B80-200DCZ		Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55B80-200DGZ		Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 200 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55B80-250DCZ		Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55B80-250DCZ		Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55B80-250DGZ		Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 250 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55B80-300DCZ		Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55B80-300DCZ		Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55B80-300DGZ		Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 300 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55L80-10DCZ		Bore: ø80 mm \| Mounting: Foot \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55L80-10DCZ		Bore: ø80 mm \| Mounting: Foot \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55L80-10DGZ		Bore: ø80 mm \| Mounting: Foot \| Stroke: 10 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55L80-15DCZ		Bore: ø80 mm \| Mounting: Foot \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55L80-15DCZ		Bore: ø80 mm \| Mounting: Foot \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55L80-15DGZ		Bore: ø80 mm \| Mounting: Foot \| Stroke: 15 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55L80-20DCZ		Bore: ø80 mm \| Mounting: Foot \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55L80-20DCZ		Bore: ø80 mm \| Mounting: Foot \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55L80-20DGZ		Bore: ø80 mm \| Mounting: Foot \| Stroke: 20 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55L80-25DCZ		Bore: ø80 mm \| Mounting: Foot \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55L80-25DCZ		Bore: ø80 mm \| Mounting: Foot \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55L80-25DGZ		Bore: ø80 mm \| Mounting: Foot \| Stroke: 25 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55L80-30DCZ		Bore: ø80 mm \| Mounting: Foot \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55L80-30DCZ		Bore: ø80 mm \| Mounting: Foot \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55L80-30DGZ		Bore: ø80 mm \| Mounting: Foot \| Stroke: 30 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55L80-35DCZ		Bore: ø80 mm \| Mounting: Foot \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55L80-35DCZ		Bore: ø80 mm \| Mounting: Foot \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55L80-35DGZ		Bore: ø80 mm \| Mounting: Foot \| Stroke: 35 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55L80-40DCZ		Bore: ø80 mm \| Mounting: Foot \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55L80-40DCZ		Bore: ø80 mm \| Mounting: Foot \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55L80-40DGZ		Bore: ø80 mm \| Mounting: Foot \| Stroke: 40 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55L80-45DCZ		Bore: ø80 mm \| Mounting: Foot \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55L80-45DCZ		Bore: ø80 mm \| Mounting: Foot \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55L80-45DGZ		Bore: ø80 mm \| Mounting: Foot \| Stroke: 45 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55L80-50DCZ		Bore: ø80 mm \| Mounting: Foot \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55L80-50DCZ		Bore: ø80 mm \| Mounting: Foot \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55L80-50DGZ		Bore: ø80 mm \| Mounting: Foot \| Stroke: 50 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55L80-60DCZ		Bore: ø80 mm \| Mounting: Foot \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55L80-60DCZ		Bore: ø80 mm \| Mounting: Foot \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55L80-60DGZ		Bore: ø80 mm \| Mounting: Foot \| Stroke: 60 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55L80-80DCZ		Bore: ø80 mm \| Mounting: Foot \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55L80-80DCZ		Bore: ø80 mm \| Mounting: Foot \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55L80-80DGZ		Bore: ø80 mm \| Mounting: Foot \| Stroke: 80 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55L80-100DCZ		Bore: ø80 mm \| Mounting: Foot \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55L80-100DCZ		Bore: ø80 mm \| Mounting: Foot \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55L80-100DGZ		Bore: ø80 mm \| Mounting: Foot \| Stroke: 100 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55L80-125DCZ		Bore: ø80 mm \| Mounting: Foot \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55L80-125DCZ		Bore: ø80 mm \| Mounting: Foot \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55L80-125DGZ		Bore: ø80 mm \| Mounting: Foot \| Stroke: 125 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55L80-150DCZ		Bore: ø80 mm \| Mounting: Foot \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55L80-150DCZ		Bore: ø80 mm \| Mounting: Foot \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55L80-150DGZ		Bore: ø80 mm \| Mounting: Foot \| Stroke: 150 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55L80-175DCZ		Bore: ø80 mm \| Mounting: Foot \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55L80-175DCZ		Bore: ø80 mm \| Mounting: Foot \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55L80-175DGZ		Bore: ø80 mm \| Mounting: Foot \| Stroke: 175 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55L80-200DCZ		Bore: ø80 mm \| Mounting: Foot \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55L80-200DCZ		Bore: ø80 mm \| Mounting: Foot \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55L80-200DGZ		Bore: ø80 mm \| Mounting: Foot \| Stroke: 200 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55L80-250DCZ		Bore: ø80 mm \| Mounting: Foot \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55L80-250DCZ		Bore: ø80 mm \| Mounting: Foot \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55L80-250DGZ		Bore: ø80 mm \| Mounting: Foot \| Stroke: 250 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55L80-300DCZ		Bore: ø80 mm \| Mounting: Foot \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55L80-300DCZ		Bore: ø80 mm \| Mounting: Foot \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55L80-300DGZ		Bore: ø80 mm \| Mounting: Foot \| Stroke: 300 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55F80-10DCZ		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55F80-10DCZ		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55F80-10DGZ		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 10 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55F80-15DCZ		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55F80-15DCZ		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55F80-15DGZ		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 15 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55F80-20DCZ		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55F80-20DCZ		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55F80-20DGZ		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55F80-25DCZ		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55F80-25DCZ		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55F80-25DGZ		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55F80-30DCZ		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55F80-30DCZ		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55F80-30DGZ		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55F80-35DCZ		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55F80-35DCZ		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55F80-35DGZ		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 35 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55F80-40DCZ		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55F80-40DCZ		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55F80-40DGZ		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55F80-45DCZ		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55F80-45DCZ		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55F80-45DGZ		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 45 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55F80-50DCZ		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55F80-50DCZ		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55F80-50DGZ		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55F80-60DCZ		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55F80-60DCZ		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55F80-60DGZ		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 60 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55F80-80DCZ		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55F80-80DCZ		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55F80-80DGZ		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 80 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55F80-100DCZ		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55F80-100DCZ		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55F80-100DGZ		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55F80-125DCZ		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55F80-125DCZ		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55F80-125DGZ		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55F80-150DCZ		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55F80-150DCZ		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55F80-150DGZ		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55F80-175DCZ		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55F80-175DCZ		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55F80-175DGZ		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55F80-200DCZ		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55F80-200DCZ		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55F80-200DGZ		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55F80-250DCZ		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55F80-250DCZ		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55F80-250DGZ		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 250 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55F80-300DCZ		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55F80-300DCZ		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55F80-300DGZ		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 300 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55G80-10DCZ		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55G80-10DCZ		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55G80-10DGZ		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 10 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55G80-15DCZ		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55G80-15DCZ		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55G80-15DGZ		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 15 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55G80-20DCZ		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55G80-20DCZ		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55G80-20DGZ		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 20 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55G80-25DCZ		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55G80-25DCZ		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55G80-25DGZ		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 25 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55G80-30DCZ		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55G80-30DCZ		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55G80-30DGZ		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 30 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55G80-35DCZ		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55G80-35DCZ		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55G80-35DGZ		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 35 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55G80-40DCZ		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55G80-40DCZ		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55G80-40DGZ		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 40 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55G80-45DCZ		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55G80-45DCZ		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55G80-45DGZ		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 45 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55G80-50DCZ		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55G80-50DCZ		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55G80-50DGZ		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 50 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55G80-60DCZ		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55G80-60DCZ		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55G80-60DGZ		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 60 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55G80-80DCZ		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55G80-80DCZ		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55G80-80DGZ		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 80 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55G80-100DCZ		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55G80-100DCZ		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55G80-100DGZ		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 100 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55G80-125DCZ		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55G80-125DCZ		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55G80-125DGZ		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 125 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55G80-150DCZ		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55G80-150DCZ		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55G80-150DGZ		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 150 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55G80-175DCZ		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55G80-175DCZ		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55G80-175DGZ		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 175 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55G80-200DCZ		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55G80-200DCZ		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55G80-200DGZ		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 200 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55G80-250DCZ		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55G80-250DCZ		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55G80-250DGZ		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 250 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55G80-300DCZ		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55G80-300DCZ		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55G80-300DGZ		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 300 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55C80-10DCZ		Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55C80-10DCZ		Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55C80-10DGZ		Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 10 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55C80-15DCZ		Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55C80-15DCZ		Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55C80-15DGZ		Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 15 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55C80-20DCZ		Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55C80-20DCZ		Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55C80-20DGZ		Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 20 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55C80-25DCZ		Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55C80-25DCZ		Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55C80-25DGZ		Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 25 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55C80-30DCZ		Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55C80-30DCZ		Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55C80-30DGZ		Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 30 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55C80-35DCZ		Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55C80-35DCZ		Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55C80-35DGZ		Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 35 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55C80-40DCZ		Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55C80-40DCZ		Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55C80-40DGZ		Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 40 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55C80-45DCZ		Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55C80-45DCZ		Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55C80-45DGZ		Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 45 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55C80-50DCZ		Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55C80-50DCZ		Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55C80-50DGZ		Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 50 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55C80-60DCZ		Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55C80-60DCZ		Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55C80-60DGZ		Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 60 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55C80-80DCZ		Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55C80-80DCZ		Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55C80-80DGZ		Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 80 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55C80-100DCZ		Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55C80-100DCZ		Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55C80-100DGZ		Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 100 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55C80-125DCZ		Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55C80-125DCZ		Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55C80-125DGZ		Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 125 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55C80-150DCZ		Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55C80-150DCZ		Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55C80-150DGZ		Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 150 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55C80-175DCZ		Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55C80-175DCZ		Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55C80-175DGZ		Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 175 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55C80-200DCZ		Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55C80-200DCZ		Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55C80-200DGZ		Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 200 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55C80-250DCZ		Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55C80-250DCZ		Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55C80-250DGZ		Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 250 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55C80-300DCZ		Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55C80-300DCZ		Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55C80-300DGZ		Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 300 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55B100-10DCZ		Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55B100-10DCZ		Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55B100-10DGZ		Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 10 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55B100-15DCZ		Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55B100-15DCZ		Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55B100-15DGZ		Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 15 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55B100-20DCZ		Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55B100-20DCZ		Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55B100-20DGZ		Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 20 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55B100-25DCZ		Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55B100-25DCZ		Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55B100-25DGZ		Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 25 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55B100-30DCZ		Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55B100-30DCZ		Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55B100-30DGZ		Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 30 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55B100-35DCZ		Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55B100-35DCZ		Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55B100-35DGZ		Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 35 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55B100-40DCZ		Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55B100-40DCZ		Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55B100-40DGZ		Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 40 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55B100-45DCZ		Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55B100-45DCZ		Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55B100-45DGZ		Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 45 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55B100-50DCZ		Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55B100-50DCZ		Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55B100-50DGZ		Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 50 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55B100-60DCZ		Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55B100-60DCZ		Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55B100-60DGZ		Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 60 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55B100-80DCZ		Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55B100-80DCZ		Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55B100-80DGZ		Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 80 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55B100-100DCZ		Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55B100-100DCZ		Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55B100-100DGZ		Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 100 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55B100-125DCZ		Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55B100-125DCZ		Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55B100-125DGZ		Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 125 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55B100-150DCZ		Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55B100-150DCZ		Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55B100-150DGZ		Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 150 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55B100-175DCZ		Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55B100-175DCZ		Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55B100-175DGZ		Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 175 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55B100-200DCZ		Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55B100-200DCZ		Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55B100-200DGZ		Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 200 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55B100-250DCZ		Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55B100-250DCZ		Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55B100-250DGZ		Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 250 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55B100-300DCZ		Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55B100-300DCZ		Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55B100-300DGZ		Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 300 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55L100-10DCZ		Bore: ø100 mm \| Mounting: Foot \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55L100-10DCZ		Bore: ø100 mm \| Mounting: Foot \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55L100-10DGZ		Bore: ø100 mm \| Mounting: Foot \| Stroke: 10 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55L100-15DCZ		Bore: ø100 mm \| Mounting: Foot \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55L100-15DCZ		Bore: ø100 mm \| Mounting: Foot \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55L100-15DGZ		Bore: ø100 mm \| Mounting: Foot \| Stroke: 15 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55L100-20DCZ		Bore: ø100 mm \| Mounting: Foot \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55L100-20DCZ		Bore: ø100 mm \| Mounting: Foot \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55L100-20DGZ		Bore: ø100 mm \| Mounting: Foot \| Stroke: 20 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55L100-25DCZ		Bore: ø100 mm \| Mounting: Foot \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55L100-25DCZ		Bore: ø100 mm \| Mounting: Foot \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55L100-25DGZ		Bore: ø100 mm \| Mounting: Foot \| Stroke: 25 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55L100-30DCZ		Bore: ø100 mm \| Mounting: Foot \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55L100-30DCZ		Bore: ø100 mm \| Mounting: Foot \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55L100-30DGZ		Bore: ø100 mm \| Mounting: Foot \| Stroke: 30 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55L100-35DCZ		Bore: ø100 mm \| Mounting: Foot \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55L100-35DCZ		Bore: ø100 mm \| Mounting: Foot \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55L100-35DGZ		Bore: ø100 mm \| Mounting: Foot \| Stroke: 35 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55L100-40DCZ		Bore: ø100 mm \| Mounting: Foot \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55L100-40DCZ		Bore: ø100 mm \| Mounting: Foot \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55L100-40DGZ		Bore: ø100 mm \| Mounting: Foot \| Stroke: 40 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55L100-45DCZ		Bore: ø100 mm \| Mounting: Foot \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55L100-45DCZ		Bore: ø100 mm \| Mounting: Foot \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55L100-45DGZ		Bore: ø100 mm \| Mounting: Foot \| Stroke: 45 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55L100-50DCZ		Bore: ø100 mm \| Mounting: Foot \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55L100-50DCZ		Bore: ø100 mm \| Mounting: Foot \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55L100-50DGZ		Bore: ø100 mm \| Mounting: Foot \| Stroke: 50 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55L100-60DCZ		Bore: ø100 mm \| Mounting: Foot \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55L100-60DCZ		Bore: ø100 mm \| Mounting: Foot \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55L100-60DGZ		Bore: ø100 mm \| Mounting: Foot \| Stroke: 60 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55L100-80DCZ		Bore: ø100 mm \| Mounting: Foot \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55L100-80DCZ		Bore: ø100 mm \| Mounting: Foot \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55L100-80DGZ		Bore: ø100 mm \| Mounting: Foot \| Stroke: 80 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55L100-100DCZ		Bore: ø100 mm \| Mounting: Foot \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55L100-100DCZ		Bore: ø100 mm \| Mounting: Foot \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55L100-100DGZ		Bore: ø100 mm \| Mounting: Foot \| Stroke: 100 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55L100-125DCZ		Bore: ø100 mm \| Mounting: Foot \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55L100-125DCZ		Bore: ø100 mm \| Mounting: Foot \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55L100-125DGZ		Bore: ø100 mm \| Mounting: Foot \| Stroke: 125 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55L100-150DCZ		Bore: ø100 mm \| Mounting: Foot \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55L100-150DCZ		Bore: ø100 mm \| Mounting: Foot \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55L100-150DGZ		Bore: ø100 mm \| Mounting: Foot \| Stroke: 150 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55L100-175DCZ		Bore: ø100 mm \| Mounting: Foot \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55L100-175DCZ		Bore: ø100 mm \| Mounting: Foot \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55L100-175DGZ		Bore: ø100 mm \| Mounting: Foot \| Stroke: 175 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55L100-200DCZ		Bore: ø100 mm \| Mounting: Foot \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55L100-200DCZ		Bore: ø100 mm \| Mounting: Foot \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55L100-200DGZ		Bore: ø100 mm \| Mounting: Foot \| Stroke: 200 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55L100-250DCZ		Bore: ø100 mm \| Mounting: Foot \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55L100-250DCZ		Bore: ø100 mm \| Mounting: Foot \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55L100-250DGZ		Bore: ø100 mm \| Mounting: Foot \| Stroke: 250 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55L100-300DCZ		Bore: ø100 mm \| Mounting: Foot \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55L100-300DCZ		Bore: ø100 mm \| Mounting: Foot \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55L100-300DGZ		Bore: ø100 mm \| Mounting: Foot \| Stroke: 300 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55F100-10DCZ		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55F100-10DCZ		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55F100-10DGZ		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 10 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55F100-15DCZ		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55F100-15DCZ		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55F100-15DGZ		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 15 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55F100-20DCZ		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55F100-20DCZ		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55F100-20DGZ		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55F100-25DCZ		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55F100-25DCZ		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55F100-25DGZ		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55F100-30DCZ		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55F100-30DCZ		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55F100-30DGZ		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55F100-35DCZ		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55F100-35DCZ		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55F100-35DGZ		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 35 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55F100-40DCZ		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55F100-40DCZ		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55F100-40DGZ		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55F100-45DCZ		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55F100-45DCZ		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55F100-45DGZ		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 45 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55F100-50DCZ		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55F100-50DCZ		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55F100-50DGZ		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55F100-60DCZ		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55F100-60DCZ		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55F100-60DGZ		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 60 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55F100-80DCZ		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55F100-80DCZ		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55F100-80DGZ		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 80 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55F100-100DCZ		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55F100-100DCZ		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55F100-100DGZ		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55F100-125DCZ		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55F100-125DCZ		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55F100-125DGZ		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55F100-150DCZ		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55F100-150DCZ		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55F100-150DGZ		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55F100-175DCZ		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55F100-175DCZ		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55F100-175DGZ		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55F100-200DCZ		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55F100-200DCZ		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55F100-200DGZ		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55F100-250DCZ		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55F100-250DCZ		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55F100-250DGZ		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 250 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55F100-300DCZ		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55F100-300DCZ		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55F100-300DGZ		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 300 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55G100-10DCZ		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55G100-10DCZ		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55G100-10DGZ		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 10 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55G100-15DCZ		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55G100-15DCZ		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55G100-15DGZ		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 15 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55G100-20DCZ		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55G100-20DCZ		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55G100-20DGZ		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 20 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55G100-25DCZ		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55G100-25DCZ		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55G100-25DGZ		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 25 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55G100-30DCZ		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55G100-30DCZ		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55G100-30DGZ		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 30 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55G100-35DCZ		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55G100-35DCZ		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55G100-35DGZ		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 35 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55G100-40DCZ		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55G100-40DCZ		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55G100-40DGZ		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 40 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55G100-45DCZ		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55G100-45DCZ		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55G100-45DGZ		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 45 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55G100-50DCZ		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55G100-50DCZ		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55G100-50DGZ		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 50 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55G100-60DCZ		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55G100-60DCZ		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55G100-60DGZ		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 60 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55G100-80DCZ		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55G100-80DCZ		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55G100-80DGZ		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 80 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55G100-100DCZ		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55G100-100DCZ		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55G100-100DGZ		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 100 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55G100-125DCZ		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55G100-125DCZ		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55G100-125DGZ		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 125 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55G100-150DCZ		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55G100-150DCZ		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55G100-150DGZ		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 150 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55G100-175DCZ		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55G100-175DCZ		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55G100-175DGZ		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 175 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55G100-200DCZ		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55G100-200DCZ		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55G100-200DGZ		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 200 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55G100-250DCZ		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55G100-250DCZ		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55G100-250DGZ		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 250 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55G100-300DCZ		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55G100-300DCZ		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55G100-300DGZ		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 300 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55C100-10DCZ		Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55C100-10DCZ		Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55C100-10DGZ		Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 10 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55C100-15DCZ		Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55C100-15DCZ		Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55C100-15DGZ		Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 15 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55C100-20DCZ		Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55C100-20DCZ		Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55C100-20DGZ		Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 20 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55C100-25DCZ		Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55C100-25DCZ		Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55C100-25DGZ		Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 25 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55C100-30DCZ		Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55C100-30DCZ		Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55C100-30DGZ		Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 30 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55C100-35DCZ		Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55C100-35DCZ		Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55C100-35DGZ		Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 35 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55C100-40DCZ		Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55C100-40DCZ		Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55C100-40DGZ		Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 40 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55C100-45DCZ		Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55C100-45DCZ		Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55C100-45DGZ		Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 45 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55C100-50DCZ		Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55C100-50DCZ		Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55C100-50DGZ		Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 50 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55C100-60DCZ		Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55C100-60DCZ		Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55C100-60DGZ		Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 60 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55C100-80DCZ		Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55C100-80DCZ		Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55C100-80DGZ		Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 80 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55C100-100DCZ		Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55C100-100DCZ		Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55C100-100DGZ		Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 100 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55C100-125DCZ		Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55C100-125DCZ		Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55C100-125DGZ		Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 125 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55C100-150DCZ		Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55C100-150DCZ		Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55C100-150DGZ		Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 150 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55C100-175DCZ		Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55C100-175DCZ		Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55C100-175DGZ		Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 175 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55C100-200DCZ		Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55C100-200DCZ		Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55C100-200DGZ		Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 200 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55C100-250DCZ		Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55C100-250DCZ		Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55C100-250DGZ		Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 250 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
C55C100-300DCZ		Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
CD55C100-300DCZ		Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
CD55C100-300DGZ		Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 300 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes

Compact CylindersSMC

1110 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC C55 ISO 21287 Compact Cylinder (Single Rod, ø50 to ø100)

Brand SMC·Compact Cylinders

Available part numbers (1110)

C55B50-5DCZ, CD55B50-5DCZ, CD55B50-5DGZ, C55B50-10DCZ, CD55B50-10DCZ, CD55B50-10DGZ, C55B50-15DCZ, CD55B50-15DCZ, CD55B50-15DGZ, C55B50-20DCZ + 1100 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	C55B50-5DCZ	Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55B50-5DCZ	Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55B50-5DGZ	Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 5 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55B50-10DCZ	Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55B50-10DCZ	Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55B50-10DGZ	Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 10 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55B50-15DCZ	Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55B50-15DCZ	Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55B50-15DGZ	Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 15 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55B50-20DCZ	Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55B50-20DCZ	Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55B50-20DGZ	Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 20 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55B50-25DCZ	Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55B50-25DCZ	Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55B50-25DGZ	Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 25 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55B50-30DCZ	Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55B50-30DCZ	Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55B50-30DGZ	Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 30 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55B50-35DCZ	Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55B50-35DCZ	Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55B50-35DGZ	Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 35 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55B50-40DCZ	Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55B50-40DCZ	Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55B50-40DGZ	Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 40 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55B50-45DCZ	Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55B50-45DCZ	Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55B50-45DGZ	Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 45 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55B50-50DCZ	Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55B50-50DCZ	Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55B50-50DGZ	Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 50 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55B50-60DCZ	Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55B50-60DCZ	Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55B50-60DGZ	Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 60 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55B50-80DCZ	Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55B50-80DCZ	Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55B50-80DGZ	Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 80 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55B50-100DCZ	Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55B50-100DCZ	Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55B50-100DGZ	Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 100 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55B50-125DCZ	Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55B50-125DCZ	Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55B50-125DGZ	Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 125 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55B50-150DCZ	Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55B50-150DCZ	Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55B50-150DGZ	Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 150 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55B50-175DCZ	Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55B50-175DCZ	Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55B50-175DGZ	Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 175 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55B50-200DCZ	Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55B50-200DCZ	Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55B50-200DGZ	Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 200 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55B50-250DCZ	Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55B50-250DCZ	Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55B50-250DGZ	Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 250 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55B50-300DCZ	Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55B50-300DCZ	Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55B50-300DGZ	Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 300 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55L50-5DCZ	Bore: ø50 mm \| Mounting: Foot \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55L50-5DCZ	Bore: ø50 mm \| Mounting: Foot \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55L50-5DGZ	Bore: ø50 mm \| Mounting: Foot \| Stroke: 5 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55L50-10DCZ	Bore: ø50 mm \| Mounting: Foot \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55L50-10DCZ	Bore: ø50 mm \| Mounting: Foot \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55L50-10DGZ	Bore: ø50 mm \| Mounting: Foot \| Stroke: 10 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55L50-15DCZ	Bore: ø50 mm \| Mounting: Foot \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55L50-15DCZ	Bore: ø50 mm \| Mounting: Foot \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55L50-15DGZ	Bore: ø50 mm \| Mounting: Foot \| Stroke: 15 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55L50-20DCZ	Bore: ø50 mm \| Mounting: Foot \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55L50-20DCZ	Bore: ø50 mm \| Mounting: Foot \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55L50-20DGZ	Bore: ø50 mm \| Mounting: Foot \| Stroke: 20 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55L50-25DCZ	Bore: ø50 mm \| Mounting: Foot \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55L50-25DCZ	Bore: ø50 mm \| Mounting: Foot \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55L50-25DGZ	Bore: ø50 mm \| Mounting: Foot \| Stroke: 25 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55L50-30DCZ	Bore: ø50 mm \| Mounting: Foot \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55L50-30DCZ	Bore: ø50 mm \| Mounting: Foot \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55L50-30DGZ	Bore: ø50 mm \| Mounting: Foot \| Stroke: 30 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55L50-35DCZ	Bore: ø50 mm \| Mounting: Foot \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55L50-35DCZ	Bore: ø50 mm \| Mounting: Foot \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55L50-35DGZ	Bore: ø50 mm \| Mounting: Foot \| Stroke: 35 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55L50-40DCZ	Bore: ø50 mm \| Mounting: Foot \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55L50-40DCZ	Bore: ø50 mm \| Mounting: Foot \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55L50-40DGZ	Bore: ø50 mm \| Mounting: Foot \| Stroke: 40 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55L50-45DCZ	Bore: ø50 mm \| Mounting: Foot \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55L50-45DCZ	Bore: ø50 mm \| Mounting: Foot \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55L50-45DGZ	Bore: ø50 mm \| Mounting: Foot \| Stroke: 45 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55L50-50DCZ	Bore: ø50 mm \| Mounting: Foot \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55L50-50DCZ	Bore: ø50 mm \| Mounting: Foot \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55L50-50DGZ	Bore: ø50 mm \| Mounting: Foot \| Stroke: 50 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55L50-60DCZ	Bore: ø50 mm \| Mounting: Foot \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55L50-60DCZ	Bore: ø50 mm \| Mounting: Foot \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55L50-60DGZ	Bore: ø50 mm \| Mounting: Foot \| Stroke: 60 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55L50-80DCZ	Bore: ø50 mm \| Mounting: Foot \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55L50-80DCZ	Bore: ø50 mm \| Mounting: Foot \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55L50-80DGZ	Bore: ø50 mm \| Mounting: Foot \| Stroke: 80 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55L50-100DCZ	Bore: ø50 mm \| Mounting: Foot \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55L50-100DCZ	Bore: ø50 mm \| Mounting: Foot \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55L50-100DGZ	Bore: ø50 mm \| Mounting: Foot \| Stroke: 100 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55L50-125DCZ	Bore: ø50 mm \| Mounting: Foot \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55L50-125DCZ	Bore: ø50 mm \| Mounting: Foot \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55L50-125DGZ	Bore: ø50 mm \| Mounting: Foot \| Stroke: 125 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55L50-150DCZ	Bore: ø50 mm \| Mounting: Foot \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55L50-150DCZ	Bore: ø50 mm \| Mounting: Foot \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55L50-150DGZ	Bore: ø50 mm \| Mounting: Foot \| Stroke: 150 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55L50-175DCZ	Bore: ø50 mm \| Mounting: Foot \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55L50-175DCZ	Bore: ø50 mm \| Mounting: Foot \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55L50-175DGZ	Bore: ø50 mm \| Mounting: Foot \| Stroke: 175 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55L50-200DCZ	Bore: ø50 mm \| Mounting: Foot \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55L50-200DCZ	Bore: ø50 mm \| Mounting: Foot \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55L50-200DGZ	Bore: ø50 mm \| Mounting: Foot \| Stroke: 200 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55L50-250DCZ	Bore: ø50 mm \| Mounting: Foot \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55L50-250DCZ	Bore: ø50 mm \| Mounting: Foot \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55L50-250DGZ	Bore: ø50 mm \| Mounting: Foot \| Stroke: 250 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55L50-300DCZ	Bore: ø50 mm \| Mounting: Foot \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55L50-300DCZ	Bore: ø50 mm \| Mounting: Foot \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55L50-300DGZ	Bore: ø50 mm \| Mounting: Foot \| Stroke: 300 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55F50-5DCZ	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55F50-5DCZ	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55F50-5DGZ	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 5 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55F50-10DCZ	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55F50-10DCZ	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55F50-10DGZ	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 10 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55F50-15DCZ	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55F50-15DCZ	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55F50-15DGZ	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 15 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55F50-20DCZ	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55F50-20DCZ	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55F50-20DGZ	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55F50-25DCZ	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55F50-25DCZ	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55F50-25DGZ	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55F50-30DCZ	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55F50-30DCZ	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55F50-30DGZ	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55F50-35DCZ	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55F50-35DCZ	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55F50-35DGZ	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 35 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55F50-40DCZ	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55F50-40DCZ	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55F50-40DGZ	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55F50-45DCZ	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55F50-45DCZ	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55F50-45DGZ	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 45 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55F50-50DCZ	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55F50-50DCZ	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55F50-50DGZ	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55F50-60DCZ	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55F50-60DCZ	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55F50-60DGZ	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 60 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55F50-80DCZ	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55F50-80DCZ	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55F50-80DGZ	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 80 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55F50-100DCZ	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55F50-100DCZ	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55F50-100DGZ	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55F50-125DCZ	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55F50-125DCZ	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55F50-125DGZ	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55F50-150DCZ	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55F50-150DCZ	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55F50-150DGZ	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55F50-175DCZ	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55F50-175DCZ	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55F50-175DGZ	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55F50-200DCZ	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55F50-200DCZ	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55F50-200DGZ	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55F50-250DCZ	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55F50-250DCZ	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55F50-250DGZ	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 250 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55F50-300DCZ	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55F50-300DCZ	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55F50-300DGZ	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 300 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55G50-5DCZ	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55G50-5DCZ	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55G50-5DGZ	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 5 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55G50-10DCZ	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55G50-10DCZ	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55G50-10DGZ	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 10 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55G50-15DCZ	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55G50-15DCZ	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55G50-15DGZ	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 15 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55G50-20DCZ	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55G50-20DCZ	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55G50-20DGZ	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 20 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55G50-25DCZ	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55G50-25DCZ	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55G50-25DGZ	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 25 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55G50-30DCZ	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55G50-30DCZ	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55G50-30DGZ	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 30 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55G50-35DCZ	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55G50-35DCZ	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55G50-35DGZ	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 35 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55G50-40DCZ	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55G50-40DCZ	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55G50-40DGZ	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 40 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55G50-45DCZ	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55G50-45DCZ	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55G50-45DGZ	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 45 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55G50-50DCZ	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55G50-50DCZ	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55G50-50DGZ	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 50 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55G50-60DCZ	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55G50-60DCZ	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55G50-60DGZ	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 60 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55G50-80DCZ	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55G50-80DCZ	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55G50-80DGZ	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 80 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55G50-100DCZ	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55G50-100DCZ	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55G50-100DGZ	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 100 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55G50-125DCZ	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55G50-125DCZ	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55G50-125DGZ	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 125 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55G50-150DCZ	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55G50-150DCZ	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55G50-150DGZ	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 150 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55G50-175DCZ	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55G50-175DCZ	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55G50-175DGZ	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 175 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55G50-200DCZ	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55G50-200DCZ	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55G50-200DGZ	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 200 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55G50-250DCZ	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55G50-250DCZ	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55G50-250DGZ	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 250 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55G50-300DCZ	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55G50-300DCZ	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55G50-300DGZ	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 300 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55C50-5DCZ	Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55C50-5DCZ	Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55C50-5DGZ	Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 5 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55C50-10DCZ	Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55C50-10DCZ	Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55C50-10DGZ	Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 10 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55C50-15DCZ	Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55C50-15DCZ	Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55C50-15DGZ	Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 15 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55C50-20DCZ	Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55C50-20DCZ	Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55C50-20DGZ	Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 20 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55C50-25DCZ	Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55C50-25DCZ	Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55C50-25DGZ	Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 25 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55C50-30DCZ	Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55C50-30DCZ	Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55C50-30DGZ	Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 30 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55C50-35DCZ	Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55C50-35DCZ	Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55C50-35DGZ	Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 35 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55C50-40DCZ	Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55C50-40DCZ	Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55C50-40DGZ	Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 40 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55C50-45DCZ	Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55C50-45DCZ	Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55C50-45DGZ	Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 45 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55C50-50DCZ	Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55C50-50DCZ	Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55C50-50DGZ	Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 50 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55C50-60DCZ	Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55C50-60DCZ	Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55C50-60DGZ	Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 60 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55C50-80DCZ	Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55C50-80DCZ	Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55C50-80DGZ	Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 80 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55C50-100DCZ	Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55C50-100DCZ	Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55C50-100DGZ	Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 100 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55C50-125DCZ	Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55C50-125DCZ	Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55C50-125DGZ	Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 125 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55C50-150DCZ	Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55C50-150DCZ	Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55C50-150DGZ	Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 150 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55C50-175DCZ	Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55C50-175DCZ	Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55C50-175DGZ	Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 175 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55C50-200DCZ	Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55C50-200DCZ	Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55C50-200DGZ	Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 200 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55C50-250DCZ	Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55C50-250DCZ	Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55C50-250DGZ	Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 250 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55C50-300DCZ	Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55C50-300DCZ	Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55C50-300DGZ	Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 300 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55B63-5DCZ	Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55B63-5DCZ	Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55B63-5DGZ	Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 5 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55B63-10DCZ	Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55B63-10DCZ	Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55B63-10DGZ	Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 10 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55B63-15DCZ	Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55B63-15DCZ	Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55B63-15DGZ	Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 15 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55B63-20DCZ	Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55B63-20DCZ	Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55B63-20DGZ	Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 20 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55B63-25DCZ	Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55B63-25DCZ	Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55B63-25DGZ	Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 25 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55B63-30DCZ	Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55B63-30DCZ	Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55B63-30DGZ	Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 30 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55B63-35DCZ	Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55B63-35DCZ	Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55B63-35DGZ	Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 35 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55B63-40DCZ	Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55B63-40DCZ	Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55B63-40DGZ	Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 40 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55B63-45DCZ	Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55B63-45DCZ	Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55B63-45DGZ	Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 45 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55B63-50DCZ	Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55B63-50DCZ	Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55B63-50DGZ	Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 50 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55B63-60DCZ	Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55B63-60DCZ	Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55B63-60DGZ	Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 60 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55B63-80DCZ	Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55B63-80DCZ	Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55B63-80DGZ	Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 80 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55B63-100DCZ	Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55B63-100DCZ	Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55B63-100DGZ	Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 100 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55B63-125DCZ	Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55B63-125DCZ	Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55B63-125DGZ	Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 125 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55B63-150DCZ	Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55B63-150DCZ	Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55B63-150DGZ	Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 150 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55B63-175DCZ	Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55B63-175DCZ	Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55B63-175DGZ	Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 175 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55B63-200DCZ	Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55B63-200DCZ	Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55B63-200DGZ	Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 200 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55B63-250DCZ	Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55B63-250DCZ	Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55B63-250DGZ	Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 250 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55B63-300DCZ	Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55B63-300DCZ	Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55B63-300DGZ	Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 300 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55L63-5DCZ	Bore: ø63 mm \| Mounting: Foot \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55L63-5DCZ	Bore: ø63 mm \| Mounting: Foot \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55L63-5DGZ	Bore: ø63 mm \| Mounting: Foot \| Stroke: 5 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55L63-10DCZ	Bore: ø63 mm \| Mounting: Foot \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55L63-10DCZ	Bore: ø63 mm \| Mounting: Foot \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55L63-10DGZ	Bore: ø63 mm \| Mounting: Foot \| Stroke: 10 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55L63-15DCZ	Bore: ø63 mm \| Mounting: Foot \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55L63-15DCZ	Bore: ø63 mm \| Mounting: Foot \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55L63-15DGZ	Bore: ø63 mm \| Mounting: Foot \| Stroke: 15 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55L63-20DCZ	Bore: ø63 mm \| Mounting: Foot \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55L63-20DCZ	Bore: ø63 mm \| Mounting: Foot \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55L63-20DGZ	Bore: ø63 mm \| Mounting: Foot \| Stroke: 20 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55L63-25DCZ	Bore: ø63 mm \| Mounting: Foot \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55L63-25DCZ	Bore: ø63 mm \| Mounting: Foot \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55L63-25DGZ	Bore: ø63 mm \| Mounting: Foot \| Stroke: 25 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55L63-30DCZ	Bore: ø63 mm \| Mounting: Foot \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55L63-30DCZ	Bore: ø63 mm \| Mounting: Foot \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55L63-30DGZ	Bore: ø63 mm \| Mounting: Foot \| Stroke: 30 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55L63-35DCZ	Bore: ø63 mm \| Mounting: Foot \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55L63-35DCZ	Bore: ø63 mm \| Mounting: Foot \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55L63-35DGZ	Bore: ø63 mm \| Mounting: Foot \| Stroke: 35 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55L63-40DCZ	Bore: ø63 mm \| Mounting: Foot \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55L63-40DCZ	Bore: ø63 mm \| Mounting: Foot \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55L63-40DGZ	Bore: ø63 mm \| Mounting: Foot \| Stroke: 40 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55L63-45DCZ	Bore: ø63 mm \| Mounting: Foot \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55L63-45DCZ	Bore: ø63 mm \| Mounting: Foot \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55L63-45DGZ	Bore: ø63 mm \| Mounting: Foot \| Stroke: 45 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55L63-50DCZ	Bore: ø63 mm \| Mounting: Foot \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55L63-50DCZ	Bore: ø63 mm \| Mounting: Foot \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55L63-50DGZ	Bore: ø63 mm \| Mounting: Foot \| Stroke: 50 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55L63-60DCZ	Bore: ø63 mm \| Mounting: Foot \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55L63-60DCZ	Bore: ø63 mm \| Mounting: Foot \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55L63-60DGZ	Bore: ø63 mm \| Mounting: Foot \| Stroke: 60 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55L63-80DCZ	Bore: ø63 mm \| Mounting: Foot \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55L63-80DCZ	Bore: ø63 mm \| Mounting: Foot \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55L63-80DGZ	Bore: ø63 mm \| Mounting: Foot \| Stroke: 80 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55L63-100DCZ	Bore: ø63 mm \| Mounting: Foot \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55L63-100DCZ	Bore: ø63 mm \| Mounting: Foot \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55L63-100DGZ	Bore: ø63 mm \| Mounting: Foot \| Stroke: 100 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55L63-125DCZ	Bore: ø63 mm \| Mounting: Foot \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55L63-125DCZ	Bore: ø63 mm \| Mounting: Foot \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55L63-125DGZ	Bore: ø63 mm \| Mounting: Foot \| Stroke: 125 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55L63-150DCZ	Bore: ø63 mm \| Mounting: Foot \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55L63-150DCZ	Bore: ø63 mm \| Mounting: Foot \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55L63-150DGZ	Bore: ø63 mm \| Mounting: Foot \| Stroke: 150 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55L63-175DCZ	Bore: ø63 mm \| Mounting: Foot \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55L63-175DCZ	Bore: ø63 mm \| Mounting: Foot \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55L63-175DGZ	Bore: ø63 mm \| Mounting: Foot \| Stroke: 175 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55L63-200DCZ	Bore: ø63 mm \| Mounting: Foot \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55L63-200DCZ	Bore: ø63 mm \| Mounting: Foot \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55L63-200DGZ	Bore: ø63 mm \| Mounting: Foot \| Stroke: 200 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55L63-250DCZ	Bore: ø63 mm \| Mounting: Foot \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55L63-250DCZ	Bore: ø63 mm \| Mounting: Foot \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55L63-250DGZ	Bore: ø63 mm \| Mounting: Foot \| Stroke: 250 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55L63-300DCZ	Bore: ø63 mm \| Mounting: Foot \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55L63-300DCZ	Bore: ø63 mm \| Mounting: Foot \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55L63-300DGZ	Bore: ø63 mm \| Mounting: Foot \| Stroke: 300 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55F63-5DCZ	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55F63-5DCZ	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55F63-5DGZ	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 5 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55F63-10DCZ	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55F63-10DCZ	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55F63-10DGZ	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 10 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55F63-15DCZ	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55F63-15DCZ	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55F63-15DGZ	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 15 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55F63-20DCZ	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55F63-20DCZ	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55F63-20DGZ	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55F63-25DCZ	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55F63-25DCZ	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55F63-25DGZ	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55F63-30DCZ	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55F63-30DCZ	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55F63-30DGZ	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55F63-35DCZ	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55F63-35DCZ	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55F63-35DGZ	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 35 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55F63-40DCZ	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55F63-40DCZ	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55F63-40DGZ	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55F63-45DCZ	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55F63-45DCZ	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55F63-45DGZ	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 45 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55F63-50DCZ	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55F63-50DCZ	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55F63-50DGZ	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55F63-60DCZ	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55F63-60DCZ	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55F63-60DGZ	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 60 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55F63-80DCZ	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55F63-80DCZ	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55F63-80DGZ	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 80 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55F63-100DCZ	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55F63-100DCZ	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55F63-100DGZ	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55F63-125DCZ	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55F63-125DCZ	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55F63-125DGZ	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55F63-150DCZ	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55F63-150DCZ	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55F63-150DGZ	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55F63-175DCZ	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55F63-175DCZ	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55F63-175DGZ	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55F63-200DCZ	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55F63-200DCZ	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55F63-200DGZ	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55F63-250DCZ	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55F63-250DCZ	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55F63-250DGZ	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 250 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55F63-300DCZ	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55F63-300DCZ	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55F63-300DGZ	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 300 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55G63-5DCZ	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55G63-5DCZ	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55G63-5DGZ	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 5 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55G63-10DCZ	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55G63-10DCZ	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55G63-10DGZ	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 10 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55G63-15DCZ	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55G63-15DCZ	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55G63-15DGZ	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 15 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55G63-20DCZ	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55G63-20DCZ	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55G63-20DGZ	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 20 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55G63-25DCZ	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55G63-25DCZ	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55G63-25DGZ	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 25 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55G63-30DCZ	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55G63-30DCZ	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55G63-30DGZ	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 30 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55G63-35DCZ	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55G63-35DCZ	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55G63-35DGZ	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 35 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55G63-40DCZ	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55G63-40DCZ	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55G63-40DGZ	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 40 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55G63-45DCZ	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55G63-45DCZ	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55G63-45DGZ	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 45 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55G63-50DCZ	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55G63-50DCZ	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55G63-50DGZ	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 50 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55G63-60DCZ	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55G63-60DCZ	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55G63-60DGZ	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 60 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55G63-80DCZ	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55G63-80DCZ	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55G63-80DGZ	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 80 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55G63-100DCZ	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55G63-100DCZ	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55G63-100DGZ	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 100 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55G63-125DCZ	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55G63-125DCZ	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55G63-125DGZ	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 125 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55G63-150DCZ	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55G63-150DCZ	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55G63-150DGZ	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 150 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55G63-175DCZ	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55G63-175DCZ	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55G63-175DGZ	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 175 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55G63-200DCZ	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55G63-200DCZ	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55G63-200DGZ	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 200 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55G63-250DCZ	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55G63-250DCZ	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55G63-250DGZ	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 250 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55G63-300DCZ	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55G63-300DCZ	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55G63-300DGZ	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 300 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55C63-5DCZ	Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55C63-5DCZ	Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 5 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55C63-5DGZ	Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 5 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55C63-10DCZ	Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55C63-10DCZ	Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55C63-10DGZ	Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 10 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55C63-15DCZ	Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55C63-15DCZ	Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55C63-15DGZ	Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 15 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55C63-20DCZ	Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55C63-20DCZ	Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55C63-20DGZ	Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 20 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55C63-25DCZ	Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55C63-25DCZ	Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55C63-25DGZ	Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 25 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55C63-30DCZ	Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55C63-30DCZ	Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55C63-30DGZ	Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 30 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55C63-35DCZ	Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55C63-35DCZ	Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55C63-35DGZ	Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 35 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55C63-40DCZ	Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55C63-40DCZ	Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55C63-40DGZ	Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 40 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55C63-45DCZ	Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55C63-45DCZ	Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55C63-45DGZ	Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 45 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55C63-50DCZ	Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55C63-50DCZ	Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55C63-50DGZ	Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 50 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55C63-60DCZ	Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55C63-60DCZ	Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55C63-60DGZ	Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 60 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55C63-80DCZ	Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55C63-80DCZ	Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55C63-80DGZ	Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 80 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55C63-100DCZ	Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55C63-100DCZ	Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55C63-100DGZ	Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 100 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55C63-125DCZ	Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55C63-125DCZ	Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55C63-125DGZ	Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 125 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55C63-150DCZ	Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55C63-150DCZ	Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55C63-150DGZ	Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 150 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55C63-175DCZ	Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55C63-175DCZ	Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55C63-175DGZ	Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 175 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55C63-200DCZ	Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55C63-200DCZ	Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55C63-200DGZ	Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 200 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55C63-250DCZ	Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55C63-250DCZ	Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55C63-250DGZ	Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 250 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55C63-300DCZ	Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55C63-300DCZ	Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55C63-300DGZ	Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 300 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55B80-10DCZ	Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55B80-10DCZ	Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55B80-10DGZ	Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 10 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55B80-15DCZ	Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55B80-15DCZ	Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55B80-15DGZ	Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 15 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55B80-20DCZ	Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55B80-20DCZ	Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55B80-20DGZ	Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 20 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55B80-25DCZ	Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55B80-25DCZ	Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55B80-25DGZ	Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 25 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55B80-30DCZ	Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55B80-30DCZ	Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55B80-30DGZ	Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 30 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55B80-35DCZ	Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55B80-35DCZ	Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55B80-35DGZ	Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 35 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55B80-40DCZ	Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55B80-40DCZ	Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55B80-40DGZ	Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 40 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55B80-45DCZ	Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55B80-45DCZ	Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55B80-45DGZ	Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 45 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55B80-50DCZ	Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55B80-50DCZ	Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55B80-50DGZ	Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 50 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55B80-60DCZ	Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55B80-60DCZ	Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55B80-60DGZ	Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 60 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55B80-80DCZ	Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55B80-80DCZ	Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55B80-80DGZ	Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 80 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55B80-100DCZ	Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55B80-100DCZ	Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55B80-100DGZ	Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 100 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55B80-125DCZ	Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55B80-125DCZ	Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55B80-125DGZ	Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 125 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55B80-150DCZ	Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55B80-150DCZ	Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55B80-150DGZ	Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 150 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55B80-175DCZ	Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55B80-175DCZ	Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55B80-175DGZ	Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 175 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55B80-200DCZ	Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55B80-200DCZ	Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55B80-200DGZ	Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 200 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55B80-250DCZ	Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55B80-250DCZ	Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55B80-250DGZ	Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 250 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55B80-300DCZ	Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55B80-300DCZ	Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55B80-300DGZ	Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 300 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55L80-10DCZ	Bore: ø80 mm \| Mounting: Foot \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55L80-10DCZ	Bore: ø80 mm \| Mounting: Foot \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55L80-10DGZ	Bore: ø80 mm \| Mounting: Foot \| Stroke: 10 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55L80-15DCZ	Bore: ø80 mm \| Mounting: Foot \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55L80-15DCZ	Bore: ø80 mm \| Mounting: Foot \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55L80-15DGZ	Bore: ø80 mm \| Mounting: Foot \| Stroke: 15 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55L80-20DCZ	Bore: ø80 mm \| Mounting: Foot \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55L80-20DCZ	Bore: ø80 mm \| Mounting: Foot \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55L80-20DGZ	Bore: ø80 mm \| Mounting: Foot \| Stroke: 20 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55L80-25DCZ	Bore: ø80 mm \| Mounting: Foot \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55L80-25DCZ	Bore: ø80 mm \| Mounting: Foot \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55L80-25DGZ	Bore: ø80 mm \| Mounting: Foot \| Stroke: 25 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55L80-30DCZ	Bore: ø80 mm \| Mounting: Foot \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55L80-30DCZ	Bore: ø80 mm \| Mounting: Foot \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55L80-30DGZ	Bore: ø80 mm \| Mounting: Foot \| Stroke: 30 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55L80-35DCZ	Bore: ø80 mm \| Mounting: Foot \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55L80-35DCZ	Bore: ø80 mm \| Mounting: Foot \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55L80-35DGZ	Bore: ø80 mm \| Mounting: Foot \| Stroke: 35 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55L80-40DCZ	Bore: ø80 mm \| Mounting: Foot \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55L80-40DCZ	Bore: ø80 mm \| Mounting: Foot \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55L80-40DGZ	Bore: ø80 mm \| Mounting: Foot \| Stroke: 40 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55L80-45DCZ	Bore: ø80 mm \| Mounting: Foot \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55L80-45DCZ	Bore: ø80 mm \| Mounting: Foot \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55L80-45DGZ	Bore: ø80 mm \| Mounting: Foot \| Stroke: 45 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55L80-50DCZ	Bore: ø80 mm \| Mounting: Foot \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55L80-50DCZ	Bore: ø80 mm \| Mounting: Foot \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55L80-50DGZ	Bore: ø80 mm \| Mounting: Foot \| Stroke: 50 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55L80-60DCZ	Bore: ø80 mm \| Mounting: Foot \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55L80-60DCZ	Bore: ø80 mm \| Mounting: Foot \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55L80-60DGZ	Bore: ø80 mm \| Mounting: Foot \| Stroke: 60 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55L80-80DCZ	Bore: ø80 mm \| Mounting: Foot \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55L80-80DCZ	Bore: ø80 mm \| Mounting: Foot \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55L80-80DGZ	Bore: ø80 mm \| Mounting: Foot \| Stroke: 80 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55L80-100DCZ	Bore: ø80 mm \| Mounting: Foot \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55L80-100DCZ	Bore: ø80 mm \| Mounting: Foot \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55L80-100DGZ	Bore: ø80 mm \| Mounting: Foot \| Stroke: 100 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55L80-125DCZ	Bore: ø80 mm \| Mounting: Foot \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55L80-125DCZ	Bore: ø80 mm \| Mounting: Foot \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55L80-125DGZ	Bore: ø80 mm \| Mounting: Foot \| Stroke: 125 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55L80-150DCZ	Bore: ø80 mm \| Mounting: Foot \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55L80-150DCZ	Bore: ø80 mm \| Mounting: Foot \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55L80-150DGZ	Bore: ø80 mm \| Mounting: Foot \| Stroke: 150 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55L80-175DCZ	Bore: ø80 mm \| Mounting: Foot \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55L80-175DCZ	Bore: ø80 mm \| Mounting: Foot \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55L80-175DGZ	Bore: ø80 mm \| Mounting: Foot \| Stroke: 175 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55L80-200DCZ	Bore: ø80 mm \| Mounting: Foot \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55L80-200DCZ	Bore: ø80 mm \| Mounting: Foot \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55L80-200DGZ	Bore: ø80 mm \| Mounting: Foot \| Stroke: 200 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55L80-250DCZ	Bore: ø80 mm \| Mounting: Foot \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55L80-250DCZ	Bore: ø80 mm \| Mounting: Foot \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55L80-250DGZ	Bore: ø80 mm \| Mounting: Foot \| Stroke: 250 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55L80-300DCZ	Bore: ø80 mm \| Mounting: Foot \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55L80-300DCZ	Bore: ø80 mm \| Mounting: Foot \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55L80-300DGZ	Bore: ø80 mm \| Mounting: Foot \| Stroke: 300 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55F80-10DCZ	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55F80-10DCZ	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55F80-10DGZ	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 10 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55F80-15DCZ	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55F80-15DCZ	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55F80-15DGZ	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 15 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55F80-20DCZ	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55F80-20DCZ	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55F80-20DGZ	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55F80-25DCZ	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55F80-25DCZ	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55F80-25DGZ	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55F80-30DCZ	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55F80-30DCZ	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55F80-30DGZ	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55F80-35DCZ	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55F80-35DCZ	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55F80-35DGZ	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 35 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55F80-40DCZ	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55F80-40DCZ	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55F80-40DGZ	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55F80-45DCZ	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55F80-45DCZ	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55F80-45DGZ	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 45 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55F80-50DCZ	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55F80-50DCZ	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55F80-50DGZ	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55F80-60DCZ	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55F80-60DCZ	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55F80-60DGZ	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 60 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55F80-80DCZ	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55F80-80DCZ	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55F80-80DGZ	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 80 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55F80-100DCZ	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55F80-100DCZ	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55F80-100DGZ	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55F80-125DCZ	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55F80-125DCZ	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55F80-125DGZ	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55F80-150DCZ	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55F80-150DCZ	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55F80-150DGZ	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55F80-175DCZ	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55F80-175DCZ	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55F80-175DGZ	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55F80-200DCZ	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55F80-200DCZ	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55F80-200DGZ	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55F80-250DCZ	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55F80-250DCZ	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55F80-250DGZ	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 250 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55F80-300DCZ	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55F80-300DCZ	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55F80-300DGZ	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 300 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55G80-10DCZ	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55G80-10DCZ	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55G80-10DGZ	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 10 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55G80-15DCZ	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55G80-15DCZ	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55G80-15DGZ	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 15 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55G80-20DCZ	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55G80-20DCZ	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55G80-20DGZ	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 20 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55G80-25DCZ	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55G80-25DCZ	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55G80-25DGZ	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 25 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55G80-30DCZ	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55G80-30DCZ	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55G80-30DGZ	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 30 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55G80-35DCZ	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55G80-35DCZ	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55G80-35DGZ	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 35 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55G80-40DCZ	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55G80-40DCZ	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55G80-40DGZ	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 40 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55G80-45DCZ	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55G80-45DCZ	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55G80-45DGZ	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 45 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55G80-50DCZ	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55G80-50DCZ	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55G80-50DGZ	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 50 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55G80-60DCZ	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55G80-60DCZ	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55G80-60DGZ	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 60 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55G80-80DCZ	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55G80-80DCZ	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55G80-80DGZ	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 80 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55G80-100DCZ	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55G80-100DCZ	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55G80-100DGZ	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 100 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55G80-125DCZ	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55G80-125DCZ	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55G80-125DGZ	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 125 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55G80-150DCZ	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55G80-150DCZ	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55G80-150DGZ	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 150 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55G80-175DCZ	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55G80-175DCZ	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55G80-175DGZ	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 175 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55G80-200DCZ	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55G80-200DCZ	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55G80-200DGZ	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 200 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55G80-250DCZ	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55G80-250DCZ	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55G80-250DGZ	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 250 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55G80-300DCZ	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55G80-300DCZ	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55G80-300DGZ	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 300 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55C80-10DCZ	Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55C80-10DCZ	Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55C80-10DGZ	Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 10 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55C80-15DCZ	Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55C80-15DCZ	Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55C80-15DGZ	Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 15 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55C80-20DCZ	Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55C80-20DCZ	Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55C80-20DGZ	Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 20 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55C80-25DCZ	Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55C80-25DCZ	Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55C80-25DGZ	Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 25 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55C80-30DCZ	Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55C80-30DCZ	Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55C80-30DGZ	Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 30 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55C80-35DCZ	Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55C80-35DCZ	Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55C80-35DGZ	Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 35 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55C80-40DCZ	Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55C80-40DCZ	Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55C80-40DGZ	Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 40 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55C80-45DCZ	Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55C80-45DCZ	Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55C80-45DGZ	Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 45 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55C80-50DCZ	Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55C80-50DCZ	Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55C80-50DGZ	Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 50 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55C80-60DCZ	Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55C80-60DCZ	Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55C80-60DGZ	Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 60 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55C80-80DCZ	Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55C80-80DCZ	Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55C80-80DGZ	Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 80 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55C80-100DCZ	Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55C80-100DCZ	Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55C80-100DGZ	Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 100 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55C80-125DCZ	Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55C80-125DCZ	Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55C80-125DGZ	Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 125 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55C80-150DCZ	Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55C80-150DCZ	Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55C80-150DGZ	Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 150 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55C80-175DCZ	Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55C80-175DCZ	Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55C80-175DGZ	Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 175 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55C80-200DCZ	Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55C80-200DCZ	Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55C80-200DGZ	Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 200 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55C80-250DCZ	Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55C80-250DCZ	Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55C80-250DGZ	Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 250 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55C80-300DCZ	Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55C80-300DCZ	Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55C80-300DGZ	Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 300 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55B100-10DCZ	Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55B100-10DCZ	Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55B100-10DGZ	Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 10 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55B100-15DCZ	Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55B100-15DCZ	Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55B100-15DGZ	Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 15 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55B100-20DCZ	Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55B100-20DCZ	Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55B100-20DGZ	Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 20 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55B100-25DCZ	Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55B100-25DCZ	Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55B100-25DGZ	Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 25 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55B100-30DCZ	Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55B100-30DCZ	Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55B100-30DGZ	Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 30 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55B100-35DCZ	Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55B100-35DCZ	Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55B100-35DGZ	Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 35 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55B100-40DCZ	Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55B100-40DCZ	Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55B100-40DGZ	Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 40 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55B100-45DCZ	Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55B100-45DCZ	Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55B100-45DGZ	Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 45 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55B100-50DCZ	Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55B100-50DCZ	Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55B100-50DGZ	Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 50 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55B100-60DCZ	Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55B100-60DCZ	Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55B100-60DGZ	Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 60 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55B100-80DCZ	Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55B100-80DCZ	Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55B100-80DGZ	Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 80 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55B100-100DCZ	Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55B100-100DCZ	Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55B100-100DGZ	Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 100 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55B100-125DCZ	Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55B100-125DCZ	Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55B100-125DGZ	Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 125 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55B100-150DCZ	Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55B100-150DCZ	Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55B100-150DGZ	Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 150 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55B100-175DCZ	Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55B100-175DCZ	Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55B100-175DGZ	Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 175 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55B100-200DCZ	Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55B100-200DCZ	Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55B100-200DGZ	Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 200 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55B100-250DCZ	Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55B100-250DCZ	Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55B100-250DGZ	Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 250 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55B100-300DCZ	Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55B100-300DCZ	Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55B100-300DGZ	Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 300 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55L100-10DCZ	Bore: ø100 mm \| Mounting: Foot \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55L100-10DCZ	Bore: ø100 mm \| Mounting: Foot \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55L100-10DGZ	Bore: ø100 mm \| Mounting: Foot \| Stroke: 10 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55L100-15DCZ	Bore: ø100 mm \| Mounting: Foot \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55L100-15DCZ	Bore: ø100 mm \| Mounting: Foot \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55L100-15DGZ	Bore: ø100 mm \| Mounting: Foot \| Stroke: 15 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55L100-20DCZ	Bore: ø100 mm \| Mounting: Foot \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55L100-20DCZ	Bore: ø100 mm \| Mounting: Foot \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55L100-20DGZ	Bore: ø100 mm \| Mounting: Foot \| Stroke: 20 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55L100-25DCZ	Bore: ø100 mm \| Mounting: Foot \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55L100-25DCZ	Bore: ø100 mm \| Mounting: Foot \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55L100-25DGZ	Bore: ø100 mm \| Mounting: Foot \| Stroke: 25 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55L100-30DCZ	Bore: ø100 mm \| Mounting: Foot \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55L100-30DCZ	Bore: ø100 mm \| Mounting: Foot \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55L100-30DGZ	Bore: ø100 mm \| Mounting: Foot \| Stroke: 30 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55L100-35DCZ	Bore: ø100 mm \| Mounting: Foot \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55L100-35DCZ	Bore: ø100 mm \| Mounting: Foot \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55L100-35DGZ	Bore: ø100 mm \| Mounting: Foot \| Stroke: 35 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55L100-40DCZ	Bore: ø100 mm \| Mounting: Foot \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55L100-40DCZ	Bore: ø100 mm \| Mounting: Foot \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55L100-40DGZ	Bore: ø100 mm \| Mounting: Foot \| Stroke: 40 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55L100-45DCZ	Bore: ø100 mm \| Mounting: Foot \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55L100-45DCZ	Bore: ø100 mm \| Mounting: Foot \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55L100-45DGZ	Bore: ø100 mm \| Mounting: Foot \| Stroke: 45 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55L100-50DCZ	Bore: ø100 mm \| Mounting: Foot \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55L100-50DCZ	Bore: ø100 mm \| Mounting: Foot \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55L100-50DGZ	Bore: ø100 mm \| Mounting: Foot \| Stroke: 50 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55L100-60DCZ	Bore: ø100 mm \| Mounting: Foot \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55L100-60DCZ	Bore: ø100 mm \| Mounting: Foot \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55L100-60DGZ	Bore: ø100 mm \| Mounting: Foot \| Stroke: 60 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55L100-80DCZ	Bore: ø100 mm \| Mounting: Foot \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55L100-80DCZ	Bore: ø100 mm \| Mounting: Foot \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55L100-80DGZ	Bore: ø100 mm \| Mounting: Foot \| Stroke: 80 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55L100-100DCZ	Bore: ø100 mm \| Mounting: Foot \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55L100-100DCZ	Bore: ø100 mm \| Mounting: Foot \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55L100-100DGZ	Bore: ø100 mm \| Mounting: Foot \| Stroke: 100 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55L100-125DCZ	Bore: ø100 mm \| Mounting: Foot \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55L100-125DCZ	Bore: ø100 mm \| Mounting: Foot \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55L100-125DGZ	Bore: ø100 mm \| Mounting: Foot \| Stroke: 125 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55L100-150DCZ	Bore: ø100 mm \| Mounting: Foot \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55L100-150DCZ	Bore: ø100 mm \| Mounting: Foot \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55L100-150DGZ	Bore: ø100 mm \| Mounting: Foot \| Stroke: 150 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55L100-175DCZ	Bore: ø100 mm \| Mounting: Foot \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55L100-175DCZ	Bore: ø100 mm \| Mounting: Foot \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55L100-175DGZ	Bore: ø100 mm \| Mounting: Foot \| Stroke: 175 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55L100-200DCZ	Bore: ø100 mm \| Mounting: Foot \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55L100-200DCZ	Bore: ø100 mm \| Mounting: Foot \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55L100-200DGZ	Bore: ø100 mm \| Mounting: Foot \| Stroke: 200 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55L100-250DCZ	Bore: ø100 mm \| Mounting: Foot \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55L100-250DCZ	Bore: ø100 mm \| Mounting: Foot \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55L100-250DGZ	Bore: ø100 mm \| Mounting: Foot \| Stroke: 250 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55L100-300DCZ	Bore: ø100 mm \| Mounting: Foot \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55L100-300DCZ	Bore: ø100 mm \| Mounting: Foot \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55L100-300DGZ	Bore: ø100 mm \| Mounting: Foot \| Stroke: 300 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55F100-10DCZ	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55F100-10DCZ	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55F100-10DGZ	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 10 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55F100-15DCZ	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55F100-15DCZ	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55F100-15DGZ	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 15 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55F100-20DCZ	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55F100-20DCZ	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55F100-20DGZ	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55F100-25DCZ	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55F100-25DCZ	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55F100-25DGZ	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55F100-30DCZ	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55F100-30DCZ	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55F100-30DGZ	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55F100-35DCZ	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55F100-35DCZ	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55F100-35DGZ	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 35 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55F100-40DCZ	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55F100-40DCZ	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55F100-40DGZ	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55F100-45DCZ	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55F100-45DCZ	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55F100-45DGZ	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 45 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55F100-50DCZ	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55F100-50DCZ	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55F100-50DGZ	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55F100-60DCZ	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55F100-60DCZ	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55F100-60DGZ	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 60 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55F100-80DCZ	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55F100-80DCZ	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55F100-80DGZ	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 80 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55F100-100DCZ	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55F100-100DCZ	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55F100-100DGZ	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55F100-125DCZ	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55F100-125DCZ	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55F100-125DGZ	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55F100-150DCZ	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55F100-150DCZ	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55F100-150DGZ	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55F100-175DCZ	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55F100-175DCZ	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55F100-175DGZ	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 175 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55F100-200DCZ	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55F100-200DCZ	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55F100-200DGZ	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 200 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55F100-250DCZ	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55F100-250DCZ	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55F100-250DGZ	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 250 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55F100-300DCZ	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55F100-300DCZ	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55F100-300DGZ	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 300 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55G100-10DCZ	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55G100-10DCZ	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55G100-10DGZ	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 10 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55G100-15DCZ	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55G100-15DCZ	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55G100-15DGZ	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 15 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55G100-20DCZ	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55G100-20DCZ	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55G100-20DGZ	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 20 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55G100-25DCZ	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55G100-25DCZ	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55G100-25DGZ	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 25 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55G100-30DCZ	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55G100-30DCZ	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55G100-30DGZ	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 30 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55G100-35DCZ	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55G100-35DCZ	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55G100-35DGZ	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 35 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55G100-40DCZ	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55G100-40DCZ	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55G100-40DGZ	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 40 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55G100-45DCZ	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55G100-45DCZ	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55G100-45DGZ	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 45 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55G100-50DCZ	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55G100-50DCZ	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55G100-50DGZ	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 50 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55G100-60DCZ	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55G100-60DCZ	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55G100-60DGZ	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 60 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55G100-80DCZ	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55G100-80DCZ	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55G100-80DGZ	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 80 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55G100-100DCZ	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55G100-100DCZ	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55G100-100DGZ	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 100 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55G100-125DCZ	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55G100-125DCZ	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55G100-125DGZ	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 125 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55G100-150DCZ	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55G100-150DCZ	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55G100-150DGZ	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 150 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55G100-175DCZ	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55G100-175DCZ	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55G100-175DGZ	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 175 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55G100-200DCZ	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55G100-200DCZ	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55G100-200DGZ	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 200 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55G100-250DCZ	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55G100-250DCZ	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55G100-250DGZ	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 250 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55G100-300DCZ	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55G100-300DCZ	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55G100-300DGZ	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 300 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55C100-10DCZ	Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55C100-10DCZ	Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 10 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55C100-10DGZ	Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 10 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55C100-15DCZ	Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55C100-15DCZ	Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 15 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55C100-15DGZ	Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 15 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55C100-20DCZ	Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55C100-20DCZ	Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 20 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55C100-20DGZ	Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 20 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55C100-25DCZ	Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55C100-25DCZ	Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 25 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55C100-25DGZ	Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 25 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55C100-30DCZ	Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55C100-30DCZ	Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 30 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55C100-30DGZ	Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 30 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55C100-35DCZ	Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55C100-35DCZ	Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 35 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55C100-35DGZ	Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 35 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55C100-40DCZ	Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55C100-40DCZ	Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 40 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55C100-40DGZ	Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 40 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55C100-45DCZ	Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55C100-45DCZ	Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 45 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55C100-45DGZ	Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 45 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55C100-50DCZ	Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55C100-50DCZ	Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 50 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55C100-50DGZ	Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 50 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55C100-60DCZ	Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55C100-60DCZ	Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 60 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55C100-60DGZ	Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 60 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55C100-80DCZ	Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55C100-80DCZ	Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 80 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55C100-80DGZ	Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 80 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55C100-100DCZ	Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55C100-100DCZ	Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 100 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55C100-100DGZ	Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 100 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55C100-125DCZ	Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55C100-125DCZ	Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 125 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55C100-125DGZ	Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 125 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55C100-150DCZ	Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55C100-150DCZ	Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 150 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55C100-150DGZ	Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 150 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55C100-175DCZ	Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55C100-175DCZ	Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 175 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55C100-175DGZ	Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 175 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55C100-200DCZ	Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55C100-200DCZ	Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 200 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55C100-200DGZ	Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 200 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55C100-250DCZ	Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55C100-250DCZ	Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 250 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55C100-250DGZ	Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 250 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes
	C55C100-300DCZ	Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: No
	CD55C100-300DCZ	Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 300 mm \| Cushion: Rubber cushion \| Auto switch magnet: Yes
	CD55C100-300DGZ	Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 300 mm \| Cushion: Non-adjust. air + rubber \| Auto switch magnet: Yes

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

SMC C55 ISO 21287 Compact Cylinder (Single Rod, ø50 to ø100)
