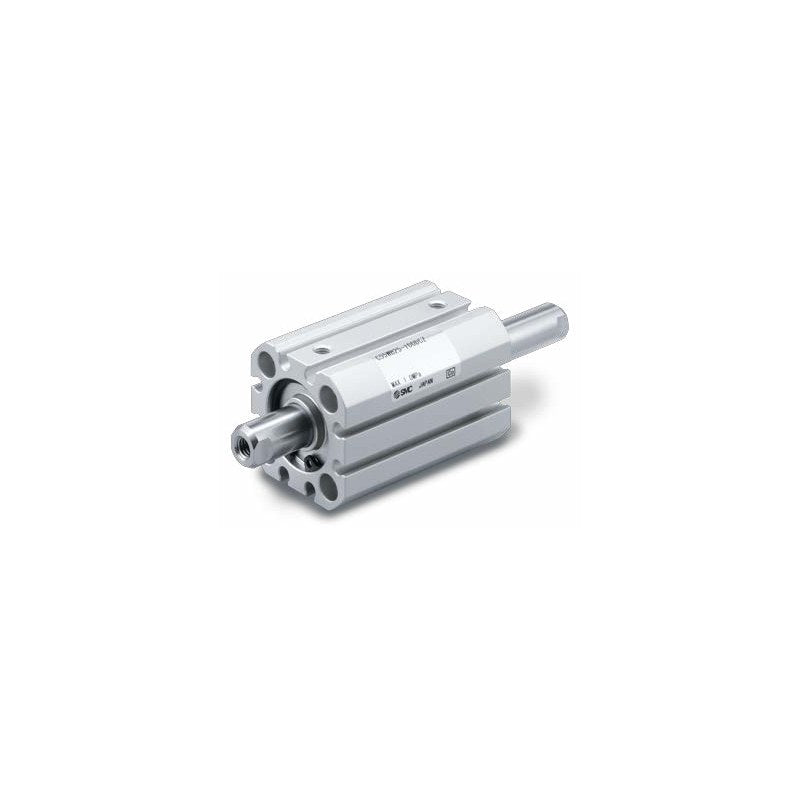

SMC C55W ISO 21287 Compact Cylinder (Double Rod, ø20 to ø100)

SMC C55W ISO 21287 Compact Cylinder (Double Rod, ø20 to ø100)

SMC C55W series double rod compact cylinder to ISO 21287, double acting, ø20 to ø100 mm bore, rubber cushion, optional built-in magnet (CD55W).

Key features

  • ISO 21287 compliant double rod compact cylinder
  • Rubber cushion on both ends
  • Mounting: through-hole/both-end tapped common (B), foot (L), flange (F)
  • Standard strokes 5 to 150 mm (ø20-63) and 10 to 125 mm (ø80, ø100); intermediate strokes 6 to 149 mm with dedicated body
  • Rod end male thread (M), auto switches and made-to-order specs (-XB6 heat resistant, -XC6 stainless) ordered as options

Specifications

Standard ISO 21287
Action Double acting, double rod
Fluid Air
Cushion Rubber cushion on both ends
Proof pressure 1.5 MPa
Max. operating pressure 1.0 MPa
Min. operating pressure 0.05 MPa (ø20-63), 0.03 MPa (ø80, ø100)
Ambient and fluid temperature -10 to 70°C without magnet, -10 to 60°C with magnet
Piston speed 50 to 500 mm/s (ø20-63), 50 to 300 mm/s (ø80, ø100)
Source SMC Korea catalog CAT.KS20-302B (SMCKR_C55-Z.pdf), p. 18-19 (PDF p. 19-20)
C55WB20-5DCZ Bore: ø20 mm | Mounting: Through-hole/tapped (std) | Stroke: 5 mm | Auto switch magnet: No | Port: M5x0.8
CD55WB20-5DCZ Bore: ø20 mm | Mounting: Through-hole/tapped (std) | Stroke: 5 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WB20-10DCZ Bore: ø20 mm | Mounting: Through-hole/tapped (std) | Stroke: 10 mm | Auto switch magnet: No | Port: M5x0.8
CD55WB20-10DCZ Bore: ø20 mm | Mounting: Through-hole/tapped (std) | Stroke: 10 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WB20-15DCZ Bore: ø20 mm | Mounting: Through-hole/tapped (std) | Stroke: 15 mm | Auto switch magnet: No | Port: M5x0.8
CD55WB20-15DCZ Bore: ø20 mm | Mounting: Through-hole/tapped (std) | Stroke: 15 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WB20-20DCZ Bore: ø20 mm | Mounting: Through-hole/tapped (std) | Stroke: 20 mm | Auto switch magnet: No | Port: M5x0.8
CD55WB20-20DCZ Bore: ø20 mm | Mounting: Through-hole/tapped (std) | Stroke: 20 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WB20-25DCZ Bore: ø20 mm | Mounting: Through-hole/tapped (std) | Stroke: 25 mm | Auto switch magnet: No | Port: M5x0.8
CD55WB20-25DCZ Bore: ø20 mm | Mounting: Through-hole/tapped (std) | Stroke: 25 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WB20-30DCZ Bore: ø20 mm | Mounting: Through-hole/tapped (std) | Stroke: 30 mm | Auto switch magnet: No | Port: M5x0.8
CD55WB20-30DCZ Bore: ø20 mm | Mounting: Through-hole/tapped (std) | Stroke: 30 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WB20-35DCZ Bore: ø20 mm | Mounting: Through-hole/tapped (std) | Stroke: 35 mm | Auto switch magnet: No | Port: M5x0.8
CD55WB20-35DCZ Bore: ø20 mm | Mounting: Through-hole/tapped (std) | Stroke: 35 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WB20-40DCZ Bore: ø20 mm | Mounting: Through-hole/tapped (std) | Stroke: 40 mm | Auto switch magnet: No | Port: M5x0.8
CD55WB20-40DCZ Bore: ø20 mm | Mounting: Through-hole/tapped (std) | Stroke: 40 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WB20-45DCZ Bore: ø20 mm | Mounting: Through-hole/tapped (std) | Stroke: 45 mm | Auto switch magnet: No | Port: M5x0.8
CD55WB20-45DCZ Bore: ø20 mm | Mounting: Through-hole/tapped (std) | Stroke: 45 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WB20-50DCZ Bore: ø20 mm | Mounting: Through-hole/tapped (std) | Stroke: 50 mm | Auto switch magnet: No | Port: M5x0.8
CD55WB20-50DCZ Bore: ø20 mm | Mounting: Through-hole/tapped (std) | Stroke: 50 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WB20-60DCZ Bore: ø20 mm | Mounting: Through-hole/tapped (std) | Stroke: 60 mm | Auto switch magnet: No | Port: M5x0.8
CD55WB20-60DCZ Bore: ø20 mm | Mounting: Through-hole/tapped (std) | Stroke: 60 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WB20-80DCZ Bore: ø20 mm | Mounting: Through-hole/tapped (std) | Stroke: 80 mm | Auto switch magnet: No | Port: M5x0.8
CD55WB20-80DCZ Bore: ø20 mm | Mounting: Through-hole/tapped (std) | Stroke: 80 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WB20-100DCZ Bore: ø20 mm | Mounting: Through-hole/tapped (std) | Stroke: 100 mm | Auto switch magnet: No | Port: M5x0.8
CD55WB20-100DCZ Bore: ø20 mm | Mounting: Through-hole/tapped (std) | Stroke: 100 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WB20-125DCZ Bore: ø20 mm | Mounting: Through-hole/tapped (std) | Stroke: 125 mm | Auto switch magnet: No | Port: M5x0.8
CD55WB20-125DCZ Bore: ø20 mm | Mounting: Through-hole/tapped (std) | Stroke: 125 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WB20-150DCZ Bore: ø20 mm | Mounting: Through-hole/tapped (std) | Stroke: 150 mm | Auto switch magnet: No | Port: M5x0.8
CD55WB20-150DCZ Bore: ø20 mm | Mounting: Through-hole/tapped (std) | Stroke: 150 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WL20-5DCZ Bore: ø20 mm | Mounting: Foot | Stroke: 5 mm | Auto switch magnet: No | Port: M5x0.8
CD55WL20-5DCZ Bore: ø20 mm | Mounting: Foot | Stroke: 5 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WL20-10DCZ Bore: ø20 mm | Mounting: Foot | Stroke: 10 mm | Auto switch magnet: No | Port: M5x0.8
CD55WL20-10DCZ Bore: ø20 mm | Mounting: Foot | Stroke: 10 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WL20-15DCZ Bore: ø20 mm | Mounting: Foot | Stroke: 15 mm | Auto switch magnet: No | Port: M5x0.8
CD55WL20-15DCZ Bore: ø20 mm | Mounting: Foot | Stroke: 15 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WL20-20DCZ Bore: ø20 mm | Mounting: Foot | Stroke: 20 mm | Auto switch magnet: No | Port: M5x0.8
CD55WL20-20DCZ Bore: ø20 mm | Mounting: Foot | Stroke: 20 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WL20-25DCZ Bore: ø20 mm | Mounting: Foot | Stroke: 25 mm | Auto switch magnet: No | Port: M5x0.8
CD55WL20-25DCZ Bore: ø20 mm | Mounting: Foot | Stroke: 25 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WL20-30DCZ Bore: ø20 mm | Mounting: Foot | Stroke: 30 mm | Auto switch magnet: No | Port: M5x0.8
CD55WL20-30DCZ Bore: ø20 mm | Mounting: Foot | Stroke: 30 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WL20-35DCZ Bore: ø20 mm | Mounting: Foot | Stroke: 35 mm | Auto switch magnet: No | Port: M5x0.8
CD55WL20-35DCZ Bore: ø20 mm | Mounting: Foot | Stroke: 35 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WL20-40DCZ Bore: ø20 mm | Mounting: Foot | Stroke: 40 mm | Auto switch magnet: No | Port: M5x0.8
CD55WL20-40DCZ Bore: ø20 mm | Mounting: Foot | Stroke: 40 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WL20-45DCZ Bore: ø20 mm | Mounting: Foot | Stroke: 45 mm | Auto switch magnet: No | Port: M5x0.8
CD55WL20-45DCZ Bore: ø20 mm | Mounting: Foot | Stroke: 45 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WL20-50DCZ Bore: ø20 mm | Mounting: Foot | Stroke: 50 mm | Auto switch magnet: No | Port: M5x0.8
CD55WL20-50DCZ Bore: ø20 mm | Mounting: Foot | Stroke: 50 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WL20-60DCZ Bore: ø20 mm | Mounting: Foot | Stroke: 60 mm | Auto switch magnet: No | Port: M5x0.8
CD55WL20-60DCZ Bore: ø20 mm | Mounting: Foot | Stroke: 60 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WL20-80DCZ Bore: ø20 mm | Mounting: Foot | Stroke: 80 mm | Auto switch magnet: No | Port: M5x0.8
CD55WL20-80DCZ Bore: ø20 mm | Mounting: Foot | Stroke: 80 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WL20-100DCZ Bore: ø20 mm | Mounting: Foot | Stroke: 100 mm | Auto switch magnet: No | Port: M5x0.8
CD55WL20-100DCZ Bore: ø20 mm | Mounting: Foot | Stroke: 100 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WL20-125DCZ Bore: ø20 mm | Mounting: Foot | Stroke: 125 mm | Auto switch magnet: No | Port: M5x0.8
CD55WL20-125DCZ Bore: ø20 mm | Mounting: Foot | Stroke: 125 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WL20-150DCZ Bore: ø20 mm | Mounting: Foot | Stroke: 150 mm | Auto switch magnet: No | Port: M5x0.8
CD55WL20-150DCZ Bore: ø20 mm | Mounting: Foot | Stroke: 150 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WF20-5DCZ Bore: ø20 mm | Mounting: Flange | Stroke: 5 mm | Auto switch magnet: No | Port: M5x0.8
CD55WF20-5DCZ Bore: ø20 mm | Mounting: Flange | Stroke: 5 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WF20-10DCZ Bore: ø20 mm | Mounting: Flange | Stroke: 10 mm | Auto switch magnet: No | Port: M5x0.8
CD55WF20-10DCZ Bore: ø20 mm | Mounting: Flange | Stroke: 10 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WF20-15DCZ Bore: ø20 mm | Mounting: Flange | Stroke: 15 mm | Auto switch magnet: No | Port: M5x0.8
CD55WF20-15DCZ Bore: ø20 mm | Mounting: Flange | Stroke: 15 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WF20-20DCZ Bore: ø20 mm | Mounting: Flange | Stroke: 20 mm | Auto switch magnet: No | Port: M5x0.8
CD55WF20-20DCZ Bore: ø20 mm | Mounting: Flange | Stroke: 20 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WF20-25DCZ Bore: ø20 mm | Mounting: Flange | Stroke: 25 mm | Auto switch magnet: No | Port: M5x0.8
CD55WF20-25DCZ Bore: ø20 mm | Mounting: Flange | Stroke: 25 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WF20-30DCZ Bore: ø20 mm | Mounting: Flange | Stroke: 30 mm | Auto switch magnet: No | Port: M5x0.8
CD55WF20-30DCZ Bore: ø20 mm | Mounting: Flange | Stroke: 30 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WF20-35DCZ Bore: ø20 mm | Mounting: Flange | Stroke: 35 mm | Auto switch magnet: No | Port: M5x0.8
CD55WF20-35DCZ Bore: ø20 mm | Mounting: Flange | Stroke: 35 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WF20-40DCZ Bore: ø20 mm | Mounting: Flange | Stroke: 40 mm | Auto switch magnet: No | Port: M5x0.8
CD55WF20-40DCZ Bore: ø20 mm | Mounting: Flange | Stroke: 40 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WF20-45DCZ Bore: ø20 mm | Mounting: Flange | Stroke: 45 mm | Auto switch magnet: No | Port: M5x0.8
CD55WF20-45DCZ Bore: ø20 mm | Mounting: Flange | Stroke: 45 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WF20-50DCZ Bore: ø20 mm | Mounting: Flange | Stroke: 50 mm | Auto switch magnet: No | Port: M5x0.8
CD55WF20-50DCZ Bore: ø20 mm | Mounting: Flange | Stroke: 50 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WF20-60DCZ Bore: ø20 mm | Mounting: Flange | Stroke: 60 mm | Auto switch magnet: No | Port: M5x0.8
CD55WF20-60DCZ Bore: ø20 mm | Mounting: Flange | Stroke: 60 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WF20-80DCZ Bore: ø20 mm | Mounting: Flange | Stroke: 80 mm | Auto switch magnet: No | Port: M5x0.8
CD55WF20-80DCZ Bore: ø20 mm | Mounting: Flange | Stroke: 80 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WF20-100DCZ Bore: ø20 mm | Mounting: Flange | Stroke: 100 mm | Auto switch magnet: No | Port: M5x0.8
CD55WF20-100DCZ Bore: ø20 mm | Mounting: Flange | Stroke: 100 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WF20-125DCZ Bore: ø20 mm | Mounting: Flange | Stroke: 125 mm | Auto switch magnet: No | Port: M5x0.8
CD55WF20-125DCZ Bore: ø20 mm | Mounting: Flange | Stroke: 125 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WF20-150DCZ Bore: ø20 mm | Mounting: Flange | Stroke: 150 mm | Auto switch magnet: No | Port: M5x0.8
CD55WF20-150DCZ Bore: ø20 mm | Mounting: Flange | Stroke: 150 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WB25-5DCZ Bore: ø25 mm | Mounting: Through-hole/tapped (std) | Stroke: 5 mm | Auto switch magnet: No | Port: M5x0.8
CD55WB25-5DCZ Bore: ø25 mm | Mounting: Through-hole/tapped (std) | Stroke: 5 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WB25-10DCZ Bore: ø25 mm | Mounting: Through-hole/tapped (std) | Stroke: 10 mm | Auto switch magnet: No | Port: M5x0.8
CD55WB25-10DCZ Bore: ø25 mm | Mounting: Through-hole/tapped (std) | Stroke: 10 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WB25-15DCZ Bore: ø25 mm | Mounting: Through-hole/tapped (std) | Stroke: 15 mm | Auto switch magnet: No | Port: M5x0.8
CD55WB25-15DCZ Bore: ø25 mm | Mounting: Through-hole/tapped (std) | Stroke: 15 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WB25-20DCZ Bore: ø25 mm | Mounting: Through-hole/tapped (std) | Stroke: 20 mm | Auto switch magnet: No | Port: M5x0.8
CD55WB25-20DCZ Bore: ø25 mm | Mounting: Through-hole/tapped (std) | Stroke: 20 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WB25-25DCZ Bore: ø25 mm | Mounting: Through-hole/tapped (std) | Stroke: 25 mm | Auto switch magnet: No | Port: M5x0.8
CD55WB25-25DCZ Bore: ø25 mm | Mounting: Through-hole/tapped (std) | Stroke: 25 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WB25-30DCZ Bore: ø25 mm | Mounting: Through-hole/tapped (std) | Stroke: 30 mm | Auto switch magnet: No | Port: M5x0.8
CD55WB25-30DCZ Bore: ø25 mm | Mounting: Through-hole/tapped (std) | Stroke: 30 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WB25-35DCZ Bore: ø25 mm | Mounting: Through-hole/tapped (std) | Stroke: 35 mm | Auto switch magnet: No | Port: M5x0.8
CD55WB25-35DCZ Bore: ø25 mm | Mounting: Through-hole/tapped (std) | Stroke: 35 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WB25-40DCZ Bore: ø25 mm | Mounting: Through-hole/tapped (std) | Stroke: 40 mm | Auto switch magnet: No | Port: M5x0.8
CD55WB25-40DCZ Bore: ø25 mm | Mounting: Through-hole/tapped (std) | Stroke: 40 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WB25-45DCZ Bore: ø25 mm | Mounting: Through-hole/tapped (std) | Stroke: 45 mm | Auto switch magnet: No | Port: M5x0.8
CD55WB25-45DCZ Bore: ø25 mm | Mounting: Through-hole/tapped (std) | Stroke: 45 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WB25-50DCZ Bore: ø25 mm | Mounting: Through-hole/tapped (std) | Stroke: 50 mm | Auto switch magnet: No | Port: M5x0.8
CD55WB25-50DCZ Bore: ø25 mm | Mounting: Through-hole/tapped (std) | Stroke: 50 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WB25-60DCZ Bore: ø25 mm | Mounting: Through-hole/tapped (std) | Stroke: 60 mm | Auto switch magnet: No | Port: M5x0.8
CD55WB25-60DCZ Bore: ø25 mm | Mounting: Through-hole/tapped (std) | Stroke: 60 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WB25-80DCZ Bore: ø25 mm | Mounting: Through-hole/tapped (std) | Stroke: 80 mm | Auto switch magnet: No | Port: M5x0.8
CD55WB25-80DCZ Bore: ø25 mm | Mounting: Through-hole/tapped (std) | Stroke: 80 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WB25-100DCZ Bore: ø25 mm | Mounting: Through-hole/tapped (std) | Stroke: 100 mm | Auto switch magnet: No | Port: M5x0.8
CD55WB25-100DCZ Bore: ø25 mm | Mounting: Through-hole/tapped (std) | Stroke: 100 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WB25-125DCZ Bore: ø25 mm | Mounting: Through-hole/tapped (std) | Stroke: 125 mm | Auto switch magnet: No | Port: M5x0.8
CD55WB25-125DCZ Bore: ø25 mm | Mounting: Through-hole/tapped (std) | Stroke: 125 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WB25-150DCZ Bore: ø25 mm | Mounting: Through-hole/tapped (std) | Stroke: 150 mm | Auto switch magnet: No | Port: M5x0.8
CD55WB25-150DCZ Bore: ø25 mm | Mounting: Through-hole/tapped (std) | Stroke: 150 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WL25-5DCZ Bore: ø25 mm | Mounting: Foot | Stroke: 5 mm | Auto switch magnet: No | Port: M5x0.8
CD55WL25-5DCZ Bore: ø25 mm | Mounting: Foot | Stroke: 5 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WL25-10DCZ Bore: ø25 mm | Mounting: Foot | Stroke: 10 mm | Auto switch magnet: No | Port: M5x0.8
CD55WL25-10DCZ Bore: ø25 mm | Mounting: Foot | Stroke: 10 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WL25-15DCZ Bore: ø25 mm | Mounting: Foot | Stroke: 15 mm | Auto switch magnet: No | Port: M5x0.8
CD55WL25-15DCZ Bore: ø25 mm | Mounting: Foot | Stroke: 15 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WL25-20DCZ Bore: ø25 mm | Mounting: Foot | Stroke: 20 mm | Auto switch magnet: No | Port: M5x0.8
CD55WL25-20DCZ Bore: ø25 mm | Mounting: Foot | Stroke: 20 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WL25-25DCZ Bore: ø25 mm | Mounting: Foot | Stroke: 25 mm | Auto switch magnet: No | Port: M5x0.8
CD55WL25-25DCZ Bore: ø25 mm | Mounting: Foot | Stroke: 25 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WL25-30DCZ Bore: ø25 mm | Mounting: Foot | Stroke: 30 mm | Auto switch magnet: No | Port: M5x0.8
CD55WL25-30DCZ Bore: ø25 mm | Mounting: Foot | Stroke: 30 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WL25-35DCZ Bore: ø25 mm | Mounting: Foot | Stroke: 35 mm | Auto switch magnet: No | Port: M5x0.8
CD55WL25-35DCZ Bore: ø25 mm | Mounting: Foot | Stroke: 35 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WL25-40DCZ Bore: ø25 mm | Mounting: Foot | Stroke: 40 mm | Auto switch magnet: No | Port: M5x0.8
CD55WL25-40DCZ Bore: ø25 mm | Mounting: Foot | Stroke: 40 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WL25-45DCZ Bore: ø25 mm | Mounting: Foot | Stroke: 45 mm | Auto switch magnet: No | Port: M5x0.8
CD55WL25-45DCZ Bore: ø25 mm | Mounting: Foot | Stroke: 45 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WL25-50DCZ Bore: ø25 mm | Mounting: Foot | Stroke: 50 mm | Auto switch magnet: No | Port: M5x0.8
CD55WL25-50DCZ Bore: ø25 mm | Mounting: Foot | Stroke: 50 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WL25-60DCZ Bore: ø25 mm | Mounting: Foot | Stroke: 60 mm | Auto switch magnet: No | Port: M5x0.8
CD55WL25-60DCZ Bore: ø25 mm | Mounting: Foot | Stroke: 60 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WL25-80DCZ Bore: ø25 mm | Mounting: Foot | Stroke: 80 mm | Auto switch magnet: No | Port: M5x0.8
CD55WL25-80DCZ Bore: ø25 mm | Mounting: Foot | Stroke: 80 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WL25-100DCZ Bore: ø25 mm | Mounting: Foot | Stroke: 100 mm | Auto switch magnet: No | Port: M5x0.8
CD55WL25-100DCZ Bore: ø25 mm | Mounting: Foot | Stroke: 100 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WL25-125DCZ Bore: ø25 mm | Mounting: Foot | Stroke: 125 mm | Auto switch magnet: No | Port: M5x0.8
CD55WL25-125DCZ Bore: ø25 mm | Mounting: Foot | Stroke: 125 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WL25-150DCZ Bore: ø25 mm | Mounting: Foot | Stroke: 150 mm | Auto switch magnet: No | Port: M5x0.8
CD55WL25-150DCZ Bore: ø25 mm | Mounting: Foot | Stroke: 150 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WF25-5DCZ Bore: ø25 mm | Mounting: Flange | Stroke: 5 mm | Auto switch magnet: No | Port: M5x0.8
CD55WF25-5DCZ Bore: ø25 mm | Mounting: Flange | Stroke: 5 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WF25-10DCZ Bore: ø25 mm | Mounting: Flange | Stroke: 10 mm | Auto switch magnet: No | Port: M5x0.8
CD55WF25-10DCZ Bore: ø25 mm | Mounting: Flange | Stroke: 10 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WF25-15DCZ Bore: ø25 mm | Mounting: Flange | Stroke: 15 mm | Auto switch magnet: No | Port: M5x0.8
CD55WF25-15DCZ Bore: ø25 mm | Mounting: Flange | Stroke: 15 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WF25-20DCZ Bore: ø25 mm | Mounting: Flange | Stroke: 20 mm | Auto switch magnet: No | Port: M5x0.8
CD55WF25-20DCZ Bore: ø25 mm | Mounting: Flange | Stroke: 20 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WF25-25DCZ Bore: ø25 mm | Mounting: Flange | Stroke: 25 mm | Auto switch magnet: No | Port: M5x0.8
CD55WF25-25DCZ Bore: ø25 mm | Mounting: Flange | Stroke: 25 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WF25-30DCZ Bore: ø25 mm | Mounting: Flange | Stroke: 30 mm | Auto switch magnet: No | Port: M5x0.8
CD55WF25-30DCZ Bore: ø25 mm | Mounting: Flange | Stroke: 30 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WF25-35DCZ Bore: ø25 mm | Mounting: Flange | Stroke: 35 mm | Auto switch magnet: No | Port: M5x0.8
CD55WF25-35DCZ Bore: ø25 mm | Mounting: Flange | Stroke: 35 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WF25-40DCZ Bore: ø25 mm | Mounting: Flange | Stroke: 40 mm | Auto switch magnet: No | Port: M5x0.8
CD55WF25-40DCZ Bore: ø25 mm | Mounting: Flange | Stroke: 40 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WF25-45DCZ Bore: ø25 mm | Mounting: Flange | Stroke: 45 mm | Auto switch magnet: No | Port: M5x0.8
CD55WF25-45DCZ Bore: ø25 mm | Mounting: Flange | Stroke: 45 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WF25-50DCZ Bore: ø25 mm | Mounting: Flange | Stroke: 50 mm | Auto switch magnet: No | Port: M5x0.8
CD55WF25-50DCZ Bore: ø25 mm | Mounting: Flange | Stroke: 50 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WF25-60DCZ Bore: ø25 mm | Mounting: Flange | Stroke: 60 mm | Auto switch magnet: No | Port: M5x0.8
CD55WF25-60DCZ Bore: ø25 mm | Mounting: Flange | Stroke: 60 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WF25-80DCZ Bore: ø25 mm | Mounting: Flange | Stroke: 80 mm | Auto switch magnet: No | Port: M5x0.8
CD55WF25-80DCZ Bore: ø25 mm | Mounting: Flange | Stroke: 80 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WF25-100DCZ Bore: ø25 mm | Mounting: Flange | Stroke: 100 mm | Auto switch magnet: No | Port: M5x0.8
CD55WF25-100DCZ Bore: ø25 mm | Mounting: Flange | Stroke: 100 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WF25-125DCZ Bore: ø25 mm | Mounting: Flange | Stroke: 125 mm | Auto switch magnet: No | Port: M5x0.8
CD55WF25-125DCZ Bore: ø25 mm | Mounting: Flange | Stroke: 125 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WF25-150DCZ Bore: ø25 mm | Mounting: Flange | Stroke: 150 mm | Auto switch magnet: No | Port: M5x0.8
CD55WF25-150DCZ Bore: ø25 mm | Mounting: Flange | Stroke: 150 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WB32-5DCZ Bore: ø32 mm | Mounting: Through-hole/tapped (std) | Stroke: 5 mm | Auto switch magnet: No | Port: G1/8
CD55WB32-5DCZ Bore: ø32 mm | Mounting: Through-hole/tapped (std) | Stroke: 5 mm | Auto switch magnet: Yes | Port: G1/8
C55WB32-10DCZ Bore: ø32 mm | Mounting: Through-hole/tapped (std) | Stroke: 10 mm | Auto switch magnet: No | Port: G1/8
CD55WB32-10DCZ Bore: ø32 mm | Mounting: Through-hole/tapped (std) | Stroke: 10 mm | Auto switch magnet: Yes | Port: G1/8
C55WB32-15DCZ Bore: ø32 mm | Mounting: Through-hole/tapped (std) | Stroke: 15 mm | Auto switch magnet: No | Port: G1/8
CD55WB32-15DCZ Bore: ø32 mm | Mounting: Through-hole/tapped (std) | Stroke: 15 mm | Auto switch magnet: Yes | Port: G1/8
C55WB32-20DCZ Bore: ø32 mm | Mounting: Through-hole/tapped (std) | Stroke: 20 mm | Auto switch magnet: No | Port: G1/8
CD55WB32-20DCZ Bore: ø32 mm | Mounting: Through-hole/tapped (std) | Stroke: 20 mm | Auto switch magnet: Yes | Port: G1/8
C55WB32-25DCZ Bore: ø32 mm | Mounting: Through-hole/tapped (std) | Stroke: 25 mm | Auto switch magnet: No | Port: G1/8
CD55WB32-25DCZ Bore: ø32 mm | Mounting: Through-hole/tapped (std) | Stroke: 25 mm | Auto switch magnet: Yes | Port: G1/8
C55WB32-30DCZ Bore: ø32 mm | Mounting: Through-hole/tapped (std) | Stroke: 30 mm | Auto switch magnet: No | Port: G1/8
CD55WB32-30DCZ Bore: ø32 mm | Mounting: Through-hole/tapped (std) | Stroke: 30 mm | Auto switch magnet: Yes | Port: G1/8
C55WB32-35DCZ Bore: ø32 mm | Mounting: Through-hole/tapped (std) | Stroke: 35 mm | Auto switch magnet: No | Port: G1/8
CD55WB32-35DCZ Bore: ø32 mm | Mounting: Through-hole/tapped (std) | Stroke: 35 mm | Auto switch magnet: Yes | Port: G1/8
C55WB32-40DCZ Bore: ø32 mm | Mounting: Through-hole/tapped (std) | Stroke: 40 mm | Auto switch magnet: No | Port: G1/8
CD55WB32-40DCZ Bore: ø32 mm | Mounting: Through-hole/tapped (std) | Stroke: 40 mm | Auto switch magnet: Yes | Port: G1/8
C55WB32-45DCZ Bore: ø32 mm | Mounting: Through-hole/tapped (std) | Stroke: 45 mm | Auto switch magnet: No | Port: G1/8
CD55WB32-45DCZ Bore: ø32 mm | Mounting: Through-hole/tapped (std) | Stroke: 45 mm | Auto switch magnet: Yes | Port: G1/8
C55WB32-50DCZ Bore: ø32 mm | Mounting: Through-hole/tapped (std) | Stroke: 50 mm | Auto switch magnet: No | Port: G1/8
CD55WB32-50DCZ Bore: ø32 mm | Mounting: Through-hole/tapped (std) | Stroke: 50 mm | Auto switch magnet: Yes | Port: G1/8
C55WB32-60DCZ Bore: ø32 mm | Mounting: Through-hole/tapped (std) | Stroke: 60 mm | Auto switch magnet: No | Port: G1/8
CD55WB32-60DCZ Bore: ø32 mm | Mounting: Through-hole/tapped (std) | Stroke: 60 mm | Auto switch magnet: Yes | Port: G1/8
C55WB32-80DCZ Bore: ø32 mm | Mounting: Through-hole/tapped (std) | Stroke: 80 mm | Auto switch magnet: No | Port: G1/8
CD55WB32-80DCZ Bore: ø32 mm | Mounting: Through-hole/tapped (std) | Stroke: 80 mm | Auto switch magnet: Yes | Port: G1/8
C55WB32-100DCZ Bore: ø32 mm | Mounting: Through-hole/tapped (std) | Stroke: 100 mm | Auto switch magnet: No | Port: G1/8
CD55WB32-100DCZ Bore: ø32 mm | Mounting: Through-hole/tapped (std) | Stroke: 100 mm | Auto switch magnet: Yes | Port: G1/8
C55WB32-125DCZ Bore: ø32 mm | Mounting: Through-hole/tapped (std) | Stroke: 125 mm | Auto switch magnet: No | Port: G1/8
CD55WB32-125DCZ Bore: ø32 mm | Mounting: Through-hole/tapped (std) | Stroke: 125 mm | Auto switch magnet: Yes | Port: G1/8
C55WB32-150DCZ Bore: ø32 mm | Mounting: Through-hole/tapped (std) | Stroke: 150 mm | Auto switch magnet: No | Port: G1/8
CD55WB32-150DCZ Bore: ø32 mm | Mounting: Through-hole/tapped (std) | Stroke: 150 mm | Auto switch magnet: Yes | Port: G1/8
C55WL32-5DCZ Bore: ø32 mm | Mounting: Foot | Stroke: 5 mm | Auto switch magnet: No | Port: G1/8
CD55WL32-5DCZ Bore: ø32 mm | Mounting: Foot | Stroke: 5 mm | Auto switch magnet: Yes | Port: G1/8
C55WL32-10DCZ Bore: ø32 mm | Mounting: Foot | Stroke: 10 mm | Auto switch magnet: No | Port: G1/8
CD55WL32-10DCZ Bore: ø32 mm | Mounting: Foot | Stroke: 10 mm | Auto switch magnet: Yes | Port: G1/8
C55WL32-15DCZ Bore: ø32 mm | Mounting: Foot | Stroke: 15 mm | Auto switch magnet: No | Port: G1/8
CD55WL32-15DCZ Bore: ø32 mm | Mounting: Foot | Stroke: 15 mm | Auto switch magnet: Yes | Port: G1/8
C55WL32-20DCZ Bore: ø32 mm | Mounting: Foot | Stroke: 20 mm | Auto switch magnet: No | Port: G1/8
CD55WL32-20DCZ Bore: ø32 mm | Mounting: Foot | Stroke: 20 mm | Auto switch magnet: Yes | Port: G1/8
C55WL32-25DCZ Bore: ø32 mm | Mounting: Foot | Stroke: 25 mm | Auto switch magnet: No | Port: G1/8
CD55WL32-25DCZ Bore: ø32 mm | Mounting: Foot | Stroke: 25 mm | Auto switch magnet: Yes | Port: G1/8
C55WL32-30DCZ Bore: ø32 mm | Mounting: Foot | Stroke: 30 mm | Auto switch magnet: No | Port: G1/8
CD55WL32-30DCZ Bore: ø32 mm | Mounting: Foot | Stroke: 30 mm | Auto switch magnet: Yes | Port: G1/8
C55WL32-35DCZ Bore: ø32 mm | Mounting: Foot | Stroke: 35 mm | Auto switch magnet: No | Port: G1/8
CD55WL32-35DCZ Bore: ø32 mm | Mounting: Foot | Stroke: 35 mm | Auto switch magnet: Yes | Port: G1/8
C55WL32-40DCZ Bore: ø32 mm | Mounting: Foot | Stroke: 40 mm | Auto switch magnet: No | Port: G1/8
CD55WL32-40DCZ Bore: ø32 mm | Mounting: Foot | Stroke: 40 mm | Auto switch magnet: Yes | Port: G1/8
C55WL32-45DCZ Bore: ø32 mm | Mounting: Foot | Stroke: 45 mm | Auto switch magnet: No | Port: G1/8
CD55WL32-45DCZ Bore: ø32 mm | Mounting: Foot | Stroke: 45 mm | Auto switch magnet: Yes | Port: G1/8
C55WL32-50DCZ Bore: ø32 mm | Mounting: Foot | Stroke: 50 mm | Auto switch magnet: No | Port: G1/8
CD55WL32-50DCZ Bore: ø32 mm | Mounting: Foot | Stroke: 50 mm | Auto switch magnet: Yes | Port: G1/8
C55WL32-60DCZ Bore: ø32 mm | Mounting: Foot | Stroke: 60 mm | Auto switch magnet: No | Port: G1/8
CD55WL32-60DCZ Bore: ø32 mm | Mounting: Foot | Stroke: 60 mm | Auto switch magnet: Yes | Port: G1/8
C55WL32-80DCZ Bore: ø32 mm | Mounting: Foot | Stroke: 80 mm | Auto switch magnet: No | Port: G1/8
CD55WL32-80DCZ Bore: ø32 mm | Mounting: Foot | Stroke: 80 mm | Auto switch magnet: Yes | Port: G1/8
C55WL32-100DCZ Bore: ø32 mm | Mounting: Foot | Stroke: 100 mm | Auto switch magnet: No | Port: G1/8
CD55WL32-100DCZ Bore: ø32 mm | Mounting: Foot | Stroke: 100 mm | Auto switch magnet: Yes | Port: G1/8
C55WL32-125DCZ Bore: ø32 mm | Mounting: Foot | Stroke: 125 mm | Auto switch magnet: No | Port: G1/8
CD55WL32-125DCZ Bore: ø32 mm | Mounting: Foot | Stroke: 125 mm | Auto switch magnet: Yes | Port: G1/8
C55WL32-150DCZ Bore: ø32 mm | Mounting: Foot | Stroke: 150 mm | Auto switch magnet: No | Port: G1/8
CD55WL32-150DCZ Bore: ø32 mm | Mounting: Foot | Stroke: 150 mm | Auto switch magnet: Yes | Port: G1/8
C55WF32-5DCZ Bore: ø32 mm | Mounting: Flange | Stroke: 5 mm | Auto switch magnet: No | Port: G1/8
CD55WF32-5DCZ Bore: ø32 mm | Mounting: Flange | Stroke: 5 mm | Auto switch magnet: Yes | Port: G1/8
C55WF32-10DCZ Bore: ø32 mm | Mounting: Flange | Stroke: 10 mm | Auto switch magnet: No | Port: G1/8
CD55WF32-10DCZ Bore: ø32 mm | Mounting: Flange | Stroke: 10 mm | Auto switch magnet: Yes | Port: G1/8
C55WF32-15DCZ Bore: ø32 mm | Mounting: Flange | Stroke: 15 mm | Auto switch magnet: No | Port: G1/8
CD55WF32-15DCZ Bore: ø32 mm | Mounting: Flange | Stroke: 15 mm | Auto switch magnet: Yes | Port: G1/8
C55WF32-20DCZ Bore: ø32 mm | Mounting: Flange | Stroke: 20 mm | Auto switch magnet: No | Port: G1/8
CD55WF32-20DCZ Bore: ø32 mm | Mounting: Flange | Stroke: 20 mm | Auto switch magnet: Yes | Port: G1/8
C55WF32-25DCZ Bore: ø32 mm | Mounting: Flange | Stroke: 25 mm | Auto switch magnet: No | Port: G1/8
CD55WF32-25DCZ Bore: ø32 mm | Mounting: Flange | Stroke: 25 mm | Auto switch magnet: Yes | Port: G1/8
C55WF32-30DCZ Bore: ø32 mm | Mounting: Flange | Stroke: 30 mm | Auto switch magnet: No | Port: G1/8
CD55WF32-30DCZ Bore: ø32 mm | Mounting: Flange | Stroke: 30 mm | Auto switch magnet: Yes | Port: G1/8
C55WF32-35DCZ Bore: ø32 mm | Mounting: Flange | Stroke: 35 mm | Auto switch magnet: No | Port: G1/8
CD55WF32-35DCZ Bore: ø32 mm | Mounting: Flange | Stroke: 35 mm | Auto switch magnet: Yes | Port: G1/8
C55WF32-40DCZ Bore: ø32 mm | Mounting: Flange | Stroke: 40 mm | Auto switch magnet: No | Port: G1/8
CD55WF32-40DCZ Bore: ø32 mm | Mounting: Flange | Stroke: 40 mm | Auto switch magnet: Yes | Port: G1/8
C55WF32-45DCZ Bore: ø32 mm | Mounting: Flange | Stroke: 45 mm | Auto switch magnet: No | Port: G1/8
CD55WF32-45DCZ Bore: ø32 mm | Mounting: Flange | Stroke: 45 mm | Auto switch magnet: Yes | Port: G1/8
C55WF32-50DCZ Bore: ø32 mm | Mounting: Flange | Stroke: 50 mm | Auto switch magnet: No | Port: G1/8
CD55WF32-50DCZ Bore: ø32 mm | Mounting: Flange | Stroke: 50 mm | Auto switch magnet: Yes | Port: G1/8
C55WF32-60DCZ Bore: ø32 mm | Mounting: Flange | Stroke: 60 mm | Auto switch magnet: No | Port: G1/8
CD55WF32-60DCZ Bore: ø32 mm | Mounting: Flange | Stroke: 60 mm | Auto switch magnet: Yes | Port: G1/8
C55WF32-80DCZ Bore: ø32 mm | Mounting: Flange | Stroke: 80 mm | Auto switch magnet: No | Port: G1/8
CD55WF32-80DCZ Bore: ø32 mm | Mounting: Flange | Stroke: 80 mm | Auto switch magnet: Yes | Port: G1/8
C55WF32-100DCZ Bore: ø32 mm | Mounting: Flange | Stroke: 100 mm | Auto switch magnet: No | Port: G1/8
CD55WF32-100DCZ Bore: ø32 mm | Mounting: Flange | Stroke: 100 mm | Auto switch magnet: Yes | Port: G1/8
C55WF32-125DCZ Bore: ø32 mm | Mounting: Flange | Stroke: 125 mm | Auto switch magnet: No | Port: G1/8
CD55WF32-125DCZ Bore: ø32 mm | Mounting: Flange | Stroke: 125 mm | Auto switch magnet: Yes | Port: G1/8
C55WF32-150DCZ Bore: ø32 mm | Mounting: Flange | Stroke: 150 mm | Auto switch magnet: No | Port: G1/8
CD55WF32-150DCZ Bore: ø32 mm | Mounting: Flange | Stroke: 150 mm | Auto switch magnet: Yes | Port: G1/8
C55WB40-5DCZ Bore: ø40 mm | Mounting: Through-hole/tapped (std) | Stroke: 5 mm | Auto switch magnet: No | Port: G1/8
CD55WB40-5DCZ Bore: ø40 mm | Mounting: Through-hole/tapped (std) | Stroke: 5 mm | Auto switch magnet: Yes | Port: G1/8
C55WB40-10DCZ Bore: ø40 mm | Mounting: Through-hole/tapped (std) | Stroke: 10 mm | Auto switch magnet: No | Port: G1/8
CD55WB40-10DCZ Bore: ø40 mm | Mounting: Through-hole/tapped (std) | Stroke: 10 mm | Auto switch magnet: Yes | Port: G1/8
C55WB40-15DCZ Bore: ø40 mm | Mounting: Through-hole/tapped (std) | Stroke: 15 mm | Auto switch magnet: No | Port: G1/8
CD55WB40-15DCZ Bore: ø40 mm | Mounting: Through-hole/tapped (std) | Stroke: 15 mm | Auto switch magnet: Yes | Port: G1/8
C55WB40-20DCZ Bore: ø40 mm | Mounting: Through-hole/tapped (std) | Stroke: 20 mm | Auto switch magnet: No | Port: G1/8
CD55WB40-20DCZ Bore: ø40 mm | Mounting: Through-hole/tapped (std) | Stroke: 20 mm | Auto switch magnet: Yes | Port: G1/8
C55WB40-25DCZ Bore: ø40 mm | Mounting: Through-hole/tapped (std) | Stroke: 25 mm | Auto switch magnet: No | Port: G1/8
CD55WB40-25DCZ Bore: ø40 mm | Mounting: Through-hole/tapped (std) | Stroke: 25 mm | Auto switch magnet: Yes | Port: G1/8
C55WB40-30DCZ Bore: ø40 mm | Mounting: Through-hole/tapped (std) | Stroke: 30 mm | Auto switch magnet: No | Port: G1/8
CD55WB40-30DCZ Bore: ø40 mm | Mounting: Through-hole/tapped (std) | Stroke: 30 mm | Auto switch magnet: Yes | Port: G1/8
C55WB40-35DCZ Bore: ø40 mm | Mounting: Through-hole/tapped (std) | Stroke: 35 mm | Auto switch magnet: No | Port: G1/8
CD55WB40-35DCZ Bore: ø40 mm | Mounting: Through-hole/tapped (std) | Stroke: 35 mm | Auto switch magnet: Yes | Port: G1/8
C55WB40-40DCZ Bore: ø40 mm | Mounting: Through-hole/tapped (std) | Stroke: 40 mm | Auto switch magnet: No | Port: G1/8
CD55WB40-40DCZ Bore: ø40 mm | Mounting: Through-hole/tapped (std) | Stroke: 40 mm | Auto switch magnet: Yes | Port: G1/8
C55WB40-45DCZ Bore: ø40 mm | Mounting: Through-hole/tapped (std) | Stroke: 45 mm | Auto switch magnet: No | Port: G1/8
CD55WB40-45DCZ Bore: ø40 mm | Mounting: Through-hole/tapped (std) | Stroke: 45 mm | Auto switch magnet: Yes | Port: G1/8
C55WB40-50DCZ Bore: ø40 mm | Mounting: Through-hole/tapped (std) | Stroke: 50 mm | Auto switch magnet: No | Port: G1/8
CD55WB40-50DCZ Bore: ø40 mm | Mounting: Through-hole/tapped (std) | Stroke: 50 mm | Auto switch magnet: Yes | Port: G1/8
C55WB40-60DCZ Bore: ø40 mm | Mounting: Through-hole/tapped (std) | Stroke: 60 mm | Auto switch magnet: No | Port: G1/8
CD55WB40-60DCZ Bore: ø40 mm | Mounting: Through-hole/tapped (std) | Stroke: 60 mm | Auto switch magnet: Yes | Port: G1/8
C55WB40-80DCZ Bore: ø40 mm | Mounting: Through-hole/tapped (std) | Stroke: 80 mm | Auto switch magnet: No | Port: G1/8
CD55WB40-80DCZ Bore: ø40 mm | Mounting: Through-hole/tapped (std) | Stroke: 80 mm | Auto switch magnet: Yes | Port: G1/8
C55WB40-100DCZ Bore: ø40 mm | Mounting: Through-hole/tapped (std) | Stroke: 100 mm | Auto switch magnet: No | Port: G1/8
CD55WB40-100DCZ Bore: ø40 mm | Mounting: Through-hole/tapped (std) | Stroke: 100 mm | Auto switch magnet: Yes | Port: G1/8
C55WB40-125DCZ Bore: ø40 mm | Mounting: Through-hole/tapped (std) | Stroke: 125 mm | Auto switch magnet: No | Port: G1/8
CD55WB40-125DCZ Bore: ø40 mm | Mounting: Through-hole/tapped (std) | Stroke: 125 mm | Auto switch magnet: Yes | Port: G1/8
C55WB40-150DCZ Bore: ø40 mm | Mounting: Through-hole/tapped (std) | Stroke: 150 mm | Auto switch magnet: No | Port: G1/8
CD55WB40-150DCZ Bore: ø40 mm | Mounting: Through-hole/tapped (std) | Stroke: 150 mm | Auto switch magnet: Yes | Port: G1/8
C55WL40-5DCZ Bore: ø40 mm | Mounting: Foot | Stroke: 5 mm | Auto switch magnet: No | Port: G1/8
CD55WL40-5DCZ Bore: ø40 mm | Mounting: Foot | Stroke: 5 mm | Auto switch magnet: Yes | Port: G1/8
C55WL40-10DCZ Bore: ø40 mm | Mounting: Foot | Stroke: 10 mm | Auto switch magnet: No | Port: G1/8
CD55WL40-10DCZ Bore: ø40 mm | Mounting: Foot | Stroke: 10 mm | Auto switch magnet: Yes | Port: G1/8
C55WL40-15DCZ Bore: ø40 mm | Mounting: Foot | Stroke: 15 mm | Auto switch magnet: No | Port: G1/8
CD55WL40-15DCZ Bore: ø40 mm | Mounting: Foot | Stroke: 15 mm | Auto switch magnet: Yes | Port: G1/8
C55WL40-20DCZ Bore: ø40 mm | Mounting: Foot | Stroke: 20 mm | Auto switch magnet: No | Port: G1/8
CD55WL40-20DCZ Bore: ø40 mm | Mounting: Foot | Stroke: 20 mm | Auto switch magnet: Yes | Port: G1/8
C55WL40-25DCZ Bore: ø40 mm | Mounting: Foot | Stroke: 25 mm | Auto switch magnet: No | Port: G1/8
CD55WL40-25DCZ Bore: ø40 mm | Mounting: Foot | Stroke: 25 mm | Auto switch magnet: Yes | Port: G1/8
C55WL40-30DCZ Bore: ø40 mm | Mounting: Foot | Stroke: 30 mm | Auto switch magnet: No | Port: G1/8
CD55WL40-30DCZ Bore: ø40 mm | Mounting: Foot | Stroke: 30 mm | Auto switch magnet: Yes | Port: G1/8
C55WL40-35DCZ Bore: ø40 mm | Mounting: Foot | Stroke: 35 mm | Auto switch magnet: No | Port: G1/8
CD55WL40-35DCZ Bore: ø40 mm | Mounting: Foot | Stroke: 35 mm | Auto switch magnet: Yes | Port: G1/8
C55WL40-40DCZ Bore: ø40 mm | Mounting: Foot | Stroke: 40 mm | Auto switch magnet: No | Port: G1/8
CD55WL40-40DCZ Bore: ø40 mm | Mounting: Foot | Stroke: 40 mm | Auto switch magnet: Yes | Port: G1/8
C55WL40-45DCZ Bore: ø40 mm | Mounting: Foot | Stroke: 45 mm | Auto switch magnet: No | Port: G1/8
CD55WL40-45DCZ Bore: ø40 mm | Mounting: Foot | Stroke: 45 mm | Auto switch magnet: Yes | Port: G1/8
C55WL40-50DCZ Bore: ø40 mm | Mounting: Foot | Stroke: 50 mm | Auto switch magnet: No | Port: G1/8
CD55WL40-50DCZ Bore: ø40 mm | Mounting: Foot | Stroke: 50 mm | Auto switch magnet: Yes | Port: G1/8
C55WL40-60DCZ Bore: ø40 mm | Mounting: Foot | Stroke: 60 mm | Auto switch magnet: No | Port: G1/8
CD55WL40-60DCZ Bore: ø40 mm | Mounting: Foot | Stroke: 60 mm | Auto switch magnet: Yes | Port: G1/8
C55WL40-80DCZ Bore: ø40 mm | Mounting: Foot | Stroke: 80 mm | Auto switch magnet: No | Port: G1/8
CD55WL40-80DCZ Bore: ø40 mm | Mounting: Foot | Stroke: 80 mm | Auto switch magnet: Yes | Port: G1/8
C55WL40-100DCZ Bore: ø40 mm | Mounting: Foot | Stroke: 100 mm | Auto switch magnet: No | Port: G1/8
CD55WL40-100DCZ Bore: ø40 mm | Mounting: Foot | Stroke: 100 mm | Auto switch magnet: Yes | Port: G1/8
C55WL40-125DCZ Bore: ø40 mm | Mounting: Foot | Stroke: 125 mm | Auto switch magnet: No | Port: G1/8
CD55WL40-125DCZ Bore: ø40 mm | Mounting: Foot | Stroke: 125 mm | Auto switch magnet: Yes | Port: G1/8
C55WL40-150DCZ Bore: ø40 mm | Mounting: Foot | Stroke: 150 mm | Auto switch magnet: No | Port: G1/8
CD55WL40-150DCZ Bore: ø40 mm | Mounting: Foot | Stroke: 150 mm | Auto switch magnet: Yes | Port: G1/8
C55WF40-5DCZ Bore: ø40 mm | Mounting: Flange | Stroke: 5 mm | Auto switch magnet: No | Port: G1/8
CD55WF40-5DCZ Bore: ø40 mm | Mounting: Flange | Stroke: 5 mm | Auto switch magnet: Yes | Port: G1/8
C55WF40-10DCZ Bore: ø40 mm | Mounting: Flange | Stroke: 10 mm | Auto switch magnet: No | Port: G1/8
CD55WF40-10DCZ Bore: ø40 mm | Mounting: Flange | Stroke: 10 mm | Auto switch magnet: Yes | Port: G1/8
C55WF40-15DCZ Bore: ø40 mm | Mounting: Flange | Stroke: 15 mm | Auto switch magnet: No | Port: G1/8
CD55WF40-15DCZ Bore: ø40 mm | Mounting: Flange | Stroke: 15 mm | Auto switch magnet: Yes | Port: G1/8
C55WF40-20DCZ Bore: ø40 mm | Mounting: Flange | Stroke: 20 mm | Auto switch magnet: No | Port: G1/8
CD55WF40-20DCZ Bore: ø40 mm | Mounting: Flange | Stroke: 20 mm | Auto switch magnet: Yes | Port: G1/8
C55WF40-25DCZ Bore: ø40 mm | Mounting: Flange | Stroke: 25 mm | Auto switch magnet: No | Port: G1/8
CD55WF40-25DCZ Bore: ø40 mm | Mounting: Flange | Stroke: 25 mm | Auto switch magnet: Yes | Port: G1/8
C55WF40-30DCZ Bore: ø40 mm | Mounting: Flange | Stroke: 30 mm | Auto switch magnet: No | Port: G1/8
CD55WF40-30DCZ Bore: ø40 mm | Mounting: Flange | Stroke: 30 mm | Auto switch magnet: Yes | Port: G1/8
C55WF40-35DCZ Bore: ø40 mm | Mounting: Flange | Stroke: 35 mm | Auto switch magnet: No | Port: G1/8
CD55WF40-35DCZ Bore: ø40 mm | Mounting: Flange | Stroke: 35 mm | Auto switch magnet: Yes | Port: G1/8
C55WF40-40DCZ Bore: ø40 mm | Mounting: Flange | Stroke: 40 mm | Auto switch magnet: No | Port: G1/8
CD55WF40-40DCZ Bore: ø40 mm | Mounting: Flange | Stroke: 40 mm | Auto switch magnet: Yes | Port: G1/8
C55WF40-45DCZ Bore: ø40 mm | Mounting: Flange | Stroke: 45 mm | Auto switch magnet: No | Port: G1/8
CD55WF40-45DCZ Bore: ø40 mm | Mounting: Flange | Stroke: 45 mm | Auto switch magnet: Yes | Port: G1/8
C55WF40-50DCZ Bore: ø40 mm | Mounting: Flange | Stroke: 50 mm | Auto switch magnet: No | Port: G1/8
CD55WF40-50DCZ Bore: ø40 mm | Mounting: Flange | Stroke: 50 mm | Auto switch magnet: Yes | Port: G1/8
C55WF40-60DCZ Bore: ø40 mm | Mounting: Flange | Stroke: 60 mm | Auto switch magnet: No | Port: G1/8
CD55WF40-60DCZ Bore: ø40 mm | Mounting: Flange | Stroke: 60 mm | Auto switch magnet: Yes | Port: G1/8
C55WF40-80DCZ Bore: ø40 mm | Mounting: Flange | Stroke: 80 mm | Auto switch magnet: No | Port: G1/8
CD55WF40-80DCZ Bore: ø40 mm | Mounting: Flange | Stroke: 80 mm | Auto switch magnet: Yes | Port: G1/8
C55WF40-100DCZ Bore: ø40 mm | Mounting: Flange | Stroke: 100 mm | Auto switch magnet: No | Port: G1/8
CD55WF40-100DCZ Bore: ø40 mm | Mounting: Flange | Stroke: 100 mm | Auto switch magnet: Yes | Port: G1/8
C55WF40-125DCZ Bore: ø40 mm | Mounting: Flange | Stroke: 125 mm | Auto switch magnet: No | Port: G1/8
CD55WF40-125DCZ Bore: ø40 mm | Mounting: Flange | Stroke: 125 mm | Auto switch magnet: Yes | Port: G1/8
C55WF40-150DCZ Bore: ø40 mm | Mounting: Flange | Stroke: 150 mm | Auto switch magnet: No | Port: G1/8
CD55WF40-150DCZ Bore: ø40 mm | Mounting: Flange | Stroke: 150 mm | Auto switch magnet: Yes | Port: G1/8
C55WB50-5DCZ Bore: ø50 mm | Mounting: Through-hole/tapped (std) | Stroke: 5 mm | Auto switch magnet: No | Port: G1/8
CD55WB50-5DCZ Bore: ø50 mm | Mounting: Through-hole/tapped (std) | Stroke: 5 mm | Auto switch magnet: Yes | Port: G1/8
C55WB50-10DCZ Bore: ø50 mm | Mounting: Through-hole/tapped (std) | Stroke: 10 mm | Auto switch magnet: No | Port: G1/8
CD55WB50-10DCZ Bore: ø50 mm | Mounting: Through-hole/tapped (std) | Stroke: 10 mm | Auto switch magnet: Yes | Port: G1/8
C55WB50-15DCZ Bore: ø50 mm | Mounting: Through-hole/tapped (std) | Stroke: 15 mm | Auto switch magnet: No | Port: G1/8
CD55WB50-15DCZ Bore: ø50 mm | Mounting: Through-hole/tapped (std) | Stroke: 15 mm | Auto switch magnet: Yes | Port: G1/8
C55WB50-20DCZ Bore: ø50 mm | Mounting: Through-hole/tapped (std) | Stroke: 20 mm | Auto switch magnet: No | Port: G1/8
CD55WB50-20DCZ Bore: ø50 mm | Mounting: Through-hole/tapped (std) | Stroke: 20 mm | Auto switch magnet: Yes | Port: G1/8
C55WB50-25DCZ Bore: ø50 mm | Mounting: Through-hole/tapped (std) | Stroke: 25 mm | Auto switch magnet: No | Port: G1/8
CD55WB50-25DCZ Bore: ø50 mm | Mounting: Through-hole/tapped (std) | Stroke: 25 mm | Auto switch magnet: Yes | Port: G1/8
C55WB50-30DCZ Bore: ø50 mm | Mounting: Through-hole/tapped (std) | Stroke: 30 mm | Auto switch magnet: No | Port: G1/8
CD55WB50-30DCZ Bore: ø50 mm | Mounting: Through-hole/tapped (std) | Stroke: 30 mm | Auto switch magnet: Yes | Port: G1/8
C55WB50-35DCZ Bore: ø50 mm | Mounting: Through-hole/tapped (std) | Stroke: 35 mm | Auto switch magnet: No | Port: G1/8
CD55WB50-35DCZ Bore: ø50 mm | Mounting: Through-hole/tapped (std) | Stroke: 35 mm | Auto switch magnet: Yes | Port: G1/8
C55WB50-40DCZ Bore: ø50 mm | Mounting: Through-hole/tapped (std) | Stroke: 40 mm | Auto switch magnet: No | Port: G1/8
CD55WB50-40DCZ Bore: ø50 mm | Mounting: Through-hole/tapped (std) | Stroke: 40 mm | Auto switch magnet: Yes | Port: G1/8
C55WB50-45DCZ Bore: ø50 mm | Mounting: Through-hole/tapped (std) | Stroke: 45 mm | Auto switch magnet: No | Port: G1/8
CD55WB50-45DCZ Bore: ø50 mm | Mounting: Through-hole/tapped (std) | Stroke: 45 mm | Auto switch magnet: Yes | Port: G1/8
C55WB50-50DCZ Bore: ø50 mm | Mounting: Through-hole/tapped (std) | Stroke: 50 mm | Auto switch magnet: No | Port: G1/8
CD55WB50-50DCZ Bore: ø50 mm | Mounting: Through-hole/tapped (std) | Stroke: 50 mm | Auto switch magnet: Yes | Port: G1/8
C55WB50-60DCZ Bore: ø50 mm | Mounting: Through-hole/tapped (std) | Stroke: 60 mm | Auto switch magnet: No | Port: G1/8
CD55WB50-60DCZ Bore: ø50 mm | Mounting: Through-hole/tapped (std) | Stroke: 60 mm | Auto switch magnet: Yes | Port: G1/8
C55WB50-80DCZ Bore: ø50 mm | Mounting: Through-hole/tapped (std) | Stroke: 80 mm | Auto switch magnet: No | Port: G1/8
CD55WB50-80DCZ Bore: ø50 mm | Mounting: Through-hole/tapped (std) | Stroke: 80 mm | Auto switch magnet: Yes | Port: G1/8
C55WB50-100DCZ Bore: ø50 mm | Mounting: Through-hole/tapped (std) | Stroke: 100 mm | Auto switch magnet: No | Port: G1/8
CD55WB50-100DCZ Bore: ø50 mm | Mounting: Through-hole/tapped (std) | Stroke: 100 mm | Auto switch magnet: Yes | Port: G1/8
C55WB50-125DCZ Bore: ø50 mm | Mounting: Through-hole/tapped (std) | Stroke: 125 mm | Auto switch magnet: No | Port: G1/8
CD55WB50-125DCZ Bore: ø50 mm | Mounting: Through-hole/tapped (std) | Stroke: 125 mm | Auto switch magnet: Yes | Port: G1/8
C55WB50-150DCZ Bore: ø50 mm | Mounting: Through-hole/tapped (std) | Stroke: 150 mm | Auto switch magnet: No | Port: G1/8
CD55WB50-150DCZ Bore: ø50 mm | Mounting: Through-hole/tapped (std) | Stroke: 150 mm | Auto switch magnet: Yes | Port: G1/8
C55WL50-5DCZ Bore: ø50 mm | Mounting: Foot | Stroke: 5 mm | Auto switch magnet: No | Port: G1/8
CD55WL50-5DCZ Bore: ø50 mm | Mounting: Foot | Stroke: 5 mm | Auto switch magnet: Yes | Port: G1/8
C55WL50-10DCZ Bore: ø50 mm | Mounting: Foot | Stroke: 10 mm | Auto switch magnet: No | Port: G1/8
CD55WL50-10DCZ Bore: ø50 mm | Mounting: Foot | Stroke: 10 mm | Auto switch magnet: Yes | Port: G1/8
C55WL50-15DCZ Bore: ø50 mm | Mounting: Foot | Stroke: 15 mm | Auto switch magnet: No | Port: G1/8
CD55WL50-15DCZ Bore: ø50 mm | Mounting: Foot | Stroke: 15 mm | Auto switch magnet: Yes | Port: G1/8
C55WL50-20DCZ Bore: ø50 mm | Mounting: Foot | Stroke: 20 mm | Auto switch magnet: No | Port: G1/8
CD55WL50-20DCZ Bore: ø50 mm | Mounting: Foot | Stroke: 20 mm | Auto switch magnet: Yes | Port: G1/8
C55WL50-25DCZ Bore: ø50 mm | Mounting: Foot | Stroke: 25 mm | Auto switch magnet: No | Port: G1/8
CD55WL50-25DCZ Bore: ø50 mm | Mounting: Foot | Stroke: 25 mm | Auto switch magnet: Yes | Port: G1/8
C55WL50-30DCZ Bore: ø50 mm | Mounting: Foot | Stroke: 30 mm | Auto switch magnet: No | Port: G1/8
CD55WL50-30DCZ Bore: ø50 mm | Mounting: Foot | Stroke: 30 mm | Auto switch magnet: Yes | Port: G1/8
C55WL50-35DCZ Bore: ø50 mm | Mounting: Foot | Stroke: 35 mm | Auto switch magnet: No | Port: G1/8
CD55WL50-35DCZ Bore: ø50 mm | Mounting: Foot | Stroke: 35 mm | Auto switch magnet: Yes | Port: G1/8
C55WL50-40DCZ Bore: ø50 mm | Mounting: Foot | Stroke: 40 mm | Auto switch magnet: No | Port: G1/8
CD55WL50-40DCZ Bore: ø50 mm | Mounting: Foot | Stroke: 40 mm | Auto switch magnet: Yes | Port: G1/8
C55WL50-45DCZ Bore: ø50 mm | Mounting: Foot | Stroke: 45 mm | Auto switch magnet: No | Port: G1/8
CD55WL50-45DCZ Bore: ø50 mm | Mounting: Foot | Stroke: 45 mm | Auto switch magnet: Yes | Port: G1/8
C55WL50-50DCZ Bore: ø50 mm | Mounting: Foot | Stroke: 50 mm | Auto switch magnet: No | Port: G1/8
CD55WL50-50DCZ Bore: ø50 mm | Mounting: Foot | Stroke: 50 mm | Auto switch magnet: Yes | Port: G1/8
C55WL50-60DCZ Bore: ø50 mm | Mounting: Foot | Stroke: 60 mm | Auto switch magnet: No | Port: G1/8
CD55WL50-60DCZ Bore: ø50 mm | Mounting: Foot | Stroke: 60 mm | Auto switch magnet: Yes | Port: G1/8
C55WL50-80DCZ Bore: ø50 mm | Mounting: Foot | Stroke: 80 mm | Auto switch magnet: No | Port: G1/8
CD55WL50-80DCZ Bore: ø50 mm | Mounting: Foot | Stroke: 80 mm | Auto switch magnet: Yes | Port: G1/8
C55WL50-100DCZ Bore: ø50 mm | Mounting: Foot | Stroke: 100 mm | Auto switch magnet: No | Port: G1/8
CD55WL50-100DCZ Bore: ø50 mm | Mounting: Foot | Stroke: 100 mm | Auto switch magnet: Yes | Port: G1/8
C55WL50-125DCZ Bore: ø50 mm | Mounting: Foot | Stroke: 125 mm | Auto switch magnet: No | Port: G1/8
CD55WL50-125DCZ Bore: ø50 mm | Mounting: Foot | Stroke: 125 mm | Auto switch magnet: Yes | Port: G1/8
C55WL50-150DCZ Bore: ø50 mm | Mounting: Foot | Stroke: 150 mm | Auto switch magnet: No | Port: G1/8
CD55WL50-150DCZ Bore: ø50 mm | Mounting: Foot | Stroke: 150 mm | Auto switch magnet: Yes | Port: G1/8
C55WF50-5DCZ Bore: ø50 mm | Mounting: Flange | Stroke: 5 mm | Auto switch magnet: No | Port: G1/8
CD55WF50-5DCZ Bore: ø50 mm | Mounting: Flange | Stroke: 5 mm | Auto switch magnet: Yes | Port: G1/8
C55WF50-10DCZ Bore: ø50 mm | Mounting: Flange | Stroke: 10 mm | Auto switch magnet: No | Port: G1/8
CD55WF50-10DCZ Bore: ø50 mm | Mounting: Flange | Stroke: 10 mm | Auto switch magnet: Yes | Port: G1/8
C55WF50-15DCZ Bore: ø50 mm | Mounting: Flange | Stroke: 15 mm | Auto switch magnet: No | Port: G1/8
CD55WF50-15DCZ Bore: ø50 mm | Mounting: Flange | Stroke: 15 mm | Auto switch magnet: Yes | Port: G1/8
C55WF50-20DCZ Bore: ø50 mm | Mounting: Flange | Stroke: 20 mm | Auto switch magnet: No | Port: G1/8
CD55WF50-20DCZ Bore: ø50 mm | Mounting: Flange | Stroke: 20 mm | Auto switch magnet: Yes | Port: G1/8
C55WF50-25DCZ Bore: ø50 mm | Mounting: Flange | Stroke: 25 mm | Auto switch magnet: No | Port: G1/8
CD55WF50-25DCZ Bore: ø50 mm | Mounting: Flange | Stroke: 25 mm | Auto switch magnet: Yes | Port: G1/8
C55WF50-30DCZ Bore: ø50 mm | Mounting: Flange | Stroke: 30 mm | Auto switch magnet: No | Port: G1/8
CD55WF50-30DCZ Bore: ø50 mm | Mounting: Flange | Stroke: 30 mm | Auto switch magnet: Yes | Port: G1/8
C55WF50-35DCZ Bore: ø50 mm | Mounting: Flange | Stroke: 35 mm | Auto switch magnet: No | Port: G1/8
CD55WF50-35DCZ Bore: ø50 mm | Mounting: Flange | Stroke: 35 mm | Auto switch magnet: Yes | Port: G1/8
C55WF50-40DCZ Bore: ø50 mm | Mounting: Flange | Stroke: 40 mm | Auto switch magnet: No | Port: G1/8
CD55WF50-40DCZ Bore: ø50 mm | Mounting: Flange | Stroke: 40 mm | Auto switch magnet: Yes | Port: G1/8
C55WF50-45DCZ Bore: ø50 mm | Mounting: Flange | Stroke: 45 mm | Auto switch magnet: No | Port: G1/8
CD55WF50-45DCZ Bore: ø50 mm | Mounting: Flange | Stroke: 45 mm | Auto switch magnet: Yes | Port: G1/8
C55WF50-50DCZ Bore: ø50 mm | Mounting: Flange | Stroke: 50 mm | Auto switch magnet: No | Port: G1/8
CD55WF50-50DCZ Bore: ø50 mm | Mounting: Flange | Stroke: 50 mm | Auto switch magnet: Yes | Port: G1/8
C55WF50-60DCZ Bore: ø50 mm | Mounting: Flange | Stroke: 60 mm | Auto switch magnet: No | Port: G1/8
CD55WF50-60DCZ Bore: ø50 mm | Mounting: Flange | Stroke: 60 mm | Auto switch magnet: Yes | Port: G1/8
C55WF50-80DCZ Bore: ø50 mm | Mounting: Flange | Stroke: 80 mm | Auto switch magnet: No | Port: G1/8
CD55WF50-80DCZ Bore: ø50 mm | Mounting: Flange | Stroke: 80 mm | Auto switch magnet: Yes | Port: G1/8
C55WF50-100DCZ Bore: ø50 mm | Mounting: Flange | Stroke: 100 mm | Auto switch magnet: No | Port: G1/8
CD55WF50-100DCZ Bore: ø50 mm | Mounting: Flange | Stroke: 100 mm | Auto switch magnet: Yes | Port: G1/8
C55WF50-125DCZ Bore: ø50 mm | Mounting: Flange | Stroke: 125 mm | Auto switch magnet: No | Port: G1/8
CD55WF50-125DCZ Bore: ø50 mm | Mounting: Flange | Stroke: 125 mm | Auto switch magnet: Yes | Port: G1/8
C55WF50-150DCZ Bore: ø50 mm | Mounting: Flange | Stroke: 150 mm | Auto switch magnet: No | Port: G1/8
CD55WF50-150DCZ Bore: ø50 mm | Mounting: Flange | Stroke: 150 mm | Auto switch magnet: Yes | Port: G1/8
C55WB63-5DCZ Bore: ø63 mm | Mounting: Through-hole/tapped (std) | Stroke: 5 mm | Auto switch magnet: No | Port: G1/8
CD55WB63-5DCZ Bore: ø63 mm | Mounting: Through-hole/tapped (std) | Stroke: 5 mm | Auto switch magnet: Yes | Port: G1/8
C55WB63-10DCZ Bore: ø63 mm | Mounting: Through-hole/tapped (std) | Stroke: 10 mm | Auto switch magnet: No | Port: G1/8
CD55WB63-10DCZ Bore: ø63 mm | Mounting: Through-hole/tapped (std) | Stroke: 10 mm | Auto switch magnet: Yes | Port: G1/8
C55WB63-15DCZ Bore: ø63 mm | Mounting: Through-hole/tapped (std) | Stroke: 15 mm | Auto switch magnet: No | Port: G1/8
CD55WB63-15DCZ Bore: ø63 mm | Mounting: Through-hole/tapped (std) | Stroke: 15 mm | Auto switch magnet: Yes | Port: G1/8
C55WB63-20DCZ Bore: ø63 mm | Mounting: Through-hole/tapped (std) | Stroke: 20 mm | Auto switch magnet: No | Port: G1/8
CD55WB63-20DCZ Bore: ø63 mm | Mounting: Through-hole/tapped (std) | Stroke: 20 mm | Auto switch magnet: Yes | Port: G1/8
C55WB63-25DCZ Bore: ø63 mm | Mounting: Through-hole/tapped (std) | Stroke: 25 mm | Auto switch magnet: No | Port: G1/8
CD55WB63-25DCZ Bore: ø63 mm | Mounting: Through-hole/tapped (std) | Stroke: 25 mm | Auto switch magnet: Yes | Port: G1/8
C55WB63-30DCZ Bore: ø63 mm | Mounting: Through-hole/tapped (std) | Stroke: 30 mm | Auto switch magnet: No | Port: G1/8
CD55WB63-30DCZ Bore: ø63 mm | Mounting: Through-hole/tapped (std) | Stroke: 30 mm | Auto switch magnet: Yes | Port: G1/8
C55WB63-35DCZ Bore: ø63 mm | Mounting: Through-hole/tapped (std) | Stroke: 35 mm | Auto switch magnet: No | Port: G1/8
CD55WB63-35DCZ Bore: ø63 mm | Mounting: Through-hole/tapped (std) | Stroke: 35 mm | Auto switch magnet: Yes | Port: G1/8
C55WB63-40DCZ Bore: ø63 mm | Mounting: Through-hole/tapped (std) | Stroke: 40 mm | Auto switch magnet: No | Port: G1/8
CD55WB63-40DCZ Bore: ø63 mm | Mounting: Through-hole/tapped (std) | Stroke: 40 mm | Auto switch magnet: Yes | Port: G1/8
C55WB63-45DCZ Bore: ø63 mm | Mounting: Through-hole/tapped (std) | Stroke: 45 mm | Auto switch magnet: No | Port: G1/8
CD55WB63-45DCZ Bore: ø63 mm | Mounting: Through-hole/tapped (std) | Stroke: 45 mm | Auto switch magnet: Yes | Port: G1/8
C55WB63-50DCZ Bore: ø63 mm | Mounting: Through-hole/tapped (std) | Stroke: 50 mm | Auto switch magnet: No | Port: G1/8
CD55WB63-50DCZ Bore: ø63 mm | Mounting: Through-hole/tapped (std) | Stroke: 50 mm | Auto switch magnet: Yes | Port: G1/8
C55WB63-60DCZ Bore: ø63 mm | Mounting: Through-hole/tapped (std) | Stroke: 60 mm | Auto switch magnet: No | Port: G1/8
CD55WB63-60DCZ Bore: ø63 mm | Mounting: Through-hole/tapped (std) | Stroke: 60 mm | Auto switch magnet: Yes | Port: G1/8
C55WB63-80DCZ Bore: ø63 mm | Mounting: Through-hole/tapped (std) | Stroke: 80 mm | Auto switch magnet: No | Port: G1/8
CD55WB63-80DCZ Bore: ø63 mm | Mounting: Through-hole/tapped (std) | Stroke: 80 mm | Auto switch magnet: Yes | Port: G1/8
C55WB63-100DCZ Bore: ø63 mm | Mounting: Through-hole/tapped (std) | Stroke: 100 mm | Auto switch magnet: No | Port: G1/8
CD55WB63-100DCZ Bore: ø63 mm | Mounting: Through-hole/tapped (std) | Stroke: 100 mm | Auto switch magnet: Yes | Port: G1/8
C55WB63-125DCZ Bore: ø63 mm | Mounting: Through-hole/tapped (std) | Stroke: 125 mm | Auto switch magnet: No | Port: G1/8
CD55WB63-125DCZ Bore: ø63 mm | Mounting: Through-hole/tapped (std) | Stroke: 125 mm | Auto switch magnet: Yes | Port: G1/8
C55WB63-150DCZ Bore: ø63 mm | Mounting: Through-hole/tapped (std) | Stroke: 150 mm | Auto switch magnet: No | Port: G1/8
CD55WB63-150DCZ Bore: ø63 mm | Mounting: Through-hole/tapped (std) | Stroke: 150 mm | Auto switch magnet: Yes | Port: G1/8
C55WL63-5DCZ Bore: ø63 mm | Mounting: Foot | Stroke: 5 mm | Auto switch magnet: No | Port: G1/8
CD55WL63-5DCZ Bore: ø63 mm | Mounting: Foot | Stroke: 5 mm | Auto switch magnet: Yes | Port: G1/8
C55WL63-10DCZ Bore: ø63 mm | Mounting: Foot | Stroke: 10 mm | Auto switch magnet: No | Port: G1/8
CD55WL63-10DCZ Bore: ø63 mm | Mounting: Foot | Stroke: 10 mm | Auto switch magnet: Yes | Port: G1/8
C55WL63-15DCZ Bore: ø63 mm | Mounting: Foot | Stroke: 15 mm | Auto switch magnet: No | Port: G1/8
CD55WL63-15DCZ Bore: ø63 mm | Mounting: Foot | Stroke: 15 mm | Auto switch magnet: Yes | Port: G1/8
C55WL63-20DCZ Bore: ø63 mm | Mounting: Foot | Stroke: 20 mm | Auto switch magnet: No | Port: G1/8
CD55WL63-20DCZ Bore: ø63 mm | Mounting: Foot | Stroke: 20 mm | Auto switch magnet: Yes | Port: G1/8
C55WL63-25DCZ Bore: ø63 mm | Mounting: Foot | Stroke: 25 mm | Auto switch magnet: No | Port: G1/8
CD55WL63-25DCZ Bore: ø63 mm | Mounting: Foot | Stroke: 25 mm | Auto switch magnet: Yes | Port: G1/8
C55WL63-30DCZ Bore: ø63 mm | Mounting: Foot | Stroke: 30 mm | Auto switch magnet: No | Port: G1/8
CD55WL63-30DCZ Bore: ø63 mm | Mounting: Foot | Stroke: 30 mm | Auto switch magnet: Yes | Port: G1/8
C55WL63-35DCZ Bore: ø63 mm | Mounting: Foot | Stroke: 35 mm | Auto switch magnet: No | Port: G1/8
CD55WL63-35DCZ Bore: ø63 mm | Mounting: Foot | Stroke: 35 mm | Auto switch magnet: Yes | Port: G1/8
C55WL63-40DCZ Bore: ø63 mm | Mounting: Foot | Stroke: 40 mm | Auto switch magnet: No | Port: G1/8
CD55WL63-40DCZ Bore: ø63 mm | Mounting: Foot | Stroke: 40 mm | Auto switch magnet: Yes | Port: G1/8
C55WL63-45DCZ Bore: ø63 mm | Mounting: Foot | Stroke: 45 mm | Auto switch magnet: No | Port: G1/8
CD55WL63-45DCZ Bore: ø63 mm | Mounting: Foot | Stroke: 45 mm | Auto switch magnet: Yes | Port: G1/8
C55WL63-50DCZ Bore: ø63 mm | Mounting: Foot | Stroke: 50 mm | Auto switch magnet: No | Port: G1/8
CD55WL63-50DCZ Bore: ø63 mm | Mounting: Foot | Stroke: 50 mm | Auto switch magnet: Yes | Port: G1/8
C55WL63-60DCZ Bore: ø63 mm | Mounting: Foot | Stroke: 60 mm | Auto switch magnet: No | Port: G1/8
CD55WL63-60DCZ Bore: ø63 mm | Mounting: Foot | Stroke: 60 mm | Auto switch magnet: Yes | Port: G1/8
C55WL63-80DCZ Bore: ø63 mm | Mounting: Foot | Stroke: 80 mm | Auto switch magnet: No | Port: G1/8
CD55WL63-80DCZ Bore: ø63 mm | Mounting: Foot | Stroke: 80 mm | Auto switch magnet: Yes | Port: G1/8
C55WL63-100DCZ Bore: ø63 mm | Mounting: Foot | Stroke: 100 mm | Auto switch magnet: No | Port: G1/8
CD55WL63-100DCZ Bore: ø63 mm | Mounting: Foot | Stroke: 100 mm | Auto switch magnet: Yes | Port: G1/8
C55WL63-125DCZ Bore: ø63 mm | Mounting: Foot | Stroke: 125 mm | Auto switch magnet: No | Port: G1/8
CD55WL63-125DCZ Bore: ø63 mm | Mounting: Foot | Stroke: 125 mm | Auto switch magnet: Yes | Port: G1/8
C55WL63-150DCZ Bore: ø63 mm | Mounting: Foot | Stroke: 150 mm | Auto switch magnet: No | Port: G1/8
CD55WL63-150DCZ Bore: ø63 mm | Mounting: Foot | Stroke: 150 mm | Auto switch magnet: Yes | Port: G1/8
C55WF63-5DCZ Bore: ø63 mm | Mounting: Flange | Stroke: 5 mm | Auto switch magnet: No | Port: G1/8
CD55WF63-5DCZ Bore: ø63 mm | Mounting: Flange | Stroke: 5 mm | Auto switch magnet: Yes | Port: G1/8
C55WF63-10DCZ Bore: ø63 mm | Mounting: Flange | Stroke: 10 mm | Auto switch magnet: No | Port: G1/8
CD55WF63-10DCZ Bore: ø63 mm | Mounting: Flange | Stroke: 10 mm | Auto switch magnet: Yes | Port: G1/8
C55WF63-15DCZ Bore: ø63 mm | Mounting: Flange | Stroke: 15 mm | Auto switch magnet: No | Port: G1/8
CD55WF63-15DCZ Bore: ø63 mm | Mounting: Flange | Stroke: 15 mm | Auto switch magnet: Yes | Port: G1/8
C55WF63-20DCZ Bore: ø63 mm | Mounting: Flange | Stroke: 20 mm | Auto switch magnet: No | Port: G1/8
CD55WF63-20DCZ Bore: ø63 mm | Mounting: Flange | Stroke: 20 mm | Auto switch magnet: Yes | Port: G1/8
C55WF63-25DCZ Bore: ø63 mm | Mounting: Flange | Stroke: 25 mm | Auto switch magnet: No | Port: G1/8
CD55WF63-25DCZ Bore: ø63 mm | Mounting: Flange | Stroke: 25 mm | Auto switch magnet: Yes | Port: G1/8
C55WF63-30DCZ Bore: ø63 mm | Mounting: Flange | Stroke: 30 mm | Auto switch magnet: No | Port: G1/8
CD55WF63-30DCZ Bore: ø63 mm | Mounting: Flange | Stroke: 30 mm | Auto switch magnet: Yes | Port: G1/8
C55WF63-35DCZ Bore: ø63 mm | Mounting: Flange | Stroke: 35 mm | Auto switch magnet: No | Port: G1/8
CD55WF63-35DCZ Bore: ø63 mm | Mounting: Flange | Stroke: 35 mm | Auto switch magnet: Yes | Port: G1/8
C55WF63-40DCZ Bore: ø63 mm | Mounting: Flange | Stroke: 40 mm | Auto switch magnet: No | Port: G1/8
CD55WF63-40DCZ Bore: ø63 mm | Mounting: Flange | Stroke: 40 mm | Auto switch magnet: Yes | Port: G1/8
C55WF63-45DCZ Bore: ø63 mm | Mounting: Flange | Stroke: 45 mm | Auto switch magnet: No | Port: G1/8
CD55WF63-45DCZ Bore: ø63 mm | Mounting: Flange | Stroke: 45 mm | Auto switch magnet: Yes | Port: G1/8
C55WF63-50DCZ Bore: ø63 mm | Mounting: Flange | Stroke: 50 mm | Auto switch magnet: No | Port: G1/8
CD55WF63-50DCZ Bore: ø63 mm | Mounting: Flange | Stroke: 50 mm | Auto switch magnet: Yes | Port: G1/8
C55WF63-60DCZ Bore: ø63 mm | Mounting: Flange | Stroke: 60 mm | Auto switch magnet: No | Port: G1/8
CD55WF63-60DCZ Bore: ø63 mm | Mounting: Flange | Stroke: 60 mm | Auto switch magnet: Yes | Port: G1/8
C55WF63-80DCZ Bore: ø63 mm | Mounting: Flange | Stroke: 80 mm | Auto switch magnet: No | Port: G1/8
CD55WF63-80DCZ Bore: ø63 mm | Mounting: Flange | Stroke: 80 mm | Auto switch magnet: Yes | Port: G1/8
C55WF63-100DCZ Bore: ø63 mm | Mounting: Flange | Stroke: 100 mm | Auto switch magnet: No | Port: G1/8
CD55WF63-100DCZ Bore: ø63 mm | Mounting: Flange | Stroke: 100 mm | Auto switch magnet: Yes | Port: G1/8
C55WF63-125DCZ Bore: ø63 mm | Mounting: Flange | Stroke: 125 mm | Auto switch magnet: No | Port: G1/8
CD55WF63-125DCZ Bore: ø63 mm | Mounting: Flange | Stroke: 125 mm | Auto switch magnet: Yes | Port: G1/8
C55WF63-150DCZ Bore: ø63 mm | Mounting: Flange | Stroke: 150 mm | Auto switch magnet: No | Port: G1/8
CD55WF63-150DCZ Bore: ø63 mm | Mounting: Flange | Stroke: 150 mm | Auto switch magnet: Yes | Port: G1/8
C55WB80-10DCZ Bore: ø80 mm | Mounting: Through-hole/tapped (std) | Stroke: 10 mm | Auto switch magnet: No | Port: G1/8
CD55WB80-10DCZ Bore: ø80 mm | Mounting: Through-hole/tapped (std) | Stroke: 10 mm | Auto switch magnet: Yes | Port: G1/8
C55WB80-15DCZ Bore: ø80 mm | Mounting: Through-hole/tapped (std) | Stroke: 15 mm | Auto switch magnet: No | Port: G1/8
CD55WB80-15DCZ Bore: ø80 mm | Mounting: Through-hole/tapped (std) | Stroke: 15 mm | Auto switch magnet: Yes | Port: G1/8
C55WB80-20DCZ Bore: ø80 mm | Mounting: Through-hole/tapped (std) | Stroke: 20 mm | Auto switch magnet: No | Port: G1/8
CD55WB80-20DCZ Bore: ø80 mm | Mounting: Through-hole/tapped (std) | Stroke: 20 mm | Auto switch magnet: Yes | Port: G1/8
C55WB80-25DCZ Bore: ø80 mm | Mounting: Through-hole/tapped (std) | Stroke: 25 mm | Auto switch magnet: No | Port: G1/8
CD55WB80-25DCZ Bore: ø80 mm | Mounting: Through-hole/tapped (std) | Stroke: 25 mm | Auto switch magnet: Yes | Port: G1/8
C55WB80-30DCZ Bore: ø80 mm | Mounting: Through-hole/tapped (std) | Stroke: 30 mm | Auto switch magnet: No | Port: G1/8
CD55WB80-30DCZ Bore: ø80 mm | Mounting: Through-hole/tapped (std) | Stroke: 30 mm | Auto switch magnet: Yes | Port: G1/8
C55WB80-35DCZ Bore: ø80 mm | Mounting: Through-hole/tapped (std) | Stroke: 35 mm | Auto switch magnet: No | Port: G1/8
CD55WB80-35DCZ Bore: ø80 mm | Mounting: Through-hole/tapped (std) | Stroke: 35 mm | Auto switch magnet: Yes | Port: G1/8
C55WB80-40DCZ Bore: ø80 mm | Mounting: Through-hole/tapped (std) | Stroke: 40 mm | Auto switch magnet: No | Port: G1/8
CD55WB80-40DCZ Bore: ø80 mm | Mounting: Through-hole/tapped (std) | Stroke: 40 mm | Auto switch magnet: Yes | Port: G1/8
C55WB80-45DCZ Bore: ø80 mm | Mounting: Through-hole/tapped (std) | Stroke: 45 mm | Auto switch magnet: No | Port: G1/8
CD55WB80-45DCZ Bore: ø80 mm | Mounting: Through-hole/tapped (std) | Stroke: 45 mm | Auto switch magnet: Yes | Port: G1/8
C55WB80-50DCZ Bore: ø80 mm | Mounting: Through-hole/tapped (std) | Stroke: 50 mm | Auto switch magnet: No | Port: G1/8
CD55WB80-50DCZ Bore: ø80 mm | Mounting: Through-hole/tapped (std) | Stroke: 50 mm | Auto switch magnet: Yes | Port: G1/8
C55WB80-60DCZ Bore: ø80 mm | Mounting: Through-hole/tapped (std) | Stroke: 60 mm | Auto switch magnet: No | Port: G1/8
CD55WB80-60DCZ Bore: ø80 mm | Mounting: Through-hole/tapped (std) | Stroke: 60 mm | Auto switch magnet: Yes | Port: G1/8
C55WB80-80DCZ Bore: ø80 mm | Mounting: Through-hole/tapped (std) | Stroke: 80 mm | Auto switch magnet: No | Port: G1/8
CD55WB80-80DCZ Bore: ø80 mm | Mounting: Through-hole/tapped (std) | Stroke: 80 mm | Auto switch magnet: Yes | Port: G1/8
C55WB80-100DCZ Bore: ø80 mm | Mounting: Through-hole/tapped (std) | Stroke: 100 mm | Auto switch magnet: No | Port: G1/8
CD55WB80-100DCZ Bore: ø80 mm | Mounting: Through-hole/tapped (std) | Stroke: 100 mm | Auto switch magnet: Yes | Port: G1/8
C55WB80-125DCZ Bore: ø80 mm | Mounting: Through-hole/tapped (std) | Stroke: 125 mm | Auto switch magnet: No | Port: G1/8
CD55WB80-125DCZ Bore: ø80 mm | Mounting: Through-hole/tapped (std) | Stroke: 125 mm | Auto switch magnet: Yes | Port: G1/8
C55WL80-10DCZ Bore: ø80 mm | Mounting: Foot | Stroke: 10 mm | Auto switch magnet: No | Port: G1/8
CD55WL80-10DCZ Bore: ø80 mm | Mounting: Foot | Stroke: 10 mm | Auto switch magnet: Yes | Port: G1/8
C55WL80-15DCZ Bore: ø80 mm | Mounting: Foot | Stroke: 15 mm | Auto switch magnet: No | Port: G1/8
CD55WL80-15DCZ Bore: ø80 mm | Mounting: Foot | Stroke: 15 mm | Auto switch magnet: Yes | Port: G1/8
C55WL80-20DCZ Bore: ø80 mm | Mounting: Foot | Stroke: 20 mm | Auto switch magnet: No | Port: G1/8
CD55WL80-20DCZ Bore: ø80 mm | Mounting: Foot | Stroke: 20 mm | Auto switch magnet: Yes | Port: G1/8
C55WL80-25DCZ Bore: ø80 mm | Mounting: Foot | Stroke: 25 mm | Auto switch magnet: No | Port: G1/8
CD55WL80-25DCZ Bore: ø80 mm | Mounting: Foot | Stroke: 25 mm | Auto switch magnet: Yes | Port: G1/8
C55WL80-30DCZ Bore: ø80 mm | Mounting: Foot | Stroke: 30 mm | Auto switch magnet: No | Port: G1/8
CD55WL80-30DCZ Bore: ø80 mm | Mounting: Foot | Stroke: 30 mm | Auto switch magnet: Yes | Port: G1/8
C55WL80-35DCZ Bore: ø80 mm | Mounting: Foot | Stroke: 35 mm | Auto switch magnet: No | Port: G1/8
CD55WL80-35DCZ Bore: ø80 mm | Mounting: Foot | Stroke: 35 mm | Auto switch magnet: Yes | Port: G1/8
C55WL80-40DCZ Bore: ø80 mm | Mounting: Foot | Stroke: 40 mm | Auto switch magnet: No | Port: G1/8
CD55WL80-40DCZ Bore: ø80 mm | Mounting: Foot | Stroke: 40 mm | Auto switch magnet: Yes | Port: G1/8
C55WL80-45DCZ Bore: ø80 mm | Mounting: Foot | Stroke: 45 mm | Auto switch magnet: No | Port: G1/8
CD55WL80-45DCZ Bore: ø80 mm | Mounting: Foot | Stroke: 45 mm | Auto switch magnet: Yes | Port: G1/8
C55WL80-50DCZ Bore: ø80 mm | Mounting: Foot | Stroke: 50 mm | Auto switch magnet: No | Port: G1/8
CD55WL80-50DCZ Bore: ø80 mm | Mounting: Foot | Stroke: 50 mm | Auto switch magnet: Yes | Port: G1/8
C55WL80-60DCZ Bore: ø80 mm | Mounting: Foot | Stroke: 60 mm | Auto switch magnet: No | Port: G1/8
CD55WL80-60DCZ Bore: ø80 mm | Mounting: Foot | Stroke: 60 mm | Auto switch magnet: Yes | Port: G1/8
C55WL80-80DCZ Bore: ø80 mm | Mounting: Foot | Stroke: 80 mm | Auto switch magnet: No | Port: G1/8
CD55WL80-80DCZ Bore: ø80 mm | Mounting: Foot | Stroke: 80 mm | Auto switch magnet: Yes | Port: G1/8
C55WL80-100DCZ Bore: ø80 mm | Mounting: Foot | Stroke: 100 mm | Auto switch magnet: No | Port: G1/8
CD55WL80-100DCZ Bore: ø80 mm | Mounting: Foot | Stroke: 100 mm | Auto switch magnet: Yes | Port: G1/8
C55WL80-125DCZ Bore: ø80 mm | Mounting: Foot | Stroke: 125 mm | Auto switch magnet: No | Port: G1/8
CD55WL80-125DCZ Bore: ø80 mm | Mounting: Foot | Stroke: 125 mm | Auto switch magnet: Yes | Port: G1/8
C55WF80-10DCZ Bore: ø80 mm | Mounting: Flange | Stroke: 10 mm | Auto switch magnet: No | Port: G1/8
CD55WF80-10DCZ Bore: ø80 mm | Mounting: Flange | Stroke: 10 mm | Auto switch magnet: Yes | Port: G1/8
C55WF80-15DCZ Bore: ø80 mm | Mounting: Flange | Stroke: 15 mm | Auto switch magnet: No | Port: G1/8
CD55WF80-15DCZ Bore: ø80 mm | Mounting: Flange | Stroke: 15 mm | Auto switch magnet: Yes | Port: G1/8
C55WF80-20DCZ Bore: ø80 mm | Mounting: Flange | Stroke: 20 mm | Auto switch magnet: No | Port: G1/8
CD55WF80-20DCZ Bore: ø80 mm | Mounting: Flange | Stroke: 20 mm | Auto switch magnet: Yes | Port: G1/8
C55WF80-25DCZ Bore: ø80 mm | Mounting: Flange | Stroke: 25 mm | Auto switch magnet: No | Port: G1/8
CD55WF80-25DCZ Bore: ø80 mm | Mounting: Flange | Stroke: 25 mm | Auto switch magnet: Yes | Port: G1/8
C55WF80-30DCZ Bore: ø80 mm | Mounting: Flange | Stroke: 30 mm | Auto switch magnet: No | Port: G1/8
CD55WF80-30DCZ Bore: ø80 mm | Mounting: Flange | Stroke: 30 mm | Auto switch magnet: Yes | Port: G1/8
C55WF80-35DCZ Bore: ø80 mm | Mounting: Flange | Stroke: 35 mm | Auto switch magnet: No | Port: G1/8
CD55WF80-35DCZ Bore: ø80 mm | Mounting: Flange | Stroke: 35 mm | Auto switch magnet: Yes | Port: G1/8
C55WF80-40DCZ Bore: ø80 mm | Mounting: Flange | Stroke: 40 mm | Auto switch magnet: No | Port: G1/8
CD55WF80-40DCZ Bore: ø80 mm | Mounting: Flange | Stroke: 40 mm | Auto switch magnet: Yes | Port: G1/8
C55WF80-45DCZ Bore: ø80 mm | Mounting: Flange | Stroke: 45 mm | Auto switch magnet: No | Port: G1/8
CD55WF80-45DCZ Bore: ø80 mm | Mounting: Flange | Stroke: 45 mm | Auto switch magnet: Yes | Port: G1/8
C55WF80-50DCZ Bore: ø80 mm | Mounting: Flange | Stroke: 50 mm | Auto switch magnet: No | Port: G1/8
CD55WF80-50DCZ Bore: ø80 mm | Mounting: Flange | Stroke: 50 mm | Auto switch magnet: Yes | Port: G1/8
C55WF80-60DCZ Bore: ø80 mm | Mounting: Flange | Stroke: 60 mm | Auto switch magnet: No | Port: G1/8
CD55WF80-60DCZ Bore: ø80 mm | Mounting: Flange | Stroke: 60 mm | Auto switch magnet: Yes | Port: G1/8
C55WF80-80DCZ Bore: ø80 mm | Mounting: Flange | Stroke: 80 mm | Auto switch magnet: No | Port: G1/8
CD55WF80-80DCZ Bore: ø80 mm | Mounting: Flange | Stroke: 80 mm | Auto switch magnet: Yes | Port: G1/8
C55WF80-100DCZ Bore: ø80 mm | Mounting: Flange | Stroke: 100 mm | Auto switch magnet: No | Port: G1/8
CD55WF80-100DCZ Bore: ø80 mm | Mounting: Flange | Stroke: 100 mm | Auto switch magnet: Yes | Port: G1/8
C55WF80-125DCZ Bore: ø80 mm | Mounting: Flange | Stroke: 125 mm | Auto switch magnet: No | Port: G1/8
CD55WF80-125DCZ Bore: ø80 mm | Mounting: Flange | Stroke: 125 mm | Auto switch magnet: Yes | Port: G1/8
C55WB100-10DCZ Bore: ø100 mm | Mounting: Through-hole/tapped (std) | Stroke: 10 mm | Auto switch magnet: No | Port: G1/8
CD55WB100-10DCZ Bore: ø100 mm | Mounting: Through-hole/tapped (std) | Stroke: 10 mm | Auto switch magnet: Yes | Port: G1/8
C55WB100-15DCZ Bore: ø100 mm | Mounting: Through-hole/tapped (std) | Stroke: 15 mm | Auto switch magnet: No | Port: G1/8
CD55WB100-15DCZ Bore: ø100 mm | Mounting: Through-hole/tapped (std) | Stroke: 15 mm | Auto switch magnet: Yes | Port: G1/8
C55WB100-20DCZ Bore: ø100 mm | Mounting: Through-hole/tapped (std) | Stroke: 20 mm | Auto switch magnet: No | Port: G1/8
CD55WB100-20DCZ Bore: ø100 mm | Mounting: Through-hole/tapped (std) | Stroke: 20 mm | Auto switch magnet: Yes | Port: G1/8
C55WB100-25DCZ Bore: ø100 mm | Mounting: Through-hole/tapped (std) | Stroke: 25 mm | Auto switch magnet: No | Port: G1/8
CD55WB100-25DCZ Bore: ø100 mm | Mounting: Through-hole/tapped (std) | Stroke: 25 mm | Auto switch magnet: Yes | Port: G1/8
C55WB100-30DCZ Bore: ø100 mm | Mounting: Through-hole/tapped (std) | Stroke: 30 mm | Auto switch magnet: No | Port: G1/8
CD55WB100-30DCZ Bore: ø100 mm | Mounting: Through-hole/tapped (std) | Stroke: 30 mm | Auto switch magnet: Yes | Port: G1/8
C55WB100-35DCZ Bore: ø100 mm | Mounting: Through-hole/tapped (std) | Stroke: 35 mm | Auto switch magnet: No | Port: G1/8
CD55WB100-35DCZ Bore: ø100 mm | Mounting: Through-hole/tapped (std) | Stroke: 35 mm | Auto switch magnet: Yes | Port: G1/8
C55WB100-40DCZ Bore: ø100 mm | Mounting: Through-hole/tapped (std) | Stroke: 40 mm | Auto switch magnet: No | Port: G1/8
CD55WB100-40DCZ Bore: ø100 mm | Mounting: Through-hole/tapped (std) | Stroke: 40 mm | Auto switch magnet: Yes | Port: G1/8
C55WB100-45DCZ Bore: ø100 mm | Mounting: Through-hole/tapped (std) | Stroke: 45 mm | Auto switch magnet: No | Port: G1/8
CD55WB100-45DCZ Bore: ø100 mm | Mounting: Through-hole/tapped (std) | Stroke: 45 mm | Auto switch magnet: Yes | Port: G1/8
C55WB100-50DCZ Bore: ø100 mm | Mounting: Through-hole/tapped (std) | Stroke: 50 mm | Auto switch magnet: No | Port: G1/8
CD55WB100-50DCZ Bore: ø100 mm | Mounting: Through-hole/tapped (std) | Stroke: 50 mm | Auto switch magnet: Yes | Port: G1/8
C55WB100-60DCZ Bore: ø100 mm | Mounting: Through-hole/tapped (std) | Stroke: 60 mm | Auto switch magnet: No | Port: G1/8
CD55WB100-60DCZ Bore: ø100 mm | Mounting: Through-hole/tapped (std) | Stroke: 60 mm | Auto switch magnet: Yes | Port: G1/8
C55WB100-80DCZ Bore: ø100 mm | Mounting: Through-hole/tapped (std) | Stroke: 80 mm | Auto switch magnet: No | Port: G1/8
CD55WB100-80DCZ Bore: ø100 mm | Mounting: Through-hole/tapped (std) | Stroke: 80 mm | Auto switch magnet: Yes | Port: G1/8
C55WB100-100DCZ Bore: ø100 mm | Mounting: Through-hole/tapped (std) | Stroke: 100 mm | Auto switch magnet: No | Port: G1/8
CD55WB100-100DCZ Bore: ø100 mm | Mounting: Through-hole/tapped (std) | Stroke: 100 mm | Auto switch magnet: Yes | Port: G1/8
C55WB100-125DCZ Bore: ø100 mm | Mounting: Through-hole/tapped (std) | Stroke: 125 mm | Auto switch magnet: No | Port: G1/8
CD55WB100-125DCZ Bore: ø100 mm | Mounting: Through-hole/tapped (std) | Stroke: 125 mm | Auto switch magnet: Yes | Port: G1/8
C55WL100-10DCZ Bore: ø100 mm | Mounting: Foot | Stroke: 10 mm | Auto switch magnet: No | Port: G1/8
CD55WL100-10DCZ Bore: ø100 mm | Mounting: Foot | Stroke: 10 mm | Auto switch magnet: Yes | Port: G1/8
C55WL100-15DCZ Bore: ø100 mm | Mounting: Foot | Stroke: 15 mm | Auto switch magnet: No | Port: G1/8
CD55WL100-15DCZ Bore: ø100 mm | Mounting: Foot | Stroke: 15 mm | Auto switch magnet: Yes | Port: G1/8
C55WL100-20DCZ Bore: ø100 mm | Mounting: Foot | Stroke: 20 mm | Auto switch magnet: No | Port: G1/8
CD55WL100-20DCZ Bore: ø100 mm | Mounting: Foot | Stroke: 20 mm | Auto switch magnet: Yes | Port: G1/8
C55WL100-25DCZ Bore: ø100 mm | Mounting: Foot | Stroke: 25 mm | Auto switch magnet: No | Port: G1/8
CD55WL100-25DCZ Bore: ø100 mm | Mounting: Foot | Stroke: 25 mm | Auto switch magnet: Yes | Port: G1/8
C55WL100-30DCZ Bore: ø100 mm | Mounting: Foot | Stroke: 30 mm | Auto switch magnet: No | Port: G1/8
CD55WL100-30DCZ Bore: ø100 mm | Mounting: Foot | Stroke: 30 mm | Auto switch magnet: Yes | Port: G1/8
C55WL100-35DCZ Bore: ø100 mm | Mounting: Foot | Stroke: 35 mm | Auto switch magnet: No | Port: G1/8
CD55WL100-35DCZ Bore: ø100 mm | Mounting: Foot | Stroke: 35 mm | Auto switch magnet: Yes | Port: G1/8
C55WL100-40DCZ Bore: ø100 mm | Mounting: Foot | Stroke: 40 mm | Auto switch magnet: No | Port: G1/8
CD55WL100-40DCZ Bore: ø100 mm | Mounting: Foot | Stroke: 40 mm | Auto switch magnet: Yes | Port: G1/8
C55WL100-45DCZ Bore: ø100 mm | Mounting: Foot | Stroke: 45 mm | Auto switch magnet: No | Port: G1/8
CD55WL100-45DCZ Bore: ø100 mm | Mounting: Foot | Stroke: 45 mm | Auto switch magnet: Yes | Port: G1/8
C55WL100-50DCZ Bore: ø100 mm | Mounting: Foot | Stroke: 50 mm | Auto switch magnet: No | Port: G1/8
CD55WL100-50DCZ Bore: ø100 mm | Mounting: Foot | Stroke: 50 mm | Auto switch magnet: Yes | Port: G1/8
C55WL100-60DCZ Bore: ø100 mm | Mounting: Foot | Stroke: 60 mm | Auto switch magnet: No | Port: G1/8
CD55WL100-60DCZ Bore: ø100 mm | Mounting: Foot | Stroke: 60 mm | Auto switch magnet: Yes | Port: G1/8
C55WL100-80DCZ Bore: ø100 mm | Mounting: Foot | Stroke: 80 mm | Auto switch magnet: No | Port: G1/8
CD55WL100-80DCZ Bore: ø100 mm | Mounting: Foot | Stroke: 80 mm | Auto switch magnet: Yes | Port: G1/8
C55WL100-100DCZ Bore: ø100 mm | Mounting: Foot | Stroke: 100 mm | Auto switch magnet: No | Port: G1/8
CD55WL100-100DCZ Bore: ø100 mm | Mounting: Foot | Stroke: 100 mm | Auto switch magnet: Yes | Port: G1/8
C55WL100-125DCZ Bore: ø100 mm | Mounting: Foot | Stroke: 125 mm | Auto switch magnet: No | Port: G1/8
CD55WL100-125DCZ Bore: ø100 mm | Mounting: Foot | Stroke: 125 mm | Auto switch magnet: Yes | Port: G1/8
C55WF100-10DCZ Bore: ø100 mm | Mounting: Flange | Stroke: 10 mm | Auto switch magnet: No | Port: G1/8
CD55WF100-10DCZ Bore: ø100 mm | Mounting: Flange | Stroke: 10 mm | Auto switch magnet: Yes | Port: G1/8
C55WF100-15DCZ Bore: ø100 mm | Mounting: Flange | Stroke: 15 mm | Auto switch magnet: No | Port: G1/8
CD55WF100-15DCZ Bore: ø100 mm | Mounting: Flange | Stroke: 15 mm | Auto switch magnet: Yes | Port: G1/8
C55WF100-20DCZ Bore: ø100 mm | Mounting: Flange | Stroke: 20 mm | Auto switch magnet: No | Port: G1/8
CD55WF100-20DCZ Bore: ø100 mm | Mounting: Flange | Stroke: 20 mm | Auto switch magnet: Yes | Port: G1/8
C55WF100-25DCZ Bore: ø100 mm | Mounting: Flange | Stroke: 25 mm | Auto switch magnet: No | Port: G1/8
CD55WF100-25DCZ Bore: ø100 mm | Mounting: Flange | Stroke: 25 mm | Auto switch magnet: Yes | Port: G1/8
C55WF100-30DCZ Bore: ø100 mm | Mounting: Flange | Stroke: 30 mm | Auto switch magnet: No | Port: G1/8
CD55WF100-30DCZ Bore: ø100 mm | Mounting: Flange | Stroke: 30 mm | Auto switch magnet: Yes | Port: G1/8
C55WF100-35DCZ Bore: ø100 mm | Mounting: Flange | Stroke: 35 mm | Auto switch magnet: No | Port: G1/8
CD55WF100-35DCZ Bore: ø100 mm | Mounting: Flange | Stroke: 35 mm | Auto switch magnet: Yes | Port: G1/8
C55WF100-40DCZ Bore: ø100 mm | Mounting: Flange | Stroke: 40 mm | Auto switch magnet: No | Port: G1/8
CD55WF100-40DCZ Bore: ø100 mm | Mounting: Flange | Stroke: 40 mm | Auto switch magnet: Yes | Port: G1/8
C55WF100-45DCZ Bore: ø100 mm | Mounting: Flange | Stroke: 45 mm | Auto switch magnet: No | Port: G1/8
CD55WF100-45DCZ Bore: ø100 mm | Mounting: Flange | Stroke: 45 mm | Auto switch magnet: Yes | Port: G1/8
C55WF100-50DCZ Bore: ø100 mm | Mounting: Flange | Stroke: 50 mm | Auto switch magnet: No | Port: G1/8
CD55WF100-50DCZ Bore: ø100 mm | Mounting: Flange | Stroke: 50 mm | Auto switch magnet: Yes | Port: G1/8
C55WF100-60DCZ Bore: ø100 mm | Mounting: Flange | Stroke: 60 mm | Auto switch magnet: No | Port: G1/8
CD55WF100-60DCZ Bore: ø100 mm | Mounting: Flange | Stroke: 60 mm | Auto switch magnet: Yes | Port: G1/8
C55WF100-80DCZ Bore: ø100 mm | Mounting: Flange | Stroke: 80 mm | Auto switch magnet: No | Port: G1/8
CD55WF100-80DCZ Bore: ø100 mm | Mounting: Flange | Stroke: 80 mm | Auto switch magnet: Yes | Port: G1/8
C55WF100-100DCZ Bore: ø100 mm | Mounting: Flange | Stroke: 100 mm | Auto switch magnet: No | Port: G1/8
CD55WF100-100DCZ Bore: ø100 mm | Mounting: Flange | Stroke: 100 mm | Auto switch magnet: Yes | Port: G1/8
C55WF100-125DCZ Bore: ø100 mm | Mounting: Flange | Stroke: 125 mm | Auto switch magnet: No | Port: G1/8
CD55WF100-125DCZ Bore: ø100 mm | Mounting: Flange | Stroke: 125 mm | Auto switch magnet: Yes | Port: G1/8
Compact CylindersSMC
696 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC C55W ISO 21287 Compact Cylinder (Double Rod, ø20 to ø100)

Brand SMC·Compact Cylinders

Available part numbers (696)

C55WB20-5DCZ, CD55WB20-5DCZ, C55WB20-10DCZ, CD55WB20-10DCZ, C55WB20-15DCZ, CD55WB20-15DCZ, C55WB20-20DCZ, CD55WB20-20DCZ, C55WB20-25DCZ, CD55WB20-25DCZ + 686 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
C55WB20-5DCZBore: ø20 mm | Mounting: Through-hole/tapped (std) | Stroke: 5 mm | Auto switch magnet: No | Port: M5x0.8
CD55WB20-5DCZBore: ø20 mm | Mounting: Through-hole/tapped (std) | Stroke: 5 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WB20-10DCZBore: ø20 mm | Mounting: Through-hole/tapped (std) | Stroke: 10 mm | Auto switch magnet: No | Port: M5x0.8
CD55WB20-10DCZBore: ø20 mm | Mounting: Through-hole/tapped (std) | Stroke: 10 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WB20-15DCZBore: ø20 mm | Mounting: Through-hole/tapped (std) | Stroke: 15 mm | Auto switch magnet: No | Port: M5x0.8
CD55WB20-15DCZBore: ø20 mm | Mounting: Through-hole/tapped (std) | Stroke: 15 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WB20-20DCZBore: ø20 mm | Mounting: Through-hole/tapped (std) | Stroke: 20 mm | Auto switch magnet: No | Port: M5x0.8
CD55WB20-20DCZBore: ø20 mm | Mounting: Through-hole/tapped (std) | Stroke: 20 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WB20-25DCZBore: ø20 mm | Mounting: Through-hole/tapped (std) | Stroke: 25 mm | Auto switch magnet: No | Port: M5x0.8
CD55WB20-25DCZBore: ø20 mm | Mounting: Through-hole/tapped (std) | Stroke: 25 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WB20-30DCZBore: ø20 mm | Mounting: Through-hole/tapped (std) | Stroke: 30 mm | Auto switch magnet: No | Port: M5x0.8
CD55WB20-30DCZBore: ø20 mm | Mounting: Through-hole/tapped (std) | Stroke: 30 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WB20-35DCZBore: ø20 mm | Mounting: Through-hole/tapped (std) | Stroke: 35 mm | Auto switch magnet: No | Port: M5x0.8
CD55WB20-35DCZBore: ø20 mm | Mounting: Through-hole/tapped (std) | Stroke: 35 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WB20-40DCZBore: ø20 mm | Mounting: Through-hole/tapped (std) | Stroke: 40 mm | Auto switch magnet: No | Port: M5x0.8
CD55WB20-40DCZBore: ø20 mm | Mounting: Through-hole/tapped (std) | Stroke: 40 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WB20-45DCZBore: ø20 mm | Mounting: Through-hole/tapped (std) | Stroke: 45 mm | Auto switch magnet: No | Port: M5x0.8
CD55WB20-45DCZBore: ø20 mm | Mounting: Through-hole/tapped (std) | Stroke: 45 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WB20-50DCZBore: ø20 mm | Mounting: Through-hole/tapped (std) | Stroke: 50 mm | Auto switch magnet: No | Port: M5x0.8
CD55WB20-50DCZBore: ø20 mm | Mounting: Through-hole/tapped (std) | Stroke: 50 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WB20-60DCZBore: ø20 mm | Mounting: Through-hole/tapped (std) | Stroke: 60 mm | Auto switch magnet: No | Port: M5x0.8
CD55WB20-60DCZBore: ø20 mm | Mounting: Through-hole/tapped (std) | Stroke: 60 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WB20-80DCZBore: ø20 mm | Mounting: Through-hole/tapped (std) | Stroke: 80 mm | Auto switch magnet: No | Port: M5x0.8
CD55WB20-80DCZBore: ø20 mm | Mounting: Through-hole/tapped (std) | Stroke: 80 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WB20-100DCZBore: ø20 mm | Mounting: Through-hole/tapped (std) | Stroke: 100 mm | Auto switch magnet: No | Port: M5x0.8
CD55WB20-100DCZBore: ø20 mm | Mounting: Through-hole/tapped (std) | Stroke: 100 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WB20-125DCZBore: ø20 mm | Mounting: Through-hole/tapped (std) | Stroke: 125 mm | Auto switch magnet: No | Port: M5x0.8
CD55WB20-125DCZBore: ø20 mm | Mounting: Through-hole/tapped (std) | Stroke: 125 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WB20-150DCZBore: ø20 mm | Mounting: Through-hole/tapped (std) | Stroke: 150 mm | Auto switch magnet: No | Port: M5x0.8
CD55WB20-150DCZBore: ø20 mm | Mounting: Through-hole/tapped (std) | Stroke: 150 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WL20-5DCZBore: ø20 mm | Mounting: Foot | Stroke: 5 mm | Auto switch magnet: No | Port: M5x0.8
CD55WL20-5DCZBore: ø20 mm | Mounting: Foot | Stroke: 5 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WL20-10DCZBore: ø20 mm | Mounting: Foot | Stroke: 10 mm | Auto switch magnet: No | Port: M5x0.8
CD55WL20-10DCZBore: ø20 mm | Mounting: Foot | Stroke: 10 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WL20-15DCZBore: ø20 mm | Mounting: Foot | Stroke: 15 mm | Auto switch magnet: No | Port: M5x0.8
CD55WL20-15DCZBore: ø20 mm | Mounting: Foot | Stroke: 15 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WL20-20DCZBore: ø20 mm | Mounting: Foot | Stroke: 20 mm | Auto switch magnet: No | Port: M5x0.8
CD55WL20-20DCZBore: ø20 mm | Mounting: Foot | Stroke: 20 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WL20-25DCZBore: ø20 mm | Mounting: Foot | Stroke: 25 mm | Auto switch magnet: No | Port: M5x0.8
CD55WL20-25DCZBore: ø20 mm | Mounting: Foot | Stroke: 25 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WL20-30DCZBore: ø20 mm | Mounting: Foot | Stroke: 30 mm | Auto switch magnet: No | Port: M5x0.8
CD55WL20-30DCZBore: ø20 mm | Mounting: Foot | Stroke: 30 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WL20-35DCZBore: ø20 mm | Mounting: Foot | Stroke: 35 mm | Auto switch magnet: No | Port: M5x0.8
CD55WL20-35DCZBore: ø20 mm | Mounting: Foot | Stroke: 35 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WL20-40DCZBore: ø20 mm | Mounting: Foot | Stroke: 40 mm | Auto switch magnet: No | Port: M5x0.8
CD55WL20-40DCZBore: ø20 mm | Mounting: Foot | Stroke: 40 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WL20-45DCZBore: ø20 mm | Mounting: Foot | Stroke: 45 mm | Auto switch magnet: No | Port: M5x0.8
CD55WL20-45DCZBore: ø20 mm | Mounting: Foot | Stroke: 45 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WL20-50DCZBore: ø20 mm | Mounting: Foot | Stroke: 50 mm | Auto switch magnet: No | Port: M5x0.8
CD55WL20-50DCZBore: ø20 mm | Mounting: Foot | Stroke: 50 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WL20-60DCZBore: ø20 mm | Mounting: Foot | Stroke: 60 mm | Auto switch magnet: No | Port: M5x0.8
CD55WL20-60DCZBore: ø20 mm | Mounting: Foot | Stroke: 60 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WL20-80DCZBore: ø20 mm | Mounting: Foot | Stroke: 80 mm | Auto switch magnet: No | Port: M5x0.8
CD55WL20-80DCZBore: ø20 mm | Mounting: Foot | Stroke: 80 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WL20-100DCZBore: ø20 mm | Mounting: Foot | Stroke: 100 mm | Auto switch magnet: No | Port: M5x0.8
CD55WL20-100DCZBore: ø20 mm | Mounting: Foot | Stroke: 100 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WL20-125DCZBore: ø20 mm | Mounting: Foot | Stroke: 125 mm | Auto switch magnet: No | Port: M5x0.8
CD55WL20-125DCZBore: ø20 mm | Mounting: Foot | Stroke: 125 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WL20-150DCZBore: ø20 mm | Mounting: Foot | Stroke: 150 mm | Auto switch magnet: No | Port: M5x0.8
CD55WL20-150DCZBore: ø20 mm | Mounting: Foot | Stroke: 150 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WF20-5DCZBore: ø20 mm | Mounting: Flange | Stroke: 5 mm | Auto switch magnet: No | Port: M5x0.8
CD55WF20-5DCZBore: ø20 mm | Mounting: Flange | Stroke: 5 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WF20-10DCZBore: ø20 mm | Mounting: Flange | Stroke: 10 mm | Auto switch magnet: No | Port: M5x0.8
CD55WF20-10DCZBore: ø20 mm | Mounting: Flange | Stroke: 10 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WF20-15DCZBore: ø20 mm | Mounting: Flange | Stroke: 15 mm | Auto switch magnet: No | Port: M5x0.8
CD55WF20-15DCZBore: ø20 mm | Mounting: Flange | Stroke: 15 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WF20-20DCZBore: ø20 mm | Mounting: Flange | Stroke: 20 mm | Auto switch magnet: No | Port: M5x0.8
CD55WF20-20DCZBore: ø20 mm | Mounting: Flange | Stroke: 20 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WF20-25DCZBore: ø20 mm | Mounting: Flange | Stroke: 25 mm | Auto switch magnet: No | Port: M5x0.8
CD55WF20-25DCZBore: ø20 mm | Mounting: Flange | Stroke: 25 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WF20-30DCZBore: ø20 mm | Mounting: Flange | Stroke: 30 mm | Auto switch magnet: No | Port: M5x0.8
CD55WF20-30DCZBore: ø20 mm | Mounting: Flange | Stroke: 30 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WF20-35DCZBore: ø20 mm | Mounting: Flange | Stroke: 35 mm | Auto switch magnet: No | Port: M5x0.8
CD55WF20-35DCZBore: ø20 mm | Mounting: Flange | Stroke: 35 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WF20-40DCZBore: ø20 mm | Mounting: Flange | Stroke: 40 mm | Auto switch magnet: No | Port: M5x0.8
CD55WF20-40DCZBore: ø20 mm | Mounting: Flange | Stroke: 40 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WF20-45DCZBore: ø20 mm | Mounting: Flange | Stroke: 45 mm | Auto switch magnet: No | Port: M5x0.8
CD55WF20-45DCZBore: ø20 mm | Mounting: Flange | Stroke: 45 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WF20-50DCZBore: ø20 mm | Mounting: Flange | Stroke: 50 mm | Auto switch magnet: No | Port: M5x0.8
CD55WF20-50DCZBore: ø20 mm | Mounting: Flange | Stroke: 50 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WF20-60DCZBore: ø20 mm | Mounting: Flange | Stroke: 60 mm | Auto switch magnet: No | Port: M5x0.8
CD55WF20-60DCZBore: ø20 mm | Mounting: Flange | Stroke: 60 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WF20-80DCZBore: ø20 mm | Mounting: Flange | Stroke: 80 mm | Auto switch magnet: No | Port: M5x0.8
CD55WF20-80DCZBore: ø20 mm | Mounting: Flange | Stroke: 80 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WF20-100DCZBore: ø20 mm | Mounting: Flange | Stroke: 100 mm | Auto switch magnet: No | Port: M5x0.8
CD55WF20-100DCZBore: ø20 mm | Mounting: Flange | Stroke: 100 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WF20-125DCZBore: ø20 mm | Mounting: Flange | Stroke: 125 mm | Auto switch magnet: No | Port: M5x0.8
CD55WF20-125DCZBore: ø20 mm | Mounting: Flange | Stroke: 125 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WF20-150DCZBore: ø20 mm | Mounting: Flange | Stroke: 150 mm | Auto switch magnet: No | Port: M5x0.8
CD55WF20-150DCZBore: ø20 mm | Mounting: Flange | Stroke: 150 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WB25-5DCZBore: ø25 mm | Mounting: Through-hole/tapped (std) | Stroke: 5 mm | Auto switch magnet: No | Port: M5x0.8
CD55WB25-5DCZBore: ø25 mm | Mounting: Through-hole/tapped (std) | Stroke: 5 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WB25-10DCZBore: ø25 mm | Mounting: Through-hole/tapped (std) | Stroke: 10 mm | Auto switch magnet: No | Port: M5x0.8
CD55WB25-10DCZBore: ø25 mm | Mounting: Through-hole/tapped (std) | Stroke: 10 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WB25-15DCZBore: ø25 mm | Mounting: Through-hole/tapped (std) | Stroke: 15 mm | Auto switch magnet: No | Port: M5x0.8
CD55WB25-15DCZBore: ø25 mm | Mounting: Through-hole/tapped (std) | Stroke: 15 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WB25-20DCZBore: ø25 mm | Mounting: Through-hole/tapped (std) | Stroke: 20 mm | Auto switch magnet: No | Port: M5x0.8
CD55WB25-20DCZBore: ø25 mm | Mounting: Through-hole/tapped (std) | Stroke: 20 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WB25-25DCZBore: ø25 mm | Mounting: Through-hole/tapped (std) | Stroke: 25 mm | Auto switch magnet: No | Port: M5x0.8
CD55WB25-25DCZBore: ø25 mm | Mounting: Through-hole/tapped (std) | Stroke: 25 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WB25-30DCZBore: ø25 mm | Mounting: Through-hole/tapped (std) | Stroke: 30 mm | Auto switch magnet: No | Port: M5x0.8
CD55WB25-30DCZBore: ø25 mm | Mounting: Through-hole/tapped (std) | Stroke: 30 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WB25-35DCZBore: ø25 mm | Mounting: Through-hole/tapped (std) | Stroke: 35 mm | Auto switch magnet: No | Port: M5x0.8
CD55WB25-35DCZBore: ø25 mm | Mounting: Through-hole/tapped (std) | Stroke: 35 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WB25-40DCZBore: ø25 mm | Mounting: Through-hole/tapped (std) | Stroke: 40 mm | Auto switch magnet: No | Port: M5x0.8
CD55WB25-40DCZBore: ø25 mm | Mounting: Through-hole/tapped (std) | Stroke: 40 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WB25-45DCZBore: ø25 mm | Mounting: Through-hole/tapped (std) | Stroke: 45 mm | Auto switch magnet: No | Port: M5x0.8
CD55WB25-45DCZBore: ø25 mm | Mounting: Through-hole/tapped (std) | Stroke: 45 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WB25-50DCZBore: ø25 mm | Mounting: Through-hole/tapped (std) | Stroke: 50 mm | Auto switch magnet: No | Port: M5x0.8
CD55WB25-50DCZBore: ø25 mm | Mounting: Through-hole/tapped (std) | Stroke: 50 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WB25-60DCZBore: ø25 mm | Mounting: Through-hole/tapped (std) | Stroke: 60 mm | Auto switch magnet: No | Port: M5x0.8
CD55WB25-60DCZBore: ø25 mm | Mounting: Through-hole/tapped (std) | Stroke: 60 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WB25-80DCZBore: ø25 mm | Mounting: Through-hole/tapped (std) | Stroke: 80 mm | Auto switch magnet: No | Port: M5x0.8
CD55WB25-80DCZBore: ø25 mm | Mounting: Through-hole/tapped (std) | Stroke: 80 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WB25-100DCZBore: ø25 mm | Mounting: Through-hole/tapped (std) | Stroke: 100 mm | Auto switch magnet: No | Port: M5x0.8
CD55WB25-100DCZBore: ø25 mm | Mounting: Through-hole/tapped (std) | Stroke: 100 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WB25-125DCZBore: ø25 mm | Mounting: Through-hole/tapped (std) | Stroke: 125 mm | Auto switch magnet: No | Port: M5x0.8
CD55WB25-125DCZBore: ø25 mm | Mounting: Through-hole/tapped (std) | Stroke: 125 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WB25-150DCZBore: ø25 mm | Mounting: Through-hole/tapped (std) | Stroke: 150 mm | Auto switch magnet: No | Port: M5x0.8
CD55WB25-150DCZBore: ø25 mm | Mounting: Through-hole/tapped (std) | Stroke: 150 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WL25-5DCZBore: ø25 mm | Mounting: Foot | Stroke: 5 mm | Auto switch magnet: No | Port: M5x0.8
CD55WL25-5DCZBore: ø25 mm | Mounting: Foot | Stroke: 5 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WL25-10DCZBore: ø25 mm | Mounting: Foot | Stroke: 10 mm | Auto switch magnet: No | Port: M5x0.8
CD55WL25-10DCZBore: ø25 mm | Mounting: Foot | Stroke: 10 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WL25-15DCZBore: ø25 mm | Mounting: Foot | Stroke: 15 mm | Auto switch magnet: No | Port: M5x0.8
CD55WL25-15DCZBore: ø25 mm | Mounting: Foot | Stroke: 15 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WL25-20DCZBore: ø25 mm | Mounting: Foot | Stroke: 20 mm | Auto switch magnet: No | Port: M5x0.8
CD55WL25-20DCZBore: ø25 mm | Mounting: Foot | Stroke: 20 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WL25-25DCZBore: ø25 mm | Mounting: Foot | Stroke: 25 mm | Auto switch magnet: No | Port: M5x0.8
CD55WL25-25DCZBore: ø25 mm | Mounting: Foot | Stroke: 25 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WL25-30DCZBore: ø25 mm | Mounting: Foot | Stroke: 30 mm | Auto switch magnet: No | Port: M5x0.8
CD55WL25-30DCZBore: ø25 mm | Mounting: Foot | Stroke: 30 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WL25-35DCZBore: ø25 mm | Mounting: Foot | Stroke: 35 mm | Auto switch magnet: No | Port: M5x0.8
CD55WL25-35DCZBore: ø25 mm | Mounting: Foot | Stroke: 35 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WL25-40DCZBore: ø25 mm | Mounting: Foot | Stroke: 40 mm | Auto switch magnet: No | Port: M5x0.8
CD55WL25-40DCZBore: ø25 mm | Mounting: Foot | Stroke: 40 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WL25-45DCZBore: ø25 mm | Mounting: Foot | Stroke: 45 mm | Auto switch magnet: No | Port: M5x0.8
CD55WL25-45DCZBore: ø25 mm | Mounting: Foot | Stroke: 45 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WL25-50DCZBore: ø25 mm | Mounting: Foot | Stroke: 50 mm | Auto switch magnet: No | Port: M5x0.8
CD55WL25-50DCZBore: ø25 mm | Mounting: Foot | Stroke: 50 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WL25-60DCZBore: ø25 mm | Mounting: Foot | Stroke: 60 mm | Auto switch magnet: No | Port: M5x0.8
CD55WL25-60DCZBore: ø25 mm | Mounting: Foot | Stroke: 60 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WL25-80DCZBore: ø25 mm | Mounting: Foot | Stroke: 80 mm | Auto switch magnet: No | Port: M5x0.8
CD55WL25-80DCZBore: ø25 mm | Mounting: Foot | Stroke: 80 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WL25-100DCZBore: ø25 mm | Mounting: Foot | Stroke: 100 mm | Auto switch magnet: No | Port: M5x0.8
CD55WL25-100DCZBore: ø25 mm | Mounting: Foot | Stroke: 100 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WL25-125DCZBore: ø25 mm | Mounting: Foot | Stroke: 125 mm | Auto switch magnet: No | Port: M5x0.8
CD55WL25-125DCZBore: ø25 mm | Mounting: Foot | Stroke: 125 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WL25-150DCZBore: ø25 mm | Mounting: Foot | Stroke: 150 mm | Auto switch magnet: No | Port: M5x0.8
CD55WL25-150DCZBore: ø25 mm | Mounting: Foot | Stroke: 150 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WF25-5DCZBore: ø25 mm | Mounting: Flange | Stroke: 5 mm | Auto switch magnet: No | Port: M5x0.8
CD55WF25-5DCZBore: ø25 mm | Mounting: Flange | Stroke: 5 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WF25-10DCZBore: ø25 mm | Mounting: Flange | Stroke: 10 mm | Auto switch magnet: No | Port: M5x0.8
CD55WF25-10DCZBore: ø25 mm | Mounting: Flange | Stroke: 10 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WF25-15DCZBore: ø25 mm | Mounting: Flange | Stroke: 15 mm | Auto switch magnet: No | Port: M5x0.8
CD55WF25-15DCZBore: ø25 mm | Mounting: Flange | Stroke: 15 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WF25-20DCZBore: ø25 mm | Mounting: Flange | Stroke: 20 mm | Auto switch magnet: No | Port: M5x0.8
CD55WF25-20DCZBore: ø25 mm | Mounting: Flange | Stroke: 20 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WF25-25DCZBore: ø25 mm | Mounting: Flange | Stroke: 25 mm | Auto switch magnet: No | Port: M5x0.8
CD55WF25-25DCZBore: ø25 mm | Mounting: Flange | Stroke: 25 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WF25-30DCZBore: ø25 mm | Mounting: Flange | Stroke: 30 mm | Auto switch magnet: No | Port: M5x0.8
CD55WF25-30DCZBore: ø25 mm | Mounting: Flange | Stroke: 30 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WF25-35DCZBore: ø25 mm | Mounting: Flange | Stroke: 35 mm | Auto switch magnet: No | Port: M5x0.8
CD55WF25-35DCZBore: ø25 mm | Mounting: Flange | Stroke: 35 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WF25-40DCZBore: ø25 mm | Mounting: Flange | Stroke: 40 mm | Auto switch magnet: No | Port: M5x0.8
CD55WF25-40DCZBore: ø25 mm | Mounting: Flange | Stroke: 40 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WF25-45DCZBore: ø25 mm | Mounting: Flange | Stroke: 45 mm | Auto switch magnet: No | Port: M5x0.8
CD55WF25-45DCZBore: ø25 mm | Mounting: Flange | Stroke: 45 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WF25-50DCZBore: ø25 mm | Mounting: Flange | Stroke: 50 mm | Auto switch magnet: No | Port: M5x0.8
CD55WF25-50DCZBore: ø25 mm | Mounting: Flange | Stroke: 50 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WF25-60DCZBore: ø25 mm | Mounting: Flange | Stroke: 60 mm | Auto switch magnet: No | Port: M5x0.8
CD55WF25-60DCZBore: ø25 mm | Mounting: Flange | Stroke: 60 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WF25-80DCZBore: ø25 mm | Mounting: Flange | Stroke: 80 mm | Auto switch magnet: No | Port: M5x0.8
CD55WF25-80DCZBore: ø25 mm | Mounting: Flange | Stroke: 80 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WF25-100DCZBore: ø25 mm | Mounting: Flange | Stroke: 100 mm | Auto switch magnet: No | Port: M5x0.8
CD55WF25-100DCZBore: ø25 mm | Mounting: Flange | Stroke: 100 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WF25-125DCZBore: ø25 mm | Mounting: Flange | Stroke: 125 mm | Auto switch magnet: No | Port: M5x0.8
CD55WF25-125DCZBore: ø25 mm | Mounting: Flange | Stroke: 125 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WF25-150DCZBore: ø25 mm | Mounting: Flange | Stroke: 150 mm | Auto switch magnet: No | Port: M5x0.8
CD55WF25-150DCZBore: ø25 mm | Mounting: Flange | Stroke: 150 mm | Auto switch magnet: Yes | Port: M5x0.8
C55WB32-5DCZBore: ø32 mm | Mounting: Through-hole/tapped (std) | Stroke: 5 mm | Auto switch magnet: No | Port: G1/8
CD55WB32-5DCZBore: ø32 mm | Mounting: Through-hole/tapped (std) | Stroke: 5 mm | Auto switch magnet: Yes | Port: G1/8
C55WB32-10DCZBore: ø32 mm | Mounting: Through-hole/tapped (std) | Stroke: 10 mm | Auto switch magnet: No | Port: G1/8
CD55WB32-10DCZBore: ø32 mm | Mounting: Through-hole/tapped (std) | Stroke: 10 mm | Auto switch magnet: Yes | Port: G1/8
C55WB32-15DCZBore: ø32 mm | Mounting: Through-hole/tapped (std) | Stroke: 15 mm | Auto switch magnet: No | Port: G1/8
CD55WB32-15DCZBore: ø32 mm | Mounting: Through-hole/tapped (std) | Stroke: 15 mm | Auto switch magnet: Yes | Port: G1/8
C55WB32-20DCZBore: ø32 mm | Mounting: Through-hole/tapped (std) | Stroke: 20 mm | Auto switch magnet: No | Port: G1/8
CD55WB32-20DCZBore: ø32 mm | Mounting: Through-hole/tapped (std) | Stroke: 20 mm | Auto switch magnet: Yes | Port: G1/8
C55WB32-25DCZBore: ø32 mm | Mounting: Through-hole/tapped (std) | Stroke: 25 mm | Auto switch magnet: No | Port: G1/8
CD55WB32-25DCZBore: ø32 mm | Mounting: Through-hole/tapped (std) | Stroke: 25 mm | Auto switch magnet: Yes | Port: G1/8
C55WB32-30DCZBore: ø32 mm | Mounting: Through-hole/tapped (std) | Stroke: 30 mm | Auto switch magnet: No | Port: G1/8
CD55WB32-30DCZBore: ø32 mm | Mounting: Through-hole/tapped (std) | Stroke: 30 mm | Auto switch magnet: Yes | Port: G1/8
C55WB32-35DCZBore: ø32 mm | Mounting: Through-hole/tapped (std) | Stroke: 35 mm | Auto switch magnet: No | Port: G1/8
CD55WB32-35DCZBore: ø32 mm | Mounting: Through-hole/tapped (std) | Stroke: 35 mm | Auto switch magnet: Yes | Port: G1/8
C55WB32-40DCZBore: ø32 mm | Mounting: Through-hole/tapped (std) | Stroke: 40 mm | Auto switch magnet: No | Port: G1/8
CD55WB32-40DCZBore: ø32 mm | Mounting: Through-hole/tapped (std) | Stroke: 40 mm | Auto switch magnet: Yes | Port: G1/8
C55WB32-45DCZBore: ø32 mm | Mounting: Through-hole/tapped (std) | Stroke: 45 mm | Auto switch magnet: No | Port: G1/8
CD55WB32-45DCZBore: ø32 mm | Mounting: Through-hole/tapped (std) | Stroke: 45 mm | Auto switch magnet: Yes | Port: G1/8
C55WB32-50DCZBore: ø32 mm | Mounting: Through-hole/tapped (std) | Stroke: 50 mm | Auto switch magnet: No | Port: G1/8
CD55WB32-50DCZBore: ø32 mm | Mounting: Through-hole/tapped (std) | Stroke: 50 mm | Auto switch magnet: Yes | Port: G1/8
C55WB32-60DCZBore: ø32 mm | Mounting: Through-hole/tapped (std) | Stroke: 60 mm | Auto switch magnet: No | Port: G1/8
CD55WB32-60DCZBore: ø32 mm | Mounting: Through-hole/tapped (std) | Stroke: 60 mm | Auto switch magnet: Yes | Port: G1/8
C55WB32-80DCZBore: ø32 mm | Mounting: Through-hole/tapped (std) | Stroke: 80 mm | Auto switch magnet: No | Port: G1/8
CD55WB32-80DCZBore: ø32 mm | Mounting: Through-hole/tapped (std) | Stroke: 80 mm | Auto switch magnet: Yes | Port: G1/8
C55WB32-100DCZBore: ø32 mm | Mounting: Through-hole/tapped (std) | Stroke: 100 mm | Auto switch magnet: No | Port: G1/8
CD55WB32-100DCZBore: ø32 mm | Mounting: Through-hole/tapped (std) | Stroke: 100 mm | Auto switch magnet: Yes | Port: G1/8
C55WB32-125DCZBore: ø32 mm | Mounting: Through-hole/tapped (std) | Stroke: 125 mm | Auto switch magnet: No | Port: G1/8
CD55WB32-125DCZBore: ø32 mm | Mounting: Through-hole/tapped (std) | Stroke: 125 mm | Auto switch magnet: Yes | Port: G1/8
C55WB32-150DCZBore: ø32 mm | Mounting: Through-hole/tapped (std) | Stroke: 150 mm | Auto switch magnet: No | Port: G1/8
CD55WB32-150DCZBore: ø32 mm | Mounting: Through-hole/tapped (std) | Stroke: 150 mm | Auto switch magnet: Yes | Port: G1/8
C55WL32-5DCZBore: ø32 mm | Mounting: Foot | Stroke: 5 mm | Auto switch magnet: No | Port: G1/8
CD55WL32-5DCZBore: ø32 mm | Mounting: Foot | Stroke: 5 mm | Auto switch magnet: Yes | Port: G1/8
C55WL32-10DCZBore: ø32 mm | Mounting: Foot | Stroke: 10 mm | Auto switch magnet: No | Port: G1/8
CD55WL32-10DCZBore: ø32 mm | Mounting: Foot | Stroke: 10 mm | Auto switch magnet: Yes | Port: G1/8
C55WL32-15DCZBore: ø32 mm | Mounting: Foot | Stroke: 15 mm | Auto switch magnet: No | Port: G1/8
CD55WL32-15DCZBore: ø32 mm | Mounting: Foot | Stroke: 15 mm | Auto switch magnet: Yes | Port: G1/8
C55WL32-20DCZBore: ø32 mm | Mounting: Foot | Stroke: 20 mm | Auto switch magnet: No | Port: G1/8
CD55WL32-20DCZBore: ø32 mm | Mounting: Foot | Stroke: 20 mm | Auto switch magnet: Yes | Port: G1/8
C55WL32-25DCZBore: ø32 mm | Mounting: Foot | Stroke: 25 mm | Auto switch magnet: No | Port: G1/8
CD55WL32-25DCZBore: ø32 mm | Mounting: Foot | Stroke: 25 mm | Auto switch magnet: Yes | Port: G1/8
C55WL32-30DCZBore: ø32 mm | Mounting: Foot | Stroke: 30 mm | Auto switch magnet: No | Port: G1/8
CD55WL32-30DCZBore: ø32 mm | Mounting: Foot | Stroke: 30 mm | Auto switch magnet: Yes | Port: G1/8
C55WL32-35DCZBore: ø32 mm | Mounting: Foot | Stroke: 35 mm | Auto switch magnet: No | Port: G1/8
CD55WL32-35DCZBore: ø32 mm | Mounting: Foot | Stroke: 35 mm | Auto switch magnet: Yes | Port: G1/8
C55WL32-40DCZBore: ø32 mm | Mounting: Foot | Stroke: 40 mm | Auto switch magnet: No | Port: G1/8
CD55WL32-40DCZBore: ø32 mm | Mounting: Foot | Stroke: 40 mm | Auto switch magnet: Yes | Port: G1/8
C55WL32-45DCZBore: ø32 mm | Mounting: Foot | Stroke: 45 mm | Auto switch magnet: No | Port: G1/8
CD55WL32-45DCZBore: ø32 mm | Mounting: Foot | Stroke: 45 mm | Auto switch magnet: Yes | Port: G1/8
C55WL32-50DCZBore: ø32 mm | Mounting: Foot | Stroke: 50 mm | Auto switch magnet: No | Port: G1/8
CD55WL32-50DCZBore: ø32 mm | Mounting: Foot | Stroke: 50 mm | Auto switch magnet: Yes | Port: G1/8
C55WL32-60DCZBore: ø32 mm | Mounting: Foot | Stroke: 60 mm | Auto switch magnet: No | Port: G1/8
CD55WL32-60DCZBore: ø32 mm | Mounting: Foot | Stroke: 60 mm | Auto switch magnet: Yes | Port: G1/8
C55WL32-80DCZBore: ø32 mm | Mounting: Foot | Stroke: 80 mm | Auto switch magnet: No | Port: G1/8
CD55WL32-80DCZBore: ø32 mm | Mounting: Foot | Stroke: 80 mm | Auto switch magnet: Yes | Port: G1/8
C55WL32-100DCZBore: ø32 mm | Mounting: Foot | Stroke: 100 mm | Auto switch magnet: No | Port: G1/8
CD55WL32-100DCZBore: ø32 mm | Mounting: Foot | Stroke: 100 mm | Auto switch magnet: Yes | Port: G1/8
C55WL32-125DCZBore: ø32 mm | Mounting: Foot | Stroke: 125 mm | Auto switch magnet: No | Port: G1/8
CD55WL32-125DCZBore: ø32 mm | Mounting: Foot | Stroke: 125 mm | Auto switch magnet: Yes | Port: G1/8
C55WL32-150DCZBore: ø32 mm | Mounting: Foot | Stroke: 150 mm | Auto switch magnet: No | Port: G1/8
CD55WL32-150DCZBore: ø32 mm | Mounting: Foot | Stroke: 150 mm | Auto switch magnet: Yes | Port: G1/8
C55WF32-5DCZBore: ø32 mm | Mounting: Flange | Stroke: 5 mm | Auto switch magnet: No | Port: G1/8
CD55WF32-5DCZBore: ø32 mm | Mounting: Flange | Stroke: 5 mm | Auto switch magnet: Yes | Port: G1/8
C55WF32-10DCZBore: ø32 mm | Mounting: Flange | Stroke: 10 mm | Auto switch magnet: No | Port: G1/8
CD55WF32-10DCZBore: ø32 mm | Mounting: Flange | Stroke: 10 mm | Auto switch magnet: Yes | Port: G1/8
C55WF32-15DCZBore: ø32 mm | Mounting: Flange | Stroke: 15 mm | Auto switch magnet: No | Port: G1/8
CD55WF32-15DCZBore: ø32 mm | Mounting: Flange | Stroke: 15 mm | Auto switch magnet: Yes | Port: G1/8
C55WF32-20DCZBore: ø32 mm | Mounting: Flange | Stroke: 20 mm | Auto switch magnet: No | Port: G1/8
CD55WF32-20DCZBore: ø32 mm | Mounting: Flange | Stroke: 20 mm | Auto switch magnet: Yes | Port: G1/8
C55WF32-25DCZBore: ø32 mm | Mounting: Flange | Stroke: 25 mm | Auto switch magnet: No | Port: G1/8
CD55WF32-25DCZBore: ø32 mm | Mounting: Flange | Stroke: 25 mm | Auto switch magnet: Yes | Port: G1/8
C55WF32-30DCZBore: ø32 mm | Mounting: Flange | Stroke: 30 mm | Auto switch magnet: No | Port: G1/8
CD55WF32-30DCZBore: ø32 mm | Mounting: Flange | Stroke: 30 mm | Auto switch magnet: Yes | Port: G1/8
C55WF32-35DCZBore: ø32 mm | Mounting: Flange | Stroke: 35 mm | Auto switch magnet: No | Port: G1/8
CD55WF32-35DCZBore: ø32 mm | Mounting: Flange | Stroke: 35 mm | Auto switch magnet: Yes | Port: G1/8
C55WF32-40DCZBore: ø32 mm | Mounting: Flange | Stroke: 40 mm | Auto switch magnet: No | Port: G1/8
CD55WF32-40DCZBore: ø32 mm | Mounting: Flange | Stroke: 40 mm | Auto switch magnet: Yes | Port: G1/8
C55WF32-45DCZBore: ø32 mm | Mounting: Flange | Stroke: 45 mm | Auto switch magnet: No | Port: G1/8
CD55WF32-45DCZBore: ø32 mm | Mounting: Flange | Stroke: 45 mm | Auto switch magnet: Yes | Port: G1/8
C55WF32-50DCZBore: ø32 mm | Mounting: Flange | Stroke: 50 mm | Auto switch magnet: No | Port: G1/8
CD55WF32-50DCZBore: ø32 mm | Mounting: Flange | Stroke: 50 mm | Auto switch magnet: Yes | Port: G1/8
C55WF32-60DCZBore: ø32 mm | Mounting: Flange | Stroke: 60 mm | Auto switch magnet: No | Port: G1/8
CD55WF32-60DCZBore: ø32 mm | Mounting: Flange | Stroke: 60 mm | Auto switch magnet: Yes | Port: G1/8
C55WF32-80DCZBore: ø32 mm | Mounting: Flange | Stroke: 80 mm | Auto switch magnet: No | Port: G1/8
CD55WF32-80DCZBore: ø32 mm | Mounting: Flange | Stroke: 80 mm | Auto switch magnet: Yes | Port: G1/8
C55WF32-100DCZBore: ø32 mm | Mounting: Flange | Stroke: 100 mm | Auto switch magnet: No | Port: G1/8
CD55WF32-100DCZBore: ø32 mm | Mounting: Flange | Stroke: 100 mm | Auto switch magnet: Yes | Port: G1/8
C55WF32-125DCZBore: ø32 mm | Mounting: Flange | Stroke: 125 mm | Auto switch magnet: No | Port: G1/8
CD55WF32-125DCZBore: ø32 mm | Mounting: Flange | Stroke: 125 mm | Auto switch magnet: Yes | Port: G1/8
C55WF32-150DCZBore: ø32 mm | Mounting: Flange | Stroke: 150 mm | Auto switch magnet: No | Port: G1/8
CD55WF32-150DCZBore: ø32 mm | Mounting: Flange | Stroke: 150 mm | Auto switch magnet: Yes | Port: G1/8
C55WB40-5DCZBore: ø40 mm | Mounting: Through-hole/tapped (std) | Stroke: 5 mm | Auto switch magnet: No | Port: G1/8
CD55WB40-5DCZBore: ø40 mm | Mounting: Through-hole/tapped (std) | Stroke: 5 mm | Auto switch magnet: Yes | Port: G1/8
C55WB40-10DCZBore: ø40 mm | Mounting: Through-hole/tapped (std) | Stroke: 10 mm | Auto switch magnet: No | Port: G1/8
CD55WB40-10DCZBore: ø40 mm | Mounting: Through-hole/tapped (std) | Stroke: 10 mm | Auto switch magnet: Yes | Port: G1/8
C55WB40-15DCZBore: ø40 mm | Mounting: Through-hole/tapped (std) | Stroke: 15 mm | Auto switch magnet: No | Port: G1/8
CD55WB40-15DCZBore: ø40 mm | Mounting: Through-hole/tapped (std) | Stroke: 15 mm | Auto switch magnet: Yes | Port: G1/8
C55WB40-20DCZBore: ø40 mm | Mounting: Through-hole/tapped (std) | Stroke: 20 mm | Auto switch magnet: No | Port: G1/8
CD55WB40-20DCZBore: ø40 mm | Mounting: Through-hole/tapped (std) | Stroke: 20 mm | Auto switch magnet: Yes | Port: G1/8
C55WB40-25DCZBore: ø40 mm | Mounting: Through-hole/tapped (std) | Stroke: 25 mm | Auto switch magnet: No | Port: G1/8
CD55WB40-25DCZBore: ø40 mm | Mounting: Through-hole/tapped (std) | Stroke: 25 mm | Auto switch magnet: Yes | Port: G1/8
C55WB40-30DCZBore: ø40 mm | Mounting: Through-hole/tapped (std) | Stroke: 30 mm | Auto switch magnet: No | Port: G1/8
CD55WB40-30DCZBore: ø40 mm | Mounting: Through-hole/tapped (std) | Stroke: 30 mm | Auto switch magnet: Yes | Port: G1/8
C55WB40-35DCZBore: ø40 mm | Mounting: Through-hole/tapped (std) | Stroke: 35 mm | Auto switch magnet: No | Port: G1/8
CD55WB40-35DCZBore: ø40 mm | Mounting: Through-hole/tapped (std) | Stroke: 35 mm | Auto switch magnet: Yes | Port: G1/8
C55WB40-40DCZBore: ø40 mm | Mounting: Through-hole/tapped (std) | Stroke: 40 mm | Auto switch magnet: No | Port: G1/8
CD55WB40-40DCZBore: ø40 mm | Mounting: Through-hole/tapped (std) | Stroke: 40 mm | Auto switch magnet: Yes | Port: G1/8
C55WB40-45DCZBore: ø40 mm | Mounting: Through-hole/tapped (std) | Stroke: 45 mm | Auto switch magnet: No | Port: G1/8
CD55WB40-45DCZBore: ø40 mm | Mounting: Through-hole/tapped (std) | Stroke: 45 mm | Auto switch magnet: Yes | Port: G1/8
C55WB40-50DCZBore: ø40 mm | Mounting: Through-hole/tapped (std) | Stroke: 50 mm | Auto switch magnet: No | Port: G1/8
CD55WB40-50DCZBore: ø40 mm | Mounting: Through-hole/tapped (std) | Stroke: 50 mm | Auto switch magnet: Yes | Port: G1/8
C55WB40-60DCZBore: ø40 mm | Mounting: Through-hole/tapped (std) | Stroke: 60 mm | Auto switch magnet: No | Port: G1/8
CD55WB40-60DCZBore: ø40 mm | Mounting: Through-hole/tapped (std) | Stroke: 60 mm | Auto switch magnet: Yes | Port: G1/8
C55WB40-80DCZBore: ø40 mm | Mounting: Through-hole/tapped (std) | Stroke: 80 mm | Auto switch magnet: No | Port: G1/8
CD55WB40-80DCZBore: ø40 mm | Mounting: Through-hole/tapped (std) | Stroke: 80 mm | Auto switch magnet: Yes | Port: G1/8
C55WB40-100DCZBore: ø40 mm | Mounting: Through-hole/tapped (std) | Stroke: 100 mm | Auto switch magnet: No | Port: G1/8
CD55WB40-100DCZBore: ø40 mm | Mounting: Through-hole/tapped (std) | Stroke: 100 mm | Auto switch magnet: Yes | Port: G1/8
C55WB40-125DCZBore: ø40 mm | Mounting: Through-hole/tapped (std) | Stroke: 125 mm | Auto switch magnet: No | Port: G1/8
CD55WB40-125DCZBore: ø40 mm | Mounting: Through-hole/tapped (std) | Stroke: 125 mm | Auto switch magnet: Yes | Port: G1/8
C55WB40-150DCZBore: ø40 mm | Mounting: Through-hole/tapped (std) | Stroke: 150 mm | Auto switch magnet: No | Port: G1/8
CD55WB40-150DCZBore: ø40 mm | Mounting: Through-hole/tapped (std) | Stroke: 150 mm | Auto switch magnet: Yes | Port: G1/8
C55WL40-5DCZBore: ø40 mm | Mounting: Foot | Stroke: 5 mm | Auto switch magnet: No | Port: G1/8
CD55WL40-5DCZBore: ø40 mm | Mounting: Foot | Stroke: 5 mm | Auto switch magnet: Yes | Port: G1/8
C55WL40-10DCZBore: ø40 mm | Mounting: Foot | Stroke: 10 mm | Auto switch magnet: No | Port: G1/8
CD55WL40-10DCZBore: ø40 mm | Mounting: Foot | Stroke: 10 mm | Auto switch magnet: Yes | Port: G1/8
C55WL40-15DCZBore: ø40 mm | Mounting: Foot | Stroke: 15 mm | Auto switch magnet: No | Port: G1/8
CD55WL40-15DCZBore: ø40 mm | Mounting: Foot | Stroke: 15 mm | Auto switch magnet: Yes | Port: G1/8
C55WL40-20DCZBore: ø40 mm | Mounting: Foot | Stroke: 20 mm | Auto switch magnet: No | Port: G1/8
CD55WL40-20DCZBore: ø40 mm | Mounting: Foot | Stroke: 20 mm | Auto switch magnet: Yes | Port: G1/8
C55WL40-25DCZBore: ø40 mm | Mounting: Foot | Stroke: 25 mm | Auto switch magnet: No | Port: G1/8
CD55WL40-25DCZBore: ø40 mm | Mounting: Foot | Stroke: 25 mm | Auto switch magnet: Yes | Port: G1/8
C55WL40-30DCZBore: ø40 mm | Mounting: Foot | Stroke: 30 mm | Auto switch magnet: No | Port: G1/8
CD55WL40-30DCZBore: ø40 mm | Mounting: Foot | Stroke: 30 mm | Auto switch magnet: Yes | Port: G1/8
C55WL40-35DCZBore: ø40 mm | Mounting: Foot | Stroke: 35 mm | Auto switch magnet: No | Port: G1/8
CD55WL40-35DCZBore: ø40 mm | Mounting: Foot | Stroke: 35 mm | Auto switch magnet: Yes | Port: G1/8
C55WL40-40DCZBore: ø40 mm | Mounting: Foot | Stroke: 40 mm | Auto switch magnet: No | Port: G1/8
CD55WL40-40DCZBore: ø40 mm | Mounting: Foot | Stroke: 40 mm | Auto switch magnet: Yes | Port: G1/8
C55WL40-45DCZBore: ø40 mm | Mounting: Foot | Stroke: 45 mm | Auto switch magnet: No | Port: G1/8
CD55WL40-45DCZBore: ø40 mm | Mounting: Foot | Stroke: 45 mm | Auto switch magnet: Yes | Port: G1/8
C55WL40-50DCZBore: ø40 mm | Mounting: Foot | Stroke: 50 mm | Auto switch magnet: No | Port: G1/8
CD55WL40-50DCZBore: ø40 mm | Mounting: Foot | Stroke: 50 mm | Auto switch magnet: Yes | Port: G1/8
C55WL40-60DCZBore: ø40 mm | Mounting: Foot | Stroke: 60 mm | Auto switch magnet: No | Port: G1/8
CD55WL40-60DCZBore: ø40 mm | Mounting: Foot | Stroke: 60 mm | Auto switch magnet: Yes | Port: G1/8
C55WL40-80DCZBore: ø40 mm | Mounting: Foot | Stroke: 80 mm | Auto switch magnet: No | Port: G1/8
CD55WL40-80DCZBore: ø40 mm | Mounting: Foot | Stroke: 80 mm | Auto switch magnet: Yes | Port: G1/8
C55WL40-100DCZBore: ø40 mm | Mounting: Foot | Stroke: 100 mm | Auto switch magnet: No | Port: G1/8
CD55WL40-100DCZBore: ø40 mm | Mounting: Foot | Stroke: 100 mm | Auto switch magnet: Yes | Port: G1/8
C55WL40-125DCZBore: ø40 mm | Mounting: Foot | Stroke: 125 mm | Auto switch magnet: No | Port: G1/8
CD55WL40-125DCZBore: ø40 mm | Mounting: Foot | Stroke: 125 mm | Auto switch magnet: Yes | Port: G1/8
C55WL40-150DCZBore: ø40 mm | Mounting: Foot | Stroke: 150 mm | Auto switch magnet: No | Port: G1/8
CD55WL40-150DCZBore: ø40 mm | Mounting: Foot | Stroke: 150 mm | Auto switch magnet: Yes | Port: G1/8
C55WF40-5DCZBore: ø40 mm | Mounting: Flange | Stroke: 5 mm | Auto switch magnet: No | Port: G1/8
CD55WF40-5DCZBore: ø40 mm | Mounting: Flange | Stroke: 5 mm | Auto switch magnet: Yes | Port: G1/8
C55WF40-10DCZBore: ø40 mm | Mounting: Flange | Stroke: 10 mm | Auto switch magnet: No | Port: G1/8
CD55WF40-10DCZBore: ø40 mm | Mounting: Flange | Stroke: 10 mm | Auto switch magnet: Yes | Port: G1/8
C55WF40-15DCZBore: ø40 mm | Mounting: Flange | Stroke: 15 mm | Auto switch magnet: No | Port: G1/8
CD55WF40-15DCZBore: ø40 mm | Mounting: Flange | Stroke: 15 mm | Auto switch magnet: Yes | Port: G1/8
C55WF40-20DCZBore: ø40 mm | Mounting: Flange | Stroke: 20 mm | Auto switch magnet: No | Port: G1/8
CD55WF40-20DCZBore: ø40 mm | Mounting: Flange | Stroke: 20 mm | Auto switch magnet: Yes | Port: G1/8
C55WF40-25DCZBore: ø40 mm | Mounting: Flange | Stroke: 25 mm | Auto switch magnet: No | Port: G1/8
CD55WF40-25DCZBore: ø40 mm | Mounting: Flange | Stroke: 25 mm | Auto switch magnet: Yes | Port: G1/8
C55WF40-30DCZBore: ø40 mm | Mounting: Flange | Stroke: 30 mm | Auto switch magnet: No | Port: G1/8
CD55WF40-30DCZBore: ø40 mm | Mounting: Flange | Stroke: 30 mm | Auto switch magnet: Yes | Port: G1/8
C55WF40-35DCZBore: ø40 mm | Mounting: Flange | Stroke: 35 mm | Auto switch magnet: No | Port: G1/8
CD55WF40-35DCZBore: ø40 mm | Mounting: Flange | Stroke: 35 mm | Auto switch magnet: Yes | Port: G1/8
C55WF40-40DCZBore: ø40 mm | Mounting: Flange | Stroke: 40 mm | Auto switch magnet: No | Port: G1/8
CD55WF40-40DCZBore: ø40 mm | Mounting: Flange | Stroke: 40 mm | Auto switch magnet: Yes | Port: G1/8
C55WF40-45DCZBore: ø40 mm | Mounting: Flange | Stroke: 45 mm | Auto switch magnet: No | Port: G1/8
CD55WF40-45DCZBore: ø40 mm | Mounting: Flange | Stroke: 45 mm | Auto switch magnet: Yes | Port: G1/8
C55WF40-50DCZBore: ø40 mm | Mounting: Flange | Stroke: 50 mm | Auto switch magnet: No | Port: G1/8
CD55WF40-50DCZBore: ø40 mm | Mounting: Flange | Stroke: 50 mm | Auto switch magnet: Yes | Port: G1/8
C55WF40-60DCZBore: ø40 mm | Mounting: Flange | Stroke: 60 mm | Auto switch magnet: No | Port: G1/8
CD55WF40-60DCZBore: ø40 mm | Mounting: Flange | Stroke: 60 mm | Auto switch magnet: Yes | Port: G1/8
C55WF40-80DCZBore: ø40 mm | Mounting: Flange | Stroke: 80 mm | Auto switch magnet: No | Port: G1/8
CD55WF40-80DCZBore: ø40 mm | Mounting: Flange | Stroke: 80 mm | Auto switch magnet: Yes | Port: G1/8
C55WF40-100DCZBore: ø40 mm | Mounting: Flange | Stroke: 100 mm | Auto switch magnet: No | Port: G1/8
CD55WF40-100DCZBore: ø40 mm | Mounting: Flange | Stroke: 100 mm | Auto switch magnet: Yes | Port: G1/8
C55WF40-125DCZBore: ø40 mm | Mounting: Flange | Stroke: 125 mm | Auto switch magnet: No | Port: G1/8
CD55WF40-125DCZBore: ø40 mm | Mounting: Flange | Stroke: 125 mm | Auto switch magnet: Yes | Port: G1/8
C55WF40-150DCZBore: ø40 mm | Mounting: Flange | Stroke: 150 mm | Auto switch magnet: No | Port: G1/8
CD55WF40-150DCZBore: ø40 mm | Mounting: Flange | Stroke: 150 mm | Auto switch magnet: Yes | Port: G1/8
C55WB50-5DCZBore: ø50 mm | Mounting: Through-hole/tapped (std) | Stroke: 5 mm | Auto switch magnet: No | Port: G1/8
CD55WB50-5DCZBore: ø50 mm | Mounting: Through-hole/tapped (std) | Stroke: 5 mm | Auto switch magnet: Yes | Port: G1/8
C55WB50-10DCZBore: ø50 mm | Mounting: Through-hole/tapped (std) | Stroke: 10 mm | Auto switch magnet: No | Port: G1/8
CD55WB50-10DCZBore: ø50 mm | Mounting: Through-hole/tapped (std) | Stroke: 10 mm | Auto switch magnet: Yes | Port: G1/8
C55WB50-15DCZBore: ø50 mm | Mounting: Through-hole/tapped (std) | Stroke: 15 mm | Auto switch magnet: No | Port: G1/8
CD55WB50-15DCZBore: ø50 mm | Mounting: Through-hole/tapped (std) | Stroke: 15 mm | Auto switch magnet: Yes | Port: G1/8
C55WB50-20DCZBore: ø50 mm | Mounting: Through-hole/tapped (std) | Stroke: 20 mm | Auto switch magnet: No | Port: G1/8
CD55WB50-20DCZBore: ø50 mm | Mounting: Through-hole/tapped (std) | Stroke: 20 mm | Auto switch magnet: Yes | Port: G1/8
C55WB50-25DCZBore: ø50 mm | Mounting: Through-hole/tapped (std) | Stroke: 25 mm | Auto switch magnet: No | Port: G1/8
CD55WB50-25DCZBore: ø50 mm | Mounting: Through-hole/tapped (std) | Stroke: 25 mm | Auto switch magnet: Yes | Port: G1/8
C55WB50-30DCZBore: ø50 mm | Mounting: Through-hole/tapped (std) | Stroke: 30 mm | Auto switch magnet: No | Port: G1/8
CD55WB50-30DCZBore: ø50 mm | Mounting: Through-hole/tapped (std) | Stroke: 30 mm | Auto switch magnet: Yes | Port: G1/8
C55WB50-35DCZBore: ø50 mm | Mounting: Through-hole/tapped (std) | Stroke: 35 mm | Auto switch magnet: No | Port: G1/8
CD55WB50-35DCZBore: ø50 mm | Mounting: Through-hole/tapped (std) | Stroke: 35 mm | Auto switch magnet: Yes | Port: G1/8
C55WB50-40DCZBore: ø50 mm | Mounting: Through-hole/tapped (std) | Stroke: 40 mm | Auto switch magnet: No | Port: G1/8
CD55WB50-40DCZBore: ø50 mm | Mounting: Through-hole/tapped (std) | Stroke: 40 mm | Auto switch magnet: Yes | Port: G1/8
C55WB50-45DCZBore: ø50 mm | Mounting: Through-hole/tapped (std) | Stroke: 45 mm | Auto switch magnet: No | Port: G1/8
CD55WB50-45DCZBore: ø50 mm | Mounting: Through-hole/tapped (std) | Stroke: 45 mm | Auto switch magnet: Yes | Port: G1/8
C55WB50-50DCZBore: ø50 mm | Mounting: Through-hole/tapped (std) | Stroke: 50 mm | Auto switch magnet: No | Port: G1/8
CD55WB50-50DCZBore: ø50 mm | Mounting: Through-hole/tapped (std) | Stroke: 50 mm | Auto switch magnet: Yes | Port: G1/8
C55WB50-60DCZBore: ø50 mm | Mounting: Through-hole/tapped (std) | Stroke: 60 mm | Auto switch magnet: No | Port: G1/8
CD55WB50-60DCZBore: ø50 mm | Mounting: Through-hole/tapped (std) | Stroke: 60 mm | Auto switch magnet: Yes | Port: G1/8
C55WB50-80DCZBore: ø50 mm | Mounting: Through-hole/tapped (std) | Stroke: 80 mm | Auto switch magnet: No | Port: G1/8
CD55WB50-80DCZBore: ø50 mm | Mounting: Through-hole/tapped (std) | Stroke: 80 mm | Auto switch magnet: Yes | Port: G1/8
C55WB50-100DCZBore: ø50 mm | Mounting: Through-hole/tapped (std) | Stroke: 100 mm | Auto switch magnet: No | Port: G1/8
CD55WB50-100DCZBore: ø50 mm | Mounting: Through-hole/tapped (std) | Stroke: 100 mm | Auto switch magnet: Yes | Port: G1/8
C55WB50-125DCZBore: ø50 mm | Mounting: Through-hole/tapped (std) | Stroke: 125 mm | Auto switch magnet: No | Port: G1/8
CD55WB50-125DCZBore: ø50 mm | Mounting: Through-hole/tapped (std) | Stroke: 125 mm | Auto switch magnet: Yes | Port: G1/8
C55WB50-150DCZBore: ø50 mm | Mounting: Through-hole/tapped (std) | Stroke: 150 mm | Auto switch magnet: No | Port: G1/8
CD55WB50-150DCZBore: ø50 mm | Mounting: Through-hole/tapped (std) | Stroke: 150 mm | Auto switch magnet: Yes | Port: G1/8
C55WL50-5DCZBore: ø50 mm | Mounting: Foot | Stroke: 5 mm | Auto switch magnet: No | Port: G1/8
CD55WL50-5DCZBore: ø50 mm | Mounting: Foot | Stroke: 5 mm | Auto switch magnet: Yes | Port: G1/8
C55WL50-10DCZBore: ø50 mm | Mounting: Foot | Stroke: 10 mm | Auto switch magnet: No | Port: G1/8
CD55WL50-10DCZBore: ø50 mm | Mounting: Foot | Stroke: 10 mm | Auto switch magnet: Yes | Port: G1/8
C55WL50-15DCZBore: ø50 mm | Mounting: Foot | Stroke: 15 mm | Auto switch magnet: No | Port: G1/8
CD55WL50-15DCZBore: ø50 mm | Mounting: Foot | Stroke: 15 mm | Auto switch magnet: Yes | Port: G1/8
C55WL50-20DCZBore: ø50 mm | Mounting: Foot | Stroke: 20 mm | Auto switch magnet: No | Port: G1/8
CD55WL50-20DCZBore: ø50 mm | Mounting: Foot | Stroke: 20 mm | Auto switch magnet: Yes | Port: G1/8
C55WL50-25DCZBore: ø50 mm | Mounting: Foot | Stroke: 25 mm | Auto switch magnet: No | Port: G1/8
CD55WL50-25DCZBore: ø50 mm | Mounting: Foot | Stroke: 25 mm | Auto switch magnet: Yes | Port: G1/8
C55WL50-30DCZBore: ø50 mm | Mounting: Foot | Stroke: 30 mm | Auto switch magnet: No | Port: G1/8
CD55WL50-30DCZBore: ø50 mm | Mounting: Foot | Stroke: 30 mm | Auto switch magnet: Yes | Port: G1/8
C55WL50-35DCZBore: ø50 mm | Mounting: Foot | Stroke: 35 mm | Auto switch magnet: No | Port: G1/8
CD55WL50-35DCZBore: ø50 mm | Mounting: Foot | Stroke: 35 mm | Auto switch magnet: Yes | Port: G1/8
C55WL50-40DCZBore: ø50 mm | Mounting: Foot | Stroke: 40 mm | Auto switch magnet: No | Port: G1/8
CD55WL50-40DCZBore: ø50 mm | Mounting: Foot | Stroke: 40 mm | Auto switch magnet: Yes | Port: G1/8
C55WL50-45DCZBore: ø50 mm | Mounting: Foot | Stroke: 45 mm | Auto switch magnet: No | Port: G1/8
CD55WL50-45DCZBore: ø50 mm | Mounting: Foot | Stroke: 45 mm | Auto switch magnet: Yes | Port: G1/8
C55WL50-50DCZBore: ø50 mm | Mounting: Foot | Stroke: 50 mm | Auto switch magnet: No | Port: G1/8
CD55WL50-50DCZBore: ø50 mm | Mounting: Foot | Stroke: 50 mm | Auto switch magnet: Yes | Port: G1/8
C55WL50-60DCZBore: ø50 mm | Mounting: Foot | Stroke: 60 mm | Auto switch magnet: No | Port: G1/8
CD55WL50-60DCZBore: ø50 mm | Mounting: Foot | Stroke: 60 mm | Auto switch magnet: Yes | Port: G1/8
C55WL50-80DCZBore: ø50 mm | Mounting: Foot | Stroke: 80 mm | Auto switch magnet: No | Port: G1/8
CD55WL50-80DCZBore: ø50 mm | Mounting: Foot | Stroke: 80 mm | Auto switch magnet: Yes | Port: G1/8
C55WL50-100DCZBore: ø50 mm | Mounting: Foot | Stroke: 100 mm | Auto switch magnet: No | Port: G1/8
CD55WL50-100DCZBore: ø50 mm | Mounting: Foot | Stroke: 100 mm | Auto switch magnet: Yes | Port: G1/8
C55WL50-125DCZBore: ø50 mm | Mounting: Foot | Stroke: 125 mm | Auto switch magnet: No | Port: G1/8
CD55WL50-125DCZBore: ø50 mm | Mounting: Foot | Stroke: 125 mm | Auto switch magnet: Yes | Port: G1/8
C55WL50-150DCZBore: ø50 mm | Mounting: Foot | Stroke: 150 mm | Auto switch magnet: No | Port: G1/8
CD55WL50-150DCZBore: ø50 mm | Mounting: Foot | Stroke: 150 mm | Auto switch magnet: Yes | Port: G1/8
C55WF50-5DCZBore: ø50 mm | Mounting: Flange | Stroke: 5 mm | Auto switch magnet: No | Port: G1/8
CD55WF50-5DCZBore: ø50 mm | Mounting: Flange | Stroke: 5 mm | Auto switch magnet: Yes | Port: G1/8
C55WF50-10DCZBore: ø50 mm | Mounting: Flange | Stroke: 10 mm | Auto switch magnet: No | Port: G1/8
CD55WF50-10DCZBore: ø50 mm | Mounting: Flange | Stroke: 10 mm | Auto switch magnet: Yes | Port: G1/8
C55WF50-15DCZBore: ø50 mm | Mounting: Flange | Stroke: 15 mm | Auto switch magnet: No | Port: G1/8
CD55WF50-15DCZBore: ø50 mm | Mounting: Flange | Stroke: 15 mm | Auto switch magnet: Yes | Port: G1/8
C55WF50-20DCZBore: ø50 mm | Mounting: Flange | Stroke: 20 mm | Auto switch magnet: No | Port: G1/8
CD55WF50-20DCZBore: ø50 mm | Mounting: Flange | Stroke: 20 mm | Auto switch magnet: Yes | Port: G1/8
C55WF50-25DCZBore: ø50 mm | Mounting: Flange | Stroke: 25 mm | Auto switch magnet: No | Port: G1/8
CD55WF50-25DCZBore: ø50 mm | Mounting: Flange | Stroke: 25 mm | Auto switch magnet: Yes | Port: G1/8
C55WF50-30DCZBore: ø50 mm | Mounting: Flange | Stroke: 30 mm | Auto switch magnet: No | Port: G1/8
CD55WF50-30DCZBore: ø50 mm | Mounting: Flange | Stroke: 30 mm | Auto switch magnet: Yes | Port: G1/8
C55WF50-35DCZBore: ø50 mm | Mounting: Flange | Stroke: 35 mm | Auto switch magnet: No | Port: G1/8
CD55WF50-35DCZBore: ø50 mm | Mounting: Flange | Stroke: 35 mm | Auto switch magnet: Yes | Port: G1/8
C55WF50-40DCZBore: ø50 mm | Mounting: Flange | Stroke: 40 mm | Auto switch magnet: No | Port: G1/8
CD55WF50-40DCZBore: ø50 mm | Mounting: Flange | Stroke: 40 mm | Auto switch magnet: Yes | Port: G1/8
C55WF50-45DCZBore: ø50 mm | Mounting: Flange | Stroke: 45 mm | Auto switch magnet: No | Port: G1/8
CD55WF50-45DCZBore: ø50 mm | Mounting: Flange | Stroke: 45 mm | Auto switch magnet: Yes | Port: G1/8
C55WF50-50DCZBore: ø50 mm | Mounting: Flange | Stroke: 50 mm | Auto switch magnet: No | Port: G1/8
CD55WF50-50DCZBore: ø50 mm | Mounting: Flange | Stroke: 50 mm | Auto switch magnet: Yes | Port: G1/8
C55WF50-60DCZBore: ø50 mm | Mounting: Flange | Stroke: 60 mm | Auto switch magnet: No | Port: G1/8
CD55WF50-60DCZBore: ø50 mm | Mounting: Flange | Stroke: 60 mm | Auto switch magnet: Yes | Port: G1/8
C55WF50-80DCZBore: ø50 mm | Mounting: Flange | Stroke: 80 mm | Auto switch magnet: No | Port: G1/8
CD55WF50-80DCZBore: ø50 mm | Mounting: Flange | Stroke: 80 mm | Auto switch magnet: Yes | Port: G1/8
C55WF50-100DCZBore: ø50 mm | Mounting: Flange | Stroke: 100 mm | Auto switch magnet: No | Port: G1/8
CD55WF50-100DCZBore: ø50 mm | Mounting: Flange | Stroke: 100 mm | Auto switch magnet: Yes | Port: G1/8
C55WF50-125DCZBore: ø50 mm | Mounting: Flange | Stroke: 125 mm | Auto switch magnet: No | Port: G1/8
CD55WF50-125DCZBore: ø50 mm | Mounting: Flange | Stroke: 125 mm | Auto switch magnet: Yes | Port: G1/8
C55WF50-150DCZBore: ø50 mm | Mounting: Flange | Stroke: 150 mm | Auto switch magnet: No | Port: G1/8
CD55WF50-150DCZBore: ø50 mm | Mounting: Flange | Stroke: 150 mm | Auto switch magnet: Yes | Port: G1/8
C55WB63-5DCZBore: ø63 mm | Mounting: Through-hole/tapped (std) | Stroke: 5 mm | Auto switch magnet: No | Port: G1/8
CD55WB63-5DCZBore: ø63 mm | Mounting: Through-hole/tapped (std) | Stroke: 5 mm | Auto switch magnet: Yes | Port: G1/8
C55WB63-10DCZBore: ø63 mm | Mounting: Through-hole/tapped (std) | Stroke: 10 mm | Auto switch magnet: No | Port: G1/8
CD55WB63-10DCZBore: ø63 mm | Mounting: Through-hole/tapped (std) | Stroke: 10 mm | Auto switch magnet: Yes | Port: G1/8
C55WB63-15DCZBore: ø63 mm | Mounting: Through-hole/tapped (std) | Stroke: 15 mm | Auto switch magnet: No | Port: G1/8
CD55WB63-15DCZBore: ø63 mm | Mounting: Through-hole/tapped (std) | Stroke: 15 mm | Auto switch magnet: Yes | Port: G1/8
C55WB63-20DCZBore: ø63 mm | Mounting: Through-hole/tapped (std) | Stroke: 20 mm | Auto switch magnet: No | Port: G1/8
CD55WB63-20DCZBore: ø63 mm | Mounting: Through-hole/tapped (std) | Stroke: 20 mm | Auto switch magnet: Yes | Port: G1/8
C55WB63-25DCZBore: ø63 mm | Mounting: Through-hole/tapped (std) | Stroke: 25 mm | Auto switch magnet: No | Port: G1/8
CD55WB63-25DCZBore: ø63 mm | Mounting: Through-hole/tapped (std) | Stroke: 25 mm | Auto switch magnet: Yes | Port: G1/8
C55WB63-30DCZBore: ø63 mm | Mounting: Through-hole/tapped (std) | Stroke: 30 mm | Auto switch magnet: No | Port: G1/8
CD55WB63-30DCZBore: ø63 mm | Mounting: Through-hole/tapped (std) | Stroke: 30 mm | Auto switch magnet: Yes | Port: G1/8
C55WB63-35DCZBore: ø63 mm | Mounting: Through-hole/tapped (std) | Stroke: 35 mm | Auto switch magnet: No | Port: G1/8
CD55WB63-35DCZBore: ø63 mm | Mounting: Through-hole/tapped (std) | Stroke: 35 mm | Auto switch magnet: Yes | Port: G1/8
C55WB63-40DCZBore: ø63 mm | Mounting: Through-hole/tapped (std) | Stroke: 40 mm | Auto switch magnet: No | Port: G1/8
CD55WB63-40DCZBore: ø63 mm | Mounting: Through-hole/tapped (std) | Stroke: 40 mm | Auto switch magnet: Yes | Port: G1/8
C55WB63-45DCZBore: ø63 mm | Mounting: Through-hole/tapped (std) | Stroke: 45 mm | Auto switch magnet: No | Port: G1/8
CD55WB63-45DCZBore: ø63 mm | Mounting: Through-hole/tapped (std) | Stroke: 45 mm | Auto switch magnet: Yes | Port: G1/8
C55WB63-50DCZBore: ø63 mm | Mounting: Through-hole/tapped (std) | Stroke: 50 mm | Auto switch magnet: No | Port: G1/8
CD55WB63-50DCZBore: ø63 mm | Mounting: Through-hole/tapped (std) | Stroke: 50 mm | Auto switch magnet: Yes | Port: G1/8
C55WB63-60DCZBore: ø63 mm | Mounting: Through-hole/tapped (std) | Stroke: 60 mm | Auto switch magnet: No | Port: G1/8
CD55WB63-60DCZBore: ø63 mm | Mounting: Through-hole/tapped (std) | Stroke: 60 mm | Auto switch magnet: Yes | Port: G1/8
C55WB63-80DCZBore: ø63 mm | Mounting: Through-hole/tapped (std) | Stroke: 80 mm | Auto switch magnet: No | Port: G1/8
CD55WB63-80DCZBore: ø63 mm | Mounting: Through-hole/tapped (std) | Stroke: 80 mm | Auto switch magnet: Yes | Port: G1/8
C55WB63-100DCZBore: ø63 mm | Mounting: Through-hole/tapped (std) | Stroke: 100 mm | Auto switch magnet: No | Port: G1/8
CD55WB63-100DCZBore: ø63 mm | Mounting: Through-hole/tapped (std) | Stroke: 100 mm | Auto switch magnet: Yes | Port: G1/8
C55WB63-125DCZBore: ø63 mm | Mounting: Through-hole/tapped (std) | Stroke: 125 mm | Auto switch magnet: No | Port: G1/8
CD55WB63-125DCZBore: ø63 mm | Mounting: Through-hole/tapped (std) | Stroke: 125 mm | Auto switch magnet: Yes | Port: G1/8
C55WB63-150DCZBore: ø63 mm | Mounting: Through-hole/tapped (std) | Stroke: 150 mm | Auto switch magnet: No | Port: G1/8
CD55WB63-150DCZBore: ø63 mm | Mounting: Through-hole/tapped (std) | Stroke: 150 mm | Auto switch magnet: Yes | Port: G1/8
C55WL63-5DCZBore: ø63 mm | Mounting: Foot | Stroke: 5 mm | Auto switch magnet: No | Port: G1/8
CD55WL63-5DCZBore: ø63 mm | Mounting: Foot | Stroke: 5 mm | Auto switch magnet: Yes | Port: G1/8
C55WL63-10DCZBore: ø63 mm | Mounting: Foot | Stroke: 10 mm | Auto switch magnet: No | Port: G1/8
CD55WL63-10DCZBore: ø63 mm | Mounting: Foot | Stroke: 10 mm | Auto switch magnet: Yes | Port: G1/8
C55WL63-15DCZBore: ø63 mm | Mounting: Foot | Stroke: 15 mm | Auto switch magnet: No | Port: G1/8
CD55WL63-15DCZBore: ø63 mm | Mounting: Foot | Stroke: 15 mm | Auto switch magnet: Yes | Port: G1/8
C55WL63-20DCZBore: ø63 mm | Mounting: Foot | Stroke: 20 mm | Auto switch magnet: No | Port: G1/8
CD55WL63-20DCZBore: ø63 mm | Mounting: Foot | Stroke: 20 mm | Auto switch magnet: Yes | Port: G1/8
C55WL63-25DCZBore: ø63 mm | Mounting: Foot | Stroke: 25 mm | Auto switch magnet: No | Port: G1/8
CD55WL63-25DCZBore: ø63 mm | Mounting: Foot | Stroke: 25 mm | Auto switch magnet: Yes | Port: G1/8
C55WL63-30DCZBore: ø63 mm | Mounting: Foot | Stroke: 30 mm | Auto switch magnet: No | Port: G1/8
CD55WL63-30DCZBore: ø63 mm | Mounting: Foot | Stroke: 30 mm | Auto switch magnet: Yes | Port: G1/8
C55WL63-35DCZBore: ø63 mm | Mounting: Foot | Stroke: 35 mm | Auto switch magnet: No | Port: G1/8
CD55WL63-35DCZBore: ø63 mm | Mounting: Foot | Stroke: 35 mm | Auto switch magnet: Yes | Port: G1/8
C55WL63-40DCZBore: ø63 mm | Mounting: Foot | Stroke: 40 mm | Auto switch magnet: No | Port: G1/8
CD55WL63-40DCZBore: ø63 mm | Mounting: Foot | Stroke: 40 mm | Auto switch magnet: Yes | Port: G1/8
C55WL63-45DCZBore: ø63 mm | Mounting: Foot | Stroke: 45 mm | Auto switch magnet: No | Port: G1/8
CD55WL63-45DCZBore: ø63 mm | Mounting: Foot | Stroke: 45 mm | Auto switch magnet: Yes | Port: G1/8
C55WL63-50DCZBore: ø63 mm | Mounting: Foot | Stroke: 50 mm | Auto switch magnet: No | Port: G1/8
CD55WL63-50DCZBore: ø63 mm | Mounting: Foot | Stroke: 50 mm | Auto switch magnet: Yes | Port: G1/8
C55WL63-60DCZBore: ø63 mm | Mounting: Foot | Stroke: 60 mm | Auto switch magnet: No | Port: G1/8
CD55WL63-60DCZBore: ø63 mm | Mounting: Foot | Stroke: 60 mm | Auto switch magnet: Yes | Port: G1/8
C55WL63-80DCZBore: ø63 mm | Mounting: Foot | Stroke: 80 mm | Auto switch magnet: No | Port: G1/8
CD55WL63-80DCZBore: ø63 mm | Mounting: Foot | Stroke: 80 mm | Auto switch magnet: Yes | Port: G1/8
C55WL63-100DCZBore: ø63 mm | Mounting: Foot | Stroke: 100 mm | Auto switch magnet: No | Port: G1/8
CD55WL63-100DCZBore: ø63 mm | Mounting: Foot | Stroke: 100 mm | Auto switch magnet: Yes | Port: G1/8
C55WL63-125DCZBore: ø63 mm | Mounting: Foot | Stroke: 125 mm | Auto switch magnet: No | Port: G1/8
CD55WL63-125DCZBore: ø63 mm | Mounting: Foot | Stroke: 125 mm | Auto switch magnet: Yes | Port: G1/8
C55WL63-150DCZBore: ø63 mm | Mounting: Foot | Stroke: 150 mm | Auto switch magnet: No | Port: G1/8
CD55WL63-150DCZBore: ø63 mm | Mounting: Foot | Stroke: 150 mm | Auto switch magnet: Yes | Port: G1/8
C55WF63-5DCZBore: ø63 mm | Mounting: Flange | Stroke: 5 mm | Auto switch magnet: No | Port: G1/8
CD55WF63-5DCZBore: ø63 mm | Mounting: Flange | Stroke: 5 mm | Auto switch magnet: Yes | Port: G1/8
C55WF63-10DCZBore: ø63 mm | Mounting: Flange | Stroke: 10 mm | Auto switch magnet: No | Port: G1/8
CD55WF63-10DCZBore: ø63 mm | Mounting: Flange | Stroke: 10 mm | Auto switch magnet: Yes | Port: G1/8
C55WF63-15DCZBore: ø63 mm | Mounting: Flange | Stroke: 15 mm | Auto switch magnet: No | Port: G1/8
CD55WF63-15DCZBore: ø63 mm | Mounting: Flange | Stroke: 15 mm | Auto switch magnet: Yes | Port: G1/8
C55WF63-20DCZBore: ø63 mm | Mounting: Flange | Stroke: 20 mm | Auto switch magnet: No | Port: G1/8
CD55WF63-20DCZBore: ø63 mm | Mounting: Flange | Stroke: 20 mm | Auto switch magnet: Yes | Port: G1/8
C55WF63-25DCZBore: ø63 mm | Mounting: Flange | Stroke: 25 mm | Auto switch magnet: No | Port: G1/8
CD55WF63-25DCZBore: ø63 mm | Mounting: Flange | Stroke: 25 mm | Auto switch magnet: Yes | Port: G1/8
C55WF63-30DCZBore: ø63 mm | Mounting: Flange | Stroke: 30 mm | Auto switch magnet: No | Port: G1/8
CD55WF63-30DCZBore: ø63 mm | Mounting: Flange | Stroke: 30 mm | Auto switch magnet: Yes | Port: G1/8
C55WF63-35DCZBore: ø63 mm | Mounting: Flange | Stroke: 35 mm | Auto switch magnet: No | Port: G1/8
CD55WF63-35DCZBore: ø63 mm | Mounting: Flange | Stroke: 35 mm | Auto switch magnet: Yes | Port: G1/8
C55WF63-40DCZBore: ø63 mm | Mounting: Flange | Stroke: 40 mm | Auto switch magnet: No | Port: G1/8
CD55WF63-40DCZBore: ø63 mm | Mounting: Flange | Stroke: 40 mm | Auto switch magnet: Yes | Port: G1/8
C55WF63-45DCZBore: ø63 mm | Mounting: Flange | Stroke: 45 mm | Auto switch magnet: No | Port: G1/8
CD55WF63-45DCZBore: ø63 mm | Mounting: Flange | Stroke: 45 mm | Auto switch magnet: Yes | Port: G1/8
C55WF63-50DCZBore: ø63 mm | Mounting: Flange | Stroke: 50 mm | Auto switch magnet: No | Port: G1/8
CD55WF63-50DCZBore: ø63 mm | Mounting: Flange | Stroke: 50 mm | Auto switch magnet: Yes | Port: G1/8
C55WF63-60DCZBore: ø63 mm | Mounting: Flange | Stroke: 60 mm | Auto switch magnet: No | Port: G1/8
CD55WF63-60DCZBore: ø63 mm | Mounting: Flange | Stroke: 60 mm | Auto switch magnet: Yes | Port: G1/8
C55WF63-80DCZBore: ø63 mm | Mounting: Flange | Stroke: 80 mm | Auto switch magnet: No | Port: G1/8
CD55WF63-80DCZBore: ø63 mm | Mounting: Flange | Stroke: 80 mm | Auto switch magnet: Yes | Port: G1/8
C55WF63-100DCZBore: ø63 mm | Mounting: Flange | Stroke: 100 mm | Auto switch magnet: No | Port: G1/8
CD55WF63-100DCZBore: ø63 mm | Mounting: Flange | Stroke: 100 mm | Auto switch magnet: Yes | Port: G1/8
C55WF63-125DCZBore: ø63 mm | Mounting: Flange | Stroke: 125 mm | Auto switch magnet: No | Port: G1/8
CD55WF63-125DCZBore: ø63 mm | Mounting: Flange | Stroke: 125 mm | Auto switch magnet: Yes | Port: G1/8
C55WF63-150DCZBore: ø63 mm | Mounting: Flange | Stroke: 150 mm | Auto switch magnet: No | Port: G1/8
CD55WF63-150DCZBore: ø63 mm | Mounting: Flange | Stroke: 150 mm | Auto switch magnet: Yes | Port: G1/8
C55WB80-10DCZBore: ø80 mm | Mounting: Through-hole/tapped (std) | Stroke: 10 mm | Auto switch magnet: No | Port: G1/8
CD55WB80-10DCZBore: ø80 mm | Mounting: Through-hole/tapped (std) | Stroke: 10 mm | Auto switch magnet: Yes | Port: G1/8
C55WB80-15DCZBore: ø80 mm | Mounting: Through-hole/tapped (std) | Stroke: 15 mm | Auto switch magnet: No | Port: G1/8
CD55WB80-15DCZBore: ø80 mm | Mounting: Through-hole/tapped (std) | Stroke: 15 mm | Auto switch magnet: Yes | Port: G1/8
C55WB80-20DCZBore: ø80 mm | Mounting: Through-hole/tapped (std) | Stroke: 20 mm | Auto switch magnet: No | Port: G1/8
CD55WB80-20DCZBore: ø80 mm | Mounting: Through-hole/tapped (std) | Stroke: 20 mm | Auto switch magnet: Yes | Port: G1/8
C55WB80-25DCZBore: ø80 mm | Mounting: Through-hole/tapped (std) | Stroke: 25 mm | Auto switch magnet: No | Port: G1/8
CD55WB80-25DCZBore: ø80 mm | Mounting: Through-hole/tapped (std) | Stroke: 25 mm | Auto switch magnet: Yes | Port: G1/8
C55WB80-30DCZBore: ø80 mm | Mounting: Through-hole/tapped (std) | Stroke: 30 mm | Auto switch magnet: No | Port: G1/8
CD55WB80-30DCZBore: ø80 mm | Mounting: Through-hole/tapped (std) | Stroke: 30 mm | Auto switch magnet: Yes | Port: G1/8
C55WB80-35DCZBore: ø80 mm | Mounting: Through-hole/tapped (std) | Stroke: 35 mm | Auto switch magnet: No | Port: G1/8
CD55WB80-35DCZBore: ø80 mm | Mounting: Through-hole/tapped (std) | Stroke: 35 mm | Auto switch magnet: Yes | Port: G1/8
C55WB80-40DCZBore: ø80 mm | Mounting: Through-hole/tapped (std) | Stroke: 40 mm | Auto switch magnet: No | Port: G1/8
CD55WB80-40DCZBore: ø80 mm | Mounting: Through-hole/tapped (std) | Stroke: 40 mm | Auto switch magnet: Yes | Port: G1/8
C55WB80-45DCZBore: ø80 mm | Mounting: Through-hole/tapped (std) | Stroke: 45 mm | Auto switch magnet: No | Port: G1/8
CD55WB80-45DCZBore: ø80 mm | Mounting: Through-hole/tapped (std) | Stroke: 45 mm | Auto switch magnet: Yes | Port: G1/8
C55WB80-50DCZBore: ø80 mm | Mounting: Through-hole/tapped (std) | Stroke: 50 mm | Auto switch magnet: No | Port: G1/8
CD55WB80-50DCZBore: ø80 mm | Mounting: Through-hole/tapped (std) | Stroke: 50 mm | Auto switch magnet: Yes | Port: G1/8
C55WB80-60DCZBore: ø80 mm | Mounting: Through-hole/tapped (std) | Stroke: 60 mm | Auto switch magnet: No | Port: G1/8
CD55WB80-60DCZBore: ø80 mm | Mounting: Through-hole/tapped (std) | Stroke: 60 mm | Auto switch magnet: Yes | Port: G1/8
C55WB80-80DCZBore: ø80 mm | Mounting: Through-hole/tapped (std) | Stroke: 80 mm | Auto switch magnet: No | Port: G1/8
CD55WB80-80DCZBore: ø80 mm | Mounting: Through-hole/tapped (std) | Stroke: 80 mm | Auto switch magnet: Yes | Port: G1/8
C55WB80-100DCZBore: ø80 mm | Mounting: Through-hole/tapped (std) | Stroke: 100 mm | Auto switch magnet: No | Port: G1/8
CD55WB80-100DCZBore: ø80 mm | Mounting: Through-hole/tapped (std) | Stroke: 100 mm | Auto switch magnet: Yes | Port: G1/8
C55WB80-125DCZBore: ø80 mm | Mounting: Through-hole/tapped (std) | Stroke: 125 mm | Auto switch magnet: No | Port: G1/8
CD55WB80-125DCZBore: ø80 mm | Mounting: Through-hole/tapped (std) | Stroke: 125 mm | Auto switch magnet: Yes | Port: G1/8
C55WL80-10DCZBore: ø80 mm | Mounting: Foot | Stroke: 10 mm | Auto switch magnet: No | Port: G1/8
CD55WL80-10DCZBore: ø80 mm | Mounting: Foot | Stroke: 10 mm | Auto switch magnet: Yes | Port: G1/8
C55WL80-15DCZBore: ø80 mm | Mounting: Foot | Stroke: 15 mm | Auto switch magnet: No | Port: G1/8
CD55WL80-15DCZBore: ø80 mm | Mounting: Foot | Stroke: 15 mm | Auto switch magnet: Yes | Port: G1/8
C55WL80-20DCZBore: ø80 mm | Mounting: Foot | Stroke: 20 mm | Auto switch magnet: No | Port: G1/8
CD55WL80-20DCZBore: ø80 mm | Mounting: Foot | Stroke: 20 mm | Auto switch magnet: Yes | Port: G1/8
C55WL80-25DCZBore: ø80 mm | Mounting: Foot | Stroke: 25 mm | Auto switch magnet: No | Port: G1/8
CD55WL80-25DCZBore: ø80 mm | Mounting: Foot | Stroke: 25 mm | Auto switch magnet: Yes | Port: G1/8
C55WL80-30DCZBore: ø80 mm | Mounting: Foot | Stroke: 30 mm | Auto switch magnet: No | Port: G1/8
CD55WL80-30DCZBore: ø80 mm | Mounting: Foot | Stroke: 30 mm | Auto switch magnet: Yes | Port: G1/8
C55WL80-35DCZBore: ø80 mm | Mounting: Foot | Stroke: 35 mm | Auto switch magnet: No | Port: G1/8
CD55WL80-35DCZBore: ø80 mm | Mounting: Foot | Stroke: 35 mm | Auto switch magnet: Yes | Port: G1/8
C55WL80-40DCZBore: ø80 mm | Mounting: Foot | Stroke: 40 mm | Auto switch magnet: No | Port: G1/8
CD55WL80-40DCZBore: ø80 mm | Mounting: Foot | Stroke: 40 mm | Auto switch magnet: Yes | Port: G1/8
C55WL80-45DCZBore: ø80 mm | Mounting: Foot | Stroke: 45 mm | Auto switch magnet: No | Port: G1/8
CD55WL80-45DCZBore: ø80 mm | Mounting: Foot | Stroke: 45 mm | Auto switch magnet: Yes | Port: G1/8
C55WL80-50DCZBore: ø80 mm | Mounting: Foot | Stroke: 50 mm | Auto switch magnet: No | Port: G1/8
CD55WL80-50DCZBore: ø80 mm | Mounting: Foot | Stroke: 50 mm | Auto switch magnet: Yes | Port: G1/8
C55WL80-60DCZBore: ø80 mm | Mounting: Foot | Stroke: 60 mm | Auto switch magnet: No | Port: G1/8
CD55WL80-60DCZBore: ø80 mm | Mounting: Foot | Stroke: 60 mm | Auto switch magnet: Yes | Port: G1/8
C55WL80-80DCZBore: ø80 mm | Mounting: Foot | Stroke: 80 mm | Auto switch magnet: No | Port: G1/8
CD55WL80-80DCZBore: ø80 mm | Mounting: Foot | Stroke: 80 mm | Auto switch magnet: Yes | Port: G1/8
C55WL80-100DCZBore: ø80 mm | Mounting: Foot | Stroke: 100 mm | Auto switch magnet: No | Port: G1/8
CD55WL80-100DCZBore: ø80 mm | Mounting: Foot | Stroke: 100 mm | Auto switch magnet: Yes | Port: G1/8
C55WL80-125DCZBore: ø80 mm | Mounting: Foot | Stroke: 125 mm | Auto switch magnet: No | Port: G1/8
CD55WL80-125DCZBore: ø80 mm | Mounting: Foot | Stroke: 125 mm | Auto switch magnet: Yes | Port: G1/8
C55WF80-10DCZBore: ø80 mm | Mounting: Flange | Stroke: 10 mm | Auto switch magnet: No | Port: G1/8
CD55WF80-10DCZBore: ø80 mm | Mounting: Flange | Stroke: 10 mm | Auto switch magnet: Yes | Port: G1/8
C55WF80-15DCZBore: ø80 mm | Mounting: Flange | Stroke: 15 mm | Auto switch magnet: No | Port: G1/8
CD55WF80-15DCZBore: ø80 mm | Mounting: Flange | Stroke: 15 mm | Auto switch magnet: Yes | Port: G1/8
C55WF80-20DCZBore: ø80 mm | Mounting: Flange | Stroke: 20 mm | Auto switch magnet: No | Port: G1/8
CD55WF80-20DCZBore: ø80 mm | Mounting: Flange | Stroke: 20 mm | Auto switch magnet: Yes | Port: G1/8
C55WF80-25DCZBore: ø80 mm | Mounting: Flange | Stroke: 25 mm | Auto switch magnet: No | Port: G1/8
CD55WF80-25DCZBore: ø80 mm | Mounting: Flange | Stroke: 25 mm | Auto switch magnet: Yes | Port: G1/8
C55WF80-30DCZBore: ø80 mm | Mounting: Flange | Stroke: 30 mm | Auto switch magnet: No | Port: G1/8
CD55WF80-30DCZBore: ø80 mm | Mounting: Flange | Stroke: 30 mm | Auto switch magnet: Yes | Port: G1/8
C55WF80-35DCZBore: ø80 mm | Mounting: Flange | Stroke: 35 mm | Auto switch magnet: No | Port: G1/8
CD55WF80-35DCZBore: ø80 mm | Mounting: Flange | Stroke: 35 mm | Auto switch magnet: Yes | Port: G1/8
C55WF80-40DCZBore: ø80 mm | Mounting: Flange | Stroke: 40 mm | Auto switch magnet: No | Port: G1/8
CD55WF80-40DCZBore: ø80 mm | Mounting: Flange | Stroke: 40 mm | Auto switch magnet: Yes | Port: G1/8
C55WF80-45DCZBore: ø80 mm | Mounting: Flange | Stroke: 45 mm | Auto switch magnet: No | Port: G1/8
CD55WF80-45DCZBore: ø80 mm | Mounting: Flange | Stroke: 45 mm | Auto switch magnet: Yes | Port: G1/8
C55WF80-50DCZBore: ø80 mm | Mounting: Flange | Stroke: 50 mm | Auto switch magnet: No | Port: G1/8
CD55WF80-50DCZBore: ø80 mm | Mounting: Flange | Stroke: 50 mm | Auto switch magnet: Yes | Port: G1/8
C55WF80-60DCZBore: ø80 mm | Mounting: Flange | Stroke: 60 mm | Auto switch magnet: No | Port: G1/8
CD55WF80-60DCZBore: ø80 mm | Mounting: Flange | Stroke: 60 mm | Auto switch magnet: Yes | Port: G1/8
C55WF80-80DCZBore: ø80 mm | Mounting: Flange | Stroke: 80 mm | Auto switch magnet: No | Port: G1/8
CD55WF80-80DCZBore: ø80 mm | Mounting: Flange | Stroke: 80 mm | Auto switch magnet: Yes | Port: G1/8
C55WF80-100DCZBore: ø80 mm | Mounting: Flange | Stroke: 100 mm | Auto switch magnet: No | Port: G1/8
CD55WF80-100DCZBore: ø80 mm | Mounting: Flange | Stroke: 100 mm | Auto switch magnet: Yes | Port: G1/8
C55WF80-125DCZBore: ø80 mm | Mounting: Flange | Stroke: 125 mm | Auto switch magnet: No | Port: G1/8
CD55WF80-125DCZBore: ø80 mm | Mounting: Flange | Stroke: 125 mm | Auto switch magnet: Yes | Port: G1/8
C55WB100-10DCZBore: ø100 mm | Mounting: Through-hole/tapped (std) | Stroke: 10 mm | Auto switch magnet: No | Port: G1/8
CD55WB100-10DCZBore: ø100 mm | Mounting: Through-hole/tapped (std) | Stroke: 10 mm | Auto switch magnet: Yes | Port: G1/8
C55WB100-15DCZBore: ø100 mm | Mounting: Through-hole/tapped (std) | Stroke: 15 mm | Auto switch magnet: No | Port: G1/8
CD55WB100-15DCZBore: ø100 mm | Mounting: Through-hole/tapped (std) | Stroke: 15 mm | Auto switch magnet: Yes | Port: G1/8
C55WB100-20DCZBore: ø100 mm | Mounting: Through-hole/tapped (std) | Stroke: 20 mm | Auto switch magnet: No | Port: G1/8
CD55WB100-20DCZBore: ø100 mm | Mounting: Through-hole/tapped (std) | Stroke: 20 mm | Auto switch magnet: Yes | Port: G1/8
C55WB100-25DCZBore: ø100 mm | Mounting: Through-hole/tapped (std) | Stroke: 25 mm | Auto switch magnet: No | Port: G1/8
CD55WB100-25DCZBore: ø100 mm | Mounting: Through-hole/tapped (std) | Stroke: 25 mm | Auto switch magnet: Yes | Port: G1/8
C55WB100-30DCZBore: ø100 mm | Mounting: Through-hole/tapped (std) | Stroke: 30 mm | Auto switch magnet: No | Port: G1/8
CD55WB100-30DCZBore: ø100 mm | Mounting: Through-hole/tapped (std) | Stroke: 30 mm | Auto switch magnet: Yes | Port: G1/8
C55WB100-35DCZBore: ø100 mm | Mounting: Through-hole/tapped (std) | Stroke: 35 mm | Auto switch magnet: No | Port: G1/8
CD55WB100-35DCZBore: ø100 mm | Mounting: Through-hole/tapped (std) | Stroke: 35 mm | Auto switch magnet: Yes | Port: G1/8
C55WB100-40DCZBore: ø100 mm | Mounting: Through-hole/tapped (std) | Stroke: 40 mm | Auto switch magnet: No | Port: G1/8
CD55WB100-40DCZBore: ø100 mm | Mounting: Through-hole/tapped (std) | Stroke: 40 mm | Auto switch magnet: Yes | Port: G1/8
C55WB100-45DCZBore: ø100 mm | Mounting: Through-hole/tapped (std) | Stroke: 45 mm | Auto switch magnet: No | Port: G1/8
CD55WB100-45DCZBore: ø100 mm | Mounting: Through-hole/tapped (std) | Stroke: 45 mm | Auto switch magnet: Yes | Port: G1/8
C55WB100-50DCZBore: ø100 mm | Mounting: Through-hole/tapped (std) | Stroke: 50 mm | Auto switch magnet: No | Port: G1/8
CD55WB100-50DCZBore: ø100 mm | Mounting: Through-hole/tapped (std) | Stroke: 50 mm | Auto switch magnet: Yes | Port: G1/8
C55WB100-60DCZBore: ø100 mm | Mounting: Through-hole/tapped (std) | Stroke: 60 mm | Auto switch magnet: No | Port: G1/8
CD55WB100-60DCZBore: ø100 mm | Mounting: Through-hole/tapped (std) | Stroke: 60 mm | Auto switch magnet: Yes | Port: G1/8
C55WB100-80DCZBore: ø100 mm | Mounting: Through-hole/tapped (std) | Stroke: 80 mm | Auto switch magnet: No | Port: G1/8
CD55WB100-80DCZBore: ø100 mm | Mounting: Through-hole/tapped (std) | Stroke: 80 mm | Auto switch magnet: Yes | Port: G1/8
C55WB100-100DCZBore: ø100 mm | Mounting: Through-hole/tapped (std) | Stroke: 100 mm | Auto switch magnet: No | Port: G1/8
CD55WB100-100DCZBore: ø100 mm | Mounting: Through-hole/tapped (std) | Stroke: 100 mm | Auto switch magnet: Yes | Port: G1/8
C55WB100-125DCZBore: ø100 mm | Mounting: Through-hole/tapped (std) | Stroke: 125 mm | Auto switch magnet: No | Port: G1/8
CD55WB100-125DCZBore: ø100 mm | Mounting: Through-hole/tapped (std) | Stroke: 125 mm | Auto switch magnet: Yes | Port: G1/8
C55WL100-10DCZBore: ø100 mm | Mounting: Foot | Stroke: 10 mm | Auto switch magnet: No | Port: G1/8
CD55WL100-10DCZBore: ø100 mm | Mounting: Foot | Stroke: 10 mm | Auto switch magnet: Yes | Port: G1/8
C55WL100-15DCZBore: ø100 mm | Mounting: Foot | Stroke: 15 mm | Auto switch magnet: No | Port: G1/8
CD55WL100-15DCZBore: ø100 mm | Mounting: Foot | Stroke: 15 mm | Auto switch magnet: Yes | Port: G1/8
C55WL100-20DCZBore: ø100 mm | Mounting: Foot | Stroke: 20 mm | Auto switch magnet: No | Port: G1/8
CD55WL100-20DCZBore: ø100 mm | Mounting: Foot | Stroke: 20 mm | Auto switch magnet: Yes | Port: G1/8
C55WL100-25DCZBore: ø100 mm | Mounting: Foot | Stroke: 25 mm | Auto switch magnet: No | Port: G1/8
CD55WL100-25DCZBore: ø100 mm | Mounting: Foot | Stroke: 25 mm | Auto switch magnet: Yes | Port: G1/8
C55WL100-30DCZBore: ø100 mm | Mounting: Foot | Stroke: 30 mm | Auto switch magnet: No | Port: G1/8
CD55WL100-30DCZBore: ø100 mm | Mounting: Foot | Stroke: 30 mm | Auto switch magnet: Yes | Port: G1/8
C55WL100-35DCZBore: ø100 mm | Mounting: Foot | Stroke: 35 mm | Auto switch magnet: No | Port: G1/8
CD55WL100-35DCZBore: ø100 mm | Mounting: Foot | Stroke: 35 mm | Auto switch magnet: Yes | Port: G1/8
C55WL100-40DCZBore: ø100 mm | Mounting: Foot | Stroke: 40 mm | Auto switch magnet: No | Port: G1/8
CD55WL100-40DCZBore: ø100 mm | Mounting: Foot | Stroke: 40 mm | Auto switch magnet: Yes | Port: G1/8
C55WL100-45DCZBore: ø100 mm | Mounting: Foot | Stroke: 45 mm | Auto switch magnet: No | Port: G1/8
CD55WL100-45DCZBore: ø100 mm | Mounting: Foot | Stroke: 45 mm | Auto switch magnet: Yes | Port: G1/8
C55WL100-50DCZBore: ø100 mm | Mounting: Foot | Stroke: 50 mm | Auto switch magnet: No | Port: G1/8
CD55WL100-50DCZBore: ø100 mm | Mounting: Foot | Stroke: 50 mm | Auto switch magnet: Yes | Port: G1/8
C55WL100-60DCZBore: ø100 mm | Mounting: Foot | Stroke: 60 mm | Auto switch magnet: No | Port: G1/8
CD55WL100-60DCZBore: ø100 mm | Mounting: Foot | Stroke: 60 mm | Auto switch magnet: Yes | Port: G1/8
C55WL100-80DCZBore: ø100 mm | Mounting: Foot | Stroke: 80 mm | Auto switch magnet: No | Port: G1/8
CD55WL100-80DCZBore: ø100 mm | Mounting: Foot | Stroke: 80 mm | Auto switch magnet: Yes | Port: G1/8
C55WL100-100DCZBore: ø100 mm | Mounting: Foot | Stroke: 100 mm | Auto switch magnet: No | Port: G1/8
CD55WL100-100DCZBore: ø100 mm | Mounting: Foot | Stroke: 100 mm | Auto switch magnet: Yes | Port: G1/8
C55WL100-125DCZBore: ø100 mm | Mounting: Foot | Stroke: 125 mm | Auto switch magnet: No | Port: G1/8
CD55WL100-125DCZBore: ø100 mm | Mounting: Foot | Stroke: 125 mm | Auto switch magnet: Yes | Port: G1/8
C55WF100-10DCZBore: ø100 mm | Mounting: Flange | Stroke: 10 mm | Auto switch magnet: No | Port: G1/8
CD55WF100-10DCZBore: ø100 mm | Mounting: Flange | Stroke: 10 mm | Auto switch magnet: Yes | Port: G1/8
C55WF100-15DCZBore: ø100 mm | Mounting: Flange | Stroke: 15 mm | Auto switch magnet: No | Port: G1/8
CD55WF100-15DCZBore: ø100 mm | Mounting: Flange | Stroke: 15 mm | Auto switch magnet: Yes | Port: G1/8
C55WF100-20DCZBore: ø100 mm | Mounting: Flange | Stroke: 20 mm | Auto switch magnet: No | Port: G1/8
CD55WF100-20DCZBore: ø100 mm | Mounting: Flange | Stroke: 20 mm | Auto switch magnet: Yes | Port: G1/8
C55WF100-25DCZBore: ø100 mm | Mounting: Flange | Stroke: 25 mm | Auto switch magnet: No | Port: G1/8
CD55WF100-25DCZBore: ø100 mm | Mounting: Flange | Stroke: 25 mm | Auto switch magnet: Yes | Port: G1/8
C55WF100-30DCZBore: ø100 mm | Mounting: Flange | Stroke: 30 mm | Auto switch magnet: No | Port: G1/8
CD55WF100-30DCZBore: ø100 mm | Mounting: Flange | Stroke: 30 mm | Auto switch magnet: Yes | Port: G1/8
C55WF100-35DCZBore: ø100 mm | Mounting: Flange | Stroke: 35 mm | Auto switch magnet: No | Port: G1/8
CD55WF100-35DCZBore: ø100 mm | Mounting: Flange | Stroke: 35 mm | Auto switch magnet: Yes | Port: G1/8
C55WF100-40DCZBore: ø100 mm | Mounting: Flange | Stroke: 40 mm | Auto switch magnet: No | Port: G1/8
CD55WF100-40DCZBore: ø100 mm | Mounting: Flange | Stroke: 40 mm | Auto switch magnet: Yes | Port: G1/8
C55WF100-45DCZBore: ø100 mm | Mounting: Flange | Stroke: 45 mm | Auto switch magnet: No | Port: G1/8
CD55WF100-45DCZBore: ø100 mm | Mounting: Flange | Stroke: 45 mm | Auto switch magnet: Yes | Port: G1/8
C55WF100-50DCZBore: ø100 mm | Mounting: Flange | Stroke: 50 mm | Auto switch magnet: No | Port: G1/8
CD55WF100-50DCZBore: ø100 mm | Mounting: Flange | Stroke: 50 mm | Auto switch magnet: Yes | Port: G1/8
C55WF100-60DCZBore: ø100 mm | Mounting: Flange | Stroke: 60 mm | Auto switch magnet: No | Port: G1/8
CD55WF100-60DCZBore: ø100 mm | Mounting: Flange | Stroke: 60 mm | Auto switch magnet: Yes | Port: G1/8
C55WF100-80DCZBore: ø100 mm | Mounting: Flange | Stroke: 80 mm | Auto switch magnet: No | Port: G1/8
CD55WF100-80DCZBore: ø100 mm | Mounting: Flange | Stroke: 80 mm | Auto switch magnet: Yes | Port: G1/8
C55WF100-100DCZBore: ø100 mm | Mounting: Flange | Stroke: 100 mm | Auto switch magnet: No | Port: G1/8
CD55WF100-100DCZBore: ø100 mm | Mounting: Flange | Stroke: 100 mm | Auto switch magnet: Yes | Port: G1/8
C55WF100-125DCZBore: ø100 mm | Mounting: Flange | Stroke: 125 mm | Auto switch magnet: No | Port: G1/8
CD55WF100-125DCZBore: ø100 mm | Mounting: Flange | Stroke: 125 mm | Auto switch magnet: Yes | Port: G1/8

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
