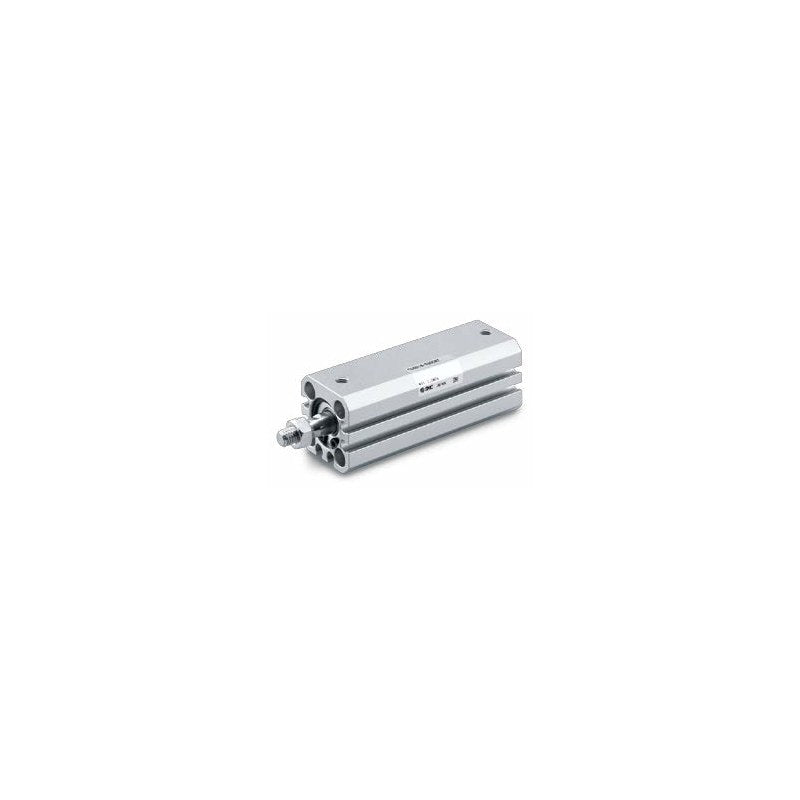

SMC C55Y Low Speed / Low Friction Compact Cylinder (ø20 to ø100)

SMC C55Y series ISO 21287 low speed, low friction compact cylinder, double acting, single rod, ø20 to ø100 mm bore, optional built-in magnet (CD55Y).

Key features

Min. operating pressure 0.02 MPa for smooth low-pressure control
Stable low speed operation from 5 mm/s
Rubber cushion on both ends; dimensions same as ISO type C55 single rod
Mounting: through-hole/both-end tapped common (B), foot (L), rod/head flange (F/G), single clevis (C)
Rod end male thread (M) and auto switches ordered as options; intermediate strokes available

Specifications

Standard	ISO 21287
Action	Double acting, single rod
Fluid	Air
Cushion	Rubber cushion (C)
Proof pressure	1.05 MPa
Max. operating pressure	0.7 MPa
Min. operating pressure	0.02 MPa
Piston speed	5 to 500 mm/s (ø20-63), 5 to 300 mm/s (ø80, ø100)
Allowable leakage	0.5 L/min (ANR) or less
Source	SMC Korea catalog CAT.KS20-302B (SMCKR_C55-Z.pdf), p. 36 (PDF p. 37)

C55YB20-5DCZ		Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 5 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YB20-5DCZ		Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 5 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YB20-10DCZ		Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 10 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YB20-10DCZ		Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 10 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YB20-15DCZ		Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 15 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YB20-15DCZ		Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 15 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YB20-20DCZ		Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 20 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YB20-20DCZ		Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 20 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YB20-25DCZ		Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 25 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YB20-25DCZ		Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YB20-30DCZ		Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 30 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YB20-30DCZ		Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 30 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YB20-35DCZ		Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 35 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YB20-35DCZ		Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 35 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YB20-40DCZ		Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 40 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YB20-40DCZ		Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 40 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YB20-45DCZ		Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 45 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YB20-45DCZ		Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 45 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YB20-50DCZ		Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 50 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YB20-50DCZ		Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YB20-60DCZ		Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 60 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YB20-60DCZ		Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 60 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YB20-80DCZ		Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 80 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YB20-80DCZ		Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YB20-100DCZ		Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 100 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YB20-100DCZ		Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YB20-125DCZ		Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 125 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YB20-125DCZ		Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YB20-150DCZ		Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 150 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YB20-150DCZ		Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YL20-5DCZ		Bore: ø20 mm \| Mounting: Foot \| Stroke: 5 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YL20-5DCZ		Bore: ø20 mm \| Mounting: Foot \| Stroke: 5 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YL20-10DCZ		Bore: ø20 mm \| Mounting: Foot \| Stroke: 10 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YL20-10DCZ		Bore: ø20 mm \| Mounting: Foot \| Stroke: 10 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YL20-15DCZ		Bore: ø20 mm \| Mounting: Foot \| Stroke: 15 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YL20-15DCZ		Bore: ø20 mm \| Mounting: Foot \| Stroke: 15 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YL20-20DCZ		Bore: ø20 mm \| Mounting: Foot \| Stroke: 20 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YL20-20DCZ		Bore: ø20 mm \| Mounting: Foot \| Stroke: 20 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YL20-25DCZ		Bore: ø20 mm \| Mounting: Foot \| Stroke: 25 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YL20-25DCZ		Bore: ø20 mm \| Mounting: Foot \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YL20-30DCZ		Bore: ø20 mm \| Mounting: Foot \| Stroke: 30 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YL20-30DCZ		Bore: ø20 mm \| Mounting: Foot \| Stroke: 30 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YL20-35DCZ		Bore: ø20 mm \| Mounting: Foot \| Stroke: 35 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YL20-35DCZ		Bore: ø20 mm \| Mounting: Foot \| Stroke: 35 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YL20-40DCZ		Bore: ø20 mm \| Mounting: Foot \| Stroke: 40 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YL20-40DCZ		Bore: ø20 mm \| Mounting: Foot \| Stroke: 40 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YL20-45DCZ		Bore: ø20 mm \| Mounting: Foot \| Stroke: 45 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YL20-45DCZ		Bore: ø20 mm \| Mounting: Foot \| Stroke: 45 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YL20-50DCZ		Bore: ø20 mm \| Mounting: Foot \| Stroke: 50 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YL20-50DCZ		Bore: ø20 mm \| Mounting: Foot \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YL20-60DCZ		Bore: ø20 mm \| Mounting: Foot \| Stroke: 60 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YL20-60DCZ		Bore: ø20 mm \| Mounting: Foot \| Stroke: 60 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YL20-80DCZ		Bore: ø20 mm \| Mounting: Foot \| Stroke: 80 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YL20-80DCZ		Bore: ø20 mm \| Mounting: Foot \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YL20-100DCZ		Bore: ø20 mm \| Mounting: Foot \| Stroke: 100 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YL20-100DCZ		Bore: ø20 mm \| Mounting: Foot \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YL20-125DCZ		Bore: ø20 mm \| Mounting: Foot \| Stroke: 125 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YL20-125DCZ		Bore: ø20 mm \| Mounting: Foot \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YL20-150DCZ		Bore: ø20 mm \| Mounting: Foot \| Stroke: 150 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YL20-150DCZ		Bore: ø20 mm \| Mounting: Foot \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YF20-5DCZ		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 5 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YF20-5DCZ		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 5 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YF20-10DCZ		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 10 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YF20-10DCZ		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 10 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YF20-15DCZ		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 15 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YF20-15DCZ		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 15 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YF20-20DCZ		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YF20-20DCZ		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YF20-25DCZ		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YF20-25DCZ		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YF20-30DCZ		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YF20-30DCZ		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YF20-35DCZ		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 35 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YF20-35DCZ		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 35 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YF20-40DCZ		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YF20-40DCZ		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YF20-45DCZ		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 45 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YF20-45DCZ		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 45 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YF20-50DCZ		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YF20-50DCZ		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YF20-60DCZ		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 60 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YF20-60DCZ		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 60 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YF20-80DCZ		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 80 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YF20-80DCZ		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YF20-100DCZ		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YF20-100DCZ		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YF20-125DCZ		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YF20-125DCZ		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YF20-150DCZ		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YF20-150DCZ		Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YG20-5DCZ		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 5 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YG20-5DCZ		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 5 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YG20-10DCZ		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 10 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YG20-10DCZ		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 10 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YG20-15DCZ		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 15 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YG20-15DCZ		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 15 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YG20-20DCZ		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 20 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YG20-20DCZ		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 20 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YG20-25DCZ		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 25 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YG20-25DCZ		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YG20-30DCZ		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 30 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YG20-30DCZ		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 30 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YG20-35DCZ		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 35 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YG20-35DCZ		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 35 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YG20-40DCZ		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 40 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YG20-40DCZ		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 40 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YG20-45DCZ		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 45 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YG20-45DCZ		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 45 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YG20-50DCZ		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 50 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YG20-50DCZ		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YG20-60DCZ		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 60 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YG20-60DCZ		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 60 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YG20-80DCZ		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 80 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YG20-80DCZ		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YG20-100DCZ		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 100 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YG20-100DCZ		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YG20-125DCZ		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 125 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YG20-125DCZ		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YG20-150DCZ		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 150 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YG20-150DCZ		Bore: ø20 mm \| Mounting: Head flange \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YC20-5DCZ		Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 5 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YC20-5DCZ		Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 5 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YC20-10DCZ		Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 10 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YC20-10DCZ		Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 10 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YC20-15DCZ		Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 15 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YC20-15DCZ		Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 15 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YC20-20DCZ		Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 20 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YC20-20DCZ		Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 20 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YC20-25DCZ		Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 25 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YC20-25DCZ		Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YC20-30DCZ		Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 30 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YC20-30DCZ		Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 30 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YC20-35DCZ		Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 35 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YC20-35DCZ		Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 35 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YC20-40DCZ		Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 40 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YC20-40DCZ		Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 40 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YC20-45DCZ		Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 45 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YC20-45DCZ		Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 45 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YC20-50DCZ		Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 50 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YC20-50DCZ		Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YC20-60DCZ		Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 60 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YC20-60DCZ		Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 60 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YC20-80DCZ		Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 80 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YC20-80DCZ		Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YC20-100DCZ		Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 100 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YC20-100DCZ		Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YC20-125DCZ		Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 125 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YC20-125DCZ		Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YC20-150DCZ		Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 150 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YC20-150DCZ		Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YB25-5DCZ		Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 5 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YB25-5DCZ		Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 5 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YB25-10DCZ		Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 10 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YB25-10DCZ		Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 10 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YB25-15DCZ		Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 15 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YB25-15DCZ		Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 15 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YB25-20DCZ		Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 20 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YB25-20DCZ		Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 20 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YB25-25DCZ		Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 25 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YB25-25DCZ		Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YB25-30DCZ		Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 30 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YB25-30DCZ		Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 30 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YB25-35DCZ		Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 35 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YB25-35DCZ		Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 35 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YB25-40DCZ		Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 40 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YB25-40DCZ		Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 40 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YB25-45DCZ		Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 45 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YB25-45DCZ		Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 45 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YB25-50DCZ		Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 50 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YB25-50DCZ		Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YB25-60DCZ		Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 60 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YB25-60DCZ		Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 60 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YB25-80DCZ		Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 80 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YB25-80DCZ		Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YB25-100DCZ		Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 100 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YB25-100DCZ		Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YB25-125DCZ		Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 125 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YB25-125DCZ		Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YB25-150DCZ		Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 150 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YB25-150DCZ		Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YL25-5DCZ		Bore: ø25 mm \| Mounting: Foot \| Stroke: 5 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YL25-5DCZ		Bore: ø25 mm \| Mounting: Foot \| Stroke: 5 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YL25-10DCZ		Bore: ø25 mm \| Mounting: Foot \| Stroke: 10 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YL25-10DCZ		Bore: ø25 mm \| Mounting: Foot \| Stroke: 10 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YL25-15DCZ		Bore: ø25 mm \| Mounting: Foot \| Stroke: 15 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YL25-15DCZ		Bore: ø25 mm \| Mounting: Foot \| Stroke: 15 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YL25-20DCZ		Bore: ø25 mm \| Mounting: Foot \| Stroke: 20 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YL25-20DCZ		Bore: ø25 mm \| Mounting: Foot \| Stroke: 20 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YL25-25DCZ		Bore: ø25 mm \| Mounting: Foot \| Stroke: 25 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YL25-25DCZ		Bore: ø25 mm \| Mounting: Foot \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YL25-30DCZ		Bore: ø25 mm \| Mounting: Foot \| Stroke: 30 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YL25-30DCZ		Bore: ø25 mm \| Mounting: Foot \| Stroke: 30 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YL25-35DCZ		Bore: ø25 mm \| Mounting: Foot \| Stroke: 35 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YL25-35DCZ		Bore: ø25 mm \| Mounting: Foot \| Stroke: 35 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YL25-40DCZ		Bore: ø25 mm \| Mounting: Foot \| Stroke: 40 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YL25-40DCZ		Bore: ø25 mm \| Mounting: Foot \| Stroke: 40 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YL25-45DCZ		Bore: ø25 mm \| Mounting: Foot \| Stroke: 45 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YL25-45DCZ		Bore: ø25 mm \| Mounting: Foot \| Stroke: 45 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YL25-50DCZ		Bore: ø25 mm \| Mounting: Foot \| Stroke: 50 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YL25-50DCZ		Bore: ø25 mm \| Mounting: Foot \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YL25-60DCZ		Bore: ø25 mm \| Mounting: Foot \| Stroke: 60 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YL25-60DCZ		Bore: ø25 mm \| Mounting: Foot \| Stroke: 60 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YL25-80DCZ		Bore: ø25 mm \| Mounting: Foot \| Stroke: 80 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YL25-80DCZ		Bore: ø25 mm \| Mounting: Foot \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YL25-100DCZ		Bore: ø25 mm \| Mounting: Foot \| Stroke: 100 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YL25-100DCZ		Bore: ø25 mm \| Mounting: Foot \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YL25-125DCZ		Bore: ø25 mm \| Mounting: Foot \| Stroke: 125 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YL25-125DCZ		Bore: ø25 mm \| Mounting: Foot \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YL25-150DCZ		Bore: ø25 mm \| Mounting: Foot \| Stroke: 150 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YL25-150DCZ		Bore: ø25 mm \| Mounting: Foot \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YF25-5DCZ		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 5 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YF25-5DCZ		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 5 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YF25-10DCZ		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 10 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YF25-10DCZ		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 10 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YF25-15DCZ		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 15 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YF25-15DCZ		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 15 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YF25-20DCZ		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YF25-20DCZ		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YF25-25DCZ		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YF25-25DCZ		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YF25-30DCZ		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YF25-30DCZ		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YF25-35DCZ		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 35 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YF25-35DCZ		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 35 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YF25-40DCZ		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YF25-40DCZ		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YF25-45DCZ		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 45 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YF25-45DCZ		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 45 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YF25-50DCZ		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YF25-50DCZ		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YF25-60DCZ		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 60 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YF25-60DCZ		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 60 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YF25-80DCZ		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 80 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YF25-80DCZ		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YF25-100DCZ		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YF25-100DCZ		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YF25-125DCZ		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YF25-125DCZ		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YF25-150DCZ		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YF25-150DCZ		Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YG25-5DCZ		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 5 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YG25-5DCZ		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 5 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YG25-10DCZ		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 10 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YG25-10DCZ		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 10 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YG25-15DCZ		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 15 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YG25-15DCZ		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 15 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YG25-20DCZ		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 20 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YG25-20DCZ		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 20 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YG25-25DCZ		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 25 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YG25-25DCZ		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YG25-30DCZ		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 30 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YG25-30DCZ		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 30 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YG25-35DCZ		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 35 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YG25-35DCZ		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 35 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YG25-40DCZ		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 40 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YG25-40DCZ		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 40 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YG25-45DCZ		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 45 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YG25-45DCZ		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 45 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YG25-50DCZ		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 50 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YG25-50DCZ		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YG25-60DCZ		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 60 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YG25-60DCZ		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 60 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YG25-80DCZ		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 80 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YG25-80DCZ		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YG25-100DCZ		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 100 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YG25-100DCZ		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YG25-125DCZ		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 125 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YG25-125DCZ		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YG25-150DCZ		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 150 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YG25-150DCZ		Bore: ø25 mm \| Mounting: Head flange \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YC25-5DCZ		Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 5 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YC25-5DCZ		Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 5 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YC25-10DCZ		Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 10 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YC25-10DCZ		Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 10 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YC25-15DCZ		Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 15 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YC25-15DCZ		Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 15 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YC25-20DCZ		Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 20 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YC25-20DCZ		Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 20 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YC25-25DCZ		Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 25 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YC25-25DCZ		Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YC25-30DCZ		Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 30 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YC25-30DCZ		Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 30 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YC25-35DCZ		Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 35 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YC25-35DCZ		Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 35 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YC25-40DCZ		Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 40 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YC25-40DCZ		Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 40 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YC25-45DCZ		Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 45 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YC25-45DCZ		Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 45 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YC25-50DCZ		Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 50 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YC25-50DCZ		Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YC25-60DCZ		Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 60 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YC25-60DCZ		Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 60 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YC25-80DCZ		Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 80 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YC25-80DCZ		Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YC25-100DCZ		Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 100 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YC25-100DCZ		Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YC25-125DCZ		Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 125 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YC25-125DCZ		Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YC25-150DCZ		Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 150 mm \| Auto switch magnet: No \| Port: M5x0.8
CD55YC25-150DCZ		Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: M5x0.8
C55YB32-5DCZ		Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 5 mm \| Auto switch magnet: No \| Port: G1/8
CD55YB32-5DCZ		Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 5 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YB32-10DCZ		Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 10 mm \| Auto switch magnet: No \| Port: G1/8
CD55YB32-10DCZ		Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 10 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YB32-15DCZ		Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 15 mm \| Auto switch magnet: No \| Port: G1/8
CD55YB32-15DCZ		Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 15 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YB32-20DCZ		Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 20 mm \| Auto switch magnet: No \| Port: G1/8
CD55YB32-20DCZ		Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 20 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YB32-25DCZ		Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/8
CD55YB32-25DCZ		Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YB32-30DCZ		Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 30 mm \| Auto switch magnet: No \| Port: G1/8
CD55YB32-30DCZ		Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 30 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YB32-35DCZ		Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 35 mm \| Auto switch magnet: No \| Port: G1/8
CD55YB32-35DCZ		Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 35 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YB32-40DCZ		Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 40 mm \| Auto switch magnet: No \| Port: G1/8
CD55YB32-40DCZ		Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 40 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YB32-45DCZ		Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 45 mm \| Auto switch magnet: No \| Port: G1/8
CD55YB32-45DCZ		Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 45 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YB32-50DCZ		Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/8
CD55YB32-50DCZ		Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YB32-60DCZ		Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 60 mm \| Auto switch magnet: No \| Port: G1/8
CD55YB32-60DCZ		Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 60 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YB32-80DCZ		Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/8
CD55YB32-80DCZ		Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YB32-100DCZ		Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/8
CD55YB32-100DCZ		Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YB32-125DCZ		Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/8
CD55YB32-125DCZ		Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YB32-150DCZ		Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 150 mm \| Auto switch magnet: No \| Port: G1/8
CD55YB32-150DCZ		Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YL32-5DCZ		Bore: ø32 mm \| Mounting: Foot \| Stroke: 5 mm \| Auto switch magnet: No \| Port: G1/8
CD55YL32-5DCZ		Bore: ø32 mm \| Mounting: Foot \| Stroke: 5 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YL32-10DCZ		Bore: ø32 mm \| Mounting: Foot \| Stroke: 10 mm \| Auto switch magnet: No \| Port: G1/8
CD55YL32-10DCZ		Bore: ø32 mm \| Mounting: Foot \| Stroke: 10 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YL32-15DCZ		Bore: ø32 mm \| Mounting: Foot \| Stroke: 15 mm \| Auto switch magnet: No \| Port: G1/8
CD55YL32-15DCZ		Bore: ø32 mm \| Mounting: Foot \| Stroke: 15 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YL32-20DCZ		Bore: ø32 mm \| Mounting: Foot \| Stroke: 20 mm \| Auto switch magnet: No \| Port: G1/8
CD55YL32-20DCZ		Bore: ø32 mm \| Mounting: Foot \| Stroke: 20 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YL32-25DCZ		Bore: ø32 mm \| Mounting: Foot \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/8
CD55YL32-25DCZ		Bore: ø32 mm \| Mounting: Foot \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YL32-30DCZ		Bore: ø32 mm \| Mounting: Foot \| Stroke: 30 mm \| Auto switch magnet: No \| Port: G1/8
CD55YL32-30DCZ		Bore: ø32 mm \| Mounting: Foot \| Stroke: 30 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YL32-35DCZ		Bore: ø32 mm \| Mounting: Foot \| Stroke: 35 mm \| Auto switch magnet: No \| Port: G1/8
CD55YL32-35DCZ		Bore: ø32 mm \| Mounting: Foot \| Stroke: 35 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YL32-40DCZ		Bore: ø32 mm \| Mounting: Foot \| Stroke: 40 mm \| Auto switch magnet: No \| Port: G1/8
CD55YL32-40DCZ		Bore: ø32 mm \| Mounting: Foot \| Stroke: 40 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YL32-45DCZ		Bore: ø32 mm \| Mounting: Foot \| Stroke: 45 mm \| Auto switch magnet: No \| Port: G1/8
CD55YL32-45DCZ		Bore: ø32 mm \| Mounting: Foot \| Stroke: 45 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YL32-50DCZ		Bore: ø32 mm \| Mounting: Foot \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/8
CD55YL32-50DCZ		Bore: ø32 mm \| Mounting: Foot \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YL32-60DCZ		Bore: ø32 mm \| Mounting: Foot \| Stroke: 60 mm \| Auto switch magnet: No \| Port: G1/8
CD55YL32-60DCZ		Bore: ø32 mm \| Mounting: Foot \| Stroke: 60 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YL32-80DCZ		Bore: ø32 mm \| Mounting: Foot \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/8
CD55YL32-80DCZ		Bore: ø32 mm \| Mounting: Foot \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YL32-100DCZ		Bore: ø32 mm \| Mounting: Foot \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/8
CD55YL32-100DCZ		Bore: ø32 mm \| Mounting: Foot \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YL32-125DCZ		Bore: ø32 mm \| Mounting: Foot \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/8
CD55YL32-125DCZ		Bore: ø32 mm \| Mounting: Foot \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YL32-150DCZ		Bore: ø32 mm \| Mounting: Foot \| Stroke: 150 mm \| Auto switch magnet: No \| Port: G1/8
CD55YL32-150DCZ		Bore: ø32 mm \| Mounting: Foot \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YF32-5DCZ		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 5 mm \| Auto switch magnet: No \| Port: G1/8
CD55YF32-5DCZ		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 5 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YF32-10DCZ		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 10 mm \| Auto switch magnet: No \| Port: G1/8
CD55YF32-10DCZ		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 10 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YF32-15DCZ		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 15 mm \| Auto switch magnet: No \| Port: G1/8
CD55YF32-15DCZ		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 15 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YF32-20DCZ		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Auto switch magnet: No \| Port: G1/8
CD55YF32-20DCZ		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YF32-25DCZ		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/8
CD55YF32-25DCZ		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YF32-30DCZ		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Auto switch magnet: No \| Port: G1/8
CD55YF32-30DCZ		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YF32-35DCZ		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 35 mm \| Auto switch magnet: No \| Port: G1/8
CD55YF32-35DCZ		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 35 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YF32-40DCZ		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Auto switch magnet: No \| Port: G1/8
CD55YF32-40DCZ		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YF32-45DCZ		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 45 mm \| Auto switch magnet: No \| Port: G1/8
CD55YF32-45DCZ		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 45 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YF32-50DCZ		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/8
CD55YF32-50DCZ		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YF32-60DCZ		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 60 mm \| Auto switch magnet: No \| Port: G1/8
CD55YF32-60DCZ		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 60 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YF32-80DCZ		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/8
CD55YF32-80DCZ		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YF32-100DCZ		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/8
CD55YF32-100DCZ		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YF32-125DCZ		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/8
CD55YF32-125DCZ		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YF32-150DCZ		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Auto switch magnet: No \| Port: G1/8
CD55YF32-150DCZ		Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YG32-5DCZ		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 5 mm \| Auto switch magnet: No \| Port: G1/8
CD55YG32-5DCZ		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 5 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YG32-10DCZ		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 10 mm \| Auto switch magnet: No \| Port: G1/8
CD55YG32-10DCZ		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 10 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YG32-15DCZ		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 15 mm \| Auto switch magnet: No \| Port: G1/8
CD55YG32-15DCZ		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 15 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YG32-20DCZ		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 20 mm \| Auto switch magnet: No \| Port: G1/8
CD55YG32-20DCZ		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 20 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YG32-25DCZ		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/8
CD55YG32-25DCZ		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YG32-30DCZ		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 30 mm \| Auto switch magnet: No \| Port: G1/8
CD55YG32-30DCZ		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 30 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YG32-35DCZ		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 35 mm \| Auto switch magnet: No \| Port: G1/8
CD55YG32-35DCZ		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 35 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YG32-40DCZ		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 40 mm \| Auto switch magnet: No \| Port: G1/8
CD55YG32-40DCZ		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 40 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YG32-45DCZ		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 45 mm \| Auto switch magnet: No \| Port: G1/8
CD55YG32-45DCZ		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 45 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YG32-50DCZ		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/8
CD55YG32-50DCZ		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YG32-60DCZ		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 60 mm \| Auto switch magnet: No \| Port: G1/8
CD55YG32-60DCZ		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 60 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YG32-80DCZ		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/8
CD55YG32-80DCZ		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YG32-100DCZ		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/8
CD55YG32-100DCZ		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YG32-125DCZ		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/8
CD55YG32-125DCZ		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YG32-150DCZ		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 150 mm \| Auto switch magnet: No \| Port: G1/8
CD55YG32-150DCZ		Bore: ø32 mm \| Mounting: Head flange \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YC32-5DCZ		Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 5 mm \| Auto switch magnet: No \| Port: G1/8
CD55YC32-5DCZ		Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 5 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YC32-10DCZ		Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 10 mm \| Auto switch magnet: No \| Port: G1/8
CD55YC32-10DCZ		Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 10 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YC32-15DCZ		Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 15 mm \| Auto switch magnet: No \| Port: G1/8
CD55YC32-15DCZ		Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 15 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YC32-20DCZ		Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 20 mm \| Auto switch magnet: No \| Port: G1/8
CD55YC32-20DCZ		Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 20 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YC32-25DCZ		Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/8
CD55YC32-25DCZ		Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YC32-30DCZ		Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 30 mm \| Auto switch magnet: No \| Port: G1/8
CD55YC32-30DCZ		Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 30 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YC32-35DCZ		Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 35 mm \| Auto switch magnet: No \| Port: G1/8
CD55YC32-35DCZ		Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 35 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YC32-40DCZ		Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 40 mm \| Auto switch magnet: No \| Port: G1/8
CD55YC32-40DCZ		Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 40 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YC32-45DCZ		Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 45 mm \| Auto switch magnet: No \| Port: G1/8
CD55YC32-45DCZ		Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 45 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YC32-50DCZ		Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/8
CD55YC32-50DCZ		Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YC32-60DCZ		Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 60 mm \| Auto switch magnet: No \| Port: G1/8
CD55YC32-60DCZ		Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 60 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YC32-80DCZ		Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/8
CD55YC32-80DCZ		Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YC32-100DCZ		Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/8
CD55YC32-100DCZ		Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YC32-125DCZ		Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/8
CD55YC32-125DCZ		Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YC32-150DCZ		Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 150 mm \| Auto switch magnet: No \| Port: G1/8
CD55YC32-150DCZ		Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YB40-5DCZ		Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 5 mm \| Auto switch magnet: No \| Port: G1/8
CD55YB40-5DCZ		Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 5 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YB40-10DCZ		Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 10 mm \| Auto switch magnet: No \| Port: G1/8
CD55YB40-10DCZ		Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 10 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YB40-15DCZ		Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 15 mm \| Auto switch magnet: No \| Port: G1/8
CD55YB40-15DCZ		Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 15 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YB40-20DCZ		Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 20 mm \| Auto switch magnet: No \| Port: G1/8
CD55YB40-20DCZ		Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 20 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YB40-25DCZ		Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/8
CD55YB40-25DCZ		Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YB40-30DCZ		Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 30 mm \| Auto switch magnet: No \| Port: G1/8
CD55YB40-30DCZ		Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 30 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YB40-35DCZ		Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 35 mm \| Auto switch magnet: No \| Port: G1/8
CD55YB40-35DCZ		Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 35 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YB40-40DCZ		Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 40 mm \| Auto switch magnet: No \| Port: G1/8
CD55YB40-40DCZ		Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 40 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YB40-45DCZ		Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 45 mm \| Auto switch magnet: No \| Port: G1/8
CD55YB40-45DCZ		Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 45 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YB40-50DCZ		Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/8
CD55YB40-50DCZ		Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YB40-60DCZ		Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 60 mm \| Auto switch magnet: No \| Port: G1/8
CD55YB40-60DCZ		Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 60 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YB40-80DCZ		Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/8
CD55YB40-80DCZ		Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YB40-100DCZ		Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/8
CD55YB40-100DCZ		Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YB40-125DCZ		Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/8
CD55YB40-125DCZ		Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YB40-150DCZ		Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 150 mm \| Auto switch magnet: No \| Port: G1/8
CD55YB40-150DCZ		Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YL40-5DCZ		Bore: ø40 mm \| Mounting: Foot \| Stroke: 5 mm \| Auto switch magnet: No \| Port: G1/8
CD55YL40-5DCZ		Bore: ø40 mm \| Mounting: Foot \| Stroke: 5 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YL40-10DCZ		Bore: ø40 mm \| Mounting: Foot \| Stroke: 10 mm \| Auto switch magnet: No \| Port: G1/8
CD55YL40-10DCZ		Bore: ø40 mm \| Mounting: Foot \| Stroke: 10 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YL40-15DCZ		Bore: ø40 mm \| Mounting: Foot \| Stroke: 15 mm \| Auto switch magnet: No \| Port: G1/8
CD55YL40-15DCZ		Bore: ø40 mm \| Mounting: Foot \| Stroke: 15 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YL40-20DCZ		Bore: ø40 mm \| Mounting: Foot \| Stroke: 20 mm \| Auto switch magnet: No \| Port: G1/8
CD55YL40-20DCZ		Bore: ø40 mm \| Mounting: Foot \| Stroke: 20 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YL40-25DCZ		Bore: ø40 mm \| Mounting: Foot \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/8
CD55YL40-25DCZ		Bore: ø40 mm \| Mounting: Foot \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YL40-30DCZ		Bore: ø40 mm \| Mounting: Foot \| Stroke: 30 mm \| Auto switch magnet: No \| Port: G1/8
CD55YL40-30DCZ		Bore: ø40 mm \| Mounting: Foot \| Stroke: 30 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YL40-35DCZ		Bore: ø40 mm \| Mounting: Foot \| Stroke: 35 mm \| Auto switch magnet: No \| Port: G1/8
CD55YL40-35DCZ		Bore: ø40 mm \| Mounting: Foot \| Stroke: 35 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YL40-40DCZ		Bore: ø40 mm \| Mounting: Foot \| Stroke: 40 mm \| Auto switch magnet: No \| Port: G1/8
CD55YL40-40DCZ		Bore: ø40 mm \| Mounting: Foot \| Stroke: 40 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YL40-45DCZ		Bore: ø40 mm \| Mounting: Foot \| Stroke: 45 mm \| Auto switch magnet: No \| Port: G1/8
CD55YL40-45DCZ		Bore: ø40 mm \| Mounting: Foot \| Stroke: 45 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YL40-50DCZ		Bore: ø40 mm \| Mounting: Foot \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/8
CD55YL40-50DCZ		Bore: ø40 mm \| Mounting: Foot \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YL40-60DCZ		Bore: ø40 mm \| Mounting: Foot \| Stroke: 60 mm \| Auto switch magnet: No \| Port: G1/8
CD55YL40-60DCZ		Bore: ø40 mm \| Mounting: Foot \| Stroke: 60 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YL40-80DCZ		Bore: ø40 mm \| Mounting: Foot \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/8
CD55YL40-80DCZ		Bore: ø40 mm \| Mounting: Foot \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YL40-100DCZ		Bore: ø40 mm \| Mounting: Foot \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/8
CD55YL40-100DCZ		Bore: ø40 mm \| Mounting: Foot \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YL40-125DCZ		Bore: ø40 mm \| Mounting: Foot \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/8
CD55YL40-125DCZ		Bore: ø40 mm \| Mounting: Foot \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YL40-150DCZ		Bore: ø40 mm \| Mounting: Foot \| Stroke: 150 mm \| Auto switch magnet: No \| Port: G1/8
CD55YL40-150DCZ		Bore: ø40 mm \| Mounting: Foot \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YF40-5DCZ		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 5 mm \| Auto switch magnet: No \| Port: G1/8
CD55YF40-5DCZ		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 5 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YF40-10DCZ		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 10 mm \| Auto switch magnet: No \| Port: G1/8
CD55YF40-10DCZ		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 10 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YF40-15DCZ		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 15 mm \| Auto switch magnet: No \| Port: G1/8
CD55YF40-15DCZ		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 15 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YF40-20DCZ		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Auto switch magnet: No \| Port: G1/8
CD55YF40-20DCZ		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YF40-25DCZ		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/8
CD55YF40-25DCZ		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YF40-30DCZ		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Auto switch magnet: No \| Port: G1/8
CD55YF40-30DCZ		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YF40-35DCZ		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 35 mm \| Auto switch magnet: No \| Port: G1/8
CD55YF40-35DCZ		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 35 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YF40-40DCZ		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Auto switch magnet: No \| Port: G1/8
CD55YF40-40DCZ		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YF40-45DCZ		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 45 mm \| Auto switch magnet: No \| Port: G1/8
CD55YF40-45DCZ		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 45 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YF40-50DCZ		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/8
CD55YF40-50DCZ		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YF40-60DCZ		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 60 mm \| Auto switch magnet: No \| Port: G1/8
CD55YF40-60DCZ		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 60 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YF40-80DCZ		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/8
CD55YF40-80DCZ		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YF40-100DCZ		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/8
CD55YF40-100DCZ		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YF40-125DCZ		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/8
CD55YF40-125DCZ		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YF40-150DCZ		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Auto switch magnet: No \| Port: G1/8
CD55YF40-150DCZ		Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YG40-5DCZ		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 5 mm \| Auto switch magnet: No \| Port: G1/8
CD55YG40-5DCZ		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 5 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YG40-10DCZ		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 10 mm \| Auto switch magnet: No \| Port: G1/8
CD55YG40-10DCZ		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 10 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YG40-15DCZ		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 15 mm \| Auto switch magnet: No \| Port: G1/8
CD55YG40-15DCZ		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 15 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YG40-20DCZ		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 20 mm \| Auto switch magnet: No \| Port: G1/8
CD55YG40-20DCZ		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 20 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YG40-25DCZ		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/8
CD55YG40-25DCZ		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YG40-30DCZ		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 30 mm \| Auto switch magnet: No \| Port: G1/8
CD55YG40-30DCZ		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 30 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YG40-35DCZ		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 35 mm \| Auto switch magnet: No \| Port: G1/8
CD55YG40-35DCZ		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 35 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YG40-40DCZ		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 40 mm \| Auto switch magnet: No \| Port: G1/8
CD55YG40-40DCZ		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 40 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YG40-45DCZ		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 45 mm \| Auto switch magnet: No \| Port: G1/8
CD55YG40-45DCZ		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 45 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YG40-50DCZ		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/8
CD55YG40-50DCZ		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YG40-60DCZ		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 60 mm \| Auto switch magnet: No \| Port: G1/8
CD55YG40-60DCZ		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 60 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YG40-80DCZ		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/8
CD55YG40-80DCZ		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YG40-100DCZ		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/8
CD55YG40-100DCZ		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YG40-125DCZ		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/8
CD55YG40-125DCZ		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YG40-150DCZ		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 150 mm \| Auto switch magnet: No \| Port: G1/8
CD55YG40-150DCZ		Bore: ø40 mm \| Mounting: Head flange \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YC40-5DCZ		Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 5 mm \| Auto switch magnet: No \| Port: G1/8
CD55YC40-5DCZ		Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 5 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YC40-10DCZ		Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 10 mm \| Auto switch magnet: No \| Port: G1/8
CD55YC40-10DCZ		Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 10 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YC40-15DCZ		Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 15 mm \| Auto switch magnet: No \| Port: G1/8
CD55YC40-15DCZ		Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 15 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YC40-20DCZ		Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 20 mm \| Auto switch magnet: No \| Port: G1/8
CD55YC40-20DCZ		Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 20 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YC40-25DCZ		Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/8
CD55YC40-25DCZ		Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YC40-30DCZ		Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 30 mm \| Auto switch magnet: No \| Port: G1/8
CD55YC40-30DCZ		Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 30 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YC40-35DCZ		Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 35 mm \| Auto switch magnet: No \| Port: G1/8
CD55YC40-35DCZ		Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 35 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YC40-40DCZ		Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 40 mm \| Auto switch magnet: No \| Port: G1/8
CD55YC40-40DCZ		Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 40 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YC40-45DCZ		Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 45 mm \| Auto switch magnet: No \| Port: G1/8
CD55YC40-45DCZ		Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 45 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YC40-50DCZ		Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/8
CD55YC40-50DCZ		Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YC40-60DCZ		Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 60 mm \| Auto switch magnet: No \| Port: G1/8
CD55YC40-60DCZ		Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 60 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YC40-80DCZ		Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/8
CD55YC40-80DCZ		Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YC40-100DCZ		Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/8
CD55YC40-100DCZ		Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YC40-125DCZ		Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/8
CD55YC40-125DCZ		Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YC40-150DCZ		Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 150 mm \| Auto switch magnet: No \| Port: G1/8
CD55YC40-150DCZ		Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YB50-5DCZ		Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 5 mm \| Auto switch magnet: No \| Port: G1/8
CD55YB50-5DCZ		Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 5 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YB50-10DCZ		Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 10 mm \| Auto switch magnet: No \| Port: G1/8
CD55YB50-10DCZ		Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 10 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YB50-15DCZ		Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 15 mm \| Auto switch magnet: No \| Port: G1/8
CD55YB50-15DCZ		Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 15 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YB50-20DCZ		Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 20 mm \| Auto switch magnet: No \| Port: G1/8
CD55YB50-20DCZ		Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 20 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YB50-25DCZ		Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/8
CD55YB50-25DCZ		Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YB50-30DCZ		Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 30 mm \| Auto switch magnet: No \| Port: G1/8
CD55YB50-30DCZ		Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 30 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YB50-35DCZ		Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 35 mm \| Auto switch magnet: No \| Port: G1/8
CD55YB50-35DCZ		Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 35 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YB50-40DCZ		Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 40 mm \| Auto switch magnet: No \| Port: G1/8
CD55YB50-40DCZ		Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 40 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YB50-45DCZ		Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 45 mm \| Auto switch magnet: No \| Port: G1/8
CD55YB50-45DCZ		Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 45 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YB50-50DCZ		Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/8
CD55YB50-50DCZ		Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YB50-60DCZ		Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 60 mm \| Auto switch magnet: No \| Port: G1/8
CD55YB50-60DCZ		Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 60 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YB50-80DCZ		Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/8
CD55YB50-80DCZ		Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YB50-100DCZ		Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/8
CD55YB50-100DCZ		Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YB50-125DCZ		Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/8
CD55YB50-125DCZ		Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YB50-150DCZ		Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 150 mm \| Auto switch magnet: No \| Port: G1/8
CD55YB50-150DCZ		Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YL50-5DCZ		Bore: ø50 mm \| Mounting: Foot \| Stroke: 5 mm \| Auto switch magnet: No \| Port: G1/8
CD55YL50-5DCZ		Bore: ø50 mm \| Mounting: Foot \| Stroke: 5 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YL50-10DCZ		Bore: ø50 mm \| Mounting: Foot \| Stroke: 10 mm \| Auto switch magnet: No \| Port: G1/8
CD55YL50-10DCZ		Bore: ø50 mm \| Mounting: Foot \| Stroke: 10 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YL50-15DCZ		Bore: ø50 mm \| Mounting: Foot \| Stroke: 15 mm \| Auto switch magnet: No \| Port: G1/8
CD55YL50-15DCZ		Bore: ø50 mm \| Mounting: Foot \| Stroke: 15 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YL50-20DCZ		Bore: ø50 mm \| Mounting: Foot \| Stroke: 20 mm \| Auto switch magnet: No \| Port: G1/8
CD55YL50-20DCZ		Bore: ø50 mm \| Mounting: Foot \| Stroke: 20 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YL50-25DCZ		Bore: ø50 mm \| Mounting: Foot \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/8
CD55YL50-25DCZ		Bore: ø50 mm \| Mounting: Foot \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YL50-30DCZ		Bore: ø50 mm \| Mounting: Foot \| Stroke: 30 mm \| Auto switch magnet: No \| Port: G1/8
CD55YL50-30DCZ		Bore: ø50 mm \| Mounting: Foot \| Stroke: 30 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YL50-35DCZ		Bore: ø50 mm \| Mounting: Foot \| Stroke: 35 mm \| Auto switch magnet: No \| Port: G1/8
CD55YL50-35DCZ		Bore: ø50 mm \| Mounting: Foot \| Stroke: 35 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YL50-40DCZ		Bore: ø50 mm \| Mounting: Foot \| Stroke: 40 mm \| Auto switch magnet: No \| Port: G1/8
CD55YL50-40DCZ		Bore: ø50 mm \| Mounting: Foot \| Stroke: 40 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YL50-45DCZ		Bore: ø50 mm \| Mounting: Foot \| Stroke: 45 mm \| Auto switch magnet: No \| Port: G1/8
CD55YL50-45DCZ		Bore: ø50 mm \| Mounting: Foot \| Stroke: 45 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YL50-50DCZ		Bore: ø50 mm \| Mounting: Foot \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/8
CD55YL50-50DCZ		Bore: ø50 mm \| Mounting: Foot \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YL50-60DCZ		Bore: ø50 mm \| Mounting: Foot \| Stroke: 60 mm \| Auto switch magnet: No \| Port: G1/8
CD55YL50-60DCZ		Bore: ø50 mm \| Mounting: Foot \| Stroke: 60 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YL50-80DCZ		Bore: ø50 mm \| Mounting: Foot \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/8
CD55YL50-80DCZ		Bore: ø50 mm \| Mounting: Foot \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YL50-100DCZ		Bore: ø50 mm \| Mounting: Foot \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/8
CD55YL50-100DCZ		Bore: ø50 mm \| Mounting: Foot \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YL50-125DCZ		Bore: ø50 mm \| Mounting: Foot \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/8
CD55YL50-125DCZ		Bore: ø50 mm \| Mounting: Foot \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YL50-150DCZ		Bore: ø50 mm \| Mounting: Foot \| Stroke: 150 mm \| Auto switch magnet: No \| Port: G1/8
CD55YL50-150DCZ		Bore: ø50 mm \| Mounting: Foot \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YF50-5DCZ		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 5 mm \| Auto switch magnet: No \| Port: G1/8
CD55YF50-5DCZ		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 5 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YF50-10DCZ		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 10 mm \| Auto switch magnet: No \| Port: G1/8
CD55YF50-10DCZ		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 10 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YF50-15DCZ		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 15 mm \| Auto switch magnet: No \| Port: G1/8
CD55YF50-15DCZ		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 15 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YF50-20DCZ		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Auto switch magnet: No \| Port: G1/8
CD55YF50-20DCZ		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YF50-25DCZ		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/8
CD55YF50-25DCZ		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YF50-30DCZ		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Auto switch magnet: No \| Port: G1/8
CD55YF50-30DCZ		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YF50-35DCZ		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 35 mm \| Auto switch magnet: No \| Port: G1/8
CD55YF50-35DCZ		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 35 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YF50-40DCZ		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Auto switch magnet: No \| Port: G1/8
CD55YF50-40DCZ		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YF50-45DCZ		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 45 mm \| Auto switch magnet: No \| Port: G1/8
CD55YF50-45DCZ		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 45 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YF50-50DCZ		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/8
CD55YF50-50DCZ		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YF50-60DCZ		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 60 mm \| Auto switch magnet: No \| Port: G1/8
CD55YF50-60DCZ		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 60 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YF50-80DCZ		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/8
CD55YF50-80DCZ		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YF50-100DCZ		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/8
CD55YF50-100DCZ		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YF50-125DCZ		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/8
CD55YF50-125DCZ		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YF50-150DCZ		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Auto switch magnet: No \| Port: G1/8
CD55YF50-150DCZ		Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YG50-5DCZ		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 5 mm \| Auto switch magnet: No \| Port: G1/8
CD55YG50-5DCZ		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 5 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YG50-10DCZ		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 10 mm \| Auto switch magnet: No \| Port: G1/8
CD55YG50-10DCZ		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 10 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YG50-15DCZ		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 15 mm \| Auto switch magnet: No \| Port: G1/8
CD55YG50-15DCZ		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 15 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YG50-20DCZ		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 20 mm \| Auto switch magnet: No \| Port: G1/8
CD55YG50-20DCZ		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 20 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YG50-25DCZ		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/8
CD55YG50-25DCZ		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YG50-30DCZ		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 30 mm \| Auto switch magnet: No \| Port: G1/8
CD55YG50-30DCZ		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 30 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YG50-35DCZ		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 35 mm \| Auto switch magnet: No \| Port: G1/8
CD55YG50-35DCZ		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 35 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YG50-40DCZ		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 40 mm \| Auto switch magnet: No \| Port: G1/8
CD55YG50-40DCZ		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 40 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YG50-45DCZ		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 45 mm \| Auto switch magnet: No \| Port: G1/8
CD55YG50-45DCZ		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 45 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YG50-50DCZ		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/8
CD55YG50-50DCZ		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YG50-60DCZ		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 60 mm \| Auto switch magnet: No \| Port: G1/8
CD55YG50-60DCZ		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 60 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YG50-80DCZ		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/8
CD55YG50-80DCZ		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YG50-100DCZ		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/8
CD55YG50-100DCZ		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YG50-125DCZ		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/8
CD55YG50-125DCZ		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YG50-150DCZ		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 150 mm \| Auto switch magnet: No \| Port: G1/8
CD55YG50-150DCZ		Bore: ø50 mm \| Mounting: Head flange \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YC50-5DCZ		Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 5 mm \| Auto switch magnet: No \| Port: G1/8
CD55YC50-5DCZ		Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 5 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YC50-10DCZ		Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 10 mm \| Auto switch magnet: No \| Port: G1/8
CD55YC50-10DCZ		Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 10 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YC50-15DCZ		Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 15 mm \| Auto switch magnet: No \| Port: G1/8
CD55YC50-15DCZ		Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 15 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YC50-20DCZ		Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 20 mm \| Auto switch magnet: No \| Port: G1/8
CD55YC50-20DCZ		Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 20 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YC50-25DCZ		Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/8
CD55YC50-25DCZ		Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YC50-30DCZ		Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 30 mm \| Auto switch magnet: No \| Port: G1/8
CD55YC50-30DCZ		Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 30 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YC50-35DCZ		Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 35 mm \| Auto switch magnet: No \| Port: G1/8
CD55YC50-35DCZ		Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 35 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YC50-40DCZ		Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 40 mm \| Auto switch magnet: No \| Port: G1/8
CD55YC50-40DCZ		Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 40 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YC50-45DCZ		Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 45 mm \| Auto switch magnet: No \| Port: G1/8
CD55YC50-45DCZ		Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 45 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YC50-50DCZ		Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/8
CD55YC50-50DCZ		Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YC50-60DCZ		Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 60 mm \| Auto switch magnet: No \| Port: G1/8
CD55YC50-60DCZ		Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 60 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YC50-80DCZ		Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/8
CD55YC50-80DCZ		Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YC50-100DCZ		Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/8
CD55YC50-100DCZ		Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YC50-125DCZ		Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/8
CD55YC50-125DCZ		Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YC50-150DCZ		Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 150 mm \| Auto switch magnet: No \| Port: G1/8
CD55YC50-150DCZ		Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YB63-5DCZ		Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 5 mm \| Auto switch magnet: No \| Port: G1/8
CD55YB63-5DCZ		Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 5 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YB63-10DCZ		Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 10 mm \| Auto switch magnet: No \| Port: G1/8
CD55YB63-10DCZ		Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 10 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YB63-15DCZ		Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 15 mm \| Auto switch magnet: No \| Port: G1/8
CD55YB63-15DCZ		Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 15 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YB63-20DCZ		Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 20 mm \| Auto switch magnet: No \| Port: G1/8
CD55YB63-20DCZ		Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 20 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YB63-25DCZ		Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/8
CD55YB63-25DCZ		Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YB63-30DCZ		Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 30 mm \| Auto switch magnet: No \| Port: G1/8
CD55YB63-30DCZ		Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 30 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YB63-35DCZ		Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 35 mm \| Auto switch magnet: No \| Port: G1/8
CD55YB63-35DCZ		Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 35 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YB63-40DCZ		Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 40 mm \| Auto switch magnet: No \| Port: G1/8
CD55YB63-40DCZ		Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 40 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YB63-45DCZ		Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 45 mm \| Auto switch magnet: No \| Port: G1/8
CD55YB63-45DCZ		Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 45 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YB63-50DCZ		Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/8
CD55YB63-50DCZ		Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YB63-60DCZ		Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 60 mm \| Auto switch magnet: No \| Port: G1/8
CD55YB63-60DCZ		Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 60 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YB63-80DCZ		Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/8
CD55YB63-80DCZ		Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YB63-100DCZ		Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/8
CD55YB63-100DCZ		Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YB63-125DCZ		Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/8
CD55YB63-125DCZ		Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YB63-150DCZ		Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 150 mm \| Auto switch magnet: No \| Port: G1/8
CD55YB63-150DCZ		Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YL63-5DCZ		Bore: ø63 mm \| Mounting: Foot \| Stroke: 5 mm \| Auto switch magnet: No \| Port: G1/8
CD55YL63-5DCZ		Bore: ø63 mm \| Mounting: Foot \| Stroke: 5 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YL63-10DCZ		Bore: ø63 mm \| Mounting: Foot \| Stroke: 10 mm \| Auto switch magnet: No \| Port: G1/8
CD55YL63-10DCZ		Bore: ø63 mm \| Mounting: Foot \| Stroke: 10 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YL63-15DCZ		Bore: ø63 mm \| Mounting: Foot \| Stroke: 15 mm \| Auto switch magnet: No \| Port: G1/8
CD55YL63-15DCZ		Bore: ø63 mm \| Mounting: Foot \| Stroke: 15 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YL63-20DCZ		Bore: ø63 mm \| Mounting: Foot \| Stroke: 20 mm \| Auto switch magnet: No \| Port: G1/8
CD55YL63-20DCZ		Bore: ø63 mm \| Mounting: Foot \| Stroke: 20 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YL63-25DCZ		Bore: ø63 mm \| Mounting: Foot \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/8
CD55YL63-25DCZ		Bore: ø63 mm \| Mounting: Foot \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YL63-30DCZ		Bore: ø63 mm \| Mounting: Foot \| Stroke: 30 mm \| Auto switch magnet: No \| Port: G1/8
CD55YL63-30DCZ		Bore: ø63 mm \| Mounting: Foot \| Stroke: 30 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YL63-35DCZ		Bore: ø63 mm \| Mounting: Foot \| Stroke: 35 mm \| Auto switch magnet: No \| Port: G1/8
CD55YL63-35DCZ		Bore: ø63 mm \| Mounting: Foot \| Stroke: 35 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YL63-40DCZ		Bore: ø63 mm \| Mounting: Foot \| Stroke: 40 mm \| Auto switch magnet: No \| Port: G1/8
CD55YL63-40DCZ		Bore: ø63 mm \| Mounting: Foot \| Stroke: 40 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YL63-45DCZ		Bore: ø63 mm \| Mounting: Foot \| Stroke: 45 mm \| Auto switch magnet: No \| Port: G1/8
CD55YL63-45DCZ		Bore: ø63 mm \| Mounting: Foot \| Stroke: 45 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YL63-50DCZ		Bore: ø63 mm \| Mounting: Foot \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/8
CD55YL63-50DCZ		Bore: ø63 mm \| Mounting: Foot \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YL63-60DCZ		Bore: ø63 mm \| Mounting: Foot \| Stroke: 60 mm \| Auto switch magnet: No \| Port: G1/8
CD55YL63-60DCZ		Bore: ø63 mm \| Mounting: Foot \| Stroke: 60 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YL63-80DCZ		Bore: ø63 mm \| Mounting: Foot \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/8
CD55YL63-80DCZ		Bore: ø63 mm \| Mounting: Foot \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YL63-100DCZ		Bore: ø63 mm \| Mounting: Foot \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/8
CD55YL63-100DCZ		Bore: ø63 mm \| Mounting: Foot \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YL63-125DCZ		Bore: ø63 mm \| Mounting: Foot \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/8
CD55YL63-125DCZ		Bore: ø63 mm \| Mounting: Foot \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YL63-150DCZ		Bore: ø63 mm \| Mounting: Foot \| Stroke: 150 mm \| Auto switch magnet: No \| Port: G1/8
CD55YL63-150DCZ		Bore: ø63 mm \| Mounting: Foot \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YF63-5DCZ		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 5 mm \| Auto switch magnet: No \| Port: G1/8
CD55YF63-5DCZ		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 5 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YF63-10DCZ		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 10 mm \| Auto switch magnet: No \| Port: G1/8
CD55YF63-10DCZ		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 10 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YF63-15DCZ		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 15 mm \| Auto switch magnet: No \| Port: G1/8
CD55YF63-15DCZ		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 15 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YF63-20DCZ		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Auto switch magnet: No \| Port: G1/8
CD55YF63-20DCZ		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YF63-25DCZ		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/8
CD55YF63-25DCZ		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YF63-30DCZ		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Auto switch magnet: No \| Port: G1/8
CD55YF63-30DCZ		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YF63-35DCZ		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 35 mm \| Auto switch magnet: No \| Port: G1/8
CD55YF63-35DCZ		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 35 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YF63-40DCZ		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Auto switch magnet: No \| Port: G1/8
CD55YF63-40DCZ		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YF63-45DCZ		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 45 mm \| Auto switch magnet: No \| Port: G1/8
CD55YF63-45DCZ		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 45 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YF63-50DCZ		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/8
CD55YF63-50DCZ		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YF63-60DCZ		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 60 mm \| Auto switch magnet: No \| Port: G1/8
CD55YF63-60DCZ		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 60 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YF63-80DCZ		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/8
CD55YF63-80DCZ		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YF63-100DCZ		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/8
CD55YF63-100DCZ		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YF63-125DCZ		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/8
CD55YF63-125DCZ		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YF63-150DCZ		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Auto switch magnet: No \| Port: G1/8
CD55YF63-150DCZ		Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YG63-5DCZ		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 5 mm \| Auto switch magnet: No \| Port: G1/8
CD55YG63-5DCZ		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 5 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YG63-10DCZ		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 10 mm \| Auto switch magnet: No \| Port: G1/8
CD55YG63-10DCZ		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 10 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YG63-15DCZ		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 15 mm \| Auto switch magnet: No \| Port: G1/8
CD55YG63-15DCZ		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 15 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YG63-20DCZ		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 20 mm \| Auto switch magnet: No \| Port: G1/8
CD55YG63-20DCZ		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 20 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YG63-25DCZ		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/8
CD55YG63-25DCZ		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YG63-30DCZ		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 30 mm \| Auto switch magnet: No \| Port: G1/8
CD55YG63-30DCZ		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 30 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YG63-35DCZ		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 35 mm \| Auto switch magnet: No \| Port: G1/8
CD55YG63-35DCZ		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 35 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YG63-40DCZ		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 40 mm \| Auto switch magnet: No \| Port: G1/8
CD55YG63-40DCZ		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 40 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YG63-45DCZ		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 45 mm \| Auto switch magnet: No \| Port: G1/8
CD55YG63-45DCZ		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 45 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YG63-50DCZ		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/8
CD55YG63-50DCZ		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YG63-60DCZ		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 60 mm \| Auto switch magnet: No \| Port: G1/8
CD55YG63-60DCZ		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 60 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YG63-80DCZ		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/8
CD55YG63-80DCZ		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YG63-100DCZ		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/8
CD55YG63-100DCZ		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YG63-125DCZ		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/8
CD55YG63-125DCZ		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YG63-150DCZ		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 150 mm \| Auto switch magnet: No \| Port: G1/8
CD55YG63-150DCZ		Bore: ø63 mm \| Mounting: Head flange \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YC63-5DCZ		Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 5 mm \| Auto switch magnet: No \| Port: G1/8
CD55YC63-5DCZ		Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 5 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YC63-10DCZ		Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 10 mm \| Auto switch magnet: No \| Port: G1/8
CD55YC63-10DCZ		Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 10 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YC63-15DCZ		Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 15 mm \| Auto switch magnet: No \| Port: G1/8
CD55YC63-15DCZ		Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 15 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YC63-20DCZ		Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 20 mm \| Auto switch magnet: No \| Port: G1/8
CD55YC63-20DCZ		Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 20 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YC63-25DCZ		Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/8
CD55YC63-25DCZ		Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YC63-30DCZ		Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 30 mm \| Auto switch magnet: No \| Port: G1/8
CD55YC63-30DCZ		Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 30 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YC63-35DCZ		Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 35 mm \| Auto switch magnet: No \| Port: G1/8
CD55YC63-35DCZ		Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 35 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YC63-40DCZ		Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 40 mm \| Auto switch magnet: No \| Port: G1/8
CD55YC63-40DCZ		Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 40 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YC63-45DCZ		Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 45 mm \| Auto switch magnet: No \| Port: G1/8
CD55YC63-45DCZ		Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 45 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YC63-50DCZ		Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/8
CD55YC63-50DCZ		Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YC63-60DCZ		Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 60 mm \| Auto switch magnet: No \| Port: G1/8
CD55YC63-60DCZ		Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 60 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YC63-80DCZ		Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/8
CD55YC63-80DCZ		Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YC63-100DCZ		Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/8
CD55YC63-100DCZ		Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YC63-125DCZ		Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/8
CD55YC63-125DCZ		Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YC63-150DCZ		Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 150 mm \| Auto switch magnet: No \| Port: G1/8
CD55YC63-150DCZ		Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YB80-10DCZ		Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 10 mm \| Auto switch magnet: No \| Port: G1/8
CD55YB80-10DCZ		Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 10 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YB80-15DCZ		Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 15 mm \| Auto switch magnet: No \| Port: G1/8
CD55YB80-15DCZ		Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 15 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YB80-20DCZ		Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 20 mm \| Auto switch magnet: No \| Port: G1/8
CD55YB80-20DCZ		Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 20 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YB80-25DCZ		Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/8
CD55YB80-25DCZ		Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YB80-30DCZ		Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 30 mm \| Auto switch magnet: No \| Port: G1/8
CD55YB80-30DCZ		Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 30 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YB80-35DCZ		Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 35 mm \| Auto switch magnet: No \| Port: G1/8
CD55YB80-35DCZ		Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 35 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YB80-40DCZ		Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 40 mm \| Auto switch magnet: No \| Port: G1/8
CD55YB80-40DCZ		Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 40 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YB80-45DCZ		Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 45 mm \| Auto switch magnet: No \| Port: G1/8
CD55YB80-45DCZ		Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 45 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YB80-50DCZ		Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/8
CD55YB80-50DCZ		Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YB80-60DCZ		Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 60 mm \| Auto switch magnet: No \| Port: G1/8
CD55YB80-60DCZ		Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 60 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YB80-80DCZ		Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/8
CD55YB80-80DCZ		Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YB80-100DCZ		Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/8
CD55YB80-100DCZ		Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YB80-125DCZ		Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/8
CD55YB80-125DCZ		Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YL80-10DCZ		Bore: ø80 mm \| Mounting: Foot \| Stroke: 10 mm \| Auto switch magnet: No \| Port: G1/8
CD55YL80-10DCZ		Bore: ø80 mm \| Mounting: Foot \| Stroke: 10 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YL80-15DCZ		Bore: ø80 mm \| Mounting: Foot \| Stroke: 15 mm \| Auto switch magnet: No \| Port: G1/8
CD55YL80-15DCZ		Bore: ø80 mm \| Mounting: Foot \| Stroke: 15 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YL80-20DCZ		Bore: ø80 mm \| Mounting: Foot \| Stroke: 20 mm \| Auto switch magnet: No \| Port: G1/8
CD55YL80-20DCZ		Bore: ø80 mm \| Mounting: Foot \| Stroke: 20 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YL80-25DCZ		Bore: ø80 mm \| Mounting: Foot \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/8
CD55YL80-25DCZ		Bore: ø80 mm \| Mounting: Foot \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YL80-30DCZ		Bore: ø80 mm \| Mounting: Foot \| Stroke: 30 mm \| Auto switch magnet: No \| Port: G1/8
CD55YL80-30DCZ		Bore: ø80 mm \| Mounting: Foot \| Stroke: 30 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YL80-35DCZ		Bore: ø80 mm \| Mounting: Foot \| Stroke: 35 mm \| Auto switch magnet: No \| Port: G1/8
CD55YL80-35DCZ		Bore: ø80 mm \| Mounting: Foot \| Stroke: 35 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YL80-40DCZ		Bore: ø80 mm \| Mounting: Foot \| Stroke: 40 mm \| Auto switch magnet: No \| Port: G1/8
CD55YL80-40DCZ		Bore: ø80 mm \| Mounting: Foot \| Stroke: 40 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YL80-45DCZ		Bore: ø80 mm \| Mounting: Foot \| Stroke: 45 mm \| Auto switch magnet: No \| Port: G1/8
CD55YL80-45DCZ		Bore: ø80 mm \| Mounting: Foot \| Stroke: 45 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YL80-50DCZ		Bore: ø80 mm \| Mounting: Foot \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/8
CD55YL80-50DCZ		Bore: ø80 mm \| Mounting: Foot \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YL80-60DCZ		Bore: ø80 mm \| Mounting: Foot \| Stroke: 60 mm \| Auto switch magnet: No \| Port: G1/8
CD55YL80-60DCZ		Bore: ø80 mm \| Mounting: Foot \| Stroke: 60 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YL80-80DCZ		Bore: ø80 mm \| Mounting: Foot \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/8
CD55YL80-80DCZ		Bore: ø80 mm \| Mounting: Foot \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YL80-100DCZ		Bore: ø80 mm \| Mounting: Foot \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/8
CD55YL80-100DCZ		Bore: ø80 mm \| Mounting: Foot \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YL80-125DCZ		Bore: ø80 mm \| Mounting: Foot \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/8
CD55YL80-125DCZ		Bore: ø80 mm \| Mounting: Foot \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YF80-10DCZ		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 10 mm \| Auto switch magnet: No \| Port: G1/8
CD55YF80-10DCZ		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 10 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YF80-15DCZ		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 15 mm \| Auto switch magnet: No \| Port: G1/8
CD55YF80-15DCZ		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 15 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YF80-20DCZ		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Auto switch magnet: No \| Port: G1/8
CD55YF80-20DCZ		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YF80-25DCZ		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/8
CD55YF80-25DCZ		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YF80-30DCZ		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Auto switch magnet: No \| Port: G1/8
CD55YF80-30DCZ		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YF80-35DCZ		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 35 mm \| Auto switch magnet: No \| Port: G1/8
CD55YF80-35DCZ		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 35 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YF80-40DCZ		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Auto switch magnet: No \| Port: G1/8
CD55YF80-40DCZ		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YF80-45DCZ		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 45 mm \| Auto switch magnet: No \| Port: G1/8
CD55YF80-45DCZ		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 45 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YF80-50DCZ		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/8
CD55YF80-50DCZ		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YF80-60DCZ		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 60 mm \| Auto switch magnet: No \| Port: G1/8
CD55YF80-60DCZ		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 60 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YF80-80DCZ		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/8
CD55YF80-80DCZ		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YF80-100DCZ		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/8
CD55YF80-100DCZ		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YF80-125DCZ		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/8
CD55YF80-125DCZ		Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YG80-10DCZ		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 10 mm \| Auto switch magnet: No \| Port: G1/8
CD55YG80-10DCZ		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 10 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YG80-15DCZ		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 15 mm \| Auto switch magnet: No \| Port: G1/8
CD55YG80-15DCZ		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 15 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YG80-20DCZ		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 20 mm \| Auto switch magnet: No \| Port: G1/8
CD55YG80-20DCZ		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 20 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YG80-25DCZ		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/8
CD55YG80-25DCZ		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YG80-30DCZ		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 30 mm \| Auto switch magnet: No \| Port: G1/8
CD55YG80-30DCZ		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 30 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YG80-35DCZ		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 35 mm \| Auto switch magnet: No \| Port: G1/8
CD55YG80-35DCZ		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 35 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YG80-40DCZ		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 40 mm \| Auto switch magnet: No \| Port: G1/8
CD55YG80-40DCZ		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 40 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YG80-45DCZ		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 45 mm \| Auto switch magnet: No \| Port: G1/8
CD55YG80-45DCZ		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 45 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YG80-50DCZ		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/8
CD55YG80-50DCZ		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YG80-60DCZ		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 60 mm \| Auto switch magnet: No \| Port: G1/8
CD55YG80-60DCZ		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 60 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YG80-80DCZ		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/8
CD55YG80-80DCZ		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YG80-100DCZ		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/8
CD55YG80-100DCZ		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YG80-125DCZ		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/8
CD55YG80-125DCZ		Bore: ø80 mm \| Mounting: Head flange \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YC80-10DCZ		Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 10 mm \| Auto switch magnet: No \| Port: G1/8
CD55YC80-10DCZ		Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 10 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YC80-15DCZ		Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 15 mm \| Auto switch magnet: No \| Port: G1/8
CD55YC80-15DCZ		Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 15 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YC80-20DCZ		Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 20 mm \| Auto switch magnet: No \| Port: G1/8
CD55YC80-20DCZ		Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 20 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YC80-25DCZ		Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/8
CD55YC80-25DCZ		Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YC80-30DCZ		Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 30 mm \| Auto switch magnet: No \| Port: G1/8
CD55YC80-30DCZ		Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 30 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YC80-35DCZ		Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 35 mm \| Auto switch magnet: No \| Port: G1/8
CD55YC80-35DCZ		Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 35 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YC80-40DCZ		Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 40 mm \| Auto switch magnet: No \| Port: G1/8
CD55YC80-40DCZ		Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 40 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YC80-45DCZ		Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 45 mm \| Auto switch magnet: No \| Port: G1/8
CD55YC80-45DCZ		Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 45 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YC80-50DCZ		Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/8
CD55YC80-50DCZ		Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YC80-60DCZ		Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 60 mm \| Auto switch magnet: No \| Port: G1/8
CD55YC80-60DCZ		Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 60 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YC80-80DCZ		Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/8
CD55YC80-80DCZ		Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YC80-100DCZ		Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/8
CD55YC80-100DCZ		Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YC80-125DCZ		Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/8
CD55YC80-125DCZ		Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YB100-10DCZ		Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 10 mm \| Auto switch magnet: No \| Port: G1/8
CD55YB100-10DCZ		Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 10 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YB100-15DCZ		Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 15 mm \| Auto switch magnet: No \| Port: G1/8
CD55YB100-15DCZ		Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 15 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YB100-20DCZ		Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 20 mm \| Auto switch magnet: No \| Port: G1/8
CD55YB100-20DCZ		Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 20 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YB100-25DCZ		Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/8
CD55YB100-25DCZ		Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YB100-30DCZ		Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 30 mm \| Auto switch magnet: No \| Port: G1/8
CD55YB100-30DCZ		Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 30 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YB100-35DCZ		Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 35 mm \| Auto switch magnet: No \| Port: G1/8
CD55YB100-35DCZ		Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 35 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YB100-40DCZ		Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 40 mm \| Auto switch magnet: No \| Port: G1/8
CD55YB100-40DCZ		Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 40 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YB100-45DCZ		Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 45 mm \| Auto switch magnet: No \| Port: G1/8
CD55YB100-45DCZ		Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 45 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YB100-50DCZ		Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/8
CD55YB100-50DCZ		Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YB100-60DCZ		Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 60 mm \| Auto switch magnet: No \| Port: G1/8
CD55YB100-60DCZ		Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 60 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YB100-80DCZ		Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/8
CD55YB100-80DCZ		Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YB100-100DCZ		Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/8
CD55YB100-100DCZ		Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YB100-125DCZ		Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/8
CD55YB100-125DCZ		Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YL100-10DCZ		Bore: ø100 mm \| Mounting: Foot \| Stroke: 10 mm \| Auto switch magnet: No \| Port: G1/8
CD55YL100-10DCZ		Bore: ø100 mm \| Mounting: Foot \| Stroke: 10 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YL100-15DCZ		Bore: ø100 mm \| Mounting: Foot \| Stroke: 15 mm \| Auto switch magnet: No \| Port: G1/8
CD55YL100-15DCZ		Bore: ø100 mm \| Mounting: Foot \| Stroke: 15 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YL100-20DCZ		Bore: ø100 mm \| Mounting: Foot \| Stroke: 20 mm \| Auto switch magnet: No \| Port: G1/8
CD55YL100-20DCZ		Bore: ø100 mm \| Mounting: Foot \| Stroke: 20 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YL100-25DCZ		Bore: ø100 mm \| Mounting: Foot \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/8
CD55YL100-25DCZ		Bore: ø100 mm \| Mounting: Foot \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YL100-30DCZ		Bore: ø100 mm \| Mounting: Foot \| Stroke: 30 mm \| Auto switch magnet: No \| Port: G1/8
CD55YL100-30DCZ		Bore: ø100 mm \| Mounting: Foot \| Stroke: 30 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YL100-35DCZ		Bore: ø100 mm \| Mounting: Foot \| Stroke: 35 mm \| Auto switch magnet: No \| Port: G1/8
CD55YL100-35DCZ		Bore: ø100 mm \| Mounting: Foot \| Stroke: 35 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YL100-40DCZ		Bore: ø100 mm \| Mounting: Foot \| Stroke: 40 mm \| Auto switch magnet: No \| Port: G1/8
CD55YL100-40DCZ		Bore: ø100 mm \| Mounting: Foot \| Stroke: 40 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YL100-45DCZ		Bore: ø100 mm \| Mounting: Foot \| Stroke: 45 mm \| Auto switch magnet: No \| Port: G1/8
CD55YL100-45DCZ		Bore: ø100 mm \| Mounting: Foot \| Stroke: 45 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YL100-50DCZ		Bore: ø100 mm \| Mounting: Foot \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/8
CD55YL100-50DCZ		Bore: ø100 mm \| Mounting: Foot \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YL100-60DCZ		Bore: ø100 mm \| Mounting: Foot \| Stroke: 60 mm \| Auto switch magnet: No \| Port: G1/8
CD55YL100-60DCZ		Bore: ø100 mm \| Mounting: Foot \| Stroke: 60 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YL100-80DCZ		Bore: ø100 mm \| Mounting: Foot \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/8
CD55YL100-80DCZ		Bore: ø100 mm \| Mounting: Foot \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YL100-100DCZ		Bore: ø100 mm \| Mounting: Foot \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/8
CD55YL100-100DCZ		Bore: ø100 mm \| Mounting: Foot \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YL100-125DCZ		Bore: ø100 mm \| Mounting: Foot \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/8
CD55YL100-125DCZ		Bore: ø100 mm \| Mounting: Foot \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YF100-10DCZ		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 10 mm \| Auto switch magnet: No \| Port: G1/8
CD55YF100-10DCZ		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 10 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YF100-15DCZ		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 15 mm \| Auto switch magnet: No \| Port: G1/8
CD55YF100-15DCZ		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 15 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YF100-20DCZ		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Auto switch magnet: No \| Port: G1/8
CD55YF100-20DCZ		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YF100-25DCZ		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/8
CD55YF100-25DCZ		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YF100-30DCZ		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Auto switch magnet: No \| Port: G1/8
CD55YF100-30DCZ		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YF100-35DCZ		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 35 mm \| Auto switch magnet: No \| Port: G1/8
CD55YF100-35DCZ		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 35 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YF100-40DCZ		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Auto switch magnet: No \| Port: G1/8
CD55YF100-40DCZ		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YF100-45DCZ		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 45 mm \| Auto switch magnet: No \| Port: G1/8
CD55YF100-45DCZ		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 45 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YF100-50DCZ		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/8
CD55YF100-50DCZ		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YF100-60DCZ		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 60 mm \| Auto switch magnet: No \| Port: G1/8
CD55YF100-60DCZ		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 60 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YF100-80DCZ		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/8
CD55YF100-80DCZ		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YF100-100DCZ		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/8
CD55YF100-100DCZ		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YF100-125DCZ		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/8
CD55YF100-125DCZ		Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YG100-10DCZ		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 10 mm \| Auto switch magnet: No \| Port: G1/8
CD55YG100-10DCZ		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 10 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YG100-15DCZ		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 15 mm \| Auto switch magnet: No \| Port: G1/8
CD55YG100-15DCZ		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 15 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YG100-20DCZ		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 20 mm \| Auto switch magnet: No \| Port: G1/8
CD55YG100-20DCZ		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 20 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YG100-25DCZ		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/8
CD55YG100-25DCZ		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YG100-30DCZ		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 30 mm \| Auto switch magnet: No \| Port: G1/8
CD55YG100-30DCZ		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 30 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YG100-35DCZ		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 35 mm \| Auto switch magnet: No \| Port: G1/8
CD55YG100-35DCZ		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 35 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YG100-40DCZ		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 40 mm \| Auto switch magnet: No \| Port: G1/8
CD55YG100-40DCZ		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 40 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YG100-45DCZ		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 45 mm \| Auto switch magnet: No \| Port: G1/8
CD55YG100-45DCZ		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 45 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YG100-50DCZ		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/8
CD55YG100-50DCZ		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YG100-60DCZ		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 60 mm \| Auto switch magnet: No \| Port: G1/8
CD55YG100-60DCZ		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 60 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YG100-80DCZ		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/8
CD55YG100-80DCZ		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YG100-100DCZ		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/8
CD55YG100-100DCZ		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YG100-125DCZ		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/8
CD55YG100-125DCZ		Bore: ø100 mm \| Mounting: Head flange \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YC100-10DCZ		Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 10 mm \| Auto switch magnet: No \| Port: G1/8
CD55YC100-10DCZ		Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 10 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YC100-15DCZ		Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 15 mm \| Auto switch magnet: No \| Port: G1/8
CD55YC100-15DCZ		Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 15 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YC100-20DCZ		Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 20 mm \| Auto switch magnet: No \| Port: G1/8
CD55YC100-20DCZ		Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 20 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YC100-25DCZ		Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/8
CD55YC100-25DCZ		Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YC100-30DCZ		Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 30 mm \| Auto switch magnet: No \| Port: G1/8
CD55YC100-30DCZ		Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 30 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YC100-35DCZ		Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 35 mm \| Auto switch magnet: No \| Port: G1/8
CD55YC100-35DCZ		Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 35 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YC100-40DCZ		Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 40 mm \| Auto switch magnet: No \| Port: G1/8
CD55YC100-40DCZ		Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 40 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YC100-45DCZ		Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 45 mm \| Auto switch magnet: No \| Port: G1/8
CD55YC100-45DCZ		Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 45 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YC100-50DCZ		Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/8
CD55YC100-50DCZ		Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YC100-60DCZ		Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 60 mm \| Auto switch magnet: No \| Port: G1/8
CD55YC100-60DCZ		Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 60 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YC100-80DCZ		Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/8
CD55YC100-80DCZ		Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YC100-100DCZ		Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/8
CD55YC100-100DCZ		Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/8
C55YC100-125DCZ		Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/8
CD55YC100-125DCZ		Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/8

Compact CylindersSMC

1160 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC C55Y Low Speed / Low Friction Compact Cylinder (ø20 to ø100)

Brand SMC·Compact Cylinders

Available part numbers (1160)

C55YB20-5DCZ, CD55YB20-5DCZ, C55YB20-10DCZ, CD55YB20-10DCZ, C55YB20-15DCZ, CD55YB20-15DCZ, C55YB20-20DCZ, CD55YB20-20DCZ, C55YB20-25DCZ, CD55YB20-25DCZ + 1150 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	C55YB20-5DCZ	Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 5 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YB20-5DCZ	Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 5 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YB20-10DCZ	Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 10 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YB20-10DCZ	Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 10 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YB20-15DCZ	Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 15 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YB20-15DCZ	Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 15 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YB20-20DCZ	Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 20 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YB20-20DCZ	Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 20 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YB20-25DCZ	Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 25 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YB20-25DCZ	Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YB20-30DCZ	Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 30 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YB20-30DCZ	Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 30 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YB20-35DCZ	Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 35 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YB20-35DCZ	Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 35 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YB20-40DCZ	Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 40 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YB20-40DCZ	Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 40 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YB20-45DCZ	Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 45 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YB20-45DCZ	Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 45 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YB20-50DCZ	Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 50 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YB20-50DCZ	Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YB20-60DCZ	Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 60 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YB20-60DCZ	Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 60 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YB20-80DCZ	Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 80 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YB20-80DCZ	Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YB20-100DCZ	Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 100 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YB20-100DCZ	Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YB20-125DCZ	Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 125 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YB20-125DCZ	Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YB20-150DCZ	Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 150 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YB20-150DCZ	Bore: ø20 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YL20-5DCZ	Bore: ø20 mm \| Mounting: Foot \| Stroke: 5 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YL20-5DCZ	Bore: ø20 mm \| Mounting: Foot \| Stroke: 5 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YL20-10DCZ	Bore: ø20 mm \| Mounting: Foot \| Stroke: 10 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YL20-10DCZ	Bore: ø20 mm \| Mounting: Foot \| Stroke: 10 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YL20-15DCZ	Bore: ø20 mm \| Mounting: Foot \| Stroke: 15 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YL20-15DCZ	Bore: ø20 mm \| Mounting: Foot \| Stroke: 15 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YL20-20DCZ	Bore: ø20 mm \| Mounting: Foot \| Stroke: 20 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YL20-20DCZ	Bore: ø20 mm \| Mounting: Foot \| Stroke: 20 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YL20-25DCZ	Bore: ø20 mm \| Mounting: Foot \| Stroke: 25 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YL20-25DCZ	Bore: ø20 mm \| Mounting: Foot \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YL20-30DCZ	Bore: ø20 mm \| Mounting: Foot \| Stroke: 30 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YL20-30DCZ	Bore: ø20 mm \| Mounting: Foot \| Stroke: 30 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YL20-35DCZ	Bore: ø20 mm \| Mounting: Foot \| Stroke: 35 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YL20-35DCZ	Bore: ø20 mm \| Mounting: Foot \| Stroke: 35 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YL20-40DCZ	Bore: ø20 mm \| Mounting: Foot \| Stroke: 40 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YL20-40DCZ	Bore: ø20 mm \| Mounting: Foot \| Stroke: 40 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YL20-45DCZ	Bore: ø20 mm \| Mounting: Foot \| Stroke: 45 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YL20-45DCZ	Bore: ø20 mm \| Mounting: Foot \| Stroke: 45 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YL20-50DCZ	Bore: ø20 mm \| Mounting: Foot \| Stroke: 50 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YL20-50DCZ	Bore: ø20 mm \| Mounting: Foot \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YL20-60DCZ	Bore: ø20 mm \| Mounting: Foot \| Stroke: 60 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YL20-60DCZ	Bore: ø20 mm \| Mounting: Foot \| Stroke: 60 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YL20-80DCZ	Bore: ø20 mm \| Mounting: Foot \| Stroke: 80 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YL20-80DCZ	Bore: ø20 mm \| Mounting: Foot \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YL20-100DCZ	Bore: ø20 mm \| Mounting: Foot \| Stroke: 100 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YL20-100DCZ	Bore: ø20 mm \| Mounting: Foot \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YL20-125DCZ	Bore: ø20 mm \| Mounting: Foot \| Stroke: 125 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YL20-125DCZ	Bore: ø20 mm \| Mounting: Foot \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YL20-150DCZ	Bore: ø20 mm \| Mounting: Foot \| Stroke: 150 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YL20-150DCZ	Bore: ø20 mm \| Mounting: Foot \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YF20-5DCZ	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 5 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YF20-5DCZ	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 5 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YF20-10DCZ	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 10 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YF20-10DCZ	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 10 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YF20-15DCZ	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 15 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YF20-15DCZ	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 15 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YF20-20DCZ	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YF20-20DCZ	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YF20-25DCZ	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YF20-25DCZ	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YF20-30DCZ	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YF20-30DCZ	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YF20-35DCZ	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 35 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YF20-35DCZ	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 35 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YF20-40DCZ	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YF20-40DCZ	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YF20-45DCZ	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 45 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YF20-45DCZ	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 45 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YF20-50DCZ	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YF20-50DCZ	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YF20-60DCZ	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 60 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YF20-60DCZ	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 60 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YF20-80DCZ	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 80 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YF20-80DCZ	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YF20-100DCZ	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YF20-100DCZ	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YF20-125DCZ	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YF20-125DCZ	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YF20-150DCZ	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YF20-150DCZ	Bore: ø20 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YG20-5DCZ	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 5 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YG20-5DCZ	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 5 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YG20-10DCZ	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 10 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YG20-10DCZ	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 10 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YG20-15DCZ	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 15 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YG20-15DCZ	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 15 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YG20-20DCZ	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 20 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YG20-20DCZ	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 20 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YG20-25DCZ	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 25 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YG20-25DCZ	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YG20-30DCZ	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 30 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YG20-30DCZ	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 30 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YG20-35DCZ	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 35 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YG20-35DCZ	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 35 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YG20-40DCZ	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 40 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YG20-40DCZ	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 40 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YG20-45DCZ	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 45 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YG20-45DCZ	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 45 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YG20-50DCZ	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 50 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YG20-50DCZ	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YG20-60DCZ	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 60 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YG20-60DCZ	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 60 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YG20-80DCZ	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 80 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YG20-80DCZ	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YG20-100DCZ	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 100 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YG20-100DCZ	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YG20-125DCZ	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 125 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YG20-125DCZ	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YG20-150DCZ	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 150 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YG20-150DCZ	Bore: ø20 mm \| Mounting: Head flange \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YC20-5DCZ	Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 5 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YC20-5DCZ	Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 5 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YC20-10DCZ	Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 10 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YC20-10DCZ	Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 10 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YC20-15DCZ	Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 15 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YC20-15DCZ	Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 15 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YC20-20DCZ	Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 20 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YC20-20DCZ	Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 20 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YC20-25DCZ	Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 25 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YC20-25DCZ	Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YC20-30DCZ	Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 30 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YC20-30DCZ	Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 30 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YC20-35DCZ	Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 35 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YC20-35DCZ	Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 35 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YC20-40DCZ	Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 40 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YC20-40DCZ	Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 40 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YC20-45DCZ	Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 45 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YC20-45DCZ	Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 45 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YC20-50DCZ	Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 50 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YC20-50DCZ	Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YC20-60DCZ	Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 60 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YC20-60DCZ	Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 60 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YC20-80DCZ	Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 80 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YC20-80DCZ	Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YC20-100DCZ	Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 100 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YC20-100DCZ	Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YC20-125DCZ	Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 125 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YC20-125DCZ	Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YC20-150DCZ	Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 150 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YC20-150DCZ	Bore: ø20 mm \| Mounting: Single clevis \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YB25-5DCZ	Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 5 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YB25-5DCZ	Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 5 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YB25-10DCZ	Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 10 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YB25-10DCZ	Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 10 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YB25-15DCZ	Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 15 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YB25-15DCZ	Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 15 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YB25-20DCZ	Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 20 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YB25-20DCZ	Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 20 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YB25-25DCZ	Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 25 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YB25-25DCZ	Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YB25-30DCZ	Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 30 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YB25-30DCZ	Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 30 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YB25-35DCZ	Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 35 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YB25-35DCZ	Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 35 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YB25-40DCZ	Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 40 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YB25-40DCZ	Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 40 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YB25-45DCZ	Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 45 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YB25-45DCZ	Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 45 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YB25-50DCZ	Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 50 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YB25-50DCZ	Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YB25-60DCZ	Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 60 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YB25-60DCZ	Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 60 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YB25-80DCZ	Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 80 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YB25-80DCZ	Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YB25-100DCZ	Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 100 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YB25-100DCZ	Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YB25-125DCZ	Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 125 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YB25-125DCZ	Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YB25-150DCZ	Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 150 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YB25-150DCZ	Bore: ø25 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YL25-5DCZ	Bore: ø25 mm \| Mounting: Foot \| Stroke: 5 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YL25-5DCZ	Bore: ø25 mm \| Mounting: Foot \| Stroke: 5 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YL25-10DCZ	Bore: ø25 mm \| Mounting: Foot \| Stroke: 10 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YL25-10DCZ	Bore: ø25 mm \| Mounting: Foot \| Stroke: 10 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YL25-15DCZ	Bore: ø25 mm \| Mounting: Foot \| Stroke: 15 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YL25-15DCZ	Bore: ø25 mm \| Mounting: Foot \| Stroke: 15 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YL25-20DCZ	Bore: ø25 mm \| Mounting: Foot \| Stroke: 20 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YL25-20DCZ	Bore: ø25 mm \| Mounting: Foot \| Stroke: 20 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YL25-25DCZ	Bore: ø25 mm \| Mounting: Foot \| Stroke: 25 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YL25-25DCZ	Bore: ø25 mm \| Mounting: Foot \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YL25-30DCZ	Bore: ø25 mm \| Mounting: Foot \| Stroke: 30 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YL25-30DCZ	Bore: ø25 mm \| Mounting: Foot \| Stroke: 30 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YL25-35DCZ	Bore: ø25 mm \| Mounting: Foot \| Stroke: 35 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YL25-35DCZ	Bore: ø25 mm \| Mounting: Foot \| Stroke: 35 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YL25-40DCZ	Bore: ø25 mm \| Mounting: Foot \| Stroke: 40 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YL25-40DCZ	Bore: ø25 mm \| Mounting: Foot \| Stroke: 40 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YL25-45DCZ	Bore: ø25 mm \| Mounting: Foot \| Stroke: 45 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YL25-45DCZ	Bore: ø25 mm \| Mounting: Foot \| Stroke: 45 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YL25-50DCZ	Bore: ø25 mm \| Mounting: Foot \| Stroke: 50 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YL25-50DCZ	Bore: ø25 mm \| Mounting: Foot \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YL25-60DCZ	Bore: ø25 mm \| Mounting: Foot \| Stroke: 60 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YL25-60DCZ	Bore: ø25 mm \| Mounting: Foot \| Stroke: 60 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YL25-80DCZ	Bore: ø25 mm \| Mounting: Foot \| Stroke: 80 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YL25-80DCZ	Bore: ø25 mm \| Mounting: Foot \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YL25-100DCZ	Bore: ø25 mm \| Mounting: Foot \| Stroke: 100 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YL25-100DCZ	Bore: ø25 mm \| Mounting: Foot \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YL25-125DCZ	Bore: ø25 mm \| Mounting: Foot \| Stroke: 125 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YL25-125DCZ	Bore: ø25 mm \| Mounting: Foot \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YL25-150DCZ	Bore: ø25 mm \| Mounting: Foot \| Stroke: 150 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YL25-150DCZ	Bore: ø25 mm \| Mounting: Foot \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YF25-5DCZ	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 5 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YF25-5DCZ	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 5 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YF25-10DCZ	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 10 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YF25-10DCZ	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 10 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YF25-15DCZ	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 15 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YF25-15DCZ	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 15 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YF25-20DCZ	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YF25-20DCZ	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YF25-25DCZ	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YF25-25DCZ	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YF25-30DCZ	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YF25-30DCZ	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YF25-35DCZ	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 35 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YF25-35DCZ	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 35 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YF25-40DCZ	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YF25-40DCZ	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YF25-45DCZ	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 45 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YF25-45DCZ	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 45 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YF25-50DCZ	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YF25-50DCZ	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YF25-60DCZ	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 60 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YF25-60DCZ	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 60 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YF25-80DCZ	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 80 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YF25-80DCZ	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YF25-100DCZ	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YF25-100DCZ	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YF25-125DCZ	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YF25-125DCZ	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YF25-150DCZ	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YF25-150DCZ	Bore: ø25 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YG25-5DCZ	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 5 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YG25-5DCZ	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 5 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YG25-10DCZ	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 10 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YG25-10DCZ	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 10 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YG25-15DCZ	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 15 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YG25-15DCZ	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 15 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YG25-20DCZ	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 20 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YG25-20DCZ	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 20 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YG25-25DCZ	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 25 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YG25-25DCZ	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YG25-30DCZ	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 30 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YG25-30DCZ	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 30 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YG25-35DCZ	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 35 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YG25-35DCZ	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 35 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YG25-40DCZ	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 40 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YG25-40DCZ	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 40 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YG25-45DCZ	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 45 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YG25-45DCZ	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 45 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YG25-50DCZ	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 50 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YG25-50DCZ	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YG25-60DCZ	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 60 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YG25-60DCZ	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 60 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YG25-80DCZ	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 80 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YG25-80DCZ	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YG25-100DCZ	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 100 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YG25-100DCZ	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YG25-125DCZ	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 125 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YG25-125DCZ	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YG25-150DCZ	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 150 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YG25-150DCZ	Bore: ø25 mm \| Mounting: Head flange \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YC25-5DCZ	Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 5 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YC25-5DCZ	Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 5 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YC25-10DCZ	Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 10 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YC25-10DCZ	Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 10 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YC25-15DCZ	Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 15 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YC25-15DCZ	Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 15 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YC25-20DCZ	Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 20 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YC25-20DCZ	Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 20 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YC25-25DCZ	Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 25 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YC25-25DCZ	Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YC25-30DCZ	Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 30 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YC25-30DCZ	Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 30 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YC25-35DCZ	Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 35 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YC25-35DCZ	Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 35 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YC25-40DCZ	Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 40 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YC25-40DCZ	Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 40 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YC25-45DCZ	Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 45 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YC25-45DCZ	Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 45 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YC25-50DCZ	Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 50 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YC25-50DCZ	Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YC25-60DCZ	Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 60 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YC25-60DCZ	Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 60 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YC25-80DCZ	Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 80 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YC25-80DCZ	Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YC25-100DCZ	Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 100 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YC25-100DCZ	Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YC25-125DCZ	Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 125 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YC25-125DCZ	Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YC25-150DCZ	Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 150 mm \| Auto switch magnet: No \| Port: M5x0.8
	CD55YC25-150DCZ	Bore: ø25 mm \| Mounting: Single clevis \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	C55YB32-5DCZ	Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 5 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YB32-5DCZ	Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 5 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YB32-10DCZ	Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 10 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YB32-10DCZ	Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 10 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YB32-15DCZ	Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 15 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YB32-15DCZ	Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 15 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YB32-20DCZ	Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 20 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YB32-20DCZ	Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 20 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YB32-25DCZ	Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YB32-25DCZ	Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YB32-30DCZ	Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 30 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YB32-30DCZ	Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 30 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YB32-35DCZ	Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 35 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YB32-35DCZ	Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 35 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YB32-40DCZ	Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 40 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YB32-40DCZ	Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 40 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YB32-45DCZ	Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 45 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YB32-45DCZ	Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 45 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YB32-50DCZ	Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YB32-50DCZ	Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YB32-60DCZ	Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 60 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YB32-60DCZ	Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 60 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YB32-80DCZ	Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YB32-80DCZ	Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YB32-100DCZ	Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YB32-100DCZ	Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YB32-125DCZ	Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YB32-125DCZ	Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YB32-150DCZ	Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 150 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YB32-150DCZ	Bore: ø32 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YL32-5DCZ	Bore: ø32 mm \| Mounting: Foot \| Stroke: 5 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YL32-5DCZ	Bore: ø32 mm \| Mounting: Foot \| Stroke: 5 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YL32-10DCZ	Bore: ø32 mm \| Mounting: Foot \| Stroke: 10 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YL32-10DCZ	Bore: ø32 mm \| Mounting: Foot \| Stroke: 10 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YL32-15DCZ	Bore: ø32 mm \| Mounting: Foot \| Stroke: 15 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YL32-15DCZ	Bore: ø32 mm \| Mounting: Foot \| Stroke: 15 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YL32-20DCZ	Bore: ø32 mm \| Mounting: Foot \| Stroke: 20 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YL32-20DCZ	Bore: ø32 mm \| Mounting: Foot \| Stroke: 20 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YL32-25DCZ	Bore: ø32 mm \| Mounting: Foot \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YL32-25DCZ	Bore: ø32 mm \| Mounting: Foot \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YL32-30DCZ	Bore: ø32 mm \| Mounting: Foot \| Stroke: 30 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YL32-30DCZ	Bore: ø32 mm \| Mounting: Foot \| Stroke: 30 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YL32-35DCZ	Bore: ø32 mm \| Mounting: Foot \| Stroke: 35 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YL32-35DCZ	Bore: ø32 mm \| Mounting: Foot \| Stroke: 35 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YL32-40DCZ	Bore: ø32 mm \| Mounting: Foot \| Stroke: 40 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YL32-40DCZ	Bore: ø32 mm \| Mounting: Foot \| Stroke: 40 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YL32-45DCZ	Bore: ø32 mm \| Mounting: Foot \| Stroke: 45 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YL32-45DCZ	Bore: ø32 mm \| Mounting: Foot \| Stroke: 45 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YL32-50DCZ	Bore: ø32 mm \| Mounting: Foot \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YL32-50DCZ	Bore: ø32 mm \| Mounting: Foot \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YL32-60DCZ	Bore: ø32 mm \| Mounting: Foot \| Stroke: 60 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YL32-60DCZ	Bore: ø32 mm \| Mounting: Foot \| Stroke: 60 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YL32-80DCZ	Bore: ø32 mm \| Mounting: Foot \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YL32-80DCZ	Bore: ø32 mm \| Mounting: Foot \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YL32-100DCZ	Bore: ø32 mm \| Mounting: Foot \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YL32-100DCZ	Bore: ø32 mm \| Mounting: Foot \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YL32-125DCZ	Bore: ø32 mm \| Mounting: Foot \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YL32-125DCZ	Bore: ø32 mm \| Mounting: Foot \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YL32-150DCZ	Bore: ø32 mm \| Mounting: Foot \| Stroke: 150 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YL32-150DCZ	Bore: ø32 mm \| Mounting: Foot \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YF32-5DCZ	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 5 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YF32-5DCZ	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 5 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YF32-10DCZ	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 10 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YF32-10DCZ	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 10 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YF32-15DCZ	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 15 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YF32-15DCZ	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 15 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YF32-20DCZ	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YF32-20DCZ	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YF32-25DCZ	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YF32-25DCZ	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YF32-30DCZ	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YF32-30DCZ	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YF32-35DCZ	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 35 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YF32-35DCZ	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 35 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YF32-40DCZ	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YF32-40DCZ	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YF32-45DCZ	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 45 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YF32-45DCZ	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 45 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YF32-50DCZ	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YF32-50DCZ	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YF32-60DCZ	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 60 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YF32-60DCZ	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 60 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YF32-80DCZ	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YF32-80DCZ	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YF32-100DCZ	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YF32-100DCZ	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YF32-125DCZ	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YF32-125DCZ	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YF32-150DCZ	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YF32-150DCZ	Bore: ø32 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YG32-5DCZ	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 5 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YG32-5DCZ	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 5 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YG32-10DCZ	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 10 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YG32-10DCZ	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 10 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YG32-15DCZ	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 15 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YG32-15DCZ	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 15 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YG32-20DCZ	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 20 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YG32-20DCZ	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 20 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YG32-25DCZ	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YG32-25DCZ	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YG32-30DCZ	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 30 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YG32-30DCZ	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 30 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YG32-35DCZ	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 35 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YG32-35DCZ	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 35 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YG32-40DCZ	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 40 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YG32-40DCZ	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 40 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YG32-45DCZ	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 45 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YG32-45DCZ	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 45 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YG32-50DCZ	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YG32-50DCZ	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YG32-60DCZ	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 60 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YG32-60DCZ	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 60 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YG32-80DCZ	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YG32-80DCZ	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YG32-100DCZ	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YG32-100DCZ	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YG32-125DCZ	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YG32-125DCZ	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YG32-150DCZ	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 150 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YG32-150DCZ	Bore: ø32 mm \| Mounting: Head flange \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YC32-5DCZ	Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 5 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YC32-5DCZ	Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 5 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YC32-10DCZ	Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 10 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YC32-10DCZ	Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 10 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YC32-15DCZ	Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 15 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YC32-15DCZ	Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 15 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YC32-20DCZ	Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 20 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YC32-20DCZ	Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 20 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YC32-25DCZ	Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YC32-25DCZ	Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YC32-30DCZ	Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 30 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YC32-30DCZ	Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 30 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YC32-35DCZ	Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 35 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YC32-35DCZ	Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 35 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YC32-40DCZ	Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 40 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YC32-40DCZ	Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 40 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YC32-45DCZ	Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 45 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YC32-45DCZ	Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 45 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YC32-50DCZ	Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YC32-50DCZ	Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YC32-60DCZ	Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 60 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YC32-60DCZ	Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 60 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YC32-80DCZ	Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YC32-80DCZ	Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YC32-100DCZ	Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YC32-100DCZ	Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YC32-125DCZ	Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YC32-125DCZ	Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YC32-150DCZ	Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 150 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YC32-150DCZ	Bore: ø32 mm \| Mounting: Single clevis \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YB40-5DCZ	Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 5 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YB40-5DCZ	Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 5 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YB40-10DCZ	Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 10 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YB40-10DCZ	Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 10 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YB40-15DCZ	Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 15 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YB40-15DCZ	Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 15 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YB40-20DCZ	Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 20 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YB40-20DCZ	Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 20 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YB40-25DCZ	Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YB40-25DCZ	Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YB40-30DCZ	Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 30 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YB40-30DCZ	Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 30 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YB40-35DCZ	Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 35 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YB40-35DCZ	Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 35 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YB40-40DCZ	Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 40 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YB40-40DCZ	Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 40 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YB40-45DCZ	Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 45 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YB40-45DCZ	Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 45 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YB40-50DCZ	Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YB40-50DCZ	Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YB40-60DCZ	Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 60 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YB40-60DCZ	Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 60 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YB40-80DCZ	Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YB40-80DCZ	Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YB40-100DCZ	Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YB40-100DCZ	Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YB40-125DCZ	Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YB40-125DCZ	Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YB40-150DCZ	Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 150 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YB40-150DCZ	Bore: ø40 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YL40-5DCZ	Bore: ø40 mm \| Mounting: Foot \| Stroke: 5 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YL40-5DCZ	Bore: ø40 mm \| Mounting: Foot \| Stroke: 5 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YL40-10DCZ	Bore: ø40 mm \| Mounting: Foot \| Stroke: 10 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YL40-10DCZ	Bore: ø40 mm \| Mounting: Foot \| Stroke: 10 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YL40-15DCZ	Bore: ø40 mm \| Mounting: Foot \| Stroke: 15 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YL40-15DCZ	Bore: ø40 mm \| Mounting: Foot \| Stroke: 15 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YL40-20DCZ	Bore: ø40 mm \| Mounting: Foot \| Stroke: 20 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YL40-20DCZ	Bore: ø40 mm \| Mounting: Foot \| Stroke: 20 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YL40-25DCZ	Bore: ø40 mm \| Mounting: Foot \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YL40-25DCZ	Bore: ø40 mm \| Mounting: Foot \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YL40-30DCZ	Bore: ø40 mm \| Mounting: Foot \| Stroke: 30 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YL40-30DCZ	Bore: ø40 mm \| Mounting: Foot \| Stroke: 30 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YL40-35DCZ	Bore: ø40 mm \| Mounting: Foot \| Stroke: 35 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YL40-35DCZ	Bore: ø40 mm \| Mounting: Foot \| Stroke: 35 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YL40-40DCZ	Bore: ø40 mm \| Mounting: Foot \| Stroke: 40 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YL40-40DCZ	Bore: ø40 mm \| Mounting: Foot \| Stroke: 40 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YL40-45DCZ	Bore: ø40 mm \| Mounting: Foot \| Stroke: 45 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YL40-45DCZ	Bore: ø40 mm \| Mounting: Foot \| Stroke: 45 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YL40-50DCZ	Bore: ø40 mm \| Mounting: Foot \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YL40-50DCZ	Bore: ø40 mm \| Mounting: Foot \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YL40-60DCZ	Bore: ø40 mm \| Mounting: Foot \| Stroke: 60 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YL40-60DCZ	Bore: ø40 mm \| Mounting: Foot \| Stroke: 60 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YL40-80DCZ	Bore: ø40 mm \| Mounting: Foot \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YL40-80DCZ	Bore: ø40 mm \| Mounting: Foot \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YL40-100DCZ	Bore: ø40 mm \| Mounting: Foot \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YL40-100DCZ	Bore: ø40 mm \| Mounting: Foot \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YL40-125DCZ	Bore: ø40 mm \| Mounting: Foot \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YL40-125DCZ	Bore: ø40 mm \| Mounting: Foot \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YL40-150DCZ	Bore: ø40 mm \| Mounting: Foot \| Stroke: 150 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YL40-150DCZ	Bore: ø40 mm \| Mounting: Foot \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YF40-5DCZ	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 5 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YF40-5DCZ	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 5 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YF40-10DCZ	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 10 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YF40-10DCZ	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 10 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YF40-15DCZ	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 15 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YF40-15DCZ	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 15 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YF40-20DCZ	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YF40-20DCZ	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YF40-25DCZ	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YF40-25DCZ	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YF40-30DCZ	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YF40-30DCZ	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YF40-35DCZ	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 35 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YF40-35DCZ	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 35 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YF40-40DCZ	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YF40-40DCZ	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YF40-45DCZ	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 45 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YF40-45DCZ	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 45 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YF40-50DCZ	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YF40-50DCZ	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YF40-60DCZ	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 60 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YF40-60DCZ	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 60 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YF40-80DCZ	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YF40-80DCZ	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YF40-100DCZ	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YF40-100DCZ	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YF40-125DCZ	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YF40-125DCZ	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YF40-150DCZ	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YF40-150DCZ	Bore: ø40 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YG40-5DCZ	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 5 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YG40-5DCZ	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 5 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YG40-10DCZ	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 10 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YG40-10DCZ	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 10 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YG40-15DCZ	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 15 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YG40-15DCZ	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 15 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YG40-20DCZ	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 20 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YG40-20DCZ	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 20 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YG40-25DCZ	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YG40-25DCZ	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YG40-30DCZ	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 30 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YG40-30DCZ	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 30 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YG40-35DCZ	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 35 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YG40-35DCZ	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 35 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YG40-40DCZ	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 40 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YG40-40DCZ	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 40 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YG40-45DCZ	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 45 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YG40-45DCZ	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 45 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YG40-50DCZ	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YG40-50DCZ	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YG40-60DCZ	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 60 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YG40-60DCZ	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 60 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YG40-80DCZ	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YG40-80DCZ	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YG40-100DCZ	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YG40-100DCZ	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YG40-125DCZ	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YG40-125DCZ	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YG40-150DCZ	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 150 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YG40-150DCZ	Bore: ø40 mm \| Mounting: Head flange \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YC40-5DCZ	Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 5 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YC40-5DCZ	Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 5 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YC40-10DCZ	Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 10 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YC40-10DCZ	Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 10 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YC40-15DCZ	Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 15 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YC40-15DCZ	Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 15 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YC40-20DCZ	Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 20 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YC40-20DCZ	Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 20 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YC40-25DCZ	Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YC40-25DCZ	Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YC40-30DCZ	Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 30 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YC40-30DCZ	Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 30 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YC40-35DCZ	Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 35 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YC40-35DCZ	Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 35 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YC40-40DCZ	Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 40 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YC40-40DCZ	Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 40 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YC40-45DCZ	Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 45 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YC40-45DCZ	Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 45 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YC40-50DCZ	Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YC40-50DCZ	Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YC40-60DCZ	Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 60 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YC40-60DCZ	Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 60 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YC40-80DCZ	Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YC40-80DCZ	Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YC40-100DCZ	Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YC40-100DCZ	Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YC40-125DCZ	Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YC40-125DCZ	Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YC40-150DCZ	Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 150 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YC40-150DCZ	Bore: ø40 mm \| Mounting: Single clevis \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YB50-5DCZ	Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 5 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YB50-5DCZ	Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 5 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YB50-10DCZ	Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 10 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YB50-10DCZ	Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 10 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YB50-15DCZ	Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 15 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YB50-15DCZ	Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 15 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YB50-20DCZ	Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 20 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YB50-20DCZ	Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 20 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YB50-25DCZ	Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YB50-25DCZ	Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YB50-30DCZ	Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 30 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YB50-30DCZ	Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 30 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YB50-35DCZ	Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 35 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YB50-35DCZ	Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 35 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YB50-40DCZ	Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 40 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YB50-40DCZ	Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 40 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YB50-45DCZ	Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 45 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YB50-45DCZ	Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 45 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YB50-50DCZ	Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YB50-50DCZ	Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YB50-60DCZ	Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 60 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YB50-60DCZ	Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 60 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YB50-80DCZ	Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YB50-80DCZ	Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YB50-100DCZ	Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YB50-100DCZ	Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YB50-125DCZ	Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YB50-125DCZ	Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YB50-150DCZ	Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 150 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YB50-150DCZ	Bore: ø50 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YL50-5DCZ	Bore: ø50 mm \| Mounting: Foot \| Stroke: 5 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YL50-5DCZ	Bore: ø50 mm \| Mounting: Foot \| Stroke: 5 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YL50-10DCZ	Bore: ø50 mm \| Mounting: Foot \| Stroke: 10 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YL50-10DCZ	Bore: ø50 mm \| Mounting: Foot \| Stroke: 10 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YL50-15DCZ	Bore: ø50 mm \| Mounting: Foot \| Stroke: 15 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YL50-15DCZ	Bore: ø50 mm \| Mounting: Foot \| Stroke: 15 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YL50-20DCZ	Bore: ø50 mm \| Mounting: Foot \| Stroke: 20 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YL50-20DCZ	Bore: ø50 mm \| Mounting: Foot \| Stroke: 20 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YL50-25DCZ	Bore: ø50 mm \| Mounting: Foot \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YL50-25DCZ	Bore: ø50 mm \| Mounting: Foot \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YL50-30DCZ	Bore: ø50 mm \| Mounting: Foot \| Stroke: 30 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YL50-30DCZ	Bore: ø50 mm \| Mounting: Foot \| Stroke: 30 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YL50-35DCZ	Bore: ø50 mm \| Mounting: Foot \| Stroke: 35 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YL50-35DCZ	Bore: ø50 mm \| Mounting: Foot \| Stroke: 35 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YL50-40DCZ	Bore: ø50 mm \| Mounting: Foot \| Stroke: 40 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YL50-40DCZ	Bore: ø50 mm \| Mounting: Foot \| Stroke: 40 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YL50-45DCZ	Bore: ø50 mm \| Mounting: Foot \| Stroke: 45 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YL50-45DCZ	Bore: ø50 mm \| Mounting: Foot \| Stroke: 45 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YL50-50DCZ	Bore: ø50 mm \| Mounting: Foot \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YL50-50DCZ	Bore: ø50 mm \| Mounting: Foot \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YL50-60DCZ	Bore: ø50 mm \| Mounting: Foot \| Stroke: 60 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YL50-60DCZ	Bore: ø50 mm \| Mounting: Foot \| Stroke: 60 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YL50-80DCZ	Bore: ø50 mm \| Mounting: Foot \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YL50-80DCZ	Bore: ø50 mm \| Mounting: Foot \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YL50-100DCZ	Bore: ø50 mm \| Mounting: Foot \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YL50-100DCZ	Bore: ø50 mm \| Mounting: Foot \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YL50-125DCZ	Bore: ø50 mm \| Mounting: Foot \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YL50-125DCZ	Bore: ø50 mm \| Mounting: Foot \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YL50-150DCZ	Bore: ø50 mm \| Mounting: Foot \| Stroke: 150 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YL50-150DCZ	Bore: ø50 mm \| Mounting: Foot \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YF50-5DCZ	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 5 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YF50-5DCZ	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 5 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YF50-10DCZ	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 10 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YF50-10DCZ	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 10 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YF50-15DCZ	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 15 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YF50-15DCZ	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 15 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YF50-20DCZ	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YF50-20DCZ	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YF50-25DCZ	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YF50-25DCZ	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YF50-30DCZ	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YF50-30DCZ	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YF50-35DCZ	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 35 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YF50-35DCZ	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 35 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YF50-40DCZ	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YF50-40DCZ	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YF50-45DCZ	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 45 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YF50-45DCZ	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 45 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YF50-50DCZ	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YF50-50DCZ	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YF50-60DCZ	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 60 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YF50-60DCZ	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 60 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YF50-80DCZ	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YF50-80DCZ	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YF50-100DCZ	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YF50-100DCZ	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YF50-125DCZ	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YF50-125DCZ	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YF50-150DCZ	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YF50-150DCZ	Bore: ø50 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YG50-5DCZ	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 5 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YG50-5DCZ	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 5 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YG50-10DCZ	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 10 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YG50-10DCZ	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 10 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YG50-15DCZ	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 15 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YG50-15DCZ	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 15 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YG50-20DCZ	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 20 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YG50-20DCZ	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 20 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YG50-25DCZ	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YG50-25DCZ	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YG50-30DCZ	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 30 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YG50-30DCZ	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 30 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YG50-35DCZ	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 35 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YG50-35DCZ	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 35 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YG50-40DCZ	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 40 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YG50-40DCZ	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 40 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YG50-45DCZ	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 45 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YG50-45DCZ	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 45 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YG50-50DCZ	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YG50-50DCZ	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YG50-60DCZ	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 60 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YG50-60DCZ	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 60 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YG50-80DCZ	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YG50-80DCZ	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YG50-100DCZ	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YG50-100DCZ	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YG50-125DCZ	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YG50-125DCZ	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YG50-150DCZ	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 150 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YG50-150DCZ	Bore: ø50 mm \| Mounting: Head flange \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YC50-5DCZ	Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 5 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YC50-5DCZ	Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 5 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YC50-10DCZ	Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 10 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YC50-10DCZ	Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 10 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YC50-15DCZ	Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 15 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YC50-15DCZ	Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 15 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YC50-20DCZ	Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 20 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YC50-20DCZ	Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 20 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YC50-25DCZ	Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YC50-25DCZ	Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YC50-30DCZ	Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 30 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YC50-30DCZ	Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 30 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YC50-35DCZ	Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 35 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YC50-35DCZ	Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 35 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YC50-40DCZ	Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 40 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YC50-40DCZ	Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 40 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YC50-45DCZ	Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 45 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YC50-45DCZ	Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 45 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YC50-50DCZ	Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YC50-50DCZ	Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YC50-60DCZ	Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 60 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YC50-60DCZ	Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 60 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YC50-80DCZ	Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YC50-80DCZ	Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YC50-100DCZ	Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YC50-100DCZ	Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YC50-125DCZ	Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YC50-125DCZ	Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YC50-150DCZ	Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 150 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YC50-150DCZ	Bore: ø50 mm \| Mounting: Single clevis \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YB63-5DCZ	Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 5 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YB63-5DCZ	Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 5 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YB63-10DCZ	Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 10 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YB63-10DCZ	Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 10 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YB63-15DCZ	Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 15 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YB63-15DCZ	Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 15 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YB63-20DCZ	Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 20 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YB63-20DCZ	Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 20 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YB63-25DCZ	Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YB63-25DCZ	Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YB63-30DCZ	Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 30 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YB63-30DCZ	Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 30 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YB63-35DCZ	Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 35 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YB63-35DCZ	Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 35 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YB63-40DCZ	Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 40 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YB63-40DCZ	Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 40 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YB63-45DCZ	Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 45 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YB63-45DCZ	Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 45 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YB63-50DCZ	Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YB63-50DCZ	Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YB63-60DCZ	Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 60 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YB63-60DCZ	Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 60 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YB63-80DCZ	Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YB63-80DCZ	Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YB63-100DCZ	Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YB63-100DCZ	Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YB63-125DCZ	Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YB63-125DCZ	Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YB63-150DCZ	Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 150 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YB63-150DCZ	Bore: ø63 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YL63-5DCZ	Bore: ø63 mm \| Mounting: Foot \| Stroke: 5 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YL63-5DCZ	Bore: ø63 mm \| Mounting: Foot \| Stroke: 5 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YL63-10DCZ	Bore: ø63 mm \| Mounting: Foot \| Stroke: 10 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YL63-10DCZ	Bore: ø63 mm \| Mounting: Foot \| Stroke: 10 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YL63-15DCZ	Bore: ø63 mm \| Mounting: Foot \| Stroke: 15 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YL63-15DCZ	Bore: ø63 mm \| Mounting: Foot \| Stroke: 15 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YL63-20DCZ	Bore: ø63 mm \| Mounting: Foot \| Stroke: 20 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YL63-20DCZ	Bore: ø63 mm \| Mounting: Foot \| Stroke: 20 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YL63-25DCZ	Bore: ø63 mm \| Mounting: Foot \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YL63-25DCZ	Bore: ø63 mm \| Mounting: Foot \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YL63-30DCZ	Bore: ø63 mm \| Mounting: Foot \| Stroke: 30 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YL63-30DCZ	Bore: ø63 mm \| Mounting: Foot \| Stroke: 30 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YL63-35DCZ	Bore: ø63 mm \| Mounting: Foot \| Stroke: 35 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YL63-35DCZ	Bore: ø63 mm \| Mounting: Foot \| Stroke: 35 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YL63-40DCZ	Bore: ø63 mm \| Mounting: Foot \| Stroke: 40 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YL63-40DCZ	Bore: ø63 mm \| Mounting: Foot \| Stroke: 40 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YL63-45DCZ	Bore: ø63 mm \| Mounting: Foot \| Stroke: 45 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YL63-45DCZ	Bore: ø63 mm \| Mounting: Foot \| Stroke: 45 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YL63-50DCZ	Bore: ø63 mm \| Mounting: Foot \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YL63-50DCZ	Bore: ø63 mm \| Mounting: Foot \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YL63-60DCZ	Bore: ø63 mm \| Mounting: Foot \| Stroke: 60 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YL63-60DCZ	Bore: ø63 mm \| Mounting: Foot \| Stroke: 60 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YL63-80DCZ	Bore: ø63 mm \| Mounting: Foot \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YL63-80DCZ	Bore: ø63 mm \| Mounting: Foot \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YL63-100DCZ	Bore: ø63 mm \| Mounting: Foot \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YL63-100DCZ	Bore: ø63 mm \| Mounting: Foot \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YL63-125DCZ	Bore: ø63 mm \| Mounting: Foot \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YL63-125DCZ	Bore: ø63 mm \| Mounting: Foot \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YL63-150DCZ	Bore: ø63 mm \| Mounting: Foot \| Stroke: 150 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YL63-150DCZ	Bore: ø63 mm \| Mounting: Foot \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YF63-5DCZ	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 5 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YF63-5DCZ	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 5 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YF63-10DCZ	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 10 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YF63-10DCZ	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 10 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YF63-15DCZ	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 15 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YF63-15DCZ	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 15 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YF63-20DCZ	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YF63-20DCZ	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YF63-25DCZ	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YF63-25DCZ	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YF63-30DCZ	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YF63-30DCZ	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YF63-35DCZ	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 35 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YF63-35DCZ	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 35 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YF63-40DCZ	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YF63-40DCZ	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YF63-45DCZ	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 45 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YF63-45DCZ	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 45 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YF63-50DCZ	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YF63-50DCZ	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YF63-60DCZ	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 60 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YF63-60DCZ	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 60 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YF63-80DCZ	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YF63-80DCZ	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YF63-100DCZ	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YF63-100DCZ	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YF63-125DCZ	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YF63-125DCZ	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YF63-150DCZ	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YF63-150DCZ	Bore: ø63 mm \| Mounting: Rod flange \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YG63-5DCZ	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 5 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YG63-5DCZ	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 5 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YG63-10DCZ	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 10 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YG63-10DCZ	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 10 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YG63-15DCZ	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 15 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YG63-15DCZ	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 15 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YG63-20DCZ	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 20 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YG63-20DCZ	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 20 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YG63-25DCZ	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YG63-25DCZ	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YG63-30DCZ	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 30 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YG63-30DCZ	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 30 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YG63-35DCZ	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 35 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YG63-35DCZ	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 35 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YG63-40DCZ	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 40 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YG63-40DCZ	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 40 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YG63-45DCZ	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 45 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YG63-45DCZ	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 45 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YG63-50DCZ	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YG63-50DCZ	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YG63-60DCZ	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 60 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YG63-60DCZ	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 60 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YG63-80DCZ	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YG63-80DCZ	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YG63-100DCZ	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YG63-100DCZ	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YG63-125DCZ	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YG63-125DCZ	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YG63-150DCZ	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 150 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YG63-150DCZ	Bore: ø63 mm \| Mounting: Head flange \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YC63-5DCZ	Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 5 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YC63-5DCZ	Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 5 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YC63-10DCZ	Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 10 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YC63-10DCZ	Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 10 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YC63-15DCZ	Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 15 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YC63-15DCZ	Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 15 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YC63-20DCZ	Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 20 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YC63-20DCZ	Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 20 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YC63-25DCZ	Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YC63-25DCZ	Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YC63-30DCZ	Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 30 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YC63-30DCZ	Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 30 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YC63-35DCZ	Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 35 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YC63-35DCZ	Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 35 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YC63-40DCZ	Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 40 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YC63-40DCZ	Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 40 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YC63-45DCZ	Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 45 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YC63-45DCZ	Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 45 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YC63-50DCZ	Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YC63-50DCZ	Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YC63-60DCZ	Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 60 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YC63-60DCZ	Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 60 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YC63-80DCZ	Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YC63-80DCZ	Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YC63-100DCZ	Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YC63-100DCZ	Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YC63-125DCZ	Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YC63-125DCZ	Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YC63-150DCZ	Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 150 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YC63-150DCZ	Bore: ø63 mm \| Mounting: Single clevis \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YB80-10DCZ	Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 10 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YB80-10DCZ	Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 10 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YB80-15DCZ	Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 15 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YB80-15DCZ	Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 15 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YB80-20DCZ	Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 20 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YB80-20DCZ	Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 20 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YB80-25DCZ	Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YB80-25DCZ	Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YB80-30DCZ	Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 30 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YB80-30DCZ	Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 30 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YB80-35DCZ	Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 35 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YB80-35DCZ	Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 35 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YB80-40DCZ	Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 40 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YB80-40DCZ	Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 40 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YB80-45DCZ	Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 45 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YB80-45DCZ	Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 45 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YB80-50DCZ	Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YB80-50DCZ	Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YB80-60DCZ	Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 60 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YB80-60DCZ	Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 60 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YB80-80DCZ	Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YB80-80DCZ	Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YB80-100DCZ	Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YB80-100DCZ	Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YB80-125DCZ	Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YB80-125DCZ	Bore: ø80 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YL80-10DCZ	Bore: ø80 mm \| Mounting: Foot \| Stroke: 10 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YL80-10DCZ	Bore: ø80 mm \| Mounting: Foot \| Stroke: 10 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YL80-15DCZ	Bore: ø80 mm \| Mounting: Foot \| Stroke: 15 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YL80-15DCZ	Bore: ø80 mm \| Mounting: Foot \| Stroke: 15 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YL80-20DCZ	Bore: ø80 mm \| Mounting: Foot \| Stroke: 20 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YL80-20DCZ	Bore: ø80 mm \| Mounting: Foot \| Stroke: 20 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YL80-25DCZ	Bore: ø80 mm \| Mounting: Foot \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YL80-25DCZ	Bore: ø80 mm \| Mounting: Foot \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YL80-30DCZ	Bore: ø80 mm \| Mounting: Foot \| Stroke: 30 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YL80-30DCZ	Bore: ø80 mm \| Mounting: Foot \| Stroke: 30 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YL80-35DCZ	Bore: ø80 mm \| Mounting: Foot \| Stroke: 35 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YL80-35DCZ	Bore: ø80 mm \| Mounting: Foot \| Stroke: 35 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YL80-40DCZ	Bore: ø80 mm \| Mounting: Foot \| Stroke: 40 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YL80-40DCZ	Bore: ø80 mm \| Mounting: Foot \| Stroke: 40 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YL80-45DCZ	Bore: ø80 mm \| Mounting: Foot \| Stroke: 45 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YL80-45DCZ	Bore: ø80 mm \| Mounting: Foot \| Stroke: 45 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YL80-50DCZ	Bore: ø80 mm \| Mounting: Foot \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YL80-50DCZ	Bore: ø80 mm \| Mounting: Foot \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YL80-60DCZ	Bore: ø80 mm \| Mounting: Foot \| Stroke: 60 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YL80-60DCZ	Bore: ø80 mm \| Mounting: Foot \| Stroke: 60 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YL80-80DCZ	Bore: ø80 mm \| Mounting: Foot \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YL80-80DCZ	Bore: ø80 mm \| Mounting: Foot \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YL80-100DCZ	Bore: ø80 mm \| Mounting: Foot \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YL80-100DCZ	Bore: ø80 mm \| Mounting: Foot \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YL80-125DCZ	Bore: ø80 mm \| Mounting: Foot \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YL80-125DCZ	Bore: ø80 mm \| Mounting: Foot \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YF80-10DCZ	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 10 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YF80-10DCZ	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 10 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YF80-15DCZ	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 15 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YF80-15DCZ	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 15 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YF80-20DCZ	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YF80-20DCZ	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YF80-25DCZ	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YF80-25DCZ	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YF80-30DCZ	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YF80-30DCZ	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YF80-35DCZ	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 35 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YF80-35DCZ	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 35 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YF80-40DCZ	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YF80-40DCZ	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YF80-45DCZ	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 45 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YF80-45DCZ	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 45 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YF80-50DCZ	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YF80-50DCZ	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YF80-60DCZ	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 60 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YF80-60DCZ	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 60 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YF80-80DCZ	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YF80-80DCZ	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YF80-100DCZ	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YF80-100DCZ	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YF80-125DCZ	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YF80-125DCZ	Bore: ø80 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YG80-10DCZ	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 10 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YG80-10DCZ	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 10 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YG80-15DCZ	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 15 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YG80-15DCZ	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 15 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YG80-20DCZ	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 20 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YG80-20DCZ	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 20 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YG80-25DCZ	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YG80-25DCZ	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YG80-30DCZ	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 30 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YG80-30DCZ	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 30 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YG80-35DCZ	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 35 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YG80-35DCZ	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 35 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YG80-40DCZ	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 40 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YG80-40DCZ	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 40 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YG80-45DCZ	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 45 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YG80-45DCZ	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 45 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YG80-50DCZ	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YG80-50DCZ	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YG80-60DCZ	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 60 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YG80-60DCZ	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 60 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YG80-80DCZ	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YG80-80DCZ	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YG80-100DCZ	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YG80-100DCZ	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YG80-125DCZ	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YG80-125DCZ	Bore: ø80 mm \| Mounting: Head flange \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YC80-10DCZ	Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 10 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YC80-10DCZ	Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 10 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YC80-15DCZ	Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 15 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YC80-15DCZ	Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 15 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YC80-20DCZ	Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 20 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YC80-20DCZ	Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 20 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YC80-25DCZ	Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YC80-25DCZ	Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YC80-30DCZ	Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 30 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YC80-30DCZ	Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 30 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YC80-35DCZ	Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 35 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YC80-35DCZ	Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 35 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YC80-40DCZ	Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 40 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YC80-40DCZ	Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 40 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YC80-45DCZ	Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 45 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YC80-45DCZ	Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 45 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YC80-50DCZ	Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YC80-50DCZ	Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YC80-60DCZ	Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 60 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YC80-60DCZ	Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 60 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YC80-80DCZ	Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YC80-80DCZ	Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YC80-100DCZ	Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YC80-100DCZ	Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YC80-125DCZ	Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YC80-125DCZ	Bore: ø80 mm \| Mounting: Single clevis \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YB100-10DCZ	Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 10 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YB100-10DCZ	Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 10 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YB100-15DCZ	Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 15 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YB100-15DCZ	Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 15 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YB100-20DCZ	Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 20 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YB100-20DCZ	Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 20 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YB100-25DCZ	Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YB100-25DCZ	Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YB100-30DCZ	Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 30 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YB100-30DCZ	Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 30 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YB100-35DCZ	Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 35 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YB100-35DCZ	Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 35 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YB100-40DCZ	Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 40 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YB100-40DCZ	Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 40 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YB100-45DCZ	Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 45 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YB100-45DCZ	Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 45 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YB100-50DCZ	Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YB100-50DCZ	Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YB100-60DCZ	Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 60 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YB100-60DCZ	Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 60 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YB100-80DCZ	Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YB100-80DCZ	Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YB100-100DCZ	Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YB100-100DCZ	Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YB100-125DCZ	Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YB100-125DCZ	Bore: ø100 mm \| Mounting: Through-hole/tapped (std) \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YL100-10DCZ	Bore: ø100 mm \| Mounting: Foot \| Stroke: 10 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YL100-10DCZ	Bore: ø100 mm \| Mounting: Foot \| Stroke: 10 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YL100-15DCZ	Bore: ø100 mm \| Mounting: Foot \| Stroke: 15 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YL100-15DCZ	Bore: ø100 mm \| Mounting: Foot \| Stroke: 15 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YL100-20DCZ	Bore: ø100 mm \| Mounting: Foot \| Stroke: 20 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YL100-20DCZ	Bore: ø100 mm \| Mounting: Foot \| Stroke: 20 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YL100-25DCZ	Bore: ø100 mm \| Mounting: Foot \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YL100-25DCZ	Bore: ø100 mm \| Mounting: Foot \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YL100-30DCZ	Bore: ø100 mm \| Mounting: Foot \| Stroke: 30 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YL100-30DCZ	Bore: ø100 mm \| Mounting: Foot \| Stroke: 30 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YL100-35DCZ	Bore: ø100 mm \| Mounting: Foot \| Stroke: 35 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YL100-35DCZ	Bore: ø100 mm \| Mounting: Foot \| Stroke: 35 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YL100-40DCZ	Bore: ø100 mm \| Mounting: Foot \| Stroke: 40 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YL100-40DCZ	Bore: ø100 mm \| Mounting: Foot \| Stroke: 40 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YL100-45DCZ	Bore: ø100 mm \| Mounting: Foot \| Stroke: 45 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YL100-45DCZ	Bore: ø100 mm \| Mounting: Foot \| Stroke: 45 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YL100-50DCZ	Bore: ø100 mm \| Mounting: Foot \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YL100-50DCZ	Bore: ø100 mm \| Mounting: Foot \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YL100-60DCZ	Bore: ø100 mm \| Mounting: Foot \| Stroke: 60 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YL100-60DCZ	Bore: ø100 mm \| Mounting: Foot \| Stroke: 60 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YL100-80DCZ	Bore: ø100 mm \| Mounting: Foot \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YL100-80DCZ	Bore: ø100 mm \| Mounting: Foot \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YL100-100DCZ	Bore: ø100 mm \| Mounting: Foot \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YL100-100DCZ	Bore: ø100 mm \| Mounting: Foot \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YL100-125DCZ	Bore: ø100 mm \| Mounting: Foot \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YL100-125DCZ	Bore: ø100 mm \| Mounting: Foot \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YF100-10DCZ	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 10 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YF100-10DCZ	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 10 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YF100-15DCZ	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 15 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YF100-15DCZ	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 15 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YF100-20DCZ	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YF100-20DCZ	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 20 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YF100-25DCZ	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YF100-25DCZ	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YF100-30DCZ	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YF100-30DCZ	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 30 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YF100-35DCZ	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 35 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YF100-35DCZ	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 35 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YF100-40DCZ	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YF100-40DCZ	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 40 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YF100-45DCZ	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 45 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YF100-45DCZ	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 45 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YF100-50DCZ	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YF100-50DCZ	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YF100-60DCZ	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 60 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YF100-60DCZ	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 60 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YF100-80DCZ	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YF100-80DCZ	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YF100-100DCZ	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YF100-100DCZ	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YF100-125DCZ	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YF100-125DCZ	Bore: ø100 mm \| Mounting: Rod flange \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YG100-10DCZ	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 10 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YG100-10DCZ	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 10 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YG100-15DCZ	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 15 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YG100-15DCZ	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 15 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YG100-20DCZ	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 20 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YG100-20DCZ	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 20 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YG100-25DCZ	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YG100-25DCZ	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YG100-30DCZ	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 30 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YG100-30DCZ	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 30 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YG100-35DCZ	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 35 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YG100-35DCZ	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 35 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YG100-40DCZ	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 40 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YG100-40DCZ	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 40 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YG100-45DCZ	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 45 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YG100-45DCZ	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 45 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YG100-50DCZ	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YG100-50DCZ	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YG100-60DCZ	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 60 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YG100-60DCZ	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 60 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YG100-80DCZ	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YG100-80DCZ	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YG100-100DCZ	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YG100-100DCZ	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YG100-125DCZ	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YG100-125DCZ	Bore: ø100 mm \| Mounting: Head flange \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YC100-10DCZ	Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 10 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YC100-10DCZ	Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 10 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YC100-15DCZ	Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 15 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YC100-15DCZ	Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 15 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YC100-20DCZ	Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 20 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YC100-20DCZ	Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 20 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YC100-25DCZ	Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YC100-25DCZ	Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YC100-30DCZ	Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 30 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YC100-30DCZ	Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 30 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YC100-35DCZ	Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 35 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YC100-35DCZ	Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 35 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YC100-40DCZ	Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 40 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YC100-40DCZ	Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 40 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YC100-45DCZ	Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 45 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YC100-45DCZ	Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 45 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YC100-50DCZ	Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YC100-50DCZ	Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YC100-60DCZ	Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 60 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YC100-60DCZ	Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 60 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YC100-80DCZ	Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YC100-80DCZ	Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YC100-100DCZ	Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YC100-100DCZ	Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/8
	C55YC100-125DCZ	Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/8
	CD55YC100-125DCZ	Bore: ø100 mm \| Mounting: Single clevis \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/8

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

SMC C55Y Low Speed / Low Friction Compact Cylinder (ø20 to ø100)
