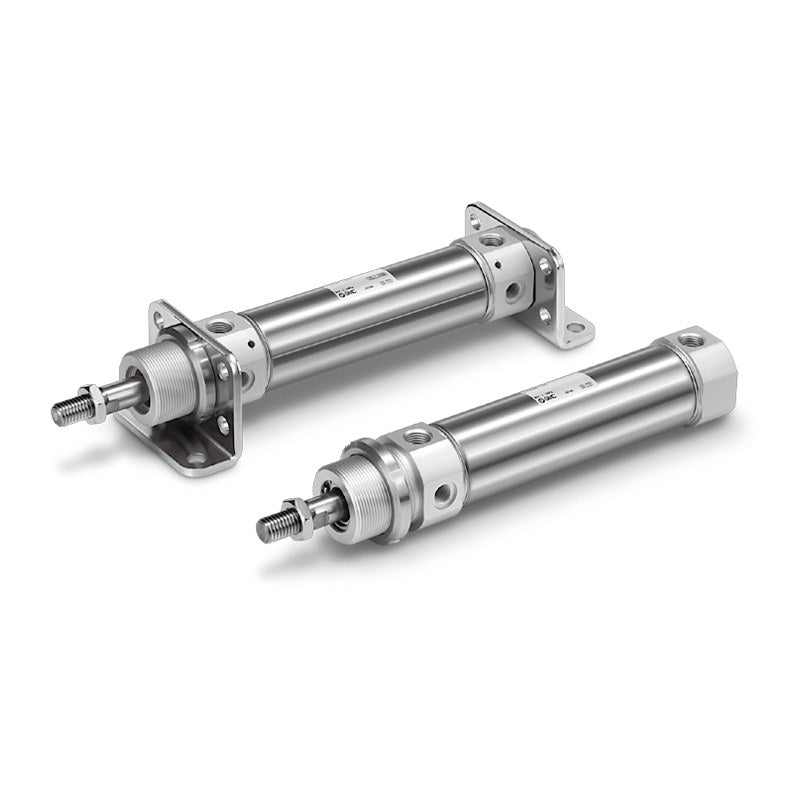

SMC C75 Air Cylinder (Standard, Single Rod, ø32 and ø40)

SMC C75 Air Cylinder (Standard, Single Rod, ø32 and ø40)

SMC C75 series stainless-tube round body air cylinder, single rod, ø32 and ø40, in double acting and single acting (spring return / spring extend) versions; larger-bore companion of the C85.

Key features

  • Head cover types E (boss both ends), F (boss-cut basic) and Y (axial head port, not for spring extend type)
  • Double acting with rubber cushion as standard; air cushion (C) for E head cover, strokes 25 mm and over
  • Single acting spring return (S) and spring extend (T) types, strokes 10 to 200 mm (ø32) or 250 mm (ø40)
  • Mounting brackets L/M/G/U/N, rod end V and bellows J/K ordered as code suffixes and shipped with the cylinder
  • CD models have a built-in magnet for rail-mounted (A) or band-mounted (B) auto switches such as D-M9BW, D-F7 and D-A93 (ordered as a suffix, e.g. -B-M9BW)
  • Made-to-order: -XA, -XB6, -XB7, -XB9, -XC4, -XC6

Specifications

Fluid Air
Proof pressure 1.5 MPa
Max. operating pressure 1.0 MPa
Min. operating pressure Double acting 0.05 MPa; single acting 0.18 MPa (spring return), 0.23 MPa (spring extend)
Ambient and fluid temperature -20 to 80°C without auto switch, -10 to 60°C with auto switch (no freezing)
Lubrication Not required (non-lube)
Piston speed 50 to 500 mm/s (double acting), 50 to 750 mm/s (single acting)
Port size G1/8 (ø32), G1/4 (ø40)
Stroke length tolerance +1.4/0 mm
Max. stroke 1000 mm (double acting), 200/250 mm (single acting ø32/ø40)
Source SMC Korea catalog C85/C75 (SMCKR_C85_C75.pdf), p. 60-61, 74-75 (PDF p. 57-58, 71-72)
C75E32-10 Action: Double acting | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 10 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75E32-25 Action: Double acting | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 25 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75E32-25C Action: Double acting | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 25 mm | Cushion: Air cushion | Auto switch magnet: No
C75E32-40 Action: Double acting | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 40 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75E32-40C Action: Double acting | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 40 mm | Cushion: Air cushion | Auto switch magnet: No
C75E32-50 Action: Double acting | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 50 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75E32-50C Action: Double acting | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 50 mm | Cushion: Air cushion | Auto switch magnet: No
C75E32-80 Action: Double acting | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 80 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75E32-80C Action: Double acting | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 80 mm | Cushion: Air cushion | Auto switch magnet: No
C75E32-100 Action: Double acting | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 100 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75E32-100C Action: Double acting | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 100 mm | Cushion: Air cushion | Auto switch magnet: No
C75E32-125 Action: Double acting | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 125 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75E32-125C Action: Double acting | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 125 mm | Cushion: Air cushion | Auto switch magnet: No
C75E32-160 Action: Double acting | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 160 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75E32-160C Action: Double acting | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 160 mm | Cushion: Air cushion | Auto switch magnet: No
C75E32-200 Action: Double acting | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 200 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75E32-200C Action: Double acting | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 200 mm | Cushion: Air cushion | Auto switch magnet: No
C75E32-250 Action: Double acting | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 250 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75E32-250C Action: Double acting | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 250 mm | Cushion: Air cushion | Auto switch magnet: No
C75E32-300 Action: Double acting | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 300 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75E32-300C Action: Double acting | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 300 mm | Cushion: Air cushion | Auto switch magnet: No
C75E40-10 Action: Double acting | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 10 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75E40-25 Action: Double acting | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 25 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75E40-25C Action: Double acting | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 25 mm | Cushion: Air cushion | Auto switch magnet: No
C75E40-40 Action: Double acting | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 40 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75E40-40C Action: Double acting | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 40 mm | Cushion: Air cushion | Auto switch magnet: No
C75E40-50 Action: Double acting | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 50 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75E40-50C Action: Double acting | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 50 mm | Cushion: Air cushion | Auto switch magnet: No
C75E40-80 Action: Double acting | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 80 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75E40-80C Action: Double acting | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 80 mm | Cushion: Air cushion | Auto switch magnet: No
C75E40-100 Action: Double acting | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 100 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75E40-100C Action: Double acting | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 100 mm | Cushion: Air cushion | Auto switch magnet: No
C75E40-125 Action: Double acting | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 125 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75E40-125C Action: Double acting | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 125 mm | Cushion: Air cushion | Auto switch magnet: No
C75E40-160 Action: Double acting | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 160 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75E40-160C Action: Double acting | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 160 mm | Cushion: Air cushion | Auto switch magnet: No
C75E40-200 Action: Double acting | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 200 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75E40-200C Action: Double acting | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 200 mm | Cushion: Air cushion | Auto switch magnet: No
C75E40-250 Action: Double acting | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 250 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75E40-250C Action: Double acting | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 250 mm | Cushion: Air cushion | Auto switch magnet: No
C75E40-300 Action: Double acting | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 300 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75E40-300C Action: Double acting | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 300 mm | Cushion: Air cushion | Auto switch magnet: No
C75F32-10 Action: Double acting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 10 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75F32-25 Action: Double acting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 25 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75F32-40 Action: Double acting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 40 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75F32-50 Action: Double acting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 50 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75F32-80 Action: Double acting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 80 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75F32-100 Action: Double acting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 100 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75F32-125 Action: Double acting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 125 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75F32-160 Action: Double acting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 160 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75F32-200 Action: Double acting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 200 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75F32-250 Action: Double acting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 250 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75F32-300 Action: Double acting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 300 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75F40-10 Action: Double acting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 10 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75F40-25 Action: Double acting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 25 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75F40-40 Action: Double acting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 40 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75F40-50 Action: Double acting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 50 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75F40-80 Action: Double acting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 80 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75F40-100 Action: Double acting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 100 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75F40-125 Action: Double acting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 125 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75F40-160 Action: Double acting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 160 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75F40-200 Action: Double acting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 200 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75F40-250 Action: Double acting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 250 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75F40-300 Action: Double acting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 300 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75Y32-10 Action: Double acting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 10 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75Y32-25 Action: Double acting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 25 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75Y32-40 Action: Double acting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 40 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75Y32-50 Action: Double acting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 50 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75Y32-80 Action: Double acting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 80 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75Y32-100 Action: Double acting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 100 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75Y32-125 Action: Double acting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 125 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75Y32-160 Action: Double acting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 160 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75Y32-200 Action: Double acting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 200 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75Y32-250 Action: Double acting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 250 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75Y32-300 Action: Double acting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 300 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75Y40-10 Action: Double acting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 10 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75Y40-25 Action: Double acting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 25 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75Y40-40 Action: Double acting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 40 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75Y40-50 Action: Double acting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 50 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75Y40-80 Action: Double acting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 80 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75Y40-100 Action: Double acting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 100 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75Y40-125 Action: Double acting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 125 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75Y40-160 Action: Double acting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 160 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75Y40-200 Action: Double acting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 200 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75Y40-250 Action: Double acting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 250 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75Y40-300 Action: Double acting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 300 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75E32-10S Action: Single acting, spring return | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 10 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75E32-25S Action: Single acting, spring return | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 25 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75E32-50S Action: Single acting, spring return | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 50 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75E32-100S Action: Single acting, spring return | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 100 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75E32-150S Action: Single acting, spring return | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 150 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75E32-200S Action: Single acting, spring return | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 200 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75E40-10S Action: Single acting, spring return | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 10 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75E40-25S Action: Single acting, spring return | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 25 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75E40-50S Action: Single acting, spring return | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 50 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75E40-100S Action: Single acting, spring return | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 100 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75E40-150S Action: Single acting, spring return | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 150 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75E40-200S Action: Single acting, spring return | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 200 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75E40-250S Action: Single acting, spring return | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 250 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75F32-10S Action: Single acting, spring return | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 10 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75F32-25S Action: Single acting, spring return | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 25 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75F32-50S Action: Single acting, spring return | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 50 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75F32-100S Action: Single acting, spring return | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 100 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75F32-150S Action: Single acting, spring return | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 150 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75F32-200S Action: Single acting, spring return | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 200 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75F40-10S Action: Single acting, spring return | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 10 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75F40-25S Action: Single acting, spring return | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 25 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75F40-50S Action: Single acting, spring return | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 50 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75F40-100S Action: Single acting, spring return | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 100 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75F40-150S Action: Single acting, spring return | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 150 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75F40-200S Action: Single acting, spring return | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 200 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75F40-250S Action: Single acting, spring return | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 250 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75Y32-10S Action: Single acting, spring return | Head cover: Axial head port | Bore: ø32 mm | Stroke: 10 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75Y32-25S Action: Single acting, spring return | Head cover: Axial head port | Bore: ø32 mm | Stroke: 25 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75Y32-50S Action: Single acting, spring return | Head cover: Axial head port | Bore: ø32 mm | Stroke: 50 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75Y32-100S Action: Single acting, spring return | Head cover: Axial head port | Bore: ø32 mm | Stroke: 100 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75Y32-150S Action: Single acting, spring return | Head cover: Axial head port | Bore: ø32 mm | Stroke: 150 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75Y32-200S Action: Single acting, spring return | Head cover: Axial head port | Bore: ø32 mm | Stroke: 200 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75Y40-10S Action: Single acting, spring return | Head cover: Axial head port | Bore: ø40 mm | Stroke: 10 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75Y40-25S Action: Single acting, spring return | Head cover: Axial head port | Bore: ø40 mm | Stroke: 25 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75Y40-50S Action: Single acting, spring return | Head cover: Axial head port | Bore: ø40 mm | Stroke: 50 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75Y40-100S Action: Single acting, spring return | Head cover: Axial head port | Bore: ø40 mm | Stroke: 100 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75Y40-150S Action: Single acting, spring return | Head cover: Axial head port | Bore: ø40 mm | Stroke: 150 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75Y40-200S Action: Single acting, spring return | Head cover: Axial head port | Bore: ø40 mm | Stroke: 200 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75Y40-250S Action: Single acting, spring return | Head cover: Axial head port | Bore: ø40 mm | Stroke: 250 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75E32-10T Action: Single acting, spring extend | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 10 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75E32-25T Action: Single acting, spring extend | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 25 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75E32-50T Action: Single acting, spring extend | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 50 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75E32-100T Action: Single acting, spring extend | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 100 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75E32-150T Action: Single acting, spring extend | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 150 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75E32-200T Action: Single acting, spring extend | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 200 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75E40-10T Action: Single acting, spring extend | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 10 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75E40-25T Action: Single acting, spring extend | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 25 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75E40-50T Action: Single acting, spring extend | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 50 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75E40-100T Action: Single acting, spring extend | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 100 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75E40-150T Action: Single acting, spring extend | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 150 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75E40-200T Action: Single acting, spring extend | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 200 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75E40-250T Action: Single acting, spring extend | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 250 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75F32-10T Action: Single acting, spring extend | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 10 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75F32-25T Action: Single acting, spring extend | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 25 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75F32-50T Action: Single acting, spring extend | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 50 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75F32-100T Action: Single acting, spring extend | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 100 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75F32-150T Action: Single acting, spring extend | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 150 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75F32-200T Action: Single acting, spring extend | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 200 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75F40-10T Action: Single acting, spring extend | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 10 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75F40-25T Action: Single acting, spring extend | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 25 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75F40-50T Action: Single acting, spring extend | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 50 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75F40-100T Action: Single acting, spring extend | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 100 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75F40-150T Action: Single acting, spring extend | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 150 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75F40-200T Action: Single acting, spring extend | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 200 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75F40-250T Action: Single acting, spring extend | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 250 mm | Cushion: Rubber cushion | Auto switch magnet: No
CD75E32-10 Action: Double acting | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 10 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75E32-25 Action: Double acting | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 25 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75E32-25C Action: Double acting | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 25 mm | Cushion: Air cushion | Auto switch magnet: Yes
CD75E32-40 Action: Double acting | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 40 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75E32-40C Action: Double acting | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 40 mm | Cushion: Air cushion | Auto switch magnet: Yes
CD75E32-50 Action: Double acting | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 50 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75E32-50C Action: Double acting | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 50 mm | Cushion: Air cushion | Auto switch magnet: Yes
CD75E32-80 Action: Double acting | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 80 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75E32-80C Action: Double acting | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 80 mm | Cushion: Air cushion | Auto switch magnet: Yes
CD75E32-100 Action: Double acting | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 100 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75E32-100C Action: Double acting | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 100 mm | Cushion: Air cushion | Auto switch magnet: Yes
CD75E32-125 Action: Double acting | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 125 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75E32-125C Action: Double acting | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 125 mm | Cushion: Air cushion | Auto switch magnet: Yes
CD75E32-160 Action: Double acting | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 160 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75E32-160C Action: Double acting | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 160 mm | Cushion: Air cushion | Auto switch magnet: Yes
CD75E32-200 Action: Double acting | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 200 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75E32-200C Action: Double acting | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 200 mm | Cushion: Air cushion | Auto switch magnet: Yes
CD75E32-250 Action: Double acting | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 250 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75E32-250C Action: Double acting | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 250 mm | Cushion: Air cushion | Auto switch magnet: Yes
CD75E32-300 Action: Double acting | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 300 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75E32-300C Action: Double acting | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 300 mm | Cushion: Air cushion | Auto switch magnet: Yes
CD75E40-10 Action: Double acting | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 10 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75E40-25 Action: Double acting | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 25 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75E40-25C Action: Double acting | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 25 mm | Cushion: Air cushion | Auto switch magnet: Yes
CD75E40-40 Action: Double acting | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 40 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75E40-40C Action: Double acting | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 40 mm | Cushion: Air cushion | Auto switch magnet: Yes
CD75E40-50 Action: Double acting | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 50 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75E40-50C Action: Double acting | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 50 mm | Cushion: Air cushion | Auto switch magnet: Yes
CD75E40-80 Action: Double acting | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 80 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75E40-80C Action: Double acting | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 80 mm | Cushion: Air cushion | Auto switch magnet: Yes
CD75E40-100 Action: Double acting | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 100 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75E40-100C Action: Double acting | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 100 mm | Cushion: Air cushion | Auto switch magnet: Yes
CD75E40-125 Action: Double acting | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 125 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75E40-125C Action: Double acting | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 125 mm | Cushion: Air cushion | Auto switch magnet: Yes
CD75E40-160 Action: Double acting | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 160 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75E40-160C Action: Double acting | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 160 mm | Cushion: Air cushion | Auto switch magnet: Yes
CD75E40-200 Action: Double acting | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 200 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75E40-200C Action: Double acting | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 200 mm | Cushion: Air cushion | Auto switch magnet: Yes
CD75E40-250 Action: Double acting | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 250 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75E40-250C Action: Double acting | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 250 mm | Cushion: Air cushion | Auto switch magnet: Yes
CD75E40-300 Action: Double acting | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 300 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75E40-300C Action: Double acting | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 300 mm | Cushion: Air cushion | Auto switch magnet: Yes
CD75F32-10 Action: Double acting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 10 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75F32-25 Action: Double acting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 25 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75F32-40 Action: Double acting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 40 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75F32-50 Action: Double acting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 50 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75F32-80 Action: Double acting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 80 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75F32-100 Action: Double acting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 100 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75F32-125 Action: Double acting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 125 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75F32-160 Action: Double acting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 160 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75F32-200 Action: Double acting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 200 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75F32-250 Action: Double acting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 250 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75F32-300 Action: Double acting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 300 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75F40-10 Action: Double acting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 10 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75F40-25 Action: Double acting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 25 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75F40-40 Action: Double acting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 40 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75F40-50 Action: Double acting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 50 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75F40-80 Action: Double acting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 80 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75F40-100 Action: Double acting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 100 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75F40-125 Action: Double acting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 125 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75F40-160 Action: Double acting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 160 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75F40-200 Action: Double acting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 200 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75F40-250 Action: Double acting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 250 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75F40-300 Action: Double acting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 300 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75Y32-10 Action: Double acting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 10 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75Y32-25 Action: Double acting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 25 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75Y32-40 Action: Double acting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 40 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75Y32-50 Action: Double acting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 50 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75Y32-80 Action: Double acting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 80 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75Y32-100 Action: Double acting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 100 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75Y32-125 Action: Double acting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 125 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75Y32-160 Action: Double acting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 160 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75Y32-200 Action: Double acting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 200 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75Y32-250 Action: Double acting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 250 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75Y32-300 Action: Double acting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 300 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75Y40-10 Action: Double acting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 10 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75Y40-25 Action: Double acting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 25 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75Y40-40 Action: Double acting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 40 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75Y40-50 Action: Double acting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 50 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75Y40-80 Action: Double acting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 80 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75Y40-100 Action: Double acting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 100 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75Y40-125 Action: Double acting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 125 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75Y40-160 Action: Double acting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 160 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75Y40-200 Action: Double acting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 200 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75Y40-250 Action: Double acting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 250 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75Y40-300 Action: Double acting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 300 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75E32-10S Action: Single acting, spring return | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 10 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75E32-25S Action: Single acting, spring return | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 25 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75E32-50S Action: Single acting, spring return | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 50 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75E32-100S Action: Single acting, spring return | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 100 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75E32-150S Action: Single acting, spring return | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 150 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75E32-200S Action: Single acting, spring return | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 200 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75E40-10S Action: Single acting, spring return | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 10 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75E40-25S Action: Single acting, spring return | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 25 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75E40-50S Action: Single acting, spring return | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 50 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75E40-100S Action: Single acting, spring return | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 100 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75E40-150S Action: Single acting, spring return | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 150 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75E40-200S Action: Single acting, spring return | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 200 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75E40-250S Action: Single acting, spring return | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 250 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75F32-10S Action: Single acting, spring return | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 10 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75F32-25S Action: Single acting, spring return | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 25 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75F32-50S Action: Single acting, spring return | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 50 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75F32-100S Action: Single acting, spring return | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 100 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75F32-150S Action: Single acting, spring return | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 150 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75F32-200S Action: Single acting, spring return | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 200 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75F40-10S Action: Single acting, spring return | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 10 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75F40-25S Action: Single acting, spring return | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 25 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75F40-50S Action: Single acting, spring return | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 50 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75F40-100S Action: Single acting, spring return | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 100 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75F40-150S Action: Single acting, spring return | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 150 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75F40-200S Action: Single acting, spring return | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 200 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75F40-250S Action: Single acting, spring return | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 250 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75Y32-10S Action: Single acting, spring return | Head cover: Axial head port | Bore: ø32 mm | Stroke: 10 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75Y32-25S Action: Single acting, spring return | Head cover: Axial head port | Bore: ø32 mm | Stroke: 25 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75Y32-50S Action: Single acting, spring return | Head cover: Axial head port | Bore: ø32 mm | Stroke: 50 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75Y32-100S Action: Single acting, spring return | Head cover: Axial head port | Bore: ø32 mm | Stroke: 100 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75Y32-150S Action: Single acting, spring return | Head cover: Axial head port | Bore: ø32 mm | Stroke: 150 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75Y32-200S Action: Single acting, spring return | Head cover: Axial head port | Bore: ø32 mm | Stroke: 200 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75Y40-10S Action: Single acting, spring return | Head cover: Axial head port | Bore: ø40 mm | Stroke: 10 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75Y40-25S Action: Single acting, spring return | Head cover: Axial head port | Bore: ø40 mm | Stroke: 25 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75Y40-50S Action: Single acting, spring return | Head cover: Axial head port | Bore: ø40 mm | Stroke: 50 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75Y40-100S Action: Single acting, spring return | Head cover: Axial head port | Bore: ø40 mm | Stroke: 100 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75Y40-150S Action: Single acting, spring return | Head cover: Axial head port | Bore: ø40 mm | Stroke: 150 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75Y40-200S Action: Single acting, spring return | Head cover: Axial head port | Bore: ø40 mm | Stroke: 200 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75Y40-250S Action: Single acting, spring return | Head cover: Axial head port | Bore: ø40 mm | Stroke: 250 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75E32-10T Action: Single acting, spring extend | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 10 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75E32-25T Action: Single acting, spring extend | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 25 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75E32-50T Action: Single acting, spring extend | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 50 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75E32-100T Action: Single acting, spring extend | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 100 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75E32-150T Action: Single acting, spring extend | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 150 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75E32-200T Action: Single acting, spring extend | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 200 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75E40-10T Action: Single acting, spring extend | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 10 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75E40-25T Action: Single acting, spring extend | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 25 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75E40-50T Action: Single acting, spring extend | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 50 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75E40-100T Action: Single acting, spring extend | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 100 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75E40-150T Action: Single acting, spring extend | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 150 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75E40-200T Action: Single acting, spring extend | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 200 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75E40-250T Action: Single acting, spring extend | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 250 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75F32-10T Action: Single acting, spring extend | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 10 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75F32-25T Action: Single acting, spring extend | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 25 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75F32-50T Action: Single acting, spring extend | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 50 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75F32-100T Action: Single acting, spring extend | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 100 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75F32-150T Action: Single acting, spring extend | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 150 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75F32-200T Action: Single acting, spring extend | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 200 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75F40-10T Action: Single acting, spring extend | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 10 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75F40-25T Action: Single acting, spring extend | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 25 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75F40-50T Action: Single acting, spring extend | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 50 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75F40-100T Action: Single acting, spring extend | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 100 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75F40-150T Action: Single acting, spring extend | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 150 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75F40-200T Action: Single acting, spring extend | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 200 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75F40-250T Action: Single acting, spring extend | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 250 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
Round Body CylindersSMC
302 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC C75 Air Cylinder (Standard, Single Rod, ø32 and ø40)

Brand SMC·Round Body Cylinders

Available part numbers (302)

C75E32-10, C75E32-25, C75E32-25C, C75E32-40, C75E32-40C, C75E32-50, C75E32-50C, C75E32-80, C75E32-80C, C75E32-100 + 292 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
C75E32-10Action: Double acting | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 10 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75E32-25Action: Double acting | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 25 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75E32-25CAction: Double acting | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 25 mm | Cushion: Air cushion | Auto switch magnet: No
C75E32-40Action: Double acting | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 40 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75E32-40CAction: Double acting | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 40 mm | Cushion: Air cushion | Auto switch magnet: No
C75E32-50Action: Double acting | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 50 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75E32-50CAction: Double acting | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 50 mm | Cushion: Air cushion | Auto switch magnet: No
C75E32-80Action: Double acting | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 80 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75E32-80CAction: Double acting | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 80 mm | Cushion: Air cushion | Auto switch magnet: No
C75E32-100Action: Double acting | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 100 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75E32-100CAction: Double acting | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 100 mm | Cushion: Air cushion | Auto switch magnet: No
C75E32-125Action: Double acting | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 125 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75E32-125CAction: Double acting | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 125 mm | Cushion: Air cushion | Auto switch magnet: No
C75E32-160Action: Double acting | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 160 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75E32-160CAction: Double acting | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 160 mm | Cushion: Air cushion | Auto switch magnet: No
C75E32-200Action: Double acting | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 200 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75E32-200CAction: Double acting | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 200 mm | Cushion: Air cushion | Auto switch magnet: No
C75E32-250Action: Double acting | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 250 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75E32-250CAction: Double acting | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 250 mm | Cushion: Air cushion | Auto switch magnet: No
C75E32-300Action: Double acting | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 300 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75E32-300CAction: Double acting | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 300 mm | Cushion: Air cushion | Auto switch magnet: No
C75E40-10Action: Double acting | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 10 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75E40-25Action: Double acting | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 25 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75E40-25CAction: Double acting | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 25 mm | Cushion: Air cushion | Auto switch magnet: No
C75E40-40Action: Double acting | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 40 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75E40-40CAction: Double acting | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 40 mm | Cushion: Air cushion | Auto switch magnet: No
C75E40-50Action: Double acting | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 50 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75E40-50CAction: Double acting | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 50 mm | Cushion: Air cushion | Auto switch magnet: No
C75E40-80Action: Double acting | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 80 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75E40-80CAction: Double acting | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 80 mm | Cushion: Air cushion | Auto switch magnet: No
C75E40-100Action: Double acting | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 100 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75E40-100CAction: Double acting | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 100 mm | Cushion: Air cushion | Auto switch magnet: No
C75E40-125Action: Double acting | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 125 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75E40-125CAction: Double acting | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 125 mm | Cushion: Air cushion | Auto switch magnet: No
C75E40-160Action: Double acting | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 160 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75E40-160CAction: Double acting | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 160 mm | Cushion: Air cushion | Auto switch magnet: No
C75E40-200Action: Double acting | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 200 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75E40-200CAction: Double acting | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 200 mm | Cushion: Air cushion | Auto switch magnet: No
C75E40-250Action: Double acting | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 250 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75E40-250CAction: Double acting | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 250 mm | Cushion: Air cushion | Auto switch magnet: No
C75E40-300Action: Double acting | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 300 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75E40-300CAction: Double acting | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 300 mm | Cushion: Air cushion | Auto switch magnet: No
C75F32-10Action: Double acting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 10 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75F32-25Action: Double acting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 25 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75F32-40Action: Double acting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 40 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75F32-50Action: Double acting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 50 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75F32-80Action: Double acting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 80 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75F32-100Action: Double acting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 100 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75F32-125Action: Double acting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 125 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75F32-160Action: Double acting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 160 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75F32-200Action: Double acting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 200 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75F32-250Action: Double acting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 250 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75F32-300Action: Double acting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 300 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75F40-10Action: Double acting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 10 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75F40-25Action: Double acting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 25 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75F40-40Action: Double acting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 40 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75F40-50Action: Double acting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 50 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75F40-80Action: Double acting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 80 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75F40-100Action: Double acting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 100 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75F40-125Action: Double acting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 125 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75F40-160Action: Double acting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 160 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75F40-200Action: Double acting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 200 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75F40-250Action: Double acting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 250 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75F40-300Action: Double acting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 300 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75Y32-10Action: Double acting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 10 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75Y32-25Action: Double acting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 25 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75Y32-40Action: Double acting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 40 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75Y32-50Action: Double acting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 50 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75Y32-80Action: Double acting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 80 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75Y32-100Action: Double acting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 100 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75Y32-125Action: Double acting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 125 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75Y32-160Action: Double acting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 160 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75Y32-200Action: Double acting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 200 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75Y32-250Action: Double acting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 250 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75Y32-300Action: Double acting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 300 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75Y40-10Action: Double acting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 10 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75Y40-25Action: Double acting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 25 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75Y40-40Action: Double acting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 40 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75Y40-50Action: Double acting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 50 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75Y40-80Action: Double acting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 80 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75Y40-100Action: Double acting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 100 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75Y40-125Action: Double acting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 125 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75Y40-160Action: Double acting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 160 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75Y40-200Action: Double acting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 200 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75Y40-250Action: Double acting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 250 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75Y40-300Action: Double acting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 300 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75E32-10SAction: Single acting, spring return | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 10 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75E32-25SAction: Single acting, spring return | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 25 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75E32-50SAction: Single acting, spring return | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 50 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75E32-100SAction: Single acting, spring return | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 100 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75E32-150SAction: Single acting, spring return | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 150 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75E32-200SAction: Single acting, spring return | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 200 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75E40-10SAction: Single acting, spring return | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 10 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75E40-25SAction: Single acting, spring return | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 25 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75E40-50SAction: Single acting, spring return | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 50 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75E40-100SAction: Single acting, spring return | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 100 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75E40-150SAction: Single acting, spring return | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 150 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75E40-200SAction: Single acting, spring return | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 200 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75E40-250SAction: Single acting, spring return | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 250 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75F32-10SAction: Single acting, spring return | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 10 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75F32-25SAction: Single acting, spring return | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 25 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75F32-50SAction: Single acting, spring return | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 50 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75F32-100SAction: Single acting, spring return | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 100 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75F32-150SAction: Single acting, spring return | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 150 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75F32-200SAction: Single acting, spring return | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 200 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75F40-10SAction: Single acting, spring return | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 10 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75F40-25SAction: Single acting, spring return | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 25 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75F40-50SAction: Single acting, spring return | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 50 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75F40-100SAction: Single acting, spring return | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 100 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75F40-150SAction: Single acting, spring return | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 150 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75F40-200SAction: Single acting, spring return | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 200 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75F40-250SAction: Single acting, spring return | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 250 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75Y32-10SAction: Single acting, spring return | Head cover: Axial head port | Bore: ø32 mm | Stroke: 10 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75Y32-25SAction: Single acting, spring return | Head cover: Axial head port | Bore: ø32 mm | Stroke: 25 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75Y32-50SAction: Single acting, spring return | Head cover: Axial head port | Bore: ø32 mm | Stroke: 50 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75Y32-100SAction: Single acting, spring return | Head cover: Axial head port | Bore: ø32 mm | Stroke: 100 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75Y32-150SAction: Single acting, spring return | Head cover: Axial head port | Bore: ø32 mm | Stroke: 150 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75Y32-200SAction: Single acting, spring return | Head cover: Axial head port | Bore: ø32 mm | Stroke: 200 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75Y40-10SAction: Single acting, spring return | Head cover: Axial head port | Bore: ø40 mm | Stroke: 10 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75Y40-25SAction: Single acting, spring return | Head cover: Axial head port | Bore: ø40 mm | Stroke: 25 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75Y40-50SAction: Single acting, spring return | Head cover: Axial head port | Bore: ø40 mm | Stroke: 50 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75Y40-100SAction: Single acting, spring return | Head cover: Axial head port | Bore: ø40 mm | Stroke: 100 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75Y40-150SAction: Single acting, spring return | Head cover: Axial head port | Bore: ø40 mm | Stroke: 150 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75Y40-200SAction: Single acting, spring return | Head cover: Axial head port | Bore: ø40 mm | Stroke: 200 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75Y40-250SAction: Single acting, spring return | Head cover: Axial head port | Bore: ø40 mm | Stroke: 250 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75E32-10TAction: Single acting, spring extend | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 10 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75E32-25TAction: Single acting, spring extend | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 25 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75E32-50TAction: Single acting, spring extend | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 50 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75E32-100TAction: Single acting, spring extend | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 100 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75E32-150TAction: Single acting, spring extend | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 150 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75E32-200TAction: Single acting, spring extend | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 200 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75E40-10TAction: Single acting, spring extend | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 10 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75E40-25TAction: Single acting, spring extend | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 25 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75E40-50TAction: Single acting, spring extend | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 50 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75E40-100TAction: Single acting, spring extend | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 100 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75E40-150TAction: Single acting, spring extend | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 150 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75E40-200TAction: Single acting, spring extend | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 200 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75E40-250TAction: Single acting, spring extend | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 250 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75F32-10TAction: Single acting, spring extend | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 10 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75F32-25TAction: Single acting, spring extend | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 25 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75F32-50TAction: Single acting, spring extend | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 50 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75F32-100TAction: Single acting, spring extend | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 100 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75F32-150TAction: Single acting, spring extend | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 150 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75F32-200TAction: Single acting, spring extend | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 200 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75F40-10TAction: Single acting, spring extend | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 10 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75F40-25TAction: Single acting, spring extend | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 25 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75F40-50TAction: Single acting, spring extend | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 50 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75F40-100TAction: Single acting, spring extend | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 100 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75F40-150TAction: Single acting, spring extend | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 150 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75F40-200TAction: Single acting, spring extend | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 200 mm | Cushion: Rubber cushion | Auto switch magnet: No
C75F40-250TAction: Single acting, spring extend | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 250 mm | Cushion: Rubber cushion | Auto switch magnet: No
CD75E32-10Action: Double acting | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 10 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75E32-25Action: Double acting | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 25 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75E32-25CAction: Double acting | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 25 mm | Cushion: Air cushion | Auto switch magnet: Yes
CD75E32-40Action: Double acting | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 40 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75E32-40CAction: Double acting | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 40 mm | Cushion: Air cushion | Auto switch magnet: Yes
CD75E32-50Action: Double acting | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 50 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75E32-50CAction: Double acting | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 50 mm | Cushion: Air cushion | Auto switch magnet: Yes
CD75E32-80Action: Double acting | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 80 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75E32-80CAction: Double acting | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 80 mm | Cushion: Air cushion | Auto switch magnet: Yes
CD75E32-100Action: Double acting | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 100 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75E32-100CAction: Double acting | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 100 mm | Cushion: Air cushion | Auto switch magnet: Yes
CD75E32-125Action: Double acting | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 125 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75E32-125CAction: Double acting | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 125 mm | Cushion: Air cushion | Auto switch magnet: Yes
CD75E32-160Action: Double acting | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 160 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75E32-160CAction: Double acting | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 160 mm | Cushion: Air cushion | Auto switch magnet: Yes
CD75E32-200Action: Double acting | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 200 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75E32-200CAction: Double acting | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 200 mm | Cushion: Air cushion | Auto switch magnet: Yes
CD75E32-250Action: Double acting | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 250 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75E32-250CAction: Double acting | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 250 mm | Cushion: Air cushion | Auto switch magnet: Yes
CD75E32-300Action: Double acting | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 300 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75E32-300CAction: Double acting | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 300 mm | Cushion: Air cushion | Auto switch magnet: Yes
CD75E40-10Action: Double acting | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 10 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75E40-25Action: Double acting | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 25 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75E40-25CAction: Double acting | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 25 mm | Cushion: Air cushion | Auto switch magnet: Yes
CD75E40-40Action: Double acting | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 40 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75E40-40CAction: Double acting | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 40 mm | Cushion: Air cushion | Auto switch magnet: Yes
CD75E40-50Action: Double acting | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 50 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75E40-50CAction: Double acting | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 50 mm | Cushion: Air cushion | Auto switch magnet: Yes
CD75E40-80Action: Double acting | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 80 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75E40-80CAction: Double acting | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 80 mm | Cushion: Air cushion | Auto switch magnet: Yes
CD75E40-100Action: Double acting | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 100 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75E40-100CAction: Double acting | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 100 mm | Cushion: Air cushion | Auto switch magnet: Yes
CD75E40-125Action: Double acting | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 125 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75E40-125CAction: Double acting | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 125 mm | Cushion: Air cushion | Auto switch magnet: Yes
CD75E40-160Action: Double acting | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 160 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75E40-160CAction: Double acting | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 160 mm | Cushion: Air cushion | Auto switch magnet: Yes
CD75E40-200Action: Double acting | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 200 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75E40-200CAction: Double acting | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 200 mm | Cushion: Air cushion | Auto switch magnet: Yes
CD75E40-250Action: Double acting | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 250 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75E40-250CAction: Double acting | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 250 mm | Cushion: Air cushion | Auto switch magnet: Yes
CD75E40-300Action: Double acting | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 300 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75E40-300CAction: Double acting | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 300 mm | Cushion: Air cushion | Auto switch magnet: Yes
CD75F32-10Action: Double acting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 10 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75F32-25Action: Double acting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 25 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75F32-40Action: Double acting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 40 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75F32-50Action: Double acting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 50 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75F32-80Action: Double acting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 80 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75F32-100Action: Double acting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 100 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75F32-125Action: Double acting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 125 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75F32-160Action: Double acting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 160 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75F32-200Action: Double acting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 200 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75F32-250Action: Double acting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 250 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75F32-300Action: Double acting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 300 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75F40-10Action: Double acting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 10 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75F40-25Action: Double acting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 25 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75F40-40Action: Double acting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 40 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75F40-50Action: Double acting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 50 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75F40-80Action: Double acting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 80 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75F40-100Action: Double acting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 100 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75F40-125Action: Double acting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 125 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75F40-160Action: Double acting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 160 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75F40-200Action: Double acting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 200 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75F40-250Action: Double acting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 250 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75F40-300Action: Double acting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 300 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75Y32-10Action: Double acting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 10 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75Y32-25Action: Double acting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 25 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75Y32-40Action: Double acting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 40 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75Y32-50Action: Double acting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 50 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75Y32-80Action: Double acting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 80 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75Y32-100Action: Double acting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 100 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75Y32-125Action: Double acting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 125 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75Y32-160Action: Double acting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 160 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75Y32-200Action: Double acting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 200 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75Y32-250Action: Double acting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 250 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75Y32-300Action: Double acting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 300 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75Y40-10Action: Double acting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 10 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75Y40-25Action: Double acting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 25 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75Y40-40Action: Double acting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 40 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75Y40-50Action: Double acting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 50 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75Y40-80Action: Double acting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 80 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75Y40-100Action: Double acting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 100 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75Y40-125Action: Double acting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 125 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75Y40-160Action: Double acting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 160 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75Y40-200Action: Double acting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 200 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75Y40-250Action: Double acting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 250 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75Y40-300Action: Double acting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 300 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75E32-10SAction: Single acting, spring return | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 10 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75E32-25SAction: Single acting, spring return | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 25 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75E32-50SAction: Single acting, spring return | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 50 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75E32-100SAction: Single acting, spring return | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 100 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75E32-150SAction: Single acting, spring return | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 150 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75E32-200SAction: Single acting, spring return | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 200 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75E40-10SAction: Single acting, spring return | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 10 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75E40-25SAction: Single acting, spring return | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 25 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75E40-50SAction: Single acting, spring return | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 50 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75E40-100SAction: Single acting, spring return | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 100 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75E40-150SAction: Single acting, spring return | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 150 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75E40-200SAction: Single acting, spring return | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 200 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75E40-250SAction: Single acting, spring return | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 250 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75F32-10SAction: Single acting, spring return | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 10 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75F32-25SAction: Single acting, spring return | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 25 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75F32-50SAction: Single acting, spring return | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 50 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75F32-100SAction: Single acting, spring return | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 100 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75F32-150SAction: Single acting, spring return | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 150 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75F32-200SAction: Single acting, spring return | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 200 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75F40-10SAction: Single acting, spring return | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 10 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75F40-25SAction: Single acting, spring return | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 25 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75F40-50SAction: Single acting, spring return | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 50 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75F40-100SAction: Single acting, spring return | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 100 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75F40-150SAction: Single acting, spring return | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 150 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75F40-200SAction: Single acting, spring return | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 200 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75F40-250SAction: Single acting, spring return | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 250 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75Y32-10SAction: Single acting, spring return | Head cover: Axial head port | Bore: ø32 mm | Stroke: 10 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75Y32-25SAction: Single acting, spring return | Head cover: Axial head port | Bore: ø32 mm | Stroke: 25 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75Y32-50SAction: Single acting, spring return | Head cover: Axial head port | Bore: ø32 mm | Stroke: 50 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75Y32-100SAction: Single acting, spring return | Head cover: Axial head port | Bore: ø32 mm | Stroke: 100 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75Y32-150SAction: Single acting, spring return | Head cover: Axial head port | Bore: ø32 mm | Stroke: 150 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75Y32-200SAction: Single acting, spring return | Head cover: Axial head port | Bore: ø32 mm | Stroke: 200 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75Y40-10SAction: Single acting, spring return | Head cover: Axial head port | Bore: ø40 mm | Stroke: 10 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75Y40-25SAction: Single acting, spring return | Head cover: Axial head port | Bore: ø40 mm | Stroke: 25 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75Y40-50SAction: Single acting, spring return | Head cover: Axial head port | Bore: ø40 mm | Stroke: 50 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75Y40-100SAction: Single acting, spring return | Head cover: Axial head port | Bore: ø40 mm | Stroke: 100 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75Y40-150SAction: Single acting, spring return | Head cover: Axial head port | Bore: ø40 mm | Stroke: 150 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75Y40-200SAction: Single acting, spring return | Head cover: Axial head port | Bore: ø40 mm | Stroke: 200 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75Y40-250SAction: Single acting, spring return | Head cover: Axial head port | Bore: ø40 mm | Stroke: 250 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75E32-10TAction: Single acting, spring extend | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 10 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75E32-25TAction: Single acting, spring extend | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 25 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75E32-50TAction: Single acting, spring extend | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 50 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75E32-100TAction: Single acting, spring extend | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 100 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75E32-150TAction: Single acting, spring extend | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 150 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75E32-200TAction: Single acting, spring extend | Head cover: Boss both ends | Bore: ø32 mm | Stroke: 200 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75E40-10TAction: Single acting, spring extend | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 10 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75E40-25TAction: Single acting, spring extend | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 25 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75E40-50TAction: Single acting, spring extend | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 50 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75E40-100TAction: Single acting, spring extend | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 100 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75E40-150TAction: Single acting, spring extend | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 150 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75E40-200TAction: Single acting, spring extend | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 200 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75E40-250TAction: Single acting, spring extend | Head cover: Boss both ends | Bore: ø40 mm | Stroke: 250 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75F32-10TAction: Single acting, spring extend | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 10 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75F32-25TAction: Single acting, spring extend | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 25 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75F32-50TAction: Single acting, spring extend | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 50 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75F32-100TAction: Single acting, spring extend | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 100 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75F32-150TAction: Single acting, spring extend | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 150 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75F32-200TAction: Single acting, spring extend | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 200 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75F40-10TAction: Single acting, spring extend | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 10 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75F40-25TAction: Single acting, spring extend | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 25 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75F40-50TAction: Single acting, spring extend | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 50 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75F40-100TAction: Single acting, spring extend | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 100 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75F40-150TAction: Single acting, spring extend | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 150 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75F40-200TAction: Single acting, spring extend | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 200 mm | Cushion: Rubber cushion | Auto switch magnet: Yes
CD75F40-250TAction: Single acting, spring extend | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 250 mm | Cushion: Rubber cushion | Auto switch magnet: Yes

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
