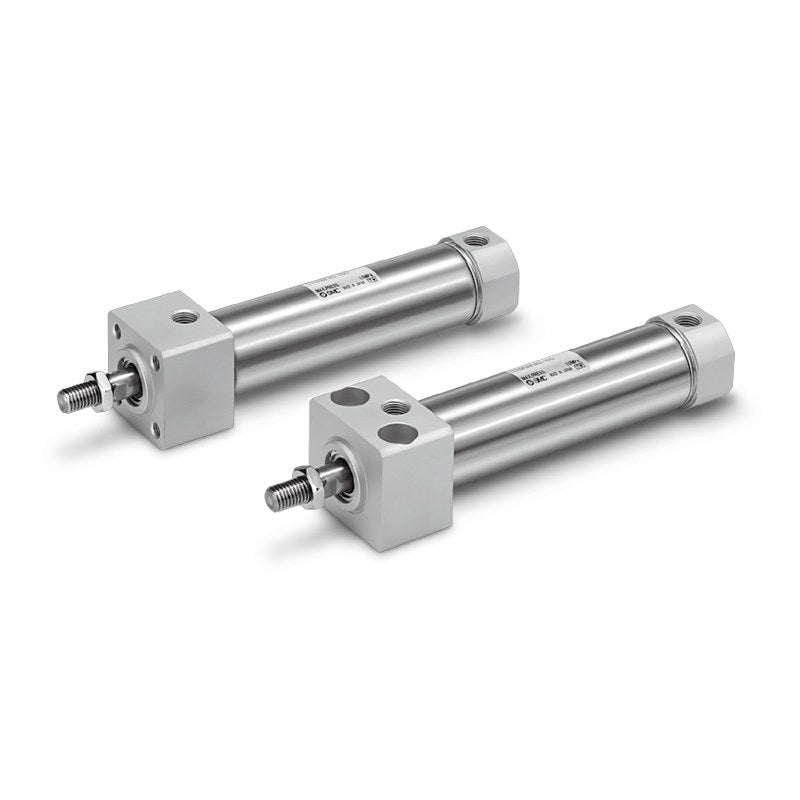

SMC C75R Air Cylinder (Direct Mount, ø32 and ø40)

SMC C75R Air Cylinder (Direct Mount, ø32 and ø40)

SMC C75R series double acting single rod air cylinder with a square rod cover for direct bottom or front mounting without brackets, ø32 and ø40.

Key features

  • Square rod cover mounts directly, reducing overall length and mounting pitch
  • Bottom mounting (A) and front mounting (B) types
  • Head cover types F (boss-cut basic) and Y (axial head port)
  • Rubber cushion; rod end V ordered as code suffix; band-mounted (B) auto switches such as D-M9BW
  • Made-to-order: -XA, -XB6, -XB7, -XB9, -XC6A stainless steel

Specifications

Action Double acting, single rod
Fluid Air
Proof pressure 1.5 MPa
Max. operating pressure 1.0 MPa
Min. operating pressure 0.05 MPa
Ambient and fluid temperature -20 to 80°C without auto switch, -10 to 60°C with auto switch (no freezing)
Lubrication Not required (non-lube)
Piston speed 50 to 1500 mm/s
Cushion Rubber cushion
Port size G1/8 (ø32), G1/4 (ø40)
Max. stroke 300 mm
Source SMC Korea catalog C85/C75 (SMCKR_C85_C75.pdf), p. 101-102 (PDF p. 98-99)
C75RAF32-10 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 10 mm | Auto switch magnet: No
C75RAF32-25 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 25 mm | Auto switch magnet: No
C75RAF32-40 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 40 mm | Auto switch magnet: No
C75RAF32-50 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 50 mm | Auto switch magnet: No
C75RAF32-80 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 80 mm | Auto switch magnet: No
C75RAF32-100 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 100 mm | Auto switch magnet: No
C75RAF32-125 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 125 mm | Auto switch magnet: No
C75RAF32-160 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 160 mm | Auto switch magnet: No
C75RAF32-200 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 200 mm | Auto switch magnet: No
C75RAF40-10 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 10 mm | Auto switch magnet: No
C75RAF40-25 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 25 mm | Auto switch magnet: No
C75RAF40-40 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 40 mm | Auto switch magnet: No
C75RAF40-50 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: No
C75RAF40-80 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 80 mm | Auto switch magnet: No
C75RAF40-100 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: No
C75RAF40-125 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 125 mm | Auto switch magnet: No
C75RAF40-160 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 160 mm | Auto switch magnet: No
C75RAF40-200 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 200 mm | Auto switch magnet: No
C75RAF40-250 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 250 mm | Auto switch magnet: No
C75RAF40-300 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 300 mm | Auto switch magnet: No
C75RAY32-10 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 10 mm | Auto switch magnet: No
C75RAY32-25 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 25 mm | Auto switch magnet: No
C75RAY32-40 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 40 mm | Auto switch magnet: No
C75RAY32-50 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 50 mm | Auto switch magnet: No
C75RAY32-80 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 80 mm | Auto switch magnet: No
C75RAY32-100 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 100 mm | Auto switch magnet: No
C75RAY32-125 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 125 mm | Auto switch magnet: No
C75RAY32-160 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 160 mm | Auto switch magnet: No
C75RAY32-200 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 200 mm | Auto switch magnet: No
C75RAY40-10 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 10 mm | Auto switch magnet: No
C75RAY40-25 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 25 mm | Auto switch magnet: No
C75RAY40-40 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 40 mm | Auto switch magnet: No
C75RAY40-50 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: No
C75RAY40-80 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 80 mm | Auto switch magnet: No
C75RAY40-100 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: No
C75RAY40-125 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 125 mm | Auto switch magnet: No
C75RAY40-160 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 160 mm | Auto switch magnet: No
C75RAY40-200 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 200 mm | Auto switch magnet: No
C75RAY40-250 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 250 mm | Auto switch magnet: No
C75RAY40-300 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 300 mm | Auto switch magnet: No
C75RBF32-10 Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 10 mm | Auto switch magnet: No
C75RBF32-25 Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 25 mm | Auto switch magnet: No
C75RBF32-40 Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 40 mm | Auto switch magnet: No
C75RBF32-50 Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 50 mm | Auto switch magnet: No
C75RBF32-80 Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 80 mm | Auto switch magnet: No
C75RBF32-100 Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 100 mm | Auto switch magnet: No
C75RBF32-125 Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 125 mm | Auto switch magnet: No
C75RBF32-160 Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 160 mm | Auto switch magnet: No
C75RBF32-200 Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 200 mm | Auto switch magnet: No
C75RBF40-10 Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 10 mm | Auto switch magnet: No
C75RBF40-25 Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 25 mm | Auto switch magnet: No
C75RBF40-40 Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 40 mm | Auto switch magnet: No
C75RBF40-50 Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: No
C75RBF40-80 Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 80 mm | Auto switch magnet: No
C75RBF40-100 Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: No
C75RBF40-125 Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 125 mm | Auto switch magnet: No
C75RBF40-160 Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 160 mm | Auto switch magnet: No
C75RBF40-200 Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 200 mm | Auto switch magnet: No
C75RBF40-250 Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 250 mm | Auto switch magnet: No
C75RBF40-300 Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 300 mm | Auto switch magnet: No
C75RBY32-10 Mounting: Front mounting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 10 mm | Auto switch magnet: No
C75RBY32-25 Mounting: Front mounting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 25 mm | Auto switch magnet: No
C75RBY32-40 Mounting: Front mounting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 40 mm | Auto switch magnet: No
C75RBY32-50 Mounting: Front mounting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 50 mm | Auto switch magnet: No
C75RBY32-80 Mounting: Front mounting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 80 mm | Auto switch magnet: No
C75RBY32-100 Mounting: Front mounting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 100 mm | Auto switch magnet: No
C75RBY32-125 Mounting: Front mounting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 125 mm | Auto switch magnet: No
C75RBY32-160 Mounting: Front mounting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 160 mm | Auto switch magnet: No
C75RBY32-200 Mounting: Front mounting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 200 mm | Auto switch magnet: No
C75RBY40-10 Mounting: Front mounting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 10 mm | Auto switch magnet: No
C75RBY40-25 Mounting: Front mounting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 25 mm | Auto switch magnet: No
C75RBY40-40 Mounting: Front mounting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 40 mm | Auto switch magnet: No
C75RBY40-50 Mounting: Front mounting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: No
C75RBY40-80 Mounting: Front mounting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 80 mm | Auto switch magnet: No
C75RBY40-100 Mounting: Front mounting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: No
C75RBY40-125 Mounting: Front mounting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 125 mm | Auto switch magnet: No
C75RBY40-160 Mounting: Front mounting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 160 mm | Auto switch magnet: No
C75RBY40-200 Mounting: Front mounting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 200 mm | Auto switch magnet: No
C75RBY40-250 Mounting: Front mounting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 250 mm | Auto switch magnet: No
C75RBY40-300 Mounting: Front mounting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 300 mm | Auto switch magnet: No
CD75RAF32-10 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 10 mm | Auto switch magnet: Yes
CD75RAF32-25 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 25 mm | Auto switch magnet: Yes
CD75RAF32-40 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 40 mm | Auto switch magnet: Yes
CD75RAF32-50 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 50 mm | Auto switch magnet: Yes
CD75RAF32-80 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 80 mm | Auto switch magnet: Yes
CD75RAF32-100 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 100 mm | Auto switch magnet: Yes
CD75RAF32-125 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 125 mm | Auto switch magnet: Yes
CD75RAF32-160 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 160 mm | Auto switch magnet: Yes
CD75RAF32-200 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 200 mm | Auto switch magnet: Yes
CD75RAF40-10 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 10 mm | Auto switch magnet: Yes
CD75RAF40-25 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 25 mm | Auto switch magnet: Yes
CD75RAF40-40 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 40 mm | Auto switch magnet: Yes
CD75RAF40-50 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: Yes
CD75RAF40-80 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 80 mm | Auto switch magnet: Yes
CD75RAF40-100 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: Yes
CD75RAF40-125 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 125 mm | Auto switch magnet: Yes
CD75RAF40-160 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 160 mm | Auto switch magnet: Yes
CD75RAF40-200 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 200 mm | Auto switch magnet: Yes
CD75RAF40-250 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 250 mm | Auto switch magnet: Yes
CD75RAF40-300 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 300 mm | Auto switch magnet: Yes
CD75RAY32-10 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 10 mm | Auto switch magnet: Yes
CD75RAY32-25 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 25 mm | Auto switch magnet: Yes
CD75RAY32-40 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 40 mm | Auto switch magnet: Yes
CD75RAY32-50 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 50 mm | Auto switch magnet: Yes
CD75RAY32-80 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 80 mm | Auto switch magnet: Yes
CD75RAY32-100 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 100 mm | Auto switch magnet: Yes
CD75RAY32-125 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 125 mm | Auto switch magnet: Yes
CD75RAY32-160 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 160 mm | Auto switch magnet: Yes
CD75RAY32-200 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 200 mm | Auto switch magnet: Yes
CD75RAY40-10 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 10 mm | Auto switch magnet: Yes
CD75RAY40-25 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 25 mm | Auto switch magnet: Yes
CD75RAY40-40 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 40 mm | Auto switch magnet: Yes
CD75RAY40-50 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: Yes
CD75RAY40-80 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 80 mm | Auto switch magnet: Yes
CD75RAY40-100 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: Yes
CD75RAY40-125 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 125 mm | Auto switch magnet: Yes
CD75RAY40-160 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 160 mm | Auto switch magnet: Yes
CD75RAY40-200 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 200 mm | Auto switch magnet: Yes
CD75RAY40-250 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 250 mm | Auto switch magnet: Yes
CD75RAY40-300 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 300 mm | Auto switch magnet: Yes
CD75RBF32-10 Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 10 mm | Auto switch magnet: Yes
CD75RBF32-25 Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 25 mm | Auto switch magnet: Yes
CD75RBF32-40 Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 40 mm | Auto switch magnet: Yes
CD75RBF32-50 Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 50 mm | Auto switch magnet: Yes
CD75RBF32-80 Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 80 mm | Auto switch magnet: Yes
CD75RBF32-100 Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 100 mm | Auto switch magnet: Yes
CD75RBF32-125 Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 125 mm | Auto switch magnet: Yes
CD75RBF32-160 Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 160 mm | Auto switch magnet: Yes
CD75RBF32-200 Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 200 mm | Auto switch magnet: Yes
CD75RBF40-10 Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 10 mm | Auto switch magnet: Yes
CD75RBF40-25 Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 25 mm | Auto switch magnet: Yes
CD75RBF40-40 Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 40 mm | Auto switch magnet: Yes
CD75RBF40-50 Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: Yes
CD75RBF40-80 Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 80 mm | Auto switch magnet: Yes
CD75RBF40-100 Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: Yes
CD75RBF40-125 Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 125 mm | Auto switch magnet: Yes
CD75RBF40-160 Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 160 mm | Auto switch magnet: Yes
CD75RBF40-200 Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 200 mm | Auto switch magnet: Yes
CD75RBF40-250 Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 250 mm | Auto switch magnet: Yes
CD75RBF40-300 Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 300 mm | Auto switch magnet: Yes
CD75RBY32-10 Mounting: Front mounting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 10 mm | Auto switch magnet: Yes
CD75RBY32-25 Mounting: Front mounting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 25 mm | Auto switch magnet: Yes
CD75RBY32-40 Mounting: Front mounting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 40 mm | Auto switch magnet: Yes
CD75RBY32-50 Mounting: Front mounting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 50 mm | Auto switch magnet: Yes
CD75RBY32-80 Mounting: Front mounting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 80 mm | Auto switch magnet: Yes
CD75RBY32-100 Mounting: Front mounting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 100 mm | Auto switch magnet: Yes
CD75RBY32-125 Mounting: Front mounting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 125 mm | Auto switch magnet: Yes
CD75RBY32-160 Mounting: Front mounting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 160 mm | Auto switch magnet: Yes
CD75RBY32-200 Mounting: Front mounting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 200 mm | Auto switch magnet: Yes
CD75RBY40-10 Mounting: Front mounting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 10 mm | Auto switch magnet: Yes
CD75RBY40-25 Mounting: Front mounting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 25 mm | Auto switch magnet: Yes
CD75RBY40-40 Mounting: Front mounting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 40 mm | Auto switch magnet: Yes
CD75RBY40-50 Mounting: Front mounting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: Yes
CD75RBY40-80 Mounting: Front mounting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 80 mm | Auto switch magnet: Yes
CD75RBY40-100 Mounting: Front mounting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: Yes
CD75RBY40-125 Mounting: Front mounting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 125 mm | Auto switch magnet: Yes
CD75RBY40-160 Mounting: Front mounting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 160 mm | Auto switch magnet: Yes
CD75RBY40-200 Mounting: Front mounting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 200 mm | Auto switch magnet: Yes
CD75RBY40-250 Mounting: Front mounting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 250 mm | Auto switch magnet: Yes
CD75RBY40-300 Mounting: Front mounting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 300 mm | Auto switch magnet: Yes
Round Body CylindersSMC
160 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC C75R Air Cylinder (Direct Mount, ø32 and ø40)

Brand SMC·Round Body Cylinders

Available part numbers (160)

C75RAF32-10, C75RAF32-25, C75RAF32-40, C75RAF32-50, C75RAF32-80, C75RAF32-100, C75RAF32-125, C75RAF32-160, C75RAF32-200, C75RAF40-10 + 150 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
C75RAF32-10Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 10 mm | Auto switch magnet: No
C75RAF32-25Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 25 mm | Auto switch magnet: No
C75RAF32-40Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 40 mm | Auto switch magnet: No
C75RAF32-50Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 50 mm | Auto switch magnet: No
C75RAF32-80Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 80 mm | Auto switch magnet: No
C75RAF32-100Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 100 mm | Auto switch magnet: No
C75RAF32-125Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 125 mm | Auto switch magnet: No
C75RAF32-160Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 160 mm | Auto switch magnet: No
C75RAF32-200Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 200 mm | Auto switch magnet: No
C75RAF40-10Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 10 mm | Auto switch magnet: No
C75RAF40-25Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 25 mm | Auto switch magnet: No
C75RAF40-40Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 40 mm | Auto switch magnet: No
C75RAF40-50Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: No
C75RAF40-80Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 80 mm | Auto switch magnet: No
C75RAF40-100Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: No
C75RAF40-125Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 125 mm | Auto switch magnet: No
C75RAF40-160Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 160 mm | Auto switch magnet: No
C75RAF40-200Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 200 mm | Auto switch magnet: No
C75RAF40-250Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 250 mm | Auto switch magnet: No
C75RAF40-300Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 300 mm | Auto switch magnet: No
C75RAY32-10Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 10 mm | Auto switch magnet: No
C75RAY32-25Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 25 mm | Auto switch magnet: No
C75RAY32-40Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 40 mm | Auto switch magnet: No
C75RAY32-50Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 50 mm | Auto switch magnet: No
C75RAY32-80Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 80 mm | Auto switch magnet: No
C75RAY32-100Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 100 mm | Auto switch magnet: No
C75RAY32-125Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 125 mm | Auto switch magnet: No
C75RAY32-160Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 160 mm | Auto switch magnet: No
C75RAY32-200Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 200 mm | Auto switch magnet: No
C75RAY40-10Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 10 mm | Auto switch magnet: No
C75RAY40-25Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 25 mm | Auto switch magnet: No
C75RAY40-40Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 40 mm | Auto switch magnet: No
C75RAY40-50Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: No
C75RAY40-80Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 80 mm | Auto switch magnet: No
C75RAY40-100Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: No
C75RAY40-125Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 125 mm | Auto switch magnet: No
C75RAY40-160Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 160 mm | Auto switch magnet: No
C75RAY40-200Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 200 mm | Auto switch magnet: No
C75RAY40-250Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 250 mm | Auto switch magnet: No
C75RAY40-300Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 300 mm | Auto switch magnet: No
C75RBF32-10Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 10 mm | Auto switch magnet: No
C75RBF32-25Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 25 mm | Auto switch magnet: No
C75RBF32-40Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 40 mm | Auto switch magnet: No
C75RBF32-50Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 50 mm | Auto switch magnet: No
C75RBF32-80Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 80 mm | Auto switch magnet: No
C75RBF32-100Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 100 mm | Auto switch magnet: No
C75RBF32-125Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 125 mm | Auto switch magnet: No
C75RBF32-160Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 160 mm | Auto switch magnet: No
C75RBF32-200Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 200 mm | Auto switch magnet: No
C75RBF40-10Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 10 mm | Auto switch magnet: No
C75RBF40-25Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 25 mm | Auto switch magnet: No
C75RBF40-40Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 40 mm | Auto switch magnet: No
C75RBF40-50Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: No
C75RBF40-80Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 80 mm | Auto switch magnet: No
C75RBF40-100Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: No
C75RBF40-125Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 125 mm | Auto switch magnet: No
C75RBF40-160Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 160 mm | Auto switch magnet: No
C75RBF40-200Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 200 mm | Auto switch magnet: No
C75RBF40-250Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 250 mm | Auto switch magnet: No
C75RBF40-300Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 300 mm | Auto switch magnet: No
C75RBY32-10Mounting: Front mounting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 10 mm | Auto switch magnet: No
C75RBY32-25Mounting: Front mounting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 25 mm | Auto switch magnet: No
C75RBY32-40Mounting: Front mounting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 40 mm | Auto switch magnet: No
C75RBY32-50Mounting: Front mounting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 50 mm | Auto switch magnet: No
C75RBY32-80Mounting: Front mounting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 80 mm | Auto switch magnet: No
C75RBY32-100Mounting: Front mounting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 100 mm | Auto switch magnet: No
C75RBY32-125Mounting: Front mounting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 125 mm | Auto switch magnet: No
C75RBY32-160Mounting: Front mounting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 160 mm | Auto switch magnet: No
C75RBY32-200Mounting: Front mounting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 200 mm | Auto switch magnet: No
C75RBY40-10Mounting: Front mounting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 10 mm | Auto switch magnet: No
C75RBY40-25Mounting: Front mounting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 25 mm | Auto switch magnet: No
C75RBY40-40Mounting: Front mounting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 40 mm | Auto switch magnet: No
C75RBY40-50Mounting: Front mounting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: No
C75RBY40-80Mounting: Front mounting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 80 mm | Auto switch magnet: No
C75RBY40-100Mounting: Front mounting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: No
C75RBY40-125Mounting: Front mounting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 125 mm | Auto switch magnet: No
C75RBY40-160Mounting: Front mounting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 160 mm | Auto switch magnet: No
C75RBY40-200Mounting: Front mounting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 200 mm | Auto switch magnet: No
C75RBY40-250Mounting: Front mounting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 250 mm | Auto switch magnet: No
C75RBY40-300Mounting: Front mounting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 300 mm | Auto switch magnet: No
CD75RAF32-10Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 10 mm | Auto switch magnet: Yes
CD75RAF32-25Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 25 mm | Auto switch magnet: Yes
CD75RAF32-40Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 40 mm | Auto switch magnet: Yes
CD75RAF32-50Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 50 mm | Auto switch magnet: Yes
CD75RAF32-80Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 80 mm | Auto switch magnet: Yes
CD75RAF32-100Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 100 mm | Auto switch magnet: Yes
CD75RAF32-125Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 125 mm | Auto switch magnet: Yes
CD75RAF32-160Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 160 mm | Auto switch magnet: Yes
CD75RAF32-200Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 200 mm | Auto switch magnet: Yes
CD75RAF40-10Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 10 mm | Auto switch magnet: Yes
CD75RAF40-25Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 25 mm | Auto switch magnet: Yes
CD75RAF40-40Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 40 mm | Auto switch magnet: Yes
CD75RAF40-50Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: Yes
CD75RAF40-80Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 80 mm | Auto switch magnet: Yes
CD75RAF40-100Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: Yes
CD75RAF40-125Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 125 mm | Auto switch magnet: Yes
CD75RAF40-160Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 160 mm | Auto switch magnet: Yes
CD75RAF40-200Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 200 mm | Auto switch magnet: Yes
CD75RAF40-250Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 250 mm | Auto switch magnet: Yes
CD75RAF40-300Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 300 mm | Auto switch magnet: Yes
CD75RAY32-10Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 10 mm | Auto switch magnet: Yes
CD75RAY32-25Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 25 mm | Auto switch magnet: Yes
CD75RAY32-40Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 40 mm | Auto switch magnet: Yes
CD75RAY32-50Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 50 mm | Auto switch magnet: Yes
CD75RAY32-80Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 80 mm | Auto switch magnet: Yes
CD75RAY32-100Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 100 mm | Auto switch magnet: Yes
CD75RAY32-125Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 125 mm | Auto switch magnet: Yes
CD75RAY32-160Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 160 mm | Auto switch magnet: Yes
CD75RAY32-200Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 200 mm | Auto switch magnet: Yes
CD75RAY40-10Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 10 mm | Auto switch magnet: Yes
CD75RAY40-25Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 25 mm | Auto switch magnet: Yes
CD75RAY40-40Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 40 mm | Auto switch magnet: Yes
CD75RAY40-50Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: Yes
CD75RAY40-80Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 80 mm | Auto switch magnet: Yes
CD75RAY40-100Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: Yes
CD75RAY40-125Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 125 mm | Auto switch magnet: Yes
CD75RAY40-160Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 160 mm | Auto switch magnet: Yes
CD75RAY40-200Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 200 mm | Auto switch magnet: Yes
CD75RAY40-250Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 250 mm | Auto switch magnet: Yes
CD75RAY40-300Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 300 mm | Auto switch magnet: Yes
CD75RBF32-10Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 10 mm | Auto switch magnet: Yes
CD75RBF32-25Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 25 mm | Auto switch magnet: Yes
CD75RBF32-40Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 40 mm | Auto switch magnet: Yes
CD75RBF32-50Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 50 mm | Auto switch magnet: Yes
CD75RBF32-80Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 80 mm | Auto switch magnet: Yes
CD75RBF32-100Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 100 mm | Auto switch magnet: Yes
CD75RBF32-125Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 125 mm | Auto switch magnet: Yes
CD75RBF32-160Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 160 mm | Auto switch magnet: Yes
CD75RBF32-200Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø32 mm | Stroke: 200 mm | Auto switch magnet: Yes
CD75RBF40-10Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 10 mm | Auto switch magnet: Yes
CD75RBF40-25Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 25 mm | Auto switch magnet: Yes
CD75RBF40-40Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 40 mm | Auto switch magnet: Yes
CD75RBF40-50Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: Yes
CD75RBF40-80Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 80 mm | Auto switch magnet: Yes
CD75RBF40-100Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: Yes
CD75RBF40-125Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 125 mm | Auto switch magnet: Yes
CD75RBF40-160Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 160 mm | Auto switch magnet: Yes
CD75RBF40-200Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 200 mm | Auto switch magnet: Yes
CD75RBF40-250Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 250 mm | Auto switch magnet: Yes
CD75RBF40-300Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø40 mm | Stroke: 300 mm | Auto switch magnet: Yes
CD75RBY32-10Mounting: Front mounting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 10 mm | Auto switch magnet: Yes
CD75RBY32-25Mounting: Front mounting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 25 mm | Auto switch magnet: Yes
CD75RBY32-40Mounting: Front mounting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 40 mm | Auto switch magnet: Yes
CD75RBY32-50Mounting: Front mounting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 50 mm | Auto switch magnet: Yes
CD75RBY32-80Mounting: Front mounting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 80 mm | Auto switch magnet: Yes
CD75RBY32-100Mounting: Front mounting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 100 mm | Auto switch magnet: Yes
CD75RBY32-125Mounting: Front mounting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 125 mm | Auto switch magnet: Yes
CD75RBY32-160Mounting: Front mounting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 160 mm | Auto switch magnet: Yes
CD75RBY32-200Mounting: Front mounting | Head cover: Axial head port | Bore: ø32 mm | Stroke: 200 mm | Auto switch magnet: Yes
CD75RBY40-10Mounting: Front mounting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 10 mm | Auto switch magnet: Yes
CD75RBY40-25Mounting: Front mounting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 25 mm | Auto switch magnet: Yes
CD75RBY40-40Mounting: Front mounting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 40 mm | Auto switch magnet: Yes
CD75RBY40-50Mounting: Front mounting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: Yes
CD75RBY40-80Mounting: Front mounting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 80 mm | Auto switch magnet: Yes
CD75RBY40-100Mounting: Front mounting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: Yes
CD75RBY40-125Mounting: Front mounting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 125 mm | Auto switch magnet: Yes
CD75RBY40-160Mounting: Front mounting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 160 mm | Auto switch magnet: Yes
CD75RBY40-200Mounting: Front mounting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 200 mm | Auto switch magnet: Yes
CD75RBY40-250Mounting: Front mounting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 250 mm | Auto switch magnet: Yes
CD75RBY40-300Mounting: Front mounting | Head cover: Axial head port | Bore: ø40 mm | Stroke: 300 mm | Auto switch magnet: Yes

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
