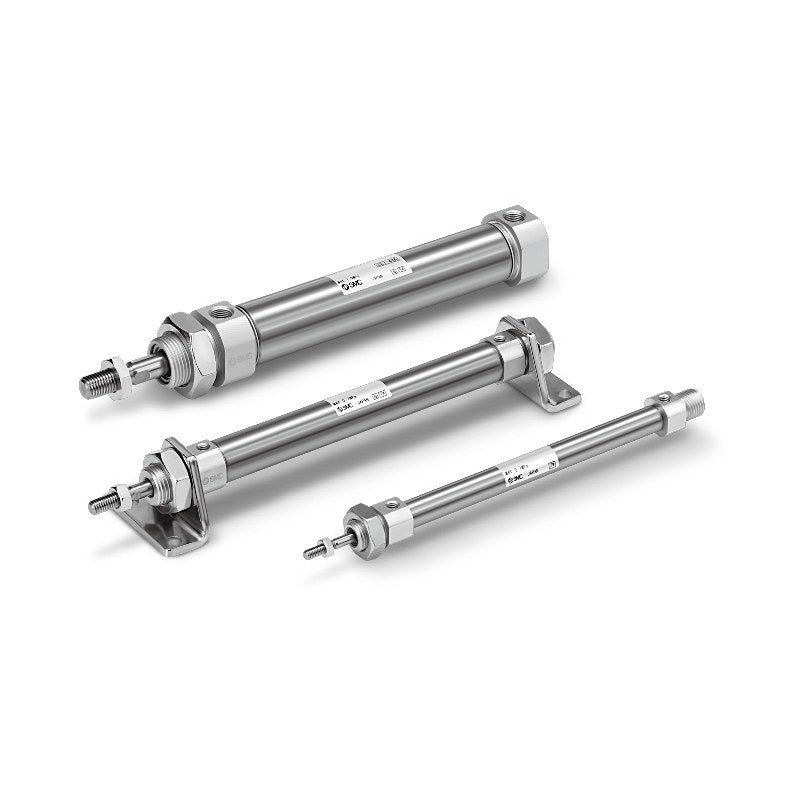

SMC C85K ISO Air Cylinder (Non-Rotating Rod, ø8 to ø25)

SMC C85K series ISO 6432 compliant round body air cylinder with non-rotating piston rod, in double acting and single acting (spring return / spring extend) versions, ø8 to ø25.

Key features

Non-rotating rod: accuracy ±1.5° (ø8, ø10), ±1° (ø12, ø16), ±0.7° (ø20, ø25)
Head cover types N (basic, integrated clevis), E (boss both ends), F (boss-cut basic), Y (axial head port, not for spring extend type)
Rubber cushion; single acting spring return (S) and spring extend (T) types available
Mounting brackets L/M/G/U/N and rod end V/W ordered as code suffixes and shipped with the cylinder
CD models have a built-in magnet for rail-mounted (A) or band-mounted (B) auto switches such as D-M9B/M9BW and D-A93 (ordered as a suffix, e.g. -B-M9BW)
Made-to-order: -XA rod end change, -XC6 stainless steel

Specifications

Fluid	Air
Proof pressure	1.5 MPa
Max. operating pressure	1.0 MPa
Min. operating pressure	Double acting 0.05 to 0.1 MPa; single acting 0.13 to 0.23 MPa
Ambient and fluid temperature	-20 to 80°C without auto switch, -10 to 60°C with auto switch (no freezing)
Lubrication	Not required (non-lube)
Piston speed	50 to 1500 mm/s
Cushion	Rubber cushion
Port size	M5 x 0.8 (ø8 to ø16), G1/8 (ø20, ø25)
Allowable rotational torque	0.02 N·m (ø8, ø10), 0.04 N·m (ø12, ø16), 0.2/0.25 N·m (ø20/ø25)
Source	SMC Korea catalog C85/C75 (SMCKR_C85_C75.pdf), p. 37-38, 42-43 (PDF p. 34-35, 39-40)

C85KN8-10		Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø8 mm \| Stroke: 10 mm \| Auto switch magnet: No
C85KN8-25		Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø8 mm \| Stroke: 25 mm \| Auto switch magnet: No
C85KN8-40		Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø8 mm \| Stroke: 40 mm \| Auto switch magnet: No
C85KN8-50		Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø8 mm \| Stroke: 50 mm \| Auto switch magnet: No
C85KN8-80		Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø8 mm \| Stroke: 80 mm \| Auto switch magnet: No
C85KN8-100		Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø8 mm \| Stroke: 100 mm \| Auto switch magnet: No
C85KN10-10		Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø10 mm \| Stroke: 10 mm \| Auto switch magnet: No
C85KN10-25		Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø10 mm \| Stroke: 25 mm \| Auto switch magnet: No
C85KN10-40		Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø10 mm \| Stroke: 40 mm \| Auto switch magnet: No
C85KN10-50		Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø10 mm \| Stroke: 50 mm \| Auto switch magnet: No
C85KN10-80		Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø10 mm \| Stroke: 80 mm \| Auto switch magnet: No
C85KN10-100		Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø10 mm \| Stroke: 100 mm \| Auto switch magnet: No
C85KN12-10		Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: No
C85KN12-25		Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: No
C85KN12-40		Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø12 mm \| Stroke: 40 mm \| Auto switch magnet: No
C85KN12-50		Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø12 mm \| Stroke: 50 mm \| Auto switch magnet: No
C85KN12-80		Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø12 mm \| Stroke: 80 mm \| Auto switch magnet: No
C85KN12-100		Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø12 mm \| Stroke: 100 mm \| Auto switch magnet: No
C85KN12-125		Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø12 mm \| Stroke: 125 mm \| Auto switch magnet: No
C85KN12-160		Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø12 mm \| Stroke: 160 mm \| Auto switch magnet: No
C85KN12-200		Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø12 mm \| Stroke: 200 mm \| Auto switch magnet: No
C85KN16-10		Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: No
C85KN16-25		Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: No
C85KN16-40		Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø16 mm \| Stroke: 40 mm \| Auto switch magnet: No
C85KN16-50		Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø16 mm \| Stroke: 50 mm \| Auto switch magnet: No
C85KN16-80		Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø16 mm \| Stroke: 80 mm \| Auto switch magnet: No
C85KN16-100		Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø16 mm \| Stroke: 100 mm \| Auto switch magnet: No
C85KN16-125		Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø16 mm \| Stroke: 125 mm \| Auto switch magnet: No
C85KN16-160		Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø16 mm \| Stroke: 160 mm \| Auto switch magnet: No
C85KN16-200		Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø16 mm \| Stroke: 200 mm \| Auto switch magnet: No
C85KN20-10		Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: No
C85KN20-25		Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
C85KN20-40		Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: No
C85KN20-50		Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
C85KN20-80		Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø20 mm \| Stroke: 80 mm \| Auto switch magnet: No
C85KN20-100		Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: No
C85KN20-125		Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø20 mm \| Stroke: 125 mm \| Auto switch magnet: No
C85KN20-160		Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø20 mm \| Stroke: 160 mm \| Auto switch magnet: No
C85KN20-200		Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø20 mm \| Stroke: 200 mm \| Auto switch magnet: No
C85KN20-250		Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø20 mm \| Stroke: 250 mm \| Auto switch magnet: No
C85KN20-300		Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø20 mm \| Stroke: 300 mm \| Auto switch magnet: No
C85KN25-10		Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: No
C85KN25-25		Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
C85KN25-40		Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: No
C85KN25-50		Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
C85KN25-80		Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø25 mm \| Stroke: 80 mm \| Auto switch magnet: No
C85KN25-100		Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: No
C85KN25-125		Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø25 mm \| Stroke: 125 mm \| Auto switch magnet: No
C85KN25-160		Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø25 mm \| Stroke: 160 mm \| Auto switch magnet: No
C85KN25-200		Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø25 mm \| Stroke: 200 mm \| Auto switch magnet: No
C85KN25-250		Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø25 mm \| Stroke: 250 mm \| Auto switch magnet: No
C85KN25-300		Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø25 mm \| Stroke: 300 mm \| Auto switch magnet: No
C85KE8-10		Action: Double acting \| Head cover: Boss both ends \| Bore: ø8 mm \| Stroke: 10 mm \| Auto switch magnet: No
C85KE8-25		Action: Double acting \| Head cover: Boss both ends \| Bore: ø8 mm \| Stroke: 25 mm \| Auto switch magnet: No
C85KE8-40		Action: Double acting \| Head cover: Boss both ends \| Bore: ø8 mm \| Stroke: 40 mm \| Auto switch magnet: No
C85KE8-50		Action: Double acting \| Head cover: Boss both ends \| Bore: ø8 mm \| Stroke: 50 mm \| Auto switch magnet: No
C85KE8-80		Action: Double acting \| Head cover: Boss both ends \| Bore: ø8 mm \| Stroke: 80 mm \| Auto switch magnet: No
C85KE8-100		Action: Double acting \| Head cover: Boss both ends \| Bore: ø8 mm \| Stroke: 100 mm \| Auto switch magnet: No
C85KE10-10		Action: Double acting \| Head cover: Boss both ends \| Bore: ø10 mm \| Stroke: 10 mm \| Auto switch magnet: No
C85KE10-25		Action: Double acting \| Head cover: Boss both ends \| Bore: ø10 mm \| Stroke: 25 mm \| Auto switch magnet: No
C85KE10-40		Action: Double acting \| Head cover: Boss both ends \| Bore: ø10 mm \| Stroke: 40 mm \| Auto switch magnet: No
C85KE10-50		Action: Double acting \| Head cover: Boss both ends \| Bore: ø10 mm \| Stroke: 50 mm \| Auto switch magnet: No
C85KE10-80		Action: Double acting \| Head cover: Boss both ends \| Bore: ø10 mm \| Stroke: 80 mm \| Auto switch magnet: No
C85KE10-100		Action: Double acting \| Head cover: Boss both ends \| Bore: ø10 mm \| Stroke: 100 mm \| Auto switch magnet: No
C85KE12-10		Action: Double acting \| Head cover: Boss both ends \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: No
C85KE12-25		Action: Double acting \| Head cover: Boss both ends \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: No
C85KE12-40		Action: Double acting \| Head cover: Boss both ends \| Bore: ø12 mm \| Stroke: 40 mm \| Auto switch magnet: No
C85KE12-50		Action: Double acting \| Head cover: Boss both ends \| Bore: ø12 mm \| Stroke: 50 mm \| Auto switch magnet: No
C85KE12-80		Action: Double acting \| Head cover: Boss both ends \| Bore: ø12 mm \| Stroke: 80 mm \| Auto switch magnet: No
C85KE12-100		Action: Double acting \| Head cover: Boss both ends \| Bore: ø12 mm \| Stroke: 100 mm \| Auto switch magnet: No
C85KE12-125		Action: Double acting \| Head cover: Boss both ends \| Bore: ø12 mm \| Stroke: 125 mm \| Auto switch magnet: No
C85KE12-160		Action: Double acting \| Head cover: Boss both ends \| Bore: ø12 mm \| Stroke: 160 mm \| Auto switch magnet: No
C85KE12-200		Action: Double acting \| Head cover: Boss both ends \| Bore: ø12 mm \| Stroke: 200 mm \| Auto switch magnet: No
C85KE16-10		Action: Double acting \| Head cover: Boss both ends \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: No
C85KE16-25		Action: Double acting \| Head cover: Boss both ends \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: No
C85KE16-40		Action: Double acting \| Head cover: Boss both ends \| Bore: ø16 mm \| Stroke: 40 mm \| Auto switch magnet: No
C85KE16-50		Action: Double acting \| Head cover: Boss both ends \| Bore: ø16 mm \| Stroke: 50 mm \| Auto switch magnet: No
C85KE16-80		Action: Double acting \| Head cover: Boss both ends \| Bore: ø16 mm \| Stroke: 80 mm \| Auto switch magnet: No
C85KE16-100		Action: Double acting \| Head cover: Boss both ends \| Bore: ø16 mm \| Stroke: 100 mm \| Auto switch magnet: No
C85KE16-125		Action: Double acting \| Head cover: Boss both ends \| Bore: ø16 mm \| Stroke: 125 mm \| Auto switch magnet: No
C85KE16-160		Action: Double acting \| Head cover: Boss both ends \| Bore: ø16 mm \| Stroke: 160 mm \| Auto switch magnet: No
C85KE16-200		Action: Double acting \| Head cover: Boss both ends \| Bore: ø16 mm \| Stroke: 200 mm \| Auto switch magnet: No
C85KE20-10		Action: Double acting \| Head cover: Boss both ends \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: No
C85KE20-25		Action: Double acting \| Head cover: Boss both ends \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
C85KE20-40		Action: Double acting \| Head cover: Boss both ends \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: No
C85KE20-50		Action: Double acting \| Head cover: Boss both ends \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
C85KE20-80		Action: Double acting \| Head cover: Boss both ends \| Bore: ø20 mm \| Stroke: 80 mm \| Auto switch magnet: No
C85KE20-100		Action: Double acting \| Head cover: Boss both ends \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: No
C85KE20-125		Action: Double acting \| Head cover: Boss both ends \| Bore: ø20 mm \| Stroke: 125 mm \| Auto switch magnet: No
C85KE20-160		Action: Double acting \| Head cover: Boss both ends \| Bore: ø20 mm \| Stroke: 160 mm \| Auto switch magnet: No
C85KE20-200		Action: Double acting \| Head cover: Boss both ends \| Bore: ø20 mm \| Stroke: 200 mm \| Auto switch magnet: No
C85KE20-250		Action: Double acting \| Head cover: Boss both ends \| Bore: ø20 mm \| Stroke: 250 mm \| Auto switch magnet: No
C85KE20-300		Action: Double acting \| Head cover: Boss both ends \| Bore: ø20 mm \| Stroke: 300 mm \| Auto switch magnet: No
C85KE25-10		Action: Double acting \| Head cover: Boss both ends \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: No
C85KE25-25		Action: Double acting \| Head cover: Boss both ends \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
C85KE25-40		Action: Double acting \| Head cover: Boss both ends \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: No
C85KE25-50		Action: Double acting \| Head cover: Boss both ends \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
C85KE25-80		Action: Double acting \| Head cover: Boss both ends \| Bore: ø25 mm \| Stroke: 80 mm \| Auto switch magnet: No
C85KE25-100		Action: Double acting \| Head cover: Boss both ends \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: No
C85KE25-125		Action: Double acting \| Head cover: Boss both ends \| Bore: ø25 mm \| Stroke: 125 mm \| Auto switch magnet: No
C85KE25-160		Action: Double acting \| Head cover: Boss both ends \| Bore: ø25 mm \| Stroke: 160 mm \| Auto switch magnet: No
C85KE25-200		Action: Double acting \| Head cover: Boss both ends \| Bore: ø25 mm \| Stroke: 200 mm \| Auto switch magnet: No
C85KE25-250		Action: Double acting \| Head cover: Boss both ends \| Bore: ø25 mm \| Stroke: 250 mm \| Auto switch magnet: No
C85KE25-300		Action: Double acting \| Head cover: Boss both ends \| Bore: ø25 mm \| Stroke: 300 mm \| Auto switch magnet: No
C85KF8-10		Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø8 mm \| Stroke: 10 mm \| Auto switch magnet: No
C85KF8-25		Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø8 mm \| Stroke: 25 mm \| Auto switch magnet: No
C85KF8-40		Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø8 mm \| Stroke: 40 mm \| Auto switch magnet: No
C85KF8-50		Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø8 mm \| Stroke: 50 mm \| Auto switch magnet: No
C85KF8-80		Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø8 mm \| Stroke: 80 mm \| Auto switch magnet: No
C85KF8-100		Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø8 mm \| Stroke: 100 mm \| Auto switch magnet: No
C85KF10-10		Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø10 mm \| Stroke: 10 mm \| Auto switch magnet: No
C85KF10-25		Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø10 mm \| Stroke: 25 mm \| Auto switch magnet: No
C85KF10-40		Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø10 mm \| Stroke: 40 mm \| Auto switch magnet: No
C85KF10-50		Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø10 mm \| Stroke: 50 mm \| Auto switch magnet: No
C85KF10-80		Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø10 mm \| Stroke: 80 mm \| Auto switch magnet: No
C85KF10-100		Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø10 mm \| Stroke: 100 mm \| Auto switch magnet: No
C85KF12-10		Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: No
C85KF12-25		Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: No
C85KF12-40		Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø12 mm \| Stroke: 40 mm \| Auto switch magnet: No
C85KF12-50		Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø12 mm \| Stroke: 50 mm \| Auto switch magnet: No
C85KF12-80		Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø12 mm \| Stroke: 80 mm \| Auto switch magnet: No
C85KF12-100		Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø12 mm \| Stroke: 100 mm \| Auto switch magnet: No
C85KF12-125		Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø12 mm \| Stroke: 125 mm \| Auto switch magnet: No
C85KF12-160		Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø12 mm \| Stroke: 160 mm \| Auto switch magnet: No
C85KF12-200		Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø12 mm \| Stroke: 200 mm \| Auto switch magnet: No
C85KF16-10		Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: No
C85KF16-25		Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: No
C85KF16-40		Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø16 mm \| Stroke: 40 mm \| Auto switch magnet: No
C85KF16-50		Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø16 mm \| Stroke: 50 mm \| Auto switch magnet: No
C85KF16-80		Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø16 mm \| Stroke: 80 mm \| Auto switch magnet: No
C85KF16-100		Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø16 mm \| Stroke: 100 mm \| Auto switch magnet: No
C85KF16-125		Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø16 mm \| Stroke: 125 mm \| Auto switch magnet: No
C85KF16-160		Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø16 mm \| Stroke: 160 mm \| Auto switch magnet: No
C85KF16-200		Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø16 mm \| Stroke: 200 mm \| Auto switch magnet: No
C85KF20-10		Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: No
C85KF20-25		Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
C85KF20-40		Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: No
C85KF20-50		Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
C85KF20-80		Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø20 mm \| Stroke: 80 mm \| Auto switch magnet: No
C85KF20-100		Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: No
C85KF20-125		Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø20 mm \| Stroke: 125 mm \| Auto switch magnet: No
C85KF20-160		Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø20 mm \| Stroke: 160 mm \| Auto switch magnet: No
C85KF20-200		Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø20 mm \| Stroke: 200 mm \| Auto switch magnet: No
C85KF20-250		Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø20 mm \| Stroke: 250 mm \| Auto switch magnet: No
C85KF20-300		Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø20 mm \| Stroke: 300 mm \| Auto switch magnet: No
C85KF25-10		Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: No
C85KF25-25		Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
C85KF25-40		Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: No
C85KF25-50		Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
C85KF25-80		Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø25 mm \| Stroke: 80 mm \| Auto switch magnet: No
C85KF25-100		Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: No
C85KF25-125		Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø25 mm \| Stroke: 125 mm \| Auto switch magnet: No
C85KF25-160		Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø25 mm \| Stroke: 160 mm \| Auto switch magnet: No
C85KF25-200		Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø25 mm \| Stroke: 200 mm \| Auto switch magnet: No
C85KF25-250		Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø25 mm \| Stroke: 250 mm \| Auto switch magnet: No
C85KF25-300		Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø25 mm \| Stroke: 300 mm \| Auto switch magnet: No
C85KY8-10		Action: Double acting \| Head cover: Axial head port \| Bore: ø8 mm \| Stroke: 10 mm \| Auto switch magnet: No
C85KY8-25		Action: Double acting \| Head cover: Axial head port \| Bore: ø8 mm \| Stroke: 25 mm \| Auto switch magnet: No
C85KY8-40		Action: Double acting \| Head cover: Axial head port \| Bore: ø8 mm \| Stroke: 40 mm \| Auto switch magnet: No
C85KY8-50		Action: Double acting \| Head cover: Axial head port \| Bore: ø8 mm \| Stroke: 50 mm \| Auto switch magnet: No
C85KY8-80		Action: Double acting \| Head cover: Axial head port \| Bore: ø8 mm \| Stroke: 80 mm \| Auto switch magnet: No
C85KY8-100		Action: Double acting \| Head cover: Axial head port \| Bore: ø8 mm \| Stroke: 100 mm \| Auto switch magnet: No
C85KY10-10		Action: Double acting \| Head cover: Axial head port \| Bore: ø10 mm \| Stroke: 10 mm \| Auto switch magnet: No
C85KY10-25		Action: Double acting \| Head cover: Axial head port \| Bore: ø10 mm \| Stroke: 25 mm \| Auto switch magnet: No
C85KY10-40		Action: Double acting \| Head cover: Axial head port \| Bore: ø10 mm \| Stroke: 40 mm \| Auto switch magnet: No
C85KY10-50		Action: Double acting \| Head cover: Axial head port \| Bore: ø10 mm \| Stroke: 50 mm \| Auto switch magnet: No
C85KY10-80		Action: Double acting \| Head cover: Axial head port \| Bore: ø10 mm \| Stroke: 80 mm \| Auto switch magnet: No
C85KY10-100		Action: Double acting \| Head cover: Axial head port \| Bore: ø10 mm \| Stroke: 100 mm \| Auto switch magnet: No
C85KY12-10		Action: Double acting \| Head cover: Axial head port \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: No
C85KY12-25		Action: Double acting \| Head cover: Axial head port \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: No
C85KY12-40		Action: Double acting \| Head cover: Axial head port \| Bore: ø12 mm \| Stroke: 40 mm \| Auto switch magnet: No
C85KY12-50		Action: Double acting \| Head cover: Axial head port \| Bore: ø12 mm \| Stroke: 50 mm \| Auto switch magnet: No
C85KY12-80		Action: Double acting \| Head cover: Axial head port \| Bore: ø12 mm \| Stroke: 80 mm \| Auto switch magnet: No
C85KY12-100		Action: Double acting \| Head cover: Axial head port \| Bore: ø12 mm \| Stroke: 100 mm \| Auto switch magnet: No
C85KY12-125		Action: Double acting \| Head cover: Axial head port \| Bore: ø12 mm \| Stroke: 125 mm \| Auto switch magnet: No
C85KY12-160		Action: Double acting \| Head cover: Axial head port \| Bore: ø12 mm \| Stroke: 160 mm \| Auto switch magnet: No
C85KY12-200		Action: Double acting \| Head cover: Axial head port \| Bore: ø12 mm \| Stroke: 200 mm \| Auto switch magnet: No
C85KY16-10		Action: Double acting \| Head cover: Axial head port \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: No
C85KY16-25		Action: Double acting \| Head cover: Axial head port \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: No
C85KY16-40		Action: Double acting \| Head cover: Axial head port \| Bore: ø16 mm \| Stroke: 40 mm \| Auto switch magnet: No
C85KY16-50		Action: Double acting \| Head cover: Axial head port \| Bore: ø16 mm \| Stroke: 50 mm \| Auto switch magnet: No
C85KY16-80		Action: Double acting \| Head cover: Axial head port \| Bore: ø16 mm \| Stroke: 80 mm \| Auto switch magnet: No
C85KY16-100		Action: Double acting \| Head cover: Axial head port \| Bore: ø16 mm \| Stroke: 100 mm \| Auto switch magnet: No
C85KY16-125		Action: Double acting \| Head cover: Axial head port \| Bore: ø16 mm \| Stroke: 125 mm \| Auto switch magnet: No
C85KY16-160		Action: Double acting \| Head cover: Axial head port \| Bore: ø16 mm \| Stroke: 160 mm \| Auto switch magnet: No
C85KY16-200		Action: Double acting \| Head cover: Axial head port \| Bore: ø16 mm \| Stroke: 200 mm \| Auto switch magnet: No
C85KY20-10		Action: Double acting \| Head cover: Axial head port \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: No
C85KY20-25		Action: Double acting \| Head cover: Axial head port \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
C85KY20-40		Action: Double acting \| Head cover: Axial head port \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: No
C85KY20-50		Action: Double acting \| Head cover: Axial head port \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
C85KY20-80		Action: Double acting \| Head cover: Axial head port \| Bore: ø20 mm \| Stroke: 80 mm \| Auto switch magnet: No
C85KY20-100		Action: Double acting \| Head cover: Axial head port \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: No
C85KY20-125		Action: Double acting \| Head cover: Axial head port \| Bore: ø20 mm \| Stroke: 125 mm \| Auto switch magnet: No
C85KY20-160		Action: Double acting \| Head cover: Axial head port \| Bore: ø20 mm \| Stroke: 160 mm \| Auto switch magnet: No
C85KY20-200		Action: Double acting \| Head cover: Axial head port \| Bore: ø20 mm \| Stroke: 200 mm \| Auto switch magnet: No
C85KY20-250		Action: Double acting \| Head cover: Axial head port \| Bore: ø20 mm \| Stroke: 250 mm \| Auto switch magnet: No
C85KY20-300		Action: Double acting \| Head cover: Axial head port \| Bore: ø20 mm \| Stroke: 300 mm \| Auto switch magnet: No
C85KY25-10		Action: Double acting \| Head cover: Axial head port \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: No
C85KY25-25		Action: Double acting \| Head cover: Axial head port \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
C85KY25-40		Action: Double acting \| Head cover: Axial head port \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: No
C85KY25-50		Action: Double acting \| Head cover: Axial head port \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
C85KY25-80		Action: Double acting \| Head cover: Axial head port \| Bore: ø25 mm \| Stroke: 80 mm \| Auto switch magnet: No
C85KY25-100		Action: Double acting \| Head cover: Axial head port \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: No
C85KY25-125		Action: Double acting \| Head cover: Axial head port \| Bore: ø25 mm \| Stroke: 125 mm \| Auto switch magnet: No
C85KY25-160		Action: Double acting \| Head cover: Axial head port \| Bore: ø25 mm \| Stroke: 160 mm \| Auto switch magnet: No
C85KY25-200		Action: Double acting \| Head cover: Axial head port \| Bore: ø25 mm \| Stroke: 200 mm \| Auto switch magnet: No
C85KY25-250		Action: Double acting \| Head cover: Axial head port \| Bore: ø25 mm \| Stroke: 250 mm \| Auto switch magnet: No
C85KY25-300		Action: Double acting \| Head cover: Axial head port \| Bore: ø25 mm \| Stroke: 300 mm \| Auto switch magnet: No
C85KN8-10S		Action: Single acting, spring return \| Head cover: Basic (integrated clevis) \| Bore: ø8 mm \| Stroke: 10 mm \| Auto switch magnet: No
C85KN8-25S		Action: Single acting, spring return \| Head cover: Basic (integrated clevis) \| Bore: ø8 mm \| Stroke: 25 mm \| Auto switch magnet: No
C85KN8-50S		Action: Single acting, spring return \| Head cover: Basic (integrated clevis) \| Bore: ø8 mm \| Stroke: 50 mm \| Auto switch magnet: No
C85KN10-10S		Action: Single acting, spring return \| Head cover: Basic (integrated clevis) \| Bore: ø10 mm \| Stroke: 10 mm \| Auto switch magnet: No
C85KN10-25S		Action: Single acting, spring return \| Head cover: Basic (integrated clevis) \| Bore: ø10 mm \| Stroke: 25 mm \| Auto switch magnet: No
C85KN10-50S		Action: Single acting, spring return \| Head cover: Basic (integrated clevis) \| Bore: ø10 mm \| Stroke: 50 mm \| Auto switch magnet: No
C85KN12-10S		Action: Single acting, spring return \| Head cover: Basic (integrated clevis) \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: No
C85KN12-25S		Action: Single acting, spring return \| Head cover: Basic (integrated clevis) \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: No
C85KN12-50S		Action: Single acting, spring return \| Head cover: Basic (integrated clevis) \| Bore: ø12 mm \| Stroke: 50 mm \| Auto switch magnet: No
C85KN16-10S		Action: Single acting, spring return \| Head cover: Basic (integrated clevis) \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: No
C85KN16-25S		Action: Single acting, spring return \| Head cover: Basic (integrated clevis) \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: No
C85KN16-50S		Action: Single acting, spring return \| Head cover: Basic (integrated clevis) \| Bore: ø16 mm \| Stroke: 50 mm \| Auto switch magnet: No
C85KN16-100S		Action: Single acting, spring return \| Head cover: Basic (integrated clevis) \| Bore: ø16 mm \| Stroke: 100 mm \| Auto switch magnet: No
C85KN16-150S		Action: Single acting, spring return \| Head cover: Basic (integrated clevis) \| Bore: ø16 mm \| Stroke: 150 mm \| Auto switch magnet: No
C85KN20-10S		Action: Single acting, spring return \| Head cover: Basic (integrated clevis) \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: No
C85KN20-25S		Action: Single acting, spring return \| Head cover: Basic (integrated clevis) \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
C85KN20-50S		Action: Single acting, spring return \| Head cover: Basic (integrated clevis) \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
C85KN20-100S		Action: Single acting, spring return \| Head cover: Basic (integrated clevis) \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: No
C85KN20-150S		Action: Single acting, spring return \| Head cover: Basic (integrated clevis) \| Bore: ø20 mm \| Stroke: 150 mm \| Auto switch magnet: No
C85KN25-10S		Action: Single acting, spring return \| Head cover: Basic (integrated clevis) \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: No
C85KN25-25S		Action: Single acting, spring return \| Head cover: Basic (integrated clevis) \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
C85KN25-50S		Action: Single acting, spring return \| Head cover: Basic (integrated clevis) \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
C85KN25-100S		Action: Single acting, spring return \| Head cover: Basic (integrated clevis) \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: No
C85KN25-150S		Action: Single acting, spring return \| Head cover: Basic (integrated clevis) \| Bore: ø25 mm \| Stroke: 150 mm \| Auto switch magnet: No
C85KE8-10S		Action: Single acting, spring return \| Head cover: Boss both ends \| Bore: ø8 mm \| Stroke: 10 mm \| Auto switch magnet: No
C85KE8-25S		Action: Single acting, spring return \| Head cover: Boss both ends \| Bore: ø8 mm \| Stroke: 25 mm \| Auto switch magnet: No
C85KE8-50S		Action: Single acting, spring return \| Head cover: Boss both ends \| Bore: ø8 mm \| Stroke: 50 mm \| Auto switch magnet: No
C85KE10-10S		Action: Single acting, spring return \| Head cover: Boss both ends \| Bore: ø10 mm \| Stroke: 10 mm \| Auto switch magnet: No
C85KE10-25S		Action: Single acting, spring return \| Head cover: Boss both ends \| Bore: ø10 mm \| Stroke: 25 mm \| Auto switch magnet: No
C85KE10-50S		Action: Single acting, spring return \| Head cover: Boss both ends \| Bore: ø10 mm \| Stroke: 50 mm \| Auto switch magnet: No
C85KE12-10S		Action: Single acting, spring return \| Head cover: Boss both ends \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: No
C85KE12-25S		Action: Single acting, spring return \| Head cover: Boss both ends \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: No
C85KE12-50S		Action: Single acting, spring return \| Head cover: Boss both ends \| Bore: ø12 mm \| Stroke: 50 mm \| Auto switch magnet: No
C85KE16-10S		Action: Single acting, spring return \| Head cover: Boss both ends \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: No
C85KE16-25S		Action: Single acting, spring return \| Head cover: Boss both ends \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: No
C85KE16-50S		Action: Single acting, spring return \| Head cover: Boss both ends \| Bore: ø16 mm \| Stroke: 50 mm \| Auto switch magnet: No
C85KE16-100S		Action: Single acting, spring return \| Head cover: Boss both ends \| Bore: ø16 mm \| Stroke: 100 mm \| Auto switch magnet: No
C85KE16-150S		Action: Single acting, spring return \| Head cover: Boss both ends \| Bore: ø16 mm \| Stroke: 150 mm \| Auto switch magnet: No
C85KE20-10S		Action: Single acting, spring return \| Head cover: Boss both ends \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: No
C85KE20-25S		Action: Single acting, spring return \| Head cover: Boss both ends \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
C85KE20-50S		Action: Single acting, spring return \| Head cover: Boss both ends \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
C85KE20-100S		Action: Single acting, spring return \| Head cover: Boss both ends \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: No
C85KE20-150S		Action: Single acting, spring return \| Head cover: Boss both ends \| Bore: ø20 mm \| Stroke: 150 mm \| Auto switch magnet: No
C85KE25-10S		Action: Single acting, spring return \| Head cover: Boss both ends \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: No
C85KE25-25S		Action: Single acting, spring return \| Head cover: Boss both ends \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
C85KE25-50S		Action: Single acting, spring return \| Head cover: Boss both ends \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
C85KE25-100S		Action: Single acting, spring return \| Head cover: Boss both ends \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: No
C85KE25-150S		Action: Single acting, spring return \| Head cover: Boss both ends \| Bore: ø25 mm \| Stroke: 150 mm \| Auto switch magnet: No
C85KF8-10S		Action: Single acting, spring return \| Head cover: Boss-cut basic \| Bore: ø8 mm \| Stroke: 10 mm \| Auto switch magnet: No
C85KF8-25S		Action: Single acting, spring return \| Head cover: Boss-cut basic \| Bore: ø8 mm \| Stroke: 25 mm \| Auto switch magnet: No
C85KF8-50S		Action: Single acting, spring return \| Head cover: Boss-cut basic \| Bore: ø8 mm \| Stroke: 50 mm \| Auto switch magnet: No
C85KF10-10S		Action: Single acting, spring return \| Head cover: Boss-cut basic \| Bore: ø10 mm \| Stroke: 10 mm \| Auto switch magnet: No
C85KF10-25S		Action: Single acting, spring return \| Head cover: Boss-cut basic \| Bore: ø10 mm \| Stroke: 25 mm \| Auto switch magnet: No
C85KF10-50S		Action: Single acting, spring return \| Head cover: Boss-cut basic \| Bore: ø10 mm \| Stroke: 50 mm \| Auto switch magnet: No
C85KF12-10S		Action: Single acting, spring return \| Head cover: Boss-cut basic \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: No
C85KF12-25S		Action: Single acting, spring return \| Head cover: Boss-cut basic \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: No
C85KF12-50S		Action: Single acting, spring return \| Head cover: Boss-cut basic \| Bore: ø12 mm \| Stroke: 50 mm \| Auto switch magnet: No
C85KF16-10S		Action: Single acting, spring return \| Head cover: Boss-cut basic \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: No
C85KF16-25S		Action: Single acting, spring return \| Head cover: Boss-cut basic \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: No
C85KF16-50S		Action: Single acting, spring return \| Head cover: Boss-cut basic \| Bore: ø16 mm \| Stroke: 50 mm \| Auto switch magnet: No
C85KF16-100S		Action: Single acting, spring return \| Head cover: Boss-cut basic \| Bore: ø16 mm \| Stroke: 100 mm \| Auto switch magnet: No
C85KF16-150S		Action: Single acting, spring return \| Head cover: Boss-cut basic \| Bore: ø16 mm \| Stroke: 150 mm \| Auto switch magnet: No
C85KF20-10S		Action: Single acting, spring return \| Head cover: Boss-cut basic \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: No
C85KF20-25S		Action: Single acting, spring return \| Head cover: Boss-cut basic \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
C85KF20-50S		Action: Single acting, spring return \| Head cover: Boss-cut basic \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
C85KF20-100S		Action: Single acting, spring return \| Head cover: Boss-cut basic \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: No
C85KF20-150S		Action: Single acting, spring return \| Head cover: Boss-cut basic \| Bore: ø20 mm \| Stroke: 150 mm \| Auto switch magnet: No
C85KF25-10S		Action: Single acting, spring return \| Head cover: Boss-cut basic \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: No
C85KF25-25S		Action: Single acting, spring return \| Head cover: Boss-cut basic \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
C85KF25-50S		Action: Single acting, spring return \| Head cover: Boss-cut basic \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
C85KF25-100S		Action: Single acting, spring return \| Head cover: Boss-cut basic \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: No
C85KF25-150S		Action: Single acting, spring return \| Head cover: Boss-cut basic \| Bore: ø25 mm \| Stroke: 150 mm \| Auto switch magnet: No
C85KY8-10S		Action: Single acting, spring return \| Head cover: Axial head port \| Bore: ø8 mm \| Stroke: 10 mm \| Auto switch magnet: No
C85KY8-25S		Action: Single acting, spring return \| Head cover: Axial head port \| Bore: ø8 mm \| Stroke: 25 mm \| Auto switch magnet: No
C85KY8-50S		Action: Single acting, spring return \| Head cover: Axial head port \| Bore: ø8 mm \| Stroke: 50 mm \| Auto switch magnet: No
C85KY10-10S		Action: Single acting, spring return \| Head cover: Axial head port \| Bore: ø10 mm \| Stroke: 10 mm \| Auto switch magnet: No
C85KY10-25S		Action: Single acting, spring return \| Head cover: Axial head port \| Bore: ø10 mm \| Stroke: 25 mm \| Auto switch magnet: No
C85KY10-50S		Action: Single acting, spring return \| Head cover: Axial head port \| Bore: ø10 mm \| Stroke: 50 mm \| Auto switch magnet: No
C85KY12-10S		Action: Single acting, spring return \| Head cover: Axial head port \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: No
C85KY12-25S		Action: Single acting, spring return \| Head cover: Axial head port \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: No
C85KY12-50S		Action: Single acting, spring return \| Head cover: Axial head port \| Bore: ø12 mm \| Stroke: 50 mm \| Auto switch magnet: No
C85KY16-10S		Action: Single acting, spring return \| Head cover: Axial head port \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: No
C85KY16-25S		Action: Single acting, spring return \| Head cover: Axial head port \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: No
C85KY16-50S		Action: Single acting, spring return \| Head cover: Axial head port \| Bore: ø16 mm \| Stroke: 50 mm \| Auto switch magnet: No
C85KY16-100S		Action: Single acting, spring return \| Head cover: Axial head port \| Bore: ø16 mm \| Stroke: 100 mm \| Auto switch magnet: No
C85KY16-150S		Action: Single acting, spring return \| Head cover: Axial head port \| Bore: ø16 mm \| Stroke: 150 mm \| Auto switch magnet: No
C85KY20-10S		Action: Single acting, spring return \| Head cover: Axial head port \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: No
C85KY20-25S		Action: Single acting, spring return \| Head cover: Axial head port \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
C85KY20-50S		Action: Single acting, spring return \| Head cover: Axial head port \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
C85KY20-100S		Action: Single acting, spring return \| Head cover: Axial head port \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: No
C85KY20-150S		Action: Single acting, spring return \| Head cover: Axial head port \| Bore: ø20 mm \| Stroke: 150 mm \| Auto switch magnet: No
C85KY25-10S		Action: Single acting, spring return \| Head cover: Axial head port \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: No
C85KY25-25S		Action: Single acting, spring return \| Head cover: Axial head port \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
C85KY25-50S		Action: Single acting, spring return \| Head cover: Axial head port \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
C85KY25-100S		Action: Single acting, spring return \| Head cover: Axial head port \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: No
C85KY25-150S		Action: Single acting, spring return \| Head cover: Axial head port \| Bore: ø25 mm \| Stroke: 150 mm \| Auto switch magnet: No
C85KN8-10T		Action: Single acting, spring extend \| Head cover: Basic (integrated clevis) \| Bore: ø8 mm \| Stroke: 10 mm \| Auto switch magnet: No
C85KN8-25T		Action: Single acting, spring extend \| Head cover: Basic (integrated clevis) \| Bore: ø8 mm \| Stroke: 25 mm \| Auto switch magnet: No
C85KN8-50T		Action: Single acting, spring extend \| Head cover: Basic (integrated clevis) \| Bore: ø8 mm \| Stroke: 50 mm \| Auto switch magnet: No
C85KN10-10T		Action: Single acting, spring extend \| Head cover: Basic (integrated clevis) \| Bore: ø10 mm \| Stroke: 10 mm \| Auto switch magnet: No
C85KN10-25T		Action: Single acting, spring extend \| Head cover: Basic (integrated clevis) \| Bore: ø10 mm \| Stroke: 25 mm \| Auto switch magnet: No
C85KN10-50T		Action: Single acting, spring extend \| Head cover: Basic (integrated clevis) \| Bore: ø10 mm \| Stroke: 50 mm \| Auto switch magnet: No
C85KN12-10T		Action: Single acting, spring extend \| Head cover: Basic (integrated clevis) \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: No
C85KN12-25T		Action: Single acting, spring extend \| Head cover: Basic (integrated clevis) \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: No
C85KN12-50T		Action: Single acting, spring extend \| Head cover: Basic (integrated clevis) \| Bore: ø12 mm \| Stroke: 50 mm \| Auto switch magnet: No
C85KN16-10T		Action: Single acting, spring extend \| Head cover: Basic (integrated clevis) \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: No
C85KN16-25T		Action: Single acting, spring extend \| Head cover: Basic (integrated clevis) \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: No
C85KN16-50T		Action: Single acting, spring extend \| Head cover: Basic (integrated clevis) \| Bore: ø16 mm \| Stroke: 50 mm \| Auto switch magnet: No
C85KN16-100T		Action: Single acting, spring extend \| Head cover: Basic (integrated clevis) \| Bore: ø16 mm \| Stroke: 100 mm \| Auto switch magnet: No
C85KN16-150T		Action: Single acting, spring extend \| Head cover: Basic (integrated clevis) \| Bore: ø16 mm \| Stroke: 150 mm \| Auto switch magnet: No
C85KN20-10T		Action: Single acting, spring extend \| Head cover: Basic (integrated clevis) \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: No
C85KN20-25T		Action: Single acting, spring extend \| Head cover: Basic (integrated clevis) \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
C85KN20-50T		Action: Single acting, spring extend \| Head cover: Basic (integrated clevis) \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
C85KN20-100T		Action: Single acting, spring extend \| Head cover: Basic (integrated clevis) \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: No
C85KN20-150T		Action: Single acting, spring extend \| Head cover: Basic (integrated clevis) \| Bore: ø20 mm \| Stroke: 150 mm \| Auto switch magnet: No
C85KN25-10T		Action: Single acting, spring extend \| Head cover: Basic (integrated clevis) \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: No
C85KN25-25T		Action: Single acting, spring extend \| Head cover: Basic (integrated clevis) \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
C85KN25-50T		Action: Single acting, spring extend \| Head cover: Basic (integrated clevis) \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
C85KN25-100T		Action: Single acting, spring extend \| Head cover: Basic (integrated clevis) \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: No
C85KN25-150T		Action: Single acting, spring extend \| Head cover: Basic (integrated clevis) \| Bore: ø25 mm \| Stroke: 150 mm \| Auto switch magnet: No
C85KE8-10T		Action: Single acting, spring extend \| Head cover: Boss both ends \| Bore: ø8 mm \| Stroke: 10 mm \| Auto switch magnet: No
C85KE8-25T		Action: Single acting, spring extend \| Head cover: Boss both ends \| Bore: ø8 mm \| Stroke: 25 mm \| Auto switch magnet: No
C85KE8-50T		Action: Single acting, spring extend \| Head cover: Boss both ends \| Bore: ø8 mm \| Stroke: 50 mm \| Auto switch magnet: No
C85KE10-10T		Action: Single acting, spring extend \| Head cover: Boss both ends \| Bore: ø10 mm \| Stroke: 10 mm \| Auto switch magnet: No
C85KE10-25T		Action: Single acting, spring extend \| Head cover: Boss both ends \| Bore: ø10 mm \| Stroke: 25 mm \| Auto switch magnet: No
C85KE10-50T		Action: Single acting, spring extend \| Head cover: Boss both ends \| Bore: ø10 mm \| Stroke: 50 mm \| Auto switch magnet: No
C85KE12-10T		Action: Single acting, spring extend \| Head cover: Boss both ends \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: No
C85KE12-25T		Action: Single acting, spring extend \| Head cover: Boss both ends \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: No
C85KE12-50T		Action: Single acting, spring extend \| Head cover: Boss both ends \| Bore: ø12 mm \| Stroke: 50 mm \| Auto switch magnet: No
C85KE16-10T		Action: Single acting, spring extend \| Head cover: Boss both ends \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: No
C85KE16-25T		Action: Single acting, spring extend \| Head cover: Boss both ends \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: No
C85KE16-50T		Action: Single acting, spring extend \| Head cover: Boss both ends \| Bore: ø16 mm \| Stroke: 50 mm \| Auto switch magnet: No
C85KE16-100T		Action: Single acting, spring extend \| Head cover: Boss both ends \| Bore: ø16 mm \| Stroke: 100 mm \| Auto switch magnet: No
C85KE16-150T		Action: Single acting, spring extend \| Head cover: Boss both ends \| Bore: ø16 mm \| Stroke: 150 mm \| Auto switch magnet: No
C85KE20-10T		Action: Single acting, spring extend \| Head cover: Boss both ends \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: No
C85KE20-25T		Action: Single acting, spring extend \| Head cover: Boss both ends \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
C85KE20-50T		Action: Single acting, spring extend \| Head cover: Boss both ends \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
C85KE20-100T		Action: Single acting, spring extend \| Head cover: Boss both ends \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: No
C85KE20-150T		Action: Single acting, spring extend \| Head cover: Boss both ends \| Bore: ø20 mm \| Stroke: 150 mm \| Auto switch magnet: No
C85KE25-10T		Action: Single acting, spring extend \| Head cover: Boss both ends \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: No
C85KE25-25T		Action: Single acting, spring extend \| Head cover: Boss both ends \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
C85KE25-50T		Action: Single acting, spring extend \| Head cover: Boss both ends \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
C85KE25-100T		Action: Single acting, spring extend \| Head cover: Boss both ends \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: No
C85KE25-150T		Action: Single acting, spring extend \| Head cover: Boss both ends \| Bore: ø25 mm \| Stroke: 150 mm \| Auto switch magnet: No
C85KF8-10T		Action: Single acting, spring extend \| Head cover: Boss-cut basic \| Bore: ø8 mm \| Stroke: 10 mm \| Auto switch magnet: No
C85KF8-25T		Action: Single acting, spring extend \| Head cover: Boss-cut basic \| Bore: ø8 mm \| Stroke: 25 mm \| Auto switch magnet: No
C85KF8-50T		Action: Single acting, spring extend \| Head cover: Boss-cut basic \| Bore: ø8 mm \| Stroke: 50 mm \| Auto switch magnet: No
C85KF10-10T		Action: Single acting, spring extend \| Head cover: Boss-cut basic \| Bore: ø10 mm \| Stroke: 10 mm \| Auto switch magnet: No
C85KF10-25T		Action: Single acting, spring extend \| Head cover: Boss-cut basic \| Bore: ø10 mm \| Stroke: 25 mm \| Auto switch magnet: No
C85KF10-50T		Action: Single acting, spring extend \| Head cover: Boss-cut basic \| Bore: ø10 mm \| Stroke: 50 mm \| Auto switch magnet: No
C85KF12-10T		Action: Single acting, spring extend \| Head cover: Boss-cut basic \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: No
C85KF12-25T		Action: Single acting, spring extend \| Head cover: Boss-cut basic \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: No
C85KF12-50T		Action: Single acting, spring extend \| Head cover: Boss-cut basic \| Bore: ø12 mm \| Stroke: 50 mm \| Auto switch magnet: No
C85KF16-10T		Action: Single acting, spring extend \| Head cover: Boss-cut basic \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: No
C85KF16-25T		Action: Single acting, spring extend \| Head cover: Boss-cut basic \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: No
C85KF16-50T		Action: Single acting, spring extend \| Head cover: Boss-cut basic \| Bore: ø16 mm \| Stroke: 50 mm \| Auto switch magnet: No
C85KF16-100T		Action: Single acting, spring extend \| Head cover: Boss-cut basic \| Bore: ø16 mm \| Stroke: 100 mm \| Auto switch magnet: No
C85KF16-150T		Action: Single acting, spring extend \| Head cover: Boss-cut basic \| Bore: ø16 mm \| Stroke: 150 mm \| Auto switch magnet: No
C85KF20-10T		Action: Single acting, spring extend \| Head cover: Boss-cut basic \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: No
C85KF20-25T		Action: Single acting, spring extend \| Head cover: Boss-cut basic \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
C85KF20-50T		Action: Single acting, spring extend \| Head cover: Boss-cut basic \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
C85KF20-100T		Action: Single acting, spring extend \| Head cover: Boss-cut basic \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: No
C85KF20-150T		Action: Single acting, spring extend \| Head cover: Boss-cut basic \| Bore: ø20 mm \| Stroke: 150 mm \| Auto switch magnet: No
C85KF25-10T		Action: Single acting, spring extend \| Head cover: Boss-cut basic \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: No
C85KF25-25T		Action: Single acting, spring extend \| Head cover: Boss-cut basic \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
C85KF25-50T		Action: Single acting, spring extend \| Head cover: Boss-cut basic \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
C85KF25-100T		Action: Single acting, spring extend \| Head cover: Boss-cut basic \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: No
C85KF25-150T		Action: Single acting, spring extend \| Head cover: Boss-cut basic \| Bore: ø25 mm \| Stroke: 150 mm \| Auto switch magnet: No
CD85KN8-10		Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø8 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CD85KN8-25		Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø8 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CD85KN8-40		Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø8 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CD85KN8-50		Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø8 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CD85KN8-80		Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø8 mm \| Stroke: 80 mm \| Auto switch magnet: Yes
CD85KN8-100		Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø8 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CD85KN10-10		Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø10 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CD85KN10-25		Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø10 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CD85KN10-40		Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø10 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CD85KN10-50		Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø10 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CD85KN10-80		Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø10 mm \| Stroke: 80 mm \| Auto switch magnet: Yes
CD85KN10-100		Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø10 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CD85KN12-10		Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CD85KN12-25		Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CD85KN12-40		Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø12 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CD85KN12-50		Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø12 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CD85KN12-80		Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø12 mm \| Stroke: 80 mm \| Auto switch magnet: Yes
CD85KN12-100		Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø12 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CD85KN12-125		Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø12 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CD85KN12-160		Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø12 mm \| Stroke: 160 mm \| Auto switch magnet: Yes
CD85KN12-200		Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø12 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CD85KN16-10		Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CD85KN16-25		Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CD85KN16-40		Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø16 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CD85KN16-50		Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø16 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CD85KN16-80		Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø16 mm \| Stroke: 80 mm \| Auto switch magnet: Yes
CD85KN16-100		Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø16 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CD85KN16-125		Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø16 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CD85KN16-160		Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø16 mm \| Stroke: 160 mm \| Auto switch magnet: Yes
CD85KN16-200		Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø16 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CD85KN20-10		Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CD85KN20-25		Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CD85KN20-40		Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CD85KN20-50		Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CD85KN20-80		Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø20 mm \| Stroke: 80 mm \| Auto switch magnet: Yes
CD85KN20-100		Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CD85KN20-125		Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø20 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CD85KN20-160		Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø20 mm \| Stroke: 160 mm \| Auto switch magnet: Yes
CD85KN20-200		Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø20 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CD85KN20-250		Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø20 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CD85KN20-300		Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø20 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CD85KN25-10		Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CD85KN25-25		Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CD85KN25-40		Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CD85KN25-50		Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CD85KN25-80		Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø25 mm \| Stroke: 80 mm \| Auto switch magnet: Yes
CD85KN25-100		Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CD85KN25-125		Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø25 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CD85KN25-160		Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø25 mm \| Stroke: 160 mm \| Auto switch magnet: Yes
CD85KN25-200		Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø25 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CD85KN25-250		Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø25 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CD85KN25-300		Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø25 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CD85KE8-10		Action: Double acting \| Head cover: Boss both ends \| Bore: ø8 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CD85KE8-25		Action: Double acting \| Head cover: Boss both ends \| Bore: ø8 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CD85KE8-40		Action: Double acting \| Head cover: Boss both ends \| Bore: ø8 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CD85KE8-50		Action: Double acting \| Head cover: Boss both ends \| Bore: ø8 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CD85KE8-80		Action: Double acting \| Head cover: Boss both ends \| Bore: ø8 mm \| Stroke: 80 mm \| Auto switch magnet: Yes
CD85KE8-100		Action: Double acting \| Head cover: Boss both ends \| Bore: ø8 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CD85KE10-10		Action: Double acting \| Head cover: Boss both ends \| Bore: ø10 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CD85KE10-25		Action: Double acting \| Head cover: Boss both ends \| Bore: ø10 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CD85KE10-40		Action: Double acting \| Head cover: Boss both ends \| Bore: ø10 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CD85KE10-50		Action: Double acting \| Head cover: Boss both ends \| Bore: ø10 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CD85KE10-80		Action: Double acting \| Head cover: Boss both ends \| Bore: ø10 mm \| Stroke: 80 mm \| Auto switch magnet: Yes
CD85KE10-100		Action: Double acting \| Head cover: Boss both ends \| Bore: ø10 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CD85KE12-10		Action: Double acting \| Head cover: Boss both ends \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CD85KE12-25		Action: Double acting \| Head cover: Boss both ends \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CD85KE12-40		Action: Double acting \| Head cover: Boss both ends \| Bore: ø12 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CD85KE12-50		Action: Double acting \| Head cover: Boss both ends \| Bore: ø12 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CD85KE12-80		Action: Double acting \| Head cover: Boss both ends \| Bore: ø12 mm \| Stroke: 80 mm \| Auto switch magnet: Yes
CD85KE12-100		Action: Double acting \| Head cover: Boss both ends \| Bore: ø12 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CD85KE12-125		Action: Double acting \| Head cover: Boss both ends \| Bore: ø12 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CD85KE12-160		Action: Double acting \| Head cover: Boss both ends \| Bore: ø12 mm \| Stroke: 160 mm \| Auto switch magnet: Yes
CD85KE12-200		Action: Double acting \| Head cover: Boss both ends \| Bore: ø12 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CD85KE16-10		Action: Double acting \| Head cover: Boss both ends \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CD85KE16-25		Action: Double acting \| Head cover: Boss both ends \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CD85KE16-40		Action: Double acting \| Head cover: Boss both ends \| Bore: ø16 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CD85KE16-50		Action: Double acting \| Head cover: Boss both ends \| Bore: ø16 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CD85KE16-80		Action: Double acting \| Head cover: Boss both ends \| Bore: ø16 mm \| Stroke: 80 mm \| Auto switch magnet: Yes
CD85KE16-100		Action: Double acting \| Head cover: Boss both ends \| Bore: ø16 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CD85KE16-125		Action: Double acting \| Head cover: Boss both ends \| Bore: ø16 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CD85KE16-160		Action: Double acting \| Head cover: Boss both ends \| Bore: ø16 mm \| Stroke: 160 mm \| Auto switch magnet: Yes
CD85KE16-200		Action: Double acting \| Head cover: Boss both ends \| Bore: ø16 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CD85KE20-10		Action: Double acting \| Head cover: Boss both ends \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CD85KE20-25		Action: Double acting \| Head cover: Boss both ends \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CD85KE20-40		Action: Double acting \| Head cover: Boss both ends \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CD85KE20-50		Action: Double acting \| Head cover: Boss both ends \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CD85KE20-80		Action: Double acting \| Head cover: Boss both ends \| Bore: ø20 mm \| Stroke: 80 mm \| Auto switch magnet: Yes
CD85KE20-100		Action: Double acting \| Head cover: Boss both ends \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CD85KE20-125		Action: Double acting \| Head cover: Boss both ends \| Bore: ø20 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CD85KE20-160		Action: Double acting \| Head cover: Boss both ends \| Bore: ø20 mm \| Stroke: 160 mm \| Auto switch magnet: Yes
CD85KE20-200		Action: Double acting \| Head cover: Boss both ends \| Bore: ø20 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CD85KE20-250		Action: Double acting \| Head cover: Boss both ends \| Bore: ø20 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CD85KE20-300		Action: Double acting \| Head cover: Boss both ends \| Bore: ø20 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CD85KE25-10		Action: Double acting \| Head cover: Boss both ends \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CD85KE25-25		Action: Double acting \| Head cover: Boss both ends \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CD85KE25-40		Action: Double acting \| Head cover: Boss both ends \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CD85KE25-50		Action: Double acting \| Head cover: Boss both ends \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CD85KE25-80		Action: Double acting \| Head cover: Boss both ends \| Bore: ø25 mm \| Stroke: 80 mm \| Auto switch magnet: Yes
CD85KE25-100		Action: Double acting \| Head cover: Boss both ends \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CD85KE25-125		Action: Double acting \| Head cover: Boss both ends \| Bore: ø25 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CD85KE25-160		Action: Double acting \| Head cover: Boss both ends \| Bore: ø25 mm \| Stroke: 160 mm \| Auto switch magnet: Yes
CD85KE25-200		Action: Double acting \| Head cover: Boss both ends \| Bore: ø25 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CD85KE25-250		Action: Double acting \| Head cover: Boss both ends \| Bore: ø25 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CD85KE25-300		Action: Double acting \| Head cover: Boss both ends \| Bore: ø25 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CD85KF8-10		Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø8 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CD85KF8-25		Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø8 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CD85KF8-40		Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø8 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CD85KF8-50		Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø8 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CD85KF8-80		Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø8 mm \| Stroke: 80 mm \| Auto switch magnet: Yes
CD85KF8-100		Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø8 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CD85KF10-10		Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø10 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CD85KF10-25		Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø10 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CD85KF10-40		Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø10 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CD85KF10-50		Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø10 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CD85KF10-80		Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø10 mm \| Stroke: 80 mm \| Auto switch magnet: Yes
CD85KF10-100		Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø10 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CD85KF12-10		Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CD85KF12-25		Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CD85KF12-40		Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø12 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CD85KF12-50		Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø12 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CD85KF12-80		Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø12 mm \| Stroke: 80 mm \| Auto switch magnet: Yes
CD85KF12-100		Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø12 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CD85KF12-125		Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø12 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CD85KF12-160		Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø12 mm \| Stroke: 160 mm \| Auto switch magnet: Yes
CD85KF12-200		Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø12 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CD85KF16-10		Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CD85KF16-25		Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CD85KF16-40		Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø16 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CD85KF16-50		Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø16 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CD85KF16-80		Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø16 mm \| Stroke: 80 mm \| Auto switch magnet: Yes
CD85KF16-100		Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø16 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CD85KF16-125		Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø16 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CD85KF16-160		Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø16 mm \| Stroke: 160 mm \| Auto switch magnet: Yes
CD85KF16-200		Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø16 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CD85KF20-10		Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CD85KF20-25		Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CD85KF20-40		Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CD85KF20-50		Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CD85KF20-80		Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø20 mm \| Stroke: 80 mm \| Auto switch magnet: Yes
CD85KF20-100		Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CD85KF20-125		Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø20 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CD85KF20-160		Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø20 mm \| Stroke: 160 mm \| Auto switch magnet: Yes
CD85KF20-200		Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø20 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CD85KF20-250		Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø20 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CD85KF20-300		Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø20 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CD85KF25-10		Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CD85KF25-25		Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CD85KF25-40		Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CD85KF25-50		Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CD85KF25-80		Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø25 mm \| Stroke: 80 mm \| Auto switch magnet: Yes
CD85KF25-100		Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CD85KF25-125		Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø25 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CD85KF25-160		Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø25 mm \| Stroke: 160 mm \| Auto switch magnet: Yes
CD85KF25-200		Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø25 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CD85KF25-250		Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø25 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CD85KF25-300		Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø25 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CD85KY8-10		Action: Double acting \| Head cover: Axial head port \| Bore: ø8 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CD85KY8-25		Action: Double acting \| Head cover: Axial head port \| Bore: ø8 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CD85KY8-40		Action: Double acting \| Head cover: Axial head port \| Bore: ø8 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CD85KY8-50		Action: Double acting \| Head cover: Axial head port \| Bore: ø8 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CD85KY8-80		Action: Double acting \| Head cover: Axial head port \| Bore: ø8 mm \| Stroke: 80 mm \| Auto switch magnet: Yes
CD85KY8-100		Action: Double acting \| Head cover: Axial head port \| Bore: ø8 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CD85KY10-10		Action: Double acting \| Head cover: Axial head port \| Bore: ø10 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CD85KY10-25		Action: Double acting \| Head cover: Axial head port \| Bore: ø10 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CD85KY10-40		Action: Double acting \| Head cover: Axial head port \| Bore: ø10 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CD85KY10-50		Action: Double acting \| Head cover: Axial head port \| Bore: ø10 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CD85KY10-80		Action: Double acting \| Head cover: Axial head port \| Bore: ø10 mm \| Stroke: 80 mm \| Auto switch magnet: Yes
CD85KY10-100		Action: Double acting \| Head cover: Axial head port \| Bore: ø10 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CD85KY12-10		Action: Double acting \| Head cover: Axial head port \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CD85KY12-25		Action: Double acting \| Head cover: Axial head port \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CD85KY12-40		Action: Double acting \| Head cover: Axial head port \| Bore: ø12 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CD85KY12-50		Action: Double acting \| Head cover: Axial head port \| Bore: ø12 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CD85KY12-80		Action: Double acting \| Head cover: Axial head port \| Bore: ø12 mm \| Stroke: 80 mm \| Auto switch magnet: Yes
CD85KY12-100		Action: Double acting \| Head cover: Axial head port \| Bore: ø12 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CD85KY12-125		Action: Double acting \| Head cover: Axial head port \| Bore: ø12 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CD85KY12-160		Action: Double acting \| Head cover: Axial head port \| Bore: ø12 mm \| Stroke: 160 mm \| Auto switch magnet: Yes
CD85KY12-200		Action: Double acting \| Head cover: Axial head port \| Bore: ø12 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CD85KY16-10		Action: Double acting \| Head cover: Axial head port \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CD85KY16-25		Action: Double acting \| Head cover: Axial head port \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CD85KY16-40		Action: Double acting \| Head cover: Axial head port \| Bore: ø16 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CD85KY16-50		Action: Double acting \| Head cover: Axial head port \| Bore: ø16 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CD85KY16-80		Action: Double acting \| Head cover: Axial head port \| Bore: ø16 mm \| Stroke: 80 mm \| Auto switch magnet: Yes
CD85KY16-100		Action: Double acting \| Head cover: Axial head port \| Bore: ø16 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CD85KY16-125		Action: Double acting \| Head cover: Axial head port \| Bore: ø16 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CD85KY16-160		Action: Double acting \| Head cover: Axial head port \| Bore: ø16 mm \| Stroke: 160 mm \| Auto switch magnet: Yes
CD85KY16-200		Action: Double acting \| Head cover: Axial head port \| Bore: ø16 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CD85KY20-10		Action: Double acting \| Head cover: Axial head port \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CD85KY20-25		Action: Double acting \| Head cover: Axial head port \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CD85KY20-40		Action: Double acting \| Head cover: Axial head port \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CD85KY20-50		Action: Double acting \| Head cover: Axial head port \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CD85KY20-80		Action: Double acting \| Head cover: Axial head port \| Bore: ø20 mm \| Stroke: 80 mm \| Auto switch magnet: Yes
CD85KY20-100		Action: Double acting \| Head cover: Axial head port \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CD85KY20-125		Action: Double acting \| Head cover: Axial head port \| Bore: ø20 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CD85KY20-160		Action: Double acting \| Head cover: Axial head port \| Bore: ø20 mm \| Stroke: 160 mm \| Auto switch magnet: Yes
CD85KY20-200		Action: Double acting \| Head cover: Axial head port \| Bore: ø20 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CD85KY20-250		Action: Double acting \| Head cover: Axial head port \| Bore: ø20 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CD85KY20-300		Action: Double acting \| Head cover: Axial head port \| Bore: ø20 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CD85KY25-10		Action: Double acting \| Head cover: Axial head port \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CD85KY25-25		Action: Double acting \| Head cover: Axial head port \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CD85KY25-40		Action: Double acting \| Head cover: Axial head port \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CD85KY25-50		Action: Double acting \| Head cover: Axial head port \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CD85KY25-80		Action: Double acting \| Head cover: Axial head port \| Bore: ø25 mm \| Stroke: 80 mm \| Auto switch magnet: Yes
CD85KY25-100		Action: Double acting \| Head cover: Axial head port \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CD85KY25-125		Action: Double acting \| Head cover: Axial head port \| Bore: ø25 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CD85KY25-160		Action: Double acting \| Head cover: Axial head port \| Bore: ø25 mm \| Stroke: 160 mm \| Auto switch magnet: Yes
CD85KY25-200		Action: Double acting \| Head cover: Axial head port \| Bore: ø25 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CD85KY25-250		Action: Double acting \| Head cover: Axial head port \| Bore: ø25 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CD85KY25-300		Action: Double acting \| Head cover: Axial head port \| Bore: ø25 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CD85KN8-10S		Action: Single acting, spring return \| Head cover: Basic (integrated clevis) \| Bore: ø8 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CD85KN8-25S		Action: Single acting, spring return \| Head cover: Basic (integrated clevis) \| Bore: ø8 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CD85KN8-50S		Action: Single acting, spring return \| Head cover: Basic (integrated clevis) \| Bore: ø8 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CD85KN10-10S		Action: Single acting, spring return \| Head cover: Basic (integrated clevis) \| Bore: ø10 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CD85KN10-25S		Action: Single acting, spring return \| Head cover: Basic (integrated clevis) \| Bore: ø10 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CD85KN10-50S		Action: Single acting, spring return \| Head cover: Basic (integrated clevis) \| Bore: ø10 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CD85KN12-10S		Action: Single acting, spring return \| Head cover: Basic (integrated clevis) \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CD85KN12-25S		Action: Single acting, spring return \| Head cover: Basic (integrated clevis) \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CD85KN12-50S		Action: Single acting, spring return \| Head cover: Basic (integrated clevis) \| Bore: ø12 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CD85KN16-10S		Action: Single acting, spring return \| Head cover: Basic (integrated clevis) \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CD85KN16-25S		Action: Single acting, spring return \| Head cover: Basic (integrated clevis) \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CD85KN16-50S		Action: Single acting, spring return \| Head cover: Basic (integrated clevis) \| Bore: ø16 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CD85KN16-100S		Action: Single acting, spring return \| Head cover: Basic (integrated clevis) \| Bore: ø16 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CD85KN16-150S		Action: Single acting, spring return \| Head cover: Basic (integrated clevis) \| Bore: ø16 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CD85KN20-10S		Action: Single acting, spring return \| Head cover: Basic (integrated clevis) \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CD85KN20-25S		Action: Single acting, spring return \| Head cover: Basic (integrated clevis) \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CD85KN20-50S		Action: Single acting, spring return \| Head cover: Basic (integrated clevis) \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CD85KN20-100S		Action: Single acting, spring return \| Head cover: Basic (integrated clevis) \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CD85KN20-150S		Action: Single acting, spring return \| Head cover: Basic (integrated clevis) \| Bore: ø20 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CD85KN25-10S		Action: Single acting, spring return \| Head cover: Basic (integrated clevis) \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CD85KN25-25S		Action: Single acting, spring return \| Head cover: Basic (integrated clevis) \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CD85KN25-50S		Action: Single acting, spring return \| Head cover: Basic (integrated clevis) \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CD85KN25-100S		Action: Single acting, spring return \| Head cover: Basic (integrated clevis) \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CD85KN25-150S		Action: Single acting, spring return \| Head cover: Basic (integrated clevis) \| Bore: ø25 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CD85KE8-10S		Action: Single acting, spring return \| Head cover: Boss both ends \| Bore: ø8 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CD85KE8-25S		Action: Single acting, spring return \| Head cover: Boss both ends \| Bore: ø8 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CD85KE8-50S		Action: Single acting, spring return \| Head cover: Boss both ends \| Bore: ø8 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CD85KE10-10S		Action: Single acting, spring return \| Head cover: Boss both ends \| Bore: ø10 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CD85KE10-25S		Action: Single acting, spring return \| Head cover: Boss both ends \| Bore: ø10 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CD85KE10-50S		Action: Single acting, spring return \| Head cover: Boss both ends \| Bore: ø10 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CD85KE12-10S		Action: Single acting, spring return \| Head cover: Boss both ends \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CD85KE12-25S		Action: Single acting, spring return \| Head cover: Boss both ends \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CD85KE12-50S		Action: Single acting, spring return \| Head cover: Boss both ends \| Bore: ø12 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CD85KE16-10S		Action: Single acting, spring return \| Head cover: Boss both ends \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CD85KE16-25S		Action: Single acting, spring return \| Head cover: Boss both ends \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CD85KE16-50S		Action: Single acting, spring return \| Head cover: Boss both ends \| Bore: ø16 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CD85KE16-100S		Action: Single acting, spring return \| Head cover: Boss both ends \| Bore: ø16 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CD85KE16-150S		Action: Single acting, spring return \| Head cover: Boss both ends \| Bore: ø16 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CD85KE20-10S		Action: Single acting, spring return \| Head cover: Boss both ends \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CD85KE20-25S		Action: Single acting, spring return \| Head cover: Boss both ends \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CD85KE20-50S		Action: Single acting, spring return \| Head cover: Boss both ends \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CD85KE20-100S		Action: Single acting, spring return \| Head cover: Boss both ends \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CD85KE20-150S		Action: Single acting, spring return \| Head cover: Boss both ends \| Bore: ø20 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CD85KE25-10S		Action: Single acting, spring return \| Head cover: Boss both ends \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CD85KE25-25S		Action: Single acting, spring return \| Head cover: Boss both ends \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CD85KE25-50S		Action: Single acting, spring return \| Head cover: Boss both ends \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CD85KE25-100S		Action: Single acting, spring return \| Head cover: Boss both ends \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CD85KE25-150S		Action: Single acting, spring return \| Head cover: Boss both ends \| Bore: ø25 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CD85KF8-10S		Action: Single acting, spring return \| Head cover: Boss-cut basic \| Bore: ø8 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CD85KF8-25S		Action: Single acting, spring return \| Head cover: Boss-cut basic \| Bore: ø8 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CD85KF8-50S		Action: Single acting, spring return \| Head cover: Boss-cut basic \| Bore: ø8 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CD85KF10-10S		Action: Single acting, spring return \| Head cover: Boss-cut basic \| Bore: ø10 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CD85KF10-25S		Action: Single acting, spring return \| Head cover: Boss-cut basic \| Bore: ø10 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CD85KF10-50S		Action: Single acting, spring return \| Head cover: Boss-cut basic \| Bore: ø10 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CD85KF12-10S		Action: Single acting, spring return \| Head cover: Boss-cut basic \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CD85KF12-25S		Action: Single acting, spring return \| Head cover: Boss-cut basic \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CD85KF12-50S		Action: Single acting, spring return \| Head cover: Boss-cut basic \| Bore: ø12 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CD85KF16-10S		Action: Single acting, spring return \| Head cover: Boss-cut basic \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CD85KF16-25S		Action: Single acting, spring return \| Head cover: Boss-cut basic \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CD85KF16-50S		Action: Single acting, spring return \| Head cover: Boss-cut basic \| Bore: ø16 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CD85KF16-100S		Action: Single acting, spring return \| Head cover: Boss-cut basic \| Bore: ø16 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CD85KF16-150S		Action: Single acting, spring return \| Head cover: Boss-cut basic \| Bore: ø16 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CD85KF20-10S		Action: Single acting, spring return \| Head cover: Boss-cut basic \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CD85KF20-25S		Action: Single acting, spring return \| Head cover: Boss-cut basic \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CD85KF20-50S		Action: Single acting, spring return \| Head cover: Boss-cut basic \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CD85KF20-100S		Action: Single acting, spring return \| Head cover: Boss-cut basic \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CD85KF20-150S		Action: Single acting, spring return \| Head cover: Boss-cut basic \| Bore: ø20 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CD85KF25-10S		Action: Single acting, spring return \| Head cover: Boss-cut basic \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CD85KF25-25S		Action: Single acting, spring return \| Head cover: Boss-cut basic \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CD85KF25-50S		Action: Single acting, spring return \| Head cover: Boss-cut basic \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CD85KF25-100S		Action: Single acting, spring return \| Head cover: Boss-cut basic \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CD85KF25-150S		Action: Single acting, spring return \| Head cover: Boss-cut basic \| Bore: ø25 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CD85KY8-10S		Action: Single acting, spring return \| Head cover: Axial head port \| Bore: ø8 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CD85KY8-25S		Action: Single acting, spring return \| Head cover: Axial head port \| Bore: ø8 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CD85KY8-50S		Action: Single acting, spring return \| Head cover: Axial head port \| Bore: ø8 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CD85KY10-10S		Action: Single acting, spring return \| Head cover: Axial head port \| Bore: ø10 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CD85KY10-25S		Action: Single acting, spring return \| Head cover: Axial head port \| Bore: ø10 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CD85KY10-50S		Action: Single acting, spring return \| Head cover: Axial head port \| Bore: ø10 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CD85KY12-10S		Action: Single acting, spring return \| Head cover: Axial head port \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CD85KY12-25S		Action: Single acting, spring return \| Head cover: Axial head port \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CD85KY12-50S		Action: Single acting, spring return \| Head cover: Axial head port \| Bore: ø12 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CD85KY16-10S		Action: Single acting, spring return \| Head cover: Axial head port \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CD85KY16-25S		Action: Single acting, spring return \| Head cover: Axial head port \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CD85KY16-50S		Action: Single acting, spring return \| Head cover: Axial head port \| Bore: ø16 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CD85KY16-100S		Action: Single acting, spring return \| Head cover: Axial head port \| Bore: ø16 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CD85KY16-150S		Action: Single acting, spring return \| Head cover: Axial head port \| Bore: ø16 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CD85KY20-10S		Action: Single acting, spring return \| Head cover: Axial head port \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CD85KY20-25S		Action: Single acting, spring return \| Head cover: Axial head port \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CD85KY20-50S		Action: Single acting, spring return \| Head cover: Axial head port \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CD85KY20-100S		Action: Single acting, spring return \| Head cover: Axial head port \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CD85KY20-150S		Action: Single acting, spring return \| Head cover: Axial head port \| Bore: ø20 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CD85KY25-10S		Action: Single acting, spring return \| Head cover: Axial head port \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CD85KY25-25S		Action: Single acting, spring return \| Head cover: Axial head port \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CD85KY25-50S		Action: Single acting, spring return \| Head cover: Axial head port \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CD85KY25-100S		Action: Single acting, spring return \| Head cover: Axial head port \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CD85KY25-150S		Action: Single acting, spring return \| Head cover: Axial head port \| Bore: ø25 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CD85KN8-10T		Action: Single acting, spring extend \| Head cover: Basic (integrated clevis) \| Bore: ø8 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CD85KN8-25T		Action: Single acting, spring extend \| Head cover: Basic (integrated clevis) \| Bore: ø8 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CD85KN8-50T		Action: Single acting, spring extend \| Head cover: Basic (integrated clevis) \| Bore: ø8 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CD85KN10-10T		Action: Single acting, spring extend \| Head cover: Basic (integrated clevis) \| Bore: ø10 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CD85KN10-25T		Action: Single acting, spring extend \| Head cover: Basic (integrated clevis) \| Bore: ø10 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CD85KN10-50T		Action: Single acting, spring extend \| Head cover: Basic (integrated clevis) \| Bore: ø10 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CD85KN12-10T		Action: Single acting, spring extend \| Head cover: Basic (integrated clevis) \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CD85KN12-25T		Action: Single acting, spring extend \| Head cover: Basic (integrated clevis) \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CD85KN12-50T		Action: Single acting, spring extend \| Head cover: Basic (integrated clevis) \| Bore: ø12 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CD85KN16-10T		Action: Single acting, spring extend \| Head cover: Basic (integrated clevis) \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CD85KN16-25T		Action: Single acting, spring extend \| Head cover: Basic (integrated clevis) \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CD85KN16-50T		Action: Single acting, spring extend \| Head cover: Basic (integrated clevis) \| Bore: ø16 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CD85KN16-100T		Action: Single acting, spring extend \| Head cover: Basic (integrated clevis) \| Bore: ø16 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CD85KN16-150T		Action: Single acting, spring extend \| Head cover: Basic (integrated clevis) \| Bore: ø16 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CD85KN20-10T		Action: Single acting, spring extend \| Head cover: Basic (integrated clevis) \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CD85KN20-25T		Action: Single acting, spring extend \| Head cover: Basic (integrated clevis) \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CD85KN20-50T		Action: Single acting, spring extend \| Head cover: Basic (integrated clevis) \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CD85KN20-100T		Action: Single acting, spring extend \| Head cover: Basic (integrated clevis) \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CD85KN20-150T		Action: Single acting, spring extend \| Head cover: Basic (integrated clevis) \| Bore: ø20 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CD85KN25-10T		Action: Single acting, spring extend \| Head cover: Basic (integrated clevis) \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CD85KN25-25T		Action: Single acting, spring extend \| Head cover: Basic (integrated clevis) \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CD85KN25-50T		Action: Single acting, spring extend \| Head cover: Basic (integrated clevis) \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CD85KN25-100T		Action: Single acting, spring extend \| Head cover: Basic (integrated clevis) \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CD85KN25-150T		Action: Single acting, spring extend \| Head cover: Basic (integrated clevis) \| Bore: ø25 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CD85KE8-10T		Action: Single acting, spring extend \| Head cover: Boss both ends \| Bore: ø8 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CD85KE8-25T		Action: Single acting, spring extend \| Head cover: Boss both ends \| Bore: ø8 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CD85KE8-50T		Action: Single acting, spring extend \| Head cover: Boss both ends \| Bore: ø8 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CD85KE10-10T		Action: Single acting, spring extend \| Head cover: Boss both ends \| Bore: ø10 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CD85KE10-25T		Action: Single acting, spring extend \| Head cover: Boss both ends \| Bore: ø10 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CD85KE10-50T		Action: Single acting, spring extend \| Head cover: Boss both ends \| Bore: ø10 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CD85KE12-10T		Action: Single acting, spring extend \| Head cover: Boss both ends \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CD85KE12-25T		Action: Single acting, spring extend \| Head cover: Boss both ends \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CD85KE12-50T		Action: Single acting, spring extend \| Head cover: Boss both ends \| Bore: ø12 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CD85KE16-10T		Action: Single acting, spring extend \| Head cover: Boss both ends \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CD85KE16-25T		Action: Single acting, spring extend \| Head cover: Boss both ends \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CD85KE16-50T		Action: Single acting, spring extend \| Head cover: Boss both ends \| Bore: ø16 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CD85KE16-100T		Action: Single acting, spring extend \| Head cover: Boss both ends \| Bore: ø16 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CD85KE16-150T		Action: Single acting, spring extend \| Head cover: Boss both ends \| Bore: ø16 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CD85KE20-10T		Action: Single acting, spring extend \| Head cover: Boss both ends \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CD85KE20-25T		Action: Single acting, spring extend \| Head cover: Boss both ends \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CD85KE20-50T		Action: Single acting, spring extend \| Head cover: Boss both ends \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CD85KE20-100T		Action: Single acting, spring extend \| Head cover: Boss both ends \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CD85KE20-150T		Action: Single acting, spring extend \| Head cover: Boss both ends \| Bore: ø20 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CD85KE25-10T		Action: Single acting, spring extend \| Head cover: Boss both ends \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CD85KE25-25T		Action: Single acting, spring extend \| Head cover: Boss both ends \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CD85KE25-50T		Action: Single acting, spring extend \| Head cover: Boss both ends \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CD85KE25-100T		Action: Single acting, spring extend \| Head cover: Boss both ends \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CD85KE25-150T		Action: Single acting, spring extend \| Head cover: Boss both ends \| Bore: ø25 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CD85KF8-10T		Action: Single acting, spring extend \| Head cover: Boss-cut basic \| Bore: ø8 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CD85KF8-25T		Action: Single acting, spring extend \| Head cover: Boss-cut basic \| Bore: ø8 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CD85KF8-50T		Action: Single acting, spring extend \| Head cover: Boss-cut basic \| Bore: ø8 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CD85KF10-10T		Action: Single acting, spring extend \| Head cover: Boss-cut basic \| Bore: ø10 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CD85KF10-25T		Action: Single acting, spring extend \| Head cover: Boss-cut basic \| Bore: ø10 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CD85KF10-50T		Action: Single acting, spring extend \| Head cover: Boss-cut basic \| Bore: ø10 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CD85KF12-10T		Action: Single acting, spring extend \| Head cover: Boss-cut basic \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CD85KF12-25T		Action: Single acting, spring extend \| Head cover: Boss-cut basic \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CD85KF12-50T		Action: Single acting, spring extend \| Head cover: Boss-cut basic \| Bore: ø12 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CD85KF16-10T		Action: Single acting, spring extend \| Head cover: Boss-cut basic \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CD85KF16-25T		Action: Single acting, spring extend \| Head cover: Boss-cut basic \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CD85KF16-50T		Action: Single acting, spring extend \| Head cover: Boss-cut basic \| Bore: ø16 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CD85KF16-100T		Action: Single acting, spring extend \| Head cover: Boss-cut basic \| Bore: ø16 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CD85KF16-150T		Action: Single acting, spring extend \| Head cover: Boss-cut basic \| Bore: ø16 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CD85KF20-10T		Action: Single acting, spring extend \| Head cover: Boss-cut basic \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CD85KF20-25T		Action: Single acting, spring extend \| Head cover: Boss-cut basic \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CD85KF20-50T		Action: Single acting, spring extend \| Head cover: Boss-cut basic \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CD85KF20-100T		Action: Single acting, spring extend \| Head cover: Boss-cut basic \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CD85KF20-150T		Action: Single acting, spring extend \| Head cover: Boss-cut basic \| Bore: ø20 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CD85KF25-10T		Action: Single acting, spring extend \| Head cover: Boss-cut basic \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CD85KF25-25T		Action: Single acting, spring extend \| Head cover: Boss-cut basic \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CD85KF25-50T		Action: Single acting, spring extend \| Head cover: Boss-cut basic \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CD85KF25-100T		Action: Single acting, spring extend \| Head cover: Boss-cut basic \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CD85KF25-150T		Action: Single acting, spring extend \| Head cover: Boss-cut basic \| Bore: ø25 mm \| Stroke: 150 mm \| Auto switch magnet: Yes

Round Body CylindersSMC

752 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC C85K ISO Air Cylinder (Non-Rotating Rod, ø8 to ø25)

Brand SMC·Round Body Cylinders

Available part numbers (752)

C85KN8-10, C85KN8-25, C85KN8-40, C85KN8-50, C85KN8-80, C85KN8-100, C85KN10-10, C85KN10-25, C85KN10-40, C85KN10-50 + 742 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	C85KN8-10	Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø8 mm \| Stroke: 10 mm \| Auto switch magnet: No
	C85KN8-25	Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø8 mm \| Stroke: 25 mm \| Auto switch magnet: No
	C85KN8-40	Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø8 mm \| Stroke: 40 mm \| Auto switch magnet: No
	C85KN8-50	Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø8 mm \| Stroke: 50 mm \| Auto switch magnet: No
	C85KN8-80	Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø8 mm \| Stroke: 80 mm \| Auto switch magnet: No
	C85KN8-100	Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø8 mm \| Stroke: 100 mm \| Auto switch magnet: No
	C85KN10-10	Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø10 mm \| Stroke: 10 mm \| Auto switch magnet: No
	C85KN10-25	Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø10 mm \| Stroke: 25 mm \| Auto switch magnet: No
	C85KN10-40	Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø10 mm \| Stroke: 40 mm \| Auto switch magnet: No
	C85KN10-50	Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø10 mm \| Stroke: 50 mm \| Auto switch magnet: No
	C85KN10-80	Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø10 mm \| Stroke: 80 mm \| Auto switch magnet: No
	C85KN10-100	Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø10 mm \| Stroke: 100 mm \| Auto switch magnet: No
	C85KN12-10	Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: No
	C85KN12-25	Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: No
	C85KN12-40	Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø12 mm \| Stroke: 40 mm \| Auto switch magnet: No
	C85KN12-50	Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø12 mm \| Stroke: 50 mm \| Auto switch magnet: No
	C85KN12-80	Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø12 mm \| Stroke: 80 mm \| Auto switch magnet: No
	C85KN12-100	Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø12 mm \| Stroke: 100 mm \| Auto switch magnet: No
	C85KN12-125	Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø12 mm \| Stroke: 125 mm \| Auto switch magnet: No
	C85KN12-160	Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø12 mm \| Stroke: 160 mm \| Auto switch magnet: No
	C85KN12-200	Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø12 mm \| Stroke: 200 mm \| Auto switch magnet: No
	C85KN16-10	Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: No
	C85KN16-25	Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: No
	C85KN16-40	Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø16 mm \| Stroke: 40 mm \| Auto switch magnet: No
	C85KN16-50	Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø16 mm \| Stroke: 50 mm \| Auto switch magnet: No
	C85KN16-80	Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø16 mm \| Stroke: 80 mm \| Auto switch magnet: No
	C85KN16-100	Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø16 mm \| Stroke: 100 mm \| Auto switch magnet: No
	C85KN16-125	Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø16 mm \| Stroke: 125 mm \| Auto switch magnet: No
	C85KN16-160	Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø16 mm \| Stroke: 160 mm \| Auto switch magnet: No
	C85KN16-200	Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø16 mm \| Stroke: 200 mm \| Auto switch magnet: No
	C85KN20-10	Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: No
	C85KN20-25	Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
	C85KN20-40	Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: No
	C85KN20-50	Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
	C85KN20-80	Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø20 mm \| Stroke: 80 mm \| Auto switch magnet: No
	C85KN20-100	Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: No
	C85KN20-125	Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø20 mm \| Stroke: 125 mm \| Auto switch magnet: No
	C85KN20-160	Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø20 mm \| Stroke: 160 mm \| Auto switch magnet: No
	C85KN20-200	Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø20 mm \| Stroke: 200 mm \| Auto switch magnet: No
	C85KN20-250	Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø20 mm \| Stroke: 250 mm \| Auto switch magnet: No
	C85KN20-300	Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø20 mm \| Stroke: 300 mm \| Auto switch magnet: No
	C85KN25-10	Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: No
	C85KN25-25	Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
	C85KN25-40	Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: No
	C85KN25-50	Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
	C85KN25-80	Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø25 mm \| Stroke: 80 mm \| Auto switch magnet: No
	C85KN25-100	Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: No
	C85KN25-125	Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø25 mm \| Stroke: 125 mm \| Auto switch magnet: No
	C85KN25-160	Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø25 mm \| Stroke: 160 mm \| Auto switch magnet: No
	C85KN25-200	Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø25 mm \| Stroke: 200 mm \| Auto switch magnet: No
	C85KN25-250	Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø25 mm \| Stroke: 250 mm \| Auto switch magnet: No
	C85KN25-300	Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø25 mm \| Stroke: 300 mm \| Auto switch magnet: No
	C85KE8-10	Action: Double acting \| Head cover: Boss both ends \| Bore: ø8 mm \| Stroke: 10 mm \| Auto switch magnet: No
	C85KE8-25	Action: Double acting \| Head cover: Boss both ends \| Bore: ø8 mm \| Stroke: 25 mm \| Auto switch magnet: No
	C85KE8-40	Action: Double acting \| Head cover: Boss both ends \| Bore: ø8 mm \| Stroke: 40 mm \| Auto switch magnet: No
	C85KE8-50	Action: Double acting \| Head cover: Boss both ends \| Bore: ø8 mm \| Stroke: 50 mm \| Auto switch magnet: No
	C85KE8-80	Action: Double acting \| Head cover: Boss both ends \| Bore: ø8 mm \| Stroke: 80 mm \| Auto switch magnet: No
	C85KE8-100	Action: Double acting \| Head cover: Boss both ends \| Bore: ø8 mm \| Stroke: 100 mm \| Auto switch magnet: No
	C85KE10-10	Action: Double acting \| Head cover: Boss both ends \| Bore: ø10 mm \| Stroke: 10 mm \| Auto switch magnet: No
	C85KE10-25	Action: Double acting \| Head cover: Boss both ends \| Bore: ø10 mm \| Stroke: 25 mm \| Auto switch magnet: No
	C85KE10-40	Action: Double acting \| Head cover: Boss both ends \| Bore: ø10 mm \| Stroke: 40 mm \| Auto switch magnet: No
	C85KE10-50	Action: Double acting \| Head cover: Boss both ends \| Bore: ø10 mm \| Stroke: 50 mm \| Auto switch magnet: No
	C85KE10-80	Action: Double acting \| Head cover: Boss both ends \| Bore: ø10 mm \| Stroke: 80 mm \| Auto switch magnet: No
	C85KE10-100	Action: Double acting \| Head cover: Boss both ends \| Bore: ø10 mm \| Stroke: 100 mm \| Auto switch magnet: No
	C85KE12-10	Action: Double acting \| Head cover: Boss both ends \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: No
	C85KE12-25	Action: Double acting \| Head cover: Boss both ends \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: No
	C85KE12-40	Action: Double acting \| Head cover: Boss both ends \| Bore: ø12 mm \| Stroke: 40 mm \| Auto switch magnet: No
	C85KE12-50	Action: Double acting \| Head cover: Boss both ends \| Bore: ø12 mm \| Stroke: 50 mm \| Auto switch magnet: No
	C85KE12-80	Action: Double acting \| Head cover: Boss both ends \| Bore: ø12 mm \| Stroke: 80 mm \| Auto switch magnet: No
	C85KE12-100	Action: Double acting \| Head cover: Boss both ends \| Bore: ø12 mm \| Stroke: 100 mm \| Auto switch magnet: No
	C85KE12-125	Action: Double acting \| Head cover: Boss both ends \| Bore: ø12 mm \| Stroke: 125 mm \| Auto switch magnet: No
	C85KE12-160	Action: Double acting \| Head cover: Boss both ends \| Bore: ø12 mm \| Stroke: 160 mm \| Auto switch magnet: No
	C85KE12-200	Action: Double acting \| Head cover: Boss both ends \| Bore: ø12 mm \| Stroke: 200 mm \| Auto switch magnet: No
	C85KE16-10	Action: Double acting \| Head cover: Boss both ends \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: No
	C85KE16-25	Action: Double acting \| Head cover: Boss both ends \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: No
	C85KE16-40	Action: Double acting \| Head cover: Boss both ends \| Bore: ø16 mm \| Stroke: 40 mm \| Auto switch magnet: No
	C85KE16-50	Action: Double acting \| Head cover: Boss both ends \| Bore: ø16 mm \| Stroke: 50 mm \| Auto switch magnet: No
	C85KE16-80	Action: Double acting \| Head cover: Boss both ends \| Bore: ø16 mm \| Stroke: 80 mm \| Auto switch magnet: No
	C85KE16-100	Action: Double acting \| Head cover: Boss both ends \| Bore: ø16 mm \| Stroke: 100 mm \| Auto switch magnet: No
	C85KE16-125	Action: Double acting \| Head cover: Boss both ends \| Bore: ø16 mm \| Stroke: 125 mm \| Auto switch magnet: No
	C85KE16-160	Action: Double acting \| Head cover: Boss both ends \| Bore: ø16 mm \| Stroke: 160 mm \| Auto switch magnet: No
	C85KE16-200	Action: Double acting \| Head cover: Boss both ends \| Bore: ø16 mm \| Stroke: 200 mm \| Auto switch magnet: No
	C85KE20-10	Action: Double acting \| Head cover: Boss both ends \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: No
	C85KE20-25	Action: Double acting \| Head cover: Boss both ends \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
	C85KE20-40	Action: Double acting \| Head cover: Boss both ends \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: No
	C85KE20-50	Action: Double acting \| Head cover: Boss both ends \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
	C85KE20-80	Action: Double acting \| Head cover: Boss both ends \| Bore: ø20 mm \| Stroke: 80 mm \| Auto switch magnet: No
	C85KE20-100	Action: Double acting \| Head cover: Boss both ends \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: No
	C85KE20-125	Action: Double acting \| Head cover: Boss both ends \| Bore: ø20 mm \| Stroke: 125 mm \| Auto switch magnet: No
	C85KE20-160	Action: Double acting \| Head cover: Boss both ends \| Bore: ø20 mm \| Stroke: 160 mm \| Auto switch magnet: No
	C85KE20-200	Action: Double acting \| Head cover: Boss both ends \| Bore: ø20 mm \| Stroke: 200 mm \| Auto switch magnet: No
	C85KE20-250	Action: Double acting \| Head cover: Boss both ends \| Bore: ø20 mm \| Stroke: 250 mm \| Auto switch magnet: No
	C85KE20-300	Action: Double acting \| Head cover: Boss both ends \| Bore: ø20 mm \| Stroke: 300 mm \| Auto switch magnet: No
	C85KE25-10	Action: Double acting \| Head cover: Boss both ends \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: No
	C85KE25-25	Action: Double acting \| Head cover: Boss both ends \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
	C85KE25-40	Action: Double acting \| Head cover: Boss both ends \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: No
	C85KE25-50	Action: Double acting \| Head cover: Boss both ends \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
	C85KE25-80	Action: Double acting \| Head cover: Boss both ends \| Bore: ø25 mm \| Stroke: 80 mm \| Auto switch magnet: No
	C85KE25-100	Action: Double acting \| Head cover: Boss both ends \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: No
	C85KE25-125	Action: Double acting \| Head cover: Boss both ends \| Bore: ø25 mm \| Stroke: 125 mm \| Auto switch magnet: No
	C85KE25-160	Action: Double acting \| Head cover: Boss both ends \| Bore: ø25 mm \| Stroke: 160 mm \| Auto switch magnet: No
	C85KE25-200	Action: Double acting \| Head cover: Boss both ends \| Bore: ø25 mm \| Stroke: 200 mm \| Auto switch magnet: No
	C85KE25-250	Action: Double acting \| Head cover: Boss both ends \| Bore: ø25 mm \| Stroke: 250 mm \| Auto switch magnet: No
	C85KE25-300	Action: Double acting \| Head cover: Boss both ends \| Bore: ø25 mm \| Stroke: 300 mm \| Auto switch magnet: No
	C85KF8-10	Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø8 mm \| Stroke: 10 mm \| Auto switch magnet: No
	C85KF8-25	Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø8 mm \| Stroke: 25 mm \| Auto switch magnet: No
	C85KF8-40	Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø8 mm \| Stroke: 40 mm \| Auto switch magnet: No
	C85KF8-50	Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø8 mm \| Stroke: 50 mm \| Auto switch magnet: No
	C85KF8-80	Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø8 mm \| Stroke: 80 mm \| Auto switch magnet: No
	C85KF8-100	Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø8 mm \| Stroke: 100 mm \| Auto switch magnet: No
	C85KF10-10	Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø10 mm \| Stroke: 10 mm \| Auto switch magnet: No
	C85KF10-25	Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø10 mm \| Stroke: 25 mm \| Auto switch magnet: No
	C85KF10-40	Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø10 mm \| Stroke: 40 mm \| Auto switch magnet: No
	C85KF10-50	Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø10 mm \| Stroke: 50 mm \| Auto switch magnet: No
	C85KF10-80	Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø10 mm \| Stroke: 80 mm \| Auto switch magnet: No
	C85KF10-100	Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø10 mm \| Stroke: 100 mm \| Auto switch magnet: No
	C85KF12-10	Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: No
	C85KF12-25	Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: No
	C85KF12-40	Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø12 mm \| Stroke: 40 mm \| Auto switch magnet: No
	C85KF12-50	Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø12 mm \| Stroke: 50 mm \| Auto switch magnet: No
	C85KF12-80	Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø12 mm \| Stroke: 80 mm \| Auto switch magnet: No
	C85KF12-100	Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø12 mm \| Stroke: 100 mm \| Auto switch magnet: No
	C85KF12-125	Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø12 mm \| Stroke: 125 mm \| Auto switch magnet: No
	C85KF12-160	Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø12 mm \| Stroke: 160 mm \| Auto switch magnet: No
	C85KF12-200	Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø12 mm \| Stroke: 200 mm \| Auto switch magnet: No
	C85KF16-10	Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: No
	C85KF16-25	Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: No
	C85KF16-40	Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø16 mm \| Stroke: 40 mm \| Auto switch magnet: No
	C85KF16-50	Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø16 mm \| Stroke: 50 mm \| Auto switch magnet: No
	C85KF16-80	Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø16 mm \| Stroke: 80 mm \| Auto switch magnet: No
	C85KF16-100	Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø16 mm \| Stroke: 100 mm \| Auto switch magnet: No
	C85KF16-125	Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø16 mm \| Stroke: 125 mm \| Auto switch magnet: No
	C85KF16-160	Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø16 mm \| Stroke: 160 mm \| Auto switch magnet: No
	C85KF16-200	Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø16 mm \| Stroke: 200 mm \| Auto switch magnet: No
	C85KF20-10	Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: No
	C85KF20-25	Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
	C85KF20-40	Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: No
	C85KF20-50	Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
	C85KF20-80	Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø20 mm \| Stroke: 80 mm \| Auto switch magnet: No
	C85KF20-100	Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: No
	C85KF20-125	Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø20 mm \| Stroke: 125 mm \| Auto switch magnet: No
	C85KF20-160	Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø20 mm \| Stroke: 160 mm \| Auto switch magnet: No
	C85KF20-200	Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø20 mm \| Stroke: 200 mm \| Auto switch magnet: No
	C85KF20-250	Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø20 mm \| Stroke: 250 mm \| Auto switch magnet: No
	C85KF20-300	Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø20 mm \| Stroke: 300 mm \| Auto switch magnet: No
	C85KF25-10	Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: No
	C85KF25-25	Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
	C85KF25-40	Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: No
	C85KF25-50	Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
	C85KF25-80	Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø25 mm \| Stroke: 80 mm \| Auto switch magnet: No
	C85KF25-100	Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: No
	C85KF25-125	Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø25 mm \| Stroke: 125 mm \| Auto switch magnet: No
	C85KF25-160	Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø25 mm \| Stroke: 160 mm \| Auto switch magnet: No
	C85KF25-200	Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø25 mm \| Stroke: 200 mm \| Auto switch magnet: No
	C85KF25-250	Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø25 mm \| Stroke: 250 mm \| Auto switch magnet: No
	C85KF25-300	Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø25 mm \| Stroke: 300 mm \| Auto switch magnet: No
	C85KY8-10	Action: Double acting \| Head cover: Axial head port \| Bore: ø8 mm \| Stroke: 10 mm \| Auto switch magnet: No
	C85KY8-25	Action: Double acting \| Head cover: Axial head port \| Bore: ø8 mm \| Stroke: 25 mm \| Auto switch magnet: No
	C85KY8-40	Action: Double acting \| Head cover: Axial head port \| Bore: ø8 mm \| Stroke: 40 mm \| Auto switch magnet: No
	C85KY8-50	Action: Double acting \| Head cover: Axial head port \| Bore: ø8 mm \| Stroke: 50 mm \| Auto switch magnet: No
	C85KY8-80	Action: Double acting \| Head cover: Axial head port \| Bore: ø8 mm \| Stroke: 80 mm \| Auto switch magnet: No
	C85KY8-100	Action: Double acting \| Head cover: Axial head port \| Bore: ø8 mm \| Stroke: 100 mm \| Auto switch magnet: No
	C85KY10-10	Action: Double acting \| Head cover: Axial head port \| Bore: ø10 mm \| Stroke: 10 mm \| Auto switch magnet: No
	C85KY10-25	Action: Double acting \| Head cover: Axial head port \| Bore: ø10 mm \| Stroke: 25 mm \| Auto switch magnet: No
	C85KY10-40	Action: Double acting \| Head cover: Axial head port \| Bore: ø10 mm \| Stroke: 40 mm \| Auto switch magnet: No
	C85KY10-50	Action: Double acting \| Head cover: Axial head port \| Bore: ø10 mm \| Stroke: 50 mm \| Auto switch magnet: No
	C85KY10-80	Action: Double acting \| Head cover: Axial head port \| Bore: ø10 mm \| Stroke: 80 mm \| Auto switch magnet: No
	C85KY10-100	Action: Double acting \| Head cover: Axial head port \| Bore: ø10 mm \| Stroke: 100 mm \| Auto switch magnet: No
	C85KY12-10	Action: Double acting \| Head cover: Axial head port \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: No
	C85KY12-25	Action: Double acting \| Head cover: Axial head port \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: No
	C85KY12-40	Action: Double acting \| Head cover: Axial head port \| Bore: ø12 mm \| Stroke: 40 mm \| Auto switch magnet: No
	C85KY12-50	Action: Double acting \| Head cover: Axial head port \| Bore: ø12 mm \| Stroke: 50 mm \| Auto switch magnet: No
	C85KY12-80	Action: Double acting \| Head cover: Axial head port \| Bore: ø12 mm \| Stroke: 80 mm \| Auto switch magnet: No
	C85KY12-100	Action: Double acting \| Head cover: Axial head port \| Bore: ø12 mm \| Stroke: 100 mm \| Auto switch magnet: No
	C85KY12-125	Action: Double acting \| Head cover: Axial head port \| Bore: ø12 mm \| Stroke: 125 mm \| Auto switch magnet: No
	C85KY12-160	Action: Double acting \| Head cover: Axial head port \| Bore: ø12 mm \| Stroke: 160 mm \| Auto switch magnet: No
	C85KY12-200	Action: Double acting \| Head cover: Axial head port \| Bore: ø12 mm \| Stroke: 200 mm \| Auto switch magnet: No
	C85KY16-10	Action: Double acting \| Head cover: Axial head port \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: No
	C85KY16-25	Action: Double acting \| Head cover: Axial head port \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: No
	C85KY16-40	Action: Double acting \| Head cover: Axial head port \| Bore: ø16 mm \| Stroke: 40 mm \| Auto switch magnet: No
	C85KY16-50	Action: Double acting \| Head cover: Axial head port \| Bore: ø16 mm \| Stroke: 50 mm \| Auto switch magnet: No
	C85KY16-80	Action: Double acting \| Head cover: Axial head port \| Bore: ø16 mm \| Stroke: 80 mm \| Auto switch magnet: No
	C85KY16-100	Action: Double acting \| Head cover: Axial head port \| Bore: ø16 mm \| Stroke: 100 mm \| Auto switch magnet: No
	C85KY16-125	Action: Double acting \| Head cover: Axial head port \| Bore: ø16 mm \| Stroke: 125 mm \| Auto switch magnet: No
	C85KY16-160	Action: Double acting \| Head cover: Axial head port \| Bore: ø16 mm \| Stroke: 160 mm \| Auto switch magnet: No
	C85KY16-200	Action: Double acting \| Head cover: Axial head port \| Bore: ø16 mm \| Stroke: 200 mm \| Auto switch magnet: No
	C85KY20-10	Action: Double acting \| Head cover: Axial head port \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: No
	C85KY20-25	Action: Double acting \| Head cover: Axial head port \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
	C85KY20-40	Action: Double acting \| Head cover: Axial head port \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: No
	C85KY20-50	Action: Double acting \| Head cover: Axial head port \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
	C85KY20-80	Action: Double acting \| Head cover: Axial head port \| Bore: ø20 mm \| Stroke: 80 mm \| Auto switch magnet: No
	C85KY20-100	Action: Double acting \| Head cover: Axial head port \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: No
	C85KY20-125	Action: Double acting \| Head cover: Axial head port \| Bore: ø20 mm \| Stroke: 125 mm \| Auto switch magnet: No
	C85KY20-160	Action: Double acting \| Head cover: Axial head port \| Bore: ø20 mm \| Stroke: 160 mm \| Auto switch magnet: No
	C85KY20-200	Action: Double acting \| Head cover: Axial head port \| Bore: ø20 mm \| Stroke: 200 mm \| Auto switch magnet: No
	C85KY20-250	Action: Double acting \| Head cover: Axial head port \| Bore: ø20 mm \| Stroke: 250 mm \| Auto switch magnet: No
	C85KY20-300	Action: Double acting \| Head cover: Axial head port \| Bore: ø20 mm \| Stroke: 300 mm \| Auto switch magnet: No
	C85KY25-10	Action: Double acting \| Head cover: Axial head port \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: No
	C85KY25-25	Action: Double acting \| Head cover: Axial head port \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
	C85KY25-40	Action: Double acting \| Head cover: Axial head port \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: No
	C85KY25-50	Action: Double acting \| Head cover: Axial head port \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
	C85KY25-80	Action: Double acting \| Head cover: Axial head port \| Bore: ø25 mm \| Stroke: 80 mm \| Auto switch magnet: No
	C85KY25-100	Action: Double acting \| Head cover: Axial head port \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: No
	C85KY25-125	Action: Double acting \| Head cover: Axial head port \| Bore: ø25 mm \| Stroke: 125 mm \| Auto switch magnet: No
	C85KY25-160	Action: Double acting \| Head cover: Axial head port \| Bore: ø25 mm \| Stroke: 160 mm \| Auto switch magnet: No
	C85KY25-200	Action: Double acting \| Head cover: Axial head port \| Bore: ø25 mm \| Stroke: 200 mm \| Auto switch magnet: No
	C85KY25-250	Action: Double acting \| Head cover: Axial head port \| Bore: ø25 mm \| Stroke: 250 mm \| Auto switch magnet: No
	C85KY25-300	Action: Double acting \| Head cover: Axial head port \| Bore: ø25 mm \| Stroke: 300 mm \| Auto switch magnet: No
	C85KN8-10S	Action: Single acting, spring return \| Head cover: Basic (integrated clevis) \| Bore: ø8 mm \| Stroke: 10 mm \| Auto switch magnet: No
	C85KN8-25S	Action: Single acting, spring return \| Head cover: Basic (integrated clevis) \| Bore: ø8 mm \| Stroke: 25 mm \| Auto switch magnet: No
	C85KN8-50S	Action: Single acting, spring return \| Head cover: Basic (integrated clevis) \| Bore: ø8 mm \| Stroke: 50 mm \| Auto switch magnet: No
	C85KN10-10S	Action: Single acting, spring return \| Head cover: Basic (integrated clevis) \| Bore: ø10 mm \| Stroke: 10 mm \| Auto switch magnet: No
	C85KN10-25S	Action: Single acting, spring return \| Head cover: Basic (integrated clevis) \| Bore: ø10 mm \| Stroke: 25 mm \| Auto switch magnet: No
	C85KN10-50S	Action: Single acting, spring return \| Head cover: Basic (integrated clevis) \| Bore: ø10 mm \| Stroke: 50 mm \| Auto switch magnet: No
	C85KN12-10S	Action: Single acting, spring return \| Head cover: Basic (integrated clevis) \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: No
	C85KN12-25S	Action: Single acting, spring return \| Head cover: Basic (integrated clevis) \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: No
	C85KN12-50S	Action: Single acting, spring return \| Head cover: Basic (integrated clevis) \| Bore: ø12 mm \| Stroke: 50 mm \| Auto switch magnet: No
	C85KN16-10S	Action: Single acting, spring return \| Head cover: Basic (integrated clevis) \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: No
	C85KN16-25S	Action: Single acting, spring return \| Head cover: Basic (integrated clevis) \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: No
	C85KN16-50S	Action: Single acting, spring return \| Head cover: Basic (integrated clevis) \| Bore: ø16 mm \| Stroke: 50 mm \| Auto switch magnet: No
	C85KN16-100S	Action: Single acting, spring return \| Head cover: Basic (integrated clevis) \| Bore: ø16 mm \| Stroke: 100 mm \| Auto switch magnet: No
	C85KN16-150S	Action: Single acting, spring return \| Head cover: Basic (integrated clevis) \| Bore: ø16 mm \| Stroke: 150 mm \| Auto switch magnet: No
	C85KN20-10S	Action: Single acting, spring return \| Head cover: Basic (integrated clevis) \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: No
	C85KN20-25S	Action: Single acting, spring return \| Head cover: Basic (integrated clevis) \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
	C85KN20-50S	Action: Single acting, spring return \| Head cover: Basic (integrated clevis) \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
	C85KN20-100S	Action: Single acting, spring return \| Head cover: Basic (integrated clevis) \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: No
	C85KN20-150S	Action: Single acting, spring return \| Head cover: Basic (integrated clevis) \| Bore: ø20 mm \| Stroke: 150 mm \| Auto switch magnet: No
	C85KN25-10S	Action: Single acting, spring return \| Head cover: Basic (integrated clevis) \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: No
	C85KN25-25S	Action: Single acting, spring return \| Head cover: Basic (integrated clevis) \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
	C85KN25-50S	Action: Single acting, spring return \| Head cover: Basic (integrated clevis) \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
	C85KN25-100S	Action: Single acting, spring return \| Head cover: Basic (integrated clevis) \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: No
	C85KN25-150S	Action: Single acting, spring return \| Head cover: Basic (integrated clevis) \| Bore: ø25 mm \| Stroke: 150 mm \| Auto switch magnet: No
	C85KE8-10S	Action: Single acting, spring return \| Head cover: Boss both ends \| Bore: ø8 mm \| Stroke: 10 mm \| Auto switch magnet: No
	C85KE8-25S	Action: Single acting, spring return \| Head cover: Boss both ends \| Bore: ø8 mm \| Stroke: 25 mm \| Auto switch magnet: No
	C85KE8-50S	Action: Single acting, spring return \| Head cover: Boss both ends \| Bore: ø8 mm \| Stroke: 50 mm \| Auto switch magnet: No
	C85KE10-10S	Action: Single acting, spring return \| Head cover: Boss both ends \| Bore: ø10 mm \| Stroke: 10 mm \| Auto switch magnet: No
	C85KE10-25S	Action: Single acting, spring return \| Head cover: Boss both ends \| Bore: ø10 mm \| Stroke: 25 mm \| Auto switch magnet: No
	C85KE10-50S	Action: Single acting, spring return \| Head cover: Boss both ends \| Bore: ø10 mm \| Stroke: 50 mm \| Auto switch magnet: No
	C85KE12-10S	Action: Single acting, spring return \| Head cover: Boss both ends \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: No
	C85KE12-25S	Action: Single acting, spring return \| Head cover: Boss both ends \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: No
	C85KE12-50S	Action: Single acting, spring return \| Head cover: Boss both ends \| Bore: ø12 mm \| Stroke: 50 mm \| Auto switch magnet: No
	C85KE16-10S	Action: Single acting, spring return \| Head cover: Boss both ends \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: No
	C85KE16-25S	Action: Single acting, spring return \| Head cover: Boss both ends \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: No
	C85KE16-50S	Action: Single acting, spring return \| Head cover: Boss both ends \| Bore: ø16 mm \| Stroke: 50 mm \| Auto switch magnet: No
	C85KE16-100S	Action: Single acting, spring return \| Head cover: Boss both ends \| Bore: ø16 mm \| Stroke: 100 mm \| Auto switch magnet: No
	C85KE16-150S	Action: Single acting, spring return \| Head cover: Boss both ends \| Bore: ø16 mm \| Stroke: 150 mm \| Auto switch magnet: No
	C85KE20-10S	Action: Single acting, spring return \| Head cover: Boss both ends \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: No
	C85KE20-25S	Action: Single acting, spring return \| Head cover: Boss both ends \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
	C85KE20-50S	Action: Single acting, spring return \| Head cover: Boss both ends \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
	C85KE20-100S	Action: Single acting, spring return \| Head cover: Boss both ends \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: No
	C85KE20-150S	Action: Single acting, spring return \| Head cover: Boss both ends \| Bore: ø20 mm \| Stroke: 150 mm \| Auto switch magnet: No
	C85KE25-10S	Action: Single acting, spring return \| Head cover: Boss both ends \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: No
	C85KE25-25S	Action: Single acting, spring return \| Head cover: Boss both ends \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
	C85KE25-50S	Action: Single acting, spring return \| Head cover: Boss both ends \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
	C85KE25-100S	Action: Single acting, spring return \| Head cover: Boss both ends \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: No
	C85KE25-150S	Action: Single acting, spring return \| Head cover: Boss both ends \| Bore: ø25 mm \| Stroke: 150 mm \| Auto switch magnet: No
	C85KF8-10S	Action: Single acting, spring return \| Head cover: Boss-cut basic \| Bore: ø8 mm \| Stroke: 10 mm \| Auto switch magnet: No
	C85KF8-25S	Action: Single acting, spring return \| Head cover: Boss-cut basic \| Bore: ø8 mm \| Stroke: 25 mm \| Auto switch magnet: No
	C85KF8-50S	Action: Single acting, spring return \| Head cover: Boss-cut basic \| Bore: ø8 mm \| Stroke: 50 mm \| Auto switch magnet: No
	C85KF10-10S	Action: Single acting, spring return \| Head cover: Boss-cut basic \| Bore: ø10 mm \| Stroke: 10 mm \| Auto switch magnet: No
	C85KF10-25S	Action: Single acting, spring return \| Head cover: Boss-cut basic \| Bore: ø10 mm \| Stroke: 25 mm \| Auto switch magnet: No
	C85KF10-50S	Action: Single acting, spring return \| Head cover: Boss-cut basic \| Bore: ø10 mm \| Stroke: 50 mm \| Auto switch magnet: No
	C85KF12-10S	Action: Single acting, spring return \| Head cover: Boss-cut basic \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: No
	C85KF12-25S	Action: Single acting, spring return \| Head cover: Boss-cut basic \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: No
	C85KF12-50S	Action: Single acting, spring return \| Head cover: Boss-cut basic \| Bore: ø12 mm \| Stroke: 50 mm \| Auto switch magnet: No
	C85KF16-10S	Action: Single acting, spring return \| Head cover: Boss-cut basic \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: No
	C85KF16-25S	Action: Single acting, spring return \| Head cover: Boss-cut basic \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: No
	C85KF16-50S	Action: Single acting, spring return \| Head cover: Boss-cut basic \| Bore: ø16 mm \| Stroke: 50 mm \| Auto switch magnet: No
	C85KF16-100S	Action: Single acting, spring return \| Head cover: Boss-cut basic \| Bore: ø16 mm \| Stroke: 100 mm \| Auto switch magnet: No
	C85KF16-150S	Action: Single acting, spring return \| Head cover: Boss-cut basic \| Bore: ø16 mm \| Stroke: 150 mm \| Auto switch magnet: No
	C85KF20-10S	Action: Single acting, spring return \| Head cover: Boss-cut basic \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: No
	C85KF20-25S	Action: Single acting, spring return \| Head cover: Boss-cut basic \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
	C85KF20-50S	Action: Single acting, spring return \| Head cover: Boss-cut basic \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
	C85KF20-100S	Action: Single acting, spring return \| Head cover: Boss-cut basic \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: No
	C85KF20-150S	Action: Single acting, spring return \| Head cover: Boss-cut basic \| Bore: ø20 mm \| Stroke: 150 mm \| Auto switch magnet: No
	C85KF25-10S	Action: Single acting, spring return \| Head cover: Boss-cut basic \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: No
	C85KF25-25S	Action: Single acting, spring return \| Head cover: Boss-cut basic \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
	C85KF25-50S	Action: Single acting, spring return \| Head cover: Boss-cut basic \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
	C85KF25-100S	Action: Single acting, spring return \| Head cover: Boss-cut basic \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: No
	C85KF25-150S	Action: Single acting, spring return \| Head cover: Boss-cut basic \| Bore: ø25 mm \| Stroke: 150 mm \| Auto switch magnet: No
	C85KY8-10S	Action: Single acting, spring return \| Head cover: Axial head port \| Bore: ø8 mm \| Stroke: 10 mm \| Auto switch magnet: No
	C85KY8-25S	Action: Single acting, spring return \| Head cover: Axial head port \| Bore: ø8 mm \| Stroke: 25 mm \| Auto switch magnet: No
	C85KY8-50S	Action: Single acting, spring return \| Head cover: Axial head port \| Bore: ø8 mm \| Stroke: 50 mm \| Auto switch magnet: No
	C85KY10-10S	Action: Single acting, spring return \| Head cover: Axial head port \| Bore: ø10 mm \| Stroke: 10 mm \| Auto switch magnet: No
	C85KY10-25S	Action: Single acting, spring return \| Head cover: Axial head port \| Bore: ø10 mm \| Stroke: 25 mm \| Auto switch magnet: No
	C85KY10-50S	Action: Single acting, spring return \| Head cover: Axial head port \| Bore: ø10 mm \| Stroke: 50 mm \| Auto switch magnet: No
	C85KY12-10S	Action: Single acting, spring return \| Head cover: Axial head port \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: No
	C85KY12-25S	Action: Single acting, spring return \| Head cover: Axial head port \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: No
	C85KY12-50S	Action: Single acting, spring return \| Head cover: Axial head port \| Bore: ø12 mm \| Stroke: 50 mm \| Auto switch magnet: No
	C85KY16-10S	Action: Single acting, spring return \| Head cover: Axial head port \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: No
	C85KY16-25S	Action: Single acting, spring return \| Head cover: Axial head port \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: No
	C85KY16-50S	Action: Single acting, spring return \| Head cover: Axial head port \| Bore: ø16 mm \| Stroke: 50 mm \| Auto switch magnet: No
	C85KY16-100S	Action: Single acting, spring return \| Head cover: Axial head port \| Bore: ø16 mm \| Stroke: 100 mm \| Auto switch magnet: No
	C85KY16-150S	Action: Single acting, spring return \| Head cover: Axial head port \| Bore: ø16 mm \| Stroke: 150 mm \| Auto switch magnet: No
	C85KY20-10S	Action: Single acting, spring return \| Head cover: Axial head port \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: No
	C85KY20-25S	Action: Single acting, spring return \| Head cover: Axial head port \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
	C85KY20-50S	Action: Single acting, spring return \| Head cover: Axial head port \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
	C85KY20-100S	Action: Single acting, spring return \| Head cover: Axial head port \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: No
	C85KY20-150S	Action: Single acting, spring return \| Head cover: Axial head port \| Bore: ø20 mm \| Stroke: 150 mm \| Auto switch magnet: No
	C85KY25-10S	Action: Single acting, spring return \| Head cover: Axial head port \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: No
	C85KY25-25S	Action: Single acting, spring return \| Head cover: Axial head port \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
	C85KY25-50S	Action: Single acting, spring return \| Head cover: Axial head port \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
	C85KY25-100S	Action: Single acting, spring return \| Head cover: Axial head port \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: No
	C85KY25-150S	Action: Single acting, spring return \| Head cover: Axial head port \| Bore: ø25 mm \| Stroke: 150 mm \| Auto switch magnet: No
	C85KN8-10T	Action: Single acting, spring extend \| Head cover: Basic (integrated clevis) \| Bore: ø8 mm \| Stroke: 10 mm \| Auto switch magnet: No
	C85KN8-25T	Action: Single acting, spring extend \| Head cover: Basic (integrated clevis) \| Bore: ø8 mm \| Stroke: 25 mm \| Auto switch magnet: No
	C85KN8-50T	Action: Single acting, spring extend \| Head cover: Basic (integrated clevis) \| Bore: ø8 mm \| Stroke: 50 mm \| Auto switch magnet: No
	C85KN10-10T	Action: Single acting, spring extend \| Head cover: Basic (integrated clevis) \| Bore: ø10 mm \| Stroke: 10 mm \| Auto switch magnet: No
	C85KN10-25T	Action: Single acting, spring extend \| Head cover: Basic (integrated clevis) \| Bore: ø10 mm \| Stroke: 25 mm \| Auto switch magnet: No
	C85KN10-50T	Action: Single acting, spring extend \| Head cover: Basic (integrated clevis) \| Bore: ø10 mm \| Stroke: 50 mm \| Auto switch magnet: No
	C85KN12-10T	Action: Single acting, spring extend \| Head cover: Basic (integrated clevis) \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: No
	C85KN12-25T	Action: Single acting, spring extend \| Head cover: Basic (integrated clevis) \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: No
	C85KN12-50T	Action: Single acting, spring extend \| Head cover: Basic (integrated clevis) \| Bore: ø12 mm \| Stroke: 50 mm \| Auto switch magnet: No
	C85KN16-10T	Action: Single acting, spring extend \| Head cover: Basic (integrated clevis) \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: No
	C85KN16-25T	Action: Single acting, spring extend \| Head cover: Basic (integrated clevis) \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: No
	C85KN16-50T	Action: Single acting, spring extend \| Head cover: Basic (integrated clevis) \| Bore: ø16 mm \| Stroke: 50 mm \| Auto switch magnet: No
	C85KN16-100T	Action: Single acting, spring extend \| Head cover: Basic (integrated clevis) \| Bore: ø16 mm \| Stroke: 100 mm \| Auto switch magnet: No
	C85KN16-150T	Action: Single acting, spring extend \| Head cover: Basic (integrated clevis) \| Bore: ø16 mm \| Stroke: 150 mm \| Auto switch magnet: No
	C85KN20-10T	Action: Single acting, spring extend \| Head cover: Basic (integrated clevis) \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: No
	C85KN20-25T	Action: Single acting, spring extend \| Head cover: Basic (integrated clevis) \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
	C85KN20-50T	Action: Single acting, spring extend \| Head cover: Basic (integrated clevis) \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
	C85KN20-100T	Action: Single acting, spring extend \| Head cover: Basic (integrated clevis) \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: No
	C85KN20-150T	Action: Single acting, spring extend \| Head cover: Basic (integrated clevis) \| Bore: ø20 mm \| Stroke: 150 mm \| Auto switch magnet: No
	C85KN25-10T	Action: Single acting, spring extend \| Head cover: Basic (integrated clevis) \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: No
	C85KN25-25T	Action: Single acting, spring extend \| Head cover: Basic (integrated clevis) \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
	C85KN25-50T	Action: Single acting, spring extend \| Head cover: Basic (integrated clevis) \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
	C85KN25-100T	Action: Single acting, spring extend \| Head cover: Basic (integrated clevis) \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: No
	C85KN25-150T	Action: Single acting, spring extend \| Head cover: Basic (integrated clevis) \| Bore: ø25 mm \| Stroke: 150 mm \| Auto switch magnet: No
	C85KE8-10T	Action: Single acting, spring extend \| Head cover: Boss both ends \| Bore: ø8 mm \| Stroke: 10 mm \| Auto switch magnet: No
	C85KE8-25T	Action: Single acting, spring extend \| Head cover: Boss both ends \| Bore: ø8 mm \| Stroke: 25 mm \| Auto switch magnet: No
	C85KE8-50T	Action: Single acting, spring extend \| Head cover: Boss both ends \| Bore: ø8 mm \| Stroke: 50 mm \| Auto switch magnet: No
	C85KE10-10T	Action: Single acting, spring extend \| Head cover: Boss both ends \| Bore: ø10 mm \| Stroke: 10 mm \| Auto switch magnet: No
	C85KE10-25T	Action: Single acting, spring extend \| Head cover: Boss both ends \| Bore: ø10 mm \| Stroke: 25 mm \| Auto switch magnet: No
	C85KE10-50T	Action: Single acting, spring extend \| Head cover: Boss both ends \| Bore: ø10 mm \| Stroke: 50 mm \| Auto switch magnet: No
	C85KE12-10T	Action: Single acting, spring extend \| Head cover: Boss both ends \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: No
	C85KE12-25T	Action: Single acting, spring extend \| Head cover: Boss both ends \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: No
	C85KE12-50T	Action: Single acting, spring extend \| Head cover: Boss both ends \| Bore: ø12 mm \| Stroke: 50 mm \| Auto switch magnet: No
	C85KE16-10T	Action: Single acting, spring extend \| Head cover: Boss both ends \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: No
	C85KE16-25T	Action: Single acting, spring extend \| Head cover: Boss both ends \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: No
	C85KE16-50T	Action: Single acting, spring extend \| Head cover: Boss both ends \| Bore: ø16 mm \| Stroke: 50 mm \| Auto switch magnet: No
	C85KE16-100T	Action: Single acting, spring extend \| Head cover: Boss both ends \| Bore: ø16 mm \| Stroke: 100 mm \| Auto switch magnet: No
	C85KE16-150T	Action: Single acting, spring extend \| Head cover: Boss both ends \| Bore: ø16 mm \| Stroke: 150 mm \| Auto switch magnet: No
	C85KE20-10T	Action: Single acting, spring extend \| Head cover: Boss both ends \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: No
	C85KE20-25T	Action: Single acting, spring extend \| Head cover: Boss both ends \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
	C85KE20-50T	Action: Single acting, spring extend \| Head cover: Boss both ends \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
	C85KE20-100T	Action: Single acting, spring extend \| Head cover: Boss both ends \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: No
	C85KE20-150T	Action: Single acting, spring extend \| Head cover: Boss both ends \| Bore: ø20 mm \| Stroke: 150 mm \| Auto switch magnet: No
	C85KE25-10T	Action: Single acting, spring extend \| Head cover: Boss both ends \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: No
	C85KE25-25T	Action: Single acting, spring extend \| Head cover: Boss both ends \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
	C85KE25-50T	Action: Single acting, spring extend \| Head cover: Boss both ends \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
	C85KE25-100T	Action: Single acting, spring extend \| Head cover: Boss both ends \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: No
	C85KE25-150T	Action: Single acting, spring extend \| Head cover: Boss both ends \| Bore: ø25 mm \| Stroke: 150 mm \| Auto switch magnet: No
	C85KF8-10T	Action: Single acting, spring extend \| Head cover: Boss-cut basic \| Bore: ø8 mm \| Stroke: 10 mm \| Auto switch magnet: No
	C85KF8-25T	Action: Single acting, spring extend \| Head cover: Boss-cut basic \| Bore: ø8 mm \| Stroke: 25 mm \| Auto switch magnet: No
	C85KF8-50T	Action: Single acting, spring extend \| Head cover: Boss-cut basic \| Bore: ø8 mm \| Stroke: 50 mm \| Auto switch magnet: No
	C85KF10-10T	Action: Single acting, spring extend \| Head cover: Boss-cut basic \| Bore: ø10 mm \| Stroke: 10 mm \| Auto switch magnet: No
	C85KF10-25T	Action: Single acting, spring extend \| Head cover: Boss-cut basic \| Bore: ø10 mm \| Stroke: 25 mm \| Auto switch magnet: No
	C85KF10-50T	Action: Single acting, spring extend \| Head cover: Boss-cut basic \| Bore: ø10 mm \| Stroke: 50 mm \| Auto switch magnet: No
	C85KF12-10T	Action: Single acting, spring extend \| Head cover: Boss-cut basic \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: No
	C85KF12-25T	Action: Single acting, spring extend \| Head cover: Boss-cut basic \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: No
	C85KF12-50T	Action: Single acting, spring extend \| Head cover: Boss-cut basic \| Bore: ø12 mm \| Stroke: 50 mm \| Auto switch magnet: No
	C85KF16-10T	Action: Single acting, spring extend \| Head cover: Boss-cut basic \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: No
	C85KF16-25T	Action: Single acting, spring extend \| Head cover: Boss-cut basic \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: No
	C85KF16-50T	Action: Single acting, spring extend \| Head cover: Boss-cut basic \| Bore: ø16 mm \| Stroke: 50 mm \| Auto switch magnet: No
	C85KF16-100T	Action: Single acting, spring extend \| Head cover: Boss-cut basic \| Bore: ø16 mm \| Stroke: 100 mm \| Auto switch magnet: No
	C85KF16-150T	Action: Single acting, spring extend \| Head cover: Boss-cut basic \| Bore: ø16 mm \| Stroke: 150 mm \| Auto switch magnet: No
	C85KF20-10T	Action: Single acting, spring extend \| Head cover: Boss-cut basic \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: No
	C85KF20-25T	Action: Single acting, spring extend \| Head cover: Boss-cut basic \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
	C85KF20-50T	Action: Single acting, spring extend \| Head cover: Boss-cut basic \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
	C85KF20-100T	Action: Single acting, spring extend \| Head cover: Boss-cut basic \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: No
	C85KF20-150T	Action: Single acting, spring extend \| Head cover: Boss-cut basic \| Bore: ø20 mm \| Stroke: 150 mm \| Auto switch magnet: No
	C85KF25-10T	Action: Single acting, spring extend \| Head cover: Boss-cut basic \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: No
	C85KF25-25T	Action: Single acting, spring extend \| Head cover: Boss-cut basic \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
	C85KF25-50T	Action: Single acting, spring extend \| Head cover: Boss-cut basic \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
	C85KF25-100T	Action: Single acting, spring extend \| Head cover: Boss-cut basic \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: No
	C85KF25-150T	Action: Single acting, spring extend \| Head cover: Boss-cut basic \| Bore: ø25 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CD85KN8-10	Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø8 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CD85KN8-25	Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø8 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CD85KN8-40	Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø8 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CD85KN8-50	Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø8 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CD85KN8-80	Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø8 mm \| Stroke: 80 mm \| Auto switch magnet: Yes
	CD85KN8-100	Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø8 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CD85KN10-10	Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø10 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CD85KN10-25	Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø10 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CD85KN10-40	Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø10 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CD85KN10-50	Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø10 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CD85KN10-80	Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø10 mm \| Stroke: 80 mm \| Auto switch magnet: Yes
	CD85KN10-100	Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø10 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CD85KN12-10	Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CD85KN12-25	Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CD85KN12-40	Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø12 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CD85KN12-50	Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø12 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CD85KN12-80	Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø12 mm \| Stroke: 80 mm \| Auto switch magnet: Yes
	CD85KN12-100	Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø12 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CD85KN12-125	Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø12 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CD85KN12-160	Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø12 mm \| Stroke: 160 mm \| Auto switch magnet: Yes
	CD85KN12-200	Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø12 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CD85KN16-10	Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CD85KN16-25	Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CD85KN16-40	Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø16 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CD85KN16-50	Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø16 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CD85KN16-80	Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø16 mm \| Stroke: 80 mm \| Auto switch magnet: Yes
	CD85KN16-100	Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø16 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CD85KN16-125	Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø16 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CD85KN16-160	Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø16 mm \| Stroke: 160 mm \| Auto switch magnet: Yes
	CD85KN16-200	Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø16 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CD85KN20-10	Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CD85KN20-25	Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CD85KN20-40	Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CD85KN20-50	Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CD85KN20-80	Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø20 mm \| Stroke: 80 mm \| Auto switch magnet: Yes
	CD85KN20-100	Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CD85KN20-125	Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø20 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CD85KN20-160	Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø20 mm \| Stroke: 160 mm \| Auto switch magnet: Yes
	CD85KN20-200	Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø20 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CD85KN20-250	Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø20 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CD85KN20-300	Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø20 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CD85KN25-10	Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CD85KN25-25	Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CD85KN25-40	Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CD85KN25-50	Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CD85KN25-80	Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø25 mm \| Stroke: 80 mm \| Auto switch magnet: Yes
	CD85KN25-100	Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CD85KN25-125	Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø25 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CD85KN25-160	Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø25 mm \| Stroke: 160 mm \| Auto switch magnet: Yes
	CD85KN25-200	Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø25 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CD85KN25-250	Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø25 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CD85KN25-300	Action: Double acting \| Head cover: Basic (integrated clevis) \| Bore: ø25 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CD85KE8-10	Action: Double acting \| Head cover: Boss both ends \| Bore: ø8 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CD85KE8-25	Action: Double acting \| Head cover: Boss both ends \| Bore: ø8 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CD85KE8-40	Action: Double acting \| Head cover: Boss both ends \| Bore: ø8 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CD85KE8-50	Action: Double acting \| Head cover: Boss both ends \| Bore: ø8 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CD85KE8-80	Action: Double acting \| Head cover: Boss both ends \| Bore: ø8 mm \| Stroke: 80 mm \| Auto switch magnet: Yes
	CD85KE8-100	Action: Double acting \| Head cover: Boss both ends \| Bore: ø8 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CD85KE10-10	Action: Double acting \| Head cover: Boss both ends \| Bore: ø10 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CD85KE10-25	Action: Double acting \| Head cover: Boss both ends \| Bore: ø10 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CD85KE10-40	Action: Double acting \| Head cover: Boss both ends \| Bore: ø10 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CD85KE10-50	Action: Double acting \| Head cover: Boss both ends \| Bore: ø10 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CD85KE10-80	Action: Double acting \| Head cover: Boss both ends \| Bore: ø10 mm \| Stroke: 80 mm \| Auto switch magnet: Yes
	CD85KE10-100	Action: Double acting \| Head cover: Boss both ends \| Bore: ø10 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CD85KE12-10	Action: Double acting \| Head cover: Boss both ends \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CD85KE12-25	Action: Double acting \| Head cover: Boss both ends \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CD85KE12-40	Action: Double acting \| Head cover: Boss both ends \| Bore: ø12 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CD85KE12-50	Action: Double acting \| Head cover: Boss both ends \| Bore: ø12 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CD85KE12-80	Action: Double acting \| Head cover: Boss both ends \| Bore: ø12 mm \| Stroke: 80 mm \| Auto switch magnet: Yes
	CD85KE12-100	Action: Double acting \| Head cover: Boss both ends \| Bore: ø12 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CD85KE12-125	Action: Double acting \| Head cover: Boss both ends \| Bore: ø12 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CD85KE12-160	Action: Double acting \| Head cover: Boss both ends \| Bore: ø12 mm \| Stroke: 160 mm \| Auto switch magnet: Yes
	CD85KE12-200	Action: Double acting \| Head cover: Boss both ends \| Bore: ø12 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CD85KE16-10	Action: Double acting \| Head cover: Boss both ends \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CD85KE16-25	Action: Double acting \| Head cover: Boss both ends \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CD85KE16-40	Action: Double acting \| Head cover: Boss both ends \| Bore: ø16 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CD85KE16-50	Action: Double acting \| Head cover: Boss both ends \| Bore: ø16 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CD85KE16-80	Action: Double acting \| Head cover: Boss both ends \| Bore: ø16 mm \| Stroke: 80 mm \| Auto switch magnet: Yes
	CD85KE16-100	Action: Double acting \| Head cover: Boss both ends \| Bore: ø16 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CD85KE16-125	Action: Double acting \| Head cover: Boss both ends \| Bore: ø16 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CD85KE16-160	Action: Double acting \| Head cover: Boss both ends \| Bore: ø16 mm \| Stroke: 160 mm \| Auto switch magnet: Yes
	CD85KE16-200	Action: Double acting \| Head cover: Boss both ends \| Bore: ø16 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CD85KE20-10	Action: Double acting \| Head cover: Boss both ends \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CD85KE20-25	Action: Double acting \| Head cover: Boss both ends \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CD85KE20-40	Action: Double acting \| Head cover: Boss both ends \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CD85KE20-50	Action: Double acting \| Head cover: Boss both ends \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CD85KE20-80	Action: Double acting \| Head cover: Boss both ends \| Bore: ø20 mm \| Stroke: 80 mm \| Auto switch magnet: Yes
	CD85KE20-100	Action: Double acting \| Head cover: Boss both ends \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CD85KE20-125	Action: Double acting \| Head cover: Boss both ends \| Bore: ø20 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CD85KE20-160	Action: Double acting \| Head cover: Boss both ends \| Bore: ø20 mm \| Stroke: 160 mm \| Auto switch magnet: Yes
	CD85KE20-200	Action: Double acting \| Head cover: Boss both ends \| Bore: ø20 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CD85KE20-250	Action: Double acting \| Head cover: Boss both ends \| Bore: ø20 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CD85KE20-300	Action: Double acting \| Head cover: Boss both ends \| Bore: ø20 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CD85KE25-10	Action: Double acting \| Head cover: Boss both ends \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CD85KE25-25	Action: Double acting \| Head cover: Boss both ends \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CD85KE25-40	Action: Double acting \| Head cover: Boss both ends \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CD85KE25-50	Action: Double acting \| Head cover: Boss both ends \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CD85KE25-80	Action: Double acting \| Head cover: Boss both ends \| Bore: ø25 mm \| Stroke: 80 mm \| Auto switch magnet: Yes
	CD85KE25-100	Action: Double acting \| Head cover: Boss both ends \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CD85KE25-125	Action: Double acting \| Head cover: Boss both ends \| Bore: ø25 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CD85KE25-160	Action: Double acting \| Head cover: Boss both ends \| Bore: ø25 mm \| Stroke: 160 mm \| Auto switch magnet: Yes
	CD85KE25-200	Action: Double acting \| Head cover: Boss both ends \| Bore: ø25 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CD85KE25-250	Action: Double acting \| Head cover: Boss both ends \| Bore: ø25 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CD85KE25-300	Action: Double acting \| Head cover: Boss both ends \| Bore: ø25 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CD85KF8-10	Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø8 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CD85KF8-25	Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø8 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CD85KF8-40	Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø8 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CD85KF8-50	Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø8 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CD85KF8-80	Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø8 mm \| Stroke: 80 mm \| Auto switch magnet: Yes
	CD85KF8-100	Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø8 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CD85KF10-10	Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø10 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CD85KF10-25	Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø10 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CD85KF10-40	Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø10 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CD85KF10-50	Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø10 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CD85KF10-80	Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø10 mm \| Stroke: 80 mm \| Auto switch magnet: Yes
	CD85KF10-100	Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø10 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CD85KF12-10	Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CD85KF12-25	Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CD85KF12-40	Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø12 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CD85KF12-50	Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø12 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CD85KF12-80	Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø12 mm \| Stroke: 80 mm \| Auto switch magnet: Yes
	CD85KF12-100	Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø12 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CD85KF12-125	Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø12 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CD85KF12-160	Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø12 mm \| Stroke: 160 mm \| Auto switch magnet: Yes
	CD85KF12-200	Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø12 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CD85KF16-10	Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CD85KF16-25	Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CD85KF16-40	Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø16 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CD85KF16-50	Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø16 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CD85KF16-80	Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø16 mm \| Stroke: 80 mm \| Auto switch magnet: Yes
	CD85KF16-100	Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø16 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CD85KF16-125	Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø16 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CD85KF16-160	Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø16 mm \| Stroke: 160 mm \| Auto switch magnet: Yes
	CD85KF16-200	Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø16 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CD85KF20-10	Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CD85KF20-25	Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CD85KF20-40	Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CD85KF20-50	Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CD85KF20-80	Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø20 mm \| Stroke: 80 mm \| Auto switch magnet: Yes
	CD85KF20-100	Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CD85KF20-125	Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø20 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CD85KF20-160	Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø20 mm \| Stroke: 160 mm \| Auto switch magnet: Yes
	CD85KF20-200	Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø20 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CD85KF20-250	Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø20 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CD85KF20-300	Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø20 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CD85KF25-10	Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CD85KF25-25	Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CD85KF25-40	Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CD85KF25-50	Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CD85KF25-80	Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø25 mm \| Stroke: 80 mm \| Auto switch magnet: Yes
	CD85KF25-100	Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CD85KF25-125	Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø25 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CD85KF25-160	Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø25 mm \| Stroke: 160 mm \| Auto switch magnet: Yes
	CD85KF25-200	Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø25 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CD85KF25-250	Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø25 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CD85KF25-300	Action: Double acting \| Head cover: Boss-cut basic \| Bore: ø25 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CD85KY8-10	Action: Double acting \| Head cover: Axial head port \| Bore: ø8 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CD85KY8-25	Action: Double acting \| Head cover: Axial head port \| Bore: ø8 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CD85KY8-40	Action: Double acting \| Head cover: Axial head port \| Bore: ø8 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CD85KY8-50	Action: Double acting \| Head cover: Axial head port \| Bore: ø8 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CD85KY8-80	Action: Double acting \| Head cover: Axial head port \| Bore: ø8 mm \| Stroke: 80 mm \| Auto switch magnet: Yes
	CD85KY8-100	Action: Double acting \| Head cover: Axial head port \| Bore: ø8 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CD85KY10-10	Action: Double acting \| Head cover: Axial head port \| Bore: ø10 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CD85KY10-25	Action: Double acting \| Head cover: Axial head port \| Bore: ø10 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CD85KY10-40	Action: Double acting \| Head cover: Axial head port \| Bore: ø10 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CD85KY10-50	Action: Double acting \| Head cover: Axial head port \| Bore: ø10 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CD85KY10-80	Action: Double acting \| Head cover: Axial head port \| Bore: ø10 mm \| Stroke: 80 mm \| Auto switch magnet: Yes
	CD85KY10-100	Action: Double acting \| Head cover: Axial head port \| Bore: ø10 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CD85KY12-10	Action: Double acting \| Head cover: Axial head port \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CD85KY12-25	Action: Double acting \| Head cover: Axial head port \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CD85KY12-40	Action: Double acting \| Head cover: Axial head port \| Bore: ø12 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CD85KY12-50	Action: Double acting \| Head cover: Axial head port \| Bore: ø12 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CD85KY12-80	Action: Double acting \| Head cover: Axial head port \| Bore: ø12 mm \| Stroke: 80 mm \| Auto switch magnet: Yes
	CD85KY12-100	Action: Double acting \| Head cover: Axial head port \| Bore: ø12 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CD85KY12-125	Action: Double acting \| Head cover: Axial head port \| Bore: ø12 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CD85KY12-160	Action: Double acting \| Head cover: Axial head port \| Bore: ø12 mm \| Stroke: 160 mm \| Auto switch magnet: Yes
	CD85KY12-200	Action: Double acting \| Head cover: Axial head port \| Bore: ø12 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CD85KY16-10	Action: Double acting \| Head cover: Axial head port \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CD85KY16-25	Action: Double acting \| Head cover: Axial head port \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CD85KY16-40	Action: Double acting \| Head cover: Axial head port \| Bore: ø16 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CD85KY16-50	Action: Double acting \| Head cover: Axial head port \| Bore: ø16 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CD85KY16-80	Action: Double acting \| Head cover: Axial head port \| Bore: ø16 mm \| Stroke: 80 mm \| Auto switch magnet: Yes
	CD85KY16-100	Action: Double acting \| Head cover: Axial head port \| Bore: ø16 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CD85KY16-125	Action: Double acting \| Head cover: Axial head port \| Bore: ø16 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CD85KY16-160	Action: Double acting \| Head cover: Axial head port \| Bore: ø16 mm \| Stroke: 160 mm \| Auto switch magnet: Yes
	CD85KY16-200	Action: Double acting \| Head cover: Axial head port \| Bore: ø16 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CD85KY20-10	Action: Double acting \| Head cover: Axial head port \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CD85KY20-25	Action: Double acting \| Head cover: Axial head port \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CD85KY20-40	Action: Double acting \| Head cover: Axial head port \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CD85KY20-50	Action: Double acting \| Head cover: Axial head port \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CD85KY20-80	Action: Double acting \| Head cover: Axial head port \| Bore: ø20 mm \| Stroke: 80 mm \| Auto switch magnet: Yes
	CD85KY20-100	Action: Double acting \| Head cover: Axial head port \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CD85KY20-125	Action: Double acting \| Head cover: Axial head port \| Bore: ø20 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CD85KY20-160	Action: Double acting \| Head cover: Axial head port \| Bore: ø20 mm \| Stroke: 160 mm \| Auto switch magnet: Yes
	CD85KY20-200	Action: Double acting \| Head cover: Axial head port \| Bore: ø20 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CD85KY20-250	Action: Double acting \| Head cover: Axial head port \| Bore: ø20 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CD85KY20-300	Action: Double acting \| Head cover: Axial head port \| Bore: ø20 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CD85KY25-10	Action: Double acting \| Head cover: Axial head port \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CD85KY25-25	Action: Double acting \| Head cover: Axial head port \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CD85KY25-40	Action: Double acting \| Head cover: Axial head port \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CD85KY25-50	Action: Double acting \| Head cover: Axial head port \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CD85KY25-80	Action: Double acting \| Head cover: Axial head port \| Bore: ø25 mm \| Stroke: 80 mm \| Auto switch magnet: Yes
	CD85KY25-100	Action: Double acting \| Head cover: Axial head port \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CD85KY25-125	Action: Double acting \| Head cover: Axial head port \| Bore: ø25 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CD85KY25-160	Action: Double acting \| Head cover: Axial head port \| Bore: ø25 mm \| Stroke: 160 mm \| Auto switch magnet: Yes
	CD85KY25-200	Action: Double acting \| Head cover: Axial head port \| Bore: ø25 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CD85KY25-250	Action: Double acting \| Head cover: Axial head port \| Bore: ø25 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CD85KY25-300	Action: Double acting \| Head cover: Axial head port \| Bore: ø25 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CD85KN8-10S	Action: Single acting, spring return \| Head cover: Basic (integrated clevis) \| Bore: ø8 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CD85KN8-25S	Action: Single acting, spring return \| Head cover: Basic (integrated clevis) \| Bore: ø8 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CD85KN8-50S	Action: Single acting, spring return \| Head cover: Basic (integrated clevis) \| Bore: ø8 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CD85KN10-10S	Action: Single acting, spring return \| Head cover: Basic (integrated clevis) \| Bore: ø10 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CD85KN10-25S	Action: Single acting, spring return \| Head cover: Basic (integrated clevis) \| Bore: ø10 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CD85KN10-50S	Action: Single acting, spring return \| Head cover: Basic (integrated clevis) \| Bore: ø10 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CD85KN12-10S	Action: Single acting, spring return \| Head cover: Basic (integrated clevis) \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CD85KN12-25S	Action: Single acting, spring return \| Head cover: Basic (integrated clevis) \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CD85KN12-50S	Action: Single acting, spring return \| Head cover: Basic (integrated clevis) \| Bore: ø12 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CD85KN16-10S	Action: Single acting, spring return \| Head cover: Basic (integrated clevis) \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CD85KN16-25S	Action: Single acting, spring return \| Head cover: Basic (integrated clevis) \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CD85KN16-50S	Action: Single acting, spring return \| Head cover: Basic (integrated clevis) \| Bore: ø16 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CD85KN16-100S	Action: Single acting, spring return \| Head cover: Basic (integrated clevis) \| Bore: ø16 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CD85KN16-150S	Action: Single acting, spring return \| Head cover: Basic (integrated clevis) \| Bore: ø16 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CD85KN20-10S	Action: Single acting, spring return \| Head cover: Basic (integrated clevis) \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CD85KN20-25S	Action: Single acting, spring return \| Head cover: Basic (integrated clevis) \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CD85KN20-50S	Action: Single acting, spring return \| Head cover: Basic (integrated clevis) \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CD85KN20-100S	Action: Single acting, spring return \| Head cover: Basic (integrated clevis) \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CD85KN20-150S	Action: Single acting, spring return \| Head cover: Basic (integrated clevis) \| Bore: ø20 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CD85KN25-10S	Action: Single acting, spring return \| Head cover: Basic (integrated clevis) \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CD85KN25-25S	Action: Single acting, spring return \| Head cover: Basic (integrated clevis) \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CD85KN25-50S	Action: Single acting, spring return \| Head cover: Basic (integrated clevis) \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CD85KN25-100S	Action: Single acting, spring return \| Head cover: Basic (integrated clevis) \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CD85KN25-150S	Action: Single acting, spring return \| Head cover: Basic (integrated clevis) \| Bore: ø25 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CD85KE8-10S	Action: Single acting, spring return \| Head cover: Boss both ends \| Bore: ø8 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CD85KE8-25S	Action: Single acting, spring return \| Head cover: Boss both ends \| Bore: ø8 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CD85KE8-50S	Action: Single acting, spring return \| Head cover: Boss both ends \| Bore: ø8 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CD85KE10-10S	Action: Single acting, spring return \| Head cover: Boss both ends \| Bore: ø10 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CD85KE10-25S	Action: Single acting, spring return \| Head cover: Boss both ends \| Bore: ø10 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CD85KE10-50S	Action: Single acting, spring return \| Head cover: Boss both ends \| Bore: ø10 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CD85KE12-10S	Action: Single acting, spring return \| Head cover: Boss both ends \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CD85KE12-25S	Action: Single acting, spring return \| Head cover: Boss both ends \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CD85KE12-50S	Action: Single acting, spring return \| Head cover: Boss both ends \| Bore: ø12 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CD85KE16-10S	Action: Single acting, spring return \| Head cover: Boss both ends \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CD85KE16-25S	Action: Single acting, spring return \| Head cover: Boss both ends \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CD85KE16-50S	Action: Single acting, spring return \| Head cover: Boss both ends \| Bore: ø16 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CD85KE16-100S	Action: Single acting, spring return \| Head cover: Boss both ends \| Bore: ø16 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CD85KE16-150S	Action: Single acting, spring return \| Head cover: Boss both ends \| Bore: ø16 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CD85KE20-10S	Action: Single acting, spring return \| Head cover: Boss both ends \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CD85KE20-25S	Action: Single acting, spring return \| Head cover: Boss both ends \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CD85KE20-50S	Action: Single acting, spring return \| Head cover: Boss both ends \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CD85KE20-100S	Action: Single acting, spring return \| Head cover: Boss both ends \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CD85KE20-150S	Action: Single acting, spring return \| Head cover: Boss both ends \| Bore: ø20 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CD85KE25-10S	Action: Single acting, spring return \| Head cover: Boss both ends \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CD85KE25-25S	Action: Single acting, spring return \| Head cover: Boss both ends \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CD85KE25-50S	Action: Single acting, spring return \| Head cover: Boss both ends \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CD85KE25-100S	Action: Single acting, spring return \| Head cover: Boss both ends \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CD85KE25-150S	Action: Single acting, spring return \| Head cover: Boss both ends \| Bore: ø25 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CD85KF8-10S	Action: Single acting, spring return \| Head cover: Boss-cut basic \| Bore: ø8 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CD85KF8-25S	Action: Single acting, spring return \| Head cover: Boss-cut basic \| Bore: ø8 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CD85KF8-50S	Action: Single acting, spring return \| Head cover: Boss-cut basic \| Bore: ø8 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CD85KF10-10S	Action: Single acting, spring return \| Head cover: Boss-cut basic \| Bore: ø10 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CD85KF10-25S	Action: Single acting, spring return \| Head cover: Boss-cut basic \| Bore: ø10 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CD85KF10-50S	Action: Single acting, spring return \| Head cover: Boss-cut basic \| Bore: ø10 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CD85KF12-10S	Action: Single acting, spring return \| Head cover: Boss-cut basic \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CD85KF12-25S	Action: Single acting, spring return \| Head cover: Boss-cut basic \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CD85KF12-50S	Action: Single acting, spring return \| Head cover: Boss-cut basic \| Bore: ø12 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CD85KF16-10S	Action: Single acting, spring return \| Head cover: Boss-cut basic \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CD85KF16-25S	Action: Single acting, spring return \| Head cover: Boss-cut basic \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CD85KF16-50S	Action: Single acting, spring return \| Head cover: Boss-cut basic \| Bore: ø16 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CD85KF16-100S	Action: Single acting, spring return \| Head cover: Boss-cut basic \| Bore: ø16 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CD85KF16-150S	Action: Single acting, spring return \| Head cover: Boss-cut basic \| Bore: ø16 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CD85KF20-10S	Action: Single acting, spring return \| Head cover: Boss-cut basic \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CD85KF20-25S	Action: Single acting, spring return \| Head cover: Boss-cut basic \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CD85KF20-50S	Action: Single acting, spring return \| Head cover: Boss-cut basic \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CD85KF20-100S	Action: Single acting, spring return \| Head cover: Boss-cut basic \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CD85KF20-150S	Action: Single acting, spring return \| Head cover: Boss-cut basic \| Bore: ø20 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CD85KF25-10S	Action: Single acting, spring return \| Head cover: Boss-cut basic \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CD85KF25-25S	Action: Single acting, spring return \| Head cover: Boss-cut basic \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CD85KF25-50S	Action: Single acting, spring return \| Head cover: Boss-cut basic \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CD85KF25-100S	Action: Single acting, spring return \| Head cover: Boss-cut basic \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CD85KF25-150S	Action: Single acting, spring return \| Head cover: Boss-cut basic \| Bore: ø25 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CD85KY8-10S	Action: Single acting, spring return \| Head cover: Axial head port \| Bore: ø8 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CD85KY8-25S	Action: Single acting, spring return \| Head cover: Axial head port \| Bore: ø8 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CD85KY8-50S	Action: Single acting, spring return \| Head cover: Axial head port \| Bore: ø8 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CD85KY10-10S	Action: Single acting, spring return \| Head cover: Axial head port \| Bore: ø10 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CD85KY10-25S	Action: Single acting, spring return \| Head cover: Axial head port \| Bore: ø10 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CD85KY10-50S	Action: Single acting, spring return \| Head cover: Axial head port \| Bore: ø10 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CD85KY12-10S	Action: Single acting, spring return \| Head cover: Axial head port \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CD85KY12-25S	Action: Single acting, spring return \| Head cover: Axial head port \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CD85KY12-50S	Action: Single acting, spring return \| Head cover: Axial head port \| Bore: ø12 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CD85KY16-10S	Action: Single acting, spring return \| Head cover: Axial head port \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CD85KY16-25S	Action: Single acting, spring return \| Head cover: Axial head port \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CD85KY16-50S	Action: Single acting, spring return \| Head cover: Axial head port \| Bore: ø16 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CD85KY16-100S	Action: Single acting, spring return \| Head cover: Axial head port \| Bore: ø16 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CD85KY16-150S	Action: Single acting, spring return \| Head cover: Axial head port \| Bore: ø16 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CD85KY20-10S	Action: Single acting, spring return \| Head cover: Axial head port \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CD85KY20-25S	Action: Single acting, spring return \| Head cover: Axial head port \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CD85KY20-50S	Action: Single acting, spring return \| Head cover: Axial head port \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CD85KY20-100S	Action: Single acting, spring return \| Head cover: Axial head port \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CD85KY20-150S	Action: Single acting, spring return \| Head cover: Axial head port \| Bore: ø20 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CD85KY25-10S	Action: Single acting, spring return \| Head cover: Axial head port \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CD85KY25-25S	Action: Single acting, spring return \| Head cover: Axial head port \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CD85KY25-50S	Action: Single acting, spring return \| Head cover: Axial head port \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CD85KY25-100S	Action: Single acting, spring return \| Head cover: Axial head port \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CD85KY25-150S	Action: Single acting, spring return \| Head cover: Axial head port \| Bore: ø25 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CD85KN8-10T	Action: Single acting, spring extend \| Head cover: Basic (integrated clevis) \| Bore: ø8 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CD85KN8-25T	Action: Single acting, spring extend \| Head cover: Basic (integrated clevis) \| Bore: ø8 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CD85KN8-50T	Action: Single acting, spring extend \| Head cover: Basic (integrated clevis) \| Bore: ø8 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CD85KN10-10T	Action: Single acting, spring extend \| Head cover: Basic (integrated clevis) \| Bore: ø10 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CD85KN10-25T	Action: Single acting, spring extend \| Head cover: Basic (integrated clevis) \| Bore: ø10 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CD85KN10-50T	Action: Single acting, spring extend \| Head cover: Basic (integrated clevis) \| Bore: ø10 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CD85KN12-10T	Action: Single acting, spring extend \| Head cover: Basic (integrated clevis) \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CD85KN12-25T	Action: Single acting, spring extend \| Head cover: Basic (integrated clevis) \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CD85KN12-50T	Action: Single acting, spring extend \| Head cover: Basic (integrated clevis) \| Bore: ø12 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CD85KN16-10T	Action: Single acting, spring extend \| Head cover: Basic (integrated clevis) \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CD85KN16-25T	Action: Single acting, spring extend \| Head cover: Basic (integrated clevis) \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CD85KN16-50T	Action: Single acting, spring extend \| Head cover: Basic (integrated clevis) \| Bore: ø16 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CD85KN16-100T	Action: Single acting, spring extend \| Head cover: Basic (integrated clevis) \| Bore: ø16 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CD85KN16-150T	Action: Single acting, spring extend \| Head cover: Basic (integrated clevis) \| Bore: ø16 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CD85KN20-10T	Action: Single acting, spring extend \| Head cover: Basic (integrated clevis) \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CD85KN20-25T	Action: Single acting, spring extend \| Head cover: Basic (integrated clevis) \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CD85KN20-50T	Action: Single acting, spring extend \| Head cover: Basic (integrated clevis) \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CD85KN20-100T	Action: Single acting, spring extend \| Head cover: Basic (integrated clevis) \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CD85KN20-150T	Action: Single acting, spring extend \| Head cover: Basic (integrated clevis) \| Bore: ø20 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CD85KN25-10T	Action: Single acting, spring extend \| Head cover: Basic (integrated clevis) \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CD85KN25-25T	Action: Single acting, spring extend \| Head cover: Basic (integrated clevis) \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CD85KN25-50T	Action: Single acting, spring extend \| Head cover: Basic (integrated clevis) \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CD85KN25-100T	Action: Single acting, spring extend \| Head cover: Basic (integrated clevis) \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CD85KN25-150T	Action: Single acting, spring extend \| Head cover: Basic (integrated clevis) \| Bore: ø25 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CD85KE8-10T	Action: Single acting, spring extend \| Head cover: Boss both ends \| Bore: ø8 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CD85KE8-25T	Action: Single acting, spring extend \| Head cover: Boss both ends \| Bore: ø8 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CD85KE8-50T	Action: Single acting, spring extend \| Head cover: Boss both ends \| Bore: ø8 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CD85KE10-10T	Action: Single acting, spring extend \| Head cover: Boss both ends \| Bore: ø10 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CD85KE10-25T	Action: Single acting, spring extend \| Head cover: Boss both ends \| Bore: ø10 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CD85KE10-50T	Action: Single acting, spring extend \| Head cover: Boss both ends \| Bore: ø10 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CD85KE12-10T	Action: Single acting, spring extend \| Head cover: Boss both ends \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CD85KE12-25T	Action: Single acting, spring extend \| Head cover: Boss both ends \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CD85KE12-50T	Action: Single acting, spring extend \| Head cover: Boss both ends \| Bore: ø12 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CD85KE16-10T	Action: Single acting, spring extend \| Head cover: Boss both ends \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CD85KE16-25T	Action: Single acting, spring extend \| Head cover: Boss both ends \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CD85KE16-50T	Action: Single acting, spring extend \| Head cover: Boss both ends \| Bore: ø16 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CD85KE16-100T	Action: Single acting, spring extend \| Head cover: Boss both ends \| Bore: ø16 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CD85KE16-150T	Action: Single acting, spring extend \| Head cover: Boss both ends \| Bore: ø16 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CD85KE20-10T	Action: Single acting, spring extend \| Head cover: Boss both ends \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CD85KE20-25T	Action: Single acting, spring extend \| Head cover: Boss both ends \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CD85KE20-50T	Action: Single acting, spring extend \| Head cover: Boss both ends \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CD85KE20-100T	Action: Single acting, spring extend \| Head cover: Boss both ends \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CD85KE20-150T	Action: Single acting, spring extend \| Head cover: Boss both ends \| Bore: ø20 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CD85KE25-10T	Action: Single acting, spring extend \| Head cover: Boss both ends \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CD85KE25-25T	Action: Single acting, spring extend \| Head cover: Boss both ends \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CD85KE25-50T	Action: Single acting, spring extend \| Head cover: Boss both ends \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CD85KE25-100T	Action: Single acting, spring extend \| Head cover: Boss both ends \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CD85KE25-150T	Action: Single acting, spring extend \| Head cover: Boss both ends \| Bore: ø25 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CD85KF8-10T	Action: Single acting, spring extend \| Head cover: Boss-cut basic \| Bore: ø8 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CD85KF8-25T	Action: Single acting, spring extend \| Head cover: Boss-cut basic \| Bore: ø8 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CD85KF8-50T	Action: Single acting, spring extend \| Head cover: Boss-cut basic \| Bore: ø8 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CD85KF10-10T	Action: Single acting, spring extend \| Head cover: Boss-cut basic \| Bore: ø10 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CD85KF10-25T	Action: Single acting, spring extend \| Head cover: Boss-cut basic \| Bore: ø10 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CD85KF10-50T	Action: Single acting, spring extend \| Head cover: Boss-cut basic \| Bore: ø10 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CD85KF12-10T	Action: Single acting, spring extend \| Head cover: Boss-cut basic \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CD85KF12-25T	Action: Single acting, spring extend \| Head cover: Boss-cut basic \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CD85KF12-50T	Action: Single acting, spring extend \| Head cover: Boss-cut basic \| Bore: ø12 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CD85KF16-10T	Action: Single acting, spring extend \| Head cover: Boss-cut basic \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CD85KF16-25T	Action: Single acting, spring extend \| Head cover: Boss-cut basic \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CD85KF16-50T	Action: Single acting, spring extend \| Head cover: Boss-cut basic \| Bore: ø16 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CD85KF16-100T	Action: Single acting, spring extend \| Head cover: Boss-cut basic \| Bore: ø16 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CD85KF16-150T	Action: Single acting, spring extend \| Head cover: Boss-cut basic \| Bore: ø16 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CD85KF20-10T	Action: Single acting, spring extend \| Head cover: Boss-cut basic \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CD85KF20-25T	Action: Single acting, spring extend \| Head cover: Boss-cut basic \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CD85KF20-50T	Action: Single acting, spring extend \| Head cover: Boss-cut basic \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CD85KF20-100T	Action: Single acting, spring extend \| Head cover: Boss-cut basic \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CD85KF20-150T	Action: Single acting, spring extend \| Head cover: Boss-cut basic \| Bore: ø20 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CD85KF25-10T	Action: Single acting, spring extend \| Head cover: Boss-cut basic \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CD85KF25-25T	Action: Single acting, spring extend \| Head cover: Boss-cut basic \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CD85KF25-50T	Action: Single acting, spring extend \| Head cover: Boss-cut basic \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CD85KF25-100T	Action: Single acting, spring extend \| Head cover: Boss-cut basic \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CD85KF25-150T	Action: Single acting, spring extend \| Head cover: Boss-cut basic \| Bore: ø25 mm \| Stroke: 150 mm \| Auto switch magnet: Yes

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

SMC C85K ISO Air Cylinder (Non-Rotating Rod, ø8 to ø25)
