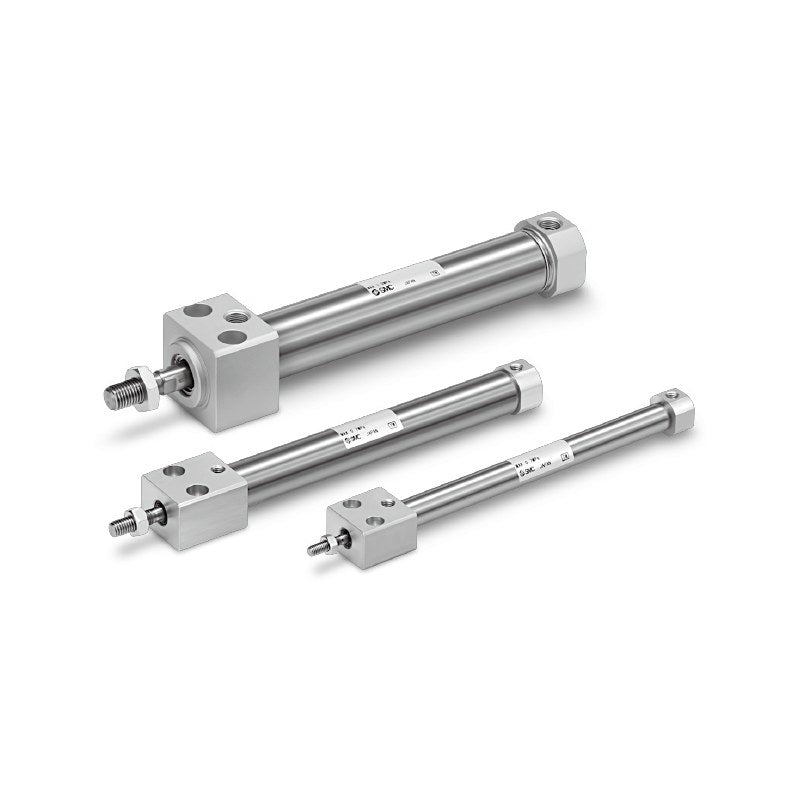

SMC C85R ISO Air Cylinder (Direct Mount, ø8 to ø25)

SMC C85R ISO Air Cylinder (Direct Mount, ø8 to ø25)

SMC C85R series double acting single rod air cylinder based on ISO 6432, with a square rod cover for direct bottom or front mounting without brackets, ø8 to ø25.

Key features

  • Square rod cover mounts directly, reducing overall length and mounting pitch
  • Bottom mounting (A) for all bores; front mounting (B) for ø20 and ø25
  • Head cover types F (boss-cut basic) and Y (axial head port)
  • Rubber cushion; rod end V/W ordered as code suffix; band-mounted (B) auto switches such as D-M9BW
  • Made-to-order: -XA, -XB6/-XB7/-XB9 (ø20, ø25), -XC6A stainless steel

Specifications

Action Double acting, single rod
Fluid Air
Proof pressure 1.5 MPa
Max. operating pressure 1.0 MPa
Min. operating pressure 0.1 MPa (ø8), 0.08 MPa (ø10, ø12), 0.05 MPa (ø16 to ø25)
Ambient and fluid temperature -20 to 80°C without auto switch, -10 to 60°C with auto switch (no freezing)
Lubrication Not required (non-lube)
Piston speed 50 to 1500 mm/s
Cushion Rubber cushion
Port size M5 x 0.8 (ø8 to ø16), G1/8 (ø20, ø25)
Source SMC Korea catalog C85/C75 (SMCKR_C85_C75.pdf), p. 56-57 (PDF p. 53-54)
C85RAF8-10 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø8 mm | Stroke: 10 mm | Auto switch magnet: No
C85RAF8-25 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø8 mm | Stroke: 25 mm | Auto switch magnet: No
C85RAF8-40 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø8 mm | Stroke: 40 mm | Auto switch magnet: No
C85RAF8-50 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø8 mm | Stroke: 50 mm | Auto switch magnet: No
C85RAF8-80 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø8 mm | Stroke: 80 mm | Auto switch magnet: No
C85RAF8-100 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø8 mm | Stroke: 100 mm | Auto switch magnet: No
C85RAF10-10 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø10 mm | Stroke: 10 mm | Auto switch magnet: No
C85RAF10-25 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø10 mm | Stroke: 25 mm | Auto switch magnet: No
C85RAF10-40 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø10 mm | Stroke: 40 mm | Auto switch magnet: No
C85RAF10-50 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø10 mm | Stroke: 50 mm | Auto switch magnet: No
C85RAF10-80 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø10 mm | Stroke: 80 mm | Auto switch magnet: No
C85RAF10-100 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø10 mm | Stroke: 100 mm | Auto switch magnet: No
C85RAF12-10 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø12 mm | Stroke: 10 mm | Auto switch magnet: No
C85RAF12-25 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø12 mm | Stroke: 25 mm | Auto switch magnet: No
C85RAF12-40 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø12 mm | Stroke: 40 mm | Auto switch magnet: No
C85RAF12-50 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø12 mm | Stroke: 50 mm | Auto switch magnet: No
C85RAF12-80 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø12 mm | Stroke: 80 mm | Auto switch magnet: No
C85RAF12-100 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø12 mm | Stroke: 100 mm | Auto switch magnet: No
C85RAF12-125 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø12 mm | Stroke: 125 mm | Auto switch magnet: No
C85RAF12-160 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø12 mm | Stroke: 160 mm | Auto switch magnet: No
C85RAF16-10 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø16 mm | Stroke: 10 mm | Auto switch magnet: No
C85RAF16-25 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø16 mm | Stroke: 25 mm | Auto switch magnet: No
C85RAF16-40 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø16 mm | Stroke: 40 mm | Auto switch magnet: No
C85RAF16-50 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø16 mm | Stroke: 50 mm | Auto switch magnet: No
C85RAF16-80 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø16 mm | Stroke: 80 mm | Auto switch magnet: No
C85RAF16-100 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø16 mm | Stroke: 100 mm | Auto switch magnet: No
C85RAF16-125 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø16 mm | Stroke: 125 mm | Auto switch magnet: No
C85RAF16-160 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø16 mm | Stroke: 160 mm | Auto switch magnet: No
C85RAF20-10 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø20 mm | Stroke: 10 mm | Auto switch magnet: No
C85RAF20-25 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø20 mm | Stroke: 25 mm | Auto switch magnet: No
C85RAF20-40 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø20 mm | Stroke: 40 mm | Auto switch magnet: No
C85RAF20-50 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø20 mm | Stroke: 50 mm | Auto switch magnet: No
C85RAF20-80 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø20 mm | Stroke: 80 mm | Auto switch magnet: No
C85RAF20-100 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø20 mm | Stroke: 100 mm | Auto switch magnet: No
C85RAF20-125 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø20 mm | Stroke: 125 mm | Auto switch magnet: No
C85RAF20-160 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø20 mm | Stroke: 160 mm | Auto switch magnet: No
C85RAF25-10 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø25 mm | Stroke: 10 mm | Auto switch magnet: No
C85RAF25-25 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø25 mm | Stroke: 25 mm | Auto switch magnet: No
C85RAF25-40 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø25 mm | Stroke: 40 mm | Auto switch magnet: No
C85RAF25-50 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø25 mm | Stroke: 50 mm | Auto switch magnet: No
C85RAF25-80 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø25 mm | Stroke: 80 mm | Auto switch magnet: No
C85RAF25-100 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø25 mm | Stroke: 100 mm | Auto switch magnet: No
C85RAF25-125 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø25 mm | Stroke: 125 mm | Auto switch magnet: No
C85RAF25-160 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø25 mm | Stroke: 160 mm | Auto switch magnet: No
C85RAY8-10 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø8 mm | Stroke: 10 mm | Auto switch magnet: No
C85RAY8-25 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø8 mm | Stroke: 25 mm | Auto switch magnet: No
C85RAY8-40 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø8 mm | Stroke: 40 mm | Auto switch magnet: No
C85RAY8-50 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø8 mm | Stroke: 50 mm | Auto switch magnet: No
C85RAY8-80 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø8 mm | Stroke: 80 mm | Auto switch magnet: No
C85RAY8-100 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø8 mm | Stroke: 100 mm | Auto switch magnet: No
C85RAY10-10 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø10 mm | Stroke: 10 mm | Auto switch magnet: No
C85RAY10-25 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø10 mm | Stroke: 25 mm | Auto switch magnet: No
C85RAY10-40 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø10 mm | Stroke: 40 mm | Auto switch magnet: No
C85RAY10-50 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø10 mm | Stroke: 50 mm | Auto switch magnet: No
C85RAY10-80 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø10 mm | Stroke: 80 mm | Auto switch magnet: No
C85RAY10-100 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø10 mm | Stroke: 100 mm | Auto switch magnet: No
C85RAY12-10 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø12 mm | Stroke: 10 mm | Auto switch magnet: No
C85RAY12-25 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø12 mm | Stroke: 25 mm | Auto switch magnet: No
C85RAY12-40 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø12 mm | Stroke: 40 mm | Auto switch magnet: No
C85RAY12-50 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø12 mm | Stroke: 50 mm | Auto switch magnet: No
C85RAY12-80 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø12 mm | Stroke: 80 mm | Auto switch magnet: No
C85RAY12-100 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø12 mm | Stroke: 100 mm | Auto switch magnet: No
C85RAY12-125 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø12 mm | Stroke: 125 mm | Auto switch magnet: No
C85RAY12-160 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø12 mm | Stroke: 160 mm | Auto switch magnet: No
C85RAY16-10 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø16 mm | Stroke: 10 mm | Auto switch magnet: No
C85RAY16-25 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø16 mm | Stroke: 25 mm | Auto switch magnet: No
C85RAY16-40 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø16 mm | Stroke: 40 mm | Auto switch magnet: No
C85RAY16-50 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø16 mm | Stroke: 50 mm | Auto switch magnet: No
C85RAY16-80 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø16 mm | Stroke: 80 mm | Auto switch magnet: No
C85RAY16-100 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø16 mm | Stroke: 100 mm | Auto switch magnet: No
C85RAY16-125 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø16 mm | Stroke: 125 mm | Auto switch magnet: No
C85RAY16-160 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø16 mm | Stroke: 160 mm | Auto switch magnet: No
C85RAY20-10 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø20 mm | Stroke: 10 mm | Auto switch magnet: No
C85RAY20-25 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø20 mm | Stroke: 25 mm | Auto switch magnet: No
C85RAY20-40 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø20 mm | Stroke: 40 mm | Auto switch magnet: No
C85RAY20-50 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø20 mm | Stroke: 50 mm | Auto switch magnet: No
C85RAY20-80 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø20 mm | Stroke: 80 mm | Auto switch magnet: No
C85RAY20-100 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø20 mm | Stroke: 100 mm | Auto switch magnet: No
C85RAY20-125 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø20 mm | Stroke: 125 mm | Auto switch magnet: No
C85RAY20-160 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø20 mm | Stroke: 160 mm | Auto switch magnet: No
C85RAY25-10 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø25 mm | Stroke: 10 mm | Auto switch magnet: No
C85RAY25-25 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø25 mm | Stroke: 25 mm | Auto switch magnet: No
C85RAY25-40 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø25 mm | Stroke: 40 mm | Auto switch magnet: No
C85RAY25-50 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø25 mm | Stroke: 50 mm | Auto switch magnet: No
C85RAY25-80 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø25 mm | Stroke: 80 mm | Auto switch magnet: No
C85RAY25-100 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø25 mm | Stroke: 100 mm | Auto switch magnet: No
C85RAY25-125 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø25 mm | Stroke: 125 mm | Auto switch magnet: No
C85RAY25-160 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø25 mm | Stroke: 160 mm | Auto switch magnet: No
C85RBF20-10 Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø20 mm | Stroke: 10 mm | Auto switch magnet: No
C85RBF20-25 Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø20 mm | Stroke: 25 mm | Auto switch magnet: No
C85RBF20-40 Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø20 mm | Stroke: 40 mm | Auto switch magnet: No
C85RBF20-50 Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø20 mm | Stroke: 50 mm | Auto switch magnet: No
C85RBF20-80 Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø20 mm | Stroke: 80 mm | Auto switch magnet: No
C85RBF20-100 Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø20 mm | Stroke: 100 mm | Auto switch magnet: No
C85RBF20-125 Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø20 mm | Stroke: 125 mm | Auto switch magnet: No
C85RBF20-160 Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø20 mm | Stroke: 160 mm | Auto switch magnet: No
C85RBF25-10 Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø25 mm | Stroke: 10 mm | Auto switch magnet: No
C85RBF25-25 Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø25 mm | Stroke: 25 mm | Auto switch magnet: No
C85RBF25-40 Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø25 mm | Stroke: 40 mm | Auto switch magnet: No
C85RBF25-50 Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø25 mm | Stroke: 50 mm | Auto switch magnet: No
C85RBF25-80 Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø25 mm | Stroke: 80 mm | Auto switch magnet: No
C85RBF25-100 Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø25 mm | Stroke: 100 mm | Auto switch magnet: No
C85RBF25-125 Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø25 mm | Stroke: 125 mm | Auto switch magnet: No
C85RBF25-160 Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø25 mm | Stroke: 160 mm | Auto switch magnet: No
C85RBY20-10 Mounting: Front mounting | Head cover: Axial head port | Bore: ø20 mm | Stroke: 10 mm | Auto switch magnet: No
C85RBY20-25 Mounting: Front mounting | Head cover: Axial head port | Bore: ø20 mm | Stroke: 25 mm | Auto switch magnet: No
C85RBY20-40 Mounting: Front mounting | Head cover: Axial head port | Bore: ø20 mm | Stroke: 40 mm | Auto switch magnet: No
C85RBY20-50 Mounting: Front mounting | Head cover: Axial head port | Bore: ø20 mm | Stroke: 50 mm | Auto switch magnet: No
C85RBY20-80 Mounting: Front mounting | Head cover: Axial head port | Bore: ø20 mm | Stroke: 80 mm | Auto switch magnet: No
C85RBY20-100 Mounting: Front mounting | Head cover: Axial head port | Bore: ø20 mm | Stroke: 100 mm | Auto switch magnet: No
C85RBY20-125 Mounting: Front mounting | Head cover: Axial head port | Bore: ø20 mm | Stroke: 125 mm | Auto switch magnet: No
C85RBY20-160 Mounting: Front mounting | Head cover: Axial head port | Bore: ø20 mm | Stroke: 160 mm | Auto switch magnet: No
C85RBY25-10 Mounting: Front mounting | Head cover: Axial head port | Bore: ø25 mm | Stroke: 10 mm | Auto switch magnet: No
C85RBY25-25 Mounting: Front mounting | Head cover: Axial head port | Bore: ø25 mm | Stroke: 25 mm | Auto switch magnet: No
C85RBY25-40 Mounting: Front mounting | Head cover: Axial head port | Bore: ø25 mm | Stroke: 40 mm | Auto switch magnet: No
C85RBY25-50 Mounting: Front mounting | Head cover: Axial head port | Bore: ø25 mm | Stroke: 50 mm | Auto switch magnet: No
C85RBY25-80 Mounting: Front mounting | Head cover: Axial head port | Bore: ø25 mm | Stroke: 80 mm | Auto switch magnet: No
C85RBY25-100 Mounting: Front mounting | Head cover: Axial head port | Bore: ø25 mm | Stroke: 100 mm | Auto switch magnet: No
C85RBY25-125 Mounting: Front mounting | Head cover: Axial head port | Bore: ø25 mm | Stroke: 125 mm | Auto switch magnet: No
C85RBY25-160 Mounting: Front mounting | Head cover: Axial head port | Bore: ø25 mm | Stroke: 160 mm | Auto switch magnet: No
CD85RAF8-10 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø8 mm | Stroke: 10 mm | Auto switch magnet: Yes
CD85RAF8-25 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø8 mm | Stroke: 25 mm | Auto switch magnet: Yes
CD85RAF8-40 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø8 mm | Stroke: 40 mm | Auto switch magnet: Yes
CD85RAF8-50 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø8 mm | Stroke: 50 mm | Auto switch magnet: Yes
CD85RAF8-80 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø8 mm | Stroke: 80 mm | Auto switch magnet: Yes
CD85RAF8-100 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø8 mm | Stroke: 100 mm | Auto switch magnet: Yes
CD85RAF10-10 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø10 mm | Stroke: 10 mm | Auto switch magnet: Yes
CD85RAF10-25 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø10 mm | Stroke: 25 mm | Auto switch magnet: Yes
CD85RAF10-40 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø10 mm | Stroke: 40 mm | Auto switch magnet: Yes
CD85RAF10-50 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø10 mm | Stroke: 50 mm | Auto switch magnet: Yes
CD85RAF10-80 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø10 mm | Stroke: 80 mm | Auto switch magnet: Yes
CD85RAF10-100 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø10 mm | Stroke: 100 mm | Auto switch magnet: Yes
CD85RAF12-10 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø12 mm | Stroke: 10 mm | Auto switch magnet: Yes
CD85RAF12-25 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø12 mm | Stroke: 25 mm | Auto switch magnet: Yes
CD85RAF12-40 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø12 mm | Stroke: 40 mm | Auto switch magnet: Yes
CD85RAF12-50 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø12 mm | Stroke: 50 mm | Auto switch magnet: Yes
CD85RAF12-80 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø12 mm | Stroke: 80 mm | Auto switch magnet: Yes
CD85RAF12-100 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø12 mm | Stroke: 100 mm | Auto switch magnet: Yes
CD85RAF12-125 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø12 mm | Stroke: 125 mm | Auto switch magnet: Yes
CD85RAF12-160 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø12 mm | Stroke: 160 mm | Auto switch magnet: Yes
CD85RAF16-10 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø16 mm | Stroke: 10 mm | Auto switch magnet: Yes
CD85RAF16-25 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø16 mm | Stroke: 25 mm | Auto switch magnet: Yes
CD85RAF16-40 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø16 mm | Stroke: 40 mm | Auto switch magnet: Yes
CD85RAF16-50 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø16 mm | Stroke: 50 mm | Auto switch magnet: Yes
CD85RAF16-80 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø16 mm | Stroke: 80 mm | Auto switch magnet: Yes
CD85RAF16-100 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø16 mm | Stroke: 100 mm | Auto switch magnet: Yes
CD85RAF16-125 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø16 mm | Stroke: 125 mm | Auto switch magnet: Yes
CD85RAF16-160 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø16 mm | Stroke: 160 mm | Auto switch magnet: Yes
CD85RAF20-10 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø20 mm | Stroke: 10 mm | Auto switch magnet: Yes
CD85RAF20-25 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø20 mm | Stroke: 25 mm | Auto switch magnet: Yes
CD85RAF20-40 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø20 mm | Stroke: 40 mm | Auto switch magnet: Yes
CD85RAF20-50 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø20 mm | Stroke: 50 mm | Auto switch magnet: Yes
CD85RAF20-80 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø20 mm | Stroke: 80 mm | Auto switch magnet: Yes
CD85RAF20-100 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø20 mm | Stroke: 100 mm | Auto switch magnet: Yes
CD85RAF20-125 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø20 mm | Stroke: 125 mm | Auto switch magnet: Yes
CD85RAF20-160 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø20 mm | Stroke: 160 mm | Auto switch magnet: Yes
CD85RAF25-10 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø25 mm | Stroke: 10 mm | Auto switch magnet: Yes
CD85RAF25-25 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø25 mm | Stroke: 25 mm | Auto switch magnet: Yes
CD85RAF25-40 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø25 mm | Stroke: 40 mm | Auto switch magnet: Yes
CD85RAF25-50 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø25 mm | Stroke: 50 mm | Auto switch magnet: Yes
CD85RAF25-80 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø25 mm | Stroke: 80 mm | Auto switch magnet: Yes
CD85RAF25-100 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø25 mm | Stroke: 100 mm | Auto switch magnet: Yes
CD85RAF25-125 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø25 mm | Stroke: 125 mm | Auto switch magnet: Yes
CD85RAF25-160 Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø25 mm | Stroke: 160 mm | Auto switch magnet: Yes
CD85RAY8-10 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø8 mm | Stroke: 10 mm | Auto switch magnet: Yes
CD85RAY8-25 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø8 mm | Stroke: 25 mm | Auto switch magnet: Yes
CD85RAY8-40 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø8 mm | Stroke: 40 mm | Auto switch magnet: Yes
CD85RAY8-50 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø8 mm | Stroke: 50 mm | Auto switch magnet: Yes
CD85RAY8-80 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø8 mm | Stroke: 80 mm | Auto switch magnet: Yes
CD85RAY8-100 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø8 mm | Stroke: 100 mm | Auto switch magnet: Yes
CD85RAY10-10 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø10 mm | Stroke: 10 mm | Auto switch magnet: Yes
CD85RAY10-25 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø10 mm | Stroke: 25 mm | Auto switch magnet: Yes
CD85RAY10-40 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø10 mm | Stroke: 40 mm | Auto switch magnet: Yes
CD85RAY10-50 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø10 mm | Stroke: 50 mm | Auto switch magnet: Yes
CD85RAY10-80 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø10 mm | Stroke: 80 mm | Auto switch magnet: Yes
CD85RAY10-100 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø10 mm | Stroke: 100 mm | Auto switch magnet: Yes
CD85RAY12-10 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø12 mm | Stroke: 10 mm | Auto switch magnet: Yes
CD85RAY12-25 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø12 mm | Stroke: 25 mm | Auto switch magnet: Yes
CD85RAY12-40 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø12 mm | Stroke: 40 mm | Auto switch magnet: Yes
CD85RAY12-50 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø12 mm | Stroke: 50 mm | Auto switch magnet: Yes
CD85RAY12-80 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø12 mm | Stroke: 80 mm | Auto switch magnet: Yes
CD85RAY12-100 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø12 mm | Stroke: 100 mm | Auto switch magnet: Yes
CD85RAY12-125 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø12 mm | Stroke: 125 mm | Auto switch magnet: Yes
CD85RAY12-160 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø12 mm | Stroke: 160 mm | Auto switch magnet: Yes
CD85RAY16-10 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø16 mm | Stroke: 10 mm | Auto switch magnet: Yes
CD85RAY16-25 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø16 mm | Stroke: 25 mm | Auto switch magnet: Yes
CD85RAY16-40 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø16 mm | Stroke: 40 mm | Auto switch magnet: Yes
CD85RAY16-50 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø16 mm | Stroke: 50 mm | Auto switch magnet: Yes
CD85RAY16-80 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø16 mm | Stroke: 80 mm | Auto switch magnet: Yes
CD85RAY16-100 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø16 mm | Stroke: 100 mm | Auto switch magnet: Yes
CD85RAY16-125 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø16 mm | Stroke: 125 mm | Auto switch magnet: Yes
CD85RAY16-160 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø16 mm | Stroke: 160 mm | Auto switch magnet: Yes
CD85RAY20-10 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø20 mm | Stroke: 10 mm | Auto switch magnet: Yes
CD85RAY20-25 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø20 mm | Stroke: 25 mm | Auto switch magnet: Yes
CD85RAY20-40 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø20 mm | Stroke: 40 mm | Auto switch magnet: Yes
CD85RAY20-50 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø20 mm | Stroke: 50 mm | Auto switch magnet: Yes
CD85RAY20-80 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø20 mm | Stroke: 80 mm | Auto switch magnet: Yes
CD85RAY20-100 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø20 mm | Stroke: 100 mm | Auto switch magnet: Yes
CD85RAY20-125 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø20 mm | Stroke: 125 mm | Auto switch magnet: Yes
CD85RAY20-160 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø20 mm | Stroke: 160 mm | Auto switch magnet: Yes
CD85RAY25-10 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø25 mm | Stroke: 10 mm | Auto switch magnet: Yes
CD85RAY25-25 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø25 mm | Stroke: 25 mm | Auto switch magnet: Yes
CD85RAY25-40 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø25 mm | Stroke: 40 mm | Auto switch magnet: Yes
CD85RAY25-50 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø25 mm | Stroke: 50 mm | Auto switch magnet: Yes
CD85RAY25-80 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø25 mm | Stroke: 80 mm | Auto switch magnet: Yes
CD85RAY25-100 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø25 mm | Stroke: 100 mm | Auto switch magnet: Yes
CD85RAY25-125 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø25 mm | Stroke: 125 mm | Auto switch magnet: Yes
CD85RAY25-160 Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø25 mm | Stroke: 160 mm | Auto switch magnet: Yes
CD85RBF20-10 Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø20 mm | Stroke: 10 mm | Auto switch magnet: Yes
CD85RBF20-25 Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø20 mm | Stroke: 25 mm | Auto switch magnet: Yes
CD85RBF20-40 Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø20 mm | Stroke: 40 mm | Auto switch magnet: Yes
CD85RBF20-50 Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø20 mm | Stroke: 50 mm | Auto switch magnet: Yes
CD85RBF20-80 Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø20 mm | Stroke: 80 mm | Auto switch magnet: Yes
CD85RBF20-100 Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø20 mm | Stroke: 100 mm | Auto switch magnet: Yes
CD85RBF20-125 Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø20 mm | Stroke: 125 mm | Auto switch magnet: Yes
CD85RBF20-160 Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø20 mm | Stroke: 160 mm | Auto switch magnet: Yes
CD85RBF25-10 Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø25 mm | Stroke: 10 mm | Auto switch magnet: Yes
CD85RBF25-25 Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø25 mm | Stroke: 25 mm | Auto switch magnet: Yes
CD85RBF25-40 Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø25 mm | Stroke: 40 mm | Auto switch magnet: Yes
CD85RBF25-50 Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø25 mm | Stroke: 50 mm | Auto switch magnet: Yes
CD85RBF25-80 Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø25 mm | Stroke: 80 mm | Auto switch magnet: Yes
CD85RBF25-100 Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø25 mm | Stroke: 100 mm | Auto switch magnet: Yes
CD85RBF25-125 Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø25 mm | Stroke: 125 mm | Auto switch magnet: Yes
CD85RBF25-160 Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø25 mm | Stroke: 160 mm | Auto switch magnet: Yes
CD85RBY20-10 Mounting: Front mounting | Head cover: Axial head port | Bore: ø20 mm | Stroke: 10 mm | Auto switch magnet: Yes
CD85RBY20-25 Mounting: Front mounting | Head cover: Axial head port | Bore: ø20 mm | Stroke: 25 mm | Auto switch magnet: Yes
CD85RBY20-40 Mounting: Front mounting | Head cover: Axial head port | Bore: ø20 mm | Stroke: 40 mm | Auto switch magnet: Yes
CD85RBY20-50 Mounting: Front mounting | Head cover: Axial head port | Bore: ø20 mm | Stroke: 50 mm | Auto switch magnet: Yes
CD85RBY20-80 Mounting: Front mounting | Head cover: Axial head port | Bore: ø20 mm | Stroke: 80 mm | Auto switch magnet: Yes
CD85RBY20-100 Mounting: Front mounting | Head cover: Axial head port | Bore: ø20 mm | Stroke: 100 mm | Auto switch magnet: Yes
CD85RBY20-125 Mounting: Front mounting | Head cover: Axial head port | Bore: ø20 mm | Stroke: 125 mm | Auto switch magnet: Yes
CD85RBY20-160 Mounting: Front mounting | Head cover: Axial head port | Bore: ø20 mm | Stroke: 160 mm | Auto switch magnet: Yes
CD85RBY25-10 Mounting: Front mounting | Head cover: Axial head port | Bore: ø25 mm | Stroke: 10 mm | Auto switch magnet: Yes
CD85RBY25-25 Mounting: Front mounting | Head cover: Axial head port | Bore: ø25 mm | Stroke: 25 mm | Auto switch magnet: Yes
CD85RBY25-40 Mounting: Front mounting | Head cover: Axial head port | Bore: ø25 mm | Stroke: 40 mm | Auto switch magnet: Yes
CD85RBY25-50 Mounting: Front mounting | Head cover: Axial head port | Bore: ø25 mm | Stroke: 50 mm | Auto switch magnet: Yes
CD85RBY25-80 Mounting: Front mounting | Head cover: Axial head port | Bore: ø25 mm | Stroke: 80 mm | Auto switch magnet: Yes
CD85RBY25-100 Mounting: Front mounting | Head cover: Axial head port | Bore: ø25 mm | Stroke: 100 mm | Auto switch magnet: Yes
CD85RBY25-125 Mounting: Front mounting | Head cover: Axial head port | Bore: ø25 mm | Stroke: 125 mm | Auto switch magnet: Yes
CD85RBY25-160 Mounting: Front mounting | Head cover: Axial head port | Bore: ø25 mm | Stroke: 160 mm | Auto switch magnet: Yes
Round Body CylindersSMC
240 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC C85R ISO Air Cylinder (Direct Mount, ø8 to ø25)

Brand SMC·Round Body Cylinders

Available part numbers (240)

C85RAF8-10, C85RAF8-25, C85RAF8-40, C85RAF8-50, C85RAF8-80, C85RAF8-100, C85RAF10-10, C85RAF10-25, C85RAF10-40, C85RAF10-50 + 230 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
C85RAF8-10Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø8 mm | Stroke: 10 mm | Auto switch magnet: No
C85RAF8-25Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø8 mm | Stroke: 25 mm | Auto switch magnet: No
C85RAF8-40Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø8 mm | Stroke: 40 mm | Auto switch magnet: No
C85RAF8-50Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø8 mm | Stroke: 50 mm | Auto switch magnet: No
C85RAF8-80Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø8 mm | Stroke: 80 mm | Auto switch magnet: No
C85RAF8-100Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø8 mm | Stroke: 100 mm | Auto switch magnet: No
C85RAF10-10Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø10 mm | Stroke: 10 mm | Auto switch magnet: No
C85RAF10-25Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø10 mm | Stroke: 25 mm | Auto switch magnet: No
C85RAF10-40Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø10 mm | Stroke: 40 mm | Auto switch magnet: No
C85RAF10-50Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø10 mm | Stroke: 50 mm | Auto switch magnet: No
C85RAF10-80Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø10 mm | Stroke: 80 mm | Auto switch magnet: No
C85RAF10-100Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø10 mm | Stroke: 100 mm | Auto switch magnet: No
C85RAF12-10Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø12 mm | Stroke: 10 mm | Auto switch magnet: No
C85RAF12-25Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø12 mm | Stroke: 25 mm | Auto switch magnet: No
C85RAF12-40Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø12 mm | Stroke: 40 mm | Auto switch magnet: No
C85RAF12-50Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø12 mm | Stroke: 50 mm | Auto switch magnet: No
C85RAF12-80Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø12 mm | Stroke: 80 mm | Auto switch magnet: No
C85RAF12-100Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø12 mm | Stroke: 100 mm | Auto switch magnet: No
C85RAF12-125Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø12 mm | Stroke: 125 mm | Auto switch magnet: No
C85RAF12-160Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø12 mm | Stroke: 160 mm | Auto switch magnet: No
C85RAF16-10Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø16 mm | Stroke: 10 mm | Auto switch magnet: No
C85RAF16-25Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø16 mm | Stroke: 25 mm | Auto switch magnet: No
C85RAF16-40Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø16 mm | Stroke: 40 mm | Auto switch magnet: No
C85RAF16-50Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø16 mm | Stroke: 50 mm | Auto switch magnet: No
C85RAF16-80Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø16 mm | Stroke: 80 mm | Auto switch magnet: No
C85RAF16-100Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø16 mm | Stroke: 100 mm | Auto switch magnet: No
C85RAF16-125Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø16 mm | Stroke: 125 mm | Auto switch magnet: No
C85RAF16-160Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø16 mm | Stroke: 160 mm | Auto switch magnet: No
C85RAF20-10Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø20 mm | Stroke: 10 mm | Auto switch magnet: No
C85RAF20-25Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø20 mm | Stroke: 25 mm | Auto switch magnet: No
C85RAF20-40Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø20 mm | Stroke: 40 mm | Auto switch magnet: No
C85RAF20-50Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø20 mm | Stroke: 50 mm | Auto switch magnet: No
C85RAF20-80Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø20 mm | Stroke: 80 mm | Auto switch magnet: No
C85RAF20-100Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø20 mm | Stroke: 100 mm | Auto switch magnet: No
C85RAF20-125Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø20 mm | Stroke: 125 mm | Auto switch magnet: No
C85RAF20-160Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø20 mm | Stroke: 160 mm | Auto switch magnet: No
C85RAF25-10Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø25 mm | Stroke: 10 mm | Auto switch magnet: No
C85RAF25-25Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø25 mm | Stroke: 25 mm | Auto switch magnet: No
C85RAF25-40Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø25 mm | Stroke: 40 mm | Auto switch magnet: No
C85RAF25-50Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø25 mm | Stroke: 50 mm | Auto switch magnet: No
C85RAF25-80Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø25 mm | Stroke: 80 mm | Auto switch magnet: No
C85RAF25-100Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø25 mm | Stroke: 100 mm | Auto switch magnet: No
C85RAF25-125Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø25 mm | Stroke: 125 mm | Auto switch magnet: No
C85RAF25-160Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø25 mm | Stroke: 160 mm | Auto switch magnet: No
C85RAY8-10Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø8 mm | Stroke: 10 mm | Auto switch magnet: No
C85RAY8-25Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø8 mm | Stroke: 25 mm | Auto switch magnet: No
C85RAY8-40Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø8 mm | Stroke: 40 mm | Auto switch magnet: No
C85RAY8-50Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø8 mm | Stroke: 50 mm | Auto switch magnet: No
C85RAY8-80Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø8 mm | Stroke: 80 mm | Auto switch magnet: No
C85RAY8-100Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø8 mm | Stroke: 100 mm | Auto switch magnet: No
C85RAY10-10Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø10 mm | Stroke: 10 mm | Auto switch magnet: No
C85RAY10-25Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø10 mm | Stroke: 25 mm | Auto switch magnet: No
C85RAY10-40Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø10 mm | Stroke: 40 mm | Auto switch magnet: No
C85RAY10-50Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø10 mm | Stroke: 50 mm | Auto switch magnet: No
C85RAY10-80Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø10 mm | Stroke: 80 mm | Auto switch magnet: No
C85RAY10-100Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø10 mm | Stroke: 100 mm | Auto switch magnet: No
C85RAY12-10Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø12 mm | Stroke: 10 mm | Auto switch magnet: No
C85RAY12-25Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø12 mm | Stroke: 25 mm | Auto switch magnet: No
C85RAY12-40Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø12 mm | Stroke: 40 mm | Auto switch magnet: No
C85RAY12-50Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø12 mm | Stroke: 50 mm | Auto switch magnet: No
C85RAY12-80Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø12 mm | Stroke: 80 mm | Auto switch magnet: No
C85RAY12-100Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø12 mm | Stroke: 100 mm | Auto switch magnet: No
C85RAY12-125Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø12 mm | Stroke: 125 mm | Auto switch magnet: No
C85RAY12-160Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø12 mm | Stroke: 160 mm | Auto switch magnet: No
C85RAY16-10Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø16 mm | Stroke: 10 mm | Auto switch magnet: No
C85RAY16-25Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø16 mm | Stroke: 25 mm | Auto switch magnet: No
C85RAY16-40Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø16 mm | Stroke: 40 mm | Auto switch magnet: No
C85RAY16-50Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø16 mm | Stroke: 50 mm | Auto switch magnet: No
C85RAY16-80Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø16 mm | Stroke: 80 mm | Auto switch magnet: No
C85RAY16-100Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø16 mm | Stroke: 100 mm | Auto switch magnet: No
C85RAY16-125Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø16 mm | Stroke: 125 mm | Auto switch magnet: No
C85RAY16-160Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø16 mm | Stroke: 160 mm | Auto switch magnet: No
C85RAY20-10Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø20 mm | Stroke: 10 mm | Auto switch magnet: No
C85RAY20-25Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø20 mm | Stroke: 25 mm | Auto switch magnet: No
C85RAY20-40Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø20 mm | Stroke: 40 mm | Auto switch magnet: No
C85RAY20-50Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø20 mm | Stroke: 50 mm | Auto switch magnet: No
C85RAY20-80Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø20 mm | Stroke: 80 mm | Auto switch magnet: No
C85RAY20-100Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø20 mm | Stroke: 100 mm | Auto switch magnet: No
C85RAY20-125Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø20 mm | Stroke: 125 mm | Auto switch magnet: No
C85RAY20-160Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø20 mm | Stroke: 160 mm | Auto switch magnet: No
C85RAY25-10Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø25 mm | Stroke: 10 mm | Auto switch magnet: No
C85RAY25-25Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø25 mm | Stroke: 25 mm | Auto switch magnet: No
C85RAY25-40Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø25 mm | Stroke: 40 mm | Auto switch magnet: No
C85RAY25-50Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø25 mm | Stroke: 50 mm | Auto switch magnet: No
C85RAY25-80Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø25 mm | Stroke: 80 mm | Auto switch magnet: No
C85RAY25-100Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø25 mm | Stroke: 100 mm | Auto switch magnet: No
C85RAY25-125Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø25 mm | Stroke: 125 mm | Auto switch magnet: No
C85RAY25-160Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø25 mm | Stroke: 160 mm | Auto switch magnet: No
C85RBF20-10Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø20 mm | Stroke: 10 mm | Auto switch magnet: No
C85RBF20-25Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø20 mm | Stroke: 25 mm | Auto switch magnet: No
C85RBF20-40Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø20 mm | Stroke: 40 mm | Auto switch magnet: No
C85RBF20-50Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø20 mm | Stroke: 50 mm | Auto switch magnet: No
C85RBF20-80Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø20 mm | Stroke: 80 mm | Auto switch magnet: No
C85RBF20-100Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø20 mm | Stroke: 100 mm | Auto switch magnet: No
C85RBF20-125Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø20 mm | Stroke: 125 mm | Auto switch magnet: No
C85RBF20-160Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø20 mm | Stroke: 160 mm | Auto switch magnet: No
C85RBF25-10Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø25 mm | Stroke: 10 mm | Auto switch magnet: No
C85RBF25-25Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø25 mm | Stroke: 25 mm | Auto switch magnet: No
C85RBF25-40Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø25 mm | Stroke: 40 mm | Auto switch magnet: No
C85RBF25-50Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø25 mm | Stroke: 50 mm | Auto switch magnet: No
C85RBF25-80Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø25 mm | Stroke: 80 mm | Auto switch magnet: No
C85RBF25-100Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø25 mm | Stroke: 100 mm | Auto switch magnet: No
C85RBF25-125Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø25 mm | Stroke: 125 mm | Auto switch magnet: No
C85RBF25-160Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø25 mm | Stroke: 160 mm | Auto switch magnet: No
C85RBY20-10Mounting: Front mounting | Head cover: Axial head port | Bore: ø20 mm | Stroke: 10 mm | Auto switch magnet: No
C85RBY20-25Mounting: Front mounting | Head cover: Axial head port | Bore: ø20 mm | Stroke: 25 mm | Auto switch magnet: No
C85RBY20-40Mounting: Front mounting | Head cover: Axial head port | Bore: ø20 mm | Stroke: 40 mm | Auto switch magnet: No
C85RBY20-50Mounting: Front mounting | Head cover: Axial head port | Bore: ø20 mm | Stroke: 50 mm | Auto switch magnet: No
C85RBY20-80Mounting: Front mounting | Head cover: Axial head port | Bore: ø20 mm | Stroke: 80 mm | Auto switch magnet: No
C85RBY20-100Mounting: Front mounting | Head cover: Axial head port | Bore: ø20 mm | Stroke: 100 mm | Auto switch magnet: No
C85RBY20-125Mounting: Front mounting | Head cover: Axial head port | Bore: ø20 mm | Stroke: 125 mm | Auto switch magnet: No
C85RBY20-160Mounting: Front mounting | Head cover: Axial head port | Bore: ø20 mm | Stroke: 160 mm | Auto switch magnet: No
C85RBY25-10Mounting: Front mounting | Head cover: Axial head port | Bore: ø25 mm | Stroke: 10 mm | Auto switch magnet: No
C85RBY25-25Mounting: Front mounting | Head cover: Axial head port | Bore: ø25 mm | Stroke: 25 mm | Auto switch magnet: No
C85RBY25-40Mounting: Front mounting | Head cover: Axial head port | Bore: ø25 mm | Stroke: 40 mm | Auto switch magnet: No
C85RBY25-50Mounting: Front mounting | Head cover: Axial head port | Bore: ø25 mm | Stroke: 50 mm | Auto switch magnet: No
C85RBY25-80Mounting: Front mounting | Head cover: Axial head port | Bore: ø25 mm | Stroke: 80 mm | Auto switch magnet: No
C85RBY25-100Mounting: Front mounting | Head cover: Axial head port | Bore: ø25 mm | Stroke: 100 mm | Auto switch magnet: No
C85RBY25-125Mounting: Front mounting | Head cover: Axial head port | Bore: ø25 mm | Stroke: 125 mm | Auto switch magnet: No
C85RBY25-160Mounting: Front mounting | Head cover: Axial head port | Bore: ø25 mm | Stroke: 160 mm | Auto switch magnet: No
CD85RAF8-10Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø8 mm | Stroke: 10 mm | Auto switch magnet: Yes
CD85RAF8-25Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø8 mm | Stroke: 25 mm | Auto switch magnet: Yes
CD85RAF8-40Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø8 mm | Stroke: 40 mm | Auto switch magnet: Yes
CD85RAF8-50Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø8 mm | Stroke: 50 mm | Auto switch magnet: Yes
CD85RAF8-80Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø8 mm | Stroke: 80 mm | Auto switch magnet: Yes
CD85RAF8-100Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø8 mm | Stroke: 100 mm | Auto switch magnet: Yes
CD85RAF10-10Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø10 mm | Stroke: 10 mm | Auto switch magnet: Yes
CD85RAF10-25Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø10 mm | Stroke: 25 mm | Auto switch magnet: Yes
CD85RAF10-40Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø10 mm | Stroke: 40 mm | Auto switch magnet: Yes
CD85RAF10-50Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø10 mm | Stroke: 50 mm | Auto switch magnet: Yes
CD85RAF10-80Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø10 mm | Stroke: 80 mm | Auto switch magnet: Yes
CD85RAF10-100Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø10 mm | Stroke: 100 mm | Auto switch magnet: Yes
CD85RAF12-10Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø12 mm | Stroke: 10 mm | Auto switch magnet: Yes
CD85RAF12-25Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø12 mm | Stroke: 25 mm | Auto switch magnet: Yes
CD85RAF12-40Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø12 mm | Stroke: 40 mm | Auto switch magnet: Yes
CD85RAF12-50Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø12 mm | Stroke: 50 mm | Auto switch magnet: Yes
CD85RAF12-80Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø12 mm | Stroke: 80 mm | Auto switch magnet: Yes
CD85RAF12-100Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø12 mm | Stroke: 100 mm | Auto switch magnet: Yes
CD85RAF12-125Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø12 mm | Stroke: 125 mm | Auto switch magnet: Yes
CD85RAF12-160Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø12 mm | Stroke: 160 mm | Auto switch magnet: Yes
CD85RAF16-10Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø16 mm | Stroke: 10 mm | Auto switch magnet: Yes
CD85RAF16-25Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø16 mm | Stroke: 25 mm | Auto switch magnet: Yes
CD85RAF16-40Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø16 mm | Stroke: 40 mm | Auto switch magnet: Yes
CD85RAF16-50Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø16 mm | Stroke: 50 mm | Auto switch magnet: Yes
CD85RAF16-80Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø16 mm | Stroke: 80 mm | Auto switch magnet: Yes
CD85RAF16-100Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø16 mm | Stroke: 100 mm | Auto switch magnet: Yes
CD85RAF16-125Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø16 mm | Stroke: 125 mm | Auto switch magnet: Yes
CD85RAF16-160Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø16 mm | Stroke: 160 mm | Auto switch magnet: Yes
CD85RAF20-10Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø20 mm | Stroke: 10 mm | Auto switch magnet: Yes
CD85RAF20-25Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø20 mm | Stroke: 25 mm | Auto switch magnet: Yes
CD85RAF20-40Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø20 mm | Stroke: 40 mm | Auto switch magnet: Yes
CD85RAF20-50Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø20 mm | Stroke: 50 mm | Auto switch magnet: Yes
CD85RAF20-80Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø20 mm | Stroke: 80 mm | Auto switch magnet: Yes
CD85RAF20-100Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø20 mm | Stroke: 100 mm | Auto switch magnet: Yes
CD85RAF20-125Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø20 mm | Stroke: 125 mm | Auto switch magnet: Yes
CD85RAF20-160Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø20 mm | Stroke: 160 mm | Auto switch magnet: Yes
CD85RAF25-10Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø25 mm | Stroke: 10 mm | Auto switch magnet: Yes
CD85RAF25-25Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø25 mm | Stroke: 25 mm | Auto switch magnet: Yes
CD85RAF25-40Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø25 mm | Stroke: 40 mm | Auto switch magnet: Yes
CD85RAF25-50Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø25 mm | Stroke: 50 mm | Auto switch magnet: Yes
CD85RAF25-80Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø25 mm | Stroke: 80 mm | Auto switch magnet: Yes
CD85RAF25-100Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø25 mm | Stroke: 100 mm | Auto switch magnet: Yes
CD85RAF25-125Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø25 mm | Stroke: 125 mm | Auto switch magnet: Yes
CD85RAF25-160Mounting: Bottom mounting | Head cover: Boss-cut basic | Bore: ø25 mm | Stroke: 160 mm | Auto switch magnet: Yes
CD85RAY8-10Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø8 mm | Stroke: 10 mm | Auto switch magnet: Yes
CD85RAY8-25Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø8 mm | Stroke: 25 mm | Auto switch magnet: Yes
CD85RAY8-40Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø8 mm | Stroke: 40 mm | Auto switch magnet: Yes
CD85RAY8-50Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø8 mm | Stroke: 50 mm | Auto switch magnet: Yes
CD85RAY8-80Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø8 mm | Stroke: 80 mm | Auto switch magnet: Yes
CD85RAY8-100Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø8 mm | Stroke: 100 mm | Auto switch magnet: Yes
CD85RAY10-10Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø10 mm | Stroke: 10 mm | Auto switch magnet: Yes
CD85RAY10-25Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø10 mm | Stroke: 25 mm | Auto switch magnet: Yes
CD85RAY10-40Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø10 mm | Stroke: 40 mm | Auto switch magnet: Yes
CD85RAY10-50Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø10 mm | Stroke: 50 mm | Auto switch magnet: Yes
CD85RAY10-80Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø10 mm | Stroke: 80 mm | Auto switch magnet: Yes
CD85RAY10-100Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø10 mm | Stroke: 100 mm | Auto switch magnet: Yes
CD85RAY12-10Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø12 mm | Stroke: 10 mm | Auto switch magnet: Yes
CD85RAY12-25Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø12 mm | Stroke: 25 mm | Auto switch magnet: Yes
CD85RAY12-40Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø12 mm | Stroke: 40 mm | Auto switch magnet: Yes
CD85RAY12-50Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø12 mm | Stroke: 50 mm | Auto switch magnet: Yes
CD85RAY12-80Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø12 mm | Stroke: 80 mm | Auto switch magnet: Yes
CD85RAY12-100Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø12 mm | Stroke: 100 mm | Auto switch magnet: Yes
CD85RAY12-125Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø12 mm | Stroke: 125 mm | Auto switch magnet: Yes
CD85RAY12-160Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø12 mm | Stroke: 160 mm | Auto switch magnet: Yes
CD85RAY16-10Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø16 mm | Stroke: 10 mm | Auto switch magnet: Yes
CD85RAY16-25Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø16 mm | Stroke: 25 mm | Auto switch magnet: Yes
CD85RAY16-40Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø16 mm | Stroke: 40 mm | Auto switch magnet: Yes
CD85RAY16-50Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø16 mm | Stroke: 50 mm | Auto switch magnet: Yes
CD85RAY16-80Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø16 mm | Stroke: 80 mm | Auto switch magnet: Yes
CD85RAY16-100Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø16 mm | Stroke: 100 mm | Auto switch magnet: Yes
CD85RAY16-125Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø16 mm | Stroke: 125 mm | Auto switch magnet: Yes
CD85RAY16-160Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø16 mm | Stroke: 160 mm | Auto switch magnet: Yes
CD85RAY20-10Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø20 mm | Stroke: 10 mm | Auto switch magnet: Yes
CD85RAY20-25Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø20 mm | Stroke: 25 mm | Auto switch magnet: Yes
CD85RAY20-40Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø20 mm | Stroke: 40 mm | Auto switch magnet: Yes
CD85RAY20-50Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø20 mm | Stroke: 50 mm | Auto switch magnet: Yes
CD85RAY20-80Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø20 mm | Stroke: 80 mm | Auto switch magnet: Yes
CD85RAY20-100Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø20 mm | Stroke: 100 mm | Auto switch magnet: Yes
CD85RAY20-125Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø20 mm | Stroke: 125 mm | Auto switch magnet: Yes
CD85RAY20-160Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø20 mm | Stroke: 160 mm | Auto switch magnet: Yes
CD85RAY25-10Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø25 mm | Stroke: 10 mm | Auto switch magnet: Yes
CD85RAY25-25Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø25 mm | Stroke: 25 mm | Auto switch magnet: Yes
CD85RAY25-40Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø25 mm | Stroke: 40 mm | Auto switch magnet: Yes
CD85RAY25-50Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø25 mm | Stroke: 50 mm | Auto switch magnet: Yes
CD85RAY25-80Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø25 mm | Stroke: 80 mm | Auto switch magnet: Yes
CD85RAY25-100Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø25 mm | Stroke: 100 mm | Auto switch magnet: Yes
CD85RAY25-125Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø25 mm | Stroke: 125 mm | Auto switch magnet: Yes
CD85RAY25-160Mounting: Bottom mounting | Head cover: Axial head port | Bore: ø25 mm | Stroke: 160 mm | Auto switch magnet: Yes
CD85RBF20-10Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø20 mm | Stroke: 10 mm | Auto switch magnet: Yes
CD85RBF20-25Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø20 mm | Stroke: 25 mm | Auto switch magnet: Yes
CD85RBF20-40Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø20 mm | Stroke: 40 mm | Auto switch magnet: Yes
CD85RBF20-50Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø20 mm | Stroke: 50 mm | Auto switch magnet: Yes
CD85RBF20-80Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø20 mm | Stroke: 80 mm | Auto switch magnet: Yes
CD85RBF20-100Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø20 mm | Stroke: 100 mm | Auto switch magnet: Yes
CD85RBF20-125Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø20 mm | Stroke: 125 mm | Auto switch magnet: Yes
CD85RBF20-160Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø20 mm | Stroke: 160 mm | Auto switch magnet: Yes
CD85RBF25-10Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø25 mm | Stroke: 10 mm | Auto switch magnet: Yes
CD85RBF25-25Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø25 mm | Stroke: 25 mm | Auto switch magnet: Yes
CD85RBF25-40Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø25 mm | Stroke: 40 mm | Auto switch magnet: Yes
CD85RBF25-50Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø25 mm | Stroke: 50 mm | Auto switch magnet: Yes
CD85RBF25-80Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø25 mm | Stroke: 80 mm | Auto switch magnet: Yes
CD85RBF25-100Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø25 mm | Stroke: 100 mm | Auto switch magnet: Yes
CD85RBF25-125Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø25 mm | Stroke: 125 mm | Auto switch magnet: Yes
CD85RBF25-160Mounting: Front mounting | Head cover: Boss-cut basic | Bore: ø25 mm | Stroke: 160 mm | Auto switch magnet: Yes
CD85RBY20-10Mounting: Front mounting | Head cover: Axial head port | Bore: ø20 mm | Stroke: 10 mm | Auto switch magnet: Yes
CD85RBY20-25Mounting: Front mounting | Head cover: Axial head port | Bore: ø20 mm | Stroke: 25 mm | Auto switch magnet: Yes
CD85RBY20-40Mounting: Front mounting | Head cover: Axial head port | Bore: ø20 mm | Stroke: 40 mm | Auto switch magnet: Yes
CD85RBY20-50Mounting: Front mounting | Head cover: Axial head port | Bore: ø20 mm | Stroke: 50 mm | Auto switch magnet: Yes
CD85RBY20-80Mounting: Front mounting | Head cover: Axial head port | Bore: ø20 mm | Stroke: 80 mm | Auto switch magnet: Yes
CD85RBY20-100Mounting: Front mounting | Head cover: Axial head port | Bore: ø20 mm | Stroke: 100 mm | Auto switch magnet: Yes
CD85RBY20-125Mounting: Front mounting | Head cover: Axial head port | Bore: ø20 mm | Stroke: 125 mm | Auto switch magnet: Yes
CD85RBY20-160Mounting: Front mounting | Head cover: Axial head port | Bore: ø20 mm | Stroke: 160 mm | Auto switch magnet: Yes
CD85RBY25-10Mounting: Front mounting | Head cover: Axial head port | Bore: ø25 mm | Stroke: 10 mm | Auto switch magnet: Yes
CD85RBY25-25Mounting: Front mounting | Head cover: Axial head port | Bore: ø25 mm | Stroke: 25 mm | Auto switch magnet: Yes
CD85RBY25-40Mounting: Front mounting | Head cover: Axial head port | Bore: ø25 mm | Stroke: 40 mm | Auto switch magnet: Yes
CD85RBY25-50Mounting: Front mounting | Head cover: Axial head port | Bore: ø25 mm | Stroke: 50 mm | Auto switch magnet: Yes
CD85RBY25-80Mounting: Front mounting | Head cover: Axial head port | Bore: ø25 mm | Stroke: 80 mm | Auto switch magnet: Yes
CD85RBY25-100Mounting: Front mounting | Head cover: Axial head port | Bore: ø25 mm | Stroke: 100 mm | Auto switch magnet: Yes
CD85RBY25-125Mounting: Front mounting | Head cover: Axial head port | Bore: ø25 mm | Stroke: 125 mm | Auto switch magnet: Yes
CD85RBY25-160Mounting: Front mounting | Head cover: Axial head port | Bore: ø25 mm | Stroke: 160 mm | Auto switch magnet: Yes

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
