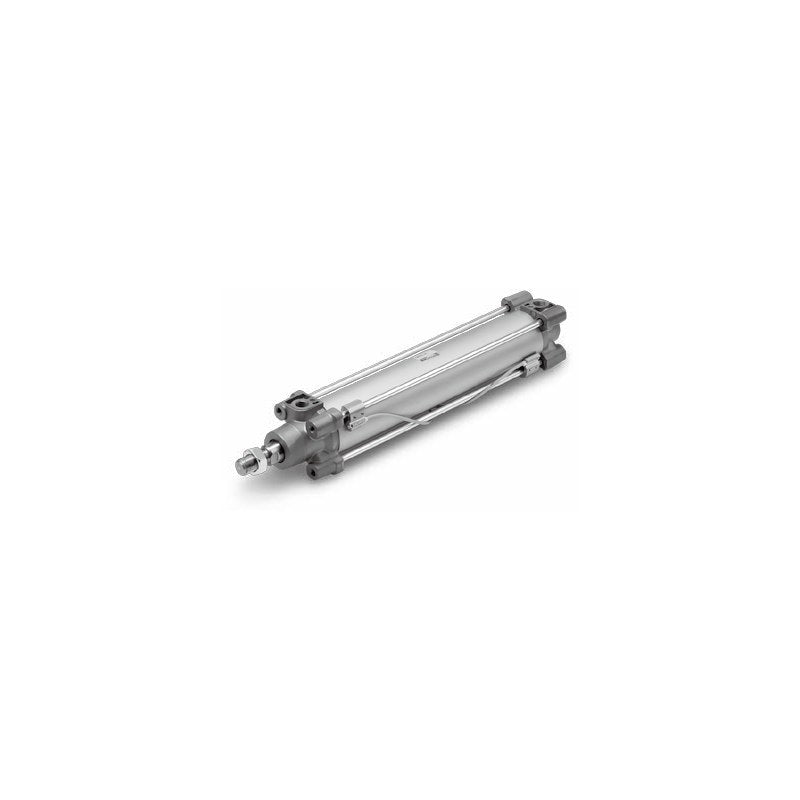

SMC C96Y Low Speed / Low Friction ISO 15552 Cylinder (ø32-ø100)

SMC C96Y series ISO 15552 low speed, low friction tie-rod cylinder, double acting, single rod, for smooth low-pressure control with precision regulators.

Key features

Low sliding resistance: min. operating pressure 0.02 MPa (ø32, ø40) and 0.01 MPa (ø50 to ø125)
Stable operation from 5 mm/s piston speed; low friction in both directions
Damper cushion (C) on ø32 to ø100
Mounting styles: basic (B), axial foot (L), rod/head flange (F/G), single/double clevis (C/D), center trunnion (T), adjustable trunnion (V)
Allowable leakage 0.5 L/min (ANR); dimensions same as C96 standard type

Specifications

Standard	ISO 15552
Action	Double acting, single rod
Fluid	Air
Proof pressure	1.05 MPa
Max. operating pressure	0.7 MPa
Min. operating pressure	0.02 MPa (ø32, ø40), 0.01 MPa (ø50 and up)
Ambient and fluid temperature	-10 to 70°C without switch, -10 to 60°C with switch
Piston speed	5 to 500 mm/s
Cushion	Damper cushion (C)
Lubrication	Not required (non-lube)
Source	SMC Korea catalog C96 (SMCKR_C96.pdf), p. 177-178 (PDF p. 21-22)

C96YB32-25C		Mounting: Basic \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/8
C96YDB32-25C		Mounting: Basic \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/8
C96YB32-50C		Mounting: Basic \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/8
C96YDB32-50C		Mounting: Basic \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/8
C96YB32-80C		Mounting: Basic \| Bore: ø32 mm \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/8
C96YDB32-80C		Mounting: Basic \| Bore: ø32 mm \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/8
C96YB32-100C		Mounting: Basic \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/8
C96YDB32-100C		Mounting: Basic \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/8
C96YB32-125C		Mounting: Basic \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/8
C96YDB32-125C		Mounting: Basic \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/8
C96YB32-160C		Mounting: Basic \| Bore: ø32 mm \| Stroke: 160 mm \| Auto switch magnet: No \| Port: G1/8
C96YDB32-160C		Mounting: Basic \| Bore: ø32 mm \| Stroke: 160 mm \| Auto switch magnet: Yes \| Port: G1/8
C96YB32-200C		Mounting: Basic \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: G1/8
C96YDB32-200C		Mounting: Basic \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: G1/8
C96YB32-250C		Mounting: Basic \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: G1/8
C96YDB32-250C		Mounting: Basic \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: G1/8
C96YB32-320C		Mounting: Basic \| Bore: ø32 mm \| Stroke: 320 mm \| Auto switch magnet: No \| Port: G1/8
C96YDB32-320C		Mounting: Basic \| Bore: ø32 mm \| Stroke: 320 mm \| Auto switch magnet: Yes \| Port: G1/8
C96YB32-400C		Mounting: Basic \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: G1/8
C96YDB32-400C		Mounting: Basic \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: G1/8
C96YB32-500C		Mounting: Basic \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: G1/8
C96YDB32-500C		Mounting: Basic \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: G1/8
C96YB40-25C		Mounting: Basic \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/4
C96YDB40-25C		Mounting: Basic \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YB40-50C		Mounting: Basic \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/4
C96YDB40-50C		Mounting: Basic \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YB40-80C		Mounting: Basic \| Bore: ø40 mm \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/4
C96YDB40-80C		Mounting: Basic \| Bore: ø40 mm \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YB40-100C		Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/4
C96YDB40-100C		Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YB40-125C		Mounting: Basic \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/4
C96YDB40-125C		Mounting: Basic \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YB40-160C		Mounting: Basic \| Bore: ø40 mm \| Stroke: 160 mm \| Auto switch magnet: No \| Port: G1/4
C96YDB40-160C		Mounting: Basic \| Bore: ø40 mm \| Stroke: 160 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YB40-200C		Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: G1/4
C96YDB40-200C		Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YB40-250C		Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: G1/4
C96YDB40-250C		Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YB40-320C		Mounting: Basic \| Bore: ø40 mm \| Stroke: 320 mm \| Auto switch magnet: No \| Port: G1/4
C96YDB40-320C		Mounting: Basic \| Bore: ø40 mm \| Stroke: 320 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YB40-400C		Mounting: Basic \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: G1/4
C96YDB40-400C		Mounting: Basic \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YB40-500C		Mounting: Basic \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: G1/4
C96YDB40-500C		Mounting: Basic \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YB50-25C		Mounting: Basic \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/4
C96YDB50-25C		Mounting: Basic \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YB50-50C		Mounting: Basic \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/4
C96YDB50-50C		Mounting: Basic \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YB50-80C		Mounting: Basic \| Bore: ø50 mm \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/4
C96YDB50-80C		Mounting: Basic \| Bore: ø50 mm \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YB50-100C		Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/4
C96YDB50-100C		Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YB50-125C		Mounting: Basic \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/4
C96YDB50-125C		Mounting: Basic \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YB50-160C		Mounting: Basic \| Bore: ø50 mm \| Stroke: 160 mm \| Auto switch magnet: No \| Port: G1/4
C96YDB50-160C		Mounting: Basic \| Bore: ø50 mm \| Stroke: 160 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YB50-200C		Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: G1/4
C96YDB50-200C		Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YB50-250C		Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: G1/4
C96YDB50-250C		Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YB50-320C		Mounting: Basic \| Bore: ø50 mm \| Stroke: 320 mm \| Auto switch magnet: No \| Port: G1/4
C96YDB50-320C		Mounting: Basic \| Bore: ø50 mm \| Stroke: 320 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YB50-400C		Mounting: Basic \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: G1/4
C96YDB50-400C		Mounting: Basic \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YB50-500C		Mounting: Basic \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: G1/4
C96YDB50-500C		Mounting: Basic \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YB50-600C		Mounting: Basic \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: G1/4
C96YDB50-600C		Mounting: Basic \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YB63-25C		Mounting: Basic \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G3/8
C96YDB63-25C		Mounting: Basic \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YB63-50C		Mounting: Basic \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G3/8
C96YDB63-50C		Mounting: Basic \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YB63-80C		Mounting: Basic \| Bore: ø63 mm \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G3/8
C96YDB63-80C		Mounting: Basic \| Bore: ø63 mm \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YB63-100C		Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G3/8
C96YDB63-100C		Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YB63-125C		Mounting: Basic \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G3/8
C96YDB63-125C		Mounting: Basic \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YB63-160C		Mounting: Basic \| Bore: ø63 mm \| Stroke: 160 mm \| Auto switch magnet: No \| Port: G3/8
C96YDB63-160C		Mounting: Basic \| Bore: ø63 mm \| Stroke: 160 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YB63-200C		Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: G3/8
C96YDB63-200C		Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YB63-250C		Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: G3/8
C96YDB63-250C		Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YB63-320C		Mounting: Basic \| Bore: ø63 mm \| Stroke: 320 mm \| Auto switch magnet: No \| Port: G3/8
C96YDB63-320C		Mounting: Basic \| Bore: ø63 mm \| Stroke: 320 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YB63-400C		Mounting: Basic \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: G3/8
C96YDB63-400C		Mounting: Basic \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YB63-500C		Mounting: Basic \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: G3/8
C96YDB63-500C		Mounting: Basic \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YB63-600C		Mounting: Basic \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: G3/8
C96YDB63-600C		Mounting: Basic \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YB80-25C		Mounting: Basic \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G3/8
C96YDB80-25C		Mounting: Basic \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YB80-50C		Mounting: Basic \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G3/8
C96YDB80-50C		Mounting: Basic \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YB80-80C		Mounting: Basic \| Bore: ø80 mm \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G3/8
C96YDB80-80C		Mounting: Basic \| Bore: ø80 mm \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YB80-100C		Mounting: Basic \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G3/8
C96YDB80-100C		Mounting: Basic \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YB80-125C		Mounting: Basic \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G3/8
C96YDB80-125C		Mounting: Basic \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YB80-160C		Mounting: Basic \| Bore: ø80 mm \| Stroke: 160 mm \| Auto switch magnet: No \| Port: G3/8
C96YDB80-160C		Mounting: Basic \| Bore: ø80 mm \| Stroke: 160 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YB80-200C		Mounting: Basic \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: G3/8
C96YDB80-200C		Mounting: Basic \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YB80-250C		Mounting: Basic \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: G3/8
C96YDB80-250C		Mounting: Basic \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YB80-320C		Mounting: Basic \| Bore: ø80 mm \| Stroke: 320 mm \| Auto switch magnet: No \| Port: G3/8
C96YDB80-320C		Mounting: Basic \| Bore: ø80 mm \| Stroke: 320 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YB80-400C		Mounting: Basic \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: G3/8
C96YDB80-400C		Mounting: Basic \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YB80-500C		Mounting: Basic \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: G3/8
C96YDB80-500C		Mounting: Basic \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YB80-600C		Mounting: Basic \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: G3/8
C96YDB80-600C		Mounting: Basic \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YB80-700C		Mounting: Basic \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: G3/8
C96YDB80-700C		Mounting: Basic \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YB80-800C		Mounting: Basic \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: G3/8
C96YDB80-800C		Mounting: Basic \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YB100-25C		Mounting: Basic \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/2
C96YDB100-25C		Mounting: Basic \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YB100-50C		Mounting: Basic \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/2
C96YDB100-50C		Mounting: Basic \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YB100-80C		Mounting: Basic \| Bore: ø100 mm \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/2
C96YDB100-80C		Mounting: Basic \| Bore: ø100 mm \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YB100-100C		Mounting: Basic \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/2
C96YDB100-100C		Mounting: Basic \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YB100-125C		Mounting: Basic \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/2
C96YDB100-125C		Mounting: Basic \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YB100-160C		Mounting: Basic \| Bore: ø100 mm \| Stroke: 160 mm \| Auto switch magnet: No \| Port: G1/2
C96YDB100-160C		Mounting: Basic \| Bore: ø100 mm \| Stroke: 160 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YB100-200C		Mounting: Basic \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: G1/2
C96YDB100-200C		Mounting: Basic \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YB100-250C		Mounting: Basic \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: G1/2
C96YDB100-250C		Mounting: Basic \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YB100-320C		Mounting: Basic \| Bore: ø100 mm \| Stroke: 320 mm \| Auto switch magnet: No \| Port: G1/2
C96YDB100-320C		Mounting: Basic \| Bore: ø100 mm \| Stroke: 320 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YB100-400C		Mounting: Basic \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: G1/2
C96YDB100-400C		Mounting: Basic \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YB100-500C		Mounting: Basic \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: G1/2
C96YDB100-500C		Mounting: Basic \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YB100-600C		Mounting: Basic \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: G1/2
C96YDB100-600C		Mounting: Basic \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YB100-700C		Mounting: Basic \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: G1/2
C96YDB100-700C		Mounting: Basic \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YB100-800C		Mounting: Basic \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: G1/2
C96YDB100-800C		Mounting: Basic \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YL32-25C		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/8
C96YDL32-25C		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/8
C96YL32-50C		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/8
C96YDL32-50C		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/8
C96YL32-80C		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/8
C96YDL32-80C		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/8
C96YL32-100C		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/8
C96YDL32-100C		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/8
C96YL32-125C		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/8
C96YDL32-125C		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/8
C96YL32-160C		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 160 mm \| Auto switch magnet: No \| Port: G1/8
C96YDL32-160C		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 160 mm \| Auto switch magnet: Yes \| Port: G1/8
C96YL32-200C		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: G1/8
C96YDL32-200C		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: G1/8
C96YL32-250C		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: G1/8
C96YDL32-250C		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: G1/8
C96YL32-320C		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 320 mm \| Auto switch magnet: No \| Port: G1/8
C96YDL32-320C		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 320 mm \| Auto switch magnet: Yes \| Port: G1/8
C96YL32-400C		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: G1/8
C96YDL32-400C		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: G1/8
C96YL32-500C		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: G1/8
C96YDL32-500C		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: G1/8
C96YL40-25C		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/4
C96YDL40-25C		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YL40-50C		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/4
C96YDL40-50C		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YL40-80C		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/4
C96YDL40-80C		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YL40-100C		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/4
C96YDL40-100C		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YL40-125C		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/4
C96YDL40-125C		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YL40-160C		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 160 mm \| Auto switch magnet: No \| Port: G1/4
C96YDL40-160C		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 160 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YL40-200C		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: G1/4
C96YDL40-200C		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YL40-250C		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: G1/4
C96YDL40-250C		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YL40-320C		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 320 mm \| Auto switch magnet: No \| Port: G1/4
C96YDL40-320C		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 320 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YL40-400C		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: G1/4
C96YDL40-400C		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YL40-500C		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: G1/4
C96YDL40-500C		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YL50-25C		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/4
C96YDL50-25C		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YL50-50C		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/4
C96YDL50-50C		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YL50-80C		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/4
C96YDL50-80C		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YL50-100C		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/4
C96YDL50-100C		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YL50-125C		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/4
C96YDL50-125C		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YL50-160C		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 160 mm \| Auto switch magnet: No \| Port: G1/4
C96YDL50-160C		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 160 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YL50-200C		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: G1/4
C96YDL50-200C		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YL50-250C		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: G1/4
C96YDL50-250C		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YL50-320C		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 320 mm \| Auto switch magnet: No \| Port: G1/4
C96YDL50-320C		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 320 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YL50-400C		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: G1/4
C96YDL50-400C		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YL50-500C		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: G1/4
C96YDL50-500C		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YL50-600C		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: G1/4
C96YDL50-600C		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YL63-25C		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G3/8
C96YDL63-25C		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YL63-50C		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G3/8
C96YDL63-50C		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YL63-80C		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G3/8
C96YDL63-80C		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YL63-100C		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G3/8
C96YDL63-100C		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YL63-125C		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G3/8
C96YDL63-125C		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YL63-160C		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 160 mm \| Auto switch magnet: No \| Port: G3/8
C96YDL63-160C		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 160 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YL63-200C		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: G3/8
C96YDL63-200C		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YL63-250C		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: G3/8
C96YDL63-250C		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YL63-320C		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 320 mm \| Auto switch magnet: No \| Port: G3/8
C96YDL63-320C		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 320 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YL63-400C		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: G3/8
C96YDL63-400C		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YL63-500C		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: G3/8
C96YDL63-500C		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YL63-600C		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: G3/8
C96YDL63-600C		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YL80-25C		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G3/8
C96YDL80-25C		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YL80-50C		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G3/8
C96YDL80-50C		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YL80-80C		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G3/8
C96YDL80-80C		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YL80-100C		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G3/8
C96YDL80-100C		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YL80-125C		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G3/8
C96YDL80-125C		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YL80-160C		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 160 mm \| Auto switch magnet: No \| Port: G3/8
C96YDL80-160C		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 160 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YL80-200C		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: G3/8
C96YDL80-200C		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YL80-250C		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: G3/8
C96YDL80-250C		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YL80-320C		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 320 mm \| Auto switch magnet: No \| Port: G3/8
C96YDL80-320C		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 320 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YL80-400C		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: G3/8
C96YDL80-400C		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YL80-500C		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: G3/8
C96YDL80-500C		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YL80-600C		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: G3/8
C96YDL80-600C		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YL80-700C		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: G3/8
C96YDL80-700C		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YL80-800C		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: G3/8
C96YDL80-800C		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YL100-25C		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/2
C96YDL100-25C		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YL100-50C		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/2
C96YDL100-50C		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YL100-80C		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/2
C96YDL100-80C		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YL100-100C		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/2
C96YDL100-100C		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YL100-125C		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/2
C96YDL100-125C		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YL100-160C		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 160 mm \| Auto switch magnet: No \| Port: G1/2
C96YDL100-160C		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 160 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YL100-200C		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: G1/2
C96YDL100-200C		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YL100-250C		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: G1/2
C96YDL100-250C		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YL100-320C		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 320 mm \| Auto switch magnet: No \| Port: G1/2
C96YDL100-320C		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 320 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YL100-400C		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: G1/2
C96YDL100-400C		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YL100-500C		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: G1/2
C96YDL100-500C		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YL100-600C		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: G1/2
C96YDL100-600C		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YL100-700C		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: G1/2
C96YDL100-700C		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YL100-800C		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: G1/2
C96YDL100-800C		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YF32-25C		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/8
C96YDF32-25C		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/8
C96YF32-50C		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/8
C96YDF32-50C		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/8
C96YF32-80C		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/8
C96YDF32-80C		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/8
C96YF32-100C		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/8
C96YDF32-100C		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/8
C96YF32-125C		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/8
C96YDF32-125C		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/8
C96YF32-160C		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 160 mm \| Auto switch magnet: No \| Port: G1/8
C96YDF32-160C		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 160 mm \| Auto switch magnet: Yes \| Port: G1/8
C96YF32-200C		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: G1/8
C96YDF32-200C		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: G1/8
C96YF32-250C		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: G1/8
C96YDF32-250C		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: G1/8
C96YF32-320C		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 320 mm \| Auto switch magnet: No \| Port: G1/8
C96YDF32-320C		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 320 mm \| Auto switch magnet: Yes \| Port: G1/8
C96YF32-400C		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: G1/8
C96YDF32-400C		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: G1/8
C96YF32-500C		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: G1/8
C96YDF32-500C		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: G1/8
C96YF40-25C		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/4
C96YDF40-25C		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YF40-50C		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/4
C96YDF40-50C		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YF40-80C		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/4
C96YDF40-80C		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YF40-100C		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/4
C96YDF40-100C		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YF40-125C		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/4
C96YDF40-125C		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YF40-160C		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 160 mm \| Auto switch magnet: No \| Port: G1/4
C96YDF40-160C		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 160 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YF40-200C		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: G1/4
C96YDF40-200C		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YF40-250C		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: G1/4
C96YDF40-250C		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YF40-320C		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 320 mm \| Auto switch magnet: No \| Port: G1/4
C96YDF40-320C		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 320 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YF40-400C		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: G1/4
C96YDF40-400C		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YF40-500C		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: G1/4
C96YDF40-500C		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YF50-25C		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/4
C96YDF50-25C		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YF50-50C		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/4
C96YDF50-50C		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YF50-80C		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/4
C96YDF50-80C		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YF50-100C		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/4
C96YDF50-100C		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YF50-125C		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/4
C96YDF50-125C		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YF50-160C		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 160 mm \| Auto switch magnet: No \| Port: G1/4
C96YDF50-160C		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 160 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YF50-200C		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: G1/4
C96YDF50-200C		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YF50-250C		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: G1/4
C96YDF50-250C		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YF50-320C		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 320 mm \| Auto switch magnet: No \| Port: G1/4
C96YDF50-320C		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 320 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YF50-400C		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: G1/4
C96YDF50-400C		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YF50-500C		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: G1/4
C96YDF50-500C		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YF50-600C		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: G1/4
C96YDF50-600C		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YF63-25C		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G3/8
C96YDF63-25C		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YF63-50C		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G3/8
C96YDF63-50C		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YF63-80C		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G3/8
C96YDF63-80C		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YF63-100C		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G3/8
C96YDF63-100C		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YF63-125C		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G3/8
C96YDF63-125C		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YF63-160C		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 160 mm \| Auto switch magnet: No \| Port: G3/8
C96YDF63-160C		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 160 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YF63-200C		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: G3/8
C96YDF63-200C		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YF63-250C		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: G3/8
C96YDF63-250C		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YF63-320C		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 320 mm \| Auto switch magnet: No \| Port: G3/8
C96YDF63-320C		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 320 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YF63-400C		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: G3/8
C96YDF63-400C		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YF63-500C		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: G3/8
C96YDF63-500C		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YF63-600C		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: G3/8
C96YDF63-600C		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YF80-25C		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G3/8
C96YDF80-25C		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YF80-50C		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G3/8
C96YDF80-50C		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YF80-80C		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G3/8
C96YDF80-80C		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YF80-100C		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G3/8
C96YDF80-100C		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YF80-125C		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G3/8
C96YDF80-125C		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YF80-160C		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 160 mm \| Auto switch magnet: No \| Port: G3/8
C96YDF80-160C		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 160 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YF80-200C		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: G3/8
C96YDF80-200C		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YF80-250C		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: G3/8
C96YDF80-250C		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YF80-320C		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 320 mm \| Auto switch magnet: No \| Port: G3/8
C96YDF80-320C		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 320 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YF80-400C		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: G3/8
C96YDF80-400C		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YF80-500C		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: G3/8
C96YDF80-500C		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YF80-600C		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: G3/8
C96YDF80-600C		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YF80-700C		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: G3/8
C96YDF80-700C		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YF80-800C		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: G3/8
C96YDF80-800C		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YF100-25C		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/2
C96YDF100-25C		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YF100-50C		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/2
C96YDF100-50C		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YF100-80C		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/2
C96YDF100-80C		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YF100-100C		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/2
C96YDF100-100C		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YF100-125C		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/2
C96YDF100-125C		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YF100-160C		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 160 mm \| Auto switch magnet: No \| Port: G1/2
C96YDF100-160C		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 160 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YF100-200C		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: G1/2
C96YDF100-200C		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YF100-250C		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: G1/2
C96YDF100-250C		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YF100-320C		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 320 mm \| Auto switch magnet: No \| Port: G1/2
C96YDF100-320C		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 320 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YF100-400C		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: G1/2
C96YDF100-400C		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YF100-500C		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: G1/2
C96YDF100-500C		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YF100-600C		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: G1/2
C96YDF100-600C		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YF100-700C		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: G1/2
C96YDF100-700C		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YF100-800C		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: G1/2
C96YDF100-800C		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YG32-25C		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/8
C96YDG32-25C		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/8
C96YG32-50C		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/8
C96YDG32-50C		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/8
C96YG32-80C		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/8
C96YDG32-80C		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/8
C96YG32-100C		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/8
C96YDG32-100C		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/8
C96YG32-125C		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/8
C96YDG32-125C		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/8
C96YG32-160C		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 160 mm \| Auto switch magnet: No \| Port: G1/8
C96YDG32-160C		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 160 mm \| Auto switch magnet: Yes \| Port: G1/8
C96YG32-200C		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: G1/8
C96YDG32-200C		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: G1/8
C96YG32-250C		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: G1/8
C96YDG32-250C		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: G1/8
C96YG32-320C		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 320 mm \| Auto switch magnet: No \| Port: G1/8
C96YDG32-320C		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 320 mm \| Auto switch magnet: Yes \| Port: G1/8
C96YG32-400C		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: G1/8
C96YDG32-400C		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: G1/8
C96YG32-500C		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: G1/8
C96YDG32-500C		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: G1/8
C96YG40-25C		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/4
C96YDG40-25C		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YG40-50C		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/4
C96YDG40-50C		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YG40-80C		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/4
C96YDG40-80C		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YG40-100C		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/4
C96YDG40-100C		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YG40-125C		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/4
C96YDG40-125C		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YG40-160C		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 160 mm \| Auto switch magnet: No \| Port: G1/4
C96YDG40-160C		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 160 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YG40-200C		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: G1/4
C96YDG40-200C		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YG40-250C		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: G1/4
C96YDG40-250C		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YG40-320C		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 320 mm \| Auto switch magnet: No \| Port: G1/4
C96YDG40-320C		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 320 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YG40-400C		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: G1/4
C96YDG40-400C		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YG40-500C		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: G1/4
C96YDG40-500C		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YG50-25C		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/4
C96YDG50-25C		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YG50-50C		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/4
C96YDG50-50C		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YG50-80C		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/4
C96YDG50-80C		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YG50-100C		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/4
C96YDG50-100C		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YG50-125C		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/4
C96YDG50-125C		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YG50-160C		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 160 mm \| Auto switch magnet: No \| Port: G1/4
C96YDG50-160C		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 160 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YG50-200C		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: G1/4
C96YDG50-200C		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YG50-250C		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: G1/4
C96YDG50-250C		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YG50-320C		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 320 mm \| Auto switch magnet: No \| Port: G1/4
C96YDG50-320C		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 320 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YG50-400C		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: G1/4
C96YDG50-400C		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YG50-500C		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: G1/4
C96YDG50-500C		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YG50-600C		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: G1/4
C96YDG50-600C		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YG63-25C		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G3/8
C96YDG63-25C		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YG63-50C		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G3/8
C96YDG63-50C		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YG63-80C		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G3/8
C96YDG63-80C		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YG63-100C		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G3/8
C96YDG63-100C		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YG63-125C		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G3/8
C96YDG63-125C		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YG63-160C		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 160 mm \| Auto switch magnet: No \| Port: G3/8
C96YDG63-160C		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 160 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YG63-200C		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: G3/8
C96YDG63-200C		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YG63-250C		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: G3/8
C96YDG63-250C		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YG63-320C		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 320 mm \| Auto switch magnet: No \| Port: G3/8
C96YDG63-320C		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 320 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YG63-400C		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: G3/8
C96YDG63-400C		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YG63-500C		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: G3/8
C96YDG63-500C		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YG63-600C		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: G3/8
C96YDG63-600C		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YG80-25C		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G3/8
C96YDG80-25C		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YG80-50C		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G3/8
C96YDG80-50C		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YG80-80C		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G3/8
C96YDG80-80C		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YG80-100C		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G3/8
C96YDG80-100C		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YG80-125C		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G3/8
C96YDG80-125C		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YG80-160C		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 160 mm \| Auto switch magnet: No \| Port: G3/8
C96YDG80-160C		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 160 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YG80-200C		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: G3/8
C96YDG80-200C		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YG80-250C		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: G3/8
C96YDG80-250C		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YG80-320C		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 320 mm \| Auto switch magnet: No \| Port: G3/8
C96YDG80-320C		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 320 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YG80-400C		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: G3/8
C96YDG80-400C		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YG80-500C		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: G3/8
C96YDG80-500C		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YG80-600C		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: G3/8
C96YDG80-600C		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YG80-700C		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: G3/8
C96YDG80-700C		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YG80-800C		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: G3/8
C96YDG80-800C		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YG100-25C		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/2
C96YDG100-25C		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YG100-50C		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/2
C96YDG100-50C		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YG100-80C		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/2
C96YDG100-80C		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YG100-100C		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/2
C96YDG100-100C		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YG100-125C		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/2
C96YDG100-125C		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YG100-160C		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 160 mm \| Auto switch magnet: No \| Port: G1/2
C96YDG100-160C		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 160 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YG100-200C		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: G1/2
C96YDG100-200C		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YG100-250C		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: G1/2
C96YDG100-250C		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YG100-320C		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 320 mm \| Auto switch magnet: No \| Port: G1/2
C96YDG100-320C		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 320 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YG100-400C		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: G1/2
C96YDG100-400C		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YG100-500C		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: G1/2
C96YDG100-500C		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YG100-600C		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: G1/2
C96YDG100-600C		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YG100-700C		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: G1/2
C96YDG100-700C		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YG100-800C		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: G1/2
C96YDG100-800C		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YC32-25C		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/8
C96YDC32-25C		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/8
C96YC32-50C		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/8
C96YDC32-50C		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/8
C96YC32-80C		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/8
C96YDC32-80C		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/8
C96YC32-100C		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/8
C96YDC32-100C		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/8
C96YC32-125C		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/8
C96YDC32-125C		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/8
C96YC32-160C		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 160 mm \| Auto switch magnet: No \| Port: G1/8
C96YDC32-160C		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 160 mm \| Auto switch magnet: Yes \| Port: G1/8
C96YC32-200C		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: G1/8
C96YDC32-200C		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: G1/8
C96YC32-250C		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: G1/8
C96YDC32-250C		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: G1/8
C96YC32-320C		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 320 mm \| Auto switch magnet: No \| Port: G1/8
C96YDC32-320C		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 320 mm \| Auto switch magnet: Yes \| Port: G1/8
C96YC32-400C		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: G1/8
C96YDC32-400C		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: G1/8
C96YC32-500C		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: G1/8
C96YDC32-500C		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: G1/8
C96YC40-25C		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/4
C96YDC40-25C		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YC40-50C		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/4
C96YDC40-50C		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YC40-80C		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/4
C96YDC40-80C		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YC40-100C		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/4
C96YDC40-100C		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YC40-125C		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/4
C96YDC40-125C		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YC40-160C		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 160 mm \| Auto switch magnet: No \| Port: G1/4
C96YDC40-160C		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 160 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YC40-200C		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: G1/4
C96YDC40-200C		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YC40-250C		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: G1/4
C96YDC40-250C		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YC40-320C		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 320 mm \| Auto switch magnet: No \| Port: G1/4
C96YDC40-320C		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 320 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YC40-400C		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: G1/4
C96YDC40-400C		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YC40-500C		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: G1/4
C96YDC40-500C		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YC50-25C		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/4
C96YDC50-25C		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YC50-50C		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/4
C96YDC50-50C		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YC50-80C		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/4
C96YDC50-80C		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YC50-100C		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/4
C96YDC50-100C		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YC50-125C		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/4
C96YDC50-125C		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YC50-160C		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 160 mm \| Auto switch magnet: No \| Port: G1/4
C96YDC50-160C		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 160 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YC50-200C		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: G1/4
C96YDC50-200C		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YC50-250C		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: G1/4
C96YDC50-250C		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YC50-320C		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 320 mm \| Auto switch magnet: No \| Port: G1/4
C96YDC50-320C		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 320 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YC50-400C		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: G1/4
C96YDC50-400C		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YC50-500C		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: G1/4
C96YDC50-500C		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YC50-600C		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: G1/4
C96YDC50-600C		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YC63-25C		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G3/8
C96YDC63-25C		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YC63-50C		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G3/8
C96YDC63-50C		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YC63-80C		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G3/8
C96YDC63-80C		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YC63-100C		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G3/8
C96YDC63-100C		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YC63-125C		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G3/8
C96YDC63-125C		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YC63-160C		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 160 mm \| Auto switch magnet: No \| Port: G3/8
C96YDC63-160C		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 160 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YC63-200C		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: G3/8
C96YDC63-200C		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YC63-250C		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: G3/8
C96YDC63-250C		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YC63-320C		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 320 mm \| Auto switch magnet: No \| Port: G3/8
C96YDC63-320C		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 320 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YC63-400C		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: G3/8
C96YDC63-400C		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YC63-500C		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: G3/8
C96YDC63-500C		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YC63-600C		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: G3/8
C96YDC63-600C		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YC80-25C		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G3/8
C96YDC80-25C		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YC80-50C		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G3/8
C96YDC80-50C		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YC80-80C		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G3/8
C96YDC80-80C		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YC80-100C		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G3/8
C96YDC80-100C		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YC80-125C		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G3/8
C96YDC80-125C		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YC80-160C		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 160 mm \| Auto switch magnet: No \| Port: G3/8
C96YDC80-160C		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 160 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YC80-200C		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: G3/8
C96YDC80-200C		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YC80-250C		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: G3/8
C96YDC80-250C		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YC80-320C		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 320 mm \| Auto switch magnet: No \| Port: G3/8
C96YDC80-320C		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 320 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YC80-400C		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: G3/8
C96YDC80-400C		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YC80-500C		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: G3/8
C96YDC80-500C		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YC80-600C		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: G3/8
C96YDC80-600C		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YC80-700C		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: G3/8
C96YDC80-700C		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YC80-800C		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: G3/8
C96YDC80-800C		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YC100-25C		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/2
C96YDC100-25C		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YC100-50C		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/2
C96YDC100-50C		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YC100-80C		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/2
C96YDC100-80C		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YC100-100C		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/2
C96YDC100-100C		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YC100-125C		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/2
C96YDC100-125C		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YC100-160C		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 160 mm \| Auto switch magnet: No \| Port: G1/2
C96YDC100-160C		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 160 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YC100-200C		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: G1/2
C96YDC100-200C		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YC100-250C		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: G1/2
C96YDC100-250C		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YC100-320C		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 320 mm \| Auto switch magnet: No \| Port: G1/2
C96YDC100-320C		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 320 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YC100-400C		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: G1/2
C96YDC100-400C		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YC100-500C		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: G1/2
C96YDC100-500C		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YC100-600C		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: G1/2
C96YDC100-600C		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YC100-700C		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: G1/2
C96YDC100-700C		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YC100-800C		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: G1/2
C96YDC100-800C		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YD32-25C		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/8
C96YDD32-25C		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/8
C96YD32-50C		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/8
C96YDD32-50C		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/8
C96YD32-80C		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/8
C96YDD32-80C		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/8
C96YD32-100C		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/8
C96YDD32-100C		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/8
C96YD32-125C		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/8
C96YDD32-125C		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/8
C96YD32-160C		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 160 mm \| Auto switch magnet: No \| Port: G1/8
C96YDD32-160C		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 160 mm \| Auto switch magnet: Yes \| Port: G1/8
C96YD32-200C		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: G1/8
C96YDD32-200C		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: G1/8
C96YD32-250C		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: G1/8
C96YDD32-250C		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: G1/8
C96YD32-320C		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 320 mm \| Auto switch magnet: No \| Port: G1/8
C96YDD32-320C		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 320 mm \| Auto switch magnet: Yes \| Port: G1/8
C96YD32-400C		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: G1/8
C96YDD32-400C		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: G1/8
C96YD32-500C		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: G1/8
C96YDD32-500C		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: G1/8
C96YD40-25C		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/4
C96YDD40-25C		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YD40-50C		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/4
C96YDD40-50C		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YD40-80C		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/4
C96YDD40-80C		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YD40-100C		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/4
C96YDD40-100C		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YD40-125C		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/4
C96YDD40-125C		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YD40-160C		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 160 mm \| Auto switch magnet: No \| Port: G1/4
C96YDD40-160C		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 160 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YD40-200C		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: G1/4
C96YDD40-200C		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YD40-250C		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: G1/4
C96YDD40-250C		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YD40-320C		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 320 mm \| Auto switch magnet: No \| Port: G1/4
C96YDD40-320C		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 320 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YD40-400C		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: G1/4
C96YDD40-400C		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YD40-500C		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: G1/4
C96YDD40-500C		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YD50-25C		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/4
C96YDD50-25C		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YD50-50C		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/4
C96YDD50-50C		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YD50-80C		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/4
C96YDD50-80C		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YD50-100C		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/4
C96YDD50-100C		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YD50-125C		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/4
C96YDD50-125C		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YD50-160C		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 160 mm \| Auto switch magnet: No \| Port: G1/4
C96YDD50-160C		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 160 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YD50-200C		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: G1/4
C96YDD50-200C		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YD50-250C		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: G1/4
C96YDD50-250C		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YD50-320C		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 320 mm \| Auto switch magnet: No \| Port: G1/4
C96YDD50-320C		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 320 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YD50-400C		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: G1/4
C96YDD50-400C		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YD50-500C		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: G1/4
C96YDD50-500C		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YD50-600C		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: G1/4
C96YDD50-600C		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YD63-25C		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G3/8
C96YDD63-25C		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YD63-50C		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G3/8
C96YDD63-50C		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YD63-80C		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G3/8
C96YDD63-80C		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YD63-100C		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G3/8
C96YDD63-100C		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YD63-125C		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G3/8
C96YDD63-125C		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YD63-160C		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 160 mm \| Auto switch magnet: No \| Port: G3/8
C96YDD63-160C		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 160 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YD63-200C		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: G3/8
C96YDD63-200C		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YD63-250C		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: G3/8
C96YDD63-250C		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YD63-320C		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 320 mm \| Auto switch magnet: No \| Port: G3/8
C96YDD63-320C		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 320 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YD63-400C		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: G3/8
C96YDD63-400C		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YD63-500C		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: G3/8
C96YDD63-500C		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YD63-600C		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: G3/8
C96YDD63-600C		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YD80-25C		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G3/8
C96YDD80-25C		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YD80-50C		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G3/8
C96YDD80-50C		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YD80-80C		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G3/8
C96YDD80-80C		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YD80-100C		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G3/8
C96YDD80-100C		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YD80-125C		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G3/8
C96YDD80-125C		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YD80-160C		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 160 mm \| Auto switch magnet: No \| Port: G3/8
C96YDD80-160C		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 160 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YD80-200C		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: G3/8
C96YDD80-200C		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YD80-250C		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: G3/8
C96YDD80-250C		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YD80-320C		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 320 mm \| Auto switch magnet: No \| Port: G3/8
C96YDD80-320C		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 320 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YD80-400C		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: G3/8
C96YDD80-400C		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YD80-500C		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: G3/8
C96YDD80-500C		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YD80-600C		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: G3/8
C96YDD80-600C		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YD80-700C		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: G3/8
C96YDD80-700C		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YD80-800C		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: G3/8
C96YDD80-800C		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YD100-25C		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/2
C96YDD100-25C		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YD100-50C		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/2
C96YDD100-50C		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YD100-80C		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/2
C96YDD100-80C		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YD100-100C		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/2
C96YDD100-100C		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YD100-125C		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/2
C96YDD100-125C		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YD100-160C		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 160 mm \| Auto switch magnet: No \| Port: G1/2
C96YDD100-160C		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 160 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YD100-200C		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: G1/2
C96YDD100-200C		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YD100-250C		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: G1/2
C96YDD100-250C		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YD100-320C		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 320 mm \| Auto switch magnet: No \| Port: G1/2
C96YDD100-320C		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 320 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YD100-400C		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: G1/2
C96YDD100-400C		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YD100-500C		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: G1/2
C96YDD100-500C		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YD100-600C		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: G1/2
C96YDD100-600C		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YD100-700C		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: G1/2
C96YDD100-700C		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YD100-800C		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: G1/2
C96YDD100-800C		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YT32-25C		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/8
C96YDT32-25C		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/8
C96YT32-50C		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/8
C96YDT32-50C		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/8
C96YT32-80C		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/8
C96YDT32-80C		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/8
C96YT32-100C		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/8
C96YDT32-100C		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/8
C96YT32-125C		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/8
C96YDT32-125C		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/8
C96YT32-160C		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 160 mm \| Auto switch magnet: No \| Port: G1/8
C96YDT32-160C		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 160 mm \| Auto switch magnet: Yes \| Port: G1/8
C96YT32-200C		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: G1/8
C96YDT32-200C		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: G1/8
C96YT32-250C		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: G1/8
C96YDT32-250C		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: G1/8
C96YT32-320C		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 320 mm \| Auto switch magnet: No \| Port: G1/8
C96YDT32-320C		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 320 mm \| Auto switch magnet: Yes \| Port: G1/8
C96YT32-400C		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: G1/8
C96YDT32-400C		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: G1/8
C96YT32-500C		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: G1/8
C96YDT32-500C		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: G1/8
C96YT40-25C		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/4
C96YDT40-25C		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YT40-50C		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/4
C96YDT40-50C		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YT40-80C		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/4
C96YDT40-80C		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YT40-100C		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/4
C96YDT40-100C		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YT40-125C		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/4
C96YDT40-125C		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YT40-160C		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 160 mm \| Auto switch magnet: No \| Port: G1/4
C96YDT40-160C		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 160 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YT40-200C		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: G1/4
C96YDT40-200C		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YT40-250C		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: G1/4
C96YDT40-250C		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YT40-320C		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 320 mm \| Auto switch magnet: No \| Port: G1/4
C96YDT40-320C		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 320 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YT40-400C		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: G1/4
C96YDT40-400C		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YT40-500C		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: G1/4
C96YDT40-500C		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YT50-25C		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/4
C96YDT50-25C		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YT50-50C		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/4
C96YDT50-50C		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YT50-80C		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/4
C96YDT50-80C		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YT50-100C		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/4
C96YDT50-100C		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YT50-125C		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/4
C96YDT50-125C		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YT50-160C		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 160 mm \| Auto switch magnet: No \| Port: G1/4
C96YDT50-160C		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 160 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YT50-200C		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: G1/4
C96YDT50-200C		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YT50-250C		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: G1/4
C96YDT50-250C		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YT50-320C		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 320 mm \| Auto switch magnet: No \| Port: G1/4
C96YDT50-320C		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 320 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YT50-400C		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: G1/4
C96YDT50-400C		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YT50-500C		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: G1/4
C96YDT50-500C		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YT50-600C		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: G1/4
C96YDT50-600C		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YT63-25C		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G3/8
C96YDT63-25C		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YT63-50C		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G3/8
C96YDT63-50C		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YT63-80C		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G3/8
C96YDT63-80C		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YT63-100C		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G3/8
C96YDT63-100C		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YT63-125C		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G3/8
C96YDT63-125C		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YT63-160C		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 160 mm \| Auto switch magnet: No \| Port: G3/8
C96YDT63-160C		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 160 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YT63-200C		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: G3/8
C96YDT63-200C		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YT63-250C		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: G3/8
C96YDT63-250C		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YT63-320C		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 320 mm \| Auto switch magnet: No \| Port: G3/8
C96YDT63-320C		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 320 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YT63-400C		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: G3/8
C96YDT63-400C		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YT63-500C		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: G3/8
C96YDT63-500C		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YT63-600C		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: G3/8
C96YDT63-600C		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YT80-25C		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G3/8
C96YDT80-25C		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YT80-50C		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G3/8
C96YDT80-50C		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YT80-80C		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G3/8
C96YDT80-80C		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YT80-100C		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G3/8
C96YDT80-100C		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YT80-125C		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G3/8
C96YDT80-125C		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YT80-160C		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 160 mm \| Auto switch magnet: No \| Port: G3/8
C96YDT80-160C		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 160 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YT80-200C		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: G3/8
C96YDT80-200C		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YT80-250C		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: G3/8
C96YDT80-250C		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YT80-320C		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 320 mm \| Auto switch magnet: No \| Port: G3/8
C96YDT80-320C		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 320 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YT80-400C		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: G3/8
C96YDT80-400C		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YT80-500C		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: G3/8
C96YDT80-500C		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YT80-600C		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: G3/8
C96YDT80-600C		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YT80-700C		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: G3/8
C96YDT80-700C		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YT80-800C		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: G3/8
C96YDT80-800C		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YT100-25C		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/2
C96YDT100-25C		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YT100-50C		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/2
C96YDT100-50C		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YT100-80C		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/2
C96YDT100-80C		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YT100-100C		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/2
C96YDT100-100C		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YT100-125C		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/2
C96YDT100-125C		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YT100-160C		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 160 mm \| Auto switch magnet: No \| Port: G1/2
C96YDT100-160C		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 160 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YT100-200C		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: G1/2
C96YDT100-200C		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YT100-250C		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: G1/2
C96YDT100-250C		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YT100-320C		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 320 mm \| Auto switch magnet: No \| Port: G1/2
C96YDT100-320C		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 320 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YT100-400C		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: G1/2
C96YDT100-400C		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YT100-500C		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: G1/2
C96YDT100-500C		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YT100-600C		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: G1/2
C96YDT100-600C		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YT100-700C		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: G1/2
C96YDT100-700C		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YT100-800C		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: G1/2
C96YDT100-800C		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YV32-25C		Mounting: Adjustable trunnion \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/8
C96YDV32-25C		Mounting: Adjustable trunnion \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/8
C96YV32-50C		Mounting: Adjustable trunnion \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/8
C96YDV32-50C		Mounting: Adjustable trunnion \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/8
C96YV32-80C		Mounting: Adjustable trunnion \| Bore: ø32 mm \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/8
C96YDV32-80C		Mounting: Adjustable trunnion \| Bore: ø32 mm \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/8
C96YV32-100C		Mounting: Adjustable trunnion \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/8
C96YDV32-100C		Mounting: Adjustable trunnion \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/8
C96YV32-125C		Mounting: Adjustable trunnion \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/8
C96YDV32-125C		Mounting: Adjustable trunnion \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/8
C96YV32-160C		Mounting: Adjustable trunnion \| Bore: ø32 mm \| Stroke: 160 mm \| Auto switch magnet: No \| Port: G1/8
C96YDV32-160C		Mounting: Adjustable trunnion \| Bore: ø32 mm \| Stroke: 160 mm \| Auto switch magnet: Yes \| Port: G1/8
C96YV32-200C		Mounting: Adjustable trunnion \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: G1/8
C96YDV32-200C		Mounting: Adjustable trunnion \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: G1/8
C96YV32-250C		Mounting: Adjustable trunnion \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: G1/8
C96YDV32-250C		Mounting: Adjustable trunnion \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: G1/8
C96YV32-320C		Mounting: Adjustable trunnion \| Bore: ø32 mm \| Stroke: 320 mm \| Auto switch magnet: No \| Port: G1/8
C96YDV32-320C		Mounting: Adjustable trunnion \| Bore: ø32 mm \| Stroke: 320 mm \| Auto switch magnet: Yes \| Port: G1/8
C96YV32-400C		Mounting: Adjustable trunnion \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: G1/8
C96YDV32-400C		Mounting: Adjustable trunnion \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: G1/8
C96YV32-500C		Mounting: Adjustable trunnion \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: G1/8
C96YDV32-500C		Mounting: Adjustable trunnion \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: G1/8
C96YV40-25C		Mounting: Adjustable trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/4
C96YDV40-25C		Mounting: Adjustable trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YV40-50C		Mounting: Adjustable trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/4
C96YDV40-50C		Mounting: Adjustable trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YV40-80C		Mounting: Adjustable trunnion \| Bore: ø40 mm \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/4
C96YDV40-80C		Mounting: Adjustable trunnion \| Bore: ø40 mm \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YV40-100C		Mounting: Adjustable trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/4
C96YDV40-100C		Mounting: Adjustable trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YV40-125C		Mounting: Adjustable trunnion \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/4
C96YDV40-125C		Mounting: Adjustable trunnion \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YV40-160C		Mounting: Adjustable trunnion \| Bore: ø40 mm \| Stroke: 160 mm \| Auto switch magnet: No \| Port: G1/4
C96YDV40-160C		Mounting: Adjustable trunnion \| Bore: ø40 mm \| Stroke: 160 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YV40-200C		Mounting: Adjustable trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: G1/4
C96YDV40-200C		Mounting: Adjustable trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YV40-250C		Mounting: Adjustable trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: G1/4
C96YDV40-250C		Mounting: Adjustable trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YV40-320C		Mounting: Adjustable trunnion \| Bore: ø40 mm \| Stroke: 320 mm \| Auto switch magnet: No \| Port: G1/4
C96YDV40-320C		Mounting: Adjustable trunnion \| Bore: ø40 mm \| Stroke: 320 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YV40-400C		Mounting: Adjustable trunnion \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: G1/4
C96YDV40-400C		Mounting: Adjustable trunnion \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YV40-500C		Mounting: Adjustable trunnion \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: G1/4
C96YDV40-500C		Mounting: Adjustable trunnion \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YV50-25C		Mounting: Adjustable trunnion \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/4
C96YDV50-25C		Mounting: Adjustable trunnion \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YV50-50C		Mounting: Adjustable trunnion \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/4
C96YDV50-50C		Mounting: Adjustable trunnion \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YV50-80C		Mounting: Adjustable trunnion \| Bore: ø50 mm \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/4
C96YDV50-80C		Mounting: Adjustable trunnion \| Bore: ø50 mm \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YV50-100C		Mounting: Adjustable trunnion \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/4
C96YDV50-100C		Mounting: Adjustable trunnion \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YV50-125C		Mounting: Adjustable trunnion \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/4
C96YDV50-125C		Mounting: Adjustable trunnion \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YV50-160C		Mounting: Adjustable trunnion \| Bore: ø50 mm \| Stroke: 160 mm \| Auto switch magnet: No \| Port: G1/4
C96YDV50-160C		Mounting: Adjustable trunnion \| Bore: ø50 mm \| Stroke: 160 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YV50-200C		Mounting: Adjustable trunnion \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: G1/4
C96YDV50-200C		Mounting: Adjustable trunnion \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YV50-250C		Mounting: Adjustable trunnion \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: G1/4
C96YDV50-250C		Mounting: Adjustable trunnion \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YV50-320C		Mounting: Adjustable trunnion \| Bore: ø50 mm \| Stroke: 320 mm \| Auto switch magnet: No \| Port: G1/4
C96YDV50-320C		Mounting: Adjustable trunnion \| Bore: ø50 mm \| Stroke: 320 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YV50-400C		Mounting: Adjustable trunnion \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: G1/4
C96YDV50-400C		Mounting: Adjustable trunnion \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YV50-500C		Mounting: Adjustable trunnion \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: G1/4
C96YDV50-500C		Mounting: Adjustable trunnion \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YV50-600C		Mounting: Adjustable trunnion \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: G1/4
C96YDV50-600C		Mounting: Adjustable trunnion \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: G1/4
C96YV63-25C		Mounting: Adjustable trunnion \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G3/8
C96YDV63-25C		Mounting: Adjustable trunnion \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YV63-50C		Mounting: Adjustable trunnion \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G3/8
C96YDV63-50C		Mounting: Adjustable trunnion \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YV63-80C		Mounting: Adjustable trunnion \| Bore: ø63 mm \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G3/8
C96YDV63-80C		Mounting: Adjustable trunnion \| Bore: ø63 mm \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YV63-100C		Mounting: Adjustable trunnion \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G3/8
C96YDV63-100C		Mounting: Adjustable trunnion \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YV63-125C		Mounting: Adjustable trunnion \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G3/8
C96YDV63-125C		Mounting: Adjustable trunnion \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YV63-160C		Mounting: Adjustable trunnion \| Bore: ø63 mm \| Stroke: 160 mm \| Auto switch magnet: No \| Port: G3/8
C96YDV63-160C		Mounting: Adjustable trunnion \| Bore: ø63 mm \| Stroke: 160 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YV63-200C		Mounting: Adjustable trunnion \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: G3/8
C96YDV63-200C		Mounting: Adjustable trunnion \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YV63-250C		Mounting: Adjustable trunnion \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: G3/8
C96YDV63-250C		Mounting: Adjustable trunnion \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YV63-320C		Mounting: Adjustable trunnion \| Bore: ø63 mm \| Stroke: 320 mm \| Auto switch magnet: No \| Port: G3/8
C96YDV63-320C		Mounting: Adjustable trunnion \| Bore: ø63 mm \| Stroke: 320 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YV63-400C		Mounting: Adjustable trunnion \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: G3/8
C96YDV63-400C		Mounting: Adjustable trunnion \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YV63-500C		Mounting: Adjustable trunnion \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: G3/8
C96YDV63-500C		Mounting: Adjustable trunnion \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YV63-600C		Mounting: Adjustable trunnion \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: G3/8
C96YDV63-600C		Mounting: Adjustable trunnion \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YV80-25C		Mounting: Adjustable trunnion \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G3/8
C96YDV80-25C		Mounting: Adjustable trunnion \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YV80-50C		Mounting: Adjustable trunnion \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G3/8
C96YDV80-50C		Mounting: Adjustable trunnion \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YV80-80C		Mounting: Adjustable trunnion \| Bore: ø80 mm \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G3/8
C96YDV80-80C		Mounting: Adjustable trunnion \| Bore: ø80 mm \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YV80-100C		Mounting: Adjustable trunnion \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G3/8
C96YDV80-100C		Mounting: Adjustable trunnion \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YV80-125C		Mounting: Adjustable trunnion \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G3/8
C96YDV80-125C		Mounting: Adjustable trunnion \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YV80-160C		Mounting: Adjustable trunnion \| Bore: ø80 mm \| Stroke: 160 mm \| Auto switch magnet: No \| Port: G3/8
C96YDV80-160C		Mounting: Adjustable trunnion \| Bore: ø80 mm \| Stroke: 160 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YV80-200C		Mounting: Adjustable trunnion \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: G3/8
C96YDV80-200C		Mounting: Adjustable trunnion \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YV80-250C		Mounting: Adjustable trunnion \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: G3/8
C96YDV80-250C		Mounting: Adjustable trunnion \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YV80-320C		Mounting: Adjustable trunnion \| Bore: ø80 mm \| Stroke: 320 mm \| Auto switch magnet: No \| Port: G3/8
C96YDV80-320C		Mounting: Adjustable trunnion \| Bore: ø80 mm \| Stroke: 320 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YV80-400C		Mounting: Adjustable trunnion \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: G3/8
C96YDV80-400C		Mounting: Adjustable trunnion \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YV80-500C		Mounting: Adjustable trunnion \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: G3/8
C96YDV80-500C		Mounting: Adjustable trunnion \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YV80-600C		Mounting: Adjustable trunnion \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: G3/8
C96YDV80-600C		Mounting: Adjustable trunnion \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YV80-700C		Mounting: Adjustable trunnion \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: G3/8
C96YDV80-700C		Mounting: Adjustable trunnion \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YV80-800C		Mounting: Adjustable trunnion \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: G3/8
C96YDV80-800C		Mounting: Adjustable trunnion \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: G3/8
C96YV100-25C		Mounting: Adjustable trunnion \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/2
C96YDV100-25C		Mounting: Adjustable trunnion \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YV100-50C		Mounting: Adjustable trunnion \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/2
C96YDV100-50C		Mounting: Adjustable trunnion \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YV100-80C		Mounting: Adjustable trunnion \| Bore: ø100 mm \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/2
C96YDV100-80C		Mounting: Adjustable trunnion \| Bore: ø100 mm \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YV100-100C		Mounting: Adjustable trunnion \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/2
C96YDV100-100C		Mounting: Adjustable trunnion \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YV100-125C		Mounting: Adjustable trunnion \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/2
C96YDV100-125C		Mounting: Adjustable trunnion \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YV100-160C		Mounting: Adjustable trunnion \| Bore: ø100 mm \| Stroke: 160 mm \| Auto switch magnet: No \| Port: G1/2
C96YDV100-160C		Mounting: Adjustable trunnion \| Bore: ø100 mm \| Stroke: 160 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YV100-200C		Mounting: Adjustable trunnion \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: G1/2
C96YDV100-200C		Mounting: Adjustable trunnion \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YV100-250C		Mounting: Adjustable trunnion \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: G1/2
C96YDV100-250C		Mounting: Adjustable trunnion \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YV100-320C		Mounting: Adjustable trunnion \| Bore: ø100 mm \| Stroke: 320 mm \| Auto switch magnet: No \| Port: G1/2
C96YDV100-320C		Mounting: Adjustable trunnion \| Bore: ø100 mm \| Stroke: 320 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YV100-400C		Mounting: Adjustable trunnion \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: G1/2
C96YDV100-400C		Mounting: Adjustable trunnion \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YV100-500C		Mounting: Adjustable trunnion \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: G1/2
C96YDV100-500C		Mounting: Adjustable trunnion \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YV100-600C		Mounting: Adjustable trunnion \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: G1/2
C96YDV100-600C		Mounting: Adjustable trunnion \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YV100-700C		Mounting: Adjustable trunnion \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: G1/2
C96YDV100-700C		Mounting: Adjustable trunnion \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: G1/2
C96YV100-800C		Mounting: Adjustable trunnion \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: G1/2
C96YDV100-800C		Mounting: Adjustable trunnion \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: G1/2

Round Body CylindersSMC

1184 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC C96Y Low Speed / Low Friction ISO 15552 Cylinder (ø32-ø100)

Brand SMC·Round Body Cylinders

Available part numbers (1184)

C96YB32-25C, C96YDB32-25C, C96YB32-50C, C96YDB32-50C, C96YB32-80C, C96YDB32-80C, C96YB32-100C, C96YDB32-100C, C96YB32-125C, C96YDB32-125C + 1174 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	C96YB32-25C	Mounting: Basic \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/8
	C96YDB32-25C	Mounting: Basic \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/8
	C96YB32-50C	Mounting: Basic \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/8
	C96YDB32-50C	Mounting: Basic \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/8
	C96YB32-80C	Mounting: Basic \| Bore: ø32 mm \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/8
	C96YDB32-80C	Mounting: Basic \| Bore: ø32 mm \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/8
	C96YB32-100C	Mounting: Basic \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/8
	C96YDB32-100C	Mounting: Basic \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/8
	C96YB32-125C	Mounting: Basic \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/8
	C96YDB32-125C	Mounting: Basic \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/8
	C96YB32-160C	Mounting: Basic \| Bore: ø32 mm \| Stroke: 160 mm \| Auto switch magnet: No \| Port: G1/8
	C96YDB32-160C	Mounting: Basic \| Bore: ø32 mm \| Stroke: 160 mm \| Auto switch magnet: Yes \| Port: G1/8
	C96YB32-200C	Mounting: Basic \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: G1/8
	C96YDB32-200C	Mounting: Basic \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: G1/8
	C96YB32-250C	Mounting: Basic \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: G1/8
	C96YDB32-250C	Mounting: Basic \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: G1/8
	C96YB32-320C	Mounting: Basic \| Bore: ø32 mm \| Stroke: 320 mm \| Auto switch magnet: No \| Port: G1/8
	C96YDB32-320C	Mounting: Basic \| Bore: ø32 mm \| Stroke: 320 mm \| Auto switch magnet: Yes \| Port: G1/8
	C96YB32-400C	Mounting: Basic \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: G1/8
	C96YDB32-400C	Mounting: Basic \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: G1/8
	C96YB32-500C	Mounting: Basic \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: G1/8
	C96YDB32-500C	Mounting: Basic \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: G1/8
	C96YB40-25C	Mounting: Basic \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDB40-25C	Mounting: Basic \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YB40-50C	Mounting: Basic \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDB40-50C	Mounting: Basic \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YB40-80C	Mounting: Basic \| Bore: ø40 mm \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDB40-80C	Mounting: Basic \| Bore: ø40 mm \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YB40-100C	Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDB40-100C	Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YB40-125C	Mounting: Basic \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDB40-125C	Mounting: Basic \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YB40-160C	Mounting: Basic \| Bore: ø40 mm \| Stroke: 160 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDB40-160C	Mounting: Basic \| Bore: ø40 mm \| Stroke: 160 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YB40-200C	Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDB40-200C	Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YB40-250C	Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDB40-250C	Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YB40-320C	Mounting: Basic \| Bore: ø40 mm \| Stroke: 320 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDB40-320C	Mounting: Basic \| Bore: ø40 mm \| Stroke: 320 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YB40-400C	Mounting: Basic \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDB40-400C	Mounting: Basic \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YB40-500C	Mounting: Basic \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDB40-500C	Mounting: Basic \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YB50-25C	Mounting: Basic \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDB50-25C	Mounting: Basic \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YB50-50C	Mounting: Basic \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDB50-50C	Mounting: Basic \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YB50-80C	Mounting: Basic \| Bore: ø50 mm \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDB50-80C	Mounting: Basic \| Bore: ø50 mm \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YB50-100C	Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDB50-100C	Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YB50-125C	Mounting: Basic \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDB50-125C	Mounting: Basic \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YB50-160C	Mounting: Basic \| Bore: ø50 mm \| Stroke: 160 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDB50-160C	Mounting: Basic \| Bore: ø50 mm \| Stroke: 160 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YB50-200C	Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDB50-200C	Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YB50-250C	Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDB50-250C	Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YB50-320C	Mounting: Basic \| Bore: ø50 mm \| Stroke: 320 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDB50-320C	Mounting: Basic \| Bore: ø50 mm \| Stroke: 320 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YB50-400C	Mounting: Basic \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDB50-400C	Mounting: Basic \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YB50-500C	Mounting: Basic \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDB50-500C	Mounting: Basic \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YB50-600C	Mounting: Basic \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDB50-600C	Mounting: Basic \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YB63-25C	Mounting: Basic \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDB63-25C	Mounting: Basic \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YB63-50C	Mounting: Basic \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDB63-50C	Mounting: Basic \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YB63-80C	Mounting: Basic \| Bore: ø63 mm \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDB63-80C	Mounting: Basic \| Bore: ø63 mm \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YB63-100C	Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDB63-100C	Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YB63-125C	Mounting: Basic \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDB63-125C	Mounting: Basic \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YB63-160C	Mounting: Basic \| Bore: ø63 mm \| Stroke: 160 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDB63-160C	Mounting: Basic \| Bore: ø63 mm \| Stroke: 160 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YB63-200C	Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDB63-200C	Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YB63-250C	Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDB63-250C	Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YB63-320C	Mounting: Basic \| Bore: ø63 mm \| Stroke: 320 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDB63-320C	Mounting: Basic \| Bore: ø63 mm \| Stroke: 320 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YB63-400C	Mounting: Basic \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDB63-400C	Mounting: Basic \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YB63-500C	Mounting: Basic \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDB63-500C	Mounting: Basic \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YB63-600C	Mounting: Basic \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDB63-600C	Mounting: Basic \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YB80-25C	Mounting: Basic \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDB80-25C	Mounting: Basic \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YB80-50C	Mounting: Basic \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDB80-50C	Mounting: Basic \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YB80-80C	Mounting: Basic \| Bore: ø80 mm \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDB80-80C	Mounting: Basic \| Bore: ø80 mm \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YB80-100C	Mounting: Basic \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDB80-100C	Mounting: Basic \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YB80-125C	Mounting: Basic \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDB80-125C	Mounting: Basic \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YB80-160C	Mounting: Basic \| Bore: ø80 mm \| Stroke: 160 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDB80-160C	Mounting: Basic \| Bore: ø80 mm \| Stroke: 160 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YB80-200C	Mounting: Basic \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDB80-200C	Mounting: Basic \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YB80-250C	Mounting: Basic \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDB80-250C	Mounting: Basic \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YB80-320C	Mounting: Basic \| Bore: ø80 mm \| Stroke: 320 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDB80-320C	Mounting: Basic \| Bore: ø80 mm \| Stroke: 320 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YB80-400C	Mounting: Basic \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDB80-400C	Mounting: Basic \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YB80-500C	Mounting: Basic \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDB80-500C	Mounting: Basic \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YB80-600C	Mounting: Basic \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDB80-600C	Mounting: Basic \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YB80-700C	Mounting: Basic \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDB80-700C	Mounting: Basic \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YB80-800C	Mounting: Basic \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDB80-800C	Mounting: Basic \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YB100-25C	Mounting: Basic \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDB100-25C	Mounting: Basic \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YB100-50C	Mounting: Basic \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDB100-50C	Mounting: Basic \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YB100-80C	Mounting: Basic \| Bore: ø100 mm \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDB100-80C	Mounting: Basic \| Bore: ø100 mm \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YB100-100C	Mounting: Basic \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDB100-100C	Mounting: Basic \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YB100-125C	Mounting: Basic \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDB100-125C	Mounting: Basic \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YB100-160C	Mounting: Basic \| Bore: ø100 mm \| Stroke: 160 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDB100-160C	Mounting: Basic \| Bore: ø100 mm \| Stroke: 160 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YB100-200C	Mounting: Basic \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDB100-200C	Mounting: Basic \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YB100-250C	Mounting: Basic \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDB100-250C	Mounting: Basic \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YB100-320C	Mounting: Basic \| Bore: ø100 mm \| Stroke: 320 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDB100-320C	Mounting: Basic \| Bore: ø100 mm \| Stroke: 320 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YB100-400C	Mounting: Basic \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDB100-400C	Mounting: Basic \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YB100-500C	Mounting: Basic \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDB100-500C	Mounting: Basic \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YB100-600C	Mounting: Basic \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDB100-600C	Mounting: Basic \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YB100-700C	Mounting: Basic \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDB100-700C	Mounting: Basic \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YB100-800C	Mounting: Basic \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDB100-800C	Mounting: Basic \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YL32-25C	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/8
	C96YDL32-25C	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/8
	C96YL32-50C	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/8
	C96YDL32-50C	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/8
	C96YL32-80C	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/8
	C96YDL32-80C	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/8
	C96YL32-100C	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/8
	C96YDL32-100C	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/8
	C96YL32-125C	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/8
	C96YDL32-125C	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/8
	C96YL32-160C	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 160 mm \| Auto switch magnet: No \| Port: G1/8
	C96YDL32-160C	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 160 mm \| Auto switch magnet: Yes \| Port: G1/8
	C96YL32-200C	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: G1/8
	C96YDL32-200C	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: G1/8
	C96YL32-250C	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: G1/8
	C96YDL32-250C	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: G1/8
	C96YL32-320C	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 320 mm \| Auto switch magnet: No \| Port: G1/8
	C96YDL32-320C	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 320 mm \| Auto switch magnet: Yes \| Port: G1/8
	C96YL32-400C	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: G1/8
	C96YDL32-400C	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: G1/8
	C96YL32-500C	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: G1/8
	C96YDL32-500C	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: G1/8
	C96YL40-25C	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDL40-25C	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YL40-50C	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDL40-50C	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YL40-80C	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDL40-80C	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YL40-100C	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDL40-100C	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YL40-125C	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDL40-125C	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YL40-160C	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 160 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDL40-160C	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 160 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YL40-200C	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDL40-200C	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YL40-250C	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDL40-250C	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YL40-320C	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 320 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDL40-320C	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 320 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YL40-400C	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDL40-400C	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YL40-500C	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDL40-500C	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YL50-25C	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDL50-25C	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YL50-50C	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDL50-50C	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YL50-80C	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDL50-80C	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YL50-100C	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDL50-100C	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YL50-125C	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDL50-125C	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YL50-160C	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 160 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDL50-160C	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 160 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YL50-200C	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDL50-200C	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YL50-250C	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDL50-250C	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YL50-320C	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 320 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDL50-320C	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 320 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YL50-400C	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDL50-400C	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YL50-500C	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDL50-500C	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YL50-600C	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDL50-600C	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YL63-25C	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDL63-25C	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YL63-50C	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDL63-50C	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YL63-80C	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDL63-80C	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YL63-100C	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDL63-100C	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YL63-125C	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDL63-125C	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YL63-160C	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 160 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDL63-160C	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 160 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YL63-200C	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDL63-200C	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YL63-250C	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDL63-250C	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YL63-320C	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 320 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDL63-320C	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 320 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YL63-400C	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDL63-400C	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YL63-500C	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDL63-500C	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YL63-600C	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDL63-600C	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YL80-25C	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDL80-25C	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YL80-50C	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDL80-50C	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YL80-80C	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDL80-80C	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YL80-100C	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDL80-100C	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YL80-125C	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDL80-125C	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YL80-160C	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 160 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDL80-160C	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 160 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YL80-200C	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDL80-200C	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YL80-250C	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDL80-250C	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YL80-320C	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 320 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDL80-320C	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 320 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YL80-400C	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDL80-400C	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YL80-500C	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDL80-500C	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YL80-600C	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDL80-600C	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YL80-700C	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDL80-700C	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YL80-800C	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDL80-800C	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YL100-25C	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDL100-25C	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YL100-50C	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDL100-50C	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YL100-80C	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDL100-80C	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YL100-100C	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDL100-100C	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YL100-125C	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDL100-125C	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YL100-160C	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 160 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDL100-160C	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 160 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YL100-200C	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDL100-200C	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YL100-250C	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDL100-250C	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YL100-320C	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 320 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDL100-320C	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 320 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YL100-400C	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDL100-400C	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YL100-500C	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDL100-500C	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YL100-600C	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDL100-600C	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YL100-700C	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDL100-700C	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YL100-800C	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDL100-800C	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YF32-25C	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/8
	C96YDF32-25C	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/8
	C96YF32-50C	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/8
	C96YDF32-50C	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/8
	C96YF32-80C	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/8
	C96YDF32-80C	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/8
	C96YF32-100C	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/8
	C96YDF32-100C	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/8
	C96YF32-125C	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/8
	C96YDF32-125C	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/8
	C96YF32-160C	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 160 mm \| Auto switch magnet: No \| Port: G1/8
	C96YDF32-160C	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 160 mm \| Auto switch magnet: Yes \| Port: G1/8
	C96YF32-200C	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: G1/8
	C96YDF32-200C	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: G1/8
	C96YF32-250C	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: G1/8
	C96YDF32-250C	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: G1/8
	C96YF32-320C	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 320 mm \| Auto switch magnet: No \| Port: G1/8
	C96YDF32-320C	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 320 mm \| Auto switch magnet: Yes \| Port: G1/8
	C96YF32-400C	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: G1/8
	C96YDF32-400C	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: G1/8
	C96YF32-500C	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: G1/8
	C96YDF32-500C	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: G1/8
	C96YF40-25C	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDF40-25C	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YF40-50C	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDF40-50C	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YF40-80C	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDF40-80C	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YF40-100C	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDF40-100C	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YF40-125C	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDF40-125C	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YF40-160C	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 160 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDF40-160C	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 160 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YF40-200C	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDF40-200C	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YF40-250C	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDF40-250C	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YF40-320C	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 320 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDF40-320C	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 320 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YF40-400C	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDF40-400C	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YF40-500C	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDF40-500C	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YF50-25C	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDF50-25C	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YF50-50C	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDF50-50C	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YF50-80C	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDF50-80C	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YF50-100C	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDF50-100C	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YF50-125C	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDF50-125C	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YF50-160C	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 160 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDF50-160C	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 160 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YF50-200C	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDF50-200C	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YF50-250C	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDF50-250C	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YF50-320C	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 320 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDF50-320C	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 320 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YF50-400C	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDF50-400C	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YF50-500C	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDF50-500C	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YF50-600C	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDF50-600C	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YF63-25C	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDF63-25C	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YF63-50C	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDF63-50C	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YF63-80C	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDF63-80C	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YF63-100C	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDF63-100C	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YF63-125C	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDF63-125C	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YF63-160C	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 160 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDF63-160C	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 160 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YF63-200C	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDF63-200C	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YF63-250C	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDF63-250C	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YF63-320C	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 320 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDF63-320C	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 320 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YF63-400C	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDF63-400C	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YF63-500C	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDF63-500C	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YF63-600C	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDF63-600C	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YF80-25C	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDF80-25C	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YF80-50C	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDF80-50C	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YF80-80C	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDF80-80C	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YF80-100C	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDF80-100C	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YF80-125C	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDF80-125C	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YF80-160C	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 160 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDF80-160C	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 160 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YF80-200C	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDF80-200C	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YF80-250C	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDF80-250C	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YF80-320C	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 320 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDF80-320C	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 320 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YF80-400C	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDF80-400C	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YF80-500C	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDF80-500C	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YF80-600C	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDF80-600C	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YF80-700C	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDF80-700C	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YF80-800C	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDF80-800C	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YF100-25C	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDF100-25C	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YF100-50C	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDF100-50C	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YF100-80C	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDF100-80C	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YF100-100C	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDF100-100C	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YF100-125C	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDF100-125C	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YF100-160C	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 160 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDF100-160C	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 160 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YF100-200C	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDF100-200C	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YF100-250C	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDF100-250C	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YF100-320C	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 320 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDF100-320C	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 320 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YF100-400C	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDF100-400C	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YF100-500C	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDF100-500C	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YF100-600C	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDF100-600C	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YF100-700C	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDF100-700C	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YF100-800C	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDF100-800C	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YG32-25C	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/8
	C96YDG32-25C	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/8
	C96YG32-50C	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/8
	C96YDG32-50C	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/8
	C96YG32-80C	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/8
	C96YDG32-80C	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/8
	C96YG32-100C	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/8
	C96YDG32-100C	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/8
	C96YG32-125C	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/8
	C96YDG32-125C	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/8
	C96YG32-160C	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 160 mm \| Auto switch magnet: No \| Port: G1/8
	C96YDG32-160C	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 160 mm \| Auto switch magnet: Yes \| Port: G1/8
	C96YG32-200C	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: G1/8
	C96YDG32-200C	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: G1/8
	C96YG32-250C	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: G1/8
	C96YDG32-250C	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: G1/8
	C96YG32-320C	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 320 mm \| Auto switch magnet: No \| Port: G1/8
	C96YDG32-320C	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 320 mm \| Auto switch magnet: Yes \| Port: G1/8
	C96YG32-400C	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: G1/8
	C96YDG32-400C	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: G1/8
	C96YG32-500C	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: G1/8
	C96YDG32-500C	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: G1/8
	C96YG40-25C	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDG40-25C	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YG40-50C	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDG40-50C	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YG40-80C	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDG40-80C	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YG40-100C	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDG40-100C	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YG40-125C	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDG40-125C	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YG40-160C	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 160 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDG40-160C	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 160 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YG40-200C	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDG40-200C	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YG40-250C	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDG40-250C	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YG40-320C	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 320 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDG40-320C	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 320 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YG40-400C	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDG40-400C	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YG40-500C	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDG40-500C	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YG50-25C	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDG50-25C	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YG50-50C	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDG50-50C	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YG50-80C	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDG50-80C	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YG50-100C	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDG50-100C	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YG50-125C	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDG50-125C	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YG50-160C	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 160 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDG50-160C	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 160 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YG50-200C	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDG50-200C	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YG50-250C	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDG50-250C	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YG50-320C	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 320 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDG50-320C	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 320 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YG50-400C	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDG50-400C	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YG50-500C	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDG50-500C	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YG50-600C	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDG50-600C	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YG63-25C	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDG63-25C	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YG63-50C	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDG63-50C	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YG63-80C	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDG63-80C	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YG63-100C	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDG63-100C	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YG63-125C	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDG63-125C	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YG63-160C	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 160 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDG63-160C	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 160 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YG63-200C	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDG63-200C	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YG63-250C	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDG63-250C	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YG63-320C	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 320 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDG63-320C	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 320 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YG63-400C	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDG63-400C	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YG63-500C	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDG63-500C	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YG63-600C	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDG63-600C	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YG80-25C	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDG80-25C	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YG80-50C	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDG80-50C	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YG80-80C	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDG80-80C	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YG80-100C	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDG80-100C	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YG80-125C	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDG80-125C	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YG80-160C	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 160 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDG80-160C	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 160 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YG80-200C	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDG80-200C	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YG80-250C	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDG80-250C	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YG80-320C	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 320 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDG80-320C	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 320 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YG80-400C	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDG80-400C	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YG80-500C	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDG80-500C	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YG80-600C	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDG80-600C	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YG80-700C	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDG80-700C	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YG80-800C	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDG80-800C	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YG100-25C	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDG100-25C	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YG100-50C	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDG100-50C	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YG100-80C	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDG100-80C	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YG100-100C	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDG100-100C	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YG100-125C	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDG100-125C	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YG100-160C	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 160 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDG100-160C	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 160 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YG100-200C	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDG100-200C	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YG100-250C	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDG100-250C	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YG100-320C	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 320 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDG100-320C	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 320 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YG100-400C	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDG100-400C	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YG100-500C	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDG100-500C	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YG100-600C	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDG100-600C	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YG100-700C	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDG100-700C	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YG100-800C	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDG100-800C	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YC32-25C	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/8
	C96YDC32-25C	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/8
	C96YC32-50C	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/8
	C96YDC32-50C	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/8
	C96YC32-80C	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/8
	C96YDC32-80C	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/8
	C96YC32-100C	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/8
	C96YDC32-100C	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/8
	C96YC32-125C	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/8
	C96YDC32-125C	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/8
	C96YC32-160C	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 160 mm \| Auto switch magnet: No \| Port: G1/8
	C96YDC32-160C	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 160 mm \| Auto switch magnet: Yes \| Port: G1/8
	C96YC32-200C	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: G1/8
	C96YDC32-200C	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: G1/8
	C96YC32-250C	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: G1/8
	C96YDC32-250C	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: G1/8
	C96YC32-320C	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 320 mm \| Auto switch magnet: No \| Port: G1/8
	C96YDC32-320C	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 320 mm \| Auto switch magnet: Yes \| Port: G1/8
	C96YC32-400C	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: G1/8
	C96YDC32-400C	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: G1/8
	C96YC32-500C	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: G1/8
	C96YDC32-500C	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: G1/8
	C96YC40-25C	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDC40-25C	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YC40-50C	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDC40-50C	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YC40-80C	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDC40-80C	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YC40-100C	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDC40-100C	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YC40-125C	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDC40-125C	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YC40-160C	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 160 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDC40-160C	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 160 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YC40-200C	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDC40-200C	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YC40-250C	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDC40-250C	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YC40-320C	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 320 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDC40-320C	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 320 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YC40-400C	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDC40-400C	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YC40-500C	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDC40-500C	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YC50-25C	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDC50-25C	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YC50-50C	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDC50-50C	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YC50-80C	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDC50-80C	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YC50-100C	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDC50-100C	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YC50-125C	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDC50-125C	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YC50-160C	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 160 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDC50-160C	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 160 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YC50-200C	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDC50-200C	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YC50-250C	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDC50-250C	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YC50-320C	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 320 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDC50-320C	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 320 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YC50-400C	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDC50-400C	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YC50-500C	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDC50-500C	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YC50-600C	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDC50-600C	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YC63-25C	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDC63-25C	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YC63-50C	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDC63-50C	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YC63-80C	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDC63-80C	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YC63-100C	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDC63-100C	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YC63-125C	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDC63-125C	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YC63-160C	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 160 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDC63-160C	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 160 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YC63-200C	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDC63-200C	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YC63-250C	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDC63-250C	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YC63-320C	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 320 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDC63-320C	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 320 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YC63-400C	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDC63-400C	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YC63-500C	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDC63-500C	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YC63-600C	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDC63-600C	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YC80-25C	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDC80-25C	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YC80-50C	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDC80-50C	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YC80-80C	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDC80-80C	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YC80-100C	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDC80-100C	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YC80-125C	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDC80-125C	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YC80-160C	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 160 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDC80-160C	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 160 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YC80-200C	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDC80-200C	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YC80-250C	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDC80-250C	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YC80-320C	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 320 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDC80-320C	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 320 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YC80-400C	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDC80-400C	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YC80-500C	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDC80-500C	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YC80-600C	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDC80-600C	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YC80-700C	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDC80-700C	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YC80-800C	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDC80-800C	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YC100-25C	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDC100-25C	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YC100-50C	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDC100-50C	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YC100-80C	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDC100-80C	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YC100-100C	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDC100-100C	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YC100-125C	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDC100-125C	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YC100-160C	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 160 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDC100-160C	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 160 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YC100-200C	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDC100-200C	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YC100-250C	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDC100-250C	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YC100-320C	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 320 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDC100-320C	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 320 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YC100-400C	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDC100-400C	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YC100-500C	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDC100-500C	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YC100-600C	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDC100-600C	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YC100-700C	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDC100-700C	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YC100-800C	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDC100-800C	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YD32-25C	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/8
	C96YDD32-25C	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/8
	C96YD32-50C	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/8
	C96YDD32-50C	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/8
	C96YD32-80C	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/8
	C96YDD32-80C	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/8
	C96YD32-100C	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/8
	C96YDD32-100C	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/8
	C96YD32-125C	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/8
	C96YDD32-125C	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/8
	C96YD32-160C	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 160 mm \| Auto switch magnet: No \| Port: G1/8
	C96YDD32-160C	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 160 mm \| Auto switch magnet: Yes \| Port: G1/8
	C96YD32-200C	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: G1/8
	C96YDD32-200C	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: G1/8
	C96YD32-250C	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: G1/8
	C96YDD32-250C	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: G1/8
	C96YD32-320C	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 320 mm \| Auto switch magnet: No \| Port: G1/8
	C96YDD32-320C	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 320 mm \| Auto switch magnet: Yes \| Port: G1/8
	C96YD32-400C	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: G1/8
	C96YDD32-400C	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: G1/8
	C96YD32-500C	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: G1/8
	C96YDD32-500C	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: G1/8
	C96YD40-25C	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDD40-25C	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YD40-50C	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDD40-50C	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YD40-80C	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDD40-80C	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YD40-100C	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDD40-100C	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YD40-125C	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDD40-125C	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YD40-160C	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 160 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDD40-160C	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 160 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YD40-200C	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDD40-200C	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YD40-250C	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDD40-250C	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YD40-320C	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 320 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDD40-320C	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 320 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YD40-400C	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDD40-400C	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YD40-500C	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDD40-500C	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YD50-25C	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDD50-25C	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YD50-50C	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDD50-50C	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YD50-80C	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDD50-80C	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YD50-100C	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDD50-100C	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YD50-125C	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDD50-125C	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YD50-160C	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 160 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDD50-160C	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 160 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YD50-200C	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDD50-200C	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YD50-250C	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDD50-250C	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YD50-320C	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 320 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDD50-320C	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 320 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YD50-400C	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDD50-400C	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YD50-500C	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDD50-500C	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YD50-600C	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDD50-600C	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YD63-25C	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDD63-25C	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YD63-50C	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDD63-50C	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YD63-80C	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDD63-80C	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YD63-100C	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDD63-100C	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YD63-125C	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDD63-125C	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YD63-160C	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 160 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDD63-160C	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 160 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YD63-200C	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDD63-200C	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YD63-250C	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDD63-250C	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YD63-320C	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 320 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDD63-320C	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 320 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YD63-400C	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDD63-400C	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YD63-500C	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDD63-500C	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YD63-600C	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDD63-600C	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YD80-25C	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDD80-25C	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YD80-50C	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDD80-50C	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YD80-80C	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDD80-80C	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YD80-100C	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDD80-100C	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YD80-125C	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDD80-125C	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YD80-160C	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 160 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDD80-160C	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 160 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YD80-200C	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDD80-200C	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YD80-250C	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDD80-250C	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YD80-320C	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 320 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDD80-320C	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 320 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YD80-400C	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDD80-400C	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YD80-500C	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDD80-500C	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YD80-600C	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDD80-600C	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YD80-700C	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDD80-700C	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YD80-800C	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDD80-800C	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YD100-25C	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDD100-25C	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YD100-50C	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDD100-50C	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YD100-80C	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDD100-80C	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YD100-100C	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDD100-100C	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YD100-125C	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDD100-125C	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YD100-160C	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 160 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDD100-160C	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 160 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YD100-200C	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDD100-200C	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YD100-250C	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDD100-250C	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YD100-320C	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 320 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDD100-320C	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 320 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YD100-400C	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDD100-400C	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YD100-500C	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDD100-500C	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YD100-600C	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDD100-600C	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YD100-700C	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDD100-700C	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YD100-800C	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDD100-800C	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YT32-25C	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/8
	C96YDT32-25C	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/8
	C96YT32-50C	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/8
	C96YDT32-50C	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/8
	C96YT32-80C	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/8
	C96YDT32-80C	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/8
	C96YT32-100C	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/8
	C96YDT32-100C	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/8
	C96YT32-125C	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/8
	C96YDT32-125C	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/8
	C96YT32-160C	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 160 mm \| Auto switch magnet: No \| Port: G1/8
	C96YDT32-160C	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 160 mm \| Auto switch magnet: Yes \| Port: G1/8
	C96YT32-200C	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: G1/8
	C96YDT32-200C	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: G1/8
	C96YT32-250C	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: G1/8
	C96YDT32-250C	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: G1/8
	C96YT32-320C	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 320 mm \| Auto switch magnet: No \| Port: G1/8
	C96YDT32-320C	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 320 mm \| Auto switch magnet: Yes \| Port: G1/8
	C96YT32-400C	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: G1/8
	C96YDT32-400C	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: G1/8
	C96YT32-500C	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: G1/8
	C96YDT32-500C	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: G1/8
	C96YT40-25C	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDT40-25C	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YT40-50C	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDT40-50C	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YT40-80C	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDT40-80C	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YT40-100C	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDT40-100C	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YT40-125C	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDT40-125C	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YT40-160C	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 160 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDT40-160C	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 160 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YT40-200C	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDT40-200C	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YT40-250C	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDT40-250C	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YT40-320C	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 320 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDT40-320C	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 320 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YT40-400C	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDT40-400C	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YT40-500C	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDT40-500C	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YT50-25C	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDT50-25C	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YT50-50C	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDT50-50C	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YT50-80C	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDT50-80C	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YT50-100C	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDT50-100C	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YT50-125C	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDT50-125C	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YT50-160C	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 160 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDT50-160C	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 160 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YT50-200C	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDT50-200C	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YT50-250C	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDT50-250C	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YT50-320C	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 320 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDT50-320C	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 320 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YT50-400C	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDT50-400C	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YT50-500C	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDT50-500C	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YT50-600C	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDT50-600C	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YT63-25C	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDT63-25C	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YT63-50C	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDT63-50C	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YT63-80C	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDT63-80C	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YT63-100C	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDT63-100C	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YT63-125C	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDT63-125C	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YT63-160C	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 160 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDT63-160C	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 160 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YT63-200C	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDT63-200C	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YT63-250C	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDT63-250C	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YT63-320C	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 320 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDT63-320C	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 320 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YT63-400C	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDT63-400C	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YT63-500C	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDT63-500C	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YT63-600C	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDT63-600C	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YT80-25C	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDT80-25C	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YT80-50C	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDT80-50C	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YT80-80C	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDT80-80C	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YT80-100C	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDT80-100C	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YT80-125C	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDT80-125C	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YT80-160C	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 160 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDT80-160C	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 160 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YT80-200C	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDT80-200C	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YT80-250C	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDT80-250C	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YT80-320C	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 320 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDT80-320C	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 320 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YT80-400C	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDT80-400C	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YT80-500C	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDT80-500C	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YT80-600C	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDT80-600C	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YT80-700C	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDT80-700C	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YT80-800C	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDT80-800C	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YT100-25C	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDT100-25C	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YT100-50C	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDT100-50C	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YT100-80C	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDT100-80C	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YT100-100C	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDT100-100C	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YT100-125C	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDT100-125C	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YT100-160C	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 160 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDT100-160C	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 160 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YT100-200C	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDT100-200C	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YT100-250C	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDT100-250C	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YT100-320C	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 320 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDT100-320C	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 320 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YT100-400C	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDT100-400C	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YT100-500C	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDT100-500C	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YT100-600C	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDT100-600C	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YT100-700C	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDT100-700C	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YT100-800C	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDT100-800C	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YV32-25C	Mounting: Adjustable trunnion \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/8
	C96YDV32-25C	Mounting: Adjustable trunnion \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/8
	C96YV32-50C	Mounting: Adjustable trunnion \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/8
	C96YDV32-50C	Mounting: Adjustable trunnion \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/8
	C96YV32-80C	Mounting: Adjustable trunnion \| Bore: ø32 mm \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/8
	C96YDV32-80C	Mounting: Adjustable trunnion \| Bore: ø32 mm \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/8
	C96YV32-100C	Mounting: Adjustable trunnion \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/8
	C96YDV32-100C	Mounting: Adjustable trunnion \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/8
	C96YV32-125C	Mounting: Adjustable trunnion \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/8
	C96YDV32-125C	Mounting: Adjustable trunnion \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/8
	C96YV32-160C	Mounting: Adjustable trunnion \| Bore: ø32 mm \| Stroke: 160 mm \| Auto switch magnet: No \| Port: G1/8
	C96YDV32-160C	Mounting: Adjustable trunnion \| Bore: ø32 mm \| Stroke: 160 mm \| Auto switch magnet: Yes \| Port: G1/8
	C96YV32-200C	Mounting: Adjustable trunnion \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: G1/8
	C96YDV32-200C	Mounting: Adjustable trunnion \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: G1/8
	C96YV32-250C	Mounting: Adjustable trunnion \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: G1/8
	C96YDV32-250C	Mounting: Adjustable trunnion \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: G1/8
	C96YV32-320C	Mounting: Adjustable trunnion \| Bore: ø32 mm \| Stroke: 320 mm \| Auto switch magnet: No \| Port: G1/8
	C96YDV32-320C	Mounting: Adjustable trunnion \| Bore: ø32 mm \| Stroke: 320 mm \| Auto switch magnet: Yes \| Port: G1/8
	C96YV32-400C	Mounting: Adjustable trunnion \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: G1/8
	C96YDV32-400C	Mounting: Adjustable trunnion \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: G1/8
	C96YV32-500C	Mounting: Adjustable trunnion \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: G1/8
	C96YDV32-500C	Mounting: Adjustable trunnion \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: G1/8
	C96YV40-25C	Mounting: Adjustable trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDV40-25C	Mounting: Adjustable trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YV40-50C	Mounting: Adjustable trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDV40-50C	Mounting: Adjustable trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YV40-80C	Mounting: Adjustable trunnion \| Bore: ø40 mm \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDV40-80C	Mounting: Adjustable trunnion \| Bore: ø40 mm \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YV40-100C	Mounting: Adjustable trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDV40-100C	Mounting: Adjustable trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YV40-125C	Mounting: Adjustable trunnion \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDV40-125C	Mounting: Adjustable trunnion \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YV40-160C	Mounting: Adjustable trunnion \| Bore: ø40 mm \| Stroke: 160 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDV40-160C	Mounting: Adjustable trunnion \| Bore: ø40 mm \| Stroke: 160 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YV40-200C	Mounting: Adjustable trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDV40-200C	Mounting: Adjustable trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YV40-250C	Mounting: Adjustable trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDV40-250C	Mounting: Adjustable trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YV40-320C	Mounting: Adjustable trunnion \| Bore: ø40 mm \| Stroke: 320 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDV40-320C	Mounting: Adjustable trunnion \| Bore: ø40 mm \| Stroke: 320 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YV40-400C	Mounting: Adjustable trunnion \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDV40-400C	Mounting: Adjustable trunnion \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YV40-500C	Mounting: Adjustable trunnion \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDV40-500C	Mounting: Adjustable trunnion \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YV50-25C	Mounting: Adjustable trunnion \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDV50-25C	Mounting: Adjustable trunnion \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YV50-50C	Mounting: Adjustable trunnion \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDV50-50C	Mounting: Adjustable trunnion \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YV50-80C	Mounting: Adjustable trunnion \| Bore: ø50 mm \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDV50-80C	Mounting: Adjustable trunnion \| Bore: ø50 mm \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YV50-100C	Mounting: Adjustable trunnion \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDV50-100C	Mounting: Adjustable trunnion \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YV50-125C	Mounting: Adjustable trunnion \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDV50-125C	Mounting: Adjustable trunnion \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YV50-160C	Mounting: Adjustable trunnion \| Bore: ø50 mm \| Stroke: 160 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDV50-160C	Mounting: Adjustable trunnion \| Bore: ø50 mm \| Stroke: 160 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YV50-200C	Mounting: Adjustable trunnion \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDV50-200C	Mounting: Adjustable trunnion \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YV50-250C	Mounting: Adjustable trunnion \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDV50-250C	Mounting: Adjustable trunnion \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YV50-320C	Mounting: Adjustable trunnion \| Bore: ø50 mm \| Stroke: 320 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDV50-320C	Mounting: Adjustable trunnion \| Bore: ø50 mm \| Stroke: 320 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YV50-400C	Mounting: Adjustable trunnion \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDV50-400C	Mounting: Adjustable trunnion \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YV50-500C	Mounting: Adjustable trunnion \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDV50-500C	Mounting: Adjustable trunnion \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YV50-600C	Mounting: Adjustable trunnion \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: G1/4
	C96YDV50-600C	Mounting: Adjustable trunnion \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: G1/4
	C96YV63-25C	Mounting: Adjustable trunnion \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDV63-25C	Mounting: Adjustable trunnion \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YV63-50C	Mounting: Adjustable trunnion \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDV63-50C	Mounting: Adjustable trunnion \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YV63-80C	Mounting: Adjustable trunnion \| Bore: ø63 mm \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDV63-80C	Mounting: Adjustable trunnion \| Bore: ø63 mm \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YV63-100C	Mounting: Adjustable trunnion \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDV63-100C	Mounting: Adjustable trunnion \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YV63-125C	Mounting: Adjustable trunnion \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDV63-125C	Mounting: Adjustable trunnion \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YV63-160C	Mounting: Adjustable trunnion \| Bore: ø63 mm \| Stroke: 160 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDV63-160C	Mounting: Adjustable trunnion \| Bore: ø63 mm \| Stroke: 160 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YV63-200C	Mounting: Adjustable trunnion \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDV63-200C	Mounting: Adjustable trunnion \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YV63-250C	Mounting: Adjustable trunnion \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDV63-250C	Mounting: Adjustable trunnion \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YV63-320C	Mounting: Adjustable trunnion \| Bore: ø63 mm \| Stroke: 320 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDV63-320C	Mounting: Adjustable trunnion \| Bore: ø63 mm \| Stroke: 320 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YV63-400C	Mounting: Adjustable trunnion \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDV63-400C	Mounting: Adjustable trunnion \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YV63-500C	Mounting: Adjustable trunnion \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDV63-500C	Mounting: Adjustable trunnion \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YV63-600C	Mounting: Adjustable trunnion \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDV63-600C	Mounting: Adjustable trunnion \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YV80-25C	Mounting: Adjustable trunnion \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDV80-25C	Mounting: Adjustable trunnion \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YV80-50C	Mounting: Adjustable trunnion \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDV80-50C	Mounting: Adjustable trunnion \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YV80-80C	Mounting: Adjustable trunnion \| Bore: ø80 mm \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDV80-80C	Mounting: Adjustable trunnion \| Bore: ø80 mm \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YV80-100C	Mounting: Adjustable trunnion \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDV80-100C	Mounting: Adjustable trunnion \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YV80-125C	Mounting: Adjustable trunnion \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDV80-125C	Mounting: Adjustable trunnion \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YV80-160C	Mounting: Adjustable trunnion \| Bore: ø80 mm \| Stroke: 160 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDV80-160C	Mounting: Adjustable trunnion \| Bore: ø80 mm \| Stroke: 160 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YV80-200C	Mounting: Adjustable trunnion \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDV80-200C	Mounting: Adjustable trunnion \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YV80-250C	Mounting: Adjustable trunnion \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDV80-250C	Mounting: Adjustable trunnion \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YV80-320C	Mounting: Adjustable trunnion \| Bore: ø80 mm \| Stroke: 320 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDV80-320C	Mounting: Adjustable trunnion \| Bore: ø80 mm \| Stroke: 320 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YV80-400C	Mounting: Adjustable trunnion \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDV80-400C	Mounting: Adjustable trunnion \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YV80-500C	Mounting: Adjustable trunnion \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDV80-500C	Mounting: Adjustable trunnion \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YV80-600C	Mounting: Adjustable trunnion \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDV80-600C	Mounting: Adjustable trunnion \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YV80-700C	Mounting: Adjustable trunnion \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDV80-700C	Mounting: Adjustable trunnion \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YV80-800C	Mounting: Adjustable trunnion \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: G3/8
	C96YDV80-800C	Mounting: Adjustable trunnion \| Bore: ø80 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: G3/8
	C96YV100-25C	Mounting: Adjustable trunnion \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDV100-25C	Mounting: Adjustable trunnion \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YV100-50C	Mounting: Adjustable trunnion \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDV100-50C	Mounting: Adjustable trunnion \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YV100-80C	Mounting: Adjustable trunnion \| Bore: ø100 mm \| Stroke: 80 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDV100-80C	Mounting: Adjustable trunnion \| Bore: ø100 mm \| Stroke: 80 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YV100-100C	Mounting: Adjustable trunnion \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDV100-100C	Mounting: Adjustable trunnion \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YV100-125C	Mounting: Adjustable trunnion \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDV100-125C	Mounting: Adjustable trunnion \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YV100-160C	Mounting: Adjustable trunnion \| Bore: ø100 mm \| Stroke: 160 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDV100-160C	Mounting: Adjustable trunnion \| Bore: ø100 mm \| Stroke: 160 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YV100-200C	Mounting: Adjustable trunnion \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDV100-200C	Mounting: Adjustable trunnion \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YV100-250C	Mounting: Adjustable trunnion \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDV100-250C	Mounting: Adjustable trunnion \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YV100-320C	Mounting: Adjustable trunnion \| Bore: ø100 mm \| Stroke: 320 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDV100-320C	Mounting: Adjustable trunnion \| Bore: ø100 mm \| Stroke: 320 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YV100-400C	Mounting: Adjustable trunnion \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDV100-400C	Mounting: Adjustable trunnion \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YV100-500C	Mounting: Adjustable trunnion \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDV100-500C	Mounting: Adjustable trunnion \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YV100-600C	Mounting: Adjustable trunnion \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDV100-600C	Mounting: Adjustable trunnion \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YV100-700C	Mounting: Adjustable trunnion \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDV100-700C	Mounting: Adjustable trunnion \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: G1/2
	C96YV100-800C	Mounting: Adjustable trunnion \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: G1/2
	C96YDV100-800C	Mounting: Adjustable trunnion \| Bore: ø100 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: G1/2

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

SMC C96Y Low Speed / Low Friction ISO 15552 Cylinder (ø32-ø100)
