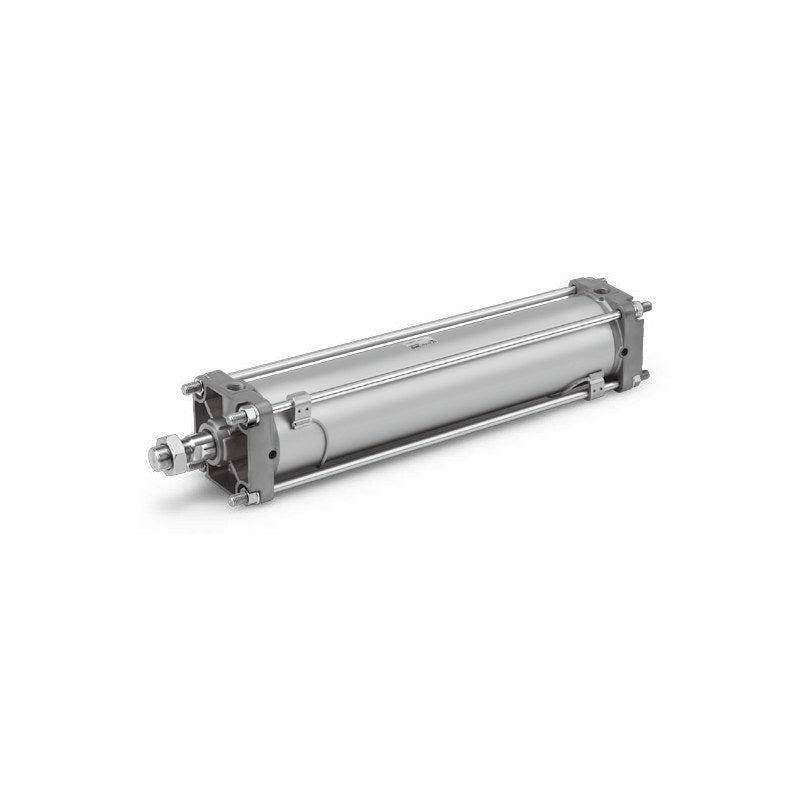

SMC CA2 Air Cylinder (Standard, Double Acting, ø40 to ø100)

SMC CA2-Z series tie-rod air cylinder, double acting, single rod, ø40 to ø100 mm bore, with or without a built-in auto switch magnet (CDA2).

Key features

Reduced piston jump-out at start-up thanks to a cushion air passage structure; mounting dimensions equal to the previous CA2
Mounting styles: basic (B), axial foot (L), rod flange (F), head flange (G), single clevis (C), double clevis (D), center trunnion (T)
Built-in magnet models (CD prefix) accept tie-rod mounted D-M9/D-A9 or band mounted D-G59/D-B54 type auto switches, ordered as a suffix
Air cushion standard; rubber cushion (N), bellows (J/K), pivot bracket (N) and rod end brackets (V/W) as order symbols
Aluminum tube standard; steel tube (F, after the mounting symbol) on order for models without magnet; Rc port thread standard, NPT (TN) and G (TF) on order
Lead-free sliding parts, EU-RoHS compliant

Specifications

Action	Double acting, single rod
Fluid	Air
Proof pressure	1.5 MPa
Max. operating pressure	1.0 MPa
Ambient and fluid temperature	-10 to 70°C without magnet, -10 to 60°C with magnet (no freezing)
Lubrication	Not required (non-lube)
Piston speed	50 to 500 mm/s
Min. operating pressure	0.05 MPa
Cushion	Air cushion (standard) or rubber cushion (suffix N)
Standard strokes	ø40: 25 to 500; ø50: 25 to 600; ø63: 25 to 600; ø80: 25 to 700; ø100: 25 to 700 mm
Source	SMC Korea catalog CA2-Z (SMCKR_CA2-Z.pdf), p. 560-561

CA2B40-25Z		Mounting: Basic \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
CA2B40-50Z		Mounting: Basic \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
CA2B40-75Z		Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
CA2B40-100Z		Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
CA2B40-125Z		Mounting: Basic \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No
CA2B40-150Z		Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
CA2B40-175Z		Mounting: Basic \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No
CA2B40-200Z		Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
CA2B40-250Z		Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
CA2B40-300Z		Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
CA2B40-350Z		Mounting: Basic \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No
CA2B40-400Z		Mounting: Basic \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
CA2B40-450Z		Mounting: Basic \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No
CA2B40-500Z		Mounting: Basic \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
CA2B50-25Z		Mounting: Basic \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
CA2B50-50Z		Mounting: Basic \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
CA2B50-75Z		Mounting: Basic \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
CA2B50-100Z		Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
CA2B50-125Z		Mounting: Basic \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No
CA2B50-150Z		Mounting: Basic \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
CA2B50-175Z		Mounting: Basic \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No
CA2B50-200Z		Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
CA2B50-250Z		Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
CA2B50-300Z		Mounting: Basic \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
CA2B50-350Z		Mounting: Basic \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No
CA2B50-400Z		Mounting: Basic \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
CA2B50-450Z		Mounting: Basic \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No
CA2B50-500Z		Mounting: Basic \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
CA2B50-600Z		Mounting: Basic \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No
CA2B63-25Z		Mounting: Basic \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
CA2B63-50Z		Mounting: Basic \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
CA2B63-75Z		Mounting: Basic \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
CA2B63-100Z		Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
CA2B63-125Z		Mounting: Basic \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No
CA2B63-150Z		Mounting: Basic \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
CA2B63-175Z		Mounting: Basic \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No
CA2B63-200Z		Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
CA2B63-250Z		Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
CA2B63-300Z		Mounting: Basic \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
CA2B63-350Z		Mounting: Basic \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No
CA2B63-400Z		Mounting: Basic \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
CA2B63-450Z		Mounting: Basic \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No
CA2B63-500Z		Mounting: Basic \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
CA2B63-600Z		Mounting: Basic \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No
CA2B80-25Z		Mounting: Basic \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
CA2B80-50Z		Mounting: Basic \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
CA2B80-75Z		Mounting: Basic \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
CA2B80-100Z		Mounting: Basic \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
CA2B80-125Z		Mounting: Basic \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No
CA2B80-150Z		Mounting: Basic \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
CA2B80-175Z		Mounting: Basic \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No
CA2B80-200Z		Mounting: Basic \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
CA2B80-250Z		Mounting: Basic \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
CA2B80-300Z		Mounting: Basic \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
CA2B80-350Z		Mounting: Basic \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No
CA2B80-400Z		Mounting: Basic \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
CA2B80-450Z		Mounting: Basic \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No
CA2B80-500Z		Mounting: Basic \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
CA2B80-600Z		Mounting: Basic \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No
CA2B80-700Z		Mounting: Basic \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No
CA2B100-25Z		Mounting: Basic \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
CA2B100-50Z		Mounting: Basic \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
CA2B100-75Z		Mounting: Basic \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
CA2B100-100Z		Mounting: Basic \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
CA2B100-125Z		Mounting: Basic \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No
CA2B100-150Z		Mounting: Basic \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
CA2B100-175Z		Mounting: Basic \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No
CA2B100-200Z		Mounting: Basic \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
CA2B100-250Z		Mounting: Basic \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
CA2B100-300Z		Mounting: Basic \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
CA2B100-350Z		Mounting: Basic \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No
CA2B100-400Z		Mounting: Basic \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
CA2B100-450Z		Mounting: Basic \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No
CA2B100-500Z		Mounting: Basic \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
CA2B100-600Z		Mounting: Basic \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No
CA2B100-700Z		Mounting: Basic \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No
CA2L40-25Z		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
CA2L40-50Z		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
CA2L40-75Z		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
CA2L40-100Z		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
CA2L40-125Z		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No
CA2L40-150Z		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
CA2L40-175Z		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No
CA2L40-200Z		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
CA2L40-250Z		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
CA2L40-300Z		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
CA2L40-350Z		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No
CA2L40-400Z		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
CA2L40-450Z		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No
CA2L40-500Z		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
CA2L50-25Z		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
CA2L50-50Z		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
CA2L50-75Z		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
CA2L50-100Z		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
CA2L50-125Z		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No
CA2L50-150Z		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
CA2L50-175Z		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No
CA2L50-200Z		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
CA2L50-250Z		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
CA2L50-300Z		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
CA2L50-350Z		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No
CA2L50-400Z		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
CA2L50-450Z		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No
CA2L50-500Z		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
CA2L50-600Z		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No
CA2L63-25Z		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
CA2L63-50Z		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
CA2L63-75Z		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
CA2L63-100Z		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
CA2L63-125Z		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No
CA2L63-150Z		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
CA2L63-175Z		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No
CA2L63-200Z		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
CA2L63-250Z		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
CA2L63-300Z		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
CA2L63-350Z		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No
CA2L63-400Z		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
CA2L63-450Z		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No
CA2L63-500Z		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
CA2L63-600Z		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No
CA2L80-25Z		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
CA2L80-50Z		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
CA2L80-75Z		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
CA2L80-100Z		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
CA2L80-125Z		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No
CA2L80-150Z		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
CA2L80-175Z		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No
CA2L80-200Z		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
CA2L80-250Z		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
CA2L80-300Z		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
CA2L80-350Z		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No
CA2L80-400Z		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
CA2L80-450Z		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No
CA2L80-500Z		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
CA2L80-600Z		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No
CA2L80-700Z		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No
CA2L100-25Z		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
CA2L100-50Z		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
CA2L100-75Z		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
CA2L100-100Z		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
CA2L100-125Z		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No
CA2L100-150Z		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
CA2L100-175Z		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No
CA2L100-200Z		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
CA2L100-250Z		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
CA2L100-300Z		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
CA2L100-350Z		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No
CA2L100-400Z		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
CA2L100-450Z		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No
CA2L100-500Z		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
CA2L100-600Z		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No
CA2L100-700Z		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No
CA2F40-25Z		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
CA2F40-50Z		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
CA2F40-75Z		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
CA2F40-100Z		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
CA2F40-125Z		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No
CA2F40-150Z		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
CA2F40-175Z		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No
CA2F40-200Z		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
CA2F40-250Z		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
CA2F40-300Z		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
CA2F40-350Z		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No
CA2F40-400Z		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
CA2F40-450Z		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No
CA2F40-500Z		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
CA2F50-25Z		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
CA2F50-50Z		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
CA2F50-75Z		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
CA2F50-100Z		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
CA2F50-125Z		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No
CA2F50-150Z		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
CA2F50-175Z		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No
CA2F50-200Z		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
CA2F50-250Z		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
CA2F50-300Z		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
CA2F50-350Z		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No
CA2F50-400Z		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
CA2F50-450Z		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No
CA2F50-500Z		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
CA2F50-600Z		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No
CA2F63-25Z		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
CA2F63-50Z		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
CA2F63-75Z		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
CA2F63-100Z		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
CA2F63-125Z		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No
CA2F63-150Z		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
CA2F63-175Z		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No
CA2F63-200Z		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
CA2F63-250Z		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
CA2F63-300Z		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
CA2F63-350Z		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No
CA2F63-400Z		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
CA2F63-450Z		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No
CA2F63-500Z		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
CA2F63-600Z		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No
CA2F80-25Z		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
CA2F80-50Z		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
CA2F80-75Z		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
CA2F80-100Z		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
CA2F80-125Z		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No
CA2F80-150Z		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
CA2F80-175Z		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No
CA2F80-200Z		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
CA2F80-250Z		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
CA2F80-300Z		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
CA2F80-350Z		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No
CA2F80-400Z		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
CA2F80-450Z		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No
CA2F80-500Z		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
CA2F80-600Z		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No
CA2F80-700Z		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No
CA2F100-25Z		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
CA2F100-50Z		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
CA2F100-75Z		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
CA2F100-100Z		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
CA2F100-125Z		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No
CA2F100-150Z		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
CA2F100-175Z		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No
CA2F100-200Z		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
CA2F100-250Z		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
CA2F100-300Z		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
CA2F100-350Z		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No
CA2F100-400Z		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
CA2F100-450Z		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No
CA2F100-500Z		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
CA2F100-600Z		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No
CA2F100-700Z		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No
CA2G40-25Z		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
CA2G40-50Z		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
CA2G40-75Z		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
CA2G40-100Z		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
CA2G40-125Z		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No
CA2G40-150Z		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
CA2G40-175Z		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No
CA2G40-200Z		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
CA2G40-250Z		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
CA2G40-300Z		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
CA2G40-350Z		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No
CA2G40-400Z		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
CA2G40-450Z		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No
CA2G40-500Z		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
CA2G50-25Z		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
CA2G50-50Z		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
CA2G50-75Z		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
CA2G50-100Z		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
CA2G50-125Z		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No
CA2G50-150Z		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
CA2G50-175Z		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No
CA2G50-200Z		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
CA2G50-250Z		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
CA2G50-300Z		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
CA2G50-350Z		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No
CA2G50-400Z		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
CA2G50-450Z		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No
CA2G50-500Z		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
CA2G50-600Z		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No
CA2G63-25Z		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
CA2G63-50Z		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
CA2G63-75Z		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
CA2G63-100Z		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
CA2G63-125Z		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No
CA2G63-150Z		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
CA2G63-175Z		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No
CA2G63-200Z		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
CA2G63-250Z		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
CA2G63-300Z		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
CA2G63-350Z		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No
CA2G63-400Z		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
CA2G63-450Z		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No
CA2G63-500Z		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
CA2G63-600Z		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No
CA2G80-25Z		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
CA2G80-50Z		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
CA2G80-75Z		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
CA2G80-100Z		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
CA2G80-125Z		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No
CA2G80-150Z		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
CA2G80-175Z		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No
CA2G80-200Z		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
CA2G80-250Z		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
CA2G80-300Z		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
CA2G80-350Z		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No
CA2G80-400Z		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
CA2G80-450Z		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No
CA2G80-500Z		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
CA2G80-600Z		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No
CA2G80-700Z		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No
CA2G100-25Z		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
CA2G100-50Z		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
CA2G100-75Z		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
CA2G100-100Z		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
CA2G100-125Z		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No
CA2G100-150Z		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
CA2G100-175Z		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No
CA2G100-200Z		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
CA2G100-250Z		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
CA2G100-300Z		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
CA2G100-350Z		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No
CA2G100-400Z		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
CA2G100-450Z		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No
CA2G100-500Z		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
CA2G100-600Z		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No
CA2G100-700Z		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No
CA2C40-25Z		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
CA2C40-50Z		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
CA2C40-75Z		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
CA2C40-100Z		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
CA2C40-125Z		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No
CA2C40-150Z		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
CA2C40-175Z		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No
CA2C40-200Z		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
CA2C40-250Z		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
CA2C40-300Z		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
CA2C40-350Z		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No
CA2C40-400Z		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
CA2C40-450Z		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No
CA2C40-500Z		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
CA2C50-25Z		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
CA2C50-50Z		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
CA2C50-75Z		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
CA2C50-100Z		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
CA2C50-125Z		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No
CA2C50-150Z		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
CA2C50-175Z		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No
CA2C50-200Z		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
CA2C50-250Z		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
CA2C50-300Z		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
CA2C50-350Z		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No
CA2C50-400Z		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
CA2C50-450Z		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No
CA2C50-500Z		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
CA2C50-600Z		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No
CA2C63-25Z		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
CA2C63-50Z		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
CA2C63-75Z		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
CA2C63-100Z		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
CA2C63-125Z		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No
CA2C63-150Z		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
CA2C63-175Z		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No
CA2C63-200Z		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
CA2C63-250Z		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
CA2C63-300Z		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
CA2C63-350Z		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No
CA2C63-400Z		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
CA2C63-450Z		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No
CA2C63-500Z		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
CA2C63-600Z		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No
CA2C80-25Z		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
CA2C80-50Z		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
CA2C80-75Z		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
CA2C80-100Z		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
CA2C80-125Z		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No
CA2C80-150Z		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
CA2C80-175Z		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No
CA2C80-200Z		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
CA2C80-250Z		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
CA2C80-300Z		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
CA2C80-350Z		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No
CA2C80-400Z		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
CA2C80-450Z		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No
CA2C80-500Z		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
CA2C80-600Z		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No
CA2C80-700Z		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No
CA2C100-25Z		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
CA2C100-50Z		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
CA2C100-75Z		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
CA2C100-100Z		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
CA2C100-125Z		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No
CA2C100-150Z		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
CA2C100-175Z		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No
CA2C100-200Z		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
CA2C100-250Z		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
CA2C100-300Z		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
CA2C100-350Z		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No
CA2C100-400Z		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
CA2C100-450Z		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No
CA2C100-500Z		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
CA2C100-600Z		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No
CA2C100-700Z		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No
CA2D40-25Z		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
CA2D40-50Z		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
CA2D40-75Z		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
CA2D40-100Z		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
CA2D40-125Z		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No
CA2D40-150Z		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
CA2D40-175Z		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No
CA2D40-200Z		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
CA2D40-250Z		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
CA2D40-300Z		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
CA2D40-350Z		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No
CA2D40-400Z		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
CA2D40-450Z		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No
CA2D40-500Z		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
CA2D50-25Z		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
CA2D50-50Z		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
CA2D50-75Z		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
CA2D50-100Z		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
CA2D50-125Z		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No
CA2D50-150Z		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
CA2D50-175Z		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No
CA2D50-200Z		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
CA2D50-250Z		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
CA2D50-300Z		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
CA2D50-350Z		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No
CA2D50-400Z		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
CA2D50-450Z		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No
CA2D50-500Z		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
CA2D50-600Z		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No
CA2D63-25Z		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
CA2D63-50Z		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
CA2D63-75Z		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
CA2D63-100Z		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
CA2D63-125Z		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No
CA2D63-150Z		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
CA2D63-175Z		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No
CA2D63-200Z		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
CA2D63-250Z		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
CA2D63-300Z		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
CA2D63-350Z		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No
CA2D63-400Z		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
CA2D63-450Z		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No
CA2D63-500Z		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
CA2D63-600Z		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No
CA2D80-25Z		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
CA2D80-50Z		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
CA2D80-75Z		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
CA2D80-100Z		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
CA2D80-125Z		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No
CA2D80-150Z		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
CA2D80-175Z		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No
CA2D80-200Z		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
CA2D80-250Z		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
CA2D80-300Z		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
CA2D80-350Z		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No
CA2D80-400Z		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
CA2D80-450Z		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No
CA2D80-500Z		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
CA2D80-600Z		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No
CA2D80-700Z		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No
CA2D100-25Z		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
CA2D100-50Z		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
CA2D100-75Z		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
CA2D100-100Z		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
CA2D100-125Z		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No
CA2D100-150Z		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
CA2D100-175Z		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No
CA2D100-200Z		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
CA2D100-250Z		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
CA2D100-300Z		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
CA2D100-350Z		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No
CA2D100-400Z		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
CA2D100-450Z		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No
CA2D100-500Z		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
CA2D100-600Z		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No
CA2D100-700Z		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No
CA2T40-25Z		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
CA2T40-50Z		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
CA2T40-75Z		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
CA2T40-100Z		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
CA2T40-125Z		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No
CA2T40-150Z		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
CA2T40-175Z		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No
CA2T40-200Z		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
CA2T40-250Z		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
CA2T40-300Z		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
CA2T40-350Z		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No
CA2T40-400Z		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
CA2T40-450Z		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No
CA2T40-500Z		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
CA2T50-25Z		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
CA2T50-50Z		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
CA2T50-75Z		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
CA2T50-100Z		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
CA2T50-125Z		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No
CA2T50-150Z		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
CA2T50-175Z		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No
CA2T50-200Z		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
CA2T50-250Z		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
CA2T50-300Z		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
CA2T50-350Z		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No
CA2T50-400Z		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
CA2T50-450Z		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No
CA2T50-500Z		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
CA2T50-600Z		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No
CA2T63-25Z		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
CA2T63-50Z		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
CA2T63-75Z		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
CA2T63-100Z		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
CA2T63-125Z		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No
CA2T63-150Z		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
CA2T63-175Z		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No
CA2T63-200Z		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
CA2T63-250Z		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
CA2T63-300Z		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
CA2T63-350Z		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No
CA2T63-400Z		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
CA2T63-450Z		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No
CA2T63-500Z		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
CA2T63-600Z		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No
CA2T80-25Z		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
CA2T80-50Z		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
CA2T80-75Z		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
CA2T80-100Z		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
CA2T80-125Z		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No
CA2T80-150Z		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
CA2T80-175Z		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No
CA2T80-200Z		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
CA2T80-250Z		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
CA2T80-300Z		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
CA2T80-350Z		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No
CA2T80-400Z		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
CA2T80-450Z		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No
CA2T80-500Z		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
CA2T80-600Z		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No
CA2T80-700Z		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No
CA2T100-25Z		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
CA2T100-50Z		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
CA2T100-75Z		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
CA2T100-100Z		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
CA2T100-125Z		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No
CA2T100-150Z		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
CA2T100-175Z		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No
CA2T100-200Z		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
CA2T100-250Z		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
CA2T100-300Z		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
CA2T100-350Z		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No
CA2T100-400Z		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
CA2T100-450Z		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No
CA2T100-500Z		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
CA2T100-600Z		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No
CA2T100-700Z		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No
CDA2B40-25Z		Mounting: Basic \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDA2B40-50Z		Mounting: Basic \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDA2B40-75Z		Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CDA2B40-100Z		Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CDA2B40-125Z		Mounting: Basic \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CDA2B40-150Z		Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CDA2B40-175Z		Mounting: Basic \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
CDA2B40-200Z		Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CDA2B40-250Z		Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CDA2B40-300Z		Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CDA2B40-350Z		Mounting: Basic \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
CDA2B40-400Z		Mounting: Basic \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CDA2B40-450Z		Mounting: Basic \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
CDA2B40-500Z		Mounting: Basic \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CDA2B50-25Z		Mounting: Basic \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDA2B50-50Z		Mounting: Basic \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDA2B50-75Z		Mounting: Basic \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CDA2B50-100Z		Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CDA2B50-125Z		Mounting: Basic \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CDA2B50-150Z		Mounting: Basic \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CDA2B50-175Z		Mounting: Basic \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
CDA2B50-200Z		Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CDA2B50-250Z		Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CDA2B50-300Z		Mounting: Basic \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CDA2B50-350Z		Mounting: Basic \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
CDA2B50-400Z		Mounting: Basic \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CDA2B50-450Z		Mounting: Basic \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
CDA2B50-500Z		Mounting: Basic \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CDA2B50-600Z		Mounting: Basic \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
CDA2B63-25Z		Mounting: Basic \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDA2B63-50Z		Mounting: Basic \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDA2B63-75Z		Mounting: Basic \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CDA2B63-100Z		Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CDA2B63-125Z		Mounting: Basic \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CDA2B63-150Z		Mounting: Basic \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CDA2B63-175Z		Mounting: Basic \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
CDA2B63-200Z		Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CDA2B63-250Z		Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CDA2B63-300Z		Mounting: Basic \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CDA2B63-350Z		Mounting: Basic \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
CDA2B63-400Z		Mounting: Basic \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CDA2B63-450Z		Mounting: Basic \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
CDA2B63-500Z		Mounting: Basic \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CDA2B63-600Z		Mounting: Basic \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
CDA2B80-25Z		Mounting: Basic \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDA2B80-50Z		Mounting: Basic \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDA2B80-75Z		Mounting: Basic \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CDA2B80-100Z		Mounting: Basic \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CDA2B80-125Z		Mounting: Basic \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CDA2B80-150Z		Mounting: Basic \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CDA2B80-175Z		Mounting: Basic \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
CDA2B80-200Z		Mounting: Basic \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CDA2B80-250Z		Mounting: Basic \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CDA2B80-300Z		Mounting: Basic \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CDA2B80-350Z		Mounting: Basic \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
CDA2B80-400Z		Mounting: Basic \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CDA2B80-450Z		Mounting: Basic \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
CDA2B80-500Z		Mounting: Basic \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CDA2B80-600Z		Mounting: Basic \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
CDA2B80-700Z		Mounting: Basic \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
CDA2B100-25Z		Mounting: Basic \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDA2B100-50Z		Mounting: Basic \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDA2B100-75Z		Mounting: Basic \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CDA2B100-100Z		Mounting: Basic \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CDA2B100-125Z		Mounting: Basic \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CDA2B100-150Z		Mounting: Basic \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CDA2B100-175Z		Mounting: Basic \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
CDA2B100-200Z		Mounting: Basic \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CDA2B100-250Z		Mounting: Basic \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CDA2B100-300Z		Mounting: Basic \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CDA2B100-350Z		Mounting: Basic \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
CDA2B100-400Z		Mounting: Basic \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CDA2B100-450Z		Mounting: Basic \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
CDA2B100-500Z		Mounting: Basic \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CDA2B100-600Z		Mounting: Basic \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
CDA2B100-700Z		Mounting: Basic \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
CDA2L40-25Z		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDA2L40-50Z		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDA2L40-75Z		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CDA2L40-100Z		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CDA2L40-125Z		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CDA2L40-150Z		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CDA2L40-175Z		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
CDA2L40-200Z		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CDA2L40-250Z		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CDA2L40-300Z		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CDA2L40-350Z		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
CDA2L40-400Z		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CDA2L40-450Z		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
CDA2L40-500Z		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CDA2L50-25Z		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDA2L50-50Z		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDA2L50-75Z		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CDA2L50-100Z		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CDA2L50-125Z		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CDA2L50-150Z		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CDA2L50-175Z		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
CDA2L50-200Z		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CDA2L50-250Z		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CDA2L50-300Z		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CDA2L50-350Z		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
CDA2L50-400Z		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CDA2L50-450Z		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
CDA2L50-500Z		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CDA2L50-600Z		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
CDA2L63-25Z		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDA2L63-50Z		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDA2L63-75Z		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CDA2L63-100Z		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CDA2L63-125Z		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CDA2L63-150Z		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CDA2L63-175Z		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
CDA2L63-200Z		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CDA2L63-250Z		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CDA2L63-300Z		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CDA2L63-350Z		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
CDA2L63-400Z		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CDA2L63-450Z		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
CDA2L63-500Z		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CDA2L63-600Z		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
CDA2L80-25Z		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDA2L80-50Z		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDA2L80-75Z		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CDA2L80-100Z		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CDA2L80-125Z		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CDA2L80-150Z		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CDA2L80-175Z		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
CDA2L80-200Z		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CDA2L80-250Z		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CDA2L80-300Z		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CDA2L80-350Z		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
CDA2L80-400Z		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CDA2L80-450Z		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
CDA2L80-500Z		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CDA2L80-600Z		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
CDA2L80-700Z		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
CDA2L100-25Z		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDA2L100-50Z		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDA2L100-75Z		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CDA2L100-100Z		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CDA2L100-125Z		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CDA2L100-150Z		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CDA2L100-175Z		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
CDA2L100-200Z		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CDA2L100-250Z		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CDA2L100-300Z		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CDA2L100-350Z		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
CDA2L100-400Z		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CDA2L100-450Z		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
CDA2L100-500Z		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CDA2L100-600Z		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
CDA2L100-700Z		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
CDA2F40-25Z		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDA2F40-50Z		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDA2F40-75Z		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CDA2F40-100Z		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CDA2F40-125Z		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CDA2F40-150Z		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CDA2F40-175Z		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
CDA2F40-200Z		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CDA2F40-250Z		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CDA2F40-300Z		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CDA2F40-350Z		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
CDA2F40-400Z		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CDA2F40-450Z		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
CDA2F40-500Z		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CDA2F50-25Z		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDA2F50-50Z		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDA2F50-75Z		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CDA2F50-100Z		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CDA2F50-125Z		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CDA2F50-150Z		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CDA2F50-175Z		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
CDA2F50-200Z		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CDA2F50-250Z		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CDA2F50-300Z		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CDA2F50-350Z		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
CDA2F50-400Z		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CDA2F50-450Z		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
CDA2F50-500Z		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CDA2F50-600Z		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
CDA2F63-25Z		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDA2F63-50Z		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDA2F63-75Z		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CDA2F63-100Z		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CDA2F63-125Z		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CDA2F63-150Z		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CDA2F63-175Z		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
CDA2F63-200Z		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CDA2F63-250Z		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CDA2F63-300Z		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CDA2F63-350Z		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
CDA2F63-400Z		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CDA2F63-450Z		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
CDA2F63-500Z		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CDA2F63-600Z		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
CDA2F80-25Z		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDA2F80-50Z		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDA2F80-75Z		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CDA2F80-100Z		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CDA2F80-125Z		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CDA2F80-150Z		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CDA2F80-175Z		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
CDA2F80-200Z		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CDA2F80-250Z		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CDA2F80-300Z		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CDA2F80-350Z		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
CDA2F80-400Z		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CDA2F80-450Z		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
CDA2F80-500Z		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CDA2F80-600Z		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
CDA2F80-700Z		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
CDA2F100-25Z		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDA2F100-50Z		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDA2F100-75Z		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CDA2F100-100Z		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CDA2F100-125Z		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CDA2F100-150Z		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CDA2F100-175Z		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
CDA2F100-200Z		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CDA2F100-250Z		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CDA2F100-300Z		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CDA2F100-350Z		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
CDA2F100-400Z		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CDA2F100-450Z		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
CDA2F100-500Z		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CDA2F100-600Z		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
CDA2F100-700Z		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
CDA2G40-25Z		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDA2G40-50Z		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDA2G40-75Z		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CDA2G40-100Z		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CDA2G40-125Z		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CDA2G40-150Z		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CDA2G40-175Z		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
CDA2G40-200Z		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CDA2G40-250Z		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CDA2G40-300Z		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CDA2G40-350Z		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
CDA2G40-400Z		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CDA2G40-450Z		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
CDA2G40-500Z		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CDA2G50-25Z		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDA2G50-50Z		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDA2G50-75Z		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CDA2G50-100Z		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CDA2G50-125Z		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CDA2G50-150Z		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CDA2G50-175Z		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
CDA2G50-200Z		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CDA2G50-250Z		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CDA2G50-300Z		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CDA2G50-350Z		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
CDA2G50-400Z		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CDA2G50-450Z		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
CDA2G50-500Z		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CDA2G50-600Z		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
CDA2G63-25Z		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDA2G63-50Z		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDA2G63-75Z		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CDA2G63-100Z		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CDA2G63-125Z		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CDA2G63-150Z		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CDA2G63-175Z		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
CDA2G63-200Z		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CDA2G63-250Z		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CDA2G63-300Z		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CDA2G63-350Z		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
CDA2G63-400Z		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CDA2G63-450Z		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
CDA2G63-500Z		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CDA2G63-600Z		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
CDA2G80-25Z		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDA2G80-50Z		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDA2G80-75Z		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CDA2G80-100Z		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CDA2G80-125Z		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CDA2G80-150Z		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CDA2G80-175Z		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
CDA2G80-200Z		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CDA2G80-250Z		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CDA2G80-300Z		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CDA2G80-350Z		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
CDA2G80-400Z		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CDA2G80-450Z		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
CDA2G80-500Z		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CDA2G80-600Z		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
CDA2G80-700Z		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
CDA2G100-25Z		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDA2G100-50Z		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDA2G100-75Z		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CDA2G100-100Z		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CDA2G100-125Z		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CDA2G100-150Z		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CDA2G100-175Z		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
CDA2G100-200Z		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CDA2G100-250Z		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CDA2G100-300Z		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CDA2G100-350Z		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
CDA2G100-400Z		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CDA2G100-450Z		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
CDA2G100-500Z		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CDA2G100-600Z		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
CDA2G100-700Z		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
CDA2C40-25Z		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDA2C40-50Z		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDA2C40-75Z		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CDA2C40-100Z		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CDA2C40-125Z		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CDA2C40-150Z		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CDA2C40-175Z		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
CDA2C40-200Z		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CDA2C40-250Z		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CDA2C40-300Z		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CDA2C40-350Z		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
CDA2C40-400Z		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CDA2C40-450Z		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
CDA2C40-500Z		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CDA2C50-25Z		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDA2C50-50Z		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDA2C50-75Z		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CDA2C50-100Z		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CDA2C50-125Z		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CDA2C50-150Z		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CDA2C50-175Z		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
CDA2C50-200Z		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CDA2C50-250Z		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CDA2C50-300Z		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CDA2C50-350Z		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
CDA2C50-400Z		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CDA2C50-450Z		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
CDA2C50-500Z		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CDA2C50-600Z		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
CDA2C63-25Z		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDA2C63-50Z		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDA2C63-75Z		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CDA2C63-100Z		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CDA2C63-125Z		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CDA2C63-150Z		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CDA2C63-175Z		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
CDA2C63-200Z		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CDA2C63-250Z		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CDA2C63-300Z		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CDA2C63-350Z		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
CDA2C63-400Z		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CDA2C63-450Z		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
CDA2C63-500Z		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CDA2C63-600Z		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
CDA2C80-25Z		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDA2C80-50Z		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDA2C80-75Z		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CDA2C80-100Z		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CDA2C80-125Z		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CDA2C80-150Z		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CDA2C80-175Z		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
CDA2C80-200Z		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CDA2C80-250Z		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CDA2C80-300Z		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CDA2C80-350Z		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
CDA2C80-400Z		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CDA2C80-450Z		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
CDA2C80-500Z		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CDA2C80-600Z		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
CDA2C80-700Z		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
CDA2C100-25Z		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDA2C100-50Z		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDA2C100-75Z		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CDA2C100-100Z		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CDA2C100-125Z		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CDA2C100-150Z		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CDA2C100-175Z		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
CDA2C100-200Z		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CDA2C100-250Z		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CDA2C100-300Z		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CDA2C100-350Z		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
CDA2C100-400Z		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CDA2C100-450Z		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
CDA2C100-500Z		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CDA2C100-600Z		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
CDA2C100-700Z		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
CDA2D40-25Z		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDA2D40-50Z		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDA2D40-75Z		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CDA2D40-100Z		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CDA2D40-125Z		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CDA2D40-150Z		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CDA2D40-175Z		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
CDA2D40-200Z		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CDA2D40-250Z		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CDA2D40-300Z		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CDA2D40-350Z		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
CDA2D40-400Z		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CDA2D40-450Z		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
CDA2D40-500Z		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CDA2D50-25Z		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDA2D50-50Z		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDA2D50-75Z		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CDA2D50-100Z		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CDA2D50-125Z		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CDA2D50-150Z		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CDA2D50-175Z		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
CDA2D50-200Z		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CDA2D50-250Z		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CDA2D50-300Z		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CDA2D50-350Z		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
CDA2D50-400Z		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CDA2D50-450Z		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
CDA2D50-500Z		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CDA2D50-600Z		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
CDA2D63-25Z		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDA2D63-50Z		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDA2D63-75Z		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CDA2D63-100Z		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CDA2D63-125Z		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CDA2D63-150Z		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CDA2D63-175Z		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
CDA2D63-200Z		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CDA2D63-250Z		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CDA2D63-300Z		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CDA2D63-350Z		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
CDA2D63-400Z		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CDA2D63-450Z		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
CDA2D63-500Z		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CDA2D63-600Z		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
CDA2D80-25Z		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDA2D80-50Z		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDA2D80-75Z		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CDA2D80-100Z		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CDA2D80-125Z		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CDA2D80-150Z		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CDA2D80-175Z		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
CDA2D80-200Z		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CDA2D80-250Z		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CDA2D80-300Z		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CDA2D80-350Z		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
CDA2D80-400Z		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CDA2D80-450Z		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
CDA2D80-500Z		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CDA2D80-600Z		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
CDA2D80-700Z		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
CDA2D100-25Z		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDA2D100-50Z		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDA2D100-75Z		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CDA2D100-100Z		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CDA2D100-125Z		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CDA2D100-150Z		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CDA2D100-175Z		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
CDA2D100-200Z		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CDA2D100-250Z		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CDA2D100-300Z		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CDA2D100-350Z		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
CDA2D100-400Z		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CDA2D100-450Z		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
CDA2D100-500Z		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CDA2D100-600Z		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
CDA2D100-700Z		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
CDA2T40-25Z		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDA2T40-50Z		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDA2T40-75Z		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CDA2T40-100Z		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CDA2T40-125Z		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CDA2T40-150Z		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CDA2T40-175Z		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
CDA2T40-200Z		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CDA2T40-250Z		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CDA2T40-300Z		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CDA2T40-350Z		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
CDA2T40-400Z		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CDA2T40-450Z		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
CDA2T40-500Z		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CDA2T50-25Z		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDA2T50-50Z		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDA2T50-75Z		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CDA2T50-100Z		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CDA2T50-125Z		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CDA2T50-150Z		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CDA2T50-175Z		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
CDA2T50-200Z		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CDA2T50-250Z		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CDA2T50-300Z		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CDA2T50-350Z		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
CDA2T50-400Z		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CDA2T50-450Z		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
CDA2T50-500Z		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CDA2T50-600Z		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
CDA2T63-25Z		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDA2T63-50Z		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDA2T63-75Z		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CDA2T63-100Z		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CDA2T63-125Z		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CDA2T63-150Z		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CDA2T63-175Z		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
CDA2T63-200Z		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CDA2T63-250Z		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CDA2T63-300Z		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CDA2T63-350Z		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
CDA2T63-400Z		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CDA2T63-450Z		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
CDA2T63-500Z		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CDA2T63-600Z		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
CDA2T80-25Z		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDA2T80-50Z		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDA2T80-75Z		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CDA2T80-100Z		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CDA2T80-125Z		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CDA2T80-150Z		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CDA2T80-175Z		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
CDA2T80-200Z		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CDA2T80-250Z		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CDA2T80-300Z		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CDA2T80-350Z		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
CDA2T80-400Z		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CDA2T80-450Z		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
CDA2T80-500Z		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CDA2T80-600Z		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
CDA2T80-700Z		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
CDA2T100-25Z		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDA2T100-50Z		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDA2T100-75Z		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CDA2T100-100Z		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CDA2T100-125Z		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CDA2T100-150Z		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CDA2T100-175Z		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
CDA2T100-200Z		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CDA2T100-250Z		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CDA2T100-300Z		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CDA2T100-350Z		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
CDA2T100-400Z		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CDA2T100-450Z		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
CDA2T100-500Z		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CDA2T100-600Z		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
CDA2T100-700Z		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: Yes

Round Body CylindersSMC

1064 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC CA2 Air Cylinder (Standard, Double Acting, ø40 to ø100)

Brand SMC·Round Body Cylinders

Available part numbers (1064)

CA2B40-25Z, CA2B40-50Z, CA2B40-75Z, CA2B40-100Z, CA2B40-125Z, CA2B40-150Z, CA2B40-175Z, CA2B40-200Z, CA2B40-250Z, CA2B40-300Z + 1054 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	CA2B40-25Z	Mounting: Basic \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CA2B40-50Z	Mounting: Basic \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CA2B40-75Z	Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CA2B40-100Z	Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CA2B40-125Z	Mounting: Basic \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CA2B40-150Z	Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CA2B40-175Z	Mounting: Basic \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No
	CA2B40-200Z	Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CA2B40-250Z	Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CA2B40-300Z	Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CA2B40-350Z	Mounting: Basic \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No
	CA2B40-400Z	Mounting: Basic \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CA2B40-450Z	Mounting: Basic \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No
	CA2B40-500Z	Mounting: Basic \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CA2B50-25Z	Mounting: Basic \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CA2B50-50Z	Mounting: Basic \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CA2B50-75Z	Mounting: Basic \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CA2B50-100Z	Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CA2B50-125Z	Mounting: Basic \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CA2B50-150Z	Mounting: Basic \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CA2B50-175Z	Mounting: Basic \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No
	CA2B50-200Z	Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CA2B50-250Z	Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CA2B50-300Z	Mounting: Basic \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CA2B50-350Z	Mounting: Basic \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No
	CA2B50-400Z	Mounting: Basic \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CA2B50-450Z	Mounting: Basic \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No
	CA2B50-500Z	Mounting: Basic \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CA2B50-600Z	Mounting: Basic \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No
	CA2B63-25Z	Mounting: Basic \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CA2B63-50Z	Mounting: Basic \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CA2B63-75Z	Mounting: Basic \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CA2B63-100Z	Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CA2B63-125Z	Mounting: Basic \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CA2B63-150Z	Mounting: Basic \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CA2B63-175Z	Mounting: Basic \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No
	CA2B63-200Z	Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CA2B63-250Z	Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CA2B63-300Z	Mounting: Basic \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CA2B63-350Z	Mounting: Basic \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No
	CA2B63-400Z	Mounting: Basic \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CA2B63-450Z	Mounting: Basic \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No
	CA2B63-500Z	Mounting: Basic \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CA2B63-600Z	Mounting: Basic \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No
	CA2B80-25Z	Mounting: Basic \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CA2B80-50Z	Mounting: Basic \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CA2B80-75Z	Mounting: Basic \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CA2B80-100Z	Mounting: Basic \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CA2B80-125Z	Mounting: Basic \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CA2B80-150Z	Mounting: Basic \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CA2B80-175Z	Mounting: Basic \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No
	CA2B80-200Z	Mounting: Basic \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CA2B80-250Z	Mounting: Basic \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CA2B80-300Z	Mounting: Basic \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CA2B80-350Z	Mounting: Basic \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No
	CA2B80-400Z	Mounting: Basic \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CA2B80-450Z	Mounting: Basic \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No
	CA2B80-500Z	Mounting: Basic \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CA2B80-600Z	Mounting: Basic \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No
	CA2B80-700Z	Mounting: Basic \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No
	CA2B100-25Z	Mounting: Basic \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CA2B100-50Z	Mounting: Basic \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CA2B100-75Z	Mounting: Basic \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CA2B100-100Z	Mounting: Basic \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CA2B100-125Z	Mounting: Basic \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CA2B100-150Z	Mounting: Basic \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CA2B100-175Z	Mounting: Basic \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No
	CA2B100-200Z	Mounting: Basic \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CA2B100-250Z	Mounting: Basic \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CA2B100-300Z	Mounting: Basic \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CA2B100-350Z	Mounting: Basic \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No
	CA2B100-400Z	Mounting: Basic \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CA2B100-450Z	Mounting: Basic \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No
	CA2B100-500Z	Mounting: Basic \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CA2B100-600Z	Mounting: Basic \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No
	CA2B100-700Z	Mounting: Basic \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No
	CA2L40-25Z	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CA2L40-50Z	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CA2L40-75Z	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CA2L40-100Z	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CA2L40-125Z	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CA2L40-150Z	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CA2L40-175Z	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No
	CA2L40-200Z	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CA2L40-250Z	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CA2L40-300Z	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CA2L40-350Z	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No
	CA2L40-400Z	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CA2L40-450Z	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No
	CA2L40-500Z	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CA2L50-25Z	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CA2L50-50Z	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CA2L50-75Z	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CA2L50-100Z	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CA2L50-125Z	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CA2L50-150Z	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CA2L50-175Z	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No
	CA2L50-200Z	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CA2L50-250Z	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CA2L50-300Z	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CA2L50-350Z	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No
	CA2L50-400Z	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CA2L50-450Z	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No
	CA2L50-500Z	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CA2L50-600Z	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No
	CA2L63-25Z	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CA2L63-50Z	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CA2L63-75Z	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CA2L63-100Z	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CA2L63-125Z	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CA2L63-150Z	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CA2L63-175Z	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No
	CA2L63-200Z	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CA2L63-250Z	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CA2L63-300Z	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CA2L63-350Z	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No
	CA2L63-400Z	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CA2L63-450Z	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No
	CA2L63-500Z	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CA2L63-600Z	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No
	CA2L80-25Z	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CA2L80-50Z	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CA2L80-75Z	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CA2L80-100Z	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CA2L80-125Z	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CA2L80-150Z	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CA2L80-175Z	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No
	CA2L80-200Z	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CA2L80-250Z	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CA2L80-300Z	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CA2L80-350Z	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No
	CA2L80-400Z	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CA2L80-450Z	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No
	CA2L80-500Z	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CA2L80-600Z	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No
	CA2L80-700Z	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No
	CA2L100-25Z	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CA2L100-50Z	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CA2L100-75Z	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CA2L100-100Z	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CA2L100-125Z	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CA2L100-150Z	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CA2L100-175Z	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No
	CA2L100-200Z	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CA2L100-250Z	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CA2L100-300Z	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CA2L100-350Z	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No
	CA2L100-400Z	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CA2L100-450Z	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No
	CA2L100-500Z	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CA2L100-600Z	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No
	CA2L100-700Z	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No
	CA2F40-25Z	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CA2F40-50Z	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CA2F40-75Z	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CA2F40-100Z	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CA2F40-125Z	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CA2F40-150Z	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CA2F40-175Z	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No
	CA2F40-200Z	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CA2F40-250Z	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CA2F40-300Z	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CA2F40-350Z	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No
	CA2F40-400Z	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CA2F40-450Z	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No
	CA2F40-500Z	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CA2F50-25Z	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CA2F50-50Z	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CA2F50-75Z	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CA2F50-100Z	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CA2F50-125Z	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CA2F50-150Z	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CA2F50-175Z	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No
	CA2F50-200Z	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CA2F50-250Z	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CA2F50-300Z	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CA2F50-350Z	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No
	CA2F50-400Z	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CA2F50-450Z	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No
	CA2F50-500Z	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CA2F50-600Z	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No
	CA2F63-25Z	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CA2F63-50Z	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CA2F63-75Z	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CA2F63-100Z	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CA2F63-125Z	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CA2F63-150Z	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CA2F63-175Z	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No
	CA2F63-200Z	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CA2F63-250Z	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CA2F63-300Z	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CA2F63-350Z	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No
	CA2F63-400Z	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CA2F63-450Z	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No
	CA2F63-500Z	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CA2F63-600Z	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No
	CA2F80-25Z	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CA2F80-50Z	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CA2F80-75Z	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CA2F80-100Z	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CA2F80-125Z	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CA2F80-150Z	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CA2F80-175Z	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No
	CA2F80-200Z	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CA2F80-250Z	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CA2F80-300Z	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CA2F80-350Z	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No
	CA2F80-400Z	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CA2F80-450Z	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No
	CA2F80-500Z	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CA2F80-600Z	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No
	CA2F80-700Z	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No
	CA2F100-25Z	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CA2F100-50Z	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CA2F100-75Z	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CA2F100-100Z	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CA2F100-125Z	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CA2F100-150Z	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CA2F100-175Z	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No
	CA2F100-200Z	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CA2F100-250Z	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CA2F100-300Z	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CA2F100-350Z	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No
	CA2F100-400Z	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CA2F100-450Z	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No
	CA2F100-500Z	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CA2F100-600Z	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No
	CA2F100-700Z	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No
	CA2G40-25Z	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CA2G40-50Z	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CA2G40-75Z	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CA2G40-100Z	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CA2G40-125Z	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CA2G40-150Z	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CA2G40-175Z	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No
	CA2G40-200Z	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CA2G40-250Z	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CA2G40-300Z	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CA2G40-350Z	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No
	CA2G40-400Z	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CA2G40-450Z	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No
	CA2G40-500Z	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CA2G50-25Z	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CA2G50-50Z	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CA2G50-75Z	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CA2G50-100Z	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CA2G50-125Z	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CA2G50-150Z	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CA2G50-175Z	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No
	CA2G50-200Z	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CA2G50-250Z	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CA2G50-300Z	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CA2G50-350Z	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No
	CA2G50-400Z	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CA2G50-450Z	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No
	CA2G50-500Z	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CA2G50-600Z	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No
	CA2G63-25Z	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CA2G63-50Z	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CA2G63-75Z	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CA2G63-100Z	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CA2G63-125Z	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CA2G63-150Z	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CA2G63-175Z	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No
	CA2G63-200Z	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CA2G63-250Z	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CA2G63-300Z	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CA2G63-350Z	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No
	CA2G63-400Z	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CA2G63-450Z	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No
	CA2G63-500Z	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CA2G63-600Z	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No
	CA2G80-25Z	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CA2G80-50Z	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CA2G80-75Z	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CA2G80-100Z	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CA2G80-125Z	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CA2G80-150Z	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CA2G80-175Z	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No
	CA2G80-200Z	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CA2G80-250Z	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CA2G80-300Z	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CA2G80-350Z	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No
	CA2G80-400Z	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CA2G80-450Z	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No
	CA2G80-500Z	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CA2G80-600Z	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No
	CA2G80-700Z	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No
	CA2G100-25Z	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CA2G100-50Z	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CA2G100-75Z	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CA2G100-100Z	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CA2G100-125Z	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CA2G100-150Z	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CA2G100-175Z	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No
	CA2G100-200Z	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CA2G100-250Z	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CA2G100-300Z	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CA2G100-350Z	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No
	CA2G100-400Z	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CA2G100-450Z	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No
	CA2G100-500Z	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CA2G100-600Z	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No
	CA2G100-700Z	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No
	CA2C40-25Z	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CA2C40-50Z	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CA2C40-75Z	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CA2C40-100Z	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CA2C40-125Z	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CA2C40-150Z	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CA2C40-175Z	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No
	CA2C40-200Z	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CA2C40-250Z	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CA2C40-300Z	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CA2C40-350Z	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No
	CA2C40-400Z	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CA2C40-450Z	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No
	CA2C40-500Z	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CA2C50-25Z	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CA2C50-50Z	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CA2C50-75Z	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CA2C50-100Z	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CA2C50-125Z	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CA2C50-150Z	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CA2C50-175Z	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No
	CA2C50-200Z	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CA2C50-250Z	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CA2C50-300Z	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CA2C50-350Z	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No
	CA2C50-400Z	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CA2C50-450Z	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No
	CA2C50-500Z	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CA2C50-600Z	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No
	CA2C63-25Z	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CA2C63-50Z	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CA2C63-75Z	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CA2C63-100Z	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CA2C63-125Z	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CA2C63-150Z	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CA2C63-175Z	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No
	CA2C63-200Z	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CA2C63-250Z	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CA2C63-300Z	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CA2C63-350Z	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No
	CA2C63-400Z	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CA2C63-450Z	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No
	CA2C63-500Z	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CA2C63-600Z	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No
	CA2C80-25Z	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CA2C80-50Z	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CA2C80-75Z	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CA2C80-100Z	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CA2C80-125Z	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CA2C80-150Z	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CA2C80-175Z	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No
	CA2C80-200Z	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CA2C80-250Z	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CA2C80-300Z	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CA2C80-350Z	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No
	CA2C80-400Z	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CA2C80-450Z	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No
	CA2C80-500Z	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CA2C80-600Z	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No
	CA2C80-700Z	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No
	CA2C100-25Z	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CA2C100-50Z	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CA2C100-75Z	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CA2C100-100Z	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CA2C100-125Z	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CA2C100-150Z	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CA2C100-175Z	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No
	CA2C100-200Z	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CA2C100-250Z	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CA2C100-300Z	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CA2C100-350Z	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No
	CA2C100-400Z	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CA2C100-450Z	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No
	CA2C100-500Z	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CA2C100-600Z	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No
	CA2C100-700Z	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No
	CA2D40-25Z	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CA2D40-50Z	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CA2D40-75Z	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CA2D40-100Z	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CA2D40-125Z	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CA2D40-150Z	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CA2D40-175Z	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No
	CA2D40-200Z	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CA2D40-250Z	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CA2D40-300Z	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CA2D40-350Z	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No
	CA2D40-400Z	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CA2D40-450Z	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No
	CA2D40-500Z	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CA2D50-25Z	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CA2D50-50Z	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CA2D50-75Z	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CA2D50-100Z	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CA2D50-125Z	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CA2D50-150Z	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CA2D50-175Z	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No
	CA2D50-200Z	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CA2D50-250Z	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CA2D50-300Z	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CA2D50-350Z	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No
	CA2D50-400Z	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CA2D50-450Z	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No
	CA2D50-500Z	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CA2D50-600Z	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No
	CA2D63-25Z	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CA2D63-50Z	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CA2D63-75Z	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CA2D63-100Z	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CA2D63-125Z	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CA2D63-150Z	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CA2D63-175Z	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No
	CA2D63-200Z	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CA2D63-250Z	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CA2D63-300Z	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CA2D63-350Z	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No
	CA2D63-400Z	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CA2D63-450Z	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No
	CA2D63-500Z	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CA2D63-600Z	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No
	CA2D80-25Z	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CA2D80-50Z	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CA2D80-75Z	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CA2D80-100Z	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CA2D80-125Z	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CA2D80-150Z	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CA2D80-175Z	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No
	CA2D80-200Z	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CA2D80-250Z	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CA2D80-300Z	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CA2D80-350Z	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No
	CA2D80-400Z	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CA2D80-450Z	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No
	CA2D80-500Z	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CA2D80-600Z	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No
	CA2D80-700Z	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No
	CA2D100-25Z	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CA2D100-50Z	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CA2D100-75Z	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CA2D100-100Z	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CA2D100-125Z	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CA2D100-150Z	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CA2D100-175Z	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No
	CA2D100-200Z	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CA2D100-250Z	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CA2D100-300Z	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CA2D100-350Z	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No
	CA2D100-400Z	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CA2D100-450Z	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No
	CA2D100-500Z	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CA2D100-600Z	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No
	CA2D100-700Z	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No
	CA2T40-25Z	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CA2T40-50Z	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CA2T40-75Z	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CA2T40-100Z	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CA2T40-125Z	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CA2T40-150Z	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CA2T40-175Z	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No
	CA2T40-200Z	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CA2T40-250Z	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CA2T40-300Z	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CA2T40-350Z	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No
	CA2T40-400Z	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CA2T40-450Z	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No
	CA2T40-500Z	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CA2T50-25Z	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CA2T50-50Z	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CA2T50-75Z	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CA2T50-100Z	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CA2T50-125Z	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CA2T50-150Z	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CA2T50-175Z	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No
	CA2T50-200Z	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CA2T50-250Z	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CA2T50-300Z	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CA2T50-350Z	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No
	CA2T50-400Z	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CA2T50-450Z	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No
	CA2T50-500Z	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CA2T50-600Z	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No
	CA2T63-25Z	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CA2T63-50Z	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CA2T63-75Z	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CA2T63-100Z	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CA2T63-125Z	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CA2T63-150Z	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CA2T63-175Z	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No
	CA2T63-200Z	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CA2T63-250Z	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CA2T63-300Z	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CA2T63-350Z	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No
	CA2T63-400Z	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CA2T63-450Z	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No
	CA2T63-500Z	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CA2T63-600Z	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No
	CA2T80-25Z	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CA2T80-50Z	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CA2T80-75Z	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CA2T80-100Z	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CA2T80-125Z	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CA2T80-150Z	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CA2T80-175Z	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No
	CA2T80-200Z	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CA2T80-250Z	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CA2T80-300Z	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CA2T80-350Z	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No
	CA2T80-400Z	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CA2T80-450Z	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No
	CA2T80-500Z	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CA2T80-600Z	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No
	CA2T80-700Z	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No
	CA2T100-25Z	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CA2T100-50Z	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CA2T100-75Z	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CA2T100-100Z	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CA2T100-125Z	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CA2T100-150Z	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CA2T100-175Z	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No
	CA2T100-200Z	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CA2T100-250Z	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CA2T100-300Z	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CA2T100-350Z	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No
	CA2T100-400Z	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CA2T100-450Z	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No
	CA2T100-500Z	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CA2T100-600Z	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No
	CA2T100-700Z	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No
	CDA2B40-25Z	Mounting: Basic \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDA2B40-50Z	Mounting: Basic \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDA2B40-75Z	Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDA2B40-100Z	Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDA2B40-125Z	Mounting: Basic \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDA2B40-150Z	Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDA2B40-175Z	Mounting: Basic \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	CDA2B40-200Z	Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDA2B40-250Z	Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDA2B40-300Z	Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDA2B40-350Z	Mounting: Basic \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	CDA2B40-400Z	Mounting: Basic \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CDA2B40-450Z	Mounting: Basic \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	CDA2B40-500Z	Mounting: Basic \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CDA2B50-25Z	Mounting: Basic \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDA2B50-50Z	Mounting: Basic \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDA2B50-75Z	Mounting: Basic \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDA2B50-100Z	Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDA2B50-125Z	Mounting: Basic \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDA2B50-150Z	Mounting: Basic \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDA2B50-175Z	Mounting: Basic \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	CDA2B50-200Z	Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDA2B50-250Z	Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDA2B50-300Z	Mounting: Basic \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDA2B50-350Z	Mounting: Basic \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	CDA2B50-400Z	Mounting: Basic \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CDA2B50-450Z	Mounting: Basic \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	CDA2B50-500Z	Mounting: Basic \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CDA2B50-600Z	Mounting: Basic \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	CDA2B63-25Z	Mounting: Basic \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDA2B63-50Z	Mounting: Basic \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDA2B63-75Z	Mounting: Basic \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDA2B63-100Z	Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDA2B63-125Z	Mounting: Basic \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDA2B63-150Z	Mounting: Basic \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDA2B63-175Z	Mounting: Basic \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	CDA2B63-200Z	Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDA2B63-250Z	Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDA2B63-300Z	Mounting: Basic \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDA2B63-350Z	Mounting: Basic \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	CDA2B63-400Z	Mounting: Basic \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CDA2B63-450Z	Mounting: Basic \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	CDA2B63-500Z	Mounting: Basic \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CDA2B63-600Z	Mounting: Basic \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	CDA2B80-25Z	Mounting: Basic \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDA2B80-50Z	Mounting: Basic \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDA2B80-75Z	Mounting: Basic \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDA2B80-100Z	Mounting: Basic \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDA2B80-125Z	Mounting: Basic \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDA2B80-150Z	Mounting: Basic \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDA2B80-175Z	Mounting: Basic \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	CDA2B80-200Z	Mounting: Basic \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDA2B80-250Z	Mounting: Basic \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDA2B80-300Z	Mounting: Basic \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDA2B80-350Z	Mounting: Basic \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	CDA2B80-400Z	Mounting: Basic \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CDA2B80-450Z	Mounting: Basic \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	CDA2B80-500Z	Mounting: Basic \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CDA2B80-600Z	Mounting: Basic \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	CDA2B80-700Z	Mounting: Basic \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
	CDA2B100-25Z	Mounting: Basic \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDA2B100-50Z	Mounting: Basic \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDA2B100-75Z	Mounting: Basic \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDA2B100-100Z	Mounting: Basic \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDA2B100-125Z	Mounting: Basic \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDA2B100-150Z	Mounting: Basic \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDA2B100-175Z	Mounting: Basic \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	CDA2B100-200Z	Mounting: Basic \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDA2B100-250Z	Mounting: Basic \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDA2B100-300Z	Mounting: Basic \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDA2B100-350Z	Mounting: Basic \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	CDA2B100-400Z	Mounting: Basic \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CDA2B100-450Z	Mounting: Basic \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	CDA2B100-500Z	Mounting: Basic \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CDA2B100-600Z	Mounting: Basic \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	CDA2B100-700Z	Mounting: Basic \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
	CDA2L40-25Z	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDA2L40-50Z	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDA2L40-75Z	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDA2L40-100Z	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDA2L40-125Z	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDA2L40-150Z	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDA2L40-175Z	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	CDA2L40-200Z	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDA2L40-250Z	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDA2L40-300Z	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDA2L40-350Z	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	CDA2L40-400Z	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CDA2L40-450Z	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	CDA2L40-500Z	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CDA2L50-25Z	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDA2L50-50Z	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDA2L50-75Z	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDA2L50-100Z	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDA2L50-125Z	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDA2L50-150Z	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDA2L50-175Z	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	CDA2L50-200Z	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDA2L50-250Z	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDA2L50-300Z	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDA2L50-350Z	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	CDA2L50-400Z	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CDA2L50-450Z	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	CDA2L50-500Z	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CDA2L50-600Z	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	CDA2L63-25Z	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDA2L63-50Z	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDA2L63-75Z	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDA2L63-100Z	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDA2L63-125Z	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDA2L63-150Z	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDA2L63-175Z	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	CDA2L63-200Z	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDA2L63-250Z	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDA2L63-300Z	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDA2L63-350Z	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	CDA2L63-400Z	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CDA2L63-450Z	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	CDA2L63-500Z	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CDA2L63-600Z	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	CDA2L80-25Z	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDA2L80-50Z	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDA2L80-75Z	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDA2L80-100Z	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDA2L80-125Z	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDA2L80-150Z	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDA2L80-175Z	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	CDA2L80-200Z	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDA2L80-250Z	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDA2L80-300Z	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDA2L80-350Z	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	CDA2L80-400Z	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CDA2L80-450Z	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	CDA2L80-500Z	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CDA2L80-600Z	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	CDA2L80-700Z	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
	CDA2L100-25Z	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDA2L100-50Z	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDA2L100-75Z	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDA2L100-100Z	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDA2L100-125Z	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDA2L100-150Z	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDA2L100-175Z	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	CDA2L100-200Z	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDA2L100-250Z	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDA2L100-300Z	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDA2L100-350Z	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	CDA2L100-400Z	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CDA2L100-450Z	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	CDA2L100-500Z	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CDA2L100-600Z	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	CDA2L100-700Z	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
	CDA2F40-25Z	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDA2F40-50Z	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDA2F40-75Z	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDA2F40-100Z	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDA2F40-125Z	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDA2F40-150Z	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDA2F40-175Z	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	CDA2F40-200Z	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDA2F40-250Z	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDA2F40-300Z	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDA2F40-350Z	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	CDA2F40-400Z	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CDA2F40-450Z	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	CDA2F40-500Z	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CDA2F50-25Z	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDA2F50-50Z	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDA2F50-75Z	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDA2F50-100Z	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDA2F50-125Z	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDA2F50-150Z	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDA2F50-175Z	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	CDA2F50-200Z	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDA2F50-250Z	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDA2F50-300Z	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDA2F50-350Z	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	CDA2F50-400Z	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CDA2F50-450Z	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	CDA2F50-500Z	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CDA2F50-600Z	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	CDA2F63-25Z	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDA2F63-50Z	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDA2F63-75Z	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDA2F63-100Z	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDA2F63-125Z	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDA2F63-150Z	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDA2F63-175Z	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	CDA2F63-200Z	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDA2F63-250Z	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDA2F63-300Z	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDA2F63-350Z	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	CDA2F63-400Z	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CDA2F63-450Z	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	CDA2F63-500Z	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CDA2F63-600Z	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	CDA2F80-25Z	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDA2F80-50Z	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDA2F80-75Z	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDA2F80-100Z	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDA2F80-125Z	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDA2F80-150Z	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDA2F80-175Z	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	CDA2F80-200Z	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDA2F80-250Z	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDA2F80-300Z	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDA2F80-350Z	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	CDA2F80-400Z	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CDA2F80-450Z	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	CDA2F80-500Z	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CDA2F80-600Z	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	CDA2F80-700Z	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
	CDA2F100-25Z	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDA2F100-50Z	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDA2F100-75Z	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDA2F100-100Z	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDA2F100-125Z	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDA2F100-150Z	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDA2F100-175Z	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	CDA2F100-200Z	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDA2F100-250Z	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDA2F100-300Z	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDA2F100-350Z	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	CDA2F100-400Z	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CDA2F100-450Z	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	CDA2F100-500Z	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CDA2F100-600Z	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	CDA2F100-700Z	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
	CDA2G40-25Z	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDA2G40-50Z	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDA2G40-75Z	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDA2G40-100Z	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDA2G40-125Z	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDA2G40-150Z	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDA2G40-175Z	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	CDA2G40-200Z	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDA2G40-250Z	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDA2G40-300Z	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDA2G40-350Z	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	CDA2G40-400Z	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CDA2G40-450Z	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	CDA2G40-500Z	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CDA2G50-25Z	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDA2G50-50Z	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDA2G50-75Z	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDA2G50-100Z	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDA2G50-125Z	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDA2G50-150Z	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDA2G50-175Z	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	CDA2G50-200Z	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDA2G50-250Z	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDA2G50-300Z	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDA2G50-350Z	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	CDA2G50-400Z	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CDA2G50-450Z	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	CDA2G50-500Z	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CDA2G50-600Z	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	CDA2G63-25Z	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDA2G63-50Z	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDA2G63-75Z	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDA2G63-100Z	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDA2G63-125Z	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDA2G63-150Z	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDA2G63-175Z	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	CDA2G63-200Z	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDA2G63-250Z	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDA2G63-300Z	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDA2G63-350Z	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	CDA2G63-400Z	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CDA2G63-450Z	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	CDA2G63-500Z	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CDA2G63-600Z	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	CDA2G80-25Z	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDA2G80-50Z	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDA2G80-75Z	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDA2G80-100Z	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDA2G80-125Z	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDA2G80-150Z	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDA2G80-175Z	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	CDA2G80-200Z	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDA2G80-250Z	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDA2G80-300Z	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDA2G80-350Z	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	CDA2G80-400Z	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CDA2G80-450Z	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	CDA2G80-500Z	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CDA2G80-600Z	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	CDA2G80-700Z	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
	CDA2G100-25Z	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDA2G100-50Z	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDA2G100-75Z	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDA2G100-100Z	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDA2G100-125Z	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDA2G100-150Z	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDA2G100-175Z	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	CDA2G100-200Z	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDA2G100-250Z	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDA2G100-300Z	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDA2G100-350Z	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	CDA2G100-400Z	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CDA2G100-450Z	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	CDA2G100-500Z	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CDA2G100-600Z	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	CDA2G100-700Z	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
	CDA2C40-25Z	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDA2C40-50Z	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDA2C40-75Z	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDA2C40-100Z	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDA2C40-125Z	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDA2C40-150Z	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDA2C40-175Z	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	CDA2C40-200Z	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDA2C40-250Z	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDA2C40-300Z	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDA2C40-350Z	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	CDA2C40-400Z	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CDA2C40-450Z	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	CDA2C40-500Z	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CDA2C50-25Z	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDA2C50-50Z	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDA2C50-75Z	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDA2C50-100Z	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDA2C50-125Z	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDA2C50-150Z	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDA2C50-175Z	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	CDA2C50-200Z	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDA2C50-250Z	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDA2C50-300Z	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDA2C50-350Z	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	CDA2C50-400Z	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CDA2C50-450Z	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	CDA2C50-500Z	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CDA2C50-600Z	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	CDA2C63-25Z	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDA2C63-50Z	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDA2C63-75Z	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDA2C63-100Z	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDA2C63-125Z	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDA2C63-150Z	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDA2C63-175Z	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	CDA2C63-200Z	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDA2C63-250Z	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDA2C63-300Z	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDA2C63-350Z	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	CDA2C63-400Z	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CDA2C63-450Z	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	CDA2C63-500Z	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CDA2C63-600Z	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	CDA2C80-25Z	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDA2C80-50Z	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDA2C80-75Z	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDA2C80-100Z	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDA2C80-125Z	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDA2C80-150Z	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDA2C80-175Z	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	CDA2C80-200Z	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDA2C80-250Z	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDA2C80-300Z	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDA2C80-350Z	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	CDA2C80-400Z	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CDA2C80-450Z	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	CDA2C80-500Z	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CDA2C80-600Z	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	CDA2C80-700Z	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
	CDA2C100-25Z	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDA2C100-50Z	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDA2C100-75Z	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDA2C100-100Z	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDA2C100-125Z	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDA2C100-150Z	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDA2C100-175Z	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	CDA2C100-200Z	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDA2C100-250Z	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDA2C100-300Z	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDA2C100-350Z	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	CDA2C100-400Z	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CDA2C100-450Z	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	CDA2C100-500Z	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CDA2C100-600Z	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	CDA2C100-700Z	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
	CDA2D40-25Z	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDA2D40-50Z	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDA2D40-75Z	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDA2D40-100Z	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDA2D40-125Z	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDA2D40-150Z	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDA2D40-175Z	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	CDA2D40-200Z	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDA2D40-250Z	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDA2D40-300Z	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDA2D40-350Z	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	CDA2D40-400Z	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CDA2D40-450Z	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	CDA2D40-500Z	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CDA2D50-25Z	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDA2D50-50Z	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDA2D50-75Z	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDA2D50-100Z	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDA2D50-125Z	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDA2D50-150Z	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDA2D50-175Z	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	CDA2D50-200Z	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDA2D50-250Z	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDA2D50-300Z	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDA2D50-350Z	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	CDA2D50-400Z	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CDA2D50-450Z	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	CDA2D50-500Z	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CDA2D50-600Z	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	CDA2D63-25Z	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDA2D63-50Z	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDA2D63-75Z	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDA2D63-100Z	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDA2D63-125Z	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDA2D63-150Z	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDA2D63-175Z	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	CDA2D63-200Z	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDA2D63-250Z	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDA2D63-300Z	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDA2D63-350Z	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	CDA2D63-400Z	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CDA2D63-450Z	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	CDA2D63-500Z	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CDA2D63-600Z	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	CDA2D80-25Z	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDA2D80-50Z	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDA2D80-75Z	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDA2D80-100Z	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDA2D80-125Z	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDA2D80-150Z	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDA2D80-175Z	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	CDA2D80-200Z	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDA2D80-250Z	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDA2D80-300Z	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDA2D80-350Z	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	CDA2D80-400Z	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CDA2D80-450Z	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	CDA2D80-500Z	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CDA2D80-600Z	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	CDA2D80-700Z	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
	CDA2D100-25Z	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDA2D100-50Z	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDA2D100-75Z	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDA2D100-100Z	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDA2D100-125Z	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDA2D100-150Z	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDA2D100-175Z	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	CDA2D100-200Z	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDA2D100-250Z	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDA2D100-300Z	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDA2D100-350Z	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	CDA2D100-400Z	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CDA2D100-450Z	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	CDA2D100-500Z	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CDA2D100-600Z	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	CDA2D100-700Z	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
	CDA2T40-25Z	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDA2T40-50Z	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDA2T40-75Z	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDA2T40-100Z	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDA2T40-125Z	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDA2T40-150Z	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDA2T40-175Z	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	CDA2T40-200Z	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDA2T40-250Z	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDA2T40-300Z	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDA2T40-350Z	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	CDA2T40-400Z	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CDA2T40-450Z	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	CDA2T40-500Z	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CDA2T50-25Z	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDA2T50-50Z	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDA2T50-75Z	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDA2T50-100Z	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDA2T50-125Z	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDA2T50-150Z	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDA2T50-175Z	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	CDA2T50-200Z	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDA2T50-250Z	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDA2T50-300Z	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDA2T50-350Z	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	CDA2T50-400Z	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CDA2T50-450Z	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	CDA2T50-500Z	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CDA2T50-600Z	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	CDA2T63-25Z	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDA2T63-50Z	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDA2T63-75Z	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDA2T63-100Z	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDA2T63-125Z	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDA2T63-150Z	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDA2T63-175Z	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	CDA2T63-200Z	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDA2T63-250Z	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDA2T63-300Z	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDA2T63-350Z	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	CDA2T63-400Z	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CDA2T63-450Z	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	CDA2T63-500Z	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CDA2T63-600Z	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	CDA2T80-25Z	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDA2T80-50Z	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDA2T80-75Z	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDA2T80-100Z	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDA2T80-125Z	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDA2T80-150Z	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDA2T80-175Z	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	CDA2T80-200Z	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDA2T80-250Z	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDA2T80-300Z	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDA2T80-350Z	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	CDA2T80-400Z	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CDA2T80-450Z	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	CDA2T80-500Z	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CDA2T80-600Z	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	CDA2T80-700Z	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: Yes
	CDA2T100-25Z	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDA2T100-50Z	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDA2T100-75Z	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDA2T100-100Z	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDA2T100-125Z	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDA2T100-150Z	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDA2T100-175Z	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	CDA2T100-200Z	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDA2T100-250Z	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDA2T100-300Z	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDA2T100-350Z	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: Yes
	CDA2T100-400Z	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CDA2T100-450Z	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: Yes
	CDA2T100-500Z	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CDA2T100-600Z	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: Yes
	CDA2T100-700Z	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: Yes

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

SMC CA2 Air Cylinder (Standard, Double Acting, ø40 to ø100)
