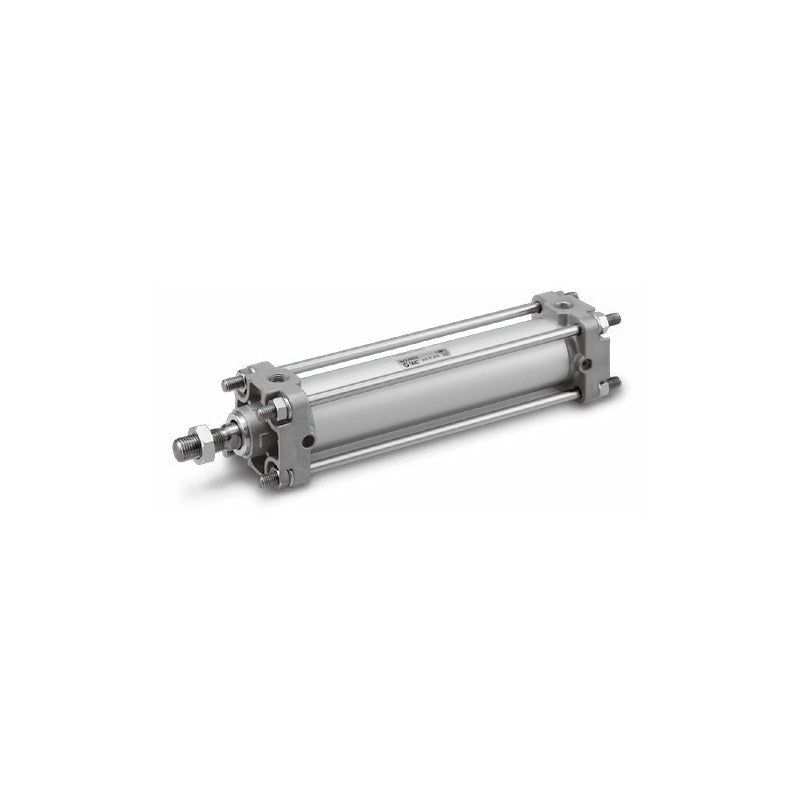

SMC CA2KW Air Cylinder (Non-Rotating, Double Rod, ø40 to ø63)

SMC CA2KW Air Cylinder (Non-Rotating, Double Rod, ø40 to ø63)

SMC CA2KW series tie-rod air cylinder with non-rotating piston rod, double acting, double rod, ø40 to ø63 mm bore, with or without a built-in auto switch magnet (CDA2KW).

Key features

  • Non-rotating rod accuracy ±0.8°, allowable rotational torque 0.44 N·m; mounting dimensions equal to the standard CA2
  • Mounting styles: basic (B), axial foot (L), rod flange (F), head flange (G), center trunnion (T)
  • Built-in magnet models (CD prefix) accept tie-rod mounted D-M9/D-A9 or band mounted D-G59/D-B54 type auto switches, ordered as a suffix
  • Air cushion standard; no-cushion version (N) as order symbol; bellows type available on request
  • Rc port thread standard, NPT (TN) and G (TF) on order

Specifications

Action Double acting, double rod
Fluid Air
Proof pressure 1.5 MPa
Max. operating pressure 1.0 MPa
Ambient and fluid temperature -10 to 70°C without magnet, -10 to 60°C with magnet (no freezing)
Lubrication Not required (non-lube)
Piston speed 50 to 500 mm/s
Min. operating pressure 0.08 MPa
Cushion Air cushion (standard) or none (suffix N)
Rod non-rotating accuracy ±0.8°
Allowable rotational torque 0.44 N·m or less
Standard strokes ø40: 25 to 500; ø50: 25 to 600; ø63: 25 to 600 mm
Source SMC Korea catalog CA2-Z (SMCKR_CA2-Z.pdf), p. 588-589
CA2KWB40-25 Mounting: Basic | Bore: ø40 mm | Stroke: 25 mm | Auto switch magnet: No
CA2KWB40-50 Mounting: Basic | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: No
CA2KWB40-75 Mounting: Basic | Bore: ø40 mm | Stroke: 75 mm | Auto switch magnet: No
CA2KWB40-100 Mounting: Basic | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: No
CA2KWB40-125 Mounting: Basic | Bore: ø40 mm | Stroke: 125 mm | Auto switch magnet: No
CA2KWB40-150 Mounting: Basic | Bore: ø40 mm | Stroke: 150 mm | Auto switch magnet: No
CA2KWB40-175 Mounting: Basic | Bore: ø40 mm | Stroke: 175 mm | Auto switch magnet: No
CA2KWB40-200 Mounting: Basic | Bore: ø40 mm | Stroke: 200 mm | Auto switch magnet: No
CA2KWB40-250 Mounting: Basic | Bore: ø40 mm | Stroke: 250 mm | Auto switch magnet: No
CA2KWB40-300 Mounting: Basic | Bore: ø40 mm | Stroke: 300 mm | Auto switch magnet: No
CA2KWB40-350 Mounting: Basic | Bore: ø40 mm | Stroke: 350 mm | Auto switch magnet: No
CA2KWB40-400 Mounting: Basic | Bore: ø40 mm | Stroke: 400 mm | Auto switch magnet: No
CA2KWB40-450 Mounting: Basic | Bore: ø40 mm | Stroke: 450 mm | Auto switch magnet: No
CA2KWB40-500 Mounting: Basic | Bore: ø40 mm | Stroke: 500 mm | Auto switch magnet: No
CA2KWB50-25 Mounting: Basic | Bore: ø50 mm | Stroke: 25 mm | Auto switch magnet: No
CA2KWB50-50 Mounting: Basic | Bore: ø50 mm | Stroke: 50 mm | Auto switch magnet: No
CA2KWB50-75 Mounting: Basic | Bore: ø50 mm | Stroke: 75 mm | Auto switch magnet: No
CA2KWB50-100 Mounting: Basic | Bore: ø50 mm | Stroke: 100 mm | Auto switch magnet: No
CA2KWB50-125 Mounting: Basic | Bore: ø50 mm | Stroke: 125 mm | Auto switch magnet: No
CA2KWB50-150 Mounting: Basic | Bore: ø50 mm | Stroke: 150 mm | Auto switch magnet: No
CA2KWB50-175 Mounting: Basic | Bore: ø50 mm | Stroke: 175 mm | Auto switch magnet: No
CA2KWB50-200 Mounting: Basic | Bore: ø50 mm | Stroke: 200 mm | Auto switch magnet: No
CA2KWB50-250 Mounting: Basic | Bore: ø50 mm | Stroke: 250 mm | Auto switch magnet: No
CA2KWB50-300 Mounting: Basic | Bore: ø50 mm | Stroke: 300 mm | Auto switch magnet: No
CA2KWB50-350 Mounting: Basic | Bore: ø50 mm | Stroke: 350 mm | Auto switch magnet: No
CA2KWB50-400 Mounting: Basic | Bore: ø50 mm | Stroke: 400 mm | Auto switch magnet: No
CA2KWB50-450 Mounting: Basic | Bore: ø50 mm | Stroke: 450 mm | Auto switch magnet: No
CA2KWB50-500 Mounting: Basic | Bore: ø50 mm | Stroke: 500 mm | Auto switch magnet: No
CA2KWB50-600 Mounting: Basic | Bore: ø50 mm | Stroke: 600 mm | Auto switch magnet: No
CA2KWB63-25 Mounting: Basic | Bore: ø63 mm | Stroke: 25 mm | Auto switch magnet: No
CA2KWB63-50 Mounting: Basic | Bore: ø63 mm | Stroke: 50 mm | Auto switch magnet: No
CA2KWB63-75 Mounting: Basic | Bore: ø63 mm | Stroke: 75 mm | Auto switch magnet: No
CA2KWB63-100 Mounting: Basic | Bore: ø63 mm | Stroke: 100 mm | Auto switch magnet: No
CA2KWB63-125 Mounting: Basic | Bore: ø63 mm | Stroke: 125 mm | Auto switch magnet: No
CA2KWB63-150 Mounting: Basic | Bore: ø63 mm | Stroke: 150 mm | Auto switch magnet: No
CA2KWB63-175 Mounting: Basic | Bore: ø63 mm | Stroke: 175 mm | Auto switch magnet: No
CA2KWB63-200 Mounting: Basic | Bore: ø63 mm | Stroke: 200 mm | Auto switch magnet: No
CA2KWB63-250 Mounting: Basic | Bore: ø63 mm | Stroke: 250 mm | Auto switch magnet: No
CA2KWB63-300 Mounting: Basic | Bore: ø63 mm | Stroke: 300 mm | Auto switch magnet: No
CA2KWB63-350 Mounting: Basic | Bore: ø63 mm | Stroke: 350 mm | Auto switch magnet: No
CA2KWB63-400 Mounting: Basic | Bore: ø63 mm | Stroke: 400 mm | Auto switch magnet: No
CA2KWB63-450 Mounting: Basic | Bore: ø63 mm | Stroke: 450 mm | Auto switch magnet: No
CA2KWB63-500 Mounting: Basic | Bore: ø63 mm | Stroke: 500 mm | Auto switch magnet: No
CA2KWB63-600 Mounting: Basic | Bore: ø63 mm | Stroke: 600 mm | Auto switch magnet: No
CA2KWL40-25 Mounting: Axial foot | Bore: ø40 mm | Stroke: 25 mm | Auto switch magnet: No
CA2KWL40-50 Mounting: Axial foot | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: No
CA2KWL40-75 Mounting: Axial foot | Bore: ø40 mm | Stroke: 75 mm | Auto switch magnet: No
CA2KWL40-100 Mounting: Axial foot | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: No
CA2KWL40-125 Mounting: Axial foot | Bore: ø40 mm | Stroke: 125 mm | Auto switch magnet: No
CA2KWL40-150 Mounting: Axial foot | Bore: ø40 mm | Stroke: 150 mm | Auto switch magnet: No
CA2KWL40-175 Mounting: Axial foot | Bore: ø40 mm | Stroke: 175 mm | Auto switch magnet: No
CA2KWL40-200 Mounting: Axial foot | Bore: ø40 mm | Stroke: 200 mm | Auto switch magnet: No
CA2KWL40-250 Mounting: Axial foot | Bore: ø40 mm | Stroke: 250 mm | Auto switch magnet: No
CA2KWL40-300 Mounting: Axial foot | Bore: ø40 mm | Stroke: 300 mm | Auto switch magnet: No
CA2KWL40-350 Mounting: Axial foot | Bore: ø40 mm | Stroke: 350 mm | Auto switch magnet: No
CA2KWL40-400 Mounting: Axial foot | Bore: ø40 mm | Stroke: 400 mm | Auto switch magnet: No
CA2KWL40-450 Mounting: Axial foot | Bore: ø40 mm | Stroke: 450 mm | Auto switch magnet: No
CA2KWL40-500 Mounting: Axial foot | Bore: ø40 mm | Stroke: 500 mm | Auto switch magnet: No
CA2KWL50-25 Mounting: Axial foot | Bore: ø50 mm | Stroke: 25 mm | Auto switch magnet: No
CA2KWL50-50 Mounting: Axial foot | Bore: ø50 mm | Stroke: 50 mm | Auto switch magnet: No
CA2KWL50-75 Mounting: Axial foot | Bore: ø50 mm | Stroke: 75 mm | Auto switch magnet: No
CA2KWL50-100 Mounting: Axial foot | Bore: ø50 mm | Stroke: 100 mm | Auto switch magnet: No
CA2KWL50-125 Mounting: Axial foot | Bore: ø50 mm | Stroke: 125 mm | Auto switch magnet: No
CA2KWL50-150 Mounting: Axial foot | Bore: ø50 mm | Stroke: 150 mm | Auto switch magnet: No
CA2KWL50-175 Mounting: Axial foot | Bore: ø50 mm | Stroke: 175 mm | Auto switch magnet: No
CA2KWL50-200 Mounting: Axial foot | Bore: ø50 mm | Stroke: 200 mm | Auto switch magnet: No
CA2KWL50-250 Mounting: Axial foot | Bore: ø50 mm | Stroke: 250 mm | Auto switch magnet: No
CA2KWL50-300 Mounting: Axial foot | Bore: ø50 mm | Stroke: 300 mm | Auto switch magnet: No
CA2KWL50-350 Mounting: Axial foot | Bore: ø50 mm | Stroke: 350 mm | Auto switch magnet: No
CA2KWL50-400 Mounting: Axial foot | Bore: ø50 mm | Stroke: 400 mm | Auto switch magnet: No
CA2KWL50-450 Mounting: Axial foot | Bore: ø50 mm | Stroke: 450 mm | Auto switch magnet: No
CA2KWL50-500 Mounting: Axial foot | Bore: ø50 mm | Stroke: 500 mm | Auto switch magnet: No
CA2KWL50-600 Mounting: Axial foot | Bore: ø50 mm | Stroke: 600 mm | Auto switch magnet: No
CA2KWL63-25 Mounting: Axial foot | Bore: ø63 mm | Stroke: 25 mm | Auto switch magnet: No
CA2KWL63-50 Mounting: Axial foot | Bore: ø63 mm | Stroke: 50 mm | Auto switch magnet: No
CA2KWL63-75 Mounting: Axial foot | Bore: ø63 mm | Stroke: 75 mm | Auto switch magnet: No
CA2KWL63-100 Mounting: Axial foot | Bore: ø63 mm | Stroke: 100 mm | Auto switch magnet: No
CA2KWL63-125 Mounting: Axial foot | Bore: ø63 mm | Stroke: 125 mm | Auto switch magnet: No
CA2KWL63-150 Mounting: Axial foot | Bore: ø63 mm | Stroke: 150 mm | Auto switch magnet: No
CA2KWL63-175 Mounting: Axial foot | Bore: ø63 mm | Stroke: 175 mm | Auto switch magnet: No
CA2KWL63-200 Mounting: Axial foot | Bore: ø63 mm | Stroke: 200 mm | Auto switch magnet: No
CA2KWL63-250 Mounting: Axial foot | Bore: ø63 mm | Stroke: 250 mm | Auto switch magnet: No
CA2KWL63-300 Mounting: Axial foot | Bore: ø63 mm | Stroke: 300 mm | Auto switch magnet: No
CA2KWL63-350 Mounting: Axial foot | Bore: ø63 mm | Stroke: 350 mm | Auto switch magnet: No
CA2KWL63-400 Mounting: Axial foot | Bore: ø63 mm | Stroke: 400 mm | Auto switch magnet: No
CA2KWL63-450 Mounting: Axial foot | Bore: ø63 mm | Stroke: 450 mm | Auto switch magnet: No
CA2KWL63-500 Mounting: Axial foot | Bore: ø63 mm | Stroke: 500 mm | Auto switch magnet: No
CA2KWL63-600 Mounting: Axial foot | Bore: ø63 mm | Stroke: 600 mm | Auto switch magnet: No
CA2KWF40-25 Mounting: Rod flange | Bore: ø40 mm | Stroke: 25 mm | Auto switch magnet: No
CA2KWF40-50 Mounting: Rod flange | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: No
CA2KWF40-75 Mounting: Rod flange | Bore: ø40 mm | Stroke: 75 mm | Auto switch magnet: No
CA2KWF40-100 Mounting: Rod flange | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: No
CA2KWF40-125 Mounting: Rod flange | Bore: ø40 mm | Stroke: 125 mm | Auto switch magnet: No
CA2KWF40-150 Mounting: Rod flange | Bore: ø40 mm | Stroke: 150 mm | Auto switch magnet: No
CA2KWF40-175 Mounting: Rod flange | Bore: ø40 mm | Stroke: 175 mm | Auto switch magnet: No
CA2KWF40-200 Mounting: Rod flange | Bore: ø40 mm | Stroke: 200 mm | Auto switch magnet: No
CA2KWF40-250 Mounting: Rod flange | Bore: ø40 mm | Stroke: 250 mm | Auto switch magnet: No
CA2KWF40-300 Mounting: Rod flange | Bore: ø40 mm | Stroke: 300 mm | Auto switch magnet: No
CA2KWF40-350 Mounting: Rod flange | Bore: ø40 mm | Stroke: 350 mm | Auto switch magnet: No
CA2KWF40-400 Mounting: Rod flange | Bore: ø40 mm | Stroke: 400 mm | Auto switch magnet: No
CA2KWF40-450 Mounting: Rod flange | Bore: ø40 mm | Stroke: 450 mm | Auto switch magnet: No
CA2KWF40-500 Mounting: Rod flange | Bore: ø40 mm | Stroke: 500 mm | Auto switch magnet: No
CA2KWF50-25 Mounting: Rod flange | Bore: ø50 mm | Stroke: 25 mm | Auto switch magnet: No
CA2KWF50-50 Mounting: Rod flange | Bore: ø50 mm | Stroke: 50 mm | Auto switch magnet: No
CA2KWF50-75 Mounting: Rod flange | Bore: ø50 mm | Stroke: 75 mm | Auto switch magnet: No
CA2KWF50-100 Mounting: Rod flange | Bore: ø50 mm | Stroke: 100 mm | Auto switch magnet: No
CA2KWF50-125 Mounting: Rod flange | Bore: ø50 mm | Stroke: 125 mm | Auto switch magnet: No
CA2KWF50-150 Mounting: Rod flange | Bore: ø50 mm | Stroke: 150 mm | Auto switch magnet: No
CA2KWF50-175 Mounting: Rod flange | Bore: ø50 mm | Stroke: 175 mm | Auto switch magnet: No
CA2KWF50-200 Mounting: Rod flange | Bore: ø50 mm | Stroke: 200 mm | Auto switch magnet: No
CA2KWF50-250 Mounting: Rod flange | Bore: ø50 mm | Stroke: 250 mm | Auto switch magnet: No
CA2KWF50-300 Mounting: Rod flange | Bore: ø50 mm | Stroke: 300 mm | Auto switch magnet: No
CA2KWF50-350 Mounting: Rod flange | Bore: ø50 mm | Stroke: 350 mm | Auto switch magnet: No
CA2KWF50-400 Mounting: Rod flange | Bore: ø50 mm | Stroke: 400 mm | Auto switch magnet: No
CA2KWF50-450 Mounting: Rod flange | Bore: ø50 mm | Stroke: 450 mm | Auto switch magnet: No
CA2KWF50-500 Mounting: Rod flange | Bore: ø50 mm | Stroke: 500 mm | Auto switch magnet: No
CA2KWF50-600 Mounting: Rod flange | Bore: ø50 mm | Stroke: 600 mm | Auto switch magnet: No
CA2KWF63-25 Mounting: Rod flange | Bore: ø63 mm | Stroke: 25 mm | Auto switch magnet: No
CA2KWF63-50 Mounting: Rod flange | Bore: ø63 mm | Stroke: 50 mm | Auto switch magnet: No
CA2KWF63-75 Mounting: Rod flange | Bore: ø63 mm | Stroke: 75 mm | Auto switch magnet: No
CA2KWF63-100 Mounting: Rod flange | Bore: ø63 mm | Stroke: 100 mm | Auto switch magnet: No
CA2KWF63-125 Mounting: Rod flange | Bore: ø63 mm | Stroke: 125 mm | Auto switch magnet: No
CA2KWF63-150 Mounting: Rod flange | Bore: ø63 mm | Stroke: 150 mm | Auto switch magnet: No
CA2KWF63-175 Mounting: Rod flange | Bore: ø63 mm | Stroke: 175 mm | Auto switch magnet: No
CA2KWF63-200 Mounting: Rod flange | Bore: ø63 mm | Stroke: 200 mm | Auto switch magnet: No
CA2KWF63-250 Mounting: Rod flange | Bore: ø63 mm | Stroke: 250 mm | Auto switch magnet: No
CA2KWF63-300 Mounting: Rod flange | Bore: ø63 mm | Stroke: 300 mm | Auto switch magnet: No
CA2KWF63-350 Mounting: Rod flange | Bore: ø63 mm | Stroke: 350 mm | Auto switch magnet: No
CA2KWF63-400 Mounting: Rod flange | Bore: ø63 mm | Stroke: 400 mm | Auto switch magnet: No
CA2KWF63-450 Mounting: Rod flange | Bore: ø63 mm | Stroke: 450 mm | Auto switch magnet: No
CA2KWF63-500 Mounting: Rod flange | Bore: ø63 mm | Stroke: 500 mm | Auto switch magnet: No
CA2KWF63-600 Mounting: Rod flange | Bore: ø63 mm | Stroke: 600 mm | Auto switch magnet: No
CA2KWG40-25 Mounting: Head flange | Bore: ø40 mm | Stroke: 25 mm | Auto switch magnet: No
CA2KWG40-50 Mounting: Head flange | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: No
CA2KWG40-75 Mounting: Head flange | Bore: ø40 mm | Stroke: 75 mm | Auto switch magnet: No
CA2KWG40-100 Mounting: Head flange | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: No
CA2KWG40-125 Mounting: Head flange | Bore: ø40 mm | Stroke: 125 mm | Auto switch magnet: No
CA2KWG40-150 Mounting: Head flange | Bore: ø40 mm | Stroke: 150 mm | Auto switch magnet: No
CA2KWG40-175 Mounting: Head flange | Bore: ø40 mm | Stroke: 175 mm | Auto switch magnet: No
CA2KWG40-200 Mounting: Head flange | Bore: ø40 mm | Stroke: 200 mm | Auto switch magnet: No
CA2KWG40-250 Mounting: Head flange | Bore: ø40 mm | Stroke: 250 mm | Auto switch magnet: No
CA2KWG40-300 Mounting: Head flange | Bore: ø40 mm | Stroke: 300 mm | Auto switch magnet: No
CA2KWG40-350 Mounting: Head flange | Bore: ø40 mm | Stroke: 350 mm | Auto switch magnet: No
CA2KWG40-400 Mounting: Head flange | Bore: ø40 mm | Stroke: 400 mm | Auto switch magnet: No
CA2KWG40-450 Mounting: Head flange | Bore: ø40 mm | Stroke: 450 mm | Auto switch magnet: No
CA2KWG40-500 Mounting: Head flange | Bore: ø40 mm | Stroke: 500 mm | Auto switch magnet: No
CA2KWG50-25 Mounting: Head flange | Bore: ø50 mm | Stroke: 25 mm | Auto switch magnet: No
CA2KWG50-50 Mounting: Head flange | Bore: ø50 mm | Stroke: 50 mm | Auto switch magnet: No
CA2KWG50-75 Mounting: Head flange | Bore: ø50 mm | Stroke: 75 mm | Auto switch magnet: No
CA2KWG50-100 Mounting: Head flange | Bore: ø50 mm | Stroke: 100 mm | Auto switch magnet: No
CA2KWG50-125 Mounting: Head flange | Bore: ø50 mm | Stroke: 125 mm | Auto switch magnet: No
CA2KWG50-150 Mounting: Head flange | Bore: ø50 mm | Stroke: 150 mm | Auto switch magnet: No
CA2KWG50-175 Mounting: Head flange | Bore: ø50 mm | Stroke: 175 mm | Auto switch magnet: No
CA2KWG50-200 Mounting: Head flange | Bore: ø50 mm | Stroke: 200 mm | Auto switch magnet: No
CA2KWG50-250 Mounting: Head flange | Bore: ø50 mm | Stroke: 250 mm | Auto switch magnet: No
CA2KWG50-300 Mounting: Head flange | Bore: ø50 mm | Stroke: 300 mm | Auto switch magnet: No
CA2KWG50-350 Mounting: Head flange | Bore: ø50 mm | Stroke: 350 mm | Auto switch magnet: No
CA2KWG50-400 Mounting: Head flange | Bore: ø50 mm | Stroke: 400 mm | Auto switch magnet: No
CA2KWG50-450 Mounting: Head flange | Bore: ø50 mm | Stroke: 450 mm | Auto switch magnet: No
CA2KWG50-500 Mounting: Head flange | Bore: ø50 mm | Stroke: 500 mm | Auto switch magnet: No
CA2KWG50-600 Mounting: Head flange | Bore: ø50 mm | Stroke: 600 mm | Auto switch magnet: No
CA2KWG63-25 Mounting: Head flange | Bore: ø63 mm | Stroke: 25 mm | Auto switch magnet: No
CA2KWG63-50 Mounting: Head flange | Bore: ø63 mm | Stroke: 50 mm | Auto switch magnet: No
CA2KWG63-75 Mounting: Head flange | Bore: ø63 mm | Stroke: 75 mm | Auto switch magnet: No
CA2KWG63-100 Mounting: Head flange | Bore: ø63 mm | Stroke: 100 mm | Auto switch magnet: No
CA2KWG63-125 Mounting: Head flange | Bore: ø63 mm | Stroke: 125 mm | Auto switch magnet: No
CA2KWG63-150 Mounting: Head flange | Bore: ø63 mm | Stroke: 150 mm | Auto switch magnet: No
CA2KWG63-175 Mounting: Head flange | Bore: ø63 mm | Stroke: 175 mm | Auto switch magnet: No
CA2KWG63-200 Mounting: Head flange | Bore: ø63 mm | Stroke: 200 mm | Auto switch magnet: No
CA2KWG63-250 Mounting: Head flange | Bore: ø63 mm | Stroke: 250 mm | Auto switch magnet: No
CA2KWG63-300 Mounting: Head flange | Bore: ø63 mm | Stroke: 300 mm | Auto switch magnet: No
CA2KWG63-350 Mounting: Head flange | Bore: ø63 mm | Stroke: 350 mm | Auto switch magnet: No
CA2KWG63-400 Mounting: Head flange | Bore: ø63 mm | Stroke: 400 mm | Auto switch magnet: No
CA2KWG63-450 Mounting: Head flange | Bore: ø63 mm | Stroke: 450 mm | Auto switch magnet: No
CA2KWG63-500 Mounting: Head flange | Bore: ø63 mm | Stroke: 500 mm | Auto switch magnet: No
CA2KWG63-600 Mounting: Head flange | Bore: ø63 mm | Stroke: 600 mm | Auto switch magnet: No
CA2KWT40-25 Mounting: Center trunnion | Bore: ø40 mm | Stroke: 25 mm | Auto switch magnet: No
CA2KWT40-50 Mounting: Center trunnion | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: No
CA2KWT40-75 Mounting: Center trunnion | Bore: ø40 mm | Stroke: 75 mm | Auto switch magnet: No
CA2KWT40-100 Mounting: Center trunnion | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: No
CA2KWT40-125 Mounting: Center trunnion | Bore: ø40 mm | Stroke: 125 mm | Auto switch magnet: No
CA2KWT40-150 Mounting: Center trunnion | Bore: ø40 mm | Stroke: 150 mm | Auto switch magnet: No
CA2KWT40-175 Mounting: Center trunnion | Bore: ø40 mm | Stroke: 175 mm | Auto switch magnet: No
CA2KWT40-200 Mounting: Center trunnion | Bore: ø40 mm | Stroke: 200 mm | Auto switch magnet: No
CA2KWT40-250 Mounting: Center trunnion | Bore: ø40 mm | Stroke: 250 mm | Auto switch magnet: No
CA2KWT40-300 Mounting: Center trunnion | Bore: ø40 mm | Stroke: 300 mm | Auto switch magnet: No
CA2KWT40-350 Mounting: Center trunnion | Bore: ø40 mm | Stroke: 350 mm | Auto switch magnet: No
CA2KWT40-400 Mounting: Center trunnion | Bore: ø40 mm | Stroke: 400 mm | Auto switch magnet: No
CA2KWT40-450 Mounting: Center trunnion | Bore: ø40 mm | Stroke: 450 mm | Auto switch magnet: No
CA2KWT40-500 Mounting: Center trunnion | Bore: ø40 mm | Stroke: 500 mm | Auto switch magnet: No
CA2KWT50-25 Mounting: Center trunnion | Bore: ø50 mm | Stroke: 25 mm | Auto switch magnet: No
CA2KWT50-50 Mounting: Center trunnion | Bore: ø50 mm | Stroke: 50 mm | Auto switch magnet: No
CA2KWT50-75 Mounting: Center trunnion | Bore: ø50 mm | Stroke: 75 mm | Auto switch magnet: No
CA2KWT50-100 Mounting: Center trunnion | Bore: ø50 mm | Stroke: 100 mm | Auto switch magnet: No
CA2KWT50-125 Mounting: Center trunnion | Bore: ø50 mm | Stroke: 125 mm | Auto switch magnet: No
CA2KWT50-150 Mounting: Center trunnion | Bore: ø50 mm | Stroke: 150 mm | Auto switch magnet: No
CA2KWT50-175 Mounting: Center trunnion | Bore: ø50 mm | Stroke: 175 mm | Auto switch magnet: No
CA2KWT50-200 Mounting: Center trunnion | Bore: ø50 mm | Stroke: 200 mm | Auto switch magnet: No
CA2KWT50-250 Mounting: Center trunnion | Bore: ø50 mm | Stroke: 250 mm | Auto switch magnet: No
CA2KWT50-300 Mounting: Center trunnion | Bore: ø50 mm | Stroke: 300 mm | Auto switch magnet: No
CA2KWT50-350 Mounting: Center trunnion | Bore: ø50 mm | Stroke: 350 mm | Auto switch magnet: No
CA2KWT50-400 Mounting: Center trunnion | Bore: ø50 mm | Stroke: 400 mm | Auto switch magnet: No
CA2KWT50-450 Mounting: Center trunnion | Bore: ø50 mm | Stroke: 450 mm | Auto switch magnet: No
CA2KWT50-500 Mounting: Center trunnion | Bore: ø50 mm | Stroke: 500 mm | Auto switch magnet: No
CA2KWT50-600 Mounting: Center trunnion | Bore: ø50 mm | Stroke: 600 mm | Auto switch magnet: No
CA2KWT63-25 Mounting: Center trunnion | Bore: ø63 mm | Stroke: 25 mm | Auto switch magnet: No
CA2KWT63-50 Mounting: Center trunnion | Bore: ø63 mm | Stroke: 50 mm | Auto switch magnet: No
CA2KWT63-75 Mounting: Center trunnion | Bore: ø63 mm | Stroke: 75 mm | Auto switch magnet: No
CA2KWT63-100 Mounting: Center trunnion | Bore: ø63 mm | Stroke: 100 mm | Auto switch magnet: No
CA2KWT63-125 Mounting: Center trunnion | Bore: ø63 mm | Stroke: 125 mm | Auto switch magnet: No
CA2KWT63-150 Mounting: Center trunnion | Bore: ø63 mm | Stroke: 150 mm | Auto switch magnet: No
CA2KWT63-175 Mounting: Center trunnion | Bore: ø63 mm | Stroke: 175 mm | Auto switch magnet: No
CA2KWT63-200 Mounting: Center trunnion | Bore: ø63 mm | Stroke: 200 mm | Auto switch magnet: No
CA2KWT63-250 Mounting: Center trunnion | Bore: ø63 mm | Stroke: 250 mm | Auto switch magnet: No
CA2KWT63-300 Mounting: Center trunnion | Bore: ø63 mm | Stroke: 300 mm | Auto switch magnet: No
CA2KWT63-350 Mounting: Center trunnion | Bore: ø63 mm | Stroke: 350 mm | Auto switch magnet: No
CA2KWT63-400 Mounting: Center trunnion | Bore: ø63 mm | Stroke: 400 mm | Auto switch magnet: No
CA2KWT63-450 Mounting: Center trunnion | Bore: ø63 mm | Stroke: 450 mm | Auto switch magnet: No
CA2KWT63-500 Mounting: Center trunnion | Bore: ø63 mm | Stroke: 500 mm | Auto switch magnet: No
CA2KWT63-600 Mounting: Center trunnion | Bore: ø63 mm | Stroke: 600 mm | Auto switch magnet: No
CDA2KWB40-25 Mounting: Basic | Bore: ø40 mm | Stroke: 25 mm | Auto switch magnet: Yes
CDA2KWB40-50 Mounting: Basic | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: Yes
CDA2KWB40-75 Mounting: Basic | Bore: ø40 mm | Stroke: 75 mm | Auto switch magnet: Yes
CDA2KWB40-100 Mounting: Basic | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: Yes
CDA2KWB40-125 Mounting: Basic | Bore: ø40 mm | Stroke: 125 mm | Auto switch magnet: Yes
CDA2KWB40-150 Mounting: Basic | Bore: ø40 mm | Stroke: 150 mm | Auto switch magnet: Yes
CDA2KWB40-175 Mounting: Basic | Bore: ø40 mm | Stroke: 175 mm | Auto switch magnet: Yes
CDA2KWB40-200 Mounting: Basic | Bore: ø40 mm | Stroke: 200 mm | Auto switch magnet: Yes
CDA2KWB40-250 Mounting: Basic | Bore: ø40 mm | Stroke: 250 mm | Auto switch magnet: Yes
CDA2KWB40-300 Mounting: Basic | Bore: ø40 mm | Stroke: 300 mm | Auto switch magnet: Yes
CDA2KWB40-350 Mounting: Basic | Bore: ø40 mm | Stroke: 350 mm | Auto switch magnet: Yes
CDA2KWB40-400 Mounting: Basic | Bore: ø40 mm | Stroke: 400 mm | Auto switch magnet: Yes
CDA2KWB40-450 Mounting: Basic | Bore: ø40 mm | Stroke: 450 mm | Auto switch magnet: Yes
CDA2KWB40-500 Mounting: Basic | Bore: ø40 mm | Stroke: 500 mm | Auto switch magnet: Yes
CDA2KWB50-25 Mounting: Basic | Bore: ø50 mm | Stroke: 25 mm | Auto switch magnet: Yes
CDA2KWB50-50 Mounting: Basic | Bore: ø50 mm | Stroke: 50 mm | Auto switch magnet: Yes
CDA2KWB50-75 Mounting: Basic | Bore: ø50 mm | Stroke: 75 mm | Auto switch magnet: Yes
CDA2KWB50-100 Mounting: Basic | Bore: ø50 mm | Stroke: 100 mm | Auto switch magnet: Yes
CDA2KWB50-125 Mounting: Basic | Bore: ø50 mm | Stroke: 125 mm | Auto switch magnet: Yes
CDA2KWB50-150 Mounting: Basic | Bore: ø50 mm | Stroke: 150 mm | Auto switch magnet: Yes
CDA2KWB50-175 Mounting: Basic | Bore: ø50 mm | Stroke: 175 mm | Auto switch magnet: Yes
CDA2KWB50-200 Mounting: Basic | Bore: ø50 mm | Stroke: 200 mm | Auto switch magnet: Yes
CDA2KWB50-250 Mounting: Basic | Bore: ø50 mm | Stroke: 250 mm | Auto switch magnet: Yes
CDA2KWB50-300 Mounting: Basic | Bore: ø50 mm | Stroke: 300 mm | Auto switch magnet: Yes
CDA2KWB50-350 Mounting: Basic | Bore: ø50 mm | Stroke: 350 mm | Auto switch magnet: Yes
CDA2KWB50-400 Mounting: Basic | Bore: ø50 mm | Stroke: 400 mm | Auto switch magnet: Yes
CDA2KWB50-450 Mounting: Basic | Bore: ø50 mm | Stroke: 450 mm | Auto switch magnet: Yes
CDA2KWB50-500 Mounting: Basic | Bore: ø50 mm | Stroke: 500 mm | Auto switch magnet: Yes
CDA2KWB50-600 Mounting: Basic | Bore: ø50 mm | Stroke: 600 mm | Auto switch magnet: Yes
CDA2KWB63-25 Mounting: Basic | Bore: ø63 mm | Stroke: 25 mm | Auto switch magnet: Yes
CDA2KWB63-50 Mounting: Basic | Bore: ø63 mm | Stroke: 50 mm | Auto switch magnet: Yes
CDA2KWB63-75 Mounting: Basic | Bore: ø63 mm | Stroke: 75 mm | Auto switch magnet: Yes
CDA2KWB63-100 Mounting: Basic | Bore: ø63 mm | Stroke: 100 mm | Auto switch magnet: Yes
CDA2KWB63-125 Mounting: Basic | Bore: ø63 mm | Stroke: 125 mm | Auto switch magnet: Yes
CDA2KWB63-150 Mounting: Basic | Bore: ø63 mm | Stroke: 150 mm | Auto switch magnet: Yes
CDA2KWB63-175 Mounting: Basic | Bore: ø63 mm | Stroke: 175 mm | Auto switch magnet: Yes
CDA2KWB63-200 Mounting: Basic | Bore: ø63 mm | Stroke: 200 mm | Auto switch magnet: Yes
CDA2KWB63-250 Mounting: Basic | Bore: ø63 mm | Stroke: 250 mm | Auto switch magnet: Yes
CDA2KWB63-300 Mounting: Basic | Bore: ø63 mm | Stroke: 300 mm | Auto switch magnet: Yes
CDA2KWB63-350 Mounting: Basic | Bore: ø63 mm | Stroke: 350 mm | Auto switch magnet: Yes
CDA2KWB63-400 Mounting: Basic | Bore: ø63 mm | Stroke: 400 mm | Auto switch magnet: Yes
CDA2KWB63-450 Mounting: Basic | Bore: ø63 mm | Stroke: 450 mm | Auto switch magnet: Yes
CDA2KWB63-500 Mounting: Basic | Bore: ø63 mm | Stroke: 500 mm | Auto switch magnet: Yes
CDA2KWB63-600 Mounting: Basic | Bore: ø63 mm | Stroke: 600 mm | Auto switch magnet: Yes
CDA2KWL40-25 Mounting: Axial foot | Bore: ø40 mm | Stroke: 25 mm | Auto switch magnet: Yes
CDA2KWL40-50 Mounting: Axial foot | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: Yes
CDA2KWL40-75 Mounting: Axial foot | Bore: ø40 mm | Stroke: 75 mm | Auto switch magnet: Yes
CDA2KWL40-100 Mounting: Axial foot | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: Yes
CDA2KWL40-125 Mounting: Axial foot | Bore: ø40 mm | Stroke: 125 mm | Auto switch magnet: Yes
CDA2KWL40-150 Mounting: Axial foot | Bore: ø40 mm | Stroke: 150 mm | Auto switch magnet: Yes
CDA2KWL40-175 Mounting: Axial foot | Bore: ø40 mm | Stroke: 175 mm | Auto switch magnet: Yes
CDA2KWL40-200 Mounting: Axial foot | Bore: ø40 mm | Stroke: 200 mm | Auto switch magnet: Yes
CDA2KWL40-250 Mounting: Axial foot | Bore: ø40 mm | Stroke: 250 mm | Auto switch magnet: Yes
CDA2KWL40-300 Mounting: Axial foot | Bore: ø40 mm | Stroke: 300 mm | Auto switch magnet: Yes
CDA2KWL40-350 Mounting: Axial foot | Bore: ø40 mm | Stroke: 350 mm | Auto switch magnet: Yes
CDA2KWL40-400 Mounting: Axial foot | Bore: ø40 mm | Stroke: 400 mm | Auto switch magnet: Yes
CDA2KWL40-450 Mounting: Axial foot | Bore: ø40 mm | Stroke: 450 mm | Auto switch magnet: Yes
CDA2KWL40-500 Mounting: Axial foot | Bore: ø40 mm | Stroke: 500 mm | Auto switch magnet: Yes
CDA2KWL50-25 Mounting: Axial foot | Bore: ø50 mm | Stroke: 25 mm | Auto switch magnet: Yes
CDA2KWL50-50 Mounting: Axial foot | Bore: ø50 mm | Stroke: 50 mm | Auto switch magnet: Yes
CDA2KWL50-75 Mounting: Axial foot | Bore: ø50 mm | Stroke: 75 mm | Auto switch magnet: Yes
CDA2KWL50-100 Mounting: Axial foot | Bore: ø50 mm | Stroke: 100 mm | Auto switch magnet: Yes
CDA2KWL50-125 Mounting: Axial foot | Bore: ø50 mm | Stroke: 125 mm | Auto switch magnet: Yes
CDA2KWL50-150 Mounting: Axial foot | Bore: ø50 mm | Stroke: 150 mm | Auto switch magnet: Yes
CDA2KWL50-175 Mounting: Axial foot | Bore: ø50 mm | Stroke: 175 mm | Auto switch magnet: Yes
CDA2KWL50-200 Mounting: Axial foot | Bore: ø50 mm | Stroke: 200 mm | Auto switch magnet: Yes
CDA2KWL50-250 Mounting: Axial foot | Bore: ø50 mm | Stroke: 250 mm | Auto switch magnet: Yes
CDA2KWL50-300 Mounting: Axial foot | Bore: ø50 mm | Stroke: 300 mm | Auto switch magnet: Yes
CDA2KWL50-350 Mounting: Axial foot | Bore: ø50 mm | Stroke: 350 mm | Auto switch magnet: Yes
CDA2KWL50-400 Mounting: Axial foot | Bore: ø50 mm | Stroke: 400 mm | Auto switch magnet: Yes
CDA2KWL50-450 Mounting: Axial foot | Bore: ø50 mm | Stroke: 450 mm | Auto switch magnet: Yes
CDA2KWL50-500 Mounting: Axial foot | Bore: ø50 mm | Stroke: 500 mm | Auto switch magnet: Yes
CDA2KWL50-600 Mounting: Axial foot | Bore: ø50 mm | Stroke: 600 mm | Auto switch magnet: Yes
CDA2KWL63-25 Mounting: Axial foot | Bore: ø63 mm | Stroke: 25 mm | Auto switch magnet: Yes
CDA2KWL63-50 Mounting: Axial foot | Bore: ø63 mm | Stroke: 50 mm | Auto switch magnet: Yes
CDA2KWL63-75 Mounting: Axial foot | Bore: ø63 mm | Stroke: 75 mm | Auto switch magnet: Yes
CDA2KWL63-100 Mounting: Axial foot | Bore: ø63 mm | Stroke: 100 mm | Auto switch magnet: Yes
CDA2KWL63-125 Mounting: Axial foot | Bore: ø63 mm | Stroke: 125 mm | Auto switch magnet: Yes
CDA2KWL63-150 Mounting: Axial foot | Bore: ø63 mm | Stroke: 150 mm | Auto switch magnet: Yes
CDA2KWL63-175 Mounting: Axial foot | Bore: ø63 mm | Stroke: 175 mm | Auto switch magnet: Yes
CDA2KWL63-200 Mounting: Axial foot | Bore: ø63 mm | Stroke: 200 mm | Auto switch magnet: Yes
CDA2KWL63-250 Mounting: Axial foot | Bore: ø63 mm | Stroke: 250 mm | Auto switch magnet: Yes
CDA2KWL63-300 Mounting: Axial foot | Bore: ø63 mm | Stroke: 300 mm | Auto switch magnet: Yes
CDA2KWL63-350 Mounting: Axial foot | Bore: ø63 mm | Stroke: 350 mm | Auto switch magnet: Yes
CDA2KWL63-400 Mounting: Axial foot | Bore: ø63 mm | Stroke: 400 mm | Auto switch magnet: Yes
CDA2KWL63-450 Mounting: Axial foot | Bore: ø63 mm | Stroke: 450 mm | Auto switch magnet: Yes
CDA2KWL63-500 Mounting: Axial foot | Bore: ø63 mm | Stroke: 500 mm | Auto switch magnet: Yes
CDA2KWL63-600 Mounting: Axial foot | Bore: ø63 mm | Stroke: 600 mm | Auto switch magnet: Yes
CDA2KWF40-25 Mounting: Rod flange | Bore: ø40 mm | Stroke: 25 mm | Auto switch magnet: Yes
CDA2KWF40-50 Mounting: Rod flange | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: Yes
CDA2KWF40-75 Mounting: Rod flange | Bore: ø40 mm | Stroke: 75 mm | Auto switch magnet: Yes
CDA2KWF40-100 Mounting: Rod flange | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: Yes
CDA2KWF40-125 Mounting: Rod flange | Bore: ø40 mm | Stroke: 125 mm | Auto switch magnet: Yes
CDA2KWF40-150 Mounting: Rod flange | Bore: ø40 mm | Stroke: 150 mm | Auto switch magnet: Yes
CDA2KWF40-175 Mounting: Rod flange | Bore: ø40 mm | Stroke: 175 mm | Auto switch magnet: Yes
CDA2KWF40-200 Mounting: Rod flange | Bore: ø40 mm | Stroke: 200 mm | Auto switch magnet: Yes
CDA2KWF40-250 Mounting: Rod flange | Bore: ø40 mm | Stroke: 250 mm | Auto switch magnet: Yes
CDA2KWF40-300 Mounting: Rod flange | Bore: ø40 mm | Stroke: 300 mm | Auto switch magnet: Yes
CDA2KWF40-350 Mounting: Rod flange | Bore: ø40 mm | Stroke: 350 mm | Auto switch magnet: Yes
CDA2KWF40-400 Mounting: Rod flange | Bore: ø40 mm | Stroke: 400 mm | Auto switch magnet: Yes
CDA2KWF40-450 Mounting: Rod flange | Bore: ø40 mm | Stroke: 450 mm | Auto switch magnet: Yes
CDA2KWF40-500 Mounting: Rod flange | Bore: ø40 mm | Stroke: 500 mm | Auto switch magnet: Yes
CDA2KWF50-25 Mounting: Rod flange | Bore: ø50 mm | Stroke: 25 mm | Auto switch magnet: Yes
CDA2KWF50-50 Mounting: Rod flange | Bore: ø50 mm | Stroke: 50 mm | Auto switch magnet: Yes
CDA2KWF50-75 Mounting: Rod flange | Bore: ø50 mm | Stroke: 75 mm | Auto switch magnet: Yes
CDA2KWF50-100 Mounting: Rod flange | Bore: ø50 mm | Stroke: 100 mm | Auto switch magnet: Yes
CDA2KWF50-125 Mounting: Rod flange | Bore: ø50 mm | Stroke: 125 mm | Auto switch magnet: Yes
CDA2KWF50-150 Mounting: Rod flange | Bore: ø50 mm | Stroke: 150 mm | Auto switch magnet: Yes
CDA2KWF50-175 Mounting: Rod flange | Bore: ø50 mm | Stroke: 175 mm | Auto switch magnet: Yes
CDA2KWF50-200 Mounting: Rod flange | Bore: ø50 mm | Stroke: 200 mm | Auto switch magnet: Yes
CDA2KWF50-250 Mounting: Rod flange | Bore: ø50 mm | Stroke: 250 mm | Auto switch magnet: Yes
CDA2KWF50-300 Mounting: Rod flange | Bore: ø50 mm | Stroke: 300 mm | Auto switch magnet: Yes
CDA2KWF50-350 Mounting: Rod flange | Bore: ø50 mm | Stroke: 350 mm | Auto switch magnet: Yes
CDA2KWF50-400 Mounting: Rod flange | Bore: ø50 mm | Stroke: 400 mm | Auto switch magnet: Yes
CDA2KWF50-450 Mounting: Rod flange | Bore: ø50 mm | Stroke: 450 mm | Auto switch magnet: Yes
CDA2KWF50-500 Mounting: Rod flange | Bore: ø50 mm | Stroke: 500 mm | Auto switch magnet: Yes
CDA2KWF50-600 Mounting: Rod flange | Bore: ø50 mm | Stroke: 600 mm | Auto switch magnet: Yes
CDA2KWF63-25 Mounting: Rod flange | Bore: ø63 mm | Stroke: 25 mm | Auto switch magnet: Yes
CDA2KWF63-50 Mounting: Rod flange | Bore: ø63 mm | Stroke: 50 mm | Auto switch magnet: Yes
CDA2KWF63-75 Mounting: Rod flange | Bore: ø63 mm | Stroke: 75 mm | Auto switch magnet: Yes
CDA2KWF63-100 Mounting: Rod flange | Bore: ø63 mm | Stroke: 100 mm | Auto switch magnet: Yes
CDA2KWF63-125 Mounting: Rod flange | Bore: ø63 mm | Stroke: 125 mm | Auto switch magnet: Yes
CDA2KWF63-150 Mounting: Rod flange | Bore: ø63 mm | Stroke: 150 mm | Auto switch magnet: Yes
CDA2KWF63-175 Mounting: Rod flange | Bore: ø63 mm | Stroke: 175 mm | Auto switch magnet: Yes
CDA2KWF63-200 Mounting: Rod flange | Bore: ø63 mm | Stroke: 200 mm | Auto switch magnet: Yes
CDA2KWF63-250 Mounting: Rod flange | Bore: ø63 mm | Stroke: 250 mm | Auto switch magnet: Yes
CDA2KWF63-300 Mounting: Rod flange | Bore: ø63 mm | Stroke: 300 mm | Auto switch magnet: Yes
CDA2KWF63-350 Mounting: Rod flange | Bore: ø63 mm | Stroke: 350 mm | Auto switch magnet: Yes
CDA2KWF63-400 Mounting: Rod flange | Bore: ø63 mm | Stroke: 400 mm | Auto switch magnet: Yes
CDA2KWF63-450 Mounting: Rod flange | Bore: ø63 mm | Stroke: 450 mm | Auto switch magnet: Yes
CDA2KWF63-500 Mounting: Rod flange | Bore: ø63 mm | Stroke: 500 mm | Auto switch magnet: Yes
CDA2KWF63-600 Mounting: Rod flange | Bore: ø63 mm | Stroke: 600 mm | Auto switch magnet: Yes
CDA2KWG40-25 Mounting: Head flange | Bore: ø40 mm | Stroke: 25 mm | Auto switch magnet: Yes
CDA2KWG40-50 Mounting: Head flange | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: Yes
CDA2KWG40-75 Mounting: Head flange | Bore: ø40 mm | Stroke: 75 mm | Auto switch magnet: Yes
CDA2KWG40-100 Mounting: Head flange | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: Yes
CDA2KWG40-125 Mounting: Head flange | Bore: ø40 mm | Stroke: 125 mm | Auto switch magnet: Yes
CDA2KWG40-150 Mounting: Head flange | Bore: ø40 mm | Stroke: 150 mm | Auto switch magnet: Yes
CDA2KWG40-175 Mounting: Head flange | Bore: ø40 mm | Stroke: 175 mm | Auto switch magnet: Yes
CDA2KWG40-200 Mounting: Head flange | Bore: ø40 mm | Stroke: 200 mm | Auto switch magnet: Yes
CDA2KWG40-250 Mounting: Head flange | Bore: ø40 mm | Stroke: 250 mm | Auto switch magnet: Yes
CDA2KWG40-300 Mounting: Head flange | Bore: ø40 mm | Stroke: 300 mm | Auto switch magnet: Yes
CDA2KWG40-350 Mounting: Head flange | Bore: ø40 mm | Stroke: 350 mm | Auto switch magnet: Yes
CDA2KWG40-400 Mounting: Head flange | Bore: ø40 mm | Stroke: 400 mm | Auto switch magnet: Yes
CDA2KWG40-450 Mounting: Head flange | Bore: ø40 mm | Stroke: 450 mm | Auto switch magnet: Yes
CDA2KWG40-500 Mounting: Head flange | Bore: ø40 mm | Stroke: 500 mm | Auto switch magnet: Yes
CDA2KWG50-25 Mounting: Head flange | Bore: ø50 mm | Stroke: 25 mm | Auto switch magnet: Yes
CDA2KWG50-50 Mounting: Head flange | Bore: ø50 mm | Stroke: 50 mm | Auto switch magnet: Yes
CDA2KWG50-75 Mounting: Head flange | Bore: ø50 mm | Stroke: 75 mm | Auto switch magnet: Yes
CDA2KWG50-100 Mounting: Head flange | Bore: ø50 mm | Stroke: 100 mm | Auto switch magnet: Yes
CDA2KWG50-125 Mounting: Head flange | Bore: ø50 mm | Stroke: 125 mm | Auto switch magnet: Yes
CDA2KWG50-150 Mounting: Head flange | Bore: ø50 mm | Stroke: 150 mm | Auto switch magnet: Yes
CDA2KWG50-175 Mounting: Head flange | Bore: ø50 mm | Stroke: 175 mm | Auto switch magnet: Yes
CDA2KWG50-200 Mounting: Head flange | Bore: ø50 mm | Stroke: 200 mm | Auto switch magnet: Yes
CDA2KWG50-250 Mounting: Head flange | Bore: ø50 mm | Stroke: 250 mm | Auto switch magnet: Yes
CDA2KWG50-300 Mounting: Head flange | Bore: ø50 mm | Stroke: 300 mm | Auto switch magnet: Yes
CDA2KWG50-350 Mounting: Head flange | Bore: ø50 mm | Stroke: 350 mm | Auto switch magnet: Yes
CDA2KWG50-400 Mounting: Head flange | Bore: ø50 mm | Stroke: 400 mm | Auto switch magnet: Yes
CDA2KWG50-450 Mounting: Head flange | Bore: ø50 mm | Stroke: 450 mm | Auto switch magnet: Yes
CDA2KWG50-500 Mounting: Head flange | Bore: ø50 mm | Stroke: 500 mm | Auto switch magnet: Yes
CDA2KWG50-600 Mounting: Head flange | Bore: ø50 mm | Stroke: 600 mm | Auto switch magnet: Yes
CDA2KWG63-25 Mounting: Head flange | Bore: ø63 mm | Stroke: 25 mm | Auto switch magnet: Yes
CDA2KWG63-50 Mounting: Head flange | Bore: ø63 mm | Stroke: 50 mm | Auto switch magnet: Yes
CDA2KWG63-75 Mounting: Head flange | Bore: ø63 mm | Stroke: 75 mm | Auto switch magnet: Yes
CDA2KWG63-100 Mounting: Head flange | Bore: ø63 mm | Stroke: 100 mm | Auto switch magnet: Yes
CDA2KWG63-125 Mounting: Head flange | Bore: ø63 mm | Stroke: 125 mm | Auto switch magnet: Yes
CDA2KWG63-150 Mounting: Head flange | Bore: ø63 mm | Stroke: 150 mm | Auto switch magnet: Yes
CDA2KWG63-175 Mounting: Head flange | Bore: ø63 mm | Stroke: 175 mm | Auto switch magnet: Yes
CDA2KWG63-200 Mounting: Head flange | Bore: ø63 mm | Stroke: 200 mm | Auto switch magnet: Yes
CDA2KWG63-250 Mounting: Head flange | Bore: ø63 mm | Stroke: 250 mm | Auto switch magnet: Yes
CDA2KWG63-300 Mounting: Head flange | Bore: ø63 mm | Stroke: 300 mm | Auto switch magnet: Yes
CDA2KWG63-350 Mounting: Head flange | Bore: ø63 mm | Stroke: 350 mm | Auto switch magnet: Yes
CDA2KWG63-400 Mounting: Head flange | Bore: ø63 mm | Stroke: 400 mm | Auto switch magnet: Yes
CDA2KWG63-450 Mounting: Head flange | Bore: ø63 mm | Stroke: 450 mm | Auto switch magnet: Yes
CDA2KWG63-500 Mounting: Head flange | Bore: ø63 mm | Stroke: 500 mm | Auto switch magnet: Yes
CDA2KWG63-600 Mounting: Head flange | Bore: ø63 mm | Stroke: 600 mm | Auto switch magnet: Yes
CDA2KWT40-25 Mounting: Center trunnion | Bore: ø40 mm | Stroke: 25 mm | Auto switch magnet: Yes
CDA2KWT40-50 Mounting: Center trunnion | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: Yes
CDA2KWT40-75 Mounting: Center trunnion | Bore: ø40 mm | Stroke: 75 mm | Auto switch magnet: Yes
CDA2KWT40-100 Mounting: Center trunnion | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: Yes
CDA2KWT40-125 Mounting: Center trunnion | Bore: ø40 mm | Stroke: 125 mm | Auto switch magnet: Yes
CDA2KWT40-150 Mounting: Center trunnion | Bore: ø40 mm | Stroke: 150 mm | Auto switch magnet: Yes
CDA2KWT40-175 Mounting: Center trunnion | Bore: ø40 mm | Stroke: 175 mm | Auto switch magnet: Yes
CDA2KWT40-200 Mounting: Center trunnion | Bore: ø40 mm | Stroke: 200 mm | Auto switch magnet: Yes
CDA2KWT40-250 Mounting: Center trunnion | Bore: ø40 mm | Stroke: 250 mm | Auto switch magnet: Yes
CDA2KWT40-300 Mounting: Center trunnion | Bore: ø40 mm | Stroke: 300 mm | Auto switch magnet: Yes
CDA2KWT40-350 Mounting: Center trunnion | Bore: ø40 mm | Stroke: 350 mm | Auto switch magnet: Yes
CDA2KWT40-400 Mounting: Center trunnion | Bore: ø40 mm | Stroke: 400 mm | Auto switch magnet: Yes
CDA2KWT40-450 Mounting: Center trunnion | Bore: ø40 mm | Stroke: 450 mm | Auto switch magnet: Yes
CDA2KWT40-500 Mounting: Center trunnion | Bore: ø40 mm | Stroke: 500 mm | Auto switch magnet: Yes
CDA2KWT50-25 Mounting: Center trunnion | Bore: ø50 mm | Stroke: 25 mm | Auto switch magnet: Yes
CDA2KWT50-50 Mounting: Center trunnion | Bore: ø50 mm | Stroke: 50 mm | Auto switch magnet: Yes
CDA2KWT50-75 Mounting: Center trunnion | Bore: ø50 mm | Stroke: 75 mm | Auto switch magnet: Yes
CDA2KWT50-100 Mounting: Center trunnion | Bore: ø50 mm | Stroke: 100 mm | Auto switch magnet: Yes
CDA2KWT50-125 Mounting: Center trunnion | Bore: ø50 mm | Stroke: 125 mm | Auto switch magnet: Yes
CDA2KWT50-150 Mounting: Center trunnion | Bore: ø50 mm | Stroke: 150 mm | Auto switch magnet: Yes
CDA2KWT50-175 Mounting: Center trunnion | Bore: ø50 mm | Stroke: 175 mm | Auto switch magnet: Yes
CDA2KWT50-200 Mounting: Center trunnion | Bore: ø50 mm | Stroke: 200 mm | Auto switch magnet: Yes
CDA2KWT50-250 Mounting: Center trunnion | Bore: ø50 mm | Stroke: 250 mm | Auto switch magnet: Yes
CDA2KWT50-300 Mounting: Center trunnion | Bore: ø50 mm | Stroke: 300 mm | Auto switch magnet: Yes
CDA2KWT50-350 Mounting: Center trunnion | Bore: ø50 mm | Stroke: 350 mm | Auto switch magnet: Yes
CDA2KWT50-400 Mounting: Center trunnion | Bore: ø50 mm | Stroke: 400 mm | Auto switch magnet: Yes
CDA2KWT50-450 Mounting: Center trunnion | Bore: ø50 mm | Stroke: 450 mm | Auto switch magnet: Yes
CDA2KWT50-500 Mounting: Center trunnion | Bore: ø50 mm | Stroke: 500 mm | Auto switch magnet: Yes
CDA2KWT50-600 Mounting: Center trunnion | Bore: ø50 mm | Stroke: 600 mm | Auto switch magnet: Yes
CDA2KWT63-25 Mounting: Center trunnion | Bore: ø63 mm | Stroke: 25 mm | Auto switch magnet: Yes
CDA2KWT63-50 Mounting: Center trunnion | Bore: ø63 mm | Stroke: 50 mm | Auto switch magnet: Yes
CDA2KWT63-75 Mounting: Center trunnion | Bore: ø63 mm | Stroke: 75 mm | Auto switch magnet: Yes
CDA2KWT63-100 Mounting: Center trunnion | Bore: ø63 mm | Stroke: 100 mm | Auto switch magnet: Yes
CDA2KWT63-125 Mounting: Center trunnion | Bore: ø63 mm | Stroke: 125 mm | Auto switch magnet: Yes
CDA2KWT63-150 Mounting: Center trunnion | Bore: ø63 mm | Stroke: 150 mm | Auto switch magnet: Yes
CDA2KWT63-175 Mounting: Center trunnion | Bore: ø63 mm | Stroke: 175 mm | Auto switch magnet: Yes
CDA2KWT63-200 Mounting: Center trunnion | Bore: ø63 mm | Stroke: 200 mm | Auto switch magnet: Yes
CDA2KWT63-250 Mounting: Center trunnion | Bore: ø63 mm | Stroke: 250 mm | Auto switch magnet: Yes
CDA2KWT63-300 Mounting: Center trunnion | Bore: ø63 mm | Stroke: 300 mm | Auto switch magnet: Yes
CDA2KWT63-350 Mounting: Center trunnion | Bore: ø63 mm | Stroke: 350 mm | Auto switch magnet: Yes
CDA2KWT63-400 Mounting: Center trunnion | Bore: ø63 mm | Stroke: 400 mm | Auto switch magnet: Yes
CDA2KWT63-450 Mounting: Center trunnion | Bore: ø63 mm | Stroke: 450 mm | Auto switch magnet: Yes
CDA2KWT63-500 Mounting: Center trunnion | Bore: ø63 mm | Stroke: 500 mm | Auto switch magnet: Yes
CDA2KWT63-600 Mounting: Center trunnion | Bore: ø63 mm | Stroke: 600 mm | Auto switch magnet: Yes
Round Body CylindersSMC
440 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC CA2KW Air Cylinder (Non-Rotating, Double Rod, ø40 to ø63)

Brand SMC·Round Body Cylinders

Available part numbers (440)

CA2KWB40-25, CA2KWB40-50, CA2KWB40-75, CA2KWB40-100, CA2KWB40-125, CA2KWB40-150, CA2KWB40-175, CA2KWB40-200, CA2KWB40-250, CA2KWB40-300 + 430 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CA2KWB40-25Mounting: Basic | Bore: ø40 mm | Stroke: 25 mm | Auto switch magnet: No
CA2KWB40-50Mounting: Basic | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: No
CA2KWB40-75Mounting: Basic | Bore: ø40 mm | Stroke: 75 mm | Auto switch magnet: No
CA2KWB40-100Mounting: Basic | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: No
CA2KWB40-125Mounting: Basic | Bore: ø40 mm | Stroke: 125 mm | Auto switch magnet: No
CA2KWB40-150Mounting: Basic | Bore: ø40 mm | Stroke: 150 mm | Auto switch magnet: No
CA2KWB40-175Mounting: Basic | Bore: ø40 mm | Stroke: 175 mm | Auto switch magnet: No
CA2KWB40-200Mounting: Basic | Bore: ø40 mm | Stroke: 200 mm | Auto switch magnet: No
CA2KWB40-250Mounting: Basic | Bore: ø40 mm | Stroke: 250 mm | Auto switch magnet: No
CA2KWB40-300Mounting: Basic | Bore: ø40 mm | Stroke: 300 mm | Auto switch magnet: No
CA2KWB40-350Mounting: Basic | Bore: ø40 mm | Stroke: 350 mm | Auto switch magnet: No
CA2KWB40-400Mounting: Basic | Bore: ø40 mm | Stroke: 400 mm | Auto switch magnet: No
CA2KWB40-450Mounting: Basic | Bore: ø40 mm | Stroke: 450 mm | Auto switch magnet: No
CA2KWB40-500Mounting: Basic | Bore: ø40 mm | Stroke: 500 mm | Auto switch magnet: No
CA2KWB50-25Mounting: Basic | Bore: ø50 mm | Stroke: 25 mm | Auto switch magnet: No
CA2KWB50-50Mounting: Basic | Bore: ø50 mm | Stroke: 50 mm | Auto switch magnet: No
CA2KWB50-75Mounting: Basic | Bore: ø50 mm | Stroke: 75 mm | Auto switch magnet: No
CA2KWB50-100Mounting: Basic | Bore: ø50 mm | Stroke: 100 mm | Auto switch magnet: No
CA2KWB50-125Mounting: Basic | Bore: ø50 mm | Stroke: 125 mm | Auto switch magnet: No
CA2KWB50-150Mounting: Basic | Bore: ø50 mm | Stroke: 150 mm | Auto switch magnet: No
CA2KWB50-175Mounting: Basic | Bore: ø50 mm | Stroke: 175 mm | Auto switch magnet: No
CA2KWB50-200Mounting: Basic | Bore: ø50 mm | Stroke: 200 mm | Auto switch magnet: No
CA2KWB50-250Mounting: Basic | Bore: ø50 mm | Stroke: 250 mm | Auto switch magnet: No
CA2KWB50-300Mounting: Basic | Bore: ø50 mm | Stroke: 300 mm | Auto switch magnet: No
CA2KWB50-350Mounting: Basic | Bore: ø50 mm | Stroke: 350 mm | Auto switch magnet: No
CA2KWB50-400Mounting: Basic | Bore: ø50 mm | Stroke: 400 mm | Auto switch magnet: No
CA2KWB50-450Mounting: Basic | Bore: ø50 mm | Stroke: 450 mm | Auto switch magnet: No
CA2KWB50-500Mounting: Basic | Bore: ø50 mm | Stroke: 500 mm | Auto switch magnet: No
CA2KWB50-600Mounting: Basic | Bore: ø50 mm | Stroke: 600 mm | Auto switch magnet: No
CA2KWB63-25Mounting: Basic | Bore: ø63 mm | Stroke: 25 mm | Auto switch magnet: No
CA2KWB63-50Mounting: Basic | Bore: ø63 mm | Stroke: 50 mm | Auto switch magnet: No
CA2KWB63-75Mounting: Basic | Bore: ø63 mm | Stroke: 75 mm | Auto switch magnet: No
CA2KWB63-100Mounting: Basic | Bore: ø63 mm | Stroke: 100 mm | Auto switch magnet: No
CA2KWB63-125Mounting: Basic | Bore: ø63 mm | Stroke: 125 mm | Auto switch magnet: No
CA2KWB63-150Mounting: Basic | Bore: ø63 mm | Stroke: 150 mm | Auto switch magnet: No
CA2KWB63-175Mounting: Basic | Bore: ø63 mm | Stroke: 175 mm | Auto switch magnet: No
CA2KWB63-200Mounting: Basic | Bore: ø63 mm | Stroke: 200 mm | Auto switch magnet: No
CA2KWB63-250Mounting: Basic | Bore: ø63 mm | Stroke: 250 mm | Auto switch magnet: No
CA2KWB63-300Mounting: Basic | Bore: ø63 mm | Stroke: 300 mm | Auto switch magnet: No
CA2KWB63-350Mounting: Basic | Bore: ø63 mm | Stroke: 350 mm | Auto switch magnet: No
CA2KWB63-400Mounting: Basic | Bore: ø63 mm | Stroke: 400 mm | Auto switch magnet: No
CA2KWB63-450Mounting: Basic | Bore: ø63 mm | Stroke: 450 mm | Auto switch magnet: No
CA2KWB63-500Mounting: Basic | Bore: ø63 mm | Stroke: 500 mm | Auto switch magnet: No
CA2KWB63-600Mounting: Basic | Bore: ø63 mm | Stroke: 600 mm | Auto switch magnet: No
CA2KWL40-25Mounting: Axial foot | Bore: ø40 mm | Stroke: 25 mm | Auto switch magnet: No
CA2KWL40-50Mounting: Axial foot | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: No
CA2KWL40-75Mounting: Axial foot | Bore: ø40 mm | Stroke: 75 mm | Auto switch magnet: No
CA2KWL40-100Mounting: Axial foot | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: No
CA2KWL40-125Mounting: Axial foot | Bore: ø40 mm | Stroke: 125 mm | Auto switch magnet: No
CA2KWL40-150Mounting: Axial foot | Bore: ø40 mm | Stroke: 150 mm | Auto switch magnet: No
CA2KWL40-175Mounting: Axial foot | Bore: ø40 mm | Stroke: 175 mm | Auto switch magnet: No
CA2KWL40-200Mounting: Axial foot | Bore: ø40 mm | Stroke: 200 mm | Auto switch magnet: No
CA2KWL40-250Mounting: Axial foot | Bore: ø40 mm | Stroke: 250 mm | Auto switch magnet: No
CA2KWL40-300Mounting: Axial foot | Bore: ø40 mm | Stroke: 300 mm | Auto switch magnet: No
CA2KWL40-350Mounting: Axial foot | Bore: ø40 mm | Stroke: 350 mm | Auto switch magnet: No
CA2KWL40-400Mounting: Axial foot | Bore: ø40 mm | Stroke: 400 mm | Auto switch magnet: No
CA2KWL40-450Mounting: Axial foot | Bore: ø40 mm | Stroke: 450 mm | Auto switch magnet: No
CA2KWL40-500Mounting: Axial foot | Bore: ø40 mm | Stroke: 500 mm | Auto switch magnet: No
CA2KWL50-25Mounting: Axial foot | Bore: ø50 mm | Stroke: 25 mm | Auto switch magnet: No
CA2KWL50-50Mounting: Axial foot | Bore: ø50 mm | Stroke: 50 mm | Auto switch magnet: No
CA2KWL50-75Mounting: Axial foot | Bore: ø50 mm | Stroke: 75 mm | Auto switch magnet: No
CA2KWL50-100Mounting: Axial foot | Bore: ø50 mm | Stroke: 100 mm | Auto switch magnet: No
CA2KWL50-125Mounting: Axial foot | Bore: ø50 mm | Stroke: 125 mm | Auto switch magnet: No
CA2KWL50-150Mounting: Axial foot | Bore: ø50 mm | Stroke: 150 mm | Auto switch magnet: No
CA2KWL50-175Mounting: Axial foot | Bore: ø50 mm | Stroke: 175 mm | Auto switch magnet: No
CA2KWL50-200Mounting: Axial foot | Bore: ø50 mm | Stroke: 200 mm | Auto switch magnet: No
CA2KWL50-250Mounting: Axial foot | Bore: ø50 mm | Stroke: 250 mm | Auto switch magnet: No
CA2KWL50-300Mounting: Axial foot | Bore: ø50 mm | Stroke: 300 mm | Auto switch magnet: No
CA2KWL50-350Mounting: Axial foot | Bore: ø50 mm | Stroke: 350 mm | Auto switch magnet: No
CA2KWL50-400Mounting: Axial foot | Bore: ø50 mm | Stroke: 400 mm | Auto switch magnet: No
CA2KWL50-450Mounting: Axial foot | Bore: ø50 mm | Stroke: 450 mm | Auto switch magnet: No
CA2KWL50-500Mounting: Axial foot | Bore: ø50 mm | Stroke: 500 mm | Auto switch magnet: No
CA2KWL50-600Mounting: Axial foot | Bore: ø50 mm | Stroke: 600 mm | Auto switch magnet: No
CA2KWL63-25Mounting: Axial foot | Bore: ø63 mm | Stroke: 25 mm | Auto switch magnet: No
CA2KWL63-50Mounting: Axial foot | Bore: ø63 mm | Stroke: 50 mm | Auto switch magnet: No
CA2KWL63-75Mounting: Axial foot | Bore: ø63 mm | Stroke: 75 mm | Auto switch magnet: No
CA2KWL63-100Mounting: Axial foot | Bore: ø63 mm | Stroke: 100 mm | Auto switch magnet: No
CA2KWL63-125Mounting: Axial foot | Bore: ø63 mm | Stroke: 125 mm | Auto switch magnet: No
CA2KWL63-150Mounting: Axial foot | Bore: ø63 mm | Stroke: 150 mm | Auto switch magnet: No
CA2KWL63-175Mounting: Axial foot | Bore: ø63 mm | Stroke: 175 mm | Auto switch magnet: No
CA2KWL63-200Mounting: Axial foot | Bore: ø63 mm | Stroke: 200 mm | Auto switch magnet: No
CA2KWL63-250Mounting: Axial foot | Bore: ø63 mm | Stroke: 250 mm | Auto switch magnet: No
CA2KWL63-300Mounting: Axial foot | Bore: ø63 mm | Stroke: 300 mm | Auto switch magnet: No
CA2KWL63-350Mounting: Axial foot | Bore: ø63 mm | Stroke: 350 mm | Auto switch magnet: No
CA2KWL63-400Mounting: Axial foot | Bore: ø63 mm | Stroke: 400 mm | Auto switch magnet: No
CA2KWL63-450Mounting: Axial foot | Bore: ø63 mm | Stroke: 450 mm | Auto switch magnet: No
CA2KWL63-500Mounting: Axial foot | Bore: ø63 mm | Stroke: 500 mm | Auto switch magnet: No
CA2KWL63-600Mounting: Axial foot | Bore: ø63 mm | Stroke: 600 mm | Auto switch magnet: No
CA2KWF40-25Mounting: Rod flange | Bore: ø40 mm | Stroke: 25 mm | Auto switch magnet: No
CA2KWF40-50Mounting: Rod flange | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: No
CA2KWF40-75Mounting: Rod flange | Bore: ø40 mm | Stroke: 75 mm | Auto switch magnet: No
CA2KWF40-100Mounting: Rod flange | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: No
CA2KWF40-125Mounting: Rod flange | Bore: ø40 mm | Stroke: 125 mm | Auto switch magnet: No
CA2KWF40-150Mounting: Rod flange | Bore: ø40 mm | Stroke: 150 mm | Auto switch magnet: No
CA2KWF40-175Mounting: Rod flange | Bore: ø40 mm | Stroke: 175 mm | Auto switch magnet: No
CA2KWF40-200Mounting: Rod flange | Bore: ø40 mm | Stroke: 200 mm | Auto switch magnet: No
CA2KWF40-250Mounting: Rod flange | Bore: ø40 mm | Stroke: 250 mm | Auto switch magnet: No
CA2KWF40-300Mounting: Rod flange | Bore: ø40 mm | Stroke: 300 mm | Auto switch magnet: No
CA2KWF40-350Mounting: Rod flange | Bore: ø40 mm | Stroke: 350 mm | Auto switch magnet: No
CA2KWF40-400Mounting: Rod flange | Bore: ø40 mm | Stroke: 400 mm | Auto switch magnet: No
CA2KWF40-450Mounting: Rod flange | Bore: ø40 mm | Stroke: 450 mm | Auto switch magnet: No
CA2KWF40-500Mounting: Rod flange | Bore: ø40 mm | Stroke: 500 mm | Auto switch magnet: No
CA2KWF50-25Mounting: Rod flange | Bore: ø50 mm | Stroke: 25 mm | Auto switch magnet: No
CA2KWF50-50Mounting: Rod flange | Bore: ø50 mm | Stroke: 50 mm | Auto switch magnet: No
CA2KWF50-75Mounting: Rod flange | Bore: ø50 mm | Stroke: 75 mm | Auto switch magnet: No
CA2KWF50-100Mounting: Rod flange | Bore: ø50 mm | Stroke: 100 mm | Auto switch magnet: No
CA2KWF50-125Mounting: Rod flange | Bore: ø50 mm | Stroke: 125 mm | Auto switch magnet: No
CA2KWF50-150Mounting: Rod flange | Bore: ø50 mm | Stroke: 150 mm | Auto switch magnet: No
CA2KWF50-175Mounting: Rod flange | Bore: ø50 mm | Stroke: 175 mm | Auto switch magnet: No
CA2KWF50-200Mounting: Rod flange | Bore: ø50 mm | Stroke: 200 mm | Auto switch magnet: No
CA2KWF50-250Mounting: Rod flange | Bore: ø50 mm | Stroke: 250 mm | Auto switch magnet: No
CA2KWF50-300Mounting: Rod flange | Bore: ø50 mm | Stroke: 300 mm | Auto switch magnet: No
CA2KWF50-350Mounting: Rod flange | Bore: ø50 mm | Stroke: 350 mm | Auto switch magnet: No
CA2KWF50-400Mounting: Rod flange | Bore: ø50 mm | Stroke: 400 mm | Auto switch magnet: No
CA2KWF50-450Mounting: Rod flange | Bore: ø50 mm | Stroke: 450 mm | Auto switch magnet: No
CA2KWF50-500Mounting: Rod flange | Bore: ø50 mm | Stroke: 500 mm | Auto switch magnet: No
CA2KWF50-600Mounting: Rod flange | Bore: ø50 mm | Stroke: 600 mm | Auto switch magnet: No
CA2KWF63-25Mounting: Rod flange | Bore: ø63 mm | Stroke: 25 mm | Auto switch magnet: No
CA2KWF63-50Mounting: Rod flange | Bore: ø63 mm | Stroke: 50 mm | Auto switch magnet: No
CA2KWF63-75Mounting: Rod flange | Bore: ø63 mm | Stroke: 75 mm | Auto switch magnet: No
CA2KWF63-100Mounting: Rod flange | Bore: ø63 mm | Stroke: 100 mm | Auto switch magnet: No
CA2KWF63-125Mounting: Rod flange | Bore: ø63 mm | Stroke: 125 mm | Auto switch magnet: No
CA2KWF63-150Mounting: Rod flange | Bore: ø63 mm | Stroke: 150 mm | Auto switch magnet: No
CA2KWF63-175Mounting: Rod flange | Bore: ø63 mm | Stroke: 175 mm | Auto switch magnet: No
CA2KWF63-200Mounting: Rod flange | Bore: ø63 mm | Stroke: 200 mm | Auto switch magnet: No
CA2KWF63-250Mounting: Rod flange | Bore: ø63 mm | Stroke: 250 mm | Auto switch magnet: No
CA2KWF63-300Mounting: Rod flange | Bore: ø63 mm | Stroke: 300 mm | Auto switch magnet: No
CA2KWF63-350Mounting: Rod flange | Bore: ø63 mm | Stroke: 350 mm | Auto switch magnet: No
CA2KWF63-400Mounting: Rod flange | Bore: ø63 mm | Stroke: 400 mm | Auto switch magnet: No
CA2KWF63-450Mounting: Rod flange | Bore: ø63 mm | Stroke: 450 mm | Auto switch magnet: No
CA2KWF63-500Mounting: Rod flange | Bore: ø63 mm | Stroke: 500 mm | Auto switch magnet: No
CA2KWF63-600Mounting: Rod flange | Bore: ø63 mm | Stroke: 600 mm | Auto switch magnet: No
CA2KWG40-25Mounting: Head flange | Bore: ø40 mm | Stroke: 25 mm | Auto switch magnet: No
CA2KWG40-50Mounting: Head flange | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: No
CA2KWG40-75Mounting: Head flange | Bore: ø40 mm | Stroke: 75 mm | Auto switch magnet: No
CA2KWG40-100Mounting: Head flange | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: No
CA2KWG40-125Mounting: Head flange | Bore: ø40 mm | Stroke: 125 mm | Auto switch magnet: No
CA2KWG40-150Mounting: Head flange | Bore: ø40 mm | Stroke: 150 mm | Auto switch magnet: No
CA2KWG40-175Mounting: Head flange | Bore: ø40 mm | Stroke: 175 mm | Auto switch magnet: No
CA2KWG40-200Mounting: Head flange | Bore: ø40 mm | Stroke: 200 mm | Auto switch magnet: No
CA2KWG40-250Mounting: Head flange | Bore: ø40 mm | Stroke: 250 mm | Auto switch magnet: No
CA2KWG40-300Mounting: Head flange | Bore: ø40 mm | Stroke: 300 mm | Auto switch magnet: No
CA2KWG40-350Mounting: Head flange | Bore: ø40 mm | Stroke: 350 mm | Auto switch magnet: No
CA2KWG40-400Mounting: Head flange | Bore: ø40 mm | Stroke: 400 mm | Auto switch magnet: No
CA2KWG40-450Mounting: Head flange | Bore: ø40 mm | Stroke: 450 mm | Auto switch magnet: No
CA2KWG40-500Mounting: Head flange | Bore: ø40 mm | Stroke: 500 mm | Auto switch magnet: No
CA2KWG50-25Mounting: Head flange | Bore: ø50 mm | Stroke: 25 mm | Auto switch magnet: No
CA2KWG50-50Mounting: Head flange | Bore: ø50 mm | Stroke: 50 mm | Auto switch magnet: No
CA2KWG50-75Mounting: Head flange | Bore: ø50 mm | Stroke: 75 mm | Auto switch magnet: No
CA2KWG50-100Mounting: Head flange | Bore: ø50 mm | Stroke: 100 mm | Auto switch magnet: No
CA2KWG50-125Mounting: Head flange | Bore: ø50 mm | Stroke: 125 mm | Auto switch magnet: No
CA2KWG50-150Mounting: Head flange | Bore: ø50 mm | Stroke: 150 mm | Auto switch magnet: No
CA2KWG50-175Mounting: Head flange | Bore: ø50 mm | Stroke: 175 mm | Auto switch magnet: No
CA2KWG50-200Mounting: Head flange | Bore: ø50 mm | Stroke: 200 mm | Auto switch magnet: No
CA2KWG50-250Mounting: Head flange | Bore: ø50 mm | Stroke: 250 mm | Auto switch magnet: No
CA2KWG50-300Mounting: Head flange | Bore: ø50 mm | Stroke: 300 mm | Auto switch magnet: No
CA2KWG50-350Mounting: Head flange | Bore: ø50 mm | Stroke: 350 mm | Auto switch magnet: No
CA2KWG50-400Mounting: Head flange | Bore: ø50 mm | Stroke: 400 mm | Auto switch magnet: No
CA2KWG50-450Mounting: Head flange | Bore: ø50 mm | Stroke: 450 mm | Auto switch magnet: No
CA2KWG50-500Mounting: Head flange | Bore: ø50 mm | Stroke: 500 mm | Auto switch magnet: No
CA2KWG50-600Mounting: Head flange | Bore: ø50 mm | Stroke: 600 mm | Auto switch magnet: No
CA2KWG63-25Mounting: Head flange | Bore: ø63 mm | Stroke: 25 mm | Auto switch magnet: No
CA2KWG63-50Mounting: Head flange | Bore: ø63 mm | Stroke: 50 mm | Auto switch magnet: No
CA2KWG63-75Mounting: Head flange | Bore: ø63 mm | Stroke: 75 mm | Auto switch magnet: No
CA2KWG63-100Mounting: Head flange | Bore: ø63 mm | Stroke: 100 mm | Auto switch magnet: No
CA2KWG63-125Mounting: Head flange | Bore: ø63 mm | Stroke: 125 mm | Auto switch magnet: No
CA2KWG63-150Mounting: Head flange | Bore: ø63 mm | Stroke: 150 mm | Auto switch magnet: No
CA2KWG63-175Mounting: Head flange | Bore: ø63 mm | Stroke: 175 mm | Auto switch magnet: No
CA2KWG63-200Mounting: Head flange | Bore: ø63 mm | Stroke: 200 mm | Auto switch magnet: No
CA2KWG63-250Mounting: Head flange | Bore: ø63 mm | Stroke: 250 mm | Auto switch magnet: No
CA2KWG63-300Mounting: Head flange | Bore: ø63 mm | Stroke: 300 mm | Auto switch magnet: No
CA2KWG63-350Mounting: Head flange | Bore: ø63 mm | Stroke: 350 mm | Auto switch magnet: No
CA2KWG63-400Mounting: Head flange | Bore: ø63 mm | Stroke: 400 mm | Auto switch magnet: No
CA2KWG63-450Mounting: Head flange | Bore: ø63 mm | Stroke: 450 mm | Auto switch magnet: No
CA2KWG63-500Mounting: Head flange | Bore: ø63 mm | Stroke: 500 mm | Auto switch magnet: No
CA2KWG63-600Mounting: Head flange | Bore: ø63 mm | Stroke: 600 mm | Auto switch magnet: No
CA2KWT40-25Mounting: Center trunnion | Bore: ø40 mm | Stroke: 25 mm | Auto switch magnet: No
CA2KWT40-50Mounting: Center trunnion | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: No
CA2KWT40-75Mounting: Center trunnion | Bore: ø40 mm | Stroke: 75 mm | Auto switch magnet: No
CA2KWT40-100Mounting: Center trunnion | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: No
CA2KWT40-125Mounting: Center trunnion | Bore: ø40 mm | Stroke: 125 mm | Auto switch magnet: No
CA2KWT40-150Mounting: Center trunnion | Bore: ø40 mm | Stroke: 150 mm | Auto switch magnet: No
CA2KWT40-175Mounting: Center trunnion | Bore: ø40 mm | Stroke: 175 mm | Auto switch magnet: No
CA2KWT40-200Mounting: Center trunnion | Bore: ø40 mm | Stroke: 200 mm | Auto switch magnet: No
CA2KWT40-250Mounting: Center trunnion | Bore: ø40 mm | Stroke: 250 mm | Auto switch magnet: No
CA2KWT40-300Mounting: Center trunnion | Bore: ø40 mm | Stroke: 300 mm | Auto switch magnet: No
CA2KWT40-350Mounting: Center trunnion | Bore: ø40 mm | Stroke: 350 mm | Auto switch magnet: No
CA2KWT40-400Mounting: Center trunnion | Bore: ø40 mm | Stroke: 400 mm | Auto switch magnet: No
CA2KWT40-450Mounting: Center trunnion | Bore: ø40 mm | Stroke: 450 mm | Auto switch magnet: No
CA2KWT40-500Mounting: Center trunnion | Bore: ø40 mm | Stroke: 500 mm | Auto switch magnet: No
CA2KWT50-25Mounting: Center trunnion | Bore: ø50 mm | Stroke: 25 mm | Auto switch magnet: No
CA2KWT50-50Mounting: Center trunnion | Bore: ø50 mm | Stroke: 50 mm | Auto switch magnet: No
CA2KWT50-75Mounting: Center trunnion | Bore: ø50 mm | Stroke: 75 mm | Auto switch magnet: No
CA2KWT50-100Mounting: Center trunnion | Bore: ø50 mm | Stroke: 100 mm | Auto switch magnet: No
CA2KWT50-125Mounting: Center trunnion | Bore: ø50 mm | Stroke: 125 mm | Auto switch magnet: No
CA2KWT50-150Mounting: Center trunnion | Bore: ø50 mm | Stroke: 150 mm | Auto switch magnet: No
CA2KWT50-175Mounting: Center trunnion | Bore: ø50 mm | Stroke: 175 mm | Auto switch magnet: No
CA2KWT50-200Mounting: Center trunnion | Bore: ø50 mm | Stroke: 200 mm | Auto switch magnet: No
CA2KWT50-250Mounting: Center trunnion | Bore: ø50 mm | Stroke: 250 mm | Auto switch magnet: No
CA2KWT50-300Mounting: Center trunnion | Bore: ø50 mm | Stroke: 300 mm | Auto switch magnet: No
CA2KWT50-350Mounting: Center trunnion | Bore: ø50 mm | Stroke: 350 mm | Auto switch magnet: No
CA2KWT50-400Mounting: Center trunnion | Bore: ø50 mm | Stroke: 400 mm | Auto switch magnet: No
CA2KWT50-450Mounting: Center trunnion | Bore: ø50 mm | Stroke: 450 mm | Auto switch magnet: No
CA2KWT50-500Mounting: Center trunnion | Bore: ø50 mm | Stroke: 500 mm | Auto switch magnet: No
CA2KWT50-600Mounting: Center trunnion | Bore: ø50 mm | Stroke: 600 mm | Auto switch magnet: No
CA2KWT63-25Mounting: Center trunnion | Bore: ø63 mm | Stroke: 25 mm | Auto switch magnet: No
CA2KWT63-50Mounting: Center trunnion | Bore: ø63 mm | Stroke: 50 mm | Auto switch magnet: No
CA2KWT63-75Mounting: Center trunnion | Bore: ø63 mm | Stroke: 75 mm | Auto switch magnet: No
CA2KWT63-100Mounting: Center trunnion | Bore: ø63 mm | Stroke: 100 mm | Auto switch magnet: No
CA2KWT63-125Mounting: Center trunnion | Bore: ø63 mm | Stroke: 125 mm | Auto switch magnet: No
CA2KWT63-150Mounting: Center trunnion | Bore: ø63 mm | Stroke: 150 mm | Auto switch magnet: No
CA2KWT63-175Mounting: Center trunnion | Bore: ø63 mm | Stroke: 175 mm | Auto switch magnet: No
CA2KWT63-200Mounting: Center trunnion | Bore: ø63 mm | Stroke: 200 mm | Auto switch magnet: No
CA2KWT63-250Mounting: Center trunnion | Bore: ø63 mm | Stroke: 250 mm | Auto switch magnet: No
CA2KWT63-300Mounting: Center trunnion | Bore: ø63 mm | Stroke: 300 mm | Auto switch magnet: No
CA2KWT63-350Mounting: Center trunnion | Bore: ø63 mm | Stroke: 350 mm | Auto switch magnet: No
CA2KWT63-400Mounting: Center trunnion | Bore: ø63 mm | Stroke: 400 mm | Auto switch magnet: No
CA2KWT63-450Mounting: Center trunnion | Bore: ø63 mm | Stroke: 450 mm | Auto switch magnet: No
CA2KWT63-500Mounting: Center trunnion | Bore: ø63 mm | Stroke: 500 mm | Auto switch magnet: No
CA2KWT63-600Mounting: Center trunnion | Bore: ø63 mm | Stroke: 600 mm | Auto switch magnet: No
CDA2KWB40-25Mounting: Basic | Bore: ø40 mm | Stroke: 25 mm | Auto switch magnet: Yes
CDA2KWB40-50Mounting: Basic | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: Yes
CDA2KWB40-75Mounting: Basic | Bore: ø40 mm | Stroke: 75 mm | Auto switch magnet: Yes
CDA2KWB40-100Mounting: Basic | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: Yes
CDA2KWB40-125Mounting: Basic | Bore: ø40 mm | Stroke: 125 mm | Auto switch magnet: Yes
CDA2KWB40-150Mounting: Basic | Bore: ø40 mm | Stroke: 150 mm | Auto switch magnet: Yes
CDA2KWB40-175Mounting: Basic | Bore: ø40 mm | Stroke: 175 mm | Auto switch magnet: Yes
CDA2KWB40-200Mounting: Basic | Bore: ø40 mm | Stroke: 200 mm | Auto switch magnet: Yes
CDA2KWB40-250Mounting: Basic | Bore: ø40 mm | Stroke: 250 mm | Auto switch magnet: Yes
CDA2KWB40-300Mounting: Basic | Bore: ø40 mm | Stroke: 300 mm | Auto switch magnet: Yes
CDA2KWB40-350Mounting: Basic | Bore: ø40 mm | Stroke: 350 mm | Auto switch magnet: Yes
CDA2KWB40-400Mounting: Basic | Bore: ø40 mm | Stroke: 400 mm | Auto switch magnet: Yes
CDA2KWB40-450Mounting: Basic | Bore: ø40 mm | Stroke: 450 mm | Auto switch magnet: Yes
CDA2KWB40-500Mounting: Basic | Bore: ø40 mm | Stroke: 500 mm | Auto switch magnet: Yes
CDA2KWB50-25Mounting: Basic | Bore: ø50 mm | Stroke: 25 mm | Auto switch magnet: Yes
CDA2KWB50-50Mounting: Basic | Bore: ø50 mm | Stroke: 50 mm | Auto switch magnet: Yes
CDA2KWB50-75Mounting: Basic | Bore: ø50 mm | Stroke: 75 mm | Auto switch magnet: Yes
CDA2KWB50-100Mounting: Basic | Bore: ø50 mm | Stroke: 100 mm | Auto switch magnet: Yes
CDA2KWB50-125Mounting: Basic | Bore: ø50 mm | Stroke: 125 mm | Auto switch magnet: Yes
CDA2KWB50-150Mounting: Basic | Bore: ø50 mm | Stroke: 150 mm | Auto switch magnet: Yes
CDA2KWB50-175Mounting: Basic | Bore: ø50 mm | Stroke: 175 mm | Auto switch magnet: Yes
CDA2KWB50-200Mounting: Basic | Bore: ø50 mm | Stroke: 200 mm | Auto switch magnet: Yes
CDA2KWB50-250Mounting: Basic | Bore: ø50 mm | Stroke: 250 mm | Auto switch magnet: Yes
CDA2KWB50-300Mounting: Basic | Bore: ø50 mm | Stroke: 300 mm | Auto switch magnet: Yes
CDA2KWB50-350Mounting: Basic | Bore: ø50 mm | Stroke: 350 mm | Auto switch magnet: Yes
CDA2KWB50-400Mounting: Basic | Bore: ø50 mm | Stroke: 400 mm | Auto switch magnet: Yes
CDA2KWB50-450Mounting: Basic | Bore: ø50 mm | Stroke: 450 mm | Auto switch magnet: Yes
CDA2KWB50-500Mounting: Basic | Bore: ø50 mm | Stroke: 500 mm | Auto switch magnet: Yes
CDA2KWB50-600Mounting: Basic | Bore: ø50 mm | Stroke: 600 mm | Auto switch magnet: Yes
CDA2KWB63-25Mounting: Basic | Bore: ø63 mm | Stroke: 25 mm | Auto switch magnet: Yes
CDA2KWB63-50Mounting: Basic | Bore: ø63 mm | Stroke: 50 mm | Auto switch magnet: Yes
CDA2KWB63-75Mounting: Basic | Bore: ø63 mm | Stroke: 75 mm | Auto switch magnet: Yes
CDA2KWB63-100Mounting: Basic | Bore: ø63 mm | Stroke: 100 mm | Auto switch magnet: Yes
CDA2KWB63-125Mounting: Basic | Bore: ø63 mm | Stroke: 125 mm | Auto switch magnet: Yes
CDA2KWB63-150Mounting: Basic | Bore: ø63 mm | Stroke: 150 mm | Auto switch magnet: Yes
CDA2KWB63-175Mounting: Basic | Bore: ø63 mm | Stroke: 175 mm | Auto switch magnet: Yes
CDA2KWB63-200Mounting: Basic | Bore: ø63 mm | Stroke: 200 mm | Auto switch magnet: Yes
CDA2KWB63-250Mounting: Basic | Bore: ø63 mm | Stroke: 250 mm | Auto switch magnet: Yes
CDA2KWB63-300Mounting: Basic | Bore: ø63 mm | Stroke: 300 mm | Auto switch magnet: Yes
CDA2KWB63-350Mounting: Basic | Bore: ø63 mm | Stroke: 350 mm | Auto switch magnet: Yes
CDA2KWB63-400Mounting: Basic | Bore: ø63 mm | Stroke: 400 mm | Auto switch magnet: Yes
CDA2KWB63-450Mounting: Basic | Bore: ø63 mm | Stroke: 450 mm | Auto switch magnet: Yes
CDA2KWB63-500Mounting: Basic | Bore: ø63 mm | Stroke: 500 mm | Auto switch magnet: Yes
CDA2KWB63-600Mounting: Basic | Bore: ø63 mm | Stroke: 600 mm | Auto switch magnet: Yes
CDA2KWL40-25Mounting: Axial foot | Bore: ø40 mm | Stroke: 25 mm | Auto switch magnet: Yes
CDA2KWL40-50Mounting: Axial foot | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: Yes
CDA2KWL40-75Mounting: Axial foot | Bore: ø40 mm | Stroke: 75 mm | Auto switch magnet: Yes
CDA2KWL40-100Mounting: Axial foot | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: Yes
CDA2KWL40-125Mounting: Axial foot | Bore: ø40 mm | Stroke: 125 mm | Auto switch magnet: Yes
CDA2KWL40-150Mounting: Axial foot | Bore: ø40 mm | Stroke: 150 mm | Auto switch magnet: Yes
CDA2KWL40-175Mounting: Axial foot | Bore: ø40 mm | Stroke: 175 mm | Auto switch magnet: Yes
CDA2KWL40-200Mounting: Axial foot | Bore: ø40 mm | Stroke: 200 mm | Auto switch magnet: Yes
CDA2KWL40-250Mounting: Axial foot | Bore: ø40 mm | Stroke: 250 mm | Auto switch magnet: Yes
CDA2KWL40-300Mounting: Axial foot | Bore: ø40 mm | Stroke: 300 mm | Auto switch magnet: Yes
CDA2KWL40-350Mounting: Axial foot | Bore: ø40 mm | Stroke: 350 mm | Auto switch magnet: Yes
CDA2KWL40-400Mounting: Axial foot | Bore: ø40 mm | Stroke: 400 mm | Auto switch magnet: Yes
CDA2KWL40-450Mounting: Axial foot | Bore: ø40 mm | Stroke: 450 mm | Auto switch magnet: Yes
CDA2KWL40-500Mounting: Axial foot | Bore: ø40 mm | Stroke: 500 mm | Auto switch magnet: Yes
CDA2KWL50-25Mounting: Axial foot | Bore: ø50 mm | Stroke: 25 mm | Auto switch magnet: Yes
CDA2KWL50-50Mounting: Axial foot | Bore: ø50 mm | Stroke: 50 mm | Auto switch magnet: Yes
CDA2KWL50-75Mounting: Axial foot | Bore: ø50 mm | Stroke: 75 mm | Auto switch magnet: Yes
CDA2KWL50-100Mounting: Axial foot | Bore: ø50 mm | Stroke: 100 mm | Auto switch magnet: Yes
CDA2KWL50-125Mounting: Axial foot | Bore: ø50 mm | Stroke: 125 mm | Auto switch magnet: Yes
CDA2KWL50-150Mounting: Axial foot | Bore: ø50 mm | Stroke: 150 mm | Auto switch magnet: Yes
CDA2KWL50-175Mounting: Axial foot | Bore: ø50 mm | Stroke: 175 mm | Auto switch magnet: Yes
CDA2KWL50-200Mounting: Axial foot | Bore: ø50 mm | Stroke: 200 mm | Auto switch magnet: Yes
CDA2KWL50-250Mounting: Axial foot | Bore: ø50 mm | Stroke: 250 mm | Auto switch magnet: Yes
CDA2KWL50-300Mounting: Axial foot | Bore: ø50 mm | Stroke: 300 mm | Auto switch magnet: Yes
CDA2KWL50-350Mounting: Axial foot | Bore: ø50 mm | Stroke: 350 mm | Auto switch magnet: Yes
CDA2KWL50-400Mounting: Axial foot | Bore: ø50 mm | Stroke: 400 mm | Auto switch magnet: Yes
CDA2KWL50-450Mounting: Axial foot | Bore: ø50 mm | Stroke: 450 mm | Auto switch magnet: Yes
CDA2KWL50-500Mounting: Axial foot | Bore: ø50 mm | Stroke: 500 mm | Auto switch magnet: Yes
CDA2KWL50-600Mounting: Axial foot | Bore: ø50 mm | Stroke: 600 mm | Auto switch magnet: Yes
CDA2KWL63-25Mounting: Axial foot | Bore: ø63 mm | Stroke: 25 mm | Auto switch magnet: Yes
CDA2KWL63-50Mounting: Axial foot | Bore: ø63 mm | Stroke: 50 mm | Auto switch magnet: Yes
CDA2KWL63-75Mounting: Axial foot | Bore: ø63 mm | Stroke: 75 mm | Auto switch magnet: Yes
CDA2KWL63-100Mounting: Axial foot | Bore: ø63 mm | Stroke: 100 mm | Auto switch magnet: Yes
CDA2KWL63-125Mounting: Axial foot | Bore: ø63 mm | Stroke: 125 mm | Auto switch magnet: Yes
CDA2KWL63-150Mounting: Axial foot | Bore: ø63 mm | Stroke: 150 mm | Auto switch magnet: Yes
CDA2KWL63-175Mounting: Axial foot | Bore: ø63 mm | Stroke: 175 mm | Auto switch magnet: Yes
CDA2KWL63-200Mounting: Axial foot | Bore: ø63 mm | Stroke: 200 mm | Auto switch magnet: Yes
CDA2KWL63-250Mounting: Axial foot | Bore: ø63 mm | Stroke: 250 mm | Auto switch magnet: Yes
CDA2KWL63-300Mounting: Axial foot | Bore: ø63 mm | Stroke: 300 mm | Auto switch magnet: Yes
CDA2KWL63-350Mounting: Axial foot | Bore: ø63 mm | Stroke: 350 mm | Auto switch magnet: Yes
CDA2KWL63-400Mounting: Axial foot | Bore: ø63 mm | Stroke: 400 mm | Auto switch magnet: Yes
CDA2KWL63-450Mounting: Axial foot | Bore: ø63 mm | Stroke: 450 mm | Auto switch magnet: Yes
CDA2KWL63-500Mounting: Axial foot | Bore: ø63 mm | Stroke: 500 mm | Auto switch magnet: Yes
CDA2KWL63-600Mounting: Axial foot | Bore: ø63 mm | Stroke: 600 mm | Auto switch magnet: Yes
CDA2KWF40-25Mounting: Rod flange | Bore: ø40 mm | Stroke: 25 mm | Auto switch magnet: Yes
CDA2KWF40-50Mounting: Rod flange | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: Yes
CDA2KWF40-75Mounting: Rod flange | Bore: ø40 mm | Stroke: 75 mm | Auto switch magnet: Yes
CDA2KWF40-100Mounting: Rod flange | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: Yes
CDA2KWF40-125Mounting: Rod flange | Bore: ø40 mm | Stroke: 125 mm | Auto switch magnet: Yes
CDA2KWF40-150Mounting: Rod flange | Bore: ø40 mm | Stroke: 150 mm | Auto switch magnet: Yes
CDA2KWF40-175Mounting: Rod flange | Bore: ø40 mm | Stroke: 175 mm | Auto switch magnet: Yes
CDA2KWF40-200Mounting: Rod flange | Bore: ø40 mm | Stroke: 200 mm | Auto switch magnet: Yes
CDA2KWF40-250Mounting: Rod flange | Bore: ø40 mm | Stroke: 250 mm | Auto switch magnet: Yes
CDA2KWF40-300Mounting: Rod flange | Bore: ø40 mm | Stroke: 300 mm | Auto switch magnet: Yes
CDA2KWF40-350Mounting: Rod flange | Bore: ø40 mm | Stroke: 350 mm | Auto switch magnet: Yes
CDA2KWF40-400Mounting: Rod flange | Bore: ø40 mm | Stroke: 400 mm | Auto switch magnet: Yes
CDA2KWF40-450Mounting: Rod flange | Bore: ø40 mm | Stroke: 450 mm | Auto switch magnet: Yes
CDA2KWF40-500Mounting: Rod flange | Bore: ø40 mm | Stroke: 500 mm | Auto switch magnet: Yes
CDA2KWF50-25Mounting: Rod flange | Bore: ø50 mm | Stroke: 25 mm | Auto switch magnet: Yes
CDA2KWF50-50Mounting: Rod flange | Bore: ø50 mm | Stroke: 50 mm | Auto switch magnet: Yes
CDA2KWF50-75Mounting: Rod flange | Bore: ø50 mm | Stroke: 75 mm | Auto switch magnet: Yes
CDA2KWF50-100Mounting: Rod flange | Bore: ø50 mm | Stroke: 100 mm | Auto switch magnet: Yes
CDA2KWF50-125Mounting: Rod flange | Bore: ø50 mm | Stroke: 125 mm | Auto switch magnet: Yes
CDA2KWF50-150Mounting: Rod flange | Bore: ø50 mm | Stroke: 150 mm | Auto switch magnet: Yes
CDA2KWF50-175Mounting: Rod flange | Bore: ø50 mm | Stroke: 175 mm | Auto switch magnet: Yes
CDA2KWF50-200Mounting: Rod flange | Bore: ø50 mm | Stroke: 200 mm | Auto switch magnet: Yes
CDA2KWF50-250Mounting: Rod flange | Bore: ø50 mm | Stroke: 250 mm | Auto switch magnet: Yes
CDA2KWF50-300Mounting: Rod flange | Bore: ø50 mm | Stroke: 300 mm | Auto switch magnet: Yes
CDA2KWF50-350Mounting: Rod flange | Bore: ø50 mm | Stroke: 350 mm | Auto switch magnet: Yes
CDA2KWF50-400Mounting: Rod flange | Bore: ø50 mm | Stroke: 400 mm | Auto switch magnet: Yes
CDA2KWF50-450Mounting: Rod flange | Bore: ø50 mm | Stroke: 450 mm | Auto switch magnet: Yes
CDA2KWF50-500Mounting: Rod flange | Bore: ø50 mm | Stroke: 500 mm | Auto switch magnet: Yes
CDA2KWF50-600Mounting: Rod flange | Bore: ø50 mm | Stroke: 600 mm | Auto switch magnet: Yes
CDA2KWF63-25Mounting: Rod flange | Bore: ø63 mm | Stroke: 25 mm | Auto switch magnet: Yes
CDA2KWF63-50Mounting: Rod flange | Bore: ø63 mm | Stroke: 50 mm | Auto switch magnet: Yes
CDA2KWF63-75Mounting: Rod flange | Bore: ø63 mm | Stroke: 75 mm | Auto switch magnet: Yes
CDA2KWF63-100Mounting: Rod flange | Bore: ø63 mm | Stroke: 100 mm | Auto switch magnet: Yes
CDA2KWF63-125Mounting: Rod flange | Bore: ø63 mm | Stroke: 125 mm | Auto switch magnet: Yes
CDA2KWF63-150Mounting: Rod flange | Bore: ø63 mm | Stroke: 150 mm | Auto switch magnet: Yes
CDA2KWF63-175Mounting: Rod flange | Bore: ø63 mm | Stroke: 175 mm | Auto switch magnet: Yes
CDA2KWF63-200Mounting: Rod flange | Bore: ø63 mm | Stroke: 200 mm | Auto switch magnet: Yes
CDA2KWF63-250Mounting: Rod flange | Bore: ø63 mm | Stroke: 250 mm | Auto switch magnet: Yes
CDA2KWF63-300Mounting: Rod flange | Bore: ø63 mm | Stroke: 300 mm | Auto switch magnet: Yes
CDA2KWF63-350Mounting: Rod flange | Bore: ø63 mm | Stroke: 350 mm | Auto switch magnet: Yes
CDA2KWF63-400Mounting: Rod flange | Bore: ø63 mm | Stroke: 400 mm | Auto switch magnet: Yes
CDA2KWF63-450Mounting: Rod flange | Bore: ø63 mm | Stroke: 450 mm | Auto switch magnet: Yes
CDA2KWF63-500Mounting: Rod flange | Bore: ø63 mm | Stroke: 500 mm | Auto switch magnet: Yes
CDA2KWF63-600Mounting: Rod flange | Bore: ø63 mm | Stroke: 600 mm | Auto switch magnet: Yes
CDA2KWG40-25Mounting: Head flange | Bore: ø40 mm | Stroke: 25 mm | Auto switch magnet: Yes
CDA2KWG40-50Mounting: Head flange | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: Yes
CDA2KWG40-75Mounting: Head flange | Bore: ø40 mm | Stroke: 75 mm | Auto switch magnet: Yes
CDA2KWG40-100Mounting: Head flange | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: Yes
CDA2KWG40-125Mounting: Head flange | Bore: ø40 mm | Stroke: 125 mm | Auto switch magnet: Yes
CDA2KWG40-150Mounting: Head flange | Bore: ø40 mm | Stroke: 150 mm | Auto switch magnet: Yes
CDA2KWG40-175Mounting: Head flange | Bore: ø40 mm | Stroke: 175 mm | Auto switch magnet: Yes
CDA2KWG40-200Mounting: Head flange | Bore: ø40 mm | Stroke: 200 mm | Auto switch magnet: Yes
CDA2KWG40-250Mounting: Head flange | Bore: ø40 mm | Stroke: 250 mm | Auto switch magnet: Yes
CDA2KWG40-300Mounting: Head flange | Bore: ø40 mm | Stroke: 300 mm | Auto switch magnet: Yes
CDA2KWG40-350Mounting: Head flange | Bore: ø40 mm | Stroke: 350 mm | Auto switch magnet: Yes
CDA2KWG40-400Mounting: Head flange | Bore: ø40 mm | Stroke: 400 mm | Auto switch magnet: Yes
CDA2KWG40-450Mounting: Head flange | Bore: ø40 mm | Stroke: 450 mm | Auto switch magnet: Yes
CDA2KWG40-500Mounting: Head flange | Bore: ø40 mm | Stroke: 500 mm | Auto switch magnet: Yes
CDA2KWG50-25Mounting: Head flange | Bore: ø50 mm | Stroke: 25 mm | Auto switch magnet: Yes
CDA2KWG50-50Mounting: Head flange | Bore: ø50 mm | Stroke: 50 mm | Auto switch magnet: Yes
CDA2KWG50-75Mounting: Head flange | Bore: ø50 mm | Stroke: 75 mm | Auto switch magnet: Yes
CDA2KWG50-100Mounting: Head flange | Bore: ø50 mm | Stroke: 100 mm | Auto switch magnet: Yes
CDA2KWG50-125Mounting: Head flange | Bore: ø50 mm | Stroke: 125 mm | Auto switch magnet: Yes
CDA2KWG50-150Mounting: Head flange | Bore: ø50 mm | Stroke: 150 mm | Auto switch magnet: Yes
CDA2KWG50-175Mounting: Head flange | Bore: ø50 mm | Stroke: 175 mm | Auto switch magnet: Yes
CDA2KWG50-200Mounting: Head flange | Bore: ø50 mm | Stroke: 200 mm | Auto switch magnet: Yes
CDA2KWG50-250Mounting: Head flange | Bore: ø50 mm | Stroke: 250 mm | Auto switch magnet: Yes
CDA2KWG50-300Mounting: Head flange | Bore: ø50 mm | Stroke: 300 mm | Auto switch magnet: Yes
CDA2KWG50-350Mounting: Head flange | Bore: ø50 mm | Stroke: 350 mm | Auto switch magnet: Yes
CDA2KWG50-400Mounting: Head flange | Bore: ø50 mm | Stroke: 400 mm | Auto switch magnet: Yes
CDA2KWG50-450Mounting: Head flange | Bore: ø50 mm | Stroke: 450 mm | Auto switch magnet: Yes
CDA2KWG50-500Mounting: Head flange | Bore: ø50 mm | Stroke: 500 mm | Auto switch magnet: Yes
CDA2KWG50-600Mounting: Head flange | Bore: ø50 mm | Stroke: 600 mm | Auto switch magnet: Yes
CDA2KWG63-25Mounting: Head flange | Bore: ø63 mm | Stroke: 25 mm | Auto switch magnet: Yes
CDA2KWG63-50Mounting: Head flange | Bore: ø63 mm | Stroke: 50 mm | Auto switch magnet: Yes
CDA2KWG63-75Mounting: Head flange | Bore: ø63 mm | Stroke: 75 mm | Auto switch magnet: Yes
CDA2KWG63-100Mounting: Head flange | Bore: ø63 mm | Stroke: 100 mm | Auto switch magnet: Yes
CDA2KWG63-125Mounting: Head flange | Bore: ø63 mm | Stroke: 125 mm | Auto switch magnet: Yes
CDA2KWG63-150Mounting: Head flange | Bore: ø63 mm | Stroke: 150 mm | Auto switch magnet: Yes
CDA2KWG63-175Mounting: Head flange | Bore: ø63 mm | Stroke: 175 mm | Auto switch magnet: Yes
CDA2KWG63-200Mounting: Head flange | Bore: ø63 mm | Stroke: 200 mm | Auto switch magnet: Yes
CDA2KWG63-250Mounting: Head flange | Bore: ø63 mm | Stroke: 250 mm | Auto switch magnet: Yes
CDA2KWG63-300Mounting: Head flange | Bore: ø63 mm | Stroke: 300 mm | Auto switch magnet: Yes
CDA2KWG63-350Mounting: Head flange | Bore: ø63 mm | Stroke: 350 mm | Auto switch magnet: Yes
CDA2KWG63-400Mounting: Head flange | Bore: ø63 mm | Stroke: 400 mm | Auto switch magnet: Yes
CDA2KWG63-450Mounting: Head flange | Bore: ø63 mm | Stroke: 450 mm | Auto switch magnet: Yes
CDA2KWG63-500Mounting: Head flange | Bore: ø63 mm | Stroke: 500 mm | Auto switch magnet: Yes
CDA2KWG63-600Mounting: Head flange | Bore: ø63 mm | Stroke: 600 mm | Auto switch magnet: Yes
CDA2KWT40-25Mounting: Center trunnion | Bore: ø40 mm | Stroke: 25 mm | Auto switch magnet: Yes
CDA2KWT40-50Mounting: Center trunnion | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: Yes
CDA2KWT40-75Mounting: Center trunnion | Bore: ø40 mm | Stroke: 75 mm | Auto switch magnet: Yes
CDA2KWT40-100Mounting: Center trunnion | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: Yes
CDA2KWT40-125Mounting: Center trunnion | Bore: ø40 mm | Stroke: 125 mm | Auto switch magnet: Yes
CDA2KWT40-150Mounting: Center trunnion | Bore: ø40 mm | Stroke: 150 mm | Auto switch magnet: Yes
CDA2KWT40-175Mounting: Center trunnion | Bore: ø40 mm | Stroke: 175 mm | Auto switch magnet: Yes
CDA2KWT40-200Mounting: Center trunnion | Bore: ø40 mm | Stroke: 200 mm | Auto switch magnet: Yes
CDA2KWT40-250Mounting: Center trunnion | Bore: ø40 mm | Stroke: 250 mm | Auto switch magnet: Yes
CDA2KWT40-300Mounting: Center trunnion | Bore: ø40 mm | Stroke: 300 mm | Auto switch magnet: Yes
CDA2KWT40-350Mounting: Center trunnion | Bore: ø40 mm | Stroke: 350 mm | Auto switch magnet: Yes
CDA2KWT40-400Mounting: Center trunnion | Bore: ø40 mm | Stroke: 400 mm | Auto switch magnet: Yes
CDA2KWT40-450Mounting: Center trunnion | Bore: ø40 mm | Stroke: 450 mm | Auto switch magnet: Yes
CDA2KWT40-500Mounting: Center trunnion | Bore: ø40 mm | Stroke: 500 mm | Auto switch magnet: Yes
CDA2KWT50-25Mounting: Center trunnion | Bore: ø50 mm | Stroke: 25 mm | Auto switch magnet: Yes
CDA2KWT50-50Mounting: Center trunnion | Bore: ø50 mm | Stroke: 50 mm | Auto switch magnet: Yes
CDA2KWT50-75Mounting: Center trunnion | Bore: ø50 mm | Stroke: 75 mm | Auto switch magnet: Yes
CDA2KWT50-100Mounting: Center trunnion | Bore: ø50 mm | Stroke: 100 mm | Auto switch magnet: Yes
CDA2KWT50-125Mounting: Center trunnion | Bore: ø50 mm | Stroke: 125 mm | Auto switch magnet: Yes
CDA2KWT50-150Mounting: Center trunnion | Bore: ø50 mm | Stroke: 150 mm | Auto switch magnet: Yes
CDA2KWT50-175Mounting: Center trunnion | Bore: ø50 mm | Stroke: 175 mm | Auto switch magnet: Yes
CDA2KWT50-200Mounting: Center trunnion | Bore: ø50 mm | Stroke: 200 mm | Auto switch magnet: Yes
CDA2KWT50-250Mounting: Center trunnion | Bore: ø50 mm | Stroke: 250 mm | Auto switch magnet: Yes
CDA2KWT50-300Mounting: Center trunnion | Bore: ø50 mm | Stroke: 300 mm | Auto switch magnet: Yes
CDA2KWT50-350Mounting: Center trunnion | Bore: ø50 mm | Stroke: 350 mm | Auto switch magnet: Yes
CDA2KWT50-400Mounting: Center trunnion | Bore: ø50 mm | Stroke: 400 mm | Auto switch magnet: Yes
CDA2KWT50-450Mounting: Center trunnion | Bore: ø50 mm | Stroke: 450 mm | Auto switch magnet: Yes
CDA2KWT50-500Mounting: Center trunnion | Bore: ø50 mm | Stroke: 500 mm | Auto switch magnet: Yes
CDA2KWT50-600Mounting: Center trunnion | Bore: ø50 mm | Stroke: 600 mm | Auto switch magnet: Yes
CDA2KWT63-25Mounting: Center trunnion | Bore: ø63 mm | Stroke: 25 mm | Auto switch magnet: Yes
CDA2KWT63-50Mounting: Center trunnion | Bore: ø63 mm | Stroke: 50 mm | Auto switch magnet: Yes
CDA2KWT63-75Mounting: Center trunnion | Bore: ø63 mm | Stroke: 75 mm | Auto switch magnet: Yes
CDA2KWT63-100Mounting: Center trunnion | Bore: ø63 mm | Stroke: 100 mm | Auto switch magnet: Yes
CDA2KWT63-125Mounting: Center trunnion | Bore: ø63 mm | Stroke: 125 mm | Auto switch magnet: Yes
CDA2KWT63-150Mounting: Center trunnion | Bore: ø63 mm | Stroke: 150 mm | Auto switch magnet: Yes
CDA2KWT63-175Mounting: Center trunnion | Bore: ø63 mm | Stroke: 175 mm | Auto switch magnet: Yes
CDA2KWT63-200Mounting: Center trunnion | Bore: ø63 mm | Stroke: 200 mm | Auto switch magnet: Yes
CDA2KWT63-250Mounting: Center trunnion | Bore: ø63 mm | Stroke: 250 mm | Auto switch magnet: Yes
CDA2KWT63-300Mounting: Center trunnion | Bore: ø63 mm | Stroke: 300 mm | Auto switch magnet: Yes
CDA2KWT63-350Mounting: Center trunnion | Bore: ø63 mm | Stroke: 350 mm | Auto switch magnet: Yes
CDA2KWT63-400Mounting: Center trunnion | Bore: ø63 mm | Stroke: 400 mm | Auto switch magnet: Yes
CDA2KWT63-450Mounting: Center trunnion | Bore: ø63 mm | Stroke: 450 mm | Auto switch magnet: Yes
CDA2KWT63-500Mounting: Center trunnion | Bore: ø63 mm | Stroke: 500 mm | Auto switch magnet: Yes
CDA2KWT63-600Mounting: Center trunnion | Bore: ø63 mm | Stroke: 600 mm | Auto switch magnet: Yes

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
