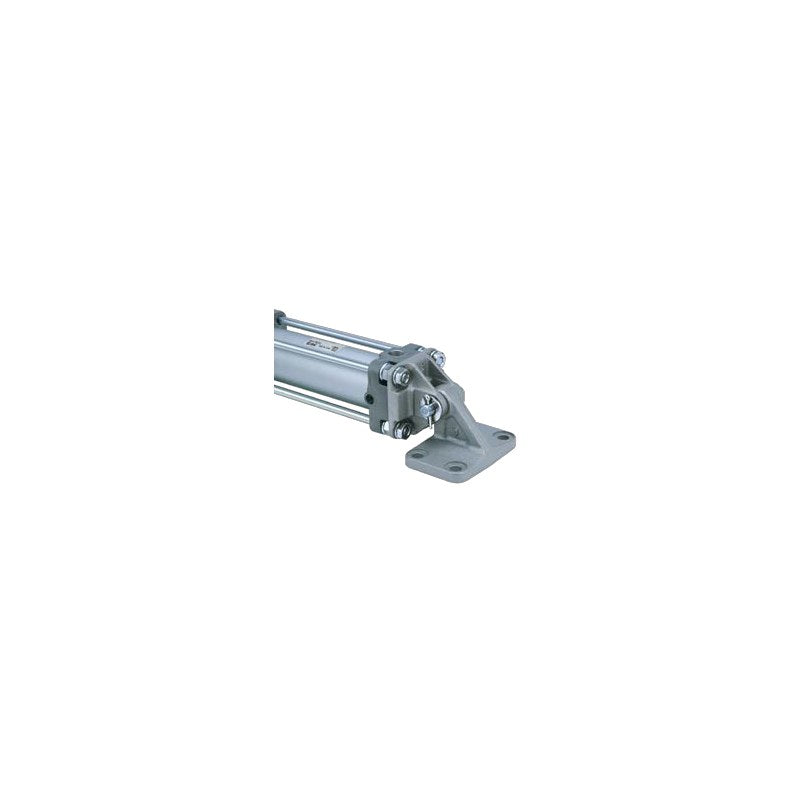

SMC CA2W Air Cylinder (Double Rod, ø40 to ø100)

SMC CA2W Air Cylinder (Double Rod, ø40 to ø100)

SMC CA2W-Z series tie-rod air cylinder, double acting, double rod, ø40 to ø100 mm bore, with or without a built-in auto switch magnet (CDA2W).

Key features

  • Mounting styles: basic (B), axial foot (L), flange (F), center trunnion (T)
  • Built-in magnet models (CD prefix) accept tie-rod mounted D-M9/D-A9 or band mounted D-G59/D-B54 type auto switches, ordered as a suffix
  • Air cushion standard; rubber cushion (N) and bellows one side (J/K) or both sides (JJ/KK) as order symbols
  • Aluminum tube standard; steel tube (F, after the mounting symbol) on order for models without magnet; Rc port thread standard, NPT (TN) and G (TF) on order
  • Made-to-order options (-XA, -XB6, -XC7, -XC14, -XC22 and more) available

Specifications

Action Double acting, double rod
Fluid Air
Proof pressure 1.5 MPa
Max. operating pressure 1.0 MPa
Ambient and fluid temperature -10 to 70°C without magnet, -10 to 60°C with magnet (no freezing)
Lubrication Not required (non-lube)
Piston speed 50 to 500 mm/s
Min. operating pressure 0.08 MPa
Cushion Air cushion (standard) or rubber cushion (suffix N)
Standard strokes ø40: 25 to 500; ø50: 25 to 600; ø63: 25 to 600; ø80: 25 to 700; ø100: 25 to 700 mm
Source SMC Korea catalog CA2-Z (SMCKR_CA2-Z.pdf), p. 576-577
CA2WB40-25Z Mounting: Basic | Bore: ø40 mm | Stroke: 25 mm | Auto switch magnet: No
CA2WB40-50Z Mounting: Basic | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: No
CA2WB40-75Z Mounting: Basic | Bore: ø40 mm | Stroke: 75 mm | Auto switch magnet: No
CA2WB40-100Z Mounting: Basic | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: No
CA2WB40-125Z Mounting: Basic | Bore: ø40 mm | Stroke: 125 mm | Auto switch magnet: No
CA2WB40-150Z Mounting: Basic | Bore: ø40 mm | Stroke: 150 mm | Auto switch magnet: No
CA2WB40-175Z Mounting: Basic | Bore: ø40 mm | Stroke: 175 mm | Auto switch magnet: No
CA2WB40-200Z Mounting: Basic | Bore: ø40 mm | Stroke: 200 mm | Auto switch magnet: No
CA2WB40-250Z Mounting: Basic | Bore: ø40 mm | Stroke: 250 mm | Auto switch magnet: No
CA2WB40-300Z Mounting: Basic | Bore: ø40 mm | Stroke: 300 mm | Auto switch magnet: No
CA2WB40-350Z Mounting: Basic | Bore: ø40 mm | Stroke: 350 mm | Auto switch magnet: No
CA2WB40-400Z Mounting: Basic | Bore: ø40 mm | Stroke: 400 mm | Auto switch magnet: No
CA2WB40-450Z Mounting: Basic | Bore: ø40 mm | Stroke: 450 mm | Auto switch magnet: No
CA2WB40-500Z Mounting: Basic | Bore: ø40 mm | Stroke: 500 mm | Auto switch magnet: No
CA2WB50-25Z Mounting: Basic | Bore: ø50 mm | Stroke: 25 mm | Auto switch magnet: No
CA2WB50-50Z Mounting: Basic | Bore: ø50 mm | Stroke: 50 mm | Auto switch magnet: No
CA2WB50-75Z Mounting: Basic | Bore: ø50 mm | Stroke: 75 mm | Auto switch magnet: No
CA2WB50-100Z Mounting: Basic | Bore: ø50 mm | Stroke: 100 mm | Auto switch magnet: No
CA2WB50-125Z Mounting: Basic | Bore: ø50 mm | Stroke: 125 mm | Auto switch magnet: No
CA2WB50-150Z Mounting: Basic | Bore: ø50 mm | Stroke: 150 mm | Auto switch magnet: No
CA2WB50-175Z Mounting: Basic | Bore: ø50 mm | Stroke: 175 mm | Auto switch magnet: No
CA2WB50-200Z Mounting: Basic | Bore: ø50 mm | Stroke: 200 mm | Auto switch magnet: No
CA2WB50-250Z Mounting: Basic | Bore: ø50 mm | Stroke: 250 mm | Auto switch magnet: No
CA2WB50-300Z Mounting: Basic | Bore: ø50 mm | Stroke: 300 mm | Auto switch magnet: No
CA2WB50-350Z Mounting: Basic | Bore: ø50 mm | Stroke: 350 mm | Auto switch magnet: No
CA2WB50-400Z Mounting: Basic | Bore: ø50 mm | Stroke: 400 mm | Auto switch magnet: No
CA2WB50-450Z Mounting: Basic | Bore: ø50 mm | Stroke: 450 mm | Auto switch magnet: No
CA2WB50-500Z Mounting: Basic | Bore: ø50 mm | Stroke: 500 mm | Auto switch magnet: No
CA2WB50-600Z Mounting: Basic | Bore: ø50 mm | Stroke: 600 mm | Auto switch magnet: No
CA2WB63-25Z Mounting: Basic | Bore: ø63 mm | Stroke: 25 mm | Auto switch magnet: No
CA2WB63-50Z Mounting: Basic | Bore: ø63 mm | Stroke: 50 mm | Auto switch magnet: No
CA2WB63-75Z Mounting: Basic | Bore: ø63 mm | Stroke: 75 mm | Auto switch magnet: No
CA2WB63-100Z Mounting: Basic | Bore: ø63 mm | Stroke: 100 mm | Auto switch magnet: No
CA2WB63-125Z Mounting: Basic | Bore: ø63 mm | Stroke: 125 mm | Auto switch magnet: No
CA2WB63-150Z Mounting: Basic | Bore: ø63 mm | Stroke: 150 mm | Auto switch magnet: No
CA2WB63-175Z Mounting: Basic | Bore: ø63 mm | Stroke: 175 mm | Auto switch magnet: No
CA2WB63-200Z Mounting: Basic | Bore: ø63 mm | Stroke: 200 mm | Auto switch magnet: No
CA2WB63-250Z Mounting: Basic | Bore: ø63 mm | Stroke: 250 mm | Auto switch magnet: No
CA2WB63-300Z Mounting: Basic | Bore: ø63 mm | Stroke: 300 mm | Auto switch magnet: No
CA2WB63-350Z Mounting: Basic | Bore: ø63 mm | Stroke: 350 mm | Auto switch magnet: No
CA2WB63-400Z Mounting: Basic | Bore: ø63 mm | Stroke: 400 mm | Auto switch magnet: No
CA2WB63-450Z Mounting: Basic | Bore: ø63 mm | Stroke: 450 mm | Auto switch magnet: No
CA2WB63-500Z Mounting: Basic | Bore: ø63 mm | Stroke: 500 mm | Auto switch magnet: No
CA2WB63-600Z Mounting: Basic | Bore: ø63 mm | Stroke: 600 mm | Auto switch magnet: No
CA2WB80-25Z Mounting: Basic | Bore: ø80 mm | Stroke: 25 mm | Auto switch magnet: No
CA2WB80-50Z Mounting: Basic | Bore: ø80 mm | Stroke: 50 mm | Auto switch magnet: No
CA2WB80-75Z Mounting: Basic | Bore: ø80 mm | Stroke: 75 mm | Auto switch magnet: No
CA2WB80-100Z Mounting: Basic | Bore: ø80 mm | Stroke: 100 mm | Auto switch magnet: No
CA2WB80-125Z Mounting: Basic | Bore: ø80 mm | Stroke: 125 mm | Auto switch magnet: No
CA2WB80-150Z Mounting: Basic | Bore: ø80 mm | Stroke: 150 mm | Auto switch magnet: No
CA2WB80-175Z Mounting: Basic | Bore: ø80 mm | Stroke: 175 mm | Auto switch magnet: No
CA2WB80-200Z Mounting: Basic | Bore: ø80 mm | Stroke: 200 mm | Auto switch magnet: No
CA2WB80-250Z Mounting: Basic | Bore: ø80 mm | Stroke: 250 mm | Auto switch magnet: No
CA2WB80-300Z Mounting: Basic | Bore: ø80 mm | Stroke: 300 mm | Auto switch magnet: No
CA2WB80-350Z Mounting: Basic | Bore: ø80 mm | Stroke: 350 mm | Auto switch magnet: No
CA2WB80-400Z Mounting: Basic | Bore: ø80 mm | Stroke: 400 mm | Auto switch magnet: No
CA2WB80-450Z Mounting: Basic | Bore: ø80 mm | Stroke: 450 mm | Auto switch magnet: No
CA2WB80-500Z Mounting: Basic | Bore: ø80 mm | Stroke: 500 mm | Auto switch magnet: No
CA2WB80-600Z Mounting: Basic | Bore: ø80 mm | Stroke: 600 mm | Auto switch magnet: No
CA2WB80-700Z Mounting: Basic | Bore: ø80 mm | Stroke: 700 mm | Auto switch magnet: No
CA2WB100-25Z Mounting: Basic | Bore: ø100 mm | Stroke: 25 mm | Auto switch magnet: No
CA2WB100-50Z Mounting: Basic | Bore: ø100 mm | Stroke: 50 mm | Auto switch magnet: No
CA2WB100-75Z Mounting: Basic | Bore: ø100 mm | Stroke: 75 mm | Auto switch magnet: No
CA2WB100-100Z Mounting: Basic | Bore: ø100 mm | Stroke: 100 mm | Auto switch magnet: No
CA2WB100-125Z Mounting: Basic | Bore: ø100 mm | Stroke: 125 mm | Auto switch magnet: No
CA2WB100-150Z Mounting: Basic | Bore: ø100 mm | Stroke: 150 mm | Auto switch magnet: No
CA2WB100-175Z Mounting: Basic | Bore: ø100 mm | Stroke: 175 mm | Auto switch magnet: No
CA2WB100-200Z Mounting: Basic | Bore: ø100 mm | Stroke: 200 mm | Auto switch magnet: No
CA2WB100-250Z Mounting: Basic | Bore: ø100 mm | Stroke: 250 mm | Auto switch magnet: No
CA2WB100-300Z Mounting: Basic | Bore: ø100 mm | Stroke: 300 mm | Auto switch magnet: No
CA2WB100-350Z Mounting: Basic | Bore: ø100 mm | Stroke: 350 mm | Auto switch magnet: No
CA2WB100-400Z Mounting: Basic | Bore: ø100 mm | Stroke: 400 mm | Auto switch magnet: No
CA2WB100-450Z Mounting: Basic | Bore: ø100 mm | Stroke: 450 mm | Auto switch magnet: No
CA2WB100-500Z Mounting: Basic | Bore: ø100 mm | Stroke: 500 mm | Auto switch magnet: No
CA2WB100-600Z Mounting: Basic | Bore: ø100 mm | Stroke: 600 mm | Auto switch magnet: No
CA2WB100-700Z Mounting: Basic | Bore: ø100 mm | Stroke: 700 mm | Auto switch magnet: No
CA2WL40-25Z Mounting: Axial foot | Bore: ø40 mm | Stroke: 25 mm | Auto switch magnet: No
CA2WL40-50Z Mounting: Axial foot | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: No
CA2WL40-75Z Mounting: Axial foot | Bore: ø40 mm | Stroke: 75 mm | Auto switch magnet: No
CA2WL40-100Z Mounting: Axial foot | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: No
CA2WL40-125Z Mounting: Axial foot | Bore: ø40 mm | Stroke: 125 mm | Auto switch magnet: No
CA2WL40-150Z Mounting: Axial foot | Bore: ø40 mm | Stroke: 150 mm | Auto switch magnet: No
CA2WL40-175Z Mounting: Axial foot | Bore: ø40 mm | Stroke: 175 mm | Auto switch magnet: No
CA2WL40-200Z Mounting: Axial foot | Bore: ø40 mm | Stroke: 200 mm | Auto switch magnet: No
CA2WL40-250Z Mounting: Axial foot | Bore: ø40 mm | Stroke: 250 mm | Auto switch magnet: No
CA2WL40-300Z Mounting: Axial foot | Bore: ø40 mm | Stroke: 300 mm | Auto switch magnet: No
CA2WL40-350Z Mounting: Axial foot | Bore: ø40 mm | Stroke: 350 mm | Auto switch magnet: No
CA2WL40-400Z Mounting: Axial foot | Bore: ø40 mm | Stroke: 400 mm | Auto switch magnet: No
CA2WL40-450Z Mounting: Axial foot | Bore: ø40 mm | Stroke: 450 mm | Auto switch magnet: No
CA2WL40-500Z Mounting: Axial foot | Bore: ø40 mm | Stroke: 500 mm | Auto switch magnet: No
CA2WL50-25Z Mounting: Axial foot | Bore: ø50 mm | Stroke: 25 mm | Auto switch magnet: No
CA2WL50-50Z Mounting: Axial foot | Bore: ø50 mm | Stroke: 50 mm | Auto switch magnet: No
CA2WL50-75Z Mounting: Axial foot | Bore: ø50 mm | Stroke: 75 mm | Auto switch magnet: No
CA2WL50-100Z Mounting: Axial foot | Bore: ø50 mm | Stroke: 100 mm | Auto switch magnet: No
CA2WL50-125Z Mounting: Axial foot | Bore: ø50 mm | Stroke: 125 mm | Auto switch magnet: No
CA2WL50-150Z Mounting: Axial foot | Bore: ø50 mm | Stroke: 150 mm | Auto switch magnet: No
CA2WL50-175Z Mounting: Axial foot | Bore: ø50 mm | Stroke: 175 mm | Auto switch magnet: No
CA2WL50-200Z Mounting: Axial foot | Bore: ø50 mm | Stroke: 200 mm | Auto switch magnet: No
CA2WL50-250Z Mounting: Axial foot | Bore: ø50 mm | Stroke: 250 mm | Auto switch magnet: No
CA2WL50-300Z Mounting: Axial foot | Bore: ø50 mm | Stroke: 300 mm | Auto switch magnet: No
CA2WL50-350Z Mounting: Axial foot | Bore: ø50 mm | Stroke: 350 mm | Auto switch magnet: No
CA2WL50-400Z Mounting: Axial foot | Bore: ø50 mm | Stroke: 400 mm | Auto switch magnet: No
CA2WL50-450Z Mounting: Axial foot | Bore: ø50 mm | Stroke: 450 mm | Auto switch magnet: No
CA2WL50-500Z Mounting: Axial foot | Bore: ø50 mm | Stroke: 500 mm | Auto switch magnet: No
CA2WL50-600Z Mounting: Axial foot | Bore: ø50 mm | Stroke: 600 mm | Auto switch magnet: No
CA2WL63-25Z Mounting: Axial foot | Bore: ø63 mm | Stroke: 25 mm | Auto switch magnet: No
CA2WL63-50Z Mounting: Axial foot | Bore: ø63 mm | Stroke: 50 mm | Auto switch magnet: No
CA2WL63-75Z Mounting: Axial foot | Bore: ø63 mm | Stroke: 75 mm | Auto switch magnet: No
CA2WL63-100Z Mounting: Axial foot | Bore: ø63 mm | Stroke: 100 mm | Auto switch magnet: No
CA2WL63-125Z Mounting: Axial foot | Bore: ø63 mm | Stroke: 125 mm | Auto switch magnet: No
CA2WL63-150Z Mounting: Axial foot | Bore: ø63 mm | Stroke: 150 mm | Auto switch magnet: No
CA2WL63-175Z Mounting: Axial foot | Bore: ø63 mm | Stroke: 175 mm | Auto switch magnet: No
CA2WL63-200Z Mounting: Axial foot | Bore: ø63 mm | Stroke: 200 mm | Auto switch magnet: No
CA2WL63-250Z Mounting: Axial foot | Bore: ø63 mm | Stroke: 250 mm | Auto switch magnet: No
CA2WL63-300Z Mounting: Axial foot | Bore: ø63 mm | Stroke: 300 mm | Auto switch magnet: No
CA2WL63-350Z Mounting: Axial foot | Bore: ø63 mm | Stroke: 350 mm | Auto switch magnet: No
CA2WL63-400Z Mounting: Axial foot | Bore: ø63 mm | Stroke: 400 mm | Auto switch magnet: No
CA2WL63-450Z Mounting: Axial foot | Bore: ø63 mm | Stroke: 450 mm | Auto switch magnet: No
CA2WL63-500Z Mounting: Axial foot | Bore: ø63 mm | Stroke: 500 mm | Auto switch magnet: No
CA2WL63-600Z Mounting: Axial foot | Bore: ø63 mm | Stroke: 600 mm | Auto switch magnet: No
CA2WL80-25Z Mounting: Axial foot | Bore: ø80 mm | Stroke: 25 mm | Auto switch magnet: No
CA2WL80-50Z Mounting: Axial foot | Bore: ø80 mm | Stroke: 50 mm | Auto switch magnet: No
CA2WL80-75Z Mounting: Axial foot | Bore: ø80 mm | Stroke: 75 mm | Auto switch magnet: No
CA2WL80-100Z Mounting: Axial foot | Bore: ø80 mm | Stroke: 100 mm | Auto switch magnet: No
CA2WL80-125Z Mounting: Axial foot | Bore: ø80 mm | Stroke: 125 mm | Auto switch magnet: No
CA2WL80-150Z Mounting: Axial foot | Bore: ø80 mm | Stroke: 150 mm | Auto switch magnet: No
CA2WL80-175Z Mounting: Axial foot | Bore: ø80 mm | Stroke: 175 mm | Auto switch magnet: No
CA2WL80-200Z Mounting: Axial foot | Bore: ø80 mm | Stroke: 200 mm | Auto switch magnet: No
CA2WL80-250Z Mounting: Axial foot | Bore: ø80 mm | Stroke: 250 mm | Auto switch magnet: No
CA2WL80-300Z Mounting: Axial foot | Bore: ø80 mm | Stroke: 300 mm | Auto switch magnet: No
CA2WL80-350Z Mounting: Axial foot | Bore: ø80 mm | Stroke: 350 mm | Auto switch magnet: No
CA2WL80-400Z Mounting: Axial foot | Bore: ø80 mm | Stroke: 400 mm | Auto switch magnet: No
CA2WL80-450Z Mounting: Axial foot | Bore: ø80 mm | Stroke: 450 mm | Auto switch magnet: No
CA2WL80-500Z Mounting: Axial foot | Bore: ø80 mm | Stroke: 500 mm | Auto switch magnet: No
CA2WL80-600Z Mounting: Axial foot | Bore: ø80 mm | Stroke: 600 mm | Auto switch magnet: No
CA2WL80-700Z Mounting: Axial foot | Bore: ø80 mm | Stroke: 700 mm | Auto switch magnet: No
CA2WL100-25Z Mounting: Axial foot | Bore: ø100 mm | Stroke: 25 mm | Auto switch magnet: No
CA2WL100-50Z Mounting: Axial foot | Bore: ø100 mm | Stroke: 50 mm | Auto switch magnet: No
CA2WL100-75Z Mounting: Axial foot | Bore: ø100 mm | Stroke: 75 mm | Auto switch magnet: No
CA2WL100-100Z Mounting: Axial foot | Bore: ø100 mm | Stroke: 100 mm | Auto switch magnet: No
CA2WL100-125Z Mounting: Axial foot | Bore: ø100 mm | Stroke: 125 mm | Auto switch magnet: No
CA2WL100-150Z Mounting: Axial foot | Bore: ø100 mm | Stroke: 150 mm | Auto switch magnet: No
CA2WL100-175Z Mounting: Axial foot | Bore: ø100 mm | Stroke: 175 mm | Auto switch magnet: No
CA2WL100-200Z Mounting: Axial foot | Bore: ø100 mm | Stroke: 200 mm | Auto switch magnet: No
CA2WL100-250Z Mounting: Axial foot | Bore: ø100 mm | Stroke: 250 mm | Auto switch magnet: No
CA2WL100-300Z Mounting: Axial foot | Bore: ø100 mm | Stroke: 300 mm | Auto switch magnet: No
CA2WL100-350Z Mounting: Axial foot | Bore: ø100 mm | Stroke: 350 mm | Auto switch magnet: No
CA2WL100-400Z Mounting: Axial foot | Bore: ø100 mm | Stroke: 400 mm | Auto switch magnet: No
CA2WL100-450Z Mounting: Axial foot | Bore: ø100 mm | Stroke: 450 mm | Auto switch magnet: No
CA2WL100-500Z Mounting: Axial foot | Bore: ø100 mm | Stroke: 500 mm | Auto switch magnet: No
CA2WL100-600Z Mounting: Axial foot | Bore: ø100 mm | Stroke: 600 mm | Auto switch magnet: No
CA2WL100-700Z Mounting: Axial foot | Bore: ø100 mm | Stroke: 700 mm | Auto switch magnet: No
CA2WF40-25Z Mounting: Flange | Bore: ø40 mm | Stroke: 25 mm | Auto switch magnet: No
CA2WF40-50Z Mounting: Flange | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: No
CA2WF40-75Z Mounting: Flange | Bore: ø40 mm | Stroke: 75 mm | Auto switch magnet: No
CA2WF40-100Z Mounting: Flange | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: No
CA2WF40-125Z Mounting: Flange | Bore: ø40 mm | Stroke: 125 mm | Auto switch magnet: No
CA2WF40-150Z Mounting: Flange | Bore: ø40 mm | Stroke: 150 mm | Auto switch magnet: No
CA2WF40-175Z Mounting: Flange | Bore: ø40 mm | Stroke: 175 mm | Auto switch magnet: No
CA2WF40-200Z Mounting: Flange | Bore: ø40 mm | Stroke: 200 mm | Auto switch magnet: No
CA2WF40-250Z Mounting: Flange | Bore: ø40 mm | Stroke: 250 mm | Auto switch magnet: No
CA2WF40-300Z Mounting: Flange | Bore: ø40 mm | Stroke: 300 mm | Auto switch magnet: No
CA2WF40-350Z Mounting: Flange | Bore: ø40 mm | Stroke: 350 mm | Auto switch magnet: No
CA2WF40-400Z Mounting: Flange | Bore: ø40 mm | Stroke: 400 mm | Auto switch magnet: No
CA2WF40-450Z Mounting: Flange | Bore: ø40 mm | Stroke: 450 mm | Auto switch magnet: No
CA2WF40-500Z Mounting: Flange | Bore: ø40 mm | Stroke: 500 mm | Auto switch magnet: No
CA2WF50-25Z Mounting: Flange | Bore: ø50 mm | Stroke: 25 mm | Auto switch magnet: No
CA2WF50-50Z Mounting: Flange | Bore: ø50 mm | Stroke: 50 mm | Auto switch magnet: No
CA2WF50-75Z Mounting: Flange | Bore: ø50 mm | Stroke: 75 mm | Auto switch magnet: No
CA2WF50-100Z Mounting: Flange | Bore: ø50 mm | Stroke: 100 mm | Auto switch magnet: No
CA2WF50-125Z Mounting: Flange | Bore: ø50 mm | Stroke: 125 mm | Auto switch magnet: No
CA2WF50-150Z Mounting: Flange | Bore: ø50 mm | Stroke: 150 mm | Auto switch magnet: No
CA2WF50-175Z Mounting: Flange | Bore: ø50 mm | Stroke: 175 mm | Auto switch magnet: No
CA2WF50-200Z Mounting: Flange | Bore: ø50 mm | Stroke: 200 mm | Auto switch magnet: No
CA2WF50-250Z Mounting: Flange | Bore: ø50 mm | Stroke: 250 mm | Auto switch magnet: No
CA2WF50-300Z Mounting: Flange | Bore: ø50 mm | Stroke: 300 mm | Auto switch magnet: No
CA2WF50-350Z Mounting: Flange | Bore: ø50 mm | Stroke: 350 mm | Auto switch magnet: No
CA2WF50-400Z Mounting: Flange | Bore: ø50 mm | Stroke: 400 mm | Auto switch magnet: No
CA2WF50-450Z Mounting: Flange | Bore: ø50 mm | Stroke: 450 mm | Auto switch magnet: No
CA2WF50-500Z Mounting: Flange | Bore: ø50 mm | Stroke: 500 mm | Auto switch magnet: No
CA2WF50-600Z Mounting: Flange | Bore: ø50 mm | Stroke: 600 mm | Auto switch magnet: No
CA2WF63-25Z Mounting: Flange | Bore: ø63 mm | Stroke: 25 mm | Auto switch magnet: No
CA2WF63-50Z Mounting: Flange | Bore: ø63 mm | Stroke: 50 mm | Auto switch magnet: No
CA2WF63-75Z Mounting: Flange | Bore: ø63 mm | Stroke: 75 mm | Auto switch magnet: No
CA2WF63-100Z Mounting: Flange | Bore: ø63 mm | Stroke: 100 mm | Auto switch magnet: No
CA2WF63-125Z Mounting: Flange | Bore: ø63 mm | Stroke: 125 mm | Auto switch magnet: No
CA2WF63-150Z Mounting: Flange | Bore: ø63 mm | Stroke: 150 mm | Auto switch magnet: No
CA2WF63-175Z Mounting: Flange | Bore: ø63 mm | Stroke: 175 mm | Auto switch magnet: No
CA2WF63-200Z Mounting: Flange | Bore: ø63 mm | Stroke: 200 mm | Auto switch magnet: No
CA2WF63-250Z Mounting: Flange | Bore: ø63 mm | Stroke: 250 mm | Auto switch magnet: No
CA2WF63-300Z Mounting: Flange | Bore: ø63 mm | Stroke: 300 mm | Auto switch magnet: No
CA2WF63-350Z Mounting: Flange | Bore: ø63 mm | Stroke: 350 mm | Auto switch magnet: No
CA2WF63-400Z Mounting: Flange | Bore: ø63 mm | Stroke: 400 mm | Auto switch magnet: No
CA2WF63-450Z Mounting: Flange | Bore: ø63 mm | Stroke: 450 mm | Auto switch magnet: No
CA2WF63-500Z Mounting: Flange | Bore: ø63 mm | Stroke: 500 mm | Auto switch magnet: No
CA2WF63-600Z Mounting: Flange | Bore: ø63 mm | Stroke: 600 mm | Auto switch magnet: No
CA2WF80-25Z Mounting: Flange | Bore: ø80 mm | Stroke: 25 mm | Auto switch magnet: No
CA2WF80-50Z Mounting: Flange | Bore: ø80 mm | Stroke: 50 mm | Auto switch magnet: No
CA2WF80-75Z Mounting: Flange | Bore: ø80 mm | Stroke: 75 mm | Auto switch magnet: No
CA2WF80-100Z Mounting: Flange | Bore: ø80 mm | Stroke: 100 mm | Auto switch magnet: No
CA2WF80-125Z Mounting: Flange | Bore: ø80 mm | Stroke: 125 mm | Auto switch magnet: No
CA2WF80-150Z Mounting: Flange | Bore: ø80 mm | Stroke: 150 mm | Auto switch magnet: No
CA2WF80-175Z Mounting: Flange | Bore: ø80 mm | Stroke: 175 mm | Auto switch magnet: No
CA2WF80-200Z Mounting: Flange | Bore: ø80 mm | Stroke: 200 mm | Auto switch magnet: No
CA2WF80-250Z Mounting: Flange | Bore: ø80 mm | Stroke: 250 mm | Auto switch magnet: No
CA2WF80-300Z Mounting: Flange | Bore: ø80 mm | Stroke: 300 mm | Auto switch magnet: No
CA2WF80-350Z Mounting: Flange | Bore: ø80 mm | Stroke: 350 mm | Auto switch magnet: No
CA2WF80-400Z Mounting: Flange | Bore: ø80 mm | Stroke: 400 mm | Auto switch magnet: No
CA2WF80-450Z Mounting: Flange | Bore: ø80 mm | Stroke: 450 mm | Auto switch magnet: No
CA2WF80-500Z Mounting: Flange | Bore: ø80 mm | Stroke: 500 mm | Auto switch magnet: No
CA2WF80-600Z Mounting: Flange | Bore: ø80 mm | Stroke: 600 mm | Auto switch magnet: No
CA2WF80-700Z Mounting: Flange | Bore: ø80 mm | Stroke: 700 mm | Auto switch magnet: No
CA2WF100-25Z Mounting: Flange | Bore: ø100 mm | Stroke: 25 mm | Auto switch magnet: No
CA2WF100-50Z Mounting: Flange | Bore: ø100 mm | Stroke: 50 mm | Auto switch magnet: No
CA2WF100-75Z Mounting: Flange | Bore: ø100 mm | Stroke: 75 mm | Auto switch magnet: No
CA2WF100-100Z Mounting: Flange | Bore: ø100 mm | Stroke: 100 mm | Auto switch magnet: No
CA2WF100-125Z Mounting: Flange | Bore: ø100 mm | Stroke: 125 mm | Auto switch magnet: No
CA2WF100-150Z Mounting: Flange | Bore: ø100 mm | Stroke: 150 mm | Auto switch magnet: No
CA2WF100-175Z Mounting: Flange | Bore: ø100 mm | Stroke: 175 mm | Auto switch magnet: No
CA2WF100-200Z Mounting: Flange | Bore: ø100 mm | Stroke: 200 mm | Auto switch magnet: No
CA2WF100-250Z Mounting: Flange | Bore: ø100 mm | Stroke: 250 mm | Auto switch magnet: No
CA2WF100-300Z Mounting: Flange | Bore: ø100 mm | Stroke: 300 mm | Auto switch magnet: No
CA2WF100-350Z Mounting: Flange | Bore: ø100 mm | Stroke: 350 mm | Auto switch magnet: No
CA2WF100-400Z Mounting: Flange | Bore: ø100 mm | Stroke: 400 mm | Auto switch magnet: No
CA2WF100-450Z Mounting: Flange | Bore: ø100 mm | Stroke: 450 mm | Auto switch magnet: No
CA2WF100-500Z Mounting: Flange | Bore: ø100 mm | Stroke: 500 mm | Auto switch magnet: No
CA2WF100-600Z Mounting: Flange | Bore: ø100 mm | Stroke: 600 mm | Auto switch magnet: No
CA2WF100-700Z Mounting: Flange | Bore: ø100 mm | Stroke: 700 mm | Auto switch magnet: No
CA2WT40-25Z Mounting: Center trunnion | Bore: ø40 mm | Stroke: 25 mm | Auto switch magnet: No
CA2WT40-50Z Mounting: Center trunnion | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: No
CA2WT40-75Z Mounting: Center trunnion | Bore: ø40 mm | Stroke: 75 mm | Auto switch magnet: No
CA2WT40-100Z Mounting: Center trunnion | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: No
CA2WT40-125Z Mounting: Center trunnion | Bore: ø40 mm | Stroke: 125 mm | Auto switch magnet: No
CA2WT40-150Z Mounting: Center trunnion | Bore: ø40 mm | Stroke: 150 mm | Auto switch magnet: No
CA2WT40-175Z Mounting: Center trunnion | Bore: ø40 mm | Stroke: 175 mm | Auto switch magnet: No
CA2WT40-200Z Mounting: Center trunnion | Bore: ø40 mm | Stroke: 200 mm | Auto switch magnet: No
CA2WT40-250Z Mounting: Center trunnion | Bore: ø40 mm | Stroke: 250 mm | Auto switch magnet: No
CA2WT40-300Z Mounting: Center trunnion | Bore: ø40 mm | Stroke: 300 mm | Auto switch magnet: No
CA2WT40-350Z Mounting: Center trunnion | Bore: ø40 mm | Stroke: 350 mm | Auto switch magnet: No
CA2WT40-400Z Mounting: Center trunnion | Bore: ø40 mm | Stroke: 400 mm | Auto switch magnet: No
CA2WT40-450Z Mounting: Center trunnion | Bore: ø40 mm | Stroke: 450 mm | Auto switch magnet: No
CA2WT40-500Z Mounting: Center trunnion | Bore: ø40 mm | Stroke: 500 mm | Auto switch magnet: No
CA2WT50-25Z Mounting: Center trunnion | Bore: ø50 mm | Stroke: 25 mm | Auto switch magnet: No
CA2WT50-50Z Mounting: Center trunnion | Bore: ø50 mm | Stroke: 50 mm | Auto switch magnet: No
CA2WT50-75Z Mounting: Center trunnion | Bore: ø50 mm | Stroke: 75 mm | Auto switch magnet: No
CA2WT50-100Z Mounting: Center trunnion | Bore: ø50 mm | Stroke: 100 mm | Auto switch magnet: No
CA2WT50-125Z Mounting: Center trunnion | Bore: ø50 mm | Stroke: 125 mm | Auto switch magnet: No
CA2WT50-150Z Mounting: Center trunnion | Bore: ø50 mm | Stroke: 150 mm | Auto switch magnet: No
CA2WT50-175Z Mounting: Center trunnion | Bore: ø50 mm | Stroke: 175 mm | Auto switch magnet: No
CA2WT50-200Z Mounting: Center trunnion | Bore: ø50 mm | Stroke: 200 mm | Auto switch magnet: No
CA2WT50-250Z Mounting: Center trunnion | Bore: ø50 mm | Stroke: 250 mm | Auto switch magnet: No
CA2WT50-300Z Mounting: Center trunnion | Bore: ø50 mm | Stroke: 300 mm | Auto switch magnet: No
CA2WT50-350Z Mounting: Center trunnion | Bore: ø50 mm | Stroke: 350 mm | Auto switch magnet: No
CA2WT50-400Z Mounting: Center trunnion | Bore: ø50 mm | Stroke: 400 mm | Auto switch magnet: No
CA2WT50-450Z Mounting: Center trunnion | Bore: ø50 mm | Stroke: 450 mm | Auto switch magnet: No
CA2WT50-500Z Mounting: Center trunnion | Bore: ø50 mm | Stroke: 500 mm | Auto switch magnet: No
CA2WT50-600Z Mounting: Center trunnion | Bore: ø50 mm | Stroke: 600 mm | Auto switch magnet: No
CA2WT63-25Z Mounting: Center trunnion | Bore: ø63 mm | Stroke: 25 mm | Auto switch magnet: No
CA2WT63-50Z Mounting: Center trunnion | Bore: ø63 mm | Stroke: 50 mm | Auto switch magnet: No
CA2WT63-75Z Mounting: Center trunnion | Bore: ø63 mm | Stroke: 75 mm | Auto switch magnet: No
CA2WT63-100Z Mounting: Center trunnion | Bore: ø63 mm | Stroke: 100 mm | Auto switch magnet: No
CA2WT63-125Z Mounting: Center trunnion | Bore: ø63 mm | Stroke: 125 mm | Auto switch magnet: No
CA2WT63-150Z Mounting: Center trunnion | Bore: ø63 mm | Stroke: 150 mm | Auto switch magnet: No
CA2WT63-175Z Mounting: Center trunnion | Bore: ø63 mm | Stroke: 175 mm | Auto switch magnet: No
CA2WT63-200Z Mounting: Center trunnion | Bore: ø63 mm | Stroke: 200 mm | Auto switch magnet: No
CA2WT63-250Z Mounting: Center trunnion | Bore: ø63 mm | Stroke: 250 mm | Auto switch magnet: No
CA2WT63-300Z Mounting: Center trunnion | Bore: ø63 mm | Stroke: 300 mm | Auto switch magnet: No
CA2WT63-350Z Mounting: Center trunnion | Bore: ø63 mm | Stroke: 350 mm | Auto switch magnet: No
CA2WT63-400Z Mounting: Center trunnion | Bore: ø63 mm | Stroke: 400 mm | Auto switch magnet: No
CA2WT63-450Z Mounting: Center trunnion | Bore: ø63 mm | Stroke: 450 mm | Auto switch magnet: No
CA2WT63-500Z Mounting: Center trunnion | Bore: ø63 mm | Stroke: 500 mm | Auto switch magnet: No
CA2WT63-600Z Mounting: Center trunnion | Bore: ø63 mm | Stroke: 600 mm | Auto switch magnet: No
CA2WT80-25Z Mounting: Center trunnion | Bore: ø80 mm | Stroke: 25 mm | Auto switch magnet: No
CA2WT80-50Z Mounting: Center trunnion | Bore: ø80 mm | Stroke: 50 mm | Auto switch magnet: No
CA2WT80-75Z Mounting: Center trunnion | Bore: ø80 mm | Stroke: 75 mm | Auto switch magnet: No
CA2WT80-100Z Mounting: Center trunnion | Bore: ø80 mm | Stroke: 100 mm | Auto switch magnet: No
CA2WT80-125Z Mounting: Center trunnion | Bore: ø80 mm | Stroke: 125 mm | Auto switch magnet: No
CA2WT80-150Z Mounting: Center trunnion | Bore: ø80 mm | Stroke: 150 mm | Auto switch magnet: No
CA2WT80-175Z Mounting: Center trunnion | Bore: ø80 mm | Stroke: 175 mm | Auto switch magnet: No
CA2WT80-200Z Mounting: Center trunnion | Bore: ø80 mm | Stroke: 200 mm | Auto switch magnet: No
CA2WT80-250Z Mounting: Center trunnion | Bore: ø80 mm | Stroke: 250 mm | Auto switch magnet: No
CA2WT80-300Z Mounting: Center trunnion | Bore: ø80 mm | Stroke: 300 mm | Auto switch magnet: No
CA2WT80-350Z Mounting: Center trunnion | Bore: ø80 mm | Stroke: 350 mm | Auto switch magnet: No
CA2WT80-400Z Mounting: Center trunnion | Bore: ø80 mm | Stroke: 400 mm | Auto switch magnet: No
CA2WT80-450Z Mounting: Center trunnion | Bore: ø80 mm | Stroke: 450 mm | Auto switch magnet: No
CA2WT80-500Z Mounting: Center trunnion | Bore: ø80 mm | Stroke: 500 mm | Auto switch magnet: No
CA2WT80-600Z Mounting: Center trunnion | Bore: ø80 mm | Stroke: 600 mm | Auto switch magnet: No
CA2WT80-700Z Mounting: Center trunnion | Bore: ø80 mm | Stroke: 700 mm | Auto switch magnet: No
CA2WT100-25Z Mounting: Center trunnion | Bore: ø100 mm | Stroke: 25 mm | Auto switch magnet: No
CA2WT100-50Z Mounting: Center trunnion | Bore: ø100 mm | Stroke: 50 mm | Auto switch magnet: No
CA2WT100-75Z Mounting: Center trunnion | Bore: ø100 mm | Stroke: 75 mm | Auto switch magnet: No
CA2WT100-100Z Mounting: Center trunnion | Bore: ø100 mm | Stroke: 100 mm | Auto switch magnet: No
CA2WT100-125Z Mounting: Center trunnion | Bore: ø100 mm | Stroke: 125 mm | Auto switch magnet: No
CA2WT100-150Z Mounting: Center trunnion | Bore: ø100 mm | Stroke: 150 mm | Auto switch magnet: No
CA2WT100-175Z Mounting: Center trunnion | Bore: ø100 mm | Stroke: 175 mm | Auto switch magnet: No
CA2WT100-200Z Mounting: Center trunnion | Bore: ø100 mm | Stroke: 200 mm | Auto switch magnet: No
CA2WT100-250Z Mounting: Center trunnion | Bore: ø100 mm | Stroke: 250 mm | Auto switch magnet: No
CA2WT100-300Z Mounting: Center trunnion | Bore: ø100 mm | Stroke: 300 mm | Auto switch magnet: No
CA2WT100-350Z Mounting: Center trunnion | Bore: ø100 mm | Stroke: 350 mm | Auto switch magnet: No
CA2WT100-400Z Mounting: Center trunnion | Bore: ø100 mm | Stroke: 400 mm | Auto switch magnet: No
CA2WT100-450Z Mounting: Center trunnion | Bore: ø100 mm | Stroke: 450 mm | Auto switch magnet: No
CA2WT100-500Z Mounting: Center trunnion | Bore: ø100 mm | Stroke: 500 mm | Auto switch magnet: No
CA2WT100-600Z Mounting: Center trunnion | Bore: ø100 mm | Stroke: 600 mm | Auto switch magnet: No
CA2WT100-700Z Mounting: Center trunnion | Bore: ø100 mm | Stroke: 700 mm | Auto switch magnet: No
CDA2WB40-25Z Mounting: Basic | Bore: ø40 mm | Stroke: 25 mm | Auto switch magnet: Yes
CDA2WB40-50Z Mounting: Basic | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: Yes
CDA2WB40-75Z Mounting: Basic | Bore: ø40 mm | Stroke: 75 mm | Auto switch magnet: Yes
CDA2WB40-100Z Mounting: Basic | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: Yes
CDA2WB40-125Z Mounting: Basic | Bore: ø40 mm | Stroke: 125 mm | Auto switch magnet: Yes
CDA2WB40-150Z Mounting: Basic | Bore: ø40 mm | Stroke: 150 mm | Auto switch magnet: Yes
CDA2WB40-175Z Mounting: Basic | Bore: ø40 mm | Stroke: 175 mm | Auto switch magnet: Yes
CDA2WB40-200Z Mounting: Basic | Bore: ø40 mm | Stroke: 200 mm | Auto switch magnet: Yes
CDA2WB40-250Z Mounting: Basic | Bore: ø40 mm | Stroke: 250 mm | Auto switch magnet: Yes
CDA2WB40-300Z Mounting: Basic | Bore: ø40 mm | Stroke: 300 mm | Auto switch magnet: Yes
CDA2WB40-350Z Mounting: Basic | Bore: ø40 mm | Stroke: 350 mm | Auto switch magnet: Yes
CDA2WB40-400Z Mounting: Basic | Bore: ø40 mm | Stroke: 400 mm | Auto switch magnet: Yes
CDA2WB40-450Z Mounting: Basic | Bore: ø40 mm | Stroke: 450 mm | Auto switch magnet: Yes
CDA2WB40-500Z Mounting: Basic | Bore: ø40 mm | Stroke: 500 mm | Auto switch magnet: Yes
CDA2WB50-25Z Mounting: Basic | Bore: ø50 mm | Stroke: 25 mm | Auto switch magnet: Yes
CDA2WB50-50Z Mounting: Basic | Bore: ø50 mm | Stroke: 50 mm | Auto switch magnet: Yes
CDA2WB50-75Z Mounting: Basic | Bore: ø50 mm | Stroke: 75 mm | Auto switch magnet: Yes
CDA2WB50-100Z Mounting: Basic | Bore: ø50 mm | Stroke: 100 mm | Auto switch magnet: Yes
CDA2WB50-125Z Mounting: Basic | Bore: ø50 mm | Stroke: 125 mm | Auto switch magnet: Yes
CDA2WB50-150Z Mounting: Basic | Bore: ø50 mm | Stroke: 150 mm | Auto switch magnet: Yes
CDA2WB50-175Z Mounting: Basic | Bore: ø50 mm | Stroke: 175 mm | Auto switch magnet: Yes
CDA2WB50-200Z Mounting: Basic | Bore: ø50 mm | Stroke: 200 mm | Auto switch magnet: Yes
CDA2WB50-250Z Mounting: Basic | Bore: ø50 mm | Stroke: 250 mm | Auto switch magnet: Yes
CDA2WB50-300Z Mounting: Basic | Bore: ø50 mm | Stroke: 300 mm | Auto switch magnet: Yes
CDA2WB50-350Z Mounting: Basic | Bore: ø50 mm | Stroke: 350 mm | Auto switch magnet: Yes
CDA2WB50-400Z Mounting: Basic | Bore: ø50 mm | Stroke: 400 mm | Auto switch magnet: Yes
CDA2WB50-450Z Mounting: Basic | Bore: ø50 mm | Stroke: 450 mm | Auto switch magnet: Yes
CDA2WB50-500Z Mounting: Basic | Bore: ø50 mm | Stroke: 500 mm | Auto switch magnet: Yes
CDA2WB50-600Z Mounting: Basic | Bore: ø50 mm | Stroke: 600 mm | Auto switch magnet: Yes
CDA2WB63-25Z Mounting: Basic | Bore: ø63 mm | Stroke: 25 mm | Auto switch magnet: Yes
CDA2WB63-50Z Mounting: Basic | Bore: ø63 mm | Stroke: 50 mm | Auto switch magnet: Yes
CDA2WB63-75Z Mounting: Basic | Bore: ø63 mm | Stroke: 75 mm | Auto switch magnet: Yes
CDA2WB63-100Z Mounting: Basic | Bore: ø63 mm | Stroke: 100 mm | Auto switch magnet: Yes
CDA2WB63-125Z Mounting: Basic | Bore: ø63 mm | Stroke: 125 mm | Auto switch magnet: Yes
CDA2WB63-150Z Mounting: Basic | Bore: ø63 mm | Stroke: 150 mm | Auto switch magnet: Yes
CDA2WB63-175Z Mounting: Basic | Bore: ø63 mm | Stroke: 175 mm | Auto switch magnet: Yes
CDA2WB63-200Z Mounting: Basic | Bore: ø63 mm | Stroke: 200 mm | Auto switch magnet: Yes
CDA2WB63-250Z Mounting: Basic | Bore: ø63 mm | Stroke: 250 mm | Auto switch magnet: Yes
CDA2WB63-300Z Mounting: Basic | Bore: ø63 mm | Stroke: 300 mm | Auto switch magnet: Yes
CDA2WB63-350Z Mounting: Basic | Bore: ø63 mm | Stroke: 350 mm | Auto switch magnet: Yes
CDA2WB63-400Z Mounting: Basic | Bore: ø63 mm | Stroke: 400 mm | Auto switch magnet: Yes
CDA2WB63-450Z Mounting: Basic | Bore: ø63 mm | Stroke: 450 mm | Auto switch magnet: Yes
CDA2WB63-500Z Mounting: Basic | Bore: ø63 mm | Stroke: 500 mm | Auto switch magnet: Yes
CDA2WB63-600Z Mounting: Basic | Bore: ø63 mm | Stroke: 600 mm | Auto switch magnet: Yes
CDA2WB80-25Z Mounting: Basic | Bore: ø80 mm | Stroke: 25 mm | Auto switch magnet: Yes
CDA2WB80-50Z Mounting: Basic | Bore: ø80 mm | Stroke: 50 mm | Auto switch magnet: Yes
CDA2WB80-75Z Mounting: Basic | Bore: ø80 mm | Stroke: 75 mm | Auto switch magnet: Yes
CDA2WB80-100Z Mounting: Basic | Bore: ø80 mm | Stroke: 100 mm | Auto switch magnet: Yes
CDA2WB80-125Z Mounting: Basic | Bore: ø80 mm | Stroke: 125 mm | Auto switch magnet: Yes
CDA2WB80-150Z Mounting: Basic | Bore: ø80 mm | Stroke: 150 mm | Auto switch magnet: Yes
CDA2WB80-175Z Mounting: Basic | Bore: ø80 mm | Stroke: 175 mm | Auto switch magnet: Yes
CDA2WB80-200Z Mounting: Basic | Bore: ø80 mm | Stroke: 200 mm | Auto switch magnet: Yes
CDA2WB80-250Z Mounting: Basic | Bore: ø80 mm | Stroke: 250 mm | Auto switch magnet: Yes
CDA2WB80-300Z Mounting: Basic | Bore: ø80 mm | Stroke: 300 mm | Auto switch magnet: Yes
CDA2WB80-350Z Mounting: Basic | Bore: ø80 mm | Stroke: 350 mm | Auto switch magnet: Yes
CDA2WB80-400Z Mounting: Basic | Bore: ø80 mm | Stroke: 400 mm | Auto switch magnet: Yes
CDA2WB80-450Z Mounting: Basic | Bore: ø80 mm | Stroke: 450 mm | Auto switch magnet: Yes
CDA2WB80-500Z Mounting: Basic | Bore: ø80 mm | Stroke: 500 mm | Auto switch magnet: Yes
CDA2WB80-600Z Mounting: Basic | Bore: ø80 mm | Stroke: 600 mm | Auto switch magnet: Yes
CDA2WB80-700Z Mounting: Basic | Bore: ø80 mm | Stroke: 700 mm | Auto switch magnet: Yes
CDA2WB100-25Z Mounting: Basic | Bore: ø100 mm | Stroke: 25 mm | Auto switch magnet: Yes
CDA2WB100-50Z Mounting: Basic | Bore: ø100 mm | Stroke: 50 mm | Auto switch magnet: Yes
CDA2WB100-75Z Mounting: Basic | Bore: ø100 mm | Stroke: 75 mm | Auto switch magnet: Yes
CDA2WB100-100Z Mounting: Basic | Bore: ø100 mm | Stroke: 100 mm | Auto switch magnet: Yes
CDA2WB100-125Z Mounting: Basic | Bore: ø100 mm | Stroke: 125 mm | Auto switch magnet: Yes
CDA2WB100-150Z Mounting: Basic | Bore: ø100 mm | Stroke: 150 mm | Auto switch magnet: Yes
CDA2WB100-175Z Mounting: Basic | Bore: ø100 mm | Stroke: 175 mm | Auto switch magnet: Yes
CDA2WB100-200Z Mounting: Basic | Bore: ø100 mm | Stroke: 200 mm | Auto switch magnet: Yes
CDA2WB100-250Z Mounting: Basic | Bore: ø100 mm | Stroke: 250 mm | Auto switch magnet: Yes
CDA2WB100-300Z Mounting: Basic | Bore: ø100 mm | Stroke: 300 mm | Auto switch magnet: Yes
CDA2WB100-350Z Mounting: Basic | Bore: ø100 mm | Stroke: 350 mm | Auto switch magnet: Yes
CDA2WB100-400Z Mounting: Basic | Bore: ø100 mm | Stroke: 400 mm | Auto switch magnet: Yes
CDA2WB100-450Z Mounting: Basic | Bore: ø100 mm | Stroke: 450 mm | Auto switch magnet: Yes
CDA2WB100-500Z Mounting: Basic | Bore: ø100 mm | Stroke: 500 mm | Auto switch magnet: Yes
CDA2WB100-600Z Mounting: Basic | Bore: ø100 mm | Stroke: 600 mm | Auto switch magnet: Yes
CDA2WB100-700Z Mounting: Basic | Bore: ø100 mm | Stroke: 700 mm | Auto switch magnet: Yes
CDA2WL40-25Z Mounting: Axial foot | Bore: ø40 mm | Stroke: 25 mm | Auto switch magnet: Yes
CDA2WL40-50Z Mounting: Axial foot | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: Yes
CDA2WL40-75Z Mounting: Axial foot | Bore: ø40 mm | Stroke: 75 mm | Auto switch magnet: Yes
CDA2WL40-100Z Mounting: Axial foot | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: Yes
CDA2WL40-125Z Mounting: Axial foot | Bore: ø40 mm | Stroke: 125 mm | Auto switch magnet: Yes
CDA2WL40-150Z Mounting: Axial foot | Bore: ø40 mm | Stroke: 150 mm | Auto switch magnet: Yes
CDA2WL40-175Z Mounting: Axial foot | Bore: ø40 mm | Stroke: 175 mm | Auto switch magnet: Yes
CDA2WL40-200Z Mounting: Axial foot | Bore: ø40 mm | Stroke: 200 mm | Auto switch magnet: Yes
CDA2WL40-250Z Mounting: Axial foot | Bore: ø40 mm | Stroke: 250 mm | Auto switch magnet: Yes
CDA2WL40-300Z Mounting: Axial foot | Bore: ø40 mm | Stroke: 300 mm | Auto switch magnet: Yes
CDA2WL40-350Z Mounting: Axial foot | Bore: ø40 mm | Stroke: 350 mm | Auto switch magnet: Yes
CDA2WL40-400Z Mounting: Axial foot | Bore: ø40 mm | Stroke: 400 mm | Auto switch magnet: Yes
CDA2WL40-450Z Mounting: Axial foot | Bore: ø40 mm | Stroke: 450 mm | Auto switch magnet: Yes
CDA2WL40-500Z Mounting: Axial foot | Bore: ø40 mm | Stroke: 500 mm | Auto switch magnet: Yes
CDA2WL50-25Z Mounting: Axial foot | Bore: ø50 mm | Stroke: 25 mm | Auto switch magnet: Yes
CDA2WL50-50Z Mounting: Axial foot | Bore: ø50 mm | Stroke: 50 mm | Auto switch magnet: Yes
CDA2WL50-75Z Mounting: Axial foot | Bore: ø50 mm | Stroke: 75 mm | Auto switch magnet: Yes
CDA2WL50-100Z Mounting: Axial foot | Bore: ø50 mm | Stroke: 100 mm | Auto switch magnet: Yes
CDA2WL50-125Z Mounting: Axial foot | Bore: ø50 mm | Stroke: 125 mm | Auto switch magnet: Yes
CDA2WL50-150Z Mounting: Axial foot | Bore: ø50 mm | Stroke: 150 mm | Auto switch magnet: Yes
CDA2WL50-175Z Mounting: Axial foot | Bore: ø50 mm | Stroke: 175 mm | Auto switch magnet: Yes
CDA2WL50-200Z Mounting: Axial foot | Bore: ø50 mm | Stroke: 200 mm | Auto switch magnet: Yes
CDA2WL50-250Z Mounting: Axial foot | Bore: ø50 mm | Stroke: 250 mm | Auto switch magnet: Yes
CDA2WL50-300Z Mounting: Axial foot | Bore: ø50 mm | Stroke: 300 mm | Auto switch magnet: Yes
CDA2WL50-350Z Mounting: Axial foot | Bore: ø50 mm | Stroke: 350 mm | Auto switch magnet: Yes
CDA2WL50-400Z Mounting: Axial foot | Bore: ø50 mm | Stroke: 400 mm | Auto switch magnet: Yes
CDA2WL50-450Z Mounting: Axial foot | Bore: ø50 mm | Stroke: 450 mm | Auto switch magnet: Yes
CDA2WL50-500Z Mounting: Axial foot | Bore: ø50 mm | Stroke: 500 mm | Auto switch magnet: Yes
CDA2WL50-600Z Mounting: Axial foot | Bore: ø50 mm | Stroke: 600 mm | Auto switch magnet: Yes
CDA2WL63-25Z Mounting: Axial foot | Bore: ø63 mm | Stroke: 25 mm | Auto switch magnet: Yes
CDA2WL63-50Z Mounting: Axial foot | Bore: ø63 mm | Stroke: 50 mm | Auto switch magnet: Yes
CDA2WL63-75Z Mounting: Axial foot | Bore: ø63 mm | Stroke: 75 mm | Auto switch magnet: Yes
CDA2WL63-100Z Mounting: Axial foot | Bore: ø63 mm | Stroke: 100 mm | Auto switch magnet: Yes
CDA2WL63-125Z Mounting: Axial foot | Bore: ø63 mm | Stroke: 125 mm | Auto switch magnet: Yes
CDA2WL63-150Z Mounting: Axial foot | Bore: ø63 mm | Stroke: 150 mm | Auto switch magnet: Yes
CDA2WL63-175Z Mounting: Axial foot | Bore: ø63 mm | Stroke: 175 mm | Auto switch magnet: Yes
CDA2WL63-200Z Mounting: Axial foot | Bore: ø63 mm | Stroke: 200 mm | Auto switch magnet: Yes
CDA2WL63-250Z Mounting: Axial foot | Bore: ø63 mm | Stroke: 250 mm | Auto switch magnet: Yes
CDA2WL63-300Z Mounting: Axial foot | Bore: ø63 mm | Stroke: 300 mm | Auto switch magnet: Yes
CDA2WL63-350Z Mounting: Axial foot | Bore: ø63 mm | Stroke: 350 mm | Auto switch magnet: Yes
CDA2WL63-400Z Mounting: Axial foot | Bore: ø63 mm | Stroke: 400 mm | Auto switch magnet: Yes
CDA2WL63-450Z Mounting: Axial foot | Bore: ø63 mm | Stroke: 450 mm | Auto switch magnet: Yes
CDA2WL63-500Z Mounting: Axial foot | Bore: ø63 mm | Stroke: 500 mm | Auto switch magnet: Yes
CDA2WL63-600Z Mounting: Axial foot | Bore: ø63 mm | Stroke: 600 mm | Auto switch magnet: Yes
CDA2WL80-25Z Mounting: Axial foot | Bore: ø80 mm | Stroke: 25 mm | Auto switch magnet: Yes
CDA2WL80-50Z Mounting: Axial foot | Bore: ø80 mm | Stroke: 50 mm | Auto switch magnet: Yes
CDA2WL80-75Z Mounting: Axial foot | Bore: ø80 mm | Stroke: 75 mm | Auto switch magnet: Yes
CDA2WL80-100Z Mounting: Axial foot | Bore: ø80 mm | Stroke: 100 mm | Auto switch magnet: Yes
CDA2WL80-125Z Mounting: Axial foot | Bore: ø80 mm | Stroke: 125 mm | Auto switch magnet: Yes
CDA2WL80-150Z Mounting: Axial foot | Bore: ø80 mm | Stroke: 150 mm | Auto switch magnet: Yes
CDA2WL80-175Z Mounting: Axial foot | Bore: ø80 mm | Stroke: 175 mm | Auto switch magnet: Yes
CDA2WL80-200Z Mounting: Axial foot | Bore: ø80 mm | Stroke: 200 mm | Auto switch magnet: Yes
CDA2WL80-250Z Mounting: Axial foot | Bore: ø80 mm | Stroke: 250 mm | Auto switch magnet: Yes
CDA2WL80-300Z Mounting: Axial foot | Bore: ø80 mm | Stroke: 300 mm | Auto switch magnet: Yes
CDA2WL80-350Z Mounting: Axial foot | Bore: ø80 mm | Stroke: 350 mm | Auto switch magnet: Yes
CDA2WL80-400Z Mounting: Axial foot | Bore: ø80 mm | Stroke: 400 mm | Auto switch magnet: Yes
CDA2WL80-450Z Mounting: Axial foot | Bore: ø80 mm | Stroke: 450 mm | Auto switch magnet: Yes
CDA2WL80-500Z Mounting: Axial foot | Bore: ø80 mm | Stroke: 500 mm | Auto switch magnet: Yes
CDA2WL80-600Z Mounting: Axial foot | Bore: ø80 mm | Stroke: 600 mm | Auto switch magnet: Yes
CDA2WL80-700Z Mounting: Axial foot | Bore: ø80 mm | Stroke: 700 mm | Auto switch magnet: Yes
CDA2WL100-25Z Mounting: Axial foot | Bore: ø100 mm | Stroke: 25 mm | Auto switch magnet: Yes
CDA2WL100-50Z Mounting: Axial foot | Bore: ø100 mm | Stroke: 50 mm | Auto switch magnet: Yes
CDA2WL100-75Z Mounting: Axial foot | Bore: ø100 mm | Stroke: 75 mm | Auto switch magnet: Yes
CDA2WL100-100Z Mounting: Axial foot | Bore: ø100 mm | Stroke: 100 mm | Auto switch magnet: Yes
CDA2WL100-125Z Mounting: Axial foot | Bore: ø100 mm | Stroke: 125 mm | Auto switch magnet: Yes
CDA2WL100-150Z Mounting: Axial foot | Bore: ø100 mm | Stroke: 150 mm | Auto switch magnet: Yes
CDA2WL100-175Z Mounting: Axial foot | Bore: ø100 mm | Stroke: 175 mm | Auto switch magnet: Yes
CDA2WL100-200Z Mounting: Axial foot | Bore: ø100 mm | Stroke: 200 mm | Auto switch magnet: Yes
CDA2WL100-250Z Mounting: Axial foot | Bore: ø100 mm | Stroke: 250 mm | Auto switch magnet: Yes
CDA2WL100-300Z Mounting: Axial foot | Bore: ø100 mm | Stroke: 300 mm | Auto switch magnet: Yes
CDA2WL100-350Z Mounting: Axial foot | Bore: ø100 mm | Stroke: 350 mm | Auto switch magnet: Yes
CDA2WL100-400Z Mounting: Axial foot | Bore: ø100 mm | Stroke: 400 mm | Auto switch magnet: Yes
CDA2WL100-450Z Mounting: Axial foot | Bore: ø100 mm | Stroke: 450 mm | Auto switch magnet: Yes
CDA2WL100-500Z Mounting: Axial foot | Bore: ø100 mm | Stroke: 500 mm | Auto switch magnet: Yes
CDA2WL100-600Z Mounting: Axial foot | Bore: ø100 mm | Stroke: 600 mm | Auto switch magnet: Yes
CDA2WL100-700Z Mounting: Axial foot | Bore: ø100 mm | Stroke: 700 mm | Auto switch magnet: Yes
CDA2WF40-25Z Mounting: Flange | Bore: ø40 mm | Stroke: 25 mm | Auto switch magnet: Yes
CDA2WF40-50Z Mounting: Flange | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: Yes
CDA2WF40-75Z Mounting: Flange | Bore: ø40 mm | Stroke: 75 mm | Auto switch magnet: Yes
CDA2WF40-100Z Mounting: Flange | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: Yes
CDA2WF40-125Z Mounting: Flange | Bore: ø40 mm | Stroke: 125 mm | Auto switch magnet: Yes
CDA2WF40-150Z Mounting: Flange | Bore: ø40 mm | Stroke: 150 mm | Auto switch magnet: Yes
CDA2WF40-175Z Mounting: Flange | Bore: ø40 mm | Stroke: 175 mm | Auto switch magnet: Yes
CDA2WF40-200Z Mounting: Flange | Bore: ø40 mm | Stroke: 200 mm | Auto switch magnet: Yes
CDA2WF40-250Z Mounting: Flange | Bore: ø40 mm | Stroke: 250 mm | Auto switch magnet: Yes
CDA2WF40-300Z Mounting: Flange | Bore: ø40 mm | Stroke: 300 mm | Auto switch magnet: Yes
CDA2WF40-350Z Mounting: Flange | Bore: ø40 mm | Stroke: 350 mm | Auto switch magnet: Yes
CDA2WF40-400Z Mounting: Flange | Bore: ø40 mm | Stroke: 400 mm | Auto switch magnet: Yes
CDA2WF40-450Z Mounting: Flange | Bore: ø40 mm | Stroke: 450 mm | Auto switch magnet: Yes
CDA2WF40-500Z Mounting: Flange | Bore: ø40 mm | Stroke: 500 mm | Auto switch magnet: Yes
CDA2WF50-25Z Mounting: Flange | Bore: ø50 mm | Stroke: 25 mm | Auto switch magnet: Yes
CDA2WF50-50Z Mounting: Flange | Bore: ø50 mm | Stroke: 50 mm | Auto switch magnet: Yes
CDA2WF50-75Z Mounting: Flange | Bore: ø50 mm | Stroke: 75 mm | Auto switch magnet: Yes
CDA2WF50-100Z Mounting: Flange | Bore: ø50 mm | Stroke: 100 mm | Auto switch magnet: Yes
CDA2WF50-125Z Mounting: Flange | Bore: ø50 mm | Stroke: 125 mm | Auto switch magnet: Yes
CDA2WF50-150Z Mounting: Flange | Bore: ø50 mm | Stroke: 150 mm | Auto switch magnet: Yes
CDA2WF50-175Z Mounting: Flange | Bore: ø50 mm | Stroke: 175 mm | Auto switch magnet: Yes
CDA2WF50-200Z Mounting: Flange | Bore: ø50 mm | Stroke: 200 mm | Auto switch magnet: Yes
CDA2WF50-250Z Mounting: Flange | Bore: ø50 mm | Stroke: 250 mm | Auto switch magnet: Yes
CDA2WF50-300Z Mounting: Flange | Bore: ø50 mm | Stroke: 300 mm | Auto switch magnet: Yes
CDA2WF50-350Z Mounting: Flange | Bore: ø50 mm | Stroke: 350 mm | Auto switch magnet: Yes
CDA2WF50-400Z Mounting: Flange | Bore: ø50 mm | Stroke: 400 mm | Auto switch magnet: Yes
CDA2WF50-450Z Mounting: Flange | Bore: ø50 mm | Stroke: 450 mm | Auto switch magnet: Yes
CDA2WF50-500Z Mounting: Flange | Bore: ø50 mm | Stroke: 500 mm | Auto switch magnet: Yes
CDA2WF50-600Z Mounting: Flange | Bore: ø50 mm | Stroke: 600 mm | Auto switch magnet: Yes
CDA2WF63-25Z Mounting: Flange | Bore: ø63 mm | Stroke: 25 mm | Auto switch magnet: Yes
CDA2WF63-50Z Mounting: Flange | Bore: ø63 mm | Stroke: 50 mm | Auto switch magnet: Yes
CDA2WF63-75Z Mounting: Flange | Bore: ø63 mm | Stroke: 75 mm | Auto switch magnet: Yes
CDA2WF63-100Z Mounting: Flange | Bore: ø63 mm | Stroke: 100 mm | Auto switch magnet: Yes
CDA2WF63-125Z Mounting: Flange | Bore: ø63 mm | Stroke: 125 mm | Auto switch magnet: Yes
CDA2WF63-150Z Mounting: Flange | Bore: ø63 mm | Stroke: 150 mm | Auto switch magnet: Yes
CDA2WF63-175Z Mounting: Flange | Bore: ø63 mm | Stroke: 175 mm | Auto switch magnet: Yes
CDA2WF63-200Z Mounting: Flange | Bore: ø63 mm | Stroke: 200 mm | Auto switch magnet: Yes
CDA2WF63-250Z Mounting: Flange | Bore: ø63 mm | Stroke: 250 mm | Auto switch magnet: Yes
CDA2WF63-300Z Mounting: Flange | Bore: ø63 mm | Stroke: 300 mm | Auto switch magnet: Yes
CDA2WF63-350Z Mounting: Flange | Bore: ø63 mm | Stroke: 350 mm | Auto switch magnet: Yes
CDA2WF63-400Z Mounting: Flange | Bore: ø63 mm | Stroke: 400 mm | Auto switch magnet: Yes
CDA2WF63-450Z Mounting: Flange | Bore: ø63 mm | Stroke: 450 mm | Auto switch magnet: Yes
CDA2WF63-500Z Mounting: Flange | Bore: ø63 mm | Stroke: 500 mm | Auto switch magnet: Yes
CDA2WF63-600Z Mounting: Flange | Bore: ø63 mm | Stroke: 600 mm | Auto switch magnet: Yes
CDA2WF80-25Z Mounting: Flange | Bore: ø80 mm | Stroke: 25 mm | Auto switch magnet: Yes
CDA2WF80-50Z Mounting: Flange | Bore: ø80 mm | Stroke: 50 mm | Auto switch magnet: Yes
CDA2WF80-75Z Mounting: Flange | Bore: ø80 mm | Stroke: 75 mm | Auto switch magnet: Yes
CDA2WF80-100Z Mounting: Flange | Bore: ø80 mm | Stroke: 100 mm | Auto switch magnet: Yes
CDA2WF80-125Z Mounting: Flange | Bore: ø80 mm | Stroke: 125 mm | Auto switch magnet: Yes
CDA2WF80-150Z Mounting: Flange | Bore: ø80 mm | Stroke: 150 mm | Auto switch magnet: Yes
CDA2WF80-175Z Mounting: Flange | Bore: ø80 mm | Stroke: 175 mm | Auto switch magnet: Yes
CDA2WF80-200Z Mounting: Flange | Bore: ø80 mm | Stroke: 200 mm | Auto switch magnet: Yes
CDA2WF80-250Z Mounting: Flange | Bore: ø80 mm | Stroke: 250 mm | Auto switch magnet: Yes
CDA2WF80-300Z Mounting: Flange | Bore: ø80 mm | Stroke: 300 mm | Auto switch magnet: Yes
CDA2WF80-350Z Mounting: Flange | Bore: ø80 mm | Stroke: 350 mm | Auto switch magnet: Yes
CDA2WF80-400Z Mounting: Flange | Bore: ø80 mm | Stroke: 400 mm | Auto switch magnet: Yes
CDA2WF80-450Z Mounting: Flange | Bore: ø80 mm | Stroke: 450 mm | Auto switch magnet: Yes
CDA2WF80-500Z Mounting: Flange | Bore: ø80 mm | Stroke: 500 mm | Auto switch magnet: Yes
CDA2WF80-600Z Mounting: Flange | Bore: ø80 mm | Stroke: 600 mm | Auto switch magnet: Yes
CDA2WF80-700Z Mounting: Flange | Bore: ø80 mm | Stroke: 700 mm | Auto switch magnet: Yes
CDA2WF100-25Z Mounting: Flange | Bore: ø100 mm | Stroke: 25 mm | Auto switch magnet: Yes
CDA2WF100-50Z Mounting: Flange | Bore: ø100 mm | Stroke: 50 mm | Auto switch magnet: Yes
CDA2WF100-75Z Mounting: Flange | Bore: ø100 mm | Stroke: 75 mm | Auto switch magnet: Yes
CDA2WF100-100Z Mounting: Flange | Bore: ø100 mm | Stroke: 100 mm | Auto switch magnet: Yes
CDA2WF100-125Z Mounting: Flange | Bore: ø100 mm | Stroke: 125 mm | Auto switch magnet: Yes
CDA2WF100-150Z Mounting: Flange | Bore: ø100 mm | Stroke: 150 mm | Auto switch magnet: Yes
CDA2WF100-175Z Mounting: Flange | Bore: ø100 mm | Stroke: 175 mm | Auto switch magnet: Yes
CDA2WF100-200Z Mounting: Flange | Bore: ø100 mm | Stroke: 200 mm | Auto switch magnet: Yes
CDA2WF100-250Z Mounting: Flange | Bore: ø100 mm | Stroke: 250 mm | Auto switch magnet: Yes
CDA2WF100-300Z Mounting: Flange | Bore: ø100 mm | Stroke: 300 mm | Auto switch magnet: Yes
CDA2WF100-350Z Mounting: Flange | Bore: ø100 mm | Stroke: 350 mm | Auto switch magnet: Yes
CDA2WF100-400Z Mounting: Flange | Bore: ø100 mm | Stroke: 400 mm | Auto switch magnet: Yes
CDA2WF100-450Z Mounting: Flange | Bore: ø100 mm | Stroke: 450 mm | Auto switch magnet: Yes
CDA2WF100-500Z Mounting: Flange | Bore: ø100 mm | Stroke: 500 mm | Auto switch magnet: Yes
CDA2WF100-600Z Mounting: Flange | Bore: ø100 mm | Stroke: 600 mm | Auto switch magnet: Yes
CDA2WF100-700Z Mounting: Flange | Bore: ø100 mm | Stroke: 700 mm | Auto switch magnet: Yes
CDA2WT40-25Z Mounting: Center trunnion | Bore: ø40 mm | Stroke: 25 mm | Auto switch magnet: Yes
CDA2WT40-50Z Mounting: Center trunnion | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: Yes
CDA2WT40-75Z Mounting: Center trunnion | Bore: ø40 mm | Stroke: 75 mm | Auto switch magnet: Yes
CDA2WT40-100Z Mounting: Center trunnion | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: Yes
CDA2WT40-125Z Mounting: Center trunnion | Bore: ø40 mm | Stroke: 125 mm | Auto switch magnet: Yes
CDA2WT40-150Z Mounting: Center trunnion | Bore: ø40 mm | Stroke: 150 mm | Auto switch magnet: Yes
CDA2WT40-175Z Mounting: Center trunnion | Bore: ø40 mm | Stroke: 175 mm | Auto switch magnet: Yes
CDA2WT40-200Z Mounting: Center trunnion | Bore: ø40 mm | Stroke: 200 mm | Auto switch magnet: Yes
CDA2WT40-250Z Mounting: Center trunnion | Bore: ø40 mm | Stroke: 250 mm | Auto switch magnet: Yes
CDA2WT40-300Z Mounting: Center trunnion | Bore: ø40 mm | Stroke: 300 mm | Auto switch magnet: Yes
CDA2WT40-350Z Mounting: Center trunnion | Bore: ø40 mm | Stroke: 350 mm | Auto switch magnet: Yes
CDA2WT40-400Z Mounting: Center trunnion | Bore: ø40 mm | Stroke: 400 mm | Auto switch magnet: Yes
CDA2WT40-450Z Mounting: Center trunnion | Bore: ø40 mm | Stroke: 450 mm | Auto switch magnet: Yes
CDA2WT40-500Z Mounting: Center trunnion | Bore: ø40 mm | Stroke: 500 mm | Auto switch magnet: Yes
CDA2WT50-25Z Mounting: Center trunnion | Bore: ø50 mm | Stroke: 25 mm | Auto switch magnet: Yes
CDA2WT50-50Z Mounting: Center trunnion | Bore: ø50 mm | Stroke: 50 mm | Auto switch magnet: Yes
CDA2WT50-75Z Mounting: Center trunnion | Bore: ø50 mm | Stroke: 75 mm | Auto switch magnet: Yes
CDA2WT50-100Z Mounting: Center trunnion | Bore: ø50 mm | Stroke: 100 mm | Auto switch magnet: Yes
CDA2WT50-125Z Mounting: Center trunnion | Bore: ø50 mm | Stroke: 125 mm | Auto switch magnet: Yes
CDA2WT50-150Z Mounting: Center trunnion | Bore: ø50 mm | Stroke: 150 mm | Auto switch magnet: Yes
CDA2WT50-175Z Mounting: Center trunnion | Bore: ø50 mm | Stroke: 175 mm | Auto switch magnet: Yes
CDA2WT50-200Z Mounting: Center trunnion | Bore: ø50 mm | Stroke: 200 mm | Auto switch magnet: Yes
CDA2WT50-250Z Mounting: Center trunnion | Bore: ø50 mm | Stroke: 250 mm | Auto switch magnet: Yes
CDA2WT50-300Z Mounting: Center trunnion | Bore: ø50 mm | Stroke: 300 mm | Auto switch magnet: Yes
CDA2WT50-350Z Mounting: Center trunnion | Bore: ø50 mm | Stroke: 350 mm | Auto switch magnet: Yes
CDA2WT50-400Z Mounting: Center trunnion | Bore: ø50 mm | Stroke: 400 mm | Auto switch magnet: Yes
CDA2WT50-450Z Mounting: Center trunnion | Bore: ø50 mm | Stroke: 450 mm | Auto switch magnet: Yes
CDA2WT50-500Z Mounting: Center trunnion | Bore: ø50 mm | Stroke: 500 mm | Auto switch magnet: Yes
CDA2WT50-600Z Mounting: Center trunnion | Bore: ø50 mm | Stroke: 600 mm | Auto switch magnet: Yes
CDA2WT63-25Z Mounting: Center trunnion | Bore: ø63 mm | Stroke: 25 mm | Auto switch magnet: Yes
CDA2WT63-50Z Mounting: Center trunnion | Bore: ø63 mm | Stroke: 50 mm | Auto switch magnet: Yes
CDA2WT63-75Z Mounting: Center trunnion | Bore: ø63 mm | Stroke: 75 mm | Auto switch magnet: Yes
CDA2WT63-100Z Mounting: Center trunnion | Bore: ø63 mm | Stroke: 100 mm | Auto switch magnet: Yes
CDA2WT63-125Z Mounting: Center trunnion | Bore: ø63 mm | Stroke: 125 mm | Auto switch magnet: Yes
CDA2WT63-150Z Mounting: Center trunnion | Bore: ø63 mm | Stroke: 150 mm | Auto switch magnet: Yes
CDA2WT63-175Z Mounting: Center trunnion | Bore: ø63 mm | Stroke: 175 mm | Auto switch magnet: Yes
CDA2WT63-200Z Mounting: Center trunnion | Bore: ø63 mm | Stroke: 200 mm | Auto switch magnet: Yes
CDA2WT63-250Z Mounting: Center trunnion | Bore: ø63 mm | Stroke: 250 mm | Auto switch magnet: Yes
CDA2WT63-300Z Mounting: Center trunnion | Bore: ø63 mm | Stroke: 300 mm | Auto switch magnet: Yes
CDA2WT63-350Z Mounting: Center trunnion | Bore: ø63 mm | Stroke: 350 mm | Auto switch magnet: Yes
CDA2WT63-400Z Mounting: Center trunnion | Bore: ø63 mm | Stroke: 400 mm | Auto switch magnet: Yes
CDA2WT63-450Z Mounting: Center trunnion | Bore: ø63 mm | Stroke: 450 mm | Auto switch magnet: Yes
CDA2WT63-500Z Mounting: Center trunnion | Bore: ø63 mm | Stroke: 500 mm | Auto switch magnet: Yes
CDA2WT63-600Z Mounting: Center trunnion | Bore: ø63 mm | Stroke: 600 mm | Auto switch magnet: Yes
CDA2WT80-25Z Mounting: Center trunnion | Bore: ø80 mm | Stroke: 25 mm | Auto switch magnet: Yes
CDA2WT80-50Z Mounting: Center trunnion | Bore: ø80 mm | Stroke: 50 mm | Auto switch magnet: Yes
CDA2WT80-75Z Mounting: Center trunnion | Bore: ø80 mm | Stroke: 75 mm | Auto switch magnet: Yes
CDA2WT80-100Z Mounting: Center trunnion | Bore: ø80 mm | Stroke: 100 mm | Auto switch magnet: Yes
CDA2WT80-125Z Mounting: Center trunnion | Bore: ø80 mm | Stroke: 125 mm | Auto switch magnet: Yes
CDA2WT80-150Z Mounting: Center trunnion | Bore: ø80 mm | Stroke: 150 mm | Auto switch magnet: Yes
CDA2WT80-175Z Mounting: Center trunnion | Bore: ø80 mm | Stroke: 175 mm | Auto switch magnet: Yes
CDA2WT80-200Z Mounting: Center trunnion | Bore: ø80 mm | Stroke: 200 mm | Auto switch magnet: Yes
CDA2WT80-250Z Mounting: Center trunnion | Bore: ø80 mm | Stroke: 250 mm | Auto switch magnet: Yes
CDA2WT80-300Z Mounting: Center trunnion | Bore: ø80 mm | Stroke: 300 mm | Auto switch magnet: Yes
CDA2WT80-350Z Mounting: Center trunnion | Bore: ø80 mm | Stroke: 350 mm | Auto switch magnet: Yes
CDA2WT80-400Z Mounting: Center trunnion | Bore: ø80 mm | Stroke: 400 mm | Auto switch magnet: Yes
CDA2WT80-450Z Mounting: Center trunnion | Bore: ø80 mm | Stroke: 450 mm | Auto switch magnet: Yes
CDA2WT80-500Z Mounting: Center trunnion | Bore: ø80 mm | Stroke: 500 mm | Auto switch magnet: Yes
CDA2WT80-600Z Mounting: Center trunnion | Bore: ø80 mm | Stroke: 600 mm | Auto switch magnet: Yes
CDA2WT80-700Z Mounting: Center trunnion | Bore: ø80 mm | Stroke: 700 mm | Auto switch magnet: Yes
CDA2WT100-25Z Mounting: Center trunnion | Bore: ø100 mm | Stroke: 25 mm | Auto switch magnet: Yes
CDA2WT100-50Z Mounting: Center trunnion | Bore: ø100 mm | Stroke: 50 mm | Auto switch magnet: Yes
CDA2WT100-75Z Mounting: Center trunnion | Bore: ø100 mm | Stroke: 75 mm | Auto switch magnet: Yes
CDA2WT100-100Z Mounting: Center trunnion | Bore: ø100 mm | Stroke: 100 mm | Auto switch magnet: Yes
CDA2WT100-125Z Mounting: Center trunnion | Bore: ø100 mm | Stroke: 125 mm | Auto switch magnet: Yes
CDA2WT100-150Z Mounting: Center trunnion | Bore: ø100 mm | Stroke: 150 mm | Auto switch magnet: Yes
CDA2WT100-175Z Mounting: Center trunnion | Bore: ø100 mm | Stroke: 175 mm | Auto switch magnet: Yes
CDA2WT100-200Z Mounting: Center trunnion | Bore: ø100 mm | Stroke: 200 mm | Auto switch magnet: Yes
CDA2WT100-250Z Mounting: Center trunnion | Bore: ø100 mm | Stroke: 250 mm | Auto switch magnet: Yes
CDA2WT100-300Z Mounting: Center trunnion | Bore: ø100 mm | Stroke: 300 mm | Auto switch magnet: Yes
CDA2WT100-350Z Mounting: Center trunnion | Bore: ø100 mm | Stroke: 350 mm | Auto switch magnet: Yes
CDA2WT100-400Z Mounting: Center trunnion | Bore: ø100 mm | Stroke: 400 mm | Auto switch magnet: Yes
CDA2WT100-450Z Mounting: Center trunnion | Bore: ø100 mm | Stroke: 450 mm | Auto switch magnet: Yes
CDA2WT100-500Z Mounting: Center trunnion | Bore: ø100 mm | Stroke: 500 mm | Auto switch magnet: Yes
CDA2WT100-600Z Mounting: Center trunnion | Bore: ø100 mm | Stroke: 600 mm | Auto switch magnet: Yes
CDA2WT100-700Z Mounting: Center trunnion | Bore: ø100 mm | Stroke: 700 mm | Auto switch magnet: Yes
Round Body CylindersSMC
608 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC CA2W Air Cylinder (Double Rod, ø40 to ø100)

Brand SMC·Round Body Cylinders

Available part numbers (608)

CA2WB40-25Z, CA2WB40-50Z, CA2WB40-75Z, CA2WB40-100Z, CA2WB40-125Z, CA2WB40-150Z, CA2WB40-175Z, CA2WB40-200Z, CA2WB40-250Z, CA2WB40-300Z + 598 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CA2WB40-25ZMounting: Basic | Bore: ø40 mm | Stroke: 25 mm | Auto switch magnet: No
CA2WB40-50ZMounting: Basic | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: No
CA2WB40-75ZMounting: Basic | Bore: ø40 mm | Stroke: 75 mm | Auto switch magnet: No
CA2WB40-100ZMounting: Basic | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: No
CA2WB40-125ZMounting: Basic | Bore: ø40 mm | Stroke: 125 mm | Auto switch magnet: No
CA2WB40-150ZMounting: Basic | Bore: ø40 mm | Stroke: 150 mm | Auto switch magnet: No
CA2WB40-175ZMounting: Basic | Bore: ø40 mm | Stroke: 175 mm | Auto switch magnet: No
CA2WB40-200ZMounting: Basic | Bore: ø40 mm | Stroke: 200 mm | Auto switch magnet: No
CA2WB40-250ZMounting: Basic | Bore: ø40 mm | Stroke: 250 mm | Auto switch magnet: No
CA2WB40-300ZMounting: Basic | Bore: ø40 mm | Stroke: 300 mm | Auto switch magnet: No
CA2WB40-350ZMounting: Basic | Bore: ø40 mm | Stroke: 350 mm | Auto switch magnet: No
CA2WB40-400ZMounting: Basic | Bore: ø40 mm | Stroke: 400 mm | Auto switch magnet: No
CA2WB40-450ZMounting: Basic | Bore: ø40 mm | Stroke: 450 mm | Auto switch magnet: No
CA2WB40-500ZMounting: Basic | Bore: ø40 mm | Stroke: 500 mm | Auto switch magnet: No
CA2WB50-25ZMounting: Basic | Bore: ø50 mm | Stroke: 25 mm | Auto switch magnet: No
CA2WB50-50ZMounting: Basic | Bore: ø50 mm | Stroke: 50 mm | Auto switch magnet: No
CA2WB50-75ZMounting: Basic | Bore: ø50 mm | Stroke: 75 mm | Auto switch magnet: No
CA2WB50-100ZMounting: Basic | Bore: ø50 mm | Stroke: 100 mm | Auto switch magnet: No
CA2WB50-125ZMounting: Basic | Bore: ø50 mm | Stroke: 125 mm | Auto switch magnet: No
CA2WB50-150ZMounting: Basic | Bore: ø50 mm | Stroke: 150 mm | Auto switch magnet: No
CA2WB50-175ZMounting: Basic | Bore: ø50 mm | Stroke: 175 mm | Auto switch magnet: No
CA2WB50-200ZMounting: Basic | Bore: ø50 mm | Stroke: 200 mm | Auto switch magnet: No
CA2WB50-250ZMounting: Basic | Bore: ø50 mm | Stroke: 250 mm | Auto switch magnet: No
CA2WB50-300ZMounting: Basic | Bore: ø50 mm | Stroke: 300 mm | Auto switch magnet: No
CA2WB50-350ZMounting: Basic | Bore: ø50 mm | Stroke: 350 mm | Auto switch magnet: No
CA2WB50-400ZMounting: Basic | Bore: ø50 mm | Stroke: 400 mm | Auto switch magnet: No
CA2WB50-450ZMounting: Basic | Bore: ø50 mm | Stroke: 450 mm | Auto switch magnet: No
CA2WB50-500ZMounting: Basic | Bore: ø50 mm | Stroke: 500 mm | Auto switch magnet: No
CA2WB50-600ZMounting: Basic | Bore: ø50 mm | Stroke: 600 mm | Auto switch magnet: No
CA2WB63-25ZMounting: Basic | Bore: ø63 mm | Stroke: 25 mm | Auto switch magnet: No
CA2WB63-50ZMounting: Basic | Bore: ø63 mm | Stroke: 50 mm | Auto switch magnet: No
CA2WB63-75ZMounting: Basic | Bore: ø63 mm | Stroke: 75 mm | Auto switch magnet: No
CA2WB63-100ZMounting: Basic | Bore: ø63 mm | Stroke: 100 mm | Auto switch magnet: No
CA2WB63-125ZMounting: Basic | Bore: ø63 mm | Stroke: 125 mm | Auto switch magnet: No
CA2WB63-150ZMounting: Basic | Bore: ø63 mm | Stroke: 150 mm | Auto switch magnet: No
CA2WB63-175ZMounting: Basic | Bore: ø63 mm | Stroke: 175 mm | Auto switch magnet: No
CA2WB63-200ZMounting: Basic | Bore: ø63 mm | Stroke: 200 mm | Auto switch magnet: No
CA2WB63-250ZMounting: Basic | Bore: ø63 mm | Stroke: 250 mm | Auto switch magnet: No
CA2WB63-300ZMounting: Basic | Bore: ø63 mm | Stroke: 300 mm | Auto switch magnet: No
CA2WB63-350ZMounting: Basic | Bore: ø63 mm | Stroke: 350 mm | Auto switch magnet: No
CA2WB63-400ZMounting: Basic | Bore: ø63 mm | Stroke: 400 mm | Auto switch magnet: No
CA2WB63-450ZMounting: Basic | Bore: ø63 mm | Stroke: 450 mm | Auto switch magnet: No
CA2WB63-500ZMounting: Basic | Bore: ø63 mm | Stroke: 500 mm | Auto switch magnet: No
CA2WB63-600ZMounting: Basic | Bore: ø63 mm | Stroke: 600 mm | Auto switch magnet: No
CA2WB80-25ZMounting: Basic | Bore: ø80 mm | Stroke: 25 mm | Auto switch magnet: No
CA2WB80-50ZMounting: Basic | Bore: ø80 mm | Stroke: 50 mm | Auto switch magnet: No
CA2WB80-75ZMounting: Basic | Bore: ø80 mm | Stroke: 75 mm | Auto switch magnet: No
CA2WB80-100ZMounting: Basic | Bore: ø80 mm | Stroke: 100 mm | Auto switch magnet: No
CA2WB80-125ZMounting: Basic | Bore: ø80 mm | Stroke: 125 mm | Auto switch magnet: No
CA2WB80-150ZMounting: Basic | Bore: ø80 mm | Stroke: 150 mm | Auto switch magnet: No
CA2WB80-175ZMounting: Basic | Bore: ø80 mm | Stroke: 175 mm | Auto switch magnet: No
CA2WB80-200ZMounting: Basic | Bore: ø80 mm | Stroke: 200 mm | Auto switch magnet: No
CA2WB80-250ZMounting: Basic | Bore: ø80 mm | Stroke: 250 mm | Auto switch magnet: No
CA2WB80-300ZMounting: Basic | Bore: ø80 mm | Stroke: 300 mm | Auto switch magnet: No
CA2WB80-350ZMounting: Basic | Bore: ø80 mm | Stroke: 350 mm | Auto switch magnet: No
CA2WB80-400ZMounting: Basic | Bore: ø80 mm | Stroke: 400 mm | Auto switch magnet: No
CA2WB80-450ZMounting: Basic | Bore: ø80 mm | Stroke: 450 mm | Auto switch magnet: No
CA2WB80-500ZMounting: Basic | Bore: ø80 mm | Stroke: 500 mm | Auto switch magnet: No
CA2WB80-600ZMounting: Basic | Bore: ø80 mm | Stroke: 600 mm | Auto switch magnet: No
CA2WB80-700ZMounting: Basic | Bore: ø80 mm | Stroke: 700 mm | Auto switch magnet: No
CA2WB100-25ZMounting: Basic | Bore: ø100 mm | Stroke: 25 mm | Auto switch magnet: No
CA2WB100-50ZMounting: Basic | Bore: ø100 mm | Stroke: 50 mm | Auto switch magnet: No
CA2WB100-75ZMounting: Basic | Bore: ø100 mm | Stroke: 75 mm | Auto switch magnet: No
CA2WB100-100ZMounting: Basic | Bore: ø100 mm | Stroke: 100 mm | Auto switch magnet: No
CA2WB100-125ZMounting: Basic | Bore: ø100 mm | Stroke: 125 mm | Auto switch magnet: No
CA2WB100-150ZMounting: Basic | Bore: ø100 mm | Stroke: 150 mm | Auto switch magnet: No
CA2WB100-175ZMounting: Basic | Bore: ø100 mm | Stroke: 175 mm | Auto switch magnet: No
CA2WB100-200ZMounting: Basic | Bore: ø100 mm | Stroke: 200 mm | Auto switch magnet: No
CA2WB100-250ZMounting: Basic | Bore: ø100 mm | Stroke: 250 mm | Auto switch magnet: No
CA2WB100-300ZMounting: Basic | Bore: ø100 mm | Stroke: 300 mm | Auto switch magnet: No
CA2WB100-350ZMounting: Basic | Bore: ø100 mm | Stroke: 350 mm | Auto switch magnet: No
CA2WB100-400ZMounting: Basic | Bore: ø100 mm | Stroke: 400 mm | Auto switch magnet: No
CA2WB100-450ZMounting: Basic | Bore: ø100 mm | Stroke: 450 mm | Auto switch magnet: No
CA2WB100-500ZMounting: Basic | Bore: ø100 mm | Stroke: 500 mm | Auto switch magnet: No
CA2WB100-600ZMounting: Basic | Bore: ø100 mm | Stroke: 600 mm | Auto switch magnet: No
CA2WB100-700ZMounting: Basic | Bore: ø100 mm | Stroke: 700 mm | Auto switch magnet: No
CA2WL40-25ZMounting: Axial foot | Bore: ø40 mm | Stroke: 25 mm | Auto switch magnet: No
CA2WL40-50ZMounting: Axial foot | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: No
CA2WL40-75ZMounting: Axial foot | Bore: ø40 mm | Stroke: 75 mm | Auto switch magnet: No
CA2WL40-100ZMounting: Axial foot | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: No
CA2WL40-125ZMounting: Axial foot | Bore: ø40 mm | Stroke: 125 mm | Auto switch magnet: No
CA2WL40-150ZMounting: Axial foot | Bore: ø40 mm | Stroke: 150 mm | Auto switch magnet: No
CA2WL40-175ZMounting: Axial foot | Bore: ø40 mm | Stroke: 175 mm | Auto switch magnet: No
CA2WL40-200ZMounting: Axial foot | Bore: ø40 mm | Stroke: 200 mm | Auto switch magnet: No
CA2WL40-250ZMounting: Axial foot | Bore: ø40 mm | Stroke: 250 mm | Auto switch magnet: No
CA2WL40-300ZMounting: Axial foot | Bore: ø40 mm | Stroke: 300 mm | Auto switch magnet: No
CA2WL40-350ZMounting: Axial foot | Bore: ø40 mm | Stroke: 350 mm | Auto switch magnet: No
CA2WL40-400ZMounting: Axial foot | Bore: ø40 mm | Stroke: 400 mm | Auto switch magnet: No
CA2WL40-450ZMounting: Axial foot | Bore: ø40 mm | Stroke: 450 mm | Auto switch magnet: No
CA2WL40-500ZMounting: Axial foot | Bore: ø40 mm | Stroke: 500 mm | Auto switch magnet: No
CA2WL50-25ZMounting: Axial foot | Bore: ø50 mm | Stroke: 25 mm | Auto switch magnet: No
CA2WL50-50ZMounting: Axial foot | Bore: ø50 mm | Stroke: 50 mm | Auto switch magnet: No
CA2WL50-75ZMounting: Axial foot | Bore: ø50 mm | Stroke: 75 mm | Auto switch magnet: No
CA2WL50-100ZMounting: Axial foot | Bore: ø50 mm | Stroke: 100 mm | Auto switch magnet: No
CA2WL50-125ZMounting: Axial foot | Bore: ø50 mm | Stroke: 125 mm | Auto switch magnet: No
CA2WL50-150ZMounting: Axial foot | Bore: ø50 mm | Stroke: 150 mm | Auto switch magnet: No
CA2WL50-175ZMounting: Axial foot | Bore: ø50 mm | Stroke: 175 mm | Auto switch magnet: No
CA2WL50-200ZMounting: Axial foot | Bore: ø50 mm | Stroke: 200 mm | Auto switch magnet: No
CA2WL50-250ZMounting: Axial foot | Bore: ø50 mm | Stroke: 250 mm | Auto switch magnet: No
CA2WL50-300ZMounting: Axial foot | Bore: ø50 mm | Stroke: 300 mm | Auto switch magnet: No
CA2WL50-350ZMounting: Axial foot | Bore: ø50 mm | Stroke: 350 mm | Auto switch magnet: No
CA2WL50-400ZMounting: Axial foot | Bore: ø50 mm | Stroke: 400 mm | Auto switch magnet: No
CA2WL50-450ZMounting: Axial foot | Bore: ø50 mm | Stroke: 450 mm | Auto switch magnet: No
CA2WL50-500ZMounting: Axial foot | Bore: ø50 mm | Stroke: 500 mm | Auto switch magnet: No
CA2WL50-600ZMounting: Axial foot | Bore: ø50 mm | Stroke: 600 mm | Auto switch magnet: No
CA2WL63-25ZMounting: Axial foot | Bore: ø63 mm | Stroke: 25 mm | Auto switch magnet: No
CA2WL63-50ZMounting: Axial foot | Bore: ø63 mm | Stroke: 50 mm | Auto switch magnet: No
CA2WL63-75ZMounting: Axial foot | Bore: ø63 mm | Stroke: 75 mm | Auto switch magnet: No
CA2WL63-100ZMounting: Axial foot | Bore: ø63 mm | Stroke: 100 mm | Auto switch magnet: No
CA2WL63-125ZMounting: Axial foot | Bore: ø63 mm | Stroke: 125 mm | Auto switch magnet: No
CA2WL63-150ZMounting: Axial foot | Bore: ø63 mm | Stroke: 150 mm | Auto switch magnet: No
CA2WL63-175ZMounting: Axial foot | Bore: ø63 mm | Stroke: 175 mm | Auto switch magnet: No
CA2WL63-200ZMounting: Axial foot | Bore: ø63 mm | Stroke: 200 mm | Auto switch magnet: No
CA2WL63-250ZMounting: Axial foot | Bore: ø63 mm | Stroke: 250 mm | Auto switch magnet: No
CA2WL63-300ZMounting: Axial foot | Bore: ø63 mm | Stroke: 300 mm | Auto switch magnet: No
CA2WL63-350ZMounting: Axial foot | Bore: ø63 mm | Stroke: 350 mm | Auto switch magnet: No
CA2WL63-400ZMounting: Axial foot | Bore: ø63 mm | Stroke: 400 mm | Auto switch magnet: No
CA2WL63-450ZMounting: Axial foot | Bore: ø63 mm | Stroke: 450 mm | Auto switch magnet: No
CA2WL63-500ZMounting: Axial foot | Bore: ø63 mm | Stroke: 500 mm | Auto switch magnet: No
CA2WL63-600ZMounting: Axial foot | Bore: ø63 mm | Stroke: 600 mm | Auto switch magnet: No
CA2WL80-25ZMounting: Axial foot | Bore: ø80 mm | Stroke: 25 mm | Auto switch magnet: No
CA2WL80-50ZMounting: Axial foot | Bore: ø80 mm | Stroke: 50 mm | Auto switch magnet: No
CA2WL80-75ZMounting: Axial foot | Bore: ø80 mm | Stroke: 75 mm | Auto switch magnet: No
CA2WL80-100ZMounting: Axial foot | Bore: ø80 mm | Stroke: 100 mm | Auto switch magnet: No
CA2WL80-125ZMounting: Axial foot | Bore: ø80 mm | Stroke: 125 mm | Auto switch magnet: No
CA2WL80-150ZMounting: Axial foot | Bore: ø80 mm | Stroke: 150 mm | Auto switch magnet: No
CA2WL80-175ZMounting: Axial foot | Bore: ø80 mm | Stroke: 175 mm | Auto switch magnet: No
CA2WL80-200ZMounting: Axial foot | Bore: ø80 mm | Stroke: 200 mm | Auto switch magnet: No
CA2WL80-250ZMounting: Axial foot | Bore: ø80 mm | Stroke: 250 mm | Auto switch magnet: No
CA2WL80-300ZMounting: Axial foot | Bore: ø80 mm | Stroke: 300 mm | Auto switch magnet: No
CA2WL80-350ZMounting: Axial foot | Bore: ø80 mm | Stroke: 350 mm | Auto switch magnet: No
CA2WL80-400ZMounting: Axial foot | Bore: ø80 mm | Stroke: 400 mm | Auto switch magnet: No
CA2WL80-450ZMounting: Axial foot | Bore: ø80 mm | Stroke: 450 mm | Auto switch magnet: No
CA2WL80-500ZMounting: Axial foot | Bore: ø80 mm | Stroke: 500 mm | Auto switch magnet: No
CA2WL80-600ZMounting: Axial foot | Bore: ø80 mm | Stroke: 600 mm | Auto switch magnet: No
CA2WL80-700ZMounting: Axial foot | Bore: ø80 mm | Stroke: 700 mm | Auto switch magnet: No
CA2WL100-25ZMounting: Axial foot | Bore: ø100 mm | Stroke: 25 mm | Auto switch magnet: No
CA2WL100-50ZMounting: Axial foot | Bore: ø100 mm | Stroke: 50 mm | Auto switch magnet: No
CA2WL100-75ZMounting: Axial foot | Bore: ø100 mm | Stroke: 75 mm | Auto switch magnet: No
CA2WL100-100ZMounting: Axial foot | Bore: ø100 mm | Stroke: 100 mm | Auto switch magnet: No
CA2WL100-125ZMounting: Axial foot | Bore: ø100 mm | Stroke: 125 mm | Auto switch magnet: No
CA2WL100-150ZMounting: Axial foot | Bore: ø100 mm | Stroke: 150 mm | Auto switch magnet: No
CA2WL100-175ZMounting: Axial foot | Bore: ø100 mm | Stroke: 175 mm | Auto switch magnet: No
CA2WL100-200ZMounting: Axial foot | Bore: ø100 mm | Stroke: 200 mm | Auto switch magnet: No
CA2WL100-250ZMounting: Axial foot | Bore: ø100 mm | Stroke: 250 mm | Auto switch magnet: No
CA2WL100-300ZMounting: Axial foot | Bore: ø100 mm | Stroke: 300 mm | Auto switch magnet: No
CA2WL100-350ZMounting: Axial foot | Bore: ø100 mm | Stroke: 350 mm | Auto switch magnet: No
CA2WL100-400ZMounting: Axial foot | Bore: ø100 mm | Stroke: 400 mm | Auto switch magnet: No
CA2WL100-450ZMounting: Axial foot | Bore: ø100 mm | Stroke: 450 mm | Auto switch magnet: No
CA2WL100-500ZMounting: Axial foot | Bore: ø100 mm | Stroke: 500 mm | Auto switch magnet: No
CA2WL100-600ZMounting: Axial foot | Bore: ø100 mm | Stroke: 600 mm | Auto switch magnet: No
CA2WL100-700ZMounting: Axial foot | Bore: ø100 mm | Stroke: 700 mm | Auto switch magnet: No
CA2WF40-25ZMounting: Flange | Bore: ø40 mm | Stroke: 25 mm | Auto switch magnet: No
CA2WF40-50ZMounting: Flange | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: No
CA2WF40-75ZMounting: Flange | Bore: ø40 mm | Stroke: 75 mm | Auto switch magnet: No
CA2WF40-100ZMounting: Flange | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: No
CA2WF40-125ZMounting: Flange | Bore: ø40 mm | Stroke: 125 mm | Auto switch magnet: No
CA2WF40-150ZMounting: Flange | Bore: ø40 mm | Stroke: 150 mm | Auto switch magnet: No
CA2WF40-175ZMounting: Flange | Bore: ø40 mm | Stroke: 175 mm | Auto switch magnet: No
CA2WF40-200ZMounting: Flange | Bore: ø40 mm | Stroke: 200 mm | Auto switch magnet: No
CA2WF40-250ZMounting: Flange | Bore: ø40 mm | Stroke: 250 mm | Auto switch magnet: No
CA2WF40-300ZMounting: Flange | Bore: ø40 mm | Stroke: 300 mm | Auto switch magnet: No
CA2WF40-350ZMounting: Flange | Bore: ø40 mm | Stroke: 350 mm | Auto switch magnet: No
CA2WF40-400ZMounting: Flange | Bore: ø40 mm | Stroke: 400 mm | Auto switch magnet: No
CA2WF40-450ZMounting: Flange | Bore: ø40 mm | Stroke: 450 mm | Auto switch magnet: No
CA2WF40-500ZMounting: Flange | Bore: ø40 mm | Stroke: 500 mm | Auto switch magnet: No
CA2WF50-25ZMounting: Flange | Bore: ø50 mm | Stroke: 25 mm | Auto switch magnet: No
CA2WF50-50ZMounting: Flange | Bore: ø50 mm | Stroke: 50 mm | Auto switch magnet: No
CA2WF50-75ZMounting: Flange | Bore: ø50 mm | Stroke: 75 mm | Auto switch magnet: No
CA2WF50-100ZMounting: Flange | Bore: ø50 mm | Stroke: 100 mm | Auto switch magnet: No
CA2WF50-125ZMounting: Flange | Bore: ø50 mm | Stroke: 125 mm | Auto switch magnet: No
CA2WF50-150ZMounting: Flange | Bore: ø50 mm | Stroke: 150 mm | Auto switch magnet: No
CA2WF50-175ZMounting: Flange | Bore: ø50 mm | Stroke: 175 mm | Auto switch magnet: No
CA2WF50-200ZMounting: Flange | Bore: ø50 mm | Stroke: 200 mm | Auto switch magnet: No
CA2WF50-250ZMounting: Flange | Bore: ø50 mm | Stroke: 250 mm | Auto switch magnet: No
CA2WF50-300ZMounting: Flange | Bore: ø50 mm | Stroke: 300 mm | Auto switch magnet: No
CA2WF50-350ZMounting: Flange | Bore: ø50 mm | Stroke: 350 mm | Auto switch magnet: No
CA2WF50-400ZMounting: Flange | Bore: ø50 mm | Stroke: 400 mm | Auto switch magnet: No
CA2WF50-450ZMounting: Flange | Bore: ø50 mm | Stroke: 450 mm | Auto switch magnet: No
CA2WF50-500ZMounting: Flange | Bore: ø50 mm | Stroke: 500 mm | Auto switch magnet: No
CA2WF50-600ZMounting: Flange | Bore: ø50 mm | Stroke: 600 mm | Auto switch magnet: No
CA2WF63-25ZMounting: Flange | Bore: ø63 mm | Stroke: 25 mm | Auto switch magnet: No
CA2WF63-50ZMounting: Flange | Bore: ø63 mm | Stroke: 50 mm | Auto switch magnet: No
CA2WF63-75ZMounting: Flange | Bore: ø63 mm | Stroke: 75 mm | Auto switch magnet: No
CA2WF63-100ZMounting: Flange | Bore: ø63 mm | Stroke: 100 mm | Auto switch magnet: No
CA2WF63-125ZMounting: Flange | Bore: ø63 mm | Stroke: 125 mm | Auto switch magnet: No
CA2WF63-150ZMounting: Flange | Bore: ø63 mm | Stroke: 150 mm | Auto switch magnet: No
CA2WF63-175ZMounting: Flange | Bore: ø63 mm | Stroke: 175 mm | Auto switch magnet: No
CA2WF63-200ZMounting: Flange | Bore: ø63 mm | Stroke: 200 mm | Auto switch magnet: No
CA2WF63-250ZMounting: Flange | Bore: ø63 mm | Stroke: 250 mm | Auto switch magnet: No
CA2WF63-300ZMounting: Flange | Bore: ø63 mm | Stroke: 300 mm | Auto switch magnet: No
CA2WF63-350ZMounting: Flange | Bore: ø63 mm | Stroke: 350 mm | Auto switch magnet: No
CA2WF63-400ZMounting: Flange | Bore: ø63 mm | Stroke: 400 mm | Auto switch magnet: No
CA2WF63-450ZMounting: Flange | Bore: ø63 mm | Stroke: 450 mm | Auto switch magnet: No
CA2WF63-500ZMounting: Flange | Bore: ø63 mm | Stroke: 500 mm | Auto switch magnet: No
CA2WF63-600ZMounting: Flange | Bore: ø63 mm | Stroke: 600 mm | Auto switch magnet: No
CA2WF80-25ZMounting: Flange | Bore: ø80 mm | Stroke: 25 mm | Auto switch magnet: No
CA2WF80-50ZMounting: Flange | Bore: ø80 mm | Stroke: 50 mm | Auto switch magnet: No
CA2WF80-75ZMounting: Flange | Bore: ø80 mm | Stroke: 75 mm | Auto switch magnet: No
CA2WF80-100ZMounting: Flange | Bore: ø80 mm | Stroke: 100 mm | Auto switch magnet: No
CA2WF80-125ZMounting: Flange | Bore: ø80 mm | Stroke: 125 mm | Auto switch magnet: No
CA2WF80-150ZMounting: Flange | Bore: ø80 mm | Stroke: 150 mm | Auto switch magnet: No
CA2WF80-175ZMounting: Flange | Bore: ø80 mm | Stroke: 175 mm | Auto switch magnet: No
CA2WF80-200ZMounting: Flange | Bore: ø80 mm | Stroke: 200 mm | Auto switch magnet: No
CA2WF80-250ZMounting: Flange | Bore: ø80 mm | Stroke: 250 mm | Auto switch magnet: No
CA2WF80-300ZMounting: Flange | Bore: ø80 mm | Stroke: 300 mm | Auto switch magnet: No
CA2WF80-350ZMounting: Flange | Bore: ø80 mm | Stroke: 350 mm | Auto switch magnet: No
CA2WF80-400ZMounting: Flange | Bore: ø80 mm | Stroke: 400 mm | Auto switch magnet: No
CA2WF80-450ZMounting: Flange | Bore: ø80 mm | Stroke: 450 mm | Auto switch magnet: No
CA2WF80-500ZMounting: Flange | Bore: ø80 mm | Stroke: 500 mm | Auto switch magnet: No
CA2WF80-600ZMounting: Flange | Bore: ø80 mm | Stroke: 600 mm | Auto switch magnet: No
CA2WF80-700ZMounting: Flange | Bore: ø80 mm | Stroke: 700 mm | Auto switch magnet: No
CA2WF100-25ZMounting: Flange | Bore: ø100 mm | Stroke: 25 mm | Auto switch magnet: No
CA2WF100-50ZMounting: Flange | Bore: ø100 mm | Stroke: 50 mm | Auto switch magnet: No
CA2WF100-75ZMounting: Flange | Bore: ø100 mm | Stroke: 75 mm | Auto switch magnet: No
CA2WF100-100ZMounting: Flange | Bore: ø100 mm | Stroke: 100 mm | Auto switch magnet: No
CA2WF100-125ZMounting: Flange | Bore: ø100 mm | Stroke: 125 mm | Auto switch magnet: No
CA2WF100-150ZMounting: Flange | Bore: ø100 mm | Stroke: 150 mm | Auto switch magnet: No
CA2WF100-175ZMounting: Flange | Bore: ø100 mm | Stroke: 175 mm | Auto switch magnet: No
CA2WF100-200ZMounting: Flange | Bore: ø100 mm | Stroke: 200 mm | Auto switch magnet: No
CA2WF100-250ZMounting: Flange | Bore: ø100 mm | Stroke: 250 mm | Auto switch magnet: No
CA2WF100-300ZMounting: Flange | Bore: ø100 mm | Stroke: 300 mm | Auto switch magnet: No
CA2WF100-350ZMounting: Flange | Bore: ø100 mm | Stroke: 350 mm | Auto switch magnet: No
CA2WF100-400ZMounting: Flange | Bore: ø100 mm | Stroke: 400 mm | Auto switch magnet: No
CA2WF100-450ZMounting: Flange | Bore: ø100 mm | Stroke: 450 mm | Auto switch magnet: No
CA2WF100-500ZMounting: Flange | Bore: ø100 mm | Stroke: 500 mm | Auto switch magnet: No
CA2WF100-600ZMounting: Flange | Bore: ø100 mm | Stroke: 600 mm | Auto switch magnet: No
CA2WF100-700ZMounting: Flange | Bore: ø100 mm | Stroke: 700 mm | Auto switch magnet: No
CA2WT40-25ZMounting: Center trunnion | Bore: ø40 mm | Stroke: 25 mm | Auto switch magnet: No
CA2WT40-50ZMounting: Center trunnion | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: No
CA2WT40-75ZMounting: Center trunnion | Bore: ø40 mm | Stroke: 75 mm | Auto switch magnet: No
CA2WT40-100ZMounting: Center trunnion | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: No
CA2WT40-125ZMounting: Center trunnion | Bore: ø40 mm | Stroke: 125 mm | Auto switch magnet: No
CA2WT40-150ZMounting: Center trunnion | Bore: ø40 mm | Stroke: 150 mm | Auto switch magnet: No
CA2WT40-175ZMounting: Center trunnion | Bore: ø40 mm | Stroke: 175 mm | Auto switch magnet: No
CA2WT40-200ZMounting: Center trunnion | Bore: ø40 mm | Stroke: 200 mm | Auto switch magnet: No
CA2WT40-250ZMounting: Center trunnion | Bore: ø40 mm | Stroke: 250 mm | Auto switch magnet: No
CA2WT40-300ZMounting: Center trunnion | Bore: ø40 mm | Stroke: 300 mm | Auto switch magnet: No
CA2WT40-350ZMounting: Center trunnion | Bore: ø40 mm | Stroke: 350 mm | Auto switch magnet: No
CA2WT40-400ZMounting: Center trunnion | Bore: ø40 mm | Stroke: 400 mm | Auto switch magnet: No
CA2WT40-450ZMounting: Center trunnion | Bore: ø40 mm | Stroke: 450 mm | Auto switch magnet: No
CA2WT40-500ZMounting: Center trunnion | Bore: ø40 mm | Stroke: 500 mm | Auto switch magnet: No
CA2WT50-25ZMounting: Center trunnion | Bore: ø50 mm | Stroke: 25 mm | Auto switch magnet: No
CA2WT50-50ZMounting: Center trunnion | Bore: ø50 mm | Stroke: 50 mm | Auto switch magnet: No
CA2WT50-75ZMounting: Center trunnion | Bore: ø50 mm | Stroke: 75 mm | Auto switch magnet: No
CA2WT50-100ZMounting: Center trunnion | Bore: ø50 mm | Stroke: 100 mm | Auto switch magnet: No
CA2WT50-125ZMounting: Center trunnion | Bore: ø50 mm | Stroke: 125 mm | Auto switch magnet: No
CA2WT50-150ZMounting: Center trunnion | Bore: ø50 mm | Stroke: 150 mm | Auto switch magnet: No
CA2WT50-175ZMounting: Center trunnion | Bore: ø50 mm | Stroke: 175 mm | Auto switch magnet: No
CA2WT50-200ZMounting: Center trunnion | Bore: ø50 mm | Stroke: 200 mm | Auto switch magnet: No
CA2WT50-250ZMounting: Center trunnion | Bore: ø50 mm | Stroke: 250 mm | Auto switch magnet: No
CA2WT50-300ZMounting: Center trunnion | Bore: ø50 mm | Stroke: 300 mm | Auto switch magnet: No
CA2WT50-350ZMounting: Center trunnion | Bore: ø50 mm | Stroke: 350 mm | Auto switch magnet: No
CA2WT50-400ZMounting: Center trunnion | Bore: ø50 mm | Stroke: 400 mm | Auto switch magnet: No
CA2WT50-450ZMounting: Center trunnion | Bore: ø50 mm | Stroke: 450 mm | Auto switch magnet: No
CA2WT50-500ZMounting: Center trunnion | Bore: ø50 mm | Stroke: 500 mm | Auto switch magnet: No
CA2WT50-600ZMounting: Center trunnion | Bore: ø50 mm | Stroke: 600 mm | Auto switch magnet: No
CA2WT63-25ZMounting: Center trunnion | Bore: ø63 mm | Stroke: 25 mm | Auto switch magnet: No
CA2WT63-50ZMounting: Center trunnion | Bore: ø63 mm | Stroke: 50 mm | Auto switch magnet: No
CA2WT63-75ZMounting: Center trunnion | Bore: ø63 mm | Stroke: 75 mm | Auto switch magnet: No
CA2WT63-100ZMounting: Center trunnion | Bore: ø63 mm | Stroke: 100 mm | Auto switch magnet: No
CA2WT63-125ZMounting: Center trunnion | Bore: ø63 mm | Stroke: 125 mm | Auto switch magnet: No
CA2WT63-150ZMounting: Center trunnion | Bore: ø63 mm | Stroke: 150 mm | Auto switch magnet: No
CA2WT63-175ZMounting: Center trunnion | Bore: ø63 mm | Stroke: 175 mm | Auto switch magnet: No
CA2WT63-200ZMounting: Center trunnion | Bore: ø63 mm | Stroke: 200 mm | Auto switch magnet: No
CA2WT63-250ZMounting: Center trunnion | Bore: ø63 mm | Stroke: 250 mm | Auto switch magnet: No
CA2WT63-300ZMounting: Center trunnion | Bore: ø63 mm | Stroke: 300 mm | Auto switch magnet: No
CA2WT63-350ZMounting: Center trunnion | Bore: ø63 mm | Stroke: 350 mm | Auto switch magnet: No
CA2WT63-400ZMounting: Center trunnion | Bore: ø63 mm | Stroke: 400 mm | Auto switch magnet: No
CA2WT63-450ZMounting: Center trunnion | Bore: ø63 mm | Stroke: 450 mm | Auto switch magnet: No
CA2WT63-500ZMounting: Center trunnion | Bore: ø63 mm | Stroke: 500 mm | Auto switch magnet: No
CA2WT63-600ZMounting: Center trunnion | Bore: ø63 mm | Stroke: 600 mm | Auto switch magnet: No
CA2WT80-25ZMounting: Center trunnion | Bore: ø80 mm | Stroke: 25 mm | Auto switch magnet: No
CA2WT80-50ZMounting: Center trunnion | Bore: ø80 mm | Stroke: 50 mm | Auto switch magnet: No
CA2WT80-75ZMounting: Center trunnion | Bore: ø80 mm | Stroke: 75 mm | Auto switch magnet: No
CA2WT80-100ZMounting: Center trunnion | Bore: ø80 mm | Stroke: 100 mm | Auto switch magnet: No
CA2WT80-125ZMounting: Center trunnion | Bore: ø80 mm | Stroke: 125 mm | Auto switch magnet: No
CA2WT80-150ZMounting: Center trunnion | Bore: ø80 mm | Stroke: 150 mm | Auto switch magnet: No
CA2WT80-175ZMounting: Center trunnion | Bore: ø80 mm | Stroke: 175 mm | Auto switch magnet: No
CA2WT80-200ZMounting: Center trunnion | Bore: ø80 mm | Stroke: 200 mm | Auto switch magnet: No
CA2WT80-250ZMounting: Center trunnion | Bore: ø80 mm | Stroke: 250 mm | Auto switch magnet: No
CA2WT80-300ZMounting: Center trunnion | Bore: ø80 mm | Stroke: 300 mm | Auto switch magnet: No
CA2WT80-350ZMounting: Center trunnion | Bore: ø80 mm | Stroke: 350 mm | Auto switch magnet: No
CA2WT80-400ZMounting: Center trunnion | Bore: ø80 mm | Stroke: 400 mm | Auto switch magnet: No
CA2WT80-450ZMounting: Center trunnion | Bore: ø80 mm | Stroke: 450 mm | Auto switch magnet: No
CA2WT80-500ZMounting: Center trunnion | Bore: ø80 mm | Stroke: 500 mm | Auto switch magnet: No
CA2WT80-600ZMounting: Center trunnion | Bore: ø80 mm | Stroke: 600 mm | Auto switch magnet: No
CA2WT80-700ZMounting: Center trunnion | Bore: ø80 mm | Stroke: 700 mm | Auto switch magnet: No
CA2WT100-25ZMounting: Center trunnion | Bore: ø100 mm | Stroke: 25 mm | Auto switch magnet: No
CA2WT100-50ZMounting: Center trunnion | Bore: ø100 mm | Stroke: 50 mm | Auto switch magnet: No
CA2WT100-75ZMounting: Center trunnion | Bore: ø100 mm | Stroke: 75 mm | Auto switch magnet: No
CA2WT100-100ZMounting: Center trunnion | Bore: ø100 mm | Stroke: 100 mm | Auto switch magnet: No
CA2WT100-125ZMounting: Center trunnion | Bore: ø100 mm | Stroke: 125 mm | Auto switch magnet: No
CA2WT100-150ZMounting: Center trunnion | Bore: ø100 mm | Stroke: 150 mm | Auto switch magnet: No
CA2WT100-175ZMounting: Center trunnion | Bore: ø100 mm | Stroke: 175 mm | Auto switch magnet: No
CA2WT100-200ZMounting: Center trunnion | Bore: ø100 mm | Stroke: 200 mm | Auto switch magnet: No
CA2WT100-250ZMounting: Center trunnion | Bore: ø100 mm | Stroke: 250 mm | Auto switch magnet: No
CA2WT100-300ZMounting: Center trunnion | Bore: ø100 mm | Stroke: 300 mm | Auto switch magnet: No
CA2WT100-350ZMounting: Center trunnion | Bore: ø100 mm | Stroke: 350 mm | Auto switch magnet: No
CA2WT100-400ZMounting: Center trunnion | Bore: ø100 mm | Stroke: 400 mm | Auto switch magnet: No
CA2WT100-450ZMounting: Center trunnion | Bore: ø100 mm | Stroke: 450 mm | Auto switch magnet: No
CA2WT100-500ZMounting: Center trunnion | Bore: ø100 mm | Stroke: 500 mm | Auto switch magnet: No
CA2WT100-600ZMounting: Center trunnion | Bore: ø100 mm | Stroke: 600 mm | Auto switch magnet: No
CA2WT100-700ZMounting: Center trunnion | Bore: ø100 mm | Stroke: 700 mm | Auto switch magnet: No
CDA2WB40-25ZMounting: Basic | Bore: ø40 mm | Stroke: 25 mm | Auto switch magnet: Yes
CDA2WB40-50ZMounting: Basic | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: Yes
CDA2WB40-75ZMounting: Basic | Bore: ø40 mm | Stroke: 75 mm | Auto switch magnet: Yes
CDA2WB40-100ZMounting: Basic | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: Yes
CDA2WB40-125ZMounting: Basic | Bore: ø40 mm | Stroke: 125 mm | Auto switch magnet: Yes
CDA2WB40-150ZMounting: Basic | Bore: ø40 mm | Stroke: 150 mm | Auto switch magnet: Yes
CDA2WB40-175ZMounting: Basic | Bore: ø40 mm | Stroke: 175 mm | Auto switch magnet: Yes
CDA2WB40-200ZMounting: Basic | Bore: ø40 mm | Stroke: 200 mm | Auto switch magnet: Yes
CDA2WB40-250ZMounting: Basic | Bore: ø40 mm | Stroke: 250 mm | Auto switch magnet: Yes
CDA2WB40-300ZMounting: Basic | Bore: ø40 mm | Stroke: 300 mm | Auto switch magnet: Yes
CDA2WB40-350ZMounting: Basic | Bore: ø40 mm | Stroke: 350 mm | Auto switch magnet: Yes
CDA2WB40-400ZMounting: Basic | Bore: ø40 mm | Stroke: 400 mm | Auto switch magnet: Yes
CDA2WB40-450ZMounting: Basic | Bore: ø40 mm | Stroke: 450 mm | Auto switch magnet: Yes
CDA2WB40-500ZMounting: Basic | Bore: ø40 mm | Stroke: 500 mm | Auto switch magnet: Yes
CDA2WB50-25ZMounting: Basic | Bore: ø50 mm | Stroke: 25 mm | Auto switch magnet: Yes
CDA2WB50-50ZMounting: Basic | Bore: ø50 mm | Stroke: 50 mm | Auto switch magnet: Yes
CDA2WB50-75ZMounting: Basic | Bore: ø50 mm | Stroke: 75 mm | Auto switch magnet: Yes
CDA2WB50-100ZMounting: Basic | Bore: ø50 mm | Stroke: 100 mm | Auto switch magnet: Yes
CDA2WB50-125ZMounting: Basic | Bore: ø50 mm | Stroke: 125 mm | Auto switch magnet: Yes
CDA2WB50-150ZMounting: Basic | Bore: ø50 mm | Stroke: 150 mm | Auto switch magnet: Yes
CDA2WB50-175ZMounting: Basic | Bore: ø50 mm | Stroke: 175 mm | Auto switch magnet: Yes
CDA2WB50-200ZMounting: Basic | Bore: ø50 mm | Stroke: 200 mm | Auto switch magnet: Yes
CDA2WB50-250ZMounting: Basic | Bore: ø50 mm | Stroke: 250 mm | Auto switch magnet: Yes
CDA2WB50-300ZMounting: Basic | Bore: ø50 mm | Stroke: 300 mm | Auto switch magnet: Yes
CDA2WB50-350ZMounting: Basic | Bore: ø50 mm | Stroke: 350 mm | Auto switch magnet: Yes
CDA2WB50-400ZMounting: Basic | Bore: ø50 mm | Stroke: 400 mm | Auto switch magnet: Yes
CDA2WB50-450ZMounting: Basic | Bore: ø50 mm | Stroke: 450 mm | Auto switch magnet: Yes
CDA2WB50-500ZMounting: Basic | Bore: ø50 mm | Stroke: 500 mm | Auto switch magnet: Yes
CDA2WB50-600ZMounting: Basic | Bore: ø50 mm | Stroke: 600 mm | Auto switch magnet: Yes
CDA2WB63-25ZMounting: Basic | Bore: ø63 mm | Stroke: 25 mm | Auto switch magnet: Yes
CDA2WB63-50ZMounting: Basic | Bore: ø63 mm | Stroke: 50 mm | Auto switch magnet: Yes
CDA2WB63-75ZMounting: Basic | Bore: ø63 mm | Stroke: 75 mm | Auto switch magnet: Yes
CDA2WB63-100ZMounting: Basic | Bore: ø63 mm | Stroke: 100 mm | Auto switch magnet: Yes
CDA2WB63-125ZMounting: Basic | Bore: ø63 mm | Stroke: 125 mm | Auto switch magnet: Yes
CDA2WB63-150ZMounting: Basic | Bore: ø63 mm | Stroke: 150 mm | Auto switch magnet: Yes
CDA2WB63-175ZMounting: Basic | Bore: ø63 mm | Stroke: 175 mm | Auto switch magnet: Yes
CDA2WB63-200ZMounting: Basic | Bore: ø63 mm | Stroke: 200 mm | Auto switch magnet: Yes
CDA2WB63-250ZMounting: Basic | Bore: ø63 mm | Stroke: 250 mm | Auto switch magnet: Yes
CDA2WB63-300ZMounting: Basic | Bore: ø63 mm | Stroke: 300 mm | Auto switch magnet: Yes
CDA2WB63-350ZMounting: Basic | Bore: ø63 mm | Stroke: 350 mm | Auto switch magnet: Yes
CDA2WB63-400ZMounting: Basic | Bore: ø63 mm | Stroke: 400 mm | Auto switch magnet: Yes
CDA2WB63-450ZMounting: Basic | Bore: ø63 mm | Stroke: 450 mm | Auto switch magnet: Yes
CDA2WB63-500ZMounting: Basic | Bore: ø63 mm | Stroke: 500 mm | Auto switch magnet: Yes
CDA2WB63-600ZMounting: Basic | Bore: ø63 mm | Stroke: 600 mm | Auto switch magnet: Yes
CDA2WB80-25ZMounting: Basic | Bore: ø80 mm | Stroke: 25 mm | Auto switch magnet: Yes
CDA2WB80-50ZMounting: Basic | Bore: ø80 mm | Stroke: 50 mm | Auto switch magnet: Yes
CDA2WB80-75ZMounting: Basic | Bore: ø80 mm | Stroke: 75 mm | Auto switch magnet: Yes
CDA2WB80-100ZMounting: Basic | Bore: ø80 mm | Stroke: 100 mm | Auto switch magnet: Yes
CDA2WB80-125ZMounting: Basic | Bore: ø80 mm | Stroke: 125 mm | Auto switch magnet: Yes
CDA2WB80-150ZMounting: Basic | Bore: ø80 mm | Stroke: 150 mm | Auto switch magnet: Yes
CDA2WB80-175ZMounting: Basic | Bore: ø80 mm | Stroke: 175 mm | Auto switch magnet: Yes
CDA2WB80-200ZMounting: Basic | Bore: ø80 mm | Stroke: 200 mm | Auto switch magnet: Yes
CDA2WB80-250ZMounting: Basic | Bore: ø80 mm | Stroke: 250 mm | Auto switch magnet: Yes
CDA2WB80-300ZMounting: Basic | Bore: ø80 mm | Stroke: 300 mm | Auto switch magnet: Yes
CDA2WB80-350ZMounting: Basic | Bore: ø80 mm | Stroke: 350 mm | Auto switch magnet: Yes
CDA2WB80-400ZMounting: Basic | Bore: ø80 mm | Stroke: 400 mm | Auto switch magnet: Yes
CDA2WB80-450ZMounting: Basic | Bore: ø80 mm | Stroke: 450 mm | Auto switch magnet: Yes
CDA2WB80-500ZMounting: Basic | Bore: ø80 mm | Stroke: 500 mm | Auto switch magnet: Yes
CDA2WB80-600ZMounting: Basic | Bore: ø80 mm | Stroke: 600 mm | Auto switch magnet: Yes
CDA2WB80-700ZMounting: Basic | Bore: ø80 mm | Stroke: 700 mm | Auto switch magnet: Yes
CDA2WB100-25ZMounting: Basic | Bore: ø100 mm | Stroke: 25 mm | Auto switch magnet: Yes
CDA2WB100-50ZMounting: Basic | Bore: ø100 mm | Stroke: 50 mm | Auto switch magnet: Yes
CDA2WB100-75ZMounting: Basic | Bore: ø100 mm | Stroke: 75 mm | Auto switch magnet: Yes
CDA2WB100-100ZMounting: Basic | Bore: ø100 mm | Stroke: 100 mm | Auto switch magnet: Yes
CDA2WB100-125ZMounting: Basic | Bore: ø100 mm | Stroke: 125 mm | Auto switch magnet: Yes
CDA2WB100-150ZMounting: Basic | Bore: ø100 mm | Stroke: 150 mm | Auto switch magnet: Yes
CDA2WB100-175ZMounting: Basic | Bore: ø100 mm | Stroke: 175 mm | Auto switch magnet: Yes
CDA2WB100-200ZMounting: Basic | Bore: ø100 mm | Stroke: 200 mm | Auto switch magnet: Yes
CDA2WB100-250ZMounting: Basic | Bore: ø100 mm | Stroke: 250 mm | Auto switch magnet: Yes
CDA2WB100-300ZMounting: Basic | Bore: ø100 mm | Stroke: 300 mm | Auto switch magnet: Yes
CDA2WB100-350ZMounting: Basic | Bore: ø100 mm | Stroke: 350 mm | Auto switch magnet: Yes
CDA2WB100-400ZMounting: Basic | Bore: ø100 mm | Stroke: 400 mm | Auto switch magnet: Yes
CDA2WB100-450ZMounting: Basic | Bore: ø100 mm | Stroke: 450 mm | Auto switch magnet: Yes
CDA2WB100-500ZMounting: Basic | Bore: ø100 mm | Stroke: 500 mm | Auto switch magnet: Yes
CDA2WB100-600ZMounting: Basic | Bore: ø100 mm | Stroke: 600 mm | Auto switch magnet: Yes
CDA2WB100-700ZMounting: Basic | Bore: ø100 mm | Stroke: 700 mm | Auto switch magnet: Yes
CDA2WL40-25ZMounting: Axial foot | Bore: ø40 mm | Stroke: 25 mm | Auto switch magnet: Yes
CDA2WL40-50ZMounting: Axial foot | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: Yes
CDA2WL40-75ZMounting: Axial foot | Bore: ø40 mm | Stroke: 75 mm | Auto switch magnet: Yes
CDA2WL40-100ZMounting: Axial foot | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: Yes
CDA2WL40-125ZMounting: Axial foot | Bore: ø40 mm | Stroke: 125 mm | Auto switch magnet: Yes
CDA2WL40-150ZMounting: Axial foot | Bore: ø40 mm | Stroke: 150 mm | Auto switch magnet: Yes
CDA2WL40-175ZMounting: Axial foot | Bore: ø40 mm | Stroke: 175 mm | Auto switch magnet: Yes
CDA2WL40-200ZMounting: Axial foot | Bore: ø40 mm | Stroke: 200 mm | Auto switch magnet: Yes
CDA2WL40-250ZMounting: Axial foot | Bore: ø40 mm | Stroke: 250 mm | Auto switch magnet: Yes
CDA2WL40-300ZMounting: Axial foot | Bore: ø40 mm | Stroke: 300 mm | Auto switch magnet: Yes
CDA2WL40-350ZMounting: Axial foot | Bore: ø40 mm | Stroke: 350 mm | Auto switch magnet: Yes
CDA2WL40-400ZMounting: Axial foot | Bore: ø40 mm | Stroke: 400 mm | Auto switch magnet: Yes
CDA2WL40-450ZMounting: Axial foot | Bore: ø40 mm | Stroke: 450 mm | Auto switch magnet: Yes
CDA2WL40-500ZMounting: Axial foot | Bore: ø40 mm | Stroke: 500 mm | Auto switch magnet: Yes
CDA2WL50-25ZMounting: Axial foot | Bore: ø50 mm | Stroke: 25 mm | Auto switch magnet: Yes
CDA2WL50-50ZMounting: Axial foot | Bore: ø50 mm | Stroke: 50 mm | Auto switch magnet: Yes
CDA2WL50-75ZMounting: Axial foot | Bore: ø50 mm | Stroke: 75 mm | Auto switch magnet: Yes
CDA2WL50-100ZMounting: Axial foot | Bore: ø50 mm | Stroke: 100 mm | Auto switch magnet: Yes
CDA2WL50-125ZMounting: Axial foot | Bore: ø50 mm | Stroke: 125 mm | Auto switch magnet: Yes
CDA2WL50-150ZMounting: Axial foot | Bore: ø50 mm | Stroke: 150 mm | Auto switch magnet: Yes
CDA2WL50-175ZMounting: Axial foot | Bore: ø50 mm | Stroke: 175 mm | Auto switch magnet: Yes
CDA2WL50-200ZMounting: Axial foot | Bore: ø50 mm | Stroke: 200 mm | Auto switch magnet: Yes
CDA2WL50-250ZMounting: Axial foot | Bore: ø50 mm | Stroke: 250 mm | Auto switch magnet: Yes
CDA2WL50-300ZMounting: Axial foot | Bore: ø50 mm | Stroke: 300 mm | Auto switch magnet: Yes
CDA2WL50-350ZMounting: Axial foot | Bore: ø50 mm | Stroke: 350 mm | Auto switch magnet: Yes
CDA2WL50-400ZMounting: Axial foot | Bore: ø50 mm | Stroke: 400 mm | Auto switch magnet: Yes
CDA2WL50-450ZMounting: Axial foot | Bore: ø50 mm | Stroke: 450 mm | Auto switch magnet: Yes
CDA2WL50-500ZMounting: Axial foot | Bore: ø50 mm | Stroke: 500 mm | Auto switch magnet: Yes
CDA2WL50-600ZMounting: Axial foot | Bore: ø50 mm | Stroke: 600 mm | Auto switch magnet: Yes
CDA2WL63-25ZMounting: Axial foot | Bore: ø63 mm | Stroke: 25 mm | Auto switch magnet: Yes
CDA2WL63-50ZMounting: Axial foot | Bore: ø63 mm | Stroke: 50 mm | Auto switch magnet: Yes
CDA2WL63-75ZMounting: Axial foot | Bore: ø63 mm | Stroke: 75 mm | Auto switch magnet: Yes
CDA2WL63-100ZMounting: Axial foot | Bore: ø63 mm | Stroke: 100 mm | Auto switch magnet: Yes
CDA2WL63-125ZMounting: Axial foot | Bore: ø63 mm | Stroke: 125 mm | Auto switch magnet: Yes
CDA2WL63-150ZMounting: Axial foot | Bore: ø63 mm | Stroke: 150 mm | Auto switch magnet: Yes
CDA2WL63-175ZMounting: Axial foot | Bore: ø63 mm | Stroke: 175 mm | Auto switch magnet: Yes
CDA2WL63-200ZMounting: Axial foot | Bore: ø63 mm | Stroke: 200 mm | Auto switch magnet: Yes
CDA2WL63-250ZMounting: Axial foot | Bore: ø63 mm | Stroke: 250 mm | Auto switch magnet: Yes
CDA2WL63-300ZMounting: Axial foot | Bore: ø63 mm | Stroke: 300 mm | Auto switch magnet: Yes
CDA2WL63-350ZMounting: Axial foot | Bore: ø63 mm | Stroke: 350 mm | Auto switch magnet: Yes
CDA2WL63-400ZMounting: Axial foot | Bore: ø63 mm | Stroke: 400 mm | Auto switch magnet: Yes
CDA2WL63-450ZMounting: Axial foot | Bore: ø63 mm | Stroke: 450 mm | Auto switch magnet: Yes
CDA2WL63-500ZMounting: Axial foot | Bore: ø63 mm | Stroke: 500 mm | Auto switch magnet: Yes
CDA2WL63-600ZMounting: Axial foot | Bore: ø63 mm | Stroke: 600 mm | Auto switch magnet: Yes
CDA2WL80-25ZMounting: Axial foot | Bore: ø80 mm | Stroke: 25 mm | Auto switch magnet: Yes
CDA2WL80-50ZMounting: Axial foot | Bore: ø80 mm | Stroke: 50 mm | Auto switch magnet: Yes
CDA2WL80-75ZMounting: Axial foot | Bore: ø80 mm | Stroke: 75 mm | Auto switch magnet: Yes
CDA2WL80-100ZMounting: Axial foot | Bore: ø80 mm | Stroke: 100 mm | Auto switch magnet: Yes
CDA2WL80-125ZMounting: Axial foot | Bore: ø80 mm | Stroke: 125 mm | Auto switch magnet: Yes
CDA2WL80-150ZMounting: Axial foot | Bore: ø80 mm | Stroke: 150 mm | Auto switch magnet: Yes
CDA2WL80-175ZMounting: Axial foot | Bore: ø80 mm | Stroke: 175 mm | Auto switch magnet: Yes
CDA2WL80-200ZMounting: Axial foot | Bore: ø80 mm | Stroke: 200 mm | Auto switch magnet: Yes
CDA2WL80-250ZMounting: Axial foot | Bore: ø80 mm | Stroke: 250 mm | Auto switch magnet: Yes
CDA2WL80-300ZMounting: Axial foot | Bore: ø80 mm | Stroke: 300 mm | Auto switch magnet: Yes
CDA2WL80-350ZMounting: Axial foot | Bore: ø80 mm | Stroke: 350 mm | Auto switch magnet: Yes
CDA2WL80-400ZMounting: Axial foot | Bore: ø80 mm | Stroke: 400 mm | Auto switch magnet: Yes
CDA2WL80-450ZMounting: Axial foot | Bore: ø80 mm | Stroke: 450 mm | Auto switch magnet: Yes
CDA2WL80-500ZMounting: Axial foot | Bore: ø80 mm | Stroke: 500 mm | Auto switch magnet: Yes
CDA2WL80-600ZMounting: Axial foot | Bore: ø80 mm | Stroke: 600 mm | Auto switch magnet: Yes
CDA2WL80-700ZMounting: Axial foot | Bore: ø80 mm | Stroke: 700 mm | Auto switch magnet: Yes
CDA2WL100-25ZMounting: Axial foot | Bore: ø100 mm | Stroke: 25 mm | Auto switch magnet: Yes
CDA2WL100-50ZMounting: Axial foot | Bore: ø100 mm | Stroke: 50 mm | Auto switch magnet: Yes
CDA2WL100-75ZMounting: Axial foot | Bore: ø100 mm | Stroke: 75 mm | Auto switch magnet: Yes
CDA2WL100-100ZMounting: Axial foot | Bore: ø100 mm | Stroke: 100 mm | Auto switch magnet: Yes
CDA2WL100-125ZMounting: Axial foot | Bore: ø100 mm | Stroke: 125 mm | Auto switch magnet: Yes
CDA2WL100-150ZMounting: Axial foot | Bore: ø100 mm | Stroke: 150 mm | Auto switch magnet: Yes
CDA2WL100-175ZMounting: Axial foot | Bore: ø100 mm | Stroke: 175 mm | Auto switch magnet: Yes
CDA2WL100-200ZMounting: Axial foot | Bore: ø100 mm | Stroke: 200 mm | Auto switch magnet: Yes
CDA2WL100-250ZMounting: Axial foot | Bore: ø100 mm | Stroke: 250 mm | Auto switch magnet: Yes
CDA2WL100-300ZMounting: Axial foot | Bore: ø100 mm | Stroke: 300 mm | Auto switch magnet: Yes
CDA2WL100-350ZMounting: Axial foot | Bore: ø100 mm | Stroke: 350 mm | Auto switch magnet: Yes
CDA2WL100-400ZMounting: Axial foot | Bore: ø100 mm | Stroke: 400 mm | Auto switch magnet: Yes
CDA2WL100-450ZMounting: Axial foot | Bore: ø100 mm | Stroke: 450 mm | Auto switch magnet: Yes
CDA2WL100-500ZMounting: Axial foot | Bore: ø100 mm | Stroke: 500 mm | Auto switch magnet: Yes
CDA2WL100-600ZMounting: Axial foot | Bore: ø100 mm | Stroke: 600 mm | Auto switch magnet: Yes
CDA2WL100-700ZMounting: Axial foot | Bore: ø100 mm | Stroke: 700 mm | Auto switch magnet: Yes
CDA2WF40-25ZMounting: Flange | Bore: ø40 mm | Stroke: 25 mm | Auto switch magnet: Yes
CDA2WF40-50ZMounting: Flange | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: Yes
CDA2WF40-75ZMounting: Flange | Bore: ø40 mm | Stroke: 75 mm | Auto switch magnet: Yes
CDA2WF40-100ZMounting: Flange | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: Yes
CDA2WF40-125ZMounting: Flange | Bore: ø40 mm | Stroke: 125 mm | Auto switch magnet: Yes
CDA2WF40-150ZMounting: Flange | Bore: ø40 mm | Stroke: 150 mm | Auto switch magnet: Yes
CDA2WF40-175ZMounting: Flange | Bore: ø40 mm | Stroke: 175 mm | Auto switch magnet: Yes
CDA2WF40-200ZMounting: Flange | Bore: ø40 mm | Stroke: 200 mm | Auto switch magnet: Yes
CDA2WF40-250ZMounting: Flange | Bore: ø40 mm | Stroke: 250 mm | Auto switch magnet: Yes
CDA2WF40-300ZMounting: Flange | Bore: ø40 mm | Stroke: 300 mm | Auto switch magnet: Yes
CDA2WF40-350ZMounting: Flange | Bore: ø40 mm | Stroke: 350 mm | Auto switch magnet: Yes
CDA2WF40-400ZMounting: Flange | Bore: ø40 mm | Stroke: 400 mm | Auto switch magnet: Yes
CDA2WF40-450ZMounting: Flange | Bore: ø40 mm | Stroke: 450 mm | Auto switch magnet: Yes
CDA2WF40-500ZMounting: Flange | Bore: ø40 mm | Stroke: 500 mm | Auto switch magnet: Yes
CDA2WF50-25ZMounting: Flange | Bore: ø50 mm | Stroke: 25 mm | Auto switch magnet: Yes
CDA2WF50-50ZMounting: Flange | Bore: ø50 mm | Stroke: 50 mm | Auto switch magnet: Yes
CDA2WF50-75ZMounting: Flange | Bore: ø50 mm | Stroke: 75 mm | Auto switch magnet: Yes
CDA2WF50-100ZMounting: Flange | Bore: ø50 mm | Stroke: 100 mm | Auto switch magnet: Yes
CDA2WF50-125ZMounting: Flange | Bore: ø50 mm | Stroke: 125 mm | Auto switch magnet: Yes
CDA2WF50-150ZMounting: Flange | Bore: ø50 mm | Stroke: 150 mm | Auto switch magnet: Yes
CDA2WF50-175ZMounting: Flange | Bore: ø50 mm | Stroke: 175 mm | Auto switch magnet: Yes
CDA2WF50-200ZMounting: Flange | Bore: ø50 mm | Stroke: 200 mm | Auto switch magnet: Yes
CDA2WF50-250ZMounting: Flange | Bore: ø50 mm | Stroke: 250 mm | Auto switch magnet: Yes
CDA2WF50-300ZMounting: Flange | Bore: ø50 mm | Stroke: 300 mm | Auto switch magnet: Yes
CDA2WF50-350ZMounting: Flange | Bore: ø50 mm | Stroke: 350 mm | Auto switch magnet: Yes
CDA2WF50-400ZMounting: Flange | Bore: ø50 mm | Stroke: 400 mm | Auto switch magnet: Yes
CDA2WF50-450ZMounting: Flange | Bore: ø50 mm | Stroke: 450 mm | Auto switch magnet: Yes
CDA2WF50-500ZMounting: Flange | Bore: ø50 mm | Stroke: 500 mm | Auto switch magnet: Yes
CDA2WF50-600ZMounting: Flange | Bore: ø50 mm | Stroke: 600 mm | Auto switch magnet: Yes
CDA2WF63-25ZMounting: Flange | Bore: ø63 mm | Stroke: 25 mm | Auto switch magnet: Yes
CDA2WF63-50ZMounting: Flange | Bore: ø63 mm | Stroke: 50 mm | Auto switch magnet: Yes
CDA2WF63-75ZMounting: Flange | Bore: ø63 mm | Stroke: 75 mm | Auto switch magnet: Yes
CDA2WF63-100ZMounting: Flange | Bore: ø63 mm | Stroke: 100 mm | Auto switch magnet: Yes
CDA2WF63-125ZMounting: Flange | Bore: ø63 mm | Stroke: 125 mm | Auto switch magnet: Yes
CDA2WF63-150ZMounting: Flange | Bore: ø63 mm | Stroke: 150 mm | Auto switch magnet: Yes
CDA2WF63-175ZMounting: Flange | Bore: ø63 mm | Stroke: 175 mm | Auto switch magnet: Yes
CDA2WF63-200ZMounting: Flange | Bore: ø63 mm | Stroke: 200 mm | Auto switch magnet: Yes
CDA2WF63-250ZMounting: Flange | Bore: ø63 mm | Stroke: 250 mm | Auto switch magnet: Yes
CDA2WF63-300ZMounting: Flange | Bore: ø63 mm | Stroke: 300 mm | Auto switch magnet: Yes
CDA2WF63-350ZMounting: Flange | Bore: ø63 mm | Stroke: 350 mm | Auto switch magnet: Yes
CDA2WF63-400ZMounting: Flange | Bore: ø63 mm | Stroke: 400 mm | Auto switch magnet: Yes
CDA2WF63-450ZMounting: Flange | Bore: ø63 mm | Stroke: 450 mm | Auto switch magnet: Yes
CDA2WF63-500ZMounting: Flange | Bore: ø63 mm | Stroke: 500 mm | Auto switch magnet: Yes
CDA2WF63-600ZMounting: Flange | Bore: ø63 mm | Stroke: 600 mm | Auto switch magnet: Yes
CDA2WF80-25ZMounting: Flange | Bore: ø80 mm | Stroke: 25 mm | Auto switch magnet: Yes
CDA2WF80-50ZMounting: Flange | Bore: ø80 mm | Stroke: 50 mm | Auto switch magnet: Yes
CDA2WF80-75ZMounting: Flange | Bore: ø80 mm | Stroke: 75 mm | Auto switch magnet: Yes
CDA2WF80-100ZMounting: Flange | Bore: ø80 mm | Stroke: 100 mm | Auto switch magnet: Yes
CDA2WF80-125ZMounting: Flange | Bore: ø80 mm | Stroke: 125 mm | Auto switch magnet: Yes
CDA2WF80-150ZMounting: Flange | Bore: ø80 mm | Stroke: 150 mm | Auto switch magnet: Yes
CDA2WF80-175ZMounting: Flange | Bore: ø80 mm | Stroke: 175 mm | Auto switch magnet: Yes
CDA2WF80-200ZMounting: Flange | Bore: ø80 mm | Stroke: 200 mm | Auto switch magnet: Yes
CDA2WF80-250ZMounting: Flange | Bore: ø80 mm | Stroke: 250 mm | Auto switch magnet: Yes
CDA2WF80-300ZMounting: Flange | Bore: ø80 mm | Stroke: 300 mm | Auto switch magnet: Yes
CDA2WF80-350ZMounting: Flange | Bore: ø80 mm | Stroke: 350 mm | Auto switch magnet: Yes
CDA2WF80-400ZMounting: Flange | Bore: ø80 mm | Stroke: 400 mm | Auto switch magnet: Yes
CDA2WF80-450ZMounting: Flange | Bore: ø80 mm | Stroke: 450 mm | Auto switch magnet: Yes
CDA2WF80-500ZMounting: Flange | Bore: ø80 mm | Stroke: 500 mm | Auto switch magnet: Yes
CDA2WF80-600ZMounting: Flange | Bore: ø80 mm | Stroke: 600 mm | Auto switch magnet: Yes
CDA2WF80-700ZMounting: Flange | Bore: ø80 mm | Stroke: 700 mm | Auto switch magnet: Yes
CDA2WF100-25ZMounting: Flange | Bore: ø100 mm | Stroke: 25 mm | Auto switch magnet: Yes
CDA2WF100-50ZMounting: Flange | Bore: ø100 mm | Stroke: 50 mm | Auto switch magnet: Yes
CDA2WF100-75ZMounting: Flange | Bore: ø100 mm | Stroke: 75 mm | Auto switch magnet: Yes
CDA2WF100-100ZMounting: Flange | Bore: ø100 mm | Stroke: 100 mm | Auto switch magnet: Yes
CDA2WF100-125ZMounting: Flange | Bore: ø100 mm | Stroke: 125 mm | Auto switch magnet: Yes
CDA2WF100-150ZMounting: Flange | Bore: ø100 mm | Stroke: 150 mm | Auto switch magnet: Yes
CDA2WF100-175ZMounting: Flange | Bore: ø100 mm | Stroke: 175 mm | Auto switch magnet: Yes
CDA2WF100-200ZMounting: Flange | Bore: ø100 mm | Stroke: 200 mm | Auto switch magnet: Yes
CDA2WF100-250ZMounting: Flange | Bore: ø100 mm | Stroke: 250 mm | Auto switch magnet: Yes
CDA2WF100-300ZMounting: Flange | Bore: ø100 mm | Stroke: 300 mm | Auto switch magnet: Yes
CDA2WF100-350ZMounting: Flange | Bore: ø100 mm | Stroke: 350 mm | Auto switch magnet: Yes
CDA2WF100-400ZMounting: Flange | Bore: ø100 mm | Stroke: 400 mm | Auto switch magnet: Yes
CDA2WF100-450ZMounting: Flange | Bore: ø100 mm | Stroke: 450 mm | Auto switch magnet: Yes
CDA2WF100-500ZMounting: Flange | Bore: ø100 mm | Stroke: 500 mm | Auto switch magnet: Yes
CDA2WF100-600ZMounting: Flange | Bore: ø100 mm | Stroke: 600 mm | Auto switch magnet: Yes
CDA2WF100-700ZMounting: Flange | Bore: ø100 mm | Stroke: 700 mm | Auto switch magnet: Yes
CDA2WT40-25ZMounting: Center trunnion | Bore: ø40 mm | Stroke: 25 mm | Auto switch magnet: Yes
CDA2WT40-50ZMounting: Center trunnion | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: Yes
CDA2WT40-75ZMounting: Center trunnion | Bore: ø40 mm | Stroke: 75 mm | Auto switch magnet: Yes
CDA2WT40-100ZMounting: Center trunnion | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: Yes
CDA2WT40-125ZMounting: Center trunnion | Bore: ø40 mm | Stroke: 125 mm | Auto switch magnet: Yes
CDA2WT40-150ZMounting: Center trunnion | Bore: ø40 mm | Stroke: 150 mm | Auto switch magnet: Yes
CDA2WT40-175ZMounting: Center trunnion | Bore: ø40 mm | Stroke: 175 mm | Auto switch magnet: Yes
CDA2WT40-200ZMounting: Center trunnion | Bore: ø40 mm | Stroke: 200 mm | Auto switch magnet: Yes
CDA2WT40-250ZMounting: Center trunnion | Bore: ø40 mm | Stroke: 250 mm | Auto switch magnet: Yes
CDA2WT40-300ZMounting: Center trunnion | Bore: ø40 mm | Stroke: 300 mm | Auto switch magnet: Yes
CDA2WT40-350ZMounting: Center trunnion | Bore: ø40 mm | Stroke: 350 mm | Auto switch magnet: Yes
CDA2WT40-400ZMounting: Center trunnion | Bore: ø40 mm | Stroke: 400 mm | Auto switch magnet: Yes
CDA2WT40-450ZMounting: Center trunnion | Bore: ø40 mm | Stroke: 450 mm | Auto switch magnet: Yes
CDA2WT40-500ZMounting: Center trunnion | Bore: ø40 mm | Stroke: 500 mm | Auto switch magnet: Yes
CDA2WT50-25ZMounting: Center trunnion | Bore: ø50 mm | Stroke: 25 mm | Auto switch magnet: Yes
CDA2WT50-50ZMounting: Center trunnion | Bore: ø50 mm | Stroke: 50 mm | Auto switch magnet: Yes
CDA2WT50-75ZMounting: Center trunnion | Bore: ø50 mm | Stroke: 75 mm | Auto switch magnet: Yes
CDA2WT50-100ZMounting: Center trunnion | Bore: ø50 mm | Stroke: 100 mm | Auto switch magnet: Yes
CDA2WT50-125ZMounting: Center trunnion | Bore: ø50 mm | Stroke: 125 mm | Auto switch magnet: Yes
CDA2WT50-150ZMounting: Center trunnion | Bore: ø50 mm | Stroke: 150 mm | Auto switch magnet: Yes
CDA2WT50-175ZMounting: Center trunnion | Bore: ø50 mm | Stroke: 175 mm | Auto switch magnet: Yes
CDA2WT50-200ZMounting: Center trunnion | Bore: ø50 mm | Stroke: 200 mm | Auto switch magnet: Yes
CDA2WT50-250ZMounting: Center trunnion | Bore: ø50 mm | Stroke: 250 mm | Auto switch magnet: Yes
CDA2WT50-300ZMounting: Center trunnion | Bore: ø50 mm | Stroke: 300 mm | Auto switch magnet: Yes
CDA2WT50-350ZMounting: Center trunnion | Bore: ø50 mm | Stroke: 350 mm | Auto switch magnet: Yes
CDA2WT50-400ZMounting: Center trunnion | Bore: ø50 mm | Stroke: 400 mm | Auto switch magnet: Yes
CDA2WT50-450ZMounting: Center trunnion | Bore: ø50 mm | Stroke: 450 mm | Auto switch magnet: Yes
CDA2WT50-500ZMounting: Center trunnion | Bore: ø50 mm | Stroke: 500 mm | Auto switch magnet: Yes
CDA2WT50-600ZMounting: Center trunnion | Bore: ø50 mm | Stroke: 600 mm | Auto switch magnet: Yes
CDA2WT63-25ZMounting: Center trunnion | Bore: ø63 mm | Stroke: 25 mm | Auto switch magnet: Yes
CDA2WT63-50ZMounting: Center trunnion | Bore: ø63 mm | Stroke: 50 mm | Auto switch magnet: Yes
CDA2WT63-75ZMounting: Center trunnion | Bore: ø63 mm | Stroke: 75 mm | Auto switch magnet: Yes
CDA2WT63-100ZMounting: Center trunnion | Bore: ø63 mm | Stroke: 100 mm | Auto switch magnet: Yes
CDA2WT63-125ZMounting: Center trunnion | Bore: ø63 mm | Stroke: 125 mm | Auto switch magnet: Yes
CDA2WT63-150ZMounting: Center trunnion | Bore: ø63 mm | Stroke: 150 mm | Auto switch magnet: Yes
CDA2WT63-175ZMounting: Center trunnion | Bore: ø63 mm | Stroke: 175 mm | Auto switch magnet: Yes
CDA2WT63-200ZMounting: Center trunnion | Bore: ø63 mm | Stroke: 200 mm | Auto switch magnet: Yes
CDA2WT63-250ZMounting: Center trunnion | Bore: ø63 mm | Stroke: 250 mm | Auto switch magnet: Yes
CDA2WT63-300ZMounting: Center trunnion | Bore: ø63 mm | Stroke: 300 mm | Auto switch magnet: Yes
CDA2WT63-350ZMounting: Center trunnion | Bore: ø63 mm | Stroke: 350 mm | Auto switch magnet: Yes
CDA2WT63-400ZMounting: Center trunnion | Bore: ø63 mm | Stroke: 400 mm | Auto switch magnet: Yes
CDA2WT63-450ZMounting: Center trunnion | Bore: ø63 mm | Stroke: 450 mm | Auto switch magnet: Yes
CDA2WT63-500ZMounting: Center trunnion | Bore: ø63 mm | Stroke: 500 mm | Auto switch magnet: Yes
CDA2WT63-600ZMounting: Center trunnion | Bore: ø63 mm | Stroke: 600 mm | Auto switch magnet: Yes
CDA2WT80-25ZMounting: Center trunnion | Bore: ø80 mm | Stroke: 25 mm | Auto switch magnet: Yes
CDA2WT80-50ZMounting: Center trunnion | Bore: ø80 mm | Stroke: 50 mm | Auto switch magnet: Yes
CDA2WT80-75ZMounting: Center trunnion | Bore: ø80 mm | Stroke: 75 mm | Auto switch magnet: Yes
CDA2WT80-100ZMounting: Center trunnion | Bore: ø80 mm | Stroke: 100 mm | Auto switch magnet: Yes
CDA2WT80-125ZMounting: Center trunnion | Bore: ø80 mm | Stroke: 125 mm | Auto switch magnet: Yes
CDA2WT80-150ZMounting: Center trunnion | Bore: ø80 mm | Stroke: 150 mm | Auto switch magnet: Yes
CDA2WT80-175ZMounting: Center trunnion | Bore: ø80 mm | Stroke: 175 mm | Auto switch magnet: Yes
CDA2WT80-200ZMounting: Center trunnion | Bore: ø80 mm | Stroke: 200 mm | Auto switch magnet: Yes
CDA2WT80-250ZMounting: Center trunnion | Bore: ø80 mm | Stroke: 250 mm | Auto switch magnet: Yes
CDA2WT80-300ZMounting: Center trunnion | Bore: ø80 mm | Stroke: 300 mm | Auto switch magnet: Yes
CDA2WT80-350ZMounting: Center trunnion | Bore: ø80 mm | Stroke: 350 mm | Auto switch magnet: Yes
CDA2WT80-400ZMounting: Center trunnion | Bore: ø80 mm | Stroke: 400 mm | Auto switch magnet: Yes
CDA2WT80-450ZMounting: Center trunnion | Bore: ø80 mm | Stroke: 450 mm | Auto switch magnet: Yes
CDA2WT80-500ZMounting: Center trunnion | Bore: ø80 mm | Stroke: 500 mm | Auto switch magnet: Yes
CDA2WT80-600ZMounting: Center trunnion | Bore: ø80 mm | Stroke: 600 mm | Auto switch magnet: Yes
CDA2WT80-700ZMounting: Center trunnion | Bore: ø80 mm | Stroke: 700 mm | Auto switch magnet: Yes
CDA2WT100-25ZMounting: Center trunnion | Bore: ø100 mm | Stroke: 25 mm | Auto switch magnet: Yes
CDA2WT100-50ZMounting: Center trunnion | Bore: ø100 mm | Stroke: 50 mm | Auto switch magnet: Yes
CDA2WT100-75ZMounting: Center trunnion | Bore: ø100 mm | Stroke: 75 mm | Auto switch magnet: Yes
CDA2WT100-100ZMounting: Center trunnion | Bore: ø100 mm | Stroke: 100 mm | Auto switch magnet: Yes
CDA2WT100-125ZMounting: Center trunnion | Bore: ø100 mm | Stroke: 125 mm | Auto switch magnet: Yes
CDA2WT100-150ZMounting: Center trunnion | Bore: ø100 mm | Stroke: 150 mm | Auto switch magnet: Yes
CDA2WT100-175ZMounting: Center trunnion | Bore: ø100 mm | Stroke: 175 mm | Auto switch magnet: Yes
CDA2WT100-200ZMounting: Center trunnion | Bore: ø100 mm | Stroke: 200 mm | Auto switch magnet: Yes
CDA2WT100-250ZMounting: Center trunnion | Bore: ø100 mm | Stroke: 250 mm | Auto switch magnet: Yes
CDA2WT100-300ZMounting: Center trunnion | Bore: ø100 mm | Stroke: 300 mm | Auto switch magnet: Yes
CDA2WT100-350ZMounting: Center trunnion | Bore: ø100 mm | Stroke: 350 mm | Auto switch magnet: Yes
CDA2WT100-400ZMounting: Center trunnion | Bore: ø100 mm | Stroke: 400 mm | Auto switch magnet: Yes
CDA2WT100-450ZMounting: Center trunnion | Bore: ø100 mm | Stroke: 450 mm | Auto switch magnet: Yes
CDA2WT100-500ZMounting: Center trunnion | Bore: ø100 mm | Stroke: 500 mm | Auto switch magnet: Yes
CDA2WT100-600ZMounting: Center trunnion | Bore: ø100 mm | Stroke: 600 mm | Auto switch magnet: Yes
CDA2WT100-700ZMounting: Center trunnion | Bore: ø100 mm | Stroke: 700 mm | Auto switch magnet: Yes

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
