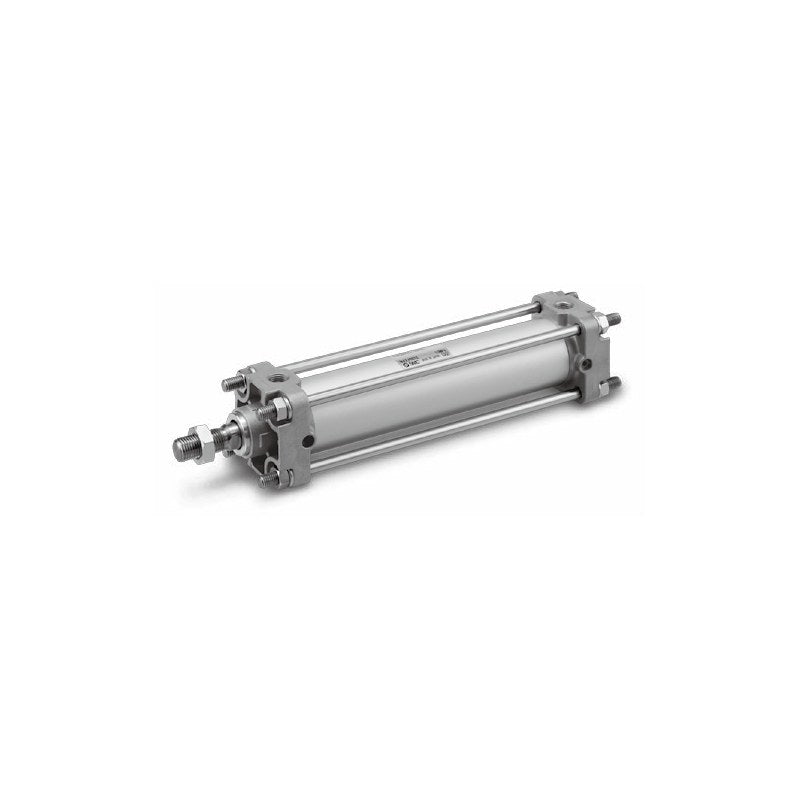

SMC CBA2 End Lock Cylinder (Rod end lock, ø40 to ø100)

SMC CBA2 series end lock air cylinder (rod end lock, symbol R), double acting, single rod, ø40 to ø100 mm, holding the piston rod at the stroke end when air is exhausted, with or without a built-in auto switch magnet (CDBA2).

Key features

Mechanical lock holds the cylinder at its stroke end position when the air supply is cut, preventing drops
Lock position R: rod end lock; head end (H), rod end (R) and both ends (W) are listed as separate products
Manual release: non-lock type (N) or lock type (L) as standard; backlash 2 mm or less
Mounting styles: basic (B), axial foot (L), rod flange (F), head flange (G), single clevis (C), double clevis (D), center trunnion (T); same mounting dimensions as the CA2
Built-in magnet models (CD prefix) accept tie-rod mounted D-M9/D-A9 or band mounted D-G59/D-B54 type auto switches, ordered as a suffix
Air cushion standard; no-cushion (N), bellows (J/K), steel tube (F) and port thread TN/TF as order symbols

Specifications

Action	Double acting, single rod
Fluid	Air
Proof pressure	1.5 MPa
Max. operating pressure	1.0 MPa
Ambient and fluid temperature	-10 to 70°C without magnet, -10 to 60°C with magnet (no freezing)
Lubrication	Not required (non-lube)
Piston speed	50 to 500 mm/s
Min. operating pressure	0.15 MPa (0.05 MPa without lock)
Cushion	Air cushion (standard) or none (suffix N)
Lock position	Rod end lock (R)
Max. holding force	ø40 860 N, ø50 1340 N, ø63 2140 N, ø80 3450 N, ø100 5390 N
Backlash	2 mm or less
Standard strokes	ø40: 25 to 500; ø50: 25 to 600; ø63: 25 to 600; ø80: 25 to 700; ø100: 25 to 700 mm
Source	SMC Korea catalog CA2-Z (SMCKR_CA2-Z.pdf), p. 592-593

CBA2B40-25-RN		Mounting: Basic \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2B40-25-RL		Mounting: Basic \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2B40-50-RN		Mounting: Basic \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2B40-50-RL		Mounting: Basic \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2B40-75-RN		Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2B40-75-RL		Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2B40-100-RN		Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2B40-100-RL		Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2B40-125-RN		Mounting: Basic \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2B40-125-RL		Mounting: Basic \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2B40-150-RN		Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2B40-150-RL		Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2B40-175-RN		Mounting: Basic \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2B40-175-RL		Mounting: Basic \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2B40-200-RN		Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2B40-200-RL		Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2B40-250-RN		Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2B40-250-RL		Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2B40-300-RN		Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2B40-300-RL		Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2B40-350-RN		Mounting: Basic \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2B40-350-RL		Mounting: Basic \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2B40-400-RN		Mounting: Basic \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2B40-400-RL		Mounting: Basic \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2B40-450-RN		Mounting: Basic \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2B40-450-RL		Mounting: Basic \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2B40-500-RN		Mounting: Basic \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2B40-500-RL		Mounting: Basic \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2B50-25-RN		Mounting: Basic \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2B50-25-RL		Mounting: Basic \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2B50-50-RN		Mounting: Basic \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2B50-50-RL		Mounting: Basic \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2B50-75-RN		Mounting: Basic \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2B50-75-RL		Mounting: Basic \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2B50-100-RN		Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2B50-100-RL		Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2B50-125-RN		Mounting: Basic \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2B50-125-RL		Mounting: Basic \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2B50-150-RN		Mounting: Basic \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2B50-150-RL		Mounting: Basic \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2B50-175-RN		Mounting: Basic \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2B50-175-RL		Mounting: Basic \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2B50-200-RN		Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2B50-200-RL		Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2B50-250-RN		Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2B50-250-RL		Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2B50-300-RN		Mounting: Basic \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2B50-300-RL		Mounting: Basic \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2B50-350-RN		Mounting: Basic \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2B50-350-RL		Mounting: Basic \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2B50-400-RN		Mounting: Basic \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2B50-400-RL		Mounting: Basic \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2B50-450-RN		Mounting: Basic \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2B50-450-RL		Mounting: Basic \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2B50-500-RN		Mounting: Basic \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2B50-500-RL		Mounting: Basic \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2B50-600-RN		Mounting: Basic \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2B50-600-RL		Mounting: Basic \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2B63-25-RN		Mounting: Basic \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2B63-25-RL		Mounting: Basic \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2B63-50-RN		Mounting: Basic \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2B63-50-RL		Mounting: Basic \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2B63-75-RN		Mounting: Basic \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2B63-75-RL		Mounting: Basic \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2B63-100-RN		Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2B63-100-RL		Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2B63-125-RN		Mounting: Basic \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2B63-125-RL		Mounting: Basic \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2B63-150-RN		Mounting: Basic \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2B63-150-RL		Mounting: Basic \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2B63-175-RN		Mounting: Basic \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2B63-175-RL		Mounting: Basic \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2B63-200-RN		Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2B63-200-RL		Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2B63-250-RN		Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2B63-250-RL		Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2B63-300-RN		Mounting: Basic \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2B63-300-RL		Mounting: Basic \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2B63-350-RN		Mounting: Basic \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2B63-350-RL		Mounting: Basic \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2B63-400-RN		Mounting: Basic \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2B63-400-RL		Mounting: Basic \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2B63-450-RN		Mounting: Basic \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2B63-450-RL		Mounting: Basic \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2B63-500-RN		Mounting: Basic \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2B63-500-RL		Mounting: Basic \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2B63-600-RN		Mounting: Basic \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2B63-600-RL		Mounting: Basic \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2B80-25-RN		Mounting: Basic \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2B80-25-RL		Mounting: Basic \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2B80-50-RN		Mounting: Basic \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2B80-50-RL		Mounting: Basic \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2B80-75-RN		Mounting: Basic \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2B80-75-RL		Mounting: Basic \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2B80-100-RN		Mounting: Basic \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2B80-100-RL		Mounting: Basic \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2B80-125-RN		Mounting: Basic \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2B80-125-RL		Mounting: Basic \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2B80-150-RN		Mounting: Basic \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2B80-150-RL		Mounting: Basic \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2B80-175-RN		Mounting: Basic \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2B80-175-RL		Mounting: Basic \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2B80-200-RN		Mounting: Basic \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2B80-200-RL		Mounting: Basic \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2B80-250-RN		Mounting: Basic \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2B80-250-RL		Mounting: Basic \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2B80-300-RN		Mounting: Basic \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2B80-300-RL		Mounting: Basic \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2B80-350-RN		Mounting: Basic \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2B80-350-RL		Mounting: Basic \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2B80-400-RN		Mounting: Basic \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2B80-400-RL		Mounting: Basic \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2B80-450-RN		Mounting: Basic \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2B80-450-RL		Mounting: Basic \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2B80-500-RN		Mounting: Basic \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2B80-500-RL		Mounting: Basic \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2B80-600-RN		Mounting: Basic \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2B80-600-RL		Mounting: Basic \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2B80-700-RN		Mounting: Basic \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2B80-700-RL		Mounting: Basic \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2B100-25-RN		Mounting: Basic \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2B100-25-RL		Mounting: Basic \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2B100-50-RN		Mounting: Basic \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2B100-50-RL		Mounting: Basic \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2B100-75-RN		Mounting: Basic \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2B100-75-RL		Mounting: Basic \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2B100-100-RN		Mounting: Basic \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2B100-100-RL		Mounting: Basic \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2B100-125-RN		Mounting: Basic \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2B100-125-RL		Mounting: Basic \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2B100-150-RN		Mounting: Basic \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2B100-150-RL		Mounting: Basic \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2B100-175-RN		Mounting: Basic \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2B100-175-RL		Mounting: Basic \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2B100-200-RN		Mounting: Basic \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2B100-200-RL		Mounting: Basic \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2B100-250-RN		Mounting: Basic \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2B100-250-RL		Mounting: Basic \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2B100-300-RN		Mounting: Basic \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2B100-300-RL		Mounting: Basic \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2B100-350-RN		Mounting: Basic \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2B100-350-RL		Mounting: Basic \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2B100-400-RN		Mounting: Basic \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2B100-400-RL		Mounting: Basic \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2B100-450-RN		Mounting: Basic \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2B100-450-RL		Mounting: Basic \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2B100-500-RN		Mounting: Basic \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2B100-500-RL		Mounting: Basic \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2B100-600-RN		Mounting: Basic \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2B100-600-RL		Mounting: Basic \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2B100-700-RN		Mounting: Basic \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2B100-700-RL		Mounting: Basic \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2L40-25-RN		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2L40-25-RL		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2L40-50-RN		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2L40-50-RL		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2L40-75-RN		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2L40-75-RL		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2L40-100-RN		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2L40-100-RL		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2L40-125-RN		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2L40-125-RL		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2L40-150-RN		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2L40-150-RL		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2L40-175-RN		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2L40-175-RL		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2L40-200-RN		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2L40-200-RL		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2L40-250-RN		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2L40-250-RL		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2L40-300-RN		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2L40-300-RL		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2L40-350-RN		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2L40-350-RL		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2L40-400-RN		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2L40-400-RL		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2L40-450-RN		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2L40-450-RL		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2L40-500-RN		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2L40-500-RL		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2L50-25-RN		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2L50-25-RL		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2L50-50-RN		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2L50-50-RL		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2L50-75-RN		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2L50-75-RL		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2L50-100-RN		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2L50-100-RL		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2L50-125-RN		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2L50-125-RL		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2L50-150-RN		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2L50-150-RL		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2L50-175-RN		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2L50-175-RL		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2L50-200-RN		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2L50-200-RL		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2L50-250-RN		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2L50-250-RL		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2L50-300-RN		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2L50-300-RL		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2L50-350-RN		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2L50-350-RL		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2L50-400-RN		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2L50-400-RL		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2L50-450-RN		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2L50-450-RL		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2L50-500-RN		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2L50-500-RL		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2L50-600-RN		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2L50-600-RL		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2L63-25-RN		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2L63-25-RL		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2L63-50-RN		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2L63-50-RL		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2L63-75-RN		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2L63-75-RL		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2L63-100-RN		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2L63-100-RL		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2L63-125-RN		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2L63-125-RL		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2L63-150-RN		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2L63-150-RL		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2L63-175-RN		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2L63-175-RL		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2L63-200-RN		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2L63-200-RL		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2L63-250-RN		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2L63-250-RL		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2L63-300-RN		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2L63-300-RL		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2L63-350-RN		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2L63-350-RL		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2L63-400-RN		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2L63-400-RL		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2L63-450-RN		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2L63-450-RL		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2L63-500-RN		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2L63-500-RL		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2L63-600-RN		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2L63-600-RL		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2L80-25-RN		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2L80-25-RL		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2L80-50-RN		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2L80-50-RL		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2L80-75-RN		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2L80-75-RL		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2L80-100-RN		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2L80-100-RL		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2L80-125-RN		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2L80-125-RL		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2L80-150-RN		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2L80-150-RL		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2L80-175-RN		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2L80-175-RL		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2L80-200-RN		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2L80-200-RL		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2L80-250-RN		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2L80-250-RL		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2L80-300-RN		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2L80-300-RL		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2L80-350-RN		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2L80-350-RL		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2L80-400-RN		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2L80-400-RL		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2L80-450-RN		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2L80-450-RL		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2L80-500-RN		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2L80-500-RL		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2L80-600-RN		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2L80-600-RL		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2L80-700-RN		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2L80-700-RL		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2L100-25-RN		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2L100-25-RL		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2L100-50-RN		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2L100-50-RL		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2L100-75-RN		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2L100-75-RL		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2L100-100-RN		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2L100-100-RL		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2L100-125-RN		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2L100-125-RL		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2L100-150-RN		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2L100-150-RL		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2L100-175-RN		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2L100-175-RL		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2L100-200-RN		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2L100-200-RL		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2L100-250-RN		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2L100-250-RL		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2L100-300-RN		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2L100-300-RL		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2L100-350-RN		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2L100-350-RL		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2L100-400-RN		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2L100-400-RL		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2L100-450-RN		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2L100-450-RL		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2L100-500-RN		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2L100-500-RL		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2L100-600-RN		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2L100-600-RL		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2L100-700-RN		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2L100-700-RL		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2F40-25-RN		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2F40-25-RL		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2F40-50-RN		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2F40-50-RL		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2F40-75-RN		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2F40-75-RL		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2F40-100-RN		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2F40-100-RL		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2F40-125-RN		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2F40-125-RL		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2F40-150-RN		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2F40-150-RL		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2F40-175-RN		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2F40-175-RL		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2F40-200-RN		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2F40-200-RL		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2F40-250-RN		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2F40-250-RL		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2F40-300-RN		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2F40-300-RL		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2F40-350-RN		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2F40-350-RL		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2F40-400-RN		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2F40-400-RL		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2F40-450-RN		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2F40-450-RL		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2F40-500-RN		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2F40-500-RL		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2F50-25-RN		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2F50-25-RL		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2F50-50-RN		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2F50-50-RL		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2F50-75-RN		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2F50-75-RL		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2F50-100-RN		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2F50-100-RL		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2F50-125-RN		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2F50-125-RL		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2F50-150-RN		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2F50-150-RL		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2F50-175-RN		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2F50-175-RL		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2F50-200-RN		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2F50-200-RL		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2F50-250-RN		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2F50-250-RL		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2F50-300-RN		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2F50-300-RL		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2F50-350-RN		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2F50-350-RL		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2F50-400-RN		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2F50-400-RL		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2F50-450-RN		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2F50-450-RL		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2F50-500-RN		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2F50-500-RL		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2F50-600-RN		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2F50-600-RL		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2F63-25-RN		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2F63-25-RL		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2F63-50-RN		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2F63-50-RL		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2F63-75-RN		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2F63-75-RL		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2F63-100-RN		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2F63-100-RL		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2F63-125-RN		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2F63-125-RL		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2F63-150-RN		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2F63-150-RL		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2F63-175-RN		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2F63-175-RL		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2F63-200-RN		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2F63-200-RL		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2F63-250-RN		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2F63-250-RL		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2F63-300-RN		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2F63-300-RL		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2F63-350-RN		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2F63-350-RL		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2F63-400-RN		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2F63-400-RL		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2F63-450-RN		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2F63-450-RL		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2F63-500-RN		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2F63-500-RL		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2F63-600-RN		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2F63-600-RL		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2F80-25-RN		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2F80-25-RL		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2F80-50-RN		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2F80-50-RL		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2F80-75-RN		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2F80-75-RL		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2F80-100-RN		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2F80-100-RL		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2F80-125-RN		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2F80-125-RL		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2F80-150-RN		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2F80-150-RL		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2F80-175-RN		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2F80-175-RL		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2F80-200-RN		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2F80-200-RL		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2F80-250-RN		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2F80-250-RL		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2F80-300-RN		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2F80-300-RL		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2F80-350-RN		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2F80-350-RL		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2F80-400-RN		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2F80-400-RL		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2F80-450-RN		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2F80-450-RL		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2F80-500-RN		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2F80-500-RL		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2F80-600-RN		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2F80-600-RL		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2F80-700-RN		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2F80-700-RL		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2F100-25-RN		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2F100-25-RL		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2F100-50-RN		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2F100-50-RL		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2F100-75-RN		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2F100-75-RL		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2F100-100-RN		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2F100-100-RL		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2F100-125-RN		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2F100-125-RL		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2F100-150-RN		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2F100-150-RL		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2F100-175-RN		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2F100-175-RL		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2F100-200-RN		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2F100-200-RL		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2F100-250-RN		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2F100-250-RL		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2F100-300-RN		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2F100-300-RL		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2F100-350-RN		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2F100-350-RL		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2F100-400-RN		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2F100-400-RL		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2F100-450-RN		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2F100-450-RL		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2F100-500-RN		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2F100-500-RL		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2F100-600-RN		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2F100-600-RL		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2F100-700-RN		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2F100-700-RL		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2G40-25-RN		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2G40-25-RL		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2G40-50-RN		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2G40-50-RL		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2G40-75-RN		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2G40-75-RL		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2G40-100-RN		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2G40-100-RL		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2G40-125-RN		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2G40-125-RL		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2G40-150-RN		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2G40-150-RL		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2G40-175-RN		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2G40-175-RL		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2G40-200-RN		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2G40-200-RL		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2G40-250-RN		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2G40-250-RL		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2G40-300-RN		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2G40-300-RL		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2G40-350-RN		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2G40-350-RL		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2G40-400-RN		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2G40-400-RL		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2G40-450-RN		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2G40-450-RL		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2G40-500-RN		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2G40-500-RL		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2G50-25-RN		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2G50-25-RL		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2G50-50-RN		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2G50-50-RL		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2G50-75-RN		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2G50-75-RL		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2G50-100-RN		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2G50-100-RL		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2G50-125-RN		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2G50-125-RL		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2G50-150-RN		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2G50-150-RL		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2G50-175-RN		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2G50-175-RL		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2G50-200-RN		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2G50-200-RL		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2G50-250-RN		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2G50-250-RL		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2G50-300-RN		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2G50-300-RL		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2G50-350-RN		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2G50-350-RL		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2G50-400-RN		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2G50-400-RL		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2G50-450-RN		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2G50-450-RL		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2G50-500-RN		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2G50-500-RL		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2G50-600-RN		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2G50-600-RL		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2G63-25-RN		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2G63-25-RL		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2G63-50-RN		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2G63-50-RL		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2G63-75-RN		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2G63-75-RL		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2G63-100-RN		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2G63-100-RL		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2G63-125-RN		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2G63-125-RL		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2G63-150-RN		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2G63-150-RL		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2G63-175-RN		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2G63-175-RL		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2G63-200-RN		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2G63-200-RL		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2G63-250-RN		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2G63-250-RL		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2G63-300-RN		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2G63-300-RL		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2G63-350-RN		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2G63-350-RL		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2G63-400-RN		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2G63-400-RL		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2G63-450-RN		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2G63-450-RL		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2G63-500-RN		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2G63-500-RL		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2G63-600-RN		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2G63-600-RL		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2G80-25-RN		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2G80-25-RL		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2G80-50-RN		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2G80-50-RL		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2G80-75-RN		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2G80-75-RL		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2G80-100-RN		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2G80-100-RL		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2G80-125-RN		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2G80-125-RL		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2G80-150-RN		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2G80-150-RL		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2G80-175-RN		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2G80-175-RL		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2G80-200-RN		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2G80-200-RL		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2G80-250-RN		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2G80-250-RL		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2G80-300-RN		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2G80-300-RL		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2G80-350-RN		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2G80-350-RL		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2G80-400-RN		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2G80-400-RL		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2G80-450-RN		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2G80-450-RL		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2G80-500-RN		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2G80-500-RL		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2G80-600-RN		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2G80-600-RL		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2G80-700-RN		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2G80-700-RL		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2G100-25-RN		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2G100-25-RL		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2G100-50-RN		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2G100-50-RL		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2G100-75-RN		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2G100-75-RL		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2G100-100-RN		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2G100-100-RL		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2G100-125-RN		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2G100-125-RL		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2G100-150-RN		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2G100-150-RL		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2G100-175-RN		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2G100-175-RL		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2G100-200-RN		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2G100-200-RL		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2G100-250-RN		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2G100-250-RL		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2G100-300-RN		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2G100-300-RL		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2G100-350-RN		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2G100-350-RL		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2G100-400-RN		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2G100-400-RL		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2G100-450-RN		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2G100-450-RL		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2G100-500-RN		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2G100-500-RL		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2G100-600-RN		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2G100-600-RL		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2G100-700-RN		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2G100-700-RL		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2C40-25-RN		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2C40-25-RL		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2C40-50-RN		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2C40-50-RL		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2C40-75-RN		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2C40-75-RL		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2C40-100-RN		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2C40-100-RL		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2C40-125-RN		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2C40-125-RL		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2C40-150-RN		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2C40-150-RL		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2C40-175-RN		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2C40-175-RL		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2C40-200-RN		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2C40-200-RL		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2C40-250-RN		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2C40-250-RL		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2C40-300-RN		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2C40-300-RL		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2C40-350-RN		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2C40-350-RL		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2C40-400-RN		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2C40-400-RL		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2C40-450-RN		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2C40-450-RL		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2C40-500-RN		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2C40-500-RL		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2C50-25-RN		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2C50-25-RL		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2C50-50-RN		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2C50-50-RL		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2C50-75-RN		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2C50-75-RL		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2C50-100-RN		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2C50-100-RL		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2C50-125-RN		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2C50-125-RL		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2C50-150-RN		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2C50-150-RL		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2C50-175-RN		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2C50-175-RL		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2C50-200-RN		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2C50-200-RL		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2C50-250-RN		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2C50-250-RL		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2C50-300-RN		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2C50-300-RL		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2C50-350-RN		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2C50-350-RL		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2C50-400-RN		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2C50-400-RL		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2C50-450-RN		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2C50-450-RL		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2C50-500-RN		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2C50-500-RL		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2C50-600-RN		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2C50-600-RL		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2C63-25-RN		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2C63-25-RL		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2C63-50-RN		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2C63-50-RL		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2C63-75-RN		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2C63-75-RL		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2C63-100-RN		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2C63-100-RL		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2C63-125-RN		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2C63-125-RL		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2C63-150-RN		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2C63-150-RL		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2C63-175-RN		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2C63-175-RL		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2C63-200-RN		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2C63-200-RL		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2C63-250-RN		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2C63-250-RL		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2C63-300-RN		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2C63-300-RL		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2C63-350-RN		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2C63-350-RL		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2C63-400-RN		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2C63-400-RL		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2C63-450-RN		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2C63-450-RL		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2C63-500-RN		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2C63-500-RL		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2C63-600-RN		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2C63-600-RL		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2C80-25-RN		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2C80-25-RL		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2C80-50-RN		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2C80-50-RL		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2C80-75-RN		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2C80-75-RL		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2C80-100-RN		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2C80-100-RL		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2C80-125-RN		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2C80-125-RL		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2C80-150-RN		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2C80-150-RL		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2C80-175-RN		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2C80-175-RL		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2C80-200-RN		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2C80-200-RL		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2C80-250-RN		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2C80-250-RL		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2C80-300-RN		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2C80-300-RL		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2C80-350-RN		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2C80-350-RL		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2C80-400-RN		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2C80-400-RL		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2C80-450-RN		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2C80-450-RL		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2C80-500-RN		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2C80-500-RL		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2C80-600-RN		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2C80-600-RL		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2C80-700-RN		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2C80-700-RL		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2C100-25-RN		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2C100-25-RL		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2C100-50-RN		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2C100-50-RL		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2C100-75-RN		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2C100-75-RL		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2C100-100-RN		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2C100-100-RL		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2C100-125-RN		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2C100-125-RL		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2C100-150-RN		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2C100-150-RL		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2C100-175-RN		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2C100-175-RL		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2C100-200-RN		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2C100-200-RL		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2C100-250-RN		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2C100-250-RL		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2C100-300-RN		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2C100-300-RL		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2C100-350-RN		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2C100-350-RL		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2C100-400-RN		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2C100-400-RL		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2C100-450-RN		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2C100-450-RL		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2C100-500-RN		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2C100-500-RL		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2C100-600-RN		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2C100-600-RL		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2C100-700-RN		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2C100-700-RL		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2D40-25-RN		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2D40-25-RL		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2D40-50-RN		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2D40-50-RL		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2D40-75-RN		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2D40-75-RL		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2D40-100-RN		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2D40-100-RL		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2D40-125-RN		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2D40-125-RL		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2D40-150-RN		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2D40-150-RL		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2D40-175-RN		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2D40-175-RL		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2D40-200-RN		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2D40-200-RL		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2D40-250-RN		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2D40-250-RL		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2D40-300-RN		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2D40-300-RL		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2D40-350-RN		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2D40-350-RL		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2D40-400-RN		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2D40-400-RL		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2D40-450-RN		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2D40-450-RL		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2D40-500-RN		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2D40-500-RL		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2D50-25-RN		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2D50-25-RL		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2D50-50-RN		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2D50-50-RL		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2D50-75-RN		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2D50-75-RL		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2D50-100-RN		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2D50-100-RL		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2D50-125-RN		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2D50-125-RL		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2D50-150-RN		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2D50-150-RL		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2D50-175-RN		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2D50-175-RL		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2D50-200-RN		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2D50-200-RL		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2D50-250-RN		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2D50-250-RL		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2D50-300-RN		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2D50-300-RL		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2D50-350-RN		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2D50-350-RL		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2D50-400-RN		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2D50-400-RL		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2D50-450-RN		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2D50-450-RL		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2D50-500-RN		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2D50-500-RL		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2D50-600-RN		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2D50-600-RL		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2D63-25-RN		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2D63-25-RL		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2D63-50-RN		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2D63-50-RL		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2D63-75-RN		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2D63-75-RL		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2D63-100-RN		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2D63-100-RL		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2D63-125-RN		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2D63-125-RL		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2D63-150-RN		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2D63-150-RL		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2D63-175-RN		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2D63-175-RL		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2D63-200-RN		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2D63-200-RL		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2D63-250-RN		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2D63-250-RL		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2D63-300-RN		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2D63-300-RL		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2D63-350-RN		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2D63-350-RL		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2D63-400-RN		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2D63-400-RL		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2D63-450-RN		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2D63-450-RL		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2D63-500-RN		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2D63-500-RL		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2D63-600-RN		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2D63-600-RL		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2D80-25-RN		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2D80-25-RL		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2D80-50-RN		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2D80-50-RL		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2D80-75-RN		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2D80-75-RL		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2D80-100-RN		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2D80-100-RL		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2D80-125-RN		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2D80-125-RL		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2D80-150-RN		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2D80-150-RL		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2D80-175-RN		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2D80-175-RL		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2D80-200-RN		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2D80-200-RL		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2D80-250-RN		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2D80-250-RL		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2D80-300-RN		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2D80-300-RL		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2D80-350-RN		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2D80-350-RL		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2D80-400-RN		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2D80-400-RL		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2D80-450-RN		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2D80-450-RL		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2D80-500-RN		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2D80-500-RL		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2D80-600-RN		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2D80-600-RL		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2D80-700-RN		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2D80-700-RL		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2D100-25-RN		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2D100-25-RL		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2D100-50-RN		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2D100-50-RL		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2D100-75-RN		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2D100-75-RL		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2D100-100-RN		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2D100-100-RL		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2D100-125-RN		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2D100-125-RL		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2D100-150-RN		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2D100-150-RL		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2D100-175-RN		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2D100-175-RL		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2D100-200-RN		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2D100-200-RL		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2D100-250-RN		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2D100-250-RL		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2D100-300-RN		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2D100-300-RL		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2D100-350-RN		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2D100-350-RL		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2D100-400-RN		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2D100-400-RL		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2D100-450-RN		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2D100-450-RL		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2D100-500-RN		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2D100-500-RL		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2D100-600-RN		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2D100-600-RL		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2D100-700-RN		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2D100-700-RL		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2T40-25-RN		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2T40-25-RL		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2T40-50-RN		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2T40-50-RL		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2T40-75-RN		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2T40-75-RL		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2T40-100-RN		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2T40-100-RL		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2T40-125-RN		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2T40-125-RL		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2T40-150-RN		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2T40-150-RL		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2T40-175-RN		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2T40-175-RL		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2T40-200-RN		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2T40-200-RL		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2T40-250-RN		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2T40-250-RL		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2T40-300-RN		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2T40-300-RL		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2T40-350-RN		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2T40-350-RL		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2T40-400-RN		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2T40-400-RL		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2T40-450-RN		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2T40-450-RL		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2T40-500-RN		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2T40-500-RL		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2T50-25-RN		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2T50-25-RL		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2T50-50-RN		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2T50-50-RL		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2T50-75-RN		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2T50-75-RL		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2T50-100-RN		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2T50-100-RL		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2T50-125-RN		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2T50-125-RL		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2T50-150-RN		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2T50-150-RL		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2T50-175-RN		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2T50-175-RL		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2T50-200-RN		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2T50-200-RL		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2T50-250-RN		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2T50-250-RL		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2T50-300-RN		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2T50-300-RL		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2T50-350-RN		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2T50-350-RL		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2T50-400-RN		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2T50-400-RL		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2T50-450-RN		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2T50-450-RL		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2T50-500-RN		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2T50-500-RL		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2T50-600-RN		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2T50-600-RL		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2T63-25-RN		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2T63-25-RL		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2T63-50-RN		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2T63-50-RL		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2T63-75-RN		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2T63-75-RL		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2T63-100-RN		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2T63-100-RL		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2T63-125-RN		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2T63-125-RL		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2T63-150-RN		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2T63-150-RL		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2T63-175-RN		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2T63-175-RL		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2T63-200-RN		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2T63-200-RL		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2T63-250-RN		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2T63-250-RL		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2T63-300-RN		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2T63-300-RL		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2T63-350-RN		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2T63-350-RL		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2T63-400-RN		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2T63-400-RL		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2T63-450-RN		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2T63-450-RL		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2T63-500-RN		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2T63-500-RL		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2T63-600-RN		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2T63-600-RL		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2T80-25-RN		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2T80-25-RL		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2T80-50-RN		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2T80-50-RL		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2T80-75-RN		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2T80-75-RL		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2T80-100-RN		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2T80-100-RL		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2T80-125-RN		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2T80-125-RL		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2T80-150-RN		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2T80-150-RL		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2T80-175-RN		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2T80-175-RL		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2T80-200-RN		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2T80-200-RL		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2T80-250-RN		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2T80-250-RL		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2T80-300-RN		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2T80-300-RL		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2T80-350-RN		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2T80-350-RL		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2T80-400-RN		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2T80-400-RL		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2T80-450-RN		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2T80-450-RL		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2T80-500-RN		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2T80-500-RL		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2T80-600-RN		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2T80-600-RL		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2T80-700-RN		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2T80-700-RL		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2T100-25-RN		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2T100-25-RL		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2T100-50-RN		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2T100-50-RL		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2T100-75-RN		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2T100-75-RL		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2T100-100-RN		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2T100-100-RL		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2T100-125-RN		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2T100-125-RL		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2T100-150-RN		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2T100-150-RL		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2T100-175-RN		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2T100-175-RL		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2T100-200-RN		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2T100-200-RL		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2T100-250-RN		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2T100-250-RL		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2T100-300-RN		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2T100-300-RL		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2T100-350-RN		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2T100-350-RL		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2T100-400-RN		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2T100-400-RL		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2T100-450-RN		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2T100-450-RL		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2T100-500-RN		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2T100-500-RL		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2T100-600-RN		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2T100-600-RL		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Lock type
CBA2T100-700-RN		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Manual release: Non-lock type
CBA2T100-700-RL		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Manual release: Lock type

Round Body CylindersSMC

1064 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC CBA2 End Lock Cylinder (Rod end lock, ø40 to ø100)

Brand SMC·Round Body Cylinders

Available part numbers (1064)

CBA2B40-25-RN, CBA2B40-25-RL, CBA2B40-50-RN, CBA2B40-50-RL, CBA2B40-75-RN, CBA2B40-75-RL, CBA2B40-100-RN, CBA2B40-100-RL, CBA2B40-125-RN, CBA2B40-125-RL + 1054 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	CBA2B40-25-RN	Mounting: Basic \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2B40-25-RL	Mounting: Basic \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2B40-50-RN	Mounting: Basic \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2B40-50-RL	Mounting: Basic \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2B40-75-RN	Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2B40-75-RL	Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2B40-100-RN	Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2B40-100-RL	Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2B40-125-RN	Mounting: Basic \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2B40-125-RL	Mounting: Basic \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2B40-150-RN	Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2B40-150-RL	Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2B40-175-RN	Mounting: Basic \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2B40-175-RL	Mounting: Basic \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2B40-200-RN	Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2B40-200-RL	Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2B40-250-RN	Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2B40-250-RL	Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2B40-300-RN	Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2B40-300-RL	Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2B40-350-RN	Mounting: Basic \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2B40-350-RL	Mounting: Basic \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2B40-400-RN	Mounting: Basic \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2B40-400-RL	Mounting: Basic \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2B40-450-RN	Mounting: Basic \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2B40-450-RL	Mounting: Basic \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2B40-500-RN	Mounting: Basic \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2B40-500-RL	Mounting: Basic \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2B50-25-RN	Mounting: Basic \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2B50-25-RL	Mounting: Basic \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2B50-50-RN	Mounting: Basic \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2B50-50-RL	Mounting: Basic \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2B50-75-RN	Mounting: Basic \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2B50-75-RL	Mounting: Basic \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2B50-100-RN	Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2B50-100-RL	Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2B50-125-RN	Mounting: Basic \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2B50-125-RL	Mounting: Basic \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2B50-150-RN	Mounting: Basic \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2B50-150-RL	Mounting: Basic \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2B50-175-RN	Mounting: Basic \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2B50-175-RL	Mounting: Basic \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2B50-200-RN	Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2B50-200-RL	Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2B50-250-RN	Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2B50-250-RL	Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2B50-300-RN	Mounting: Basic \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2B50-300-RL	Mounting: Basic \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2B50-350-RN	Mounting: Basic \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2B50-350-RL	Mounting: Basic \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2B50-400-RN	Mounting: Basic \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2B50-400-RL	Mounting: Basic \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2B50-450-RN	Mounting: Basic \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2B50-450-RL	Mounting: Basic \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2B50-500-RN	Mounting: Basic \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2B50-500-RL	Mounting: Basic \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2B50-600-RN	Mounting: Basic \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2B50-600-RL	Mounting: Basic \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2B63-25-RN	Mounting: Basic \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2B63-25-RL	Mounting: Basic \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2B63-50-RN	Mounting: Basic \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2B63-50-RL	Mounting: Basic \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2B63-75-RN	Mounting: Basic \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2B63-75-RL	Mounting: Basic \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2B63-100-RN	Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2B63-100-RL	Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2B63-125-RN	Mounting: Basic \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2B63-125-RL	Mounting: Basic \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2B63-150-RN	Mounting: Basic \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2B63-150-RL	Mounting: Basic \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2B63-175-RN	Mounting: Basic \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2B63-175-RL	Mounting: Basic \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2B63-200-RN	Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2B63-200-RL	Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2B63-250-RN	Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2B63-250-RL	Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2B63-300-RN	Mounting: Basic \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2B63-300-RL	Mounting: Basic \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2B63-350-RN	Mounting: Basic \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2B63-350-RL	Mounting: Basic \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2B63-400-RN	Mounting: Basic \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2B63-400-RL	Mounting: Basic \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2B63-450-RN	Mounting: Basic \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2B63-450-RL	Mounting: Basic \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2B63-500-RN	Mounting: Basic \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2B63-500-RL	Mounting: Basic \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2B63-600-RN	Mounting: Basic \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2B63-600-RL	Mounting: Basic \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2B80-25-RN	Mounting: Basic \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2B80-25-RL	Mounting: Basic \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2B80-50-RN	Mounting: Basic \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2B80-50-RL	Mounting: Basic \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2B80-75-RN	Mounting: Basic \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2B80-75-RL	Mounting: Basic \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2B80-100-RN	Mounting: Basic \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2B80-100-RL	Mounting: Basic \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2B80-125-RN	Mounting: Basic \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2B80-125-RL	Mounting: Basic \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2B80-150-RN	Mounting: Basic \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2B80-150-RL	Mounting: Basic \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2B80-175-RN	Mounting: Basic \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2B80-175-RL	Mounting: Basic \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2B80-200-RN	Mounting: Basic \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2B80-200-RL	Mounting: Basic \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2B80-250-RN	Mounting: Basic \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2B80-250-RL	Mounting: Basic \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2B80-300-RN	Mounting: Basic \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2B80-300-RL	Mounting: Basic \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2B80-350-RN	Mounting: Basic \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2B80-350-RL	Mounting: Basic \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2B80-400-RN	Mounting: Basic \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2B80-400-RL	Mounting: Basic \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2B80-450-RN	Mounting: Basic \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2B80-450-RL	Mounting: Basic \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2B80-500-RN	Mounting: Basic \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2B80-500-RL	Mounting: Basic \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2B80-600-RN	Mounting: Basic \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2B80-600-RL	Mounting: Basic \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2B80-700-RN	Mounting: Basic \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2B80-700-RL	Mounting: Basic \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2B100-25-RN	Mounting: Basic \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2B100-25-RL	Mounting: Basic \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2B100-50-RN	Mounting: Basic \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2B100-50-RL	Mounting: Basic \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2B100-75-RN	Mounting: Basic \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2B100-75-RL	Mounting: Basic \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2B100-100-RN	Mounting: Basic \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2B100-100-RL	Mounting: Basic \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2B100-125-RN	Mounting: Basic \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2B100-125-RL	Mounting: Basic \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2B100-150-RN	Mounting: Basic \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2B100-150-RL	Mounting: Basic \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2B100-175-RN	Mounting: Basic \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2B100-175-RL	Mounting: Basic \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2B100-200-RN	Mounting: Basic \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2B100-200-RL	Mounting: Basic \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2B100-250-RN	Mounting: Basic \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2B100-250-RL	Mounting: Basic \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2B100-300-RN	Mounting: Basic \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2B100-300-RL	Mounting: Basic \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2B100-350-RN	Mounting: Basic \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2B100-350-RL	Mounting: Basic \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2B100-400-RN	Mounting: Basic \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2B100-400-RL	Mounting: Basic \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2B100-450-RN	Mounting: Basic \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2B100-450-RL	Mounting: Basic \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2B100-500-RN	Mounting: Basic \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2B100-500-RL	Mounting: Basic \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2B100-600-RN	Mounting: Basic \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2B100-600-RL	Mounting: Basic \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2B100-700-RN	Mounting: Basic \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2B100-700-RL	Mounting: Basic \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2L40-25-RN	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2L40-25-RL	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2L40-50-RN	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2L40-50-RL	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2L40-75-RN	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2L40-75-RL	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2L40-100-RN	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2L40-100-RL	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2L40-125-RN	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2L40-125-RL	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2L40-150-RN	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2L40-150-RL	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2L40-175-RN	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2L40-175-RL	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2L40-200-RN	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2L40-200-RL	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2L40-250-RN	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2L40-250-RL	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2L40-300-RN	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2L40-300-RL	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2L40-350-RN	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2L40-350-RL	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2L40-400-RN	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2L40-400-RL	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2L40-450-RN	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2L40-450-RL	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2L40-500-RN	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2L40-500-RL	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2L50-25-RN	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2L50-25-RL	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2L50-50-RN	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2L50-50-RL	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2L50-75-RN	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2L50-75-RL	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2L50-100-RN	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2L50-100-RL	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2L50-125-RN	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2L50-125-RL	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2L50-150-RN	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2L50-150-RL	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2L50-175-RN	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2L50-175-RL	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2L50-200-RN	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2L50-200-RL	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2L50-250-RN	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2L50-250-RL	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2L50-300-RN	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2L50-300-RL	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2L50-350-RN	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2L50-350-RL	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2L50-400-RN	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2L50-400-RL	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2L50-450-RN	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2L50-450-RL	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2L50-500-RN	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2L50-500-RL	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2L50-600-RN	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2L50-600-RL	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2L63-25-RN	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2L63-25-RL	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2L63-50-RN	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2L63-50-RL	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2L63-75-RN	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2L63-75-RL	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2L63-100-RN	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2L63-100-RL	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2L63-125-RN	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2L63-125-RL	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2L63-150-RN	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2L63-150-RL	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2L63-175-RN	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2L63-175-RL	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2L63-200-RN	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2L63-200-RL	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2L63-250-RN	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2L63-250-RL	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2L63-300-RN	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2L63-300-RL	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2L63-350-RN	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2L63-350-RL	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2L63-400-RN	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2L63-400-RL	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2L63-450-RN	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2L63-450-RL	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2L63-500-RN	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2L63-500-RL	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2L63-600-RN	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2L63-600-RL	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2L80-25-RN	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2L80-25-RL	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2L80-50-RN	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2L80-50-RL	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2L80-75-RN	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2L80-75-RL	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2L80-100-RN	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2L80-100-RL	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2L80-125-RN	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2L80-125-RL	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2L80-150-RN	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2L80-150-RL	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2L80-175-RN	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2L80-175-RL	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2L80-200-RN	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2L80-200-RL	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2L80-250-RN	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2L80-250-RL	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2L80-300-RN	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2L80-300-RL	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2L80-350-RN	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2L80-350-RL	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2L80-400-RN	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2L80-400-RL	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2L80-450-RN	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2L80-450-RL	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2L80-500-RN	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2L80-500-RL	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2L80-600-RN	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2L80-600-RL	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2L80-700-RN	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2L80-700-RL	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2L100-25-RN	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2L100-25-RL	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2L100-50-RN	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2L100-50-RL	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2L100-75-RN	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2L100-75-RL	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2L100-100-RN	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2L100-100-RL	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2L100-125-RN	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2L100-125-RL	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2L100-150-RN	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2L100-150-RL	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2L100-175-RN	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2L100-175-RL	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2L100-200-RN	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2L100-200-RL	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2L100-250-RN	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2L100-250-RL	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2L100-300-RN	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2L100-300-RL	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2L100-350-RN	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2L100-350-RL	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2L100-400-RN	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2L100-400-RL	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2L100-450-RN	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2L100-450-RL	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2L100-500-RN	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2L100-500-RL	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2L100-600-RN	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2L100-600-RL	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2L100-700-RN	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2L100-700-RL	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2F40-25-RN	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2F40-25-RL	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2F40-50-RN	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2F40-50-RL	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2F40-75-RN	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2F40-75-RL	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2F40-100-RN	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2F40-100-RL	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2F40-125-RN	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2F40-125-RL	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2F40-150-RN	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2F40-150-RL	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2F40-175-RN	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2F40-175-RL	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2F40-200-RN	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2F40-200-RL	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2F40-250-RN	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2F40-250-RL	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2F40-300-RN	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2F40-300-RL	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2F40-350-RN	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2F40-350-RL	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2F40-400-RN	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2F40-400-RL	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2F40-450-RN	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2F40-450-RL	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2F40-500-RN	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2F40-500-RL	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2F50-25-RN	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2F50-25-RL	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2F50-50-RN	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2F50-50-RL	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2F50-75-RN	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2F50-75-RL	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2F50-100-RN	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2F50-100-RL	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2F50-125-RN	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2F50-125-RL	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2F50-150-RN	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2F50-150-RL	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2F50-175-RN	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2F50-175-RL	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2F50-200-RN	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2F50-200-RL	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2F50-250-RN	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2F50-250-RL	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2F50-300-RN	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2F50-300-RL	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2F50-350-RN	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2F50-350-RL	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2F50-400-RN	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2F50-400-RL	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2F50-450-RN	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2F50-450-RL	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2F50-500-RN	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2F50-500-RL	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2F50-600-RN	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2F50-600-RL	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2F63-25-RN	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2F63-25-RL	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2F63-50-RN	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2F63-50-RL	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2F63-75-RN	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2F63-75-RL	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2F63-100-RN	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2F63-100-RL	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2F63-125-RN	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2F63-125-RL	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2F63-150-RN	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2F63-150-RL	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2F63-175-RN	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2F63-175-RL	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2F63-200-RN	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2F63-200-RL	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2F63-250-RN	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2F63-250-RL	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2F63-300-RN	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2F63-300-RL	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2F63-350-RN	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2F63-350-RL	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2F63-400-RN	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2F63-400-RL	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2F63-450-RN	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2F63-450-RL	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2F63-500-RN	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2F63-500-RL	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2F63-600-RN	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2F63-600-RL	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2F80-25-RN	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2F80-25-RL	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2F80-50-RN	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2F80-50-RL	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2F80-75-RN	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2F80-75-RL	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2F80-100-RN	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2F80-100-RL	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2F80-125-RN	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2F80-125-RL	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2F80-150-RN	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2F80-150-RL	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2F80-175-RN	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2F80-175-RL	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2F80-200-RN	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2F80-200-RL	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2F80-250-RN	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2F80-250-RL	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2F80-300-RN	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2F80-300-RL	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2F80-350-RN	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2F80-350-RL	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2F80-400-RN	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2F80-400-RL	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2F80-450-RN	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2F80-450-RL	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2F80-500-RN	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2F80-500-RL	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2F80-600-RN	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2F80-600-RL	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2F80-700-RN	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2F80-700-RL	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2F100-25-RN	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2F100-25-RL	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2F100-50-RN	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2F100-50-RL	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2F100-75-RN	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2F100-75-RL	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2F100-100-RN	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2F100-100-RL	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2F100-125-RN	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2F100-125-RL	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2F100-150-RN	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2F100-150-RL	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2F100-175-RN	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2F100-175-RL	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2F100-200-RN	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2F100-200-RL	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2F100-250-RN	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2F100-250-RL	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2F100-300-RN	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2F100-300-RL	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2F100-350-RN	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2F100-350-RL	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2F100-400-RN	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2F100-400-RL	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2F100-450-RN	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2F100-450-RL	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2F100-500-RN	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2F100-500-RL	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2F100-600-RN	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2F100-600-RL	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2F100-700-RN	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2F100-700-RL	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2G40-25-RN	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2G40-25-RL	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2G40-50-RN	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2G40-50-RL	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2G40-75-RN	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2G40-75-RL	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2G40-100-RN	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2G40-100-RL	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2G40-125-RN	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2G40-125-RL	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2G40-150-RN	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2G40-150-RL	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2G40-175-RN	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2G40-175-RL	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2G40-200-RN	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2G40-200-RL	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2G40-250-RN	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2G40-250-RL	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2G40-300-RN	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2G40-300-RL	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2G40-350-RN	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2G40-350-RL	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2G40-400-RN	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2G40-400-RL	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2G40-450-RN	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2G40-450-RL	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2G40-500-RN	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2G40-500-RL	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2G50-25-RN	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2G50-25-RL	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2G50-50-RN	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2G50-50-RL	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2G50-75-RN	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2G50-75-RL	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2G50-100-RN	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2G50-100-RL	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2G50-125-RN	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2G50-125-RL	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2G50-150-RN	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2G50-150-RL	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2G50-175-RN	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2G50-175-RL	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2G50-200-RN	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2G50-200-RL	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2G50-250-RN	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2G50-250-RL	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2G50-300-RN	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2G50-300-RL	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2G50-350-RN	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2G50-350-RL	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2G50-400-RN	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2G50-400-RL	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2G50-450-RN	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2G50-450-RL	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2G50-500-RN	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2G50-500-RL	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2G50-600-RN	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2G50-600-RL	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2G63-25-RN	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2G63-25-RL	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2G63-50-RN	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2G63-50-RL	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2G63-75-RN	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2G63-75-RL	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2G63-100-RN	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2G63-100-RL	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2G63-125-RN	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2G63-125-RL	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2G63-150-RN	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2G63-150-RL	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2G63-175-RN	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2G63-175-RL	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2G63-200-RN	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2G63-200-RL	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2G63-250-RN	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2G63-250-RL	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2G63-300-RN	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2G63-300-RL	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2G63-350-RN	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2G63-350-RL	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2G63-400-RN	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2G63-400-RL	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2G63-450-RN	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2G63-450-RL	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2G63-500-RN	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2G63-500-RL	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2G63-600-RN	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2G63-600-RL	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2G80-25-RN	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2G80-25-RL	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2G80-50-RN	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2G80-50-RL	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2G80-75-RN	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2G80-75-RL	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2G80-100-RN	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2G80-100-RL	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2G80-125-RN	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2G80-125-RL	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2G80-150-RN	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2G80-150-RL	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2G80-175-RN	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2G80-175-RL	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2G80-200-RN	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2G80-200-RL	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2G80-250-RN	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2G80-250-RL	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2G80-300-RN	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2G80-300-RL	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2G80-350-RN	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2G80-350-RL	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2G80-400-RN	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2G80-400-RL	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2G80-450-RN	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2G80-450-RL	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2G80-500-RN	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2G80-500-RL	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2G80-600-RN	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2G80-600-RL	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2G80-700-RN	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2G80-700-RL	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2G100-25-RN	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2G100-25-RL	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2G100-50-RN	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2G100-50-RL	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2G100-75-RN	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2G100-75-RL	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2G100-100-RN	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2G100-100-RL	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2G100-125-RN	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2G100-125-RL	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2G100-150-RN	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2G100-150-RL	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2G100-175-RN	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2G100-175-RL	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2G100-200-RN	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2G100-200-RL	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2G100-250-RN	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2G100-250-RL	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2G100-300-RN	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2G100-300-RL	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2G100-350-RN	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2G100-350-RL	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2G100-400-RN	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2G100-400-RL	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2G100-450-RN	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2G100-450-RL	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2G100-500-RN	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2G100-500-RL	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2G100-600-RN	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2G100-600-RL	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2G100-700-RN	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2G100-700-RL	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2C40-25-RN	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2C40-25-RL	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2C40-50-RN	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2C40-50-RL	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2C40-75-RN	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2C40-75-RL	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2C40-100-RN	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2C40-100-RL	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2C40-125-RN	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2C40-125-RL	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2C40-150-RN	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2C40-150-RL	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2C40-175-RN	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2C40-175-RL	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2C40-200-RN	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2C40-200-RL	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2C40-250-RN	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2C40-250-RL	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2C40-300-RN	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2C40-300-RL	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2C40-350-RN	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2C40-350-RL	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2C40-400-RN	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2C40-400-RL	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2C40-450-RN	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2C40-450-RL	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2C40-500-RN	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2C40-500-RL	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2C50-25-RN	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2C50-25-RL	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2C50-50-RN	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2C50-50-RL	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2C50-75-RN	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2C50-75-RL	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2C50-100-RN	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2C50-100-RL	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2C50-125-RN	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2C50-125-RL	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2C50-150-RN	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2C50-150-RL	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2C50-175-RN	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2C50-175-RL	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2C50-200-RN	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2C50-200-RL	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2C50-250-RN	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2C50-250-RL	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2C50-300-RN	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2C50-300-RL	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2C50-350-RN	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2C50-350-RL	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2C50-400-RN	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2C50-400-RL	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2C50-450-RN	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2C50-450-RL	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2C50-500-RN	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2C50-500-RL	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2C50-600-RN	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2C50-600-RL	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2C63-25-RN	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2C63-25-RL	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2C63-50-RN	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2C63-50-RL	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2C63-75-RN	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2C63-75-RL	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2C63-100-RN	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2C63-100-RL	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2C63-125-RN	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2C63-125-RL	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2C63-150-RN	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2C63-150-RL	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2C63-175-RN	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2C63-175-RL	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2C63-200-RN	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2C63-200-RL	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2C63-250-RN	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2C63-250-RL	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2C63-300-RN	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2C63-300-RL	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2C63-350-RN	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2C63-350-RL	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2C63-400-RN	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2C63-400-RL	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2C63-450-RN	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2C63-450-RL	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2C63-500-RN	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2C63-500-RL	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2C63-600-RN	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2C63-600-RL	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2C80-25-RN	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2C80-25-RL	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2C80-50-RN	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2C80-50-RL	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2C80-75-RN	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2C80-75-RL	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2C80-100-RN	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2C80-100-RL	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2C80-125-RN	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2C80-125-RL	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2C80-150-RN	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2C80-150-RL	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2C80-175-RN	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2C80-175-RL	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2C80-200-RN	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2C80-200-RL	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2C80-250-RN	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2C80-250-RL	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2C80-300-RN	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2C80-300-RL	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2C80-350-RN	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2C80-350-RL	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2C80-400-RN	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2C80-400-RL	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2C80-450-RN	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2C80-450-RL	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2C80-500-RN	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2C80-500-RL	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2C80-600-RN	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2C80-600-RL	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2C80-700-RN	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2C80-700-RL	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2C100-25-RN	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2C100-25-RL	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2C100-50-RN	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2C100-50-RL	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2C100-75-RN	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2C100-75-RL	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2C100-100-RN	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2C100-100-RL	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2C100-125-RN	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2C100-125-RL	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2C100-150-RN	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2C100-150-RL	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2C100-175-RN	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2C100-175-RL	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2C100-200-RN	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2C100-200-RL	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2C100-250-RN	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2C100-250-RL	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2C100-300-RN	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2C100-300-RL	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2C100-350-RN	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2C100-350-RL	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2C100-400-RN	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2C100-400-RL	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2C100-450-RN	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2C100-450-RL	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2C100-500-RN	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2C100-500-RL	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2C100-600-RN	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2C100-600-RL	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2C100-700-RN	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2C100-700-RL	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2D40-25-RN	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2D40-25-RL	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2D40-50-RN	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2D40-50-RL	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2D40-75-RN	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2D40-75-RL	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2D40-100-RN	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2D40-100-RL	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2D40-125-RN	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2D40-125-RL	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2D40-150-RN	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2D40-150-RL	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2D40-175-RN	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2D40-175-RL	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2D40-200-RN	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2D40-200-RL	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2D40-250-RN	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2D40-250-RL	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2D40-300-RN	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2D40-300-RL	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2D40-350-RN	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2D40-350-RL	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2D40-400-RN	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2D40-400-RL	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2D40-450-RN	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2D40-450-RL	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2D40-500-RN	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2D40-500-RL	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2D50-25-RN	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2D50-25-RL	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2D50-50-RN	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2D50-50-RL	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2D50-75-RN	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2D50-75-RL	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2D50-100-RN	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2D50-100-RL	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2D50-125-RN	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2D50-125-RL	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2D50-150-RN	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2D50-150-RL	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2D50-175-RN	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2D50-175-RL	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2D50-200-RN	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2D50-200-RL	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2D50-250-RN	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2D50-250-RL	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2D50-300-RN	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2D50-300-RL	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2D50-350-RN	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2D50-350-RL	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2D50-400-RN	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2D50-400-RL	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2D50-450-RN	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2D50-450-RL	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2D50-500-RN	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2D50-500-RL	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2D50-600-RN	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2D50-600-RL	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2D63-25-RN	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2D63-25-RL	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2D63-50-RN	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2D63-50-RL	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2D63-75-RN	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2D63-75-RL	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2D63-100-RN	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2D63-100-RL	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2D63-125-RN	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2D63-125-RL	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2D63-150-RN	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2D63-150-RL	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2D63-175-RN	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2D63-175-RL	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2D63-200-RN	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2D63-200-RL	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2D63-250-RN	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2D63-250-RL	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2D63-300-RN	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2D63-300-RL	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2D63-350-RN	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2D63-350-RL	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2D63-400-RN	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2D63-400-RL	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2D63-450-RN	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2D63-450-RL	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2D63-500-RN	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2D63-500-RL	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2D63-600-RN	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2D63-600-RL	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2D80-25-RN	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2D80-25-RL	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2D80-50-RN	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2D80-50-RL	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2D80-75-RN	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2D80-75-RL	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2D80-100-RN	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2D80-100-RL	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2D80-125-RN	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2D80-125-RL	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2D80-150-RN	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2D80-150-RL	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2D80-175-RN	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2D80-175-RL	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2D80-200-RN	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2D80-200-RL	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2D80-250-RN	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2D80-250-RL	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2D80-300-RN	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2D80-300-RL	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2D80-350-RN	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2D80-350-RL	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2D80-400-RN	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2D80-400-RL	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2D80-450-RN	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2D80-450-RL	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2D80-500-RN	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2D80-500-RL	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2D80-600-RN	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2D80-600-RL	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2D80-700-RN	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2D80-700-RL	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2D100-25-RN	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2D100-25-RL	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2D100-50-RN	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2D100-50-RL	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2D100-75-RN	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2D100-75-RL	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2D100-100-RN	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2D100-100-RL	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2D100-125-RN	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2D100-125-RL	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2D100-150-RN	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2D100-150-RL	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2D100-175-RN	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2D100-175-RL	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2D100-200-RN	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2D100-200-RL	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2D100-250-RN	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2D100-250-RL	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2D100-300-RN	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2D100-300-RL	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2D100-350-RN	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2D100-350-RL	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2D100-400-RN	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2D100-400-RL	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2D100-450-RN	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2D100-450-RL	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2D100-500-RN	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2D100-500-RL	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2D100-600-RN	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2D100-600-RL	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2D100-700-RN	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2D100-700-RL	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2T40-25-RN	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2T40-25-RL	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2T40-50-RN	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2T40-50-RL	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2T40-75-RN	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2T40-75-RL	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2T40-100-RN	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2T40-100-RL	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2T40-125-RN	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2T40-125-RL	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2T40-150-RN	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2T40-150-RL	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2T40-175-RN	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2T40-175-RL	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2T40-200-RN	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2T40-200-RL	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2T40-250-RN	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2T40-250-RL	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2T40-300-RN	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2T40-300-RL	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2T40-350-RN	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2T40-350-RL	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2T40-400-RN	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2T40-400-RL	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2T40-450-RN	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2T40-450-RL	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2T40-500-RN	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2T40-500-RL	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2T50-25-RN	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2T50-25-RL	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2T50-50-RN	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2T50-50-RL	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2T50-75-RN	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2T50-75-RL	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2T50-100-RN	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2T50-100-RL	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2T50-125-RN	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2T50-125-RL	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2T50-150-RN	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2T50-150-RL	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2T50-175-RN	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2T50-175-RL	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2T50-200-RN	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2T50-200-RL	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2T50-250-RN	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2T50-250-RL	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2T50-300-RN	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2T50-300-RL	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2T50-350-RN	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2T50-350-RL	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2T50-400-RN	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2T50-400-RL	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2T50-450-RN	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2T50-450-RL	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2T50-500-RN	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2T50-500-RL	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2T50-600-RN	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2T50-600-RL	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2T63-25-RN	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2T63-25-RL	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2T63-50-RN	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2T63-50-RL	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2T63-75-RN	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2T63-75-RL	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2T63-100-RN	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2T63-100-RL	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2T63-125-RN	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2T63-125-RL	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2T63-150-RN	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2T63-150-RL	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2T63-175-RN	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2T63-175-RL	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2T63-200-RN	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2T63-200-RL	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2T63-250-RN	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2T63-250-RL	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2T63-300-RN	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2T63-300-RL	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2T63-350-RN	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2T63-350-RL	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2T63-400-RN	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2T63-400-RL	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2T63-450-RN	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2T63-450-RL	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2T63-500-RN	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2T63-500-RL	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2T63-600-RN	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2T63-600-RL	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2T80-25-RN	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2T80-25-RL	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2T80-50-RN	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2T80-50-RL	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2T80-75-RN	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2T80-75-RL	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2T80-100-RN	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2T80-100-RL	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2T80-125-RN	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2T80-125-RL	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2T80-150-RN	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2T80-150-RL	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2T80-175-RN	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2T80-175-RL	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2T80-200-RN	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2T80-200-RL	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2T80-250-RN	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2T80-250-RL	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2T80-300-RN	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2T80-300-RL	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2T80-350-RN	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2T80-350-RL	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2T80-400-RN	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2T80-400-RL	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2T80-450-RN	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2T80-450-RL	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2T80-500-RN	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2T80-500-RL	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2T80-600-RN	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2T80-600-RL	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2T80-700-RN	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2T80-700-RL	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2T100-25-RN	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2T100-25-RL	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2T100-50-RN	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2T100-50-RL	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2T100-75-RN	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2T100-75-RL	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2T100-100-RN	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2T100-100-RL	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2T100-125-RN	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2T100-125-RL	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2T100-150-RN	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2T100-150-RL	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2T100-175-RN	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2T100-175-RL	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2T100-200-RN	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2T100-200-RL	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2T100-250-RN	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2T100-250-RL	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2T100-300-RN	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2T100-300-RL	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2T100-350-RN	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2T100-350-RL	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2T100-400-RN	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2T100-400-RL	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2T100-450-RN	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2T100-450-RL	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2T100-500-RN	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2T100-500-RL	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2T100-600-RN	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2T100-600-RL	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Manual release: Lock type
	CBA2T100-700-RN	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Manual release: Non-lock type
	CBA2T100-700-RL	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Manual release: Lock type

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

SMC CBA2 End Lock Cylinder (Rod end lock, ø40 to ø100)
