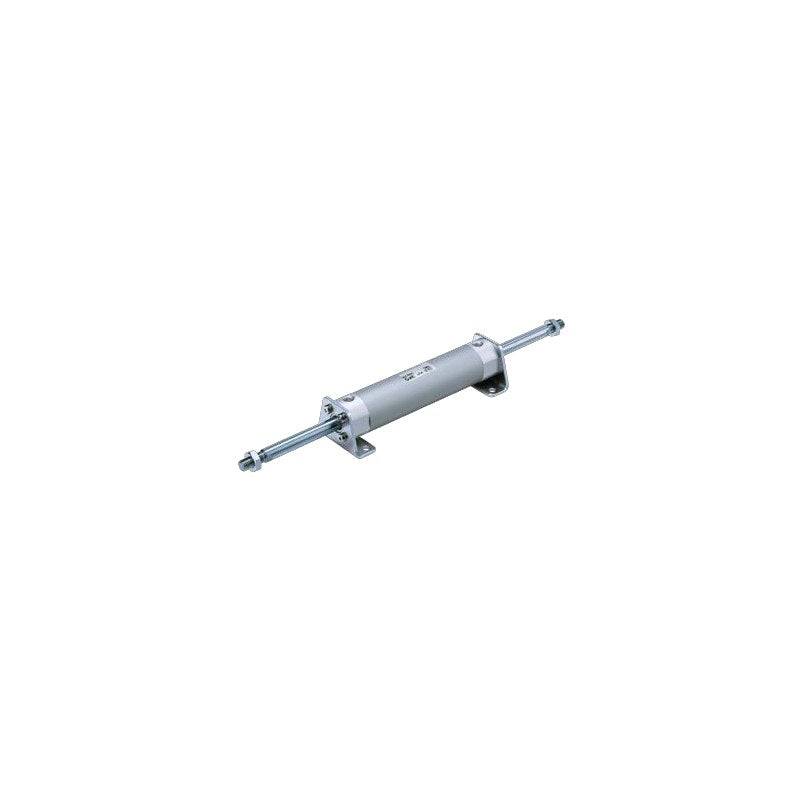

SMC CBG1 End Lock Cylinder (ø20 to ø40)

SMC CBG1 series end lock cylinder based on the CG1, double acting, ø20 to ø40 mm bore, locking at the head end, rod end or both ends to prevent drops when air is cut off.

Key features

End lock cylinder that mechanically holds the piston at the stroke end when air pressure is exhausted (drop prevention)
Lock position: head end (H), rod end (R) or both ends (W); backlash 2 mm
Manual release: non-lock type (N, listed) or lock type (L, on order)
Eight mounting styles; trunnion cannot be fitted to a locked cover (U with head lock only, T with rod lock only)
Air cushion (A), bellows (J/K) and auto switches with built-in magnet (CDBG1) ordered as options

Specifications

Action	Double acting, single rod, with end lock
Fluid	Air
Proof pressure	1.5 MPa
Max. operating pressure	1.0 MPa
Min. operating pressure	0.15 MPa (0.05 MPa excluding lock)
Ambient and fluid temperature	-10 to 70°C (with auto switch -10 to 60°C), no freezing
Piston speed	50 to 1000 mm/s (ø80, ø100: 50 to 700 mm/s)
Cushion	Rubber cushion (N)
Manual release	Non-lock type (N)
Holding force (max.)	ø20 215 N, ø40 860 N, ø63 2140 N, ø100 5390 N
Source	SMC Korea catalog CAT.KS20-268B (SMCKR_CG1-Z1.pdf), p. 31-32

CBG1BN20-25Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1BN20-50Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1BN20-75Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1BN20-100Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1BN20-125Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1BN20-150Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1BN20-200Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1BN20-25Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1BN20-50Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1BN20-75Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1BN20-100Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1BN20-125Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1BN20-150Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1BN20-200Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1BN20-25Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1BN20-50Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1BN20-75Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1BN20-100Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1BN20-125Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1BN20-150Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1BN20-200Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1BN25-25Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1BN25-50Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1BN25-75Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1BN25-100Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1BN25-125Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1BN25-150Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1BN25-200Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1BN25-250Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1BN25-300Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1BN25-25Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1BN25-50Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1BN25-75Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1BN25-100Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1BN25-125Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1BN25-150Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1BN25-200Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1BN25-250Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1BN25-300Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1BN25-25Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1BN25-50Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1BN25-75Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1BN25-100Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1BN25-125Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1BN25-150Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1BN25-200Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1BN25-250Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1BN25-300Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1BN32-25Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1BN32-50Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1BN32-75Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1BN32-100Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1BN32-125Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1BN32-150Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1BN32-200Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1BN32-250Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1BN32-300Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1BN32-25Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1BN32-50Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1BN32-75Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1BN32-100Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1BN32-125Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1BN32-150Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1BN32-200Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1BN32-250Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1BN32-300Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1BN32-25Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1BN32-50Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1BN32-75Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1BN32-100Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1BN32-125Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1BN32-150Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1BN32-200Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1BN32-250Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1BN32-300Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1BN40-25Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1BN40-50Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1BN40-75Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1BN40-100Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1BN40-125Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1BN40-150Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1BN40-200Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1BN40-250Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1BN40-300Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1BN40-25Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1BN40-50Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1BN40-75Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1BN40-100Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1BN40-125Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1BN40-150Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1BN40-200Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1BN40-250Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1BN40-300Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1BN40-25Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1BN40-50Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1BN40-75Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1BN40-100Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1BN40-125Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1BN40-150Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1BN40-200Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1BN40-250Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1BN40-300Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1ZN20-25Z1-HN		Mounting: Basic (trunnion female thread) \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1ZN20-50Z1-HN		Mounting: Basic (trunnion female thread) \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1ZN20-75Z1-HN		Mounting: Basic (trunnion female thread) \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1ZN20-100Z1-HN		Mounting: Basic (trunnion female thread) \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1ZN20-125Z1-HN		Mounting: Basic (trunnion female thread) \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1ZN20-150Z1-HN		Mounting: Basic (trunnion female thread) \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1ZN20-200Z1-HN		Mounting: Basic (trunnion female thread) \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1ZN20-25Z1-RN		Mounting: Basic (trunnion female thread) \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1ZN20-50Z1-RN		Mounting: Basic (trunnion female thread) \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1ZN20-75Z1-RN		Mounting: Basic (trunnion female thread) \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1ZN20-100Z1-RN		Mounting: Basic (trunnion female thread) \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1ZN20-125Z1-RN		Mounting: Basic (trunnion female thread) \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1ZN20-150Z1-RN		Mounting: Basic (trunnion female thread) \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1ZN20-200Z1-RN		Mounting: Basic (trunnion female thread) \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1ZN20-25Z1-WN		Mounting: Basic (trunnion female thread) \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1ZN20-50Z1-WN		Mounting: Basic (trunnion female thread) \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1ZN20-75Z1-WN		Mounting: Basic (trunnion female thread) \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1ZN20-100Z1-WN		Mounting: Basic (trunnion female thread) \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1ZN20-125Z1-WN		Mounting: Basic (trunnion female thread) \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1ZN20-150Z1-WN		Mounting: Basic (trunnion female thread) \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1ZN20-200Z1-WN		Mounting: Basic (trunnion female thread) \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1ZN25-25Z1-HN		Mounting: Basic (trunnion female thread) \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1ZN25-50Z1-HN		Mounting: Basic (trunnion female thread) \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1ZN25-75Z1-HN		Mounting: Basic (trunnion female thread) \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1ZN25-100Z1-HN		Mounting: Basic (trunnion female thread) \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1ZN25-125Z1-HN		Mounting: Basic (trunnion female thread) \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1ZN25-150Z1-HN		Mounting: Basic (trunnion female thread) \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1ZN25-200Z1-HN		Mounting: Basic (trunnion female thread) \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1ZN25-250Z1-HN		Mounting: Basic (trunnion female thread) \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1ZN25-300Z1-HN		Mounting: Basic (trunnion female thread) \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1ZN25-25Z1-RN		Mounting: Basic (trunnion female thread) \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1ZN25-50Z1-RN		Mounting: Basic (trunnion female thread) \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1ZN25-75Z1-RN		Mounting: Basic (trunnion female thread) \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1ZN25-100Z1-RN		Mounting: Basic (trunnion female thread) \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1ZN25-125Z1-RN		Mounting: Basic (trunnion female thread) \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1ZN25-150Z1-RN		Mounting: Basic (trunnion female thread) \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1ZN25-200Z1-RN		Mounting: Basic (trunnion female thread) \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1ZN25-250Z1-RN		Mounting: Basic (trunnion female thread) \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1ZN25-300Z1-RN		Mounting: Basic (trunnion female thread) \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1ZN25-25Z1-WN		Mounting: Basic (trunnion female thread) \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1ZN25-50Z1-WN		Mounting: Basic (trunnion female thread) \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1ZN25-75Z1-WN		Mounting: Basic (trunnion female thread) \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1ZN25-100Z1-WN		Mounting: Basic (trunnion female thread) \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1ZN25-125Z1-WN		Mounting: Basic (trunnion female thread) \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1ZN25-150Z1-WN		Mounting: Basic (trunnion female thread) \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1ZN25-200Z1-WN		Mounting: Basic (trunnion female thread) \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1ZN25-250Z1-WN		Mounting: Basic (trunnion female thread) \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1ZN25-300Z1-WN		Mounting: Basic (trunnion female thread) \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1ZN32-25Z1-HN		Mounting: Basic (trunnion female thread) \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1ZN32-50Z1-HN		Mounting: Basic (trunnion female thread) \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1ZN32-75Z1-HN		Mounting: Basic (trunnion female thread) \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1ZN32-100Z1-HN		Mounting: Basic (trunnion female thread) \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1ZN32-125Z1-HN		Mounting: Basic (trunnion female thread) \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1ZN32-150Z1-HN		Mounting: Basic (trunnion female thread) \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1ZN32-200Z1-HN		Mounting: Basic (trunnion female thread) \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1ZN32-250Z1-HN		Mounting: Basic (trunnion female thread) \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1ZN32-300Z1-HN		Mounting: Basic (trunnion female thread) \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1ZN32-25Z1-RN		Mounting: Basic (trunnion female thread) \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1ZN32-50Z1-RN		Mounting: Basic (trunnion female thread) \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1ZN32-75Z1-RN		Mounting: Basic (trunnion female thread) \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1ZN32-100Z1-RN		Mounting: Basic (trunnion female thread) \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1ZN32-125Z1-RN		Mounting: Basic (trunnion female thread) \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1ZN32-150Z1-RN		Mounting: Basic (trunnion female thread) \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1ZN32-200Z1-RN		Mounting: Basic (trunnion female thread) \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1ZN32-250Z1-RN		Mounting: Basic (trunnion female thread) \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1ZN32-300Z1-RN		Mounting: Basic (trunnion female thread) \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1ZN32-25Z1-WN		Mounting: Basic (trunnion female thread) \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1ZN32-50Z1-WN		Mounting: Basic (trunnion female thread) \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1ZN32-75Z1-WN		Mounting: Basic (trunnion female thread) \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1ZN32-100Z1-WN		Mounting: Basic (trunnion female thread) \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1ZN32-125Z1-WN		Mounting: Basic (trunnion female thread) \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1ZN32-150Z1-WN		Mounting: Basic (trunnion female thread) \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1ZN32-200Z1-WN		Mounting: Basic (trunnion female thread) \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1ZN32-250Z1-WN		Mounting: Basic (trunnion female thread) \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1ZN32-300Z1-WN		Mounting: Basic (trunnion female thread) \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1ZN40-25Z1-HN		Mounting: Basic (trunnion female thread) \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1ZN40-50Z1-HN		Mounting: Basic (trunnion female thread) \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1ZN40-75Z1-HN		Mounting: Basic (trunnion female thread) \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1ZN40-100Z1-HN		Mounting: Basic (trunnion female thread) \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1ZN40-125Z1-HN		Mounting: Basic (trunnion female thread) \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1ZN40-150Z1-HN		Mounting: Basic (trunnion female thread) \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1ZN40-200Z1-HN		Mounting: Basic (trunnion female thread) \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1ZN40-250Z1-HN		Mounting: Basic (trunnion female thread) \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1ZN40-300Z1-HN		Mounting: Basic (trunnion female thread) \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1ZN40-25Z1-RN		Mounting: Basic (trunnion female thread) \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1ZN40-50Z1-RN		Mounting: Basic (trunnion female thread) \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1ZN40-75Z1-RN		Mounting: Basic (trunnion female thread) \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1ZN40-100Z1-RN		Mounting: Basic (trunnion female thread) \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1ZN40-125Z1-RN		Mounting: Basic (trunnion female thread) \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1ZN40-150Z1-RN		Mounting: Basic (trunnion female thread) \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1ZN40-200Z1-RN		Mounting: Basic (trunnion female thread) \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1ZN40-250Z1-RN		Mounting: Basic (trunnion female thread) \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1ZN40-300Z1-RN		Mounting: Basic (trunnion female thread) \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1ZN40-25Z1-WN		Mounting: Basic (trunnion female thread) \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1ZN40-50Z1-WN		Mounting: Basic (trunnion female thread) \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1ZN40-75Z1-WN		Mounting: Basic (trunnion female thread) \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1ZN40-100Z1-WN		Mounting: Basic (trunnion female thread) \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1ZN40-125Z1-WN		Mounting: Basic (trunnion female thread) \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1ZN40-150Z1-WN		Mounting: Basic (trunnion female thread) \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1ZN40-200Z1-WN		Mounting: Basic (trunnion female thread) \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1ZN40-250Z1-WN		Mounting: Basic (trunnion female thread) \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1ZN40-300Z1-WN		Mounting: Basic (trunnion female thread) \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1LN20-25Z1-HN		Mounting: Axial foot \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1LN20-50Z1-HN		Mounting: Axial foot \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1LN20-75Z1-HN		Mounting: Axial foot \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1LN20-100Z1-HN		Mounting: Axial foot \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1LN20-125Z1-HN		Mounting: Axial foot \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1LN20-150Z1-HN		Mounting: Axial foot \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1LN20-200Z1-HN		Mounting: Axial foot \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1LN20-25Z1-RN		Mounting: Axial foot \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1LN20-50Z1-RN		Mounting: Axial foot \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1LN20-75Z1-RN		Mounting: Axial foot \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1LN20-100Z1-RN		Mounting: Axial foot \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1LN20-125Z1-RN		Mounting: Axial foot \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1LN20-150Z1-RN		Mounting: Axial foot \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1LN20-200Z1-RN		Mounting: Axial foot \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1LN20-25Z1-WN		Mounting: Axial foot \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1LN20-50Z1-WN		Mounting: Axial foot \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1LN20-75Z1-WN		Mounting: Axial foot \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1LN20-100Z1-WN		Mounting: Axial foot \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1LN20-125Z1-WN		Mounting: Axial foot \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1LN20-150Z1-WN		Mounting: Axial foot \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1LN20-200Z1-WN		Mounting: Axial foot \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1LN25-25Z1-HN		Mounting: Axial foot \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1LN25-50Z1-HN		Mounting: Axial foot \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1LN25-75Z1-HN		Mounting: Axial foot \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1LN25-100Z1-HN		Mounting: Axial foot \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1LN25-125Z1-HN		Mounting: Axial foot \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1LN25-150Z1-HN		Mounting: Axial foot \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1LN25-200Z1-HN		Mounting: Axial foot \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1LN25-250Z1-HN		Mounting: Axial foot \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1LN25-300Z1-HN		Mounting: Axial foot \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1LN25-25Z1-RN		Mounting: Axial foot \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1LN25-50Z1-RN		Mounting: Axial foot \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1LN25-75Z1-RN		Mounting: Axial foot \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1LN25-100Z1-RN		Mounting: Axial foot \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1LN25-125Z1-RN		Mounting: Axial foot \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1LN25-150Z1-RN		Mounting: Axial foot \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1LN25-200Z1-RN		Mounting: Axial foot \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1LN25-250Z1-RN		Mounting: Axial foot \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1LN25-300Z1-RN		Mounting: Axial foot \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1LN25-25Z1-WN		Mounting: Axial foot \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1LN25-50Z1-WN		Mounting: Axial foot \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1LN25-75Z1-WN		Mounting: Axial foot \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1LN25-100Z1-WN		Mounting: Axial foot \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1LN25-125Z1-WN		Mounting: Axial foot \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1LN25-150Z1-WN		Mounting: Axial foot \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1LN25-200Z1-WN		Mounting: Axial foot \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1LN25-250Z1-WN		Mounting: Axial foot \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1LN25-300Z1-WN		Mounting: Axial foot \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1LN32-25Z1-HN		Mounting: Axial foot \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1LN32-50Z1-HN		Mounting: Axial foot \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1LN32-75Z1-HN		Mounting: Axial foot \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1LN32-100Z1-HN		Mounting: Axial foot \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1LN32-125Z1-HN		Mounting: Axial foot \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1LN32-150Z1-HN		Mounting: Axial foot \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1LN32-200Z1-HN		Mounting: Axial foot \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1LN32-250Z1-HN		Mounting: Axial foot \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1LN32-300Z1-HN		Mounting: Axial foot \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1LN32-25Z1-RN		Mounting: Axial foot \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1LN32-50Z1-RN		Mounting: Axial foot \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1LN32-75Z1-RN		Mounting: Axial foot \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1LN32-100Z1-RN		Mounting: Axial foot \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1LN32-125Z1-RN		Mounting: Axial foot \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1LN32-150Z1-RN		Mounting: Axial foot \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1LN32-200Z1-RN		Mounting: Axial foot \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1LN32-250Z1-RN		Mounting: Axial foot \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1LN32-300Z1-RN		Mounting: Axial foot \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1LN32-25Z1-WN		Mounting: Axial foot \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1LN32-50Z1-WN		Mounting: Axial foot \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1LN32-75Z1-WN		Mounting: Axial foot \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1LN32-100Z1-WN		Mounting: Axial foot \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1LN32-125Z1-WN		Mounting: Axial foot \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1LN32-150Z1-WN		Mounting: Axial foot \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1LN32-200Z1-WN		Mounting: Axial foot \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1LN32-250Z1-WN		Mounting: Axial foot \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1LN32-300Z1-WN		Mounting: Axial foot \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1LN40-25Z1-HN		Mounting: Axial foot \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1LN40-50Z1-HN		Mounting: Axial foot \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1LN40-75Z1-HN		Mounting: Axial foot \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1LN40-100Z1-HN		Mounting: Axial foot \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1LN40-125Z1-HN		Mounting: Axial foot \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1LN40-150Z1-HN		Mounting: Axial foot \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1LN40-200Z1-HN		Mounting: Axial foot \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1LN40-250Z1-HN		Mounting: Axial foot \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1LN40-300Z1-HN		Mounting: Axial foot \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1LN40-25Z1-RN		Mounting: Axial foot \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1LN40-50Z1-RN		Mounting: Axial foot \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1LN40-75Z1-RN		Mounting: Axial foot \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1LN40-100Z1-RN		Mounting: Axial foot \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1LN40-125Z1-RN		Mounting: Axial foot \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1LN40-150Z1-RN		Mounting: Axial foot \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1LN40-200Z1-RN		Mounting: Axial foot \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1LN40-250Z1-RN		Mounting: Axial foot \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1LN40-300Z1-RN		Mounting: Axial foot \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1LN40-25Z1-WN		Mounting: Axial foot \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1LN40-50Z1-WN		Mounting: Axial foot \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1LN40-75Z1-WN		Mounting: Axial foot \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1LN40-100Z1-WN		Mounting: Axial foot \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1LN40-125Z1-WN		Mounting: Axial foot \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1LN40-150Z1-WN		Mounting: Axial foot \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1LN40-200Z1-WN		Mounting: Axial foot \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1LN40-250Z1-WN		Mounting: Axial foot \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1LN40-300Z1-WN		Mounting: Axial foot \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1FN20-25Z1-HN		Mounting: Rod flange \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1FN20-50Z1-HN		Mounting: Rod flange \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1FN20-75Z1-HN		Mounting: Rod flange \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1FN20-100Z1-HN		Mounting: Rod flange \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1FN20-125Z1-HN		Mounting: Rod flange \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1FN20-150Z1-HN		Mounting: Rod flange \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1FN20-200Z1-HN		Mounting: Rod flange \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1FN20-25Z1-RN		Mounting: Rod flange \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1FN20-50Z1-RN		Mounting: Rod flange \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1FN20-75Z1-RN		Mounting: Rod flange \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1FN20-100Z1-RN		Mounting: Rod flange \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1FN20-125Z1-RN		Mounting: Rod flange \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1FN20-150Z1-RN		Mounting: Rod flange \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1FN20-200Z1-RN		Mounting: Rod flange \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1FN20-25Z1-WN		Mounting: Rod flange \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1FN20-50Z1-WN		Mounting: Rod flange \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1FN20-75Z1-WN		Mounting: Rod flange \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1FN20-100Z1-WN		Mounting: Rod flange \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1FN20-125Z1-WN		Mounting: Rod flange \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1FN20-150Z1-WN		Mounting: Rod flange \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1FN20-200Z1-WN		Mounting: Rod flange \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1FN25-25Z1-HN		Mounting: Rod flange \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1FN25-50Z1-HN		Mounting: Rod flange \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1FN25-75Z1-HN		Mounting: Rod flange \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1FN25-100Z1-HN		Mounting: Rod flange \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1FN25-125Z1-HN		Mounting: Rod flange \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1FN25-150Z1-HN		Mounting: Rod flange \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1FN25-200Z1-HN		Mounting: Rod flange \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1FN25-250Z1-HN		Mounting: Rod flange \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1FN25-300Z1-HN		Mounting: Rod flange \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1FN25-25Z1-RN		Mounting: Rod flange \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1FN25-50Z1-RN		Mounting: Rod flange \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1FN25-75Z1-RN		Mounting: Rod flange \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1FN25-100Z1-RN		Mounting: Rod flange \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1FN25-125Z1-RN		Mounting: Rod flange \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1FN25-150Z1-RN		Mounting: Rod flange \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1FN25-200Z1-RN		Mounting: Rod flange \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1FN25-250Z1-RN		Mounting: Rod flange \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1FN25-300Z1-RN		Mounting: Rod flange \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1FN25-25Z1-WN		Mounting: Rod flange \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1FN25-50Z1-WN		Mounting: Rod flange \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1FN25-75Z1-WN		Mounting: Rod flange \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1FN25-100Z1-WN		Mounting: Rod flange \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1FN25-125Z1-WN		Mounting: Rod flange \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1FN25-150Z1-WN		Mounting: Rod flange \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1FN25-200Z1-WN		Mounting: Rod flange \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1FN25-250Z1-WN		Mounting: Rod flange \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1FN25-300Z1-WN		Mounting: Rod flange \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1FN32-25Z1-HN		Mounting: Rod flange \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1FN32-50Z1-HN		Mounting: Rod flange \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1FN32-75Z1-HN		Mounting: Rod flange \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1FN32-100Z1-HN		Mounting: Rod flange \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1FN32-125Z1-HN		Mounting: Rod flange \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1FN32-150Z1-HN		Mounting: Rod flange \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1FN32-200Z1-HN		Mounting: Rod flange \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1FN32-250Z1-HN		Mounting: Rod flange \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1FN32-300Z1-HN		Mounting: Rod flange \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1FN32-25Z1-RN		Mounting: Rod flange \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1FN32-50Z1-RN		Mounting: Rod flange \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1FN32-75Z1-RN		Mounting: Rod flange \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1FN32-100Z1-RN		Mounting: Rod flange \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1FN32-125Z1-RN		Mounting: Rod flange \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1FN32-150Z1-RN		Mounting: Rod flange \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1FN32-200Z1-RN		Mounting: Rod flange \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1FN32-250Z1-RN		Mounting: Rod flange \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1FN32-300Z1-RN		Mounting: Rod flange \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1FN32-25Z1-WN		Mounting: Rod flange \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1FN32-50Z1-WN		Mounting: Rod flange \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1FN32-75Z1-WN		Mounting: Rod flange \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1FN32-100Z1-WN		Mounting: Rod flange \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1FN32-125Z1-WN		Mounting: Rod flange \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1FN32-150Z1-WN		Mounting: Rod flange \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1FN32-200Z1-WN		Mounting: Rod flange \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1FN32-250Z1-WN		Mounting: Rod flange \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1FN32-300Z1-WN		Mounting: Rod flange \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1FN40-25Z1-HN		Mounting: Rod flange \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1FN40-50Z1-HN		Mounting: Rod flange \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1FN40-75Z1-HN		Mounting: Rod flange \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1FN40-100Z1-HN		Mounting: Rod flange \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1FN40-125Z1-HN		Mounting: Rod flange \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1FN40-150Z1-HN		Mounting: Rod flange \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1FN40-200Z1-HN		Mounting: Rod flange \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1FN40-250Z1-HN		Mounting: Rod flange \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1FN40-300Z1-HN		Mounting: Rod flange \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1FN40-25Z1-RN		Mounting: Rod flange \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1FN40-50Z1-RN		Mounting: Rod flange \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1FN40-75Z1-RN		Mounting: Rod flange \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1FN40-100Z1-RN		Mounting: Rod flange \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1FN40-125Z1-RN		Mounting: Rod flange \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1FN40-150Z1-RN		Mounting: Rod flange \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1FN40-200Z1-RN		Mounting: Rod flange \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1FN40-250Z1-RN		Mounting: Rod flange \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1FN40-300Z1-RN		Mounting: Rod flange \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1FN40-25Z1-WN		Mounting: Rod flange \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1FN40-50Z1-WN		Mounting: Rod flange \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1FN40-75Z1-WN		Mounting: Rod flange \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1FN40-100Z1-WN		Mounting: Rod flange \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1FN40-125Z1-WN		Mounting: Rod flange \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1FN40-150Z1-WN		Mounting: Rod flange \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1FN40-200Z1-WN		Mounting: Rod flange \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1FN40-250Z1-WN		Mounting: Rod flange \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1FN40-300Z1-WN		Mounting: Rod flange \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1GN20-25Z1-HN		Mounting: Head flange \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1GN20-50Z1-HN		Mounting: Head flange \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1GN20-75Z1-HN		Mounting: Head flange \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1GN20-100Z1-HN		Mounting: Head flange \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1GN20-125Z1-HN		Mounting: Head flange \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1GN20-150Z1-HN		Mounting: Head flange \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1GN20-200Z1-HN		Mounting: Head flange \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1GN20-25Z1-RN		Mounting: Head flange \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1GN20-50Z1-RN		Mounting: Head flange \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1GN20-75Z1-RN		Mounting: Head flange \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1GN20-100Z1-RN		Mounting: Head flange \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1GN20-125Z1-RN		Mounting: Head flange \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1GN20-150Z1-RN		Mounting: Head flange \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1GN20-200Z1-RN		Mounting: Head flange \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1GN20-25Z1-WN		Mounting: Head flange \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1GN20-50Z1-WN		Mounting: Head flange \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1GN20-75Z1-WN		Mounting: Head flange \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1GN20-100Z1-WN		Mounting: Head flange \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1GN20-125Z1-WN		Mounting: Head flange \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1GN20-150Z1-WN		Mounting: Head flange \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1GN20-200Z1-WN		Mounting: Head flange \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1GN25-25Z1-HN		Mounting: Head flange \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1GN25-50Z1-HN		Mounting: Head flange \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1GN25-75Z1-HN		Mounting: Head flange \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1GN25-100Z1-HN		Mounting: Head flange \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1GN25-125Z1-HN		Mounting: Head flange \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1GN25-150Z1-HN		Mounting: Head flange \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1GN25-200Z1-HN		Mounting: Head flange \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1GN25-250Z1-HN		Mounting: Head flange \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1GN25-300Z1-HN		Mounting: Head flange \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1GN25-25Z1-RN		Mounting: Head flange \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1GN25-50Z1-RN		Mounting: Head flange \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1GN25-75Z1-RN		Mounting: Head flange \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1GN25-100Z1-RN		Mounting: Head flange \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1GN25-125Z1-RN		Mounting: Head flange \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1GN25-150Z1-RN		Mounting: Head flange \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1GN25-200Z1-RN		Mounting: Head flange \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1GN25-250Z1-RN		Mounting: Head flange \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1GN25-300Z1-RN		Mounting: Head flange \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1GN25-25Z1-WN		Mounting: Head flange \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1GN25-50Z1-WN		Mounting: Head flange \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1GN25-75Z1-WN		Mounting: Head flange \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1GN25-100Z1-WN		Mounting: Head flange \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1GN25-125Z1-WN		Mounting: Head flange \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1GN25-150Z1-WN		Mounting: Head flange \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1GN25-200Z1-WN		Mounting: Head flange \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1GN25-250Z1-WN		Mounting: Head flange \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1GN25-300Z1-WN		Mounting: Head flange \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1GN32-25Z1-HN		Mounting: Head flange \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1GN32-50Z1-HN		Mounting: Head flange \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1GN32-75Z1-HN		Mounting: Head flange \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1GN32-100Z1-HN		Mounting: Head flange \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1GN32-125Z1-HN		Mounting: Head flange \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1GN32-150Z1-HN		Mounting: Head flange \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1GN32-200Z1-HN		Mounting: Head flange \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1GN32-250Z1-HN		Mounting: Head flange \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1GN32-300Z1-HN		Mounting: Head flange \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1GN32-25Z1-RN		Mounting: Head flange \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1GN32-50Z1-RN		Mounting: Head flange \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1GN32-75Z1-RN		Mounting: Head flange \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1GN32-100Z1-RN		Mounting: Head flange \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1GN32-125Z1-RN		Mounting: Head flange \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1GN32-150Z1-RN		Mounting: Head flange \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1GN32-200Z1-RN		Mounting: Head flange \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1GN32-250Z1-RN		Mounting: Head flange \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1GN32-300Z1-RN		Mounting: Head flange \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1GN32-25Z1-WN		Mounting: Head flange \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1GN32-50Z1-WN		Mounting: Head flange \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1GN32-75Z1-WN		Mounting: Head flange \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1GN32-100Z1-WN		Mounting: Head flange \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1GN32-125Z1-WN		Mounting: Head flange \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1GN32-150Z1-WN		Mounting: Head flange \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1GN32-200Z1-WN		Mounting: Head flange \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1GN32-250Z1-WN		Mounting: Head flange \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1GN32-300Z1-WN		Mounting: Head flange \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1GN40-25Z1-HN		Mounting: Head flange \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1GN40-50Z1-HN		Mounting: Head flange \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1GN40-75Z1-HN		Mounting: Head flange \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1GN40-100Z1-HN		Mounting: Head flange \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1GN40-125Z1-HN		Mounting: Head flange \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1GN40-150Z1-HN		Mounting: Head flange \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1GN40-200Z1-HN		Mounting: Head flange \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1GN40-250Z1-HN		Mounting: Head flange \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1GN40-300Z1-HN		Mounting: Head flange \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1GN40-25Z1-RN		Mounting: Head flange \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1GN40-50Z1-RN		Mounting: Head flange \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1GN40-75Z1-RN		Mounting: Head flange \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1GN40-100Z1-RN		Mounting: Head flange \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1GN40-125Z1-RN		Mounting: Head flange \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1GN40-150Z1-RN		Mounting: Head flange \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1GN40-200Z1-RN		Mounting: Head flange \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1GN40-250Z1-RN		Mounting: Head flange \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1GN40-300Z1-RN		Mounting: Head flange \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1GN40-25Z1-WN		Mounting: Head flange \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1GN40-50Z1-WN		Mounting: Head flange \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1GN40-75Z1-WN		Mounting: Head flange \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1GN40-100Z1-WN		Mounting: Head flange \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1GN40-125Z1-WN		Mounting: Head flange \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1GN40-150Z1-WN		Mounting: Head flange \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1GN40-200Z1-WN		Mounting: Head flange \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1GN40-250Z1-WN		Mounting: Head flange \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1GN40-300Z1-WN		Mounting: Head flange \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1UN20-25Z1-HN		Mounting: Rod trunnion \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1UN20-50Z1-HN		Mounting: Rod trunnion \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1UN20-75Z1-HN		Mounting: Rod trunnion \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1UN20-100Z1-HN		Mounting: Rod trunnion \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1UN20-125Z1-HN		Mounting: Rod trunnion \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1UN20-150Z1-HN		Mounting: Rod trunnion \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1UN20-200Z1-HN		Mounting: Rod trunnion \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1UN25-25Z1-HN		Mounting: Rod trunnion \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1UN25-50Z1-HN		Mounting: Rod trunnion \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1UN25-75Z1-HN		Mounting: Rod trunnion \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1UN25-100Z1-HN		Mounting: Rod trunnion \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1UN25-125Z1-HN		Mounting: Rod trunnion \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1UN25-150Z1-HN		Mounting: Rod trunnion \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1UN25-200Z1-HN		Mounting: Rod trunnion \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1UN25-250Z1-HN		Mounting: Rod trunnion \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1UN25-300Z1-HN		Mounting: Rod trunnion \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1UN32-25Z1-HN		Mounting: Rod trunnion \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1UN32-50Z1-HN		Mounting: Rod trunnion \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1UN32-75Z1-HN		Mounting: Rod trunnion \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1UN32-100Z1-HN		Mounting: Rod trunnion \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1UN32-125Z1-HN		Mounting: Rod trunnion \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1UN32-150Z1-HN		Mounting: Rod trunnion \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1UN32-200Z1-HN		Mounting: Rod trunnion \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1UN32-250Z1-HN		Mounting: Rod trunnion \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1UN32-300Z1-HN		Mounting: Rod trunnion \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1UN40-25Z1-HN		Mounting: Rod trunnion \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1UN40-50Z1-HN		Mounting: Rod trunnion \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1UN40-75Z1-HN		Mounting: Rod trunnion \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1UN40-100Z1-HN		Mounting: Rod trunnion \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1UN40-125Z1-HN		Mounting: Rod trunnion \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1UN40-150Z1-HN		Mounting: Rod trunnion \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1UN40-200Z1-HN		Mounting: Rod trunnion \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1UN40-250Z1-HN		Mounting: Rod trunnion \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1UN40-300Z1-HN		Mounting: Rod trunnion \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1TN20-25Z1-RN		Mounting: Head trunnion \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1TN20-50Z1-RN		Mounting: Head trunnion \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1TN20-75Z1-RN		Mounting: Head trunnion \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1TN20-100Z1-RN		Mounting: Head trunnion \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1TN20-125Z1-RN		Mounting: Head trunnion \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1TN20-150Z1-RN		Mounting: Head trunnion \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1TN20-200Z1-RN		Mounting: Head trunnion \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1TN25-25Z1-RN		Mounting: Head trunnion \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1TN25-50Z1-RN		Mounting: Head trunnion \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1TN25-75Z1-RN		Mounting: Head trunnion \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1TN25-100Z1-RN		Mounting: Head trunnion \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1TN25-125Z1-RN		Mounting: Head trunnion \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1TN25-150Z1-RN		Mounting: Head trunnion \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1TN25-200Z1-RN		Mounting: Head trunnion \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1TN25-250Z1-RN		Mounting: Head trunnion \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1TN25-300Z1-RN		Mounting: Head trunnion \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1TN32-25Z1-RN		Mounting: Head trunnion \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1TN32-50Z1-RN		Mounting: Head trunnion \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1TN32-75Z1-RN		Mounting: Head trunnion \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1TN32-100Z1-RN		Mounting: Head trunnion \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1TN32-125Z1-RN		Mounting: Head trunnion \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1TN32-150Z1-RN		Mounting: Head trunnion \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1TN32-200Z1-RN		Mounting: Head trunnion \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1TN32-250Z1-RN		Mounting: Head trunnion \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1TN32-300Z1-RN		Mounting: Head trunnion \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1TN40-25Z1-RN		Mounting: Head trunnion \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1TN40-50Z1-RN		Mounting: Head trunnion \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1TN40-75Z1-RN		Mounting: Head trunnion \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1TN40-100Z1-RN		Mounting: Head trunnion \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1TN40-125Z1-RN		Mounting: Head trunnion \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1TN40-150Z1-RN		Mounting: Head trunnion \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1TN40-200Z1-RN		Mounting: Head trunnion \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1TN40-250Z1-RN		Mounting: Head trunnion \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1TN40-300Z1-RN		Mounting: Head trunnion \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1DN20-25Z1-HN		Mounting: Clevis \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1DN20-50Z1-HN		Mounting: Clevis \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1DN20-75Z1-HN		Mounting: Clevis \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1DN20-100Z1-HN		Mounting: Clevis \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1DN20-125Z1-HN		Mounting: Clevis \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1DN20-150Z1-HN		Mounting: Clevis \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1DN20-200Z1-HN		Mounting: Clevis \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1DN20-25Z1-RN		Mounting: Clevis \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1DN20-50Z1-RN		Mounting: Clevis \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1DN20-75Z1-RN		Mounting: Clevis \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1DN20-100Z1-RN		Mounting: Clevis \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1DN20-125Z1-RN		Mounting: Clevis \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1DN20-150Z1-RN		Mounting: Clevis \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1DN20-200Z1-RN		Mounting: Clevis \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1DN20-25Z1-WN		Mounting: Clevis \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1DN20-50Z1-WN		Mounting: Clevis \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1DN20-75Z1-WN		Mounting: Clevis \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1DN20-100Z1-WN		Mounting: Clevis \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1DN20-125Z1-WN		Mounting: Clevis \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1DN20-150Z1-WN		Mounting: Clevis \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1DN20-200Z1-WN		Mounting: Clevis \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1DN25-25Z1-HN		Mounting: Clevis \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1DN25-50Z1-HN		Mounting: Clevis \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1DN25-75Z1-HN		Mounting: Clevis \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1DN25-100Z1-HN		Mounting: Clevis \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1DN25-125Z1-HN		Mounting: Clevis \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1DN25-150Z1-HN		Mounting: Clevis \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1DN25-200Z1-HN		Mounting: Clevis \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1DN25-250Z1-HN		Mounting: Clevis \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1DN25-300Z1-HN		Mounting: Clevis \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1DN25-25Z1-RN		Mounting: Clevis \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1DN25-50Z1-RN		Mounting: Clevis \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1DN25-75Z1-RN		Mounting: Clevis \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1DN25-100Z1-RN		Mounting: Clevis \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1DN25-125Z1-RN		Mounting: Clevis \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1DN25-150Z1-RN		Mounting: Clevis \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1DN25-200Z1-RN		Mounting: Clevis \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1DN25-250Z1-RN		Mounting: Clevis \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1DN25-300Z1-RN		Mounting: Clevis \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1DN25-25Z1-WN		Mounting: Clevis \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1DN25-50Z1-WN		Mounting: Clevis \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1DN25-75Z1-WN		Mounting: Clevis \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1DN25-100Z1-WN		Mounting: Clevis \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1DN25-125Z1-WN		Mounting: Clevis \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1DN25-150Z1-WN		Mounting: Clevis \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1DN25-200Z1-WN		Mounting: Clevis \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1DN25-250Z1-WN		Mounting: Clevis \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1DN25-300Z1-WN		Mounting: Clevis \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1DN32-25Z1-HN		Mounting: Clevis \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1DN32-50Z1-HN		Mounting: Clevis \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1DN32-75Z1-HN		Mounting: Clevis \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1DN32-100Z1-HN		Mounting: Clevis \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1DN32-125Z1-HN		Mounting: Clevis \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1DN32-150Z1-HN		Mounting: Clevis \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1DN32-200Z1-HN		Mounting: Clevis \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1DN32-250Z1-HN		Mounting: Clevis \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1DN32-300Z1-HN		Mounting: Clevis \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1DN32-25Z1-RN		Mounting: Clevis \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1DN32-50Z1-RN		Mounting: Clevis \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1DN32-75Z1-RN		Mounting: Clevis \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1DN32-100Z1-RN		Mounting: Clevis \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1DN32-125Z1-RN		Mounting: Clevis \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1DN32-150Z1-RN		Mounting: Clevis \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1DN32-200Z1-RN		Mounting: Clevis \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1DN32-250Z1-RN		Mounting: Clevis \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1DN32-300Z1-RN		Mounting: Clevis \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1DN32-25Z1-WN		Mounting: Clevis \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1DN32-50Z1-WN		Mounting: Clevis \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1DN32-75Z1-WN		Mounting: Clevis \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1DN32-100Z1-WN		Mounting: Clevis \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1DN32-125Z1-WN		Mounting: Clevis \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1DN32-150Z1-WN		Mounting: Clevis \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1DN32-200Z1-WN		Mounting: Clevis \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1DN32-250Z1-WN		Mounting: Clevis \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1DN32-300Z1-WN		Mounting: Clevis \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1DN40-25Z1-HN		Mounting: Clevis \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1DN40-50Z1-HN		Mounting: Clevis \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1DN40-75Z1-HN		Mounting: Clevis \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1DN40-100Z1-HN		Mounting: Clevis \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1DN40-125Z1-HN		Mounting: Clevis \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1DN40-150Z1-HN		Mounting: Clevis \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1DN40-200Z1-HN		Mounting: Clevis \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1DN40-250Z1-HN		Mounting: Clevis \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1DN40-300Z1-HN		Mounting: Clevis \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1DN40-25Z1-RN		Mounting: Clevis \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1DN40-50Z1-RN		Mounting: Clevis \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1DN40-75Z1-RN		Mounting: Clevis \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1DN40-100Z1-RN		Mounting: Clevis \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1DN40-125Z1-RN		Mounting: Clevis \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1DN40-150Z1-RN		Mounting: Clevis \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1DN40-200Z1-RN		Mounting: Clevis \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1DN40-250Z1-RN		Mounting: Clevis \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1DN40-300Z1-RN		Mounting: Clevis \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1DN40-25Z1-WN		Mounting: Clevis \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1DN40-50Z1-WN		Mounting: Clevis \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1DN40-75Z1-WN		Mounting: Clevis \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1DN40-100Z1-WN		Mounting: Clevis \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1DN40-125Z1-WN		Mounting: Clevis \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1DN40-150Z1-WN		Mounting: Clevis \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1DN40-200Z1-WN		Mounting: Clevis \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1DN40-250Z1-WN		Mounting: Clevis \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1DN40-300Z1-WN		Mounting: Clevis \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: No
CDBG1BN20-25Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1BN20-50Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1BN20-75Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1BN20-100Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1BN20-125Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1BN20-150Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1BN20-200Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1BN20-25Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1BN20-50Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1BN20-75Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1BN20-100Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1BN20-125Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1BN20-150Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1BN20-200Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1BN20-25Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1BN20-50Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1BN20-75Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1BN20-100Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1BN20-125Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1BN20-150Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1BN20-200Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1BN25-25Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1BN25-50Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1BN25-75Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1BN25-100Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1BN25-125Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1BN25-150Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1BN25-200Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1BN25-250Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1BN25-300Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1BN25-25Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1BN25-50Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1BN25-75Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1BN25-100Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1BN25-125Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1BN25-150Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1BN25-200Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1BN25-250Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1BN25-300Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1BN25-25Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1BN25-50Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1BN25-75Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1BN25-100Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1BN25-125Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1BN25-150Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1BN25-200Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1BN25-250Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1BN25-300Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1BN32-25Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1BN32-50Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1BN32-75Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1BN32-100Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1BN32-125Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1BN32-150Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1BN32-200Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1BN32-250Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1BN32-300Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1BN32-25Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1BN32-50Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1BN32-75Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1BN32-100Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1BN32-125Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1BN32-150Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1BN32-200Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1BN32-250Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1BN32-300Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1BN32-25Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1BN32-50Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1BN32-75Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1BN32-100Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1BN32-125Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1BN32-150Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1BN32-200Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1BN32-250Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1BN32-300Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1BN40-25Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1BN40-50Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1BN40-75Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1BN40-100Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1BN40-125Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1BN40-150Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1BN40-200Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1BN40-250Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1BN40-300Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1BN40-25Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1BN40-50Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1BN40-75Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1BN40-100Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1BN40-125Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1BN40-150Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1BN40-200Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1BN40-250Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1BN40-300Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1BN40-25Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1BN40-50Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1BN40-75Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1BN40-100Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1BN40-125Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1BN40-150Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1BN40-200Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1BN40-250Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1BN40-300Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1ZN20-25Z1-HN		Mounting: Basic (trunnion female thread) \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1ZN20-50Z1-HN		Mounting: Basic (trunnion female thread) \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1ZN20-75Z1-HN		Mounting: Basic (trunnion female thread) \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1ZN20-100Z1-HN		Mounting: Basic (trunnion female thread) \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1ZN20-125Z1-HN		Mounting: Basic (trunnion female thread) \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1ZN20-150Z1-HN		Mounting: Basic (trunnion female thread) \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1ZN20-200Z1-HN		Mounting: Basic (trunnion female thread) \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1ZN20-25Z1-RN		Mounting: Basic (trunnion female thread) \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1ZN20-50Z1-RN		Mounting: Basic (trunnion female thread) \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1ZN20-75Z1-RN		Mounting: Basic (trunnion female thread) \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1ZN20-100Z1-RN		Mounting: Basic (trunnion female thread) \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1ZN20-125Z1-RN		Mounting: Basic (trunnion female thread) \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1ZN20-150Z1-RN		Mounting: Basic (trunnion female thread) \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1ZN20-200Z1-RN		Mounting: Basic (trunnion female thread) \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1ZN20-25Z1-WN		Mounting: Basic (trunnion female thread) \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1ZN20-50Z1-WN		Mounting: Basic (trunnion female thread) \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1ZN20-75Z1-WN		Mounting: Basic (trunnion female thread) \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1ZN20-100Z1-WN		Mounting: Basic (trunnion female thread) \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1ZN20-125Z1-WN		Mounting: Basic (trunnion female thread) \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1ZN20-150Z1-WN		Mounting: Basic (trunnion female thread) \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1ZN20-200Z1-WN		Mounting: Basic (trunnion female thread) \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1ZN25-25Z1-HN		Mounting: Basic (trunnion female thread) \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1ZN25-50Z1-HN		Mounting: Basic (trunnion female thread) \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1ZN25-75Z1-HN		Mounting: Basic (trunnion female thread) \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1ZN25-100Z1-HN		Mounting: Basic (trunnion female thread) \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1ZN25-125Z1-HN		Mounting: Basic (trunnion female thread) \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1ZN25-150Z1-HN		Mounting: Basic (trunnion female thread) \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1ZN25-200Z1-HN		Mounting: Basic (trunnion female thread) \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1ZN25-250Z1-HN		Mounting: Basic (trunnion female thread) \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1ZN25-300Z1-HN		Mounting: Basic (trunnion female thread) \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1ZN25-25Z1-RN		Mounting: Basic (trunnion female thread) \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1ZN25-50Z1-RN		Mounting: Basic (trunnion female thread) \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1ZN25-75Z1-RN		Mounting: Basic (trunnion female thread) \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1ZN25-100Z1-RN		Mounting: Basic (trunnion female thread) \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1ZN25-125Z1-RN		Mounting: Basic (trunnion female thread) \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1ZN25-150Z1-RN		Mounting: Basic (trunnion female thread) \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1ZN25-200Z1-RN		Mounting: Basic (trunnion female thread) \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1ZN25-250Z1-RN		Mounting: Basic (trunnion female thread) \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1ZN25-300Z1-RN		Mounting: Basic (trunnion female thread) \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1ZN25-25Z1-WN		Mounting: Basic (trunnion female thread) \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1ZN25-50Z1-WN		Mounting: Basic (trunnion female thread) \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1ZN25-75Z1-WN		Mounting: Basic (trunnion female thread) \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1ZN25-100Z1-WN		Mounting: Basic (trunnion female thread) \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1ZN25-125Z1-WN		Mounting: Basic (trunnion female thread) \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1ZN25-150Z1-WN		Mounting: Basic (trunnion female thread) \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1ZN25-200Z1-WN		Mounting: Basic (trunnion female thread) \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1ZN25-250Z1-WN		Mounting: Basic (trunnion female thread) \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1ZN25-300Z1-WN		Mounting: Basic (trunnion female thread) \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1ZN32-25Z1-HN		Mounting: Basic (trunnion female thread) \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1ZN32-50Z1-HN		Mounting: Basic (trunnion female thread) \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1ZN32-75Z1-HN		Mounting: Basic (trunnion female thread) \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1ZN32-100Z1-HN		Mounting: Basic (trunnion female thread) \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1ZN32-125Z1-HN		Mounting: Basic (trunnion female thread) \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1ZN32-150Z1-HN		Mounting: Basic (trunnion female thread) \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1ZN32-200Z1-HN		Mounting: Basic (trunnion female thread) \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1ZN32-250Z1-HN		Mounting: Basic (trunnion female thread) \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1ZN32-300Z1-HN		Mounting: Basic (trunnion female thread) \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1ZN32-25Z1-RN		Mounting: Basic (trunnion female thread) \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1ZN32-50Z1-RN		Mounting: Basic (trunnion female thread) \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1ZN32-75Z1-RN		Mounting: Basic (trunnion female thread) \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1ZN32-100Z1-RN		Mounting: Basic (trunnion female thread) \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1ZN32-125Z1-RN		Mounting: Basic (trunnion female thread) \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1ZN32-150Z1-RN		Mounting: Basic (trunnion female thread) \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1ZN32-200Z1-RN		Mounting: Basic (trunnion female thread) \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1ZN32-250Z1-RN		Mounting: Basic (trunnion female thread) \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1ZN32-300Z1-RN		Mounting: Basic (trunnion female thread) \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1ZN32-25Z1-WN		Mounting: Basic (trunnion female thread) \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1ZN32-50Z1-WN		Mounting: Basic (trunnion female thread) \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1ZN32-75Z1-WN		Mounting: Basic (trunnion female thread) \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1ZN32-100Z1-WN		Mounting: Basic (trunnion female thread) \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1ZN32-125Z1-WN		Mounting: Basic (trunnion female thread) \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1ZN32-150Z1-WN		Mounting: Basic (trunnion female thread) \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1ZN32-200Z1-WN		Mounting: Basic (trunnion female thread) \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1ZN32-250Z1-WN		Mounting: Basic (trunnion female thread) \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1ZN32-300Z1-WN		Mounting: Basic (trunnion female thread) \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1ZN40-25Z1-HN		Mounting: Basic (trunnion female thread) \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1ZN40-50Z1-HN		Mounting: Basic (trunnion female thread) \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1ZN40-75Z1-HN		Mounting: Basic (trunnion female thread) \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1ZN40-100Z1-HN		Mounting: Basic (trunnion female thread) \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1ZN40-125Z1-HN		Mounting: Basic (trunnion female thread) \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1ZN40-150Z1-HN		Mounting: Basic (trunnion female thread) \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1ZN40-200Z1-HN		Mounting: Basic (trunnion female thread) \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1ZN40-250Z1-HN		Mounting: Basic (trunnion female thread) \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1ZN40-300Z1-HN		Mounting: Basic (trunnion female thread) \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1ZN40-25Z1-RN		Mounting: Basic (trunnion female thread) \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1ZN40-50Z1-RN		Mounting: Basic (trunnion female thread) \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1ZN40-75Z1-RN		Mounting: Basic (trunnion female thread) \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1ZN40-100Z1-RN		Mounting: Basic (trunnion female thread) \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1ZN40-125Z1-RN		Mounting: Basic (trunnion female thread) \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1ZN40-150Z1-RN		Mounting: Basic (trunnion female thread) \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1ZN40-200Z1-RN		Mounting: Basic (trunnion female thread) \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1ZN40-250Z1-RN		Mounting: Basic (trunnion female thread) \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1ZN40-300Z1-RN		Mounting: Basic (trunnion female thread) \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1ZN40-25Z1-WN		Mounting: Basic (trunnion female thread) \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1ZN40-50Z1-WN		Mounting: Basic (trunnion female thread) \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1ZN40-75Z1-WN		Mounting: Basic (trunnion female thread) \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1ZN40-100Z1-WN		Mounting: Basic (trunnion female thread) \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1ZN40-125Z1-WN		Mounting: Basic (trunnion female thread) \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1ZN40-150Z1-WN		Mounting: Basic (trunnion female thread) \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1ZN40-200Z1-WN		Mounting: Basic (trunnion female thread) \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1ZN40-250Z1-WN		Mounting: Basic (trunnion female thread) \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1ZN40-300Z1-WN		Mounting: Basic (trunnion female thread) \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1LN20-25Z1-HN		Mounting: Axial foot \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1LN20-50Z1-HN		Mounting: Axial foot \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1LN20-75Z1-HN		Mounting: Axial foot \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1LN20-100Z1-HN		Mounting: Axial foot \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1LN20-125Z1-HN		Mounting: Axial foot \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1LN20-150Z1-HN		Mounting: Axial foot \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1LN20-200Z1-HN		Mounting: Axial foot \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1LN20-25Z1-RN		Mounting: Axial foot \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1LN20-50Z1-RN		Mounting: Axial foot \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1LN20-75Z1-RN		Mounting: Axial foot \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1LN20-100Z1-RN		Mounting: Axial foot \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1LN20-125Z1-RN		Mounting: Axial foot \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1LN20-150Z1-RN		Mounting: Axial foot \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1LN20-200Z1-RN		Mounting: Axial foot \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1LN20-25Z1-WN		Mounting: Axial foot \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1LN20-50Z1-WN		Mounting: Axial foot \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1LN20-75Z1-WN		Mounting: Axial foot \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1LN20-100Z1-WN		Mounting: Axial foot \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1LN20-125Z1-WN		Mounting: Axial foot \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1LN20-150Z1-WN		Mounting: Axial foot \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1LN20-200Z1-WN		Mounting: Axial foot \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1LN25-25Z1-HN		Mounting: Axial foot \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1LN25-50Z1-HN		Mounting: Axial foot \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1LN25-75Z1-HN		Mounting: Axial foot \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1LN25-100Z1-HN		Mounting: Axial foot \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1LN25-125Z1-HN		Mounting: Axial foot \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1LN25-150Z1-HN		Mounting: Axial foot \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1LN25-200Z1-HN		Mounting: Axial foot \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1LN25-250Z1-HN		Mounting: Axial foot \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1LN25-300Z1-HN		Mounting: Axial foot \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1LN25-25Z1-RN		Mounting: Axial foot \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1LN25-50Z1-RN		Mounting: Axial foot \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1LN25-75Z1-RN		Mounting: Axial foot \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1LN25-100Z1-RN		Mounting: Axial foot \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1LN25-125Z1-RN		Mounting: Axial foot \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1LN25-150Z1-RN		Mounting: Axial foot \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1LN25-200Z1-RN		Mounting: Axial foot \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1LN25-250Z1-RN		Mounting: Axial foot \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1LN25-300Z1-RN		Mounting: Axial foot \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1LN25-25Z1-WN		Mounting: Axial foot \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1LN25-50Z1-WN		Mounting: Axial foot \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1LN25-75Z1-WN		Mounting: Axial foot \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1LN25-100Z1-WN		Mounting: Axial foot \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1LN25-125Z1-WN		Mounting: Axial foot \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1LN25-150Z1-WN		Mounting: Axial foot \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1LN25-200Z1-WN		Mounting: Axial foot \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1LN25-250Z1-WN		Mounting: Axial foot \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1LN25-300Z1-WN		Mounting: Axial foot \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1LN32-25Z1-HN		Mounting: Axial foot \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1LN32-50Z1-HN		Mounting: Axial foot \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1LN32-75Z1-HN		Mounting: Axial foot \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1LN32-100Z1-HN		Mounting: Axial foot \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1LN32-125Z1-HN		Mounting: Axial foot \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1LN32-150Z1-HN		Mounting: Axial foot \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1LN32-200Z1-HN		Mounting: Axial foot \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1LN32-250Z1-HN		Mounting: Axial foot \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1LN32-300Z1-HN		Mounting: Axial foot \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1LN32-25Z1-RN		Mounting: Axial foot \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1LN32-50Z1-RN		Mounting: Axial foot \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1LN32-75Z1-RN		Mounting: Axial foot \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1LN32-100Z1-RN		Mounting: Axial foot \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1LN32-125Z1-RN		Mounting: Axial foot \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1LN32-150Z1-RN		Mounting: Axial foot \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1LN32-200Z1-RN		Mounting: Axial foot \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1LN32-250Z1-RN		Mounting: Axial foot \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1LN32-300Z1-RN		Mounting: Axial foot \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1LN32-25Z1-WN		Mounting: Axial foot \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1LN32-50Z1-WN		Mounting: Axial foot \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1LN32-75Z1-WN		Mounting: Axial foot \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1LN32-100Z1-WN		Mounting: Axial foot \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1LN32-125Z1-WN		Mounting: Axial foot \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1LN32-150Z1-WN		Mounting: Axial foot \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1LN32-200Z1-WN		Mounting: Axial foot \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1LN32-250Z1-WN		Mounting: Axial foot \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1LN32-300Z1-WN		Mounting: Axial foot \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1LN40-25Z1-HN		Mounting: Axial foot \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1LN40-50Z1-HN		Mounting: Axial foot \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1LN40-75Z1-HN		Mounting: Axial foot \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1LN40-100Z1-HN		Mounting: Axial foot \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1LN40-125Z1-HN		Mounting: Axial foot \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1LN40-150Z1-HN		Mounting: Axial foot \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1LN40-200Z1-HN		Mounting: Axial foot \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1LN40-250Z1-HN		Mounting: Axial foot \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1LN40-300Z1-HN		Mounting: Axial foot \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1LN40-25Z1-RN		Mounting: Axial foot \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1LN40-50Z1-RN		Mounting: Axial foot \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1LN40-75Z1-RN		Mounting: Axial foot \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1LN40-100Z1-RN		Mounting: Axial foot \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1LN40-125Z1-RN		Mounting: Axial foot \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1LN40-150Z1-RN		Mounting: Axial foot \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1LN40-200Z1-RN		Mounting: Axial foot \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1LN40-250Z1-RN		Mounting: Axial foot \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1LN40-300Z1-RN		Mounting: Axial foot \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1LN40-25Z1-WN		Mounting: Axial foot \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1LN40-50Z1-WN		Mounting: Axial foot \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1LN40-75Z1-WN		Mounting: Axial foot \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1LN40-100Z1-WN		Mounting: Axial foot \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1LN40-125Z1-WN		Mounting: Axial foot \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1LN40-150Z1-WN		Mounting: Axial foot \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1LN40-200Z1-WN		Mounting: Axial foot \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1LN40-250Z1-WN		Mounting: Axial foot \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1LN40-300Z1-WN		Mounting: Axial foot \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1FN20-25Z1-HN		Mounting: Rod flange \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1FN20-50Z1-HN		Mounting: Rod flange \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1FN20-75Z1-HN		Mounting: Rod flange \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1FN20-100Z1-HN		Mounting: Rod flange \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1FN20-125Z1-HN		Mounting: Rod flange \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1FN20-150Z1-HN		Mounting: Rod flange \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1FN20-200Z1-HN		Mounting: Rod flange \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1FN20-25Z1-RN		Mounting: Rod flange \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1FN20-50Z1-RN		Mounting: Rod flange \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1FN20-75Z1-RN		Mounting: Rod flange \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1FN20-100Z1-RN		Mounting: Rod flange \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1FN20-125Z1-RN		Mounting: Rod flange \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1FN20-150Z1-RN		Mounting: Rod flange \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1FN20-200Z1-RN		Mounting: Rod flange \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1FN20-25Z1-WN		Mounting: Rod flange \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1FN20-50Z1-WN		Mounting: Rod flange \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1FN20-75Z1-WN		Mounting: Rod flange \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1FN20-100Z1-WN		Mounting: Rod flange \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1FN20-125Z1-WN		Mounting: Rod flange \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1FN20-150Z1-WN		Mounting: Rod flange \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1FN20-200Z1-WN		Mounting: Rod flange \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1FN25-25Z1-HN		Mounting: Rod flange \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1FN25-50Z1-HN		Mounting: Rod flange \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1FN25-75Z1-HN		Mounting: Rod flange \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1FN25-100Z1-HN		Mounting: Rod flange \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1FN25-125Z1-HN		Mounting: Rod flange \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1FN25-150Z1-HN		Mounting: Rod flange \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1FN25-200Z1-HN		Mounting: Rod flange \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1FN25-250Z1-HN		Mounting: Rod flange \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1FN25-300Z1-HN		Mounting: Rod flange \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1FN25-25Z1-RN		Mounting: Rod flange \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1FN25-50Z1-RN		Mounting: Rod flange \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1FN25-75Z1-RN		Mounting: Rod flange \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1FN25-100Z1-RN		Mounting: Rod flange \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1FN25-125Z1-RN		Mounting: Rod flange \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1FN25-150Z1-RN		Mounting: Rod flange \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1FN25-200Z1-RN		Mounting: Rod flange \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1FN25-250Z1-RN		Mounting: Rod flange \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1FN25-300Z1-RN		Mounting: Rod flange \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1FN25-25Z1-WN		Mounting: Rod flange \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1FN25-50Z1-WN		Mounting: Rod flange \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1FN25-75Z1-WN		Mounting: Rod flange \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1FN25-100Z1-WN		Mounting: Rod flange \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1FN25-125Z1-WN		Mounting: Rod flange \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1FN25-150Z1-WN		Mounting: Rod flange \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1FN25-200Z1-WN		Mounting: Rod flange \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1FN25-250Z1-WN		Mounting: Rod flange \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1FN25-300Z1-WN		Mounting: Rod flange \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1FN32-25Z1-HN		Mounting: Rod flange \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1FN32-50Z1-HN		Mounting: Rod flange \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1FN32-75Z1-HN		Mounting: Rod flange \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1FN32-100Z1-HN		Mounting: Rod flange \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1FN32-125Z1-HN		Mounting: Rod flange \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1FN32-150Z1-HN		Mounting: Rod flange \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1FN32-200Z1-HN		Mounting: Rod flange \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1FN32-250Z1-HN		Mounting: Rod flange \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1FN32-300Z1-HN		Mounting: Rod flange \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1FN32-25Z1-RN		Mounting: Rod flange \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1FN32-50Z1-RN		Mounting: Rod flange \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1FN32-75Z1-RN		Mounting: Rod flange \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1FN32-100Z1-RN		Mounting: Rod flange \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1FN32-125Z1-RN		Mounting: Rod flange \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1FN32-150Z1-RN		Mounting: Rod flange \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1FN32-200Z1-RN		Mounting: Rod flange \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1FN32-250Z1-RN		Mounting: Rod flange \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1FN32-300Z1-RN		Mounting: Rod flange \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1FN32-25Z1-WN		Mounting: Rod flange \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1FN32-50Z1-WN		Mounting: Rod flange \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1FN32-75Z1-WN		Mounting: Rod flange \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1FN32-100Z1-WN		Mounting: Rod flange \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1FN32-125Z1-WN		Mounting: Rod flange \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1FN32-150Z1-WN		Mounting: Rod flange \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1FN32-200Z1-WN		Mounting: Rod flange \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1FN32-250Z1-WN		Mounting: Rod flange \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1FN32-300Z1-WN		Mounting: Rod flange \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1FN40-25Z1-HN		Mounting: Rod flange \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1FN40-50Z1-HN		Mounting: Rod flange \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1FN40-75Z1-HN		Mounting: Rod flange \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1FN40-100Z1-HN		Mounting: Rod flange \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1FN40-125Z1-HN		Mounting: Rod flange \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1FN40-150Z1-HN		Mounting: Rod flange \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1FN40-200Z1-HN		Mounting: Rod flange \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1FN40-250Z1-HN		Mounting: Rod flange \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1FN40-300Z1-HN		Mounting: Rod flange \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1FN40-25Z1-RN		Mounting: Rod flange \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1FN40-50Z1-RN		Mounting: Rod flange \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1FN40-75Z1-RN		Mounting: Rod flange \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1FN40-100Z1-RN		Mounting: Rod flange \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1FN40-125Z1-RN		Mounting: Rod flange \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1FN40-150Z1-RN		Mounting: Rod flange \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1FN40-200Z1-RN		Mounting: Rod flange \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1FN40-250Z1-RN		Mounting: Rod flange \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1FN40-300Z1-RN		Mounting: Rod flange \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1FN40-25Z1-WN		Mounting: Rod flange \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1FN40-50Z1-WN		Mounting: Rod flange \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1FN40-75Z1-WN		Mounting: Rod flange \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1FN40-100Z1-WN		Mounting: Rod flange \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1FN40-125Z1-WN		Mounting: Rod flange \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1FN40-150Z1-WN		Mounting: Rod flange \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1FN40-200Z1-WN		Mounting: Rod flange \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1FN40-250Z1-WN		Mounting: Rod flange \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1FN40-300Z1-WN		Mounting: Rod flange \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1GN20-25Z1-HN		Mounting: Head flange \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1GN20-50Z1-HN		Mounting: Head flange \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1GN20-75Z1-HN		Mounting: Head flange \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1GN20-100Z1-HN		Mounting: Head flange \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1GN20-125Z1-HN		Mounting: Head flange \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1GN20-150Z1-HN		Mounting: Head flange \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1GN20-200Z1-HN		Mounting: Head flange \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1GN20-25Z1-RN		Mounting: Head flange \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1GN20-50Z1-RN		Mounting: Head flange \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1GN20-75Z1-RN		Mounting: Head flange \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1GN20-100Z1-RN		Mounting: Head flange \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1GN20-125Z1-RN		Mounting: Head flange \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1GN20-150Z1-RN		Mounting: Head flange \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1GN20-200Z1-RN		Mounting: Head flange \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1GN20-25Z1-WN		Mounting: Head flange \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1GN20-50Z1-WN		Mounting: Head flange \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1GN20-75Z1-WN		Mounting: Head flange \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1GN20-100Z1-WN		Mounting: Head flange \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1GN20-125Z1-WN		Mounting: Head flange \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1GN20-150Z1-WN		Mounting: Head flange \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1GN20-200Z1-WN		Mounting: Head flange \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1GN25-25Z1-HN		Mounting: Head flange \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1GN25-50Z1-HN		Mounting: Head flange \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1GN25-75Z1-HN		Mounting: Head flange \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1GN25-100Z1-HN		Mounting: Head flange \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1GN25-125Z1-HN		Mounting: Head flange \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1GN25-150Z1-HN		Mounting: Head flange \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1GN25-200Z1-HN		Mounting: Head flange \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1GN25-250Z1-HN		Mounting: Head flange \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1GN25-300Z1-HN		Mounting: Head flange \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1GN25-25Z1-RN		Mounting: Head flange \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1GN25-50Z1-RN		Mounting: Head flange \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1GN25-75Z1-RN		Mounting: Head flange \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1GN25-100Z1-RN		Mounting: Head flange \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1GN25-125Z1-RN		Mounting: Head flange \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1GN25-150Z1-RN		Mounting: Head flange \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1GN25-200Z1-RN		Mounting: Head flange \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1GN25-250Z1-RN		Mounting: Head flange \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1GN25-300Z1-RN		Mounting: Head flange \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1GN25-25Z1-WN		Mounting: Head flange \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1GN25-50Z1-WN		Mounting: Head flange \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1GN25-75Z1-WN		Mounting: Head flange \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1GN25-100Z1-WN		Mounting: Head flange \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1GN25-125Z1-WN		Mounting: Head flange \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1GN25-150Z1-WN		Mounting: Head flange \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1GN25-200Z1-WN		Mounting: Head flange \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1GN25-250Z1-WN		Mounting: Head flange \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1GN25-300Z1-WN		Mounting: Head flange \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1GN32-25Z1-HN		Mounting: Head flange \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1GN32-50Z1-HN		Mounting: Head flange \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1GN32-75Z1-HN		Mounting: Head flange \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1GN32-100Z1-HN		Mounting: Head flange \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1GN32-125Z1-HN		Mounting: Head flange \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1GN32-150Z1-HN		Mounting: Head flange \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1GN32-200Z1-HN		Mounting: Head flange \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1GN32-250Z1-HN		Mounting: Head flange \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1GN32-300Z1-HN		Mounting: Head flange \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1GN32-25Z1-RN		Mounting: Head flange \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1GN32-50Z1-RN		Mounting: Head flange \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1GN32-75Z1-RN		Mounting: Head flange \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1GN32-100Z1-RN		Mounting: Head flange \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1GN32-125Z1-RN		Mounting: Head flange \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1GN32-150Z1-RN		Mounting: Head flange \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1GN32-200Z1-RN		Mounting: Head flange \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1GN32-250Z1-RN		Mounting: Head flange \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1GN32-300Z1-RN		Mounting: Head flange \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1GN32-25Z1-WN		Mounting: Head flange \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1GN32-50Z1-WN		Mounting: Head flange \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1GN32-75Z1-WN		Mounting: Head flange \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1GN32-100Z1-WN		Mounting: Head flange \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1GN32-125Z1-WN		Mounting: Head flange \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1GN32-150Z1-WN		Mounting: Head flange \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1GN32-200Z1-WN		Mounting: Head flange \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1GN32-250Z1-WN		Mounting: Head flange \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1GN32-300Z1-WN		Mounting: Head flange \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1GN40-25Z1-HN		Mounting: Head flange \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1GN40-50Z1-HN		Mounting: Head flange \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1GN40-75Z1-HN		Mounting: Head flange \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1GN40-100Z1-HN		Mounting: Head flange \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1GN40-125Z1-HN		Mounting: Head flange \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1GN40-150Z1-HN		Mounting: Head flange \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1GN40-200Z1-HN		Mounting: Head flange \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1GN40-250Z1-HN		Mounting: Head flange \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1GN40-300Z1-HN		Mounting: Head flange \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1GN40-25Z1-RN		Mounting: Head flange \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1GN40-50Z1-RN		Mounting: Head flange \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1GN40-75Z1-RN		Mounting: Head flange \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1GN40-100Z1-RN		Mounting: Head flange \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1GN40-125Z1-RN		Mounting: Head flange \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1GN40-150Z1-RN		Mounting: Head flange \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1GN40-200Z1-RN		Mounting: Head flange \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1GN40-250Z1-RN		Mounting: Head flange \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1GN40-300Z1-RN		Mounting: Head flange \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1GN40-25Z1-WN		Mounting: Head flange \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1GN40-50Z1-WN		Mounting: Head flange \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1GN40-75Z1-WN		Mounting: Head flange \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1GN40-100Z1-WN		Mounting: Head flange \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1GN40-125Z1-WN		Mounting: Head flange \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1GN40-150Z1-WN		Mounting: Head flange \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1GN40-200Z1-WN		Mounting: Head flange \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1GN40-250Z1-WN		Mounting: Head flange \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1GN40-300Z1-WN		Mounting: Head flange \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1UN20-25Z1-HN		Mounting: Rod trunnion \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1UN20-50Z1-HN		Mounting: Rod trunnion \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1UN20-75Z1-HN		Mounting: Rod trunnion \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1UN20-100Z1-HN		Mounting: Rod trunnion \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1UN20-125Z1-HN		Mounting: Rod trunnion \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1UN20-150Z1-HN		Mounting: Rod trunnion \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1UN20-200Z1-HN		Mounting: Rod trunnion \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1UN25-25Z1-HN		Mounting: Rod trunnion \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1UN25-50Z1-HN		Mounting: Rod trunnion \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1UN25-75Z1-HN		Mounting: Rod trunnion \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1UN25-100Z1-HN		Mounting: Rod trunnion \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1UN25-125Z1-HN		Mounting: Rod trunnion \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1UN25-150Z1-HN		Mounting: Rod trunnion \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1UN25-200Z1-HN		Mounting: Rod trunnion \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1UN25-250Z1-HN		Mounting: Rod trunnion \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1UN25-300Z1-HN		Mounting: Rod trunnion \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1UN32-25Z1-HN		Mounting: Rod trunnion \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1UN32-50Z1-HN		Mounting: Rod trunnion \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1UN32-75Z1-HN		Mounting: Rod trunnion \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1UN32-100Z1-HN		Mounting: Rod trunnion \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1UN32-125Z1-HN		Mounting: Rod trunnion \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1UN32-150Z1-HN		Mounting: Rod trunnion \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1UN32-200Z1-HN		Mounting: Rod trunnion \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1UN32-250Z1-HN		Mounting: Rod trunnion \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1UN32-300Z1-HN		Mounting: Rod trunnion \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1UN40-25Z1-HN		Mounting: Rod trunnion \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1UN40-50Z1-HN		Mounting: Rod trunnion \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1UN40-75Z1-HN		Mounting: Rod trunnion \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1UN40-100Z1-HN		Mounting: Rod trunnion \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1UN40-125Z1-HN		Mounting: Rod trunnion \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1UN40-150Z1-HN		Mounting: Rod trunnion \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1UN40-200Z1-HN		Mounting: Rod trunnion \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1UN40-250Z1-HN		Mounting: Rod trunnion \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1UN40-300Z1-HN		Mounting: Rod trunnion \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1TN20-25Z1-RN		Mounting: Head trunnion \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1TN20-50Z1-RN		Mounting: Head trunnion \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1TN20-75Z1-RN		Mounting: Head trunnion \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1TN20-100Z1-RN		Mounting: Head trunnion \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1TN20-125Z1-RN		Mounting: Head trunnion \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1TN20-150Z1-RN		Mounting: Head trunnion \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1TN20-200Z1-RN		Mounting: Head trunnion \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1TN25-25Z1-RN		Mounting: Head trunnion \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1TN25-50Z1-RN		Mounting: Head trunnion \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1TN25-75Z1-RN		Mounting: Head trunnion \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1TN25-100Z1-RN		Mounting: Head trunnion \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1TN25-125Z1-RN		Mounting: Head trunnion \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1TN25-150Z1-RN		Mounting: Head trunnion \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1TN25-200Z1-RN		Mounting: Head trunnion \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1TN25-250Z1-RN		Mounting: Head trunnion \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1TN25-300Z1-RN		Mounting: Head trunnion \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1TN32-25Z1-RN		Mounting: Head trunnion \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1TN32-50Z1-RN		Mounting: Head trunnion \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1TN32-75Z1-RN		Mounting: Head trunnion \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1TN32-100Z1-RN		Mounting: Head trunnion \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1TN32-125Z1-RN		Mounting: Head trunnion \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1TN32-150Z1-RN		Mounting: Head trunnion \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1TN32-200Z1-RN		Mounting: Head trunnion \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1TN32-250Z1-RN		Mounting: Head trunnion \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1TN32-300Z1-RN		Mounting: Head trunnion \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1TN40-25Z1-RN		Mounting: Head trunnion \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1TN40-50Z1-RN		Mounting: Head trunnion \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1TN40-75Z1-RN		Mounting: Head trunnion \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1TN40-100Z1-RN		Mounting: Head trunnion \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1TN40-125Z1-RN		Mounting: Head trunnion \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1TN40-150Z1-RN		Mounting: Head trunnion \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1TN40-200Z1-RN		Mounting: Head trunnion \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1TN40-250Z1-RN		Mounting: Head trunnion \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1TN40-300Z1-RN		Mounting: Head trunnion \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1DN20-25Z1-HN		Mounting: Clevis \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1DN20-50Z1-HN		Mounting: Clevis \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1DN20-75Z1-HN		Mounting: Clevis \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1DN20-100Z1-HN		Mounting: Clevis \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1DN20-125Z1-HN		Mounting: Clevis \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1DN20-150Z1-HN		Mounting: Clevis \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1DN20-200Z1-HN		Mounting: Clevis \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1DN20-25Z1-RN		Mounting: Clevis \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1DN20-50Z1-RN		Mounting: Clevis \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1DN20-75Z1-RN		Mounting: Clevis \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1DN20-100Z1-RN		Mounting: Clevis \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1DN20-125Z1-RN		Mounting: Clevis \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1DN20-150Z1-RN		Mounting: Clevis \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1DN20-200Z1-RN		Mounting: Clevis \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1DN20-25Z1-WN		Mounting: Clevis \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1DN20-50Z1-WN		Mounting: Clevis \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1DN20-75Z1-WN		Mounting: Clevis \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1DN20-100Z1-WN		Mounting: Clevis \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1DN20-125Z1-WN		Mounting: Clevis \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1DN20-150Z1-WN		Mounting: Clevis \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1DN20-200Z1-WN		Mounting: Clevis \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1DN25-25Z1-HN		Mounting: Clevis \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1DN25-50Z1-HN		Mounting: Clevis \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1DN25-75Z1-HN		Mounting: Clevis \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1DN25-100Z1-HN		Mounting: Clevis \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1DN25-125Z1-HN		Mounting: Clevis \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1DN25-150Z1-HN		Mounting: Clevis \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1DN25-200Z1-HN		Mounting: Clevis \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1DN25-250Z1-HN		Mounting: Clevis \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1DN25-300Z1-HN		Mounting: Clevis \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1DN25-25Z1-RN		Mounting: Clevis \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1DN25-50Z1-RN		Mounting: Clevis \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1DN25-75Z1-RN		Mounting: Clevis \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1DN25-100Z1-RN		Mounting: Clevis \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1DN25-125Z1-RN		Mounting: Clevis \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1DN25-150Z1-RN		Mounting: Clevis \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1DN25-200Z1-RN		Mounting: Clevis \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1DN25-250Z1-RN		Mounting: Clevis \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1DN25-300Z1-RN		Mounting: Clevis \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1DN25-25Z1-WN		Mounting: Clevis \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1DN25-50Z1-WN		Mounting: Clevis \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1DN25-75Z1-WN		Mounting: Clevis \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1DN25-100Z1-WN		Mounting: Clevis \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1DN25-125Z1-WN		Mounting: Clevis \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1DN25-150Z1-WN		Mounting: Clevis \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1DN25-200Z1-WN		Mounting: Clevis \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1DN25-250Z1-WN		Mounting: Clevis \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1DN25-300Z1-WN		Mounting: Clevis \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1DN32-25Z1-HN		Mounting: Clevis \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1DN32-50Z1-HN		Mounting: Clevis \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1DN32-75Z1-HN		Mounting: Clevis \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1DN32-100Z1-HN		Mounting: Clevis \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1DN32-125Z1-HN		Mounting: Clevis \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1DN32-150Z1-HN		Mounting: Clevis \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1DN32-200Z1-HN		Mounting: Clevis \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1DN32-250Z1-HN		Mounting: Clevis \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1DN32-300Z1-HN		Mounting: Clevis \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1DN32-25Z1-RN		Mounting: Clevis \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1DN32-50Z1-RN		Mounting: Clevis \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1DN32-75Z1-RN		Mounting: Clevis \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1DN32-100Z1-RN		Mounting: Clevis \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1DN32-125Z1-RN		Mounting: Clevis \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1DN32-150Z1-RN		Mounting: Clevis \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1DN32-200Z1-RN		Mounting: Clevis \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1DN32-250Z1-RN		Mounting: Clevis \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1DN32-300Z1-RN		Mounting: Clevis \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1DN32-25Z1-WN		Mounting: Clevis \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1DN32-50Z1-WN		Mounting: Clevis \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1DN32-75Z1-WN		Mounting: Clevis \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1DN32-100Z1-WN		Mounting: Clevis \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1DN32-125Z1-WN		Mounting: Clevis \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1DN32-150Z1-WN		Mounting: Clevis \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1DN32-200Z1-WN		Mounting: Clevis \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1DN32-250Z1-WN		Mounting: Clevis \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1DN32-300Z1-WN		Mounting: Clevis \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1DN40-25Z1-HN		Mounting: Clevis \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1DN40-50Z1-HN		Mounting: Clevis \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1DN40-75Z1-HN		Mounting: Clevis \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1DN40-100Z1-HN		Mounting: Clevis \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1DN40-125Z1-HN		Mounting: Clevis \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1DN40-150Z1-HN		Mounting: Clevis \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1DN40-200Z1-HN		Mounting: Clevis \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1DN40-250Z1-HN		Mounting: Clevis \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1DN40-300Z1-HN		Mounting: Clevis \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1DN40-25Z1-RN		Mounting: Clevis \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1DN40-50Z1-RN		Mounting: Clevis \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1DN40-75Z1-RN		Mounting: Clevis \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1DN40-100Z1-RN		Mounting: Clevis \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1DN40-125Z1-RN		Mounting: Clevis \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1DN40-150Z1-RN		Mounting: Clevis \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1DN40-200Z1-RN		Mounting: Clevis \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1DN40-250Z1-RN		Mounting: Clevis \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1DN40-300Z1-RN		Mounting: Clevis \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1DN40-25Z1-WN		Mounting: Clevis \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1DN40-50Z1-WN		Mounting: Clevis \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1DN40-75Z1-WN		Mounting: Clevis \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1DN40-100Z1-WN		Mounting: Clevis \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1DN40-125Z1-WN		Mounting: Clevis \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1DN40-150Z1-WN		Mounting: Clevis \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1DN40-200Z1-WN		Mounting: Clevis \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1DN40-250Z1-WN		Mounting: Clevis \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1DN40-300Z1-WN		Mounting: Clevis \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: Yes

Round Body CylindersSMC

1360 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC CBG1 End Lock Cylinder (ø20 to ø40)

Brand SMC·Round Body Cylinders

Available part numbers (1360)

CBG1BN20-25Z1-HN, CBG1BN20-50Z1-HN, CBG1BN20-75Z1-HN, CBG1BN20-100Z1-HN, CBG1BN20-125Z1-HN, CBG1BN20-150Z1-HN, CBG1BN20-200Z1-HN, CBG1BN20-25Z1-RN, CBG1BN20-50Z1-RN, CBG1BN20-75Z1-RN + 1350 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	CBG1BN20-25Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1BN20-50Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1BN20-75Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1BN20-100Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1BN20-125Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1BN20-150Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1BN20-200Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1BN20-25Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1BN20-50Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1BN20-75Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1BN20-100Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1BN20-125Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1BN20-150Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1BN20-200Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1BN20-25Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1BN20-50Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1BN20-75Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1BN20-100Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1BN20-125Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1BN20-150Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1BN20-200Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1BN25-25Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1BN25-50Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1BN25-75Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1BN25-100Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1BN25-125Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1BN25-150Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1BN25-200Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1BN25-250Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1BN25-300Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1BN25-25Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1BN25-50Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1BN25-75Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1BN25-100Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1BN25-125Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1BN25-150Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1BN25-200Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1BN25-250Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1BN25-300Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1BN25-25Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1BN25-50Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1BN25-75Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1BN25-100Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1BN25-125Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1BN25-150Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1BN25-200Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1BN25-250Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1BN25-300Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1BN32-25Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1BN32-50Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1BN32-75Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1BN32-100Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1BN32-125Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1BN32-150Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1BN32-200Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1BN32-250Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1BN32-300Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1BN32-25Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1BN32-50Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1BN32-75Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1BN32-100Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1BN32-125Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1BN32-150Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1BN32-200Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1BN32-250Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1BN32-300Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1BN32-25Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1BN32-50Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1BN32-75Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1BN32-100Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1BN32-125Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1BN32-150Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1BN32-200Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1BN32-250Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1BN32-300Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1BN40-25Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1BN40-50Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1BN40-75Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1BN40-100Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1BN40-125Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1BN40-150Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1BN40-200Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1BN40-250Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1BN40-300Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1BN40-25Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1BN40-50Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1BN40-75Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1BN40-100Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1BN40-125Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1BN40-150Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1BN40-200Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1BN40-250Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1BN40-300Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1BN40-25Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1BN40-50Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1BN40-75Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1BN40-100Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1BN40-125Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1BN40-150Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1BN40-200Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1BN40-250Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1BN40-300Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1ZN20-25Z1-HN	Mounting: Basic (trunnion female thread) \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1ZN20-50Z1-HN	Mounting: Basic (trunnion female thread) \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1ZN20-75Z1-HN	Mounting: Basic (trunnion female thread) \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1ZN20-100Z1-HN	Mounting: Basic (trunnion female thread) \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1ZN20-125Z1-HN	Mounting: Basic (trunnion female thread) \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1ZN20-150Z1-HN	Mounting: Basic (trunnion female thread) \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1ZN20-200Z1-HN	Mounting: Basic (trunnion female thread) \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1ZN20-25Z1-RN	Mounting: Basic (trunnion female thread) \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1ZN20-50Z1-RN	Mounting: Basic (trunnion female thread) \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1ZN20-75Z1-RN	Mounting: Basic (trunnion female thread) \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1ZN20-100Z1-RN	Mounting: Basic (trunnion female thread) \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1ZN20-125Z1-RN	Mounting: Basic (trunnion female thread) \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1ZN20-150Z1-RN	Mounting: Basic (trunnion female thread) \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1ZN20-200Z1-RN	Mounting: Basic (trunnion female thread) \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1ZN20-25Z1-WN	Mounting: Basic (trunnion female thread) \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1ZN20-50Z1-WN	Mounting: Basic (trunnion female thread) \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1ZN20-75Z1-WN	Mounting: Basic (trunnion female thread) \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1ZN20-100Z1-WN	Mounting: Basic (trunnion female thread) \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1ZN20-125Z1-WN	Mounting: Basic (trunnion female thread) \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1ZN20-150Z1-WN	Mounting: Basic (trunnion female thread) \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1ZN20-200Z1-WN	Mounting: Basic (trunnion female thread) \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1ZN25-25Z1-HN	Mounting: Basic (trunnion female thread) \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1ZN25-50Z1-HN	Mounting: Basic (trunnion female thread) \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1ZN25-75Z1-HN	Mounting: Basic (trunnion female thread) \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1ZN25-100Z1-HN	Mounting: Basic (trunnion female thread) \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1ZN25-125Z1-HN	Mounting: Basic (trunnion female thread) \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1ZN25-150Z1-HN	Mounting: Basic (trunnion female thread) \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1ZN25-200Z1-HN	Mounting: Basic (trunnion female thread) \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1ZN25-250Z1-HN	Mounting: Basic (trunnion female thread) \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1ZN25-300Z1-HN	Mounting: Basic (trunnion female thread) \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1ZN25-25Z1-RN	Mounting: Basic (trunnion female thread) \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1ZN25-50Z1-RN	Mounting: Basic (trunnion female thread) \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1ZN25-75Z1-RN	Mounting: Basic (trunnion female thread) \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1ZN25-100Z1-RN	Mounting: Basic (trunnion female thread) \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1ZN25-125Z1-RN	Mounting: Basic (trunnion female thread) \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1ZN25-150Z1-RN	Mounting: Basic (trunnion female thread) \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1ZN25-200Z1-RN	Mounting: Basic (trunnion female thread) \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1ZN25-250Z1-RN	Mounting: Basic (trunnion female thread) \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1ZN25-300Z1-RN	Mounting: Basic (trunnion female thread) \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1ZN25-25Z1-WN	Mounting: Basic (trunnion female thread) \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1ZN25-50Z1-WN	Mounting: Basic (trunnion female thread) \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1ZN25-75Z1-WN	Mounting: Basic (trunnion female thread) \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1ZN25-100Z1-WN	Mounting: Basic (trunnion female thread) \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1ZN25-125Z1-WN	Mounting: Basic (trunnion female thread) \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1ZN25-150Z1-WN	Mounting: Basic (trunnion female thread) \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1ZN25-200Z1-WN	Mounting: Basic (trunnion female thread) \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1ZN25-250Z1-WN	Mounting: Basic (trunnion female thread) \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1ZN25-300Z1-WN	Mounting: Basic (trunnion female thread) \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1ZN32-25Z1-HN	Mounting: Basic (trunnion female thread) \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1ZN32-50Z1-HN	Mounting: Basic (trunnion female thread) \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1ZN32-75Z1-HN	Mounting: Basic (trunnion female thread) \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1ZN32-100Z1-HN	Mounting: Basic (trunnion female thread) \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1ZN32-125Z1-HN	Mounting: Basic (trunnion female thread) \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1ZN32-150Z1-HN	Mounting: Basic (trunnion female thread) \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1ZN32-200Z1-HN	Mounting: Basic (trunnion female thread) \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1ZN32-250Z1-HN	Mounting: Basic (trunnion female thread) \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1ZN32-300Z1-HN	Mounting: Basic (trunnion female thread) \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1ZN32-25Z1-RN	Mounting: Basic (trunnion female thread) \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1ZN32-50Z1-RN	Mounting: Basic (trunnion female thread) \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1ZN32-75Z1-RN	Mounting: Basic (trunnion female thread) \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1ZN32-100Z1-RN	Mounting: Basic (trunnion female thread) \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1ZN32-125Z1-RN	Mounting: Basic (trunnion female thread) \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1ZN32-150Z1-RN	Mounting: Basic (trunnion female thread) \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1ZN32-200Z1-RN	Mounting: Basic (trunnion female thread) \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1ZN32-250Z1-RN	Mounting: Basic (trunnion female thread) \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1ZN32-300Z1-RN	Mounting: Basic (trunnion female thread) \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1ZN32-25Z1-WN	Mounting: Basic (trunnion female thread) \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1ZN32-50Z1-WN	Mounting: Basic (trunnion female thread) \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1ZN32-75Z1-WN	Mounting: Basic (trunnion female thread) \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1ZN32-100Z1-WN	Mounting: Basic (trunnion female thread) \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1ZN32-125Z1-WN	Mounting: Basic (trunnion female thread) \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1ZN32-150Z1-WN	Mounting: Basic (trunnion female thread) \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1ZN32-200Z1-WN	Mounting: Basic (trunnion female thread) \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1ZN32-250Z1-WN	Mounting: Basic (trunnion female thread) \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1ZN32-300Z1-WN	Mounting: Basic (trunnion female thread) \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1ZN40-25Z1-HN	Mounting: Basic (trunnion female thread) \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1ZN40-50Z1-HN	Mounting: Basic (trunnion female thread) \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1ZN40-75Z1-HN	Mounting: Basic (trunnion female thread) \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1ZN40-100Z1-HN	Mounting: Basic (trunnion female thread) \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1ZN40-125Z1-HN	Mounting: Basic (trunnion female thread) \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1ZN40-150Z1-HN	Mounting: Basic (trunnion female thread) \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1ZN40-200Z1-HN	Mounting: Basic (trunnion female thread) \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1ZN40-250Z1-HN	Mounting: Basic (trunnion female thread) \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1ZN40-300Z1-HN	Mounting: Basic (trunnion female thread) \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1ZN40-25Z1-RN	Mounting: Basic (trunnion female thread) \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1ZN40-50Z1-RN	Mounting: Basic (trunnion female thread) \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1ZN40-75Z1-RN	Mounting: Basic (trunnion female thread) \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1ZN40-100Z1-RN	Mounting: Basic (trunnion female thread) \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1ZN40-125Z1-RN	Mounting: Basic (trunnion female thread) \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1ZN40-150Z1-RN	Mounting: Basic (trunnion female thread) \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1ZN40-200Z1-RN	Mounting: Basic (trunnion female thread) \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1ZN40-250Z1-RN	Mounting: Basic (trunnion female thread) \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1ZN40-300Z1-RN	Mounting: Basic (trunnion female thread) \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1ZN40-25Z1-WN	Mounting: Basic (trunnion female thread) \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1ZN40-50Z1-WN	Mounting: Basic (trunnion female thread) \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1ZN40-75Z1-WN	Mounting: Basic (trunnion female thread) \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1ZN40-100Z1-WN	Mounting: Basic (trunnion female thread) \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1ZN40-125Z1-WN	Mounting: Basic (trunnion female thread) \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1ZN40-150Z1-WN	Mounting: Basic (trunnion female thread) \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1ZN40-200Z1-WN	Mounting: Basic (trunnion female thread) \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1ZN40-250Z1-WN	Mounting: Basic (trunnion female thread) \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1ZN40-300Z1-WN	Mounting: Basic (trunnion female thread) \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1LN20-25Z1-HN	Mounting: Axial foot \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1LN20-50Z1-HN	Mounting: Axial foot \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1LN20-75Z1-HN	Mounting: Axial foot \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1LN20-100Z1-HN	Mounting: Axial foot \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1LN20-125Z1-HN	Mounting: Axial foot \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1LN20-150Z1-HN	Mounting: Axial foot \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1LN20-200Z1-HN	Mounting: Axial foot \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1LN20-25Z1-RN	Mounting: Axial foot \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1LN20-50Z1-RN	Mounting: Axial foot \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1LN20-75Z1-RN	Mounting: Axial foot \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1LN20-100Z1-RN	Mounting: Axial foot \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1LN20-125Z1-RN	Mounting: Axial foot \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1LN20-150Z1-RN	Mounting: Axial foot \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1LN20-200Z1-RN	Mounting: Axial foot \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1LN20-25Z1-WN	Mounting: Axial foot \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1LN20-50Z1-WN	Mounting: Axial foot \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1LN20-75Z1-WN	Mounting: Axial foot \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1LN20-100Z1-WN	Mounting: Axial foot \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1LN20-125Z1-WN	Mounting: Axial foot \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1LN20-150Z1-WN	Mounting: Axial foot \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1LN20-200Z1-WN	Mounting: Axial foot \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1LN25-25Z1-HN	Mounting: Axial foot \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1LN25-50Z1-HN	Mounting: Axial foot \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1LN25-75Z1-HN	Mounting: Axial foot \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1LN25-100Z1-HN	Mounting: Axial foot \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1LN25-125Z1-HN	Mounting: Axial foot \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1LN25-150Z1-HN	Mounting: Axial foot \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1LN25-200Z1-HN	Mounting: Axial foot \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1LN25-250Z1-HN	Mounting: Axial foot \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1LN25-300Z1-HN	Mounting: Axial foot \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1LN25-25Z1-RN	Mounting: Axial foot \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1LN25-50Z1-RN	Mounting: Axial foot \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1LN25-75Z1-RN	Mounting: Axial foot \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1LN25-100Z1-RN	Mounting: Axial foot \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1LN25-125Z1-RN	Mounting: Axial foot \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1LN25-150Z1-RN	Mounting: Axial foot \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1LN25-200Z1-RN	Mounting: Axial foot \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1LN25-250Z1-RN	Mounting: Axial foot \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1LN25-300Z1-RN	Mounting: Axial foot \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1LN25-25Z1-WN	Mounting: Axial foot \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1LN25-50Z1-WN	Mounting: Axial foot \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1LN25-75Z1-WN	Mounting: Axial foot \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1LN25-100Z1-WN	Mounting: Axial foot \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1LN25-125Z1-WN	Mounting: Axial foot \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1LN25-150Z1-WN	Mounting: Axial foot \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1LN25-200Z1-WN	Mounting: Axial foot \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1LN25-250Z1-WN	Mounting: Axial foot \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1LN25-300Z1-WN	Mounting: Axial foot \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1LN32-25Z1-HN	Mounting: Axial foot \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1LN32-50Z1-HN	Mounting: Axial foot \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1LN32-75Z1-HN	Mounting: Axial foot \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1LN32-100Z1-HN	Mounting: Axial foot \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1LN32-125Z1-HN	Mounting: Axial foot \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1LN32-150Z1-HN	Mounting: Axial foot \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1LN32-200Z1-HN	Mounting: Axial foot \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1LN32-250Z1-HN	Mounting: Axial foot \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1LN32-300Z1-HN	Mounting: Axial foot \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1LN32-25Z1-RN	Mounting: Axial foot \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1LN32-50Z1-RN	Mounting: Axial foot \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1LN32-75Z1-RN	Mounting: Axial foot \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1LN32-100Z1-RN	Mounting: Axial foot \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1LN32-125Z1-RN	Mounting: Axial foot \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1LN32-150Z1-RN	Mounting: Axial foot \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1LN32-200Z1-RN	Mounting: Axial foot \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1LN32-250Z1-RN	Mounting: Axial foot \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1LN32-300Z1-RN	Mounting: Axial foot \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1LN32-25Z1-WN	Mounting: Axial foot \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1LN32-50Z1-WN	Mounting: Axial foot \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1LN32-75Z1-WN	Mounting: Axial foot \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1LN32-100Z1-WN	Mounting: Axial foot \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1LN32-125Z1-WN	Mounting: Axial foot \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1LN32-150Z1-WN	Mounting: Axial foot \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1LN32-200Z1-WN	Mounting: Axial foot \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1LN32-250Z1-WN	Mounting: Axial foot \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1LN32-300Z1-WN	Mounting: Axial foot \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1LN40-25Z1-HN	Mounting: Axial foot \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1LN40-50Z1-HN	Mounting: Axial foot \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1LN40-75Z1-HN	Mounting: Axial foot \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1LN40-100Z1-HN	Mounting: Axial foot \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1LN40-125Z1-HN	Mounting: Axial foot \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1LN40-150Z1-HN	Mounting: Axial foot \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1LN40-200Z1-HN	Mounting: Axial foot \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1LN40-250Z1-HN	Mounting: Axial foot \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1LN40-300Z1-HN	Mounting: Axial foot \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1LN40-25Z1-RN	Mounting: Axial foot \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1LN40-50Z1-RN	Mounting: Axial foot \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1LN40-75Z1-RN	Mounting: Axial foot \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1LN40-100Z1-RN	Mounting: Axial foot \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1LN40-125Z1-RN	Mounting: Axial foot \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1LN40-150Z1-RN	Mounting: Axial foot \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1LN40-200Z1-RN	Mounting: Axial foot \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1LN40-250Z1-RN	Mounting: Axial foot \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1LN40-300Z1-RN	Mounting: Axial foot \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1LN40-25Z1-WN	Mounting: Axial foot \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1LN40-50Z1-WN	Mounting: Axial foot \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1LN40-75Z1-WN	Mounting: Axial foot \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1LN40-100Z1-WN	Mounting: Axial foot \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1LN40-125Z1-WN	Mounting: Axial foot \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1LN40-150Z1-WN	Mounting: Axial foot \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1LN40-200Z1-WN	Mounting: Axial foot \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1LN40-250Z1-WN	Mounting: Axial foot \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1LN40-300Z1-WN	Mounting: Axial foot \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1FN20-25Z1-HN	Mounting: Rod flange \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1FN20-50Z1-HN	Mounting: Rod flange \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1FN20-75Z1-HN	Mounting: Rod flange \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1FN20-100Z1-HN	Mounting: Rod flange \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1FN20-125Z1-HN	Mounting: Rod flange \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1FN20-150Z1-HN	Mounting: Rod flange \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1FN20-200Z1-HN	Mounting: Rod flange \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1FN20-25Z1-RN	Mounting: Rod flange \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1FN20-50Z1-RN	Mounting: Rod flange \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1FN20-75Z1-RN	Mounting: Rod flange \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1FN20-100Z1-RN	Mounting: Rod flange \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1FN20-125Z1-RN	Mounting: Rod flange \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1FN20-150Z1-RN	Mounting: Rod flange \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1FN20-200Z1-RN	Mounting: Rod flange \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1FN20-25Z1-WN	Mounting: Rod flange \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1FN20-50Z1-WN	Mounting: Rod flange \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1FN20-75Z1-WN	Mounting: Rod flange \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1FN20-100Z1-WN	Mounting: Rod flange \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1FN20-125Z1-WN	Mounting: Rod flange \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1FN20-150Z1-WN	Mounting: Rod flange \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1FN20-200Z1-WN	Mounting: Rod flange \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1FN25-25Z1-HN	Mounting: Rod flange \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1FN25-50Z1-HN	Mounting: Rod flange \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1FN25-75Z1-HN	Mounting: Rod flange \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1FN25-100Z1-HN	Mounting: Rod flange \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1FN25-125Z1-HN	Mounting: Rod flange \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1FN25-150Z1-HN	Mounting: Rod flange \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1FN25-200Z1-HN	Mounting: Rod flange \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1FN25-250Z1-HN	Mounting: Rod flange \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1FN25-300Z1-HN	Mounting: Rod flange \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1FN25-25Z1-RN	Mounting: Rod flange \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1FN25-50Z1-RN	Mounting: Rod flange \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1FN25-75Z1-RN	Mounting: Rod flange \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1FN25-100Z1-RN	Mounting: Rod flange \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1FN25-125Z1-RN	Mounting: Rod flange \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1FN25-150Z1-RN	Mounting: Rod flange \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1FN25-200Z1-RN	Mounting: Rod flange \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1FN25-250Z1-RN	Mounting: Rod flange \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1FN25-300Z1-RN	Mounting: Rod flange \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1FN25-25Z1-WN	Mounting: Rod flange \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1FN25-50Z1-WN	Mounting: Rod flange \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1FN25-75Z1-WN	Mounting: Rod flange \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1FN25-100Z1-WN	Mounting: Rod flange \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1FN25-125Z1-WN	Mounting: Rod flange \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1FN25-150Z1-WN	Mounting: Rod flange \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1FN25-200Z1-WN	Mounting: Rod flange \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1FN25-250Z1-WN	Mounting: Rod flange \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1FN25-300Z1-WN	Mounting: Rod flange \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1FN32-25Z1-HN	Mounting: Rod flange \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1FN32-50Z1-HN	Mounting: Rod flange \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1FN32-75Z1-HN	Mounting: Rod flange \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1FN32-100Z1-HN	Mounting: Rod flange \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1FN32-125Z1-HN	Mounting: Rod flange \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1FN32-150Z1-HN	Mounting: Rod flange \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1FN32-200Z1-HN	Mounting: Rod flange \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1FN32-250Z1-HN	Mounting: Rod flange \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1FN32-300Z1-HN	Mounting: Rod flange \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1FN32-25Z1-RN	Mounting: Rod flange \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1FN32-50Z1-RN	Mounting: Rod flange \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1FN32-75Z1-RN	Mounting: Rod flange \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1FN32-100Z1-RN	Mounting: Rod flange \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1FN32-125Z1-RN	Mounting: Rod flange \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1FN32-150Z1-RN	Mounting: Rod flange \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1FN32-200Z1-RN	Mounting: Rod flange \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1FN32-250Z1-RN	Mounting: Rod flange \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1FN32-300Z1-RN	Mounting: Rod flange \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1FN32-25Z1-WN	Mounting: Rod flange \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1FN32-50Z1-WN	Mounting: Rod flange \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1FN32-75Z1-WN	Mounting: Rod flange \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1FN32-100Z1-WN	Mounting: Rod flange \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1FN32-125Z1-WN	Mounting: Rod flange \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1FN32-150Z1-WN	Mounting: Rod flange \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1FN32-200Z1-WN	Mounting: Rod flange \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1FN32-250Z1-WN	Mounting: Rod flange \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1FN32-300Z1-WN	Mounting: Rod flange \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1FN40-25Z1-HN	Mounting: Rod flange \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1FN40-50Z1-HN	Mounting: Rod flange \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1FN40-75Z1-HN	Mounting: Rod flange \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1FN40-100Z1-HN	Mounting: Rod flange \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1FN40-125Z1-HN	Mounting: Rod flange \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1FN40-150Z1-HN	Mounting: Rod flange \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1FN40-200Z1-HN	Mounting: Rod flange \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1FN40-250Z1-HN	Mounting: Rod flange \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1FN40-300Z1-HN	Mounting: Rod flange \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1FN40-25Z1-RN	Mounting: Rod flange \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1FN40-50Z1-RN	Mounting: Rod flange \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1FN40-75Z1-RN	Mounting: Rod flange \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1FN40-100Z1-RN	Mounting: Rod flange \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1FN40-125Z1-RN	Mounting: Rod flange \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1FN40-150Z1-RN	Mounting: Rod flange \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1FN40-200Z1-RN	Mounting: Rod flange \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1FN40-250Z1-RN	Mounting: Rod flange \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1FN40-300Z1-RN	Mounting: Rod flange \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1FN40-25Z1-WN	Mounting: Rod flange \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1FN40-50Z1-WN	Mounting: Rod flange \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1FN40-75Z1-WN	Mounting: Rod flange \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1FN40-100Z1-WN	Mounting: Rod flange \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1FN40-125Z1-WN	Mounting: Rod flange \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1FN40-150Z1-WN	Mounting: Rod flange \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1FN40-200Z1-WN	Mounting: Rod flange \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1FN40-250Z1-WN	Mounting: Rod flange \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1FN40-300Z1-WN	Mounting: Rod flange \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1GN20-25Z1-HN	Mounting: Head flange \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1GN20-50Z1-HN	Mounting: Head flange \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1GN20-75Z1-HN	Mounting: Head flange \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1GN20-100Z1-HN	Mounting: Head flange \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1GN20-125Z1-HN	Mounting: Head flange \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1GN20-150Z1-HN	Mounting: Head flange \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1GN20-200Z1-HN	Mounting: Head flange \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1GN20-25Z1-RN	Mounting: Head flange \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1GN20-50Z1-RN	Mounting: Head flange \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1GN20-75Z1-RN	Mounting: Head flange \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1GN20-100Z1-RN	Mounting: Head flange \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1GN20-125Z1-RN	Mounting: Head flange \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1GN20-150Z1-RN	Mounting: Head flange \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1GN20-200Z1-RN	Mounting: Head flange \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1GN20-25Z1-WN	Mounting: Head flange \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1GN20-50Z1-WN	Mounting: Head flange \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1GN20-75Z1-WN	Mounting: Head flange \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1GN20-100Z1-WN	Mounting: Head flange \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1GN20-125Z1-WN	Mounting: Head flange \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1GN20-150Z1-WN	Mounting: Head flange \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1GN20-200Z1-WN	Mounting: Head flange \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1GN25-25Z1-HN	Mounting: Head flange \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1GN25-50Z1-HN	Mounting: Head flange \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1GN25-75Z1-HN	Mounting: Head flange \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1GN25-100Z1-HN	Mounting: Head flange \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1GN25-125Z1-HN	Mounting: Head flange \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1GN25-150Z1-HN	Mounting: Head flange \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1GN25-200Z1-HN	Mounting: Head flange \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1GN25-250Z1-HN	Mounting: Head flange \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1GN25-300Z1-HN	Mounting: Head flange \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1GN25-25Z1-RN	Mounting: Head flange \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1GN25-50Z1-RN	Mounting: Head flange \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1GN25-75Z1-RN	Mounting: Head flange \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1GN25-100Z1-RN	Mounting: Head flange \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1GN25-125Z1-RN	Mounting: Head flange \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1GN25-150Z1-RN	Mounting: Head flange \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1GN25-200Z1-RN	Mounting: Head flange \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1GN25-250Z1-RN	Mounting: Head flange \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1GN25-300Z1-RN	Mounting: Head flange \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1GN25-25Z1-WN	Mounting: Head flange \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1GN25-50Z1-WN	Mounting: Head flange \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1GN25-75Z1-WN	Mounting: Head flange \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1GN25-100Z1-WN	Mounting: Head flange \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1GN25-125Z1-WN	Mounting: Head flange \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1GN25-150Z1-WN	Mounting: Head flange \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1GN25-200Z1-WN	Mounting: Head flange \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1GN25-250Z1-WN	Mounting: Head flange \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1GN25-300Z1-WN	Mounting: Head flange \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1GN32-25Z1-HN	Mounting: Head flange \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1GN32-50Z1-HN	Mounting: Head flange \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1GN32-75Z1-HN	Mounting: Head flange \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1GN32-100Z1-HN	Mounting: Head flange \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1GN32-125Z1-HN	Mounting: Head flange \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1GN32-150Z1-HN	Mounting: Head flange \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1GN32-200Z1-HN	Mounting: Head flange \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1GN32-250Z1-HN	Mounting: Head flange \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1GN32-300Z1-HN	Mounting: Head flange \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1GN32-25Z1-RN	Mounting: Head flange \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1GN32-50Z1-RN	Mounting: Head flange \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1GN32-75Z1-RN	Mounting: Head flange \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1GN32-100Z1-RN	Mounting: Head flange \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1GN32-125Z1-RN	Mounting: Head flange \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1GN32-150Z1-RN	Mounting: Head flange \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1GN32-200Z1-RN	Mounting: Head flange \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1GN32-250Z1-RN	Mounting: Head flange \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1GN32-300Z1-RN	Mounting: Head flange \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1GN32-25Z1-WN	Mounting: Head flange \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1GN32-50Z1-WN	Mounting: Head flange \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1GN32-75Z1-WN	Mounting: Head flange \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1GN32-100Z1-WN	Mounting: Head flange \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1GN32-125Z1-WN	Mounting: Head flange \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1GN32-150Z1-WN	Mounting: Head flange \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1GN32-200Z1-WN	Mounting: Head flange \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1GN32-250Z1-WN	Mounting: Head flange \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1GN32-300Z1-WN	Mounting: Head flange \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1GN40-25Z1-HN	Mounting: Head flange \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1GN40-50Z1-HN	Mounting: Head flange \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1GN40-75Z1-HN	Mounting: Head flange \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1GN40-100Z1-HN	Mounting: Head flange \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1GN40-125Z1-HN	Mounting: Head flange \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1GN40-150Z1-HN	Mounting: Head flange \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1GN40-200Z1-HN	Mounting: Head flange \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1GN40-250Z1-HN	Mounting: Head flange \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1GN40-300Z1-HN	Mounting: Head flange \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1GN40-25Z1-RN	Mounting: Head flange \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1GN40-50Z1-RN	Mounting: Head flange \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1GN40-75Z1-RN	Mounting: Head flange \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1GN40-100Z1-RN	Mounting: Head flange \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1GN40-125Z1-RN	Mounting: Head flange \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1GN40-150Z1-RN	Mounting: Head flange \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1GN40-200Z1-RN	Mounting: Head flange \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1GN40-250Z1-RN	Mounting: Head flange \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1GN40-300Z1-RN	Mounting: Head flange \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1GN40-25Z1-WN	Mounting: Head flange \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1GN40-50Z1-WN	Mounting: Head flange \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1GN40-75Z1-WN	Mounting: Head flange \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1GN40-100Z1-WN	Mounting: Head flange \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1GN40-125Z1-WN	Mounting: Head flange \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1GN40-150Z1-WN	Mounting: Head flange \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1GN40-200Z1-WN	Mounting: Head flange \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1GN40-250Z1-WN	Mounting: Head flange \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1GN40-300Z1-WN	Mounting: Head flange \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1UN20-25Z1-HN	Mounting: Rod trunnion \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1UN20-50Z1-HN	Mounting: Rod trunnion \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1UN20-75Z1-HN	Mounting: Rod trunnion \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1UN20-100Z1-HN	Mounting: Rod trunnion \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1UN20-125Z1-HN	Mounting: Rod trunnion \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1UN20-150Z1-HN	Mounting: Rod trunnion \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1UN20-200Z1-HN	Mounting: Rod trunnion \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1UN25-25Z1-HN	Mounting: Rod trunnion \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1UN25-50Z1-HN	Mounting: Rod trunnion \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1UN25-75Z1-HN	Mounting: Rod trunnion \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1UN25-100Z1-HN	Mounting: Rod trunnion \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1UN25-125Z1-HN	Mounting: Rod trunnion \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1UN25-150Z1-HN	Mounting: Rod trunnion \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1UN25-200Z1-HN	Mounting: Rod trunnion \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1UN25-250Z1-HN	Mounting: Rod trunnion \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1UN25-300Z1-HN	Mounting: Rod trunnion \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1UN32-25Z1-HN	Mounting: Rod trunnion \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1UN32-50Z1-HN	Mounting: Rod trunnion \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1UN32-75Z1-HN	Mounting: Rod trunnion \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1UN32-100Z1-HN	Mounting: Rod trunnion \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1UN32-125Z1-HN	Mounting: Rod trunnion \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1UN32-150Z1-HN	Mounting: Rod trunnion \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1UN32-200Z1-HN	Mounting: Rod trunnion \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1UN32-250Z1-HN	Mounting: Rod trunnion \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1UN32-300Z1-HN	Mounting: Rod trunnion \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1UN40-25Z1-HN	Mounting: Rod trunnion \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1UN40-50Z1-HN	Mounting: Rod trunnion \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1UN40-75Z1-HN	Mounting: Rod trunnion \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1UN40-100Z1-HN	Mounting: Rod trunnion \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1UN40-125Z1-HN	Mounting: Rod trunnion \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1UN40-150Z1-HN	Mounting: Rod trunnion \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1UN40-200Z1-HN	Mounting: Rod trunnion \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1UN40-250Z1-HN	Mounting: Rod trunnion \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1UN40-300Z1-HN	Mounting: Rod trunnion \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1TN20-25Z1-RN	Mounting: Head trunnion \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1TN20-50Z1-RN	Mounting: Head trunnion \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1TN20-75Z1-RN	Mounting: Head trunnion \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1TN20-100Z1-RN	Mounting: Head trunnion \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1TN20-125Z1-RN	Mounting: Head trunnion \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1TN20-150Z1-RN	Mounting: Head trunnion \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1TN20-200Z1-RN	Mounting: Head trunnion \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1TN25-25Z1-RN	Mounting: Head trunnion \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1TN25-50Z1-RN	Mounting: Head trunnion \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1TN25-75Z1-RN	Mounting: Head trunnion \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1TN25-100Z1-RN	Mounting: Head trunnion \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1TN25-125Z1-RN	Mounting: Head trunnion \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1TN25-150Z1-RN	Mounting: Head trunnion \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1TN25-200Z1-RN	Mounting: Head trunnion \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1TN25-250Z1-RN	Mounting: Head trunnion \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1TN25-300Z1-RN	Mounting: Head trunnion \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1TN32-25Z1-RN	Mounting: Head trunnion \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1TN32-50Z1-RN	Mounting: Head trunnion \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1TN32-75Z1-RN	Mounting: Head trunnion \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1TN32-100Z1-RN	Mounting: Head trunnion \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1TN32-125Z1-RN	Mounting: Head trunnion \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1TN32-150Z1-RN	Mounting: Head trunnion \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1TN32-200Z1-RN	Mounting: Head trunnion \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1TN32-250Z1-RN	Mounting: Head trunnion \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1TN32-300Z1-RN	Mounting: Head trunnion \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1TN40-25Z1-RN	Mounting: Head trunnion \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1TN40-50Z1-RN	Mounting: Head trunnion \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1TN40-75Z1-RN	Mounting: Head trunnion \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1TN40-100Z1-RN	Mounting: Head trunnion \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1TN40-125Z1-RN	Mounting: Head trunnion \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1TN40-150Z1-RN	Mounting: Head trunnion \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1TN40-200Z1-RN	Mounting: Head trunnion \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1TN40-250Z1-RN	Mounting: Head trunnion \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1TN40-300Z1-RN	Mounting: Head trunnion \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1DN20-25Z1-HN	Mounting: Clevis \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1DN20-50Z1-HN	Mounting: Clevis \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1DN20-75Z1-HN	Mounting: Clevis \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1DN20-100Z1-HN	Mounting: Clevis \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1DN20-125Z1-HN	Mounting: Clevis \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1DN20-150Z1-HN	Mounting: Clevis \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1DN20-200Z1-HN	Mounting: Clevis \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1DN20-25Z1-RN	Mounting: Clevis \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1DN20-50Z1-RN	Mounting: Clevis \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1DN20-75Z1-RN	Mounting: Clevis \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1DN20-100Z1-RN	Mounting: Clevis \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1DN20-125Z1-RN	Mounting: Clevis \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1DN20-150Z1-RN	Mounting: Clevis \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1DN20-200Z1-RN	Mounting: Clevis \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1DN20-25Z1-WN	Mounting: Clevis \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1DN20-50Z1-WN	Mounting: Clevis \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1DN20-75Z1-WN	Mounting: Clevis \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1DN20-100Z1-WN	Mounting: Clevis \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1DN20-125Z1-WN	Mounting: Clevis \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1DN20-150Z1-WN	Mounting: Clevis \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1DN20-200Z1-WN	Mounting: Clevis \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1DN25-25Z1-HN	Mounting: Clevis \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1DN25-50Z1-HN	Mounting: Clevis \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1DN25-75Z1-HN	Mounting: Clevis \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1DN25-100Z1-HN	Mounting: Clevis \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1DN25-125Z1-HN	Mounting: Clevis \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1DN25-150Z1-HN	Mounting: Clevis \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1DN25-200Z1-HN	Mounting: Clevis \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1DN25-250Z1-HN	Mounting: Clevis \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1DN25-300Z1-HN	Mounting: Clevis \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1DN25-25Z1-RN	Mounting: Clevis \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1DN25-50Z1-RN	Mounting: Clevis \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1DN25-75Z1-RN	Mounting: Clevis \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1DN25-100Z1-RN	Mounting: Clevis \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1DN25-125Z1-RN	Mounting: Clevis \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1DN25-150Z1-RN	Mounting: Clevis \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1DN25-200Z1-RN	Mounting: Clevis \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1DN25-250Z1-RN	Mounting: Clevis \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1DN25-300Z1-RN	Mounting: Clevis \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1DN25-25Z1-WN	Mounting: Clevis \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1DN25-50Z1-WN	Mounting: Clevis \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1DN25-75Z1-WN	Mounting: Clevis \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1DN25-100Z1-WN	Mounting: Clevis \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1DN25-125Z1-WN	Mounting: Clevis \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1DN25-150Z1-WN	Mounting: Clevis \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1DN25-200Z1-WN	Mounting: Clevis \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1DN25-250Z1-WN	Mounting: Clevis \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1DN25-300Z1-WN	Mounting: Clevis \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1DN32-25Z1-HN	Mounting: Clevis \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1DN32-50Z1-HN	Mounting: Clevis \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1DN32-75Z1-HN	Mounting: Clevis \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1DN32-100Z1-HN	Mounting: Clevis \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1DN32-125Z1-HN	Mounting: Clevis \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1DN32-150Z1-HN	Mounting: Clevis \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1DN32-200Z1-HN	Mounting: Clevis \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1DN32-250Z1-HN	Mounting: Clevis \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1DN32-300Z1-HN	Mounting: Clevis \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1DN32-25Z1-RN	Mounting: Clevis \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1DN32-50Z1-RN	Mounting: Clevis \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1DN32-75Z1-RN	Mounting: Clevis \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1DN32-100Z1-RN	Mounting: Clevis \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1DN32-125Z1-RN	Mounting: Clevis \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1DN32-150Z1-RN	Mounting: Clevis \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1DN32-200Z1-RN	Mounting: Clevis \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1DN32-250Z1-RN	Mounting: Clevis \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1DN32-300Z1-RN	Mounting: Clevis \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1DN32-25Z1-WN	Mounting: Clevis \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1DN32-50Z1-WN	Mounting: Clevis \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1DN32-75Z1-WN	Mounting: Clevis \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1DN32-100Z1-WN	Mounting: Clevis \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1DN32-125Z1-WN	Mounting: Clevis \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1DN32-150Z1-WN	Mounting: Clevis \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1DN32-200Z1-WN	Mounting: Clevis \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1DN32-250Z1-WN	Mounting: Clevis \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1DN32-300Z1-WN	Mounting: Clevis \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1DN40-25Z1-HN	Mounting: Clevis \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1DN40-50Z1-HN	Mounting: Clevis \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1DN40-75Z1-HN	Mounting: Clevis \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1DN40-100Z1-HN	Mounting: Clevis \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1DN40-125Z1-HN	Mounting: Clevis \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1DN40-150Z1-HN	Mounting: Clevis \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1DN40-200Z1-HN	Mounting: Clevis \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1DN40-250Z1-HN	Mounting: Clevis \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1DN40-300Z1-HN	Mounting: Clevis \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1DN40-25Z1-RN	Mounting: Clevis \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1DN40-50Z1-RN	Mounting: Clevis \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1DN40-75Z1-RN	Mounting: Clevis \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1DN40-100Z1-RN	Mounting: Clevis \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1DN40-125Z1-RN	Mounting: Clevis \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1DN40-150Z1-RN	Mounting: Clevis \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1DN40-200Z1-RN	Mounting: Clevis \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1DN40-250Z1-RN	Mounting: Clevis \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1DN40-300Z1-RN	Mounting: Clevis \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1DN40-25Z1-WN	Mounting: Clevis \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1DN40-50Z1-WN	Mounting: Clevis \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1DN40-75Z1-WN	Mounting: Clevis \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1DN40-100Z1-WN	Mounting: Clevis \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1DN40-125Z1-WN	Mounting: Clevis \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1DN40-150Z1-WN	Mounting: Clevis \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1DN40-200Z1-WN	Mounting: Clevis \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1DN40-250Z1-WN	Mounting: Clevis \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1DN40-300Z1-WN	Mounting: Clevis \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: No
	CDBG1BN20-25Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1BN20-50Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1BN20-75Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1BN20-100Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1BN20-125Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1BN20-150Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1BN20-200Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1BN20-25Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1BN20-50Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1BN20-75Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1BN20-100Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1BN20-125Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1BN20-150Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1BN20-200Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1BN20-25Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1BN20-50Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1BN20-75Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1BN20-100Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1BN20-125Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1BN20-150Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1BN20-200Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1BN25-25Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1BN25-50Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1BN25-75Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1BN25-100Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1BN25-125Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1BN25-150Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1BN25-200Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1BN25-250Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1BN25-300Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1BN25-25Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1BN25-50Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1BN25-75Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1BN25-100Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1BN25-125Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1BN25-150Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1BN25-200Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1BN25-250Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1BN25-300Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1BN25-25Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1BN25-50Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1BN25-75Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1BN25-100Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1BN25-125Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1BN25-150Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1BN25-200Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1BN25-250Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1BN25-300Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1BN32-25Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1BN32-50Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1BN32-75Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1BN32-100Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1BN32-125Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1BN32-150Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1BN32-200Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1BN32-250Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1BN32-300Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1BN32-25Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1BN32-50Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1BN32-75Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1BN32-100Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1BN32-125Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1BN32-150Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1BN32-200Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1BN32-250Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1BN32-300Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1BN32-25Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1BN32-50Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1BN32-75Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1BN32-100Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1BN32-125Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1BN32-150Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1BN32-200Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1BN32-250Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1BN32-300Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1BN40-25Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1BN40-50Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1BN40-75Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1BN40-100Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1BN40-125Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1BN40-150Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1BN40-200Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1BN40-250Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1BN40-300Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1BN40-25Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1BN40-50Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1BN40-75Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1BN40-100Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1BN40-125Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1BN40-150Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1BN40-200Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1BN40-250Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1BN40-300Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1BN40-25Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1BN40-50Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1BN40-75Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1BN40-100Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1BN40-125Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1BN40-150Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1BN40-200Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1BN40-250Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1BN40-300Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1ZN20-25Z1-HN	Mounting: Basic (trunnion female thread) \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1ZN20-50Z1-HN	Mounting: Basic (trunnion female thread) \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1ZN20-75Z1-HN	Mounting: Basic (trunnion female thread) \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1ZN20-100Z1-HN	Mounting: Basic (trunnion female thread) \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1ZN20-125Z1-HN	Mounting: Basic (trunnion female thread) \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1ZN20-150Z1-HN	Mounting: Basic (trunnion female thread) \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1ZN20-200Z1-HN	Mounting: Basic (trunnion female thread) \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1ZN20-25Z1-RN	Mounting: Basic (trunnion female thread) \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1ZN20-50Z1-RN	Mounting: Basic (trunnion female thread) \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1ZN20-75Z1-RN	Mounting: Basic (trunnion female thread) \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1ZN20-100Z1-RN	Mounting: Basic (trunnion female thread) \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1ZN20-125Z1-RN	Mounting: Basic (trunnion female thread) \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1ZN20-150Z1-RN	Mounting: Basic (trunnion female thread) \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1ZN20-200Z1-RN	Mounting: Basic (trunnion female thread) \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1ZN20-25Z1-WN	Mounting: Basic (trunnion female thread) \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1ZN20-50Z1-WN	Mounting: Basic (trunnion female thread) \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1ZN20-75Z1-WN	Mounting: Basic (trunnion female thread) \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1ZN20-100Z1-WN	Mounting: Basic (trunnion female thread) \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1ZN20-125Z1-WN	Mounting: Basic (trunnion female thread) \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1ZN20-150Z1-WN	Mounting: Basic (trunnion female thread) \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1ZN20-200Z1-WN	Mounting: Basic (trunnion female thread) \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1ZN25-25Z1-HN	Mounting: Basic (trunnion female thread) \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1ZN25-50Z1-HN	Mounting: Basic (trunnion female thread) \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1ZN25-75Z1-HN	Mounting: Basic (trunnion female thread) \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1ZN25-100Z1-HN	Mounting: Basic (trunnion female thread) \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1ZN25-125Z1-HN	Mounting: Basic (trunnion female thread) \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1ZN25-150Z1-HN	Mounting: Basic (trunnion female thread) \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1ZN25-200Z1-HN	Mounting: Basic (trunnion female thread) \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1ZN25-250Z1-HN	Mounting: Basic (trunnion female thread) \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1ZN25-300Z1-HN	Mounting: Basic (trunnion female thread) \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1ZN25-25Z1-RN	Mounting: Basic (trunnion female thread) \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1ZN25-50Z1-RN	Mounting: Basic (trunnion female thread) \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1ZN25-75Z1-RN	Mounting: Basic (trunnion female thread) \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1ZN25-100Z1-RN	Mounting: Basic (trunnion female thread) \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1ZN25-125Z1-RN	Mounting: Basic (trunnion female thread) \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1ZN25-150Z1-RN	Mounting: Basic (trunnion female thread) \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1ZN25-200Z1-RN	Mounting: Basic (trunnion female thread) \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1ZN25-250Z1-RN	Mounting: Basic (trunnion female thread) \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1ZN25-300Z1-RN	Mounting: Basic (trunnion female thread) \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1ZN25-25Z1-WN	Mounting: Basic (trunnion female thread) \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1ZN25-50Z1-WN	Mounting: Basic (trunnion female thread) \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1ZN25-75Z1-WN	Mounting: Basic (trunnion female thread) \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1ZN25-100Z1-WN	Mounting: Basic (trunnion female thread) \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1ZN25-125Z1-WN	Mounting: Basic (trunnion female thread) \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1ZN25-150Z1-WN	Mounting: Basic (trunnion female thread) \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1ZN25-200Z1-WN	Mounting: Basic (trunnion female thread) \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1ZN25-250Z1-WN	Mounting: Basic (trunnion female thread) \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1ZN25-300Z1-WN	Mounting: Basic (trunnion female thread) \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1ZN32-25Z1-HN	Mounting: Basic (trunnion female thread) \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1ZN32-50Z1-HN	Mounting: Basic (trunnion female thread) \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1ZN32-75Z1-HN	Mounting: Basic (trunnion female thread) \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1ZN32-100Z1-HN	Mounting: Basic (trunnion female thread) \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1ZN32-125Z1-HN	Mounting: Basic (trunnion female thread) \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1ZN32-150Z1-HN	Mounting: Basic (trunnion female thread) \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1ZN32-200Z1-HN	Mounting: Basic (trunnion female thread) \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1ZN32-250Z1-HN	Mounting: Basic (trunnion female thread) \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1ZN32-300Z1-HN	Mounting: Basic (trunnion female thread) \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1ZN32-25Z1-RN	Mounting: Basic (trunnion female thread) \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1ZN32-50Z1-RN	Mounting: Basic (trunnion female thread) \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1ZN32-75Z1-RN	Mounting: Basic (trunnion female thread) \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1ZN32-100Z1-RN	Mounting: Basic (trunnion female thread) \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1ZN32-125Z1-RN	Mounting: Basic (trunnion female thread) \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1ZN32-150Z1-RN	Mounting: Basic (trunnion female thread) \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1ZN32-200Z1-RN	Mounting: Basic (trunnion female thread) \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1ZN32-250Z1-RN	Mounting: Basic (trunnion female thread) \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1ZN32-300Z1-RN	Mounting: Basic (trunnion female thread) \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1ZN32-25Z1-WN	Mounting: Basic (trunnion female thread) \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1ZN32-50Z1-WN	Mounting: Basic (trunnion female thread) \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1ZN32-75Z1-WN	Mounting: Basic (trunnion female thread) \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1ZN32-100Z1-WN	Mounting: Basic (trunnion female thread) \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1ZN32-125Z1-WN	Mounting: Basic (trunnion female thread) \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1ZN32-150Z1-WN	Mounting: Basic (trunnion female thread) \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1ZN32-200Z1-WN	Mounting: Basic (trunnion female thread) \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1ZN32-250Z1-WN	Mounting: Basic (trunnion female thread) \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1ZN32-300Z1-WN	Mounting: Basic (trunnion female thread) \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1ZN40-25Z1-HN	Mounting: Basic (trunnion female thread) \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1ZN40-50Z1-HN	Mounting: Basic (trunnion female thread) \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1ZN40-75Z1-HN	Mounting: Basic (trunnion female thread) \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1ZN40-100Z1-HN	Mounting: Basic (trunnion female thread) \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1ZN40-125Z1-HN	Mounting: Basic (trunnion female thread) \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1ZN40-150Z1-HN	Mounting: Basic (trunnion female thread) \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1ZN40-200Z1-HN	Mounting: Basic (trunnion female thread) \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1ZN40-250Z1-HN	Mounting: Basic (trunnion female thread) \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1ZN40-300Z1-HN	Mounting: Basic (trunnion female thread) \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1ZN40-25Z1-RN	Mounting: Basic (trunnion female thread) \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1ZN40-50Z1-RN	Mounting: Basic (trunnion female thread) \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1ZN40-75Z1-RN	Mounting: Basic (trunnion female thread) \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1ZN40-100Z1-RN	Mounting: Basic (trunnion female thread) \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1ZN40-125Z1-RN	Mounting: Basic (trunnion female thread) \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1ZN40-150Z1-RN	Mounting: Basic (trunnion female thread) \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1ZN40-200Z1-RN	Mounting: Basic (trunnion female thread) \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1ZN40-250Z1-RN	Mounting: Basic (trunnion female thread) \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1ZN40-300Z1-RN	Mounting: Basic (trunnion female thread) \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1ZN40-25Z1-WN	Mounting: Basic (trunnion female thread) \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1ZN40-50Z1-WN	Mounting: Basic (trunnion female thread) \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1ZN40-75Z1-WN	Mounting: Basic (trunnion female thread) \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1ZN40-100Z1-WN	Mounting: Basic (trunnion female thread) \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1ZN40-125Z1-WN	Mounting: Basic (trunnion female thread) \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1ZN40-150Z1-WN	Mounting: Basic (trunnion female thread) \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1ZN40-200Z1-WN	Mounting: Basic (trunnion female thread) \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1ZN40-250Z1-WN	Mounting: Basic (trunnion female thread) \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1ZN40-300Z1-WN	Mounting: Basic (trunnion female thread) \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1LN20-25Z1-HN	Mounting: Axial foot \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1LN20-50Z1-HN	Mounting: Axial foot \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1LN20-75Z1-HN	Mounting: Axial foot \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1LN20-100Z1-HN	Mounting: Axial foot \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1LN20-125Z1-HN	Mounting: Axial foot \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1LN20-150Z1-HN	Mounting: Axial foot \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1LN20-200Z1-HN	Mounting: Axial foot \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1LN20-25Z1-RN	Mounting: Axial foot \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1LN20-50Z1-RN	Mounting: Axial foot \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1LN20-75Z1-RN	Mounting: Axial foot \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1LN20-100Z1-RN	Mounting: Axial foot \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1LN20-125Z1-RN	Mounting: Axial foot \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1LN20-150Z1-RN	Mounting: Axial foot \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1LN20-200Z1-RN	Mounting: Axial foot \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1LN20-25Z1-WN	Mounting: Axial foot \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1LN20-50Z1-WN	Mounting: Axial foot \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1LN20-75Z1-WN	Mounting: Axial foot \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1LN20-100Z1-WN	Mounting: Axial foot \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1LN20-125Z1-WN	Mounting: Axial foot \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1LN20-150Z1-WN	Mounting: Axial foot \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1LN20-200Z1-WN	Mounting: Axial foot \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1LN25-25Z1-HN	Mounting: Axial foot \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1LN25-50Z1-HN	Mounting: Axial foot \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1LN25-75Z1-HN	Mounting: Axial foot \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1LN25-100Z1-HN	Mounting: Axial foot \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1LN25-125Z1-HN	Mounting: Axial foot \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1LN25-150Z1-HN	Mounting: Axial foot \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1LN25-200Z1-HN	Mounting: Axial foot \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1LN25-250Z1-HN	Mounting: Axial foot \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1LN25-300Z1-HN	Mounting: Axial foot \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1LN25-25Z1-RN	Mounting: Axial foot \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1LN25-50Z1-RN	Mounting: Axial foot \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1LN25-75Z1-RN	Mounting: Axial foot \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1LN25-100Z1-RN	Mounting: Axial foot \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1LN25-125Z1-RN	Mounting: Axial foot \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1LN25-150Z1-RN	Mounting: Axial foot \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1LN25-200Z1-RN	Mounting: Axial foot \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1LN25-250Z1-RN	Mounting: Axial foot \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1LN25-300Z1-RN	Mounting: Axial foot \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1LN25-25Z1-WN	Mounting: Axial foot \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1LN25-50Z1-WN	Mounting: Axial foot \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1LN25-75Z1-WN	Mounting: Axial foot \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1LN25-100Z1-WN	Mounting: Axial foot \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1LN25-125Z1-WN	Mounting: Axial foot \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1LN25-150Z1-WN	Mounting: Axial foot \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1LN25-200Z1-WN	Mounting: Axial foot \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1LN25-250Z1-WN	Mounting: Axial foot \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1LN25-300Z1-WN	Mounting: Axial foot \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1LN32-25Z1-HN	Mounting: Axial foot \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1LN32-50Z1-HN	Mounting: Axial foot \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1LN32-75Z1-HN	Mounting: Axial foot \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1LN32-100Z1-HN	Mounting: Axial foot \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1LN32-125Z1-HN	Mounting: Axial foot \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1LN32-150Z1-HN	Mounting: Axial foot \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1LN32-200Z1-HN	Mounting: Axial foot \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1LN32-250Z1-HN	Mounting: Axial foot \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1LN32-300Z1-HN	Mounting: Axial foot \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1LN32-25Z1-RN	Mounting: Axial foot \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1LN32-50Z1-RN	Mounting: Axial foot \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1LN32-75Z1-RN	Mounting: Axial foot \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1LN32-100Z1-RN	Mounting: Axial foot \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1LN32-125Z1-RN	Mounting: Axial foot \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1LN32-150Z1-RN	Mounting: Axial foot \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1LN32-200Z1-RN	Mounting: Axial foot \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1LN32-250Z1-RN	Mounting: Axial foot \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1LN32-300Z1-RN	Mounting: Axial foot \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1LN32-25Z1-WN	Mounting: Axial foot \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1LN32-50Z1-WN	Mounting: Axial foot \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1LN32-75Z1-WN	Mounting: Axial foot \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1LN32-100Z1-WN	Mounting: Axial foot \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1LN32-125Z1-WN	Mounting: Axial foot \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1LN32-150Z1-WN	Mounting: Axial foot \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1LN32-200Z1-WN	Mounting: Axial foot \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1LN32-250Z1-WN	Mounting: Axial foot \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1LN32-300Z1-WN	Mounting: Axial foot \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1LN40-25Z1-HN	Mounting: Axial foot \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1LN40-50Z1-HN	Mounting: Axial foot \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1LN40-75Z1-HN	Mounting: Axial foot \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1LN40-100Z1-HN	Mounting: Axial foot \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1LN40-125Z1-HN	Mounting: Axial foot \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1LN40-150Z1-HN	Mounting: Axial foot \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1LN40-200Z1-HN	Mounting: Axial foot \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1LN40-250Z1-HN	Mounting: Axial foot \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1LN40-300Z1-HN	Mounting: Axial foot \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1LN40-25Z1-RN	Mounting: Axial foot \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1LN40-50Z1-RN	Mounting: Axial foot \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1LN40-75Z1-RN	Mounting: Axial foot \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1LN40-100Z1-RN	Mounting: Axial foot \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1LN40-125Z1-RN	Mounting: Axial foot \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1LN40-150Z1-RN	Mounting: Axial foot \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1LN40-200Z1-RN	Mounting: Axial foot \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1LN40-250Z1-RN	Mounting: Axial foot \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1LN40-300Z1-RN	Mounting: Axial foot \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1LN40-25Z1-WN	Mounting: Axial foot \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1LN40-50Z1-WN	Mounting: Axial foot \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1LN40-75Z1-WN	Mounting: Axial foot \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1LN40-100Z1-WN	Mounting: Axial foot \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1LN40-125Z1-WN	Mounting: Axial foot \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1LN40-150Z1-WN	Mounting: Axial foot \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1LN40-200Z1-WN	Mounting: Axial foot \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1LN40-250Z1-WN	Mounting: Axial foot \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1LN40-300Z1-WN	Mounting: Axial foot \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1FN20-25Z1-HN	Mounting: Rod flange \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1FN20-50Z1-HN	Mounting: Rod flange \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1FN20-75Z1-HN	Mounting: Rod flange \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1FN20-100Z1-HN	Mounting: Rod flange \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1FN20-125Z1-HN	Mounting: Rod flange \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1FN20-150Z1-HN	Mounting: Rod flange \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1FN20-200Z1-HN	Mounting: Rod flange \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1FN20-25Z1-RN	Mounting: Rod flange \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1FN20-50Z1-RN	Mounting: Rod flange \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1FN20-75Z1-RN	Mounting: Rod flange \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1FN20-100Z1-RN	Mounting: Rod flange \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1FN20-125Z1-RN	Mounting: Rod flange \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1FN20-150Z1-RN	Mounting: Rod flange \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1FN20-200Z1-RN	Mounting: Rod flange \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1FN20-25Z1-WN	Mounting: Rod flange \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1FN20-50Z1-WN	Mounting: Rod flange \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1FN20-75Z1-WN	Mounting: Rod flange \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1FN20-100Z1-WN	Mounting: Rod flange \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1FN20-125Z1-WN	Mounting: Rod flange \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1FN20-150Z1-WN	Mounting: Rod flange \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1FN20-200Z1-WN	Mounting: Rod flange \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1FN25-25Z1-HN	Mounting: Rod flange \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1FN25-50Z1-HN	Mounting: Rod flange \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1FN25-75Z1-HN	Mounting: Rod flange \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1FN25-100Z1-HN	Mounting: Rod flange \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1FN25-125Z1-HN	Mounting: Rod flange \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1FN25-150Z1-HN	Mounting: Rod flange \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1FN25-200Z1-HN	Mounting: Rod flange \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1FN25-250Z1-HN	Mounting: Rod flange \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1FN25-300Z1-HN	Mounting: Rod flange \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1FN25-25Z1-RN	Mounting: Rod flange \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1FN25-50Z1-RN	Mounting: Rod flange \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1FN25-75Z1-RN	Mounting: Rod flange \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1FN25-100Z1-RN	Mounting: Rod flange \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1FN25-125Z1-RN	Mounting: Rod flange \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1FN25-150Z1-RN	Mounting: Rod flange \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1FN25-200Z1-RN	Mounting: Rod flange \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1FN25-250Z1-RN	Mounting: Rod flange \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1FN25-300Z1-RN	Mounting: Rod flange \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1FN25-25Z1-WN	Mounting: Rod flange \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1FN25-50Z1-WN	Mounting: Rod flange \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1FN25-75Z1-WN	Mounting: Rod flange \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1FN25-100Z1-WN	Mounting: Rod flange \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1FN25-125Z1-WN	Mounting: Rod flange \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1FN25-150Z1-WN	Mounting: Rod flange \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1FN25-200Z1-WN	Mounting: Rod flange \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1FN25-250Z1-WN	Mounting: Rod flange \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1FN25-300Z1-WN	Mounting: Rod flange \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1FN32-25Z1-HN	Mounting: Rod flange \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1FN32-50Z1-HN	Mounting: Rod flange \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1FN32-75Z1-HN	Mounting: Rod flange \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1FN32-100Z1-HN	Mounting: Rod flange \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1FN32-125Z1-HN	Mounting: Rod flange \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1FN32-150Z1-HN	Mounting: Rod flange \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1FN32-200Z1-HN	Mounting: Rod flange \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1FN32-250Z1-HN	Mounting: Rod flange \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1FN32-300Z1-HN	Mounting: Rod flange \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1FN32-25Z1-RN	Mounting: Rod flange \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1FN32-50Z1-RN	Mounting: Rod flange \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1FN32-75Z1-RN	Mounting: Rod flange \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1FN32-100Z1-RN	Mounting: Rod flange \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1FN32-125Z1-RN	Mounting: Rod flange \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1FN32-150Z1-RN	Mounting: Rod flange \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1FN32-200Z1-RN	Mounting: Rod flange \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1FN32-250Z1-RN	Mounting: Rod flange \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1FN32-300Z1-RN	Mounting: Rod flange \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1FN32-25Z1-WN	Mounting: Rod flange \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1FN32-50Z1-WN	Mounting: Rod flange \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1FN32-75Z1-WN	Mounting: Rod flange \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1FN32-100Z1-WN	Mounting: Rod flange \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1FN32-125Z1-WN	Mounting: Rod flange \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1FN32-150Z1-WN	Mounting: Rod flange \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1FN32-200Z1-WN	Mounting: Rod flange \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1FN32-250Z1-WN	Mounting: Rod flange \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1FN32-300Z1-WN	Mounting: Rod flange \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1FN40-25Z1-HN	Mounting: Rod flange \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1FN40-50Z1-HN	Mounting: Rod flange \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1FN40-75Z1-HN	Mounting: Rod flange \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1FN40-100Z1-HN	Mounting: Rod flange \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1FN40-125Z1-HN	Mounting: Rod flange \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1FN40-150Z1-HN	Mounting: Rod flange \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1FN40-200Z1-HN	Mounting: Rod flange \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1FN40-250Z1-HN	Mounting: Rod flange \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1FN40-300Z1-HN	Mounting: Rod flange \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1FN40-25Z1-RN	Mounting: Rod flange \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1FN40-50Z1-RN	Mounting: Rod flange \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1FN40-75Z1-RN	Mounting: Rod flange \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1FN40-100Z1-RN	Mounting: Rod flange \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1FN40-125Z1-RN	Mounting: Rod flange \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1FN40-150Z1-RN	Mounting: Rod flange \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1FN40-200Z1-RN	Mounting: Rod flange \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1FN40-250Z1-RN	Mounting: Rod flange \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1FN40-300Z1-RN	Mounting: Rod flange \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1FN40-25Z1-WN	Mounting: Rod flange \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1FN40-50Z1-WN	Mounting: Rod flange \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1FN40-75Z1-WN	Mounting: Rod flange \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1FN40-100Z1-WN	Mounting: Rod flange \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1FN40-125Z1-WN	Mounting: Rod flange \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1FN40-150Z1-WN	Mounting: Rod flange \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1FN40-200Z1-WN	Mounting: Rod flange \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1FN40-250Z1-WN	Mounting: Rod flange \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1FN40-300Z1-WN	Mounting: Rod flange \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1GN20-25Z1-HN	Mounting: Head flange \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1GN20-50Z1-HN	Mounting: Head flange \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1GN20-75Z1-HN	Mounting: Head flange \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1GN20-100Z1-HN	Mounting: Head flange \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1GN20-125Z1-HN	Mounting: Head flange \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1GN20-150Z1-HN	Mounting: Head flange \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1GN20-200Z1-HN	Mounting: Head flange \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1GN20-25Z1-RN	Mounting: Head flange \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1GN20-50Z1-RN	Mounting: Head flange \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1GN20-75Z1-RN	Mounting: Head flange \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1GN20-100Z1-RN	Mounting: Head flange \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1GN20-125Z1-RN	Mounting: Head flange \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1GN20-150Z1-RN	Mounting: Head flange \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1GN20-200Z1-RN	Mounting: Head flange \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1GN20-25Z1-WN	Mounting: Head flange \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1GN20-50Z1-WN	Mounting: Head flange \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1GN20-75Z1-WN	Mounting: Head flange \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1GN20-100Z1-WN	Mounting: Head flange \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1GN20-125Z1-WN	Mounting: Head flange \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1GN20-150Z1-WN	Mounting: Head flange \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1GN20-200Z1-WN	Mounting: Head flange \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1GN25-25Z1-HN	Mounting: Head flange \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1GN25-50Z1-HN	Mounting: Head flange \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1GN25-75Z1-HN	Mounting: Head flange \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1GN25-100Z1-HN	Mounting: Head flange \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1GN25-125Z1-HN	Mounting: Head flange \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1GN25-150Z1-HN	Mounting: Head flange \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1GN25-200Z1-HN	Mounting: Head flange \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1GN25-250Z1-HN	Mounting: Head flange \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1GN25-300Z1-HN	Mounting: Head flange \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1GN25-25Z1-RN	Mounting: Head flange \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1GN25-50Z1-RN	Mounting: Head flange \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1GN25-75Z1-RN	Mounting: Head flange \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1GN25-100Z1-RN	Mounting: Head flange \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1GN25-125Z1-RN	Mounting: Head flange \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1GN25-150Z1-RN	Mounting: Head flange \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1GN25-200Z1-RN	Mounting: Head flange \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1GN25-250Z1-RN	Mounting: Head flange \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1GN25-300Z1-RN	Mounting: Head flange \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1GN25-25Z1-WN	Mounting: Head flange \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1GN25-50Z1-WN	Mounting: Head flange \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1GN25-75Z1-WN	Mounting: Head flange \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1GN25-100Z1-WN	Mounting: Head flange \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1GN25-125Z1-WN	Mounting: Head flange \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1GN25-150Z1-WN	Mounting: Head flange \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1GN25-200Z1-WN	Mounting: Head flange \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1GN25-250Z1-WN	Mounting: Head flange \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1GN25-300Z1-WN	Mounting: Head flange \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1GN32-25Z1-HN	Mounting: Head flange \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1GN32-50Z1-HN	Mounting: Head flange \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1GN32-75Z1-HN	Mounting: Head flange \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1GN32-100Z1-HN	Mounting: Head flange \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1GN32-125Z1-HN	Mounting: Head flange \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1GN32-150Z1-HN	Mounting: Head flange \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1GN32-200Z1-HN	Mounting: Head flange \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1GN32-250Z1-HN	Mounting: Head flange \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1GN32-300Z1-HN	Mounting: Head flange \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1GN32-25Z1-RN	Mounting: Head flange \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1GN32-50Z1-RN	Mounting: Head flange \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1GN32-75Z1-RN	Mounting: Head flange \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1GN32-100Z1-RN	Mounting: Head flange \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1GN32-125Z1-RN	Mounting: Head flange \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1GN32-150Z1-RN	Mounting: Head flange \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1GN32-200Z1-RN	Mounting: Head flange \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1GN32-250Z1-RN	Mounting: Head flange \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1GN32-300Z1-RN	Mounting: Head flange \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1GN32-25Z1-WN	Mounting: Head flange \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1GN32-50Z1-WN	Mounting: Head flange \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1GN32-75Z1-WN	Mounting: Head flange \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1GN32-100Z1-WN	Mounting: Head flange \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1GN32-125Z1-WN	Mounting: Head flange \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1GN32-150Z1-WN	Mounting: Head flange \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1GN32-200Z1-WN	Mounting: Head flange \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1GN32-250Z1-WN	Mounting: Head flange \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1GN32-300Z1-WN	Mounting: Head flange \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1GN40-25Z1-HN	Mounting: Head flange \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1GN40-50Z1-HN	Mounting: Head flange \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1GN40-75Z1-HN	Mounting: Head flange \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1GN40-100Z1-HN	Mounting: Head flange \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1GN40-125Z1-HN	Mounting: Head flange \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1GN40-150Z1-HN	Mounting: Head flange \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1GN40-200Z1-HN	Mounting: Head flange \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1GN40-250Z1-HN	Mounting: Head flange \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1GN40-300Z1-HN	Mounting: Head flange \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1GN40-25Z1-RN	Mounting: Head flange \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1GN40-50Z1-RN	Mounting: Head flange \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1GN40-75Z1-RN	Mounting: Head flange \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1GN40-100Z1-RN	Mounting: Head flange \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1GN40-125Z1-RN	Mounting: Head flange \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1GN40-150Z1-RN	Mounting: Head flange \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1GN40-200Z1-RN	Mounting: Head flange \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1GN40-250Z1-RN	Mounting: Head flange \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1GN40-300Z1-RN	Mounting: Head flange \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1GN40-25Z1-WN	Mounting: Head flange \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1GN40-50Z1-WN	Mounting: Head flange \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1GN40-75Z1-WN	Mounting: Head flange \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1GN40-100Z1-WN	Mounting: Head flange \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1GN40-125Z1-WN	Mounting: Head flange \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1GN40-150Z1-WN	Mounting: Head flange \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1GN40-200Z1-WN	Mounting: Head flange \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1GN40-250Z1-WN	Mounting: Head flange \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1GN40-300Z1-WN	Mounting: Head flange \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1UN20-25Z1-HN	Mounting: Rod trunnion \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1UN20-50Z1-HN	Mounting: Rod trunnion \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1UN20-75Z1-HN	Mounting: Rod trunnion \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1UN20-100Z1-HN	Mounting: Rod trunnion \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1UN20-125Z1-HN	Mounting: Rod trunnion \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1UN20-150Z1-HN	Mounting: Rod trunnion \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1UN20-200Z1-HN	Mounting: Rod trunnion \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1UN25-25Z1-HN	Mounting: Rod trunnion \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1UN25-50Z1-HN	Mounting: Rod trunnion \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1UN25-75Z1-HN	Mounting: Rod trunnion \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1UN25-100Z1-HN	Mounting: Rod trunnion \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1UN25-125Z1-HN	Mounting: Rod trunnion \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1UN25-150Z1-HN	Mounting: Rod trunnion \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1UN25-200Z1-HN	Mounting: Rod trunnion \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1UN25-250Z1-HN	Mounting: Rod trunnion \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1UN25-300Z1-HN	Mounting: Rod trunnion \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1UN32-25Z1-HN	Mounting: Rod trunnion \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1UN32-50Z1-HN	Mounting: Rod trunnion \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1UN32-75Z1-HN	Mounting: Rod trunnion \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1UN32-100Z1-HN	Mounting: Rod trunnion \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1UN32-125Z1-HN	Mounting: Rod trunnion \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1UN32-150Z1-HN	Mounting: Rod trunnion \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1UN32-200Z1-HN	Mounting: Rod trunnion \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1UN32-250Z1-HN	Mounting: Rod trunnion \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1UN32-300Z1-HN	Mounting: Rod trunnion \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1UN40-25Z1-HN	Mounting: Rod trunnion \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1UN40-50Z1-HN	Mounting: Rod trunnion \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1UN40-75Z1-HN	Mounting: Rod trunnion \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1UN40-100Z1-HN	Mounting: Rod trunnion \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1UN40-125Z1-HN	Mounting: Rod trunnion \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1UN40-150Z1-HN	Mounting: Rod trunnion \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1UN40-200Z1-HN	Mounting: Rod trunnion \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1UN40-250Z1-HN	Mounting: Rod trunnion \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1UN40-300Z1-HN	Mounting: Rod trunnion \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1TN20-25Z1-RN	Mounting: Head trunnion \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1TN20-50Z1-RN	Mounting: Head trunnion \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1TN20-75Z1-RN	Mounting: Head trunnion \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1TN20-100Z1-RN	Mounting: Head trunnion \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1TN20-125Z1-RN	Mounting: Head trunnion \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1TN20-150Z1-RN	Mounting: Head trunnion \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1TN20-200Z1-RN	Mounting: Head trunnion \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1TN25-25Z1-RN	Mounting: Head trunnion \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1TN25-50Z1-RN	Mounting: Head trunnion \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1TN25-75Z1-RN	Mounting: Head trunnion \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1TN25-100Z1-RN	Mounting: Head trunnion \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1TN25-125Z1-RN	Mounting: Head trunnion \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1TN25-150Z1-RN	Mounting: Head trunnion \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1TN25-200Z1-RN	Mounting: Head trunnion \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1TN25-250Z1-RN	Mounting: Head trunnion \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1TN25-300Z1-RN	Mounting: Head trunnion \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1TN32-25Z1-RN	Mounting: Head trunnion \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1TN32-50Z1-RN	Mounting: Head trunnion \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1TN32-75Z1-RN	Mounting: Head trunnion \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1TN32-100Z1-RN	Mounting: Head trunnion \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1TN32-125Z1-RN	Mounting: Head trunnion \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1TN32-150Z1-RN	Mounting: Head trunnion \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1TN32-200Z1-RN	Mounting: Head trunnion \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1TN32-250Z1-RN	Mounting: Head trunnion \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1TN32-300Z1-RN	Mounting: Head trunnion \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1TN40-25Z1-RN	Mounting: Head trunnion \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1TN40-50Z1-RN	Mounting: Head trunnion \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1TN40-75Z1-RN	Mounting: Head trunnion \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1TN40-100Z1-RN	Mounting: Head trunnion \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1TN40-125Z1-RN	Mounting: Head trunnion \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1TN40-150Z1-RN	Mounting: Head trunnion \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1TN40-200Z1-RN	Mounting: Head trunnion \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1TN40-250Z1-RN	Mounting: Head trunnion \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1TN40-300Z1-RN	Mounting: Head trunnion \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1DN20-25Z1-HN	Mounting: Clevis \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1DN20-50Z1-HN	Mounting: Clevis \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1DN20-75Z1-HN	Mounting: Clevis \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1DN20-100Z1-HN	Mounting: Clevis \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1DN20-125Z1-HN	Mounting: Clevis \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1DN20-150Z1-HN	Mounting: Clevis \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1DN20-200Z1-HN	Mounting: Clevis \| Bore: ø20 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1DN20-25Z1-RN	Mounting: Clevis \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1DN20-50Z1-RN	Mounting: Clevis \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1DN20-75Z1-RN	Mounting: Clevis \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1DN20-100Z1-RN	Mounting: Clevis \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1DN20-125Z1-RN	Mounting: Clevis \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1DN20-150Z1-RN	Mounting: Clevis \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1DN20-200Z1-RN	Mounting: Clevis \| Bore: ø20 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1DN20-25Z1-WN	Mounting: Clevis \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1DN20-50Z1-WN	Mounting: Clevis \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1DN20-75Z1-WN	Mounting: Clevis \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1DN20-100Z1-WN	Mounting: Clevis \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1DN20-125Z1-WN	Mounting: Clevis \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1DN20-150Z1-WN	Mounting: Clevis \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1DN20-200Z1-WN	Mounting: Clevis \| Bore: ø20 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1DN25-25Z1-HN	Mounting: Clevis \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1DN25-50Z1-HN	Mounting: Clevis \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1DN25-75Z1-HN	Mounting: Clevis \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1DN25-100Z1-HN	Mounting: Clevis \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1DN25-125Z1-HN	Mounting: Clevis \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1DN25-150Z1-HN	Mounting: Clevis \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1DN25-200Z1-HN	Mounting: Clevis \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1DN25-250Z1-HN	Mounting: Clevis \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1DN25-300Z1-HN	Mounting: Clevis \| Bore: ø25 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1DN25-25Z1-RN	Mounting: Clevis \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1DN25-50Z1-RN	Mounting: Clevis \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1DN25-75Z1-RN	Mounting: Clevis \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1DN25-100Z1-RN	Mounting: Clevis \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1DN25-125Z1-RN	Mounting: Clevis \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1DN25-150Z1-RN	Mounting: Clevis \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1DN25-200Z1-RN	Mounting: Clevis \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1DN25-250Z1-RN	Mounting: Clevis \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1DN25-300Z1-RN	Mounting: Clevis \| Bore: ø25 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1DN25-25Z1-WN	Mounting: Clevis \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1DN25-50Z1-WN	Mounting: Clevis \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1DN25-75Z1-WN	Mounting: Clevis \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1DN25-100Z1-WN	Mounting: Clevis \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1DN25-125Z1-WN	Mounting: Clevis \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1DN25-150Z1-WN	Mounting: Clevis \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1DN25-200Z1-WN	Mounting: Clevis \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1DN25-250Z1-WN	Mounting: Clevis \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1DN25-300Z1-WN	Mounting: Clevis \| Bore: ø25 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1DN32-25Z1-HN	Mounting: Clevis \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1DN32-50Z1-HN	Mounting: Clevis \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1DN32-75Z1-HN	Mounting: Clevis \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1DN32-100Z1-HN	Mounting: Clevis \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1DN32-125Z1-HN	Mounting: Clevis \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1DN32-150Z1-HN	Mounting: Clevis \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1DN32-200Z1-HN	Mounting: Clevis \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1DN32-250Z1-HN	Mounting: Clevis \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1DN32-300Z1-HN	Mounting: Clevis \| Bore: ø32 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1DN32-25Z1-RN	Mounting: Clevis \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1DN32-50Z1-RN	Mounting: Clevis \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1DN32-75Z1-RN	Mounting: Clevis \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1DN32-100Z1-RN	Mounting: Clevis \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1DN32-125Z1-RN	Mounting: Clevis \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1DN32-150Z1-RN	Mounting: Clevis \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1DN32-200Z1-RN	Mounting: Clevis \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1DN32-250Z1-RN	Mounting: Clevis \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1DN32-300Z1-RN	Mounting: Clevis \| Bore: ø32 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1DN32-25Z1-WN	Mounting: Clevis \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1DN32-50Z1-WN	Mounting: Clevis \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1DN32-75Z1-WN	Mounting: Clevis \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1DN32-100Z1-WN	Mounting: Clevis \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1DN32-125Z1-WN	Mounting: Clevis \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1DN32-150Z1-WN	Mounting: Clevis \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1DN32-200Z1-WN	Mounting: Clevis \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1DN32-250Z1-WN	Mounting: Clevis \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1DN32-300Z1-WN	Mounting: Clevis \| Bore: ø32 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1DN40-25Z1-HN	Mounting: Clevis \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1DN40-50Z1-HN	Mounting: Clevis \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1DN40-75Z1-HN	Mounting: Clevis \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1DN40-100Z1-HN	Mounting: Clevis \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1DN40-125Z1-HN	Mounting: Clevis \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1DN40-150Z1-HN	Mounting: Clevis \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1DN40-200Z1-HN	Mounting: Clevis \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1DN40-250Z1-HN	Mounting: Clevis \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1DN40-300Z1-HN	Mounting: Clevis \| Bore: ø40 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1DN40-25Z1-RN	Mounting: Clevis \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1DN40-50Z1-RN	Mounting: Clevis \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1DN40-75Z1-RN	Mounting: Clevis \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1DN40-100Z1-RN	Mounting: Clevis \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1DN40-125Z1-RN	Mounting: Clevis \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1DN40-150Z1-RN	Mounting: Clevis \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1DN40-200Z1-RN	Mounting: Clevis \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1DN40-250Z1-RN	Mounting: Clevis \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1DN40-300Z1-RN	Mounting: Clevis \| Bore: ø40 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1DN40-25Z1-WN	Mounting: Clevis \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1DN40-50Z1-WN	Mounting: Clevis \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1DN40-75Z1-WN	Mounting: Clevis \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1DN40-100Z1-WN	Mounting: Clevis \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1DN40-125Z1-WN	Mounting: Clevis \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1DN40-150Z1-WN	Mounting: Clevis \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1DN40-200Z1-WN	Mounting: Clevis \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1DN40-250Z1-WN	Mounting: Clevis \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1DN40-300Z1-WN	Mounting: Clevis \| Bore: ø40 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: Yes

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

SMC CBG1 End Lock Cylinder (ø20 to ø40)
