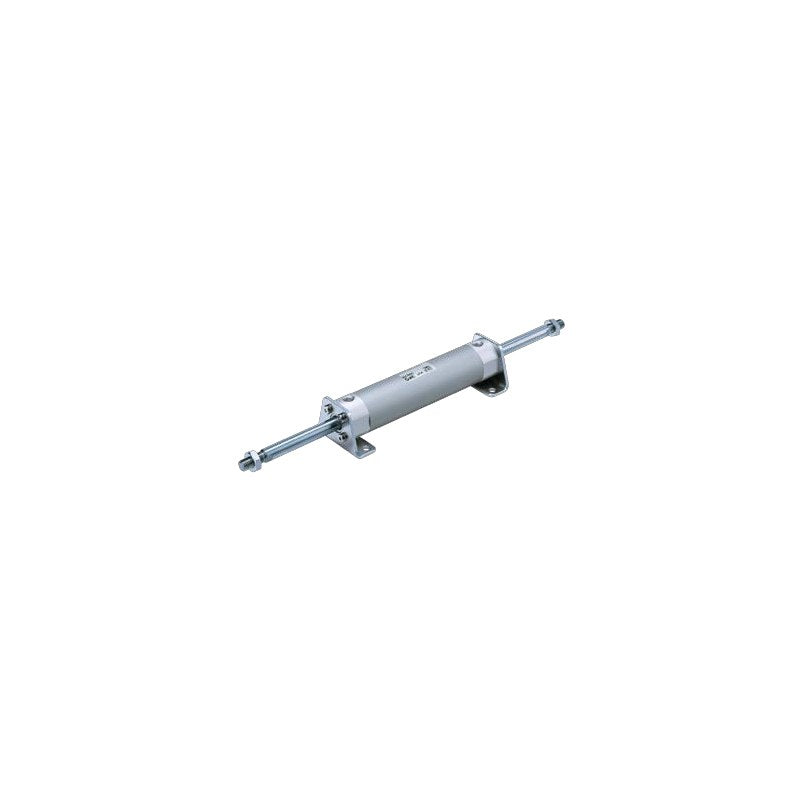

SMC CBG1 End Lock Cylinder (ø50 to ø100)

SMC CBG1 series end lock cylinder based on the CG1, double acting, ø50 to ø100 mm bore, locking at the head end, rod end or both ends to prevent drops when air is cut off.

Key features

End lock cylinder that mechanically holds the piston at the stroke end when air pressure is exhausted (drop prevention)
Lock position: head end (H), rod end (R) or both ends (W); backlash 2 mm
Manual release: non-lock type (N, listed) or lock type (L, on order)
Eight mounting styles; trunnion cannot be fitted to a locked cover (U with head lock only, T with rod lock only)
Air cushion (A), bellows (J/K) and auto switches with built-in magnet (CDBG1) ordered as options

Specifications

Action	Double acting, single rod, with end lock
Fluid	Air
Proof pressure	1.5 MPa
Max. operating pressure	1.0 MPa
Min. operating pressure	0.15 MPa (0.05 MPa excluding lock)
Ambient and fluid temperature	-10 to 70°C (with auto switch -10 to 60°C), no freezing
Piston speed	50 to 1000 mm/s (ø80, ø100: 50 to 700 mm/s)
Cushion	Rubber cushion (N)
Manual release	Non-lock type (N)
Holding force (max.)	ø20 215 N, ø40 860 N, ø63 2140 N, ø100 5390 N
Source	SMC Korea catalog CAT.KS20-268B (SMCKR_CG1-Z1.pdf), p. 31-32

CBG1BN50-25Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1BN50-50Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1BN50-75Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1BN50-100Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1BN50-125Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1BN50-150Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1BN50-200Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1BN50-250Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1BN50-300Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1BN50-25Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1BN50-50Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1BN50-75Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1BN50-100Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1BN50-125Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1BN50-150Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1BN50-200Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1BN50-250Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1BN50-300Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1BN50-25Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1BN50-50Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1BN50-75Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1BN50-100Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1BN50-125Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1BN50-150Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1BN50-200Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1BN50-250Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1BN50-300Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1BN63-25Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1BN63-50Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1BN63-75Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1BN63-100Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1BN63-125Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1BN63-150Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1BN63-200Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1BN63-250Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1BN63-300Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1BN63-25Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1BN63-50Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1BN63-75Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1BN63-100Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1BN63-125Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1BN63-150Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1BN63-200Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1BN63-250Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1BN63-300Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1BN63-25Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1BN63-50Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1BN63-75Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1BN63-100Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1BN63-125Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1BN63-150Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1BN63-200Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1BN63-250Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1BN63-300Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1BN80-25Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1BN80-50Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1BN80-75Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1BN80-100Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1BN80-125Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1BN80-150Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1BN80-200Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1BN80-250Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1BN80-300Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1BN80-25Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1BN80-50Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1BN80-75Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1BN80-100Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1BN80-125Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1BN80-150Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1BN80-200Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1BN80-250Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1BN80-300Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1BN80-25Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1BN80-50Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1BN80-75Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1BN80-100Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1BN80-125Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1BN80-150Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1BN80-200Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1BN80-250Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1BN80-300Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1BN100-25Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1BN100-50Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1BN100-75Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1BN100-100Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1BN100-125Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1BN100-150Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1BN100-200Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1BN100-250Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1BN100-300Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1BN100-25Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1BN100-50Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1BN100-75Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1BN100-100Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1BN100-125Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1BN100-150Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1BN100-200Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1BN100-250Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1BN100-300Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1BN100-25Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1BN100-50Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1BN100-75Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1BN100-100Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1BN100-125Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1BN100-150Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1BN100-200Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1BN100-250Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1BN100-300Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1ZN50-25Z1-HN		Mounting: Basic (trunnion female thread) \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1ZN50-50Z1-HN		Mounting: Basic (trunnion female thread) \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1ZN50-75Z1-HN		Mounting: Basic (trunnion female thread) \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1ZN50-100Z1-HN		Mounting: Basic (trunnion female thread) \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1ZN50-125Z1-HN		Mounting: Basic (trunnion female thread) \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1ZN50-150Z1-HN		Mounting: Basic (trunnion female thread) \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1ZN50-200Z1-HN		Mounting: Basic (trunnion female thread) \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1ZN50-250Z1-HN		Mounting: Basic (trunnion female thread) \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1ZN50-300Z1-HN		Mounting: Basic (trunnion female thread) \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1ZN50-25Z1-RN		Mounting: Basic (trunnion female thread) \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1ZN50-50Z1-RN		Mounting: Basic (trunnion female thread) \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1ZN50-75Z1-RN		Mounting: Basic (trunnion female thread) \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1ZN50-100Z1-RN		Mounting: Basic (trunnion female thread) \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1ZN50-125Z1-RN		Mounting: Basic (trunnion female thread) \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1ZN50-150Z1-RN		Mounting: Basic (trunnion female thread) \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1ZN50-200Z1-RN		Mounting: Basic (trunnion female thread) \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1ZN50-250Z1-RN		Mounting: Basic (trunnion female thread) \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1ZN50-300Z1-RN		Mounting: Basic (trunnion female thread) \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1ZN50-25Z1-WN		Mounting: Basic (trunnion female thread) \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1ZN50-50Z1-WN		Mounting: Basic (trunnion female thread) \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1ZN50-75Z1-WN		Mounting: Basic (trunnion female thread) \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1ZN50-100Z1-WN		Mounting: Basic (trunnion female thread) \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1ZN50-125Z1-WN		Mounting: Basic (trunnion female thread) \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1ZN50-150Z1-WN		Mounting: Basic (trunnion female thread) \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1ZN50-200Z1-WN		Mounting: Basic (trunnion female thread) \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1ZN50-250Z1-WN		Mounting: Basic (trunnion female thread) \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1ZN50-300Z1-WN		Mounting: Basic (trunnion female thread) \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1ZN63-25Z1-HN		Mounting: Basic (trunnion female thread) \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1ZN63-50Z1-HN		Mounting: Basic (trunnion female thread) \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1ZN63-75Z1-HN		Mounting: Basic (trunnion female thread) \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1ZN63-100Z1-HN		Mounting: Basic (trunnion female thread) \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1ZN63-125Z1-HN		Mounting: Basic (trunnion female thread) \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1ZN63-150Z1-HN		Mounting: Basic (trunnion female thread) \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1ZN63-200Z1-HN		Mounting: Basic (trunnion female thread) \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1ZN63-250Z1-HN		Mounting: Basic (trunnion female thread) \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1ZN63-300Z1-HN		Mounting: Basic (trunnion female thread) \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1ZN63-25Z1-RN		Mounting: Basic (trunnion female thread) \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1ZN63-50Z1-RN		Mounting: Basic (trunnion female thread) \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1ZN63-75Z1-RN		Mounting: Basic (trunnion female thread) \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1ZN63-100Z1-RN		Mounting: Basic (trunnion female thread) \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1ZN63-125Z1-RN		Mounting: Basic (trunnion female thread) \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1ZN63-150Z1-RN		Mounting: Basic (trunnion female thread) \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1ZN63-200Z1-RN		Mounting: Basic (trunnion female thread) \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1ZN63-250Z1-RN		Mounting: Basic (trunnion female thread) \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1ZN63-300Z1-RN		Mounting: Basic (trunnion female thread) \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1ZN63-25Z1-WN		Mounting: Basic (trunnion female thread) \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1ZN63-50Z1-WN		Mounting: Basic (trunnion female thread) \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1ZN63-75Z1-WN		Mounting: Basic (trunnion female thread) \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1ZN63-100Z1-WN		Mounting: Basic (trunnion female thread) \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1ZN63-125Z1-WN		Mounting: Basic (trunnion female thread) \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1ZN63-150Z1-WN		Mounting: Basic (trunnion female thread) \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1ZN63-200Z1-WN		Mounting: Basic (trunnion female thread) \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1ZN63-250Z1-WN		Mounting: Basic (trunnion female thread) \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1ZN63-300Z1-WN		Mounting: Basic (trunnion female thread) \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1LN50-25Z1-HN		Mounting: Axial foot \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1LN50-50Z1-HN		Mounting: Axial foot \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1LN50-75Z1-HN		Mounting: Axial foot \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1LN50-100Z1-HN		Mounting: Axial foot \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1LN50-125Z1-HN		Mounting: Axial foot \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1LN50-150Z1-HN		Mounting: Axial foot \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1LN50-200Z1-HN		Mounting: Axial foot \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1LN50-250Z1-HN		Mounting: Axial foot \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1LN50-300Z1-HN		Mounting: Axial foot \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1LN50-25Z1-RN		Mounting: Axial foot \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1LN50-50Z1-RN		Mounting: Axial foot \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1LN50-75Z1-RN		Mounting: Axial foot \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1LN50-100Z1-RN		Mounting: Axial foot \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1LN50-125Z1-RN		Mounting: Axial foot \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1LN50-150Z1-RN		Mounting: Axial foot \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1LN50-200Z1-RN		Mounting: Axial foot \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1LN50-250Z1-RN		Mounting: Axial foot \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1LN50-300Z1-RN		Mounting: Axial foot \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1LN50-25Z1-WN		Mounting: Axial foot \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1LN50-50Z1-WN		Mounting: Axial foot \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1LN50-75Z1-WN		Mounting: Axial foot \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1LN50-100Z1-WN		Mounting: Axial foot \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1LN50-125Z1-WN		Mounting: Axial foot \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1LN50-150Z1-WN		Mounting: Axial foot \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1LN50-200Z1-WN		Mounting: Axial foot \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1LN50-250Z1-WN		Mounting: Axial foot \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1LN50-300Z1-WN		Mounting: Axial foot \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1LN63-25Z1-HN		Mounting: Axial foot \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1LN63-50Z1-HN		Mounting: Axial foot \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1LN63-75Z1-HN		Mounting: Axial foot \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1LN63-100Z1-HN		Mounting: Axial foot \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1LN63-125Z1-HN		Mounting: Axial foot \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1LN63-150Z1-HN		Mounting: Axial foot \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1LN63-200Z1-HN		Mounting: Axial foot \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1LN63-250Z1-HN		Mounting: Axial foot \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1LN63-300Z1-HN		Mounting: Axial foot \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1LN63-25Z1-RN		Mounting: Axial foot \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1LN63-50Z1-RN		Mounting: Axial foot \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1LN63-75Z1-RN		Mounting: Axial foot \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1LN63-100Z1-RN		Mounting: Axial foot \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1LN63-125Z1-RN		Mounting: Axial foot \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1LN63-150Z1-RN		Mounting: Axial foot \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1LN63-200Z1-RN		Mounting: Axial foot \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1LN63-250Z1-RN		Mounting: Axial foot \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1LN63-300Z1-RN		Mounting: Axial foot \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1LN63-25Z1-WN		Mounting: Axial foot \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1LN63-50Z1-WN		Mounting: Axial foot \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1LN63-75Z1-WN		Mounting: Axial foot \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1LN63-100Z1-WN		Mounting: Axial foot \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1LN63-125Z1-WN		Mounting: Axial foot \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1LN63-150Z1-WN		Mounting: Axial foot \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1LN63-200Z1-WN		Mounting: Axial foot \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1LN63-250Z1-WN		Mounting: Axial foot \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1LN63-300Z1-WN		Mounting: Axial foot \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1LN80-25Z1-HN		Mounting: Axial foot \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1LN80-50Z1-HN		Mounting: Axial foot \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1LN80-75Z1-HN		Mounting: Axial foot \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1LN80-100Z1-HN		Mounting: Axial foot \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1LN80-125Z1-HN		Mounting: Axial foot \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1LN80-150Z1-HN		Mounting: Axial foot \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1LN80-200Z1-HN		Mounting: Axial foot \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1LN80-250Z1-HN		Mounting: Axial foot \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1LN80-300Z1-HN		Mounting: Axial foot \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1LN80-25Z1-RN		Mounting: Axial foot \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1LN80-50Z1-RN		Mounting: Axial foot \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1LN80-75Z1-RN		Mounting: Axial foot \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1LN80-100Z1-RN		Mounting: Axial foot \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1LN80-125Z1-RN		Mounting: Axial foot \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1LN80-150Z1-RN		Mounting: Axial foot \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1LN80-200Z1-RN		Mounting: Axial foot \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1LN80-250Z1-RN		Mounting: Axial foot \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1LN80-300Z1-RN		Mounting: Axial foot \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1LN80-25Z1-WN		Mounting: Axial foot \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1LN80-50Z1-WN		Mounting: Axial foot \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1LN80-75Z1-WN		Mounting: Axial foot \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1LN80-100Z1-WN		Mounting: Axial foot \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1LN80-125Z1-WN		Mounting: Axial foot \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1LN80-150Z1-WN		Mounting: Axial foot \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1LN80-200Z1-WN		Mounting: Axial foot \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1LN80-250Z1-WN		Mounting: Axial foot \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1LN80-300Z1-WN		Mounting: Axial foot \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1LN100-25Z1-HN		Mounting: Axial foot \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1LN100-50Z1-HN		Mounting: Axial foot \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1LN100-75Z1-HN		Mounting: Axial foot \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1LN100-100Z1-HN		Mounting: Axial foot \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1LN100-125Z1-HN		Mounting: Axial foot \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1LN100-150Z1-HN		Mounting: Axial foot \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1LN100-200Z1-HN		Mounting: Axial foot \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1LN100-250Z1-HN		Mounting: Axial foot \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1LN100-300Z1-HN		Mounting: Axial foot \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1LN100-25Z1-RN		Mounting: Axial foot \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1LN100-50Z1-RN		Mounting: Axial foot \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1LN100-75Z1-RN		Mounting: Axial foot \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1LN100-100Z1-RN		Mounting: Axial foot \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1LN100-125Z1-RN		Mounting: Axial foot \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1LN100-150Z1-RN		Mounting: Axial foot \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1LN100-200Z1-RN		Mounting: Axial foot \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1LN100-250Z1-RN		Mounting: Axial foot \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1LN100-300Z1-RN		Mounting: Axial foot \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1LN100-25Z1-WN		Mounting: Axial foot \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1LN100-50Z1-WN		Mounting: Axial foot \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1LN100-75Z1-WN		Mounting: Axial foot \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1LN100-100Z1-WN		Mounting: Axial foot \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1LN100-125Z1-WN		Mounting: Axial foot \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1LN100-150Z1-WN		Mounting: Axial foot \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1LN100-200Z1-WN		Mounting: Axial foot \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1LN100-250Z1-WN		Mounting: Axial foot \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1LN100-300Z1-WN		Mounting: Axial foot \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1FN50-25Z1-HN		Mounting: Rod flange \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1FN50-50Z1-HN		Mounting: Rod flange \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1FN50-75Z1-HN		Mounting: Rod flange \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1FN50-100Z1-HN		Mounting: Rod flange \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1FN50-125Z1-HN		Mounting: Rod flange \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1FN50-150Z1-HN		Mounting: Rod flange \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1FN50-200Z1-HN		Mounting: Rod flange \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1FN50-250Z1-HN		Mounting: Rod flange \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1FN50-300Z1-HN		Mounting: Rod flange \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1FN50-25Z1-RN		Mounting: Rod flange \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1FN50-50Z1-RN		Mounting: Rod flange \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1FN50-75Z1-RN		Mounting: Rod flange \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1FN50-100Z1-RN		Mounting: Rod flange \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1FN50-125Z1-RN		Mounting: Rod flange \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1FN50-150Z1-RN		Mounting: Rod flange \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1FN50-200Z1-RN		Mounting: Rod flange \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1FN50-250Z1-RN		Mounting: Rod flange \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1FN50-300Z1-RN		Mounting: Rod flange \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1FN50-25Z1-WN		Mounting: Rod flange \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1FN50-50Z1-WN		Mounting: Rod flange \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1FN50-75Z1-WN		Mounting: Rod flange \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1FN50-100Z1-WN		Mounting: Rod flange \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1FN50-125Z1-WN		Mounting: Rod flange \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1FN50-150Z1-WN		Mounting: Rod flange \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1FN50-200Z1-WN		Mounting: Rod flange \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1FN50-250Z1-WN		Mounting: Rod flange \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1FN50-300Z1-WN		Mounting: Rod flange \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1FN63-25Z1-HN		Mounting: Rod flange \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1FN63-50Z1-HN		Mounting: Rod flange \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1FN63-75Z1-HN		Mounting: Rod flange \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1FN63-100Z1-HN		Mounting: Rod flange \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1FN63-125Z1-HN		Mounting: Rod flange \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1FN63-150Z1-HN		Mounting: Rod flange \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1FN63-200Z1-HN		Mounting: Rod flange \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1FN63-250Z1-HN		Mounting: Rod flange \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1FN63-300Z1-HN		Mounting: Rod flange \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1FN63-25Z1-RN		Mounting: Rod flange \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1FN63-50Z1-RN		Mounting: Rod flange \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1FN63-75Z1-RN		Mounting: Rod flange \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1FN63-100Z1-RN		Mounting: Rod flange \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1FN63-125Z1-RN		Mounting: Rod flange \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1FN63-150Z1-RN		Mounting: Rod flange \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1FN63-200Z1-RN		Mounting: Rod flange \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1FN63-250Z1-RN		Mounting: Rod flange \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1FN63-300Z1-RN		Mounting: Rod flange \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1FN63-25Z1-WN		Mounting: Rod flange \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1FN63-50Z1-WN		Mounting: Rod flange \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1FN63-75Z1-WN		Mounting: Rod flange \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1FN63-100Z1-WN		Mounting: Rod flange \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1FN63-125Z1-WN		Mounting: Rod flange \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1FN63-150Z1-WN		Mounting: Rod flange \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1FN63-200Z1-WN		Mounting: Rod flange \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1FN63-250Z1-WN		Mounting: Rod flange \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1FN63-300Z1-WN		Mounting: Rod flange \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1FN80-25Z1-HN		Mounting: Rod flange \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1FN80-50Z1-HN		Mounting: Rod flange \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1FN80-75Z1-HN		Mounting: Rod flange \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1FN80-100Z1-HN		Mounting: Rod flange \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1FN80-125Z1-HN		Mounting: Rod flange \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1FN80-150Z1-HN		Mounting: Rod flange \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1FN80-200Z1-HN		Mounting: Rod flange \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1FN80-250Z1-HN		Mounting: Rod flange \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1FN80-300Z1-HN		Mounting: Rod flange \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1FN80-25Z1-RN		Mounting: Rod flange \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1FN80-50Z1-RN		Mounting: Rod flange \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1FN80-75Z1-RN		Mounting: Rod flange \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1FN80-100Z1-RN		Mounting: Rod flange \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1FN80-125Z1-RN		Mounting: Rod flange \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1FN80-150Z1-RN		Mounting: Rod flange \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1FN80-200Z1-RN		Mounting: Rod flange \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1FN80-250Z1-RN		Mounting: Rod flange \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1FN80-300Z1-RN		Mounting: Rod flange \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1FN80-25Z1-WN		Mounting: Rod flange \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1FN80-50Z1-WN		Mounting: Rod flange \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1FN80-75Z1-WN		Mounting: Rod flange \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1FN80-100Z1-WN		Mounting: Rod flange \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1FN80-125Z1-WN		Mounting: Rod flange \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1FN80-150Z1-WN		Mounting: Rod flange \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1FN80-200Z1-WN		Mounting: Rod flange \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1FN80-250Z1-WN		Mounting: Rod flange \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1FN80-300Z1-WN		Mounting: Rod flange \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1FN100-25Z1-HN		Mounting: Rod flange \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1FN100-50Z1-HN		Mounting: Rod flange \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1FN100-75Z1-HN		Mounting: Rod flange \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1FN100-100Z1-HN		Mounting: Rod flange \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1FN100-125Z1-HN		Mounting: Rod flange \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1FN100-150Z1-HN		Mounting: Rod flange \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1FN100-200Z1-HN		Mounting: Rod flange \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1FN100-250Z1-HN		Mounting: Rod flange \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1FN100-300Z1-HN		Mounting: Rod flange \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1FN100-25Z1-RN		Mounting: Rod flange \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1FN100-50Z1-RN		Mounting: Rod flange \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1FN100-75Z1-RN		Mounting: Rod flange \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1FN100-100Z1-RN		Mounting: Rod flange \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1FN100-125Z1-RN		Mounting: Rod flange \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1FN100-150Z1-RN		Mounting: Rod flange \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1FN100-200Z1-RN		Mounting: Rod flange \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1FN100-250Z1-RN		Mounting: Rod flange \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1FN100-300Z1-RN		Mounting: Rod flange \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1FN100-25Z1-WN		Mounting: Rod flange \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1FN100-50Z1-WN		Mounting: Rod flange \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1FN100-75Z1-WN		Mounting: Rod flange \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1FN100-100Z1-WN		Mounting: Rod flange \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1FN100-125Z1-WN		Mounting: Rod flange \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1FN100-150Z1-WN		Mounting: Rod flange \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1FN100-200Z1-WN		Mounting: Rod flange \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1FN100-250Z1-WN		Mounting: Rod flange \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1FN100-300Z1-WN		Mounting: Rod flange \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1GN50-25Z1-HN		Mounting: Head flange \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1GN50-50Z1-HN		Mounting: Head flange \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1GN50-75Z1-HN		Mounting: Head flange \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1GN50-100Z1-HN		Mounting: Head flange \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1GN50-125Z1-HN		Mounting: Head flange \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1GN50-150Z1-HN		Mounting: Head flange \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1GN50-200Z1-HN		Mounting: Head flange \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1GN50-250Z1-HN		Mounting: Head flange \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1GN50-300Z1-HN		Mounting: Head flange \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1GN50-25Z1-RN		Mounting: Head flange \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1GN50-50Z1-RN		Mounting: Head flange \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1GN50-75Z1-RN		Mounting: Head flange \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1GN50-100Z1-RN		Mounting: Head flange \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1GN50-125Z1-RN		Mounting: Head flange \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1GN50-150Z1-RN		Mounting: Head flange \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1GN50-200Z1-RN		Mounting: Head flange \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1GN50-250Z1-RN		Mounting: Head flange \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1GN50-300Z1-RN		Mounting: Head flange \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1GN50-25Z1-WN		Mounting: Head flange \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1GN50-50Z1-WN		Mounting: Head flange \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1GN50-75Z1-WN		Mounting: Head flange \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1GN50-100Z1-WN		Mounting: Head flange \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1GN50-125Z1-WN		Mounting: Head flange \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1GN50-150Z1-WN		Mounting: Head flange \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1GN50-200Z1-WN		Mounting: Head flange \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1GN50-250Z1-WN		Mounting: Head flange \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1GN50-300Z1-WN		Mounting: Head flange \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1GN63-25Z1-HN		Mounting: Head flange \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1GN63-50Z1-HN		Mounting: Head flange \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1GN63-75Z1-HN		Mounting: Head flange \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1GN63-100Z1-HN		Mounting: Head flange \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1GN63-125Z1-HN		Mounting: Head flange \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1GN63-150Z1-HN		Mounting: Head flange \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1GN63-200Z1-HN		Mounting: Head flange \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1GN63-250Z1-HN		Mounting: Head flange \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1GN63-300Z1-HN		Mounting: Head flange \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1GN63-25Z1-RN		Mounting: Head flange \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1GN63-50Z1-RN		Mounting: Head flange \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1GN63-75Z1-RN		Mounting: Head flange \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1GN63-100Z1-RN		Mounting: Head flange \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1GN63-125Z1-RN		Mounting: Head flange \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1GN63-150Z1-RN		Mounting: Head flange \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1GN63-200Z1-RN		Mounting: Head flange \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1GN63-250Z1-RN		Mounting: Head flange \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1GN63-300Z1-RN		Mounting: Head flange \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1GN63-25Z1-WN		Mounting: Head flange \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1GN63-50Z1-WN		Mounting: Head flange \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1GN63-75Z1-WN		Mounting: Head flange \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1GN63-100Z1-WN		Mounting: Head flange \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1GN63-125Z1-WN		Mounting: Head flange \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1GN63-150Z1-WN		Mounting: Head flange \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1GN63-200Z1-WN		Mounting: Head flange \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1GN63-250Z1-WN		Mounting: Head flange \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1GN63-300Z1-WN		Mounting: Head flange \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1GN80-25Z1-HN		Mounting: Head flange \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1GN80-50Z1-HN		Mounting: Head flange \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1GN80-75Z1-HN		Mounting: Head flange \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1GN80-100Z1-HN		Mounting: Head flange \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1GN80-125Z1-HN		Mounting: Head flange \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1GN80-150Z1-HN		Mounting: Head flange \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1GN80-200Z1-HN		Mounting: Head flange \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1GN80-250Z1-HN		Mounting: Head flange \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1GN80-300Z1-HN		Mounting: Head flange \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1GN80-25Z1-RN		Mounting: Head flange \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1GN80-50Z1-RN		Mounting: Head flange \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1GN80-75Z1-RN		Mounting: Head flange \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1GN80-100Z1-RN		Mounting: Head flange \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1GN80-125Z1-RN		Mounting: Head flange \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1GN80-150Z1-RN		Mounting: Head flange \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1GN80-200Z1-RN		Mounting: Head flange \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1GN80-250Z1-RN		Mounting: Head flange \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1GN80-300Z1-RN		Mounting: Head flange \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1GN80-25Z1-WN		Mounting: Head flange \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1GN80-50Z1-WN		Mounting: Head flange \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1GN80-75Z1-WN		Mounting: Head flange \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1GN80-100Z1-WN		Mounting: Head flange \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1GN80-125Z1-WN		Mounting: Head flange \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1GN80-150Z1-WN		Mounting: Head flange \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1GN80-200Z1-WN		Mounting: Head flange \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1GN80-250Z1-WN		Mounting: Head flange \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1GN80-300Z1-WN		Mounting: Head flange \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1GN100-25Z1-HN		Mounting: Head flange \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1GN100-50Z1-HN		Mounting: Head flange \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1GN100-75Z1-HN		Mounting: Head flange \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1GN100-100Z1-HN		Mounting: Head flange \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1GN100-125Z1-HN		Mounting: Head flange \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1GN100-150Z1-HN		Mounting: Head flange \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1GN100-200Z1-HN		Mounting: Head flange \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1GN100-250Z1-HN		Mounting: Head flange \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1GN100-300Z1-HN		Mounting: Head flange \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1GN100-25Z1-RN		Mounting: Head flange \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1GN100-50Z1-RN		Mounting: Head flange \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1GN100-75Z1-RN		Mounting: Head flange \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1GN100-100Z1-RN		Mounting: Head flange \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1GN100-125Z1-RN		Mounting: Head flange \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1GN100-150Z1-RN		Mounting: Head flange \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1GN100-200Z1-RN		Mounting: Head flange \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1GN100-250Z1-RN		Mounting: Head flange \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1GN100-300Z1-RN		Mounting: Head flange \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1GN100-25Z1-WN		Mounting: Head flange \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1GN100-50Z1-WN		Mounting: Head flange \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1GN100-75Z1-WN		Mounting: Head flange \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1GN100-100Z1-WN		Mounting: Head flange \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1GN100-125Z1-WN		Mounting: Head flange \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1GN100-150Z1-WN		Mounting: Head flange \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1GN100-200Z1-WN		Mounting: Head flange \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1GN100-250Z1-WN		Mounting: Head flange \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1GN100-300Z1-WN		Mounting: Head flange \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1UN50-25Z1-HN		Mounting: Rod trunnion \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1UN50-50Z1-HN		Mounting: Rod trunnion \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1UN50-75Z1-HN		Mounting: Rod trunnion \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1UN50-100Z1-HN		Mounting: Rod trunnion \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1UN50-125Z1-HN		Mounting: Rod trunnion \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1UN50-150Z1-HN		Mounting: Rod trunnion \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1UN50-200Z1-HN		Mounting: Rod trunnion \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1UN50-250Z1-HN		Mounting: Rod trunnion \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1UN50-300Z1-HN		Mounting: Rod trunnion \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1UN63-25Z1-HN		Mounting: Rod trunnion \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1UN63-50Z1-HN		Mounting: Rod trunnion \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1UN63-75Z1-HN		Mounting: Rod trunnion \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1UN63-100Z1-HN		Mounting: Rod trunnion \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1UN63-125Z1-HN		Mounting: Rod trunnion \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1UN63-150Z1-HN		Mounting: Rod trunnion \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1UN63-200Z1-HN		Mounting: Rod trunnion \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1UN63-250Z1-HN		Mounting: Rod trunnion \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1UN63-300Z1-HN		Mounting: Rod trunnion \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1TN50-25Z1-RN		Mounting: Head trunnion \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1TN50-50Z1-RN		Mounting: Head trunnion \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1TN50-75Z1-RN		Mounting: Head trunnion \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1TN50-100Z1-RN		Mounting: Head trunnion \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1TN50-125Z1-RN		Mounting: Head trunnion \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1TN50-150Z1-RN		Mounting: Head trunnion \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1TN50-200Z1-RN		Mounting: Head trunnion \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1TN50-250Z1-RN		Mounting: Head trunnion \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1TN50-300Z1-RN		Mounting: Head trunnion \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1TN63-25Z1-RN		Mounting: Head trunnion \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1TN63-50Z1-RN		Mounting: Head trunnion \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1TN63-75Z1-RN		Mounting: Head trunnion \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1TN63-100Z1-RN		Mounting: Head trunnion \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1TN63-125Z1-RN		Mounting: Head trunnion \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1TN63-150Z1-RN		Mounting: Head trunnion \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1TN63-200Z1-RN		Mounting: Head trunnion \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1TN63-250Z1-RN		Mounting: Head trunnion \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1TN63-300Z1-RN		Mounting: Head trunnion \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1DN50-25Z1-HN		Mounting: Clevis \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1DN50-50Z1-HN		Mounting: Clevis \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1DN50-75Z1-HN		Mounting: Clevis \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1DN50-100Z1-HN		Mounting: Clevis \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1DN50-125Z1-HN		Mounting: Clevis \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1DN50-150Z1-HN		Mounting: Clevis \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1DN50-200Z1-HN		Mounting: Clevis \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1DN50-250Z1-HN		Mounting: Clevis \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1DN50-300Z1-HN		Mounting: Clevis \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1DN50-25Z1-RN		Mounting: Clevis \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1DN50-50Z1-RN		Mounting: Clevis \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1DN50-75Z1-RN		Mounting: Clevis \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1DN50-100Z1-RN		Mounting: Clevis \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1DN50-125Z1-RN		Mounting: Clevis \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1DN50-150Z1-RN		Mounting: Clevis \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1DN50-200Z1-RN		Mounting: Clevis \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1DN50-250Z1-RN		Mounting: Clevis \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1DN50-300Z1-RN		Mounting: Clevis \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1DN50-25Z1-WN		Mounting: Clevis \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1DN50-50Z1-WN		Mounting: Clevis \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1DN50-75Z1-WN		Mounting: Clevis \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1DN50-100Z1-WN		Mounting: Clevis \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1DN50-125Z1-WN		Mounting: Clevis \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1DN50-150Z1-WN		Mounting: Clevis \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1DN50-200Z1-WN		Mounting: Clevis \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1DN50-250Z1-WN		Mounting: Clevis \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1DN50-300Z1-WN		Mounting: Clevis \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1DN63-25Z1-HN		Mounting: Clevis \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1DN63-50Z1-HN		Mounting: Clevis \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1DN63-75Z1-HN		Mounting: Clevis \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1DN63-100Z1-HN		Mounting: Clevis \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1DN63-125Z1-HN		Mounting: Clevis \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1DN63-150Z1-HN		Mounting: Clevis \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1DN63-200Z1-HN		Mounting: Clevis \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1DN63-250Z1-HN		Mounting: Clevis \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1DN63-300Z1-HN		Mounting: Clevis \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1DN63-25Z1-RN		Mounting: Clevis \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1DN63-50Z1-RN		Mounting: Clevis \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1DN63-75Z1-RN		Mounting: Clevis \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1DN63-100Z1-RN		Mounting: Clevis \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1DN63-125Z1-RN		Mounting: Clevis \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1DN63-150Z1-RN		Mounting: Clevis \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1DN63-200Z1-RN		Mounting: Clevis \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1DN63-250Z1-RN		Mounting: Clevis \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1DN63-300Z1-RN		Mounting: Clevis \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1DN63-25Z1-WN		Mounting: Clevis \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1DN63-50Z1-WN		Mounting: Clevis \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1DN63-75Z1-WN		Mounting: Clevis \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1DN63-100Z1-WN		Mounting: Clevis \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1DN63-125Z1-WN		Mounting: Clevis \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1DN63-150Z1-WN		Mounting: Clevis \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1DN63-200Z1-WN		Mounting: Clevis \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1DN63-250Z1-WN		Mounting: Clevis \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1DN63-300Z1-WN		Mounting: Clevis \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1DN80-25Z1-HN		Mounting: Clevis \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1DN80-50Z1-HN		Mounting: Clevis \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1DN80-75Z1-HN		Mounting: Clevis \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1DN80-100Z1-HN		Mounting: Clevis \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1DN80-125Z1-HN		Mounting: Clevis \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1DN80-150Z1-HN		Mounting: Clevis \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1DN80-200Z1-HN		Mounting: Clevis \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1DN80-250Z1-HN		Mounting: Clevis \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1DN80-300Z1-HN		Mounting: Clevis \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1DN80-25Z1-RN		Mounting: Clevis \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1DN80-50Z1-RN		Mounting: Clevis \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1DN80-75Z1-RN		Mounting: Clevis \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1DN80-100Z1-RN		Mounting: Clevis \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1DN80-125Z1-RN		Mounting: Clevis \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1DN80-150Z1-RN		Mounting: Clevis \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1DN80-200Z1-RN		Mounting: Clevis \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1DN80-250Z1-RN		Mounting: Clevis \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1DN80-300Z1-RN		Mounting: Clevis \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1DN80-25Z1-WN		Mounting: Clevis \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1DN80-50Z1-WN		Mounting: Clevis \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1DN80-75Z1-WN		Mounting: Clevis \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1DN80-100Z1-WN		Mounting: Clevis \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1DN80-125Z1-WN		Mounting: Clevis \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1DN80-150Z1-WN		Mounting: Clevis \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1DN80-200Z1-WN		Mounting: Clevis \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1DN80-250Z1-WN		Mounting: Clevis \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1DN80-300Z1-WN		Mounting: Clevis \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1DN100-25Z1-HN		Mounting: Clevis \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1DN100-50Z1-HN		Mounting: Clevis \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1DN100-75Z1-HN		Mounting: Clevis \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1DN100-100Z1-HN		Mounting: Clevis \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1DN100-125Z1-HN		Mounting: Clevis \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1DN100-150Z1-HN		Mounting: Clevis \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1DN100-200Z1-HN		Mounting: Clevis \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1DN100-250Z1-HN		Mounting: Clevis \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1DN100-300Z1-HN		Mounting: Clevis \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1DN100-25Z1-RN		Mounting: Clevis \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1DN100-50Z1-RN		Mounting: Clevis \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1DN100-75Z1-RN		Mounting: Clevis \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1DN100-100Z1-RN		Mounting: Clevis \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1DN100-125Z1-RN		Mounting: Clevis \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1DN100-150Z1-RN		Mounting: Clevis \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1DN100-200Z1-RN		Mounting: Clevis \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1DN100-250Z1-RN		Mounting: Clevis \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1DN100-300Z1-RN		Mounting: Clevis \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: No
CBG1DN100-25Z1-WN		Mounting: Clevis \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: No
CBG1DN100-50Z1-WN		Mounting: Clevis \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: No
CBG1DN100-75Z1-WN		Mounting: Clevis \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: No
CBG1DN100-100Z1-WN		Mounting: Clevis \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: No
CBG1DN100-125Z1-WN		Mounting: Clevis \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: No
CBG1DN100-150Z1-WN		Mounting: Clevis \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: No
CBG1DN100-200Z1-WN		Mounting: Clevis \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: No
CBG1DN100-250Z1-WN		Mounting: Clevis \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: No
CBG1DN100-300Z1-WN		Mounting: Clevis \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: No
CDBG1BN50-25Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1BN50-50Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1BN50-75Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1BN50-100Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1BN50-125Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1BN50-150Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1BN50-200Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1BN50-250Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1BN50-300Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1BN50-25Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1BN50-50Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1BN50-75Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1BN50-100Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1BN50-125Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1BN50-150Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1BN50-200Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1BN50-250Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1BN50-300Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1BN50-25Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1BN50-50Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1BN50-75Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1BN50-100Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1BN50-125Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1BN50-150Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1BN50-200Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1BN50-250Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1BN50-300Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1BN63-25Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1BN63-50Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1BN63-75Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1BN63-100Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1BN63-125Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1BN63-150Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1BN63-200Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1BN63-250Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1BN63-300Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1BN63-25Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1BN63-50Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1BN63-75Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1BN63-100Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1BN63-125Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1BN63-150Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1BN63-200Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1BN63-250Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1BN63-300Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1BN63-25Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1BN63-50Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1BN63-75Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1BN63-100Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1BN63-125Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1BN63-150Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1BN63-200Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1BN63-250Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1BN63-300Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1BN80-25Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1BN80-50Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1BN80-75Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1BN80-100Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1BN80-125Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1BN80-150Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1BN80-200Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1BN80-250Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1BN80-300Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1BN80-25Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1BN80-50Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1BN80-75Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1BN80-100Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1BN80-125Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1BN80-150Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1BN80-200Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1BN80-250Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1BN80-300Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1BN80-25Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1BN80-50Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1BN80-75Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1BN80-100Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1BN80-125Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1BN80-150Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1BN80-200Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1BN80-250Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1BN80-300Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1BN100-25Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1BN100-50Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1BN100-75Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1BN100-100Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1BN100-125Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1BN100-150Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1BN100-200Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1BN100-250Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1BN100-300Z1-HN		Mounting: Basic (no trunnion female thread) \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1BN100-25Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1BN100-50Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1BN100-75Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1BN100-100Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1BN100-125Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1BN100-150Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1BN100-200Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1BN100-250Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1BN100-300Z1-RN		Mounting: Basic (no trunnion female thread) \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1BN100-25Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1BN100-50Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1BN100-75Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1BN100-100Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1BN100-125Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1BN100-150Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1BN100-200Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1BN100-250Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1BN100-300Z1-WN		Mounting: Basic (no trunnion female thread) \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1ZN50-25Z1-HN		Mounting: Basic (trunnion female thread) \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1ZN50-50Z1-HN		Mounting: Basic (trunnion female thread) \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1ZN50-75Z1-HN		Mounting: Basic (trunnion female thread) \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1ZN50-100Z1-HN		Mounting: Basic (trunnion female thread) \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1ZN50-125Z1-HN		Mounting: Basic (trunnion female thread) \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1ZN50-150Z1-HN		Mounting: Basic (trunnion female thread) \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1ZN50-200Z1-HN		Mounting: Basic (trunnion female thread) \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1ZN50-250Z1-HN		Mounting: Basic (trunnion female thread) \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1ZN50-300Z1-HN		Mounting: Basic (trunnion female thread) \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1ZN50-25Z1-RN		Mounting: Basic (trunnion female thread) \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1ZN50-50Z1-RN		Mounting: Basic (trunnion female thread) \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1ZN50-75Z1-RN		Mounting: Basic (trunnion female thread) \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1ZN50-100Z1-RN		Mounting: Basic (trunnion female thread) \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1ZN50-125Z1-RN		Mounting: Basic (trunnion female thread) \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1ZN50-150Z1-RN		Mounting: Basic (trunnion female thread) \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1ZN50-200Z1-RN		Mounting: Basic (trunnion female thread) \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1ZN50-250Z1-RN		Mounting: Basic (trunnion female thread) \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1ZN50-300Z1-RN		Mounting: Basic (trunnion female thread) \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1ZN50-25Z1-WN		Mounting: Basic (trunnion female thread) \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1ZN50-50Z1-WN		Mounting: Basic (trunnion female thread) \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1ZN50-75Z1-WN		Mounting: Basic (trunnion female thread) \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1ZN50-100Z1-WN		Mounting: Basic (trunnion female thread) \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1ZN50-125Z1-WN		Mounting: Basic (trunnion female thread) \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1ZN50-150Z1-WN		Mounting: Basic (trunnion female thread) \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1ZN50-200Z1-WN		Mounting: Basic (trunnion female thread) \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1ZN50-250Z1-WN		Mounting: Basic (trunnion female thread) \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1ZN50-300Z1-WN		Mounting: Basic (trunnion female thread) \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1ZN63-25Z1-HN		Mounting: Basic (trunnion female thread) \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1ZN63-50Z1-HN		Mounting: Basic (trunnion female thread) \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1ZN63-75Z1-HN		Mounting: Basic (trunnion female thread) \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1ZN63-100Z1-HN		Mounting: Basic (trunnion female thread) \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1ZN63-125Z1-HN		Mounting: Basic (trunnion female thread) \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1ZN63-150Z1-HN		Mounting: Basic (trunnion female thread) \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1ZN63-200Z1-HN		Mounting: Basic (trunnion female thread) \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1ZN63-250Z1-HN		Mounting: Basic (trunnion female thread) \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1ZN63-300Z1-HN		Mounting: Basic (trunnion female thread) \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1ZN63-25Z1-RN		Mounting: Basic (trunnion female thread) \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1ZN63-50Z1-RN		Mounting: Basic (trunnion female thread) \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1ZN63-75Z1-RN		Mounting: Basic (trunnion female thread) \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1ZN63-100Z1-RN		Mounting: Basic (trunnion female thread) \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1ZN63-125Z1-RN		Mounting: Basic (trunnion female thread) \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1ZN63-150Z1-RN		Mounting: Basic (trunnion female thread) \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1ZN63-200Z1-RN		Mounting: Basic (trunnion female thread) \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1ZN63-250Z1-RN		Mounting: Basic (trunnion female thread) \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1ZN63-300Z1-RN		Mounting: Basic (trunnion female thread) \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1ZN63-25Z1-WN		Mounting: Basic (trunnion female thread) \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1ZN63-50Z1-WN		Mounting: Basic (trunnion female thread) \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1ZN63-75Z1-WN		Mounting: Basic (trunnion female thread) \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1ZN63-100Z1-WN		Mounting: Basic (trunnion female thread) \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1ZN63-125Z1-WN		Mounting: Basic (trunnion female thread) \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1ZN63-150Z1-WN		Mounting: Basic (trunnion female thread) \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1ZN63-200Z1-WN		Mounting: Basic (trunnion female thread) \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1ZN63-250Z1-WN		Mounting: Basic (trunnion female thread) \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1ZN63-300Z1-WN		Mounting: Basic (trunnion female thread) \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1LN50-25Z1-HN		Mounting: Axial foot \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1LN50-50Z1-HN		Mounting: Axial foot \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1LN50-75Z1-HN		Mounting: Axial foot \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1LN50-100Z1-HN		Mounting: Axial foot \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1LN50-125Z1-HN		Mounting: Axial foot \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1LN50-150Z1-HN		Mounting: Axial foot \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1LN50-200Z1-HN		Mounting: Axial foot \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1LN50-250Z1-HN		Mounting: Axial foot \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1LN50-300Z1-HN		Mounting: Axial foot \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1LN50-25Z1-RN		Mounting: Axial foot \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1LN50-50Z1-RN		Mounting: Axial foot \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1LN50-75Z1-RN		Mounting: Axial foot \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1LN50-100Z1-RN		Mounting: Axial foot \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1LN50-125Z1-RN		Mounting: Axial foot \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1LN50-150Z1-RN		Mounting: Axial foot \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1LN50-200Z1-RN		Mounting: Axial foot \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1LN50-250Z1-RN		Mounting: Axial foot \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1LN50-300Z1-RN		Mounting: Axial foot \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1LN50-25Z1-WN		Mounting: Axial foot \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1LN50-50Z1-WN		Mounting: Axial foot \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1LN50-75Z1-WN		Mounting: Axial foot \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1LN50-100Z1-WN		Mounting: Axial foot \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1LN50-125Z1-WN		Mounting: Axial foot \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1LN50-150Z1-WN		Mounting: Axial foot \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1LN50-200Z1-WN		Mounting: Axial foot \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1LN50-250Z1-WN		Mounting: Axial foot \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1LN50-300Z1-WN		Mounting: Axial foot \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1LN63-25Z1-HN		Mounting: Axial foot \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1LN63-50Z1-HN		Mounting: Axial foot \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1LN63-75Z1-HN		Mounting: Axial foot \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1LN63-100Z1-HN		Mounting: Axial foot \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1LN63-125Z1-HN		Mounting: Axial foot \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1LN63-150Z1-HN		Mounting: Axial foot \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1LN63-200Z1-HN		Mounting: Axial foot \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1LN63-250Z1-HN		Mounting: Axial foot \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1LN63-300Z1-HN		Mounting: Axial foot \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1LN63-25Z1-RN		Mounting: Axial foot \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1LN63-50Z1-RN		Mounting: Axial foot \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1LN63-75Z1-RN		Mounting: Axial foot \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1LN63-100Z1-RN		Mounting: Axial foot \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1LN63-125Z1-RN		Mounting: Axial foot \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1LN63-150Z1-RN		Mounting: Axial foot \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1LN63-200Z1-RN		Mounting: Axial foot \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1LN63-250Z1-RN		Mounting: Axial foot \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1LN63-300Z1-RN		Mounting: Axial foot \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1LN63-25Z1-WN		Mounting: Axial foot \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1LN63-50Z1-WN		Mounting: Axial foot \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1LN63-75Z1-WN		Mounting: Axial foot \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1LN63-100Z1-WN		Mounting: Axial foot \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1LN63-125Z1-WN		Mounting: Axial foot \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1LN63-150Z1-WN		Mounting: Axial foot \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1LN63-200Z1-WN		Mounting: Axial foot \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1LN63-250Z1-WN		Mounting: Axial foot \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1LN63-300Z1-WN		Mounting: Axial foot \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1LN80-25Z1-HN		Mounting: Axial foot \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1LN80-50Z1-HN		Mounting: Axial foot \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1LN80-75Z1-HN		Mounting: Axial foot \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1LN80-100Z1-HN		Mounting: Axial foot \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1LN80-125Z1-HN		Mounting: Axial foot \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1LN80-150Z1-HN		Mounting: Axial foot \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1LN80-200Z1-HN		Mounting: Axial foot \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1LN80-250Z1-HN		Mounting: Axial foot \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1LN80-300Z1-HN		Mounting: Axial foot \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1LN80-25Z1-RN		Mounting: Axial foot \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1LN80-50Z1-RN		Mounting: Axial foot \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1LN80-75Z1-RN		Mounting: Axial foot \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1LN80-100Z1-RN		Mounting: Axial foot \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1LN80-125Z1-RN		Mounting: Axial foot \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1LN80-150Z1-RN		Mounting: Axial foot \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1LN80-200Z1-RN		Mounting: Axial foot \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1LN80-250Z1-RN		Mounting: Axial foot \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1LN80-300Z1-RN		Mounting: Axial foot \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1LN80-25Z1-WN		Mounting: Axial foot \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1LN80-50Z1-WN		Mounting: Axial foot \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1LN80-75Z1-WN		Mounting: Axial foot \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1LN80-100Z1-WN		Mounting: Axial foot \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1LN80-125Z1-WN		Mounting: Axial foot \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1LN80-150Z1-WN		Mounting: Axial foot \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1LN80-200Z1-WN		Mounting: Axial foot \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1LN80-250Z1-WN		Mounting: Axial foot \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1LN80-300Z1-WN		Mounting: Axial foot \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1LN100-25Z1-HN		Mounting: Axial foot \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1LN100-50Z1-HN		Mounting: Axial foot \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1LN100-75Z1-HN		Mounting: Axial foot \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1LN100-100Z1-HN		Mounting: Axial foot \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1LN100-125Z1-HN		Mounting: Axial foot \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1LN100-150Z1-HN		Mounting: Axial foot \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1LN100-200Z1-HN		Mounting: Axial foot \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1LN100-250Z1-HN		Mounting: Axial foot \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1LN100-300Z1-HN		Mounting: Axial foot \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1LN100-25Z1-RN		Mounting: Axial foot \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1LN100-50Z1-RN		Mounting: Axial foot \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1LN100-75Z1-RN		Mounting: Axial foot \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1LN100-100Z1-RN		Mounting: Axial foot \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1LN100-125Z1-RN		Mounting: Axial foot \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1LN100-150Z1-RN		Mounting: Axial foot \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1LN100-200Z1-RN		Mounting: Axial foot \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1LN100-250Z1-RN		Mounting: Axial foot \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1LN100-300Z1-RN		Mounting: Axial foot \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1LN100-25Z1-WN		Mounting: Axial foot \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1LN100-50Z1-WN		Mounting: Axial foot \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1LN100-75Z1-WN		Mounting: Axial foot \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1LN100-100Z1-WN		Mounting: Axial foot \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1LN100-125Z1-WN		Mounting: Axial foot \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1LN100-150Z1-WN		Mounting: Axial foot \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1LN100-200Z1-WN		Mounting: Axial foot \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1LN100-250Z1-WN		Mounting: Axial foot \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1LN100-300Z1-WN		Mounting: Axial foot \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1FN50-25Z1-HN		Mounting: Rod flange \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1FN50-50Z1-HN		Mounting: Rod flange \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1FN50-75Z1-HN		Mounting: Rod flange \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1FN50-100Z1-HN		Mounting: Rod flange \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1FN50-125Z1-HN		Mounting: Rod flange \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1FN50-150Z1-HN		Mounting: Rod flange \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1FN50-200Z1-HN		Mounting: Rod flange \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1FN50-250Z1-HN		Mounting: Rod flange \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1FN50-300Z1-HN		Mounting: Rod flange \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1FN50-25Z1-RN		Mounting: Rod flange \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1FN50-50Z1-RN		Mounting: Rod flange \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1FN50-75Z1-RN		Mounting: Rod flange \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1FN50-100Z1-RN		Mounting: Rod flange \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1FN50-125Z1-RN		Mounting: Rod flange \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1FN50-150Z1-RN		Mounting: Rod flange \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1FN50-200Z1-RN		Mounting: Rod flange \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1FN50-250Z1-RN		Mounting: Rod flange \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1FN50-300Z1-RN		Mounting: Rod flange \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1FN50-25Z1-WN		Mounting: Rod flange \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1FN50-50Z1-WN		Mounting: Rod flange \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1FN50-75Z1-WN		Mounting: Rod flange \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1FN50-100Z1-WN		Mounting: Rod flange \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1FN50-125Z1-WN		Mounting: Rod flange \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1FN50-150Z1-WN		Mounting: Rod flange \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1FN50-200Z1-WN		Mounting: Rod flange \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1FN50-250Z1-WN		Mounting: Rod flange \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1FN50-300Z1-WN		Mounting: Rod flange \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1FN63-25Z1-HN		Mounting: Rod flange \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1FN63-50Z1-HN		Mounting: Rod flange \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1FN63-75Z1-HN		Mounting: Rod flange \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1FN63-100Z1-HN		Mounting: Rod flange \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1FN63-125Z1-HN		Mounting: Rod flange \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1FN63-150Z1-HN		Mounting: Rod flange \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1FN63-200Z1-HN		Mounting: Rod flange \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1FN63-250Z1-HN		Mounting: Rod flange \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1FN63-300Z1-HN		Mounting: Rod flange \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1FN63-25Z1-RN		Mounting: Rod flange \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1FN63-50Z1-RN		Mounting: Rod flange \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1FN63-75Z1-RN		Mounting: Rod flange \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1FN63-100Z1-RN		Mounting: Rod flange \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1FN63-125Z1-RN		Mounting: Rod flange \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1FN63-150Z1-RN		Mounting: Rod flange \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1FN63-200Z1-RN		Mounting: Rod flange \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1FN63-250Z1-RN		Mounting: Rod flange \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1FN63-300Z1-RN		Mounting: Rod flange \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1FN63-25Z1-WN		Mounting: Rod flange \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1FN63-50Z1-WN		Mounting: Rod flange \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1FN63-75Z1-WN		Mounting: Rod flange \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1FN63-100Z1-WN		Mounting: Rod flange \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1FN63-125Z1-WN		Mounting: Rod flange \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1FN63-150Z1-WN		Mounting: Rod flange \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1FN63-200Z1-WN		Mounting: Rod flange \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1FN63-250Z1-WN		Mounting: Rod flange \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1FN63-300Z1-WN		Mounting: Rod flange \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1FN80-25Z1-HN		Mounting: Rod flange \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1FN80-50Z1-HN		Mounting: Rod flange \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1FN80-75Z1-HN		Mounting: Rod flange \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1FN80-100Z1-HN		Mounting: Rod flange \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1FN80-125Z1-HN		Mounting: Rod flange \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1FN80-150Z1-HN		Mounting: Rod flange \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1FN80-200Z1-HN		Mounting: Rod flange \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1FN80-250Z1-HN		Mounting: Rod flange \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1FN80-300Z1-HN		Mounting: Rod flange \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1FN80-25Z1-RN		Mounting: Rod flange \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1FN80-50Z1-RN		Mounting: Rod flange \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1FN80-75Z1-RN		Mounting: Rod flange \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1FN80-100Z1-RN		Mounting: Rod flange \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1FN80-125Z1-RN		Mounting: Rod flange \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1FN80-150Z1-RN		Mounting: Rod flange \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1FN80-200Z1-RN		Mounting: Rod flange \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1FN80-250Z1-RN		Mounting: Rod flange \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1FN80-300Z1-RN		Mounting: Rod flange \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1FN80-25Z1-WN		Mounting: Rod flange \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1FN80-50Z1-WN		Mounting: Rod flange \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1FN80-75Z1-WN		Mounting: Rod flange \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1FN80-100Z1-WN		Mounting: Rod flange \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1FN80-125Z1-WN		Mounting: Rod flange \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1FN80-150Z1-WN		Mounting: Rod flange \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1FN80-200Z1-WN		Mounting: Rod flange \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1FN80-250Z1-WN		Mounting: Rod flange \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1FN80-300Z1-WN		Mounting: Rod flange \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1FN100-25Z1-HN		Mounting: Rod flange \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1FN100-50Z1-HN		Mounting: Rod flange \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1FN100-75Z1-HN		Mounting: Rod flange \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1FN100-100Z1-HN		Mounting: Rod flange \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1FN100-125Z1-HN		Mounting: Rod flange \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1FN100-150Z1-HN		Mounting: Rod flange \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1FN100-200Z1-HN		Mounting: Rod flange \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1FN100-250Z1-HN		Mounting: Rod flange \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1FN100-300Z1-HN		Mounting: Rod flange \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1FN100-25Z1-RN		Mounting: Rod flange \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1FN100-50Z1-RN		Mounting: Rod flange \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1FN100-75Z1-RN		Mounting: Rod flange \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1FN100-100Z1-RN		Mounting: Rod flange \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1FN100-125Z1-RN		Mounting: Rod flange \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1FN100-150Z1-RN		Mounting: Rod flange \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1FN100-200Z1-RN		Mounting: Rod flange \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1FN100-250Z1-RN		Mounting: Rod flange \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1FN100-300Z1-RN		Mounting: Rod flange \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1FN100-25Z1-WN		Mounting: Rod flange \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1FN100-50Z1-WN		Mounting: Rod flange \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1FN100-75Z1-WN		Mounting: Rod flange \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1FN100-100Z1-WN		Mounting: Rod flange \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1FN100-125Z1-WN		Mounting: Rod flange \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1FN100-150Z1-WN		Mounting: Rod flange \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1FN100-200Z1-WN		Mounting: Rod flange \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1FN100-250Z1-WN		Mounting: Rod flange \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1FN100-300Z1-WN		Mounting: Rod flange \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1GN50-25Z1-HN		Mounting: Head flange \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1GN50-50Z1-HN		Mounting: Head flange \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1GN50-75Z1-HN		Mounting: Head flange \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1GN50-100Z1-HN		Mounting: Head flange \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1GN50-125Z1-HN		Mounting: Head flange \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1GN50-150Z1-HN		Mounting: Head flange \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1GN50-200Z1-HN		Mounting: Head flange \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1GN50-250Z1-HN		Mounting: Head flange \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1GN50-300Z1-HN		Mounting: Head flange \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1GN50-25Z1-RN		Mounting: Head flange \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1GN50-50Z1-RN		Mounting: Head flange \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1GN50-75Z1-RN		Mounting: Head flange \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1GN50-100Z1-RN		Mounting: Head flange \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1GN50-125Z1-RN		Mounting: Head flange \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1GN50-150Z1-RN		Mounting: Head flange \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1GN50-200Z1-RN		Mounting: Head flange \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1GN50-250Z1-RN		Mounting: Head flange \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1GN50-300Z1-RN		Mounting: Head flange \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1GN50-25Z1-WN		Mounting: Head flange \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1GN50-50Z1-WN		Mounting: Head flange \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1GN50-75Z1-WN		Mounting: Head flange \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1GN50-100Z1-WN		Mounting: Head flange \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1GN50-125Z1-WN		Mounting: Head flange \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1GN50-150Z1-WN		Mounting: Head flange \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1GN50-200Z1-WN		Mounting: Head flange \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1GN50-250Z1-WN		Mounting: Head flange \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1GN50-300Z1-WN		Mounting: Head flange \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1GN63-25Z1-HN		Mounting: Head flange \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1GN63-50Z1-HN		Mounting: Head flange \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1GN63-75Z1-HN		Mounting: Head flange \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1GN63-100Z1-HN		Mounting: Head flange \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1GN63-125Z1-HN		Mounting: Head flange \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1GN63-150Z1-HN		Mounting: Head flange \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1GN63-200Z1-HN		Mounting: Head flange \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1GN63-250Z1-HN		Mounting: Head flange \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1GN63-300Z1-HN		Mounting: Head flange \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1GN63-25Z1-RN		Mounting: Head flange \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1GN63-50Z1-RN		Mounting: Head flange \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1GN63-75Z1-RN		Mounting: Head flange \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1GN63-100Z1-RN		Mounting: Head flange \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1GN63-125Z1-RN		Mounting: Head flange \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1GN63-150Z1-RN		Mounting: Head flange \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1GN63-200Z1-RN		Mounting: Head flange \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1GN63-250Z1-RN		Mounting: Head flange \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1GN63-300Z1-RN		Mounting: Head flange \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1GN63-25Z1-WN		Mounting: Head flange \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1GN63-50Z1-WN		Mounting: Head flange \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1GN63-75Z1-WN		Mounting: Head flange \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1GN63-100Z1-WN		Mounting: Head flange \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1GN63-125Z1-WN		Mounting: Head flange \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1GN63-150Z1-WN		Mounting: Head flange \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1GN63-200Z1-WN		Mounting: Head flange \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1GN63-250Z1-WN		Mounting: Head flange \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1GN63-300Z1-WN		Mounting: Head flange \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1GN80-25Z1-HN		Mounting: Head flange \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1GN80-50Z1-HN		Mounting: Head flange \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1GN80-75Z1-HN		Mounting: Head flange \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1GN80-100Z1-HN		Mounting: Head flange \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1GN80-125Z1-HN		Mounting: Head flange \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1GN80-150Z1-HN		Mounting: Head flange \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1GN80-200Z1-HN		Mounting: Head flange \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1GN80-250Z1-HN		Mounting: Head flange \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1GN80-300Z1-HN		Mounting: Head flange \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1GN80-25Z1-RN		Mounting: Head flange \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1GN80-50Z1-RN		Mounting: Head flange \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1GN80-75Z1-RN		Mounting: Head flange \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1GN80-100Z1-RN		Mounting: Head flange \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1GN80-125Z1-RN		Mounting: Head flange \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1GN80-150Z1-RN		Mounting: Head flange \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1GN80-200Z1-RN		Mounting: Head flange \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1GN80-250Z1-RN		Mounting: Head flange \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1GN80-300Z1-RN		Mounting: Head flange \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1GN80-25Z1-WN		Mounting: Head flange \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1GN80-50Z1-WN		Mounting: Head flange \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1GN80-75Z1-WN		Mounting: Head flange \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1GN80-100Z1-WN		Mounting: Head flange \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1GN80-125Z1-WN		Mounting: Head flange \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1GN80-150Z1-WN		Mounting: Head flange \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1GN80-200Z1-WN		Mounting: Head flange \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1GN80-250Z1-WN		Mounting: Head flange \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1GN80-300Z1-WN		Mounting: Head flange \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1GN100-25Z1-HN		Mounting: Head flange \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1GN100-50Z1-HN		Mounting: Head flange \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1GN100-75Z1-HN		Mounting: Head flange \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1GN100-100Z1-HN		Mounting: Head flange \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1GN100-125Z1-HN		Mounting: Head flange \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1GN100-150Z1-HN		Mounting: Head flange \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1GN100-200Z1-HN		Mounting: Head flange \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1GN100-250Z1-HN		Mounting: Head flange \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1GN100-300Z1-HN		Mounting: Head flange \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1GN100-25Z1-RN		Mounting: Head flange \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1GN100-50Z1-RN		Mounting: Head flange \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1GN100-75Z1-RN		Mounting: Head flange \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1GN100-100Z1-RN		Mounting: Head flange \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1GN100-125Z1-RN		Mounting: Head flange \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1GN100-150Z1-RN		Mounting: Head flange \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1GN100-200Z1-RN		Mounting: Head flange \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1GN100-250Z1-RN		Mounting: Head flange \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1GN100-300Z1-RN		Mounting: Head flange \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1GN100-25Z1-WN		Mounting: Head flange \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1GN100-50Z1-WN		Mounting: Head flange \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1GN100-75Z1-WN		Mounting: Head flange \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1GN100-100Z1-WN		Mounting: Head flange \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1GN100-125Z1-WN		Mounting: Head flange \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1GN100-150Z1-WN		Mounting: Head flange \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1GN100-200Z1-WN		Mounting: Head flange \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1GN100-250Z1-WN		Mounting: Head flange \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1GN100-300Z1-WN		Mounting: Head flange \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1UN50-25Z1-HN		Mounting: Rod trunnion \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1UN50-50Z1-HN		Mounting: Rod trunnion \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1UN50-75Z1-HN		Mounting: Rod trunnion \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1UN50-100Z1-HN		Mounting: Rod trunnion \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1UN50-125Z1-HN		Mounting: Rod trunnion \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1UN50-150Z1-HN		Mounting: Rod trunnion \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1UN50-200Z1-HN		Mounting: Rod trunnion \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1UN50-250Z1-HN		Mounting: Rod trunnion \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1UN50-300Z1-HN		Mounting: Rod trunnion \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1UN63-25Z1-HN		Mounting: Rod trunnion \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1UN63-50Z1-HN		Mounting: Rod trunnion \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1UN63-75Z1-HN		Mounting: Rod trunnion \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1UN63-100Z1-HN		Mounting: Rod trunnion \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1UN63-125Z1-HN		Mounting: Rod trunnion \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1UN63-150Z1-HN		Mounting: Rod trunnion \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1UN63-200Z1-HN		Mounting: Rod trunnion \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1UN63-250Z1-HN		Mounting: Rod trunnion \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1UN63-300Z1-HN		Mounting: Rod trunnion \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1TN50-25Z1-RN		Mounting: Head trunnion \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1TN50-50Z1-RN		Mounting: Head trunnion \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1TN50-75Z1-RN		Mounting: Head trunnion \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1TN50-100Z1-RN		Mounting: Head trunnion \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1TN50-125Z1-RN		Mounting: Head trunnion \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1TN50-150Z1-RN		Mounting: Head trunnion \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1TN50-200Z1-RN		Mounting: Head trunnion \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1TN50-250Z1-RN		Mounting: Head trunnion \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1TN50-300Z1-RN		Mounting: Head trunnion \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1TN63-25Z1-RN		Mounting: Head trunnion \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1TN63-50Z1-RN		Mounting: Head trunnion \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1TN63-75Z1-RN		Mounting: Head trunnion \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1TN63-100Z1-RN		Mounting: Head trunnion \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1TN63-125Z1-RN		Mounting: Head trunnion \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1TN63-150Z1-RN		Mounting: Head trunnion \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1TN63-200Z1-RN		Mounting: Head trunnion \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1TN63-250Z1-RN		Mounting: Head trunnion \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1TN63-300Z1-RN		Mounting: Head trunnion \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1DN50-25Z1-HN		Mounting: Clevis \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1DN50-50Z1-HN		Mounting: Clevis \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1DN50-75Z1-HN		Mounting: Clevis \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1DN50-100Z1-HN		Mounting: Clevis \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1DN50-125Z1-HN		Mounting: Clevis \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1DN50-150Z1-HN		Mounting: Clevis \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1DN50-200Z1-HN		Mounting: Clevis \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1DN50-250Z1-HN		Mounting: Clevis \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1DN50-300Z1-HN		Mounting: Clevis \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1DN50-25Z1-RN		Mounting: Clevis \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1DN50-50Z1-RN		Mounting: Clevis \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1DN50-75Z1-RN		Mounting: Clevis \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1DN50-100Z1-RN		Mounting: Clevis \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1DN50-125Z1-RN		Mounting: Clevis \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1DN50-150Z1-RN		Mounting: Clevis \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1DN50-200Z1-RN		Mounting: Clevis \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1DN50-250Z1-RN		Mounting: Clevis \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1DN50-300Z1-RN		Mounting: Clevis \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1DN50-25Z1-WN		Mounting: Clevis \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1DN50-50Z1-WN		Mounting: Clevis \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1DN50-75Z1-WN		Mounting: Clevis \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1DN50-100Z1-WN		Mounting: Clevis \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1DN50-125Z1-WN		Mounting: Clevis \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1DN50-150Z1-WN		Mounting: Clevis \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1DN50-200Z1-WN		Mounting: Clevis \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1DN50-250Z1-WN		Mounting: Clevis \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1DN50-300Z1-WN		Mounting: Clevis \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1DN63-25Z1-HN		Mounting: Clevis \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1DN63-50Z1-HN		Mounting: Clevis \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1DN63-75Z1-HN		Mounting: Clevis \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1DN63-100Z1-HN		Mounting: Clevis \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1DN63-125Z1-HN		Mounting: Clevis \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1DN63-150Z1-HN		Mounting: Clevis \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1DN63-200Z1-HN		Mounting: Clevis \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1DN63-250Z1-HN		Mounting: Clevis \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1DN63-300Z1-HN		Mounting: Clevis \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1DN63-25Z1-RN		Mounting: Clevis \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1DN63-50Z1-RN		Mounting: Clevis \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1DN63-75Z1-RN		Mounting: Clevis \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1DN63-100Z1-RN		Mounting: Clevis \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1DN63-125Z1-RN		Mounting: Clevis \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1DN63-150Z1-RN		Mounting: Clevis \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1DN63-200Z1-RN		Mounting: Clevis \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1DN63-250Z1-RN		Mounting: Clevis \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1DN63-300Z1-RN		Mounting: Clevis \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1DN63-25Z1-WN		Mounting: Clevis \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1DN63-50Z1-WN		Mounting: Clevis \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1DN63-75Z1-WN		Mounting: Clevis \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1DN63-100Z1-WN		Mounting: Clevis \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1DN63-125Z1-WN		Mounting: Clevis \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1DN63-150Z1-WN		Mounting: Clevis \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1DN63-200Z1-WN		Mounting: Clevis \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1DN63-250Z1-WN		Mounting: Clevis \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1DN63-300Z1-WN		Mounting: Clevis \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1DN80-25Z1-HN		Mounting: Clevis \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1DN80-50Z1-HN		Mounting: Clevis \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1DN80-75Z1-HN		Mounting: Clevis \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1DN80-100Z1-HN		Mounting: Clevis \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1DN80-125Z1-HN		Mounting: Clevis \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1DN80-150Z1-HN		Mounting: Clevis \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1DN80-200Z1-HN		Mounting: Clevis \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1DN80-250Z1-HN		Mounting: Clevis \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1DN80-300Z1-HN		Mounting: Clevis \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1DN80-25Z1-RN		Mounting: Clevis \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1DN80-50Z1-RN		Mounting: Clevis \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1DN80-75Z1-RN		Mounting: Clevis \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1DN80-100Z1-RN		Mounting: Clevis \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1DN80-125Z1-RN		Mounting: Clevis \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1DN80-150Z1-RN		Mounting: Clevis \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1DN80-200Z1-RN		Mounting: Clevis \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1DN80-250Z1-RN		Mounting: Clevis \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1DN80-300Z1-RN		Mounting: Clevis \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1DN80-25Z1-WN		Mounting: Clevis \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1DN80-50Z1-WN		Mounting: Clevis \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1DN80-75Z1-WN		Mounting: Clevis \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1DN80-100Z1-WN		Mounting: Clevis \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1DN80-125Z1-WN		Mounting: Clevis \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1DN80-150Z1-WN		Mounting: Clevis \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1DN80-200Z1-WN		Mounting: Clevis \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1DN80-250Z1-WN		Mounting: Clevis \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1DN80-300Z1-WN		Mounting: Clevis \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1DN100-25Z1-HN		Mounting: Clevis \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1DN100-50Z1-HN		Mounting: Clevis \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1DN100-75Z1-HN		Mounting: Clevis \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1DN100-100Z1-HN		Mounting: Clevis \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1DN100-125Z1-HN		Mounting: Clevis \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1DN100-150Z1-HN		Mounting: Clevis \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1DN100-200Z1-HN		Mounting: Clevis \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1DN100-250Z1-HN		Mounting: Clevis \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1DN100-300Z1-HN		Mounting: Clevis \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1DN100-25Z1-RN		Mounting: Clevis \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1DN100-50Z1-RN		Mounting: Clevis \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1DN100-75Z1-RN		Mounting: Clevis \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1DN100-100Z1-RN		Mounting: Clevis \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1DN100-125Z1-RN		Mounting: Clevis \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1DN100-150Z1-RN		Mounting: Clevis \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1DN100-200Z1-RN		Mounting: Clevis \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1DN100-250Z1-RN		Mounting: Clevis \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1DN100-300Z1-RN		Mounting: Clevis \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
CDBG1DN100-25Z1-WN		Mounting: Clevis \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: Yes
CDBG1DN100-50Z1-WN		Mounting: Clevis \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: Yes
CDBG1DN100-75Z1-WN		Mounting: Clevis \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: Yes
CDBG1DN100-100Z1-WN		Mounting: Clevis \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: Yes
CDBG1DN100-125Z1-WN		Mounting: Clevis \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: Yes
CDBG1DN100-150Z1-WN		Mounting: Clevis \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: Yes
CDBG1DN100-200Z1-WN		Mounting: Clevis \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: Yes
CDBG1DN100-250Z1-WN		Mounting: Clevis \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: Yes
CDBG1DN100-300Z1-WN		Mounting: Clevis \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: Yes

Round Body CylindersSMC

1260 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC CBG1 End Lock Cylinder (ø50 to ø100)

Brand SMC·Round Body Cylinders

Available part numbers (1260)

CBG1BN50-25Z1-HN, CBG1BN50-50Z1-HN, CBG1BN50-75Z1-HN, CBG1BN50-100Z1-HN, CBG1BN50-125Z1-HN, CBG1BN50-150Z1-HN, CBG1BN50-200Z1-HN, CBG1BN50-250Z1-HN, CBG1BN50-300Z1-HN, CBG1BN50-25Z1-RN + 1250 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	CBG1BN50-25Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1BN50-50Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1BN50-75Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1BN50-100Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1BN50-125Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1BN50-150Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1BN50-200Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1BN50-250Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1BN50-300Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1BN50-25Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1BN50-50Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1BN50-75Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1BN50-100Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1BN50-125Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1BN50-150Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1BN50-200Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1BN50-250Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1BN50-300Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1BN50-25Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1BN50-50Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1BN50-75Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1BN50-100Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1BN50-125Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1BN50-150Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1BN50-200Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1BN50-250Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1BN50-300Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1BN63-25Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1BN63-50Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1BN63-75Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1BN63-100Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1BN63-125Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1BN63-150Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1BN63-200Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1BN63-250Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1BN63-300Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1BN63-25Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1BN63-50Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1BN63-75Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1BN63-100Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1BN63-125Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1BN63-150Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1BN63-200Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1BN63-250Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1BN63-300Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1BN63-25Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1BN63-50Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1BN63-75Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1BN63-100Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1BN63-125Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1BN63-150Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1BN63-200Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1BN63-250Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1BN63-300Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1BN80-25Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1BN80-50Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1BN80-75Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1BN80-100Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1BN80-125Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1BN80-150Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1BN80-200Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1BN80-250Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1BN80-300Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1BN80-25Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1BN80-50Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1BN80-75Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1BN80-100Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1BN80-125Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1BN80-150Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1BN80-200Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1BN80-250Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1BN80-300Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1BN80-25Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1BN80-50Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1BN80-75Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1BN80-100Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1BN80-125Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1BN80-150Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1BN80-200Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1BN80-250Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1BN80-300Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1BN100-25Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1BN100-50Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1BN100-75Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1BN100-100Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1BN100-125Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1BN100-150Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1BN100-200Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1BN100-250Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1BN100-300Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1BN100-25Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1BN100-50Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1BN100-75Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1BN100-100Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1BN100-125Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1BN100-150Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1BN100-200Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1BN100-250Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1BN100-300Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1BN100-25Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1BN100-50Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1BN100-75Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1BN100-100Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1BN100-125Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1BN100-150Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1BN100-200Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1BN100-250Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1BN100-300Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1ZN50-25Z1-HN	Mounting: Basic (trunnion female thread) \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1ZN50-50Z1-HN	Mounting: Basic (trunnion female thread) \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1ZN50-75Z1-HN	Mounting: Basic (trunnion female thread) \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1ZN50-100Z1-HN	Mounting: Basic (trunnion female thread) \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1ZN50-125Z1-HN	Mounting: Basic (trunnion female thread) \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1ZN50-150Z1-HN	Mounting: Basic (trunnion female thread) \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1ZN50-200Z1-HN	Mounting: Basic (trunnion female thread) \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1ZN50-250Z1-HN	Mounting: Basic (trunnion female thread) \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1ZN50-300Z1-HN	Mounting: Basic (trunnion female thread) \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1ZN50-25Z1-RN	Mounting: Basic (trunnion female thread) \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1ZN50-50Z1-RN	Mounting: Basic (trunnion female thread) \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1ZN50-75Z1-RN	Mounting: Basic (trunnion female thread) \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1ZN50-100Z1-RN	Mounting: Basic (trunnion female thread) \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1ZN50-125Z1-RN	Mounting: Basic (trunnion female thread) \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1ZN50-150Z1-RN	Mounting: Basic (trunnion female thread) \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1ZN50-200Z1-RN	Mounting: Basic (trunnion female thread) \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1ZN50-250Z1-RN	Mounting: Basic (trunnion female thread) \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1ZN50-300Z1-RN	Mounting: Basic (trunnion female thread) \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1ZN50-25Z1-WN	Mounting: Basic (trunnion female thread) \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1ZN50-50Z1-WN	Mounting: Basic (trunnion female thread) \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1ZN50-75Z1-WN	Mounting: Basic (trunnion female thread) \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1ZN50-100Z1-WN	Mounting: Basic (trunnion female thread) \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1ZN50-125Z1-WN	Mounting: Basic (trunnion female thread) \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1ZN50-150Z1-WN	Mounting: Basic (trunnion female thread) \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1ZN50-200Z1-WN	Mounting: Basic (trunnion female thread) \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1ZN50-250Z1-WN	Mounting: Basic (trunnion female thread) \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1ZN50-300Z1-WN	Mounting: Basic (trunnion female thread) \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1ZN63-25Z1-HN	Mounting: Basic (trunnion female thread) \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1ZN63-50Z1-HN	Mounting: Basic (trunnion female thread) \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1ZN63-75Z1-HN	Mounting: Basic (trunnion female thread) \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1ZN63-100Z1-HN	Mounting: Basic (trunnion female thread) \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1ZN63-125Z1-HN	Mounting: Basic (trunnion female thread) \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1ZN63-150Z1-HN	Mounting: Basic (trunnion female thread) \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1ZN63-200Z1-HN	Mounting: Basic (trunnion female thread) \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1ZN63-250Z1-HN	Mounting: Basic (trunnion female thread) \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1ZN63-300Z1-HN	Mounting: Basic (trunnion female thread) \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1ZN63-25Z1-RN	Mounting: Basic (trunnion female thread) \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1ZN63-50Z1-RN	Mounting: Basic (trunnion female thread) \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1ZN63-75Z1-RN	Mounting: Basic (trunnion female thread) \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1ZN63-100Z1-RN	Mounting: Basic (trunnion female thread) \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1ZN63-125Z1-RN	Mounting: Basic (trunnion female thread) \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1ZN63-150Z1-RN	Mounting: Basic (trunnion female thread) \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1ZN63-200Z1-RN	Mounting: Basic (trunnion female thread) \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1ZN63-250Z1-RN	Mounting: Basic (trunnion female thread) \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1ZN63-300Z1-RN	Mounting: Basic (trunnion female thread) \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1ZN63-25Z1-WN	Mounting: Basic (trunnion female thread) \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1ZN63-50Z1-WN	Mounting: Basic (trunnion female thread) \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1ZN63-75Z1-WN	Mounting: Basic (trunnion female thread) \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1ZN63-100Z1-WN	Mounting: Basic (trunnion female thread) \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1ZN63-125Z1-WN	Mounting: Basic (trunnion female thread) \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1ZN63-150Z1-WN	Mounting: Basic (trunnion female thread) \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1ZN63-200Z1-WN	Mounting: Basic (trunnion female thread) \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1ZN63-250Z1-WN	Mounting: Basic (trunnion female thread) \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1ZN63-300Z1-WN	Mounting: Basic (trunnion female thread) \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1LN50-25Z1-HN	Mounting: Axial foot \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1LN50-50Z1-HN	Mounting: Axial foot \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1LN50-75Z1-HN	Mounting: Axial foot \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1LN50-100Z1-HN	Mounting: Axial foot \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1LN50-125Z1-HN	Mounting: Axial foot \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1LN50-150Z1-HN	Mounting: Axial foot \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1LN50-200Z1-HN	Mounting: Axial foot \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1LN50-250Z1-HN	Mounting: Axial foot \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1LN50-300Z1-HN	Mounting: Axial foot \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1LN50-25Z1-RN	Mounting: Axial foot \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1LN50-50Z1-RN	Mounting: Axial foot \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1LN50-75Z1-RN	Mounting: Axial foot \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1LN50-100Z1-RN	Mounting: Axial foot \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1LN50-125Z1-RN	Mounting: Axial foot \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1LN50-150Z1-RN	Mounting: Axial foot \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1LN50-200Z1-RN	Mounting: Axial foot \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1LN50-250Z1-RN	Mounting: Axial foot \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1LN50-300Z1-RN	Mounting: Axial foot \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1LN50-25Z1-WN	Mounting: Axial foot \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1LN50-50Z1-WN	Mounting: Axial foot \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1LN50-75Z1-WN	Mounting: Axial foot \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1LN50-100Z1-WN	Mounting: Axial foot \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1LN50-125Z1-WN	Mounting: Axial foot \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1LN50-150Z1-WN	Mounting: Axial foot \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1LN50-200Z1-WN	Mounting: Axial foot \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1LN50-250Z1-WN	Mounting: Axial foot \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1LN50-300Z1-WN	Mounting: Axial foot \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1LN63-25Z1-HN	Mounting: Axial foot \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1LN63-50Z1-HN	Mounting: Axial foot \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1LN63-75Z1-HN	Mounting: Axial foot \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1LN63-100Z1-HN	Mounting: Axial foot \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1LN63-125Z1-HN	Mounting: Axial foot \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1LN63-150Z1-HN	Mounting: Axial foot \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1LN63-200Z1-HN	Mounting: Axial foot \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1LN63-250Z1-HN	Mounting: Axial foot \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1LN63-300Z1-HN	Mounting: Axial foot \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1LN63-25Z1-RN	Mounting: Axial foot \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1LN63-50Z1-RN	Mounting: Axial foot \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1LN63-75Z1-RN	Mounting: Axial foot \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1LN63-100Z1-RN	Mounting: Axial foot \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1LN63-125Z1-RN	Mounting: Axial foot \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1LN63-150Z1-RN	Mounting: Axial foot \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1LN63-200Z1-RN	Mounting: Axial foot \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1LN63-250Z1-RN	Mounting: Axial foot \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1LN63-300Z1-RN	Mounting: Axial foot \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1LN63-25Z1-WN	Mounting: Axial foot \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1LN63-50Z1-WN	Mounting: Axial foot \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1LN63-75Z1-WN	Mounting: Axial foot \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1LN63-100Z1-WN	Mounting: Axial foot \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1LN63-125Z1-WN	Mounting: Axial foot \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1LN63-150Z1-WN	Mounting: Axial foot \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1LN63-200Z1-WN	Mounting: Axial foot \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1LN63-250Z1-WN	Mounting: Axial foot \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1LN63-300Z1-WN	Mounting: Axial foot \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1LN80-25Z1-HN	Mounting: Axial foot \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1LN80-50Z1-HN	Mounting: Axial foot \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1LN80-75Z1-HN	Mounting: Axial foot \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1LN80-100Z1-HN	Mounting: Axial foot \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1LN80-125Z1-HN	Mounting: Axial foot \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1LN80-150Z1-HN	Mounting: Axial foot \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1LN80-200Z1-HN	Mounting: Axial foot \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1LN80-250Z1-HN	Mounting: Axial foot \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1LN80-300Z1-HN	Mounting: Axial foot \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1LN80-25Z1-RN	Mounting: Axial foot \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1LN80-50Z1-RN	Mounting: Axial foot \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1LN80-75Z1-RN	Mounting: Axial foot \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1LN80-100Z1-RN	Mounting: Axial foot \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1LN80-125Z1-RN	Mounting: Axial foot \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1LN80-150Z1-RN	Mounting: Axial foot \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1LN80-200Z1-RN	Mounting: Axial foot \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1LN80-250Z1-RN	Mounting: Axial foot \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1LN80-300Z1-RN	Mounting: Axial foot \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1LN80-25Z1-WN	Mounting: Axial foot \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1LN80-50Z1-WN	Mounting: Axial foot \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1LN80-75Z1-WN	Mounting: Axial foot \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1LN80-100Z1-WN	Mounting: Axial foot \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1LN80-125Z1-WN	Mounting: Axial foot \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1LN80-150Z1-WN	Mounting: Axial foot \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1LN80-200Z1-WN	Mounting: Axial foot \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1LN80-250Z1-WN	Mounting: Axial foot \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1LN80-300Z1-WN	Mounting: Axial foot \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1LN100-25Z1-HN	Mounting: Axial foot \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1LN100-50Z1-HN	Mounting: Axial foot \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1LN100-75Z1-HN	Mounting: Axial foot \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1LN100-100Z1-HN	Mounting: Axial foot \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1LN100-125Z1-HN	Mounting: Axial foot \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1LN100-150Z1-HN	Mounting: Axial foot \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1LN100-200Z1-HN	Mounting: Axial foot \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1LN100-250Z1-HN	Mounting: Axial foot \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1LN100-300Z1-HN	Mounting: Axial foot \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1LN100-25Z1-RN	Mounting: Axial foot \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1LN100-50Z1-RN	Mounting: Axial foot \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1LN100-75Z1-RN	Mounting: Axial foot \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1LN100-100Z1-RN	Mounting: Axial foot \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1LN100-125Z1-RN	Mounting: Axial foot \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1LN100-150Z1-RN	Mounting: Axial foot \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1LN100-200Z1-RN	Mounting: Axial foot \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1LN100-250Z1-RN	Mounting: Axial foot \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1LN100-300Z1-RN	Mounting: Axial foot \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1LN100-25Z1-WN	Mounting: Axial foot \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1LN100-50Z1-WN	Mounting: Axial foot \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1LN100-75Z1-WN	Mounting: Axial foot \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1LN100-100Z1-WN	Mounting: Axial foot \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1LN100-125Z1-WN	Mounting: Axial foot \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1LN100-150Z1-WN	Mounting: Axial foot \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1LN100-200Z1-WN	Mounting: Axial foot \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1LN100-250Z1-WN	Mounting: Axial foot \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1LN100-300Z1-WN	Mounting: Axial foot \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1FN50-25Z1-HN	Mounting: Rod flange \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1FN50-50Z1-HN	Mounting: Rod flange \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1FN50-75Z1-HN	Mounting: Rod flange \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1FN50-100Z1-HN	Mounting: Rod flange \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1FN50-125Z1-HN	Mounting: Rod flange \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1FN50-150Z1-HN	Mounting: Rod flange \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1FN50-200Z1-HN	Mounting: Rod flange \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1FN50-250Z1-HN	Mounting: Rod flange \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1FN50-300Z1-HN	Mounting: Rod flange \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1FN50-25Z1-RN	Mounting: Rod flange \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1FN50-50Z1-RN	Mounting: Rod flange \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1FN50-75Z1-RN	Mounting: Rod flange \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1FN50-100Z1-RN	Mounting: Rod flange \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1FN50-125Z1-RN	Mounting: Rod flange \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1FN50-150Z1-RN	Mounting: Rod flange \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1FN50-200Z1-RN	Mounting: Rod flange \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1FN50-250Z1-RN	Mounting: Rod flange \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1FN50-300Z1-RN	Mounting: Rod flange \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1FN50-25Z1-WN	Mounting: Rod flange \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1FN50-50Z1-WN	Mounting: Rod flange \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1FN50-75Z1-WN	Mounting: Rod flange \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1FN50-100Z1-WN	Mounting: Rod flange \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1FN50-125Z1-WN	Mounting: Rod flange \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1FN50-150Z1-WN	Mounting: Rod flange \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1FN50-200Z1-WN	Mounting: Rod flange \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1FN50-250Z1-WN	Mounting: Rod flange \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1FN50-300Z1-WN	Mounting: Rod flange \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1FN63-25Z1-HN	Mounting: Rod flange \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1FN63-50Z1-HN	Mounting: Rod flange \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1FN63-75Z1-HN	Mounting: Rod flange \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1FN63-100Z1-HN	Mounting: Rod flange \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1FN63-125Z1-HN	Mounting: Rod flange \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1FN63-150Z1-HN	Mounting: Rod flange \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1FN63-200Z1-HN	Mounting: Rod flange \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1FN63-250Z1-HN	Mounting: Rod flange \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1FN63-300Z1-HN	Mounting: Rod flange \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1FN63-25Z1-RN	Mounting: Rod flange \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1FN63-50Z1-RN	Mounting: Rod flange \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1FN63-75Z1-RN	Mounting: Rod flange \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1FN63-100Z1-RN	Mounting: Rod flange \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1FN63-125Z1-RN	Mounting: Rod flange \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1FN63-150Z1-RN	Mounting: Rod flange \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1FN63-200Z1-RN	Mounting: Rod flange \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1FN63-250Z1-RN	Mounting: Rod flange \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1FN63-300Z1-RN	Mounting: Rod flange \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1FN63-25Z1-WN	Mounting: Rod flange \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1FN63-50Z1-WN	Mounting: Rod flange \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1FN63-75Z1-WN	Mounting: Rod flange \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1FN63-100Z1-WN	Mounting: Rod flange \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1FN63-125Z1-WN	Mounting: Rod flange \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1FN63-150Z1-WN	Mounting: Rod flange \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1FN63-200Z1-WN	Mounting: Rod flange \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1FN63-250Z1-WN	Mounting: Rod flange \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1FN63-300Z1-WN	Mounting: Rod flange \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1FN80-25Z1-HN	Mounting: Rod flange \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1FN80-50Z1-HN	Mounting: Rod flange \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1FN80-75Z1-HN	Mounting: Rod flange \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1FN80-100Z1-HN	Mounting: Rod flange \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1FN80-125Z1-HN	Mounting: Rod flange \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1FN80-150Z1-HN	Mounting: Rod flange \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1FN80-200Z1-HN	Mounting: Rod flange \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1FN80-250Z1-HN	Mounting: Rod flange \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1FN80-300Z1-HN	Mounting: Rod flange \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1FN80-25Z1-RN	Mounting: Rod flange \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1FN80-50Z1-RN	Mounting: Rod flange \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1FN80-75Z1-RN	Mounting: Rod flange \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1FN80-100Z1-RN	Mounting: Rod flange \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1FN80-125Z1-RN	Mounting: Rod flange \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1FN80-150Z1-RN	Mounting: Rod flange \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1FN80-200Z1-RN	Mounting: Rod flange \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1FN80-250Z1-RN	Mounting: Rod flange \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1FN80-300Z1-RN	Mounting: Rod flange \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1FN80-25Z1-WN	Mounting: Rod flange \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1FN80-50Z1-WN	Mounting: Rod flange \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1FN80-75Z1-WN	Mounting: Rod flange \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1FN80-100Z1-WN	Mounting: Rod flange \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1FN80-125Z1-WN	Mounting: Rod flange \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1FN80-150Z1-WN	Mounting: Rod flange \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1FN80-200Z1-WN	Mounting: Rod flange \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1FN80-250Z1-WN	Mounting: Rod flange \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1FN80-300Z1-WN	Mounting: Rod flange \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1FN100-25Z1-HN	Mounting: Rod flange \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1FN100-50Z1-HN	Mounting: Rod flange \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1FN100-75Z1-HN	Mounting: Rod flange \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1FN100-100Z1-HN	Mounting: Rod flange \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1FN100-125Z1-HN	Mounting: Rod flange \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1FN100-150Z1-HN	Mounting: Rod flange \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1FN100-200Z1-HN	Mounting: Rod flange \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1FN100-250Z1-HN	Mounting: Rod flange \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1FN100-300Z1-HN	Mounting: Rod flange \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1FN100-25Z1-RN	Mounting: Rod flange \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1FN100-50Z1-RN	Mounting: Rod flange \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1FN100-75Z1-RN	Mounting: Rod flange \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1FN100-100Z1-RN	Mounting: Rod flange \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1FN100-125Z1-RN	Mounting: Rod flange \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1FN100-150Z1-RN	Mounting: Rod flange \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1FN100-200Z1-RN	Mounting: Rod flange \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1FN100-250Z1-RN	Mounting: Rod flange \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1FN100-300Z1-RN	Mounting: Rod flange \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1FN100-25Z1-WN	Mounting: Rod flange \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1FN100-50Z1-WN	Mounting: Rod flange \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1FN100-75Z1-WN	Mounting: Rod flange \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1FN100-100Z1-WN	Mounting: Rod flange \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1FN100-125Z1-WN	Mounting: Rod flange \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1FN100-150Z1-WN	Mounting: Rod flange \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1FN100-200Z1-WN	Mounting: Rod flange \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1FN100-250Z1-WN	Mounting: Rod flange \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1FN100-300Z1-WN	Mounting: Rod flange \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1GN50-25Z1-HN	Mounting: Head flange \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1GN50-50Z1-HN	Mounting: Head flange \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1GN50-75Z1-HN	Mounting: Head flange \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1GN50-100Z1-HN	Mounting: Head flange \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1GN50-125Z1-HN	Mounting: Head flange \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1GN50-150Z1-HN	Mounting: Head flange \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1GN50-200Z1-HN	Mounting: Head flange \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1GN50-250Z1-HN	Mounting: Head flange \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1GN50-300Z1-HN	Mounting: Head flange \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1GN50-25Z1-RN	Mounting: Head flange \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1GN50-50Z1-RN	Mounting: Head flange \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1GN50-75Z1-RN	Mounting: Head flange \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1GN50-100Z1-RN	Mounting: Head flange \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1GN50-125Z1-RN	Mounting: Head flange \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1GN50-150Z1-RN	Mounting: Head flange \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1GN50-200Z1-RN	Mounting: Head flange \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1GN50-250Z1-RN	Mounting: Head flange \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1GN50-300Z1-RN	Mounting: Head flange \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1GN50-25Z1-WN	Mounting: Head flange \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1GN50-50Z1-WN	Mounting: Head flange \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1GN50-75Z1-WN	Mounting: Head flange \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1GN50-100Z1-WN	Mounting: Head flange \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1GN50-125Z1-WN	Mounting: Head flange \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1GN50-150Z1-WN	Mounting: Head flange \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1GN50-200Z1-WN	Mounting: Head flange \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1GN50-250Z1-WN	Mounting: Head flange \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1GN50-300Z1-WN	Mounting: Head flange \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1GN63-25Z1-HN	Mounting: Head flange \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1GN63-50Z1-HN	Mounting: Head flange \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1GN63-75Z1-HN	Mounting: Head flange \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1GN63-100Z1-HN	Mounting: Head flange \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1GN63-125Z1-HN	Mounting: Head flange \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1GN63-150Z1-HN	Mounting: Head flange \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1GN63-200Z1-HN	Mounting: Head flange \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1GN63-250Z1-HN	Mounting: Head flange \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1GN63-300Z1-HN	Mounting: Head flange \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1GN63-25Z1-RN	Mounting: Head flange \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1GN63-50Z1-RN	Mounting: Head flange \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1GN63-75Z1-RN	Mounting: Head flange \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1GN63-100Z1-RN	Mounting: Head flange \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1GN63-125Z1-RN	Mounting: Head flange \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1GN63-150Z1-RN	Mounting: Head flange \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1GN63-200Z1-RN	Mounting: Head flange \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1GN63-250Z1-RN	Mounting: Head flange \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1GN63-300Z1-RN	Mounting: Head flange \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1GN63-25Z1-WN	Mounting: Head flange \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1GN63-50Z1-WN	Mounting: Head flange \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1GN63-75Z1-WN	Mounting: Head flange \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1GN63-100Z1-WN	Mounting: Head flange \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1GN63-125Z1-WN	Mounting: Head flange \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1GN63-150Z1-WN	Mounting: Head flange \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1GN63-200Z1-WN	Mounting: Head flange \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1GN63-250Z1-WN	Mounting: Head flange \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1GN63-300Z1-WN	Mounting: Head flange \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1GN80-25Z1-HN	Mounting: Head flange \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1GN80-50Z1-HN	Mounting: Head flange \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1GN80-75Z1-HN	Mounting: Head flange \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1GN80-100Z1-HN	Mounting: Head flange \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1GN80-125Z1-HN	Mounting: Head flange \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1GN80-150Z1-HN	Mounting: Head flange \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1GN80-200Z1-HN	Mounting: Head flange \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1GN80-250Z1-HN	Mounting: Head flange \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1GN80-300Z1-HN	Mounting: Head flange \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1GN80-25Z1-RN	Mounting: Head flange \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1GN80-50Z1-RN	Mounting: Head flange \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1GN80-75Z1-RN	Mounting: Head flange \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1GN80-100Z1-RN	Mounting: Head flange \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1GN80-125Z1-RN	Mounting: Head flange \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1GN80-150Z1-RN	Mounting: Head flange \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1GN80-200Z1-RN	Mounting: Head flange \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1GN80-250Z1-RN	Mounting: Head flange \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1GN80-300Z1-RN	Mounting: Head flange \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1GN80-25Z1-WN	Mounting: Head flange \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1GN80-50Z1-WN	Mounting: Head flange \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1GN80-75Z1-WN	Mounting: Head flange \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1GN80-100Z1-WN	Mounting: Head flange \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1GN80-125Z1-WN	Mounting: Head flange \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1GN80-150Z1-WN	Mounting: Head flange \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1GN80-200Z1-WN	Mounting: Head flange \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1GN80-250Z1-WN	Mounting: Head flange \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1GN80-300Z1-WN	Mounting: Head flange \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1GN100-25Z1-HN	Mounting: Head flange \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1GN100-50Z1-HN	Mounting: Head flange \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1GN100-75Z1-HN	Mounting: Head flange \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1GN100-100Z1-HN	Mounting: Head flange \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1GN100-125Z1-HN	Mounting: Head flange \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1GN100-150Z1-HN	Mounting: Head flange \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1GN100-200Z1-HN	Mounting: Head flange \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1GN100-250Z1-HN	Mounting: Head flange \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1GN100-300Z1-HN	Mounting: Head flange \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1GN100-25Z1-RN	Mounting: Head flange \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1GN100-50Z1-RN	Mounting: Head flange \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1GN100-75Z1-RN	Mounting: Head flange \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1GN100-100Z1-RN	Mounting: Head flange \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1GN100-125Z1-RN	Mounting: Head flange \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1GN100-150Z1-RN	Mounting: Head flange \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1GN100-200Z1-RN	Mounting: Head flange \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1GN100-250Z1-RN	Mounting: Head flange \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1GN100-300Z1-RN	Mounting: Head flange \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1GN100-25Z1-WN	Mounting: Head flange \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1GN100-50Z1-WN	Mounting: Head flange \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1GN100-75Z1-WN	Mounting: Head flange \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1GN100-100Z1-WN	Mounting: Head flange \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1GN100-125Z1-WN	Mounting: Head flange \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1GN100-150Z1-WN	Mounting: Head flange \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1GN100-200Z1-WN	Mounting: Head flange \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1GN100-250Z1-WN	Mounting: Head flange \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1GN100-300Z1-WN	Mounting: Head flange \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1UN50-25Z1-HN	Mounting: Rod trunnion \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1UN50-50Z1-HN	Mounting: Rod trunnion \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1UN50-75Z1-HN	Mounting: Rod trunnion \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1UN50-100Z1-HN	Mounting: Rod trunnion \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1UN50-125Z1-HN	Mounting: Rod trunnion \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1UN50-150Z1-HN	Mounting: Rod trunnion \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1UN50-200Z1-HN	Mounting: Rod trunnion \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1UN50-250Z1-HN	Mounting: Rod trunnion \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1UN50-300Z1-HN	Mounting: Rod trunnion \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1UN63-25Z1-HN	Mounting: Rod trunnion \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1UN63-50Z1-HN	Mounting: Rod trunnion \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1UN63-75Z1-HN	Mounting: Rod trunnion \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1UN63-100Z1-HN	Mounting: Rod trunnion \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1UN63-125Z1-HN	Mounting: Rod trunnion \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1UN63-150Z1-HN	Mounting: Rod trunnion \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1UN63-200Z1-HN	Mounting: Rod trunnion \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1UN63-250Z1-HN	Mounting: Rod trunnion \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1UN63-300Z1-HN	Mounting: Rod trunnion \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1TN50-25Z1-RN	Mounting: Head trunnion \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1TN50-50Z1-RN	Mounting: Head trunnion \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1TN50-75Z1-RN	Mounting: Head trunnion \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1TN50-100Z1-RN	Mounting: Head trunnion \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1TN50-125Z1-RN	Mounting: Head trunnion \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1TN50-150Z1-RN	Mounting: Head trunnion \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1TN50-200Z1-RN	Mounting: Head trunnion \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1TN50-250Z1-RN	Mounting: Head trunnion \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1TN50-300Z1-RN	Mounting: Head trunnion \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1TN63-25Z1-RN	Mounting: Head trunnion \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1TN63-50Z1-RN	Mounting: Head trunnion \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1TN63-75Z1-RN	Mounting: Head trunnion \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1TN63-100Z1-RN	Mounting: Head trunnion \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1TN63-125Z1-RN	Mounting: Head trunnion \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1TN63-150Z1-RN	Mounting: Head trunnion \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1TN63-200Z1-RN	Mounting: Head trunnion \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1TN63-250Z1-RN	Mounting: Head trunnion \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1TN63-300Z1-RN	Mounting: Head trunnion \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1DN50-25Z1-HN	Mounting: Clevis \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1DN50-50Z1-HN	Mounting: Clevis \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1DN50-75Z1-HN	Mounting: Clevis \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1DN50-100Z1-HN	Mounting: Clevis \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1DN50-125Z1-HN	Mounting: Clevis \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1DN50-150Z1-HN	Mounting: Clevis \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1DN50-200Z1-HN	Mounting: Clevis \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1DN50-250Z1-HN	Mounting: Clevis \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1DN50-300Z1-HN	Mounting: Clevis \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1DN50-25Z1-RN	Mounting: Clevis \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1DN50-50Z1-RN	Mounting: Clevis \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1DN50-75Z1-RN	Mounting: Clevis \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1DN50-100Z1-RN	Mounting: Clevis \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1DN50-125Z1-RN	Mounting: Clevis \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1DN50-150Z1-RN	Mounting: Clevis \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1DN50-200Z1-RN	Mounting: Clevis \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1DN50-250Z1-RN	Mounting: Clevis \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1DN50-300Z1-RN	Mounting: Clevis \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1DN50-25Z1-WN	Mounting: Clevis \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1DN50-50Z1-WN	Mounting: Clevis \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1DN50-75Z1-WN	Mounting: Clevis \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1DN50-100Z1-WN	Mounting: Clevis \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1DN50-125Z1-WN	Mounting: Clevis \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1DN50-150Z1-WN	Mounting: Clevis \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1DN50-200Z1-WN	Mounting: Clevis \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1DN50-250Z1-WN	Mounting: Clevis \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1DN50-300Z1-WN	Mounting: Clevis \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1DN63-25Z1-HN	Mounting: Clevis \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1DN63-50Z1-HN	Mounting: Clevis \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1DN63-75Z1-HN	Mounting: Clevis \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1DN63-100Z1-HN	Mounting: Clevis \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1DN63-125Z1-HN	Mounting: Clevis \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1DN63-150Z1-HN	Mounting: Clevis \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1DN63-200Z1-HN	Mounting: Clevis \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1DN63-250Z1-HN	Mounting: Clevis \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1DN63-300Z1-HN	Mounting: Clevis \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1DN63-25Z1-RN	Mounting: Clevis \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1DN63-50Z1-RN	Mounting: Clevis \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1DN63-75Z1-RN	Mounting: Clevis \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1DN63-100Z1-RN	Mounting: Clevis \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1DN63-125Z1-RN	Mounting: Clevis \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1DN63-150Z1-RN	Mounting: Clevis \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1DN63-200Z1-RN	Mounting: Clevis \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1DN63-250Z1-RN	Mounting: Clevis \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1DN63-300Z1-RN	Mounting: Clevis \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1DN63-25Z1-WN	Mounting: Clevis \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1DN63-50Z1-WN	Mounting: Clevis \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1DN63-75Z1-WN	Mounting: Clevis \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1DN63-100Z1-WN	Mounting: Clevis \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1DN63-125Z1-WN	Mounting: Clevis \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1DN63-150Z1-WN	Mounting: Clevis \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1DN63-200Z1-WN	Mounting: Clevis \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1DN63-250Z1-WN	Mounting: Clevis \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1DN63-300Z1-WN	Mounting: Clevis \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1DN80-25Z1-HN	Mounting: Clevis \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1DN80-50Z1-HN	Mounting: Clevis \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1DN80-75Z1-HN	Mounting: Clevis \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1DN80-100Z1-HN	Mounting: Clevis \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1DN80-125Z1-HN	Mounting: Clevis \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1DN80-150Z1-HN	Mounting: Clevis \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1DN80-200Z1-HN	Mounting: Clevis \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1DN80-250Z1-HN	Mounting: Clevis \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1DN80-300Z1-HN	Mounting: Clevis \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1DN80-25Z1-RN	Mounting: Clevis \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1DN80-50Z1-RN	Mounting: Clevis \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1DN80-75Z1-RN	Mounting: Clevis \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1DN80-100Z1-RN	Mounting: Clevis \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1DN80-125Z1-RN	Mounting: Clevis \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1DN80-150Z1-RN	Mounting: Clevis \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1DN80-200Z1-RN	Mounting: Clevis \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1DN80-250Z1-RN	Mounting: Clevis \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1DN80-300Z1-RN	Mounting: Clevis \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1DN80-25Z1-WN	Mounting: Clevis \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1DN80-50Z1-WN	Mounting: Clevis \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1DN80-75Z1-WN	Mounting: Clevis \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1DN80-100Z1-WN	Mounting: Clevis \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1DN80-125Z1-WN	Mounting: Clevis \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1DN80-150Z1-WN	Mounting: Clevis \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1DN80-200Z1-WN	Mounting: Clevis \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1DN80-250Z1-WN	Mounting: Clevis \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1DN80-300Z1-WN	Mounting: Clevis \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1DN100-25Z1-HN	Mounting: Clevis \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1DN100-50Z1-HN	Mounting: Clevis \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1DN100-75Z1-HN	Mounting: Clevis \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1DN100-100Z1-HN	Mounting: Clevis \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1DN100-125Z1-HN	Mounting: Clevis \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1DN100-150Z1-HN	Mounting: Clevis \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1DN100-200Z1-HN	Mounting: Clevis \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1DN100-250Z1-HN	Mounting: Clevis \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1DN100-300Z1-HN	Mounting: Clevis \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1DN100-25Z1-RN	Mounting: Clevis \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1DN100-50Z1-RN	Mounting: Clevis \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1DN100-75Z1-RN	Mounting: Clevis \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1DN100-100Z1-RN	Mounting: Clevis \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1DN100-125Z1-RN	Mounting: Clevis \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1DN100-150Z1-RN	Mounting: Clevis \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1DN100-200Z1-RN	Mounting: Clevis \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1DN100-250Z1-RN	Mounting: Clevis \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1DN100-300Z1-RN	Mounting: Clevis \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: No
	CBG1DN100-25Z1-WN	Mounting: Clevis \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: No
	CBG1DN100-50Z1-WN	Mounting: Clevis \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: No
	CBG1DN100-75Z1-WN	Mounting: Clevis \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: No
	CBG1DN100-100Z1-WN	Mounting: Clevis \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: No
	CBG1DN100-125Z1-WN	Mounting: Clevis \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: No
	CBG1DN100-150Z1-WN	Mounting: Clevis \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: No
	CBG1DN100-200Z1-WN	Mounting: Clevis \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: No
	CBG1DN100-250Z1-WN	Mounting: Clevis \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: No
	CBG1DN100-300Z1-WN	Mounting: Clevis \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: No
	CDBG1BN50-25Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1BN50-50Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1BN50-75Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1BN50-100Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1BN50-125Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1BN50-150Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1BN50-200Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1BN50-250Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1BN50-300Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1BN50-25Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1BN50-50Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1BN50-75Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1BN50-100Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1BN50-125Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1BN50-150Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1BN50-200Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1BN50-250Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1BN50-300Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1BN50-25Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1BN50-50Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1BN50-75Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1BN50-100Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1BN50-125Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1BN50-150Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1BN50-200Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1BN50-250Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1BN50-300Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1BN63-25Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1BN63-50Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1BN63-75Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1BN63-100Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1BN63-125Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1BN63-150Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1BN63-200Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1BN63-250Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1BN63-300Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1BN63-25Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1BN63-50Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1BN63-75Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1BN63-100Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1BN63-125Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1BN63-150Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1BN63-200Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1BN63-250Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1BN63-300Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1BN63-25Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1BN63-50Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1BN63-75Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1BN63-100Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1BN63-125Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1BN63-150Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1BN63-200Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1BN63-250Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1BN63-300Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1BN80-25Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1BN80-50Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1BN80-75Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1BN80-100Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1BN80-125Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1BN80-150Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1BN80-200Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1BN80-250Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1BN80-300Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1BN80-25Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1BN80-50Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1BN80-75Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1BN80-100Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1BN80-125Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1BN80-150Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1BN80-200Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1BN80-250Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1BN80-300Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1BN80-25Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1BN80-50Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1BN80-75Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1BN80-100Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1BN80-125Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1BN80-150Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1BN80-200Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1BN80-250Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1BN80-300Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1BN100-25Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1BN100-50Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1BN100-75Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1BN100-100Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1BN100-125Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1BN100-150Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1BN100-200Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1BN100-250Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1BN100-300Z1-HN	Mounting: Basic (no trunnion female thread) \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1BN100-25Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1BN100-50Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1BN100-75Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1BN100-100Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1BN100-125Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1BN100-150Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1BN100-200Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1BN100-250Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1BN100-300Z1-RN	Mounting: Basic (no trunnion female thread) \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1BN100-25Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1BN100-50Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1BN100-75Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1BN100-100Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1BN100-125Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1BN100-150Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1BN100-200Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1BN100-250Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1BN100-300Z1-WN	Mounting: Basic (no trunnion female thread) \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1ZN50-25Z1-HN	Mounting: Basic (trunnion female thread) \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1ZN50-50Z1-HN	Mounting: Basic (trunnion female thread) \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1ZN50-75Z1-HN	Mounting: Basic (trunnion female thread) \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1ZN50-100Z1-HN	Mounting: Basic (trunnion female thread) \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1ZN50-125Z1-HN	Mounting: Basic (trunnion female thread) \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1ZN50-150Z1-HN	Mounting: Basic (trunnion female thread) \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1ZN50-200Z1-HN	Mounting: Basic (trunnion female thread) \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1ZN50-250Z1-HN	Mounting: Basic (trunnion female thread) \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1ZN50-300Z1-HN	Mounting: Basic (trunnion female thread) \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1ZN50-25Z1-RN	Mounting: Basic (trunnion female thread) \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1ZN50-50Z1-RN	Mounting: Basic (trunnion female thread) \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1ZN50-75Z1-RN	Mounting: Basic (trunnion female thread) \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1ZN50-100Z1-RN	Mounting: Basic (trunnion female thread) \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1ZN50-125Z1-RN	Mounting: Basic (trunnion female thread) \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1ZN50-150Z1-RN	Mounting: Basic (trunnion female thread) \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1ZN50-200Z1-RN	Mounting: Basic (trunnion female thread) \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1ZN50-250Z1-RN	Mounting: Basic (trunnion female thread) \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1ZN50-300Z1-RN	Mounting: Basic (trunnion female thread) \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1ZN50-25Z1-WN	Mounting: Basic (trunnion female thread) \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1ZN50-50Z1-WN	Mounting: Basic (trunnion female thread) \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1ZN50-75Z1-WN	Mounting: Basic (trunnion female thread) \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1ZN50-100Z1-WN	Mounting: Basic (trunnion female thread) \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1ZN50-125Z1-WN	Mounting: Basic (trunnion female thread) \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1ZN50-150Z1-WN	Mounting: Basic (trunnion female thread) \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1ZN50-200Z1-WN	Mounting: Basic (trunnion female thread) \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1ZN50-250Z1-WN	Mounting: Basic (trunnion female thread) \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1ZN50-300Z1-WN	Mounting: Basic (trunnion female thread) \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1ZN63-25Z1-HN	Mounting: Basic (trunnion female thread) \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1ZN63-50Z1-HN	Mounting: Basic (trunnion female thread) \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1ZN63-75Z1-HN	Mounting: Basic (trunnion female thread) \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1ZN63-100Z1-HN	Mounting: Basic (trunnion female thread) \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1ZN63-125Z1-HN	Mounting: Basic (trunnion female thread) \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1ZN63-150Z1-HN	Mounting: Basic (trunnion female thread) \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1ZN63-200Z1-HN	Mounting: Basic (trunnion female thread) \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1ZN63-250Z1-HN	Mounting: Basic (trunnion female thread) \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1ZN63-300Z1-HN	Mounting: Basic (trunnion female thread) \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1ZN63-25Z1-RN	Mounting: Basic (trunnion female thread) \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1ZN63-50Z1-RN	Mounting: Basic (trunnion female thread) \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1ZN63-75Z1-RN	Mounting: Basic (trunnion female thread) \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1ZN63-100Z1-RN	Mounting: Basic (trunnion female thread) \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1ZN63-125Z1-RN	Mounting: Basic (trunnion female thread) \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1ZN63-150Z1-RN	Mounting: Basic (trunnion female thread) \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1ZN63-200Z1-RN	Mounting: Basic (trunnion female thread) \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1ZN63-250Z1-RN	Mounting: Basic (trunnion female thread) \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1ZN63-300Z1-RN	Mounting: Basic (trunnion female thread) \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1ZN63-25Z1-WN	Mounting: Basic (trunnion female thread) \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1ZN63-50Z1-WN	Mounting: Basic (trunnion female thread) \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1ZN63-75Z1-WN	Mounting: Basic (trunnion female thread) \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1ZN63-100Z1-WN	Mounting: Basic (trunnion female thread) \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1ZN63-125Z1-WN	Mounting: Basic (trunnion female thread) \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1ZN63-150Z1-WN	Mounting: Basic (trunnion female thread) \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1ZN63-200Z1-WN	Mounting: Basic (trunnion female thread) \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1ZN63-250Z1-WN	Mounting: Basic (trunnion female thread) \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1ZN63-300Z1-WN	Mounting: Basic (trunnion female thread) \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1LN50-25Z1-HN	Mounting: Axial foot \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1LN50-50Z1-HN	Mounting: Axial foot \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1LN50-75Z1-HN	Mounting: Axial foot \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1LN50-100Z1-HN	Mounting: Axial foot \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1LN50-125Z1-HN	Mounting: Axial foot \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1LN50-150Z1-HN	Mounting: Axial foot \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1LN50-200Z1-HN	Mounting: Axial foot \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1LN50-250Z1-HN	Mounting: Axial foot \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1LN50-300Z1-HN	Mounting: Axial foot \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1LN50-25Z1-RN	Mounting: Axial foot \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1LN50-50Z1-RN	Mounting: Axial foot \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1LN50-75Z1-RN	Mounting: Axial foot \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1LN50-100Z1-RN	Mounting: Axial foot \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1LN50-125Z1-RN	Mounting: Axial foot \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1LN50-150Z1-RN	Mounting: Axial foot \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1LN50-200Z1-RN	Mounting: Axial foot \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1LN50-250Z1-RN	Mounting: Axial foot \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1LN50-300Z1-RN	Mounting: Axial foot \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1LN50-25Z1-WN	Mounting: Axial foot \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1LN50-50Z1-WN	Mounting: Axial foot \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1LN50-75Z1-WN	Mounting: Axial foot \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1LN50-100Z1-WN	Mounting: Axial foot \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1LN50-125Z1-WN	Mounting: Axial foot \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1LN50-150Z1-WN	Mounting: Axial foot \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1LN50-200Z1-WN	Mounting: Axial foot \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1LN50-250Z1-WN	Mounting: Axial foot \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1LN50-300Z1-WN	Mounting: Axial foot \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1LN63-25Z1-HN	Mounting: Axial foot \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1LN63-50Z1-HN	Mounting: Axial foot \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1LN63-75Z1-HN	Mounting: Axial foot \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1LN63-100Z1-HN	Mounting: Axial foot \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1LN63-125Z1-HN	Mounting: Axial foot \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1LN63-150Z1-HN	Mounting: Axial foot \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1LN63-200Z1-HN	Mounting: Axial foot \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1LN63-250Z1-HN	Mounting: Axial foot \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1LN63-300Z1-HN	Mounting: Axial foot \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1LN63-25Z1-RN	Mounting: Axial foot \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1LN63-50Z1-RN	Mounting: Axial foot \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1LN63-75Z1-RN	Mounting: Axial foot \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1LN63-100Z1-RN	Mounting: Axial foot \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1LN63-125Z1-RN	Mounting: Axial foot \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1LN63-150Z1-RN	Mounting: Axial foot \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1LN63-200Z1-RN	Mounting: Axial foot \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1LN63-250Z1-RN	Mounting: Axial foot \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1LN63-300Z1-RN	Mounting: Axial foot \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1LN63-25Z1-WN	Mounting: Axial foot \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1LN63-50Z1-WN	Mounting: Axial foot \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1LN63-75Z1-WN	Mounting: Axial foot \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1LN63-100Z1-WN	Mounting: Axial foot \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1LN63-125Z1-WN	Mounting: Axial foot \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1LN63-150Z1-WN	Mounting: Axial foot \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1LN63-200Z1-WN	Mounting: Axial foot \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1LN63-250Z1-WN	Mounting: Axial foot \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1LN63-300Z1-WN	Mounting: Axial foot \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1LN80-25Z1-HN	Mounting: Axial foot \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1LN80-50Z1-HN	Mounting: Axial foot \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1LN80-75Z1-HN	Mounting: Axial foot \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1LN80-100Z1-HN	Mounting: Axial foot \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1LN80-125Z1-HN	Mounting: Axial foot \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1LN80-150Z1-HN	Mounting: Axial foot \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1LN80-200Z1-HN	Mounting: Axial foot \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1LN80-250Z1-HN	Mounting: Axial foot \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1LN80-300Z1-HN	Mounting: Axial foot \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1LN80-25Z1-RN	Mounting: Axial foot \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1LN80-50Z1-RN	Mounting: Axial foot \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1LN80-75Z1-RN	Mounting: Axial foot \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1LN80-100Z1-RN	Mounting: Axial foot \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1LN80-125Z1-RN	Mounting: Axial foot \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1LN80-150Z1-RN	Mounting: Axial foot \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1LN80-200Z1-RN	Mounting: Axial foot \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1LN80-250Z1-RN	Mounting: Axial foot \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1LN80-300Z1-RN	Mounting: Axial foot \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1LN80-25Z1-WN	Mounting: Axial foot \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1LN80-50Z1-WN	Mounting: Axial foot \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1LN80-75Z1-WN	Mounting: Axial foot \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1LN80-100Z1-WN	Mounting: Axial foot \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1LN80-125Z1-WN	Mounting: Axial foot \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1LN80-150Z1-WN	Mounting: Axial foot \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1LN80-200Z1-WN	Mounting: Axial foot \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1LN80-250Z1-WN	Mounting: Axial foot \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1LN80-300Z1-WN	Mounting: Axial foot \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1LN100-25Z1-HN	Mounting: Axial foot \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1LN100-50Z1-HN	Mounting: Axial foot \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1LN100-75Z1-HN	Mounting: Axial foot \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1LN100-100Z1-HN	Mounting: Axial foot \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1LN100-125Z1-HN	Mounting: Axial foot \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1LN100-150Z1-HN	Mounting: Axial foot \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1LN100-200Z1-HN	Mounting: Axial foot \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1LN100-250Z1-HN	Mounting: Axial foot \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1LN100-300Z1-HN	Mounting: Axial foot \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1LN100-25Z1-RN	Mounting: Axial foot \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1LN100-50Z1-RN	Mounting: Axial foot \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1LN100-75Z1-RN	Mounting: Axial foot \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1LN100-100Z1-RN	Mounting: Axial foot \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1LN100-125Z1-RN	Mounting: Axial foot \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1LN100-150Z1-RN	Mounting: Axial foot \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1LN100-200Z1-RN	Mounting: Axial foot \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1LN100-250Z1-RN	Mounting: Axial foot \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1LN100-300Z1-RN	Mounting: Axial foot \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1LN100-25Z1-WN	Mounting: Axial foot \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1LN100-50Z1-WN	Mounting: Axial foot \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1LN100-75Z1-WN	Mounting: Axial foot \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1LN100-100Z1-WN	Mounting: Axial foot \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1LN100-125Z1-WN	Mounting: Axial foot \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1LN100-150Z1-WN	Mounting: Axial foot \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1LN100-200Z1-WN	Mounting: Axial foot \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1LN100-250Z1-WN	Mounting: Axial foot \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1LN100-300Z1-WN	Mounting: Axial foot \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1FN50-25Z1-HN	Mounting: Rod flange \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1FN50-50Z1-HN	Mounting: Rod flange \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1FN50-75Z1-HN	Mounting: Rod flange \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1FN50-100Z1-HN	Mounting: Rod flange \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1FN50-125Z1-HN	Mounting: Rod flange \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1FN50-150Z1-HN	Mounting: Rod flange \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1FN50-200Z1-HN	Mounting: Rod flange \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1FN50-250Z1-HN	Mounting: Rod flange \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1FN50-300Z1-HN	Mounting: Rod flange \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1FN50-25Z1-RN	Mounting: Rod flange \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1FN50-50Z1-RN	Mounting: Rod flange \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1FN50-75Z1-RN	Mounting: Rod flange \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1FN50-100Z1-RN	Mounting: Rod flange \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1FN50-125Z1-RN	Mounting: Rod flange \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1FN50-150Z1-RN	Mounting: Rod flange \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1FN50-200Z1-RN	Mounting: Rod flange \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1FN50-250Z1-RN	Mounting: Rod flange \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1FN50-300Z1-RN	Mounting: Rod flange \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1FN50-25Z1-WN	Mounting: Rod flange \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1FN50-50Z1-WN	Mounting: Rod flange \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1FN50-75Z1-WN	Mounting: Rod flange \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1FN50-100Z1-WN	Mounting: Rod flange \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1FN50-125Z1-WN	Mounting: Rod flange \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1FN50-150Z1-WN	Mounting: Rod flange \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1FN50-200Z1-WN	Mounting: Rod flange \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1FN50-250Z1-WN	Mounting: Rod flange \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1FN50-300Z1-WN	Mounting: Rod flange \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1FN63-25Z1-HN	Mounting: Rod flange \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1FN63-50Z1-HN	Mounting: Rod flange \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1FN63-75Z1-HN	Mounting: Rod flange \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1FN63-100Z1-HN	Mounting: Rod flange \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1FN63-125Z1-HN	Mounting: Rod flange \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1FN63-150Z1-HN	Mounting: Rod flange \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1FN63-200Z1-HN	Mounting: Rod flange \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1FN63-250Z1-HN	Mounting: Rod flange \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1FN63-300Z1-HN	Mounting: Rod flange \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1FN63-25Z1-RN	Mounting: Rod flange \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1FN63-50Z1-RN	Mounting: Rod flange \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1FN63-75Z1-RN	Mounting: Rod flange \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1FN63-100Z1-RN	Mounting: Rod flange \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1FN63-125Z1-RN	Mounting: Rod flange \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1FN63-150Z1-RN	Mounting: Rod flange \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1FN63-200Z1-RN	Mounting: Rod flange \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1FN63-250Z1-RN	Mounting: Rod flange \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1FN63-300Z1-RN	Mounting: Rod flange \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1FN63-25Z1-WN	Mounting: Rod flange \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1FN63-50Z1-WN	Mounting: Rod flange \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1FN63-75Z1-WN	Mounting: Rod flange \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1FN63-100Z1-WN	Mounting: Rod flange \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1FN63-125Z1-WN	Mounting: Rod flange \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1FN63-150Z1-WN	Mounting: Rod flange \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1FN63-200Z1-WN	Mounting: Rod flange \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1FN63-250Z1-WN	Mounting: Rod flange \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1FN63-300Z1-WN	Mounting: Rod flange \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1FN80-25Z1-HN	Mounting: Rod flange \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1FN80-50Z1-HN	Mounting: Rod flange \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1FN80-75Z1-HN	Mounting: Rod flange \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1FN80-100Z1-HN	Mounting: Rod flange \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1FN80-125Z1-HN	Mounting: Rod flange \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1FN80-150Z1-HN	Mounting: Rod flange \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1FN80-200Z1-HN	Mounting: Rod flange \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1FN80-250Z1-HN	Mounting: Rod flange \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1FN80-300Z1-HN	Mounting: Rod flange \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1FN80-25Z1-RN	Mounting: Rod flange \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1FN80-50Z1-RN	Mounting: Rod flange \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1FN80-75Z1-RN	Mounting: Rod flange \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1FN80-100Z1-RN	Mounting: Rod flange \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1FN80-125Z1-RN	Mounting: Rod flange \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1FN80-150Z1-RN	Mounting: Rod flange \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1FN80-200Z1-RN	Mounting: Rod flange \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1FN80-250Z1-RN	Mounting: Rod flange \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1FN80-300Z1-RN	Mounting: Rod flange \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1FN80-25Z1-WN	Mounting: Rod flange \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1FN80-50Z1-WN	Mounting: Rod flange \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1FN80-75Z1-WN	Mounting: Rod flange \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1FN80-100Z1-WN	Mounting: Rod flange \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1FN80-125Z1-WN	Mounting: Rod flange \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1FN80-150Z1-WN	Mounting: Rod flange \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1FN80-200Z1-WN	Mounting: Rod flange \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1FN80-250Z1-WN	Mounting: Rod flange \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1FN80-300Z1-WN	Mounting: Rod flange \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1FN100-25Z1-HN	Mounting: Rod flange \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1FN100-50Z1-HN	Mounting: Rod flange \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1FN100-75Z1-HN	Mounting: Rod flange \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1FN100-100Z1-HN	Mounting: Rod flange \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1FN100-125Z1-HN	Mounting: Rod flange \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1FN100-150Z1-HN	Mounting: Rod flange \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1FN100-200Z1-HN	Mounting: Rod flange \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1FN100-250Z1-HN	Mounting: Rod flange \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1FN100-300Z1-HN	Mounting: Rod flange \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1FN100-25Z1-RN	Mounting: Rod flange \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1FN100-50Z1-RN	Mounting: Rod flange \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1FN100-75Z1-RN	Mounting: Rod flange \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1FN100-100Z1-RN	Mounting: Rod flange \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1FN100-125Z1-RN	Mounting: Rod flange \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1FN100-150Z1-RN	Mounting: Rod flange \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1FN100-200Z1-RN	Mounting: Rod flange \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1FN100-250Z1-RN	Mounting: Rod flange \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1FN100-300Z1-RN	Mounting: Rod flange \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1FN100-25Z1-WN	Mounting: Rod flange \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1FN100-50Z1-WN	Mounting: Rod flange \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1FN100-75Z1-WN	Mounting: Rod flange \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1FN100-100Z1-WN	Mounting: Rod flange \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1FN100-125Z1-WN	Mounting: Rod flange \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1FN100-150Z1-WN	Mounting: Rod flange \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1FN100-200Z1-WN	Mounting: Rod flange \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1FN100-250Z1-WN	Mounting: Rod flange \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1FN100-300Z1-WN	Mounting: Rod flange \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1GN50-25Z1-HN	Mounting: Head flange \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1GN50-50Z1-HN	Mounting: Head flange \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1GN50-75Z1-HN	Mounting: Head flange \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1GN50-100Z1-HN	Mounting: Head flange \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1GN50-125Z1-HN	Mounting: Head flange \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1GN50-150Z1-HN	Mounting: Head flange \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1GN50-200Z1-HN	Mounting: Head flange \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1GN50-250Z1-HN	Mounting: Head flange \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1GN50-300Z1-HN	Mounting: Head flange \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1GN50-25Z1-RN	Mounting: Head flange \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1GN50-50Z1-RN	Mounting: Head flange \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1GN50-75Z1-RN	Mounting: Head flange \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1GN50-100Z1-RN	Mounting: Head flange \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1GN50-125Z1-RN	Mounting: Head flange \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1GN50-150Z1-RN	Mounting: Head flange \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1GN50-200Z1-RN	Mounting: Head flange \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1GN50-250Z1-RN	Mounting: Head flange \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1GN50-300Z1-RN	Mounting: Head flange \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1GN50-25Z1-WN	Mounting: Head flange \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1GN50-50Z1-WN	Mounting: Head flange \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1GN50-75Z1-WN	Mounting: Head flange \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1GN50-100Z1-WN	Mounting: Head flange \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1GN50-125Z1-WN	Mounting: Head flange \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1GN50-150Z1-WN	Mounting: Head flange \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1GN50-200Z1-WN	Mounting: Head flange \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1GN50-250Z1-WN	Mounting: Head flange \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1GN50-300Z1-WN	Mounting: Head flange \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1GN63-25Z1-HN	Mounting: Head flange \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1GN63-50Z1-HN	Mounting: Head flange \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1GN63-75Z1-HN	Mounting: Head flange \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1GN63-100Z1-HN	Mounting: Head flange \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1GN63-125Z1-HN	Mounting: Head flange \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1GN63-150Z1-HN	Mounting: Head flange \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1GN63-200Z1-HN	Mounting: Head flange \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1GN63-250Z1-HN	Mounting: Head flange \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1GN63-300Z1-HN	Mounting: Head flange \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1GN63-25Z1-RN	Mounting: Head flange \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1GN63-50Z1-RN	Mounting: Head flange \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1GN63-75Z1-RN	Mounting: Head flange \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1GN63-100Z1-RN	Mounting: Head flange \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1GN63-125Z1-RN	Mounting: Head flange \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1GN63-150Z1-RN	Mounting: Head flange \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1GN63-200Z1-RN	Mounting: Head flange \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1GN63-250Z1-RN	Mounting: Head flange \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1GN63-300Z1-RN	Mounting: Head flange \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1GN63-25Z1-WN	Mounting: Head flange \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1GN63-50Z1-WN	Mounting: Head flange \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1GN63-75Z1-WN	Mounting: Head flange \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1GN63-100Z1-WN	Mounting: Head flange \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1GN63-125Z1-WN	Mounting: Head flange \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1GN63-150Z1-WN	Mounting: Head flange \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1GN63-200Z1-WN	Mounting: Head flange \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1GN63-250Z1-WN	Mounting: Head flange \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1GN63-300Z1-WN	Mounting: Head flange \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1GN80-25Z1-HN	Mounting: Head flange \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1GN80-50Z1-HN	Mounting: Head flange \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1GN80-75Z1-HN	Mounting: Head flange \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1GN80-100Z1-HN	Mounting: Head flange \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1GN80-125Z1-HN	Mounting: Head flange \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1GN80-150Z1-HN	Mounting: Head flange \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1GN80-200Z1-HN	Mounting: Head flange \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1GN80-250Z1-HN	Mounting: Head flange \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1GN80-300Z1-HN	Mounting: Head flange \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1GN80-25Z1-RN	Mounting: Head flange \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1GN80-50Z1-RN	Mounting: Head flange \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1GN80-75Z1-RN	Mounting: Head flange \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1GN80-100Z1-RN	Mounting: Head flange \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1GN80-125Z1-RN	Mounting: Head flange \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1GN80-150Z1-RN	Mounting: Head flange \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1GN80-200Z1-RN	Mounting: Head flange \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1GN80-250Z1-RN	Mounting: Head flange \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1GN80-300Z1-RN	Mounting: Head flange \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1GN80-25Z1-WN	Mounting: Head flange \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1GN80-50Z1-WN	Mounting: Head flange \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1GN80-75Z1-WN	Mounting: Head flange \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1GN80-100Z1-WN	Mounting: Head flange \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1GN80-125Z1-WN	Mounting: Head flange \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1GN80-150Z1-WN	Mounting: Head flange \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1GN80-200Z1-WN	Mounting: Head flange \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1GN80-250Z1-WN	Mounting: Head flange \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1GN80-300Z1-WN	Mounting: Head flange \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1GN100-25Z1-HN	Mounting: Head flange \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1GN100-50Z1-HN	Mounting: Head flange \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1GN100-75Z1-HN	Mounting: Head flange \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1GN100-100Z1-HN	Mounting: Head flange \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1GN100-125Z1-HN	Mounting: Head flange \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1GN100-150Z1-HN	Mounting: Head flange \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1GN100-200Z1-HN	Mounting: Head flange \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1GN100-250Z1-HN	Mounting: Head flange \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1GN100-300Z1-HN	Mounting: Head flange \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1GN100-25Z1-RN	Mounting: Head flange \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1GN100-50Z1-RN	Mounting: Head flange \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1GN100-75Z1-RN	Mounting: Head flange \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1GN100-100Z1-RN	Mounting: Head flange \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1GN100-125Z1-RN	Mounting: Head flange \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1GN100-150Z1-RN	Mounting: Head flange \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1GN100-200Z1-RN	Mounting: Head flange \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1GN100-250Z1-RN	Mounting: Head flange \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1GN100-300Z1-RN	Mounting: Head flange \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1GN100-25Z1-WN	Mounting: Head flange \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1GN100-50Z1-WN	Mounting: Head flange \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1GN100-75Z1-WN	Mounting: Head flange \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1GN100-100Z1-WN	Mounting: Head flange \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1GN100-125Z1-WN	Mounting: Head flange \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1GN100-150Z1-WN	Mounting: Head flange \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1GN100-200Z1-WN	Mounting: Head flange \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1GN100-250Z1-WN	Mounting: Head flange \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1GN100-300Z1-WN	Mounting: Head flange \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1UN50-25Z1-HN	Mounting: Rod trunnion \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1UN50-50Z1-HN	Mounting: Rod trunnion \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1UN50-75Z1-HN	Mounting: Rod trunnion \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1UN50-100Z1-HN	Mounting: Rod trunnion \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1UN50-125Z1-HN	Mounting: Rod trunnion \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1UN50-150Z1-HN	Mounting: Rod trunnion \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1UN50-200Z1-HN	Mounting: Rod trunnion \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1UN50-250Z1-HN	Mounting: Rod trunnion \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1UN50-300Z1-HN	Mounting: Rod trunnion \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1UN63-25Z1-HN	Mounting: Rod trunnion \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1UN63-50Z1-HN	Mounting: Rod trunnion \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1UN63-75Z1-HN	Mounting: Rod trunnion \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1UN63-100Z1-HN	Mounting: Rod trunnion \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1UN63-125Z1-HN	Mounting: Rod trunnion \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1UN63-150Z1-HN	Mounting: Rod trunnion \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1UN63-200Z1-HN	Mounting: Rod trunnion \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1UN63-250Z1-HN	Mounting: Rod trunnion \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1UN63-300Z1-HN	Mounting: Rod trunnion \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1TN50-25Z1-RN	Mounting: Head trunnion \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1TN50-50Z1-RN	Mounting: Head trunnion \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1TN50-75Z1-RN	Mounting: Head trunnion \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1TN50-100Z1-RN	Mounting: Head trunnion \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1TN50-125Z1-RN	Mounting: Head trunnion \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1TN50-150Z1-RN	Mounting: Head trunnion \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1TN50-200Z1-RN	Mounting: Head trunnion \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1TN50-250Z1-RN	Mounting: Head trunnion \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1TN50-300Z1-RN	Mounting: Head trunnion \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1TN63-25Z1-RN	Mounting: Head trunnion \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1TN63-50Z1-RN	Mounting: Head trunnion \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1TN63-75Z1-RN	Mounting: Head trunnion \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1TN63-100Z1-RN	Mounting: Head trunnion \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1TN63-125Z1-RN	Mounting: Head trunnion \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1TN63-150Z1-RN	Mounting: Head trunnion \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1TN63-200Z1-RN	Mounting: Head trunnion \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1TN63-250Z1-RN	Mounting: Head trunnion \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1TN63-300Z1-RN	Mounting: Head trunnion \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1DN50-25Z1-HN	Mounting: Clevis \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1DN50-50Z1-HN	Mounting: Clevis \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1DN50-75Z1-HN	Mounting: Clevis \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1DN50-100Z1-HN	Mounting: Clevis \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1DN50-125Z1-HN	Mounting: Clevis \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1DN50-150Z1-HN	Mounting: Clevis \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1DN50-200Z1-HN	Mounting: Clevis \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1DN50-250Z1-HN	Mounting: Clevis \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1DN50-300Z1-HN	Mounting: Clevis \| Bore: ø50 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1DN50-25Z1-RN	Mounting: Clevis \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1DN50-50Z1-RN	Mounting: Clevis \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1DN50-75Z1-RN	Mounting: Clevis \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1DN50-100Z1-RN	Mounting: Clevis \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1DN50-125Z1-RN	Mounting: Clevis \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1DN50-150Z1-RN	Mounting: Clevis \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1DN50-200Z1-RN	Mounting: Clevis \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1DN50-250Z1-RN	Mounting: Clevis \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1DN50-300Z1-RN	Mounting: Clevis \| Bore: ø50 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1DN50-25Z1-WN	Mounting: Clevis \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1DN50-50Z1-WN	Mounting: Clevis \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1DN50-75Z1-WN	Mounting: Clevis \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1DN50-100Z1-WN	Mounting: Clevis \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1DN50-125Z1-WN	Mounting: Clevis \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1DN50-150Z1-WN	Mounting: Clevis \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1DN50-200Z1-WN	Mounting: Clevis \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1DN50-250Z1-WN	Mounting: Clevis \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1DN50-300Z1-WN	Mounting: Clevis \| Bore: ø50 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1DN63-25Z1-HN	Mounting: Clevis \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1DN63-50Z1-HN	Mounting: Clevis \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1DN63-75Z1-HN	Mounting: Clevis \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1DN63-100Z1-HN	Mounting: Clevis \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1DN63-125Z1-HN	Mounting: Clevis \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1DN63-150Z1-HN	Mounting: Clevis \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1DN63-200Z1-HN	Mounting: Clevis \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1DN63-250Z1-HN	Mounting: Clevis \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1DN63-300Z1-HN	Mounting: Clevis \| Bore: ø63 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1DN63-25Z1-RN	Mounting: Clevis \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1DN63-50Z1-RN	Mounting: Clevis \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1DN63-75Z1-RN	Mounting: Clevis \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1DN63-100Z1-RN	Mounting: Clevis \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1DN63-125Z1-RN	Mounting: Clevis \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1DN63-150Z1-RN	Mounting: Clevis \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1DN63-200Z1-RN	Mounting: Clevis \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1DN63-250Z1-RN	Mounting: Clevis \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1DN63-300Z1-RN	Mounting: Clevis \| Bore: ø63 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1DN63-25Z1-WN	Mounting: Clevis \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1DN63-50Z1-WN	Mounting: Clevis \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1DN63-75Z1-WN	Mounting: Clevis \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1DN63-100Z1-WN	Mounting: Clevis \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1DN63-125Z1-WN	Mounting: Clevis \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1DN63-150Z1-WN	Mounting: Clevis \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1DN63-200Z1-WN	Mounting: Clevis \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1DN63-250Z1-WN	Mounting: Clevis \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1DN63-300Z1-WN	Mounting: Clevis \| Bore: ø63 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1DN80-25Z1-HN	Mounting: Clevis \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1DN80-50Z1-HN	Mounting: Clevis \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1DN80-75Z1-HN	Mounting: Clevis \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1DN80-100Z1-HN	Mounting: Clevis \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1DN80-125Z1-HN	Mounting: Clevis \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1DN80-150Z1-HN	Mounting: Clevis \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1DN80-200Z1-HN	Mounting: Clevis \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1DN80-250Z1-HN	Mounting: Clevis \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1DN80-300Z1-HN	Mounting: Clevis \| Bore: ø80 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1DN80-25Z1-RN	Mounting: Clevis \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1DN80-50Z1-RN	Mounting: Clevis \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1DN80-75Z1-RN	Mounting: Clevis \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1DN80-100Z1-RN	Mounting: Clevis \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1DN80-125Z1-RN	Mounting: Clevis \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1DN80-150Z1-RN	Mounting: Clevis \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1DN80-200Z1-RN	Mounting: Clevis \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1DN80-250Z1-RN	Mounting: Clevis \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1DN80-300Z1-RN	Mounting: Clevis \| Bore: ø80 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1DN80-25Z1-WN	Mounting: Clevis \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1DN80-50Z1-WN	Mounting: Clevis \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1DN80-75Z1-WN	Mounting: Clevis \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1DN80-100Z1-WN	Mounting: Clevis \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1DN80-125Z1-WN	Mounting: Clevis \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1DN80-150Z1-WN	Mounting: Clevis \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1DN80-200Z1-WN	Mounting: Clevis \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1DN80-250Z1-WN	Mounting: Clevis \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1DN80-300Z1-WN	Mounting: Clevis \| Bore: ø80 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1DN100-25Z1-HN	Mounting: Clevis \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1DN100-50Z1-HN	Mounting: Clevis \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1DN100-75Z1-HN	Mounting: Clevis \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1DN100-100Z1-HN	Mounting: Clevis \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1DN100-125Z1-HN	Mounting: Clevis \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1DN100-150Z1-HN	Mounting: Clevis \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1DN100-200Z1-HN	Mounting: Clevis \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1DN100-250Z1-HN	Mounting: Clevis \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1DN100-300Z1-HN	Mounting: Clevis \| Bore: ø100 mm \| Lock: Head end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1DN100-25Z1-RN	Mounting: Clevis \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1DN100-50Z1-RN	Mounting: Clevis \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1DN100-75Z1-RN	Mounting: Clevis \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1DN100-100Z1-RN	Mounting: Clevis \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1DN100-125Z1-RN	Mounting: Clevis \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1DN100-150Z1-RN	Mounting: Clevis \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1DN100-200Z1-RN	Mounting: Clevis \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1DN100-250Z1-RN	Mounting: Clevis \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1DN100-300Z1-RN	Mounting: Clevis \| Bore: ø100 mm \| Lock: Rod end lock \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDBG1DN100-25Z1-WN	Mounting: Clevis \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDBG1DN100-50Z1-WN	Mounting: Clevis \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDBG1DN100-75Z1-WN	Mounting: Clevis \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDBG1DN100-100Z1-WN	Mounting: Clevis \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDBG1DN100-125Z1-WN	Mounting: Clevis \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDBG1DN100-150Z1-WN	Mounting: Clevis \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDBG1DN100-200Z1-WN	Mounting: Clevis \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDBG1DN100-250Z1-WN	Mounting: Clevis \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDBG1DN100-300Z1-WN	Mounting: Clevis \| Bore: ø100 mm \| Lock: Both ends lock \| Stroke: 300 mm \| Auto switch magnet: Yes

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

SMC CBG1 End Lock Cylinder (ø50 to ø100)
