SMC CDQ2B50 Horizontal Stopper Cylinder (CJQC0757 / CJVC0940)

SMC CDQ2B50 Horizontal Stopper Cylinder (CJQC0757 / CJVC0940)

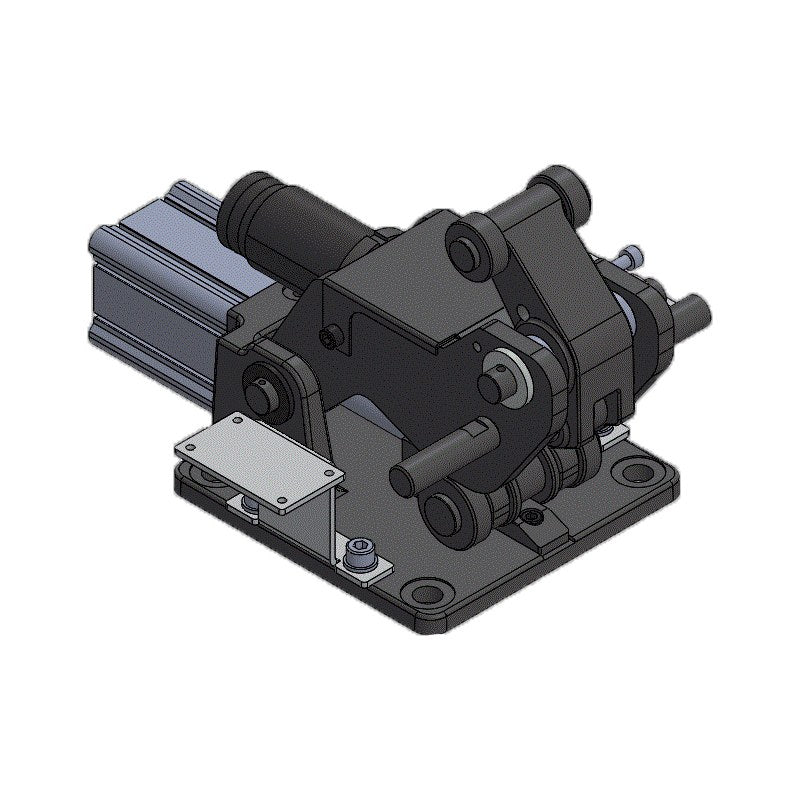

SMC Korea CDQ2B50 horizontal stopper cylinder (special CJQC0757 / CJVC0940), a ø50 mm compact cylinder driven low-profile stopper with adjustable shock absorber for stopping heavy loads on high-speed conveyor lines.

Key features

  • Stops heavy transported loads smoothly at high line speed; adjustable shock absorber sets absorbed energy (shipped set to 0)
  • Low height mounts on the conveyor without extra holes beneath, reducing installation cost
  • Lever linkage keeps lateral load off the cylinder for long durability
  • Heavy-load (H, KCA42-25-SM) or medium-load (M, KSA36-25BN-SM) shock absorber; cylinder port on left (L) or right (R)
  • CJQC0757: optional stop lock (self-holding) SL; CJVC0940: optional proximity sensor bracket (D), limit switch bar (E) or bracket (F), stop lock (SL) or bypass lock (BL)
  • Built-in magnet (CDQ2) for auto switch detection

Specifications

Bore size ø50 mm
Stroke 50 mm
Action Double acting
Fluid Air
Proof pressure 1.0 MPa
Max. operating pressure 0.7 MPa
Ambient and fluid temperature -10 to 60°C (no freezing)
Piston speed 50 to 500 mm/s
Cushion Rubber cushion
Port Rc1/4
Mass 10 to 11 kg
Source SMC Korea catalogs CDQ2B50-CJQC0757 / CDQ2B50-CJVC0940 (SMCKR_CDQ2B50-*.pdf), p. 1
CDQ2B50H-50L-CJQC0757 Model: CJQC0757 | Shock absorber: Heavy load (KCA42-25-SM) | Port position: Left | Option: None
CDQ2B50H-50L-SL-CJQC0757 Model: CJQC0757 | Shock absorber: Heavy load (KCA42-25-SM) | Port position: Left | Option: Stop lock
CDQ2B50H-50R-CJQC0757 Model: CJQC0757 | Shock absorber: Heavy load (KCA42-25-SM) | Port position: Right | Option: None
CDQ2B50H-50R-SL-CJQC0757 Model: CJQC0757 | Shock absorber: Heavy load (KCA42-25-SM) | Port position: Right | Option: Stop lock
CDQ2B50M-50L-CJQC0757 Model: CJQC0757 | Shock absorber: Medium load (KSA36-25BN-SM) | Port position: Left | Option: None
CDQ2B50M-50L-SL-CJQC0757 Model: CJQC0757 | Shock absorber: Medium load (KSA36-25BN-SM) | Port position: Left | Option: Stop lock
CDQ2B50M-50R-CJQC0757 Model: CJQC0757 | Shock absorber: Medium load (KSA36-25BN-SM) | Port position: Right | Option: None
CDQ2B50M-50R-SL-CJQC0757 Model: CJQC0757 | Shock absorber: Medium load (KSA36-25BN-SM) | Port position: Right | Option: Stop lock
CDQ2B50H-50L-CJVC0940 Model: CJVC0940 | Shock absorber: Heavy load (KCA42-25-SM) | Port position: Left | Option: None
CDQ2B50H-50L-D-CJVC0940 Model: CJVC0940 | Shock absorber: Heavy load (KCA42-25-SM) | Port position: Left | Option: Proximity sensor bracket
CDQ2B50H-50L-E-CJVC0940 Model: CJVC0940 | Shock absorber: Heavy load (KCA42-25-SM) | Port position: Left | Option: Limit switch bar
CDQ2B50H-50L-F-CJVC0940 Model: CJVC0940 | Shock absorber: Heavy load (KCA42-25-SM) | Port position: Left | Option: Limit switch bracket
CDQ2B50H-50L-SL-CJVC0940 Model: CJVC0940 | Shock absorber: Heavy load (KCA42-25-SM) | Port position: Left | Option: Stop lock
CDQ2B50H-50L-BL-CJVC0940 Model: CJVC0940 | Shock absorber: Heavy load (KCA42-25-SM) | Port position: Left | Option: Bypass lock
CDQ2B50H-50R-CJVC0940 Model: CJVC0940 | Shock absorber: Heavy load (KCA42-25-SM) | Port position: Right | Option: None
CDQ2B50H-50R-D-CJVC0940 Model: CJVC0940 | Shock absorber: Heavy load (KCA42-25-SM) | Port position: Right | Option: Proximity sensor bracket
CDQ2B50H-50R-E-CJVC0940 Model: CJVC0940 | Shock absorber: Heavy load (KCA42-25-SM) | Port position: Right | Option: Limit switch bar
CDQ2B50H-50R-F-CJVC0940 Model: CJVC0940 | Shock absorber: Heavy load (KCA42-25-SM) | Port position: Right | Option: Limit switch bracket
CDQ2B50H-50R-SL-CJVC0940 Model: CJVC0940 | Shock absorber: Heavy load (KCA42-25-SM) | Port position: Right | Option: Stop lock
CDQ2B50H-50R-BL-CJVC0940 Model: CJVC0940 | Shock absorber: Heavy load (KCA42-25-SM) | Port position: Right | Option: Bypass lock
CDQ2B50M-50L-CJVC0940 Model: CJVC0940 | Shock absorber: Medium load (KSA36-25BN-SM) | Port position: Left | Option: None
CDQ2B50M-50L-D-CJVC0940 Model: CJVC0940 | Shock absorber: Medium load (KSA36-25BN-SM) | Port position: Left | Option: Proximity sensor bracket
CDQ2B50M-50L-E-CJVC0940 Model: CJVC0940 | Shock absorber: Medium load (KSA36-25BN-SM) | Port position: Left | Option: Limit switch bar
CDQ2B50M-50L-F-CJVC0940 Model: CJVC0940 | Shock absorber: Medium load (KSA36-25BN-SM) | Port position: Left | Option: Limit switch bracket
CDQ2B50M-50L-SL-CJVC0940 Model: CJVC0940 | Shock absorber: Medium load (KSA36-25BN-SM) | Port position: Left | Option: Stop lock
CDQ2B50M-50L-BL-CJVC0940 Model: CJVC0940 | Shock absorber: Medium load (KSA36-25BN-SM) | Port position: Left | Option: Bypass lock
CDQ2B50M-50R-CJVC0940 Model: CJVC0940 | Shock absorber: Medium load (KSA36-25BN-SM) | Port position: Right | Option: None
CDQ2B50M-50R-D-CJVC0940 Model: CJVC0940 | Shock absorber: Medium load (KSA36-25BN-SM) | Port position: Right | Option: Proximity sensor bracket
CDQ2B50M-50R-E-CJVC0940 Model: CJVC0940 | Shock absorber: Medium load (KSA36-25BN-SM) | Port position: Right | Option: Limit switch bar
CDQ2B50M-50R-F-CJVC0940 Model: CJVC0940 | Shock absorber: Medium load (KSA36-25BN-SM) | Port position: Right | Option: Limit switch bracket
CDQ2B50M-50R-SL-CJVC0940 Model: CJVC0940 | Shock absorber: Medium load (KSA36-25BN-SM) | Port position: Right | Option: Stop lock
CDQ2B50M-50R-BL-CJVC0940 Model: CJVC0940 | Shock absorber: Medium load (KSA36-25BN-SM) | Port position: Right | Option: Bypass lock
