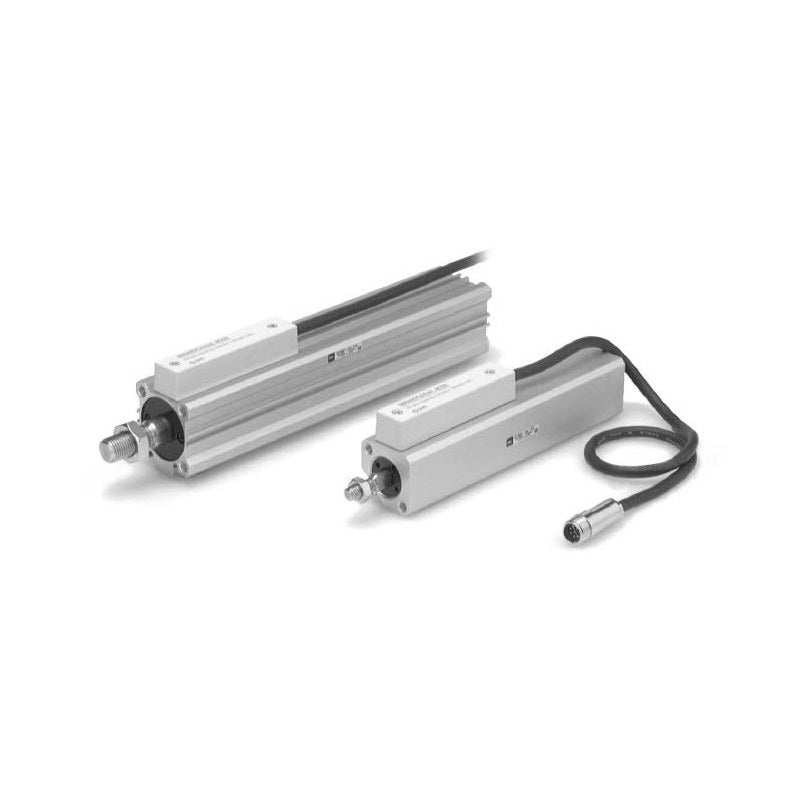

SMC CE1 Scale Cylinder (Stroke Measuring, 12 to 63 mm)

SMC CE1 series scale cylinder with an integrated magnetic scale rod and detection head, measuring piston rod position over the entire stroke at 0.1 mm resolution.

Key features

Incremental magnetic scale rod, A/B phase difference output to CEU5 multi counter
0.1 mm resolution, accuracy +/-0.2 mm (at 20 C, including counter display error)
Usable where liquids such as water, oil or coolant splash (sensor IP65)
Cushion options for 40 to 63 mm: N (none), R (rod side), H (head side); standard both sides
Sensor cable 0.5 m standard (L: 3 m), connector-less type (Z), CE1-R extension cables 5 to 20 m
Built-in magnet for auto switches; brackets CQ-L/F/D0xx available separately

Specifications

Action	Double acting, single rod
Fluid	Air
Max. operating pressure	1.0 MPa (proof 1.5 MPa)
Min. operating pressure	0.07 MPa (12), 0.05 MPa (20 to 63)
Piston speed	70 to 500 mm/s
Ambient and fluid temperature	0 to 60 C (no freezing)
Lubrication	Not required
Resolution / accuracy	0.1 mm / +/-0.2 mm
Sensor output	Open collector DC24V 40 mA, A/B phase
Sensor power supply	DC10.8 to 26.4 V, 40 mA
Enclosure	Sensor IP65 (excluding connector)
Source	SMC Korea catalog CE series (SMCKR_CE1_CEP1_CEU5.pdf), p. 1064-1065 (PDF p. 16-17)

CE1B12-25		Mounting: Both ends tapped \| Bore: 12 mm \| Stroke: 25 mm
CE1B12-50		Mounting: Both ends tapped \| Bore: 12 mm \| Stroke: 50 mm
CE1B12-75		Mounting: Both ends tapped \| Bore: 12 mm \| Stroke: 75 mm
CE1B12-100		Mounting: Both ends tapped \| Bore: 12 mm \| Stroke: 100 mm
CE1B12-125		Mounting: Both ends tapped \| Bore: 12 mm \| Stroke: 125 mm
CE1B12-150		Mounting: Both ends tapped \| Bore: 12 mm \| Stroke: 150 mm
CE1B20-25		Mounting: Both ends tapped \| Bore: 20 mm \| Stroke: 25 mm
CE1B20-50		Mounting: Both ends tapped \| Bore: 20 mm \| Stroke: 50 mm
CE1B20-75		Mounting: Both ends tapped \| Bore: 20 mm \| Stroke: 75 mm
CE1B20-100		Mounting: Both ends tapped \| Bore: 20 mm \| Stroke: 100 mm
CE1B20-125		Mounting: Both ends tapped \| Bore: 20 mm \| Stroke: 125 mm
CE1B20-150		Mounting: Both ends tapped \| Bore: 20 mm \| Stroke: 150 mm
CE1B20-175		Mounting: Both ends tapped \| Bore: 20 mm \| Stroke: 175 mm
CE1B20-200		Mounting: Both ends tapped \| Bore: 20 mm \| Stroke: 200 mm
CE1B32-50		Mounting: Both ends tapped \| Bore: 32 mm \| Stroke: 50 mm
CE1B32-75		Mounting: Both ends tapped \| Bore: 32 mm \| Stroke: 75 mm
CE1B32-100		Mounting: Both ends tapped \| Bore: 32 mm \| Stroke: 100 mm
CE1B32-125		Mounting: Both ends tapped \| Bore: 32 mm \| Stroke: 125 mm
CE1B32-150		Mounting: Both ends tapped \| Bore: 32 mm \| Stroke: 150 mm
CE1B32-175		Mounting: Both ends tapped \| Bore: 32 mm \| Stroke: 175 mm
CE1B32-200		Mounting: Both ends tapped \| Bore: 32 mm \| Stroke: 200 mm
CE1B32-250		Mounting: Both ends tapped \| Bore: 32 mm \| Stroke: 250 mm
CE1B32-300		Mounting: Both ends tapped \| Bore: 32 mm \| Stroke: 300 mm
CE1B40-100		Mounting: Both ends tapped \| Bore: 40 mm \| Stroke: 100 mm
CE1B40-125		Mounting: Both ends tapped \| Bore: 40 mm \| Stroke: 125 mm
CE1B40-150		Mounting: Both ends tapped \| Bore: 40 mm \| Stroke: 150 mm
CE1B40-175		Mounting: Both ends tapped \| Bore: 40 mm \| Stroke: 175 mm
CE1B40-200		Mounting: Both ends tapped \| Bore: 40 mm \| Stroke: 200 mm
CE1B40-250		Mounting: Both ends tapped \| Bore: 40 mm \| Stroke: 250 mm
CE1B40-300		Mounting: Both ends tapped \| Bore: 40 mm \| Stroke: 300 mm
CE1B40-400		Mounting: Both ends tapped \| Bore: 40 mm \| Stroke: 400 mm
CE1B40-500		Mounting: Both ends tapped \| Bore: 40 mm \| Stroke: 500 mm
CE1B50-200		Mounting: Both ends tapped \| Bore: 50 mm \| Stroke: 200 mm
CE1B50-300		Mounting: Both ends tapped \| Bore: 50 mm \| Stroke: 300 mm
CE1B50-500		Mounting: Both ends tapped \| Bore: 50 mm \| Stroke: 500 mm
CE1B63-200		Mounting: Both ends tapped \| Bore: 63 mm \| Stroke: 200 mm
CE1B63-300		Mounting: Both ends tapped \| Bore: 63 mm \| Stroke: 300 mm
CE1B63-500		Mounting: Both ends tapped \| Bore: 63 mm \| Stroke: 500 mm
CE1L12-25		Mounting: Foot \| Bore: 12 mm \| Stroke: 25 mm
CE1L12-50		Mounting: Foot \| Bore: 12 mm \| Stroke: 50 mm
CE1L12-75		Mounting: Foot \| Bore: 12 mm \| Stroke: 75 mm
CE1L12-100		Mounting: Foot \| Bore: 12 mm \| Stroke: 100 mm
CE1L12-125		Mounting: Foot \| Bore: 12 mm \| Stroke: 125 mm
CE1L12-150		Mounting: Foot \| Bore: 12 mm \| Stroke: 150 mm
CE1L20-25		Mounting: Foot \| Bore: 20 mm \| Stroke: 25 mm
CE1L20-50		Mounting: Foot \| Bore: 20 mm \| Stroke: 50 mm
CE1L20-75		Mounting: Foot \| Bore: 20 mm \| Stroke: 75 mm
CE1L20-100		Mounting: Foot \| Bore: 20 mm \| Stroke: 100 mm
CE1L20-125		Mounting: Foot \| Bore: 20 mm \| Stroke: 125 mm
CE1L20-150		Mounting: Foot \| Bore: 20 mm \| Stroke: 150 mm
CE1L20-175		Mounting: Foot \| Bore: 20 mm \| Stroke: 175 mm
CE1L20-200		Mounting: Foot \| Bore: 20 mm \| Stroke: 200 mm
CE1L32-50		Mounting: Foot \| Bore: 32 mm \| Stroke: 50 mm
CE1L32-75		Mounting: Foot \| Bore: 32 mm \| Stroke: 75 mm
CE1L32-100		Mounting: Foot \| Bore: 32 mm \| Stroke: 100 mm
CE1L32-125		Mounting: Foot \| Bore: 32 mm \| Stroke: 125 mm
CE1L32-150		Mounting: Foot \| Bore: 32 mm \| Stroke: 150 mm
CE1L32-175		Mounting: Foot \| Bore: 32 mm \| Stroke: 175 mm
CE1L32-200		Mounting: Foot \| Bore: 32 mm \| Stroke: 200 mm
CE1L32-250		Mounting: Foot \| Bore: 32 mm \| Stroke: 250 mm
CE1L32-300		Mounting: Foot \| Bore: 32 mm \| Stroke: 300 mm
CE1L40-100		Mounting: Foot \| Bore: 40 mm \| Stroke: 100 mm
CE1L40-125		Mounting: Foot \| Bore: 40 mm \| Stroke: 125 mm
CE1L40-150		Mounting: Foot \| Bore: 40 mm \| Stroke: 150 mm
CE1L40-175		Mounting: Foot \| Bore: 40 mm \| Stroke: 175 mm
CE1L40-200		Mounting: Foot \| Bore: 40 mm \| Stroke: 200 mm
CE1L40-250		Mounting: Foot \| Bore: 40 mm \| Stroke: 250 mm
CE1L40-300		Mounting: Foot \| Bore: 40 mm \| Stroke: 300 mm
CE1L40-400		Mounting: Foot \| Bore: 40 mm \| Stroke: 400 mm
CE1L40-500		Mounting: Foot \| Bore: 40 mm \| Stroke: 500 mm
CE1L50-200		Mounting: Foot \| Bore: 50 mm \| Stroke: 200 mm
CE1L50-300		Mounting: Foot \| Bore: 50 mm \| Stroke: 300 mm
CE1L50-500		Mounting: Foot \| Bore: 50 mm \| Stroke: 500 mm
CE1L63-200		Mounting: Foot \| Bore: 63 mm \| Stroke: 200 mm
CE1L63-300		Mounting: Foot \| Bore: 63 mm \| Stroke: 300 mm
CE1L63-500		Mounting: Foot \| Bore: 63 mm \| Stroke: 500 mm
CE1F12-25		Mounting: Rod flange \| Bore: 12 mm \| Stroke: 25 mm
CE1F12-50		Mounting: Rod flange \| Bore: 12 mm \| Stroke: 50 mm
CE1F12-75		Mounting: Rod flange \| Bore: 12 mm \| Stroke: 75 mm
CE1F12-100		Mounting: Rod flange \| Bore: 12 mm \| Stroke: 100 mm
CE1F12-125		Mounting: Rod flange \| Bore: 12 mm \| Stroke: 125 mm
CE1F12-150		Mounting: Rod flange \| Bore: 12 mm \| Stroke: 150 mm
CE1F20-25		Mounting: Rod flange \| Bore: 20 mm \| Stroke: 25 mm
CE1F20-50		Mounting: Rod flange \| Bore: 20 mm \| Stroke: 50 mm
CE1F20-75		Mounting: Rod flange \| Bore: 20 mm \| Stroke: 75 mm
CE1F20-100		Mounting: Rod flange \| Bore: 20 mm \| Stroke: 100 mm
CE1F20-125		Mounting: Rod flange \| Bore: 20 mm \| Stroke: 125 mm
CE1F20-150		Mounting: Rod flange \| Bore: 20 mm \| Stroke: 150 mm
CE1F20-175		Mounting: Rod flange \| Bore: 20 mm \| Stroke: 175 mm
CE1F20-200		Mounting: Rod flange \| Bore: 20 mm \| Stroke: 200 mm
CE1F32-50		Mounting: Rod flange \| Bore: 32 mm \| Stroke: 50 mm
CE1F32-75		Mounting: Rod flange \| Bore: 32 mm \| Stroke: 75 mm
CE1F32-100		Mounting: Rod flange \| Bore: 32 mm \| Stroke: 100 mm
CE1F32-125		Mounting: Rod flange \| Bore: 32 mm \| Stroke: 125 mm
CE1F32-150		Mounting: Rod flange \| Bore: 32 mm \| Stroke: 150 mm
CE1F32-175		Mounting: Rod flange \| Bore: 32 mm \| Stroke: 175 mm
CE1F32-200		Mounting: Rod flange \| Bore: 32 mm \| Stroke: 200 mm
CE1F32-250		Mounting: Rod flange \| Bore: 32 mm \| Stroke: 250 mm
CE1F32-300		Mounting: Rod flange \| Bore: 32 mm \| Stroke: 300 mm
CE1F40-100		Mounting: Rod flange \| Bore: 40 mm \| Stroke: 100 mm
CE1F40-125		Mounting: Rod flange \| Bore: 40 mm \| Stroke: 125 mm
CE1F40-150		Mounting: Rod flange \| Bore: 40 mm \| Stroke: 150 mm
CE1F40-175		Mounting: Rod flange \| Bore: 40 mm \| Stroke: 175 mm
CE1F40-200		Mounting: Rod flange \| Bore: 40 mm \| Stroke: 200 mm
CE1F40-250		Mounting: Rod flange \| Bore: 40 mm \| Stroke: 250 mm
CE1F40-300		Mounting: Rod flange \| Bore: 40 mm \| Stroke: 300 mm
CE1F40-400		Mounting: Rod flange \| Bore: 40 mm \| Stroke: 400 mm
CE1F40-500		Mounting: Rod flange \| Bore: 40 mm \| Stroke: 500 mm
CE1F50-200		Mounting: Rod flange \| Bore: 50 mm \| Stroke: 200 mm
CE1F50-300		Mounting: Rod flange \| Bore: 50 mm \| Stroke: 300 mm
CE1F50-500		Mounting: Rod flange \| Bore: 50 mm \| Stroke: 500 mm
CE1F63-200		Mounting: Rod flange \| Bore: 63 mm \| Stroke: 200 mm
CE1F63-300		Mounting: Rod flange \| Bore: 63 mm \| Stroke: 300 mm
CE1F63-500		Mounting: Rod flange \| Bore: 63 mm \| Stroke: 500 mm
CE1G12-25		Mounting: Head flange \| Bore: 12 mm \| Stroke: 25 mm
CE1G12-50		Mounting: Head flange \| Bore: 12 mm \| Stroke: 50 mm
CE1G12-75		Mounting: Head flange \| Bore: 12 mm \| Stroke: 75 mm
CE1G12-100		Mounting: Head flange \| Bore: 12 mm \| Stroke: 100 mm
CE1G12-125		Mounting: Head flange \| Bore: 12 mm \| Stroke: 125 mm
CE1G12-150		Mounting: Head flange \| Bore: 12 mm \| Stroke: 150 mm
CE1G20-25		Mounting: Head flange \| Bore: 20 mm \| Stroke: 25 mm
CE1G20-50		Mounting: Head flange \| Bore: 20 mm \| Stroke: 50 mm
CE1G20-75		Mounting: Head flange \| Bore: 20 mm \| Stroke: 75 mm
CE1G20-100		Mounting: Head flange \| Bore: 20 mm \| Stroke: 100 mm
CE1G20-125		Mounting: Head flange \| Bore: 20 mm \| Stroke: 125 mm
CE1G20-150		Mounting: Head flange \| Bore: 20 mm \| Stroke: 150 mm
CE1G20-175		Mounting: Head flange \| Bore: 20 mm \| Stroke: 175 mm
CE1G20-200		Mounting: Head flange \| Bore: 20 mm \| Stroke: 200 mm
CE1G32-50		Mounting: Head flange \| Bore: 32 mm \| Stroke: 50 mm
CE1G32-75		Mounting: Head flange \| Bore: 32 mm \| Stroke: 75 mm
CE1G32-100		Mounting: Head flange \| Bore: 32 mm \| Stroke: 100 mm
CE1G32-125		Mounting: Head flange \| Bore: 32 mm \| Stroke: 125 mm
CE1G32-150		Mounting: Head flange \| Bore: 32 mm \| Stroke: 150 mm
CE1G32-175		Mounting: Head flange \| Bore: 32 mm \| Stroke: 175 mm
CE1G32-200		Mounting: Head flange \| Bore: 32 mm \| Stroke: 200 mm
CE1G32-250		Mounting: Head flange \| Bore: 32 mm \| Stroke: 250 mm
CE1G32-300		Mounting: Head flange \| Bore: 32 mm \| Stroke: 300 mm
CE1G40-100		Mounting: Head flange \| Bore: 40 mm \| Stroke: 100 mm
CE1G40-125		Mounting: Head flange \| Bore: 40 mm \| Stroke: 125 mm
CE1G40-150		Mounting: Head flange \| Bore: 40 mm \| Stroke: 150 mm
CE1G40-175		Mounting: Head flange \| Bore: 40 mm \| Stroke: 175 mm
CE1G40-200		Mounting: Head flange \| Bore: 40 mm \| Stroke: 200 mm
CE1G40-250		Mounting: Head flange \| Bore: 40 mm \| Stroke: 250 mm
CE1G40-300		Mounting: Head flange \| Bore: 40 mm \| Stroke: 300 mm
CE1G40-400		Mounting: Head flange \| Bore: 40 mm \| Stroke: 400 mm
CE1G40-500		Mounting: Head flange \| Bore: 40 mm \| Stroke: 500 mm
CE1G50-200		Mounting: Head flange \| Bore: 50 mm \| Stroke: 200 mm
CE1G50-300		Mounting: Head flange \| Bore: 50 mm \| Stroke: 300 mm
CE1G50-500		Mounting: Head flange \| Bore: 50 mm \| Stroke: 500 mm
CE1G63-200		Mounting: Head flange \| Bore: 63 mm \| Stroke: 200 mm
CE1G63-300		Mounting: Head flange \| Bore: 63 mm \| Stroke: 300 mm
CE1G63-500		Mounting: Head flange \| Bore: 63 mm \| Stroke: 500 mm
CE1D12-25		Mounting: Double clevis \| Bore: 12 mm \| Stroke: 25 mm
CE1D12-50		Mounting: Double clevis \| Bore: 12 mm \| Stroke: 50 mm
CE1D12-75		Mounting: Double clevis \| Bore: 12 mm \| Stroke: 75 mm
CE1D12-100		Mounting: Double clevis \| Bore: 12 mm \| Stroke: 100 mm
CE1D12-125		Mounting: Double clevis \| Bore: 12 mm \| Stroke: 125 mm
CE1D12-150		Mounting: Double clevis \| Bore: 12 mm \| Stroke: 150 mm
CE1D20-25		Mounting: Double clevis \| Bore: 20 mm \| Stroke: 25 mm
CE1D20-50		Mounting: Double clevis \| Bore: 20 mm \| Stroke: 50 mm
CE1D20-75		Mounting: Double clevis \| Bore: 20 mm \| Stroke: 75 mm
CE1D20-100		Mounting: Double clevis \| Bore: 20 mm \| Stroke: 100 mm
CE1D20-125		Mounting: Double clevis \| Bore: 20 mm \| Stroke: 125 mm
CE1D20-150		Mounting: Double clevis \| Bore: 20 mm \| Stroke: 150 mm
CE1D20-175		Mounting: Double clevis \| Bore: 20 mm \| Stroke: 175 mm
CE1D20-200		Mounting: Double clevis \| Bore: 20 mm \| Stroke: 200 mm
CE1D32-50		Mounting: Double clevis \| Bore: 32 mm \| Stroke: 50 mm
CE1D32-75		Mounting: Double clevis \| Bore: 32 mm \| Stroke: 75 mm
CE1D32-100		Mounting: Double clevis \| Bore: 32 mm \| Stroke: 100 mm
CE1D32-125		Mounting: Double clevis \| Bore: 32 mm \| Stroke: 125 mm
CE1D32-150		Mounting: Double clevis \| Bore: 32 mm \| Stroke: 150 mm
CE1D32-175		Mounting: Double clevis \| Bore: 32 mm \| Stroke: 175 mm
CE1D32-200		Mounting: Double clevis \| Bore: 32 mm \| Stroke: 200 mm
CE1D32-250		Mounting: Double clevis \| Bore: 32 mm \| Stroke: 250 mm
CE1D32-300		Mounting: Double clevis \| Bore: 32 mm \| Stroke: 300 mm
CE1D40-100		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 100 mm
CE1D40-125		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 125 mm
CE1D40-150		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 150 mm
CE1D40-175		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 175 mm
CE1D40-200		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 200 mm
CE1D40-250		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 250 mm
CE1D40-300		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 300 mm
CE1D40-400		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 400 mm
CE1D40-500		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 500 mm
CE1D50-200		Mounting: Double clevis \| Bore: 50 mm \| Stroke: 200 mm
CE1D50-300		Mounting: Double clevis \| Bore: 50 mm \| Stroke: 300 mm
CE1D50-500		Mounting: Double clevis \| Bore: 50 mm \| Stroke: 500 mm
CE1D63-200		Mounting: Double clevis \| Bore: 63 mm \| Stroke: 200 mm
CE1D63-300		Mounting: Double clevis \| Bore: 63 mm \| Stroke: 300 mm
CE1D63-500		Mounting: Double clevis \| Bore: 63 mm \| Stroke: 500 mm

Round Body CylindersSMC

190 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC CE1 Scale Cylinder (Stroke Measuring, 12 to 63 mm)

Brand SMC·Round Body Cylinders

Available part numbers (190)

CE1B12-25, CE1B12-50, CE1B12-75, CE1B12-100, CE1B12-125, CE1B12-150, CE1B20-25, CE1B20-50, CE1B20-75, CE1B20-100 + 180 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	CE1B12-25	Mounting: Both ends tapped \| Bore: 12 mm \| Stroke: 25 mm
	CE1B12-50	Mounting: Both ends tapped \| Bore: 12 mm \| Stroke: 50 mm
	CE1B12-75	Mounting: Both ends tapped \| Bore: 12 mm \| Stroke: 75 mm
	CE1B12-100	Mounting: Both ends tapped \| Bore: 12 mm \| Stroke: 100 mm
	CE1B12-125	Mounting: Both ends tapped \| Bore: 12 mm \| Stroke: 125 mm
	CE1B12-150	Mounting: Both ends tapped \| Bore: 12 mm \| Stroke: 150 mm
	CE1B20-25	Mounting: Both ends tapped \| Bore: 20 mm \| Stroke: 25 mm
	CE1B20-50	Mounting: Both ends tapped \| Bore: 20 mm \| Stroke: 50 mm
	CE1B20-75	Mounting: Both ends tapped \| Bore: 20 mm \| Stroke: 75 mm
	CE1B20-100	Mounting: Both ends tapped \| Bore: 20 mm \| Stroke: 100 mm
	CE1B20-125	Mounting: Both ends tapped \| Bore: 20 mm \| Stroke: 125 mm
	CE1B20-150	Mounting: Both ends tapped \| Bore: 20 mm \| Stroke: 150 mm
	CE1B20-175	Mounting: Both ends tapped \| Bore: 20 mm \| Stroke: 175 mm
	CE1B20-200	Mounting: Both ends tapped \| Bore: 20 mm \| Stroke: 200 mm
	CE1B32-50	Mounting: Both ends tapped \| Bore: 32 mm \| Stroke: 50 mm
	CE1B32-75	Mounting: Both ends tapped \| Bore: 32 mm \| Stroke: 75 mm
	CE1B32-100	Mounting: Both ends tapped \| Bore: 32 mm \| Stroke: 100 mm
	CE1B32-125	Mounting: Both ends tapped \| Bore: 32 mm \| Stroke: 125 mm
	CE1B32-150	Mounting: Both ends tapped \| Bore: 32 mm \| Stroke: 150 mm
	CE1B32-175	Mounting: Both ends tapped \| Bore: 32 mm \| Stroke: 175 mm
	CE1B32-200	Mounting: Both ends tapped \| Bore: 32 mm \| Stroke: 200 mm
	CE1B32-250	Mounting: Both ends tapped \| Bore: 32 mm \| Stroke: 250 mm
	CE1B32-300	Mounting: Both ends tapped \| Bore: 32 mm \| Stroke: 300 mm
	CE1B40-100	Mounting: Both ends tapped \| Bore: 40 mm \| Stroke: 100 mm
	CE1B40-125	Mounting: Both ends tapped \| Bore: 40 mm \| Stroke: 125 mm
	CE1B40-150	Mounting: Both ends tapped \| Bore: 40 mm \| Stroke: 150 mm
	CE1B40-175	Mounting: Both ends tapped \| Bore: 40 mm \| Stroke: 175 mm
	CE1B40-200	Mounting: Both ends tapped \| Bore: 40 mm \| Stroke: 200 mm
	CE1B40-250	Mounting: Both ends tapped \| Bore: 40 mm \| Stroke: 250 mm
	CE1B40-300	Mounting: Both ends tapped \| Bore: 40 mm \| Stroke: 300 mm
	CE1B40-400	Mounting: Both ends tapped \| Bore: 40 mm \| Stroke: 400 mm
	CE1B40-500	Mounting: Both ends tapped \| Bore: 40 mm \| Stroke: 500 mm
	CE1B50-200	Mounting: Both ends tapped \| Bore: 50 mm \| Stroke: 200 mm
	CE1B50-300	Mounting: Both ends tapped \| Bore: 50 mm \| Stroke: 300 mm
	CE1B50-500	Mounting: Both ends tapped \| Bore: 50 mm \| Stroke: 500 mm
	CE1B63-200	Mounting: Both ends tapped \| Bore: 63 mm \| Stroke: 200 mm
	CE1B63-300	Mounting: Both ends tapped \| Bore: 63 mm \| Stroke: 300 mm
	CE1B63-500	Mounting: Both ends tapped \| Bore: 63 mm \| Stroke: 500 mm
	CE1L12-25	Mounting: Foot \| Bore: 12 mm \| Stroke: 25 mm
	CE1L12-50	Mounting: Foot \| Bore: 12 mm \| Stroke: 50 mm
	CE1L12-75	Mounting: Foot \| Bore: 12 mm \| Stroke: 75 mm
	CE1L12-100	Mounting: Foot \| Bore: 12 mm \| Stroke: 100 mm
	CE1L12-125	Mounting: Foot \| Bore: 12 mm \| Stroke: 125 mm
	CE1L12-150	Mounting: Foot \| Bore: 12 mm \| Stroke: 150 mm
	CE1L20-25	Mounting: Foot \| Bore: 20 mm \| Stroke: 25 mm
	CE1L20-50	Mounting: Foot \| Bore: 20 mm \| Stroke: 50 mm
	CE1L20-75	Mounting: Foot \| Bore: 20 mm \| Stroke: 75 mm
	CE1L20-100	Mounting: Foot \| Bore: 20 mm \| Stroke: 100 mm
	CE1L20-125	Mounting: Foot \| Bore: 20 mm \| Stroke: 125 mm
	CE1L20-150	Mounting: Foot \| Bore: 20 mm \| Stroke: 150 mm
	CE1L20-175	Mounting: Foot \| Bore: 20 mm \| Stroke: 175 mm
	CE1L20-200	Mounting: Foot \| Bore: 20 mm \| Stroke: 200 mm
	CE1L32-50	Mounting: Foot \| Bore: 32 mm \| Stroke: 50 mm
	CE1L32-75	Mounting: Foot \| Bore: 32 mm \| Stroke: 75 mm
	CE1L32-100	Mounting: Foot \| Bore: 32 mm \| Stroke: 100 mm
	CE1L32-125	Mounting: Foot \| Bore: 32 mm \| Stroke: 125 mm
	CE1L32-150	Mounting: Foot \| Bore: 32 mm \| Stroke: 150 mm
	CE1L32-175	Mounting: Foot \| Bore: 32 mm \| Stroke: 175 mm
	CE1L32-200	Mounting: Foot \| Bore: 32 mm \| Stroke: 200 mm
	CE1L32-250	Mounting: Foot \| Bore: 32 mm \| Stroke: 250 mm
	CE1L32-300	Mounting: Foot \| Bore: 32 mm \| Stroke: 300 mm
	CE1L40-100	Mounting: Foot \| Bore: 40 mm \| Stroke: 100 mm
	CE1L40-125	Mounting: Foot \| Bore: 40 mm \| Stroke: 125 mm
	CE1L40-150	Mounting: Foot \| Bore: 40 mm \| Stroke: 150 mm
	CE1L40-175	Mounting: Foot \| Bore: 40 mm \| Stroke: 175 mm
	CE1L40-200	Mounting: Foot \| Bore: 40 mm \| Stroke: 200 mm
	CE1L40-250	Mounting: Foot \| Bore: 40 mm \| Stroke: 250 mm
	CE1L40-300	Mounting: Foot \| Bore: 40 mm \| Stroke: 300 mm
	CE1L40-400	Mounting: Foot \| Bore: 40 mm \| Stroke: 400 mm
	CE1L40-500	Mounting: Foot \| Bore: 40 mm \| Stroke: 500 mm
	CE1L50-200	Mounting: Foot \| Bore: 50 mm \| Stroke: 200 mm
	CE1L50-300	Mounting: Foot \| Bore: 50 mm \| Stroke: 300 mm
	CE1L50-500	Mounting: Foot \| Bore: 50 mm \| Stroke: 500 mm
	CE1L63-200	Mounting: Foot \| Bore: 63 mm \| Stroke: 200 mm
	CE1L63-300	Mounting: Foot \| Bore: 63 mm \| Stroke: 300 mm
	CE1L63-500	Mounting: Foot \| Bore: 63 mm \| Stroke: 500 mm
	CE1F12-25	Mounting: Rod flange \| Bore: 12 mm \| Stroke: 25 mm
	CE1F12-50	Mounting: Rod flange \| Bore: 12 mm \| Stroke: 50 mm
	CE1F12-75	Mounting: Rod flange \| Bore: 12 mm \| Stroke: 75 mm
	CE1F12-100	Mounting: Rod flange \| Bore: 12 mm \| Stroke: 100 mm
	CE1F12-125	Mounting: Rod flange \| Bore: 12 mm \| Stroke: 125 mm
	CE1F12-150	Mounting: Rod flange \| Bore: 12 mm \| Stroke: 150 mm
	CE1F20-25	Mounting: Rod flange \| Bore: 20 mm \| Stroke: 25 mm
	CE1F20-50	Mounting: Rod flange \| Bore: 20 mm \| Stroke: 50 mm
	CE1F20-75	Mounting: Rod flange \| Bore: 20 mm \| Stroke: 75 mm
	CE1F20-100	Mounting: Rod flange \| Bore: 20 mm \| Stroke: 100 mm
	CE1F20-125	Mounting: Rod flange \| Bore: 20 mm \| Stroke: 125 mm
	CE1F20-150	Mounting: Rod flange \| Bore: 20 mm \| Stroke: 150 mm
	CE1F20-175	Mounting: Rod flange \| Bore: 20 mm \| Stroke: 175 mm
	CE1F20-200	Mounting: Rod flange \| Bore: 20 mm \| Stroke: 200 mm
	CE1F32-50	Mounting: Rod flange \| Bore: 32 mm \| Stroke: 50 mm
	CE1F32-75	Mounting: Rod flange \| Bore: 32 mm \| Stroke: 75 mm
	CE1F32-100	Mounting: Rod flange \| Bore: 32 mm \| Stroke: 100 mm
	CE1F32-125	Mounting: Rod flange \| Bore: 32 mm \| Stroke: 125 mm
	CE1F32-150	Mounting: Rod flange \| Bore: 32 mm \| Stroke: 150 mm
	CE1F32-175	Mounting: Rod flange \| Bore: 32 mm \| Stroke: 175 mm
	CE1F32-200	Mounting: Rod flange \| Bore: 32 mm \| Stroke: 200 mm
	CE1F32-250	Mounting: Rod flange \| Bore: 32 mm \| Stroke: 250 mm
	CE1F32-300	Mounting: Rod flange \| Bore: 32 mm \| Stroke: 300 mm
	CE1F40-100	Mounting: Rod flange \| Bore: 40 mm \| Stroke: 100 mm
	CE1F40-125	Mounting: Rod flange \| Bore: 40 mm \| Stroke: 125 mm
	CE1F40-150	Mounting: Rod flange \| Bore: 40 mm \| Stroke: 150 mm
	CE1F40-175	Mounting: Rod flange \| Bore: 40 mm \| Stroke: 175 mm
	CE1F40-200	Mounting: Rod flange \| Bore: 40 mm \| Stroke: 200 mm
	CE1F40-250	Mounting: Rod flange \| Bore: 40 mm \| Stroke: 250 mm
	CE1F40-300	Mounting: Rod flange \| Bore: 40 mm \| Stroke: 300 mm
	CE1F40-400	Mounting: Rod flange \| Bore: 40 mm \| Stroke: 400 mm
	CE1F40-500	Mounting: Rod flange \| Bore: 40 mm \| Stroke: 500 mm
	CE1F50-200	Mounting: Rod flange \| Bore: 50 mm \| Stroke: 200 mm
	CE1F50-300	Mounting: Rod flange \| Bore: 50 mm \| Stroke: 300 mm
	CE1F50-500	Mounting: Rod flange \| Bore: 50 mm \| Stroke: 500 mm
	CE1F63-200	Mounting: Rod flange \| Bore: 63 mm \| Stroke: 200 mm
	CE1F63-300	Mounting: Rod flange \| Bore: 63 mm \| Stroke: 300 mm
	CE1F63-500	Mounting: Rod flange \| Bore: 63 mm \| Stroke: 500 mm
	CE1G12-25	Mounting: Head flange \| Bore: 12 mm \| Stroke: 25 mm
	CE1G12-50	Mounting: Head flange \| Bore: 12 mm \| Stroke: 50 mm
	CE1G12-75	Mounting: Head flange \| Bore: 12 mm \| Stroke: 75 mm
	CE1G12-100	Mounting: Head flange \| Bore: 12 mm \| Stroke: 100 mm
	CE1G12-125	Mounting: Head flange \| Bore: 12 mm \| Stroke: 125 mm
	CE1G12-150	Mounting: Head flange \| Bore: 12 mm \| Stroke: 150 mm
	CE1G20-25	Mounting: Head flange \| Bore: 20 mm \| Stroke: 25 mm
	CE1G20-50	Mounting: Head flange \| Bore: 20 mm \| Stroke: 50 mm
	CE1G20-75	Mounting: Head flange \| Bore: 20 mm \| Stroke: 75 mm
	CE1G20-100	Mounting: Head flange \| Bore: 20 mm \| Stroke: 100 mm
	CE1G20-125	Mounting: Head flange \| Bore: 20 mm \| Stroke: 125 mm
	CE1G20-150	Mounting: Head flange \| Bore: 20 mm \| Stroke: 150 mm
	CE1G20-175	Mounting: Head flange \| Bore: 20 mm \| Stroke: 175 mm
	CE1G20-200	Mounting: Head flange \| Bore: 20 mm \| Stroke: 200 mm
	CE1G32-50	Mounting: Head flange \| Bore: 32 mm \| Stroke: 50 mm
	CE1G32-75	Mounting: Head flange \| Bore: 32 mm \| Stroke: 75 mm
	CE1G32-100	Mounting: Head flange \| Bore: 32 mm \| Stroke: 100 mm
	CE1G32-125	Mounting: Head flange \| Bore: 32 mm \| Stroke: 125 mm
	CE1G32-150	Mounting: Head flange \| Bore: 32 mm \| Stroke: 150 mm
	CE1G32-175	Mounting: Head flange \| Bore: 32 mm \| Stroke: 175 mm
	CE1G32-200	Mounting: Head flange \| Bore: 32 mm \| Stroke: 200 mm
	CE1G32-250	Mounting: Head flange \| Bore: 32 mm \| Stroke: 250 mm
	CE1G32-300	Mounting: Head flange \| Bore: 32 mm \| Stroke: 300 mm
	CE1G40-100	Mounting: Head flange \| Bore: 40 mm \| Stroke: 100 mm
	CE1G40-125	Mounting: Head flange \| Bore: 40 mm \| Stroke: 125 mm
	CE1G40-150	Mounting: Head flange \| Bore: 40 mm \| Stroke: 150 mm
	CE1G40-175	Mounting: Head flange \| Bore: 40 mm \| Stroke: 175 mm
	CE1G40-200	Mounting: Head flange \| Bore: 40 mm \| Stroke: 200 mm
	CE1G40-250	Mounting: Head flange \| Bore: 40 mm \| Stroke: 250 mm
	CE1G40-300	Mounting: Head flange \| Bore: 40 mm \| Stroke: 300 mm
	CE1G40-400	Mounting: Head flange \| Bore: 40 mm \| Stroke: 400 mm
	CE1G40-500	Mounting: Head flange \| Bore: 40 mm \| Stroke: 500 mm
	CE1G50-200	Mounting: Head flange \| Bore: 50 mm \| Stroke: 200 mm
	CE1G50-300	Mounting: Head flange \| Bore: 50 mm \| Stroke: 300 mm
	CE1G50-500	Mounting: Head flange \| Bore: 50 mm \| Stroke: 500 mm
	CE1G63-200	Mounting: Head flange \| Bore: 63 mm \| Stroke: 200 mm
	CE1G63-300	Mounting: Head flange \| Bore: 63 mm \| Stroke: 300 mm
	CE1G63-500	Mounting: Head flange \| Bore: 63 mm \| Stroke: 500 mm
	CE1D12-25	Mounting: Double clevis \| Bore: 12 mm \| Stroke: 25 mm
	CE1D12-50	Mounting: Double clevis \| Bore: 12 mm \| Stroke: 50 mm
	CE1D12-75	Mounting: Double clevis \| Bore: 12 mm \| Stroke: 75 mm
	CE1D12-100	Mounting: Double clevis \| Bore: 12 mm \| Stroke: 100 mm
	CE1D12-125	Mounting: Double clevis \| Bore: 12 mm \| Stroke: 125 mm
	CE1D12-150	Mounting: Double clevis \| Bore: 12 mm \| Stroke: 150 mm
	CE1D20-25	Mounting: Double clevis \| Bore: 20 mm \| Stroke: 25 mm
	CE1D20-50	Mounting: Double clevis \| Bore: 20 mm \| Stroke: 50 mm
	CE1D20-75	Mounting: Double clevis \| Bore: 20 mm \| Stroke: 75 mm
	CE1D20-100	Mounting: Double clevis \| Bore: 20 mm \| Stroke: 100 mm
	CE1D20-125	Mounting: Double clevis \| Bore: 20 mm \| Stroke: 125 mm
	CE1D20-150	Mounting: Double clevis \| Bore: 20 mm \| Stroke: 150 mm
	CE1D20-175	Mounting: Double clevis \| Bore: 20 mm \| Stroke: 175 mm
	CE1D20-200	Mounting: Double clevis \| Bore: 20 mm \| Stroke: 200 mm
	CE1D32-50	Mounting: Double clevis \| Bore: 32 mm \| Stroke: 50 mm
	CE1D32-75	Mounting: Double clevis \| Bore: 32 mm \| Stroke: 75 mm
	CE1D32-100	Mounting: Double clevis \| Bore: 32 mm \| Stroke: 100 mm
	CE1D32-125	Mounting: Double clevis \| Bore: 32 mm \| Stroke: 125 mm
	CE1D32-150	Mounting: Double clevis \| Bore: 32 mm \| Stroke: 150 mm
	CE1D32-175	Mounting: Double clevis \| Bore: 32 mm \| Stroke: 175 mm
	CE1D32-200	Mounting: Double clevis \| Bore: 32 mm \| Stroke: 200 mm
	CE1D32-250	Mounting: Double clevis \| Bore: 32 mm \| Stroke: 250 mm
	CE1D32-300	Mounting: Double clevis \| Bore: 32 mm \| Stroke: 300 mm
	CE1D40-100	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 100 mm
	CE1D40-125	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 125 mm
	CE1D40-150	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 150 mm
	CE1D40-175	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 175 mm
	CE1D40-200	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 200 mm
	CE1D40-250	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 250 mm
	CE1D40-300	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 300 mm
	CE1D40-400	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 400 mm
	CE1D40-500	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 500 mm
	CE1D50-200	Mounting: Double clevis \| Bore: 50 mm \| Stroke: 200 mm
	CE1D50-300	Mounting: Double clevis \| Bore: 50 mm \| Stroke: 300 mm
	CE1D50-500	Mounting: Double clevis \| Bore: 50 mm \| Stroke: 500 mm
	CE1D63-200	Mounting: Double clevis \| Bore: 63 mm \| Stroke: 200 mm
	CE1D63-300	Mounting: Double clevis \| Bore: 63 mm \| Stroke: 300 mm
	CE1D63-500	Mounting: Double clevis \| Bore: 63 mm \| Stroke: 500 mm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

SMC CE1 Scale Cylinder (Stroke Measuring, 12 to 63 mm)
