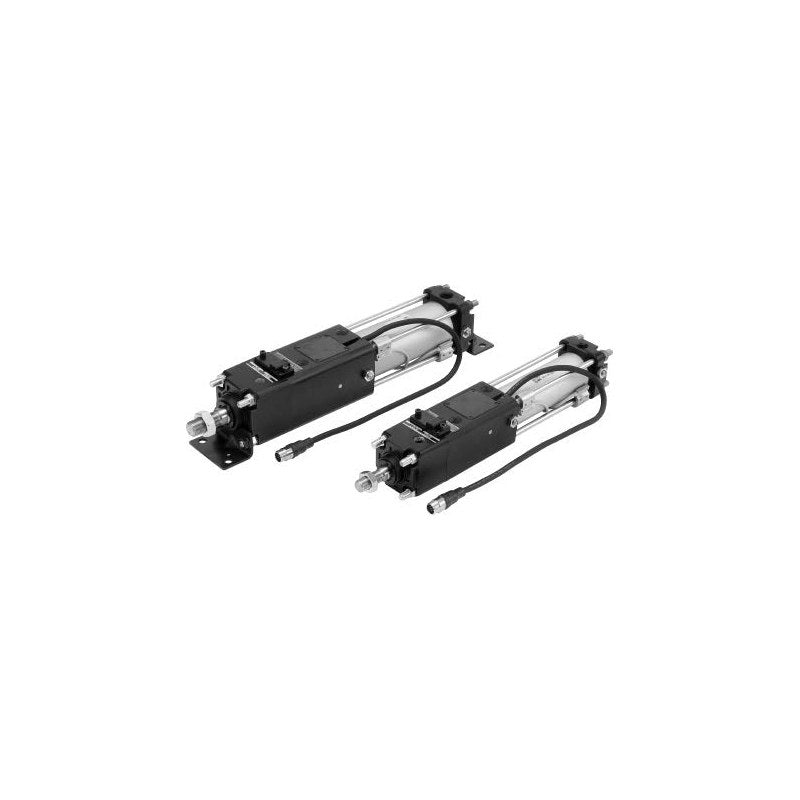

SMC CE2 Scale Cylinder with Brake (40 to 100 mm)

SMC CE2 series scale cylinder combining a magnetic stroke sensor with a spring/pneumatic lock brake for measuring and holding intermediate positions.

Key features

Spring and pneumatic combined lock brake for intermediate stops
0.1 mm resolution, accuracy +/-0.2 mm with CEU5 multi counter
Seven mounting styles: basic, foot, rod/head flange, single/double clevis, center trunnion
Rc ports standard (TN: NPT, TF: G); cushion N/R/H, bellows J/K and connector-less Z suffixes
Standard strokes 25 to 850 mm by bore; built-in magnet for auto switches

Specifications

Fluid	Air (non-lube)
Max. operating pressure	Drive 1 MPa, brake 0.5 MPa
Min. operating pressure	Drive 0.1 MPa, brake 0.3 MPa
Piston speed	50 to 500 mm/s
Ambient and fluid temperature	0 to 60 C (no freezing)
Brake type	Spring + pneumatic lock
Port thread	Rc
Resolution / accuracy	0.1 mm / +/-0.2 mm
Sensor enclosure	IP65 (excluding connector)
Source	SMC Korea catalog CE2 (SMCKR_CE2.pdf), p. 685-686 (PDF p. 7-8)

CE2B40-25		Mounting: Basic \| Bore: 40 mm \| Stroke: 25 mm
CE2B40-50		Mounting: Basic \| Bore: 40 mm \| Stroke: 50 mm
CE2B40-75		Mounting: Basic \| Bore: 40 mm \| Stroke: 75 mm
CE2B40-100		Mounting: Basic \| Bore: 40 mm \| Stroke: 100 mm
CE2B40-125		Mounting: Basic \| Bore: 40 mm \| Stroke: 125 mm
CE2B40-150		Mounting: Basic \| Bore: 40 mm \| Stroke: 150 mm
CE2B40-200		Mounting: Basic \| Bore: 40 mm \| Stroke: 200 mm
CE2B40-250		Mounting: Basic \| Bore: 40 mm \| Stroke: 250 mm
CE2B40-300		Mounting: Basic \| Bore: 40 mm \| Stroke: 300 mm
CE2B40-350		Mounting: Basic \| Bore: 40 mm \| Stroke: 350 mm
CE2B40-400		Mounting: Basic \| Bore: 40 mm \| Stroke: 400 mm
CE2B40-450		Mounting: Basic \| Bore: 40 mm \| Stroke: 450 mm
CE2B40-500		Mounting: Basic \| Bore: 40 mm \| Stroke: 500 mm
CE2B40-600		Mounting: Basic \| Bore: 40 mm \| Stroke: 600 mm
CE2B40-700		Mounting: Basic \| Bore: 40 mm \| Stroke: 700 mm
CE2B40-800		Mounting: Basic \| Bore: 40 mm \| Stroke: 800 mm
CE2B50-25		Mounting: Basic \| Bore: 50 mm \| Stroke: 25 mm
CE2B50-50		Mounting: Basic \| Bore: 50 mm \| Stroke: 50 mm
CE2B50-75		Mounting: Basic \| Bore: 50 mm \| Stroke: 75 mm
CE2B50-100		Mounting: Basic \| Bore: 50 mm \| Stroke: 100 mm
CE2B50-125		Mounting: Basic \| Bore: 50 mm \| Stroke: 125 mm
CE2B50-150		Mounting: Basic \| Bore: 50 mm \| Stroke: 150 mm
CE2B50-200		Mounting: Basic \| Bore: 50 mm \| Stroke: 200 mm
CE2B50-250		Mounting: Basic \| Bore: 50 mm \| Stroke: 250 mm
CE2B50-300		Mounting: Basic \| Bore: 50 mm \| Stroke: 300 mm
CE2B50-350		Mounting: Basic \| Bore: 50 mm \| Stroke: 350 mm
CE2B50-400		Mounting: Basic \| Bore: 50 mm \| Stroke: 400 mm
CE2B50-450		Mounting: Basic \| Bore: 50 mm \| Stroke: 450 mm
CE2B50-500		Mounting: Basic \| Bore: 50 mm \| Stroke: 500 mm
CE2B50-600		Mounting: Basic \| Bore: 50 mm \| Stroke: 600 mm
CE2B50-700		Mounting: Basic \| Bore: 50 mm \| Stroke: 700 mm
CE2B50-800		Mounting: Basic \| Bore: 50 mm \| Stroke: 800 mm
CE2B63-25		Mounting: Basic \| Bore: 63 mm \| Stroke: 25 mm
CE2B63-50		Mounting: Basic \| Bore: 63 mm \| Stroke: 50 mm
CE2B63-75		Mounting: Basic \| Bore: 63 mm \| Stroke: 75 mm
CE2B63-100		Mounting: Basic \| Bore: 63 mm \| Stroke: 100 mm
CE2B63-125		Mounting: Basic \| Bore: 63 mm \| Stroke: 125 mm
CE2B63-150		Mounting: Basic \| Bore: 63 mm \| Stroke: 150 mm
CE2B63-200		Mounting: Basic \| Bore: 63 mm \| Stroke: 200 mm
CE2B63-250		Mounting: Basic \| Bore: 63 mm \| Stroke: 250 mm
CE2B63-300		Mounting: Basic \| Bore: 63 mm \| Stroke: 300 mm
CE2B63-350		Mounting: Basic \| Bore: 63 mm \| Stroke: 350 mm
CE2B63-400		Mounting: Basic \| Bore: 63 mm \| Stroke: 400 mm
CE2B63-450		Mounting: Basic \| Bore: 63 mm \| Stroke: 450 mm
CE2B63-500		Mounting: Basic \| Bore: 63 mm \| Stroke: 500 mm
CE2B63-600		Mounting: Basic \| Bore: 63 mm \| Stroke: 600 mm
CE2B63-700		Mounting: Basic \| Bore: 63 mm \| Stroke: 700 mm
CE2B63-800		Mounting: Basic \| Bore: 63 mm \| Stroke: 800 mm
CE2B80-25		Mounting: Basic \| Bore: 80 mm \| Stroke: 25 mm
CE2B80-50		Mounting: Basic \| Bore: 80 mm \| Stroke: 50 mm
CE2B80-75		Mounting: Basic \| Bore: 80 mm \| Stroke: 75 mm
CE2B80-100		Mounting: Basic \| Bore: 80 mm \| Stroke: 100 mm
CE2B80-125		Mounting: Basic \| Bore: 80 mm \| Stroke: 125 mm
CE2B80-150		Mounting: Basic \| Bore: 80 mm \| Stroke: 150 mm
CE2B80-200		Mounting: Basic \| Bore: 80 mm \| Stroke: 200 mm
CE2B80-250		Mounting: Basic \| Bore: 80 mm \| Stroke: 250 mm
CE2B80-300		Mounting: Basic \| Bore: 80 mm \| Stroke: 300 mm
CE2B80-350		Mounting: Basic \| Bore: 80 mm \| Stroke: 350 mm
CE2B80-400		Mounting: Basic \| Bore: 80 mm \| Stroke: 400 mm
CE2B80-450		Mounting: Basic \| Bore: 80 mm \| Stroke: 450 mm
CE2B80-500		Mounting: Basic \| Bore: 80 mm \| Stroke: 500 mm
CE2B80-600		Mounting: Basic \| Bore: 80 mm \| Stroke: 600 mm
CE2B80-700		Mounting: Basic \| Bore: 80 mm \| Stroke: 700 mm
CE2B100-25		Mounting: Basic \| Bore: 100 mm \| Stroke: 25 mm
CE2B100-50		Mounting: Basic \| Bore: 100 mm \| Stroke: 50 mm
CE2B100-75		Mounting: Basic \| Bore: 100 mm \| Stroke: 75 mm
CE2B100-100		Mounting: Basic \| Bore: 100 mm \| Stroke: 100 mm
CE2B100-125		Mounting: Basic \| Bore: 100 mm \| Stroke: 125 mm
CE2B100-150		Mounting: Basic \| Bore: 100 mm \| Stroke: 150 mm
CE2B100-200		Mounting: Basic \| Bore: 100 mm \| Stroke: 200 mm
CE2B100-250		Mounting: Basic \| Bore: 100 mm \| Stroke: 250 mm
CE2B100-300		Mounting: Basic \| Bore: 100 mm \| Stroke: 300 mm
CE2B100-350		Mounting: Basic \| Bore: 100 mm \| Stroke: 350 mm
CE2B100-400		Mounting: Basic \| Bore: 100 mm \| Stroke: 400 mm
CE2B100-450		Mounting: Basic \| Bore: 100 mm \| Stroke: 450 mm
CE2B100-500		Mounting: Basic \| Bore: 100 mm \| Stroke: 500 mm
CE2B100-600		Mounting: Basic \| Bore: 100 mm \| Stroke: 600 mm
CE2B100-700		Mounting: Basic \| Bore: 100 mm \| Stroke: 700 mm
CE2L40-25		Mounting: Foot \| Bore: 40 mm \| Stroke: 25 mm
CE2L40-50		Mounting: Foot \| Bore: 40 mm \| Stroke: 50 mm
CE2L40-75		Mounting: Foot \| Bore: 40 mm \| Stroke: 75 mm
CE2L40-100		Mounting: Foot \| Bore: 40 mm \| Stroke: 100 mm
CE2L40-125		Mounting: Foot \| Bore: 40 mm \| Stroke: 125 mm
CE2L40-150		Mounting: Foot \| Bore: 40 mm \| Stroke: 150 mm
CE2L40-200		Mounting: Foot \| Bore: 40 mm \| Stroke: 200 mm
CE2L40-250		Mounting: Foot \| Bore: 40 mm \| Stroke: 250 mm
CE2L40-300		Mounting: Foot \| Bore: 40 mm \| Stroke: 300 mm
CE2L40-350		Mounting: Foot \| Bore: 40 mm \| Stroke: 350 mm
CE2L40-400		Mounting: Foot \| Bore: 40 mm \| Stroke: 400 mm
CE2L40-450		Mounting: Foot \| Bore: 40 mm \| Stroke: 450 mm
CE2L40-500		Mounting: Foot \| Bore: 40 mm \| Stroke: 500 mm
CE2L40-600		Mounting: Foot \| Bore: 40 mm \| Stroke: 600 mm
CE2L40-700		Mounting: Foot \| Bore: 40 mm \| Stroke: 700 mm
CE2L40-800		Mounting: Foot \| Bore: 40 mm \| Stroke: 800 mm
CE2L50-25		Mounting: Foot \| Bore: 50 mm \| Stroke: 25 mm
CE2L50-50		Mounting: Foot \| Bore: 50 mm \| Stroke: 50 mm
CE2L50-75		Mounting: Foot \| Bore: 50 mm \| Stroke: 75 mm
CE2L50-100		Mounting: Foot \| Bore: 50 mm \| Stroke: 100 mm
CE2L50-125		Mounting: Foot \| Bore: 50 mm \| Stroke: 125 mm
CE2L50-150		Mounting: Foot \| Bore: 50 mm \| Stroke: 150 mm
CE2L50-200		Mounting: Foot \| Bore: 50 mm \| Stroke: 200 mm
CE2L50-250		Mounting: Foot \| Bore: 50 mm \| Stroke: 250 mm
CE2L50-300		Mounting: Foot \| Bore: 50 mm \| Stroke: 300 mm
CE2L50-350		Mounting: Foot \| Bore: 50 mm \| Stroke: 350 mm
CE2L50-400		Mounting: Foot \| Bore: 50 mm \| Stroke: 400 mm
CE2L50-450		Mounting: Foot \| Bore: 50 mm \| Stroke: 450 mm
CE2L50-500		Mounting: Foot \| Bore: 50 mm \| Stroke: 500 mm
CE2L50-600		Mounting: Foot \| Bore: 50 mm \| Stroke: 600 mm
CE2L50-700		Mounting: Foot \| Bore: 50 mm \| Stroke: 700 mm
CE2L50-800		Mounting: Foot \| Bore: 50 mm \| Stroke: 800 mm
CE2L63-25		Mounting: Foot \| Bore: 63 mm \| Stroke: 25 mm
CE2L63-50		Mounting: Foot \| Bore: 63 mm \| Stroke: 50 mm
CE2L63-75		Mounting: Foot \| Bore: 63 mm \| Stroke: 75 mm
CE2L63-100		Mounting: Foot \| Bore: 63 mm \| Stroke: 100 mm
CE2L63-125		Mounting: Foot \| Bore: 63 mm \| Stroke: 125 mm
CE2L63-150		Mounting: Foot \| Bore: 63 mm \| Stroke: 150 mm
CE2L63-200		Mounting: Foot \| Bore: 63 mm \| Stroke: 200 mm
CE2L63-250		Mounting: Foot \| Bore: 63 mm \| Stroke: 250 mm
CE2L63-300		Mounting: Foot \| Bore: 63 mm \| Stroke: 300 mm
CE2L63-350		Mounting: Foot \| Bore: 63 mm \| Stroke: 350 mm
CE2L63-400		Mounting: Foot \| Bore: 63 mm \| Stroke: 400 mm
CE2L63-450		Mounting: Foot \| Bore: 63 mm \| Stroke: 450 mm
CE2L63-500		Mounting: Foot \| Bore: 63 mm \| Stroke: 500 mm
CE2L63-600		Mounting: Foot \| Bore: 63 mm \| Stroke: 600 mm
CE2L63-700		Mounting: Foot \| Bore: 63 mm \| Stroke: 700 mm
CE2L63-800		Mounting: Foot \| Bore: 63 mm \| Stroke: 800 mm
CE2L80-25		Mounting: Foot \| Bore: 80 mm \| Stroke: 25 mm
CE2L80-50		Mounting: Foot \| Bore: 80 mm \| Stroke: 50 mm
CE2L80-75		Mounting: Foot \| Bore: 80 mm \| Stroke: 75 mm
CE2L80-100		Mounting: Foot \| Bore: 80 mm \| Stroke: 100 mm
CE2L80-125		Mounting: Foot \| Bore: 80 mm \| Stroke: 125 mm
CE2L80-150		Mounting: Foot \| Bore: 80 mm \| Stroke: 150 mm
CE2L80-200		Mounting: Foot \| Bore: 80 mm \| Stroke: 200 mm
CE2L80-250		Mounting: Foot \| Bore: 80 mm \| Stroke: 250 mm
CE2L80-300		Mounting: Foot \| Bore: 80 mm \| Stroke: 300 mm
CE2L80-350		Mounting: Foot \| Bore: 80 mm \| Stroke: 350 mm
CE2L80-400		Mounting: Foot \| Bore: 80 mm \| Stroke: 400 mm
CE2L80-450		Mounting: Foot \| Bore: 80 mm \| Stroke: 450 mm
CE2L80-500		Mounting: Foot \| Bore: 80 mm \| Stroke: 500 mm
CE2L80-600		Mounting: Foot \| Bore: 80 mm \| Stroke: 600 mm
CE2L80-700		Mounting: Foot \| Bore: 80 mm \| Stroke: 700 mm
CE2L100-25		Mounting: Foot \| Bore: 100 mm \| Stroke: 25 mm
CE2L100-50		Mounting: Foot \| Bore: 100 mm \| Stroke: 50 mm
CE2L100-75		Mounting: Foot \| Bore: 100 mm \| Stroke: 75 mm
CE2L100-100		Mounting: Foot \| Bore: 100 mm \| Stroke: 100 mm
CE2L100-125		Mounting: Foot \| Bore: 100 mm \| Stroke: 125 mm
CE2L100-150		Mounting: Foot \| Bore: 100 mm \| Stroke: 150 mm
CE2L100-200		Mounting: Foot \| Bore: 100 mm \| Stroke: 200 mm
CE2L100-250		Mounting: Foot \| Bore: 100 mm \| Stroke: 250 mm
CE2L100-300		Mounting: Foot \| Bore: 100 mm \| Stroke: 300 mm
CE2L100-350		Mounting: Foot \| Bore: 100 mm \| Stroke: 350 mm
CE2L100-400		Mounting: Foot \| Bore: 100 mm \| Stroke: 400 mm
CE2L100-450		Mounting: Foot \| Bore: 100 mm \| Stroke: 450 mm
CE2L100-500		Mounting: Foot \| Bore: 100 mm \| Stroke: 500 mm
CE2L100-600		Mounting: Foot \| Bore: 100 mm \| Stroke: 600 mm
CE2L100-700		Mounting: Foot \| Bore: 100 mm \| Stroke: 700 mm
CE2F40-25		Mounting: Rod flange \| Bore: 40 mm \| Stroke: 25 mm
CE2F40-50		Mounting: Rod flange \| Bore: 40 mm \| Stroke: 50 mm
CE2F40-75		Mounting: Rod flange \| Bore: 40 mm \| Stroke: 75 mm
CE2F40-100		Mounting: Rod flange \| Bore: 40 mm \| Stroke: 100 mm
CE2F40-125		Mounting: Rod flange \| Bore: 40 mm \| Stroke: 125 mm
CE2F40-150		Mounting: Rod flange \| Bore: 40 mm \| Stroke: 150 mm
CE2F40-200		Mounting: Rod flange \| Bore: 40 mm \| Stroke: 200 mm
CE2F40-250		Mounting: Rod flange \| Bore: 40 mm \| Stroke: 250 mm
CE2F40-300		Mounting: Rod flange \| Bore: 40 mm \| Stroke: 300 mm
CE2F40-350		Mounting: Rod flange \| Bore: 40 mm \| Stroke: 350 mm
CE2F40-400		Mounting: Rod flange \| Bore: 40 mm \| Stroke: 400 mm
CE2F40-450		Mounting: Rod flange \| Bore: 40 mm \| Stroke: 450 mm
CE2F40-500		Mounting: Rod flange \| Bore: 40 mm \| Stroke: 500 mm
CE2F40-600		Mounting: Rod flange \| Bore: 40 mm \| Stroke: 600 mm
CE2F40-700		Mounting: Rod flange \| Bore: 40 mm \| Stroke: 700 mm
CE2F40-800		Mounting: Rod flange \| Bore: 40 mm \| Stroke: 800 mm
CE2F50-25		Mounting: Rod flange \| Bore: 50 mm \| Stroke: 25 mm
CE2F50-50		Mounting: Rod flange \| Bore: 50 mm \| Stroke: 50 mm
CE2F50-75		Mounting: Rod flange \| Bore: 50 mm \| Stroke: 75 mm
CE2F50-100		Mounting: Rod flange \| Bore: 50 mm \| Stroke: 100 mm
CE2F50-125		Mounting: Rod flange \| Bore: 50 mm \| Stroke: 125 mm
CE2F50-150		Mounting: Rod flange \| Bore: 50 mm \| Stroke: 150 mm
CE2F50-200		Mounting: Rod flange \| Bore: 50 mm \| Stroke: 200 mm
CE2F50-250		Mounting: Rod flange \| Bore: 50 mm \| Stroke: 250 mm
CE2F50-300		Mounting: Rod flange \| Bore: 50 mm \| Stroke: 300 mm
CE2F50-350		Mounting: Rod flange \| Bore: 50 mm \| Stroke: 350 mm
CE2F50-400		Mounting: Rod flange \| Bore: 50 mm \| Stroke: 400 mm
CE2F50-450		Mounting: Rod flange \| Bore: 50 mm \| Stroke: 450 mm
CE2F50-500		Mounting: Rod flange \| Bore: 50 mm \| Stroke: 500 mm
CE2F50-600		Mounting: Rod flange \| Bore: 50 mm \| Stroke: 600 mm
CE2F50-700		Mounting: Rod flange \| Bore: 50 mm \| Stroke: 700 mm
CE2F50-800		Mounting: Rod flange \| Bore: 50 mm \| Stroke: 800 mm
CE2F63-25		Mounting: Rod flange \| Bore: 63 mm \| Stroke: 25 mm
CE2F63-50		Mounting: Rod flange \| Bore: 63 mm \| Stroke: 50 mm
CE2F63-75		Mounting: Rod flange \| Bore: 63 mm \| Stroke: 75 mm
CE2F63-100		Mounting: Rod flange \| Bore: 63 mm \| Stroke: 100 mm
CE2F63-125		Mounting: Rod flange \| Bore: 63 mm \| Stroke: 125 mm
CE2F63-150		Mounting: Rod flange \| Bore: 63 mm \| Stroke: 150 mm
CE2F63-200		Mounting: Rod flange \| Bore: 63 mm \| Stroke: 200 mm
CE2F63-250		Mounting: Rod flange \| Bore: 63 mm \| Stroke: 250 mm
CE2F63-300		Mounting: Rod flange \| Bore: 63 mm \| Stroke: 300 mm
CE2F63-350		Mounting: Rod flange \| Bore: 63 mm \| Stroke: 350 mm
CE2F63-400		Mounting: Rod flange \| Bore: 63 mm \| Stroke: 400 mm
CE2F63-450		Mounting: Rod flange \| Bore: 63 mm \| Stroke: 450 mm
CE2F63-500		Mounting: Rod flange \| Bore: 63 mm \| Stroke: 500 mm
CE2F63-600		Mounting: Rod flange \| Bore: 63 mm \| Stroke: 600 mm
CE2F63-700		Mounting: Rod flange \| Bore: 63 mm \| Stroke: 700 mm
CE2F63-800		Mounting: Rod flange \| Bore: 63 mm \| Stroke: 800 mm
CE2F80-25		Mounting: Rod flange \| Bore: 80 mm \| Stroke: 25 mm
CE2F80-50		Mounting: Rod flange \| Bore: 80 mm \| Stroke: 50 mm
CE2F80-75		Mounting: Rod flange \| Bore: 80 mm \| Stroke: 75 mm
CE2F80-100		Mounting: Rod flange \| Bore: 80 mm \| Stroke: 100 mm
CE2F80-125		Mounting: Rod flange \| Bore: 80 mm \| Stroke: 125 mm
CE2F80-150		Mounting: Rod flange \| Bore: 80 mm \| Stroke: 150 mm
CE2F80-200		Mounting: Rod flange \| Bore: 80 mm \| Stroke: 200 mm
CE2F80-250		Mounting: Rod flange \| Bore: 80 mm \| Stroke: 250 mm
CE2F80-300		Mounting: Rod flange \| Bore: 80 mm \| Stroke: 300 mm
CE2F80-350		Mounting: Rod flange \| Bore: 80 mm \| Stroke: 350 mm
CE2F80-400		Mounting: Rod flange \| Bore: 80 mm \| Stroke: 400 mm
CE2F80-450		Mounting: Rod flange \| Bore: 80 mm \| Stroke: 450 mm
CE2F80-500		Mounting: Rod flange \| Bore: 80 mm \| Stroke: 500 mm
CE2F80-600		Mounting: Rod flange \| Bore: 80 mm \| Stroke: 600 mm
CE2F80-700		Mounting: Rod flange \| Bore: 80 mm \| Stroke: 700 mm
CE2F100-25		Mounting: Rod flange \| Bore: 100 mm \| Stroke: 25 mm
CE2F100-50		Mounting: Rod flange \| Bore: 100 mm \| Stroke: 50 mm
CE2F100-75		Mounting: Rod flange \| Bore: 100 mm \| Stroke: 75 mm
CE2F100-100		Mounting: Rod flange \| Bore: 100 mm \| Stroke: 100 mm
CE2F100-125		Mounting: Rod flange \| Bore: 100 mm \| Stroke: 125 mm
CE2F100-150		Mounting: Rod flange \| Bore: 100 mm \| Stroke: 150 mm
CE2F100-200		Mounting: Rod flange \| Bore: 100 mm \| Stroke: 200 mm
CE2F100-250		Mounting: Rod flange \| Bore: 100 mm \| Stroke: 250 mm
CE2F100-300		Mounting: Rod flange \| Bore: 100 mm \| Stroke: 300 mm
CE2F100-350		Mounting: Rod flange \| Bore: 100 mm \| Stroke: 350 mm
CE2F100-400		Mounting: Rod flange \| Bore: 100 mm \| Stroke: 400 mm
CE2F100-450		Mounting: Rod flange \| Bore: 100 mm \| Stroke: 450 mm
CE2F100-500		Mounting: Rod flange \| Bore: 100 mm \| Stroke: 500 mm
CE2F100-600		Mounting: Rod flange \| Bore: 100 mm \| Stroke: 600 mm
CE2F100-700		Mounting: Rod flange \| Bore: 100 mm \| Stroke: 700 mm
CE2G40-25		Mounting: Head flange \| Bore: 40 mm \| Stroke: 25 mm
CE2G40-50		Mounting: Head flange \| Bore: 40 mm \| Stroke: 50 mm
CE2G40-75		Mounting: Head flange \| Bore: 40 mm \| Stroke: 75 mm
CE2G40-100		Mounting: Head flange \| Bore: 40 mm \| Stroke: 100 mm
CE2G40-125		Mounting: Head flange \| Bore: 40 mm \| Stroke: 125 mm
CE2G40-150		Mounting: Head flange \| Bore: 40 mm \| Stroke: 150 mm
CE2G40-200		Mounting: Head flange \| Bore: 40 mm \| Stroke: 200 mm
CE2G40-250		Mounting: Head flange \| Bore: 40 mm \| Stroke: 250 mm
CE2G40-300		Mounting: Head flange \| Bore: 40 mm \| Stroke: 300 mm
CE2G40-350		Mounting: Head flange \| Bore: 40 mm \| Stroke: 350 mm
CE2G40-400		Mounting: Head flange \| Bore: 40 mm \| Stroke: 400 mm
CE2G40-450		Mounting: Head flange \| Bore: 40 mm \| Stroke: 450 mm
CE2G40-500		Mounting: Head flange \| Bore: 40 mm \| Stroke: 500 mm
CE2G40-600		Mounting: Head flange \| Bore: 40 mm \| Stroke: 600 mm
CE2G40-700		Mounting: Head flange \| Bore: 40 mm \| Stroke: 700 mm
CE2G40-800		Mounting: Head flange \| Bore: 40 mm \| Stroke: 800 mm
CE2G50-25		Mounting: Head flange \| Bore: 50 mm \| Stroke: 25 mm
CE2G50-50		Mounting: Head flange \| Bore: 50 mm \| Stroke: 50 mm
CE2G50-75		Mounting: Head flange \| Bore: 50 mm \| Stroke: 75 mm
CE2G50-100		Mounting: Head flange \| Bore: 50 mm \| Stroke: 100 mm
CE2G50-125		Mounting: Head flange \| Bore: 50 mm \| Stroke: 125 mm
CE2G50-150		Mounting: Head flange \| Bore: 50 mm \| Stroke: 150 mm
CE2G50-200		Mounting: Head flange \| Bore: 50 mm \| Stroke: 200 mm
CE2G50-250		Mounting: Head flange \| Bore: 50 mm \| Stroke: 250 mm
CE2G50-300		Mounting: Head flange \| Bore: 50 mm \| Stroke: 300 mm
CE2G50-350		Mounting: Head flange \| Bore: 50 mm \| Stroke: 350 mm
CE2G50-400		Mounting: Head flange \| Bore: 50 mm \| Stroke: 400 mm
CE2G50-450		Mounting: Head flange \| Bore: 50 mm \| Stroke: 450 mm
CE2G50-500		Mounting: Head flange \| Bore: 50 mm \| Stroke: 500 mm
CE2G50-600		Mounting: Head flange \| Bore: 50 mm \| Stroke: 600 mm
CE2G50-700		Mounting: Head flange \| Bore: 50 mm \| Stroke: 700 mm
CE2G50-800		Mounting: Head flange \| Bore: 50 mm \| Stroke: 800 mm
CE2G63-25		Mounting: Head flange \| Bore: 63 mm \| Stroke: 25 mm
CE2G63-50		Mounting: Head flange \| Bore: 63 mm \| Stroke: 50 mm
CE2G63-75		Mounting: Head flange \| Bore: 63 mm \| Stroke: 75 mm
CE2G63-100		Mounting: Head flange \| Bore: 63 mm \| Stroke: 100 mm
CE2G63-125		Mounting: Head flange \| Bore: 63 mm \| Stroke: 125 mm
CE2G63-150		Mounting: Head flange \| Bore: 63 mm \| Stroke: 150 mm
CE2G63-200		Mounting: Head flange \| Bore: 63 mm \| Stroke: 200 mm
CE2G63-250		Mounting: Head flange \| Bore: 63 mm \| Stroke: 250 mm
CE2G63-300		Mounting: Head flange \| Bore: 63 mm \| Stroke: 300 mm
CE2G63-350		Mounting: Head flange \| Bore: 63 mm \| Stroke: 350 mm
CE2G63-400		Mounting: Head flange \| Bore: 63 mm \| Stroke: 400 mm
CE2G63-450		Mounting: Head flange \| Bore: 63 mm \| Stroke: 450 mm
CE2G63-500		Mounting: Head flange \| Bore: 63 mm \| Stroke: 500 mm
CE2G63-600		Mounting: Head flange \| Bore: 63 mm \| Stroke: 600 mm
CE2G63-700		Mounting: Head flange \| Bore: 63 mm \| Stroke: 700 mm
CE2G63-800		Mounting: Head flange \| Bore: 63 mm \| Stroke: 800 mm
CE2G80-25		Mounting: Head flange \| Bore: 80 mm \| Stroke: 25 mm
CE2G80-50		Mounting: Head flange \| Bore: 80 mm \| Stroke: 50 mm
CE2G80-75		Mounting: Head flange \| Bore: 80 mm \| Stroke: 75 mm
CE2G80-100		Mounting: Head flange \| Bore: 80 mm \| Stroke: 100 mm
CE2G80-125		Mounting: Head flange \| Bore: 80 mm \| Stroke: 125 mm
CE2G80-150		Mounting: Head flange \| Bore: 80 mm \| Stroke: 150 mm
CE2G80-200		Mounting: Head flange \| Bore: 80 mm \| Stroke: 200 mm
CE2G80-250		Mounting: Head flange \| Bore: 80 mm \| Stroke: 250 mm
CE2G80-300		Mounting: Head flange \| Bore: 80 mm \| Stroke: 300 mm
CE2G80-350		Mounting: Head flange \| Bore: 80 mm \| Stroke: 350 mm
CE2G80-400		Mounting: Head flange \| Bore: 80 mm \| Stroke: 400 mm
CE2G80-450		Mounting: Head flange \| Bore: 80 mm \| Stroke: 450 mm
CE2G80-500		Mounting: Head flange \| Bore: 80 mm \| Stroke: 500 mm
CE2G80-600		Mounting: Head flange \| Bore: 80 mm \| Stroke: 600 mm
CE2G80-700		Mounting: Head flange \| Bore: 80 mm \| Stroke: 700 mm
CE2G100-25		Mounting: Head flange \| Bore: 100 mm \| Stroke: 25 mm
CE2G100-50		Mounting: Head flange \| Bore: 100 mm \| Stroke: 50 mm
CE2G100-75		Mounting: Head flange \| Bore: 100 mm \| Stroke: 75 mm
CE2G100-100		Mounting: Head flange \| Bore: 100 mm \| Stroke: 100 mm
CE2G100-125		Mounting: Head flange \| Bore: 100 mm \| Stroke: 125 mm
CE2G100-150		Mounting: Head flange \| Bore: 100 mm \| Stroke: 150 mm
CE2G100-200		Mounting: Head flange \| Bore: 100 mm \| Stroke: 200 mm
CE2G100-250		Mounting: Head flange \| Bore: 100 mm \| Stroke: 250 mm
CE2G100-300		Mounting: Head flange \| Bore: 100 mm \| Stroke: 300 mm
CE2G100-350		Mounting: Head flange \| Bore: 100 mm \| Stroke: 350 mm
CE2G100-400		Mounting: Head flange \| Bore: 100 mm \| Stroke: 400 mm
CE2G100-450		Mounting: Head flange \| Bore: 100 mm \| Stroke: 450 mm
CE2G100-500		Mounting: Head flange \| Bore: 100 mm \| Stroke: 500 mm
CE2G100-600		Mounting: Head flange \| Bore: 100 mm \| Stroke: 600 mm
CE2G100-700		Mounting: Head flange \| Bore: 100 mm \| Stroke: 700 mm
CE2C40-25		Mounting: Single clevis \| Bore: 40 mm \| Stroke: 25 mm
CE2C40-50		Mounting: Single clevis \| Bore: 40 mm \| Stroke: 50 mm
CE2C40-75		Mounting: Single clevis \| Bore: 40 mm \| Stroke: 75 mm
CE2C40-100		Mounting: Single clevis \| Bore: 40 mm \| Stroke: 100 mm
CE2C40-125		Mounting: Single clevis \| Bore: 40 mm \| Stroke: 125 mm
CE2C40-150		Mounting: Single clevis \| Bore: 40 mm \| Stroke: 150 mm
CE2C40-200		Mounting: Single clevis \| Bore: 40 mm \| Stroke: 200 mm
CE2C40-250		Mounting: Single clevis \| Bore: 40 mm \| Stroke: 250 mm
CE2C40-300		Mounting: Single clevis \| Bore: 40 mm \| Stroke: 300 mm
CE2C40-350		Mounting: Single clevis \| Bore: 40 mm \| Stroke: 350 mm
CE2C40-400		Mounting: Single clevis \| Bore: 40 mm \| Stroke: 400 mm
CE2C40-450		Mounting: Single clevis \| Bore: 40 mm \| Stroke: 450 mm
CE2C40-500		Mounting: Single clevis \| Bore: 40 mm \| Stroke: 500 mm
CE2C40-600		Mounting: Single clevis \| Bore: 40 mm \| Stroke: 600 mm
CE2C40-700		Mounting: Single clevis \| Bore: 40 mm \| Stroke: 700 mm
CE2C40-800		Mounting: Single clevis \| Bore: 40 mm \| Stroke: 800 mm
CE2C50-25		Mounting: Single clevis \| Bore: 50 mm \| Stroke: 25 mm
CE2C50-50		Mounting: Single clevis \| Bore: 50 mm \| Stroke: 50 mm
CE2C50-75		Mounting: Single clevis \| Bore: 50 mm \| Stroke: 75 mm
CE2C50-100		Mounting: Single clevis \| Bore: 50 mm \| Stroke: 100 mm
CE2C50-125		Mounting: Single clevis \| Bore: 50 mm \| Stroke: 125 mm
CE2C50-150		Mounting: Single clevis \| Bore: 50 mm \| Stroke: 150 mm
CE2C50-200		Mounting: Single clevis \| Bore: 50 mm \| Stroke: 200 mm
CE2C50-250		Mounting: Single clevis \| Bore: 50 mm \| Stroke: 250 mm
CE2C50-300		Mounting: Single clevis \| Bore: 50 mm \| Stroke: 300 mm
CE2C50-350		Mounting: Single clevis \| Bore: 50 mm \| Stroke: 350 mm
CE2C50-400		Mounting: Single clevis \| Bore: 50 mm \| Stroke: 400 mm
CE2C50-450		Mounting: Single clevis \| Bore: 50 mm \| Stroke: 450 mm
CE2C50-500		Mounting: Single clevis \| Bore: 50 mm \| Stroke: 500 mm
CE2C50-600		Mounting: Single clevis \| Bore: 50 mm \| Stroke: 600 mm
CE2C50-700		Mounting: Single clevis \| Bore: 50 mm \| Stroke: 700 mm
CE2C50-800		Mounting: Single clevis \| Bore: 50 mm \| Stroke: 800 mm
CE2C63-25		Mounting: Single clevis \| Bore: 63 mm \| Stroke: 25 mm
CE2C63-50		Mounting: Single clevis \| Bore: 63 mm \| Stroke: 50 mm
CE2C63-75		Mounting: Single clevis \| Bore: 63 mm \| Stroke: 75 mm
CE2C63-100		Mounting: Single clevis \| Bore: 63 mm \| Stroke: 100 mm
CE2C63-125		Mounting: Single clevis \| Bore: 63 mm \| Stroke: 125 mm
CE2C63-150		Mounting: Single clevis \| Bore: 63 mm \| Stroke: 150 mm
CE2C63-200		Mounting: Single clevis \| Bore: 63 mm \| Stroke: 200 mm
CE2C63-250		Mounting: Single clevis \| Bore: 63 mm \| Stroke: 250 mm
CE2C63-300		Mounting: Single clevis \| Bore: 63 mm \| Stroke: 300 mm
CE2C63-350		Mounting: Single clevis \| Bore: 63 mm \| Stroke: 350 mm
CE2C63-400		Mounting: Single clevis \| Bore: 63 mm \| Stroke: 400 mm
CE2C63-450		Mounting: Single clevis \| Bore: 63 mm \| Stroke: 450 mm
CE2C63-500		Mounting: Single clevis \| Bore: 63 mm \| Stroke: 500 mm
CE2C63-600		Mounting: Single clevis \| Bore: 63 mm \| Stroke: 600 mm
CE2C63-700		Mounting: Single clevis \| Bore: 63 mm \| Stroke: 700 mm
CE2C63-800		Mounting: Single clevis \| Bore: 63 mm \| Stroke: 800 mm
CE2C80-25		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 25 mm
CE2C80-50		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 50 mm
CE2C80-75		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 75 mm
CE2C80-100		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 100 mm
CE2C80-125		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 125 mm
CE2C80-150		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 150 mm
CE2C80-200		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 200 mm
CE2C80-250		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 250 mm
CE2C80-300		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 300 mm
CE2C80-350		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 350 mm
CE2C80-400		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 400 mm
CE2C80-450		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 450 mm
CE2C80-500		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 500 mm
CE2C80-600		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 600 mm
CE2C80-700		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 700 mm
CE2C100-25		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 25 mm
CE2C100-50		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 50 mm
CE2C100-75		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 75 mm
CE2C100-100		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 100 mm
CE2C100-125		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 125 mm
CE2C100-150		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 150 mm
CE2C100-200		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 200 mm
CE2C100-250		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 250 mm
CE2C100-300		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 300 mm
CE2C100-350		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 350 mm
CE2C100-400		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 400 mm
CE2C100-450		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 450 mm
CE2C100-500		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 500 mm
CE2C100-600		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 600 mm
CE2C100-700		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 700 mm
CE2D40-25		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 25 mm
CE2D40-50		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 50 mm
CE2D40-75		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 75 mm
CE2D40-100		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 100 mm
CE2D40-125		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 125 mm
CE2D40-150		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 150 mm
CE2D40-200		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 200 mm
CE2D40-250		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 250 mm
CE2D40-300		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 300 mm
CE2D40-350		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 350 mm
CE2D40-400		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 400 mm
CE2D40-450		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 450 mm
CE2D40-500		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 500 mm
CE2D40-600		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 600 mm
CE2D40-700		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 700 mm
CE2D40-800		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 800 mm
CE2D50-25		Mounting: Double clevis \| Bore: 50 mm \| Stroke: 25 mm
CE2D50-50		Mounting: Double clevis \| Bore: 50 mm \| Stroke: 50 mm
CE2D50-75		Mounting: Double clevis \| Bore: 50 mm \| Stroke: 75 mm
CE2D50-100		Mounting: Double clevis \| Bore: 50 mm \| Stroke: 100 mm
CE2D50-125		Mounting: Double clevis \| Bore: 50 mm \| Stroke: 125 mm
CE2D50-150		Mounting: Double clevis \| Bore: 50 mm \| Stroke: 150 mm
CE2D50-200		Mounting: Double clevis \| Bore: 50 mm \| Stroke: 200 mm
CE2D50-250		Mounting: Double clevis \| Bore: 50 mm \| Stroke: 250 mm
CE2D50-300		Mounting: Double clevis \| Bore: 50 mm \| Stroke: 300 mm
CE2D50-350		Mounting: Double clevis \| Bore: 50 mm \| Stroke: 350 mm
CE2D50-400		Mounting: Double clevis \| Bore: 50 mm \| Stroke: 400 mm
CE2D50-450		Mounting: Double clevis \| Bore: 50 mm \| Stroke: 450 mm
CE2D50-500		Mounting: Double clevis \| Bore: 50 mm \| Stroke: 500 mm
CE2D50-600		Mounting: Double clevis \| Bore: 50 mm \| Stroke: 600 mm
CE2D50-700		Mounting: Double clevis \| Bore: 50 mm \| Stroke: 700 mm
CE2D50-800		Mounting: Double clevis \| Bore: 50 mm \| Stroke: 800 mm
CE2D63-25		Mounting: Double clevis \| Bore: 63 mm \| Stroke: 25 mm
CE2D63-50		Mounting: Double clevis \| Bore: 63 mm \| Stroke: 50 mm
CE2D63-75		Mounting: Double clevis \| Bore: 63 mm \| Stroke: 75 mm
CE2D63-100		Mounting: Double clevis \| Bore: 63 mm \| Stroke: 100 mm
CE2D63-125		Mounting: Double clevis \| Bore: 63 mm \| Stroke: 125 mm
CE2D63-150		Mounting: Double clevis \| Bore: 63 mm \| Stroke: 150 mm
CE2D63-200		Mounting: Double clevis \| Bore: 63 mm \| Stroke: 200 mm
CE2D63-250		Mounting: Double clevis \| Bore: 63 mm \| Stroke: 250 mm
CE2D63-300		Mounting: Double clevis \| Bore: 63 mm \| Stroke: 300 mm
CE2D63-350		Mounting: Double clevis \| Bore: 63 mm \| Stroke: 350 mm
CE2D63-400		Mounting: Double clevis \| Bore: 63 mm \| Stroke: 400 mm
CE2D63-450		Mounting: Double clevis \| Bore: 63 mm \| Stroke: 450 mm
CE2D63-500		Mounting: Double clevis \| Bore: 63 mm \| Stroke: 500 mm
CE2D63-600		Mounting: Double clevis \| Bore: 63 mm \| Stroke: 600 mm
CE2D63-700		Mounting: Double clevis \| Bore: 63 mm \| Stroke: 700 mm
CE2D63-800		Mounting: Double clevis \| Bore: 63 mm \| Stroke: 800 mm
CE2D80-25		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 25 mm
CE2D80-50		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 50 mm
CE2D80-75		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 75 mm
CE2D80-100		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 100 mm
CE2D80-125		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 125 mm
CE2D80-150		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 150 mm
CE2D80-200		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 200 mm
CE2D80-250		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 250 mm
CE2D80-300		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 300 mm
CE2D80-350		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 350 mm
CE2D80-400		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 400 mm
CE2D80-450		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 450 mm
CE2D80-500		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 500 mm
CE2D80-600		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 600 mm
CE2D80-700		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 700 mm
CE2D100-25		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 25 mm
CE2D100-50		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 50 mm
CE2D100-75		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 75 mm
CE2D100-100		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 100 mm
CE2D100-125		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 125 mm
CE2D100-150		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 150 mm
CE2D100-200		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 200 mm
CE2D100-250		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 250 mm
CE2D100-300		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 300 mm
CE2D100-350		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 350 mm
CE2D100-400		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 400 mm
CE2D100-450		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 450 mm
CE2D100-500		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 500 mm
CE2D100-600		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 600 mm
CE2D100-700		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 700 mm
CE2T40-25		Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 25 mm
CE2T40-50		Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 50 mm
CE2T40-75		Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 75 mm
CE2T40-100		Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 100 mm
CE2T40-125		Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 125 mm
CE2T40-150		Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 150 mm
CE2T40-200		Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 200 mm
CE2T40-250		Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 250 mm
CE2T40-300		Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 300 mm
CE2T40-350		Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 350 mm
CE2T40-400		Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 400 mm
CE2T40-450		Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 450 mm
CE2T40-500		Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 500 mm
CE2T40-600		Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 600 mm
CE2T40-700		Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 700 mm
CE2T40-800		Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 800 mm
CE2T50-25		Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 25 mm
CE2T50-50		Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 50 mm
CE2T50-75		Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 75 mm
CE2T50-100		Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 100 mm
CE2T50-125		Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 125 mm
CE2T50-150		Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 150 mm
CE2T50-200		Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 200 mm
CE2T50-250		Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 250 mm
CE2T50-300		Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 300 mm
CE2T50-350		Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 350 mm
CE2T50-400		Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 400 mm
CE2T50-450		Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 450 mm
CE2T50-500		Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 500 mm
CE2T50-600		Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 600 mm
CE2T50-700		Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 700 mm
CE2T50-800		Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 800 mm
CE2T63-25		Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 25 mm
CE2T63-50		Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 50 mm
CE2T63-75		Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 75 mm
CE2T63-100		Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 100 mm
CE2T63-125		Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 125 mm
CE2T63-150		Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 150 mm
CE2T63-200		Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 200 mm
CE2T63-250		Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 250 mm
CE2T63-300		Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 300 mm
CE2T63-350		Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 350 mm
CE2T63-400		Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 400 mm
CE2T63-450		Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 450 mm
CE2T63-500		Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 500 mm
CE2T63-600		Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 600 mm
CE2T63-700		Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 700 mm
CE2T63-800		Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 800 mm
CE2T80-25		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 25 mm
CE2T80-50		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 50 mm
CE2T80-75		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 75 mm
CE2T80-100		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 100 mm
CE2T80-125		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 125 mm
CE2T80-150		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 150 mm
CE2T80-200		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 200 mm
CE2T80-250		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 250 mm
CE2T80-300		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 300 mm
CE2T80-350		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 350 mm
CE2T80-400		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 400 mm
CE2T80-450		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 450 mm
CE2T80-500		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 500 mm
CE2T80-600		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 600 mm
CE2T80-700		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 700 mm
CE2T100-25		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 25 mm
CE2T100-50		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 50 mm
CE2T100-75		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 75 mm
CE2T100-100		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 100 mm
CE2T100-125		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 125 mm
CE2T100-150		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 150 mm
CE2T100-200		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 200 mm
CE2T100-250		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 250 mm
CE2T100-300		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 300 mm
CE2T100-350		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 350 mm
CE2T100-400		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 400 mm
CE2T100-450		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 450 mm
CE2T100-500		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 500 mm
CE2T100-600		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 600 mm
CE2T100-700		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 700 mm

Round Body CylindersSMC

546 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC CE2 Scale Cylinder with Brake (40 to 100 mm)

Brand SMC·Round Body Cylinders

Available part numbers (546)

CE2B40-25, CE2B40-50, CE2B40-75, CE2B40-100, CE2B40-125, CE2B40-150, CE2B40-200, CE2B40-250, CE2B40-300, CE2B40-350 + 536 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	CE2B40-25	Mounting: Basic \| Bore: 40 mm \| Stroke: 25 mm
	CE2B40-50	Mounting: Basic \| Bore: 40 mm \| Stroke: 50 mm
	CE2B40-75	Mounting: Basic \| Bore: 40 mm \| Stroke: 75 mm
	CE2B40-100	Mounting: Basic \| Bore: 40 mm \| Stroke: 100 mm
	CE2B40-125	Mounting: Basic \| Bore: 40 mm \| Stroke: 125 mm
	CE2B40-150	Mounting: Basic \| Bore: 40 mm \| Stroke: 150 mm
	CE2B40-200	Mounting: Basic \| Bore: 40 mm \| Stroke: 200 mm
	CE2B40-250	Mounting: Basic \| Bore: 40 mm \| Stroke: 250 mm
	CE2B40-300	Mounting: Basic \| Bore: 40 mm \| Stroke: 300 mm
	CE2B40-350	Mounting: Basic \| Bore: 40 mm \| Stroke: 350 mm
	CE2B40-400	Mounting: Basic \| Bore: 40 mm \| Stroke: 400 mm
	CE2B40-450	Mounting: Basic \| Bore: 40 mm \| Stroke: 450 mm
	CE2B40-500	Mounting: Basic \| Bore: 40 mm \| Stroke: 500 mm
	CE2B40-600	Mounting: Basic \| Bore: 40 mm \| Stroke: 600 mm
	CE2B40-700	Mounting: Basic \| Bore: 40 mm \| Stroke: 700 mm
	CE2B40-800	Mounting: Basic \| Bore: 40 mm \| Stroke: 800 mm
	CE2B50-25	Mounting: Basic \| Bore: 50 mm \| Stroke: 25 mm
	CE2B50-50	Mounting: Basic \| Bore: 50 mm \| Stroke: 50 mm
	CE2B50-75	Mounting: Basic \| Bore: 50 mm \| Stroke: 75 mm
	CE2B50-100	Mounting: Basic \| Bore: 50 mm \| Stroke: 100 mm
	CE2B50-125	Mounting: Basic \| Bore: 50 mm \| Stroke: 125 mm
	CE2B50-150	Mounting: Basic \| Bore: 50 mm \| Stroke: 150 mm
	CE2B50-200	Mounting: Basic \| Bore: 50 mm \| Stroke: 200 mm
	CE2B50-250	Mounting: Basic \| Bore: 50 mm \| Stroke: 250 mm
	CE2B50-300	Mounting: Basic \| Bore: 50 mm \| Stroke: 300 mm
	CE2B50-350	Mounting: Basic \| Bore: 50 mm \| Stroke: 350 mm
	CE2B50-400	Mounting: Basic \| Bore: 50 mm \| Stroke: 400 mm
	CE2B50-450	Mounting: Basic \| Bore: 50 mm \| Stroke: 450 mm
	CE2B50-500	Mounting: Basic \| Bore: 50 mm \| Stroke: 500 mm
	CE2B50-600	Mounting: Basic \| Bore: 50 mm \| Stroke: 600 mm
	CE2B50-700	Mounting: Basic \| Bore: 50 mm \| Stroke: 700 mm
	CE2B50-800	Mounting: Basic \| Bore: 50 mm \| Stroke: 800 mm
	CE2B63-25	Mounting: Basic \| Bore: 63 mm \| Stroke: 25 mm
	CE2B63-50	Mounting: Basic \| Bore: 63 mm \| Stroke: 50 mm
	CE2B63-75	Mounting: Basic \| Bore: 63 mm \| Stroke: 75 mm
	CE2B63-100	Mounting: Basic \| Bore: 63 mm \| Stroke: 100 mm
	CE2B63-125	Mounting: Basic \| Bore: 63 mm \| Stroke: 125 mm
	CE2B63-150	Mounting: Basic \| Bore: 63 mm \| Stroke: 150 mm
	CE2B63-200	Mounting: Basic \| Bore: 63 mm \| Stroke: 200 mm
	CE2B63-250	Mounting: Basic \| Bore: 63 mm \| Stroke: 250 mm
	CE2B63-300	Mounting: Basic \| Bore: 63 mm \| Stroke: 300 mm
	CE2B63-350	Mounting: Basic \| Bore: 63 mm \| Stroke: 350 mm
	CE2B63-400	Mounting: Basic \| Bore: 63 mm \| Stroke: 400 mm
	CE2B63-450	Mounting: Basic \| Bore: 63 mm \| Stroke: 450 mm
	CE2B63-500	Mounting: Basic \| Bore: 63 mm \| Stroke: 500 mm
	CE2B63-600	Mounting: Basic \| Bore: 63 mm \| Stroke: 600 mm
	CE2B63-700	Mounting: Basic \| Bore: 63 mm \| Stroke: 700 mm
	CE2B63-800	Mounting: Basic \| Bore: 63 mm \| Stroke: 800 mm
	CE2B80-25	Mounting: Basic \| Bore: 80 mm \| Stroke: 25 mm
	CE2B80-50	Mounting: Basic \| Bore: 80 mm \| Stroke: 50 mm
	CE2B80-75	Mounting: Basic \| Bore: 80 mm \| Stroke: 75 mm
	CE2B80-100	Mounting: Basic \| Bore: 80 mm \| Stroke: 100 mm
	CE2B80-125	Mounting: Basic \| Bore: 80 mm \| Stroke: 125 mm
	CE2B80-150	Mounting: Basic \| Bore: 80 mm \| Stroke: 150 mm
	CE2B80-200	Mounting: Basic \| Bore: 80 mm \| Stroke: 200 mm
	CE2B80-250	Mounting: Basic \| Bore: 80 mm \| Stroke: 250 mm
	CE2B80-300	Mounting: Basic \| Bore: 80 mm \| Stroke: 300 mm
	CE2B80-350	Mounting: Basic \| Bore: 80 mm \| Stroke: 350 mm
	CE2B80-400	Mounting: Basic \| Bore: 80 mm \| Stroke: 400 mm
	CE2B80-450	Mounting: Basic \| Bore: 80 mm \| Stroke: 450 mm
	CE2B80-500	Mounting: Basic \| Bore: 80 mm \| Stroke: 500 mm
	CE2B80-600	Mounting: Basic \| Bore: 80 mm \| Stroke: 600 mm
	CE2B80-700	Mounting: Basic \| Bore: 80 mm \| Stroke: 700 mm
	CE2B100-25	Mounting: Basic \| Bore: 100 mm \| Stroke: 25 mm
	CE2B100-50	Mounting: Basic \| Bore: 100 mm \| Stroke: 50 mm
	CE2B100-75	Mounting: Basic \| Bore: 100 mm \| Stroke: 75 mm
	CE2B100-100	Mounting: Basic \| Bore: 100 mm \| Stroke: 100 mm
	CE2B100-125	Mounting: Basic \| Bore: 100 mm \| Stroke: 125 mm
	CE2B100-150	Mounting: Basic \| Bore: 100 mm \| Stroke: 150 mm
	CE2B100-200	Mounting: Basic \| Bore: 100 mm \| Stroke: 200 mm
	CE2B100-250	Mounting: Basic \| Bore: 100 mm \| Stroke: 250 mm
	CE2B100-300	Mounting: Basic \| Bore: 100 mm \| Stroke: 300 mm
	CE2B100-350	Mounting: Basic \| Bore: 100 mm \| Stroke: 350 mm
	CE2B100-400	Mounting: Basic \| Bore: 100 mm \| Stroke: 400 mm
	CE2B100-450	Mounting: Basic \| Bore: 100 mm \| Stroke: 450 mm
	CE2B100-500	Mounting: Basic \| Bore: 100 mm \| Stroke: 500 mm
	CE2B100-600	Mounting: Basic \| Bore: 100 mm \| Stroke: 600 mm
	CE2B100-700	Mounting: Basic \| Bore: 100 mm \| Stroke: 700 mm
	CE2L40-25	Mounting: Foot \| Bore: 40 mm \| Stroke: 25 mm
	CE2L40-50	Mounting: Foot \| Bore: 40 mm \| Stroke: 50 mm
	CE2L40-75	Mounting: Foot \| Bore: 40 mm \| Stroke: 75 mm
	CE2L40-100	Mounting: Foot \| Bore: 40 mm \| Stroke: 100 mm
	CE2L40-125	Mounting: Foot \| Bore: 40 mm \| Stroke: 125 mm
	CE2L40-150	Mounting: Foot \| Bore: 40 mm \| Stroke: 150 mm
	CE2L40-200	Mounting: Foot \| Bore: 40 mm \| Stroke: 200 mm
	CE2L40-250	Mounting: Foot \| Bore: 40 mm \| Stroke: 250 mm
	CE2L40-300	Mounting: Foot \| Bore: 40 mm \| Stroke: 300 mm
	CE2L40-350	Mounting: Foot \| Bore: 40 mm \| Stroke: 350 mm
	CE2L40-400	Mounting: Foot \| Bore: 40 mm \| Stroke: 400 mm
	CE2L40-450	Mounting: Foot \| Bore: 40 mm \| Stroke: 450 mm
	CE2L40-500	Mounting: Foot \| Bore: 40 mm \| Stroke: 500 mm
	CE2L40-600	Mounting: Foot \| Bore: 40 mm \| Stroke: 600 mm
	CE2L40-700	Mounting: Foot \| Bore: 40 mm \| Stroke: 700 mm
	CE2L40-800	Mounting: Foot \| Bore: 40 mm \| Stroke: 800 mm
	CE2L50-25	Mounting: Foot \| Bore: 50 mm \| Stroke: 25 mm
	CE2L50-50	Mounting: Foot \| Bore: 50 mm \| Stroke: 50 mm
	CE2L50-75	Mounting: Foot \| Bore: 50 mm \| Stroke: 75 mm
	CE2L50-100	Mounting: Foot \| Bore: 50 mm \| Stroke: 100 mm
	CE2L50-125	Mounting: Foot \| Bore: 50 mm \| Stroke: 125 mm
	CE2L50-150	Mounting: Foot \| Bore: 50 mm \| Stroke: 150 mm
	CE2L50-200	Mounting: Foot \| Bore: 50 mm \| Stroke: 200 mm
	CE2L50-250	Mounting: Foot \| Bore: 50 mm \| Stroke: 250 mm
	CE2L50-300	Mounting: Foot \| Bore: 50 mm \| Stroke: 300 mm
	CE2L50-350	Mounting: Foot \| Bore: 50 mm \| Stroke: 350 mm
	CE2L50-400	Mounting: Foot \| Bore: 50 mm \| Stroke: 400 mm
	CE2L50-450	Mounting: Foot \| Bore: 50 mm \| Stroke: 450 mm
	CE2L50-500	Mounting: Foot \| Bore: 50 mm \| Stroke: 500 mm
	CE2L50-600	Mounting: Foot \| Bore: 50 mm \| Stroke: 600 mm
	CE2L50-700	Mounting: Foot \| Bore: 50 mm \| Stroke: 700 mm
	CE2L50-800	Mounting: Foot \| Bore: 50 mm \| Stroke: 800 mm
	CE2L63-25	Mounting: Foot \| Bore: 63 mm \| Stroke: 25 mm
	CE2L63-50	Mounting: Foot \| Bore: 63 mm \| Stroke: 50 mm
	CE2L63-75	Mounting: Foot \| Bore: 63 mm \| Stroke: 75 mm
	CE2L63-100	Mounting: Foot \| Bore: 63 mm \| Stroke: 100 mm
	CE2L63-125	Mounting: Foot \| Bore: 63 mm \| Stroke: 125 mm
	CE2L63-150	Mounting: Foot \| Bore: 63 mm \| Stroke: 150 mm
	CE2L63-200	Mounting: Foot \| Bore: 63 mm \| Stroke: 200 mm
	CE2L63-250	Mounting: Foot \| Bore: 63 mm \| Stroke: 250 mm
	CE2L63-300	Mounting: Foot \| Bore: 63 mm \| Stroke: 300 mm
	CE2L63-350	Mounting: Foot \| Bore: 63 mm \| Stroke: 350 mm
	CE2L63-400	Mounting: Foot \| Bore: 63 mm \| Stroke: 400 mm
	CE2L63-450	Mounting: Foot \| Bore: 63 mm \| Stroke: 450 mm
	CE2L63-500	Mounting: Foot \| Bore: 63 mm \| Stroke: 500 mm
	CE2L63-600	Mounting: Foot \| Bore: 63 mm \| Stroke: 600 mm
	CE2L63-700	Mounting: Foot \| Bore: 63 mm \| Stroke: 700 mm
	CE2L63-800	Mounting: Foot \| Bore: 63 mm \| Stroke: 800 mm
	CE2L80-25	Mounting: Foot \| Bore: 80 mm \| Stroke: 25 mm
	CE2L80-50	Mounting: Foot \| Bore: 80 mm \| Stroke: 50 mm
	CE2L80-75	Mounting: Foot \| Bore: 80 mm \| Stroke: 75 mm
	CE2L80-100	Mounting: Foot \| Bore: 80 mm \| Stroke: 100 mm
	CE2L80-125	Mounting: Foot \| Bore: 80 mm \| Stroke: 125 mm
	CE2L80-150	Mounting: Foot \| Bore: 80 mm \| Stroke: 150 mm
	CE2L80-200	Mounting: Foot \| Bore: 80 mm \| Stroke: 200 mm
	CE2L80-250	Mounting: Foot \| Bore: 80 mm \| Stroke: 250 mm
	CE2L80-300	Mounting: Foot \| Bore: 80 mm \| Stroke: 300 mm
	CE2L80-350	Mounting: Foot \| Bore: 80 mm \| Stroke: 350 mm
	CE2L80-400	Mounting: Foot \| Bore: 80 mm \| Stroke: 400 mm
	CE2L80-450	Mounting: Foot \| Bore: 80 mm \| Stroke: 450 mm
	CE2L80-500	Mounting: Foot \| Bore: 80 mm \| Stroke: 500 mm
	CE2L80-600	Mounting: Foot \| Bore: 80 mm \| Stroke: 600 mm
	CE2L80-700	Mounting: Foot \| Bore: 80 mm \| Stroke: 700 mm
	CE2L100-25	Mounting: Foot \| Bore: 100 mm \| Stroke: 25 mm
	CE2L100-50	Mounting: Foot \| Bore: 100 mm \| Stroke: 50 mm
	CE2L100-75	Mounting: Foot \| Bore: 100 mm \| Stroke: 75 mm
	CE2L100-100	Mounting: Foot \| Bore: 100 mm \| Stroke: 100 mm
	CE2L100-125	Mounting: Foot \| Bore: 100 mm \| Stroke: 125 mm
	CE2L100-150	Mounting: Foot \| Bore: 100 mm \| Stroke: 150 mm
	CE2L100-200	Mounting: Foot \| Bore: 100 mm \| Stroke: 200 mm
	CE2L100-250	Mounting: Foot \| Bore: 100 mm \| Stroke: 250 mm
	CE2L100-300	Mounting: Foot \| Bore: 100 mm \| Stroke: 300 mm
	CE2L100-350	Mounting: Foot \| Bore: 100 mm \| Stroke: 350 mm
	CE2L100-400	Mounting: Foot \| Bore: 100 mm \| Stroke: 400 mm
	CE2L100-450	Mounting: Foot \| Bore: 100 mm \| Stroke: 450 mm
	CE2L100-500	Mounting: Foot \| Bore: 100 mm \| Stroke: 500 mm
	CE2L100-600	Mounting: Foot \| Bore: 100 mm \| Stroke: 600 mm
	CE2L100-700	Mounting: Foot \| Bore: 100 mm \| Stroke: 700 mm
	CE2F40-25	Mounting: Rod flange \| Bore: 40 mm \| Stroke: 25 mm
	CE2F40-50	Mounting: Rod flange \| Bore: 40 mm \| Stroke: 50 mm
	CE2F40-75	Mounting: Rod flange \| Bore: 40 mm \| Stroke: 75 mm
	CE2F40-100	Mounting: Rod flange \| Bore: 40 mm \| Stroke: 100 mm
	CE2F40-125	Mounting: Rod flange \| Bore: 40 mm \| Stroke: 125 mm
	CE2F40-150	Mounting: Rod flange \| Bore: 40 mm \| Stroke: 150 mm
	CE2F40-200	Mounting: Rod flange \| Bore: 40 mm \| Stroke: 200 mm
	CE2F40-250	Mounting: Rod flange \| Bore: 40 mm \| Stroke: 250 mm
	CE2F40-300	Mounting: Rod flange \| Bore: 40 mm \| Stroke: 300 mm
	CE2F40-350	Mounting: Rod flange \| Bore: 40 mm \| Stroke: 350 mm
	CE2F40-400	Mounting: Rod flange \| Bore: 40 mm \| Stroke: 400 mm
	CE2F40-450	Mounting: Rod flange \| Bore: 40 mm \| Stroke: 450 mm
	CE2F40-500	Mounting: Rod flange \| Bore: 40 mm \| Stroke: 500 mm
	CE2F40-600	Mounting: Rod flange \| Bore: 40 mm \| Stroke: 600 mm
	CE2F40-700	Mounting: Rod flange \| Bore: 40 mm \| Stroke: 700 mm
	CE2F40-800	Mounting: Rod flange \| Bore: 40 mm \| Stroke: 800 mm
	CE2F50-25	Mounting: Rod flange \| Bore: 50 mm \| Stroke: 25 mm
	CE2F50-50	Mounting: Rod flange \| Bore: 50 mm \| Stroke: 50 mm
	CE2F50-75	Mounting: Rod flange \| Bore: 50 mm \| Stroke: 75 mm
	CE2F50-100	Mounting: Rod flange \| Bore: 50 mm \| Stroke: 100 mm
	CE2F50-125	Mounting: Rod flange \| Bore: 50 mm \| Stroke: 125 mm
	CE2F50-150	Mounting: Rod flange \| Bore: 50 mm \| Stroke: 150 mm
	CE2F50-200	Mounting: Rod flange \| Bore: 50 mm \| Stroke: 200 mm
	CE2F50-250	Mounting: Rod flange \| Bore: 50 mm \| Stroke: 250 mm
	CE2F50-300	Mounting: Rod flange \| Bore: 50 mm \| Stroke: 300 mm
	CE2F50-350	Mounting: Rod flange \| Bore: 50 mm \| Stroke: 350 mm
	CE2F50-400	Mounting: Rod flange \| Bore: 50 mm \| Stroke: 400 mm
	CE2F50-450	Mounting: Rod flange \| Bore: 50 mm \| Stroke: 450 mm
	CE2F50-500	Mounting: Rod flange \| Bore: 50 mm \| Stroke: 500 mm
	CE2F50-600	Mounting: Rod flange \| Bore: 50 mm \| Stroke: 600 mm
	CE2F50-700	Mounting: Rod flange \| Bore: 50 mm \| Stroke: 700 mm
	CE2F50-800	Mounting: Rod flange \| Bore: 50 mm \| Stroke: 800 mm
	CE2F63-25	Mounting: Rod flange \| Bore: 63 mm \| Stroke: 25 mm
	CE2F63-50	Mounting: Rod flange \| Bore: 63 mm \| Stroke: 50 mm
	CE2F63-75	Mounting: Rod flange \| Bore: 63 mm \| Stroke: 75 mm
	CE2F63-100	Mounting: Rod flange \| Bore: 63 mm \| Stroke: 100 mm
	CE2F63-125	Mounting: Rod flange \| Bore: 63 mm \| Stroke: 125 mm
	CE2F63-150	Mounting: Rod flange \| Bore: 63 mm \| Stroke: 150 mm
	CE2F63-200	Mounting: Rod flange \| Bore: 63 mm \| Stroke: 200 mm
	CE2F63-250	Mounting: Rod flange \| Bore: 63 mm \| Stroke: 250 mm
	CE2F63-300	Mounting: Rod flange \| Bore: 63 mm \| Stroke: 300 mm
	CE2F63-350	Mounting: Rod flange \| Bore: 63 mm \| Stroke: 350 mm
	CE2F63-400	Mounting: Rod flange \| Bore: 63 mm \| Stroke: 400 mm
	CE2F63-450	Mounting: Rod flange \| Bore: 63 mm \| Stroke: 450 mm
	CE2F63-500	Mounting: Rod flange \| Bore: 63 mm \| Stroke: 500 mm
	CE2F63-600	Mounting: Rod flange \| Bore: 63 mm \| Stroke: 600 mm
	CE2F63-700	Mounting: Rod flange \| Bore: 63 mm \| Stroke: 700 mm
	CE2F63-800	Mounting: Rod flange \| Bore: 63 mm \| Stroke: 800 mm
	CE2F80-25	Mounting: Rod flange \| Bore: 80 mm \| Stroke: 25 mm
	CE2F80-50	Mounting: Rod flange \| Bore: 80 mm \| Stroke: 50 mm
	CE2F80-75	Mounting: Rod flange \| Bore: 80 mm \| Stroke: 75 mm
	CE2F80-100	Mounting: Rod flange \| Bore: 80 mm \| Stroke: 100 mm
	CE2F80-125	Mounting: Rod flange \| Bore: 80 mm \| Stroke: 125 mm
	CE2F80-150	Mounting: Rod flange \| Bore: 80 mm \| Stroke: 150 mm
	CE2F80-200	Mounting: Rod flange \| Bore: 80 mm \| Stroke: 200 mm
	CE2F80-250	Mounting: Rod flange \| Bore: 80 mm \| Stroke: 250 mm
	CE2F80-300	Mounting: Rod flange \| Bore: 80 mm \| Stroke: 300 mm
	CE2F80-350	Mounting: Rod flange \| Bore: 80 mm \| Stroke: 350 mm
	CE2F80-400	Mounting: Rod flange \| Bore: 80 mm \| Stroke: 400 mm
	CE2F80-450	Mounting: Rod flange \| Bore: 80 mm \| Stroke: 450 mm
	CE2F80-500	Mounting: Rod flange \| Bore: 80 mm \| Stroke: 500 mm
	CE2F80-600	Mounting: Rod flange \| Bore: 80 mm \| Stroke: 600 mm
	CE2F80-700	Mounting: Rod flange \| Bore: 80 mm \| Stroke: 700 mm
	CE2F100-25	Mounting: Rod flange \| Bore: 100 mm \| Stroke: 25 mm
	CE2F100-50	Mounting: Rod flange \| Bore: 100 mm \| Stroke: 50 mm
	CE2F100-75	Mounting: Rod flange \| Bore: 100 mm \| Stroke: 75 mm
	CE2F100-100	Mounting: Rod flange \| Bore: 100 mm \| Stroke: 100 mm
	CE2F100-125	Mounting: Rod flange \| Bore: 100 mm \| Stroke: 125 mm
	CE2F100-150	Mounting: Rod flange \| Bore: 100 mm \| Stroke: 150 mm
	CE2F100-200	Mounting: Rod flange \| Bore: 100 mm \| Stroke: 200 mm
	CE2F100-250	Mounting: Rod flange \| Bore: 100 mm \| Stroke: 250 mm
	CE2F100-300	Mounting: Rod flange \| Bore: 100 mm \| Stroke: 300 mm
	CE2F100-350	Mounting: Rod flange \| Bore: 100 mm \| Stroke: 350 mm
	CE2F100-400	Mounting: Rod flange \| Bore: 100 mm \| Stroke: 400 mm
	CE2F100-450	Mounting: Rod flange \| Bore: 100 mm \| Stroke: 450 mm
	CE2F100-500	Mounting: Rod flange \| Bore: 100 mm \| Stroke: 500 mm
	CE2F100-600	Mounting: Rod flange \| Bore: 100 mm \| Stroke: 600 mm
	CE2F100-700	Mounting: Rod flange \| Bore: 100 mm \| Stroke: 700 mm
	CE2G40-25	Mounting: Head flange \| Bore: 40 mm \| Stroke: 25 mm
	CE2G40-50	Mounting: Head flange \| Bore: 40 mm \| Stroke: 50 mm
	CE2G40-75	Mounting: Head flange \| Bore: 40 mm \| Stroke: 75 mm
	CE2G40-100	Mounting: Head flange \| Bore: 40 mm \| Stroke: 100 mm
	CE2G40-125	Mounting: Head flange \| Bore: 40 mm \| Stroke: 125 mm
	CE2G40-150	Mounting: Head flange \| Bore: 40 mm \| Stroke: 150 mm
	CE2G40-200	Mounting: Head flange \| Bore: 40 mm \| Stroke: 200 mm
	CE2G40-250	Mounting: Head flange \| Bore: 40 mm \| Stroke: 250 mm
	CE2G40-300	Mounting: Head flange \| Bore: 40 mm \| Stroke: 300 mm
	CE2G40-350	Mounting: Head flange \| Bore: 40 mm \| Stroke: 350 mm
	CE2G40-400	Mounting: Head flange \| Bore: 40 mm \| Stroke: 400 mm
	CE2G40-450	Mounting: Head flange \| Bore: 40 mm \| Stroke: 450 mm
	CE2G40-500	Mounting: Head flange \| Bore: 40 mm \| Stroke: 500 mm
	CE2G40-600	Mounting: Head flange \| Bore: 40 mm \| Stroke: 600 mm
	CE2G40-700	Mounting: Head flange \| Bore: 40 mm \| Stroke: 700 mm
	CE2G40-800	Mounting: Head flange \| Bore: 40 mm \| Stroke: 800 mm
	CE2G50-25	Mounting: Head flange \| Bore: 50 mm \| Stroke: 25 mm
	CE2G50-50	Mounting: Head flange \| Bore: 50 mm \| Stroke: 50 mm
	CE2G50-75	Mounting: Head flange \| Bore: 50 mm \| Stroke: 75 mm
	CE2G50-100	Mounting: Head flange \| Bore: 50 mm \| Stroke: 100 mm
	CE2G50-125	Mounting: Head flange \| Bore: 50 mm \| Stroke: 125 mm
	CE2G50-150	Mounting: Head flange \| Bore: 50 mm \| Stroke: 150 mm
	CE2G50-200	Mounting: Head flange \| Bore: 50 mm \| Stroke: 200 mm
	CE2G50-250	Mounting: Head flange \| Bore: 50 mm \| Stroke: 250 mm
	CE2G50-300	Mounting: Head flange \| Bore: 50 mm \| Stroke: 300 mm
	CE2G50-350	Mounting: Head flange \| Bore: 50 mm \| Stroke: 350 mm
	CE2G50-400	Mounting: Head flange \| Bore: 50 mm \| Stroke: 400 mm
	CE2G50-450	Mounting: Head flange \| Bore: 50 mm \| Stroke: 450 mm
	CE2G50-500	Mounting: Head flange \| Bore: 50 mm \| Stroke: 500 mm
	CE2G50-600	Mounting: Head flange \| Bore: 50 mm \| Stroke: 600 mm
	CE2G50-700	Mounting: Head flange \| Bore: 50 mm \| Stroke: 700 mm
	CE2G50-800	Mounting: Head flange \| Bore: 50 mm \| Stroke: 800 mm
	CE2G63-25	Mounting: Head flange \| Bore: 63 mm \| Stroke: 25 mm
	CE2G63-50	Mounting: Head flange \| Bore: 63 mm \| Stroke: 50 mm
	CE2G63-75	Mounting: Head flange \| Bore: 63 mm \| Stroke: 75 mm
	CE2G63-100	Mounting: Head flange \| Bore: 63 mm \| Stroke: 100 mm
	CE2G63-125	Mounting: Head flange \| Bore: 63 mm \| Stroke: 125 mm
	CE2G63-150	Mounting: Head flange \| Bore: 63 mm \| Stroke: 150 mm
	CE2G63-200	Mounting: Head flange \| Bore: 63 mm \| Stroke: 200 mm
	CE2G63-250	Mounting: Head flange \| Bore: 63 mm \| Stroke: 250 mm
	CE2G63-300	Mounting: Head flange \| Bore: 63 mm \| Stroke: 300 mm
	CE2G63-350	Mounting: Head flange \| Bore: 63 mm \| Stroke: 350 mm
	CE2G63-400	Mounting: Head flange \| Bore: 63 mm \| Stroke: 400 mm
	CE2G63-450	Mounting: Head flange \| Bore: 63 mm \| Stroke: 450 mm
	CE2G63-500	Mounting: Head flange \| Bore: 63 mm \| Stroke: 500 mm
	CE2G63-600	Mounting: Head flange \| Bore: 63 mm \| Stroke: 600 mm
	CE2G63-700	Mounting: Head flange \| Bore: 63 mm \| Stroke: 700 mm
	CE2G63-800	Mounting: Head flange \| Bore: 63 mm \| Stroke: 800 mm
	CE2G80-25	Mounting: Head flange \| Bore: 80 mm \| Stroke: 25 mm
	CE2G80-50	Mounting: Head flange \| Bore: 80 mm \| Stroke: 50 mm
	CE2G80-75	Mounting: Head flange \| Bore: 80 mm \| Stroke: 75 mm
	CE2G80-100	Mounting: Head flange \| Bore: 80 mm \| Stroke: 100 mm
	CE2G80-125	Mounting: Head flange \| Bore: 80 mm \| Stroke: 125 mm
	CE2G80-150	Mounting: Head flange \| Bore: 80 mm \| Stroke: 150 mm
	CE2G80-200	Mounting: Head flange \| Bore: 80 mm \| Stroke: 200 mm
	CE2G80-250	Mounting: Head flange \| Bore: 80 mm \| Stroke: 250 mm
	CE2G80-300	Mounting: Head flange \| Bore: 80 mm \| Stroke: 300 mm
	CE2G80-350	Mounting: Head flange \| Bore: 80 mm \| Stroke: 350 mm
	CE2G80-400	Mounting: Head flange \| Bore: 80 mm \| Stroke: 400 mm
	CE2G80-450	Mounting: Head flange \| Bore: 80 mm \| Stroke: 450 mm
	CE2G80-500	Mounting: Head flange \| Bore: 80 mm \| Stroke: 500 mm
	CE2G80-600	Mounting: Head flange \| Bore: 80 mm \| Stroke: 600 mm
	CE2G80-700	Mounting: Head flange \| Bore: 80 mm \| Stroke: 700 mm
	CE2G100-25	Mounting: Head flange \| Bore: 100 mm \| Stroke: 25 mm
	CE2G100-50	Mounting: Head flange \| Bore: 100 mm \| Stroke: 50 mm
	CE2G100-75	Mounting: Head flange \| Bore: 100 mm \| Stroke: 75 mm
	CE2G100-100	Mounting: Head flange \| Bore: 100 mm \| Stroke: 100 mm
	CE2G100-125	Mounting: Head flange \| Bore: 100 mm \| Stroke: 125 mm
	CE2G100-150	Mounting: Head flange \| Bore: 100 mm \| Stroke: 150 mm
	CE2G100-200	Mounting: Head flange \| Bore: 100 mm \| Stroke: 200 mm
	CE2G100-250	Mounting: Head flange \| Bore: 100 mm \| Stroke: 250 mm
	CE2G100-300	Mounting: Head flange \| Bore: 100 mm \| Stroke: 300 mm
	CE2G100-350	Mounting: Head flange \| Bore: 100 mm \| Stroke: 350 mm
	CE2G100-400	Mounting: Head flange \| Bore: 100 mm \| Stroke: 400 mm
	CE2G100-450	Mounting: Head flange \| Bore: 100 mm \| Stroke: 450 mm
	CE2G100-500	Mounting: Head flange \| Bore: 100 mm \| Stroke: 500 mm
	CE2G100-600	Mounting: Head flange \| Bore: 100 mm \| Stroke: 600 mm
	CE2G100-700	Mounting: Head flange \| Bore: 100 mm \| Stroke: 700 mm
	CE2C40-25	Mounting: Single clevis \| Bore: 40 mm \| Stroke: 25 mm
	CE2C40-50	Mounting: Single clevis \| Bore: 40 mm \| Stroke: 50 mm
	CE2C40-75	Mounting: Single clevis \| Bore: 40 mm \| Stroke: 75 mm
	CE2C40-100	Mounting: Single clevis \| Bore: 40 mm \| Stroke: 100 mm
	CE2C40-125	Mounting: Single clevis \| Bore: 40 mm \| Stroke: 125 mm
	CE2C40-150	Mounting: Single clevis \| Bore: 40 mm \| Stroke: 150 mm
	CE2C40-200	Mounting: Single clevis \| Bore: 40 mm \| Stroke: 200 mm
	CE2C40-250	Mounting: Single clevis \| Bore: 40 mm \| Stroke: 250 mm
	CE2C40-300	Mounting: Single clevis \| Bore: 40 mm \| Stroke: 300 mm
	CE2C40-350	Mounting: Single clevis \| Bore: 40 mm \| Stroke: 350 mm
	CE2C40-400	Mounting: Single clevis \| Bore: 40 mm \| Stroke: 400 mm
	CE2C40-450	Mounting: Single clevis \| Bore: 40 mm \| Stroke: 450 mm
	CE2C40-500	Mounting: Single clevis \| Bore: 40 mm \| Stroke: 500 mm
	CE2C40-600	Mounting: Single clevis \| Bore: 40 mm \| Stroke: 600 mm
	CE2C40-700	Mounting: Single clevis \| Bore: 40 mm \| Stroke: 700 mm
	CE2C40-800	Mounting: Single clevis \| Bore: 40 mm \| Stroke: 800 mm
	CE2C50-25	Mounting: Single clevis \| Bore: 50 mm \| Stroke: 25 mm
	CE2C50-50	Mounting: Single clevis \| Bore: 50 mm \| Stroke: 50 mm
	CE2C50-75	Mounting: Single clevis \| Bore: 50 mm \| Stroke: 75 mm
	CE2C50-100	Mounting: Single clevis \| Bore: 50 mm \| Stroke: 100 mm
	CE2C50-125	Mounting: Single clevis \| Bore: 50 mm \| Stroke: 125 mm
	CE2C50-150	Mounting: Single clevis \| Bore: 50 mm \| Stroke: 150 mm
	CE2C50-200	Mounting: Single clevis \| Bore: 50 mm \| Stroke: 200 mm
	CE2C50-250	Mounting: Single clevis \| Bore: 50 mm \| Stroke: 250 mm
	CE2C50-300	Mounting: Single clevis \| Bore: 50 mm \| Stroke: 300 mm
	CE2C50-350	Mounting: Single clevis \| Bore: 50 mm \| Stroke: 350 mm
	CE2C50-400	Mounting: Single clevis \| Bore: 50 mm \| Stroke: 400 mm
	CE2C50-450	Mounting: Single clevis \| Bore: 50 mm \| Stroke: 450 mm
	CE2C50-500	Mounting: Single clevis \| Bore: 50 mm \| Stroke: 500 mm
	CE2C50-600	Mounting: Single clevis \| Bore: 50 mm \| Stroke: 600 mm
	CE2C50-700	Mounting: Single clevis \| Bore: 50 mm \| Stroke: 700 mm
	CE2C50-800	Mounting: Single clevis \| Bore: 50 mm \| Stroke: 800 mm
	CE2C63-25	Mounting: Single clevis \| Bore: 63 mm \| Stroke: 25 mm
	CE2C63-50	Mounting: Single clevis \| Bore: 63 mm \| Stroke: 50 mm
	CE2C63-75	Mounting: Single clevis \| Bore: 63 mm \| Stroke: 75 mm
	CE2C63-100	Mounting: Single clevis \| Bore: 63 mm \| Stroke: 100 mm
	CE2C63-125	Mounting: Single clevis \| Bore: 63 mm \| Stroke: 125 mm
	CE2C63-150	Mounting: Single clevis \| Bore: 63 mm \| Stroke: 150 mm
	CE2C63-200	Mounting: Single clevis \| Bore: 63 mm \| Stroke: 200 mm
	CE2C63-250	Mounting: Single clevis \| Bore: 63 mm \| Stroke: 250 mm
	CE2C63-300	Mounting: Single clevis \| Bore: 63 mm \| Stroke: 300 mm
	CE2C63-350	Mounting: Single clevis \| Bore: 63 mm \| Stroke: 350 mm
	CE2C63-400	Mounting: Single clevis \| Bore: 63 mm \| Stroke: 400 mm
	CE2C63-450	Mounting: Single clevis \| Bore: 63 mm \| Stroke: 450 mm
	CE2C63-500	Mounting: Single clevis \| Bore: 63 mm \| Stroke: 500 mm
	CE2C63-600	Mounting: Single clevis \| Bore: 63 mm \| Stroke: 600 mm
	CE2C63-700	Mounting: Single clevis \| Bore: 63 mm \| Stroke: 700 mm
	CE2C63-800	Mounting: Single clevis \| Bore: 63 mm \| Stroke: 800 mm
	CE2C80-25	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 25 mm
	CE2C80-50	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 50 mm
	CE2C80-75	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 75 mm
	CE2C80-100	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 100 mm
	CE2C80-125	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 125 mm
	CE2C80-150	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 150 mm
	CE2C80-200	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 200 mm
	CE2C80-250	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 250 mm
	CE2C80-300	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 300 mm
	CE2C80-350	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 350 mm
	CE2C80-400	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 400 mm
	CE2C80-450	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 450 mm
	CE2C80-500	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 500 mm
	CE2C80-600	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 600 mm
	CE2C80-700	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 700 mm
	CE2C100-25	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 25 mm
	CE2C100-50	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 50 mm
	CE2C100-75	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 75 mm
	CE2C100-100	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 100 mm
	CE2C100-125	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 125 mm
	CE2C100-150	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 150 mm
	CE2C100-200	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 200 mm
	CE2C100-250	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 250 mm
	CE2C100-300	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 300 mm
	CE2C100-350	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 350 mm
	CE2C100-400	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 400 mm
	CE2C100-450	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 450 mm
	CE2C100-500	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 500 mm
	CE2C100-600	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 600 mm
	CE2C100-700	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 700 mm
	CE2D40-25	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 25 mm
	CE2D40-50	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 50 mm
	CE2D40-75	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 75 mm
	CE2D40-100	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 100 mm
	CE2D40-125	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 125 mm
	CE2D40-150	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 150 mm
	CE2D40-200	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 200 mm
	CE2D40-250	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 250 mm
	CE2D40-300	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 300 mm
	CE2D40-350	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 350 mm
	CE2D40-400	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 400 mm
	CE2D40-450	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 450 mm
	CE2D40-500	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 500 mm
	CE2D40-600	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 600 mm
	CE2D40-700	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 700 mm
	CE2D40-800	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 800 mm
	CE2D50-25	Mounting: Double clevis \| Bore: 50 mm \| Stroke: 25 mm
	CE2D50-50	Mounting: Double clevis \| Bore: 50 mm \| Stroke: 50 mm
	CE2D50-75	Mounting: Double clevis \| Bore: 50 mm \| Stroke: 75 mm
	CE2D50-100	Mounting: Double clevis \| Bore: 50 mm \| Stroke: 100 mm
	CE2D50-125	Mounting: Double clevis \| Bore: 50 mm \| Stroke: 125 mm
	CE2D50-150	Mounting: Double clevis \| Bore: 50 mm \| Stroke: 150 mm
	CE2D50-200	Mounting: Double clevis \| Bore: 50 mm \| Stroke: 200 mm
	CE2D50-250	Mounting: Double clevis \| Bore: 50 mm \| Stroke: 250 mm
	CE2D50-300	Mounting: Double clevis \| Bore: 50 mm \| Stroke: 300 mm
	CE2D50-350	Mounting: Double clevis \| Bore: 50 mm \| Stroke: 350 mm
	CE2D50-400	Mounting: Double clevis \| Bore: 50 mm \| Stroke: 400 mm
	CE2D50-450	Mounting: Double clevis \| Bore: 50 mm \| Stroke: 450 mm
	CE2D50-500	Mounting: Double clevis \| Bore: 50 mm \| Stroke: 500 mm
	CE2D50-600	Mounting: Double clevis \| Bore: 50 mm \| Stroke: 600 mm
	CE2D50-700	Mounting: Double clevis \| Bore: 50 mm \| Stroke: 700 mm
	CE2D50-800	Mounting: Double clevis \| Bore: 50 mm \| Stroke: 800 mm
	CE2D63-25	Mounting: Double clevis \| Bore: 63 mm \| Stroke: 25 mm
	CE2D63-50	Mounting: Double clevis \| Bore: 63 mm \| Stroke: 50 mm
	CE2D63-75	Mounting: Double clevis \| Bore: 63 mm \| Stroke: 75 mm
	CE2D63-100	Mounting: Double clevis \| Bore: 63 mm \| Stroke: 100 mm
	CE2D63-125	Mounting: Double clevis \| Bore: 63 mm \| Stroke: 125 mm
	CE2D63-150	Mounting: Double clevis \| Bore: 63 mm \| Stroke: 150 mm
	CE2D63-200	Mounting: Double clevis \| Bore: 63 mm \| Stroke: 200 mm
	CE2D63-250	Mounting: Double clevis \| Bore: 63 mm \| Stroke: 250 mm
	CE2D63-300	Mounting: Double clevis \| Bore: 63 mm \| Stroke: 300 mm
	CE2D63-350	Mounting: Double clevis \| Bore: 63 mm \| Stroke: 350 mm
	CE2D63-400	Mounting: Double clevis \| Bore: 63 mm \| Stroke: 400 mm
	CE2D63-450	Mounting: Double clevis \| Bore: 63 mm \| Stroke: 450 mm
	CE2D63-500	Mounting: Double clevis \| Bore: 63 mm \| Stroke: 500 mm
	CE2D63-600	Mounting: Double clevis \| Bore: 63 mm \| Stroke: 600 mm
	CE2D63-700	Mounting: Double clevis \| Bore: 63 mm \| Stroke: 700 mm
	CE2D63-800	Mounting: Double clevis \| Bore: 63 mm \| Stroke: 800 mm
	CE2D80-25	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 25 mm
	CE2D80-50	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 50 mm
	CE2D80-75	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 75 mm
	CE2D80-100	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 100 mm
	CE2D80-125	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 125 mm
	CE2D80-150	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 150 mm
	CE2D80-200	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 200 mm
	CE2D80-250	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 250 mm
	CE2D80-300	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 300 mm
	CE2D80-350	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 350 mm
	CE2D80-400	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 400 mm
	CE2D80-450	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 450 mm
	CE2D80-500	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 500 mm
	CE2D80-600	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 600 mm
	CE2D80-700	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 700 mm
	CE2D100-25	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 25 mm
	CE2D100-50	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 50 mm
	CE2D100-75	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 75 mm
	CE2D100-100	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 100 mm
	CE2D100-125	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 125 mm
	CE2D100-150	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 150 mm
	CE2D100-200	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 200 mm
	CE2D100-250	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 250 mm
	CE2D100-300	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 300 mm
	CE2D100-350	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 350 mm
	CE2D100-400	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 400 mm
	CE2D100-450	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 450 mm
	CE2D100-500	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 500 mm
	CE2D100-600	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 600 mm
	CE2D100-700	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 700 mm
	CE2T40-25	Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 25 mm
	CE2T40-50	Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 50 mm
	CE2T40-75	Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 75 mm
	CE2T40-100	Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 100 mm
	CE2T40-125	Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 125 mm
	CE2T40-150	Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 150 mm
	CE2T40-200	Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 200 mm
	CE2T40-250	Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 250 mm
	CE2T40-300	Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 300 mm
	CE2T40-350	Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 350 mm
	CE2T40-400	Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 400 mm
	CE2T40-450	Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 450 mm
	CE2T40-500	Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 500 mm
	CE2T40-600	Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 600 mm
	CE2T40-700	Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 700 mm
	CE2T40-800	Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 800 mm
	CE2T50-25	Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 25 mm
	CE2T50-50	Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 50 mm
	CE2T50-75	Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 75 mm
	CE2T50-100	Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 100 mm
	CE2T50-125	Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 125 mm
	CE2T50-150	Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 150 mm
	CE2T50-200	Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 200 mm
	CE2T50-250	Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 250 mm
	CE2T50-300	Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 300 mm
	CE2T50-350	Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 350 mm
	CE2T50-400	Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 400 mm
	CE2T50-450	Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 450 mm
	CE2T50-500	Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 500 mm
	CE2T50-600	Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 600 mm
	CE2T50-700	Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 700 mm
	CE2T50-800	Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 800 mm
	CE2T63-25	Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 25 mm
	CE2T63-50	Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 50 mm
	CE2T63-75	Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 75 mm
	CE2T63-100	Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 100 mm
	CE2T63-125	Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 125 mm
	CE2T63-150	Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 150 mm
	CE2T63-200	Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 200 mm
	CE2T63-250	Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 250 mm
	CE2T63-300	Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 300 mm
	CE2T63-350	Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 350 mm
	CE2T63-400	Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 400 mm
	CE2T63-450	Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 450 mm
	CE2T63-500	Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 500 mm
	CE2T63-600	Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 600 mm
	CE2T63-700	Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 700 mm
	CE2T63-800	Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 800 mm
	CE2T80-25	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 25 mm
	CE2T80-50	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 50 mm
	CE2T80-75	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 75 mm
	CE2T80-100	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 100 mm
	CE2T80-125	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 125 mm
	CE2T80-150	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 150 mm
	CE2T80-200	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 200 mm
	CE2T80-250	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 250 mm
	CE2T80-300	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 300 mm
	CE2T80-350	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 350 mm
	CE2T80-400	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 400 mm
	CE2T80-450	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 450 mm
	CE2T80-500	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 500 mm
	CE2T80-600	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 600 mm
	CE2T80-700	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 700 mm
	CE2T100-25	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 25 mm
	CE2T100-50	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 50 mm
	CE2T100-75	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 75 mm
	CE2T100-100	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 100 mm
	CE2T100-125	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 125 mm
	CE2T100-150	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 150 mm
	CE2T100-200	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 200 mm
	CE2T100-250	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 250 mm
	CE2T100-300	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 300 mm
	CE2T100-350	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 350 mm
	CE2T100-400	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 400 mm
	CE2T100-450	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 450 mm
	CE2T100-500	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 500 mm
	CE2T100-600	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 600 mm
	CE2T100-700	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 700 mm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

SMC CE2 Scale Cylinder with Brake (40 to 100 mm)
