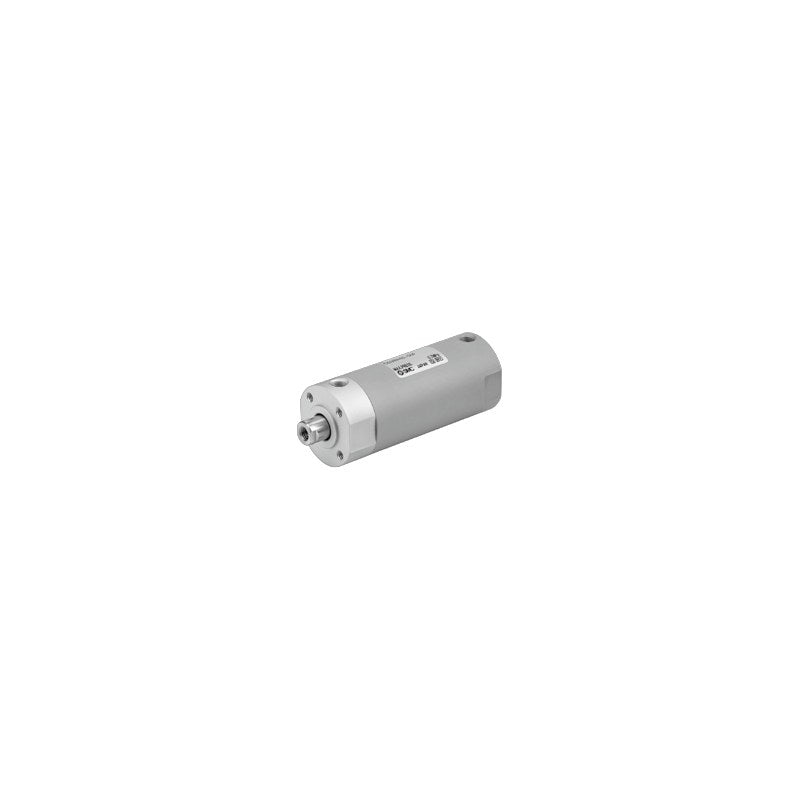

SMC CG3 Air Cylinder Short Type (Double Acting, ø20 to ø100)

SMC CG3 series short-type air cylinder, double acting, single rod, ø20 to ø100 mm bore, with a new structure cutting overall length by up to 51 mm and weight by up to 24% versus the CG1.

Key features

Overall length up to 51 mm shorter and weight up to 24% lower than the CG1 series
Five mounting styles: basic, foot, rod flange, head flange and clevis
Rubber cushion; ports M5x0.8 (ø20, ø25), Rc1/8 (ø32, ø40), Rc1/4 (ø50 to ø80), Rc3/8 (ø100)
Female rod end (F), long male rod end (G, same as CG1), auto switches and switch band (C) ordered as suffixes
Standard strokes ø20: 25 to 200 mm; ø25 to ø100: 25 to 300 mm

Specifications

Action	Double acting, single rod
Fluid	Air
Proof pressure	1.0 MPa
Max. operating pressure	0.7 MPa
Min. operating pressure	0.05 MPa
Ambient and fluid temperature	-10 to 70°C (with auto switch -10 to 60°C), no freezing
Lubrication	Not required (non-lube)
Piston speed	50 to 1000 mm/s (ø80, ø100: 30 to 700 mm/s)
Cushion	Rubber cushion
Stroke length tolerance	+1.4/0 mm
Source	SMC Korea catalog CG3 series (SMCKR_CG3.pdf), p. 451, 453-454

CG3BN20-25		Mounting: Basic \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: M5x0.8
CG3BN20-50		Mounting: Basic \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: M5x0.8
CG3BN20-75		Mounting: Basic \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Port: M5x0.8
CG3BN20-100		Mounting: Basic \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: M5x0.8
CG3BN20-125		Mounting: Basic \| Bore: ø20 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: M5x0.8
CG3BN20-150		Mounting: Basic \| Bore: ø20 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: M5x0.8
CG3BN20-200		Mounting: Basic \| Bore: ø20 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: M5x0.8
CG3BN25-25		Mounting: Basic \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: M5x0.8
CG3BN25-50		Mounting: Basic \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: M5x0.8
CG3BN25-75		Mounting: Basic \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Port: M5x0.8
CG3BN25-100		Mounting: Basic \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: M5x0.8
CG3BN25-125		Mounting: Basic \| Bore: ø25 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: M5x0.8
CG3BN25-150		Mounting: Basic \| Bore: ø25 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: M5x0.8
CG3BN25-200		Mounting: Basic \| Bore: ø25 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: M5x0.8
CG3BN25-250		Mounting: Basic \| Bore: ø25 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: M5x0.8
CG3BN25-300		Mounting: Basic \| Bore: ø25 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: M5x0.8
CG3BN32-25		Mounting: Basic \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: Rc1/8
CG3BN32-50		Mounting: Basic \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: Rc1/8
CG3BN32-75		Mounting: Basic \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Port: Rc1/8
CG3BN32-100		Mounting: Basic \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/8
CG3BN32-125		Mounting: Basic \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: Rc1/8
CG3BN32-150		Mounting: Basic \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc1/8
CG3BN32-200		Mounting: Basic \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/8
CG3BN32-250		Mounting: Basic \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc1/8
CG3BN32-300		Mounting: Basic \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/8
CG3BN40-25		Mounting: Basic \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: Rc1/8
CG3BN40-50		Mounting: Basic \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: Rc1/8
CG3BN40-75		Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Port: Rc1/8
CG3BN40-100		Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/8
CG3BN40-125		Mounting: Basic \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: Rc1/8
CG3BN40-150		Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc1/8
CG3BN40-200		Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/8
CG3BN40-250		Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc1/8
CG3BN40-300		Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/8
CG3BN50-25		Mounting: Basic \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3BN50-50		Mounting: Basic \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3BN50-75		Mounting: Basic \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3BN50-100		Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3BN50-125		Mounting: Basic \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3BN50-150		Mounting: Basic \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3BN50-200		Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3BN50-250		Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3BN50-300		Mounting: Basic \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3BN63-25		Mounting: Basic \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3BN63-50		Mounting: Basic \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3BN63-75		Mounting: Basic \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3BN63-100		Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3BN63-125		Mounting: Basic \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3BN63-150		Mounting: Basic \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3BN63-200		Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3BN63-250		Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3BN63-300		Mounting: Basic \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3BN80-25		Mounting: Basic \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3BN80-50		Mounting: Basic \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3BN80-75		Mounting: Basic \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3BN80-100		Mounting: Basic \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3BN80-125		Mounting: Basic \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3BN80-150		Mounting: Basic \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3BN80-200		Mounting: Basic \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3BN80-250		Mounting: Basic \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3BN80-300		Mounting: Basic \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3BN100-25		Mounting: Basic \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: Rc3/8
CG3BN100-50		Mounting: Basic \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: Rc3/8
CG3BN100-75		Mounting: Basic \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Port: Rc3/8
CG3BN100-100		Mounting: Basic \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/8
CG3BN100-125		Mounting: Basic \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: Rc3/8
CG3BN100-150		Mounting: Basic \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc3/8
CG3BN100-200		Mounting: Basic \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/8
CG3BN100-250		Mounting: Basic \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc3/8
CG3BN100-300		Mounting: Basic \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/8
CG3LN20-25		Mounting: Foot \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: M5x0.8
CG3LN20-50		Mounting: Foot \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: M5x0.8
CG3LN20-75		Mounting: Foot \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Port: M5x0.8
CG3LN20-100		Mounting: Foot \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: M5x0.8
CG3LN20-125		Mounting: Foot \| Bore: ø20 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: M5x0.8
CG3LN20-150		Mounting: Foot \| Bore: ø20 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: M5x0.8
CG3LN20-200		Mounting: Foot \| Bore: ø20 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: M5x0.8
CG3LN25-25		Mounting: Foot \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: M5x0.8
CG3LN25-50		Mounting: Foot \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: M5x0.8
CG3LN25-75		Mounting: Foot \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Port: M5x0.8
CG3LN25-100		Mounting: Foot \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: M5x0.8
CG3LN25-125		Mounting: Foot \| Bore: ø25 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: M5x0.8
CG3LN25-150		Mounting: Foot \| Bore: ø25 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: M5x0.8
CG3LN25-200		Mounting: Foot \| Bore: ø25 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: M5x0.8
CG3LN25-250		Mounting: Foot \| Bore: ø25 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: M5x0.8
CG3LN25-300		Mounting: Foot \| Bore: ø25 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: M5x0.8
CG3LN32-25		Mounting: Foot \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: Rc1/8
CG3LN32-50		Mounting: Foot \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: Rc1/8
CG3LN32-75		Mounting: Foot \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Port: Rc1/8
CG3LN32-100		Mounting: Foot \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/8
CG3LN32-125		Mounting: Foot \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: Rc1/8
CG3LN32-150		Mounting: Foot \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc1/8
CG3LN32-200		Mounting: Foot \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/8
CG3LN32-250		Mounting: Foot \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc1/8
CG3LN32-300		Mounting: Foot \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/8
CG3LN40-25		Mounting: Foot \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: Rc1/8
CG3LN40-50		Mounting: Foot \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: Rc1/8
CG3LN40-75		Mounting: Foot \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Port: Rc1/8
CG3LN40-100		Mounting: Foot \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/8
CG3LN40-125		Mounting: Foot \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: Rc1/8
CG3LN40-150		Mounting: Foot \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc1/8
CG3LN40-200		Mounting: Foot \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/8
CG3LN40-250		Mounting: Foot \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc1/8
CG3LN40-300		Mounting: Foot \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/8
CG3LN50-25		Mounting: Foot \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3LN50-50		Mounting: Foot \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3LN50-75		Mounting: Foot \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3LN50-100		Mounting: Foot \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3LN50-125		Mounting: Foot \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3LN50-150		Mounting: Foot \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3LN50-200		Mounting: Foot \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3LN50-250		Mounting: Foot \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3LN50-300		Mounting: Foot \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3LN63-25		Mounting: Foot \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3LN63-50		Mounting: Foot \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3LN63-75		Mounting: Foot \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3LN63-100		Mounting: Foot \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3LN63-125		Mounting: Foot \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3LN63-150		Mounting: Foot \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3LN63-200		Mounting: Foot \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3LN63-250		Mounting: Foot \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3LN63-300		Mounting: Foot \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3LN80-25		Mounting: Foot \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3LN80-50		Mounting: Foot \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3LN80-75		Mounting: Foot \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3LN80-100		Mounting: Foot \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3LN80-125		Mounting: Foot \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3LN80-150		Mounting: Foot \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3LN80-200		Mounting: Foot \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3LN80-250		Mounting: Foot \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3LN80-300		Mounting: Foot \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3LN100-25		Mounting: Foot \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: Rc3/8
CG3LN100-50		Mounting: Foot \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: Rc3/8
CG3LN100-75		Mounting: Foot \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Port: Rc3/8
CG3LN100-100		Mounting: Foot \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/8
CG3LN100-125		Mounting: Foot \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: Rc3/8
CG3LN100-150		Mounting: Foot \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc3/8
CG3LN100-200		Mounting: Foot \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/8
CG3LN100-250		Mounting: Foot \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc3/8
CG3LN100-300		Mounting: Foot \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/8
CG3FN20-25		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: M5x0.8
CG3FN20-50		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: M5x0.8
CG3FN20-75		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Port: M5x0.8
CG3FN20-100		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: M5x0.8
CG3FN20-125		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: M5x0.8
CG3FN20-150		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: M5x0.8
CG3FN20-200		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: M5x0.8
CG3FN25-25		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: M5x0.8
CG3FN25-50		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: M5x0.8
CG3FN25-75		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Port: M5x0.8
CG3FN25-100		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: M5x0.8
CG3FN25-125		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: M5x0.8
CG3FN25-150		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: M5x0.8
CG3FN25-200		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: M5x0.8
CG3FN25-250		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: M5x0.8
CG3FN25-300		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: M5x0.8
CG3FN32-25		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: Rc1/8
CG3FN32-50		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: Rc1/8
CG3FN32-75		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Port: Rc1/8
CG3FN32-100		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/8
CG3FN32-125		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: Rc1/8
CG3FN32-150		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc1/8
CG3FN32-200		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/8
CG3FN32-250		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc1/8
CG3FN32-300		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/8
CG3FN40-25		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: Rc1/8
CG3FN40-50		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: Rc1/8
CG3FN40-75		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Port: Rc1/8
CG3FN40-100		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/8
CG3FN40-125		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: Rc1/8
CG3FN40-150		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc1/8
CG3FN40-200		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/8
CG3FN40-250		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc1/8
CG3FN40-300		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/8
CG3FN50-25		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3FN50-50		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3FN50-75		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3FN50-100		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3FN50-125		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3FN50-150		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3FN50-200		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3FN50-250		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3FN50-300		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3FN63-25		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3FN63-50		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3FN63-75		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3FN63-100		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3FN63-125		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3FN63-150		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3FN63-200		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3FN63-250		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3FN63-300		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3FN80-25		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3FN80-50		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3FN80-75		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3FN80-100		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3FN80-125		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3FN80-150		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3FN80-200		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3FN80-250		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3FN80-300		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3FN100-25		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: Rc3/8
CG3FN100-50		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: Rc3/8
CG3FN100-75		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Port: Rc3/8
CG3FN100-100		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/8
CG3FN100-125		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: Rc3/8
CG3FN100-150		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc3/8
CG3FN100-200		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/8
CG3FN100-250		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc3/8
CG3FN100-300		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/8
CG3GN20-25		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: M5x0.8
CG3GN20-50		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: M5x0.8
CG3GN20-75		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Port: M5x0.8
CG3GN20-100		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: M5x0.8
CG3GN20-125		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: M5x0.8
CG3GN20-150		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: M5x0.8
CG3GN20-200		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: M5x0.8
CG3GN25-25		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: M5x0.8
CG3GN25-50		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: M5x0.8
CG3GN25-75		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Port: M5x0.8
CG3GN25-100		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: M5x0.8
CG3GN25-125		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: M5x0.8
CG3GN25-150		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: M5x0.8
CG3GN25-200		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: M5x0.8
CG3GN25-250		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: M5x0.8
CG3GN25-300		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: M5x0.8
CG3GN32-25		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: Rc1/8
CG3GN32-50		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: Rc1/8
CG3GN32-75		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Port: Rc1/8
CG3GN32-100		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/8
CG3GN32-125		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: Rc1/8
CG3GN32-150		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc1/8
CG3GN32-200		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/8
CG3GN32-250		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc1/8
CG3GN32-300		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/8
CG3GN40-25		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: Rc1/8
CG3GN40-50		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: Rc1/8
CG3GN40-75		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Port: Rc1/8
CG3GN40-100		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/8
CG3GN40-125		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: Rc1/8
CG3GN40-150		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc1/8
CG3GN40-200		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/8
CG3GN40-250		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc1/8
CG3GN40-300		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/8
CG3GN50-25		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3GN50-50		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3GN50-75		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3GN50-100		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3GN50-125		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3GN50-150		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3GN50-200		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3GN50-250		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3GN50-300		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3GN63-25		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3GN63-50		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3GN63-75		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3GN63-100		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3GN63-125		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3GN63-150		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3GN63-200		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3GN63-250		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3GN63-300		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3GN80-25		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3GN80-50		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3GN80-75		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3GN80-100		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3GN80-125		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3GN80-150		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3GN80-200		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3GN80-250		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3GN80-300		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3GN100-25		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: Rc3/8
CG3GN100-50		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: Rc3/8
CG3GN100-75		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Port: Rc3/8
CG3GN100-100		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/8
CG3GN100-125		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: Rc3/8
CG3GN100-150		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc3/8
CG3GN100-200		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/8
CG3GN100-250		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc3/8
CG3GN100-300		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/8
CG3DN20-25		Mounting: Clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: M5x0.8
CG3DN20-50		Mounting: Clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: M5x0.8
CG3DN20-75		Mounting: Clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Port: M5x0.8
CG3DN20-100		Mounting: Clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: M5x0.8
CG3DN20-125		Mounting: Clevis \| Bore: ø20 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: M5x0.8
CG3DN20-150		Mounting: Clevis \| Bore: ø20 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: M5x0.8
CG3DN20-200		Mounting: Clevis \| Bore: ø20 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: M5x0.8
CG3DN25-25		Mounting: Clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: M5x0.8
CG3DN25-50		Mounting: Clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: M5x0.8
CG3DN25-75		Mounting: Clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Port: M5x0.8
CG3DN25-100		Mounting: Clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: M5x0.8
CG3DN25-125		Mounting: Clevis \| Bore: ø25 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: M5x0.8
CG3DN25-150		Mounting: Clevis \| Bore: ø25 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: M5x0.8
CG3DN25-200		Mounting: Clevis \| Bore: ø25 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: M5x0.8
CG3DN25-250		Mounting: Clevis \| Bore: ø25 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: M5x0.8
CG3DN25-300		Mounting: Clevis \| Bore: ø25 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: M5x0.8
CG3DN32-25		Mounting: Clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: Rc1/8
CG3DN32-50		Mounting: Clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: Rc1/8
CG3DN32-75		Mounting: Clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Port: Rc1/8
CG3DN32-100		Mounting: Clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/8
CG3DN32-125		Mounting: Clevis \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: Rc1/8
CG3DN32-150		Mounting: Clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc1/8
CG3DN32-200		Mounting: Clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/8
CG3DN32-250		Mounting: Clevis \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc1/8
CG3DN32-300		Mounting: Clevis \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/8
CG3DN40-25		Mounting: Clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: Rc1/8
CG3DN40-50		Mounting: Clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: Rc1/8
CG3DN40-75		Mounting: Clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Port: Rc1/8
CG3DN40-100		Mounting: Clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/8
CG3DN40-125		Mounting: Clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: Rc1/8
CG3DN40-150		Mounting: Clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc1/8
CG3DN40-200		Mounting: Clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/8
CG3DN40-250		Mounting: Clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc1/8
CG3DN40-300		Mounting: Clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/8
CG3DN50-25		Mounting: Clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3DN50-50		Mounting: Clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3DN50-75		Mounting: Clevis \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3DN50-100		Mounting: Clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3DN50-125		Mounting: Clevis \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3DN50-150		Mounting: Clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3DN50-200		Mounting: Clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3DN50-250		Mounting: Clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3DN50-300		Mounting: Clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3DN63-25		Mounting: Clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3DN63-50		Mounting: Clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3DN63-75		Mounting: Clevis \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3DN63-100		Mounting: Clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3DN63-125		Mounting: Clevis \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3DN63-150		Mounting: Clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3DN63-200		Mounting: Clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3DN63-250		Mounting: Clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3DN63-300		Mounting: Clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3DN80-25		Mounting: Clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3DN80-50		Mounting: Clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3DN80-75		Mounting: Clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3DN80-100		Mounting: Clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3DN80-125		Mounting: Clevis \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3DN80-150		Mounting: Clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3DN80-200		Mounting: Clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3DN80-250		Mounting: Clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3DN80-300		Mounting: Clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/4
CG3DN100-25		Mounting: Clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: Rc3/8
CG3DN100-50		Mounting: Clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: Rc3/8
CG3DN100-75		Mounting: Clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Port: Rc3/8
CG3DN100-100		Mounting: Clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/8
CG3DN100-125		Mounting: Clevis \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: Rc3/8
CG3DN100-150		Mounting: Clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc3/8
CG3DN100-200		Mounting: Clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/8
CG3DN100-250		Mounting: Clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc3/8
CG3DN100-300		Mounting: Clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/8
CDG3BN20-25		Mounting: Basic \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: M5x0.8
CDG3BN20-50		Mounting: Basic \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: M5x0.8
CDG3BN20-75		Mounting: Basic \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: Yes \| Port: M5x0.8
CDG3BN20-100		Mounting: Basic \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: M5x0.8
CDG3BN20-125		Mounting: Basic \| Bore: ø20 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: M5x0.8
CDG3BN20-150		Mounting: Basic \| Bore: ø20 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: M5x0.8
CDG3BN20-200		Mounting: Basic \| Bore: ø20 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: M5x0.8
CDG3BN25-25		Mounting: Basic \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: M5x0.8
CDG3BN25-50		Mounting: Basic \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: M5x0.8
CDG3BN25-75		Mounting: Basic \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: Yes \| Port: M5x0.8
CDG3BN25-100		Mounting: Basic \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: M5x0.8
CDG3BN25-125		Mounting: Basic \| Bore: ø25 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: M5x0.8
CDG3BN25-150		Mounting: Basic \| Bore: ø25 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: M5x0.8
CDG3BN25-200		Mounting: Basic \| Bore: ø25 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: M5x0.8
CDG3BN25-250		Mounting: Basic \| Bore: ø25 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: M5x0.8
CDG3BN25-300		Mounting: Basic \| Bore: ø25 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: M5x0.8
CDG3BN32-25		Mounting: Basic \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: Rc1/8
CDG3BN32-50		Mounting: Basic \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: Rc1/8
CDG3BN32-75		Mounting: Basic \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes \| Port: Rc1/8
CDG3BN32-100		Mounting: Basic \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/8
CDG3BN32-125		Mounting: Basic \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: Rc1/8
CDG3BN32-150		Mounting: Basic \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc1/8
CDG3BN32-200		Mounting: Basic \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/8
CDG3BN32-250		Mounting: Basic \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc1/8
CDG3BN32-300		Mounting: Basic \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/8
CDG3BN40-25		Mounting: Basic \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: Rc1/8
CDG3BN40-50		Mounting: Basic \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: Rc1/8
CDG3BN40-75		Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes \| Port: Rc1/8
CDG3BN40-100		Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/8
CDG3BN40-125		Mounting: Basic \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: Rc1/8
CDG3BN40-150		Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc1/8
CDG3BN40-200		Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/8
CDG3BN40-250		Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc1/8
CDG3BN40-300		Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/8
CDG3BN50-25		Mounting: Basic \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3BN50-50		Mounting: Basic \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3BN50-75		Mounting: Basic \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3BN50-100		Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3BN50-125		Mounting: Basic \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3BN50-150		Mounting: Basic \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3BN50-200		Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3BN50-250		Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3BN50-300		Mounting: Basic \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3BN63-25		Mounting: Basic \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3BN63-50		Mounting: Basic \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3BN63-75		Mounting: Basic \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3BN63-100		Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3BN63-125		Mounting: Basic \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3BN63-150		Mounting: Basic \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3BN63-200		Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3BN63-250		Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3BN63-300		Mounting: Basic \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3BN80-25		Mounting: Basic \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3BN80-50		Mounting: Basic \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3BN80-75		Mounting: Basic \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3BN80-100		Mounting: Basic \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3BN80-125		Mounting: Basic \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3BN80-150		Mounting: Basic \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3BN80-200		Mounting: Basic \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3BN80-250		Mounting: Basic \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3BN80-300		Mounting: Basic \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3BN100-25		Mounting: Basic \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: Rc3/8
CDG3BN100-50		Mounting: Basic \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: Rc3/8
CDG3BN100-75		Mounting: Basic \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes \| Port: Rc3/8
CDG3BN100-100		Mounting: Basic \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/8
CDG3BN100-125		Mounting: Basic \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: Rc3/8
CDG3BN100-150		Mounting: Basic \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc3/8
CDG3BN100-200		Mounting: Basic \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/8
CDG3BN100-250		Mounting: Basic \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc3/8
CDG3BN100-300		Mounting: Basic \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/8
CDG3LN20-25		Mounting: Foot \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: M5x0.8
CDG3LN20-50		Mounting: Foot \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: M5x0.8
CDG3LN20-75		Mounting: Foot \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: Yes \| Port: M5x0.8
CDG3LN20-100		Mounting: Foot \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: M5x0.8
CDG3LN20-125		Mounting: Foot \| Bore: ø20 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: M5x0.8
CDG3LN20-150		Mounting: Foot \| Bore: ø20 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: M5x0.8
CDG3LN20-200		Mounting: Foot \| Bore: ø20 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: M5x0.8
CDG3LN25-25		Mounting: Foot \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: M5x0.8
CDG3LN25-50		Mounting: Foot \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: M5x0.8
CDG3LN25-75		Mounting: Foot \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: Yes \| Port: M5x0.8
CDG3LN25-100		Mounting: Foot \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: M5x0.8
CDG3LN25-125		Mounting: Foot \| Bore: ø25 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: M5x0.8
CDG3LN25-150		Mounting: Foot \| Bore: ø25 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: M5x0.8
CDG3LN25-200		Mounting: Foot \| Bore: ø25 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: M5x0.8
CDG3LN25-250		Mounting: Foot \| Bore: ø25 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: M5x0.8
CDG3LN25-300		Mounting: Foot \| Bore: ø25 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: M5x0.8
CDG3LN32-25		Mounting: Foot \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: Rc1/8
CDG3LN32-50		Mounting: Foot \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: Rc1/8
CDG3LN32-75		Mounting: Foot \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes \| Port: Rc1/8
CDG3LN32-100		Mounting: Foot \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/8
CDG3LN32-125		Mounting: Foot \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: Rc1/8
CDG3LN32-150		Mounting: Foot \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc1/8
CDG3LN32-200		Mounting: Foot \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/8
CDG3LN32-250		Mounting: Foot \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc1/8
CDG3LN32-300		Mounting: Foot \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/8
CDG3LN40-25		Mounting: Foot \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: Rc1/8
CDG3LN40-50		Mounting: Foot \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: Rc1/8
CDG3LN40-75		Mounting: Foot \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes \| Port: Rc1/8
CDG3LN40-100		Mounting: Foot \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/8
CDG3LN40-125		Mounting: Foot \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: Rc1/8
CDG3LN40-150		Mounting: Foot \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc1/8
CDG3LN40-200		Mounting: Foot \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/8
CDG3LN40-250		Mounting: Foot \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc1/8
CDG3LN40-300		Mounting: Foot \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/8
CDG3LN50-25		Mounting: Foot \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3LN50-50		Mounting: Foot \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3LN50-75		Mounting: Foot \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3LN50-100		Mounting: Foot \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3LN50-125		Mounting: Foot \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3LN50-150		Mounting: Foot \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3LN50-200		Mounting: Foot \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3LN50-250		Mounting: Foot \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3LN50-300		Mounting: Foot \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3LN63-25		Mounting: Foot \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3LN63-50		Mounting: Foot \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3LN63-75		Mounting: Foot \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3LN63-100		Mounting: Foot \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3LN63-125		Mounting: Foot \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3LN63-150		Mounting: Foot \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3LN63-200		Mounting: Foot \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3LN63-250		Mounting: Foot \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3LN63-300		Mounting: Foot \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3LN80-25		Mounting: Foot \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3LN80-50		Mounting: Foot \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3LN80-75		Mounting: Foot \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3LN80-100		Mounting: Foot \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3LN80-125		Mounting: Foot \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3LN80-150		Mounting: Foot \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3LN80-200		Mounting: Foot \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3LN80-250		Mounting: Foot \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3LN80-300		Mounting: Foot \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3LN100-25		Mounting: Foot \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: Rc3/8
CDG3LN100-50		Mounting: Foot \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: Rc3/8
CDG3LN100-75		Mounting: Foot \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes \| Port: Rc3/8
CDG3LN100-100		Mounting: Foot \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/8
CDG3LN100-125		Mounting: Foot \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: Rc3/8
CDG3LN100-150		Mounting: Foot \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc3/8
CDG3LN100-200		Mounting: Foot \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/8
CDG3LN100-250		Mounting: Foot \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc3/8
CDG3LN100-300		Mounting: Foot \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/8
CDG3FN20-25		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: M5x0.8
CDG3FN20-50		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: M5x0.8
CDG3FN20-75		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: Yes \| Port: M5x0.8
CDG3FN20-100		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: M5x0.8
CDG3FN20-125		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: M5x0.8
CDG3FN20-150		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: M5x0.8
CDG3FN20-200		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: M5x0.8
CDG3FN25-25		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: M5x0.8
CDG3FN25-50		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: M5x0.8
CDG3FN25-75		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: Yes \| Port: M5x0.8
CDG3FN25-100		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: M5x0.8
CDG3FN25-125		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: M5x0.8
CDG3FN25-150		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: M5x0.8
CDG3FN25-200		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: M5x0.8
CDG3FN25-250		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: M5x0.8
CDG3FN25-300		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: M5x0.8
CDG3FN32-25		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: Rc1/8
CDG3FN32-50		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: Rc1/8
CDG3FN32-75		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes \| Port: Rc1/8
CDG3FN32-100		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/8
CDG3FN32-125		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: Rc1/8
CDG3FN32-150		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc1/8
CDG3FN32-200		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/8
CDG3FN32-250		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc1/8
CDG3FN32-300		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/8
CDG3FN40-25		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: Rc1/8
CDG3FN40-50		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: Rc1/8
CDG3FN40-75		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes \| Port: Rc1/8
CDG3FN40-100		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/8
CDG3FN40-125		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: Rc1/8
CDG3FN40-150		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc1/8
CDG3FN40-200		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/8
CDG3FN40-250		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc1/8
CDG3FN40-300		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/8
CDG3FN50-25		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3FN50-50		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3FN50-75		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3FN50-100		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3FN50-125		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3FN50-150		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3FN50-200		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3FN50-250		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3FN50-300		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3FN63-25		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3FN63-50		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3FN63-75		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3FN63-100		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3FN63-125		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3FN63-150		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3FN63-200		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3FN63-250		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3FN63-300		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3FN80-25		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3FN80-50		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3FN80-75		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3FN80-100		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3FN80-125		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3FN80-150		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3FN80-200		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3FN80-250		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3FN80-300		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3FN100-25		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: Rc3/8
CDG3FN100-50		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: Rc3/8
CDG3FN100-75		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes \| Port: Rc3/8
CDG3FN100-100		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/8
CDG3FN100-125		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: Rc3/8
CDG3FN100-150		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc3/8
CDG3FN100-200		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/8
CDG3FN100-250		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc3/8
CDG3FN100-300		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/8
CDG3GN20-25		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: M5x0.8
CDG3GN20-50		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: M5x0.8
CDG3GN20-75		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: Yes \| Port: M5x0.8
CDG3GN20-100		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: M5x0.8
CDG3GN20-125		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: M5x0.8
CDG3GN20-150		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: M5x0.8
CDG3GN20-200		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: M5x0.8
CDG3GN25-25		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: M5x0.8
CDG3GN25-50		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: M5x0.8
CDG3GN25-75		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: Yes \| Port: M5x0.8
CDG3GN25-100		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: M5x0.8
CDG3GN25-125		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: M5x0.8
CDG3GN25-150		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: M5x0.8
CDG3GN25-200		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: M5x0.8
CDG3GN25-250		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: M5x0.8
CDG3GN25-300		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: M5x0.8
CDG3GN32-25		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: Rc1/8
CDG3GN32-50		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: Rc1/8
CDG3GN32-75		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes \| Port: Rc1/8
CDG3GN32-100		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/8
CDG3GN32-125		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: Rc1/8
CDG3GN32-150		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc1/8
CDG3GN32-200		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/8
CDG3GN32-250		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc1/8
CDG3GN32-300		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/8
CDG3GN40-25		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: Rc1/8
CDG3GN40-50		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: Rc1/8
CDG3GN40-75		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes \| Port: Rc1/8
CDG3GN40-100		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/8
CDG3GN40-125		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: Rc1/8
CDG3GN40-150		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc1/8
CDG3GN40-200		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/8
CDG3GN40-250		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc1/8
CDG3GN40-300		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/8
CDG3GN50-25		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3GN50-50		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3GN50-75		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3GN50-100		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3GN50-125		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3GN50-150		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3GN50-200		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3GN50-250		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3GN50-300		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3GN63-25		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3GN63-50		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3GN63-75		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3GN63-100		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3GN63-125		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3GN63-150		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3GN63-200		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3GN63-250		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3GN63-300		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3GN80-25		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3GN80-50		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3GN80-75		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3GN80-100		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3GN80-125		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3GN80-150		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3GN80-200		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3GN80-250		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3GN80-300		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3GN100-25		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: Rc3/8
CDG3GN100-50		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: Rc3/8
CDG3GN100-75		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes \| Port: Rc3/8
CDG3GN100-100		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/8
CDG3GN100-125		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: Rc3/8
CDG3GN100-150		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc3/8
CDG3GN100-200		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/8
CDG3GN100-250		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc3/8
CDG3GN100-300		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/8
CDG3DN20-25		Mounting: Clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: M5x0.8
CDG3DN20-50		Mounting: Clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: M5x0.8
CDG3DN20-75		Mounting: Clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: Yes \| Port: M5x0.8
CDG3DN20-100		Mounting: Clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: M5x0.8
CDG3DN20-125		Mounting: Clevis \| Bore: ø20 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: M5x0.8
CDG3DN20-150		Mounting: Clevis \| Bore: ø20 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: M5x0.8
CDG3DN20-200		Mounting: Clevis \| Bore: ø20 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: M5x0.8
CDG3DN25-25		Mounting: Clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: M5x0.8
CDG3DN25-50		Mounting: Clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: M5x0.8
CDG3DN25-75		Mounting: Clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: Yes \| Port: M5x0.8
CDG3DN25-100		Mounting: Clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: M5x0.8
CDG3DN25-125		Mounting: Clevis \| Bore: ø25 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: M5x0.8
CDG3DN25-150		Mounting: Clevis \| Bore: ø25 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: M5x0.8
CDG3DN25-200		Mounting: Clevis \| Bore: ø25 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: M5x0.8
CDG3DN25-250		Mounting: Clevis \| Bore: ø25 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: M5x0.8
CDG3DN25-300		Mounting: Clevis \| Bore: ø25 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: M5x0.8
CDG3DN32-25		Mounting: Clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: Rc1/8
CDG3DN32-50		Mounting: Clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: Rc1/8
CDG3DN32-75		Mounting: Clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes \| Port: Rc1/8
CDG3DN32-100		Mounting: Clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/8
CDG3DN32-125		Mounting: Clevis \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: Rc1/8
CDG3DN32-150		Mounting: Clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc1/8
CDG3DN32-200		Mounting: Clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/8
CDG3DN32-250		Mounting: Clevis \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc1/8
CDG3DN32-300		Mounting: Clevis \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/8
CDG3DN40-25		Mounting: Clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: Rc1/8
CDG3DN40-50		Mounting: Clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: Rc1/8
CDG3DN40-75		Mounting: Clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes \| Port: Rc1/8
CDG3DN40-100		Mounting: Clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/8
CDG3DN40-125		Mounting: Clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: Rc1/8
CDG3DN40-150		Mounting: Clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc1/8
CDG3DN40-200		Mounting: Clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/8
CDG3DN40-250		Mounting: Clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc1/8
CDG3DN40-300		Mounting: Clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/8
CDG3DN50-25		Mounting: Clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3DN50-50		Mounting: Clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3DN50-75		Mounting: Clevis \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3DN50-100		Mounting: Clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3DN50-125		Mounting: Clevis \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3DN50-150		Mounting: Clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3DN50-200		Mounting: Clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3DN50-250		Mounting: Clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3DN50-300		Mounting: Clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3DN63-25		Mounting: Clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3DN63-50		Mounting: Clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3DN63-75		Mounting: Clevis \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3DN63-100		Mounting: Clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3DN63-125		Mounting: Clevis \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3DN63-150		Mounting: Clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3DN63-200		Mounting: Clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3DN63-250		Mounting: Clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3DN63-300		Mounting: Clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3DN80-25		Mounting: Clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3DN80-50		Mounting: Clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3DN80-75		Mounting: Clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3DN80-100		Mounting: Clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3DN80-125		Mounting: Clevis \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3DN80-150		Mounting: Clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3DN80-200		Mounting: Clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3DN80-250		Mounting: Clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3DN80-300		Mounting: Clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/4
CDG3DN100-25		Mounting: Clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: Rc3/8
CDG3DN100-50		Mounting: Clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: Rc3/8
CDG3DN100-75		Mounting: Clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes \| Port: Rc3/8
CDG3DN100-100		Mounting: Clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/8
CDG3DN100-125		Mounting: Clevis \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: Rc3/8
CDG3DN100-150		Mounting: Clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc3/8
CDG3DN100-200		Mounting: Clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/8
CDG3DN100-250		Mounting: Clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc3/8
CDG3DN100-300		Mounting: Clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/8

Round Body CylindersSMC

700 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC CG3 Air Cylinder Short Type (Double Acting, ø20 to ø100)

Brand SMC·Round Body Cylinders

Available part numbers (700)

CG3BN20-25, CG3BN20-50, CG3BN20-75, CG3BN20-100, CG3BN20-125, CG3BN20-150, CG3BN20-200, CG3BN25-25, CG3BN25-50, CG3BN25-75 + 690 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	CG3BN20-25	Mounting: Basic \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: M5x0.8
	CG3BN20-50	Mounting: Basic \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: M5x0.8
	CG3BN20-75	Mounting: Basic \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Port: M5x0.8
	CG3BN20-100	Mounting: Basic \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: M5x0.8
	CG3BN20-125	Mounting: Basic \| Bore: ø20 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: M5x0.8
	CG3BN20-150	Mounting: Basic \| Bore: ø20 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: M5x0.8
	CG3BN20-200	Mounting: Basic \| Bore: ø20 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: M5x0.8
	CG3BN25-25	Mounting: Basic \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: M5x0.8
	CG3BN25-50	Mounting: Basic \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: M5x0.8
	CG3BN25-75	Mounting: Basic \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Port: M5x0.8
	CG3BN25-100	Mounting: Basic \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: M5x0.8
	CG3BN25-125	Mounting: Basic \| Bore: ø25 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: M5x0.8
	CG3BN25-150	Mounting: Basic \| Bore: ø25 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: M5x0.8
	CG3BN25-200	Mounting: Basic \| Bore: ø25 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: M5x0.8
	CG3BN25-250	Mounting: Basic \| Bore: ø25 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: M5x0.8
	CG3BN25-300	Mounting: Basic \| Bore: ø25 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: M5x0.8
	CG3BN32-25	Mounting: Basic \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: Rc1/8
	CG3BN32-50	Mounting: Basic \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: Rc1/8
	CG3BN32-75	Mounting: Basic \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Port: Rc1/8
	CG3BN32-100	Mounting: Basic \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/8
	CG3BN32-125	Mounting: Basic \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: Rc1/8
	CG3BN32-150	Mounting: Basic \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc1/8
	CG3BN32-200	Mounting: Basic \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/8
	CG3BN32-250	Mounting: Basic \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc1/8
	CG3BN32-300	Mounting: Basic \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/8
	CG3BN40-25	Mounting: Basic \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: Rc1/8
	CG3BN40-50	Mounting: Basic \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: Rc1/8
	CG3BN40-75	Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Port: Rc1/8
	CG3BN40-100	Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/8
	CG3BN40-125	Mounting: Basic \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: Rc1/8
	CG3BN40-150	Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc1/8
	CG3BN40-200	Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/8
	CG3BN40-250	Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc1/8
	CG3BN40-300	Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/8
	CG3BN50-25	Mounting: Basic \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3BN50-50	Mounting: Basic \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3BN50-75	Mounting: Basic \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3BN50-100	Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3BN50-125	Mounting: Basic \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3BN50-150	Mounting: Basic \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3BN50-200	Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3BN50-250	Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3BN50-300	Mounting: Basic \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3BN63-25	Mounting: Basic \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3BN63-50	Mounting: Basic \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3BN63-75	Mounting: Basic \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3BN63-100	Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3BN63-125	Mounting: Basic \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3BN63-150	Mounting: Basic \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3BN63-200	Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3BN63-250	Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3BN63-300	Mounting: Basic \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3BN80-25	Mounting: Basic \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3BN80-50	Mounting: Basic \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3BN80-75	Mounting: Basic \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3BN80-100	Mounting: Basic \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3BN80-125	Mounting: Basic \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3BN80-150	Mounting: Basic \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3BN80-200	Mounting: Basic \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3BN80-250	Mounting: Basic \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3BN80-300	Mounting: Basic \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3BN100-25	Mounting: Basic \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: Rc3/8
	CG3BN100-50	Mounting: Basic \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: Rc3/8
	CG3BN100-75	Mounting: Basic \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Port: Rc3/8
	CG3BN100-100	Mounting: Basic \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/8
	CG3BN100-125	Mounting: Basic \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: Rc3/8
	CG3BN100-150	Mounting: Basic \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc3/8
	CG3BN100-200	Mounting: Basic \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/8
	CG3BN100-250	Mounting: Basic \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc3/8
	CG3BN100-300	Mounting: Basic \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/8
	CG3LN20-25	Mounting: Foot \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: M5x0.8
	CG3LN20-50	Mounting: Foot \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: M5x0.8
	CG3LN20-75	Mounting: Foot \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Port: M5x0.8
	CG3LN20-100	Mounting: Foot \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: M5x0.8
	CG3LN20-125	Mounting: Foot \| Bore: ø20 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: M5x0.8
	CG3LN20-150	Mounting: Foot \| Bore: ø20 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: M5x0.8
	CG3LN20-200	Mounting: Foot \| Bore: ø20 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: M5x0.8
	CG3LN25-25	Mounting: Foot \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: M5x0.8
	CG3LN25-50	Mounting: Foot \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: M5x0.8
	CG3LN25-75	Mounting: Foot \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Port: M5x0.8
	CG3LN25-100	Mounting: Foot \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: M5x0.8
	CG3LN25-125	Mounting: Foot \| Bore: ø25 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: M5x0.8
	CG3LN25-150	Mounting: Foot \| Bore: ø25 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: M5x0.8
	CG3LN25-200	Mounting: Foot \| Bore: ø25 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: M5x0.8
	CG3LN25-250	Mounting: Foot \| Bore: ø25 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: M5x0.8
	CG3LN25-300	Mounting: Foot \| Bore: ø25 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: M5x0.8
	CG3LN32-25	Mounting: Foot \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: Rc1/8
	CG3LN32-50	Mounting: Foot \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: Rc1/8
	CG3LN32-75	Mounting: Foot \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Port: Rc1/8
	CG3LN32-100	Mounting: Foot \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/8
	CG3LN32-125	Mounting: Foot \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: Rc1/8
	CG3LN32-150	Mounting: Foot \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc1/8
	CG3LN32-200	Mounting: Foot \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/8
	CG3LN32-250	Mounting: Foot \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc1/8
	CG3LN32-300	Mounting: Foot \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/8
	CG3LN40-25	Mounting: Foot \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: Rc1/8
	CG3LN40-50	Mounting: Foot \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: Rc1/8
	CG3LN40-75	Mounting: Foot \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Port: Rc1/8
	CG3LN40-100	Mounting: Foot \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/8
	CG3LN40-125	Mounting: Foot \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: Rc1/8
	CG3LN40-150	Mounting: Foot \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc1/8
	CG3LN40-200	Mounting: Foot \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/8
	CG3LN40-250	Mounting: Foot \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc1/8
	CG3LN40-300	Mounting: Foot \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/8
	CG3LN50-25	Mounting: Foot \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3LN50-50	Mounting: Foot \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3LN50-75	Mounting: Foot \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3LN50-100	Mounting: Foot \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3LN50-125	Mounting: Foot \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3LN50-150	Mounting: Foot \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3LN50-200	Mounting: Foot \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3LN50-250	Mounting: Foot \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3LN50-300	Mounting: Foot \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3LN63-25	Mounting: Foot \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3LN63-50	Mounting: Foot \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3LN63-75	Mounting: Foot \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3LN63-100	Mounting: Foot \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3LN63-125	Mounting: Foot \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3LN63-150	Mounting: Foot \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3LN63-200	Mounting: Foot \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3LN63-250	Mounting: Foot \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3LN63-300	Mounting: Foot \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3LN80-25	Mounting: Foot \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3LN80-50	Mounting: Foot \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3LN80-75	Mounting: Foot \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3LN80-100	Mounting: Foot \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3LN80-125	Mounting: Foot \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3LN80-150	Mounting: Foot \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3LN80-200	Mounting: Foot \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3LN80-250	Mounting: Foot \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3LN80-300	Mounting: Foot \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3LN100-25	Mounting: Foot \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: Rc3/8
	CG3LN100-50	Mounting: Foot \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: Rc3/8
	CG3LN100-75	Mounting: Foot \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Port: Rc3/8
	CG3LN100-100	Mounting: Foot \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/8
	CG3LN100-125	Mounting: Foot \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: Rc3/8
	CG3LN100-150	Mounting: Foot \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc3/8
	CG3LN100-200	Mounting: Foot \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/8
	CG3LN100-250	Mounting: Foot \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc3/8
	CG3LN100-300	Mounting: Foot \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/8
	CG3FN20-25	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: M5x0.8
	CG3FN20-50	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: M5x0.8
	CG3FN20-75	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Port: M5x0.8
	CG3FN20-100	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: M5x0.8
	CG3FN20-125	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: M5x0.8
	CG3FN20-150	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: M5x0.8
	CG3FN20-200	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: M5x0.8
	CG3FN25-25	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: M5x0.8
	CG3FN25-50	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: M5x0.8
	CG3FN25-75	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Port: M5x0.8
	CG3FN25-100	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: M5x0.8
	CG3FN25-125	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: M5x0.8
	CG3FN25-150	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: M5x0.8
	CG3FN25-200	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: M5x0.8
	CG3FN25-250	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: M5x0.8
	CG3FN25-300	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: M5x0.8
	CG3FN32-25	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: Rc1/8
	CG3FN32-50	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: Rc1/8
	CG3FN32-75	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Port: Rc1/8
	CG3FN32-100	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/8
	CG3FN32-125	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: Rc1/8
	CG3FN32-150	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc1/8
	CG3FN32-200	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/8
	CG3FN32-250	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc1/8
	CG3FN32-300	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/8
	CG3FN40-25	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: Rc1/8
	CG3FN40-50	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: Rc1/8
	CG3FN40-75	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Port: Rc1/8
	CG3FN40-100	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/8
	CG3FN40-125	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: Rc1/8
	CG3FN40-150	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc1/8
	CG3FN40-200	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/8
	CG3FN40-250	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc1/8
	CG3FN40-300	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/8
	CG3FN50-25	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3FN50-50	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3FN50-75	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3FN50-100	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3FN50-125	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3FN50-150	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3FN50-200	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3FN50-250	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3FN50-300	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3FN63-25	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3FN63-50	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3FN63-75	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3FN63-100	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3FN63-125	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3FN63-150	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3FN63-200	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3FN63-250	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3FN63-300	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3FN80-25	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3FN80-50	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3FN80-75	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3FN80-100	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3FN80-125	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3FN80-150	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3FN80-200	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3FN80-250	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3FN80-300	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3FN100-25	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: Rc3/8
	CG3FN100-50	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: Rc3/8
	CG3FN100-75	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Port: Rc3/8
	CG3FN100-100	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/8
	CG3FN100-125	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: Rc3/8
	CG3FN100-150	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc3/8
	CG3FN100-200	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/8
	CG3FN100-250	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc3/8
	CG3FN100-300	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/8
	CG3GN20-25	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: M5x0.8
	CG3GN20-50	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: M5x0.8
	CG3GN20-75	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Port: M5x0.8
	CG3GN20-100	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: M5x0.8
	CG3GN20-125	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: M5x0.8
	CG3GN20-150	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: M5x0.8
	CG3GN20-200	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: M5x0.8
	CG3GN25-25	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: M5x0.8
	CG3GN25-50	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: M5x0.8
	CG3GN25-75	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Port: M5x0.8
	CG3GN25-100	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: M5x0.8
	CG3GN25-125	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: M5x0.8
	CG3GN25-150	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: M5x0.8
	CG3GN25-200	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: M5x0.8
	CG3GN25-250	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: M5x0.8
	CG3GN25-300	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: M5x0.8
	CG3GN32-25	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: Rc1/8
	CG3GN32-50	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: Rc1/8
	CG3GN32-75	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Port: Rc1/8
	CG3GN32-100	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/8
	CG3GN32-125	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: Rc1/8
	CG3GN32-150	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc1/8
	CG3GN32-200	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/8
	CG3GN32-250	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc1/8
	CG3GN32-300	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/8
	CG3GN40-25	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: Rc1/8
	CG3GN40-50	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: Rc1/8
	CG3GN40-75	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Port: Rc1/8
	CG3GN40-100	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/8
	CG3GN40-125	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: Rc1/8
	CG3GN40-150	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc1/8
	CG3GN40-200	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/8
	CG3GN40-250	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc1/8
	CG3GN40-300	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/8
	CG3GN50-25	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3GN50-50	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3GN50-75	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3GN50-100	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3GN50-125	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3GN50-150	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3GN50-200	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3GN50-250	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3GN50-300	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3GN63-25	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3GN63-50	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3GN63-75	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3GN63-100	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3GN63-125	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3GN63-150	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3GN63-200	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3GN63-250	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3GN63-300	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3GN80-25	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3GN80-50	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3GN80-75	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3GN80-100	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3GN80-125	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3GN80-150	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3GN80-200	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3GN80-250	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3GN80-300	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3GN100-25	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: Rc3/8
	CG3GN100-50	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: Rc3/8
	CG3GN100-75	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Port: Rc3/8
	CG3GN100-100	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/8
	CG3GN100-125	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: Rc3/8
	CG3GN100-150	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc3/8
	CG3GN100-200	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/8
	CG3GN100-250	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc3/8
	CG3GN100-300	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/8
	CG3DN20-25	Mounting: Clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: M5x0.8
	CG3DN20-50	Mounting: Clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: M5x0.8
	CG3DN20-75	Mounting: Clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Port: M5x0.8
	CG3DN20-100	Mounting: Clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: M5x0.8
	CG3DN20-125	Mounting: Clevis \| Bore: ø20 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: M5x0.8
	CG3DN20-150	Mounting: Clevis \| Bore: ø20 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: M5x0.8
	CG3DN20-200	Mounting: Clevis \| Bore: ø20 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: M5x0.8
	CG3DN25-25	Mounting: Clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: M5x0.8
	CG3DN25-50	Mounting: Clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: M5x0.8
	CG3DN25-75	Mounting: Clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Port: M5x0.8
	CG3DN25-100	Mounting: Clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: M5x0.8
	CG3DN25-125	Mounting: Clevis \| Bore: ø25 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: M5x0.8
	CG3DN25-150	Mounting: Clevis \| Bore: ø25 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: M5x0.8
	CG3DN25-200	Mounting: Clevis \| Bore: ø25 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: M5x0.8
	CG3DN25-250	Mounting: Clevis \| Bore: ø25 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: M5x0.8
	CG3DN25-300	Mounting: Clevis \| Bore: ø25 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: M5x0.8
	CG3DN32-25	Mounting: Clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: Rc1/8
	CG3DN32-50	Mounting: Clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: Rc1/8
	CG3DN32-75	Mounting: Clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Port: Rc1/8
	CG3DN32-100	Mounting: Clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/8
	CG3DN32-125	Mounting: Clevis \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: Rc1/8
	CG3DN32-150	Mounting: Clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc1/8
	CG3DN32-200	Mounting: Clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/8
	CG3DN32-250	Mounting: Clevis \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc1/8
	CG3DN32-300	Mounting: Clevis \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/8
	CG3DN40-25	Mounting: Clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: Rc1/8
	CG3DN40-50	Mounting: Clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: Rc1/8
	CG3DN40-75	Mounting: Clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Port: Rc1/8
	CG3DN40-100	Mounting: Clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/8
	CG3DN40-125	Mounting: Clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: Rc1/8
	CG3DN40-150	Mounting: Clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc1/8
	CG3DN40-200	Mounting: Clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/8
	CG3DN40-250	Mounting: Clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc1/8
	CG3DN40-300	Mounting: Clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/8
	CG3DN50-25	Mounting: Clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3DN50-50	Mounting: Clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3DN50-75	Mounting: Clevis \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3DN50-100	Mounting: Clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3DN50-125	Mounting: Clevis \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3DN50-150	Mounting: Clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3DN50-200	Mounting: Clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3DN50-250	Mounting: Clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3DN50-300	Mounting: Clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3DN63-25	Mounting: Clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3DN63-50	Mounting: Clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3DN63-75	Mounting: Clevis \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3DN63-100	Mounting: Clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3DN63-125	Mounting: Clevis \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3DN63-150	Mounting: Clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3DN63-200	Mounting: Clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3DN63-250	Mounting: Clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3DN63-300	Mounting: Clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3DN80-25	Mounting: Clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3DN80-50	Mounting: Clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3DN80-75	Mounting: Clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3DN80-100	Mounting: Clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3DN80-125	Mounting: Clevis \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3DN80-150	Mounting: Clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3DN80-200	Mounting: Clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3DN80-250	Mounting: Clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3DN80-300	Mounting: Clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/4
	CG3DN100-25	Mounting: Clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Port: Rc3/8
	CG3DN100-50	Mounting: Clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Port: Rc3/8
	CG3DN100-75	Mounting: Clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No \| Port: Rc3/8
	CG3DN100-100	Mounting: Clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/8
	CG3DN100-125	Mounting: Clevis \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Port: Rc3/8
	CG3DN100-150	Mounting: Clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc3/8
	CG3DN100-200	Mounting: Clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/8
	CG3DN100-250	Mounting: Clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc3/8
	CG3DN100-300	Mounting: Clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/8
	CDG3BN20-25	Mounting: Basic \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	CDG3BN20-50	Mounting: Basic \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	CDG3BN20-75	Mounting: Basic \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	CDG3BN20-100	Mounting: Basic \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	CDG3BN20-125	Mounting: Basic \| Bore: ø20 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	CDG3BN20-150	Mounting: Basic \| Bore: ø20 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	CDG3BN20-200	Mounting: Basic \| Bore: ø20 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	CDG3BN25-25	Mounting: Basic \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	CDG3BN25-50	Mounting: Basic \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	CDG3BN25-75	Mounting: Basic \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	CDG3BN25-100	Mounting: Basic \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	CDG3BN25-125	Mounting: Basic \| Bore: ø25 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	CDG3BN25-150	Mounting: Basic \| Bore: ø25 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	CDG3BN25-200	Mounting: Basic \| Bore: ø25 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	CDG3BN25-250	Mounting: Basic \| Bore: ø25 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	CDG3BN25-300	Mounting: Basic \| Bore: ø25 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	CDG3BN32-25	Mounting: Basic \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: Rc1/8
	CDG3BN32-50	Mounting: Basic \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: Rc1/8
	CDG3BN32-75	Mounting: Basic \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes \| Port: Rc1/8
	CDG3BN32-100	Mounting: Basic \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/8
	CDG3BN32-125	Mounting: Basic \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: Rc1/8
	CDG3BN32-150	Mounting: Basic \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc1/8
	CDG3BN32-200	Mounting: Basic \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/8
	CDG3BN32-250	Mounting: Basic \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc1/8
	CDG3BN32-300	Mounting: Basic \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/8
	CDG3BN40-25	Mounting: Basic \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: Rc1/8
	CDG3BN40-50	Mounting: Basic \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: Rc1/8
	CDG3BN40-75	Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes \| Port: Rc1/8
	CDG3BN40-100	Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/8
	CDG3BN40-125	Mounting: Basic \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: Rc1/8
	CDG3BN40-150	Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc1/8
	CDG3BN40-200	Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/8
	CDG3BN40-250	Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc1/8
	CDG3BN40-300	Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/8
	CDG3BN50-25	Mounting: Basic \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3BN50-50	Mounting: Basic \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3BN50-75	Mounting: Basic \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3BN50-100	Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3BN50-125	Mounting: Basic \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3BN50-150	Mounting: Basic \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3BN50-200	Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3BN50-250	Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3BN50-300	Mounting: Basic \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3BN63-25	Mounting: Basic \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3BN63-50	Mounting: Basic \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3BN63-75	Mounting: Basic \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3BN63-100	Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3BN63-125	Mounting: Basic \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3BN63-150	Mounting: Basic \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3BN63-200	Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3BN63-250	Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3BN63-300	Mounting: Basic \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3BN80-25	Mounting: Basic \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3BN80-50	Mounting: Basic \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3BN80-75	Mounting: Basic \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3BN80-100	Mounting: Basic \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3BN80-125	Mounting: Basic \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3BN80-150	Mounting: Basic \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3BN80-200	Mounting: Basic \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3BN80-250	Mounting: Basic \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3BN80-300	Mounting: Basic \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3BN100-25	Mounting: Basic \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: Rc3/8
	CDG3BN100-50	Mounting: Basic \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: Rc3/8
	CDG3BN100-75	Mounting: Basic \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes \| Port: Rc3/8
	CDG3BN100-100	Mounting: Basic \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/8
	CDG3BN100-125	Mounting: Basic \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: Rc3/8
	CDG3BN100-150	Mounting: Basic \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc3/8
	CDG3BN100-200	Mounting: Basic \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/8
	CDG3BN100-250	Mounting: Basic \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc3/8
	CDG3BN100-300	Mounting: Basic \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/8
	CDG3LN20-25	Mounting: Foot \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	CDG3LN20-50	Mounting: Foot \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	CDG3LN20-75	Mounting: Foot \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	CDG3LN20-100	Mounting: Foot \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	CDG3LN20-125	Mounting: Foot \| Bore: ø20 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	CDG3LN20-150	Mounting: Foot \| Bore: ø20 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	CDG3LN20-200	Mounting: Foot \| Bore: ø20 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	CDG3LN25-25	Mounting: Foot \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	CDG3LN25-50	Mounting: Foot \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	CDG3LN25-75	Mounting: Foot \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	CDG3LN25-100	Mounting: Foot \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	CDG3LN25-125	Mounting: Foot \| Bore: ø25 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	CDG3LN25-150	Mounting: Foot \| Bore: ø25 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	CDG3LN25-200	Mounting: Foot \| Bore: ø25 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	CDG3LN25-250	Mounting: Foot \| Bore: ø25 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	CDG3LN25-300	Mounting: Foot \| Bore: ø25 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	CDG3LN32-25	Mounting: Foot \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: Rc1/8
	CDG3LN32-50	Mounting: Foot \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: Rc1/8
	CDG3LN32-75	Mounting: Foot \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes \| Port: Rc1/8
	CDG3LN32-100	Mounting: Foot \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/8
	CDG3LN32-125	Mounting: Foot \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: Rc1/8
	CDG3LN32-150	Mounting: Foot \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc1/8
	CDG3LN32-200	Mounting: Foot \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/8
	CDG3LN32-250	Mounting: Foot \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc1/8
	CDG3LN32-300	Mounting: Foot \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/8
	CDG3LN40-25	Mounting: Foot \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: Rc1/8
	CDG3LN40-50	Mounting: Foot \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: Rc1/8
	CDG3LN40-75	Mounting: Foot \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes \| Port: Rc1/8
	CDG3LN40-100	Mounting: Foot \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/8
	CDG3LN40-125	Mounting: Foot \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: Rc1/8
	CDG3LN40-150	Mounting: Foot \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc1/8
	CDG3LN40-200	Mounting: Foot \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/8
	CDG3LN40-250	Mounting: Foot \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc1/8
	CDG3LN40-300	Mounting: Foot \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/8
	CDG3LN50-25	Mounting: Foot \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3LN50-50	Mounting: Foot \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3LN50-75	Mounting: Foot \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3LN50-100	Mounting: Foot \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3LN50-125	Mounting: Foot \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3LN50-150	Mounting: Foot \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3LN50-200	Mounting: Foot \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3LN50-250	Mounting: Foot \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3LN50-300	Mounting: Foot \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3LN63-25	Mounting: Foot \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3LN63-50	Mounting: Foot \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3LN63-75	Mounting: Foot \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3LN63-100	Mounting: Foot \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3LN63-125	Mounting: Foot \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3LN63-150	Mounting: Foot \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3LN63-200	Mounting: Foot \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3LN63-250	Mounting: Foot \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3LN63-300	Mounting: Foot \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3LN80-25	Mounting: Foot \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3LN80-50	Mounting: Foot \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3LN80-75	Mounting: Foot \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3LN80-100	Mounting: Foot \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3LN80-125	Mounting: Foot \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3LN80-150	Mounting: Foot \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3LN80-200	Mounting: Foot \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3LN80-250	Mounting: Foot \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3LN80-300	Mounting: Foot \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3LN100-25	Mounting: Foot \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: Rc3/8
	CDG3LN100-50	Mounting: Foot \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: Rc3/8
	CDG3LN100-75	Mounting: Foot \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes \| Port: Rc3/8
	CDG3LN100-100	Mounting: Foot \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/8
	CDG3LN100-125	Mounting: Foot \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: Rc3/8
	CDG3LN100-150	Mounting: Foot \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc3/8
	CDG3LN100-200	Mounting: Foot \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/8
	CDG3LN100-250	Mounting: Foot \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc3/8
	CDG3LN100-300	Mounting: Foot \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/8
	CDG3FN20-25	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	CDG3FN20-50	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	CDG3FN20-75	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	CDG3FN20-100	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	CDG3FN20-125	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	CDG3FN20-150	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	CDG3FN20-200	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	CDG3FN25-25	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	CDG3FN25-50	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	CDG3FN25-75	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	CDG3FN25-100	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	CDG3FN25-125	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	CDG3FN25-150	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	CDG3FN25-200	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	CDG3FN25-250	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	CDG3FN25-300	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	CDG3FN32-25	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: Rc1/8
	CDG3FN32-50	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: Rc1/8
	CDG3FN32-75	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes \| Port: Rc1/8
	CDG3FN32-100	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/8
	CDG3FN32-125	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: Rc1/8
	CDG3FN32-150	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc1/8
	CDG3FN32-200	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/8
	CDG3FN32-250	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc1/8
	CDG3FN32-300	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/8
	CDG3FN40-25	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: Rc1/8
	CDG3FN40-50	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: Rc1/8
	CDG3FN40-75	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes \| Port: Rc1/8
	CDG3FN40-100	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/8
	CDG3FN40-125	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: Rc1/8
	CDG3FN40-150	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc1/8
	CDG3FN40-200	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/8
	CDG3FN40-250	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc1/8
	CDG3FN40-300	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/8
	CDG3FN50-25	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3FN50-50	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3FN50-75	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3FN50-100	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3FN50-125	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3FN50-150	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3FN50-200	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3FN50-250	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3FN50-300	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3FN63-25	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3FN63-50	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3FN63-75	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3FN63-100	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3FN63-125	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3FN63-150	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3FN63-200	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3FN63-250	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3FN63-300	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3FN80-25	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3FN80-50	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3FN80-75	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3FN80-100	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3FN80-125	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3FN80-150	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3FN80-200	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3FN80-250	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3FN80-300	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3FN100-25	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: Rc3/8
	CDG3FN100-50	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: Rc3/8
	CDG3FN100-75	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes \| Port: Rc3/8
	CDG3FN100-100	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/8
	CDG3FN100-125	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: Rc3/8
	CDG3FN100-150	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc3/8
	CDG3FN100-200	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/8
	CDG3FN100-250	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc3/8
	CDG3FN100-300	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/8
	CDG3GN20-25	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	CDG3GN20-50	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	CDG3GN20-75	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	CDG3GN20-100	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	CDG3GN20-125	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	CDG3GN20-150	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	CDG3GN20-200	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	CDG3GN25-25	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	CDG3GN25-50	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	CDG3GN25-75	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	CDG3GN25-100	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	CDG3GN25-125	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	CDG3GN25-150	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	CDG3GN25-200	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	CDG3GN25-250	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	CDG3GN25-300	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	CDG3GN32-25	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: Rc1/8
	CDG3GN32-50	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: Rc1/8
	CDG3GN32-75	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes \| Port: Rc1/8
	CDG3GN32-100	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/8
	CDG3GN32-125	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: Rc1/8
	CDG3GN32-150	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc1/8
	CDG3GN32-200	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/8
	CDG3GN32-250	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc1/8
	CDG3GN32-300	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/8
	CDG3GN40-25	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: Rc1/8
	CDG3GN40-50	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: Rc1/8
	CDG3GN40-75	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes \| Port: Rc1/8
	CDG3GN40-100	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/8
	CDG3GN40-125	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: Rc1/8
	CDG3GN40-150	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc1/8
	CDG3GN40-200	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/8
	CDG3GN40-250	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc1/8
	CDG3GN40-300	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/8
	CDG3GN50-25	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3GN50-50	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3GN50-75	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3GN50-100	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3GN50-125	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3GN50-150	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3GN50-200	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3GN50-250	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3GN50-300	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3GN63-25	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3GN63-50	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3GN63-75	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3GN63-100	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3GN63-125	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3GN63-150	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3GN63-200	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3GN63-250	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3GN63-300	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3GN80-25	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3GN80-50	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3GN80-75	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3GN80-100	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3GN80-125	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3GN80-150	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3GN80-200	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3GN80-250	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3GN80-300	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3GN100-25	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: Rc3/8
	CDG3GN100-50	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: Rc3/8
	CDG3GN100-75	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes \| Port: Rc3/8
	CDG3GN100-100	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/8
	CDG3GN100-125	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: Rc3/8
	CDG3GN100-150	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc3/8
	CDG3GN100-200	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/8
	CDG3GN100-250	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc3/8
	CDG3GN100-300	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/8
	CDG3DN20-25	Mounting: Clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	CDG3DN20-50	Mounting: Clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	CDG3DN20-75	Mounting: Clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	CDG3DN20-100	Mounting: Clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	CDG3DN20-125	Mounting: Clevis \| Bore: ø20 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	CDG3DN20-150	Mounting: Clevis \| Bore: ø20 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	CDG3DN20-200	Mounting: Clevis \| Bore: ø20 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	CDG3DN25-25	Mounting: Clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	CDG3DN25-50	Mounting: Clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	CDG3DN25-75	Mounting: Clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	CDG3DN25-100	Mounting: Clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	CDG3DN25-125	Mounting: Clevis \| Bore: ø25 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	CDG3DN25-150	Mounting: Clevis \| Bore: ø25 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	CDG3DN25-200	Mounting: Clevis \| Bore: ø25 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	CDG3DN25-250	Mounting: Clevis \| Bore: ø25 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	CDG3DN25-300	Mounting: Clevis \| Bore: ø25 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: M5x0.8
	CDG3DN32-25	Mounting: Clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: Rc1/8
	CDG3DN32-50	Mounting: Clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: Rc1/8
	CDG3DN32-75	Mounting: Clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes \| Port: Rc1/8
	CDG3DN32-100	Mounting: Clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/8
	CDG3DN32-125	Mounting: Clevis \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: Rc1/8
	CDG3DN32-150	Mounting: Clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc1/8
	CDG3DN32-200	Mounting: Clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/8
	CDG3DN32-250	Mounting: Clevis \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc1/8
	CDG3DN32-300	Mounting: Clevis \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/8
	CDG3DN40-25	Mounting: Clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: Rc1/8
	CDG3DN40-50	Mounting: Clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: Rc1/8
	CDG3DN40-75	Mounting: Clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes \| Port: Rc1/8
	CDG3DN40-100	Mounting: Clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/8
	CDG3DN40-125	Mounting: Clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: Rc1/8
	CDG3DN40-150	Mounting: Clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc1/8
	CDG3DN40-200	Mounting: Clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/8
	CDG3DN40-250	Mounting: Clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc1/8
	CDG3DN40-300	Mounting: Clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/8
	CDG3DN50-25	Mounting: Clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3DN50-50	Mounting: Clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3DN50-75	Mounting: Clevis \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3DN50-100	Mounting: Clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3DN50-125	Mounting: Clevis \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3DN50-150	Mounting: Clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3DN50-200	Mounting: Clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3DN50-250	Mounting: Clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3DN50-300	Mounting: Clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3DN63-25	Mounting: Clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3DN63-50	Mounting: Clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3DN63-75	Mounting: Clevis \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3DN63-100	Mounting: Clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3DN63-125	Mounting: Clevis \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3DN63-150	Mounting: Clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3DN63-200	Mounting: Clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3DN63-250	Mounting: Clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3DN63-300	Mounting: Clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3DN80-25	Mounting: Clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3DN80-50	Mounting: Clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3DN80-75	Mounting: Clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3DN80-100	Mounting: Clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3DN80-125	Mounting: Clevis \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3DN80-150	Mounting: Clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3DN80-200	Mounting: Clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3DN80-250	Mounting: Clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3DN80-300	Mounting: Clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/4
	CDG3DN100-25	Mounting: Clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Port: Rc3/8
	CDG3DN100-50	Mounting: Clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Port: Rc3/8
	CDG3DN100-75	Mounting: Clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes \| Port: Rc3/8
	CDG3DN100-100	Mounting: Clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/8
	CDG3DN100-125	Mounting: Clevis \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Port: Rc3/8
	CDG3DN100-150	Mounting: Clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc3/8
	CDG3DN100-200	Mounting: Clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/8
	CDG3DN100-250	Mounting: Clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc3/8
	CDG3DN100-300	Mounting: Clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/8

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

SMC CG3 Air Cylinder Short Type (Double Acting, ø20 to ø100)
