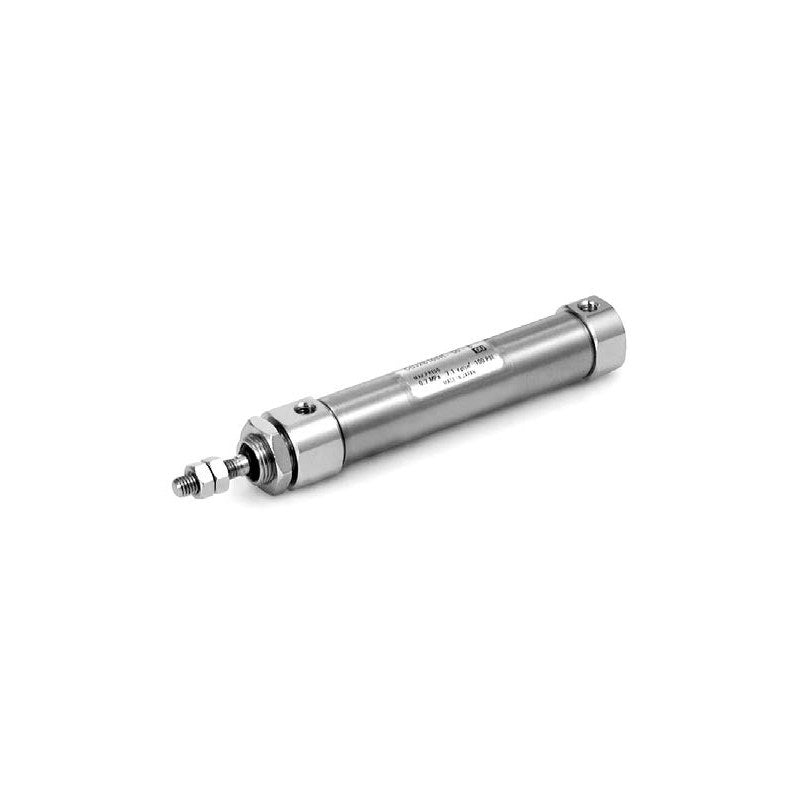

SMC CG5-S Stainless Steel Air Cylinder (ø20 to ø40)

SMC CG5-S series stainless steel double acting single rod cylinder, ø20 to ø40 mm, with rubber or air cushion, for water-splash environments such as food machinery.

Key features

External metal parts in SUS304 stainless steel; unused mounting threads closed with plug bolts to prevent liquid retention
Special scraper and NSF-H1 certified food-grade grease; disassemblable, packings replaceable
Five mounting styles: basic, axial foot, rod flange, head flange and integrated clevis
Rubber cushion (N) or air cushion (A); packing NBR (R) or FKM (V)
CDG5 versions have a built-in magnet for the water-resistant D-G5BAL band-mounted auto switch (ordered as suffix)
Made-to-order: rod end change (XA), heat resistant 150°C (XB6)

Specifications

Action	Double acting, single rod
Fluid	Air
Proof pressure	1.5 MPa
Max. operating pressure	1.0 MPa
Min. operating pressure	0.05 MPa
Ambient and fluid temperature	-10 to 70°C (with auto switch -10 to 60°C)
Lubrication	Not required (non-lube)
Piston speed	50 to 1000 mm/s (ø80, ø100: 50 to 700 mm/s)
Port thread	Rc (air cushion ø20, ø25: M5x0.8); NPT (TN) and G (TF) on order
Standard strokes	ø20: 25 to 200 mm; ø25 to ø100: 25 to 300 mm (1 to 1500 mm on order)
Source	SMC Korea catalog CJ5-S/CG5-S (SMCKR_CJ5__S_CG5__S.pdf), p. 1124-1125 (PDF p. 8-9)

CG5BN20SR-25		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
CG5BN20SR-50		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
CG5BN20SR-75		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
CG5BN20SR-100		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
CG5BN20SR-125		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
CG5BN20SR-150		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
CG5BN20SR-200		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
CG5BN20SV-25		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
CG5BN20SV-50		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
CG5BN20SV-75		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
CG5BN20SV-100		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
CG5BN20SV-125		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
CG5BN20SV-150		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
CG5BN20SV-200		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
CG5BN25SR-25		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
CG5BN25SR-50		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
CG5BN25SR-75		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
CG5BN25SR-100		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
CG5BN25SR-125		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
CG5BN25SR-150		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
CG5BN25SR-200		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
CG5BN25SR-250		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
CG5BN25SR-300		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
CG5BN25SV-25		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
CG5BN25SV-50		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
CG5BN25SV-75		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
CG5BN25SV-100		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
CG5BN25SV-125		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
CG5BN25SV-150		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
CG5BN25SV-200		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
CG5BN25SV-250		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
CG5BN25SV-300		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
CG5BN32SR-25		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
CG5BN32SR-50		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
CG5BN32SR-75		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
CG5BN32SR-100		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
CG5BN32SR-125		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
CG5BN32SR-150		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
CG5BN32SR-200		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
CG5BN32SR-250		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
CG5BN32SR-300		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
CG5BN32SV-25		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
CG5BN32SV-50		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
CG5BN32SV-75		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
CG5BN32SV-100		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
CG5BN32SV-125		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
CG5BN32SV-150		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
CG5BN32SV-200		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
CG5BN32SV-250		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
CG5BN32SV-300		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
CG5BN40SR-25		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
CG5BN40SR-50		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
CG5BN40SR-75		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
CG5BN40SR-100		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
CG5BN40SR-125		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
CG5BN40SR-150		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
CG5BN40SR-200		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
CG5BN40SR-250		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
CG5BN40SR-300		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
CG5BN40SV-25		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
CG5BN40SV-50		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
CG5BN40SV-75		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
CG5BN40SV-100		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
CG5BN40SV-125		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
CG5BN40SV-150		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
CG5BN40SV-200		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
CG5BN40SV-250		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
CG5BN40SV-300		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
CG5BA20SR-25		Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
CG5BA20SR-50		Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
CG5BA20SR-75		Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
CG5BA20SR-100		Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
CG5BA20SR-125		Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
CG5BA20SR-150		Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
CG5BA20SR-200		Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
CG5BA20SV-25		Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
CG5BA20SV-50		Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
CG5BA20SV-75		Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
CG5BA20SV-100		Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
CG5BA20SV-125		Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
CG5BA20SV-150		Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
CG5BA20SV-200		Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
CG5BA25SR-25		Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
CG5BA25SR-50		Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
CG5BA25SR-75		Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
CG5BA25SR-100		Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
CG5BA25SR-125		Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
CG5BA25SR-150		Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
CG5BA25SR-200		Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
CG5BA25SR-250		Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
CG5BA25SR-300		Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
CG5BA25SV-25		Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
CG5BA25SV-50		Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
CG5BA25SV-75		Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
CG5BA25SV-100		Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
CG5BA25SV-125		Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
CG5BA25SV-150		Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
CG5BA25SV-200		Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
CG5BA25SV-250		Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
CG5BA25SV-300		Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
CG5BA32SR-25		Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
CG5BA32SR-50		Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
CG5BA32SR-75		Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
CG5BA32SR-100		Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
CG5BA32SR-125		Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
CG5BA32SR-150		Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
CG5BA32SR-200		Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
CG5BA32SR-250		Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
CG5BA32SR-300		Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
CG5BA32SV-25		Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
CG5BA32SV-50		Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
CG5BA32SV-75		Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
CG5BA32SV-100		Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
CG5BA32SV-125		Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
CG5BA32SV-150		Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
CG5BA32SV-200		Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
CG5BA32SV-250		Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
CG5BA32SV-300		Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
CG5BA40SR-25		Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
CG5BA40SR-50		Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
CG5BA40SR-75		Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
CG5BA40SR-100		Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
CG5BA40SR-125		Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
CG5BA40SR-150		Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
CG5BA40SR-200		Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
CG5BA40SR-250		Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
CG5BA40SR-300		Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
CG5BA40SV-25		Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
CG5BA40SV-50		Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
CG5BA40SV-75		Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
CG5BA40SV-100		Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
CG5BA40SV-125		Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
CG5BA40SV-150		Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
CG5BA40SV-200		Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
CG5BA40SV-250		Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
CG5BA40SV-300		Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
CG5LN20SR-25		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
CG5LN20SR-50		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
CG5LN20SR-75		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
CG5LN20SR-100		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
CG5LN20SR-125		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
CG5LN20SR-150		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
CG5LN20SR-200		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
CG5LN20SV-25		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
CG5LN20SV-50		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
CG5LN20SV-75		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
CG5LN20SV-100		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
CG5LN20SV-125		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
CG5LN20SV-150		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
CG5LN20SV-200		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
CG5LN25SR-25		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
CG5LN25SR-50		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
CG5LN25SR-75		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
CG5LN25SR-100		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
CG5LN25SR-125		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
CG5LN25SR-150		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
CG5LN25SR-200		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
CG5LN25SR-250		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
CG5LN25SR-300		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
CG5LN25SV-25		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
CG5LN25SV-50		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
CG5LN25SV-75		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
CG5LN25SV-100		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
CG5LN25SV-125		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
CG5LN25SV-150		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
CG5LN25SV-200		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
CG5LN25SV-250		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
CG5LN25SV-300		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
CG5LN32SR-25		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
CG5LN32SR-50		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
CG5LN32SR-75		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
CG5LN32SR-100		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
CG5LN32SR-125		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
CG5LN32SR-150		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
CG5LN32SR-200		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
CG5LN32SR-250		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
CG5LN32SR-300		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
CG5LN32SV-25		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
CG5LN32SV-50		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
CG5LN32SV-75		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
CG5LN32SV-100		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
CG5LN32SV-125		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
CG5LN32SV-150		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
CG5LN32SV-200		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
CG5LN32SV-250		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
CG5LN32SV-300		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
CG5LN40SR-25		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
CG5LN40SR-50		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
CG5LN40SR-75		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
CG5LN40SR-100		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
CG5LN40SR-125		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
CG5LN40SR-150		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
CG5LN40SR-200		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
CG5LN40SR-250		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
CG5LN40SR-300		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
CG5LN40SV-25		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
CG5LN40SV-50		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
CG5LN40SV-75		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
CG5LN40SV-100		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
CG5LN40SV-125		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
CG5LN40SV-150		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
CG5LN40SV-200		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
CG5LN40SV-250		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
CG5LN40SV-300		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
CG5LA20SR-25		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
CG5LA20SR-50		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
CG5LA20SR-75		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
CG5LA20SR-100		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
CG5LA20SR-125		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
CG5LA20SR-150		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
CG5LA20SR-200		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
CG5LA20SV-25		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
CG5LA20SV-50		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
CG5LA20SV-75		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
CG5LA20SV-100		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
CG5LA20SV-125		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
CG5LA20SV-150		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
CG5LA20SV-200		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
CG5LA25SR-25		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
CG5LA25SR-50		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
CG5LA25SR-75		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
CG5LA25SR-100		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
CG5LA25SR-125		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
CG5LA25SR-150		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
CG5LA25SR-200		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
CG5LA25SR-250		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
CG5LA25SR-300		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
CG5LA25SV-25		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
CG5LA25SV-50		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
CG5LA25SV-75		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
CG5LA25SV-100		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
CG5LA25SV-125		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
CG5LA25SV-150		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
CG5LA25SV-200		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
CG5LA25SV-250		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
CG5LA25SV-300		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
CG5LA32SR-25		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
CG5LA32SR-50		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
CG5LA32SR-75		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
CG5LA32SR-100		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
CG5LA32SR-125		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
CG5LA32SR-150		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
CG5LA32SR-200		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
CG5LA32SR-250		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
CG5LA32SR-300		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
CG5LA32SV-25		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
CG5LA32SV-50		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
CG5LA32SV-75		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
CG5LA32SV-100		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
CG5LA32SV-125		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
CG5LA32SV-150		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
CG5LA32SV-200		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
CG5LA32SV-250		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
CG5LA32SV-300		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
CG5LA40SR-25		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
CG5LA40SR-50		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
CG5LA40SR-75		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
CG5LA40SR-100		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
CG5LA40SR-125		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
CG5LA40SR-150		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
CG5LA40SR-200		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
CG5LA40SR-250		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
CG5LA40SR-300		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
CG5LA40SV-25		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
CG5LA40SV-50		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
CG5LA40SV-75		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
CG5LA40SV-100		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
CG5LA40SV-125		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
CG5LA40SV-150		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
CG5LA40SV-200		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
CG5LA40SV-250		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
CG5LA40SV-300		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
CG5FN20SR-25		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
CG5FN20SR-50		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
CG5FN20SR-75		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
CG5FN20SR-100		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
CG5FN20SR-125		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
CG5FN20SR-150		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
CG5FN20SR-200		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
CG5FN20SV-25		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
CG5FN20SV-50		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
CG5FN20SV-75		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
CG5FN20SV-100		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
CG5FN20SV-125		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
CG5FN20SV-150		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
CG5FN20SV-200		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
CG5FN25SR-25		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
CG5FN25SR-50		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
CG5FN25SR-75		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
CG5FN25SR-100		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
CG5FN25SR-125		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
CG5FN25SR-150		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
CG5FN25SR-200		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
CG5FN25SR-250		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
CG5FN25SR-300		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
CG5FN25SV-25		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
CG5FN25SV-50		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
CG5FN25SV-75		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
CG5FN25SV-100		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
CG5FN25SV-125		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
CG5FN25SV-150		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
CG5FN25SV-200		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
CG5FN25SV-250		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
CG5FN25SV-300		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
CG5FN32SR-25		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
CG5FN32SR-50		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
CG5FN32SR-75		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
CG5FN32SR-100		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
CG5FN32SR-125		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
CG5FN32SR-150		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
CG5FN32SR-200		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
CG5FN32SR-250		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
CG5FN32SR-300		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
CG5FN32SV-25		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
CG5FN32SV-50		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
CG5FN32SV-75		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
CG5FN32SV-100		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
CG5FN32SV-125		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
CG5FN32SV-150		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
CG5FN32SV-200		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
CG5FN32SV-250		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
CG5FN32SV-300		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
CG5FN40SR-25		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
CG5FN40SR-50		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
CG5FN40SR-75		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
CG5FN40SR-100		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
CG5FN40SR-125		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
CG5FN40SR-150		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
CG5FN40SR-200		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
CG5FN40SR-250		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
CG5FN40SR-300		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
CG5FN40SV-25		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
CG5FN40SV-50		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
CG5FN40SV-75		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
CG5FN40SV-100		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
CG5FN40SV-125		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
CG5FN40SV-150		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
CG5FN40SV-200		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
CG5FN40SV-250		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
CG5FN40SV-300		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
CG5FA20SR-25		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
CG5FA20SR-50		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
CG5FA20SR-75		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
CG5FA20SR-100		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
CG5FA20SR-125		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
CG5FA20SR-150		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
CG5FA20SR-200		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
CG5FA20SV-25		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
CG5FA20SV-50		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
CG5FA20SV-75		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
CG5FA20SV-100		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
CG5FA20SV-125		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
CG5FA20SV-150		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
CG5FA20SV-200		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
CG5FA25SR-25		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
CG5FA25SR-50		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
CG5FA25SR-75		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
CG5FA25SR-100		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
CG5FA25SR-125		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
CG5FA25SR-150		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
CG5FA25SR-200		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
CG5FA25SR-250		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
CG5FA25SR-300		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
CG5FA25SV-25		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
CG5FA25SV-50		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
CG5FA25SV-75		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
CG5FA25SV-100		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
CG5FA25SV-125		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
CG5FA25SV-150		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
CG5FA25SV-200		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
CG5FA25SV-250		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
CG5FA25SV-300		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
CG5FA32SR-25		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
CG5FA32SR-50		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
CG5FA32SR-75		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
CG5FA32SR-100		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
CG5FA32SR-125		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
CG5FA32SR-150		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
CG5FA32SR-200		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
CG5FA32SR-250		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
CG5FA32SR-300		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
CG5FA32SV-25		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
CG5FA32SV-50		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
CG5FA32SV-75		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
CG5FA32SV-100		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
CG5FA32SV-125		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
CG5FA32SV-150		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
CG5FA32SV-200		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
CG5FA32SV-250		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
CG5FA32SV-300		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
CG5FA40SR-25		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
CG5FA40SR-50		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
CG5FA40SR-75		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
CG5FA40SR-100		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
CG5FA40SR-125		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
CG5FA40SR-150		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
CG5FA40SR-200		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
CG5FA40SR-250		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
CG5FA40SR-300		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
CG5FA40SV-25		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
CG5FA40SV-50		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
CG5FA40SV-75		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
CG5FA40SV-100		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
CG5FA40SV-125		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
CG5FA40SV-150		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
CG5FA40SV-200		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
CG5FA40SV-250		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
CG5FA40SV-300		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
CG5GN20SR-25		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
CG5GN20SR-50		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
CG5GN20SR-75		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
CG5GN20SR-100		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
CG5GN20SR-125		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
CG5GN20SR-150		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
CG5GN20SR-200		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
CG5GN20SV-25		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
CG5GN20SV-50		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
CG5GN20SV-75		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
CG5GN20SV-100		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
CG5GN20SV-125		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
CG5GN20SV-150		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
CG5GN20SV-200		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
CG5GN25SR-25		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
CG5GN25SR-50		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
CG5GN25SR-75		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
CG5GN25SR-100		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
CG5GN25SR-125		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
CG5GN25SR-150		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
CG5GN25SR-200		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
CG5GN25SR-250		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
CG5GN25SR-300		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
CG5GN25SV-25		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
CG5GN25SV-50		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
CG5GN25SV-75		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
CG5GN25SV-100		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
CG5GN25SV-125		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
CG5GN25SV-150		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
CG5GN25SV-200		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
CG5GN25SV-250		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
CG5GN25SV-300		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
CG5GN32SR-25		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
CG5GN32SR-50		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
CG5GN32SR-75		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
CG5GN32SR-100		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
CG5GN32SR-125		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
CG5GN32SR-150		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
CG5GN32SR-200		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
CG5GN32SR-250		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
CG5GN32SR-300		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
CG5GN32SV-25		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
CG5GN32SV-50		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
CG5GN32SV-75		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
CG5GN32SV-100		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
CG5GN32SV-125		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
CG5GN32SV-150		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
CG5GN32SV-200		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
CG5GN32SV-250		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
CG5GN32SV-300		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
CG5GN40SR-25		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
CG5GN40SR-50		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
CG5GN40SR-75		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
CG5GN40SR-100		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
CG5GN40SR-125		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
CG5GN40SR-150		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
CG5GN40SR-200		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
CG5GN40SR-250		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
CG5GN40SR-300		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
CG5GN40SV-25		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
CG5GN40SV-50		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
CG5GN40SV-75		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
CG5GN40SV-100		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
CG5GN40SV-125		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
CG5GN40SV-150		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
CG5GN40SV-200		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
CG5GN40SV-250		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
CG5GN40SV-300		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
CG5GA20SR-25		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
CG5GA20SR-50		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
CG5GA20SR-75		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
CG5GA20SR-100		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
CG5GA20SR-125		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
CG5GA20SR-150		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
CG5GA20SR-200		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
CG5GA20SV-25		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
CG5GA20SV-50		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
CG5GA20SV-75		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
CG5GA20SV-100		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
CG5GA20SV-125		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
CG5GA20SV-150		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
CG5GA20SV-200		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
CG5GA25SR-25		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
CG5GA25SR-50		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
CG5GA25SR-75		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
CG5GA25SR-100		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
CG5GA25SR-125		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
CG5GA25SR-150		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
CG5GA25SR-200		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
CG5GA25SR-250		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
CG5GA25SR-300		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
CG5GA25SV-25		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
CG5GA25SV-50		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
CG5GA25SV-75		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
CG5GA25SV-100		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
CG5GA25SV-125		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
CG5GA25SV-150		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
CG5GA25SV-200		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
CG5GA25SV-250		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
CG5GA25SV-300		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
CG5GA32SR-25		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
CG5GA32SR-50		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
CG5GA32SR-75		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
CG5GA32SR-100		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
CG5GA32SR-125		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
CG5GA32SR-150		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
CG5GA32SR-200		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
CG5GA32SR-250		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
CG5GA32SR-300		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
CG5GA32SV-25		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
CG5GA32SV-50		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
CG5GA32SV-75		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
CG5GA32SV-100		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
CG5GA32SV-125		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
CG5GA32SV-150		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
CG5GA32SV-200		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
CG5GA32SV-250		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
CG5GA32SV-300		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
CG5GA40SR-25		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
CG5GA40SR-50		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
CG5GA40SR-75		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
CG5GA40SR-100		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
CG5GA40SR-125		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
CG5GA40SR-150		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
CG5GA40SR-200		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
CG5GA40SR-250		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
CG5GA40SR-300		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
CG5GA40SV-25		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
CG5GA40SV-50		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
CG5GA40SV-75		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
CG5GA40SV-100		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
CG5GA40SV-125		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
CG5GA40SV-150		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
CG5GA40SV-200		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
CG5GA40SV-250		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
CG5GA40SV-300		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
CG5EN20SR-25		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
CG5EN20SR-50		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
CG5EN20SR-75		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
CG5EN20SR-100		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
CG5EN20SR-125		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
CG5EN20SR-150		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
CG5EN20SR-200		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
CG5EN20SV-25		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
CG5EN20SV-50		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
CG5EN20SV-75		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
CG5EN20SV-100		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
CG5EN20SV-125		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
CG5EN20SV-150		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
CG5EN20SV-200		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
CG5EN25SR-25		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
CG5EN25SR-50		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
CG5EN25SR-75		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
CG5EN25SR-100		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
CG5EN25SR-125		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
CG5EN25SR-150		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
CG5EN25SR-200		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
CG5EN25SR-250		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
CG5EN25SR-300		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
CG5EN25SV-25		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
CG5EN25SV-50		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
CG5EN25SV-75		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
CG5EN25SV-100		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
CG5EN25SV-125		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
CG5EN25SV-150		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
CG5EN25SV-200		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
CG5EN25SV-250		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
CG5EN25SV-300		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
CG5EN32SR-25		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
CG5EN32SR-50		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
CG5EN32SR-75		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
CG5EN32SR-100		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
CG5EN32SR-125		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
CG5EN32SR-150		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
CG5EN32SR-200		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
CG5EN32SR-250		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
CG5EN32SR-300		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
CG5EN32SV-25		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
CG5EN32SV-50		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
CG5EN32SV-75		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
CG5EN32SV-100		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
CG5EN32SV-125		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
CG5EN32SV-150		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
CG5EN32SV-200		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
CG5EN32SV-250		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
CG5EN32SV-300		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
CG5EN40SR-25		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
CG5EN40SR-50		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
CG5EN40SR-75		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
CG5EN40SR-100		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
CG5EN40SR-125		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
CG5EN40SR-150		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
CG5EN40SR-200		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
CG5EN40SR-250		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
CG5EN40SR-300		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
CG5EN40SV-25		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
CG5EN40SV-50		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
CG5EN40SV-75		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
CG5EN40SV-100		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
CG5EN40SV-125		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
CG5EN40SV-150		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
CG5EN40SV-200		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
CG5EN40SV-250		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
CG5EN40SV-300		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
CG5EA20SR-25		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
CG5EA20SR-50		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
CG5EA20SR-75		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
CG5EA20SR-100		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
CG5EA20SR-125		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
CG5EA20SR-150		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
CG5EA20SR-200		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
CG5EA20SV-25		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
CG5EA20SV-50		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
CG5EA20SV-75		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
CG5EA20SV-100		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
CG5EA20SV-125		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
CG5EA20SV-150		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
CG5EA20SV-200		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
CG5EA25SR-25		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
CG5EA25SR-50		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
CG5EA25SR-75		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
CG5EA25SR-100		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
CG5EA25SR-125		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
CG5EA25SR-150		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
CG5EA25SR-200		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
CG5EA25SR-250		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
CG5EA25SR-300		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
CG5EA25SV-25		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
CG5EA25SV-50		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
CG5EA25SV-75		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
CG5EA25SV-100		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
CG5EA25SV-125		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
CG5EA25SV-150		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
CG5EA25SV-200		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
CG5EA25SV-250		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
CG5EA25SV-300		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
CG5EA32SR-25		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
CG5EA32SR-50		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
CG5EA32SR-75		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
CG5EA32SR-100		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
CG5EA32SR-125		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
CG5EA32SR-150		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
CG5EA32SR-200		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
CG5EA32SR-250		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
CG5EA32SR-300		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
CG5EA32SV-25		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
CG5EA32SV-50		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
CG5EA32SV-75		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
CG5EA32SV-100		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
CG5EA32SV-125		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
CG5EA32SV-150		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
CG5EA32SV-200		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
CG5EA32SV-250		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
CG5EA32SV-300		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
CG5EA40SR-25		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
CG5EA40SR-50		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
CG5EA40SR-75		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
CG5EA40SR-100		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
CG5EA40SR-125		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
CG5EA40SR-150		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
CG5EA40SR-200		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
CG5EA40SR-250		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
CG5EA40SR-300		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
CG5EA40SV-25		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
CG5EA40SV-50		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
CG5EA40SV-75		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
CG5EA40SV-100		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
CG5EA40SV-125		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
CG5EA40SV-150		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
CG5EA40SV-200		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
CG5EA40SV-250		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
CG5EA40SV-300		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
CDG5BN20SR-25		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
CDG5BN20SR-50		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
CDG5BN20SR-75		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
CDG5BN20SR-100		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
CDG5BN20SR-125		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
CDG5BN20SR-150		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
CDG5BN20SR-200		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
CDG5BN20SV-25		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
CDG5BN20SV-50		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
CDG5BN20SV-75		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
CDG5BN20SV-100		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
CDG5BN20SV-125		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
CDG5BN20SV-150		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
CDG5BN20SV-200		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
CDG5BN25SR-25		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
CDG5BN25SR-50		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
CDG5BN25SR-75		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
CDG5BN25SR-100		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
CDG5BN25SR-125		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
CDG5BN25SR-150		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
CDG5BN25SR-200		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
CDG5BN25SR-250		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
CDG5BN25SR-300		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
CDG5BN25SV-25		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
CDG5BN25SV-50		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
CDG5BN25SV-75		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
CDG5BN25SV-100		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
CDG5BN25SV-125		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
CDG5BN25SV-150		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
CDG5BN25SV-200		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
CDG5BN25SV-250		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
CDG5BN25SV-300		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
CDG5BN32SR-25		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
CDG5BN32SR-50		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
CDG5BN32SR-75		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
CDG5BN32SR-100		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
CDG5BN32SR-125		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
CDG5BN32SR-150		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
CDG5BN32SR-200		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
CDG5BN32SR-250		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
CDG5BN32SR-300		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
CDG5BN32SV-25		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
CDG5BN32SV-50		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
CDG5BN32SV-75		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
CDG5BN32SV-100		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
CDG5BN32SV-125		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
CDG5BN32SV-150		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
CDG5BN32SV-200		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
CDG5BN32SV-250		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
CDG5BN32SV-300		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
CDG5BN40SR-25		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
CDG5BN40SR-50		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
CDG5BN40SR-75		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
CDG5BN40SR-100		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
CDG5BN40SR-125		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
CDG5BN40SR-150		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
CDG5BN40SR-200		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
CDG5BN40SR-250		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
CDG5BN40SR-300		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
CDG5BN40SV-25		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
CDG5BN40SV-50		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
CDG5BN40SV-75		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
CDG5BN40SV-100		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
CDG5BN40SV-125		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
CDG5BN40SV-150		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
CDG5BN40SV-200		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
CDG5BN40SV-250		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
CDG5BN40SV-300		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
CDG5BA20SR-25		Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
CDG5BA20SR-50		Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
CDG5BA20SR-75		Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
CDG5BA20SR-100		Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
CDG5BA20SR-125		Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
CDG5BA20SR-150		Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
CDG5BA20SR-200		Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
CDG5BA20SV-25		Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
CDG5BA20SV-50		Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
CDG5BA20SV-75		Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
CDG5BA20SV-100		Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
CDG5BA20SV-125		Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
CDG5BA20SV-150		Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
CDG5BA20SV-200		Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
CDG5BA25SR-25		Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
CDG5BA25SR-50		Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
CDG5BA25SR-75		Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
CDG5BA25SR-100		Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
CDG5BA25SR-125		Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
CDG5BA25SR-150		Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
CDG5BA25SR-200		Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
CDG5BA25SR-250		Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
CDG5BA25SR-300		Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
CDG5BA25SV-25		Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
CDG5BA25SV-50		Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
CDG5BA25SV-75		Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
CDG5BA25SV-100		Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
CDG5BA25SV-125		Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
CDG5BA25SV-150		Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
CDG5BA25SV-200		Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
CDG5BA25SV-250		Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
CDG5BA25SV-300		Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
CDG5BA32SR-25		Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
CDG5BA32SR-50		Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
CDG5BA32SR-75		Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
CDG5BA32SR-100		Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
CDG5BA32SR-125		Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
CDG5BA32SR-150		Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
CDG5BA32SR-200		Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
CDG5BA32SR-250		Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
CDG5BA32SR-300		Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
CDG5BA32SV-25		Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
CDG5BA32SV-50		Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
CDG5BA32SV-75		Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
CDG5BA32SV-100		Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
CDG5BA32SV-125		Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
CDG5BA32SV-150		Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
CDG5BA32SV-200		Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
CDG5BA32SV-250		Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
CDG5BA32SV-300		Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
CDG5BA40SR-25		Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
CDG5BA40SR-50		Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
CDG5BA40SR-75		Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
CDG5BA40SR-100		Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
CDG5BA40SR-125		Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
CDG5BA40SR-150		Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
CDG5BA40SR-200		Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
CDG5BA40SR-250		Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
CDG5BA40SR-300		Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
CDG5BA40SV-25		Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
CDG5BA40SV-50		Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
CDG5BA40SV-75		Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
CDG5BA40SV-100		Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
CDG5BA40SV-125		Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
CDG5BA40SV-150		Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
CDG5BA40SV-200		Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
CDG5BA40SV-250		Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
CDG5BA40SV-300		Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
CDG5LN20SR-25		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
CDG5LN20SR-50		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
CDG5LN20SR-75		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
CDG5LN20SR-100		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
CDG5LN20SR-125		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
CDG5LN20SR-150		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
CDG5LN20SR-200		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
CDG5LN20SV-25		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
CDG5LN20SV-50		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
CDG5LN20SV-75		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
CDG5LN20SV-100		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
CDG5LN20SV-125		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
CDG5LN20SV-150		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
CDG5LN20SV-200		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
CDG5LN25SR-25		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
CDG5LN25SR-50		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
CDG5LN25SR-75		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
CDG5LN25SR-100		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
CDG5LN25SR-125		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
CDG5LN25SR-150		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
CDG5LN25SR-200		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
CDG5LN25SR-250		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
CDG5LN25SR-300		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
CDG5LN25SV-25		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
CDG5LN25SV-50		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
CDG5LN25SV-75		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
CDG5LN25SV-100		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
CDG5LN25SV-125		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
CDG5LN25SV-150		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
CDG5LN25SV-200		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
CDG5LN25SV-250		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
CDG5LN25SV-300		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
CDG5LN32SR-25		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
CDG5LN32SR-50		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
CDG5LN32SR-75		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
CDG5LN32SR-100		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
CDG5LN32SR-125		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
CDG5LN32SR-150		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
CDG5LN32SR-200		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
CDG5LN32SR-250		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
CDG5LN32SR-300		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
CDG5LN32SV-25		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
CDG5LN32SV-50		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
CDG5LN32SV-75		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
CDG5LN32SV-100		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
CDG5LN32SV-125		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
CDG5LN32SV-150		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
CDG5LN32SV-200		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
CDG5LN32SV-250		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
CDG5LN32SV-300		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
CDG5LN40SR-25		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
CDG5LN40SR-50		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
CDG5LN40SR-75		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
CDG5LN40SR-100		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
CDG5LN40SR-125		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
CDG5LN40SR-150		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
CDG5LN40SR-200		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
CDG5LN40SR-250		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
CDG5LN40SR-300		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
CDG5LN40SV-25		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
CDG5LN40SV-50		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
CDG5LN40SV-75		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
CDG5LN40SV-100		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
CDG5LN40SV-125		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
CDG5LN40SV-150		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
CDG5LN40SV-200		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
CDG5LN40SV-250		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
CDG5LN40SV-300		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
CDG5LA20SR-25		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
CDG5LA20SR-50		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
CDG5LA20SR-75		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
CDG5LA20SR-100		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
CDG5LA20SR-125		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
CDG5LA20SR-150		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
CDG5LA20SR-200		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
CDG5LA20SV-25		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
CDG5LA20SV-50		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
CDG5LA20SV-75		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
CDG5LA20SV-100		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
CDG5LA20SV-125		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
CDG5LA20SV-150		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
CDG5LA20SV-200		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
CDG5LA25SR-25		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
CDG5LA25SR-50		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
CDG5LA25SR-75		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
CDG5LA25SR-100		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
CDG5LA25SR-125		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
CDG5LA25SR-150		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
CDG5LA25SR-200		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
CDG5LA25SR-250		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
CDG5LA25SR-300		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
CDG5LA25SV-25		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
CDG5LA25SV-50		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
CDG5LA25SV-75		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
CDG5LA25SV-100		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
CDG5LA25SV-125		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
CDG5LA25SV-150		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
CDG5LA25SV-200		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
CDG5LA25SV-250		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
CDG5LA25SV-300		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
CDG5LA32SR-25		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
CDG5LA32SR-50		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
CDG5LA32SR-75		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
CDG5LA32SR-100		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
CDG5LA32SR-125		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
CDG5LA32SR-150		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
CDG5LA32SR-200		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
CDG5LA32SR-250		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
CDG5LA32SR-300		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
CDG5LA32SV-25		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
CDG5LA32SV-50		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
CDG5LA32SV-75		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
CDG5LA32SV-100		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
CDG5LA32SV-125		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
CDG5LA32SV-150		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
CDG5LA32SV-200		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
CDG5LA32SV-250		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
CDG5LA32SV-300		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
CDG5LA40SR-25		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
CDG5LA40SR-50		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
CDG5LA40SR-75		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
CDG5LA40SR-100		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
CDG5LA40SR-125		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
CDG5LA40SR-150		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
CDG5LA40SR-200		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
CDG5LA40SR-250		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
CDG5LA40SR-300		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
CDG5LA40SV-25		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
CDG5LA40SV-50		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
CDG5LA40SV-75		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
CDG5LA40SV-100		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
CDG5LA40SV-125		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
CDG5LA40SV-150		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
CDG5LA40SV-200		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
CDG5LA40SV-250		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
CDG5LA40SV-300		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
CDG5FN20SR-25		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
CDG5FN20SR-50		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
CDG5FN20SR-75		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
CDG5FN20SR-100		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
CDG5FN20SR-125		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
CDG5FN20SR-150		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
CDG5FN20SR-200		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
CDG5FN20SV-25		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
CDG5FN20SV-50		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
CDG5FN20SV-75		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
CDG5FN20SV-100		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
CDG5FN20SV-125		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
CDG5FN20SV-150		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
CDG5FN20SV-200		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
CDG5FN25SR-25		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
CDG5FN25SR-50		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
CDG5FN25SR-75		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
CDG5FN25SR-100		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
CDG5FN25SR-125		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
CDG5FN25SR-150		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
CDG5FN25SR-200		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
CDG5FN25SR-250		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
CDG5FN25SR-300		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
CDG5FN25SV-25		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
CDG5FN25SV-50		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
CDG5FN25SV-75		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
CDG5FN25SV-100		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
CDG5FN25SV-125		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
CDG5FN25SV-150		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
CDG5FN25SV-200		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
CDG5FN25SV-250		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
CDG5FN25SV-300		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
CDG5FN32SR-25		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
CDG5FN32SR-50		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
CDG5FN32SR-75		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
CDG5FN32SR-100		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
CDG5FN32SR-125		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
CDG5FN32SR-150		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
CDG5FN32SR-200		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
CDG5FN32SR-250		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
CDG5FN32SR-300		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
CDG5FN32SV-25		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
CDG5FN32SV-50		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
CDG5FN32SV-75		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
CDG5FN32SV-100		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
CDG5FN32SV-125		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
CDG5FN32SV-150		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
CDG5FN32SV-200		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
CDG5FN32SV-250		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
CDG5FN32SV-300		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
CDG5FN40SR-25		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
CDG5FN40SR-50		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
CDG5FN40SR-75		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
CDG5FN40SR-100		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
CDG5FN40SR-125		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
CDG5FN40SR-150		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
CDG5FN40SR-200		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
CDG5FN40SR-250		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
CDG5FN40SR-300		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
CDG5FN40SV-25		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
CDG5FN40SV-50		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
CDG5FN40SV-75		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
CDG5FN40SV-100		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
CDG5FN40SV-125		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
CDG5FN40SV-150		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
CDG5FN40SV-200		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
CDG5FN40SV-250		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
CDG5FN40SV-300		Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
CDG5FA20SR-25		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
CDG5FA20SR-50		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
CDG5FA20SR-75		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
CDG5FA20SR-100		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
CDG5FA20SR-125		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
CDG5FA20SR-150		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
CDG5FA20SR-200		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
CDG5FA20SV-25		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
CDG5FA20SV-50		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
CDG5FA20SV-75		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
CDG5FA20SV-100		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
CDG5FA20SV-125		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
CDG5FA20SV-150		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
CDG5FA20SV-200		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
CDG5FA25SR-25		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
CDG5FA25SR-50		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
CDG5FA25SR-75		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
CDG5FA25SR-100		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
CDG5FA25SR-125		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
CDG5FA25SR-150		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
CDG5FA25SR-200		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
CDG5FA25SR-250		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
CDG5FA25SR-300		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
CDG5FA25SV-25		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
CDG5FA25SV-50		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
CDG5FA25SV-75		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
CDG5FA25SV-100		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
CDG5FA25SV-125		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
CDG5FA25SV-150		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
CDG5FA25SV-200		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
CDG5FA25SV-250		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
CDG5FA25SV-300		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
CDG5FA32SR-25		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
CDG5FA32SR-50		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
CDG5FA32SR-75		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
CDG5FA32SR-100		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
CDG5FA32SR-125		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
CDG5FA32SR-150		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
CDG5FA32SR-200		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
CDG5FA32SR-250		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
CDG5FA32SR-300		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
CDG5FA32SV-25		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
CDG5FA32SV-50		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
CDG5FA32SV-75		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
CDG5FA32SV-100		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
CDG5FA32SV-125		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
CDG5FA32SV-150		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
CDG5FA32SV-200		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
CDG5FA32SV-250		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
CDG5FA32SV-300		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
CDG5FA40SR-25		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
CDG5FA40SR-50		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
CDG5FA40SR-75		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
CDG5FA40SR-100		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
CDG5FA40SR-125		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
CDG5FA40SR-150		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
CDG5FA40SR-200		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
CDG5FA40SR-250		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
CDG5FA40SR-300		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
CDG5FA40SV-25		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
CDG5FA40SV-50		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
CDG5FA40SV-75		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
CDG5FA40SV-100		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
CDG5FA40SV-125		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
CDG5FA40SV-150		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
CDG5FA40SV-200		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
CDG5FA40SV-250		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
CDG5FA40SV-300		Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
CDG5GN20SR-25		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
CDG5GN20SR-50		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
CDG5GN20SR-75		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
CDG5GN20SR-100		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
CDG5GN20SR-125		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
CDG5GN20SR-150		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
CDG5GN20SR-200		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
CDG5GN20SV-25		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
CDG5GN20SV-50		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
CDG5GN20SV-75		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
CDG5GN20SV-100		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
CDG5GN20SV-125		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
CDG5GN20SV-150		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
CDG5GN20SV-200		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
CDG5GN25SR-25		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
CDG5GN25SR-50		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
CDG5GN25SR-75		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
CDG5GN25SR-100		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
CDG5GN25SR-125		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
CDG5GN25SR-150		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
CDG5GN25SR-200		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
CDG5GN25SR-250		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
CDG5GN25SR-300		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
CDG5GN25SV-25		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
CDG5GN25SV-50		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
CDG5GN25SV-75		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
CDG5GN25SV-100		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
CDG5GN25SV-125		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
CDG5GN25SV-150		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
CDG5GN25SV-200		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
CDG5GN25SV-250		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
CDG5GN25SV-300		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
CDG5GN32SR-25		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
CDG5GN32SR-50		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
CDG5GN32SR-75		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
CDG5GN32SR-100		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
CDG5GN32SR-125		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
CDG5GN32SR-150		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
CDG5GN32SR-200		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
CDG5GN32SR-250		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
CDG5GN32SR-300		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
CDG5GN32SV-25		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
CDG5GN32SV-50		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
CDG5GN32SV-75		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
CDG5GN32SV-100		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
CDG5GN32SV-125		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
CDG5GN32SV-150		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
CDG5GN32SV-200		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
CDG5GN32SV-250		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
CDG5GN32SV-300		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
CDG5GN40SR-25		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
CDG5GN40SR-50		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
CDG5GN40SR-75		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
CDG5GN40SR-100		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
CDG5GN40SR-125		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
CDG5GN40SR-150		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
CDG5GN40SR-200		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
CDG5GN40SR-250		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
CDG5GN40SR-300		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
CDG5GN40SV-25		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
CDG5GN40SV-50		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
CDG5GN40SV-75		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
CDG5GN40SV-100		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
CDG5GN40SV-125		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
CDG5GN40SV-150		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
CDG5GN40SV-200		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
CDG5GN40SV-250		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
CDG5GN40SV-300		Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
CDG5GA20SR-25		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
CDG5GA20SR-50		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
CDG5GA20SR-75		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
CDG5GA20SR-100		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
CDG5GA20SR-125		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
CDG5GA20SR-150		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
CDG5GA20SR-200		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
CDG5GA20SV-25		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
CDG5GA20SV-50		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
CDG5GA20SV-75		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
CDG5GA20SV-100		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
CDG5GA20SV-125		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
CDG5GA20SV-150		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
CDG5GA20SV-200		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
CDG5GA25SR-25		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
CDG5GA25SR-50		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
CDG5GA25SR-75		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
CDG5GA25SR-100		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
CDG5GA25SR-125		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
CDG5GA25SR-150		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
CDG5GA25SR-200		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
CDG5GA25SR-250		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
CDG5GA25SR-300		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
CDG5GA25SV-25		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
CDG5GA25SV-50		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
CDG5GA25SV-75		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
CDG5GA25SV-100		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
CDG5GA25SV-125		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
CDG5GA25SV-150		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
CDG5GA25SV-200		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
CDG5GA25SV-250		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
CDG5GA25SV-300		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
CDG5GA32SR-25		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
CDG5GA32SR-50		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
CDG5GA32SR-75		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
CDG5GA32SR-100		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
CDG5GA32SR-125		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
CDG5GA32SR-150		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
CDG5GA32SR-200		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
CDG5GA32SR-250		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
CDG5GA32SR-300		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
CDG5GA32SV-25		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
CDG5GA32SV-50		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
CDG5GA32SV-75		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
CDG5GA32SV-100		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
CDG5GA32SV-125		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
CDG5GA32SV-150		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
CDG5GA32SV-200		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
CDG5GA32SV-250		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
CDG5GA32SV-300		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
CDG5GA40SR-25		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
CDG5GA40SR-50		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
CDG5GA40SR-75		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
CDG5GA40SR-100		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
CDG5GA40SR-125		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
CDG5GA40SR-150		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
CDG5GA40SR-200		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
CDG5GA40SR-250		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
CDG5GA40SR-300		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
CDG5GA40SV-25		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
CDG5GA40SV-50		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
CDG5GA40SV-75		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
CDG5GA40SV-100		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
CDG5GA40SV-125		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
CDG5GA40SV-150		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
CDG5GA40SV-200		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
CDG5GA40SV-250		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
CDG5GA40SV-300		Mounting: Head flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
CDG5EN20SR-25		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
CDG5EN20SR-50		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
CDG5EN20SR-75		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
CDG5EN20SR-100		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
CDG5EN20SR-125		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
CDG5EN20SR-150		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
CDG5EN20SR-200		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
CDG5EN20SV-25		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
CDG5EN20SV-50		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
CDG5EN20SV-75		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
CDG5EN20SV-100		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
CDG5EN20SV-125		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
CDG5EN20SV-150		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
CDG5EN20SV-200		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
CDG5EN25SR-25		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
CDG5EN25SR-50		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
CDG5EN25SR-75		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
CDG5EN25SR-100		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
CDG5EN25SR-125		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
CDG5EN25SR-150		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
CDG5EN25SR-200		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
CDG5EN25SR-250		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
CDG5EN25SR-300		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
CDG5EN25SV-25		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
CDG5EN25SV-50		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
CDG5EN25SV-75		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
CDG5EN25SV-100		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
CDG5EN25SV-125		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
CDG5EN25SV-150		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
CDG5EN25SV-200		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
CDG5EN25SV-250		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
CDG5EN25SV-300		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
CDG5EN32SR-25		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
CDG5EN32SR-50		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
CDG5EN32SR-75		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
CDG5EN32SR-100		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
CDG5EN32SR-125		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
CDG5EN32SR-150		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
CDG5EN32SR-200		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
CDG5EN32SR-250		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
CDG5EN32SR-300		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
CDG5EN32SV-25		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
CDG5EN32SV-50		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
CDG5EN32SV-75		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
CDG5EN32SV-100		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
CDG5EN32SV-125		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
CDG5EN32SV-150		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
CDG5EN32SV-200		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
CDG5EN32SV-250		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
CDG5EN32SV-300		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
CDG5EN40SR-25		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
CDG5EN40SR-50		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
CDG5EN40SR-75		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
CDG5EN40SR-100		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
CDG5EN40SR-125		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
CDG5EN40SR-150		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
CDG5EN40SR-200		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
CDG5EN40SR-250		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
CDG5EN40SR-300		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
CDG5EN40SV-25		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
CDG5EN40SV-50		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
CDG5EN40SV-75		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
CDG5EN40SV-100		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
CDG5EN40SV-125		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
CDG5EN40SV-150		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
CDG5EN40SV-200		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
CDG5EN40SV-250		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
CDG5EN40SV-300		Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
CDG5EA20SR-25		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
CDG5EA20SR-50		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
CDG5EA20SR-75		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
CDG5EA20SR-100		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
CDG5EA20SR-125		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
CDG5EA20SR-150		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
CDG5EA20SR-200		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
CDG5EA20SV-25		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
CDG5EA20SV-50		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
CDG5EA20SV-75		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
CDG5EA20SV-100		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
CDG5EA20SV-125		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
CDG5EA20SV-150		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
CDG5EA20SV-200		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
CDG5EA25SR-25		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
CDG5EA25SR-50		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
CDG5EA25SR-75		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
CDG5EA25SR-100		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
CDG5EA25SR-125		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
CDG5EA25SR-150		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
CDG5EA25SR-200		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
CDG5EA25SR-250		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
CDG5EA25SR-300		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
CDG5EA25SV-25		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
CDG5EA25SV-50		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
CDG5EA25SV-75		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
CDG5EA25SV-100		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
CDG5EA25SV-125		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
CDG5EA25SV-150		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
CDG5EA25SV-200		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
CDG5EA25SV-250		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
CDG5EA25SV-300		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
CDG5EA32SR-25		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
CDG5EA32SR-50		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
CDG5EA32SR-75		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
CDG5EA32SR-100		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
CDG5EA32SR-125		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
CDG5EA32SR-150		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
CDG5EA32SR-200		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
CDG5EA32SR-250		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
CDG5EA32SR-300		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
CDG5EA32SV-25		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
CDG5EA32SV-50		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
CDG5EA32SV-75		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
CDG5EA32SV-100		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
CDG5EA32SV-125		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
CDG5EA32SV-150		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
CDG5EA32SV-200		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
CDG5EA32SV-250		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
CDG5EA32SV-300		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
CDG5EA40SR-25		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
CDG5EA40SR-50		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
CDG5EA40SR-75		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
CDG5EA40SR-100		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
CDG5EA40SR-125		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
CDG5EA40SR-150		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
CDG5EA40SR-200		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
CDG5EA40SR-250		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
CDG5EA40SR-300		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
CDG5EA40SV-25		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
CDG5EA40SV-50		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
CDG5EA40SV-75		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
CDG5EA40SV-100		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
CDG5EA40SV-125		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
CDG5EA40SV-150		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
CDG5EA40SV-200		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
CDG5EA40SV-250		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
CDG5EA40SV-300		Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes

Round Body CylindersSMC

1360 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC CG5-S Stainless Steel Air Cylinder (ø20 to ø40)

Brand SMC·Round Body Cylinders

Available part numbers (1360)

CG5BN20SR-25, CG5BN20SR-50, CG5BN20SR-75, CG5BN20SR-100, CG5BN20SR-125, CG5BN20SR-150, CG5BN20SR-200, CG5BN20SV-25, CG5BN20SV-50, CG5BN20SV-75 + 1350 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	CG5BN20SR-25	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
	CG5BN20SR-50	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
	CG5BN20SR-75	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
	CG5BN20SR-100	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
	CG5BN20SR-125	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
	CG5BN20SR-150	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
	CG5BN20SR-200	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
	CG5BN20SV-25	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
	CG5BN20SV-50	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
	CG5BN20SV-75	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
	CG5BN20SV-100	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
	CG5BN20SV-125	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
	CG5BN20SV-150	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
	CG5BN20SV-200	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
	CG5BN25SR-25	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
	CG5BN25SR-50	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
	CG5BN25SR-75	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
	CG5BN25SR-100	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
	CG5BN25SR-125	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
	CG5BN25SR-150	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
	CG5BN25SR-200	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
	CG5BN25SR-250	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
	CG5BN25SR-300	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
	CG5BN25SV-25	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
	CG5BN25SV-50	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
	CG5BN25SV-75	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
	CG5BN25SV-100	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
	CG5BN25SV-125	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
	CG5BN25SV-150	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
	CG5BN25SV-200	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
	CG5BN25SV-250	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
	CG5BN25SV-300	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
	CG5BN32SR-25	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
	CG5BN32SR-50	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
	CG5BN32SR-75	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
	CG5BN32SR-100	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
	CG5BN32SR-125	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
	CG5BN32SR-150	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
	CG5BN32SR-200	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
	CG5BN32SR-250	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
	CG5BN32SR-300	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
	CG5BN32SV-25	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
	CG5BN32SV-50	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
	CG5BN32SV-75	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
	CG5BN32SV-100	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
	CG5BN32SV-125	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
	CG5BN32SV-150	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
	CG5BN32SV-200	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
	CG5BN32SV-250	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
	CG5BN32SV-300	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
	CG5BN40SR-25	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
	CG5BN40SR-50	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
	CG5BN40SR-75	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
	CG5BN40SR-100	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
	CG5BN40SR-125	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
	CG5BN40SR-150	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
	CG5BN40SR-200	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
	CG5BN40SR-250	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
	CG5BN40SR-300	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
	CG5BN40SV-25	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
	CG5BN40SV-50	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
	CG5BN40SV-75	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
	CG5BN40SV-100	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
	CG5BN40SV-125	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
	CG5BN40SV-150	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
	CG5BN40SV-200	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
	CG5BN40SV-250	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
	CG5BN40SV-300	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
	CG5BA20SR-25	Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
	CG5BA20SR-50	Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
	CG5BA20SR-75	Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
	CG5BA20SR-100	Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
	CG5BA20SR-125	Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
	CG5BA20SR-150	Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
	CG5BA20SR-200	Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
	CG5BA20SV-25	Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
	CG5BA20SV-50	Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
	CG5BA20SV-75	Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
	CG5BA20SV-100	Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
	CG5BA20SV-125	Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
	CG5BA20SV-150	Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
	CG5BA20SV-200	Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
	CG5BA25SR-25	Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
	CG5BA25SR-50	Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
	CG5BA25SR-75	Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
	CG5BA25SR-100	Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
	CG5BA25SR-125	Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
	CG5BA25SR-150	Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
	CG5BA25SR-200	Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
	CG5BA25SR-250	Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
	CG5BA25SR-300	Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
	CG5BA25SV-25	Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
	CG5BA25SV-50	Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
	CG5BA25SV-75	Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
	CG5BA25SV-100	Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
	CG5BA25SV-125	Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
	CG5BA25SV-150	Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
	CG5BA25SV-200	Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
	CG5BA25SV-250	Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
	CG5BA25SV-300	Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
	CG5BA32SR-25	Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
	CG5BA32SR-50	Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
	CG5BA32SR-75	Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
	CG5BA32SR-100	Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
	CG5BA32SR-125	Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
	CG5BA32SR-150	Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
	CG5BA32SR-200	Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
	CG5BA32SR-250	Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
	CG5BA32SR-300	Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
	CG5BA32SV-25	Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
	CG5BA32SV-50	Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
	CG5BA32SV-75	Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
	CG5BA32SV-100	Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
	CG5BA32SV-125	Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
	CG5BA32SV-150	Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
	CG5BA32SV-200	Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
	CG5BA32SV-250	Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
	CG5BA32SV-300	Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
	CG5BA40SR-25	Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
	CG5BA40SR-50	Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
	CG5BA40SR-75	Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
	CG5BA40SR-100	Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
	CG5BA40SR-125	Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
	CG5BA40SR-150	Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
	CG5BA40SR-200	Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
	CG5BA40SR-250	Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
	CG5BA40SR-300	Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
	CG5BA40SV-25	Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
	CG5BA40SV-50	Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
	CG5BA40SV-75	Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
	CG5BA40SV-100	Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
	CG5BA40SV-125	Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
	CG5BA40SV-150	Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
	CG5BA40SV-200	Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
	CG5BA40SV-250	Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
	CG5BA40SV-300	Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
	CG5LN20SR-25	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
	CG5LN20SR-50	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
	CG5LN20SR-75	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
	CG5LN20SR-100	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
	CG5LN20SR-125	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
	CG5LN20SR-150	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
	CG5LN20SR-200	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
	CG5LN20SV-25	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
	CG5LN20SV-50	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
	CG5LN20SV-75	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
	CG5LN20SV-100	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
	CG5LN20SV-125	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
	CG5LN20SV-150	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
	CG5LN20SV-200	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
	CG5LN25SR-25	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
	CG5LN25SR-50	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
	CG5LN25SR-75	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
	CG5LN25SR-100	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
	CG5LN25SR-125	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
	CG5LN25SR-150	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
	CG5LN25SR-200	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
	CG5LN25SR-250	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
	CG5LN25SR-300	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
	CG5LN25SV-25	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
	CG5LN25SV-50	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
	CG5LN25SV-75	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
	CG5LN25SV-100	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
	CG5LN25SV-125	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
	CG5LN25SV-150	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
	CG5LN25SV-200	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
	CG5LN25SV-250	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
	CG5LN25SV-300	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
	CG5LN32SR-25	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
	CG5LN32SR-50	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
	CG5LN32SR-75	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
	CG5LN32SR-100	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
	CG5LN32SR-125	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
	CG5LN32SR-150	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
	CG5LN32SR-200	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
	CG5LN32SR-250	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
	CG5LN32SR-300	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
	CG5LN32SV-25	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
	CG5LN32SV-50	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
	CG5LN32SV-75	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
	CG5LN32SV-100	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
	CG5LN32SV-125	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
	CG5LN32SV-150	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
	CG5LN32SV-200	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
	CG5LN32SV-250	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
	CG5LN32SV-300	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
	CG5LN40SR-25	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
	CG5LN40SR-50	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
	CG5LN40SR-75	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
	CG5LN40SR-100	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
	CG5LN40SR-125	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
	CG5LN40SR-150	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
	CG5LN40SR-200	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
	CG5LN40SR-250	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
	CG5LN40SR-300	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
	CG5LN40SV-25	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
	CG5LN40SV-50	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
	CG5LN40SV-75	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
	CG5LN40SV-100	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
	CG5LN40SV-125	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
	CG5LN40SV-150	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
	CG5LN40SV-200	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
	CG5LN40SV-250	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
	CG5LN40SV-300	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
	CG5LA20SR-25	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
	CG5LA20SR-50	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
	CG5LA20SR-75	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
	CG5LA20SR-100	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
	CG5LA20SR-125	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
	CG5LA20SR-150	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
	CG5LA20SR-200	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
	CG5LA20SV-25	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
	CG5LA20SV-50	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
	CG5LA20SV-75	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
	CG5LA20SV-100	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
	CG5LA20SV-125	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
	CG5LA20SV-150	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
	CG5LA20SV-200	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
	CG5LA25SR-25	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
	CG5LA25SR-50	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
	CG5LA25SR-75	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
	CG5LA25SR-100	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
	CG5LA25SR-125	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
	CG5LA25SR-150	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
	CG5LA25SR-200	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
	CG5LA25SR-250	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
	CG5LA25SR-300	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
	CG5LA25SV-25	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
	CG5LA25SV-50	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
	CG5LA25SV-75	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
	CG5LA25SV-100	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
	CG5LA25SV-125	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
	CG5LA25SV-150	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
	CG5LA25SV-200	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
	CG5LA25SV-250	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
	CG5LA25SV-300	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
	CG5LA32SR-25	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
	CG5LA32SR-50	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
	CG5LA32SR-75	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
	CG5LA32SR-100	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
	CG5LA32SR-125	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
	CG5LA32SR-150	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
	CG5LA32SR-200	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
	CG5LA32SR-250	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
	CG5LA32SR-300	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
	CG5LA32SV-25	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
	CG5LA32SV-50	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
	CG5LA32SV-75	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
	CG5LA32SV-100	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
	CG5LA32SV-125	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
	CG5LA32SV-150	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
	CG5LA32SV-200	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
	CG5LA32SV-250	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
	CG5LA32SV-300	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
	CG5LA40SR-25	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
	CG5LA40SR-50	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
	CG5LA40SR-75	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
	CG5LA40SR-100	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
	CG5LA40SR-125	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
	CG5LA40SR-150	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
	CG5LA40SR-200	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
	CG5LA40SR-250	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
	CG5LA40SR-300	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
	CG5LA40SV-25	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
	CG5LA40SV-50	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
	CG5LA40SV-75	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
	CG5LA40SV-100	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
	CG5LA40SV-125	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
	CG5LA40SV-150	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
	CG5LA40SV-200	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
	CG5LA40SV-250	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
	CG5LA40SV-300	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
	CG5FN20SR-25	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
	CG5FN20SR-50	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
	CG5FN20SR-75	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
	CG5FN20SR-100	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
	CG5FN20SR-125	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
	CG5FN20SR-150	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
	CG5FN20SR-200	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
	CG5FN20SV-25	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
	CG5FN20SV-50	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
	CG5FN20SV-75	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
	CG5FN20SV-100	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
	CG5FN20SV-125	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
	CG5FN20SV-150	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
	CG5FN20SV-200	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
	CG5FN25SR-25	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
	CG5FN25SR-50	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
	CG5FN25SR-75	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
	CG5FN25SR-100	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
	CG5FN25SR-125	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
	CG5FN25SR-150	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
	CG5FN25SR-200	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
	CG5FN25SR-250	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
	CG5FN25SR-300	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
	CG5FN25SV-25	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
	CG5FN25SV-50	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
	CG5FN25SV-75	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
	CG5FN25SV-100	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
	CG5FN25SV-125	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
	CG5FN25SV-150	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
	CG5FN25SV-200	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
	CG5FN25SV-250	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
	CG5FN25SV-300	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
	CG5FN32SR-25	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
	CG5FN32SR-50	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
	CG5FN32SR-75	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
	CG5FN32SR-100	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
	CG5FN32SR-125	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
	CG5FN32SR-150	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
	CG5FN32SR-200	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
	CG5FN32SR-250	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
	CG5FN32SR-300	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
	CG5FN32SV-25	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
	CG5FN32SV-50	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
	CG5FN32SV-75	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
	CG5FN32SV-100	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
	CG5FN32SV-125	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
	CG5FN32SV-150	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
	CG5FN32SV-200	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
	CG5FN32SV-250	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
	CG5FN32SV-300	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
	CG5FN40SR-25	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
	CG5FN40SR-50	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
	CG5FN40SR-75	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
	CG5FN40SR-100	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
	CG5FN40SR-125	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
	CG5FN40SR-150	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
	CG5FN40SR-200	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
	CG5FN40SR-250	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
	CG5FN40SR-300	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
	CG5FN40SV-25	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
	CG5FN40SV-50	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
	CG5FN40SV-75	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
	CG5FN40SV-100	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
	CG5FN40SV-125	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
	CG5FN40SV-150	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
	CG5FN40SV-200	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
	CG5FN40SV-250	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
	CG5FN40SV-300	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
	CG5FA20SR-25	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
	CG5FA20SR-50	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
	CG5FA20SR-75	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
	CG5FA20SR-100	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
	CG5FA20SR-125	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
	CG5FA20SR-150	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
	CG5FA20SR-200	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
	CG5FA20SV-25	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
	CG5FA20SV-50	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
	CG5FA20SV-75	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
	CG5FA20SV-100	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
	CG5FA20SV-125	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
	CG5FA20SV-150	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
	CG5FA20SV-200	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
	CG5FA25SR-25	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
	CG5FA25SR-50	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
	CG5FA25SR-75	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
	CG5FA25SR-100	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
	CG5FA25SR-125	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
	CG5FA25SR-150	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
	CG5FA25SR-200	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
	CG5FA25SR-250	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
	CG5FA25SR-300	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
	CG5FA25SV-25	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
	CG5FA25SV-50	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
	CG5FA25SV-75	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
	CG5FA25SV-100	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
	CG5FA25SV-125	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
	CG5FA25SV-150	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
	CG5FA25SV-200	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
	CG5FA25SV-250	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
	CG5FA25SV-300	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
	CG5FA32SR-25	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
	CG5FA32SR-50	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
	CG5FA32SR-75	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
	CG5FA32SR-100	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
	CG5FA32SR-125	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
	CG5FA32SR-150	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
	CG5FA32SR-200	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
	CG5FA32SR-250	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
	CG5FA32SR-300	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
	CG5FA32SV-25	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
	CG5FA32SV-50	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
	CG5FA32SV-75	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
	CG5FA32SV-100	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
	CG5FA32SV-125	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
	CG5FA32SV-150	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
	CG5FA32SV-200	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
	CG5FA32SV-250	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
	CG5FA32SV-300	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
	CG5FA40SR-25	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
	CG5FA40SR-50	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
	CG5FA40SR-75	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
	CG5FA40SR-100	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
	CG5FA40SR-125	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
	CG5FA40SR-150	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
	CG5FA40SR-200	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
	CG5FA40SR-250	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
	CG5FA40SR-300	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
	CG5FA40SV-25	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
	CG5FA40SV-50	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
	CG5FA40SV-75	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
	CG5FA40SV-100	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
	CG5FA40SV-125	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
	CG5FA40SV-150	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
	CG5FA40SV-200	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
	CG5FA40SV-250	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
	CG5FA40SV-300	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
	CG5GN20SR-25	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
	CG5GN20SR-50	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
	CG5GN20SR-75	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
	CG5GN20SR-100	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
	CG5GN20SR-125	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
	CG5GN20SR-150	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
	CG5GN20SR-200	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
	CG5GN20SV-25	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
	CG5GN20SV-50	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
	CG5GN20SV-75	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
	CG5GN20SV-100	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
	CG5GN20SV-125	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
	CG5GN20SV-150	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
	CG5GN20SV-200	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
	CG5GN25SR-25	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
	CG5GN25SR-50	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
	CG5GN25SR-75	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
	CG5GN25SR-100	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
	CG5GN25SR-125	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
	CG5GN25SR-150	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
	CG5GN25SR-200	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
	CG5GN25SR-250	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
	CG5GN25SR-300	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
	CG5GN25SV-25	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
	CG5GN25SV-50	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
	CG5GN25SV-75	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
	CG5GN25SV-100	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
	CG5GN25SV-125	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
	CG5GN25SV-150	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
	CG5GN25SV-200	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
	CG5GN25SV-250	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
	CG5GN25SV-300	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
	CG5GN32SR-25	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
	CG5GN32SR-50	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
	CG5GN32SR-75	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
	CG5GN32SR-100	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
	CG5GN32SR-125	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
	CG5GN32SR-150	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
	CG5GN32SR-200	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
	CG5GN32SR-250	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
	CG5GN32SR-300	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
	CG5GN32SV-25	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
	CG5GN32SV-50	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
	CG5GN32SV-75	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
	CG5GN32SV-100	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
	CG5GN32SV-125	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
	CG5GN32SV-150	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
	CG5GN32SV-200	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
	CG5GN32SV-250	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
	CG5GN32SV-300	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
	CG5GN40SR-25	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
	CG5GN40SR-50	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
	CG5GN40SR-75	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
	CG5GN40SR-100	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
	CG5GN40SR-125	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
	CG5GN40SR-150	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
	CG5GN40SR-200	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
	CG5GN40SR-250	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
	CG5GN40SR-300	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
	CG5GN40SV-25	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
	CG5GN40SV-50	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
	CG5GN40SV-75	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
	CG5GN40SV-100	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
	CG5GN40SV-125	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
	CG5GN40SV-150	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
	CG5GN40SV-200	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
	CG5GN40SV-250	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
	CG5GN40SV-300	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
	CG5GA20SR-25	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
	CG5GA20SR-50	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
	CG5GA20SR-75	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
	CG5GA20SR-100	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
	CG5GA20SR-125	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
	CG5GA20SR-150	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
	CG5GA20SR-200	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
	CG5GA20SV-25	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
	CG5GA20SV-50	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
	CG5GA20SV-75	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
	CG5GA20SV-100	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
	CG5GA20SV-125	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
	CG5GA20SV-150	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
	CG5GA20SV-200	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
	CG5GA25SR-25	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
	CG5GA25SR-50	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
	CG5GA25SR-75	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
	CG5GA25SR-100	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
	CG5GA25SR-125	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
	CG5GA25SR-150	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
	CG5GA25SR-200	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
	CG5GA25SR-250	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
	CG5GA25SR-300	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
	CG5GA25SV-25	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
	CG5GA25SV-50	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
	CG5GA25SV-75	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
	CG5GA25SV-100	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
	CG5GA25SV-125	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
	CG5GA25SV-150	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
	CG5GA25SV-200	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
	CG5GA25SV-250	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
	CG5GA25SV-300	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
	CG5GA32SR-25	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
	CG5GA32SR-50	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
	CG5GA32SR-75	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
	CG5GA32SR-100	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
	CG5GA32SR-125	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
	CG5GA32SR-150	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
	CG5GA32SR-200	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
	CG5GA32SR-250	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
	CG5GA32SR-300	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
	CG5GA32SV-25	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
	CG5GA32SV-50	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
	CG5GA32SV-75	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
	CG5GA32SV-100	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
	CG5GA32SV-125	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
	CG5GA32SV-150	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
	CG5GA32SV-200	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
	CG5GA32SV-250	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
	CG5GA32SV-300	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
	CG5GA40SR-25	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
	CG5GA40SR-50	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
	CG5GA40SR-75	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
	CG5GA40SR-100	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
	CG5GA40SR-125	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
	CG5GA40SR-150	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
	CG5GA40SR-200	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
	CG5GA40SR-250	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
	CG5GA40SR-300	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
	CG5GA40SV-25	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
	CG5GA40SV-50	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
	CG5GA40SV-75	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
	CG5GA40SV-100	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
	CG5GA40SV-125	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
	CG5GA40SV-150	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
	CG5GA40SV-200	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
	CG5GA40SV-250	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
	CG5GA40SV-300	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
	CG5EN20SR-25	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
	CG5EN20SR-50	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
	CG5EN20SR-75	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
	CG5EN20SR-100	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
	CG5EN20SR-125	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
	CG5EN20SR-150	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
	CG5EN20SR-200	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
	CG5EN20SV-25	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
	CG5EN20SV-50	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
	CG5EN20SV-75	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
	CG5EN20SV-100	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
	CG5EN20SV-125	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
	CG5EN20SV-150	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
	CG5EN20SV-200	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
	CG5EN25SR-25	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
	CG5EN25SR-50	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
	CG5EN25SR-75	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
	CG5EN25SR-100	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
	CG5EN25SR-125	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
	CG5EN25SR-150	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
	CG5EN25SR-200	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
	CG5EN25SR-250	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
	CG5EN25SR-300	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
	CG5EN25SV-25	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
	CG5EN25SV-50	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
	CG5EN25SV-75	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
	CG5EN25SV-100	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
	CG5EN25SV-125	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
	CG5EN25SV-150	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
	CG5EN25SV-200	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
	CG5EN25SV-250	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
	CG5EN25SV-300	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
	CG5EN32SR-25	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
	CG5EN32SR-50	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
	CG5EN32SR-75	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
	CG5EN32SR-100	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
	CG5EN32SR-125	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
	CG5EN32SR-150	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
	CG5EN32SR-200	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
	CG5EN32SR-250	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
	CG5EN32SR-300	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
	CG5EN32SV-25	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
	CG5EN32SV-50	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
	CG5EN32SV-75	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
	CG5EN32SV-100	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
	CG5EN32SV-125	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
	CG5EN32SV-150	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
	CG5EN32SV-200	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
	CG5EN32SV-250	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
	CG5EN32SV-300	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
	CG5EN40SR-25	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
	CG5EN40SR-50	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
	CG5EN40SR-75	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
	CG5EN40SR-100	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
	CG5EN40SR-125	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
	CG5EN40SR-150	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
	CG5EN40SR-200	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
	CG5EN40SR-250	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
	CG5EN40SR-300	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
	CG5EN40SV-25	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
	CG5EN40SV-50	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
	CG5EN40SV-75	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
	CG5EN40SV-100	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
	CG5EN40SV-125	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
	CG5EN40SV-150	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
	CG5EN40SV-200	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
	CG5EN40SV-250	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
	CG5EN40SV-300	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
	CG5EA20SR-25	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
	CG5EA20SR-50	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
	CG5EA20SR-75	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
	CG5EA20SR-100	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
	CG5EA20SR-125	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
	CG5EA20SR-150	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
	CG5EA20SR-200	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
	CG5EA20SV-25	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
	CG5EA20SV-50	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
	CG5EA20SV-75	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
	CG5EA20SV-100	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
	CG5EA20SV-125	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
	CG5EA20SV-150	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
	CG5EA20SV-200	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
	CG5EA25SR-25	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
	CG5EA25SR-50	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
	CG5EA25SR-75	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
	CG5EA25SR-100	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
	CG5EA25SR-125	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
	CG5EA25SR-150	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
	CG5EA25SR-200	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
	CG5EA25SR-250	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
	CG5EA25SR-300	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
	CG5EA25SV-25	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
	CG5EA25SV-50	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
	CG5EA25SV-75	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
	CG5EA25SV-100	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
	CG5EA25SV-125	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
	CG5EA25SV-150	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
	CG5EA25SV-200	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
	CG5EA25SV-250	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
	CG5EA25SV-300	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
	CG5EA32SR-25	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
	CG5EA32SR-50	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
	CG5EA32SR-75	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
	CG5EA32SR-100	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
	CG5EA32SR-125	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
	CG5EA32SR-150	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
	CG5EA32SR-200	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
	CG5EA32SR-250	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
	CG5EA32SR-300	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
	CG5EA32SV-25	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
	CG5EA32SV-50	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
	CG5EA32SV-75	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
	CG5EA32SV-100	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
	CG5EA32SV-125	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
	CG5EA32SV-150	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
	CG5EA32SV-200	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
	CG5EA32SV-250	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
	CG5EA32SV-300	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
	CG5EA40SR-25	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
	CG5EA40SR-50	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
	CG5EA40SR-75	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
	CG5EA40SR-100	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
	CG5EA40SR-125	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
	CG5EA40SR-150	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
	CG5EA40SR-200	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
	CG5EA40SR-250	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
	CG5EA40SR-300	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
	CG5EA40SV-25	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
	CG5EA40SV-50	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
	CG5EA40SV-75	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
	CG5EA40SV-100	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
	CG5EA40SV-125	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
	CG5EA40SV-150	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
	CG5EA40SV-200	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
	CG5EA40SV-250	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
	CG5EA40SV-300	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
	CDG5BN20SR-25	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
	CDG5BN20SR-50	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
	CDG5BN20SR-75	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
	CDG5BN20SR-100	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
	CDG5BN20SR-125	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
	CDG5BN20SR-150	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
	CDG5BN20SR-200	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
	CDG5BN20SV-25	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
	CDG5BN20SV-50	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
	CDG5BN20SV-75	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
	CDG5BN20SV-100	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
	CDG5BN20SV-125	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
	CDG5BN20SV-150	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
	CDG5BN20SV-200	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
	CDG5BN25SR-25	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
	CDG5BN25SR-50	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
	CDG5BN25SR-75	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
	CDG5BN25SR-100	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
	CDG5BN25SR-125	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
	CDG5BN25SR-150	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
	CDG5BN25SR-200	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
	CDG5BN25SR-250	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
	CDG5BN25SR-300	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
	CDG5BN25SV-25	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
	CDG5BN25SV-50	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
	CDG5BN25SV-75	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
	CDG5BN25SV-100	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
	CDG5BN25SV-125	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
	CDG5BN25SV-150	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
	CDG5BN25SV-200	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
	CDG5BN25SV-250	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
	CDG5BN25SV-300	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
	CDG5BN32SR-25	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
	CDG5BN32SR-50	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
	CDG5BN32SR-75	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
	CDG5BN32SR-100	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
	CDG5BN32SR-125	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
	CDG5BN32SR-150	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
	CDG5BN32SR-200	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
	CDG5BN32SR-250	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
	CDG5BN32SR-300	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
	CDG5BN32SV-25	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
	CDG5BN32SV-50	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
	CDG5BN32SV-75	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
	CDG5BN32SV-100	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
	CDG5BN32SV-125	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
	CDG5BN32SV-150	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
	CDG5BN32SV-200	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
	CDG5BN32SV-250	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
	CDG5BN32SV-300	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
	CDG5BN40SR-25	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
	CDG5BN40SR-50	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
	CDG5BN40SR-75	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
	CDG5BN40SR-100	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
	CDG5BN40SR-125	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
	CDG5BN40SR-150	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
	CDG5BN40SR-200	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
	CDG5BN40SR-250	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
	CDG5BN40SR-300	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
	CDG5BN40SV-25	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
	CDG5BN40SV-50	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
	CDG5BN40SV-75	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
	CDG5BN40SV-100	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
	CDG5BN40SV-125	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
	CDG5BN40SV-150	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
	CDG5BN40SV-200	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
	CDG5BN40SV-250	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
	CDG5BN40SV-300	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
	CDG5BA20SR-25	Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
	CDG5BA20SR-50	Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
	CDG5BA20SR-75	Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
	CDG5BA20SR-100	Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
	CDG5BA20SR-125	Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
	CDG5BA20SR-150	Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
	CDG5BA20SR-200	Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
	CDG5BA20SV-25	Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
	CDG5BA20SV-50	Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
	CDG5BA20SV-75	Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
	CDG5BA20SV-100	Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
	CDG5BA20SV-125	Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
	CDG5BA20SV-150	Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
	CDG5BA20SV-200	Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
	CDG5BA25SR-25	Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
	CDG5BA25SR-50	Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
	CDG5BA25SR-75	Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
	CDG5BA25SR-100	Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
	CDG5BA25SR-125	Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
	CDG5BA25SR-150	Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
	CDG5BA25SR-200	Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
	CDG5BA25SR-250	Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
	CDG5BA25SR-300	Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
	CDG5BA25SV-25	Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
	CDG5BA25SV-50	Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
	CDG5BA25SV-75	Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
	CDG5BA25SV-100	Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
	CDG5BA25SV-125	Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
	CDG5BA25SV-150	Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
	CDG5BA25SV-200	Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
	CDG5BA25SV-250	Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
	CDG5BA25SV-300	Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
	CDG5BA32SR-25	Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
	CDG5BA32SR-50	Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
	CDG5BA32SR-75	Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
	CDG5BA32SR-100	Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
	CDG5BA32SR-125	Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
	CDG5BA32SR-150	Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
	CDG5BA32SR-200	Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
	CDG5BA32SR-250	Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
	CDG5BA32SR-300	Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
	CDG5BA32SV-25	Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
	CDG5BA32SV-50	Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
	CDG5BA32SV-75	Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
	CDG5BA32SV-100	Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
	CDG5BA32SV-125	Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
	CDG5BA32SV-150	Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
	CDG5BA32SV-200	Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
	CDG5BA32SV-250	Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
	CDG5BA32SV-300	Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
	CDG5BA40SR-25	Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
	CDG5BA40SR-50	Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
	CDG5BA40SR-75	Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
	CDG5BA40SR-100	Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
	CDG5BA40SR-125	Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
	CDG5BA40SR-150	Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
	CDG5BA40SR-200	Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
	CDG5BA40SR-250	Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
	CDG5BA40SR-300	Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
	CDG5BA40SV-25	Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
	CDG5BA40SV-50	Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
	CDG5BA40SV-75	Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
	CDG5BA40SV-100	Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
	CDG5BA40SV-125	Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
	CDG5BA40SV-150	Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
	CDG5BA40SV-200	Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
	CDG5BA40SV-250	Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
	CDG5BA40SV-300	Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
	CDG5LN20SR-25	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
	CDG5LN20SR-50	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
	CDG5LN20SR-75	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
	CDG5LN20SR-100	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
	CDG5LN20SR-125	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
	CDG5LN20SR-150	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
	CDG5LN20SR-200	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
	CDG5LN20SV-25	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
	CDG5LN20SV-50	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
	CDG5LN20SV-75	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
	CDG5LN20SV-100	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
	CDG5LN20SV-125	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
	CDG5LN20SV-150	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
	CDG5LN20SV-200	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
	CDG5LN25SR-25	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
	CDG5LN25SR-50	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
	CDG5LN25SR-75	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
	CDG5LN25SR-100	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
	CDG5LN25SR-125	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
	CDG5LN25SR-150	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
	CDG5LN25SR-200	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
	CDG5LN25SR-250	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
	CDG5LN25SR-300	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
	CDG5LN25SV-25	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
	CDG5LN25SV-50	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
	CDG5LN25SV-75	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
	CDG5LN25SV-100	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
	CDG5LN25SV-125	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
	CDG5LN25SV-150	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
	CDG5LN25SV-200	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
	CDG5LN25SV-250	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
	CDG5LN25SV-300	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
	CDG5LN32SR-25	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
	CDG5LN32SR-50	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
	CDG5LN32SR-75	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
	CDG5LN32SR-100	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
	CDG5LN32SR-125	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
	CDG5LN32SR-150	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
	CDG5LN32SR-200	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
	CDG5LN32SR-250	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
	CDG5LN32SR-300	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
	CDG5LN32SV-25	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
	CDG5LN32SV-50	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
	CDG5LN32SV-75	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
	CDG5LN32SV-100	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
	CDG5LN32SV-125	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
	CDG5LN32SV-150	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
	CDG5LN32SV-200	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
	CDG5LN32SV-250	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
	CDG5LN32SV-300	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
	CDG5LN40SR-25	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
	CDG5LN40SR-50	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
	CDG5LN40SR-75	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
	CDG5LN40SR-100	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
	CDG5LN40SR-125	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
	CDG5LN40SR-150	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
	CDG5LN40SR-200	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
	CDG5LN40SR-250	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
	CDG5LN40SR-300	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
	CDG5LN40SV-25	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
	CDG5LN40SV-50	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
	CDG5LN40SV-75	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
	CDG5LN40SV-100	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
	CDG5LN40SV-125	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
	CDG5LN40SV-150	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
	CDG5LN40SV-200	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
	CDG5LN40SV-250	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
	CDG5LN40SV-300	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
	CDG5LA20SR-25	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
	CDG5LA20SR-50	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
	CDG5LA20SR-75	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
	CDG5LA20SR-100	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
	CDG5LA20SR-125	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
	CDG5LA20SR-150	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
	CDG5LA20SR-200	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
	CDG5LA20SV-25	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
	CDG5LA20SV-50	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
	CDG5LA20SV-75	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
	CDG5LA20SV-100	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
	CDG5LA20SV-125	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
	CDG5LA20SV-150	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
	CDG5LA20SV-200	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
	CDG5LA25SR-25	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
	CDG5LA25SR-50	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
	CDG5LA25SR-75	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
	CDG5LA25SR-100	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
	CDG5LA25SR-125	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
	CDG5LA25SR-150	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
	CDG5LA25SR-200	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
	CDG5LA25SR-250	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
	CDG5LA25SR-300	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
	CDG5LA25SV-25	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
	CDG5LA25SV-50	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
	CDG5LA25SV-75	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
	CDG5LA25SV-100	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
	CDG5LA25SV-125	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
	CDG5LA25SV-150	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
	CDG5LA25SV-200	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
	CDG5LA25SV-250	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
	CDG5LA25SV-300	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
	CDG5LA32SR-25	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
	CDG5LA32SR-50	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
	CDG5LA32SR-75	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
	CDG5LA32SR-100	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
	CDG5LA32SR-125	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
	CDG5LA32SR-150	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
	CDG5LA32SR-200	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
	CDG5LA32SR-250	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
	CDG5LA32SR-300	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
	CDG5LA32SV-25	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
	CDG5LA32SV-50	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
	CDG5LA32SV-75	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
	CDG5LA32SV-100	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
	CDG5LA32SV-125	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
	CDG5LA32SV-150	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
	CDG5LA32SV-200	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
	CDG5LA32SV-250	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
	CDG5LA32SV-300	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
	CDG5LA40SR-25	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
	CDG5LA40SR-50	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
	CDG5LA40SR-75	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
	CDG5LA40SR-100	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
	CDG5LA40SR-125	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
	CDG5LA40SR-150	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
	CDG5LA40SR-200	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
	CDG5LA40SR-250	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
	CDG5LA40SR-300	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
	CDG5LA40SV-25	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
	CDG5LA40SV-50	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
	CDG5LA40SV-75	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
	CDG5LA40SV-100	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
	CDG5LA40SV-125	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
	CDG5LA40SV-150	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
	CDG5LA40SV-200	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
	CDG5LA40SV-250	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
	CDG5LA40SV-300	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
	CDG5FN20SR-25	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
	CDG5FN20SR-50	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
	CDG5FN20SR-75	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
	CDG5FN20SR-100	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
	CDG5FN20SR-125	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
	CDG5FN20SR-150	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
	CDG5FN20SR-200	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
	CDG5FN20SV-25	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
	CDG5FN20SV-50	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
	CDG5FN20SV-75	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
	CDG5FN20SV-100	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
	CDG5FN20SV-125	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
	CDG5FN20SV-150	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
	CDG5FN20SV-200	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
	CDG5FN25SR-25	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
	CDG5FN25SR-50	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
	CDG5FN25SR-75	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
	CDG5FN25SR-100	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
	CDG5FN25SR-125	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
	CDG5FN25SR-150	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
	CDG5FN25SR-200	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
	CDG5FN25SR-250	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
	CDG5FN25SR-300	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
	CDG5FN25SV-25	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
	CDG5FN25SV-50	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
	CDG5FN25SV-75	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
	CDG5FN25SV-100	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
	CDG5FN25SV-125	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
	CDG5FN25SV-150	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
	CDG5FN25SV-200	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
	CDG5FN25SV-250	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
	CDG5FN25SV-300	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
	CDG5FN32SR-25	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
	CDG5FN32SR-50	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
	CDG5FN32SR-75	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
	CDG5FN32SR-100	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
	CDG5FN32SR-125	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
	CDG5FN32SR-150	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
	CDG5FN32SR-200	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
	CDG5FN32SR-250	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
	CDG5FN32SR-300	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
	CDG5FN32SV-25	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
	CDG5FN32SV-50	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
	CDG5FN32SV-75	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
	CDG5FN32SV-100	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
	CDG5FN32SV-125	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
	CDG5FN32SV-150	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
	CDG5FN32SV-200	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
	CDG5FN32SV-250	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
	CDG5FN32SV-300	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
	CDG5FN40SR-25	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
	CDG5FN40SR-50	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
	CDG5FN40SR-75	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
	CDG5FN40SR-100	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
	CDG5FN40SR-125	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
	CDG5FN40SR-150	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
	CDG5FN40SR-200	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
	CDG5FN40SR-250	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
	CDG5FN40SR-300	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
	CDG5FN40SV-25	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
	CDG5FN40SV-50	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
	CDG5FN40SV-75	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
	CDG5FN40SV-100	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
	CDG5FN40SV-125	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
	CDG5FN40SV-150	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
	CDG5FN40SV-200	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
	CDG5FN40SV-250	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
	CDG5FN40SV-300	Mounting: Rod flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
	CDG5FA20SR-25	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
	CDG5FA20SR-50	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
	CDG5FA20SR-75	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
	CDG5FA20SR-100	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
	CDG5FA20SR-125	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
	CDG5FA20SR-150	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
	CDG5FA20SR-200	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
	CDG5FA20SV-25	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
	CDG5FA20SV-50	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
	CDG5FA20SV-75	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
	CDG5FA20SV-100	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
	CDG5FA20SV-125	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
	CDG5FA20SV-150	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
	CDG5FA20SV-200	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
	CDG5FA25SR-25	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
	CDG5FA25SR-50	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
	CDG5FA25SR-75	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
	CDG5FA25SR-100	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
	CDG5FA25SR-125	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
	CDG5FA25SR-150	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
	CDG5FA25SR-200	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
	CDG5FA25SR-250	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
	CDG5FA25SR-300	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
	CDG5FA25SV-25	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
	CDG5FA25SV-50	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
	CDG5FA25SV-75	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
	CDG5FA25SV-100	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
	CDG5FA25SV-125	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
	CDG5FA25SV-150	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
	CDG5FA25SV-200	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
	CDG5FA25SV-250	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
	CDG5FA25SV-300	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
	CDG5FA32SR-25	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
	CDG5FA32SR-50	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
	CDG5FA32SR-75	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
	CDG5FA32SR-100	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
	CDG5FA32SR-125	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
	CDG5FA32SR-150	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
	CDG5FA32SR-200	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
	CDG5FA32SR-250	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
	CDG5FA32SR-300	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
	CDG5FA32SV-25	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
	CDG5FA32SV-50	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
	CDG5FA32SV-75	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
	CDG5FA32SV-100	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
	CDG5FA32SV-125	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
	CDG5FA32SV-150	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
	CDG5FA32SV-200	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
	CDG5FA32SV-250	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
	CDG5FA32SV-300	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
	CDG5FA40SR-25	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
	CDG5FA40SR-50	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
	CDG5FA40SR-75	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
	CDG5FA40SR-100	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
	CDG5FA40SR-125	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
	CDG5FA40SR-150	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
	CDG5FA40SR-200	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
	CDG5FA40SR-250	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
	CDG5FA40SR-300	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
	CDG5FA40SV-25	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
	CDG5FA40SV-50	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
	CDG5FA40SV-75	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
	CDG5FA40SV-100	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
	CDG5FA40SV-125	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
	CDG5FA40SV-150	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
	CDG5FA40SV-200	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
	CDG5FA40SV-250	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
	CDG5FA40SV-300	Mounting: Rod flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
	CDG5GN20SR-25	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
	CDG5GN20SR-50	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
	CDG5GN20SR-75	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
	CDG5GN20SR-100	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
	CDG5GN20SR-125	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
	CDG5GN20SR-150	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
	CDG5GN20SR-200	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
	CDG5GN20SV-25	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
	CDG5GN20SV-50	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
	CDG5GN20SV-75	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
	CDG5GN20SV-100	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
	CDG5GN20SV-125	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
	CDG5GN20SV-150	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
	CDG5GN20SV-200	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
	CDG5GN25SR-25	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
	CDG5GN25SR-50	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
	CDG5GN25SR-75	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
	CDG5GN25SR-100	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
	CDG5GN25SR-125	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
	CDG5GN25SR-150	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
	CDG5GN25SR-200	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
	CDG5GN25SR-250	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
	CDG5GN25SR-300	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
	CDG5GN25SV-25	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
	CDG5GN25SV-50	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
	CDG5GN25SV-75	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
	CDG5GN25SV-100	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
	CDG5GN25SV-125	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
	CDG5GN25SV-150	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
	CDG5GN25SV-200	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
	CDG5GN25SV-250	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
	CDG5GN25SV-300	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
	CDG5GN32SR-25	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
	CDG5GN32SR-50	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
	CDG5GN32SR-75	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
	CDG5GN32SR-100	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
	CDG5GN32SR-125	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
	CDG5GN32SR-150	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
	CDG5GN32SR-200	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
	CDG5GN32SR-250	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
	CDG5GN32SR-300	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
	CDG5GN32SV-25	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
	CDG5GN32SV-50	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
	CDG5GN32SV-75	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
	CDG5GN32SV-100	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
	CDG5GN32SV-125	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
	CDG5GN32SV-150	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
	CDG5GN32SV-200	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
	CDG5GN32SV-250	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
	CDG5GN32SV-300	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
	CDG5GN40SR-25	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
	CDG5GN40SR-50	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
	CDG5GN40SR-75	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
	CDG5GN40SR-100	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
	CDG5GN40SR-125	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
	CDG5GN40SR-150	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
	CDG5GN40SR-200	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
	CDG5GN40SR-250	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
	CDG5GN40SR-300	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
	CDG5GN40SV-25	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
	CDG5GN40SV-50	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
	CDG5GN40SV-75	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
	CDG5GN40SV-100	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
	CDG5GN40SV-125	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
	CDG5GN40SV-150	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
	CDG5GN40SV-200	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
	CDG5GN40SV-250	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
	CDG5GN40SV-300	Mounting: Head flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
	CDG5GA20SR-25	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
	CDG5GA20SR-50	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
	CDG5GA20SR-75	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
	CDG5GA20SR-100	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
	CDG5GA20SR-125	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
	CDG5GA20SR-150	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
	CDG5GA20SR-200	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
	CDG5GA20SV-25	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
	CDG5GA20SV-50	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
	CDG5GA20SV-75	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
	CDG5GA20SV-100	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
	CDG5GA20SV-125	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
	CDG5GA20SV-150	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
	CDG5GA20SV-200	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
	CDG5GA25SR-25	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
	CDG5GA25SR-50	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
	CDG5GA25SR-75	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
	CDG5GA25SR-100	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
	CDG5GA25SR-125	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
	CDG5GA25SR-150	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
	CDG5GA25SR-200	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
	CDG5GA25SR-250	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
	CDG5GA25SR-300	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
	CDG5GA25SV-25	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
	CDG5GA25SV-50	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
	CDG5GA25SV-75	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
	CDG5GA25SV-100	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
	CDG5GA25SV-125	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
	CDG5GA25SV-150	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
	CDG5GA25SV-200	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
	CDG5GA25SV-250	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
	CDG5GA25SV-300	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
	CDG5GA32SR-25	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
	CDG5GA32SR-50	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
	CDG5GA32SR-75	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
	CDG5GA32SR-100	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
	CDG5GA32SR-125	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
	CDG5GA32SR-150	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
	CDG5GA32SR-200	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
	CDG5GA32SR-250	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
	CDG5GA32SR-300	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
	CDG5GA32SV-25	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
	CDG5GA32SV-50	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
	CDG5GA32SV-75	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
	CDG5GA32SV-100	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
	CDG5GA32SV-125	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
	CDG5GA32SV-150	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
	CDG5GA32SV-200	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
	CDG5GA32SV-250	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
	CDG5GA32SV-300	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
	CDG5GA40SR-25	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
	CDG5GA40SR-50	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
	CDG5GA40SR-75	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
	CDG5GA40SR-100	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
	CDG5GA40SR-125	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
	CDG5GA40SR-150	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
	CDG5GA40SR-200	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
	CDG5GA40SR-250	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
	CDG5GA40SR-300	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
	CDG5GA40SV-25	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
	CDG5GA40SV-50	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
	CDG5GA40SV-75	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
	CDG5GA40SV-100	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
	CDG5GA40SV-125	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
	CDG5GA40SV-150	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
	CDG5GA40SV-200	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
	CDG5GA40SV-250	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
	CDG5GA40SV-300	Mounting: Head flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
	CDG5EN20SR-25	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
	CDG5EN20SR-50	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
	CDG5EN20SR-75	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
	CDG5EN20SR-100	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
	CDG5EN20SR-125	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
	CDG5EN20SR-150	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
	CDG5EN20SR-200	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
	CDG5EN20SV-25	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
	CDG5EN20SV-50	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
	CDG5EN20SV-75	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
	CDG5EN20SV-100	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
	CDG5EN20SV-125	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
	CDG5EN20SV-150	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
	CDG5EN20SV-200	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
	CDG5EN25SR-25	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
	CDG5EN25SR-50	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
	CDG5EN25SR-75	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
	CDG5EN25SR-100	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
	CDG5EN25SR-125	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
	CDG5EN25SR-150	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
	CDG5EN25SR-200	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
	CDG5EN25SR-250	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
	CDG5EN25SR-300	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
	CDG5EN25SV-25	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
	CDG5EN25SV-50	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
	CDG5EN25SV-75	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
	CDG5EN25SV-100	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
	CDG5EN25SV-125	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
	CDG5EN25SV-150	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
	CDG5EN25SV-200	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
	CDG5EN25SV-250	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
	CDG5EN25SV-300	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
	CDG5EN32SR-25	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
	CDG5EN32SR-50	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
	CDG5EN32SR-75	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
	CDG5EN32SR-100	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
	CDG5EN32SR-125	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
	CDG5EN32SR-150	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
	CDG5EN32SR-200	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
	CDG5EN32SR-250	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
	CDG5EN32SR-300	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
	CDG5EN32SV-25	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
	CDG5EN32SV-50	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
	CDG5EN32SV-75	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
	CDG5EN32SV-100	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
	CDG5EN32SV-125	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
	CDG5EN32SV-150	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
	CDG5EN32SV-200	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
	CDG5EN32SV-250	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
	CDG5EN32SV-300	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
	CDG5EN40SR-25	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
	CDG5EN40SR-50	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
	CDG5EN40SR-75	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
	CDG5EN40SR-100	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
	CDG5EN40SR-125	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
	CDG5EN40SR-150	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
	CDG5EN40SR-200	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
	CDG5EN40SR-250	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
	CDG5EN40SR-300	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
	CDG5EN40SV-25	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
	CDG5EN40SV-50	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
	CDG5EN40SV-75	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
	CDG5EN40SV-100	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
	CDG5EN40SV-125	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
	CDG5EN40SV-150	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
	CDG5EN40SV-200	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
	CDG5EN40SV-250	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
	CDG5EN40SV-300	Mounting: Integrated clevis \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
	CDG5EA20SR-25	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
	CDG5EA20SR-50	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
	CDG5EA20SR-75	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
	CDG5EA20SR-100	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
	CDG5EA20SR-125	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
	CDG5EA20SR-150	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
	CDG5EA20SR-200	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
	CDG5EA20SV-25	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
	CDG5EA20SV-50	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
	CDG5EA20SV-75	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
	CDG5EA20SV-100	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
	CDG5EA20SV-125	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
	CDG5EA20SV-150	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
	CDG5EA20SV-200	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
	CDG5EA25SR-25	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
	CDG5EA25SR-50	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
	CDG5EA25SR-75	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
	CDG5EA25SR-100	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
	CDG5EA25SR-125	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
	CDG5EA25SR-150	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
	CDG5EA25SR-200	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
	CDG5EA25SR-250	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
	CDG5EA25SR-300	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
	CDG5EA25SV-25	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
	CDG5EA25SV-50	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
	CDG5EA25SV-75	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
	CDG5EA25SV-100	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
	CDG5EA25SV-125	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
	CDG5EA25SV-150	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
	CDG5EA25SV-200	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
	CDG5EA25SV-250	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
	CDG5EA25SV-300	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
	CDG5EA32SR-25	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
	CDG5EA32SR-50	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
	CDG5EA32SR-75	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
	CDG5EA32SR-100	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
	CDG5EA32SR-125	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
	CDG5EA32SR-150	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
	CDG5EA32SR-200	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
	CDG5EA32SR-250	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
	CDG5EA32SR-300	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
	CDG5EA32SV-25	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
	CDG5EA32SV-50	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
	CDG5EA32SV-75	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
	CDG5EA32SV-100	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
	CDG5EA32SV-125	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
	CDG5EA32SV-150	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
	CDG5EA32SV-200	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
	CDG5EA32SV-250	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
	CDG5EA32SV-300	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
	CDG5EA40SR-25	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
	CDG5EA40SR-50	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
	CDG5EA40SR-75	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
	CDG5EA40SR-100	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
	CDG5EA40SR-125	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
	CDG5EA40SR-150	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
	CDG5EA40SR-200	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
	CDG5EA40SR-250	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
	CDG5EA40SR-300	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
	CDG5EA40SV-25	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
	CDG5EA40SV-50	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
	CDG5EA40SV-75	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
	CDG5EA40SV-100	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
	CDG5EA40SV-125	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
	CDG5EA40SV-150	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
	CDG5EA40SV-200	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
	CDG5EA40SV-250	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
	CDG5EA40SV-300	Mounting: Integrated clevis \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

SMC CG5-S Stainless Steel Air Cylinder (ø20 to ø40)
