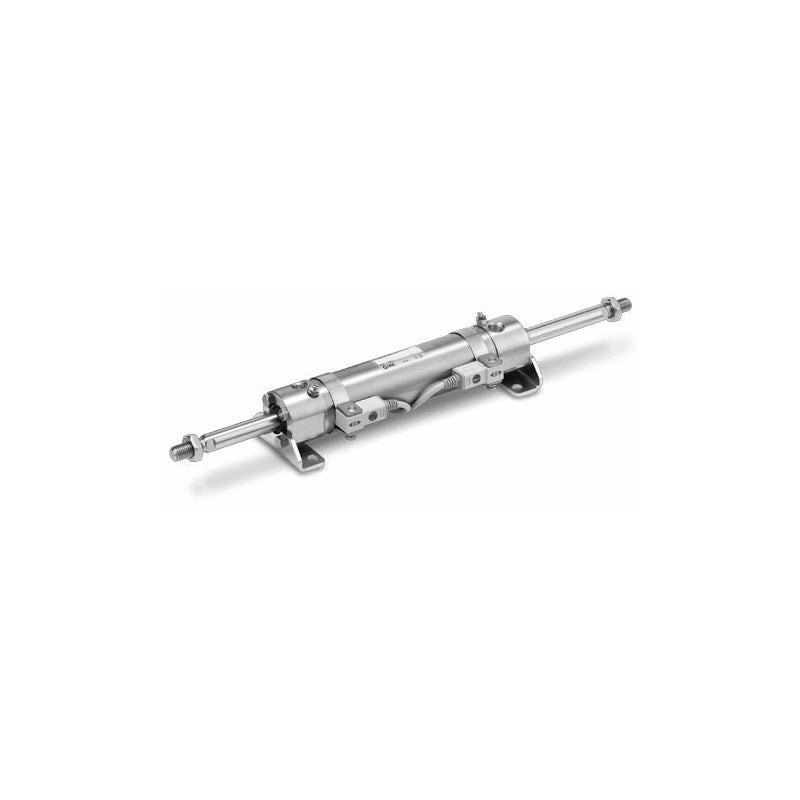

SMC CG5W-S Stainless Steel Double Rod Cylinder (ø20 to ø40)

SMC CG5W-S series stainless steel double acting double rod cylinder, ø20 to ø40 mm, with rubber or air cushion, for water-splash environments.

Key features

External metal parts in SUS304 stainless steel; plug bolts for unused mounting threads
Special scraper and NSF-H1 certified food-grade grease to resist water ingress
Mounting styles: basic, axial foot and flange
Rubber cushion (N) or air cushion (A); packing NBR (R) or FKM (V)
CDG5W versions have a built-in magnet for the D-G5BAL water-resistant auto switch (ordered as suffix)

Specifications

Action	Double acting, double rod
Fluid	Air
Proof pressure	1.5 MPa
Max. operating pressure	1.0 MPa
Min. operating pressure	0.05 MPa
Ambient and fluid temperature	-10 to 70°C (with auto switch -10 to 60°C)
Lubrication	Not required (non-lube)
Piston speed	50 to 1000 mm/s (ø80, ø100: 50 to 700 mm/s)
Port thread	Rc (air cushion ø20, ø25: M5x0.8); NPT (TN) and G (TF) on order
Standard strokes	ø20: 25 to 200 mm; ø25 to ø100: 25 to 300 mm (1 to 1500 mm on order)
Source	SMC Korea catalog CJ5-S/CG5-S (SMCKR_CJ5__S_CG5__S.pdf), p. 1130-1131 (PDF p. 14-15)

CG5WBN20SR-25		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
CG5WBN20SR-50		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
CG5WBN20SR-75		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
CG5WBN20SR-100		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
CG5WBN20SR-125		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
CG5WBN20SR-150		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
CG5WBN20SR-200		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
CG5WBN20SV-25		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
CG5WBN20SV-50		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
CG5WBN20SV-75		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
CG5WBN20SV-100		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
CG5WBN20SV-125		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
CG5WBN20SV-150		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
CG5WBN20SV-200		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
CG5WBN25SR-25		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
CG5WBN25SR-50		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
CG5WBN25SR-75		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
CG5WBN25SR-100		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
CG5WBN25SR-125		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
CG5WBN25SR-150		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
CG5WBN25SR-200		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
CG5WBN25SR-250		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
CG5WBN25SR-300		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
CG5WBN25SV-25		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
CG5WBN25SV-50		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
CG5WBN25SV-75		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
CG5WBN25SV-100		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
CG5WBN25SV-125		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
CG5WBN25SV-150		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
CG5WBN25SV-200		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
CG5WBN25SV-250		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
CG5WBN25SV-300		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
CG5WBN32SR-25		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
CG5WBN32SR-50		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
CG5WBN32SR-75		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
CG5WBN32SR-100		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
CG5WBN32SR-125		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
CG5WBN32SR-150		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
CG5WBN32SR-200		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
CG5WBN32SR-250		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
CG5WBN32SR-300		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
CG5WBN32SV-25		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
CG5WBN32SV-50		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
CG5WBN32SV-75		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
CG5WBN32SV-100		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
CG5WBN32SV-125		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
CG5WBN32SV-150		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
CG5WBN32SV-200		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
CG5WBN32SV-250		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
CG5WBN32SV-300		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
CG5WBN40SR-25		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
CG5WBN40SR-50		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
CG5WBN40SR-75		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
CG5WBN40SR-100		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
CG5WBN40SR-125		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
CG5WBN40SR-150		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
CG5WBN40SR-200		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
CG5WBN40SR-250		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
CG5WBN40SR-300		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
CG5WBN40SV-25		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
CG5WBN40SV-50		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
CG5WBN40SV-75		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
CG5WBN40SV-100		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
CG5WBN40SV-125		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
CG5WBN40SV-150		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
CG5WBN40SV-200		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
CG5WBN40SV-250		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
CG5WBN40SV-300		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
CG5WBA20SR-25		Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
CG5WBA20SR-50		Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
CG5WBA20SR-75		Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
CG5WBA20SR-100		Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
CG5WBA20SR-125		Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
CG5WBA20SR-150		Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
CG5WBA20SR-200		Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
CG5WBA20SV-25		Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
CG5WBA20SV-50		Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
CG5WBA20SV-75		Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
CG5WBA20SV-100		Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
CG5WBA20SV-125		Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
CG5WBA20SV-150		Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
CG5WBA20SV-200		Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
CG5WBA25SR-25		Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
CG5WBA25SR-50		Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
CG5WBA25SR-75		Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
CG5WBA25SR-100		Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
CG5WBA25SR-125		Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
CG5WBA25SR-150		Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
CG5WBA25SR-200		Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
CG5WBA25SR-250		Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
CG5WBA25SR-300		Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
CG5WBA25SV-25		Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
CG5WBA25SV-50		Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
CG5WBA25SV-75		Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
CG5WBA25SV-100		Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
CG5WBA25SV-125		Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
CG5WBA25SV-150		Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
CG5WBA25SV-200		Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
CG5WBA25SV-250		Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
CG5WBA25SV-300		Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
CG5WBA32SR-25		Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
CG5WBA32SR-50		Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
CG5WBA32SR-75		Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
CG5WBA32SR-100		Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
CG5WBA32SR-125		Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
CG5WBA32SR-150		Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
CG5WBA32SR-200		Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
CG5WBA32SR-250		Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
CG5WBA32SR-300		Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
CG5WBA32SV-25		Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
CG5WBA32SV-50		Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
CG5WBA32SV-75		Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
CG5WBA32SV-100		Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
CG5WBA32SV-125		Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
CG5WBA32SV-150		Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
CG5WBA32SV-200		Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
CG5WBA32SV-250		Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
CG5WBA32SV-300		Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
CG5WBA40SR-25		Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
CG5WBA40SR-50		Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
CG5WBA40SR-75		Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
CG5WBA40SR-100		Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
CG5WBA40SR-125		Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
CG5WBA40SR-150		Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
CG5WBA40SR-200		Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
CG5WBA40SR-250		Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
CG5WBA40SR-300		Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
CG5WBA40SV-25		Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
CG5WBA40SV-50		Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
CG5WBA40SV-75		Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
CG5WBA40SV-100		Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
CG5WBA40SV-125		Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
CG5WBA40SV-150		Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
CG5WBA40SV-200		Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
CG5WBA40SV-250		Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
CG5WBA40SV-300		Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
CG5WLN20SR-25		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
CG5WLN20SR-50		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
CG5WLN20SR-75		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
CG5WLN20SR-100		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
CG5WLN20SR-125		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
CG5WLN20SR-150		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
CG5WLN20SR-200		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
CG5WLN20SV-25		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
CG5WLN20SV-50		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
CG5WLN20SV-75		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
CG5WLN20SV-100		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
CG5WLN20SV-125		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
CG5WLN20SV-150		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
CG5WLN20SV-200		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
CG5WLN25SR-25		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
CG5WLN25SR-50		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
CG5WLN25SR-75		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
CG5WLN25SR-100		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
CG5WLN25SR-125		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
CG5WLN25SR-150		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
CG5WLN25SR-200		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
CG5WLN25SR-250		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
CG5WLN25SR-300		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
CG5WLN25SV-25		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
CG5WLN25SV-50		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
CG5WLN25SV-75		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
CG5WLN25SV-100		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
CG5WLN25SV-125		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
CG5WLN25SV-150		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
CG5WLN25SV-200		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
CG5WLN25SV-250		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
CG5WLN25SV-300		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
CG5WLN32SR-25		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
CG5WLN32SR-50		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
CG5WLN32SR-75		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
CG5WLN32SR-100		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
CG5WLN32SR-125		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
CG5WLN32SR-150		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
CG5WLN32SR-200		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
CG5WLN32SR-250		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
CG5WLN32SR-300		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
CG5WLN32SV-25		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
CG5WLN32SV-50		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
CG5WLN32SV-75		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
CG5WLN32SV-100		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
CG5WLN32SV-125		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
CG5WLN32SV-150		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
CG5WLN32SV-200		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
CG5WLN32SV-250		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
CG5WLN32SV-300		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
CG5WLN40SR-25		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
CG5WLN40SR-50		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
CG5WLN40SR-75		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
CG5WLN40SR-100		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
CG5WLN40SR-125		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
CG5WLN40SR-150		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
CG5WLN40SR-200		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
CG5WLN40SR-250		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
CG5WLN40SR-300		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
CG5WLN40SV-25		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
CG5WLN40SV-50		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
CG5WLN40SV-75		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
CG5WLN40SV-100		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
CG5WLN40SV-125		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
CG5WLN40SV-150		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
CG5WLN40SV-200		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
CG5WLN40SV-250		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
CG5WLN40SV-300		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
CG5WLA20SR-25		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
CG5WLA20SR-50		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
CG5WLA20SR-75		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
CG5WLA20SR-100		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
CG5WLA20SR-125		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
CG5WLA20SR-150		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
CG5WLA20SR-200		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
CG5WLA20SV-25		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
CG5WLA20SV-50		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
CG5WLA20SV-75		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
CG5WLA20SV-100		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
CG5WLA20SV-125		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
CG5WLA20SV-150		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
CG5WLA20SV-200		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
CG5WLA25SR-25		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
CG5WLA25SR-50		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
CG5WLA25SR-75		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
CG5WLA25SR-100		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
CG5WLA25SR-125		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
CG5WLA25SR-150		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
CG5WLA25SR-200		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
CG5WLA25SR-250		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
CG5WLA25SR-300		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
CG5WLA25SV-25		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
CG5WLA25SV-50		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
CG5WLA25SV-75		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
CG5WLA25SV-100		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
CG5WLA25SV-125		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
CG5WLA25SV-150		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
CG5WLA25SV-200		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
CG5WLA25SV-250		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
CG5WLA25SV-300		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
CG5WLA32SR-25		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
CG5WLA32SR-50		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
CG5WLA32SR-75		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
CG5WLA32SR-100		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
CG5WLA32SR-125		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
CG5WLA32SR-150		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
CG5WLA32SR-200		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
CG5WLA32SR-250		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
CG5WLA32SR-300		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
CG5WLA32SV-25		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
CG5WLA32SV-50		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
CG5WLA32SV-75		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
CG5WLA32SV-100		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
CG5WLA32SV-125		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
CG5WLA32SV-150		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
CG5WLA32SV-200		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
CG5WLA32SV-250		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
CG5WLA32SV-300		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
CG5WLA40SR-25		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
CG5WLA40SR-50		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
CG5WLA40SR-75		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
CG5WLA40SR-100		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
CG5WLA40SR-125		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
CG5WLA40SR-150		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
CG5WLA40SR-200		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
CG5WLA40SR-250		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
CG5WLA40SR-300		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
CG5WLA40SV-25		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
CG5WLA40SV-50		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
CG5WLA40SV-75		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
CG5WLA40SV-100		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
CG5WLA40SV-125		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
CG5WLA40SV-150		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
CG5WLA40SV-200		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
CG5WLA40SV-250		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
CG5WLA40SV-300		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
CG5WFN20SR-25		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
CG5WFN20SR-50		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
CG5WFN20SR-75		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
CG5WFN20SR-100		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
CG5WFN20SR-125		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
CG5WFN20SR-150		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
CG5WFN20SR-200		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
CG5WFN20SV-25		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
CG5WFN20SV-50		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
CG5WFN20SV-75		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
CG5WFN20SV-100		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
CG5WFN20SV-125		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
CG5WFN20SV-150		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
CG5WFN20SV-200		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
CG5WFN25SR-25		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
CG5WFN25SR-50		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
CG5WFN25SR-75		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
CG5WFN25SR-100		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
CG5WFN25SR-125		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
CG5WFN25SR-150		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
CG5WFN25SR-200		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
CG5WFN25SR-250		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
CG5WFN25SR-300		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
CG5WFN25SV-25		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
CG5WFN25SV-50		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
CG5WFN25SV-75		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
CG5WFN25SV-100		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
CG5WFN25SV-125		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
CG5WFN25SV-150		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
CG5WFN25SV-200		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
CG5WFN25SV-250		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
CG5WFN25SV-300		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
CG5WFN32SR-25		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
CG5WFN32SR-50		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
CG5WFN32SR-75		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
CG5WFN32SR-100		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
CG5WFN32SR-125		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
CG5WFN32SR-150		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
CG5WFN32SR-200		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
CG5WFN32SR-250		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
CG5WFN32SR-300		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
CG5WFN32SV-25		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
CG5WFN32SV-50		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
CG5WFN32SV-75		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
CG5WFN32SV-100		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
CG5WFN32SV-125		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
CG5WFN32SV-150		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
CG5WFN32SV-200		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
CG5WFN32SV-250		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
CG5WFN32SV-300		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
CG5WFN40SR-25		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
CG5WFN40SR-50		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
CG5WFN40SR-75		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
CG5WFN40SR-100		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
CG5WFN40SR-125		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
CG5WFN40SR-150		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
CG5WFN40SR-200		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
CG5WFN40SR-250		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
CG5WFN40SR-300		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
CG5WFN40SV-25		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
CG5WFN40SV-50		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
CG5WFN40SV-75		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
CG5WFN40SV-100		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
CG5WFN40SV-125		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
CG5WFN40SV-150		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
CG5WFN40SV-200		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
CG5WFN40SV-250		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
CG5WFN40SV-300		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
CG5WFA20SR-25		Mounting: Flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
CG5WFA20SR-50		Mounting: Flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
CG5WFA20SR-75		Mounting: Flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
CG5WFA20SR-100		Mounting: Flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
CG5WFA20SR-125		Mounting: Flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
CG5WFA20SR-150		Mounting: Flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
CG5WFA20SR-200		Mounting: Flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
CG5WFA20SV-25		Mounting: Flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
CG5WFA20SV-50		Mounting: Flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
CG5WFA20SV-75		Mounting: Flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
CG5WFA20SV-100		Mounting: Flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
CG5WFA20SV-125		Mounting: Flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
CG5WFA20SV-150		Mounting: Flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
CG5WFA20SV-200		Mounting: Flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
CG5WFA25SR-25		Mounting: Flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
CG5WFA25SR-50		Mounting: Flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
CG5WFA25SR-75		Mounting: Flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
CG5WFA25SR-100		Mounting: Flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
CG5WFA25SR-125		Mounting: Flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
CG5WFA25SR-150		Mounting: Flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
CG5WFA25SR-200		Mounting: Flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
CG5WFA25SR-250		Mounting: Flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
CG5WFA25SR-300		Mounting: Flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
CG5WFA25SV-25		Mounting: Flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
CG5WFA25SV-50		Mounting: Flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
CG5WFA25SV-75		Mounting: Flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
CG5WFA25SV-100		Mounting: Flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
CG5WFA25SV-125		Mounting: Flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
CG5WFA25SV-150		Mounting: Flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
CG5WFA25SV-200		Mounting: Flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
CG5WFA25SV-250		Mounting: Flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
CG5WFA25SV-300		Mounting: Flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
CG5WFA32SR-25		Mounting: Flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
CG5WFA32SR-50		Mounting: Flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
CG5WFA32SR-75		Mounting: Flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
CG5WFA32SR-100		Mounting: Flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
CG5WFA32SR-125		Mounting: Flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
CG5WFA32SR-150		Mounting: Flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
CG5WFA32SR-200		Mounting: Flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
CG5WFA32SR-250		Mounting: Flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
CG5WFA32SR-300		Mounting: Flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
CG5WFA32SV-25		Mounting: Flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
CG5WFA32SV-50		Mounting: Flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
CG5WFA32SV-75		Mounting: Flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
CG5WFA32SV-100		Mounting: Flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
CG5WFA32SV-125		Mounting: Flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
CG5WFA32SV-150		Mounting: Flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
CG5WFA32SV-200		Mounting: Flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
CG5WFA32SV-250		Mounting: Flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
CG5WFA32SV-300		Mounting: Flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
CG5WFA40SR-25		Mounting: Flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
CG5WFA40SR-50		Mounting: Flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
CG5WFA40SR-75		Mounting: Flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
CG5WFA40SR-100		Mounting: Flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
CG5WFA40SR-125		Mounting: Flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
CG5WFA40SR-150		Mounting: Flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
CG5WFA40SR-200		Mounting: Flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
CG5WFA40SR-250		Mounting: Flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
CG5WFA40SR-300		Mounting: Flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
CG5WFA40SV-25		Mounting: Flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
CG5WFA40SV-50		Mounting: Flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
CG5WFA40SV-75		Mounting: Flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
CG5WFA40SV-100		Mounting: Flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
CG5WFA40SV-125		Mounting: Flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
CG5WFA40SV-150		Mounting: Flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
CG5WFA40SV-200		Mounting: Flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
CG5WFA40SV-250		Mounting: Flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
CG5WFA40SV-300		Mounting: Flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
CDG5WBN20SR-25		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
CDG5WBN20SR-50		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
CDG5WBN20SR-75		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
CDG5WBN20SR-100		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
CDG5WBN20SR-125		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
CDG5WBN20SR-150		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
CDG5WBN20SR-200		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
CDG5WBN20SV-25		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
CDG5WBN20SV-50		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
CDG5WBN20SV-75		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
CDG5WBN20SV-100		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
CDG5WBN20SV-125		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
CDG5WBN20SV-150		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
CDG5WBN20SV-200		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
CDG5WBN25SR-25		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
CDG5WBN25SR-50		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
CDG5WBN25SR-75		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
CDG5WBN25SR-100		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
CDG5WBN25SR-125		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
CDG5WBN25SR-150		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
CDG5WBN25SR-200		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
CDG5WBN25SR-250		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
CDG5WBN25SR-300		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
CDG5WBN25SV-25		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
CDG5WBN25SV-50		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
CDG5WBN25SV-75		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
CDG5WBN25SV-100		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
CDG5WBN25SV-125		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
CDG5WBN25SV-150		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
CDG5WBN25SV-200		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
CDG5WBN25SV-250		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
CDG5WBN25SV-300		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
CDG5WBN32SR-25		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
CDG5WBN32SR-50		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
CDG5WBN32SR-75		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
CDG5WBN32SR-100		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
CDG5WBN32SR-125		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
CDG5WBN32SR-150		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
CDG5WBN32SR-200		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
CDG5WBN32SR-250		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
CDG5WBN32SR-300		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
CDG5WBN32SV-25		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
CDG5WBN32SV-50		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
CDG5WBN32SV-75		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
CDG5WBN32SV-100		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
CDG5WBN32SV-125		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
CDG5WBN32SV-150		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
CDG5WBN32SV-200		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
CDG5WBN32SV-250		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
CDG5WBN32SV-300		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
CDG5WBN40SR-25		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
CDG5WBN40SR-50		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
CDG5WBN40SR-75		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
CDG5WBN40SR-100		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
CDG5WBN40SR-125		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
CDG5WBN40SR-150		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
CDG5WBN40SR-200		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
CDG5WBN40SR-250		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
CDG5WBN40SR-300		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
CDG5WBN40SV-25		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
CDG5WBN40SV-50		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
CDG5WBN40SV-75		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
CDG5WBN40SV-100		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
CDG5WBN40SV-125		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
CDG5WBN40SV-150		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
CDG5WBN40SV-200		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
CDG5WBN40SV-250		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
CDG5WBN40SV-300		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
CDG5WBA20SR-25		Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
CDG5WBA20SR-50		Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
CDG5WBA20SR-75		Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
CDG5WBA20SR-100		Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
CDG5WBA20SR-125		Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
CDG5WBA20SR-150		Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
CDG5WBA20SR-200		Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
CDG5WBA20SV-25		Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
CDG5WBA20SV-50		Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
CDG5WBA20SV-75		Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
CDG5WBA20SV-100		Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
CDG5WBA20SV-125		Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
CDG5WBA20SV-150		Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
CDG5WBA20SV-200		Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
CDG5WBA25SR-25		Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
CDG5WBA25SR-50		Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
CDG5WBA25SR-75		Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
CDG5WBA25SR-100		Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
CDG5WBA25SR-125		Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
CDG5WBA25SR-150		Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
CDG5WBA25SR-200		Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
CDG5WBA25SR-250		Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
CDG5WBA25SR-300		Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
CDG5WBA25SV-25		Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
CDG5WBA25SV-50		Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
CDG5WBA25SV-75		Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
CDG5WBA25SV-100		Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
CDG5WBA25SV-125		Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
CDG5WBA25SV-150		Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
CDG5WBA25SV-200		Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
CDG5WBA25SV-250		Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
CDG5WBA25SV-300		Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
CDG5WBA32SR-25		Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
CDG5WBA32SR-50		Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
CDG5WBA32SR-75		Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
CDG5WBA32SR-100		Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
CDG5WBA32SR-125		Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
CDG5WBA32SR-150		Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
CDG5WBA32SR-200		Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
CDG5WBA32SR-250		Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
CDG5WBA32SR-300		Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
CDG5WBA32SV-25		Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
CDG5WBA32SV-50		Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
CDG5WBA32SV-75		Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
CDG5WBA32SV-100		Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
CDG5WBA32SV-125		Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
CDG5WBA32SV-150		Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
CDG5WBA32SV-200		Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
CDG5WBA32SV-250		Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
CDG5WBA32SV-300		Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
CDG5WBA40SR-25		Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
CDG5WBA40SR-50		Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
CDG5WBA40SR-75		Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
CDG5WBA40SR-100		Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
CDG5WBA40SR-125		Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
CDG5WBA40SR-150		Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
CDG5WBA40SR-200		Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
CDG5WBA40SR-250		Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
CDG5WBA40SR-300		Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
CDG5WBA40SV-25		Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
CDG5WBA40SV-50		Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
CDG5WBA40SV-75		Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
CDG5WBA40SV-100		Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
CDG5WBA40SV-125		Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
CDG5WBA40SV-150		Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
CDG5WBA40SV-200		Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
CDG5WBA40SV-250		Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
CDG5WBA40SV-300		Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
CDG5WLN20SR-25		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
CDG5WLN20SR-50		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
CDG5WLN20SR-75		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
CDG5WLN20SR-100		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
CDG5WLN20SR-125		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
CDG5WLN20SR-150		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
CDG5WLN20SR-200		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
CDG5WLN20SV-25		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
CDG5WLN20SV-50		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
CDG5WLN20SV-75		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
CDG5WLN20SV-100		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
CDG5WLN20SV-125		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
CDG5WLN20SV-150		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
CDG5WLN20SV-200		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
CDG5WLN25SR-25		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
CDG5WLN25SR-50		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
CDG5WLN25SR-75		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
CDG5WLN25SR-100		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
CDG5WLN25SR-125		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
CDG5WLN25SR-150		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
CDG5WLN25SR-200		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
CDG5WLN25SR-250		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
CDG5WLN25SR-300		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
CDG5WLN25SV-25		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
CDG5WLN25SV-50		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
CDG5WLN25SV-75		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
CDG5WLN25SV-100		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
CDG5WLN25SV-125		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
CDG5WLN25SV-150		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
CDG5WLN25SV-200		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
CDG5WLN25SV-250		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
CDG5WLN25SV-300		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
CDG5WLN32SR-25		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
CDG5WLN32SR-50		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
CDG5WLN32SR-75		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
CDG5WLN32SR-100		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
CDG5WLN32SR-125		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
CDG5WLN32SR-150		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
CDG5WLN32SR-200		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
CDG5WLN32SR-250		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
CDG5WLN32SR-300		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
CDG5WLN32SV-25		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
CDG5WLN32SV-50		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
CDG5WLN32SV-75		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
CDG5WLN32SV-100		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
CDG5WLN32SV-125		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
CDG5WLN32SV-150		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
CDG5WLN32SV-200		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
CDG5WLN32SV-250		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
CDG5WLN32SV-300		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
CDG5WLN40SR-25		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
CDG5WLN40SR-50		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
CDG5WLN40SR-75		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
CDG5WLN40SR-100		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
CDG5WLN40SR-125		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
CDG5WLN40SR-150		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
CDG5WLN40SR-200		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
CDG5WLN40SR-250		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
CDG5WLN40SR-300		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
CDG5WLN40SV-25		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
CDG5WLN40SV-50		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
CDG5WLN40SV-75		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
CDG5WLN40SV-100		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
CDG5WLN40SV-125		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
CDG5WLN40SV-150		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
CDG5WLN40SV-200		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
CDG5WLN40SV-250		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
CDG5WLN40SV-300		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
CDG5WLA20SR-25		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
CDG5WLA20SR-50		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
CDG5WLA20SR-75		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
CDG5WLA20SR-100		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
CDG5WLA20SR-125		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
CDG5WLA20SR-150		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
CDG5WLA20SR-200		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
CDG5WLA20SV-25		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
CDG5WLA20SV-50		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
CDG5WLA20SV-75		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
CDG5WLA20SV-100		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
CDG5WLA20SV-125		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
CDG5WLA20SV-150		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
CDG5WLA20SV-200		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
CDG5WLA25SR-25		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
CDG5WLA25SR-50		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
CDG5WLA25SR-75		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
CDG5WLA25SR-100		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
CDG5WLA25SR-125		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
CDG5WLA25SR-150		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
CDG5WLA25SR-200		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
CDG5WLA25SR-250		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
CDG5WLA25SR-300		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
CDG5WLA25SV-25		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
CDG5WLA25SV-50		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
CDG5WLA25SV-75		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
CDG5WLA25SV-100		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
CDG5WLA25SV-125		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
CDG5WLA25SV-150		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
CDG5WLA25SV-200		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
CDG5WLA25SV-250		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
CDG5WLA25SV-300		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
CDG5WLA32SR-25		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
CDG5WLA32SR-50		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
CDG5WLA32SR-75		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
CDG5WLA32SR-100		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
CDG5WLA32SR-125		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
CDG5WLA32SR-150		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
CDG5WLA32SR-200		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
CDG5WLA32SR-250		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
CDG5WLA32SR-300		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
CDG5WLA32SV-25		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
CDG5WLA32SV-50		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
CDG5WLA32SV-75		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
CDG5WLA32SV-100		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
CDG5WLA32SV-125		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
CDG5WLA32SV-150		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
CDG5WLA32SV-200		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
CDG5WLA32SV-250		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
CDG5WLA32SV-300		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
CDG5WLA40SR-25		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
CDG5WLA40SR-50		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
CDG5WLA40SR-75		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
CDG5WLA40SR-100		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
CDG5WLA40SR-125		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
CDG5WLA40SR-150		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
CDG5WLA40SR-200		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
CDG5WLA40SR-250		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
CDG5WLA40SR-300		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
CDG5WLA40SV-25		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
CDG5WLA40SV-50		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
CDG5WLA40SV-75		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
CDG5WLA40SV-100		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
CDG5WLA40SV-125		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
CDG5WLA40SV-150		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
CDG5WLA40SV-200		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
CDG5WLA40SV-250		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
CDG5WLA40SV-300		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
CDG5WFN20SR-25		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
CDG5WFN20SR-50		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
CDG5WFN20SR-75		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
CDG5WFN20SR-100		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
CDG5WFN20SR-125		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
CDG5WFN20SR-150		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
CDG5WFN20SR-200		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
CDG5WFN20SV-25		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
CDG5WFN20SV-50		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
CDG5WFN20SV-75		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
CDG5WFN20SV-100		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
CDG5WFN20SV-125		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
CDG5WFN20SV-150		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
CDG5WFN20SV-200		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
CDG5WFN25SR-25		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
CDG5WFN25SR-50		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
CDG5WFN25SR-75		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
CDG5WFN25SR-100		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
CDG5WFN25SR-125		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
CDG5WFN25SR-150		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
CDG5WFN25SR-200		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
CDG5WFN25SR-250		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
CDG5WFN25SR-300		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
CDG5WFN25SV-25		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
CDG5WFN25SV-50		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
CDG5WFN25SV-75		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
CDG5WFN25SV-100		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
CDG5WFN25SV-125		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
CDG5WFN25SV-150		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
CDG5WFN25SV-200		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
CDG5WFN25SV-250		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
CDG5WFN25SV-300		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
CDG5WFN32SR-25		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
CDG5WFN32SR-50		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
CDG5WFN32SR-75		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
CDG5WFN32SR-100		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
CDG5WFN32SR-125		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
CDG5WFN32SR-150		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
CDG5WFN32SR-200		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
CDG5WFN32SR-250		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
CDG5WFN32SR-300		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
CDG5WFN32SV-25		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
CDG5WFN32SV-50		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
CDG5WFN32SV-75		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
CDG5WFN32SV-100		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
CDG5WFN32SV-125		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
CDG5WFN32SV-150		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
CDG5WFN32SV-200		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
CDG5WFN32SV-250		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
CDG5WFN32SV-300		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
CDG5WFN40SR-25		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
CDG5WFN40SR-50		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
CDG5WFN40SR-75		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
CDG5WFN40SR-100		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
CDG5WFN40SR-125		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
CDG5WFN40SR-150		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
CDG5WFN40SR-200		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
CDG5WFN40SR-250		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
CDG5WFN40SR-300		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
CDG5WFN40SV-25		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
CDG5WFN40SV-50		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
CDG5WFN40SV-75		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
CDG5WFN40SV-100		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
CDG5WFN40SV-125		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
CDG5WFN40SV-150		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
CDG5WFN40SV-200		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
CDG5WFN40SV-250		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
CDG5WFN40SV-300		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
CDG5WFA20SR-25		Mounting: Flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
CDG5WFA20SR-50		Mounting: Flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
CDG5WFA20SR-75		Mounting: Flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
CDG5WFA20SR-100		Mounting: Flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
CDG5WFA20SR-125		Mounting: Flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
CDG5WFA20SR-150		Mounting: Flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
CDG5WFA20SR-200		Mounting: Flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
CDG5WFA20SV-25		Mounting: Flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
CDG5WFA20SV-50		Mounting: Flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
CDG5WFA20SV-75		Mounting: Flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
CDG5WFA20SV-100		Mounting: Flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
CDG5WFA20SV-125		Mounting: Flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
CDG5WFA20SV-150		Mounting: Flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
CDG5WFA20SV-200		Mounting: Flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
CDG5WFA25SR-25		Mounting: Flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
CDG5WFA25SR-50		Mounting: Flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
CDG5WFA25SR-75		Mounting: Flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
CDG5WFA25SR-100		Mounting: Flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
CDG5WFA25SR-125		Mounting: Flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
CDG5WFA25SR-150		Mounting: Flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
CDG5WFA25SR-200		Mounting: Flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
CDG5WFA25SR-250		Mounting: Flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
CDG5WFA25SR-300		Mounting: Flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
CDG5WFA25SV-25		Mounting: Flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
CDG5WFA25SV-50		Mounting: Flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
CDG5WFA25SV-75		Mounting: Flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
CDG5WFA25SV-100		Mounting: Flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
CDG5WFA25SV-125		Mounting: Flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
CDG5WFA25SV-150		Mounting: Flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
CDG5WFA25SV-200		Mounting: Flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
CDG5WFA25SV-250		Mounting: Flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
CDG5WFA25SV-300		Mounting: Flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
CDG5WFA32SR-25		Mounting: Flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
CDG5WFA32SR-50		Mounting: Flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
CDG5WFA32SR-75		Mounting: Flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
CDG5WFA32SR-100		Mounting: Flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
CDG5WFA32SR-125		Mounting: Flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
CDG5WFA32SR-150		Mounting: Flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
CDG5WFA32SR-200		Mounting: Flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
CDG5WFA32SR-250		Mounting: Flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
CDG5WFA32SR-300		Mounting: Flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
CDG5WFA32SV-25		Mounting: Flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
CDG5WFA32SV-50		Mounting: Flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
CDG5WFA32SV-75		Mounting: Flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
CDG5WFA32SV-100		Mounting: Flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
CDG5WFA32SV-125		Mounting: Flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
CDG5WFA32SV-150		Mounting: Flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
CDG5WFA32SV-200		Mounting: Flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
CDG5WFA32SV-250		Mounting: Flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
CDG5WFA32SV-300		Mounting: Flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
CDG5WFA40SR-25		Mounting: Flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
CDG5WFA40SR-50		Mounting: Flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
CDG5WFA40SR-75		Mounting: Flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
CDG5WFA40SR-100		Mounting: Flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
CDG5WFA40SR-125		Mounting: Flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
CDG5WFA40SR-150		Mounting: Flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
CDG5WFA40SR-200		Mounting: Flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
CDG5WFA40SR-250		Mounting: Flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
CDG5WFA40SR-300		Mounting: Flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
CDG5WFA40SV-25		Mounting: Flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
CDG5WFA40SV-50		Mounting: Flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
CDG5WFA40SV-75		Mounting: Flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
CDG5WFA40SV-100		Mounting: Flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
CDG5WFA40SV-125		Mounting: Flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
CDG5WFA40SV-150		Mounting: Flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
CDG5WFA40SV-200		Mounting: Flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
CDG5WFA40SV-250		Mounting: Flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
CDG5WFA40SV-300		Mounting: Flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes

Round Body CylindersSMC

816 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC CG5W-S Stainless Steel Double Rod Cylinder (ø20 to ø40)

Brand SMC·Round Body Cylinders

Available part numbers (816)

CG5WBN20SR-25, CG5WBN20SR-50, CG5WBN20SR-75, CG5WBN20SR-100, CG5WBN20SR-125, CG5WBN20SR-150, CG5WBN20SR-200, CG5WBN20SV-25, CG5WBN20SV-50, CG5WBN20SV-75 + 806 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	CG5WBN20SR-25	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
	CG5WBN20SR-50	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
	CG5WBN20SR-75	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
	CG5WBN20SR-100	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
	CG5WBN20SR-125	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
	CG5WBN20SR-150	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
	CG5WBN20SR-200	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
	CG5WBN20SV-25	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
	CG5WBN20SV-50	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
	CG5WBN20SV-75	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
	CG5WBN20SV-100	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
	CG5WBN20SV-125	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
	CG5WBN20SV-150	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
	CG5WBN20SV-200	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
	CG5WBN25SR-25	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
	CG5WBN25SR-50	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
	CG5WBN25SR-75	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
	CG5WBN25SR-100	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
	CG5WBN25SR-125	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
	CG5WBN25SR-150	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
	CG5WBN25SR-200	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
	CG5WBN25SR-250	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
	CG5WBN25SR-300	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
	CG5WBN25SV-25	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
	CG5WBN25SV-50	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
	CG5WBN25SV-75	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
	CG5WBN25SV-100	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
	CG5WBN25SV-125	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
	CG5WBN25SV-150	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
	CG5WBN25SV-200	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
	CG5WBN25SV-250	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
	CG5WBN25SV-300	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
	CG5WBN32SR-25	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
	CG5WBN32SR-50	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
	CG5WBN32SR-75	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
	CG5WBN32SR-100	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
	CG5WBN32SR-125	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
	CG5WBN32SR-150	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
	CG5WBN32SR-200	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
	CG5WBN32SR-250	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
	CG5WBN32SR-300	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
	CG5WBN32SV-25	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
	CG5WBN32SV-50	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
	CG5WBN32SV-75	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
	CG5WBN32SV-100	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
	CG5WBN32SV-125	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
	CG5WBN32SV-150	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
	CG5WBN32SV-200	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
	CG5WBN32SV-250	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
	CG5WBN32SV-300	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
	CG5WBN40SR-25	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
	CG5WBN40SR-50	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
	CG5WBN40SR-75	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
	CG5WBN40SR-100	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
	CG5WBN40SR-125	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
	CG5WBN40SR-150	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
	CG5WBN40SR-200	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
	CG5WBN40SR-250	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
	CG5WBN40SR-300	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
	CG5WBN40SV-25	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
	CG5WBN40SV-50	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
	CG5WBN40SV-75	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
	CG5WBN40SV-100	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
	CG5WBN40SV-125	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
	CG5WBN40SV-150	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
	CG5WBN40SV-200	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
	CG5WBN40SV-250	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
	CG5WBN40SV-300	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
	CG5WBA20SR-25	Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
	CG5WBA20SR-50	Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
	CG5WBA20SR-75	Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
	CG5WBA20SR-100	Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
	CG5WBA20SR-125	Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
	CG5WBA20SR-150	Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
	CG5WBA20SR-200	Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
	CG5WBA20SV-25	Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
	CG5WBA20SV-50	Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
	CG5WBA20SV-75	Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
	CG5WBA20SV-100	Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
	CG5WBA20SV-125	Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
	CG5WBA20SV-150	Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
	CG5WBA20SV-200	Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
	CG5WBA25SR-25	Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
	CG5WBA25SR-50	Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
	CG5WBA25SR-75	Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
	CG5WBA25SR-100	Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
	CG5WBA25SR-125	Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
	CG5WBA25SR-150	Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
	CG5WBA25SR-200	Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
	CG5WBA25SR-250	Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
	CG5WBA25SR-300	Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
	CG5WBA25SV-25	Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
	CG5WBA25SV-50	Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
	CG5WBA25SV-75	Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
	CG5WBA25SV-100	Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
	CG5WBA25SV-125	Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
	CG5WBA25SV-150	Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
	CG5WBA25SV-200	Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
	CG5WBA25SV-250	Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
	CG5WBA25SV-300	Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
	CG5WBA32SR-25	Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
	CG5WBA32SR-50	Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
	CG5WBA32SR-75	Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
	CG5WBA32SR-100	Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
	CG5WBA32SR-125	Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
	CG5WBA32SR-150	Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
	CG5WBA32SR-200	Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
	CG5WBA32SR-250	Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
	CG5WBA32SR-300	Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
	CG5WBA32SV-25	Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
	CG5WBA32SV-50	Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
	CG5WBA32SV-75	Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
	CG5WBA32SV-100	Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
	CG5WBA32SV-125	Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
	CG5WBA32SV-150	Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
	CG5WBA32SV-200	Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
	CG5WBA32SV-250	Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
	CG5WBA32SV-300	Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
	CG5WBA40SR-25	Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
	CG5WBA40SR-50	Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
	CG5WBA40SR-75	Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
	CG5WBA40SR-100	Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
	CG5WBA40SR-125	Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
	CG5WBA40SR-150	Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
	CG5WBA40SR-200	Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
	CG5WBA40SR-250	Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
	CG5WBA40SR-300	Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
	CG5WBA40SV-25	Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
	CG5WBA40SV-50	Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
	CG5WBA40SV-75	Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
	CG5WBA40SV-100	Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
	CG5WBA40SV-125	Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
	CG5WBA40SV-150	Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
	CG5WBA40SV-200	Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
	CG5WBA40SV-250	Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
	CG5WBA40SV-300	Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
	CG5WLN20SR-25	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
	CG5WLN20SR-50	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
	CG5WLN20SR-75	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
	CG5WLN20SR-100	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
	CG5WLN20SR-125	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
	CG5WLN20SR-150	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
	CG5WLN20SR-200	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
	CG5WLN20SV-25	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
	CG5WLN20SV-50	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
	CG5WLN20SV-75	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
	CG5WLN20SV-100	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
	CG5WLN20SV-125	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
	CG5WLN20SV-150	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
	CG5WLN20SV-200	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
	CG5WLN25SR-25	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
	CG5WLN25SR-50	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
	CG5WLN25SR-75	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
	CG5WLN25SR-100	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
	CG5WLN25SR-125	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
	CG5WLN25SR-150	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
	CG5WLN25SR-200	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
	CG5WLN25SR-250	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
	CG5WLN25SR-300	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
	CG5WLN25SV-25	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
	CG5WLN25SV-50	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
	CG5WLN25SV-75	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
	CG5WLN25SV-100	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
	CG5WLN25SV-125	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
	CG5WLN25SV-150	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
	CG5WLN25SV-200	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
	CG5WLN25SV-250	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
	CG5WLN25SV-300	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
	CG5WLN32SR-25	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
	CG5WLN32SR-50	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
	CG5WLN32SR-75	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
	CG5WLN32SR-100	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
	CG5WLN32SR-125	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
	CG5WLN32SR-150	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
	CG5WLN32SR-200	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
	CG5WLN32SR-250	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
	CG5WLN32SR-300	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
	CG5WLN32SV-25	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
	CG5WLN32SV-50	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
	CG5WLN32SV-75	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
	CG5WLN32SV-100	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
	CG5WLN32SV-125	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
	CG5WLN32SV-150	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
	CG5WLN32SV-200	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
	CG5WLN32SV-250	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
	CG5WLN32SV-300	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
	CG5WLN40SR-25	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
	CG5WLN40SR-50	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
	CG5WLN40SR-75	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
	CG5WLN40SR-100	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
	CG5WLN40SR-125	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
	CG5WLN40SR-150	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
	CG5WLN40SR-200	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
	CG5WLN40SR-250	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
	CG5WLN40SR-300	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
	CG5WLN40SV-25	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
	CG5WLN40SV-50	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
	CG5WLN40SV-75	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
	CG5WLN40SV-100	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
	CG5WLN40SV-125	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
	CG5WLN40SV-150	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
	CG5WLN40SV-200	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
	CG5WLN40SV-250	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
	CG5WLN40SV-300	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
	CG5WLA20SR-25	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
	CG5WLA20SR-50	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
	CG5WLA20SR-75	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
	CG5WLA20SR-100	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
	CG5WLA20SR-125	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
	CG5WLA20SR-150	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
	CG5WLA20SR-200	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
	CG5WLA20SV-25	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
	CG5WLA20SV-50	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
	CG5WLA20SV-75	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
	CG5WLA20SV-100	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
	CG5WLA20SV-125	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
	CG5WLA20SV-150	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
	CG5WLA20SV-200	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
	CG5WLA25SR-25	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
	CG5WLA25SR-50	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
	CG5WLA25SR-75	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
	CG5WLA25SR-100	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
	CG5WLA25SR-125	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
	CG5WLA25SR-150	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
	CG5WLA25SR-200	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
	CG5WLA25SR-250	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
	CG5WLA25SR-300	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
	CG5WLA25SV-25	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
	CG5WLA25SV-50	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
	CG5WLA25SV-75	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
	CG5WLA25SV-100	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
	CG5WLA25SV-125	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
	CG5WLA25SV-150	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
	CG5WLA25SV-200	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
	CG5WLA25SV-250	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
	CG5WLA25SV-300	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
	CG5WLA32SR-25	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
	CG5WLA32SR-50	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
	CG5WLA32SR-75	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
	CG5WLA32SR-100	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
	CG5WLA32SR-125	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
	CG5WLA32SR-150	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
	CG5WLA32SR-200	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
	CG5WLA32SR-250	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
	CG5WLA32SR-300	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
	CG5WLA32SV-25	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
	CG5WLA32SV-50	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
	CG5WLA32SV-75	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
	CG5WLA32SV-100	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
	CG5WLA32SV-125	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
	CG5WLA32SV-150	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
	CG5WLA32SV-200	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
	CG5WLA32SV-250	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
	CG5WLA32SV-300	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
	CG5WLA40SR-25	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
	CG5WLA40SR-50	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
	CG5WLA40SR-75	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
	CG5WLA40SR-100	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
	CG5WLA40SR-125	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
	CG5WLA40SR-150	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
	CG5WLA40SR-200	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
	CG5WLA40SR-250	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
	CG5WLA40SR-300	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
	CG5WLA40SV-25	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
	CG5WLA40SV-50	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
	CG5WLA40SV-75	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
	CG5WLA40SV-100	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
	CG5WLA40SV-125	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
	CG5WLA40SV-150	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
	CG5WLA40SV-200	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
	CG5WLA40SV-250	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
	CG5WLA40SV-300	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
	CG5WFN20SR-25	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
	CG5WFN20SR-50	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
	CG5WFN20SR-75	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
	CG5WFN20SR-100	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
	CG5WFN20SR-125	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
	CG5WFN20SR-150	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
	CG5WFN20SR-200	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
	CG5WFN20SV-25	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
	CG5WFN20SV-50	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
	CG5WFN20SV-75	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
	CG5WFN20SV-100	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
	CG5WFN20SV-125	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
	CG5WFN20SV-150	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
	CG5WFN20SV-200	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
	CG5WFN25SR-25	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
	CG5WFN25SR-50	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
	CG5WFN25SR-75	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
	CG5WFN25SR-100	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
	CG5WFN25SR-125	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
	CG5WFN25SR-150	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
	CG5WFN25SR-200	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
	CG5WFN25SR-250	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
	CG5WFN25SR-300	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
	CG5WFN25SV-25	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
	CG5WFN25SV-50	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
	CG5WFN25SV-75	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
	CG5WFN25SV-100	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
	CG5WFN25SV-125	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
	CG5WFN25SV-150	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
	CG5WFN25SV-200	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
	CG5WFN25SV-250	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
	CG5WFN25SV-300	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
	CG5WFN32SR-25	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
	CG5WFN32SR-50	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
	CG5WFN32SR-75	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
	CG5WFN32SR-100	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
	CG5WFN32SR-125	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
	CG5WFN32SR-150	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
	CG5WFN32SR-200	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
	CG5WFN32SR-250	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
	CG5WFN32SR-300	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
	CG5WFN32SV-25	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
	CG5WFN32SV-50	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
	CG5WFN32SV-75	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
	CG5WFN32SV-100	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
	CG5WFN32SV-125	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
	CG5WFN32SV-150	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
	CG5WFN32SV-200	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
	CG5WFN32SV-250	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
	CG5WFN32SV-300	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
	CG5WFN40SR-25	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
	CG5WFN40SR-50	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
	CG5WFN40SR-75	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
	CG5WFN40SR-100	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
	CG5WFN40SR-125	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
	CG5WFN40SR-150	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
	CG5WFN40SR-200	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
	CG5WFN40SR-250	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
	CG5WFN40SR-300	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
	CG5WFN40SV-25	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
	CG5WFN40SV-50	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
	CG5WFN40SV-75	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
	CG5WFN40SV-100	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
	CG5WFN40SV-125	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
	CG5WFN40SV-150	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
	CG5WFN40SV-200	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
	CG5WFN40SV-250	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
	CG5WFN40SV-300	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
	CG5WFA20SR-25	Mounting: Flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
	CG5WFA20SR-50	Mounting: Flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
	CG5WFA20SR-75	Mounting: Flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
	CG5WFA20SR-100	Mounting: Flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
	CG5WFA20SR-125	Mounting: Flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
	CG5WFA20SR-150	Mounting: Flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
	CG5WFA20SR-200	Mounting: Flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
	CG5WFA20SV-25	Mounting: Flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
	CG5WFA20SV-50	Mounting: Flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
	CG5WFA20SV-75	Mounting: Flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
	CG5WFA20SV-100	Mounting: Flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
	CG5WFA20SV-125	Mounting: Flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
	CG5WFA20SV-150	Mounting: Flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
	CG5WFA20SV-200	Mounting: Flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
	CG5WFA25SR-25	Mounting: Flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
	CG5WFA25SR-50	Mounting: Flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
	CG5WFA25SR-75	Mounting: Flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
	CG5WFA25SR-100	Mounting: Flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
	CG5WFA25SR-125	Mounting: Flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
	CG5WFA25SR-150	Mounting: Flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
	CG5WFA25SR-200	Mounting: Flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
	CG5WFA25SR-250	Mounting: Flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
	CG5WFA25SR-300	Mounting: Flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
	CG5WFA25SV-25	Mounting: Flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
	CG5WFA25SV-50	Mounting: Flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
	CG5WFA25SV-75	Mounting: Flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
	CG5WFA25SV-100	Mounting: Flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
	CG5WFA25SV-125	Mounting: Flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
	CG5WFA25SV-150	Mounting: Flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
	CG5WFA25SV-200	Mounting: Flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
	CG5WFA25SV-250	Mounting: Flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
	CG5WFA25SV-300	Mounting: Flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
	CG5WFA32SR-25	Mounting: Flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
	CG5WFA32SR-50	Mounting: Flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
	CG5WFA32SR-75	Mounting: Flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
	CG5WFA32SR-100	Mounting: Flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
	CG5WFA32SR-125	Mounting: Flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
	CG5WFA32SR-150	Mounting: Flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
	CG5WFA32SR-200	Mounting: Flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
	CG5WFA32SR-250	Mounting: Flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
	CG5WFA32SR-300	Mounting: Flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
	CG5WFA32SV-25	Mounting: Flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
	CG5WFA32SV-50	Mounting: Flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
	CG5WFA32SV-75	Mounting: Flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
	CG5WFA32SV-100	Mounting: Flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
	CG5WFA32SV-125	Mounting: Flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
	CG5WFA32SV-150	Mounting: Flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
	CG5WFA32SV-200	Mounting: Flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
	CG5WFA32SV-250	Mounting: Flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
	CG5WFA32SV-300	Mounting: Flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
	CG5WFA40SR-25	Mounting: Flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
	CG5WFA40SR-50	Mounting: Flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
	CG5WFA40SR-75	Mounting: Flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
	CG5WFA40SR-100	Mounting: Flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
	CG5WFA40SR-125	Mounting: Flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
	CG5WFA40SR-150	Mounting: Flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
	CG5WFA40SR-200	Mounting: Flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
	CG5WFA40SR-250	Mounting: Flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
	CG5WFA40SR-300	Mounting: Flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
	CG5WFA40SV-25	Mounting: Flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
	CG5WFA40SV-50	Mounting: Flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
	CG5WFA40SV-75	Mounting: Flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
	CG5WFA40SV-100	Mounting: Flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
	CG5WFA40SV-125	Mounting: Flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
	CG5WFA40SV-150	Mounting: Flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
	CG5WFA40SV-200	Mounting: Flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
	CG5WFA40SV-250	Mounting: Flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
	CG5WFA40SV-300	Mounting: Flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
	CDG5WBN20SR-25	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBN20SR-50	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBN20SR-75	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBN20SR-100	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBN20SR-125	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBN20SR-150	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBN20SR-200	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBN20SV-25	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBN20SV-50	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBN20SV-75	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBN20SV-100	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBN20SV-125	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBN20SV-150	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBN20SV-200	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBN25SR-25	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBN25SR-50	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBN25SR-75	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBN25SR-100	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBN25SR-125	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBN25SR-150	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBN25SR-200	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBN25SR-250	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBN25SR-300	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBN25SV-25	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBN25SV-50	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBN25SV-75	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBN25SV-100	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBN25SV-125	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBN25SV-150	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBN25SV-200	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBN25SV-250	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBN25SV-300	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBN32SR-25	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBN32SR-50	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBN32SR-75	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBN32SR-100	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBN32SR-125	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBN32SR-150	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBN32SR-200	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBN32SR-250	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBN32SR-300	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBN32SV-25	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBN32SV-50	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBN32SV-75	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBN32SV-100	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBN32SV-125	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBN32SV-150	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBN32SV-200	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBN32SV-250	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBN32SV-300	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBN40SR-25	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBN40SR-50	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBN40SR-75	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBN40SR-100	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBN40SR-125	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBN40SR-150	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBN40SR-200	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBN40SR-250	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBN40SR-300	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBN40SV-25	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBN40SV-50	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBN40SV-75	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBN40SV-100	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBN40SV-125	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBN40SV-150	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBN40SV-200	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBN40SV-250	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBN40SV-300	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBA20SR-25	Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBA20SR-50	Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBA20SR-75	Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBA20SR-100	Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBA20SR-125	Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBA20SR-150	Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBA20SR-200	Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBA20SV-25	Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBA20SV-50	Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBA20SV-75	Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBA20SV-100	Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBA20SV-125	Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBA20SV-150	Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBA20SV-200	Mounting: Basic \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBA25SR-25	Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBA25SR-50	Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBA25SR-75	Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBA25SR-100	Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBA25SR-125	Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBA25SR-150	Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBA25SR-200	Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBA25SR-250	Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBA25SR-300	Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBA25SV-25	Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBA25SV-50	Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBA25SV-75	Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBA25SV-100	Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBA25SV-125	Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBA25SV-150	Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBA25SV-200	Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBA25SV-250	Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBA25SV-300	Mounting: Basic \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBA32SR-25	Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBA32SR-50	Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBA32SR-75	Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBA32SR-100	Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBA32SR-125	Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBA32SR-150	Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBA32SR-200	Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBA32SR-250	Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBA32SR-300	Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBA32SV-25	Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBA32SV-50	Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBA32SV-75	Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBA32SV-100	Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBA32SV-125	Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBA32SV-150	Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBA32SV-200	Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBA32SV-250	Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBA32SV-300	Mounting: Basic \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBA40SR-25	Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBA40SR-50	Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBA40SR-75	Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBA40SR-100	Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBA40SR-125	Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBA40SR-150	Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBA40SR-200	Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBA40SR-250	Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBA40SR-300	Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBA40SV-25	Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBA40SV-50	Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBA40SV-75	Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBA40SV-100	Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBA40SV-125	Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBA40SV-150	Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBA40SV-200	Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBA40SV-250	Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBA40SV-300	Mounting: Basic \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLN20SR-25	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLN20SR-50	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLN20SR-75	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLN20SR-100	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLN20SR-125	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLN20SR-150	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLN20SR-200	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLN20SV-25	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLN20SV-50	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLN20SV-75	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLN20SV-100	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLN20SV-125	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLN20SV-150	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLN20SV-200	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLN25SR-25	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLN25SR-50	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLN25SR-75	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLN25SR-100	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLN25SR-125	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLN25SR-150	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLN25SR-200	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLN25SR-250	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLN25SR-300	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLN25SV-25	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLN25SV-50	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLN25SV-75	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLN25SV-100	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLN25SV-125	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLN25SV-150	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLN25SV-200	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLN25SV-250	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLN25SV-300	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLN32SR-25	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLN32SR-50	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLN32SR-75	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLN32SR-100	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLN32SR-125	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLN32SR-150	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLN32SR-200	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLN32SR-250	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLN32SR-300	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLN32SV-25	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLN32SV-50	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLN32SV-75	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLN32SV-100	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLN32SV-125	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLN32SV-150	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLN32SV-200	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLN32SV-250	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLN32SV-300	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLN40SR-25	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLN40SR-50	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLN40SR-75	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLN40SR-100	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLN40SR-125	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLN40SR-150	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLN40SR-200	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLN40SR-250	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLN40SR-300	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLN40SV-25	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLN40SV-50	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLN40SV-75	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLN40SV-100	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLN40SV-125	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLN40SV-150	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLN40SV-200	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLN40SV-250	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLN40SV-300	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLA20SR-25	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLA20SR-50	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLA20SR-75	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLA20SR-100	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLA20SR-125	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLA20SR-150	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLA20SR-200	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLA20SV-25	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLA20SV-50	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLA20SV-75	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLA20SV-100	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLA20SV-125	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLA20SV-150	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLA20SV-200	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLA25SR-25	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLA25SR-50	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLA25SR-75	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLA25SR-100	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLA25SR-125	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLA25SR-150	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLA25SR-200	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLA25SR-250	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLA25SR-300	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLA25SV-25	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLA25SV-50	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLA25SV-75	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLA25SV-100	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLA25SV-125	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLA25SV-150	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLA25SV-200	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLA25SV-250	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLA25SV-300	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLA32SR-25	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLA32SR-50	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLA32SR-75	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLA32SR-100	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLA32SR-125	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLA32SR-150	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLA32SR-200	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLA32SR-250	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLA32SR-300	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLA32SV-25	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLA32SV-50	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLA32SV-75	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLA32SV-100	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLA32SV-125	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLA32SV-150	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLA32SV-200	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLA32SV-250	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLA32SV-300	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLA40SR-25	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLA40SR-50	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLA40SR-75	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLA40SR-100	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLA40SR-125	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLA40SR-150	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLA40SR-200	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLA40SR-250	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLA40SR-300	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLA40SV-25	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLA40SV-50	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLA40SV-75	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLA40SV-100	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLA40SV-125	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLA40SV-150	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLA40SV-200	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLA40SV-250	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLA40SV-300	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFN20SR-25	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFN20SR-50	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFN20SR-75	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFN20SR-100	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFN20SR-125	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFN20SR-150	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFN20SR-200	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFN20SV-25	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFN20SV-50	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFN20SV-75	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFN20SV-100	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFN20SV-125	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFN20SV-150	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFN20SV-200	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFN25SR-25	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFN25SR-50	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFN25SR-75	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFN25SR-100	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFN25SR-125	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFN25SR-150	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFN25SR-200	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFN25SR-250	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFN25SR-300	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFN25SV-25	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFN25SV-50	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFN25SV-75	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFN25SV-100	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFN25SV-125	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFN25SV-150	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFN25SV-200	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFN25SV-250	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFN25SV-300	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFN32SR-25	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFN32SR-50	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFN32SR-75	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFN32SR-100	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFN32SR-125	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFN32SR-150	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFN32SR-200	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFN32SR-250	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFN32SR-300	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFN32SV-25	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFN32SV-50	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFN32SV-75	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFN32SV-100	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFN32SV-125	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFN32SV-150	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFN32SV-200	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFN32SV-250	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFN32SV-300	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFN40SR-25	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFN40SR-50	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFN40SR-75	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFN40SR-100	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFN40SR-125	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFN40SR-150	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFN40SR-200	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFN40SR-250	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFN40SR-300	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFN40SV-25	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFN40SV-50	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFN40SV-75	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFN40SV-100	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFN40SV-125	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFN40SV-150	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFN40SV-200	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFN40SV-250	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFN40SV-300	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFA20SR-25	Mounting: Flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFA20SR-50	Mounting: Flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFA20SR-75	Mounting: Flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFA20SR-100	Mounting: Flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFA20SR-125	Mounting: Flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFA20SR-150	Mounting: Flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFA20SR-200	Mounting: Flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFA20SV-25	Mounting: Flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFA20SV-50	Mounting: Flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFA20SV-75	Mounting: Flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFA20SV-100	Mounting: Flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFA20SV-125	Mounting: Flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFA20SV-150	Mounting: Flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFA20SV-200	Mounting: Flange \| Cushion: Air cushion \| Bore: ø20 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFA25SR-25	Mounting: Flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFA25SR-50	Mounting: Flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFA25SR-75	Mounting: Flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFA25SR-100	Mounting: Flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFA25SR-125	Mounting: Flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFA25SR-150	Mounting: Flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFA25SR-200	Mounting: Flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFA25SR-250	Mounting: Flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFA25SR-300	Mounting: Flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFA25SV-25	Mounting: Flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFA25SV-50	Mounting: Flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFA25SV-75	Mounting: Flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFA25SV-100	Mounting: Flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFA25SV-125	Mounting: Flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFA25SV-150	Mounting: Flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFA25SV-200	Mounting: Flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFA25SV-250	Mounting: Flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFA25SV-300	Mounting: Flange \| Cushion: Air cushion \| Bore: ø25 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFA32SR-25	Mounting: Flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFA32SR-50	Mounting: Flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFA32SR-75	Mounting: Flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFA32SR-100	Mounting: Flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFA32SR-125	Mounting: Flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFA32SR-150	Mounting: Flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFA32SR-200	Mounting: Flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFA32SR-250	Mounting: Flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFA32SR-300	Mounting: Flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFA32SV-25	Mounting: Flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFA32SV-50	Mounting: Flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFA32SV-75	Mounting: Flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFA32SV-100	Mounting: Flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFA32SV-125	Mounting: Flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFA32SV-150	Mounting: Flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFA32SV-200	Mounting: Flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFA32SV-250	Mounting: Flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFA32SV-300	Mounting: Flange \| Cushion: Air cushion \| Bore: ø32 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFA40SR-25	Mounting: Flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFA40SR-50	Mounting: Flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFA40SR-75	Mounting: Flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFA40SR-100	Mounting: Flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFA40SR-125	Mounting: Flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFA40SR-150	Mounting: Flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFA40SR-200	Mounting: Flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFA40SR-250	Mounting: Flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFA40SR-300	Mounting: Flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFA40SV-25	Mounting: Flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFA40SV-50	Mounting: Flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFA40SV-75	Mounting: Flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFA40SV-100	Mounting: Flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFA40SV-125	Mounting: Flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFA40SV-150	Mounting: Flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFA40SV-200	Mounting: Flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFA40SV-250	Mounting: Flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFA40SV-300	Mounting: Flange \| Cushion: Air cushion \| Bore: ø40 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

SMC CG5W-S Stainless Steel Double Rod Cylinder (ø20 to ø40)
