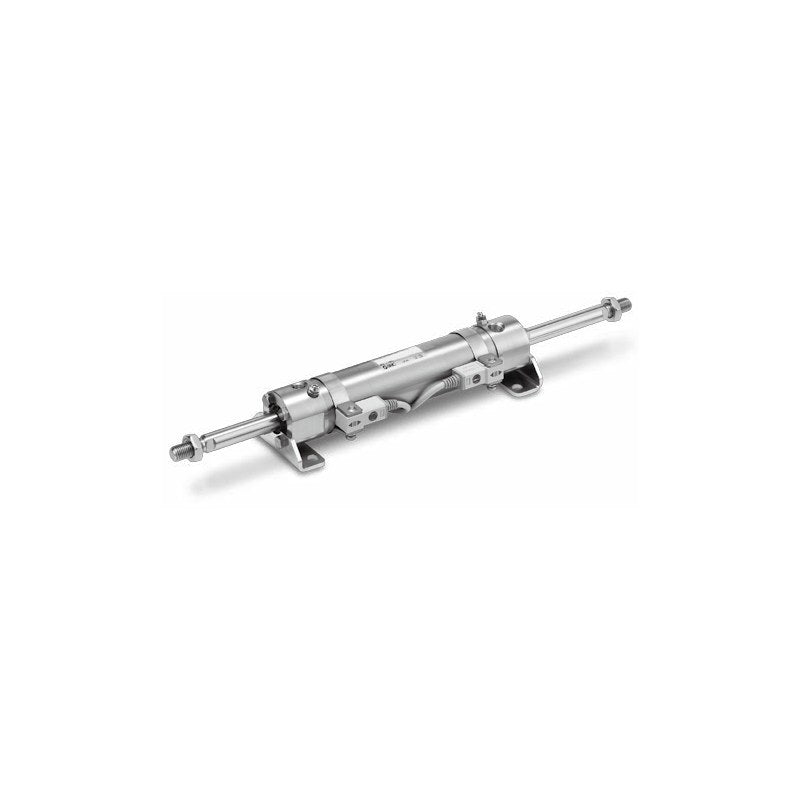

SMC CG5W-S Stainless Steel Double Rod Cylinder (ø50 to ø100)

SMC CG5W-S series stainless steel double acting double rod cylinder, ø50 to ø100 mm, with rubber or air cushion, for water-splash environments.

Key features

External metal parts in SUS304 stainless steel; plug bolts for unused mounting threads
Special scraper and NSF-H1 certified food-grade grease to resist water ingress
Mounting styles: basic, axial foot and flange
Rubber cushion (N) or air cushion (A); packing NBR (R) or FKM (V)
CDG5W versions have a built-in magnet for the D-G5BAL water-resistant auto switch (ordered as suffix)

Specifications

Action	Double acting, double rod
Fluid	Air
Proof pressure	1.5 MPa
Max. operating pressure	1.0 MPa
Min. operating pressure	0.05 MPa
Ambient and fluid temperature	-10 to 70°C (with auto switch -10 to 60°C)
Lubrication	Not required (non-lube)
Piston speed	50 to 1000 mm/s (ø80, ø100: 50 to 700 mm/s)
Port thread	Rc (air cushion ø20, ø25: M5x0.8); NPT (TN) and G (TF) on order
Standard strokes	ø20: 25 to 200 mm; ø25 to ø100: 25 to 300 mm (1 to 1500 mm on order)
Source	SMC Korea catalog CJ5-S/CG5-S (SMCKR_CJ5__S_CG5__S.pdf), p. 1130-1131 (PDF p. 14-15)

CG5WBN50SR-25		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
CG5WBN50SR-50		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
CG5WBN50SR-75		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
CG5WBN50SR-100		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
CG5WBN50SR-125		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
CG5WBN50SR-150		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
CG5WBN50SR-200		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
CG5WBN50SR-250		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
CG5WBN50SR-300		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
CG5WBN50SV-25		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
CG5WBN50SV-50		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
CG5WBN50SV-75		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
CG5WBN50SV-100		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
CG5WBN50SV-125		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
CG5WBN50SV-150		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
CG5WBN50SV-200		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
CG5WBN50SV-250		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
CG5WBN50SV-300		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
CG5WBN63SR-25		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
CG5WBN63SR-50		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
CG5WBN63SR-75		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
CG5WBN63SR-100		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
CG5WBN63SR-125		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
CG5WBN63SR-150		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
CG5WBN63SR-200		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
CG5WBN63SR-250		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
CG5WBN63SR-300		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
CG5WBN63SV-25		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
CG5WBN63SV-50		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
CG5WBN63SV-75		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
CG5WBN63SV-100		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
CG5WBN63SV-125		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
CG5WBN63SV-150		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
CG5WBN63SV-200		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
CG5WBN63SV-250		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
CG5WBN63SV-300		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
CG5WBN80SR-25		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
CG5WBN80SR-50		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
CG5WBN80SR-75		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
CG5WBN80SR-100		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
CG5WBN80SR-125		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
CG5WBN80SR-150		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
CG5WBN80SR-200		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
CG5WBN80SR-250		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
CG5WBN80SR-300		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
CG5WBN80SV-25		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
CG5WBN80SV-50		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
CG5WBN80SV-75		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
CG5WBN80SV-100		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
CG5WBN80SV-125		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
CG5WBN80SV-150		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
CG5WBN80SV-200		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
CG5WBN80SV-250		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
CG5WBN80SV-300		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
CG5WBN100SR-25		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
CG5WBN100SR-50		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
CG5WBN100SR-75		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
CG5WBN100SR-100		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
CG5WBN100SR-125		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
CG5WBN100SR-150		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
CG5WBN100SR-200		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
CG5WBN100SR-250		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
CG5WBN100SR-300		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
CG5WBN100SV-25		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
CG5WBN100SV-50		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
CG5WBN100SV-75		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
CG5WBN100SV-100		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
CG5WBN100SV-125		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
CG5WBN100SV-150		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
CG5WBN100SV-200		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
CG5WBN100SV-250		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
CG5WBN100SV-300		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
CG5WBA50SR-25		Mounting: Basic \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
CG5WBA50SR-50		Mounting: Basic \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
CG5WBA50SR-75		Mounting: Basic \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
CG5WBA50SR-100		Mounting: Basic \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
CG5WBA50SR-125		Mounting: Basic \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
CG5WBA50SR-150		Mounting: Basic \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
CG5WBA50SR-200		Mounting: Basic \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
CG5WBA50SR-250		Mounting: Basic \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
CG5WBA50SR-300		Mounting: Basic \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
CG5WBA50SV-25		Mounting: Basic \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
CG5WBA50SV-50		Mounting: Basic \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
CG5WBA50SV-75		Mounting: Basic \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
CG5WBA50SV-100		Mounting: Basic \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
CG5WBA50SV-125		Mounting: Basic \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
CG5WBA50SV-150		Mounting: Basic \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
CG5WBA50SV-200		Mounting: Basic \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
CG5WBA50SV-250		Mounting: Basic \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
CG5WBA50SV-300		Mounting: Basic \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
CG5WBA63SR-25		Mounting: Basic \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
CG5WBA63SR-50		Mounting: Basic \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
CG5WBA63SR-75		Mounting: Basic \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
CG5WBA63SR-100		Mounting: Basic \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
CG5WBA63SR-125		Mounting: Basic \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
CG5WBA63SR-150		Mounting: Basic \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
CG5WBA63SR-200		Mounting: Basic \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
CG5WBA63SR-250		Mounting: Basic \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
CG5WBA63SR-300		Mounting: Basic \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
CG5WBA63SV-25		Mounting: Basic \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
CG5WBA63SV-50		Mounting: Basic \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
CG5WBA63SV-75		Mounting: Basic \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
CG5WBA63SV-100		Mounting: Basic \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
CG5WBA63SV-125		Mounting: Basic \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
CG5WBA63SV-150		Mounting: Basic \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
CG5WBA63SV-200		Mounting: Basic \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
CG5WBA63SV-250		Mounting: Basic \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
CG5WBA63SV-300		Mounting: Basic \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
CG5WBA80SR-25		Mounting: Basic \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
CG5WBA80SR-50		Mounting: Basic \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
CG5WBA80SR-75		Mounting: Basic \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
CG5WBA80SR-100		Mounting: Basic \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
CG5WBA80SR-125		Mounting: Basic \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
CG5WBA80SR-150		Mounting: Basic \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
CG5WBA80SR-200		Mounting: Basic \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
CG5WBA80SR-250		Mounting: Basic \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
CG5WBA80SR-300		Mounting: Basic \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
CG5WBA80SV-25		Mounting: Basic \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
CG5WBA80SV-50		Mounting: Basic \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
CG5WBA80SV-75		Mounting: Basic \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
CG5WBA80SV-100		Mounting: Basic \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
CG5WBA80SV-125		Mounting: Basic \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
CG5WBA80SV-150		Mounting: Basic \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
CG5WBA80SV-200		Mounting: Basic \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
CG5WBA80SV-250		Mounting: Basic \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
CG5WBA80SV-300		Mounting: Basic \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
CG5WBA100SR-25		Mounting: Basic \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
CG5WBA100SR-50		Mounting: Basic \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
CG5WBA100SR-75		Mounting: Basic \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
CG5WBA100SR-100		Mounting: Basic \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
CG5WBA100SR-125		Mounting: Basic \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
CG5WBA100SR-150		Mounting: Basic \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
CG5WBA100SR-200		Mounting: Basic \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
CG5WBA100SR-250		Mounting: Basic \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
CG5WBA100SR-300		Mounting: Basic \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
CG5WBA100SV-25		Mounting: Basic \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
CG5WBA100SV-50		Mounting: Basic \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
CG5WBA100SV-75		Mounting: Basic \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
CG5WBA100SV-100		Mounting: Basic \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
CG5WBA100SV-125		Mounting: Basic \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
CG5WBA100SV-150		Mounting: Basic \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
CG5WBA100SV-200		Mounting: Basic \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
CG5WBA100SV-250		Mounting: Basic \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
CG5WBA100SV-300		Mounting: Basic \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
CG5WLN50SR-25		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
CG5WLN50SR-50		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
CG5WLN50SR-75		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
CG5WLN50SR-100		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
CG5WLN50SR-125		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
CG5WLN50SR-150		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
CG5WLN50SR-200		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
CG5WLN50SR-250		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
CG5WLN50SR-300		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
CG5WLN50SV-25		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
CG5WLN50SV-50		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
CG5WLN50SV-75		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
CG5WLN50SV-100		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
CG5WLN50SV-125		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
CG5WLN50SV-150		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
CG5WLN50SV-200		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
CG5WLN50SV-250		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
CG5WLN50SV-300		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
CG5WLN63SR-25		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
CG5WLN63SR-50		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
CG5WLN63SR-75		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
CG5WLN63SR-100		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
CG5WLN63SR-125		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
CG5WLN63SR-150		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
CG5WLN63SR-200		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
CG5WLN63SR-250		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
CG5WLN63SR-300		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
CG5WLN63SV-25		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
CG5WLN63SV-50		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
CG5WLN63SV-75		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
CG5WLN63SV-100		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
CG5WLN63SV-125		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
CG5WLN63SV-150		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
CG5WLN63SV-200		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
CG5WLN63SV-250		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
CG5WLN63SV-300		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
CG5WLN80SR-25		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
CG5WLN80SR-50		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
CG5WLN80SR-75		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
CG5WLN80SR-100		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
CG5WLN80SR-125		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
CG5WLN80SR-150		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
CG5WLN80SR-200		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
CG5WLN80SR-250		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
CG5WLN80SR-300		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
CG5WLN80SV-25		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
CG5WLN80SV-50		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
CG5WLN80SV-75		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
CG5WLN80SV-100		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
CG5WLN80SV-125		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
CG5WLN80SV-150		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
CG5WLN80SV-200		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
CG5WLN80SV-250		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
CG5WLN80SV-300		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
CG5WLN100SR-25		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
CG5WLN100SR-50		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
CG5WLN100SR-75		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
CG5WLN100SR-100		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
CG5WLN100SR-125		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
CG5WLN100SR-150		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
CG5WLN100SR-200		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
CG5WLN100SR-250		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
CG5WLN100SR-300		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
CG5WLN100SV-25		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
CG5WLN100SV-50		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
CG5WLN100SV-75		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
CG5WLN100SV-100		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
CG5WLN100SV-125		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
CG5WLN100SV-150		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
CG5WLN100SV-200		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
CG5WLN100SV-250		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
CG5WLN100SV-300		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
CG5WLA50SR-25		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
CG5WLA50SR-50		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
CG5WLA50SR-75		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
CG5WLA50SR-100		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
CG5WLA50SR-125		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
CG5WLA50SR-150		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
CG5WLA50SR-200		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
CG5WLA50SR-250		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
CG5WLA50SR-300		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
CG5WLA50SV-25		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
CG5WLA50SV-50		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
CG5WLA50SV-75		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
CG5WLA50SV-100		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
CG5WLA50SV-125		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
CG5WLA50SV-150		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
CG5WLA50SV-200		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
CG5WLA50SV-250		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
CG5WLA50SV-300		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
CG5WLA63SR-25		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
CG5WLA63SR-50		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
CG5WLA63SR-75		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
CG5WLA63SR-100		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
CG5WLA63SR-125		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
CG5WLA63SR-150		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
CG5WLA63SR-200		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
CG5WLA63SR-250		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
CG5WLA63SR-300		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
CG5WLA63SV-25		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
CG5WLA63SV-50		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
CG5WLA63SV-75		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
CG5WLA63SV-100		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
CG5WLA63SV-125		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
CG5WLA63SV-150		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
CG5WLA63SV-200		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
CG5WLA63SV-250		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
CG5WLA63SV-300		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
CG5WLA80SR-25		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
CG5WLA80SR-50		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
CG5WLA80SR-75		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
CG5WLA80SR-100		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
CG5WLA80SR-125		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
CG5WLA80SR-150		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
CG5WLA80SR-200		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
CG5WLA80SR-250		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
CG5WLA80SR-300		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
CG5WLA80SV-25		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
CG5WLA80SV-50		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
CG5WLA80SV-75		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
CG5WLA80SV-100		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
CG5WLA80SV-125		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
CG5WLA80SV-150		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
CG5WLA80SV-200		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
CG5WLA80SV-250		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
CG5WLA80SV-300		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
CG5WLA100SR-25		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
CG5WLA100SR-50		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
CG5WLA100SR-75		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
CG5WLA100SR-100		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
CG5WLA100SR-125		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
CG5WLA100SR-150		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
CG5WLA100SR-200		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
CG5WLA100SR-250		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
CG5WLA100SR-300		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
CG5WLA100SV-25		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
CG5WLA100SV-50		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
CG5WLA100SV-75		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
CG5WLA100SV-100		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
CG5WLA100SV-125		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
CG5WLA100SV-150		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
CG5WLA100SV-200		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
CG5WLA100SV-250		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
CG5WLA100SV-300		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
CG5WFN50SR-25		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
CG5WFN50SR-50		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
CG5WFN50SR-75		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
CG5WFN50SR-100		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
CG5WFN50SR-125		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
CG5WFN50SR-150		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
CG5WFN50SR-200		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
CG5WFN50SR-250		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
CG5WFN50SR-300		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
CG5WFN50SV-25		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
CG5WFN50SV-50		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
CG5WFN50SV-75		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
CG5WFN50SV-100		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
CG5WFN50SV-125		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
CG5WFN50SV-150		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
CG5WFN50SV-200		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
CG5WFN50SV-250		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
CG5WFN50SV-300		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
CG5WFN63SR-25		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
CG5WFN63SR-50		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
CG5WFN63SR-75		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
CG5WFN63SR-100		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
CG5WFN63SR-125		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
CG5WFN63SR-150		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
CG5WFN63SR-200		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
CG5WFN63SR-250		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
CG5WFN63SR-300		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
CG5WFN63SV-25		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
CG5WFN63SV-50		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
CG5WFN63SV-75		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
CG5WFN63SV-100		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
CG5WFN63SV-125		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
CG5WFN63SV-150		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
CG5WFN63SV-200		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
CG5WFN63SV-250		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
CG5WFN63SV-300		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
CG5WFN80SR-25		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
CG5WFN80SR-50		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
CG5WFN80SR-75		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
CG5WFN80SR-100		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
CG5WFN80SR-125		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
CG5WFN80SR-150		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
CG5WFN80SR-200		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
CG5WFN80SR-250		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
CG5WFN80SR-300		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
CG5WFN80SV-25		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
CG5WFN80SV-50		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
CG5WFN80SV-75		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
CG5WFN80SV-100		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
CG5WFN80SV-125		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
CG5WFN80SV-150		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
CG5WFN80SV-200		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
CG5WFN80SV-250		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
CG5WFN80SV-300		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
CG5WFN100SR-25		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
CG5WFN100SR-50		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
CG5WFN100SR-75		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
CG5WFN100SR-100		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
CG5WFN100SR-125		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
CG5WFN100SR-150		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
CG5WFN100SR-200		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
CG5WFN100SR-250		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
CG5WFN100SR-300		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
CG5WFN100SV-25		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
CG5WFN100SV-50		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
CG5WFN100SV-75		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
CG5WFN100SV-100		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
CG5WFN100SV-125		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
CG5WFN100SV-150		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
CG5WFN100SV-200		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
CG5WFN100SV-250		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
CG5WFN100SV-300		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
CG5WFA50SR-25		Mounting: Flange \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
CG5WFA50SR-50		Mounting: Flange \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
CG5WFA50SR-75		Mounting: Flange \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
CG5WFA50SR-100		Mounting: Flange \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
CG5WFA50SR-125		Mounting: Flange \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
CG5WFA50SR-150		Mounting: Flange \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
CG5WFA50SR-200		Mounting: Flange \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
CG5WFA50SR-250		Mounting: Flange \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
CG5WFA50SR-300		Mounting: Flange \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
CG5WFA50SV-25		Mounting: Flange \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
CG5WFA50SV-50		Mounting: Flange \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
CG5WFA50SV-75		Mounting: Flange \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
CG5WFA50SV-100		Mounting: Flange \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
CG5WFA50SV-125		Mounting: Flange \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
CG5WFA50SV-150		Mounting: Flange \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
CG5WFA50SV-200		Mounting: Flange \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
CG5WFA50SV-250		Mounting: Flange \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
CG5WFA50SV-300		Mounting: Flange \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
CG5WFA63SR-25		Mounting: Flange \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
CG5WFA63SR-50		Mounting: Flange \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
CG5WFA63SR-75		Mounting: Flange \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
CG5WFA63SR-100		Mounting: Flange \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
CG5WFA63SR-125		Mounting: Flange \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
CG5WFA63SR-150		Mounting: Flange \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
CG5WFA63SR-200		Mounting: Flange \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
CG5WFA63SR-250		Mounting: Flange \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
CG5WFA63SR-300		Mounting: Flange \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
CG5WFA63SV-25		Mounting: Flange \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
CG5WFA63SV-50		Mounting: Flange \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
CG5WFA63SV-75		Mounting: Flange \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
CG5WFA63SV-100		Mounting: Flange \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
CG5WFA63SV-125		Mounting: Flange \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
CG5WFA63SV-150		Mounting: Flange \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
CG5WFA63SV-200		Mounting: Flange \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
CG5WFA63SV-250		Mounting: Flange \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
CG5WFA63SV-300		Mounting: Flange \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
CG5WFA80SR-25		Mounting: Flange \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
CG5WFA80SR-50		Mounting: Flange \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
CG5WFA80SR-75		Mounting: Flange \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
CG5WFA80SR-100		Mounting: Flange \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
CG5WFA80SR-125		Mounting: Flange \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
CG5WFA80SR-150		Mounting: Flange \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
CG5WFA80SR-200		Mounting: Flange \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
CG5WFA80SR-250		Mounting: Flange \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
CG5WFA80SR-300		Mounting: Flange \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
CG5WFA80SV-25		Mounting: Flange \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
CG5WFA80SV-50		Mounting: Flange \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
CG5WFA80SV-75		Mounting: Flange \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
CG5WFA80SV-100		Mounting: Flange \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
CG5WFA80SV-125		Mounting: Flange \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
CG5WFA80SV-150		Mounting: Flange \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
CG5WFA80SV-200		Mounting: Flange \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
CG5WFA80SV-250		Mounting: Flange \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
CG5WFA80SV-300		Mounting: Flange \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
CG5WFA100SR-25		Mounting: Flange \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
CG5WFA100SR-50		Mounting: Flange \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
CG5WFA100SR-75		Mounting: Flange \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
CG5WFA100SR-100		Mounting: Flange \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
CG5WFA100SR-125		Mounting: Flange \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
CG5WFA100SR-150		Mounting: Flange \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
CG5WFA100SR-200		Mounting: Flange \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
CG5WFA100SR-250		Mounting: Flange \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
CG5WFA100SR-300		Mounting: Flange \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
CG5WFA100SV-25		Mounting: Flange \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
CG5WFA100SV-50		Mounting: Flange \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
CG5WFA100SV-75		Mounting: Flange \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
CG5WFA100SV-100		Mounting: Flange \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
CG5WFA100SV-125		Mounting: Flange \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
CG5WFA100SV-150		Mounting: Flange \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
CG5WFA100SV-200		Mounting: Flange \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
CG5WFA100SV-250		Mounting: Flange \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
CG5WFA100SV-300		Mounting: Flange \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
CDG5WBN50SR-25		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
CDG5WBN50SR-50		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
CDG5WBN50SR-75		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
CDG5WBN50SR-100		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
CDG5WBN50SR-125		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
CDG5WBN50SR-150		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
CDG5WBN50SR-200		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
CDG5WBN50SR-250		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
CDG5WBN50SR-300		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
CDG5WBN50SV-25		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
CDG5WBN50SV-50		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
CDG5WBN50SV-75		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
CDG5WBN50SV-100		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
CDG5WBN50SV-125		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
CDG5WBN50SV-150		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
CDG5WBN50SV-200		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
CDG5WBN50SV-250		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
CDG5WBN50SV-300		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
CDG5WBN63SR-25		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
CDG5WBN63SR-50		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
CDG5WBN63SR-75		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
CDG5WBN63SR-100		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
CDG5WBN63SR-125		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
CDG5WBN63SR-150		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
CDG5WBN63SR-200		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
CDG5WBN63SR-250		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
CDG5WBN63SR-300		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
CDG5WBN63SV-25		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
CDG5WBN63SV-50		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
CDG5WBN63SV-75		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
CDG5WBN63SV-100		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
CDG5WBN63SV-125		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
CDG5WBN63SV-150		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
CDG5WBN63SV-200		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
CDG5WBN63SV-250		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
CDG5WBN63SV-300		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
CDG5WBN80SR-25		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
CDG5WBN80SR-50		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
CDG5WBN80SR-75		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
CDG5WBN80SR-100		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
CDG5WBN80SR-125		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
CDG5WBN80SR-150		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
CDG5WBN80SR-200		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
CDG5WBN80SR-250		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
CDG5WBN80SR-300		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
CDG5WBN80SV-25		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
CDG5WBN80SV-50		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
CDG5WBN80SV-75		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
CDG5WBN80SV-100		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
CDG5WBN80SV-125		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
CDG5WBN80SV-150		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
CDG5WBN80SV-200		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
CDG5WBN80SV-250		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
CDG5WBN80SV-300		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
CDG5WBN100SR-25		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
CDG5WBN100SR-50		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
CDG5WBN100SR-75		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
CDG5WBN100SR-100		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
CDG5WBN100SR-125		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
CDG5WBN100SR-150		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
CDG5WBN100SR-200		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
CDG5WBN100SR-250		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
CDG5WBN100SR-300		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
CDG5WBN100SV-25		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
CDG5WBN100SV-50		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
CDG5WBN100SV-75		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
CDG5WBN100SV-100		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
CDG5WBN100SV-125		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
CDG5WBN100SV-150		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
CDG5WBN100SV-200		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
CDG5WBN100SV-250		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
CDG5WBN100SV-300		Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
CDG5WBA50SR-25		Mounting: Basic \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
CDG5WBA50SR-50		Mounting: Basic \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
CDG5WBA50SR-75		Mounting: Basic \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
CDG5WBA50SR-100		Mounting: Basic \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
CDG5WBA50SR-125		Mounting: Basic \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
CDG5WBA50SR-150		Mounting: Basic \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
CDG5WBA50SR-200		Mounting: Basic \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
CDG5WBA50SR-250		Mounting: Basic \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
CDG5WBA50SR-300		Mounting: Basic \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
CDG5WBA50SV-25		Mounting: Basic \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
CDG5WBA50SV-50		Mounting: Basic \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
CDG5WBA50SV-75		Mounting: Basic \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
CDG5WBA50SV-100		Mounting: Basic \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
CDG5WBA50SV-125		Mounting: Basic \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
CDG5WBA50SV-150		Mounting: Basic \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
CDG5WBA50SV-200		Mounting: Basic \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
CDG5WBA50SV-250		Mounting: Basic \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
CDG5WBA50SV-300		Mounting: Basic \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
CDG5WBA63SR-25		Mounting: Basic \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
CDG5WBA63SR-50		Mounting: Basic \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
CDG5WBA63SR-75		Mounting: Basic \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
CDG5WBA63SR-100		Mounting: Basic \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
CDG5WBA63SR-125		Mounting: Basic \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
CDG5WBA63SR-150		Mounting: Basic \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
CDG5WBA63SR-200		Mounting: Basic \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
CDG5WBA63SR-250		Mounting: Basic \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
CDG5WBA63SR-300		Mounting: Basic \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
CDG5WBA63SV-25		Mounting: Basic \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
CDG5WBA63SV-50		Mounting: Basic \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
CDG5WBA63SV-75		Mounting: Basic \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
CDG5WBA63SV-100		Mounting: Basic \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
CDG5WBA63SV-125		Mounting: Basic \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
CDG5WBA63SV-150		Mounting: Basic \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
CDG5WBA63SV-200		Mounting: Basic \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
CDG5WBA63SV-250		Mounting: Basic \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
CDG5WBA63SV-300		Mounting: Basic \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
CDG5WBA80SR-25		Mounting: Basic \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
CDG5WBA80SR-50		Mounting: Basic \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
CDG5WBA80SR-75		Mounting: Basic \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
CDG5WBA80SR-100		Mounting: Basic \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
CDG5WBA80SR-125		Mounting: Basic \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
CDG5WBA80SR-150		Mounting: Basic \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
CDG5WBA80SR-200		Mounting: Basic \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
CDG5WBA80SR-250		Mounting: Basic \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
CDG5WBA80SR-300		Mounting: Basic \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
CDG5WBA80SV-25		Mounting: Basic \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
CDG5WBA80SV-50		Mounting: Basic \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
CDG5WBA80SV-75		Mounting: Basic \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
CDG5WBA80SV-100		Mounting: Basic \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
CDG5WBA80SV-125		Mounting: Basic \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
CDG5WBA80SV-150		Mounting: Basic \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
CDG5WBA80SV-200		Mounting: Basic \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
CDG5WBA80SV-250		Mounting: Basic \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
CDG5WBA80SV-300		Mounting: Basic \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
CDG5WBA100SR-25		Mounting: Basic \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
CDG5WBA100SR-50		Mounting: Basic \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
CDG5WBA100SR-75		Mounting: Basic \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
CDG5WBA100SR-100		Mounting: Basic \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
CDG5WBA100SR-125		Mounting: Basic \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
CDG5WBA100SR-150		Mounting: Basic \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
CDG5WBA100SR-200		Mounting: Basic \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
CDG5WBA100SR-250		Mounting: Basic \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
CDG5WBA100SR-300		Mounting: Basic \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
CDG5WBA100SV-25		Mounting: Basic \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
CDG5WBA100SV-50		Mounting: Basic \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
CDG5WBA100SV-75		Mounting: Basic \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
CDG5WBA100SV-100		Mounting: Basic \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
CDG5WBA100SV-125		Mounting: Basic \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
CDG5WBA100SV-150		Mounting: Basic \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
CDG5WBA100SV-200		Mounting: Basic \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
CDG5WBA100SV-250		Mounting: Basic \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
CDG5WBA100SV-300		Mounting: Basic \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
CDG5WLN50SR-25		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
CDG5WLN50SR-50		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
CDG5WLN50SR-75		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
CDG5WLN50SR-100		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
CDG5WLN50SR-125		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
CDG5WLN50SR-150		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
CDG5WLN50SR-200		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
CDG5WLN50SR-250		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
CDG5WLN50SR-300		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
CDG5WLN50SV-25		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
CDG5WLN50SV-50		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
CDG5WLN50SV-75		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
CDG5WLN50SV-100		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
CDG5WLN50SV-125		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
CDG5WLN50SV-150		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
CDG5WLN50SV-200		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
CDG5WLN50SV-250		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
CDG5WLN50SV-300		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
CDG5WLN63SR-25		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
CDG5WLN63SR-50		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
CDG5WLN63SR-75		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
CDG5WLN63SR-100		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
CDG5WLN63SR-125		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
CDG5WLN63SR-150		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
CDG5WLN63SR-200		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
CDG5WLN63SR-250		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
CDG5WLN63SR-300		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
CDG5WLN63SV-25		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
CDG5WLN63SV-50		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
CDG5WLN63SV-75		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
CDG5WLN63SV-100		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
CDG5WLN63SV-125		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
CDG5WLN63SV-150		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
CDG5WLN63SV-200		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
CDG5WLN63SV-250		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
CDG5WLN63SV-300		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
CDG5WLN80SR-25		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
CDG5WLN80SR-50		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
CDG5WLN80SR-75		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
CDG5WLN80SR-100		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
CDG5WLN80SR-125		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
CDG5WLN80SR-150		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
CDG5WLN80SR-200		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
CDG5WLN80SR-250		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
CDG5WLN80SR-300		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
CDG5WLN80SV-25		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
CDG5WLN80SV-50		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
CDG5WLN80SV-75		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
CDG5WLN80SV-100		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
CDG5WLN80SV-125		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
CDG5WLN80SV-150		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
CDG5WLN80SV-200		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
CDG5WLN80SV-250		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
CDG5WLN80SV-300		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
CDG5WLN100SR-25		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
CDG5WLN100SR-50		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
CDG5WLN100SR-75		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
CDG5WLN100SR-100		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
CDG5WLN100SR-125		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
CDG5WLN100SR-150		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
CDG5WLN100SR-200		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
CDG5WLN100SR-250		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
CDG5WLN100SR-300		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
CDG5WLN100SV-25		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
CDG5WLN100SV-50		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
CDG5WLN100SV-75		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
CDG5WLN100SV-100		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
CDG5WLN100SV-125		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
CDG5WLN100SV-150		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
CDG5WLN100SV-200		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
CDG5WLN100SV-250		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
CDG5WLN100SV-300		Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
CDG5WLA50SR-25		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
CDG5WLA50SR-50		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
CDG5WLA50SR-75		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
CDG5WLA50SR-100		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
CDG5WLA50SR-125		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
CDG5WLA50SR-150		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
CDG5WLA50SR-200		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
CDG5WLA50SR-250		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
CDG5WLA50SR-300		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
CDG5WLA50SV-25		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
CDG5WLA50SV-50		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
CDG5WLA50SV-75		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
CDG5WLA50SV-100		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
CDG5WLA50SV-125		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
CDG5WLA50SV-150		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
CDG5WLA50SV-200		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
CDG5WLA50SV-250		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
CDG5WLA50SV-300		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
CDG5WLA63SR-25		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
CDG5WLA63SR-50		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
CDG5WLA63SR-75		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
CDG5WLA63SR-100		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
CDG5WLA63SR-125		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
CDG5WLA63SR-150		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
CDG5WLA63SR-200		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
CDG5WLA63SR-250		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
CDG5WLA63SR-300		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
CDG5WLA63SV-25		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
CDG5WLA63SV-50		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
CDG5WLA63SV-75		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
CDG5WLA63SV-100		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
CDG5WLA63SV-125		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
CDG5WLA63SV-150		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
CDG5WLA63SV-200		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
CDG5WLA63SV-250		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
CDG5WLA63SV-300		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
CDG5WLA80SR-25		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
CDG5WLA80SR-50		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
CDG5WLA80SR-75		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
CDG5WLA80SR-100		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
CDG5WLA80SR-125		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
CDG5WLA80SR-150		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
CDG5WLA80SR-200		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
CDG5WLA80SR-250		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
CDG5WLA80SR-300		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
CDG5WLA80SV-25		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
CDG5WLA80SV-50		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
CDG5WLA80SV-75		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
CDG5WLA80SV-100		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
CDG5WLA80SV-125		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
CDG5WLA80SV-150		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
CDG5WLA80SV-200		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
CDG5WLA80SV-250		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
CDG5WLA80SV-300		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
CDG5WLA100SR-25		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
CDG5WLA100SR-50		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
CDG5WLA100SR-75		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
CDG5WLA100SR-100		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
CDG5WLA100SR-125		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
CDG5WLA100SR-150		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
CDG5WLA100SR-200		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
CDG5WLA100SR-250		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
CDG5WLA100SR-300		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
CDG5WLA100SV-25		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
CDG5WLA100SV-50		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
CDG5WLA100SV-75		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
CDG5WLA100SV-100		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
CDG5WLA100SV-125		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
CDG5WLA100SV-150		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
CDG5WLA100SV-200		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
CDG5WLA100SV-250		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
CDG5WLA100SV-300		Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
CDG5WFN50SR-25		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
CDG5WFN50SR-50		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
CDG5WFN50SR-75		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
CDG5WFN50SR-100		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
CDG5WFN50SR-125		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
CDG5WFN50SR-150		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
CDG5WFN50SR-200		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
CDG5WFN50SR-250		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
CDG5WFN50SR-300		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
CDG5WFN50SV-25		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
CDG5WFN50SV-50		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
CDG5WFN50SV-75		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
CDG5WFN50SV-100		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
CDG5WFN50SV-125		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
CDG5WFN50SV-150		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
CDG5WFN50SV-200		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
CDG5WFN50SV-250		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
CDG5WFN50SV-300		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
CDG5WFN63SR-25		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
CDG5WFN63SR-50		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
CDG5WFN63SR-75		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
CDG5WFN63SR-100		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
CDG5WFN63SR-125		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
CDG5WFN63SR-150		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
CDG5WFN63SR-200		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
CDG5WFN63SR-250		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
CDG5WFN63SR-300		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
CDG5WFN63SV-25		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
CDG5WFN63SV-50		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
CDG5WFN63SV-75		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
CDG5WFN63SV-100		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
CDG5WFN63SV-125		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
CDG5WFN63SV-150		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
CDG5WFN63SV-200		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
CDG5WFN63SV-250		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
CDG5WFN63SV-300		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
CDG5WFN80SR-25		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
CDG5WFN80SR-50		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
CDG5WFN80SR-75		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
CDG5WFN80SR-100		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
CDG5WFN80SR-125		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
CDG5WFN80SR-150		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
CDG5WFN80SR-200		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
CDG5WFN80SR-250		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
CDG5WFN80SR-300		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
CDG5WFN80SV-25		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
CDG5WFN80SV-50		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
CDG5WFN80SV-75		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
CDG5WFN80SV-100		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
CDG5WFN80SV-125		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
CDG5WFN80SV-150		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
CDG5WFN80SV-200		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
CDG5WFN80SV-250		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
CDG5WFN80SV-300		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
CDG5WFN100SR-25		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
CDG5WFN100SR-50		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
CDG5WFN100SR-75		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
CDG5WFN100SR-100		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
CDG5WFN100SR-125		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
CDG5WFN100SR-150		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
CDG5WFN100SR-200		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
CDG5WFN100SR-250		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
CDG5WFN100SR-300		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
CDG5WFN100SV-25		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
CDG5WFN100SV-50		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
CDG5WFN100SV-75		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
CDG5WFN100SV-100		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
CDG5WFN100SV-125		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
CDG5WFN100SV-150		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
CDG5WFN100SV-200		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
CDG5WFN100SV-250		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
CDG5WFN100SV-300		Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
CDG5WFA50SR-25		Mounting: Flange \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
CDG5WFA50SR-50		Mounting: Flange \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
CDG5WFA50SR-75		Mounting: Flange \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
CDG5WFA50SR-100		Mounting: Flange \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
CDG5WFA50SR-125		Mounting: Flange \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
CDG5WFA50SR-150		Mounting: Flange \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
CDG5WFA50SR-200		Mounting: Flange \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
CDG5WFA50SR-250		Mounting: Flange \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
CDG5WFA50SR-300		Mounting: Flange \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
CDG5WFA50SV-25		Mounting: Flange \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
CDG5WFA50SV-50		Mounting: Flange \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
CDG5WFA50SV-75		Mounting: Flange \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
CDG5WFA50SV-100		Mounting: Flange \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
CDG5WFA50SV-125		Mounting: Flange \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
CDG5WFA50SV-150		Mounting: Flange \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
CDG5WFA50SV-200		Mounting: Flange \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
CDG5WFA50SV-250		Mounting: Flange \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
CDG5WFA50SV-300		Mounting: Flange \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
CDG5WFA63SR-25		Mounting: Flange \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
CDG5WFA63SR-50		Mounting: Flange \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
CDG5WFA63SR-75		Mounting: Flange \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
CDG5WFA63SR-100		Mounting: Flange \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
CDG5WFA63SR-125		Mounting: Flange \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
CDG5WFA63SR-150		Mounting: Flange \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
CDG5WFA63SR-200		Mounting: Flange \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
CDG5WFA63SR-250		Mounting: Flange \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
CDG5WFA63SR-300		Mounting: Flange \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
CDG5WFA63SV-25		Mounting: Flange \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
CDG5WFA63SV-50		Mounting: Flange \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
CDG5WFA63SV-75		Mounting: Flange \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
CDG5WFA63SV-100		Mounting: Flange \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
CDG5WFA63SV-125		Mounting: Flange \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
CDG5WFA63SV-150		Mounting: Flange \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
CDG5WFA63SV-200		Mounting: Flange \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
CDG5WFA63SV-250		Mounting: Flange \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
CDG5WFA63SV-300		Mounting: Flange \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
CDG5WFA80SR-25		Mounting: Flange \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
CDG5WFA80SR-50		Mounting: Flange \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
CDG5WFA80SR-75		Mounting: Flange \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
CDG5WFA80SR-100		Mounting: Flange \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
CDG5WFA80SR-125		Mounting: Flange \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
CDG5WFA80SR-150		Mounting: Flange \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
CDG5WFA80SR-200		Mounting: Flange \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
CDG5WFA80SR-250		Mounting: Flange \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
CDG5WFA80SR-300		Mounting: Flange \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
CDG5WFA80SV-25		Mounting: Flange \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
CDG5WFA80SV-50		Mounting: Flange \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
CDG5WFA80SV-75		Mounting: Flange \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
CDG5WFA80SV-100		Mounting: Flange \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
CDG5WFA80SV-125		Mounting: Flange \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
CDG5WFA80SV-150		Mounting: Flange \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
CDG5WFA80SV-200		Mounting: Flange \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
CDG5WFA80SV-250		Mounting: Flange \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
CDG5WFA80SV-300		Mounting: Flange \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
CDG5WFA100SR-25		Mounting: Flange \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
CDG5WFA100SR-50		Mounting: Flange \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
CDG5WFA100SR-75		Mounting: Flange \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
CDG5WFA100SR-100		Mounting: Flange \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
CDG5WFA100SR-125		Mounting: Flange \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
CDG5WFA100SR-150		Mounting: Flange \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
CDG5WFA100SR-200		Mounting: Flange \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
CDG5WFA100SR-250		Mounting: Flange \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
CDG5WFA100SR-300		Mounting: Flange \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
CDG5WFA100SV-25		Mounting: Flange \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
CDG5WFA100SV-50		Mounting: Flange \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
CDG5WFA100SV-75		Mounting: Flange \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
CDG5WFA100SV-100		Mounting: Flange \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
CDG5WFA100SV-125		Mounting: Flange \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
CDG5WFA100SV-150		Mounting: Flange \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
CDG5WFA100SV-200		Mounting: Flange \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
CDG5WFA100SV-250		Mounting: Flange \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
CDG5WFA100SV-300		Mounting: Flange \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes

Round Body CylindersSMC

864 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC CG5W-S Stainless Steel Double Rod Cylinder (ø50 to ø100)

Brand SMC·Round Body Cylinders

Available part numbers (864)

CG5WBN50SR-25, CG5WBN50SR-50, CG5WBN50SR-75, CG5WBN50SR-100, CG5WBN50SR-125, CG5WBN50SR-150, CG5WBN50SR-200, CG5WBN50SR-250, CG5WBN50SR-300, CG5WBN50SV-25 + 854 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	CG5WBN50SR-25	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
	CG5WBN50SR-50	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
	CG5WBN50SR-75	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
	CG5WBN50SR-100	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
	CG5WBN50SR-125	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
	CG5WBN50SR-150	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
	CG5WBN50SR-200	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
	CG5WBN50SR-250	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
	CG5WBN50SR-300	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
	CG5WBN50SV-25	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
	CG5WBN50SV-50	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
	CG5WBN50SV-75	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
	CG5WBN50SV-100	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
	CG5WBN50SV-125	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
	CG5WBN50SV-150	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
	CG5WBN50SV-200	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
	CG5WBN50SV-250	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
	CG5WBN50SV-300	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
	CG5WBN63SR-25	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
	CG5WBN63SR-50	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
	CG5WBN63SR-75	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
	CG5WBN63SR-100	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
	CG5WBN63SR-125	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
	CG5WBN63SR-150	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
	CG5WBN63SR-200	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
	CG5WBN63SR-250	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
	CG5WBN63SR-300	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
	CG5WBN63SV-25	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
	CG5WBN63SV-50	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
	CG5WBN63SV-75	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
	CG5WBN63SV-100	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
	CG5WBN63SV-125	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
	CG5WBN63SV-150	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
	CG5WBN63SV-200	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
	CG5WBN63SV-250	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
	CG5WBN63SV-300	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
	CG5WBN80SR-25	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
	CG5WBN80SR-50	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
	CG5WBN80SR-75	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
	CG5WBN80SR-100	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
	CG5WBN80SR-125	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
	CG5WBN80SR-150	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
	CG5WBN80SR-200	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
	CG5WBN80SR-250	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
	CG5WBN80SR-300	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
	CG5WBN80SV-25	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
	CG5WBN80SV-50	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
	CG5WBN80SV-75	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
	CG5WBN80SV-100	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
	CG5WBN80SV-125	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
	CG5WBN80SV-150	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
	CG5WBN80SV-200	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
	CG5WBN80SV-250	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
	CG5WBN80SV-300	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
	CG5WBN100SR-25	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
	CG5WBN100SR-50	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
	CG5WBN100SR-75	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
	CG5WBN100SR-100	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
	CG5WBN100SR-125	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
	CG5WBN100SR-150	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
	CG5WBN100SR-200	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
	CG5WBN100SR-250	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
	CG5WBN100SR-300	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
	CG5WBN100SV-25	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
	CG5WBN100SV-50	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
	CG5WBN100SV-75	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
	CG5WBN100SV-100	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
	CG5WBN100SV-125	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
	CG5WBN100SV-150	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
	CG5WBN100SV-200	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
	CG5WBN100SV-250	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
	CG5WBN100SV-300	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
	CG5WBA50SR-25	Mounting: Basic \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
	CG5WBA50SR-50	Mounting: Basic \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
	CG5WBA50SR-75	Mounting: Basic \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
	CG5WBA50SR-100	Mounting: Basic \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
	CG5WBA50SR-125	Mounting: Basic \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
	CG5WBA50SR-150	Mounting: Basic \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
	CG5WBA50SR-200	Mounting: Basic \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
	CG5WBA50SR-250	Mounting: Basic \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
	CG5WBA50SR-300	Mounting: Basic \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
	CG5WBA50SV-25	Mounting: Basic \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
	CG5WBA50SV-50	Mounting: Basic \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
	CG5WBA50SV-75	Mounting: Basic \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
	CG5WBA50SV-100	Mounting: Basic \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
	CG5WBA50SV-125	Mounting: Basic \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
	CG5WBA50SV-150	Mounting: Basic \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
	CG5WBA50SV-200	Mounting: Basic \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
	CG5WBA50SV-250	Mounting: Basic \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
	CG5WBA50SV-300	Mounting: Basic \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
	CG5WBA63SR-25	Mounting: Basic \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
	CG5WBA63SR-50	Mounting: Basic \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
	CG5WBA63SR-75	Mounting: Basic \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
	CG5WBA63SR-100	Mounting: Basic \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
	CG5WBA63SR-125	Mounting: Basic \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
	CG5WBA63SR-150	Mounting: Basic \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
	CG5WBA63SR-200	Mounting: Basic \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
	CG5WBA63SR-250	Mounting: Basic \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
	CG5WBA63SR-300	Mounting: Basic \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
	CG5WBA63SV-25	Mounting: Basic \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
	CG5WBA63SV-50	Mounting: Basic \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
	CG5WBA63SV-75	Mounting: Basic \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
	CG5WBA63SV-100	Mounting: Basic \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
	CG5WBA63SV-125	Mounting: Basic \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
	CG5WBA63SV-150	Mounting: Basic \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
	CG5WBA63SV-200	Mounting: Basic \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
	CG5WBA63SV-250	Mounting: Basic \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
	CG5WBA63SV-300	Mounting: Basic \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
	CG5WBA80SR-25	Mounting: Basic \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
	CG5WBA80SR-50	Mounting: Basic \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
	CG5WBA80SR-75	Mounting: Basic \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
	CG5WBA80SR-100	Mounting: Basic \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
	CG5WBA80SR-125	Mounting: Basic \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
	CG5WBA80SR-150	Mounting: Basic \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
	CG5WBA80SR-200	Mounting: Basic \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
	CG5WBA80SR-250	Mounting: Basic \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
	CG5WBA80SR-300	Mounting: Basic \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
	CG5WBA80SV-25	Mounting: Basic \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
	CG5WBA80SV-50	Mounting: Basic \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
	CG5WBA80SV-75	Mounting: Basic \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
	CG5WBA80SV-100	Mounting: Basic \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
	CG5WBA80SV-125	Mounting: Basic \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
	CG5WBA80SV-150	Mounting: Basic \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
	CG5WBA80SV-200	Mounting: Basic \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
	CG5WBA80SV-250	Mounting: Basic \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
	CG5WBA80SV-300	Mounting: Basic \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
	CG5WBA100SR-25	Mounting: Basic \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
	CG5WBA100SR-50	Mounting: Basic \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
	CG5WBA100SR-75	Mounting: Basic \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
	CG5WBA100SR-100	Mounting: Basic \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
	CG5WBA100SR-125	Mounting: Basic \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
	CG5WBA100SR-150	Mounting: Basic \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
	CG5WBA100SR-200	Mounting: Basic \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
	CG5WBA100SR-250	Mounting: Basic \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
	CG5WBA100SR-300	Mounting: Basic \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
	CG5WBA100SV-25	Mounting: Basic \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
	CG5WBA100SV-50	Mounting: Basic \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
	CG5WBA100SV-75	Mounting: Basic \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
	CG5WBA100SV-100	Mounting: Basic \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
	CG5WBA100SV-125	Mounting: Basic \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
	CG5WBA100SV-150	Mounting: Basic \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
	CG5WBA100SV-200	Mounting: Basic \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
	CG5WBA100SV-250	Mounting: Basic \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
	CG5WBA100SV-300	Mounting: Basic \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
	CG5WLN50SR-25	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
	CG5WLN50SR-50	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
	CG5WLN50SR-75	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
	CG5WLN50SR-100	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
	CG5WLN50SR-125	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
	CG5WLN50SR-150	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
	CG5WLN50SR-200	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
	CG5WLN50SR-250	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
	CG5WLN50SR-300	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
	CG5WLN50SV-25	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
	CG5WLN50SV-50	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
	CG5WLN50SV-75	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
	CG5WLN50SV-100	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
	CG5WLN50SV-125	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
	CG5WLN50SV-150	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
	CG5WLN50SV-200	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
	CG5WLN50SV-250	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
	CG5WLN50SV-300	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
	CG5WLN63SR-25	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
	CG5WLN63SR-50	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
	CG5WLN63SR-75	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
	CG5WLN63SR-100	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
	CG5WLN63SR-125	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
	CG5WLN63SR-150	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
	CG5WLN63SR-200	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
	CG5WLN63SR-250	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
	CG5WLN63SR-300	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
	CG5WLN63SV-25	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
	CG5WLN63SV-50	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
	CG5WLN63SV-75	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
	CG5WLN63SV-100	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
	CG5WLN63SV-125	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
	CG5WLN63SV-150	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
	CG5WLN63SV-200	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
	CG5WLN63SV-250	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
	CG5WLN63SV-300	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
	CG5WLN80SR-25	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
	CG5WLN80SR-50	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
	CG5WLN80SR-75	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
	CG5WLN80SR-100	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
	CG5WLN80SR-125	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
	CG5WLN80SR-150	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
	CG5WLN80SR-200	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
	CG5WLN80SR-250	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
	CG5WLN80SR-300	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
	CG5WLN80SV-25	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
	CG5WLN80SV-50	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
	CG5WLN80SV-75	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
	CG5WLN80SV-100	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
	CG5WLN80SV-125	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
	CG5WLN80SV-150	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
	CG5WLN80SV-200	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
	CG5WLN80SV-250	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
	CG5WLN80SV-300	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
	CG5WLN100SR-25	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
	CG5WLN100SR-50	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
	CG5WLN100SR-75	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
	CG5WLN100SR-100	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
	CG5WLN100SR-125	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
	CG5WLN100SR-150	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
	CG5WLN100SR-200	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
	CG5WLN100SR-250	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
	CG5WLN100SR-300	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
	CG5WLN100SV-25	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
	CG5WLN100SV-50	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
	CG5WLN100SV-75	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
	CG5WLN100SV-100	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
	CG5WLN100SV-125	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
	CG5WLN100SV-150	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
	CG5WLN100SV-200	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
	CG5WLN100SV-250	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
	CG5WLN100SV-300	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
	CG5WLA50SR-25	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
	CG5WLA50SR-50	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
	CG5WLA50SR-75	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
	CG5WLA50SR-100	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
	CG5WLA50SR-125	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
	CG5WLA50SR-150	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
	CG5WLA50SR-200	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
	CG5WLA50SR-250	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
	CG5WLA50SR-300	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
	CG5WLA50SV-25	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
	CG5WLA50SV-50	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
	CG5WLA50SV-75	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
	CG5WLA50SV-100	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
	CG5WLA50SV-125	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
	CG5WLA50SV-150	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
	CG5WLA50SV-200	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
	CG5WLA50SV-250	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
	CG5WLA50SV-300	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
	CG5WLA63SR-25	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
	CG5WLA63SR-50	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
	CG5WLA63SR-75	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
	CG5WLA63SR-100	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
	CG5WLA63SR-125	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
	CG5WLA63SR-150	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
	CG5WLA63SR-200	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
	CG5WLA63SR-250	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
	CG5WLA63SR-300	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
	CG5WLA63SV-25	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
	CG5WLA63SV-50	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
	CG5WLA63SV-75	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
	CG5WLA63SV-100	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
	CG5WLA63SV-125	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
	CG5WLA63SV-150	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
	CG5WLA63SV-200	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
	CG5WLA63SV-250	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
	CG5WLA63SV-300	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
	CG5WLA80SR-25	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
	CG5WLA80SR-50	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
	CG5WLA80SR-75	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
	CG5WLA80SR-100	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
	CG5WLA80SR-125	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
	CG5WLA80SR-150	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
	CG5WLA80SR-200	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
	CG5WLA80SR-250	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
	CG5WLA80SR-300	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
	CG5WLA80SV-25	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
	CG5WLA80SV-50	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
	CG5WLA80SV-75	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
	CG5WLA80SV-100	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
	CG5WLA80SV-125	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
	CG5WLA80SV-150	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
	CG5WLA80SV-200	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
	CG5WLA80SV-250	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
	CG5WLA80SV-300	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
	CG5WLA100SR-25	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
	CG5WLA100SR-50	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
	CG5WLA100SR-75	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
	CG5WLA100SR-100	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
	CG5WLA100SR-125	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
	CG5WLA100SR-150	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
	CG5WLA100SR-200	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
	CG5WLA100SR-250	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
	CG5WLA100SR-300	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
	CG5WLA100SV-25	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
	CG5WLA100SV-50	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
	CG5WLA100SV-75	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
	CG5WLA100SV-100	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
	CG5WLA100SV-125	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
	CG5WLA100SV-150	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
	CG5WLA100SV-200	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
	CG5WLA100SV-250	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
	CG5WLA100SV-300	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
	CG5WFN50SR-25	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
	CG5WFN50SR-50	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
	CG5WFN50SR-75	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
	CG5WFN50SR-100	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
	CG5WFN50SR-125	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
	CG5WFN50SR-150	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
	CG5WFN50SR-200	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
	CG5WFN50SR-250	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
	CG5WFN50SR-300	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
	CG5WFN50SV-25	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
	CG5WFN50SV-50	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
	CG5WFN50SV-75	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
	CG5WFN50SV-100	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
	CG5WFN50SV-125	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
	CG5WFN50SV-150	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
	CG5WFN50SV-200	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
	CG5WFN50SV-250	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
	CG5WFN50SV-300	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
	CG5WFN63SR-25	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
	CG5WFN63SR-50	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
	CG5WFN63SR-75	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
	CG5WFN63SR-100	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
	CG5WFN63SR-125	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
	CG5WFN63SR-150	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
	CG5WFN63SR-200	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
	CG5WFN63SR-250	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
	CG5WFN63SR-300	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
	CG5WFN63SV-25	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
	CG5WFN63SV-50	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
	CG5WFN63SV-75	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
	CG5WFN63SV-100	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
	CG5WFN63SV-125	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
	CG5WFN63SV-150	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
	CG5WFN63SV-200	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
	CG5WFN63SV-250	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
	CG5WFN63SV-300	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
	CG5WFN80SR-25	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
	CG5WFN80SR-50	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
	CG5WFN80SR-75	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
	CG5WFN80SR-100	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
	CG5WFN80SR-125	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
	CG5WFN80SR-150	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
	CG5WFN80SR-200	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
	CG5WFN80SR-250	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
	CG5WFN80SR-300	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
	CG5WFN80SV-25	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
	CG5WFN80SV-50	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
	CG5WFN80SV-75	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
	CG5WFN80SV-100	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
	CG5WFN80SV-125	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
	CG5WFN80SV-150	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
	CG5WFN80SV-200	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
	CG5WFN80SV-250	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
	CG5WFN80SV-300	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
	CG5WFN100SR-25	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
	CG5WFN100SR-50	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
	CG5WFN100SR-75	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
	CG5WFN100SR-100	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
	CG5WFN100SR-125	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
	CG5WFN100SR-150	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
	CG5WFN100SR-200	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
	CG5WFN100SR-250	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
	CG5WFN100SR-300	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
	CG5WFN100SV-25	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
	CG5WFN100SV-50	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
	CG5WFN100SV-75	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
	CG5WFN100SV-100	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
	CG5WFN100SV-125	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
	CG5WFN100SV-150	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
	CG5WFN100SV-200	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
	CG5WFN100SV-250	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
	CG5WFN100SV-300	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
	CG5WFA50SR-25	Mounting: Flange \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
	CG5WFA50SR-50	Mounting: Flange \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
	CG5WFA50SR-75	Mounting: Flange \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
	CG5WFA50SR-100	Mounting: Flange \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
	CG5WFA50SR-125	Mounting: Flange \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
	CG5WFA50SR-150	Mounting: Flange \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
	CG5WFA50SR-200	Mounting: Flange \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
	CG5WFA50SR-250	Mounting: Flange \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
	CG5WFA50SR-300	Mounting: Flange \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
	CG5WFA50SV-25	Mounting: Flange \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
	CG5WFA50SV-50	Mounting: Flange \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
	CG5WFA50SV-75	Mounting: Flange \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
	CG5WFA50SV-100	Mounting: Flange \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
	CG5WFA50SV-125	Mounting: Flange \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
	CG5WFA50SV-150	Mounting: Flange \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
	CG5WFA50SV-200	Mounting: Flange \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
	CG5WFA50SV-250	Mounting: Flange \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
	CG5WFA50SV-300	Mounting: Flange \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
	CG5WFA63SR-25	Mounting: Flange \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
	CG5WFA63SR-50	Mounting: Flange \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
	CG5WFA63SR-75	Mounting: Flange \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
	CG5WFA63SR-100	Mounting: Flange \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
	CG5WFA63SR-125	Mounting: Flange \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
	CG5WFA63SR-150	Mounting: Flange \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
	CG5WFA63SR-200	Mounting: Flange \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
	CG5WFA63SR-250	Mounting: Flange \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
	CG5WFA63SR-300	Mounting: Flange \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
	CG5WFA63SV-25	Mounting: Flange \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
	CG5WFA63SV-50	Mounting: Flange \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
	CG5WFA63SV-75	Mounting: Flange \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
	CG5WFA63SV-100	Mounting: Flange \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
	CG5WFA63SV-125	Mounting: Flange \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
	CG5WFA63SV-150	Mounting: Flange \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
	CG5WFA63SV-200	Mounting: Flange \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
	CG5WFA63SV-250	Mounting: Flange \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
	CG5WFA63SV-300	Mounting: Flange \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
	CG5WFA80SR-25	Mounting: Flange \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
	CG5WFA80SR-50	Mounting: Flange \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
	CG5WFA80SR-75	Mounting: Flange \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
	CG5WFA80SR-100	Mounting: Flange \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
	CG5WFA80SR-125	Mounting: Flange \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
	CG5WFA80SR-150	Mounting: Flange \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
	CG5WFA80SR-200	Mounting: Flange \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
	CG5WFA80SR-250	Mounting: Flange \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
	CG5WFA80SR-300	Mounting: Flange \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
	CG5WFA80SV-25	Mounting: Flange \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
	CG5WFA80SV-50	Mounting: Flange \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
	CG5WFA80SV-75	Mounting: Flange \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
	CG5WFA80SV-100	Mounting: Flange \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
	CG5WFA80SV-125	Mounting: Flange \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
	CG5WFA80SV-150	Mounting: Flange \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
	CG5WFA80SV-200	Mounting: Flange \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
	CG5WFA80SV-250	Mounting: Flange \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
	CG5WFA80SV-300	Mounting: Flange \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
	CG5WFA100SR-25	Mounting: Flange \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: No
	CG5WFA100SR-50	Mounting: Flange \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: No
	CG5WFA100SR-75	Mounting: Flange \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: No
	CG5WFA100SR-100	Mounting: Flange \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: No
	CG5WFA100SR-125	Mounting: Flange \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: No
	CG5WFA100SR-150	Mounting: Flange \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: No
	CG5WFA100SR-200	Mounting: Flange \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: No
	CG5WFA100SR-250	Mounting: Flange \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: No
	CG5WFA100SR-300	Mounting: Flange \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: No
	CG5WFA100SV-25	Mounting: Flange \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: No
	CG5WFA100SV-50	Mounting: Flange \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: No
	CG5WFA100SV-75	Mounting: Flange \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: No
	CG5WFA100SV-100	Mounting: Flange \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: No
	CG5WFA100SV-125	Mounting: Flange \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: No
	CG5WFA100SV-150	Mounting: Flange \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: No
	CG5WFA100SV-200	Mounting: Flange \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: No
	CG5WFA100SV-250	Mounting: Flange \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: No
	CG5WFA100SV-300	Mounting: Flange \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: No
	CDG5WBN50SR-25	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBN50SR-50	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBN50SR-75	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBN50SR-100	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBN50SR-125	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBN50SR-150	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBN50SR-200	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBN50SR-250	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBN50SR-300	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBN50SV-25	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBN50SV-50	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBN50SV-75	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBN50SV-100	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBN50SV-125	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBN50SV-150	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBN50SV-200	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBN50SV-250	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBN50SV-300	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBN63SR-25	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBN63SR-50	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBN63SR-75	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBN63SR-100	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBN63SR-125	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBN63SR-150	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBN63SR-200	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBN63SR-250	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBN63SR-300	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBN63SV-25	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBN63SV-50	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBN63SV-75	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBN63SV-100	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBN63SV-125	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBN63SV-150	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBN63SV-200	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBN63SV-250	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBN63SV-300	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBN80SR-25	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBN80SR-50	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBN80SR-75	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBN80SR-100	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBN80SR-125	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBN80SR-150	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBN80SR-200	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBN80SR-250	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBN80SR-300	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBN80SV-25	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBN80SV-50	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBN80SV-75	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBN80SV-100	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBN80SV-125	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBN80SV-150	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBN80SV-200	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBN80SV-250	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBN80SV-300	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBN100SR-25	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBN100SR-50	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBN100SR-75	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBN100SR-100	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBN100SR-125	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBN100SR-150	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBN100SR-200	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBN100SR-250	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBN100SR-300	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBN100SV-25	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBN100SV-50	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBN100SV-75	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBN100SV-100	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBN100SV-125	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBN100SV-150	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBN100SV-200	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBN100SV-250	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBN100SV-300	Mounting: Basic \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBA50SR-25	Mounting: Basic \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBA50SR-50	Mounting: Basic \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBA50SR-75	Mounting: Basic \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBA50SR-100	Mounting: Basic \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBA50SR-125	Mounting: Basic \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBA50SR-150	Mounting: Basic \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBA50SR-200	Mounting: Basic \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBA50SR-250	Mounting: Basic \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBA50SR-300	Mounting: Basic \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBA50SV-25	Mounting: Basic \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBA50SV-50	Mounting: Basic \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBA50SV-75	Mounting: Basic \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBA50SV-100	Mounting: Basic \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBA50SV-125	Mounting: Basic \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBA50SV-150	Mounting: Basic \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBA50SV-200	Mounting: Basic \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBA50SV-250	Mounting: Basic \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBA50SV-300	Mounting: Basic \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBA63SR-25	Mounting: Basic \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBA63SR-50	Mounting: Basic \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBA63SR-75	Mounting: Basic \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBA63SR-100	Mounting: Basic \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBA63SR-125	Mounting: Basic \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBA63SR-150	Mounting: Basic \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBA63SR-200	Mounting: Basic \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBA63SR-250	Mounting: Basic \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBA63SR-300	Mounting: Basic \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBA63SV-25	Mounting: Basic \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBA63SV-50	Mounting: Basic \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBA63SV-75	Mounting: Basic \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBA63SV-100	Mounting: Basic \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBA63SV-125	Mounting: Basic \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBA63SV-150	Mounting: Basic \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBA63SV-200	Mounting: Basic \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBA63SV-250	Mounting: Basic \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBA63SV-300	Mounting: Basic \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBA80SR-25	Mounting: Basic \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBA80SR-50	Mounting: Basic \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBA80SR-75	Mounting: Basic \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBA80SR-100	Mounting: Basic \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBA80SR-125	Mounting: Basic \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBA80SR-150	Mounting: Basic \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBA80SR-200	Mounting: Basic \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBA80SR-250	Mounting: Basic \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBA80SR-300	Mounting: Basic \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBA80SV-25	Mounting: Basic \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBA80SV-50	Mounting: Basic \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBA80SV-75	Mounting: Basic \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBA80SV-100	Mounting: Basic \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBA80SV-125	Mounting: Basic \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBA80SV-150	Mounting: Basic \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBA80SV-200	Mounting: Basic \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBA80SV-250	Mounting: Basic \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBA80SV-300	Mounting: Basic \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBA100SR-25	Mounting: Basic \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBA100SR-50	Mounting: Basic \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBA100SR-75	Mounting: Basic \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBA100SR-100	Mounting: Basic \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBA100SR-125	Mounting: Basic \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBA100SR-150	Mounting: Basic \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBA100SR-200	Mounting: Basic \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBA100SR-250	Mounting: Basic \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBA100SR-300	Mounting: Basic \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
	CDG5WBA100SV-25	Mounting: Basic \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBA100SV-50	Mounting: Basic \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBA100SV-75	Mounting: Basic \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBA100SV-100	Mounting: Basic \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBA100SV-125	Mounting: Basic \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBA100SV-150	Mounting: Basic \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBA100SV-200	Mounting: Basic \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBA100SV-250	Mounting: Basic \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
	CDG5WBA100SV-300	Mounting: Basic \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLN50SR-25	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLN50SR-50	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLN50SR-75	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLN50SR-100	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLN50SR-125	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLN50SR-150	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLN50SR-200	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLN50SR-250	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLN50SR-300	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLN50SV-25	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLN50SV-50	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLN50SV-75	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLN50SV-100	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLN50SV-125	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLN50SV-150	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLN50SV-200	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLN50SV-250	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLN50SV-300	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLN63SR-25	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLN63SR-50	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLN63SR-75	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLN63SR-100	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLN63SR-125	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLN63SR-150	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLN63SR-200	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLN63SR-250	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLN63SR-300	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLN63SV-25	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLN63SV-50	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLN63SV-75	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLN63SV-100	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLN63SV-125	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLN63SV-150	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLN63SV-200	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLN63SV-250	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLN63SV-300	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLN80SR-25	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLN80SR-50	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLN80SR-75	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLN80SR-100	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLN80SR-125	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLN80SR-150	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLN80SR-200	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLN80SR-250	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLN80SR-300	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLN80SV-25	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLN80SV-50	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLN80SV-75	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLN80SV-100	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLN80SV-125	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLN80SV-150	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLN80SV-200	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLN80SV-250	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLN80SV-300	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLN100SR-25	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLN100SR-50	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLN100SR-75	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLN100SR-100	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLN100SR-125	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLN100SR-150	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLN100SR-200	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLN100SR-250	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLN100SR-300	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLN100SV-25	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLN100SV-50	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLN100SV-75	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLN100SV-100	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLN100SV-125	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLN100SV-150	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLN100SV-200	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLN100SV-250	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLN100SV-300	Mounting: Axial foot \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLA50SR-25	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLA50SR-50	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLA50SR-75	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLA50SR-100	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLA50SR-125	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLA50SR-150	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLA50SR-200	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLA50SR-250	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLA50SR-300	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLA50SV-25	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLA50SV-50	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLA50SV-75	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLA50SV-100	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLA50SV-125	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLA50SV-150	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLA50SV-200	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLA50SV-250	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLA50SV-300	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLA63SR-25	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLA63SR-50	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLA63SR-75	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLA63SR-100	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLA63SR-125	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLA63SR-150	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLA63SR-200	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLA63SR-250	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLA63SR-300	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLA63SV-25	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLA63SV-50	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLA63SV-75	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLA63SV-100	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLA63SV-125	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLA63SV-150	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLA63SV-200	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLA63SV-250	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLA63SV-300	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLA80SR-25	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLA80SR-50	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLA80SR-75	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLA80SR-100	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLA80SR-125	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLA80SR-150	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLA80SR-200	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLA80SR-250	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLA80SR-300	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLA80SV-25	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLA80SV-50	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLA80SV-75	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLA80SV-100	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLA80SV-125	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLA80SV-150	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLA80SV-200	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLA80SV-250	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLA80SV-300	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLA100SR-25	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLA100SR-50	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLA100SR-75	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLA100SR-100	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLA100SR-125	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLA100SR-150	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLA100SR-200	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLA100SR-250	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLA100SR-300	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
	CDG5WLA100SV-25	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLA100SV-50	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLA100SV-75	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLA100SV-100	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLA100SV-125	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLA100SV-150	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLA100SV-200	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLA100SV-250	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
	CDG5WLA100SV-300	Mounting: Axial foot \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFN50SR-25	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFN50SR-50	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFN50SR-75	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFN50SR-100	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFN50SR-125	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFN50SR-150	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFN50SR-200	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFN50SR-250	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFN50SR-300	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFN50SV-25	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFN50SV-50	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFN50SV-75	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFN50SV-100	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFN50SV-125	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFN50SV-150	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFN50SV-200	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFN50SV-250	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFN50SV-300	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø50 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFN63SR-25	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFN63SR-50	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFN63SR-75	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFN63SR-100	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFN63SR-125	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFN63SR-150	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFN63SR-200	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFN63SR-250	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFN63SR-300	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFN63SV-25	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFN63SV-50	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFN63SV-75	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFN63SV-100	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFN63SV-125	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFN63SV-150	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFN63SV-200	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFN63SV-250	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFN63SV-300	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø63 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFN80SR-25	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFN80SR-50	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFN80SR-75	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFN80SR-100	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFN80SR-125	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFN80SR-150	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFN80SR-200	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFN80SR-250	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFN80SR-300	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFN80SV-25	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFN80SV-50	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFN80SV-75	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFN80SV-100	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFN80SV-125	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFN80SV-150	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFN80SV-200	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFN80SV-250	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFN80SV-300	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø80 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFN100SR-25	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFN100SR-50	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFN100SR-75	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFN100SR-100	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFN100SR-125	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFN100SR-150	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFN100SR-200	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFN100SR-250	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFN100SR-300	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFN100SV-25	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFN100SV-50	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFN100SV-75	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFN100SV-100	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFN100SV-125	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFN100SV-150	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFN100SV-200	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFN100SV-250	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFN100SV-300	Mounting: Flange \| Cushion: Rubber cushion \| Bore: ø100 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFA50SR-25	Mounting: Flange \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFA50SR-50	Mounting: Flange \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFA50SR-75	Mounting: Flange \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFA50SR-100	Mounting: Flange \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFA50SR-125	Mounting: Flange \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFA50SR-150	Mounting: Flange \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFA50SR-200	Mounting: Flange \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFA50SR-250	Mounting: Flange \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFA50SR-300	Mounting: Flange \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFA50SV-25	Mounting: Flange \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFA50SV-50	Mounting: Flange \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFA50SV-75	Mounting: Flange \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFA50SV-100	Mounting: Flange \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFA50SV-125	Mounting: Flange \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFA50SV-150	Mounting: Flange \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFA50SV-200	Mounting: Flange \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFA50SV-250	Mounting: Flange \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFA50SV-300	Mounting: Flange \| Cushion: Air cushion \| Bore: ø50 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFA63SR-25	Mounting: Flange \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFA63SR-50	Mounting: Flange \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFA63SR-75	Mounting: Flange \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFA63SR-100	Mounting: Flange \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFA63SR-125	Mounting: Flange \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFA63SR-150	Mounting: Flange \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFA63SR-200	Mounting: Flange \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFA63SR-250	Mounting: Flange \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFA63SR-300	Mounting: Flange \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFA63SV-25	Mounting: Flange \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFA63SV-50	Mounting: Flange \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFA63SV-75	Mounting: Flange \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFA63SV-100	Mounting: Flange \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFA63SV-125	Mounting: Flange \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFA63SV-150	Mounting: Flange \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFA63SV-200	Mounting: Flange \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFA63SV-250	Mounting: Flange \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFA63SV-300	Mounting: Flange \| Cushion: Air cushion \| Bore: ø63 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFA80SR-25	Mounting: Flange \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFA80SR-50	Mounting: Flange \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFA80SR-75	Mounting: Flange \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFA80SR-100	Mounting: Flange \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFA80SR-125	Mounting: Flange \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFA80SR-150	Mounting: Flange \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFA80SR-200	Mounting: Flange \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFA80SR-250	Mounting: Flange \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFA80SR-300	Mounting: Flange \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFA80SV-25	Mounting: Flange \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFA80SV-50	Mounting: Flange \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFA80SV-75	Mounting: Flange \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFA80SV-100	Mounting: Flange \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFA80SV-125	Mounting: Flange \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFA80SV-150	Mounting: Flange \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFA80SV-200	Mounting: Flange \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFA80SV-250	Mounting: Flange \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFA80SV-300	Mounting: Flange \| Cushion: Air cushion \| Bore: ø80 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFA100SR-25	Mounting: Flange \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 25 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFA100SR-50	Mounting: Flange \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 50 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFA100SR-75	Mounting: Flange \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 75 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFA100SR-100	Mounting: Flange \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 100 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFA100SR-125	Mounting: Flange \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 125 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFA100SR-150	Mounting: Flange \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 150 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFA100SR-200	Mounting: Flange \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 200 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFA100SR-250	Mounting: Flange \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 250 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFA100SR-300	Mounting: Flange \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 300 mm \| Packing: NBR \| Magnet: Yes
	CDG5WFA100SV-25	Mounting: Flange \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 25 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFA100SV-50	Mounting: Flange \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 50 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFA100SV-75	Mounting: Flange \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 75 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFA100SV-100	Mounting: Flange \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 100 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFA100SV-125	Mounting: Flange \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 125 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFA100SV-150	Mounting: Flange \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 150 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFA100SV-200	Mounting: Flange \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 200 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFA100SV-250	Mounting: Flange \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 250 mm \| Packing: FKM \| Magnet: Yes
	CDG5WFA100SV-300	Mounting: Flange \| Cushion: Air cushion \| Bore: ø100 mm \| Stroke: 300 mm \| Packing: FKM \| Magnet: Yes

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

SMC CG5W-S Stainless Steel Double Rod Cylinder (ø50 to ø100)
