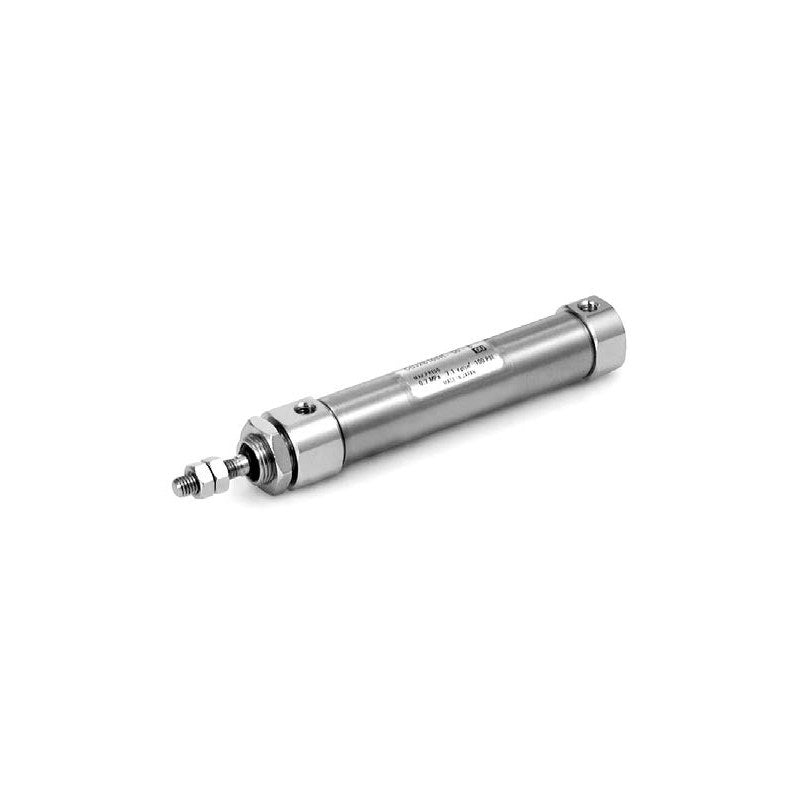

SMC CJ5-S Stainless Steel Air Cylinder (ø10, ø16)

SMC CJ5-S Stainless Steel Air Cylinder (ø10, ø16)

SMC CJ5-S series all-stainless (SUS304 external parts) double acting single rod mini cylinder, ø10 and ø16 mm, for food machinery and other water-splash environments.

Key features

  • External metal parts in SUS304 stainless steel; electropolished mounting brackets reduce liquid and foreign matter adhesion
  • Special scraper and NSF-H1 certified food-grade grease to prevent water ingress
  • Packing material selectable: NBR (R) or FKM (V)
  • Head cover port perpendicular (standard) or axial (R, after stroke); double clevis type perpendicular only
  • Magnet built-in version (CDJ5, band mounting) for water-resistant 2-color D-M9A auto switches; magnet-only codes end in -B, switch codes (e.g. -M9BA) ordered as suffix
  • Foot, flange and T-bracket accessories in stainless steel; intermediate strokes in 1 mm increments on order

Specifications

Action Double acting, single rod
Fluid Air
Proof pressure 1 MPa
Max. operating pressure 0.7 MPa
Min. operating pressure 0.1 MPa
Ambient and fluid temperature -10 to 70°C (with auto switch -10 to 60°C)
Cushion Rubber cushion
Lubrication Not required (non-lube)
Piston speed 50 to 750 mm/s
Allowable kinetic energy ø10 0.035 J, ø16 0.090 J
Stroke tolerance +1.0/0 mm (max. stroke 400 mm)
Source SMC Korea catalog CJ5-S/CG5-S (SMCKR_CJ5__S_CG5__S.pdf), p. 1117-1119 (PDF p. 1-3)
CJ5B10SR-15 Mounting: Basic | Bore: ø10 mm | Stroke: 15 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5B10SR-30 Mounting: Basic | Bore: ø10 mm | Stroke: 30 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5B10SR-45 Mounting: Basic | Bore: ø10 mm | Stroke: 45 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5B10SR-60 Mounting: Basic | Bore: ø10 mm | Stroke: 60 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5B10SR-75 Mounting: Basic | Bore: ø10 mm | Stroke: 75 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5B10SR-100 Mounting: Basic | Bore: ø10 mm | Stroke: 100 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5B10SR-125 Mounting: Basic | Bore: ø10 mm | Stroke: 125 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5B10SR-150 Mounting: Basic | Bore: ø10 mm | Stroke: 150 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5B10SR-15R Mounting: Basic | Bore: ø10 mm | Stroke: 15 mm | Packing: NBR | Head port: Axial | Magnet: No
CJ5B10SR-30R Mounting: Basic | Bore: ø10 mm | Stroke: 30 mm | Packing: NBR | Head port: Axial | Magnet: No
CJ5B10SR-45R Mounting: Basic | Bore: ø10 mm | Stroke: 45 mm | Packing: NBR | Head port: Axial | Magnet: No
CJ5B10SR-60R Mounting: Basic | Bore: ø10 mm | Stroke: 60 mm | Packing: NBR | Head port: Axial | Magnet: No
CJ5B10SR-75R Mounting: Basic | Bore: ø10 mm | Stroke: 75 mm | Packing: NBR | Head port: Axial | Magnet: No
CJ5B10SR-100R Mounting: Basic | Bore: ø10 mm | Stroke: 100 mm | Packing: NBR | Head port: Axial | Magnet: No
CJ5B10SR-125R Mounting: Basic | Bore: ø10 mm | Stroke: 125 mm | Packing: NBR | Head port: Axial | Magnet: No
CJ5B10SR-150R Mounting: Basic | Bore: ø10 mm | Stroke: 150 mm | Packing: NBR | Head port: Axial | Magnet: No
CJ5B10SV-15 Mounting: Basic | Bore: ø10 mm | Stroke: 15 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5B10SV-30 Mounting: Basic | Bore: ø10 mm | Stroke: 30 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5B10SV-45 Mounting: Basic | Bore: ø10 mm | Stroke: 45 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5B10SV-60 Mounting: Basic | Bore: ø10 mm | Stroke: 60 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5B10SV-75 Mounting: Basic | Bore: ø10 mm | Stroke: 75 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5B10SV-100 Mounting: Basic | Bore: ø10 mm | Stroke: 100 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5B10SV-125 Mounting: Basic | Bore: ø10 mm | Stroke: 125 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5B10SV-150 Mounting: Basic | Bore: ø10 mm | Stroke: 150 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5B10SV-15R Mounting: Basic | Bore: ø10 mm | Stroke: 15 mm | Packing: FKM | Head port: Axial | Magnet: No
CJ5B10SV-30R Mounting: Basic | Bore: ø10 mm | Stroke: 30 mm | Packing: FKM | Head port: Axial | Magnet: No
CJ5B10SV-45R Mounting: Basic | Bore: ø10 mm | Stroke: 45 mm | Packing: FKM | Head port: Axial | Magnet: No
CJ5B10SV-60R Mounting: Basic | Bore: ø10 mm | Stroke: 60 mm | Packing: FKM | Head port: Axial | Magnet: No
CJ5B10SV-75R Mounting: Basic | Bore: ø10 mm | Stroke: 75 mm | Packing: FKM | Head port: Axial | Magnet: No
CJ5B10SV-100R Mounting: Basic | Bore: ø10 mm | Stroke: 100 mm | Packing: FKM | Head port: Axial | Magnet: No
CJ5B10SV-125R Mounting: Basic | Bore: ø10 mm | Stroke: 125 mm | Packing: FKM | Head port: Axial | Magnet: No
CJ5B10SV-150R Mounting: Basic | Bore: ø10 mm | Stroke: 150 mm | Packing: FKM | Head port: Axial | Magnet: No
CJ5B16SR-15 Mounting: Basic | Bore: ø16 mm | Stroke: 15 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5B16SR-30 Mounting: Basic | Bore: ø16 mm | Stroke: 30 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5B16SR-45 Mounting: Basic | Bore: ø16 mm | Stroke: 45 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5B16SR-60 Mounting: Basic | Bore: ø16 mm | Stroke: 60 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5B16SR-75 Mounting: Basic | Bore: ø16 mm | Stroke: 75 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5B16SR-100 Mounting: Basic | Bore: ø16 mm | Stroke: 100 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5B16SR-125 Mounting: Basic | Bore: ø16 mm | Stroke: 125 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5B16SR-150 Mounting: Basic | Bore: ø16 mm | Stroke: 150 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5B16SR-175 Mounting: Basic | Bore: ø16 mm | Stroke: 175 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5B16SR-200 Mounting: Basic | Bore: ø16 mm | Stroke: 200 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5B16SR-15R Mounting: Basic | Bore: ø16 mm | Stroke: 15 mm | Packing: NBR | Head port: Axial | Magnet: No
CJ5B16SR-30R Mounting: Basic | Bore: ø16 mm | Stroke: 30 mm | Packing: NBR | Head port: Axial | Magnet: No
CJ5B16SR-45R Mounting: Basic | Bore: ø16 mm | Stroke: 45 mm | Packing: NBR | Head port: Axial | Magnet: No
CJ5B16SR-60R Mounting: Basic | Bore: ø16 mm | Stroke: 60 mm | Packing: NBR | Head port: Axial | Magnet: No
CJ5B16SR-75R Mounting: Basic | Bore: ø16 mm | Stroke: 75 mm | Packing: NBR | Head port: Axial | Magnet: No
CJ5B16SR-100R Mounting: Basic | Bore: ø16 mm | Stroke: 100 mm | Packing: NBR | Head port: Axial | Magnet: No
CJ5B16SR-125R Mounting: Basic | Bore: ø16 mm | Stroke: 125 mm | Packing: NBR | Head port: Axial | Magnet: No
CJ5B16SR-150R Mounting: Basic | Bore: ø16 mm | Stroke: 150 mm | Packing: NBR | Head port: Axial | Magnet: No
CJ5B16SR-175R Mounting: Basic | Bore: ø16 mm | Stroke: 175 mm | Packing: NBR | Head port: Axial | Magnet: No
CJ5B16SR-200R Mounting: Basic | Bore: ø16 mm | Stroke: 200 mm | Packing: NBR | Head port: Axial | Magnet: No
CJ5B16SV-15 Mounting: Basic | Bore: ø16 mm | Stroke: 15 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5B16SV-30 Mounting: Basic | Bore: ø16 mm | Stroke: 30 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5B16SV-45 Mounting: Basic | Bore: ø16 mm | Stroke: 45 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5B16SV-60 Mounting: Basic | Bore: ø16 mm | Stroke: 60 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5B16SV-75 Mounting: Basic | Bore: ø16 mm | Stroke: 75 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5B16SV-100 Mounting: Basic | Bore: ø16 mm | Stroke: 100 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5B16SV-125 Mounting: Basic | Bore: ø16 mm | Stroke: 125 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5B16SV-150 Mounting: Basic | Bore: ø16 mm | Stroke: 150 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5B16SV-175 Mounting: Basic | Bore: ø16 mm | Stroke: 175 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5B16SV-200 Mounting: Basic | Bore: ø16 mm | Stroke: 200 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5B16SV-15R Mounting: Basic | Bore: ø16 mm | Stroke: 15 mm | Packing: FKM | Head port: Axial | Magnet: No
CJ5B16SV-30R Mounting: Basic | Bore: ø16 mm | Stroke: 30 mm | Packing: FKM | Head port: Axial | Magnet: No
CJ5B16SV-45R Mounting: Basic | Bore: ø16 mm | Stroke: 45 mm | Packing: FKM | Head port: Axial | Magnet: No
CJ5B16SV-60R Mounting: Basic | Bore: ø16 mm | Stroke: 60 mm | Packing: FKM | Head port: Axial | Magnet: No
CJ5B16SV-75R Mounting: Basic | Bore: ø16 mm | Stroke: 75 mm | Packing: FKM | Head port: Axial | Magnet: No
CJ5B16SV-100R Mounting: Basic | Bore: ø16 mm | Stroke: 100 mm | Packing: FKM | Head port: Axial | Magnet: No
CJ5B16SV-125R Mounting: Basic | Bore: ø16 mm | Stroke: 125 mm | Packing: FKM | Head port: Axial | Magnet: No
CJ5B16SV-150R Mounting: Basic | Bore: ø16 mm | Stroke: 150 mm | Packing: FKM | Head port: Axial | Magnet: No
CJ5B16SV-175R Mounting: Basic | Bore: ø16 mm | Stroke: 175 mm | Packing: FKM | Head port: Axial | Magnet: No
CJ5B16SV-200R Mounting: Basic | Bore: ø16 mm | Stroke: 200 mm | Packing: FKM | Head port: Axial | Magnet: No
CJ5L10SR-15 Mounting: Axial foot | Bore: ø10 mm | Stroke: 15 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5L10SR-30 Mounting: Axial foot | Bore: ø10 mm | Stroke: 30 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5L10SR-45 Mounting: Axial foot | Bore: ø10 mm | Stroke: 45 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5L10SR-60 Mounting: Axial foot | Bore: ø10 mm | Stroke: 60 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5L10SR-75 Mounting: Axial foot | Bore: ø10 mm | Stroke: 75 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5L10SR-100 Mounting: Axial foot | Bore: ø10 mm | Stroke: 100 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5L10SR-125 Mounting: Axial foot | Bore: ø10 mm | Stroke: 125 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5L10SR-150 Mounting: Axial foot | Bore: ø10 mm | Stroke: 150 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5L10SR-15R Mounting: Axial foot | Bore: ø10 mm | Stroke: 15 mm | Packing: NBR | Head port: Axial | Magnet: No
CJ5L10SR-30R Mounting: Axial foot | Bore: ø10 mm | Stroke: 30 mm | Packing: NBR | Head port: Axial | Magnet: No
CJ5L10SR-45R Mounting: Axial foot | Bore: ø10 mm | Stroke: 45 mm | Packing: NBR | Head port: Axial | Magnet: No
CJ5L10SR-60R Mounting: Axial foot | Bore: ø10 mm | Stroke: 60 mm | Packing: NBR | Head port: Axial | Magnet: No
CJ5L10SR-75R Mounting: Axial foot | Bore: ø10 mm | Stroke: 75 mm | Packing: NBR | Head port: Axial | Magnet: No
CJ5L10SR-100R Mounting: Axial foot | Bore: ø10 mm | Stroke: 100 mm | Packing: NBR | Head port: Axial | Magnet: No
CJ5L10SR-125R Mounting: Axial foot | Bore: ø10 mm | Stroke: 125 mm | Packing: NBR | Head port: Axial | Magnet: No
CJ5L10SR-150R Mounting: Axial foot | Bore: ø10 mm | Stroke: 150 mm | Packing: NBR | Head port: Axial | Magnet: No
CJ5L10SV-15 Mounting: Axial foot | Bore: ø10 mm | Stroke: 15 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5L10SV-30 Mounting: Axial foot | Bore: ø10 mm | Stroke: 30 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5L10SV-45 Mounting: Axial foot | Bore: ø10 mm | Stroke: 45 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5L10SV-60 Mounting: Axial foot | Bore: ø10 mm | Stroke: 60 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5L10SV-75 Mounting: Axial foot | Bore: ø10 mm | Stroke: 75 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5L10SV-100 Mounting: Axial foot | Bore: ø10 mm | Stroke: 100 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5L10SV-125 Mounting: Axial foot | Bore: ø10 mm | Stroke: 125 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5L10SV-150 Mounting: Axial foot | Bore: ø10 mm | Stroke: 150 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5L10SV-15R Mounting: Axial foot | Bore: ø10 mm | Stroke: 15 mm | Packing: FKM | Head port: Axial | Magnet: No
CJ5L10SV-30R Mounting: Axial foot | Bore: ø10 mm | Stroke: 30 mm | Packing: FKM | Head port: Axial | Magnet: No
CJ5L10SV-45R Mounting: Axial foot | Bore: ø10 mm | Stroke: 45 mm | Packing: FKM | Head port: Axial | Magnet: No
CJ5L10SV-60R Mounting: Axial foot | Bore: ø10 mm | Stroke: 60 mm | Packing: FKM | Head port: Axial | Magnet: No
CJ5L10SV-75R Mounting: Axial foot | Bore: ø10 mm | Stroke: 75 mm | Packing: FKM | Head port: Axial | Magnet: No
CJ5L10SV-100R Mounting: Axial foot | Bore: ø10 mm | Stroke: 100 mm | Packing: FKM | Head port: Axial | Magnet: No
CJ5L10SV-125R Mounting: Axial foot | Bore: ø10 mm | Stroke: 125 mm | Packing: FKM | Head port: Axial | Magnet: No
CJ5L10SV-150R Mounting: Axial foot | Bore: ø10 mm | Stroke: 150 mm | Packing: FKM | Head port: Axial | Magnet: No
CJ5L16SR-15 Mounting: Axial foot | Bore: ø16 mm | Stroke: 15 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5L16SR-30 Mounting: Axial foot | Bore: ø16 mm | Stroke: 30 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5L16SR-45 Mounting: Axial foot | Bore: ø16 mm | Stroke: 45 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5L16SR-60 Mounting: Axial foot | Bore: ø16 mm | Stroke: 60 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5L16SR-75 Mounting: Axial foot | Bore: ø16 mm | Stroke: 75 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5L16SR-100 Mounting: Axial foot | Bore: ø16 mm | Stroke: 100 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5L16SR-125 Mounting: Axial foot | Bore: ø16 mm | Stroke: 125 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5L16SR-150 Mounting: Axial foot | Bore: ø16 mm | Stroke: 150 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5L16SR-175 Mounting: Axial foot | Bore: ø16 mm | Stroke: 175 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5L16SR-200 Mounting: Axial foot | Bore: ø16 mm | Stroke: 200 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5L16SR-15R Mounting: Axial foot | Bore: ø16 mm | Stroke: 15 mm | Packing: NBR | Head port: Axial | Magnet: No
CJ5L16SR-30R Mounting: Axial foot | Bore: ø16 mm | Stroke: 30 mm | Packing: NBR | Head port: Axial | Magnet: No
CJ5L16SR-45R Mounting: Axial foot | Bore: ø16 mm | Stroke: 45 mm | Packing: NBR | Head port: Axial | Magnet: No
CJ5L16SR-60R Mounting: Axial foot | Bore: ø16 mm | Stroke: 60 mm | Packing: NBR | Head port: Axial | Magnet: No
CJ5L16SR-75R Mounting: Axial foot | Bore: ø16 mm | Stroke: 75 mm | Packing: NBR | Head port: Axial | Magnet: No
CJ5L16SR-100R Mounting: Axial foot | Bore: ø16 mm | Stroke: 100 mm | Packing: NBR | Head port: Axial | Magnet: No
CJ5L16SR-125R Mounting: Axial foot | Bore: ø16 mm | Stroke: 125 mm | Packing: NBR | Head port: Axial | Magnet: No
CJ5L16SR-150R Mounting: Axial foot | Bore: ø16 mm | Stroke: 150 mm | Packing: NBR | Head port: Axial | Magnet: No
CJ5L16SR-175R Mounting: Axial foot | Bore: ø16 mm | Stroke: 175 mm | Packing: NBR | Head port: Axial | Magnet: No
CJ5L16SR-200R Mounting: Axial foot | Bore: ø16 mm | Stroke: 200 mm | Packing: NBR | Head port: Axial | Magnet: No
CJ5L16SV-15 Mounting: Axial foot | Bore: ø16 mm | Stroke: 15 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5L16SV-30 Mounting: Axial foot | Bore: ø16 mm | Stroke: 30 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5L16SV-45 Mounting: Axial foot | Bore: ø16 mm | Stroke: 45 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5L16SV-60 Mounting: Axial foot | Bore: ø16 mm | Stroke: 60 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5L16SV-75 Mounting: Axial foot | Bore: ø16 mm | Stroke: 75 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5L16SV-100 Mounting: Axial foot | Bore: ø16 mm | Stroke: 100 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5L16SV-125 Mounting: Axial foot | Bore: ø16 mm | Stroke: 125 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5L16SV-150 Mounting: Axial foot | Bore: ø16 mm | Stroke: 150 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5L16SV-175 Mounting: Axial foot | Bore: ø16 mm | Stroke: 175 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5L16SV-200 Mounting: Axial foot | Bore: ø16 mm | Stroke: 200 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5L16SV-15R Mounting: Axial foot | Bore: ø16 mm | Stroke: 15 mm | Packing: FKM | Head port: Axial | Magnet: No
CJ5L16SV-30R Mounting: Axial foot | Bore: ø16 mm | Stroke: 30 mm | Packing: FKM | Head port: Axial | Magnet: No
CJ5L16SV-45R Mounting: Axial foot | Bore: ø16 mm | Stroke: 45 mm | Packing: FKM | Head port: Axial | Magnet: No
CJ5L16SV-60R Mounting: Axial foot | Bore: ø16 mm | Stroke: 60 mm | Packing: FKM | Head port: Axial | Magnet: No
CJ5L16SV-75R Mounting: Axial foot | Bore: ø16 mm | Stroke: 75 mm | Packing: FKM | Head port: Axial | Magnet: No
CJ5L16SV-100R Mounting: Axial foot | Bore: ø16 mm | Stroke: 100 mm | Packing: FKM | Head port: Axial | Magnet: No
CJ5L16SV-125R Mounting: Axial foot | Bore: ø16 mm | Stroke: 125 mm | Packing: FKM | Head port: Axial | Magnet: No
CJ5L16SV-150R Mounting: Axial foot | Bore: ø16 mm | Stroke: 150 mm | Packing: FKM | Head port: Axial | Magnet: No
CJ5L16SV-175R Mounting: Axial foot | Bore: ø16 mm | Stroke: 175 mm | Packing: FKM | Head port: Axial | Magnet: No
CJ5L16SV-200R Mounting: Axial foot | Bore: ø16 mm | Stroke: 200 mm | Packing: FKM | Head port: Axial | Magnet: No
CJ5F10SR-15 Mounting: Rod flange | Bore: ø10 mm | Stroke: 15 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5F10SR-30 Mounting: Rod flange | Bore: ø10 mm | Stroke: 30 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5F10SR-45 Mounting: Rod flange | Bore: ø10 mm | Stroke: 45 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5F10SR-60 Mounting: Rod flange | Bore: ø10 mm | Stroke: 60 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5F10SR-75 Mounting: Rod flange | Bore: ø10 mm | Stroke: 75 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5F10SR-100 Mounting: Rod flange | Bore: ø10 mm | Stroke: 100 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5F10SR-125 Mounting: Rod flange | Bore: ø10 mm | Stroke: 125 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5F10SR-150 Mounting: Rod flange | Bore: ø10 mm | Stroke: 150 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5F10SR-15R Mounting: Rod flange | Bore: ø10 mm | Stroke: 15 mm | Packing: NBR | Head port: Axial | Magnet: No
CJ5F10SR-30R Mounting: Rod flange | Bore: ø10 mm | Stroke: 30 mm | Packing: NBR | Head port: Axial | Magnet: No
CJ5F10SR-45R Mounting: Rod flange | Bore: ø10 mm | Stroke: 45 mm | Packing: NBR | Head port: Axial | Magnet: No
CJ5F10SR-60R Mounting: Rod flange | Bore: ø10 mm | Stroke: 60 mm | Packing: NBR | Head port: Axial | Magnet: No
CJ5F10SR-75R Mounting: Rod flange | Bore: ø10 mm | Stroke: 75 mm | Packing: NBR | Head port: Axial | Magnet: No
CJ5F10SR-100R Mounting: Rod flange | Bore: ø10 mm | Stroke: 100 mm | Packing: NBR | Head port: Axial | Magnet: No
CJ5F10SR-125R Mounting: Rod flange | Bore: ø10 mm | Stroke: 125 mm | Packing: NBR | Head port: Axial | Magnet: No
CJ5F10SR-150R Mounting: Rod flange | Bore: ø10 mm | Stroke: 150 mm | Packing: NBR | Head port: Axial | Magnet: No
CJ5F10SV-15 Mounting: Rod flange | Bore: ø10 mm | Stroke: 15 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5F10SV-30 Mounting: Rod flange | Bore: ø10 mm | Stroke: 30 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5F10SV-45 Mounting: Rod flange | Bore: ø10 mm | Stroke: 45 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5F10SV-60 Mounting: Rod flange | Bore: ø10 mm | Stroke: 60 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5F10SV-75 Mounting: Rod flange | Bore: ø10 mm | Stroke: 75 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5F10SV-100 Mounting: Rod flange | Bore: ø10 mm | Stroke: 100 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5F10SV-125 Mounting: Rod flange | Bore: ø10 mm | Stroke: 125 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5F10SV-150 Mounting: Rod flange | Bore: ø10 mm | Stroke: 150 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5F10SV-15R Mounting: Rod flange | Bore: ø10 mm | Stroke: 15 mm | Packing: FKM | Head port: Axial | Magnet: No
CJ5F10SV-30R Mounting: Rod flange | Bore: ø10 mm | Stroke: 30 mm | Packing: FKM | Head port: Axial | Magnet: No
CJ5F10SV-45R Mounting: Rod flange | Bore: ø10 mm | Stroke: 45 mm | Packing: FKM | Head port: Axial | Magnet: No
CJ5F10SV-60R Mounting: Rod flange | Bore: ø10 mm | Stroke: 60 mm | Packing: FKM | Head port: Axial | Magnet: No
CJ5F10SV-75R Mounting: Rod flange | Bore: ø10 mm | Stroke: 75 mm | Packing: FKM | Head port: Axial | Magnet: No
CJ5F10SV-100R Mounting: Rod flange | Bore: ø10 mm | Stroke: 100 mm | Packing: FKM | Head port: Axial | Magnet: No
CJ5F10SV-125R Mounting: Rod flange | Bore: ø10 mm | Stroke: 125 mm | Packing: FKM | Head port: Axial | Magnet: No
CJ5F10SV-150R Mounting: Rod flange | Bore: ø10 mm | Stroke: 150 mm | Packing: FKM | Head port: Axial | Magnet: No
CJ5F16SR-15 Mounting: Rod flange | Bore: ø16 mm | Stroke: 15 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5F16SR-30 Mounting: Rod flange | Bore: ø16 mm | Stroke: 30 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5F16SR-45 Mounting: Rod flange | Bore: ø16 mm | Stroke: 45 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5F16SR-60 Mounting: Rod flange | Bore: ø16 mm | Stroke: 60 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5F16SR-75 Mounting: Rod flange | Bore: ø16 mm | Stroke: 75 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5F16SR-100 Mounting: Rod flange | Bore: ø16 mm | Stroke: 100 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5F16SR-125 Mounting: Rod flange | Bore: ø16 mm | Stroke: 125 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5F16SR-150 Mounting: Rod flange | Bore: ø16 mm | Stroke: 150 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5F16SR-175 Mounting: Rod flange | Bore: ø16 mm | Stroke: 175 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5F16SR-200 Mounting: Rod flange | Bore: ø16 mm | Stroke: 200 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5F16SR-15R Mounting: Rod flange | Bore: ø16 mm | Stroke: 15 mm | Packing: NBR | Head port: Axial | Magnet: No
CJ5F16SR-30R Mounting: Rod flange | Bore: ø16 mm | Stroke: 30 mm | Packing: NBR | Head port: Axial | Magnet: No
CJ5F16SR-45R Mounting: Rod flange | Bore: ø16 mm | Stroke: 45 mm | Packing: NBR | Head port: Axial | Magnet: No
CJ5F16SR-60R Mounting: Rod flange | Bore: ø16 mm | Stroke: 60 mm | Packing: NBR | Head port: Axial | Magnet: No
CJ5F16SR-75R Mounting: Rod flange | Bore: ø16 mm | Stroke: 75 mm | Packing: NBR | Head port: Axial | Magnet: No
CJ5F16SR-100R Mounting: Rod flange | Bore: ø16 mm | Stroke: 100 mm | Packing: NBR | Head port: Axial | Magnet: No
CJ5F16SR-125R Mounting: Rod flange | Bore: ø16 mm | Stroke: 125 mm | Packing: NBR | Head port: Axial | Magnet: No
CJ5F16SR-150R Mounting: Rod flange | Bore: ø16 mm | Stroke: 150 mm | Packing: NBR | Head port: Axial | Magnet: No
CJ5F16SR-175R Mounting: Rod flange | Bore: ø16 mm | Stroke: 175 mm | Packing: NBR | Head port: Axial | Magnet: No
CJ5F16SR-200R Mounting: Rod flange | Bore: ø16 mm | Stroke: 200 mm | Packing: NBR | Head port: Axial | Magnet: No
CJ5F16SV-15 Mounting: Rod flange | Bore: ø16 mm | Stroke: 15 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5F16SV-30 Mounting: Rod flange | Bore: ø16 mm | Stroke: 30 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5F16SV-45 Mounting: Rod flange | Bore: ø16 mm | Stroke: 45 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5F16SV-60 Mounting: Rod flange | Bore: ø16 mm | Stroke: 60 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5F16SV-75 Mounting: Rod flange | Bore: ø16 mm | Stroke: 75 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5F16SV-100 Mounting: Rod flange | Bore: ø16 mm | Stroke: 100 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5F16SV-125 Mounting: Rod flange | Bore: ø16 mm | Stroke: 125 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5F16SV-150 Mounting: Rod flange | Bore: ø16 mm | Stroke: 150 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5F16SV-175 Mounting: Rod flange | Bore: ø16 mm | Stroke: 175 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5F16SV-200 Mounting: Rod flange | Bore: ø16 mm | Stroke: 200 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5F16SV-15R Mounting: Rod flange | Bore: ø16 mm | Stroke: 15 mm | Packing: FKM | Head port: Axial | Magnet: No
CJ5F16SV-30R Mounting: Rod flange | Bore: ø16 mm | Stroke: 30 mm | Packing: FKM | Head port: Axial | Magnet: No
CJ5F16SV-45R Mounting: Rod flange | Bore: ø16 mm | Stroke: 45 mm | Packing: FKM | Head port: Axial | Magnet: No
CJ5F16SV-60R Mounting: Rod flange | Bore: ø16 mm | Stroke: 60 mm | Packing: FKM | Head port: Axial | Magnet: No
CJ5F16SV-75R Mounting: Rod flange | Bore: ø16 mm | Stroke: 75 mm | Packing: FKM | Head port: Axial | Magnet: No
CJ5F16SV-100R Mounting: Rod flange | Bore: ø16 mm | Stroke: 100 mm | Packing: FKM | Head port: Axial | Magnet: No
CJ5F16SV-125R Mounting: Rod flange | Bore: ø16 mm | Stroke: 125 mm | Packing: FKM | Head port: Axial | Magnet: No
CJ5F16SV-150R Mounting: Rod flange | Bore: ø16 mm | Stroke: 150 mm | Packing: FKM | Head port: Axial | Magnet: No
CJ5F16SV-175R Mounting: Rod flange | Bore: ø16 mm | Stroke: 175 mm | Packing: FKM | Head port: Axial | Magnet: No
CJ5F16SV-200R Mounting: Rod flange | Bore: ø16 mm | Stroke: 200 mm | Packing: FKM | Head port: Axial | Magnet: No
CJ5D10SR-15 Mounting: Double clevis | Bore: ø10 mm | Stroke: 15 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5D10SR-30 Mounting: Double clevis | Bore: ø10 mm | Stroke: 30 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5D10SR-45 Mounting: Double clevis | Bore: ø10 mm | Stroke: 45 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5D10SR-60 Mounting: Double clevis | Bore: ø10 mm | Stroke: 60 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5D10SR-75 Mounting: Double clevis | Bore: ø10 mm | Stroke: 75 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5D10SR-100 Mounting: Double clevis | Bore: ø10 mm | Stroke: 100 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5D10SR-125 Mounting: Double clevis | Bore: ø10 mm | Stroke: 125 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5D10SR-150 Mounting: Double clevis | Bore: ø10 mm | Stroke: 150 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5D10SV-15 Mounting: Double clevis | Bore: ø10 mm | Stroke: 15 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5D10SV-30 Mounting: Double clevis | Bore: ø10 mm | Stroke: 30 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5D10SV-45 Mounting: Double clevis | Bore: ø10 mm | Stroke: 45 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5D10SV-60 Mounting: Double clevis | Bore: ø10 mm | Stroke: 60 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5D10SV-75 Mounting: Double clevis | Bore: ø10 mm | Stroke: 75 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5D10SV-100 Mounting: Double clevis | Bore: ø10 mm | Stroke: 100 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5D10SV-125 Mounting: Double clevis | Bore: ø10 mm | Stroke: 125 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5D10SV-150 Mounting: Double clevis | Bore: ø10 mm | Stroke: 150 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5D16SR-15 Mounting: Double clevis | Bore: ø16 mm | Stroke: 15 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5D16SR-30 Mounting: Double clevis | Bore: ø16 mm | Stroke: 30 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5D16SR-45 Mounting: Double clevis | Bore: ø16 mm | Stroke: 45 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5D16SR-60 Mounting: Double clevis | Bore: ø16 mm | Stroke: 60 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5D16SR-75 Mounting: Double clevis | Bore: ø16 mm | Stroke: 75 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5D16SR-100 Mounting: Double clevis | Bore: ø16 mm | Stroke: 100 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5D16SR-125 Mounting: Double clevis | Bore: ø16 mm | Stroke: 125 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5D16SR-150 Mounting: Double clevis | Bore: ø16 mm | Stroke: 150 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5D16SR-175 Mounting: Double clevis | Bore: ø16 mm | Stroke: 175 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5D16SR-200 Mounting: Double clevis | Bore: ø16 mm | Stroke: 200 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5D16SV-15 Mounting: Double clevis | Bore: ø16 mm | Stroke: 15 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5D16SV-30 Mounting: Double clevis | Bore: ø16 mm | Stroke: 30 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5D16SV-45 Mounting: Double clevis | Bore: ø16 mm | Stroke: 45 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5D16SV-60 Mounting: Double clevis | Bore: ø16 mm | Stroke: 60 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5D16SV-75 Mounting: Double clevis | Bore: ø16 mm | Stroke: 75 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5D16SV-100 Mounting: Double clevis | Bore: ø16 mm | Stroke: 100 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5D16SV-125 Mounting: Double clevis | Bore: ø16 mm | Stroke: 125 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5D16SV-150 Mounting: Double clevis | Bore: ø16 mm | Stroke: 150 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5D16SV-175 Mounting: Double clevis | Bore: ø16 mm | Stroke: 175 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5D16SV-200 Mounting: Double clevis | Bore: ø16 mm | Stroke: 200 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CDJ5B10SR-15-B Mounting: Basic | Bore: ø10 mm | Stroke: 15 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5B10SR-30-B Mounting: Basic | Bore: ø10 mm | Stroke: 30 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5B10SR-45-B Mounting: Basic | Bore: ø10 mm | Stroke: 45 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5B10SR-60-B Mounting: Basic | Bore: ø10 mm | Stroke: 60 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5B10SR-75-B Mounting: Basic | Bore: ø10 mm | Stroke: 75 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5B10SR-100-B Mounting: Basic | Bore: ø10 mm | Stroke: 100 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5B10SR-125-B Mounting: Basic | Bore: ø10 mm | Stroke: 125 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5B10SR-150-B Mounting: Basic | Bore: ø10 mm | Stroke: 150 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5B10SR-15R-B Mounting: Basic | Bore: ø10 mm | Stroke: 15 mm | Packing: NBR | Head port: Axial | Magnet: Yes
CDJ5B10SR-30R-B Mounting: Basic | Bore: ø10 mm | Stroke: 30 mm | Packing: NBR | Head port: Axial | Magnet: Yes
CDJ5B10SR-45R-B Mounting: Basic | Bore: ø10 mm | Stroke: 45 mm | Packing: NBR | Head port: Axial | Magnet: Yes
CDJ5B10SR-60R-B Mounting: Basic | Bore: ø10 mm | Stroke: 60 mm | Packing: NBR | Head port: Axial | Magnet: Yes
CDJ5B10SR-75R-B Mounting: Basic | Bore: ø10 mm | Stroke: 75 mm | Packing: NBR | Head port: Axial | Magnet: Yes
CDJ5B10SR-100R-B Mounting: Basic | Bore: ø10 mm | Stroke: 100 mm | Packing: NBR | Head port: Axial | Magnet: Yes
CDJ5B10SR-125R-B Mounting: Basic | Bore: ø10 mm | Stroke: 125 mm | Packing: NBR | Head port: Axial | Magnet: Yes
CDJ5B10SR-150R-B Mounting: Basic | Bore: ø10 mm | Stroke: 150 mm | Packing: NBR | Head port: Axial | Magnet: Yes
CDJ5B10SV-15-B Mounting: Basic | Bore: ø10 mm | Stroke: 15 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5B10SV-30-B Mounting: Basic | Bore: ø10 mm | Stroke: 30 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5B10SV-45-B Mounting: Basic | Bore: ø10 mm | Stroke: 45 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5B10SV-60-B Mounting: Basic | Bore: ø10 mm | Stroke: 60 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5B10SV-75-B Mounting: Basic | Bore: ø10 mm | Stroke: 75 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5B10SV-100-B Mounting: Basic | Bore: ø10 mm | Stroke: 100 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5B10SV-125-B Mounting: Basic | Bore: ø10 mm | Stroke: 125 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5B10SV-150-B Mounting: Basic | Bore: ø10 mm | Stroke: 150 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5B10SV-15R-B Mounting: Basic | Bore: ø10 mm | Stroke: 15 mm | Packing: FKM | Head port: Axial | Magnet: Yes
CDJ5B10SV-30R-B Mounting: Basic | Bore: ø10 mm | Stroke: 30 mm | Packing: FKM | Head port: Axial | Magnet: Yes
CDJ5B10SV-45R-B Mounting: Basic | Bore: ø10 mm | Stroke: 45 mm | Packing: FKM | Head port: Axial | Magnet: Yes
CDJ5B10SV-60R-B Mounting: Basic | Bore: ø10 mm | Stroke: 60 mm | Packing: FKM | Head port: Axial | Magnet: Yes
CDJ5B10SV-75R-B Mounting: Basic | Bore: ø10 mm | Stroke: 75 mm | Packing: FKM | Head port: Axial | Magnet: Yes
CDJ5B10SV-100R-B Mounting: Basic | Bore: ø10 mm | Stroke: 100 mm | Packing: FKM | Head port: Axial | Magnet: Yes
CDJ5B10SV-125R-B Mounting: Basic | Bore: ø10 mm | Stroke: 125 mm | Packing: FKM | Head port: Axial | Magnet: Yes
CDJ5B10SV-150R-B Mounting: Basic | Bore: ø10 mm | Stroke: 150 mm | Packing: FKM | Head port: Axial | Magnet: Yes
CDJ5B16SR-15-B Mounting: Basic | Bore: ø16 mm | Stroke: 15 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5B16SR-30-B Mounting: Basic | Bore: ø16 mm | Stroke: 30 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5B16SR-45-B Mounting: Basic | Bore: ø16 mm | Stroke: 45 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5B16SR-60-B Mounting: Basic | Bore: ø16 mm | Stroke: 60 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5B16SR-75-B Mounting: Basic | Bore: ø16 mm | Stroke: 75 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5B16SR-100-B Mounting: Basic | Bore: ø16 mm | Stroke: 100 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5B16SR-125-B Mounting: Basic | Bore: ø16 mm | Stroke: 125 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5B16SR-150-B Mounting: Basic | Bore: ø16 mm | Stroke: 150 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5B16SR-175-B Mounting: Basic | Bore: ø16 mm | Stroke: 175 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5B16SR-200-B Mounting: Basic | Bore: ø16 mm | Stroke: 200 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5B16SR-15R-B Mounting: Basic | Bore: ø16 mm | Stroke: 15 mm | Packing: NBR | Head port: Axial | Magnet: Yes
CDJ5B16SR-30R-B Mounting: Basic | Bore: ø16 mm | Stroke: 30 mm | Packing: NBR | Head port: Axial | Magnet: Yes
CDJ5B16SR-45R-B Mounting: Basic | Bore: ø16 mm | Stroke: 45 mm | Packing: NBR | Head port: Axial | Magnet: Yes
CDJ5B16SR-60R-B Mounting: Basic | Bore: ø16 mm | Stroke: 60 mm | Packing: NBR | Head port: Axial | Magnet: Yes
CDJ5B16SR-75R-B Mounting: Basic | Bore: ø16 mm | Stroke: 75 mm | Packing: NBR | Head port: Axial | Magnet: Yes
CDJ5B16SR-100R-B Mounting: Basic | Bore: ø16 mm | Stroke: 100 mm | Packing: NBR | Head port: Axial | Magnet: Yes
CDJ5B16SR-125R-B Mounting: Basic | Bore: ø16 mm | Stroke: 125 mm | Packing: NBR | Head port: Axial | Magnet: Yes
CDJ5B16SR-150R-B Mounting: Basic | Bore: ø16 mm | Stroke: 150 mm | Packing: NBR | Head port: Axial | Magnet: Yes
CDJ5B16SR-175R-B Mounting: Basic | Bore: ø16 mm | Stroke: 175 mm | Packing: NBR | Head port: Axial | Magnet: Yes
CDJ5B16SR-200R-B Mounting: Basic | Bore: ø16 mm | Stroke: 200 mm | Packing: NBR | Head port: Axial | Magnet: Yes
CDJ5B16SV-15-B Mounting: Basic | Bore: ø16 mm | Stroke: 15 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5B16SV-30-B Mounting: Basic | Bore: ø16 mm | Stroke: 30 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5B16SV-45-B Mounting: Basic | Bore: ø16 mm | Stroke: 45 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5B16SV-60-B Mounting: Basic | Bore: ø16 mm | Stroke: 60 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5B16SV-75-B Mounting: Basic | Bore: ø16 mm | Stroke: 75 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5B16SV-100-B Mounting: Basic | Bore: ø16 mm | Stroke: 100 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5B16SV-125-B Mounting: Basic | Bore: ø16 mm | Stroke: 125 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5B16SV-150-B Mounting: Basic | Bore: ø16 mm | Stroke: 150 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5B16SV-175-B Mounting: Basic | Bore: ø16 mm | Stroke: 175 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5B16SV-200-B Mounting: Basic | Bore: ø16 mm | Stroke: 200 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5B16SV-15R-B Mounting: Basic | Bore: ø16 mm | Stroke: 15 mm | Packing: FKM | Head port: Axial | Magnet: Yes
CDJ5B16SV-30R-B Mounting: Basic | Bore: ø16 mm | Stroke: 30 mm | Packing: FKM | Head port: Axial | Magnet: Yes
CDJ5B16SV-45R-B Mounting: Basic | Bore: ø16 mm | Stroke: 45 mm | Packing: FKM | Head port: Axial | Magnet: Yes
CDJ5B16SV-60R-B Mounting: Basic | Bore: ø16 mm | Stroke: 60 mm | Packing: FKM | Head port: Axial | Magnet: Yes
CDJ5B16SV-75R-B Mounting: Basic | Bore: ø16 mm | Stroke: 75 mm | Packing: FKM | Head port: Axial | Magnet: Yes
CDJ5B16SV-100R-B Mounting: Basic | Bore: ø16 mm | Stroke: 100 mm | Packing: FKM | Head port: Axial | Magnet: Yes
CDJ5B16SV-125R-B Mounting: Basic | Bore: ø16 mm | Stroke: 125 mm | Packing: FKM | Head port: Axial | Magnet: Yes
CDJ5B16SV-150R-B Mounting: Basic | Bore: ø16 mm | Stroke: 150 mm | Packing: FKM | Head port: Axial | Magnet: Yes
CDJ5B16SV-175R-B Mounting: Basic | Bore: ø16 mm | Stroke: 175 mm | Packing: FKM | Head port: Axial | Magnet: Yes
CDJ5B16SV-200R-B Mounting: Basic | Bore: ø16 mm | Stroke: 200 mm | Packing: FKM | Head port: Axial | Magnet: Yes
CDJ5L10SR-15-B Mounting: Axial foot | Bore: ø10 mm | Stroke: 15 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5L10SR-30-B Mounting: Axial foot | Bore: ø10 mm | Stroke: 30 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5L10SR-45-B Mounting: Axial foot | Bore: ø10 mm | Stroke: 45 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5L10SR-60-B Mounting: Axial foot | Bore: ø10 mm | Stroke: 60 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5L10SR-75-B Mounting: Axial foot | Bore: ø10 mm | Stroke: 75 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5L10SR-100-B Mounting: Axial foot | Bore: ø10 mm | Stroke: 100 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5L10SR-125-B Mounting: Axial foot | Bore: ø10 mm | Stroke: 125 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5L10SR-150-B Mounting: Axial foot | Bore: ø10 mm | Stroke: 150 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5L10SR-15R-B Mounting: Axial foot | Bore: ø10 mm | Stroke: 15 mm | Packing: NBR | Head port: Axial | Magnet: Yes
CDJ5L10SR-30R-B Mounting: Axial foot | Bore: ø10 mm | Stroke: 30 mm | Packing: NBR | Head port: Axial | Magnet: Yes
CDJ5L10SR-45R-B Mounting: Axial foot | Bore: ø10 mm | Stroke: 45 mm | Packing: NBR | Head port: Axial | Magnet: Yes
CDJ5L10SR-60R-B Mounting: Axial foot | Bore: ø10 mm | Stroke: 60 mm | Packing: NBR | Head port: Axial | Magnet: Yes
CDJ5L10SR-75R-B Mounting: Axial foot | Bore: ø10 mm | Stroke: 75 mm | Packing: NBR | Head port: Axial | Magnet: Yes
CDJ5L10SR-100R-B Mounting: Axial foot | Bore: ø10 mm | Stroke: 100 mm | Packing: NBR | Head port: Axial | Magnet: Yes
CDJ5L10SR-125R-B Mounting: Axial foot | Bore: ø10 mm | Stroke: 125 mm | Packing: NBR | Head port: Axial | Magnet: Yes
CDJ5L10SR-150R-B Mounting: Axial foot | Bore: ø10 mm | Stroke: 150 mm | Packing: NBR | Head port: Axial | Magnet: Yes
CDJ5L10SV-15-B Mounting: Axial foot | Bore: ø10 mm | Stroke: 15 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5L10SV-30-B Mounting: Axial foot | Bore: ø10 mm | Stroke: 30 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5L10SV-45-B Mounting: Axial foot | Bore: ø10 mm | Stroke: 45 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5L10SV-60-B Mounting: Axial foot | Bore: ø10 mm | Stroke: 60 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5L10SV-75-B Mounting: Axial foot | Bore: ø10 mm | Stroke: 75 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5L10SV-100-B Mounting: Axial foot | Bore: ø10 mm | Stroke: 100 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5L10SV-125-B Mounting: Axial foot | Bore: ø10 mm | Stroke: 125 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5L10SV-150-B Mounting: Axial foot | Bore: ø10 mm | Stroke: 150 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5L10SV-15R-B Mounting: Axial foot | Bore: ø10 mm | Stroke: 15 mm | Packing: FKM | Head port: Axial | Magnet: Yes
CDJ5L10SV-30R-B Mounting: Axial foot | Bore: ø10 mm | Stroke: 30 mm | Packing: FKM | Head port: Axial | Magnet: Yes
CDJ5L10SV-45R-B Mounting: Axial foot | Bore: ø10 mm | Stroke: 45 mm | Packing: FKM | Head port: Axial | Magnet: Yes
CDJ5L10SV-60R-B Mounting: Axial foot | Bore: ø10 mm | Stroke: 60 mm | Packing: FKM | Head port: Axial | Magnet: Yes
CDJ5L10SV-75R-B Mounting: Axial foot | Bore: ø10 mm | Stroke: 75 mm | Packing: FKM | Head port: Axial | Magnet: Yes
CDJ5L10SV-100R-B Mounting: Axial foot | Bore: ø10 mm | Stroke: 100 mm | Packing: FKM | Head port: Axial | Magnet: Yes
CDJ5L10SV-125R-B Mounting: Axial foot | Bore: ø10 mm | Stroke: 125 mm | Packing: FKM | Head port: Axial | Magnet: Yes
CDJ5L10SV-150R-B Mounting: Axial foot | Bore: ø10 mm | Stroke: 150 mm | Packing: FKM | Head port: Axial | Magnet: Yes
CDJ5L16SR-15-B Mounting: Axial foot | Bore: ø16 mm | Stroke: 15 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5L16SR-30-B Mounting: Axial foot | Bore: ø16 mm | Stroke: 30 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5L16SR-45-B Mounting: Axial foot | Bore: ø16 mm | Stroke: 45 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5L16SR-60-B Mounting: Axial foot | Bore: ø16 mm | Stroke: 60 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5L16SR-75-B Mounting: Axial foot | Bore: ø16 mm | Stroke: 75 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5L16SR-100-B Mounting: Axial foot | Bore: ø16 mm | Stroke: 100 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5L16SR-125-B Mounting: Axial foot | Bore: ø16 mm | Stroke: 125 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5L16SR-150-B Mounting: Axial foot | Bore: ø16 mm | Stroke: 150 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5L16SR-175-B Mounting: Axial foot | Bore: ø16 mm | Stroke: 175 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5L16SR-200-B Mounting: Axial foot | Bore: ø16 mm | Stroke: 200 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5L16SR-15R-B Mounting: Axial foot | Bore: ø16 mm | Stroke: 15 mm | Packing: NBR | Head port: Axial | Magnet: Yes
CDJ5L16SR-30R-B Mounting: Axial foot | Bore: ø16 mm | Stroke: 30 mm | Packing: NBR | Head port: Axial | Magnet: Yes
CDJ5L16SR-45R-B Mounting: Axial foot | Bore: ø16 mm | Stroke: 45 mm | Packing: NBR | Head port: Axial | Magnet: Yes
CDJ5L16SR-60R-B Mounting: Axial foot | Bore: ø16 mm | Stroke: 60 mm | Packing: NBR | Head port: Axial | Magnet: Yes
CDJ5L16SR-75R-B Mounting: Axial foot | Bore: ø16 mm | Stroke: 75 mm | Packing: NBR | Head port: Axial | Magnet: Yes
CDJ5L16SR-100R-B Mounting: Axial foot | Bore: ø16 mm | Stroke: 100 mm | Packing: NBR | Head port: Axial | Magnet: Yes
CDJ5L16SR-125R-B Mounting: Axial foot | Bore: ø16 mm | Stroke: 125 mm | Packing: NBR | Head port: Axial | Magnet: Yes
CDJ5L16SR-150R-B Mounting: Axial foot | Bore: ø16 mm | Stroke: 150 mm | Packing: NBR | Head port: Axial | Magnet: Yes
CDJ5L16SR-175R-B Mounting: Axial foot | Bore: ø16 mm | Stroke: 175 mm | Packing: NBR | Head port: Axial | Magnet: Yes
CDJ5L16SR-200R-B Mounting: Axial foot | Bore: ø16 mm | Stroke: 200 mm | Packing: NBR | Head port: Axial | Magnet: Yes
CDJ5L16SV-15-B Mounting: Axial foot | Bore: ø16 mm | Stroke: 15 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5L16SV-30-B Mounting: Axial foot | Bore: ø16 mm | Stroke: 30 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5L16SV-45-B Mounting: Axial foot | Bore: ø16 mm | Stroke: 45 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5L16SV-60-B Mounting: Axial foot | Bore: ø16 mm | Stroke: 60 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5L16SV-75-B Mounting: Axial foot | Bore: ø16 mm | Stroke: 75 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5L16SV-100-B Mounting: Axial foot | Bore: ø16 mm | Stroke: 100 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5L16SV-125-B Mounting: Axial foot | Bore: ø16 mm | Stroke: 125 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5L16SV-150-B Mounting: Axial foot | Bore: ø16 mm | Stroke: 150 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5L16SV-175-B Mounting: Axial foot | Bore: ø16 mm | Stroke: 175 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5L16SV-200-B Mounting: Axial foot | Bore: ø16 mm | Stroke: 200 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5L16SV-15R-B Mounting: Axial foot | Bore: ø16 mm | Stroke: 15 mm | Packing: FKM | Head port: Axial | Magnet: Yes
CDJ5L16SV-30R-B Mounting: Axial foot | Bore: ø16 mm | Stroke: 30 mm | Packing: FKM | Head port: Axial | Magnet: Yes
CDJ5L16SV-45R-B Mounting: Axial foot | Bore: ø16 mm | Stroke: 45 mm | Packing: FKM | Head port: Axial | Magnet: Yes
CDJ5L16SV-60R-B Mounting: Axial foot | Bore: ø16 mm | Stroke: 60 mm | Packing: FKM | Head port: Axial | Magnet: Yes
CDJ5L16SV-75R-B Mounting: Axial foot | Bore: ø16 mm | Stroke: 75 mm | Packing: FKM | Head port: Axial | Magnet: Yes
CDJ5L16SV-100R-B Mounting: Axial foot | Bore: ø16 mm | Stroke: 100 mm | Packing: FKM | Head port: Axial | Magnet: Yes
CDJ5L16SV-125R-B Mounting: Axial foot | Bore: ø16 mm | Stroke: 125 mm | Packing: FKM | Head port: Axial | Magnet: Yes
CDJ5L16SV-150R-B Mounting: Axial foot | Bore: ø16 mm | Stroke: 150 mm | Packing: FKM | Head port: Axial | Magnet: Yes
CDJ5L16SV-175R-B Mounting: Axial foot | Bore: ø16 mm | Stroke: 175 mm | Packing: FKM | Head port: Axial | Magnet: Yes
CDJ5L16SV-200R-B Mounting: Axial foot | Bore: ø16 mm | Stroke: 200 mm | Packing: FKM | Head port: Axial | Magnet: Yes
CDJ5F10SR-15-B Mounting: Rod flange | Bore: ø10 mm | Stroke: 15 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5F10SR-30-B Mounting: Rod flange | Bore: ø10 mm | Stroke: 30 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5F10SR-45-B Mounting: Rod flange | Bore: ø10 mm | Stroke: 45 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5F10SR-60-B Mounting: Rod flange | Bore: ø10 mm | Stroke: 60 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5F10SR-75-B Mounting: Rod flange | Bore: ø10 mm | Stroke: 75 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5F10SR-100-B Mounting: Rod flange | Bore: ø10 mm | Stroke: 100 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5F10SR-125-B Mounting: Rod flange | Bore: ø10 mm | Stroke: 125 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5F10SR-150-B Mounting: Rod flange | Bore: ø10 mm | Stroke: 150 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5F10SR-15R-B Mounting: Rod flange | Bore: ø10 mm | Stroke: 15 mm | Packing: NBR | Head port: Axial | Magnet: Yes
CDJ5F10SR-30R-B Mounting: Rod flange | Bore: ø10 mm | Stroke: 30 mm | Packing: NBR | Head port: Axial | Magnet: Yes
CDJ5F10SR-45R-B Mounting: Rod flange | Bore: ø10 mm | Stroke: 45 mm | Packing: NBR | Head port: Axial | Magnet: Yes
CDJ5F10SR-60R-B Mounting: Rod flange | Bore: ø10 mm | Stroke: 60 mm | Packing: NBR | Head port: Axial | Magnet: Yes
CDJ5F10SR-75R-B Mounting: Rod flange | Bore: ø10 mm | Stroke: 75 mm | Packing: NBR | Head port: Axial | Magnet: Yes
CDJ5F10SR-100R-B Mounting: Rod flange | Bore: ø10 mm | Stroke: 100 mm | Packing: NBR | Head port: Axial | Magnet: Yes
CDJ5F10SR-125R-B Mounting: Rod flange | Bore: ø10 mm | Stroke: 125 mm | Packing: NBR | Head port: Axial | Magnet: Yes
CDJ5F10SR-150R-B Mounting: Rod flange | Bore: ø10 mm | Stroke: 150 mm | Packing: NBR | Head port: Axial | Magnet: Yes
CDJ5F10SV-15-B Mounting: Rod flange | Bore: ø10 mm | Stroke: 15 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5F10SV-30-B Mounting: Rod flange | Bore: ø10 mm | Stroke: 30 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5F10SV-45-B Mounting: Rod flange | Bore: ø10 mm | Stroke: 45 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5F10SV-60-B Mounting: Rod flange | Bore: ø10 mm | Stroke: 60 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5F10SV-75-B Mounting: Rod flange | Bore: ø10 mm | Stroke: 75 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5F10SV-100-B Mounting: Rod flange | Bore: ø10 mm | Stroke: 100 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5F10SV-125-B Mounting: Rod flange | Bore: ø10 mm | Stroke: 125 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5F10SV-150-B Mounting: Rod flange | Bore: ø10 mm | Stroke: 150 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5F10SV-15R-B Mounting: Rod flange | Bore: ø10 mm | Stroke: 15 mm | Packing: FKM | Head port: Axial | Magnet: Yes
CDJ5F10SV-30R-B Mounting: Rod flange | Bore: ø10 mm | Stroke: 30 mm | Packing: FKM | Head port: Axial | Magnet: Yes
CDJ5F10SV-45R-B Mounting: Rod flange | Bore: ø10 mm | Stroke: 45 mm | Packing: FKM | Head port: Axial | Magnet: Yes
CDJ5F10SV-60R-B Mounting: Rod flange | Bore: ø10 mm | Stroke: 60 mm | Packing: FKM | Head port: Axial | Magnet: Yes
CDJ5F10SV-75R-B Mounting: Rod flange | Bore: ø10 mm | Stroke: 75 mm | Packing: FKM | Head port: Axial | Magnet: Yes
CDJ5F10SV-100R-B Mounting: Rod flange | Bore: ø10 mm | Stroke: 100 mm | Packing: FKM | Head port: Axial | Magnet: Yes
CDJ5F10SV-125R-B Mounting: Rod flange | Bore: ø10 mm | Stroke: 125 mm | Packing: FKM | Head port: Axial | Magnet: Yes
CDJ5F10SV-150R-B Mounting: Rod flange | Bore: ø10 mm | Stroke: 150 mm | Packing: FKM | Head port: Axial | Magnet: Yes
CDJ5F16SR-15-B Mounting: Rod flange | Bore: ø16 mm | Stroke: 15 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5F16SR-30-B Mounting: Rod flange | Bore: ø16 mm | Stroke: 30 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5F16SR-45-B Mounting: Rod flange | Bore: ø16 mm | Stroke: 45 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5F16SR-60-B Mounting: Rod flange | Bore: ø16 mm | Stroke: 60 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5F16SR-75-B Mounting: Rod flange | Bore: ø16 mm | Stroke: 75 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5F16SR-100-B Mounting: Rod flange | Bore: ø16 mm | Stroke: 100 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5F16SR-125-B Mounting: Rod flange | Bore: ø16 mm | Stroke: 125 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5F16SR-150-B Mounting: Rod flange | Bore: ø16 mm | Stroke: 150 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5F16SR-175-B Mounting: Rod flange | Bore: ø16 mm | Stroke: 175 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5F16SR-200-B Mounting: Rod flange | Bore: ø16 mm | Stroke: 200 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5F16SR-15R-B Mounting: Rod flange | Bore: ø16 mm | Stroke: 15 mm | Packing: NBR | Head port: Axial | Magnet: Yes
CDJ5F16SR-30R-B Mounting: Rod flange | Bore: ø16 mm | Stroke: 30 mm | Packing: NBR | Head port: Axial | Magnet: Yes
CDJ5F16SR-45R-B Mounting: Rod flange | Bore: ø16 mm | Stroke: 45 mm | Packing: NBR | Head port: Axial | Magnet: Yes
CDJ5F16SR-60R-B Mounting: Rod flange | Bore: ø16 mm | Stroke: 60 mm | Packing: NBR | Head port: Axial | Magnet: Yes
CDJ5F16SR-75R-B Mounting: Rod flange | Bore: ø16 mm | Stroke: 75 mm | Packing: NBR | Head port: Axial | Magnet: Yes
CDJ5F16SR-100R-B Mounting: Rod flange | Bore: ø16 mm | Stroke: 100 mm | Packing: NBR | Head port: Axial | Magnet: Yes
CDJ5F16SR-125R-B Mounting: Rod flange | Bore: ø16 mm | Stroke: 125 mm | Packing: NBR | Head port: Axial | Magnet: Yes
CDJ5F16SR-150R-B Mounting: Rod flange | Bore: ø16 mm | Stroke: 150 mm | Packing: NBR | Head port: Axial | Magnet: Yes
CDJ5F16SR-175R-B Mounting: Rod flange | Bore: ø16 mm | Stroke: 175 mm | Packing: NBR | Head port: Axial | Magnet: Yes
CDJ5F16SR-200R-B Mounting: Rod flange | Bore: ø16 mm | Stroke: 200 mm | Packing: NBR | Head port: Axial | Magnet: Yes
CDJ5F16SV-15-B Mounting: Rod flange | Bore: ø16 mm | Stroke: 15 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5F16SV-30-B Mounting: Rod flange | Bore: ø16 mm | Stroke: 30 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5F16SV-45-B Mounting: Rod flange | Bore: ø16 mm | Stroke: 45 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5F16SV-60-B Mounting: Rod flange | Bore: ø16 mm | Stroke: 60 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5F16SV-75-B Mounting: Rod flange | Bore: ø16 mm | Stroke: 75 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5F16SV-100-B Mounting: Rod flange | Bore: ø16 mm | Stroke: 100 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5F16SV-125-B Mounting: Rod flange | Bore: ø16 mm | Stroke: 125 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5F16SV-150-B Mounting: Rod flange | Bore: ø16 mm | Stroke: 150 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5F16SV-175-B Mounting: Rod flange | Bore: ø16 mm | Stroke: 175 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5F16SV-200-B Mounting: Rod flange | Bore: ø16 mm | Stroke: 200 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5F16SV-15R-B Mounting: Rod flange | Bore: ø16 mm | Stroke: 15 mm | Packing: FKM | Head port: Axial | Magnet: Yes
CDJ5F16SV-30R-B Mounting: Rod flange | Bore: ø16 mm | Stroke: 30 mm | Packing: FKM | Head port: Axial | Magnet: Yes
CDJ5F16SV-45R-B Mounting: Rod flange | Bore: ø16 mm | Stroke: 45 mm | Packing: FKM | Head port: Axial | Magnet: Yes
CDJ5F16SV-60R-B Mounting: Rod flange | Bore: ø16 mm | Stroke: 60 mm | Packing: FKM | Head port: Axial | Magnet: Yes
CDJ5F16SV-75R-B Mounting: Rod flange | Bore: ø16 mm | Stroke: 75 mm | Packing: FKM | Head port: Axial | Magnet: Yes
CDJ5F16SV-100R-B Mounting: Rod flange | Bore: ø16 mm | Stroke: 100 mm | Packing: FKM | Head port: Axial | Magnet: Yes
CDJ5F16SV-125R-B Mounting: Rod flange | Bore: ø16 mm | Stroke: 125 mm | Packing: FKM | Head port: Axial | Magnet: Yes
CDJ5F16SV-150R-B Mounting: Rod flange | Bore: ø16 mm | Stroke: 150 mm | Packing: FKM | Head port: Axial | Magnet: Yes
CDJ5F16SV-175R-B Mounting: Rod flange | Bore: ø16 mm | Stroke: 175 mm | Packing: FKM | Head port: Axial | Magnet: Yes
CDJ5F16SV-200R-B Mounting: Rod flange | Bore: ø16 mm | Stroke: 200 mm | Packing: FKM | Head port: Axial | Magnet: Yes
CDJ5D10SR-15-B Mounting: Double clevis | Bore: ø10 mm | Stroke: 15 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5D10SR-30-B Mounting: Double clevis | Bore: ø10 mm | Stroke: 30 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5D10SR-45-B Mounting: Double clevis | Bore: ø10 mm | Stroke: 45 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5D10SR-60-B Mounting: Double clevis | Bore: ø10 mm | Stroke: 60 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5D10SR-75-B Mounting: Double clevis | Bore: ø10 mm | Stroke: 75 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5D10SR-100-B Mounting: Double clevis | Bore: ø10 mm | Stroke: 100 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5D10SR-125-B Mounting: Double clevis | Bore: ø10 mm | Stroke: 125 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5D10SR-150-B Mounting: Double clevis | Bore: ø10 mm | Stroke: 150 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5D10SV-15-B Mounting: Double clevis | Bore: ø10 mm | Stroke: 15 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5D10SV-30-B Mounting: Double clevis | Bore: ø10 mm | Stroke: 30 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5D10SV-45-B Mounting: Double clevis | Bore: ø10 mm | Stroke: 45 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5D10SV-60-B Mounting: Double clevis | Bore: ø10 mm | Stroke: 60 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5D10SV-75-B Mounting: Double clevis | Bore: ø10 mm | Stroke: 75 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5D10SV-100-B Mounting: Double clevis | Bore: ø10 mm | Stroke: 100 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5D10SV-125-B Mounting: Double clevis | Bore: ø10 mm | Stroke: 125 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5D10SV-150-B Mounting: Double clevis | Bore: ø10 mm | Stroke: 150 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5D16SR-15-B Mounting: Double clevis | Bore: ø16 mm | Stroke: 15 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5D16SR-30-B Mounting: Double clevis | Bore: ø16 mm | Stroke: 30 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5D16SR-45-B Mounting: Double clevis | Bore: ø16 mm | Stroke: 45 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5D16SR-60-B Mounting: Double clevis | Bore: ø16 mm | Stroke: 60 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5D16SR-75-B Mounting: Double clevis | Bore: ø16 mm | Stroke: 75 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5D16SR-100-B Mounting: Double clevis | Bore: ø16 mm | Stroke: 100 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5D16SR-125-B Mounting: Double clevis | Bore: ø16 mm | Stroke: 125 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5D16SR-150-B Mounting: Double clevis | Bore: ø16 mm | Stroke: 150 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5D16SR-175-B Mounting: Double clevis | Bore: ø16 mm | Stroke: 175 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5D16SR-200-B Mounting: Double clevis | Bore: ø16 mm | Stroke: 200 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5D16SV-15-B Mounting: Double clevis | Bore: ø16 mm | Stroke: 15 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5D16SV-30-B Mounting: Double clevis | Bore: ø16 mm | Stroke: 30 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5D16SV-45-B Mounting: Double clevis | Bore: ø16 mm | Stroke: 45 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5D16SV-60-B Mounting: Double clevis | Bore: ø16 mm | Stroke: 60 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5D16SV-75-B Mounting: Double clevis | Bore: ø16 mm | Stroke: 75 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5D16SV-100-B Mounting: Double clevis | Bore: ø16 mm | Stroke: 100 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5D16SV-125-B Mounting: Double clevis | Bore: ø16 mm | Stroke: 125 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5D16SV-150-B Mounting: Double clevis | Bore: ø16 mm | Stroke: 150 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5D16SV-175-B Mounting: Double clevis | Bore: ø16 mm | Stroke: 175 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5D16SV-200-B Mounting: Double clevis | Bore: ø16 mm | Stroke: 200 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
Round Body CylindersSMC
504 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC CJ5-S Stainless Steel Air Cylinder (ø10, ø16)

Brand SMC·Round Body Cylinders

Available part numbers (504)

CJ5B10SR-15, CJ5B10SR-30, CJ5B10SR-45, CJ5B10SR-60, CJ5B10SR-75, CJ5B10SR-100, CJ5B10SR-125, CJ5B10SR-150, CJ5B10SR-15R, CJ5B10SR-30R + 494 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CJ5B10SR-15Mounting: Basic | Bore: ø10 mm | Stroke: 15 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5B10SR-30Mounting: Basic | Bore: ø10 mm | Stroke: 30 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5B10SR-45Mounting: Basic | Bore: ø10 mm | Stroke: 45 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5B10SR-60Mounting: Basic | Bore: ø10 mm | Stroke: 60 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5B10SR-75Mounting: Basic | Bore: ø10 mm | Stroke: 75 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5B10SR-100Mounting: Basic | Bore: ø10 mm | Stroke: 100 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5B10SR-125Mounting: Basic | Bore: ø10 mm | Stroke: 125 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5B10SR-150Mounting: Basic | Bore: ø10 mm | Stroke: 150 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5B10SR-15RMounting: Basic | Bore: ø10 mm | Stroke: 15 mm | Packing: NBR | Head port: Axial | Magnet: No
CJ5B10SR-30RMounting: Basic | Bore: ø10 mm | Stroke: 30 mm | Packing: NBR | Head port: Axial | Magnet: No
CJ5B10SR-45RMounting: Basic | Bore: ø10 mm | Stroke: 45 mm | Packing: NBR | Head port: Axial | Magnet: No
CJ5B10SR-60RMounting: Basic | Bore: ø10 mm | Stroke: 60 mm | Packing: NBR | Head port: Axial | Magnet: No
CJ5B10SR-75RMounting: Basic | Bore: ø10 mm | Stroke: 75 mm | Packing: NBR | Head port: Axial | Magnet: No
CJ5B10SR-100RMounting: Basic | Bore: ø10 mm | Stroke: 100 mm | Packing: NBR | Head port: Axial | Magnet: No
CJ5B10SR-125RMounting: Basic | Bore: ø10 mm | Stroke: 125 mm | Packing: NBR | Head port: Axial | Magnet: No
CJ5B10SR-150RMounting: Basic | Bore: ø10 mm | Stroke: 150 mm | Packing: NBR | Head port: Axial | Magnet: No
CJ5B10SV-15Mounting: Basic | Bore: ø10 mm | Stroke: 15 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5B10SV-30Mounting: Basic | Bore: ø10 mm | Stroke: 30 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5B10SV-45Mounting: Basic | Bore: ø10 mm | Stroke: 45 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5B10SV-60Mounting: Basic | Bore: ø10 mm | Stroke: 60 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5B10SV-75Mounting: Basic | Bore: ø10 mm | Stroke: 75 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5B10SV-100Mounting: Basic | Bore: ø10 mm | Stroke: 100 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5B10SV-125Mounting: Basic | Bore: ø10 mm | Stroke: 125 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5B10SV-150Mounting: Basic | Bore: ø10 mm | Stroke: 150 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5B10SV-15RMounting: Basic | Bore: ø10 mm | Stroke: 15 mm | Packing: FKM | Head port: Axial | Magnet: No
CJ5B10SV-30RMounting: Basic | Bore: ø10 mm | Stroke: 30 mm | Packing: FKM | Head port: Axial | Magnet: No
CJ5B10SV-45RMounting: Basic | Bore: ø10 mm | Stroke: 45 mm | Packing: FKM | Head port: Axial | Magnet: No
CJ5B10SV-60RMounting: Basic | Bore: ø10 mm | Stroke: 60 mm | Packing: FKM | Head port: Axial | Magnet: No
CJ5B10SV-75RMounting: Basic | Bore: ø10 mm | Stroke: 75 mm | Packing: FKM | Head port: Axial | Magnet: No
CJ5B10SV-100RMounting: Basic | Bore: ø10 mm | Stroke: 100 mm | Packing: FKM | Head port: Axial | Magnet: No
CJ5B10SV-125RMounting: Basic | Bore: ø10 mm | Stroke: 125 mm | Packing: FKM | Head port: Axial | Magnet: No
CJ5B10SV-150RMounting: Basic | Bore: ø10 mm | Stroke: 150 mm | Packing: FKM | Head port: Axial | Magnet: No
CJ5B16SR-15Mounting: Basic | Bore: ø16 mm | Stroke: 15 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5B16SR-30Mounting: Basic | Bore: ø16 mm | Stroke: 30 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5B16SR-45Mounting: Basic | Bore: ø16 mm | Stroke: 45 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5B16SR-60Mounting: Basic | Bore: ø16 mm | Stroke: 60 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5B16SR-75Mounting: Basic | Bore: ø16 mm | Stroke: 75 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5B16SR-100Mounting: Basic | Bore: ø16 mm | Stroke: 100 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5B16SR-125Mounting: Basic | Bore: ø16 mm | Stroke: 125 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5B16SR-150Mounting: Basic | Bore: ø16 mm | Stroke: 150 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5B16SR-175Mounting: Basic | Bore: ø16 mm | Stroke: 175 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5B16SR-200Mounting: Basic | Bore: ø16 mm | Stroke: 200 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5B16SR-15RMounting: Basic | Bore: ø16 mm | Stroke: 15 mm | Packing: NBR | Head port: Axial | Magnet: No
CJ5B16SR-30RMounting: Basic | Bore: ø16 mm | Stroke: 30 mm | Packing: NBR | Head port: Axial | Magnet: No
CJ5B16SR-45RMounting: Basic | Bore: ø16 mm | Stroke: 45 mm | Packing: NBR | Head port: Axial | Magnet: No
CJ5B16SR-60RMounting: Basic | Bore: ø16 mm | Stroke: 60 mm | Packing: NBR | Head port: Axial | Magnet: No
CJ5B16SR-75RMounting: Basic | Bore: ø16 mm | Stroke: 75 mm | Packing: NBR | Head port: Axial | Magnet: No
CJ5B16SR-100RMounting: Basic | Bore: ø16 mm | Stroke: 100 mm | Packing: NBR | Head port: Axial | Magnet: No
CJ5B16SR-125RMounting: Basic | Bore: ø16 mm | Stroke: 125 mm | Packing: NBR | Head port: Axial | Magnet: No
CJ5B16SR-150RMounting: Basic | Bore: ø16 mm | Stroke: 150 mm | Packing: NBR | Head port: Axial | Magnet: No
CJ5B16SR-175RMounting: Basic | Bore: ø16 mm | Stroke: 175 mm | Packing: NBR | Head port: Axial | Magnet: No
CJ5B16SR-200RMounting: Basic | Bore: ø16 mm | Stroke: 200 mm | Packing: NBR | Head port: Axial | Magnet: No
CJ5B16SV-15Mounting: Basic | Bore: ø16 mm | Stroke: 15 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5B16SV-30Mounting: Basic | Bore: ø16 mm | Stroke: 30 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5B16SV-45Mounting: Basic | Bore: ø16 mm | Stroke: 45 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5B16SV-60Mounting: Basic | Bore: ø16 mm | Stroke: 60 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5B16SV-75Mounting: Basic | Bore: ø16 mm | Stroke: 75 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5B16SV-100Mounting: Basic | Bore: ø16 mm | Stroke: 100 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5B16SV-125Mounting: Basic | Bore: ø16 mm | Stroke: 125 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5B16SV-150Mounting: Basic | Bore: ø16 mm | Stroke: 150 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5B16SV-175Mounting: Basic | Bore: ø16 mm | Stroke: 175 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5B16SV-200Mounting: Basic | Bore: ø16 mm | Stroke: 200 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5B16SV-15RMounting: Basic | Bore: ø16 mm | Stroke: 15 mm | Packing: FKM | Head port: Axial | Magnet: No
CJ5B16SV-30RMounting: Basic | Bore: ø16 mm | Stroke: 30 mm | Packing: FKM | Head port: Axial | Magnet: No
CJ5B16SV-45RMounting: Basic | Bore: ø16 mm | Stroke: 45 mm | Packing: FKM | Head port: Axial | Magnet: No
CJ5B16SV-60RMounting: Basic | Bore: ø16 mm | Stroke: 60 mm | Packing: FKM | Head port: Axial | Magnet: No
CJ5B16SV-75RMounting: Basic | Bore: ø16 mm | Stroke: 75 mm | Packing: FKM | Head port: Axial | Magnet: No
CJ5B16SV-100RMounting: Basic | Bore: ø16 mm | Stroke: 100 mm | Packing: FKM | Head port: Axial | Magnet: No
CJ5B16SV-125RMounting: Basic | Bore: ø16 mm | Stroke: 125 mm | Packing: FKM | Head port: Axial | Magnet: No
CJ5B16SV-150RMounting: Basic | Bore: ø16 mm | Stroke: 150 mm | Packing: FKM | Head port: Axial | Magnet: No
CJ5B16SV-175RMounting: Basic | Bore: ø16 mm | Stroke: 175 mm | Packing: FKM | Head port: Axial | Magnet: No
CJ5B16SV-200RMounting: Basic | Bore: ø16 mm | Stroke: 200 mm | Packing: FKM | Head port: Axial | Magnet: No
CJ5L10SR-15Mounting: Axial foot | Bore: ø10 mm | Stroke: 15 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5L10SR-30Mounting: Axial foot | Bore: ø10 mm | Stroke: 30 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5L10SR-45Mounting: Axial foot | Bore: ø10 mm | Stroke: 45 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5L10SR-60Mounting: Axial foot | Bore: ø10 mm | Stroke: 60 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5L10SR-75Mounting: Axial foot | Bore: ø10 mm | Stroke: 75 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5L10SR-100Mounting: Axial foot | Bore: ø10 mm | Stroke: 100 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5L10SR-125Mounting: Axial foot | Bore: ø10 mm | Stroke: 125 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5L10SR-150Mounting: Axial foot | Bore: ø10 mm | Stroke: 150 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5L10SR-15RMounting: Axial foot | Bore: ø10 mm | Stroke: 15 mm | Packing: NBR | Head port: Axial | Magnet: No
CJ5L10SR-30RMounting: Axial foot | Bore: ø10 mm | Stroke: 30 mm | Packing: NBR | Head port: Axial | Magnet: No
CJ5L10SR-45RMounting: Axial foot | Bore: ø10 mm | Stroke: 45 mm | Packing: NBR | Head port: Axial | Magnet: No
CJ5L10SR-60RMounting: Axial foot | Bore: ø10 mm | Stroke: 60 mm | Packing: NBR | Head port: Axial | Magnet: No
CJ5L10SR-75RMounting: Axial foot | Bore: ø10 mm | Stroke: 75 mm | Packing: NBR | Head port: Axial | Magnet: No
CJ5L10SR-100RMounting: Axial foot | Bore: ø10 mm | Stroke: 100 mm | Packing: NBR | Head port: Axial | Magnet: No
CJ5L10SR-125RMounting: Axial foot | Bore: ø10 mm | Stroke: 125 mm | Packing: NBR | Head port: Axial | Magnet: No
CJ5L10SR-150RMounting: Axial foot | Bore: ø10 mm | Stroke: 150 mm | Packing: NBR | Head port: Axial | Magnet: No
CJ5L10SV-15Mounting: Axial foot | Bore: ø10 mm | Stroke: 15 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5L10SV-30Mounting: Axial foot | Bore: ø10 mm | Stroke: 30 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5L10SV-45Mounting: Axial foot | Bore: ø10 mm | Stroke: 45 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5L10SV-60Mounting: Axial foot | Bore: ø10 mm | Stroke: 60 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5L10SV-75Mounting: Axial foot | Bore: ø10 mm | Stroke: 75 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5L10SV-100Mounting: Axial foot | Bore: ø10 mm | Stroke: 100 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5L10SV-125Mounting: Axial foot | Bore: ø10 mm | Stroke: 125 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5L10SV-150Mounting: Axial foot | Bore: ø10 mm | Stroke: 150 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5L10SV-15RMounting: Axial foot | Bore: ø10 mm | Stroke: 15 mm | Packing: FKM | Head port: Axial | Magnet: No
CJ5L10SV-30RMounting: Axial foot | Bore: ø10 mm | Stroke: 30 mm | Packing: FKM | Head port: Axial | Magnet: No
CJ5L10SV-45RMounting: Axial foot | Bore: ø10 mm | Stroke: 45 mm | Packing: FKM | Head port: Axial | Magnet: No
CJ5L10SV-60RMounting: Axial foot | Bore: ø10 mm | Stroke: 60 mm | Packing: FKM | Head port: Axial | Magnet: No
CJ5L10SV-75RMounting: Axial foot | Bore: ø10 mm | Stroke: 75 mm | Packing: FKM | Head port: Axial | Magnet: No
CJ5L10SV-100RMounting: Axial foot | Bore: ø10 mm | Stroke: 100 mm | Packing: FKM | Head port: Axial | Magnet: No
CJ5L10SV-125RMounting: Axial foot | Bore: ø10 mm | Stroke: 125 mm | Packing: FKM | Head port: Axial | Magnet: No
CJ5L10SV-150RMounting: Axial foot | Bore: ø10 mm | Stroke: 150 mm | Packing: FKM | Head port: Axial | Magnet: No
CJ5L16SR-15Mounting: Axial foot | Bore: ø16 mm | Stroke: 15 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5L16SR-30Mounting: Axial foot | Bore: ø16 mm | Stroke: 30 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5L16SR-45Mounting: Axial foot | Bore: ø16 mm | Stroke: 45 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5L16SR-60Mounting: Axial foot | Bore: ø16 mm | Stroke: 60 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5L16SR-75Mounting: Axial foot | Bore: ø16 mm | Stroke: 75 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5L16SR-100Mounting: Axial foot | Bore: ø16 mm | Stroke: 100 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5L16SR-125Mounting: Axial foot | Bore: ø16 mm | Stroke: 125 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5L16SR-150Mounting: Axial foot | Bore: ø16 mm | Stroke: 150 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5L16SR-175Mounting: Axial foot | Bore: ø16 mm | Stroke: 175 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5L16SR-200Mounting: Axial foot | Bore: ø16 mm | Stroke: 200 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5L16SR-15RMounting: Axial foot | Bore: ø16 mm | Stroke: 15 mm | Packing: NBR | Head port: Axial | Magnet: No
CJ5L16SR-30RMounting: Axial foot | Bore: ø16 mm | Stroke: 30 mm | Packing: NBR | Head port: Axial | Magnet: No
CJ5L16SR-45RMounting: Axial foot | Bore: ø16 mm | Stroke: 45 mm | Packing: NBR | Head port: Axial | Magnet: No
CJ5L16SR-60RMounting: Axial foot | Bore: ø16 mm | Stroke: 60 mm | Packing: NBR | Head port: Axial | Magnet: No
CJ5L16SR-75RMounting: Axial foot | Bore: ø16 mm | Stroke: 75 mm | Packing: NBR | Head port: Axial | Magnet: No
CJ5L16SR-100RMounting: Axial foot | Bore: ø16 mm | Stroke: 100 mm | Packing: NBR | Head port: Axial | Magnet: No
CJ5L16SR-125RMounting: Axial foot | Bore: ø16 mm | Stroke: 125 mm | Packing: NBR | Head port: Axial | Magnet: No
CJ5L16SR-150RMounting: Axial foot | Bore: ø16 mm | Stroke: 150 mm | Packing: NBR | Head port: Axial | Magnet: No
CJ5L16SR-175RMounting: Axial foot | Bore: ø16 mm | Stroke: 175 mm | Packing: NBR | Head port: Axial | Magnet: No
CJ5L16SR-200RMounting: Axial foot | Bore: ø16 mm | Stroke: 200 mm | Packing: NBR | Head port: Axial | Magnet: No
CJ5L16SV-15Mounting: Axial foot | Bore: ø16 mm | Stroke: 15 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5L16SV-30Mounting: Axial foot | Bore: ø16 mm | Stroke: 30 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5L16SV-45Mounting: Axial foot | Bore: ø16 mm | Stroke: 45 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5L16SV-60Mounting: Axial foot | Bore: ø16 mm | Stroke: 60 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5L16SV-75Mounting: Axial foot | Bore: ø16 mm | Stroke: 75 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5L16SV-100Mounting: Axial foot | Bore: ø16 mm | Stroke: 100 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5L16SV-125Mounting: Axial foot | Bore: ø16 mm | Stroke: 125 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5L16SV-150Mounting: Axial foot | Bore: ø16 mm | Stroke: 150 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5L16SV-175Mounting: Axial foot | Bore: ø16 mm | Stroke: 175 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5L16SV-200Mounting: Axial foot | Bore: ø16 mm | Stroke: 200 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5L16SV-15RMounting: Axial foot | Bore: ø16 mm | Stroke: 15 mm | Packing: FKM | Head port: Axial | Magnet: No
CJ5L16SV-30RMounting: Axial foot | Bore: ø16 mm | Stroke: 30 mm | Packing: FKM | Head port: Axial | Magnet: No
CJ5L16SV-45RMounting: Axial foot | Bore: ø16 mm | Stroke: 45 mm | Packing: FKM | Head port: Axial | Magnet: No
CJ5L16SV-60RMounting: Axial foot | Bore: ø16 mm | Stroke: 60 mm | Packing: FKM | Head port: Axial | Magnet: No
CJ5L16SV-75RMounting: Axial foot | Bore: ø16 mm | Stroke: 75 mm | Packing: FKM | Head port: Axial | Magnet: No
CJ5L16SV-100RMounting: Axial foot | Bore: ø16 mm | Stroke: 100 mm | Packing: FKM | Head port: Axial | Magnet: No
CJ5L16SV-125RMounting: Axial foot | Bore: ø16 mm | Stroke: 125 mm | Packing: FKM | Head port: Axial | Magnet: No
CJ5L16SV-150RMounting: Axial foot | Bore: ø16 mm | Stroke: 150 mm | Packing: FKM | Head port: Axial | Magnet: No
CJ5L16SV-175RMounting: Axial foot | Bore: ø16 mm | Stroke: 175 mm | Packing: FKM | Head port: Axial | Magnet: No
CJ5L16SV-200RMounting: Axial foot | Bore: ø16 mm | Stroke: 200 mm | Packing: FKM | Head port: Axial | Magnet: No
CJ5F10SR-15Mounting: Rod flange | Bore: ø10 mm | Stroke: 15 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5F10SR-30Mounting: Rod flange | Bore: ø10 mm | Stroke: 30 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5F10SR-45Mounting: Rod flange | Bore: ø10 mm | Stroke: 45 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5F10SR-60Mounting: Rod flange | Bore: ø10 mm | Stroke: 60 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5F10SR-75Mounting: Rod flange | Bore: ø10 mm | Stroke: 75 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5F10SR-100Mounting: Rod flange | Bore: ø10 mm | Stroke: 100 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5F10SR-125Mounting: Rod flange | Bore: ø10 mm | Stroke: 125 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5F10SR-150Mounting: Rod flange | Bore: ø10 mm | Stroke: 150 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5F10SR-15RMounting: Rod flange | Bore: ø10 mm | Stroke: 15 mm | Packing: NBR | Head port: Axial | Magnet: No
CJ5F10SR-30RMounting: Rod flange | Bore: ø10 mm | Stroke: 30 mm | Packing: NBR | Head port: Axial | Magnet: No
CJ5F10SR-45RMounting: Rod flange | Bore: ø10 mm | Stroke: 45 mm | Packing: NBR | Head port: Axial | Magnet: No
CJ5F10SR-60RMounting: Rod flange | Bore: ø10 mm | Stroke: 60 mm | Packing: NBR | Head port: Axial | Magnet: No
CJ5F10SR-75RMounting: Rod flange | Bore: ø10 mm | Stroke: 75 mm | Packing: NBR | Head port: Axial | Magnet: No
CJ5F10SR-100RMounting: Rod flange | Bore: ø10 mm | Stroke: 100 mm | Packing: NBR | Head port: Axial | Magnet: No
CJ5F10SR-125RMounting: Rod flange | Bore: ø10 mm | Stroke: 125 mm | Packing: NBR | Head port: Axial | Magnet: No
CJ5F10SR-150RMounting: Rod flange | Bore: ø10 mm | Stroke: 150 mm | Packing: NBR | Head port: Axial | Magnet: No
CJ5F10SV-15Mounting: Rod flange | Bore: ø10 mm | Stroke: 15 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5F10SV-30Mounting: Rod flange | Bore: ø10 mm | Stroke: 30 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5F10SV-45Mounting: Rod flange | Bore: ø10 mm | Stroke: 45 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5F10SV-60Mounting: Rod flange | Bore: ø10 mm | Stroke: 60 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5F10SV-75Mounting: Rod flange | Bore: ø10 mm | Stroke: 75 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5F10SV-100Mounting: Rod flange | Bore: ø10 mm | Stroke: 100 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5F10SV-125Mounting: Rod flange | Bore: ø10 mm | Stroke: 125 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5F10SV-150Mounting: Rod flange | Bore: ø10 mm | Stroke: 150 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5F10SV-15RMounting: Rod flange | Bore: ø10 mm | Stroke: 15 mm | Packing: FKM | Head port: Axial | Magnet: No
CJ5F10SV-30RMounting: Rod flange | Bore: ø10 mm | Stroke: 30 mm | Packing: FKM | Head port: Axial | Magnet: No
CJ5F10SV-45RMounting: Rod flange | Bore: ø10 mm | Stroke: 45 mm | Packing: FKM | Head port: Axial | Magnet: No
CJ5F10SV-60RMounting: Rod flange | Bore: ø10 mm | Stroke: 60 mm | Packing: FKM | Head port: Axial | Magnet: No
CJ5F10SV-75RMounting: Rod flange | Bore: ø10 mm | Stroke: 75 mm | Packing: FKM | Head port: Axial | Magnet: No
CJ5F10SV-100RMounting: Rod flange | Bore: ø10 mm | Stroke: 100 mm | Packing: FKM | Head port: Axial | Magnet: No
CJ5F10SV-125RMounting: Rod flange | Bore: ø10 mm | Stroke: 125 mm | Packing: FKM | Head port: Axial | Magnet: No
CJ5F10SV-150RMounting: Rod flange | Bore: ø10 mm | Stroke: 150 mm | Packing: FKM | Head port: Axial | Magnet: No
CJ5F16SR-15Mounting: Rod flange | Bore: ø16 mm | Stroke: 15 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5F16SR-30Mounting: Rod flange | Bore: ø16 mm | Stroke: 30 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5F16SR-45Mounting: Rod flange | Bore: ø16 mm | Stroke: 45 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5F16SR-60Mounting: Rod flange | Bore: ø16 mm | Stroke: 60 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5F16SR-75Mounting: Rod flange | Bore: ø16 mm | Stroke: 75 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5F16SR-100Mounting: Rod flange | Bore: ø16 mm | Stroke: 100 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5F16SR-125Mounting: Rod flange | Bore: ø16 mm | Stroke: 125 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5F16SR-150Mounting: Rod flange | Bore: ø16 mm | Stroke: 150 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5F16SR-175Mounting: Rod flange | Bore: ø16 mm | Stroke: 175 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5F16SR-200Mounting: Rod flange | Bore: ø16 mm | Stroke: 200 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5F16SR-15RMounting: Rod flange | Bore: ø16 mm | Stroke: 15 mm | Packing: NBR | Head port: Axial | Magnet: No
CJ5F16SR-30RMounting: Rod flange | Bore: ø16 mm | Stroke: 30 mm | Packing: NBR | Head port: Axial | Magnet: No
CJ5F16SR-45RMounting: Rod flange | Bore: ø16 mm | Stroke: 45 mm | Packing: NBR | Head port: Axial | Magnet: No
CJ5F16SR-60RMounting: Rod flange | Bore: ø16 mm | Stroke: 60 mm | Packing: NBR | Head port: Axial | Magnet: No
CJ5F16SR-75RMounting: Rod flange | Bore: ø16 mm | Stroke: 75 mm | Packing: NBR | Head port: Axial | Magnet: No
CJ5F16SR-100RMounting: Rod flange | Bore: ø16 mm | Stroke: 100 mm | Packing: NBR | Head port: Axial | Magnet: No
CJ5F16SR-125RMounting: Rod flange | Bore: ø16 mm | Stroke: 125 mm | Packing: NBR | Head port: Axial | Magnet: No
CJ5F16SR-150RMounting: Rod flange | Bore: ø16 mm | Stroke: 150 mm | Packing: NBR | Head port: Axial | Magnet: No
CJ5F16SR-175RMounting: Rod flange | Bore: ø16 mm | Stroke: 175 mm | Packing: NBR | Head port: Axial | Magnet: No
CJ5F16SR-200RMounting: Rod flange | Bore: ø16 mm | Stroke: 200 mm | Packing: NBR | Head port: Axial | Magnet: No
CJ5F16SV-15Mounting: Rod flange | Bore: ø16 mm | Stroke: 15 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5F16SV-30Mounting: Rod flange | Bore: ø16 mm | Stroke: 30 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5F16SV-45Mounting: Rod flange | Bore: ø16 mm | Stroke: 45 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5F16SV-60Mounting: Rod flange | Bore: ø16 mm | Stroke: 60 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5F16SV-75Mounting: Rod flange | Bore: ø16 mm | Stroke: 75 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5F16SV-100Mounting: Rod flange | Bore: ø16 mm | Stroke: 100 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5F16SV-125Mounting: Rod flange | Bore: ø16 mm | Stroke: 125 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5F16SV-150Mounting: Rod flange | Bore: ø16 mm | Stroke: 150 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5F16SV-175Mounting: Rod flange | Bore: ø16 mm | Stroke: 175 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5F16SV-200Mounting: Rod flange | Bore: ø16 mm | Stroke: 200 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5F16SV-15RMounting: Rod flange | Bore: ø16 mm | Stroke: 15 mm | Packing: FKM | Head port: Axial | Magnet: No
CJ5F16SV-30RMounting: Rod flange | Bore: ø16 mm | Stroke: 30 mm | Packing: FKM | Head port: Axial | Magnet: No
CJ5F16SV-45RMounting: Rod flange | Bore: ø16 mm | Stroke: 45 mm | Packing: FKM | Head port: Axial | Magnet: No
CJ5F16SV-60RMounting: Rod flange | Bore: ø16 mm | Stroke: 60 mm | Packing: FKM | Head port: Axial | Magnet: No
CJ5F16SV-75RMounting: Rod flange | Bore: ø16 mm | Stroke: 75 mm | Packing: FKM | Head port: Axial | Magnet: No
CJ5F16SV-100RMounting: Rod flange | Bore: ø16 mm | Stroke: 100 mm | Packing: FKM | Head port: Axial | Magnet: No
CJ5F16SV-125RMounting: Rod flange | Bore: ø16 mm | Stroke: 125 mm | Packing: FKM | Head port: Axial | Magnet: No
CJ5F16SV-150RMounting: Rod flange | Bore: ø16 mm | Stroke: 150 mm | Packing: FKM | Head port: Axial | Magnet: No
CJ5F16SV-175RMounting: Rod flange | Bore: ø16 mm | Stroke: 175 mm | Packing: FKM | Head port: Axial | Magnet: No
CJ5F16SV-200RMounting: Rod flange | Bore: ø16 mm | Stroke: 200 mm | Packing: FKM | Head port: Axial | Magnet: No
CJ5D10SR-15Mounting: Double clevis | Bore: ø10 mm | Stroke: 15 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5D10SR-30Mounting: Double clevis | Bore: ø10 mm | Stroke: 30 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5D10SR-45Mounting: Double clevis | Bore: ø10 mm | Stroke: 45 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5D10SR-60Mounting: Double clevis | Bore: ø10 mm | Stroke: 60 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5D10SR-75Mounting: Double clevis | Bore: ø10 mm | Stroke: 75 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5D10SR-100Mounting: Double clevis | Bore: ø10 mm | Stroke: 100 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5D10SR-125Mounting: Double clevis | Bore: ø10 mm | Stroke: 125 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5D10SR-150Mounting: Double clevis | Bore: ø10 mm | Stroke: 150 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5D10SV-15Mounting: Double clevis | Bore: ø10 mm | Stroke: 15 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5D10SV-30Mounting: Double clevis | Bore: ø10 mm | Stroke: 30 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5D10SV-45Mounting: Double clevis | Bore: ø10 mm | Stroke: 45 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5D10SV-60Mounting: Double clevis | Bore: ø10 mm | Stroke: 60 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5D10SV-75Mounting: Double clevis | Bore: ø10 mm | Stroke: 75 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5D10SV-100Mounting: Double clevis | Bore: ø10 mm | Stroke: 100 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5D10SV-125Mounting: Double clevis | Bore: ø10 mm | Stroke: 125 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5D10SV-150Mounting: Double clevis | Bore: ø10 mm | Stroke: 150 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5D16SR-15Mounting: Double clevis | Bore: ø16 mm | Stroke: 15 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5D16SR-30Mounting: Double clevis | Bore: ø16 mm | Stroke: 30 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5D16SR-45Mounting: Double clevis | Bore: ø16 mm | Stroke: 45 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5D16SR-60Mounting: Double clevis | Bore: ø16 mm | Stroke: 60 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5D16SR-75Mounting: Double clevis | Bore: ø16 mm | Stroke: 75 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5D16SR-100Mounting: Double clevis | Bore: ø16 mm | Stroke: 100 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5D16SR-125Mounting: Double clevis | Bore: ø16 mm | Stroke: 125 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5D16SR-150Mounting: Double clevis | Bore: ø16 mm | Stroke: 150 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5D16SR-175Mounting: Double clevis | Bore: ø16 mm | Stroke: 175 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5D16SR-200Mounting: Double clevis | Bore: ø16 mm | Stroke: 200 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: No
CJ5D16SV-15Mounting: Double clevis | Bore: ø16 mm | Stroke: 15 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5D16SV-30Mounting: Double clevis | Bore: ø16 mm | Stroke: 30 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5D16SV-45Mounting: Double clevis | Bore: ø16 mm | Stroke: 45 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5D16SV-60Mounting: Double clevis | Bore: ø16 mm | Stroke: 60 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5D16SV-75Mounting: Double clevis | Bore: ø16 mm | Stroke: 75 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5D16SV-100Mounting: Double clevis | Bore: ø16 mm | Stroke: 100 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5D16SV-125Mounting: Double clevis | Bore: ø16 mm | Stroke: 125 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5D16SV-150Mounting: Double clevis | Bore: ø16 mm | Stroke: 150 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5D16SV-175Mounting: Double clevis | Bore: ø16 mm | Stroke: 175 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CJ5D16SV-200Mounting: Double clevis | Bore: ø16 mm | Stroke: 200 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: No
CDJ5B10SR-15-BMounting: Basic | Bore: ø10 mm | Stroke: 15 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5B10SR-30-BMounting: Basic | Bore: ø10 mm | Stroke: 30 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5B10SR-45-BMounting: Basic | Bore: ø10 mm | Stroke: 45 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5B10SR-60-BMounting: Basic | Bore: ø10 mm | Stroke: 60 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5B10SR-75-BMounting: Basic | Bore: ø10 mm | Stroke: 75 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5B10SR-100-BMounting: Basic | Bore: ø10 mm | Stroke: 100 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5B10SR-125-BMounting: Basic | Bore: ø10 mm | Stroke: 125 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5B10SR-150-BMounting: Basic | Bore: ø10 mm | Stroke: 150 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5B10SR-15R-BMounting: Basic | Bore: ø10 mm | Stroke: 15 mm | Packing: NBR | Head port: Axial | Magnet: Yes
CDJ5B10SR-30R-BMounting: Basic | Bore: ø10 mm | Stroke: 30 mm | Packing: NBR | Head port: Axial | Magnet: Yes
CDJ5B10SR-45R-BMounting: Basic | Bore: ø10 mm | Stroke: 45 mm | Packing: NBR | Head port: Axial | Magnet: Yes
CDJ5B10SR-60R-BMounting: Basic | Bore: ø10 mm | Stroke: 60 mm | Packing: NBR | Head port: Axial | Magnet: Yes
CDJ5B10SR-75R-BMounting: Basic | Bore: ø10 mm | Stroke: 75 mm | Packing: NBR | Head port: Axial | Magnet: Yes
CDJ5B10SR-100R-BMounting: Basic | Bore: ø10 mm | Stroke: 100 mm | Packing: NBR | Head port: Axial | Magnet: Yes
CDJ5B10SR-125R-BMounting: Basic | Bore: ø10 mm | Stroke: 125 mm | Packing: NBR | Head port: Axial | Magnet: Yes
CDJ5B10SR-150R-BMounting: Basic | Bore: ø10 mm | Stroke: 150 mm | Packing: NBR | Head port: Axial | Magnet: Yes
CDJ5B10SV-15-BMounting: Basic | Bore: ø10 mm | Stroke: 15 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5B10SV-30-BMounting: Basic | Bore: ø10 mm | Stroke: 30 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5B10SV-45-BMounting: Basic | Bore: ø10 mm | Stroke: 45 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5B10SV-60-BMounting: Basic | Bore: ø10 mm | Stroke: 60 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5B10SV-75-BMounting: Basic | Bore: ø10 mm | Stroke: 75 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5B10SV-100-BMounting: Basic | Bore: ø10 mm | Stroke: 100 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5B10SV-125-BMounting: Basic | Bore: ø10 mm | Stroke: 125 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5B10SV-150-BMounting: Basic | Bore: ø10 mm | Stroke: 150 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5B10SV-15R-BMounting: Basic | Bore: ø10 mm | Stroke: 15 mm | Packing: FKM | Head port: Axial | Magnet: Yes
CDJ5B10SV-30R-BMounting: Basic | Bore: ø10 mm | Stroke: 30 mm | Packing: FKM | Head port: Axial | Magnet: Yes
CDJ5B10SV-45R-BMounting: Basic | Bore: ø10 mm | Stroke: 45 mm | Packing: FKM | Head port: Axial | Magnet: Yes
CDJ5B10SV-60R-BMounting: Basic | Bore: ø10 mm | Stroke: 60 mm | Packing: FKM | Head port: Axial | Magnet: Yes
CDJ5B10SV-75R-BMounting: Basic | Bore: ø10 mm | Stroke: 75 mm | Packing: FKM | Head port: Axial | Magnet: Yes
CDJ5B10SV-100R-BMounting: Basic | Bore: ø10 mm | Stroke: 100 mm | Packing: FKM | Head port: Axial | Magnet: Yes
CDJ5B10SV-125R-BMounting: Basic | Bore: ø10 mm | Stroke: 125 mm | Packing: FKM | Head port: Axial | Magnet: Yes
CDJ5B10SV-150R-BMounting: Basic | Bore: ø10 mm | Stroke: 150 mm | Packing: FKM | Head port: Axial | Magnet: Yes
CDJ5B16SR-15-BMounting: Basic | Bore: ø16 mm | Stroke: 15 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5B16SR-30-BMounting: Basic | Bore: ø16 mm | Stroke: 30 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5B16SR-45-BMounting: Basic | Bore: ø16 mm | Stroke: 45 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5B16SR-60-BMounting: Basic | Bore: ø16 mm | Stroke: 60 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5B16SR-75-BMounting: Basic | Bore: ø16 mm | Stroke: 75 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5B16SR-100-BMounting: Basic | Bore: ø16 mm | Stroke: 100 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5B16SR-125-BMounting: Basic | Bore: ø16 mm | Stroke: 125 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5B16SR-150-BMounting: Basic | Bore: ø16 mm | Stroke: 150 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5B16SR-175-BMounting: Basic | Bore: ø16 mm | Stroke: 175 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5B16SR-200-BMounting: Basic | Bore: ø16 mm | Stroke: 200 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5B16SR-15R-BMounting: Basic | Bore: ø16 mm | Stroke: 15 mm | Packing: NBR | Head port: Axial | Magnet: Yes
CDJ5B16SR-30R-BMounting: Basic | Bore: ø16 mm | Stroke: 30 mm | Packing: NBR | Head port: Axial | Magnet: Yes
CDJ5B16SR-45R-BMounting: Basic | Bore: ø16 mm | Stroke: 45 mm | Packing: NBR | Head port: Axial | Magnet: Yes
CDJ5B16SR-60R-BMounting: Basic | Bore: ø16 mm | Stroke: 60 mm | Packing: NBR | Head port: Axial | Magnet: Yes
CDJ5B16SR-75R-BMounting: Basic | Bore: ø16 mm | Stroke: 75 mm | Packing: NBR | Head port: Axial | Magnet: Yes
CDJ5B16SR-100R-BMounting: Basic | Bore: ø16 mm | Stroke: 100 mm | Packing: NBR | Head port: Axial | Magnet: Yes
CDJ5B16SR-125R-BMounting: Basic | Bore: ø16 mm | Stroke: 125 mm | Packing: NBR | Head port: Axial | Magnet: Yes
CDJ5B16SR-150R-BMounting: Basic | Bore: ø16 mm | Stroke: 150 mm | Packing: NBR | Head port: Axial | Magnet: Yes
CDJ5B16SR-175R-BMounting: Basic | Bore: ø16 mm | Stroke: 175 mm | Packing: NBR | Head port: Axial | Magnet: Yes
CDJ5B16SR-200R-BMounting: Basic | Bore: ø16 mm | Stroke: 200 mm | Packing: NBR | Head port: Axial | Magnet: Yes
CDJ5B16SV-15-BMounting: Basic | Bore: ø16 mm | Stroke: 15 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5B16SV-30-BMounting: Basic | Bore: ø16 mm | Stroke: 30 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5B16SV-45-BMounting: Basic | Bore: ø16 mm | Stroke: 45 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5B16SV-60-BMounting: Basic | Bore: ø16 mm | Stroke: 60 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5B16SV-75-BMounting: Basic | Bore: ø16 mm | Stroke: 75 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5B16SV-100-BMounting: Basic | Bore: ø16 mm | Stroke: 100 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5B16SV-125-BMounting: Basic | Bore: ø16 mm | Stroke: 125 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5B16SV-150-BMounting: Basic | Bore: ø16 mm | Stroke: 150 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5B16SV-175-BMounting: Basic | Bore: ø16 mm | Stroke: 175 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5B16SV-200-BMounting: Basic | Bore: ø16 mm | Stroke: 200 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5B16SV-15R-BMounting: Basic | Bore: ø16 mm | Stroke: 15 mm | Packing: FKM | Head port: Axial | Magnet: Yes
CDJ5B16SV-30R-BMounting: Basic | Bore: ø16 mm | Stroke: 30 mm | Packing: FKM | Head port: Axial | Magnet: Yes
CDJ5B16SV-45R-BMounting: Basic | Bore: ø16 mm | Stroke: 45 mm | Packing: FKM | Head port: Axial | Magnet: Yes
CDJ5B16SV-60R-BMounting: Basic | Bore: ø16 mm | Stroke: 60 mm | Packing: FKM | Head port: Axial | Magnet: Yes
CDJ5B16SV-75R-BMounting: Basic | Bore: ø16 mm | Stroke: 75 mm | Packing: FKM | Head port: Axial | Magnet: Yes
CDJ5B16SV-100R-BMounting: Basic | Bore: ø16 mm | Stroke: 100 mm | Packing: FKM | Head port: Axial | Magnet: Yes
CDJ5B16SV-125R-BMounting: Basic | Bore: ø16 mm | Stroke: 125 mm | Packing: FKM | Head port: Axial | Magnet: Yes
CDJ5B16SV-150R-BMounting: Basic | Bore: ø16 mm | Stroke: 150 mm | Packing: FKM | Head port: Axial | Magnet: Yes
CDJ5B16SV-175R-BMounting: Basic | Bore: ø16 mm | Stroke: 175 mm | Packing: FKM | Head port: Axial | Magnet: Yes
CDJ5B16SV-200R-BMounting: Basic | Bore: ø16 mm | Stroke: 200 mm | Packing: FKM | Head port: Axial | Magnet: Yes
CDJ5L10SR-15-BMounting: Axial foot | Bore: ø10 mm | Stroke: 15 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5L10SR-30-BMounting: Axial foot | Bore: ø10 mm | Stroke: 30 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5L10SR-45-BMounting: Axial foot | Bore: ø10 mm | Stroke: 45 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5L10SR-60-BMounting: Axial foot | Bore: ø10 mm | Stroke: 60 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5L10SR-75-BMounting: Axial foot | Bore: ø10 mm | Stroke: 75 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5L10SR-100-BMounting: Axial foot | Bore: ø10 mm | Stroke: 100 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5L10SR-125-BMounting: Axial foot | Bore: ø10 mm | Stroke: 125 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5L10SR-150-BMounting: Axial foot | Bore: ø10 mm | Stroke: 150 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5L10SR-15R-BMounting: Axial foot | Bore: ø10 mm | Stroke: 15 mm | Packing: NBR | Head port: Axial | Magnet: Yes
CDJ5L10SR-30R-BMounting: Axial foot | Bore: ø10 mm | Stroke: 30 mm | Packing: NBR | Head port: Axial | Magnet: Yes
CDJ5L10SR-45R-BMounting: Axial foot | Bore: ø10 mm | Stroke: 45 mm | Packing: NBR | Head port: Axial | Magnet: Yes
CDJ5L10SR-60R-BMounting: Axial foot | Bore: ø10 mm | Stroke: 60 mm | Packing: NBR | Head port: Axial | Magnet: Yes
CDJ5L10SR-75R-BMounting: Axial foot | Bore: ø10 mm | Stroke: 75 mm | Packing: NBR | Head port: Axial | Magnet: Yes
CDJ5L10SR-100R-BMounting: Axial foot | Bore: ø10 mm | Stroke: 100 mm | Packing: NBR | Head port: Axial | Magnet: Yes
CDJ5L10SR-125R-BMounting: Axial foot | Bore: ø10 mm | Stroke: 125 mm | Packing: NBR | Head port: Axial | Magnet: Yes
CDJ5L10SR-150R-BMounting: Axial foot | Bore: ø10 mm | Stroke: 150 mm | Packing: NBR | Head port: Axial | Magnet: Yes
CDJ5L10SV-15-BMounting: Axial foot | Bore: ø10 mm | Stroke: 15 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5L10SV-30-BMounting: Axial foot | Bore: ø10 mm | Stroke: 30 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5L10SV-45-BMounting: Axial foot | Bore: ø10 mm | Stroke: 45 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5L10SV-60-BMounting: Axial foot | Bore: ø10 mm | Stroke: 60 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5L10SV-75-BMounting: Axial foot | Bore: ø10 mm | Stroke: 75 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5L10SV-100-BMounting: Axial foot | Bore: ø10 mm | Stroke: 100 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5L10SV-125-BMounting: Axial foot | Bore: ø10 mm | Stroke: 125 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5L10SV-150-BMounting: Axial foot | Bore: ø10 mm | Stroke: 150 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5L10SV-15R-BMounting: Axial foot | Bore: ø10 mm | Stroke: 15 mm | Packing: FKM | Head port: Axial | Magnet: Yes
CDJ5L10SV-30R-BMounting: Axial foot | Bore: ø10 mm | Stroke: 30 mm | Packing: FKM | Head port: Axial | Magnet: Yes
CDJ5L10SV-45R-BMounting: Axial foot | Bore: ø10 mm | Stroke: 45 mm | Packing: FKM | Head port: Axial | Magnet: Yes
CDJ5L10SV-60R-BMounting: Axial foot | Bore: ø10 mm | Stroke: 60 mm | Packing: FKM | Head port: Axial | Magnet: Yes
CDJ5L10SV-75R-BMounting: Axial foot | Bore: ø10 mm | Stroke: 75 mm | Packing: FKM | Head port: Axial | Magnet: Yes
CDJ5L10SV-100R-BMounting: Axial foot | Bore: ø10 mm | Stroke: 100 mm | Packing: FKM | Head port: Axial | Magnet: Yes
CDJ5L10SV-125R-BMounting: Axial foot | Bore: ø10 mm | Stroke: 125 mm | Packing: FKM | Head port: Axial | Magnet: Yes
CDJ5L10SV-150R-BMounting: Axial foot | Bore: ø10 mm | Stroke: 150 mm | Packing: FKM | Head port: Axial | Magnet: Yes
CDJ5L16SR-15-BMounting: Axial foot | Bore: ø16 mm | Stroke: 15 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5L16SR-30-BMounting: Axial foot | Bore: ø16 mm | Stroke: 30 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5L16SR-45-BMounting: Axial foot | Bore: ø16 mm | Stroke: 45 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5L16SR-60-BMounting: Axial foot | Bore: ø16 mm | Stroke: 60 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5L16SR-75-BMounting: Axial foot | Bore: ø16 mm | Stroke: 75 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5L16SR-100-BMounting: Axial foot | Bore: ø16 mm | Stroke: 100 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5L16SR-125-BMounting: Axial foot | Bore: ø16 mm | Stroke: 125 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5L16SR-150-BMounting: Axial foot | Bore: ø16 mm | Stroke: 150 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5L16SR-175-BMounting: Axial foot | Bore: ø16 mm | Stroke: 175 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5L16SR-200-BMounting: Axial foot | Bore: ø16 mm | Stroke: 200 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5L16SR-15R-BMounting: Axial foot | Bore: ø16 mm | Stroke: 15 mm | Packing: NBR | Head port: Axial | Magnet: Yes
CDJ5L16SR-30R-BMounting: Axial foot | Bore: ø16 mm | Stroke: 30 mm | Packing: NBR | Head port: Axial | Magnet: Yes
CDJ5L16SR-45R-BMounting: Axial foot | Bore: ø16 mm | Stroke: 45 mm | Packing: NBR | Head port: Axial | Magnet: Yes
CDJ5L16SR-60R-BMounting: Axial foot | Bore: ø16 mm | Stroke: 60 mm | Packing: NBR | Head port: Axial | Magnet: Yes
CDJ5L16SR-75R-BMounting: Axial foot | Bore: ø16 mm | Stroke: 75 mm | Packing: NBR | Head port: Axial | Magnet: Yes
CDJ5L16SR-100R-BMounting: Axial foot | Bore: ø16 mm | Stroke: 100 mm | Packing: NBR | Head port: Axial | Magnet: Yes
CDJ5L16SR-125R-BMounting: Axial foot | Bore: ø16 mm | Stroke: 125 mm | Packing: NBR | Head port: Axial | Magnet: Yes
CDJ5L16SR-150R-BMounting: Axial foot | Bore: ø16 mm | Stroke: 150 mm | Packing: NBR | Head port: Axial | Magnet: Yes
CDJ5L16SR-175R-BMounting: Axial foot | Bore: ø16 mm | Stroke: 175 mm | Packing: NBR | Head port: Axial | Magnet: Yes
CDJ5L16SR-200R-BMounting: Axial foot | Bore: ø16 mm | Stroke: 200 mm | Packing: NBR | Head port: Axial | Magnet: Yes
CDJ5L16SV-15-BMounting: Axial foot | Bore: ø16 mm | Stroke: 15 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5L16SV-30-BMounting: Axial foot | Bore: ø16 mm | Stroke: 30 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5L16SV-45-BMounting: Axial foot | Bore: ø16 mm | Stroke: 45 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5L16SV-60-BMounting: Axial foot | Bore: ø16 mm | Stroke: 60 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5L16SV-75-BMounting: Axial foot | Bore: ø16 mm | Stroke: 75 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5L16SV-100-BMounting: Axial foot | Bore: ø16 mm | Stroke: 100 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5L16SV-125-BMounting: Axial foot | Bore: ø16 mm | Stroke: 125 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5L16SV-150-BMounting: Axial foot | Bore: ø16 mm | Stroke: 150 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5L16SV-175-BMounting: Axial foot | Bore: ø16 mm | Stroke: 175 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5L16SV-200-BMounting: Axial foot | Bore: ø16 mm | Stroke: 200 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5L16SV-15R-BMounting: Axial foot | Bore: ø16 mm | Stroke: 15 mm | Packing: FKM | Head port: Axial | Magnet: Yes
CDJ5L16SV-30R-BMounting: Axial foot | Bore: ø16 mm | Stroke: 30 mm | Packing: FKM | Head port: Axial | Magnet: Yes
CDJ5L16SV-45R-BMounting: Axial foot | Bore: ø16 mm | Stroke: 45 mm | Packing: FKM | Head port: Axial | Magnet: Yes
CDJ5L16SV-60R-BMounting: Axial foot | Bore: ø16 mm | Stroke: 60 mm | Packing: FKM | Head port: Axial | Magnet: Yes
CDJ5L16SV-75R-BMounting: Axial foot | Bore: ø16 mm | Stroke: 75 mm | Packing: FKM | Head port: Axial | Magnet: Yes
CDJ5L16SV-100R-BMounting: Axial foot | Bore: ø16 mm | Stroke: 100 mm | Packing: FKM | Head port: Axial | Magnet: Yes
CDJ5L16SV-125R-BMounting: Axial foot | Bore: ø16 mm | Stroke: 125 mm | Packing: FKM | Head port: Axial | Magnet: Yes
CDJ5L16SV-150R-BMounting: Axial foot | Bore: ø16 mm | Stroke: 150 mm | Packing: FKM | Head port: Axial | Magnet: Yes
CDJ5L16SV-175R-BMounting: Axial foot | Bore: ø16 mm | Stroke: 175 mm | Packing: FKM | Head port: Axial | Magnet: Yes
CDJ5L16SV-200R-BMounting: Axial foot | Bore: ø16 mm | Stroke: 200 mm | Packing: FKM | Head port: Axial | Magnet: Yes
CDJ5F10SR-15-BMounting: Rod flange | Bore: ø10 mm | Stroke: 15 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5F10SR-30-BMounting: Rod flange | Bore: ø10 mm | Stroke: 30 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5F10SR-45-BMounting: Rod flange | Bore: ø10 mm | Stroke: 45 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5F10SR-60-BMounting: Rod flange | Bore: ø10 mm | Stroke: 60 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5F10SR-75-BMounting: Rod flange | Bore: ø10 mm | Stroke: 75 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5F10SR-100-BMounting: Rod flange | Bore: ø10 mm | Stroke: 100 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5F10SR-125-BMounting: Rod flange | Bore: ø10 mm | Stroke: 125 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5F10SR-150-BMounting: Rod flange | Bore: ø10 mm | Stroke: 150 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5F10SR-15R-BMounting: Rod flange | Bore: ø10 mm | Stroke: 15 mm | Packing: NBR | Head port: Axial | Magnet: Yes
CDJ5F10SR-30R-BMounting: Rod flange | Bore: ø10 mm | Stroke: 30 mm | Packing: NBR | Head port: Axial | Magnet: Yes
CDJ5F10SR-45R-BMounting: Rod flange | Bore: ø10 mm | Stroke: 45 mm | Packing: NBR | Head port: Axial | Magnet: Yes
CDJ5F10SR-60R-BMounting: Rod flange | Bore: ø10 mm | Stroke: 60 mm | Packing: NBR | Head port: Axial | Magnet: Yes
CDJ5F10SR-75R-BMounting: Rod flange | Bore: ø10 mm | Stroke: 75 mm | Packing: NBR | Head port: Axial | Magnet: Yes
CDJ5F10SR-100R-BMounting: Rod flange | Bore: ø10 mm | Stroke: 100 mm | Packing: NBR | Head port: Axial | Magnet: Yes
CDJ5F10SR-125R-BMounting: Rod flange | Bore: ø10 mm | Stroke: 125 mm | Packing: NBR | Head port: Axial | Magnet: Yes
CDJ5F10SR-150R-BMounting: Rod flange | Bore: ø10 mm | Stroke: 150 mm | Packing: NBR | Head port: Axial | Magnet: Yes
CDJ5F10SV-15-BMounting: Rod flange | Bore: ø10 mm | Stroke: 15 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5F10SV-30-BMounting: Rod flange | Bore: ø10 mm | Stroke: 30 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5F10SV-45-BMounting: Rod flange | Bore: ø10 mm | Stroke: 45 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5F10SV-60-BMounting: Rod flange | Bore: ø10 mm | Stroke: 60 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5F10SV-75-BMounting: Rod flange | Bore: ø10 mm | Stroke: 75 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5F10SV-100-BMounting: Rod flange | Bore: ø10 mm | Stroke: 100 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5F10SV-125-BMounting: Rod flange | Bore: ø10 mm | Stroke: 125 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5F10SV-150-BMounting: Rod flange | Bore: ø10 mm | Stroke: 150 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5F10SV-15R-BMounting: Rod flange | Bore: ø10 mm | Stroke: 15 mm | Packing: FKM | Head port: Axial | Magnet: Yes
CDJ5F10SV-30R-BMounting: Rod flange | Bore: ø10 mm | Stroke: 30 mm | Packing: FKM | Head port: Axial | Magnet: Yes
CDJ5F10SV-45R-BMounting: Rod flange | Bore: ø10 mm | Stroke: 45 mm | Packing: FKM | Head port: Axial | Magnet: Yes
CDJ5F10SV-60R-BMounting: Rod flange | Bore: ø10 mm | Stroke: 60 mm | Packing: FKM | Head port: Axial | Magnet: Yes
CDJ5F10SV-75R-BMounting: Rod flange | Bore: ø10 mm | Stroke: 75 mm | Packing: FKM | Head port: Axial | Magnet: Yes
CDJ5F10SV-100R-BMounting: Rod flange | Bore: ø10 mm | Stroke: 100 mm | Packing: FKM | Head port: Axial | Magnet: Yes
CDJ5F10SV-125R-BMounting: Rod flange | Bore: ø10 mm | Stroke: 125 mm | Packing: FKM | Head port: Axial | Magnet: Yes
CDJ5F10SV-150R-BMounting: Rod flange | Bore: ø10 mm | Stroke: 150 mm | Packing: FKM | Head port: Axial | Magnet: Yes
CDJ5F16SR-15-BMounting: Rod flange | Bore: ø16 mm | Stroke: 15 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5F16SR-30-BMounting: Rod flange | Bore: ø16 mm | Stroke: 30 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5F16SR-45-BMounting: Rod flange | Bore: ø16 mm | Stroke: 45 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5F16SR-60-BMounting: Rod flange | Bore: ø16 mm | Stroke: 60 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5F16SR-75-BMounting: Rod flange | Bore: ø16 mm | Stroke: 75 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5F16SR-100-BMounting: Rod flange | Bore: ø16 mm | Stroke: 100 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5F16SR-125-BMounting: Rod flange | Bore: ø16 mm | Stroke: 125 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5F16SR-150-BMounting: Rod flange | Bore: ø16 mm | Stroke: 150 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5F16SR-175-BMounting: Rod flange | Bore: ø16 mm | Stroke: 175 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5F16SR-200-BMounting: Rod flange | Bore: ø16 mm | Stroke: 200 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5F16SR-15R-BMounting: Rod flange | Bore: ø16 mm | Stroke: 15 mm | Packing: NBR | Head port: Axial | Magnet: Yes
CDJ5F16SR-30R-BMounting: Rod flange | Bore: ø16 mm | Stroke: 30 mm | Packing: NBR | Head port: Axial | Magnet: Yes
CDJ5F16SR-45R-BMounting: Rod flange | Bore: ø16 mm | Stroke: 45 mm | Packing: NBR | Head port: Axial | Magnet: Yes
CDJ5F16SR-60R-BMounting: Rod flange | Bore: ø16 mm | Stroke: 60 mm | Packing: NBR | Head port: Axial | Magnet: Yes
CDJ5F16SR-75R-BMounting: Rod flange | Bore: ø16 mm | Stroke: 75 mm | Packing: NBR | Head port: Axial | Magnet: Yes
CDJ5F16SR-100R-BMounting: Rod flange | Bore: ø16 mm | Stroke: 100 mm | Packing: NBR | Head port: Axial | Magnet: Yes
CDJ5F16SR-125R-BMounting: Rod flange | Bore: ø16 mm | Stroke: 125 mm | Packing: NBR | Head port: Axial | Magnet: Yes
CDJ5F16SR-150R-BMounting: Rod flange | Bore: ø16 mm | Stroke: 150 mm | Packing: NBR | Head port: Axial | Magnet: Yes
CDJ5F16SR-175R-BMounting: Rod flange | Bore: ø16 mm | Stroke: 175 mm | Packing: NBR | Head port: Axial | Magnet: Yes
CDJ5F16SR-200R-BMounting: Rod flange | Bore: ø16 mm | Stroke: 200 mm | Packing: NBR | Head port: Axial | Magnet: Yes
CDJ5F16SV-15-BMounting: Rod flange | Bore: ø16 mm | Stroke: 15 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5F16SV-30-BMounting: Rod flange | Bore: ø16 mm | Stroke: 30 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5F16SV-45-BMounting: Rod flange | Bore: ø16 mm | Stroke: 45 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5F16SV-60-BMounting: Rod flange | Bore: ø16 mm | Stroke: 60 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5F16SV-75-BMounting: Rod flange | Bore: ø16 mm | Stroke: 75 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5F16SV-100-BMounting: Rod flange | Bore: ø16 mm | Stroke: 100 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5F16SV-125-BMounting: Rod flange | Bore: ø16 mm | Stroke: 125 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5F16SV-150-BMounting: Rod flange | Bore: ø16 mm | Stroke: 150 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5F16SV-175-BMounting: Rod flange | Bore: ø16 mm | Stroke: 175 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5F16SV-200-BMounting: Rod flange | Bore: ø16 mm | Stroke: 200 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5F16SV-15R-BMounting: Rod flange | Bore: ø16 mm | Stroke: 15 mm | Packing: FKM | Head port: Axial | Magnet: Yes
CDJ5F16SV-30R-BMounting: Rod flange | Bore: ø16 mm | Stroke: 30 mm | Packing: FKM | Head port: Axial | Magnet: Yes
CDJ5F16SV-45R-BMounting: Rod flange | Bore: ø16 mm | Stroke: 45 mm | Packing: FKM | Head port: Axial | Magnet: Yes
CDJ5F16SV-60R-BMounting: Rod flange | Bore: ø16 mm | Stroke: 60 mm | Packing: FKM | Head port: Axial | Magnet: Yes
CDJ5F16SV-75R-BMounting: Rod flange | Bore: ø16 mm | Stroke: 75 mm | Packing: FKM | Head port: Axial | Magnet: Yes
CDJ5F16SV-100R-BMounting: Rod flange | Bore: ø16 mm | Stroke: 100 mm | Packing: FKM | Head port: Axial | Magnet: Yes
CDJ5F16SV-125R-BMounting: Rod flange | Bore: ø16 mm | Stroke: 125 mm | Packing: FKM | Head port: Axial | Magnet: Yes
CDJ5F16SV-150R-BMounting: Rod flange | Bore: ø16 mm | Stroke: 150 mm | Packing: FKM | Head port: Axial | Magnet: Yes
CDJ5F16SV-175R-BMounting: Rod flange | Bore: ø16 mm | Stroke: 175 mm | Packing: FKM | Head port: Axial | Magnet: Yes
CDJ5F16SV-200R-BMounting: Rod flange | Bore: ø16 mm | Stroke: 200 mm | Packing: FKM | Head port: Axial | Magnet: Yes
CDJ5D10SR-15-BMounting: Double clevis | Bore: ø10 mm | Stroke: 15 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5D10SR-30-BMounting: Double clevis | Bore: ø10 mm | Stroke: 30 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5D10SR-45-BMounting: Double clevis | Bore: ø10 mm | Stroke: 45 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5D10SR-60-BMounting: Double clevis | Bore: ø10 mm | Stroke: 60 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5D10SR-75-BMounting: Double clevis | Bore: ø10 mm | Stroke: 75 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5D10SR-100-BMounting: Double clevis | Bore: ø10 mm | Stroke: 100 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5D10SR-125-BMounting: Double clevis | Bore: ø10 mm | Stroke: 125 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5D10SR-150-BMounting: Double clevis | Bore: ø10 mm | Stroke: 150 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5D10SV-15-BMounting: Double clevis | Bore: ø10 mm | Stroke: 15 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5D10SV-30-BMounting: Double clevis | Bore: ø10 mm | Stroke: 30 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5D10SV-45-BMounting: Double clevis | Bore: ø10 mm | Stroke: 45 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5D10SV-60-BMounting: Double clevis | Bore: ø10 mm | Stroke: 60 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5D10SV-75-BMounting: Double clevis | Bore: ø10 mm | Stroke: 75 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5D10SV-100-BMounting: Double clevis | Bore: ø10 mm | Stroke: 100 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5D10SV-125-BMounting: Double clevis | Bore: ø10 mm | Stroke: 125 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5D10SV-150-BMounting: Double clevis | Bore: ø10 mm | Stroke: 150 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5D16SR-15-BMounting: Double clevis | Bore: ø16 mm | Stroke: 15 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5D16SR-30-BMounting: Double clevis | Bore: ø16 mm | Stroke: 30 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5D16SR-45-BMounting: Double clevis | Bore: ø16 mm | Stroke: 45 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5D16SR-60-BMounting: Double clevis | Bore: ø16 mm | Stroke: 60 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5D16SR-75-BMounting: Double clevis | Bore: ø16 mm | Stroke: 75 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5D16SR-100-BMounting: Double clevis | Bore: ø16 mm | Stroke: 100 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5D16SR-125-BMounting: Double clevis | Bore: ø16 mm | Stroke: 125 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5D16SR-150-BMounting: Double clevis | Bore: ø16 mm | Stroke: 150 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5D16SR-175-BMounting: Double clevis | Bore: ø16 mm | Stroke: 175 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5D16SR-200-BMounting: Double clevis | Bore: ø16 mm | Stroke: 200 mm | Packing: NBR | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5D16SV-15-BMounting: Double clevis | Bore: ø16 mm | Stroke: 15 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5D16SV-30-BMounting: Double clevis | Bore: ø16 mm | Stroke: 30 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5D16SV-45-BMounting: Double clevis | Bore: ø16 mm | Stroke: 45 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5D16SV-60-BMounting: Double clevis | Bore: ø16 mm | Stroke: 60 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5D16SV-75-BMounting: Double clevis | Bore: ø16 mm | Stroke: 75 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5D16SV-100-BMounting: Double clevis | Bore: ø16 mm | Stroke: 100 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5D16SV-125-BMounting: Double clevis | Bore: ø16 mm | Stroke: 125 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5D16SV-150-BMounting: Double clevis | Bore: ø16 mm | Stroke: 150 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5D16SV-175-BMounting: Double clevis | Bore: ø16 mm | Stroke: 175 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes
CDJ5D16SV-200-BMounting: Double clevis | Bore: ø16 mm | Stroke: 200 mm | Packing: FKM | Head port: Perpendicular (90°) | Magnet: Yes

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
