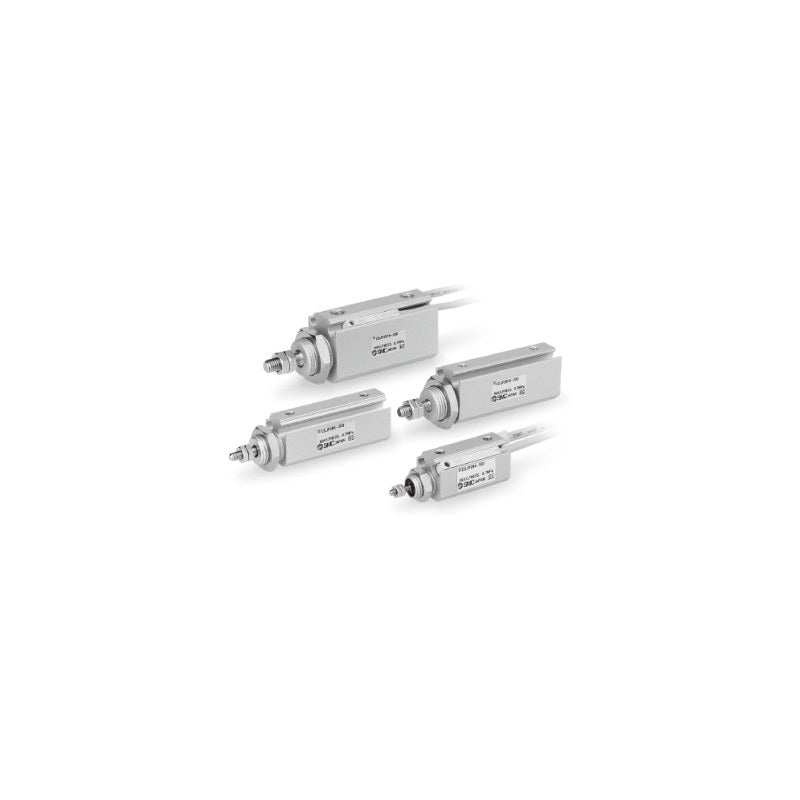

SMC CJP2 Pin Cylinder (Double Acting, Bore 4 to 16 mm)

SMC CJP2 Pin Cylinder (Double Acting, Bore 4 to 16 mm)

SMC CJP2 series double acting single rod pin cylinder with aluminum body in 4, 6, 10 and 16 mm bore, available with built-in magnet (CDJP2) for auto switches.

Key features

  • Aluminum body: overall length 6 to 9.5 mm shorter and 55 to 65% lighter than the former CJP
  • Mounting: basic, flange, foot, clevis and trunnion (bore 4: basic only); brackets shipped unassembled, trunnion assembled
  • Built-in magnet type CDJP2 accepts D-M9 and D-A9 auto switches (two switches even on bore 4 x 5 mm stroke); switches ordered as suffix
  • Rubber cushion; rod end with male thread or without thread (B)
  • Made to order: -XA (rod end change), -XB6 heat resistant, -XB7 cold resistant, -XC19 intermediate stroke, -XC22 fluororubber seals, -X1666

Specifications

Fluid Air
Action Double acting, single rod
Max. operating pressure 0.7 MPa
Min. operating pressure Bore 4: 0.15 MPa, bore 6: 0.12 MPa, bore 10/16: 0.06 MPa
Proof pressure 1 MPa
Ambient and fluid temperature -10 to 70°C without switch, -10 to 60°C with switch (no freezing)
Piston speed 10 to 500 mm/s (bore 4: 50 to 500 mm/s)
Cushion Rubber cushion
Stroke tolerance +1.0/0 mm
Lubrication Not required (non-lube)
Port size M3x0.5 (bore 4, 6, 10), M5x0.8 (bore 16)
Source SMC Korea catalog CJP2/CJP Series (SMCKR_CJP2-CJP.pdf), p. 39-51 (PDF p. 1-13)
CJP2B4-5D Magnet: Without | Mounting: Basic | Bore: 4 mm | Stroke: 5 mm | Rod end: Male thread
CJP2B4-5D-B Magnet: Without | Mounting: Basic | Bore: 4 mm | Stroke: 5 mm | Rod end: No thread
CJP2B4-10D Magnet: Without | Mounting: Basic | Bore: 4 mm | Stroke: 10 mm | Rod end: Male thread
CJP2B4-10D-B Magnet: Without | Mounting: Basic | Bore: 4 mm | Stroke: 10 mm | Rod end: No thread
CJP2B4-15D Magnet: Without | Mounting: Basic | Bore: 4 mm | Stroke: 15 mm | Rod end: Male thread
CJP2B4-15D-B Magnet: Without | Mounting: Basic | Bore: 4 mm | Stroke: 15 mm | Rod end: No thread
CJP2B4-20D Magnet: Without | Mounting: Basic | Bore: 4 mm | Stroke: 20 mm | Rod end: Male thread
CJP2B4-20D-B Magnet: Without | Mounting: Basic | Bore: 4 mm | Stroke: 20 mm | Rod end: No thread
CJP2B6-5D Magnet: Without | Mounting: Basic | Bore: 6 mm | Stroke: 5 mm | Rod end: Male thread
CJP2B6-5D-B Magnet: Without | Mounting: Basic | Bore: 6 mm | Stroke: 5 mm | Rod end: No thread
CJP2B6-10D Magnet: Without | Mounting: Basic | Bore: 6 mm | Stroke: 10 mm | Rod end: Male thread
CJP2B6-10D-B Magnet: Without | Mounting: Basic | Bore: 6 mm | Stroke: 10 mm | Rod end: No thread
CJP2B6-15D Magnet: Without | Mounting: Basic | Bore: 6 mm | Stroke: 15 mm | Rod end: Male thread
CJP2B6-15D-B Magnet: Without | Mounting: Basic | Bore: 6 mm | Stroke: 15 mm | Rod end: No thread
CJP2B6-20D Magnet: Without | Mounting: Basic | Bore: 6 mm | Stroke: 20 mm | Rod end: Male thread
CJP2B6-20D-B Magnet: Without | Mounting: Basic | Bore: 6 mm | Stroke: 20 mm | Rod end: No thread
CJP2B6-25D Magnet: Without | Mounting: Basic | Bore: 6 mm | Stroke: 25 mm | Rod end: Male thread
CJP2B6-25D-B Magnet: Without | Mounting: Basic | Bore: 6 mm | Stroke: 25 mm | Rod end: No thread
CJP2F6-5D Magnet: Without | Mounting: Flange | Bore: 6 mm | Stroke: 5 mm | Rod end: Male thread
CJP2F6-5D-B Magnet: Without | Mounting: Flange | Bore: 6 mm | Stroke: 5 mm | Rod end: No thread
CJP2F6-10D Magnet: Without | Mounting: Flange | Bore: 6 mm | Stroke: 10 mm | Rod end: Male thread
CJP2F6-10D-B Magnet: Without | Mounting: Flange | Bore: 6 mm | Stroke: 10 mm | Rod end: No thread
CJP2F6-15D Magnet: Without | Mounting: Flange | Bore: 6 mm | Stroke: 15 mm | Rod end: Male thread
CJP2F6-15D-B Magnet: Without | Mounting: Flange | Bore: 6 mm | Stroke: 15 mm | Rod end: No thread
CJP2F6-20D Magnet: Without | Mounting: Flange | Bore: 6 mm | Stroke: 20 mm | Rod end: Male thread
CJP2F6-20D-B Magnet: Without | Mounting: Flange | Bore: 6 mm | Stroke: 20 mm | Rod end: No thread
CJP2F6-25D Magnet: Without | Mounting: Flange | Bore: 6 mm | Stroke: 25 mm | Rod end: Male thread
CJP2F6-25D-B Magnet: Without | Mounting: Flange | Bore: 6 mm | Stroke: 25 mm | Rod end: No thread
CJP2L6-5D Magnet: Without | Mounting: Foot | Bore: 6 mm | Stroke: 5 mm | Rod end: Male thread
CJP2L6-5D-B Magnet: Without | Mounting: Foot | Bore: 6 mm | Stroke: 5 mm | Rod end: No thread
CJP2L6-10D Magnet: Without | Mounting: Foot | Bore: 6 mm | Stroke: 10 mm | Rod end: Male thread
CJP2L6-10D-B Magnet: Without | Mounting: Foot | Bore: 6 mm | Stroke: 10 mm | Rod end: No thread
CJP2L6-15D Magnet: Without | Mounting: Foot | Bore: 6 mm | Stroke: 15 mm | Rod end: Male thread
CJP2L6-15D-B Magnet: Without | Mounting: Foot | Bore: 6 mm | Stroke: 15 mm | Rod end: No thread
CJP2L6-20D Magnet: Without | Mounting: Foot | Bore: 6 mm | Stroke: 20 mm | Rod end: Male thread
CJP2L6-20D-B Magnet: Without | Mounting: Foot | Bore: 6 mm | Stroke: 20 mm | Rod end: No thread
CJP2L6-25D Magnet: Without | Mounting: Foot | Bore: 6 mm | Stroke: 25 mm | Rod end: Male thread
CJP2L6-25D-B Magnet: Without | Mounting: Foot | Bore: 6 mm | Stroke: 25 mm | Rod end: No thread
CJP2D6-5D Magnet: Without | Mounting: Clevis | Bore: 6 mm | Stroke: 5 mm | Rod end: Male thread
CJP2D6-5D-B Magnet: Without | Mounting: Clevis | Bore: 6 mm | Stroke: 5 mm | Rod end: No thread
CJP2D6-10D Magnet: Without | Mounting: Clevis | Bore: 6 mm | Stroke: 10 mm | Rod end: Male thread
CJP2D6-10D-B Magnet: Without | Mounting: Clevis | Bore: 6 mm | Stroke: 10 mm | Rod end: No thread
CJP2D6-15D Magnet: Without | Mounting: Clevis | Bore: 6 mm | Stroke: 15 mm | Rod end: Male thread
CJP2D6-15D-B Magnet: Without | Mounting: Clevis | Bore: 6 mm | Stroke: 15 mm | Rod end: No thread
CJP2D6-20D Magnet: Without | Mounting: Clevis | Bore: 6 mm | Stroke: 20 mm | Rod end: Male thread
CJP2D6-20D-B Magnet: Without | Mounting: Clevis | Bore: 6 mm | Stroke: 20 mm | Rod end: No thread
CJP2D6-25D Magnet: Without | Mounting: Clevis | Bore: 6 mm | Stroke: 25 mm | Rod end: Male thread
CJP2D6-25D-B Magnet: Without | Mounting: Clevis | Bore: 6 mm | Stroke: 25 mm | Rod end: No thread
CJP2T6-5D Magnet: Without | Mounting: Trunnion | Bore: 6 mm | Stroke: 5 mm | Rod end: Male thread
CJP2T6-5D-B Magnet: Without | Mounting: Trunnion | Bore: 6 mm | Stroke: 5 mm | Rod end: No thread
CJP2T6-10D Magnet: Without | Mounting: Trunnion | Bore: 6 mm | Stroke: 10 mm | Rod end: Male thread
CJP2T6-10D-B Magnet: Without | Mounting: Trunnion | Bore: 6 mm | Stroke: 10 mm | Rod end: No thread
CJP2T6-15D Magnet: Without | Mounting: Trunnion | Bore: 6 mm | Stroke: 15 mm | Rod end: Male thread
CJP2T6-15D-B Magnet: Without | Mounting: Trunnion | Bore: 6 mm | Stroke: 15 mm | Rod end: No thread
CJP2T6-20D Magnet: Without | Mounting: Trunnion | Bore: 6 mm | Stroke: 20 mm | Rod end: Male thread
CJP2T6-20D-B Magnet: Without | Mounting: Trunnion | Bore: 6 mm | Stroke: 20 mm | Rod end: No thread
CJP2T6-25D Magnet: Without | Mounting: Trunnion | Bore: 6 mm | Stroke: 25 mm | Rod end: Male thread
CJP2T6-25D-B Magnet: Without | Mounting: Trunnion | Bore: 6 mm | Stroke: 25 mm | Rod end: No thread
CJP2B10-5D Magnet: Without | Mounting: Basic | Bore: 10 mm | Stroke: 5 mm | Rod end: Male thread
CJP2B10-5D-B Magnet: Without | Mounting: Basic | Bore: 10 mm | Stroke: 5 mm | Rod end: No thread
CJP2B10-10D Magnet: Without | Mounting: Basic | Bore: 10 mm | Stroke: 10 mm | Rod end: Male thread
CJP2B10-10D-B Magnet: Without | Mounting: Basic | Bore: 10 mm | Stroke: 10 mm | Rod end: No thread
CJP2B10-15D Magnet: Without | Mounting: Basic | Bore: 10 mm | Stroke: 15 mm | Rod end: Male thread
CJP2B10-15D-B Magnet: Without | Mounting: Basic | Bore: 10 mm | Stroke: 15 mm | Rod end: No thread
CJP2B10-20D Magnet: Without | Mounting: Basic | Bore: 10 mm | Stroke: 20 mm | Rod end: Male thread
CJP2B10-20D-B Magnet: Without | Mounting: Basic | Bore: 10 mm | Stroke: 20 mm | Rod end: No thread
CJP2B10-25D Magnet: Without | Mounting: Basic | Bore: 10 mm | Stroke: 25 mm | Rod end: Male thread
CJP2B10-25D-B Magnet: Without | Mounting: Basic | Bore: 10 mm | Stroke: 25 mm | Rod end: No thread
CJP2B10-30D Magnet: Without | Mounting: Basic | Bore: 10 mm | Stroke: 30 mm | Rod end: Male thread
CJP2B10-30D-B Magnet: Without | Mounting: Basic | Bore: 10 mm | Stroke: 30 mm | Rod end: No thread
CJP2B10-35D Magnet: Without | Mounting: Basic | Bore: 10 mm | Stroke: 35 mm | Rod end: Male thread
CJP2B10-35D-B Magnet: Without | Mounting: Basic | Bore: 10 mm | Stroke: 35 mm | Rod end: No thread
CJP2B10-40D Magnet: Without | Mounting: Basic | Bore: 10 mm | Stroke: 40 mm | Rod end: Male thread
CJP2B10-40D-B Magnet: Without | Mounting: Basic | Bore: 10 mm | Stroke: 40 mm | Rod end: No thread
CJP2F10-5D Magnet: Without | Mounting: Flange | Bore: 10 mm | Stroke: 5 mm | Rod end: Male thread
CJP2F10-5D-B Magnet: Without | Mounting: Flange | Bore: 10 mm | Stroke: 5 mm | Rod end: No thread
CJP2F10-10D Magnet: Without | Mounting: Flange | Bore: 10 mm | Stroke: 10 mm | Rod end: Male thread
CJP2F10-10D-B Magnet: Without | Mounting: Flange | Bore: 10 mm | Stroke: 10 mm | Rod end: No thread
CJP2F10-15D Magnet: Without | Mounting: Flange | Bore: 10 mm | Stroke: 15 mm | Rod end: Male thread
CJP2F10-15D-B Magnet: Without | Mounting: Flange | Bore: 10 mm | Stroke: 15 mm | Rod end: No thread
CJP2F10-20D Magnet: Without | Mounting: Flange | Bore: 10 mm | Stroke: 20 mm | Rod end: Male thread
CJP2F10-20D-B Magnet: Without | Mounting: Flange | Bore: 10 mm | Stroke: 20 mm | Rod end: No thread
CJP2F10-25D Magnet: Without | Mounting: Flange | Bore: 10 mm | Stroke: 25 mm | Rod end: Male thread
CJP2F10-25D-B Magnet: Without | Mounting: Flange | Bore: 10 mm | Stroke: 25 mm | Rod end: No thread
CJP2F10-30D Magnet: Without | Mounting: Flange | Bore: 10 mm | Stroke: 30 mm | Rod end: Male thread
CJP2F10-30D-B Magnet: Without | Mounting: Flange | Bore: 10 mm | Stroke: 30 mm | Rod end: No thread
CJP2F10-35D Magnet: Without | Mounting: Flange | Bore: 10 mm | Stroke: 35 mm | Rod end: Male thread
CJP2F10-35D-B Magnet: Without | Mounting: Flange | Bore: 10 mm | Stroke: 35 mm | Rod end: No thread
CJP2F10-40D Magnet: Without | Mounting: Flange | Bore: 10 mm | Stroke: 40 mm | Rod end: Male thread
CJP2F10-40D-B Magnet: Without | Mounting: Flange | Bore: 10 mm | Stroke: 40 mm | Rod end: No thread
CJP2L10-5D Magnet: Without | Mounting: Foot | Bore: 10 mm | Stroke: 5 mm | Rod end: Male thread
CJP2L10-5D-B Magnet: Without | Mounting: Foot | Bore: 10 mm | Stroke: 5 mm | Rod end: No thread
CJP2L10-10D Magnet: Without | Mounting: Foot | Bore: 10 mm | Stroke: 10 mm | Rod end: Male thread
CJP2L10-10D-B Magnet: Without | Mounting: Foot | Bore: 10 mm | Stroke: 10 mm | Rod end: No thread
CJP2L10-15D Magnet: Without | Mounting: Foot | Bore: 10 mm | Stroke: 15 mm | Rod end: Male thread
CJP2L10-15D-B Magnet: Without | Mounting: Foot | Bore: 10 mm | Stroke: 15 mm | Rod end: No thread
CJP2L10-20D Magnet: Without | Mounting: Foot | Bore: 10 mm | Stroke: 20 mm | Rod end: Male thread
CJP2L10-20D-B Magnet: Without | Mounting: Foot | Bore: 10 mm | Stroke: 20 mm | Rod end: No thread
CJP2L10-25D Magnet: Without | Mounting: Foot | Bore: 10 mm | Stroke: 25 mm | Rod end: Male thread
CJP2L10-25D-B Magnet: Without | Mounting: Foot | Bore: 10 mm | Stroke: 25 mm | Rod end: No thread
CJP2L10-30D Magnet: Without | Mounting: Foot | Bore: 10 mm | Stroke: 30 mm | Rod end: Male thread
CJP2L10-30D-B Magnet: Without | Mounting: Foot | Bore: 10 mm | Stroke: 30 mm | Rod end: No thread
CJP2L10-35D Magnet: Without | Mounting: Foot | Bore: 10 mm | Stroke: 35 mm | Rod end: Male thread
CJP2L10-35D-B Magnet: Without | Mounting: Foot | Bore: 10 mm | Stroke: 35 mm | Rod end: No thread
CJP2L10-40D Magnet: Without | Mounting: Foot | Bore: 10 mm | Stroke: 40 mm | Rod end: Male thread
CJP2L10-40D-B Magnet: Without | Mounting: Foot | Bore: 10 mm | Stroke: 40 mm | Rod end: No thread
CJP2D10-5D Magnet: Without | Mounting: Clevis | Bore: 10 mm | Stroke: 5 mm | Rod end: Male thread
CJP2D10-5D-B Magnet: Without | Mounting: Clevis | Bore: 10 mm | Stroke: 5 mm | Rod end: No thread
CJP2D10-10D Magnet: Without | Mounting: Clevis | Bore: 10 mm | Stroke: 10 mm | Rod end: Male thread
CJP2D10-10D-B Magnet: Without | Mounting: Clevis | Bore: 10 mm | Stroke: 10 mm | Rod end: No thread
CJP2D10-15D Magnet: Without | Mounting: Clevis | Bore: 10 mm | Stroke: 15 mm | Rod end: Male thread
CJP2D10-15D-B Magnet: Without | Mounting: Clevis | Bore: 10 mm | Stroke: 15 mm | Rod end: No thread
CJP2D10-20D Magnet: Without | Mounting: Clevis | Bore: 10 mm | Stroke: 20 mm | Rod end: Male thread
CJP2D10-20D-B Magnet: Without | Mounting: Clevis | Bore: 10 mm | Stroke: 20 mm | Rod end: No thread
CJP2D10-25D Magnet: Without | Mounting: Clevis | Bore: 10 mm | Stroke: 25 mm | Rod end: Male thread
CJP2D10-25D-B Magnet: Without | Mounting: Clevis | Bore: 10 mm | Stroke: 25 mm | Rod end: No thread
CJP2D10-30D Magnet: Without | Mounting: Clevis | Bore: 10 mm | Stroke: 30 mm | Rod end: Male thread
CJP2D10-30D-B Magnet: Without | Mounting: Clevis | Bore: 10 mm | Stroke: 30 mm | Rod end: No thread
CJP2D10-35D Magnet: Without | Mounting: Clevis | Bore: 10 mm | Stroke: 35 mm | Rod end: Male thread
CJP2D10-35D-B Magnet: Without | Mounting: Clevis | Bore: 10 mm | Stroke: 35 mm | Rod end: No thread
CJP2D10-40D Magnet: Without | Mounting: Clevis | Bore: 10 mm | Stroke: 40 mm | Rod end: Male thread
CJP2D10-40D-B Magnet: Without | Mounting: Clevis | Bore: 10 mm | Stroke: 40 mm | Rod end: No thread
CJP2T10-5D Magnet: Without | Mounting: Trunnion | Bore: 10 mm | Stroke: 5 mm | Rod end: Male thread
CJP2T10-5D-B Magnet: Without | Mounting: Trunnion | Bore: 10 mm | Stroke: 5 mm | Rod end: No thread
CJP2T10-10D Magnet: Without | Mounting: Trunnion | Bore: 10 mm | Stroke: 10 mm | Rod end: Male thread
CJP2T10-10D-B Magnet: Without | Mounting: Trunnion | Bore: 10 mm | Stroke: 10 mm | Rod end: No thread
CJP2T10-15D Magnet: Without | Mounting: Trunnion | Bore: 10 mm | Stroke: 15 mm | Rod end: Male thread
CJP2T10-15D-B Magnet: Without | Mounting: Trunnion | Bore: 10 mm | Stroke: 15 mm | Rod end: No thread
CJP2T10-20D Magnet: Without | Mounting: Trunnion | Bore: 10 mm | Stroke: 20 mm | Rod end: Male thread
CJP2T10-20D-B Magnet: Without | Mounting: Trunnion | Bore: 10 mm | Stroke: 20 mm | Rod end: No thread
CJP2T10-25D Magnet: Without | Mounting: Trunnion | Bore: 10 mm | Stroke: 25 mm | Rod end: Male thread
CJP2T10-25D-B Magnet: Without | Mounting: Trunnion | Bore: 10 mm | Stroke: 25 mm | Rod end: No thread
CJP2T10-30D Magnet: Without | Mounting: Trunnion | Bore: 10 mm | Stroke: 30 mm | Rod end: Male thread
CJP2T10-30D-B Magnet: Without | Mounting: Trunnion | Bore: 10 mm | Stroke: 30 mm | Rod end: No thread
CJP2T10-35D Magnet: Without | Mounting: Trunnion | Bore: 10 mm | Stroke: 35 mm | Rod end: Male thread
CJP2T10-35D-B Magnet: Without | Mounting: Trunnion | Bore: 10 mm | Stroke: 35 mm | Rod end: No thread
CJP2T10-40D Magnet: Without | Mounting: Trunnion | Bore: 10 mm | Stroke: 40 mm | Rod end: Male thread
CJP2T10-40D-B Magnet: Without | Mounting: Trunnion | Bore: 10 mm | Stroke: 40 mm | Rod end: No thread
CJP2B16-5D Magnet: Without | Mounting: Basic | Bore: 16 mm | Stroke: 5 mm | Rod end: Male thread
CJP2B16-5D-B Magnet: Without | Mounting: Basic | Bore: 16 mm | Stroke: 5 mm | Rod end: No thread
CJP2B16-10D Magnet: Without | Mounting: Basic | Bore: 16 mm | Stroke: 10 mm | Rod end: Male thread
CJP2B16-10D-B Magnet: Without | Mounting: Basic | Bore: 16 mm | Stroke: 10 mm | Rod end: No thread
CJP2B16-15D Magnet: Without | Mounting: Basic | Bore: 16 mm | Stroke: 15 mm | Rod end: Male thread
CJP2B16-15D-B Magnet: Without | Mounting: Basic | Bore: 16 mm | Stroke: 15 mm | Rod end: No thread
CJP2B16-20D Magnet: Without | Mounting: Basic | Bore: 16 mm | Stroke: 20 mm | Rod end: Male thread
CJP2B16-20D-B Magnet: Without | Mounting: Basic | Bore: 16 mm | Stroke: 20 mm | Rod end: No thread
CJP2B16-25D Magnet: Without | Mounting: Basic | Bore: 16 mm | Stroke: 25 mm | Rod end: Male thread
CJP2B16-25D-B Magnet: Without | Mounting: Basic | Bore: 16 mm | Stroke: 25 mm | Rod end: No thread
CJP2B16-30D Magnet: Without | Mounting: Basic | Bore: 16 mm | Stroke: 30 mm | Rod end: Male thread
CJP2B16-30D-B Magnet: Without | Mounting: Basic | Bore: 16 mm | Stroke: 30 mm | Rod end: No thread
CJP2B16-35D Magnet: Without | Mounting: Basic | Bore: 16 mm | Stroke: 35 mm | Rod end: Male thread
CJP2B16-35D-B Magnet: Without | Mounting: Basic | Bore: 16 mm | Stroke: 35 mm | Rod end: No thread
CJP2B16-40D Magnet: Without | Mounting: Basic | Bore: 16 mm | Stroke: 40 mm | Rod end: Male thread
CJP2B16-40D-B Magnet: Without | Mounting: Basic | Bore: 16 mm | Stroke: 40 mm | Rod end: No thread
CJP2F16-5D Magnet: Without | Mounting: Flange | Bore: 16 mm | Stroke: 5 mm | Rod end: Male thread
CJP2F16-5D-B Magnet: Without | Mounting: Flange | Bore: 16 mm | Stroke: 5 mm | Rod end: No thread
CJP2F16-10D Magnet: Without | Mounting: Flange | Bore: 16 mm | Stroke: 10 mm | Rod end: Male thread
CJP2F16-10D-B Magnet: Without | Mounting: Flange | Bore: 16 mm | Stroke: 10 mm | Rod end: No thread
CJP2F16-15D Magnet: Without | Mounting: Flange | Bore: 16 mm | Stroke: 15 mm | Rod end: Male thread
CJP2F16-15D-B Magnet: Without | Mounting: Flange | Bore: 16 mm | Stroke: 15 mm | Rod end: No thread
CJP2F16-20D Magnet: Without | Mounting: Flange | Bore: 16 mm | Stroke: 20 mm | Rod end: Male thread
CJP2F16-20D-B Magnet: Without | Mounting: Flange | Bore: 16 mm | Stroke: 20 mm | Rod end: No thread
CJP2F16-25D Magnet: Without | Mounting: Flange | Bore: 16 mm | Stroke: 25 mm | Rod end: Male thread
CJP2F16-25D-B Magnet: Without | Mounting: Flange | Bore: 16 mm | Stroke: 25 mm | Rod end: No thread
CJP2F16-30D Magnet: Without | Mounting: Flange | Bore: 16 mm | Stroke: 30 mm | Rod end: Male thread
CJP2F16-30D-B Magnet: Without | Mounting: Flange | Bore: 16 mm | Stroke: 30 mm | Rod end: No thread
CJP2F16-35D Magnet: Without | Mounting: Flange | Bore: 16 mm | Stroke: 35 mm | Rod end: Male thread
CJP2F16-35D-B Magnet: Without | Mounting: Flange | Bore: 16 mm | Stroke: 35 mm | Rod end: No thread
CJP2F16-40D Magnet: Without | Mounting: Flange | Bore: 16 mm | Stroke: 40 mm | Rod end: Male thread
CJP2F16-40D-B Magnet: Without | Mounting: Flange | Bore: 16 mm | Stroke: 40 mm | Rod end: No thread
CJP2L16-5D Magnet: Without | Mounting: Foot | Bore: 16 mm | Stroke: 5 mm | Rod end: Male thread
CJP2L16-5D-B Magnet: Without | Mounting: Foot | Bore: 16 mm | Stroke: 5 mm | Rod end: No thread
CJP2L16-10D Magnet: Without | Mounting: Foot | Bore: 16 mm | Stroke: 10 mm | Rod end: Male thread
CJP2L16-10D-B Magnet: Without | Mounting: Foot | Bore: 16 mm | Stroke: 10 mm | Rod end: No thread
CJP2L16-15D Magnet: Without | Mounting: Foot | Bore: 16 mm | Stroke: 15 mm | Rod end: Male thread
CJP2L16-15D-B Magnet: Without | Mounting: Foot | Bore: 16 mm | Stroke: 15 mm | Rod end: No thread
CJP2L16-20D Magnet: Without | Mounting: Foot | Bore: 16 mm | Stroke: 20 mm | Rod end: Male thread
CJP2L16-20D-B Magnet: Without | Mounting: Foot | Bore: 16 mm | Stroke: 20 mm | Rod end: No thread
CJP2L16-25D Magnet: Without | Mounting: Foot | Bore: 16 mm | Stroke: 25 mm | Rod end: Male thread
CJP2L16-25D-B Magnet: Without | Mounting: Foot | Bore: 16 mm | Stroke: 25 mm | Rod end: No thread
CJP2L16-30D Magnet: Without | Mounting: Foot | Bore: 16 mm | Stroke: 30 mm | Rod end: Male thread
CJP2L16-30D-B Magnet: Without | Mounting: Foot | Bore: 16 mm | Stroke: 30 mm | Rod end: No thread
CJP2L16-35D Magnet: Without | Mounting: Foot | Bore: 16 mm | Stroke: 35 mm | Rod end: Male thread
CJP2L16-35D-B Magnet: Without | Mounting: Foot | Bore: 16 mm | Stroke: 35 mm | Rod end: No thread
CJP2L16-40D Magnet: Without | Mounting: Foot | Bore: 16 mm | Stroke: 40 mm | Rod end: Male thread
CJP2L16-40D-B Magnet: Without | Mounting: Foot | Bore: 16 mm | Stroke: 40 mm | Rod end: No thread
CJP2D16-5D Magnet: Without | Mounting: Clevis | Bore: 16 mm | Stroke: 5 mm | Rod end: Male thread
CJP2D16-5D-B Magnet: Without | Mounting: Clevis | Bore: 16 mm | Stroke: 5 mm | Rod end: No thread
CJP2D16-10D Magnet: Without | Mounting: Clevis | Bore: 16 mm | Stroke: 10 mm | Rod end: Male thread
CJP2D16-10D-B Magnet: Without | Mounting: Clevis | Bore: 16 mm | Stroke: 10 mm | Rod end: No thread
CJP2D16-15D Magnet: Without | Mounting: Clevis | Bore: 16 mm | Stroke: 15 mm | Rod end: Male thread
CJP2D16-15D-B Magnet: Without | Mounting: Clevis | Bore: 16 mm | Stroke: 15 mm | Rod end: No thread
CJP2D16-20D Magnet: Without | Mounting: Clevis | Bore: 16 mm | Stroke: 20 mm | Rod end: Male thread
CJP2D16-20D-B Magnet: Without | Mounting: Clevis | Bore: 16 mm | Stroke: 20 mm | Rod end: No thread
CJP2D16-25D Magnet: Without | Mounting: Clevis | Bore: 16 mm | Stroke: 25 mm | Rod end: Male thread
CJP2D16-25D-B Magnet: Without | Mounting: Clevis | Bore: 16 mm | Stroke: 25 mm | Rod end: No thread
CJP2D16-30D Magnet: Without | Mounting: Clevis | Bore: 16 mm | Stroke: 30 mm | Rod end: Male thread
CJP2D16-30D-B Magnet: Without | Mounting: Clevis | Bore: 16 mm | Stroke: 30 mm | Rod end: No thread
CJP2D16-35D Magnet: Without | Mounting: Clevis | Bore: 16 mm | Stroke: 35 mm | Rod end: Male thread
CJP2D16-35D-B Magnet: Without | Mounting: Clevis | Bore: 16 mm | Stroke: 35 mm | Rod end: No thread
CJP2D16-40D Magnet: Without | Mounting: Clevis | Bore: 16 mm | Stroke: 40 mm | Rod end: Male thread
CJP2D16-40D-B Magnet: Without | Mounting: Clevis | Bore: 16 mm | Stroke: 40 mm | Rod end: No thread
CJP2T16-5D Magnet: Without | Mounting: Trunnion | Bore: 16 mm | Stroke: 5 mm | Rod end: Male thread
CJP2T16-5D-B Magnet: Without | Mounting: Trunnion | Bore: 16 mm | Stroke: 5 mm | Rod end: No thread
CJP2T16-10D Magnet: Without | Mounting: Trunnion | Bore: 16 mm | Stroke: 10 mm | Rod end: Male thread
CJP2T16-10D-B Magnet: Without | Mounting: Trunnion | Bore: 16 mm | Stroke: 10 mm | Rod end: No thread
CJP2T16-15D Magnet: Without | Mounting: Trunnion | Bore: 16 mm | Stroke: 15 mm | Rod end: Male thread
CJP2T16-15D-B Magnet: Without | Mounting: Trunnion | Bore: 16 mm | Stroke: 15 mm | Rod end: No thread
CJP2T16-20D Magnet: Without | Mounting: Trunnion | Bore: 16 mm | Stroke: 20 mm | Rod end: Male thread
CJP2T16-20D-B Magnet: Without | Mounting: Trunnion | Bore: 16 mm | Stroke: 20 mm | Rod end: No thread
CJP2T16-25D Magnet: Without | Mounting: Trunnion | Bore: 16 mm | Stroke: 25 mm | Rod end: Male thread
CJP2T16-25D-B Magnet: Without | Mounting: Trunnion | Bore: 16 mm | Stroke: 25 mm | Rod end: No thread
CJP2T16-30D Magnet: Without | Mounting: Trunnion | Bore: 16 mm | Stroke: 30 mm | Rod end: Male thread
CJP2T16-30D-B Magnet: Without | Mounting: Trunnion | Bore: 16 mm | Stroke: 30 mm | Rod end: No thread
CJP2T16-35D Magnet: Without | Mounting: Trunnion | Bore: 16 mm | Stroke: 35 mm | Rod end: Male thread
CJP2T16-35D-B Magnet: Without | Mounting: Trunnion | Bore: 16 mm | Stroke: 35 mm | Rod end: No thread
CJP2T16-40D Magnet: Without | Mounting: Trunnion | Bore: 16 mm | Stroke: 40 mm | Rod end: Male thread
CJP2T16-40D-B Magnet: Without | Mounting: Trunnion | Bore: 16 mm | Stroke: 40 mm | Rod end: No thread
CDJP2B4-5D Magnet: Built-in | Mounting: Basic | Bore: 4 mm | Stroke: 5 mm | Rod end: Male thread
CDJP2B4-5D-B Magnet: Built-in | Mounting: Basic | Bore: 4 mm | Stroke: 5 mm | Rod end: No thread
CDJP2B4-10D Magnet: Built-in | Mounting: Basic | Bore: 4 mm | Stroke: 10 mm | Rod end: Male thread
CDJP2B4-10D-B Magnet: Built-in | Mounting: Basic | Bore: 4 mm | Stroke: 10 mm | Rod end: No thread
CDJP2B4-15D Magnet: Built-in | Mounting: Basic | Bore: 4 mm | Stroke: 15 mm | Rod end: Male thread
CDJP2B4-15D-B Magnet: Built-in | Mounting: Basic | Bore: 4 mm | Stroke: 15 mm | Rod end: No thread
CDJP2B6-5D Magnet: Built-in | Mounting: Basic | Bore: 6 mm | Stroke: 5 mm | Rod end: Male thread
CDJP2B6-5D-B Magnet: Built-in | Mounting: Basic | Bore: 6 mm | Stroke: 5 mm | Rod end: No thread
CDJP2B6-10D Magnet: Built-in | Mounting: Basic | Bore: 6 mm | Stroke: 10 mm | Rod end: Male thread
CDJP2B6-10D-B Magnet: Built-in | Mounting: Basic | Bore: 6 mm | Stroke: 10 mm | Rod end: No thread
CDJP2B6-15D Magnet: Built-in | Mounting: Basic | Bore: 6 mm | Stroke: 15 mm | Rod end: Male thread
CDJP2B6-15D-B Magnet: Built-in | Mounting: Basic | Bore: 6 mm | Stroke: 15 mm | Rod end: No thread
CDJP2B6-20D Magnet: Built-in | Mounting: Basic | Bore: 6 mm | Stroke: 20 mm | Rod end: Male thread
CDJP2B6-20D-B Magnet: Built-in | Mounting: Basic | Bore: 6 mm | Stroke: 20 mm | Rod end: No thread
CDJP2B6-25D Magnet: Built-in | Mounting: Basic | Bore: 6 mm | Stroke: 25 mm | Rod end: Male thread
CDJP2B6-25D-B Magnet: Built-in | Mounting: Basic | Bore: 6 mm | Stroke: 25 mm | Rod end: No thread
CDJP2F6-5D Magnet: Built-in | Mounting: Flange | Bore: 6 mm | Stroke: 5 mm | Rod end: Male thread
CDJP2F6-5D-B Magnet: Built-in | Mounting: Flange | Bore: 6 mm | Stroke: 5 mm | Rod end: No thread
CDJP2F6-10D Magnet: Built-in | Mounting: Flange | Bore: 6 mm | Stroke: 10 mm | Rod end: Male thread
CDJP2F6-10D-B Magnet: Built-in | Mounting: Flange | Bore: 6 mm | Stroke: 10 mm | Rod end: No thread
CDJP2F6-15D Magnet: Built-in | Mounting: Flange | Bore: 6 mm | Stroke: 15 mm | Rod end: Male thread
CDJP2F6-15D-B Magnet: Built-in | Mounting: Flange | Bore: 6 mm | Stroke: 15 mm | Rod end: No thread
CDJP2F6-20D Magnet: Built-in | Mounting: Flange | Bore: 6 mm | Stroke: 20 mm | Rod end: Male thread
CDJP2F6-20D-B Magnet: Built-in | Mounting: Flange | Bore: 6 mm | Stroke: 20 mm | Rod end: No thread
CDJP2F6-25D Magnet: Built-in | Mounting: Flange | Bore: 6 mm | Stroke: 25 mm | Rod end: Male thread
CDJP2F6-25D-B Magnet: Built-in | Mounting: Flange | Bore: 6 mm | Stroke: 25 mm | Rod end: No thread
CDJP2L6-5D Magnet: Built-in | Mounting: Foot | Bore: 6 mm | Stroke: 5 mm | Rod end: Male thread
CDJP2L6-5D-B Magnet: Built-in | Mounting: Foot | Bore: 6 mm | Stroke: 5 mm | Rod end: No thread
CDJP2L6-10D Magnet: Built-in | Mounting: Foot | Bore: 6 mm | Stroke: 10 mm | Rod end: Male thread
CDJP2L6-10D-B Magnet: Built-in | Mounting: Foot | Bore: 6 mm | Stroke: 10 mm | Rod end: No thread
CDJP2L6-15D Magnet: Built-in | Mounting: Foot | Bore: 6 mm | Stroke: 15 mm | Rod end: Male thread
CDJP2L6-15D-B Magnet: Built-in | Mounting: Foot | Bore: 6 mm | Stroke: 15 mm | Rod end: No thread
CDJP2L6-20D Magnet: Built-in | Mounting: Foot | Bore: 6 mm | Stroke: 20 mm | Rod end: Male thread
CDJP2L6-20D-B Magnet: Built-in | Mounting: Foot | Bore: 6 mm | Stroke: 20 mm | Rod end: No thread
CDJP2L6-25D Magnet: Built-in | Mounting: Foot | Bore: 6 mm | Stroke: 25 mm | Rod end: Male thread
CDJP2L6-25D-B Magnet: Built-in | Mounting: Foot | Bore: 6 mm | Stroke: 25 mm | Rod end: No thread
CDJP2D6-5D Magnet: Built-in | Mounting: Clevis | Bore: 6 mm | Stroke: 5 mm | Rod end: Male thread
CDJP2D6-5D-B Magnet: Built-in | Mounting: Clevis | Bore: 6 mm | Stroke: 5 mm | Rod end: No thread
CDJP2D6-10D Magnet: Built-in | Mounting: Clevis | Bore: 6 mm | Stroke: 10 mm | Rod end: Male thread
CDJP2D6-10D-B Magnet: Built-in | Mounting: Clevis | Bore: 6 mm | Stroke: 10 mm | Rod end: No thread
CDJP2D6-15D Magnet: Built-in | Mounting: Clevis | Bore: 6 mm | Stroke: 15 mm | Rod end: Male thread
CDJP2D6-15D-B Magnet: Built-in | Mounting: Clevis | Bore: 6 mm | Stroke: 15 mm | Rod end: No thread
CDJP2D6-20D Magnet: Built-in | Mounting: Clevis | Bore: 6 mm | Stroke: 20 mm | Rod end: Male thread
CDJP2D6-20D-B Magnet: Built-in | Mounting: Clevis | Bore: 6 mm | Stroke: 20 mm | Rod end: No thread
CDJP2D6-25D Magnet: Built-in | Mounting: Clevis | Bore: 6 mm | Stroke: 25 mm | Rod end: Male thread
CDJP2D6-25D-B Magnet: Built-in | Mounting: Clevis | Bore: 6 mm | Stroke: 25 mm | Rod end: No thread
CDJP2T6-5D Magnet: Built-in | Mounting: Trunnion | Bore: 6 mm | Stroke: 5 mm | Rod end: Male thread
CDJP2T6-5D-B Magnet: Built-in | Mounting: Trunnion | Bore: 6 mm | Stroke: 5 mm | Rod end: No thread
CDJP2T6-10D Magnet: Built-in | Mounting: Trunnion | Bore: 6 mm | Stroke: 10 mm | Rod end: Male thread
CDJP2T6-10D-B Magnet: Built-in | Mounting: Trunnion | Bore: 6 mm | Stroke: 10 mm | Rod end: No thread
CDJP2T6-15D Magnet: Built-in | Mounting: Trunnion | Bore: 6 mm | Stroke: 15 mm | Rod end: Male thread
CDJP2T6-15D-B Magnet: Built-in | Mounting: Trunnion | Bore: 6 mm | Stroke: 15 mm | Rod end: No thread
CDJP2T6-20D Magnet: Built-in | Mounting: Trunnion | Bore: 6 mm | Stroke: 20 mm | Rod end: Male thread
CDJP2T6-20D-B Magnet: Built-in | Mounting: Trunnion | Bore: 6 mm | Stroke: 20 mm | Rod end: No thread
CDJP2T6-25D Magnet: Built-in | Mounting: Trunnion | Bore: 6 mm | Stroke: 25 mm | Rod end: Male thread
CDJP2T6-25D-B Magnet: Built-in | Mounting: Trunnion | Bore: 6 mm | Stroke: 25 mm | Rod end: No thread
CDJP2B10-5D Magnet: Built-in | Mounting: Basic | Bore: 10 mm | Stroke: 5 mm | Rod end: Male thread
CDJP2B10-5D-B Magnet: Built-in | Mounting: Basic | Bore: 10 mm | Stroke: 5 mm | Rod end: No thread
CDJP2B10-10D Magnet: Built-in | Mounting: Basic | Bore: 10 mm | Stroke: 10 mm | Rod end: Male thread
CDJP2B10-10D-B Magnet: Built-in | Mounting: Basic | Bore: 10 mm | Stroke: 10 mm | Rod end: No thread
CDJP2B10-15D Magnet: Built-in | Mounting: Basic | Bore: 10 mm | Stroke: 15 mm | Rod end: Male thread
CDJP2B10-15D-B Magnet: Built-in | Mounting: Basic | Bore: 10 mm | Stroke: 15 mm | Rod end: No thread
CDJP2B10-20D Magnet: Built-in | Mounting: Basic | Bore: 10 mm | Stroke: 20 mm | Rod end: Male thread
CDJP2B10-20D-B Magnet: Built-in | Mounting: Basic | Bore: 10 mm | Stroke: 20 mm | Rod end: No thread
CDJP2B10-25D Magnet: Built-in | Mounting: Basic | Bore: 10 mm | Stroke: 25 mm | Rod end: Male thread
CDJP2B10-25D-B Magnet: Built-in | Mounting: Basic | Bore: 10 mm | Stroke: 25 mm | Rod end: No thread
CDJP2B10-30D Magnet: Built-in | Mounting: Basic | Bore: 10 mm | Stroke: 30 mm | Rod end: Male thread
CDJP2B10-30D-B Magnet: Built-in | Mounting: Basic | Bore: 10 mm | Stroke: 30 mm | Rod end: No thread
CDJP2B10-35D Magnet: Built-in | Mounting: Basic | Bore: 10 mm | Stroke: 35 mm | Rod end: Male thread
CDJP2B10-35D-B Magnet: Built-in | Mounting: Basic | Bore: 10 mm | Stroke: 35 mm | Rod end: No thread
CDJP2B10-40D Magnet: Built-in | Mounting: Basic | Bore: 10 mm | Stroke: 40 mm | Rod end: Male thread
CDJP2B10-40D-B Magnet: Built-in | Mounting: Basic | Bore: 10 mm | Stroke: 40 mm | Rod end: No thread
CDJP2F10-5D Magnet: Built-in | Mounting: Flange | Bore: 10 mm | Stroke: 5 mm | Rod end: Male thread
CDJP2F10-5D-B Magnet: Built-in | Mounting: Flange | Bore: 10 mm | Stroke: 5 mm | Rod end: No thread
CDJP2F10-10D Magnet: Built-in | Mounting: Flange | Bore: 10 mm | Stroke: 10 mm | Rod end: Male thread
CDJP2F10-10D-B Magnet: Built-in | Mounting: Flange | Bore: 10 mm | Stroke: 10 mm | Rod end: No thread
CDJP2F10-15D Magnet: Built-in | Mounting: Flange | Bore: 10 mm | Stroke: 15 mm | Rod end: Male thread
CDJP2F10-15D-B Magnet: Built-in | Mounting: Flange | Bore: 10 mm | Stroke: 15 mm | Rod end: No thread
CDJP2F10-20D Magnet: Built-in | Mounting: Flange | Bore: 10 mm | Stroke: 20 mm | Rod end: Male thread
CDJP2F10-20D-B Magnet: Built-in | Mounting: Flange | Bore: 10 mm | Stroke: 20 mm | Rod end: No thread
CDJP2F10-25D Magnet: Built-in | Mounting: Flange | Bore: 10 mm | Stroke: 25 mm | Rod end: Male thread
CDJP2F10-25D-B Magnet: Built-in | Mounting: Flange | Bore: 10 mm | Stroke: 25 mm | Rod end: No thread
CDJP2F10-30D Magnet: Built-in | Mounting: Flange | Bore: 10 mm | Stroke: 30 mm | Rod end: Male thread
CDJP2F10-30D-B Magnet: Built-in | Mounting: Flange | Bore: 10 mm | Stroke: 30 mm | Rod end: No thread
CDJP2F10-35D Magnet: Built-in | Mounting: Flange | Bore: 10 mm | Stroke: 35 mm | Rod end: Male thread
CDJP2F10-35D-B Magnet: Built-in | Mounting: Flange | Bore: 10 mm | Stroke: 35 mm | Rod end: No thread
CDJP2F10-40D Magnet: Built-in | Mounting: Flange | Bore: 10 mm | Stroke: 40 mm | Rod end: Male thread
CDJP2F10-40D-B Magnet: Built-in | Mounting: Flange | Bore: 10 mm | Stroke: 40 mm | Rod end: No thread
CDJP2L10-5D Magnet: Built-in | Mounting: Foot | Bore: 10 mm | Stroke: 5 mm | Rod end: Male thread
CDJP2L10-5D-B Magnet: Built-in | Mounting: Foot | Bore: 10 mm | Stroke: 5 mm | Rod end: No thread
CDJP2L10-10D Magnet: Built-in | Mounting: Foot | Bore: 10 mm | Stroke: 10 mm | Rod end: Male thread
CDJP2L10-10D-B Magnet: Built-in | Mounting: Foot | Bore: 10 mm | Stroke: 10 mm | Rod end: No thread
CDJP2L10-15D Magnet: Built-in | Mounting: Foot | Bore: 10 mm | Stroke: 15 mm | Rod end: Male thread
CDJP2L10-15D-B Magnet: Built-in | Mounting: Foot | Bore: 10 mm | Stroke: 15 mm | Rod end: No thread
CDJP2L10-20D Magnet: Built-in | Mounting: Foot | Bore: 10 mm | Stroke: 20 mm | Rod end: Male thread
CDJP2L10-20D-B Magnet: Built-in | Mounting: Foot | Bore: 10 mm | Stroke: 20 mm | Rod end: No thread
CDJP2L10-25D Magnet: Built-in | Mounting: Foot | Bore: 10 mm | Stroke: 25 mm | Rod end: Male thread
CDJP2L10-25D-B Magnet: Built-in | Mounting: Foot | Bore: 10 mm | Stroke: 25 mm | Rod end: No thread
CDJP2L10-30D Magnet: Built-in | Mounting: Foot | Bore: 10 mm | Stroke: 30 mm | Rod end: Male thread
CDJP2L10-30D-B Magnet: Built-in | Mounting: Foot | Bore: 10 mm | Stroke: 30 mm | Rod end: No thread
CDJP2L10-35D Magnet: Built-in | Mounting: Foot | Bore: 10 mm | Stroke: 35 mm | Rod end: Male thread
CDJP2L10-35D-B Magnet: Built-in | Mounting: Foot | Bore: 10 mm | Stroke: 35 mm | Rod end: No thread
CDJP2L10-40D Magnet: Built-in | Mounting: Foot | Bore: 10 mm | Stroke: 40 mm | Rod end: Male thread
CDJP2L10-40D-B Magnet: Built-in | Mounting: Foot | Bore: 10 mm | Stroke: 40 mm | Rod end: No thread
CDJP2D10-5D Magnet: Built-in | Mounting: Clevis | Bore: 10 mm | Stroke: 5 mm | Rod end: Male thread
CDJP2D10-5D-B Magnet: Built-in | Mounting: Clevis | Bore: 10 mm | Stroke: 5 mm | Rod end: No thread
CDJP2D10-10D Magnet: Built-in | Mounting: Clevis | Bore: 10 mm | Stroke: 10 mm | Rod end: Male thread
CDJP2D10-10D-B Magnet: Built-in | Mounting: Clevis | Bore: 10 mm | Stroke: 10 mm | Rod end: No thread
CDJP2D10-15D Magnet: Built-in | Mounting: Clevis | Bore: 10 mm | Stroke: 15 mm | Rod end: Male thread
CDJP2D10-15D-B Magnet: Built-in | Mounting: Clevis | Bore: 10 mm | Stroke: 15 mm | Rod end: No thread
CDJP2D10-20D Magnet: Built-in | Mounting: Clevis | Bore: 10 mm | Stroke: 20 mm | Rod end: Male thread
CDJP2D10-20D-B Magnet: Built-in | Mounting: Clevis | Bore: 10 mm | Stroke: 20 mm | Rod end: No thread
CDJP2D10-25D Magnet: Built-in | Mounting: Clevis | Bore: 10 mm | Stroke: 25 mm | Rod end: Male thread
CDJP2D10-25D-B Magnet: Built-in | Mounting: Clevis | Bore: 10 mm | Stroke: 25 mm | Rod end: No thread
CDJP2D10-30D Magnet: Built-in | Mounting: Clevis | Bore: 10 mm | Stroke: 30 mm | Rod end: Male thread
CDJP2D10-30D-B Magnet: Built-in | Mounting: Clevis | Bore: 10 mm | Stroke: 30 mm | Rod end: No thread
CDJP2D10-35D Magnet: Built-in | Mounting: Clevis | Bore: 10 mm | Stroke: 35 mm | Rod end: Male thread
CDJP2D10-35D-B Magnet: Built-in | Mounting: Clevis | Bore: 10 mm | Stroke: 35 mm | Rod end: No thread
CDJP2D10-40D Magnet: Built-in | Mounting: Clevis | Bore: 10 mm | Stroke: 40 mm | Rod end: Male thread
CDJP2D10-40D-B Magnet: Built-in | Mounting: Clevis | Bore: 10 mm | Stroke: 40 mm | Rod end: No thread
CDJP2T10-5D Magnet: Built-in | Mounting: Trunnion | Bore: 10 mm | Stroke: 5 mm | Rod end: Male thread
CDJP2T10-5D-B Magnet: Built-in | Mounting: Trunnion | Bore: 10 mm | Stroke: 5 mm | Rod end: No thread
CDJP2T10-10D Magnet: Built-in | Mounting: Trunnion | Bore: 10 mm | Stroke: 10 mm | Rod end: Male thread
CDJP2T10-10D-B Magnet: Built-in | Mounting: Trunnion | Bore: 10 mm | Stroke: 10 mm | Rod end: No thread
CDJP2T10-15D Magnet: Built-in | Mounting: Trunnion | Bore: 10 mm | Stroke: 15 mm | Rod end: Male thread
CDJP2T10-15D-B Magnet: Built-in | Mounting: Trunnion | Bore: 10 mm | Stroke: 15 mm | Rod end: No thread
CDJP2T10-20D Magnet: Built-in | Mounting: Trunnion | Bore: 10 mm | Stroke: 20 mm | Rod end: Male thread
CDJP2T10-20D-B Magnet: Built-in | Mounting: Trunnion | Bore: 10 mm | Stroke: 20 mm | Rod end: No thread
CDJP2T10-25D Magnet: Built-in | Mounting: Trunnion | Bore: 10 mm | Stroke: 25 mm | Rod end: Male thread
CDJP2T10-25D-B Magnet: Built-in | Mounting: Trunnion | Bore: 10 mm | Stroke: 25 mm | Rod end: No thread
CDJP2T10-30D Magnet: Built-in | Mounting: Trunnion | Bore: 10 mm | Stroke: 30 mm | Rod end: Male thread
CDJP2T10-30D-B Magnet: Built-in | Mounting: Trunnion | Bore: 10 mm | Stroke: 30 mm | Rod end: No thread
CDJP2T10-35D Magnet: Built-in | Mounting: Trunnion | Bore: 10 mm | Stroke: 35 mm | Rod end: Male thread
CDJP2T10-35D-B Magnet: Built-in | Mounting: Trunnion | Bore: 10 mm | Stroke: 35 mm | Rod end: No thread
CDJP2T10-40D Magnet: Built-in | Mounting: Trunnion | Bore: 10 mm | Stroke: 40 mm | Rod end: Male thread
CDJP2T10-40D-B Magnet: Built-in | Mounting: Trunnion | Bore: 10 mm | Stroke: 40 mm | Rod end: No thread
CDJP2B16-5D Magnet: Built-in | Mounting: Basic | Bore: 16 mm | Stroke: 5 mm | Rod end: Male thread
CDJP2B16-5D-B Magnet: Built-in | Mounting: Basic | Bore: 16 mm | Stroke: 5 mm | Rod end: No thread
CDJP2B16-10D Magnet: Built-in | Mounting: Basic | Bore: 16 mm | Stroke: 10 mm | Rod end: Male thread
CDJP2B16-10D-B Magnet: Built-in | Mounting: Basic | Bore: 16 mm | Stroke: 10 mm | Rod end: No thread
CDJP2B16-15D Magnet: Built-in | Mounting: Basic | Bore: 16 mm | Stroke: 15 mm | Rod end: Male thread
CDJP2B16-15D-B Magnet: Built-in | Mounting: Basic | Bore: 16 mm | Stroke: 15 mm | Rod end: No thread
CDJP2B16-20D Magnet: Built-in | Mounting: Basic | Bore: 16 mm | Stroke: 20 mm | Rod end: Male thread
CDJP2B16-20D-B Magnet: Built-in | Mounting: Basic | Bore: 16 mm | Stroke: 20 mm | Rod end: No thread
CDJP2B16-25D Magnet: Built-in | Mounting: Basic | Bore: 16 mm | Stroke: 25 mm | Rod end: Male thread
CDJP2B16-25D-B Magnet: Built-in | Mounting: Basic | Bore: 16 mm | Stroke: 25 mm | Rod end: No thread
CDJP2B16-30D Magnet: Built-in | Mounting: Basic | Bore: 16 mm | Stroke: 30 mm | Rod end: Male thread
CDJP2B16-30D-B Magnet: Built-in | Mounting: Basic | Bore: 16 mm | Stroke: 30 mm | Rod end: No thread
CDJP2B16-35D Magnet: Built-in | Mounting: Basic | Bore: 16 mm | Stroke: 35 mm | Rod end: Male thread
CDJP2B16-35D-B Magnet: Built-in | Mounting: Basic | Bore: 16 mm | Stroke: 35 mm | Rod end: No thread
CDJP2B16-40D Magnet: Built-in | Mounting: Basic | Bore: 16 mm | Stroke: 40 mm | Rod end: Male thread
CDJP2B16-40D-B Magnet: Built-in | Mounting: Basic | Bore: 16 mm | Stroke: 40 mm | Rod end: No thread
CDJP2F16-5D Magnet: Built-in | Mounting: Flange | Bore: 16 mm | Stroke: 5 mm | Rod end: Male thread
CDJP2F16-5D-B Magnet: Built-in | Mounting: Flange | Bore: 16 mm | Stroke: 5 mm | Rod end: No thread
CDJP2F16-10D Magnet: Built-in | Mounting: Flange | Bore: 16 mm | Stroke: 10 mm | Rod end: Male thread
CDJP2F16-10D-B Magnet: Built-in | Mounting: Flange | Bore: 16 mm | Stroke: 10 mm | Rod end: No thread
CDJP2F16-15D Magnet: Built-in | Mounting: Flange | Bore: 16 mm | Stroke: 15 mm | Rod end: Male thread
CDJP2F16-15D-B Magnet: Built-in | Mounting: Flange | Bore: 16 mm | Stroke: 15 mm | Rod end: No thread
CDJP2F16-20D Magnet: Built-in | Mounting: Flange | Bore: 16 mm | Stroke: 20 mm | Rod end: Male thread
CDJP2F16-20D-B Magnet: Built-in | Mounting: Flange | Bore: 16 mm | Stroke: 20 mm | Rod end: No thread
CDJP2F16-25D Magnet: Built-in | Mounting: Flange | Bore: 16 mm | Stroke: 25 mm | Rod end: Male thread
CDJP2F16-25D-B Magnet: Built-in | Mounting: Flange | Bore: 16 mm | Stroke: 25 mm | Rod end: No thread
CDJP2F16-30D Magnet: Built-in | Mounting: Flange | Bore: 16 mm | Stroke: 30 mm | Rod end: Male thread
CDJP2F16-30D-B Magnet: Built-in | Mounting: Flange | Bore: 16 mm | Stroke: 30 mm | Rod end: No thread
CDJP2F16-35D Magnet: Built-in | Mounting: Flange | Bore: 16 mm | Stroke: 35 mm | Rod end: Male thread
CDJP2F16-35D-B Magnet: Built-in | Mounting: Flange | Bore: 16 mm | Stroke: 35 mm | Rod end: No thread
CDJP2F16-40D Magnet: Built-in | Mounting: Flange | Bore: 16 mm | Stroke: 40 mm | Rod end: Male thread
CDJP2F16-40D-B Magnet: Built-in | Mounting: Flange | Bore: 16 mm | Stroke: 40 mm | Rod end: No thread
CDJP2L16-5D Magnet: Built-in | Mounting: Foot | Bore: 16 mm | Stroke: 5 mm | Rod end: Male thread
CDJP2L16-5D-B Magnet: Built-in | Mounting: Foot | Bore: 16 mm | Stroke: 5 mm | Rod end: No thread
CDJP2L16-10D Magnet: Built-in | Mounting: Foot | Bore: 16 mm | Stroke: 10 mm | Rod end: Male thread
CDJP2L16-10D-B Magnet: Built-in | Mounting: Foot | Bore: 16 mm | Stroke: 10 mm | Rod end: No thread
CDJP2L16-15D Magnet: Built-in | Mounting: Foot | Bore: 16 mm | Stroke: 15 mm | Rod end: Male thread
CDJP2L16-15D-B Magnet: Built-in | Mounting: Foot | Bore: 16 mm | Stroke: 15 mm | Rod end: No thread
CDJP2L16-20D Magnet: Built-in | Mounting: Foot | Bore: 16 mm | Stroke: 20 mm | Rod end: Male thread
CDJP2L16-20D-B Magnet: Built-in | Mounting: Foot | Bore: 16 mm | Stroke: 20 mm | Rod end: No thread
CDJP2L16-25D Magnet: Built-in | Mounting: Foot | Bore: 16 mm | Stroke: 25 mm | Rod end: Male thread
CDJP2L16-25D-B Magnet: Built-in | Mounting: Foot | Bore: 16 mm | Stroke: 25 mm | Rod end: No thread
CDJP2L16-30D Magnet: Built-in | Mounting: Foot | Bore: 16 mm | Stroke: 30 mm | Rod end: Male thread
CDJP2L16-30D-B Magnet: Built-in | Mounting: Foot | Bore: 16 mm | Stroke: 30 mm | Rod end: No thread
CDJP2L16-35D Magnet: Built-in | Mounting: Foot | Bore: 16 mm | Stroke: 35 mm | Rod end: Male thread
CDJP2L16-35D-B Magnet: Built-in | Mounting: Foot | Bore: 16 mm | Stroke: 35 mm | Rod end: No thread
CDJP2L16-40D Magnet: Built-in | Mounting: Foot | Bore: 16 mm | Stroke: 40 mm | Rod end: Male thread
CDJP2L16-40D-B Magnet: Built-in | Mounting: Foot | Bore: 16 mm | Stroke: 40 mm | Rod end: No thread
CDJP2D16-5D Magnet: Built-in | Mounting: Clevis | Bore: 16 mm | Stroke: 5 mm | Rod end: Male thread
CDJP2D16-5D-B Magnet: Built-in | Mounting: Clevis | Bore: 16 mm | Stroke: 5 mm | Rod end: No thread
CDJP2D16-10D Magnet: Built-in | Mounting: Clevis | Bore: 16 mm | Stroke: 10 mm | Rod end: Male thread
CDJP2D16-10D-B Magnet: Built-in | Mounting: Clevis | Bore: 16 mm | Stroke: 10 mm | Rod end: No thread
CDJP2D16-15D Magnet: Built-in | Mounting: Clevis | Bore: 16 mm | Stroke: 15 mm | Rod end: Male thread
CDJP2D16-15D-B Magnet: Built-in | Mounting: Clevis | Bore: 16 mm | Stroke: 15 mm | Rod end: No thread
CDJP2D16-20D Magnet: Built-in | Mounting: Clevis | Bore: 16 mm | Stroke: 20 mm | Rod end: Male thread
CDJP2D16-20D-B Magnet: Built-in | Mounting: Clevis | Bore: 16 mm | Stroke: 20 mm | Rod end: No thread
CDJP2D16-25D Magnet: Built-in | Mounting: Clevis | Bore: 16 mm | Stroke: 25 mm | Rod end: Male thread
CDJP2D16-25D-B Magnet: Built-in | Mounting: Clevis | Bore: 16 mm | Stroke: 25 mm | Rod end: No thread
CDJP2D16-30D Magnet: Built-in | Mounting: Clevis | Bore: 16 mm | Stroke: 30 mm | Rod end: Male thread
CDJP2D16-30D-B Magnet: Built-in | Mounting: Clevis | Bore: 16 mm | Stroke: 30 mm | Rod end: No thread
CDJP2D16-35D Magnet: Built-in | Mounting: Clevis | Bore: 16 mm | Stroke: 35 mm | Rod end: Male thread
CDJP2D16-35D-B Magnet: Built-in | Mounting: Clevis | Bore: 16 mm | Stroke: 35 mm | Rod end: No thread
CDJP2D16-40D Magnet: Built-in | Mounting: Clevis | Bore: 16 mm | Stroke: 40 mm | Rod end: Male thread
CDJP2D16-40D-B Magnet: Built-in | Mounting: Clevis | Bore: 16 mm | Stroke: 40 mm | Rod end: No thread
CDJP2T16-5D Magnet: Built-in | Mounting: Trunnion | Bore: 16 mm | Stroke: 5 mm | Rod end: Male thread
CDJP2T16-5D-B Magnet: Built-in | Mounting: Trunnion | Bore: 16 mm | Stroke: 5 mm | Rod end: No thread
CDJP2T16-10D Magnet: Built-in | Mounting: Trunnion | Bore: 16 mm | Stroke: 10 mm | Rod end: Male thread
CDJP2T16-10D-B Magnet: Built-in | Mounting: Trunnion | Bore: 16 mm | Stroke: 10 mm | Rod end: No thread
CDJP2T16-15D Magnet: Built-in | Mounting: Trunnion | Bore: 16 mm | Stroke: 15 mm | Rod end: Male thread
CDJP2T16-15D-B Magnet: Built-in | Mounting: Trunnion | Bore: 16 mm | Stroke: 15 mm | Rod end: No thread
CDJP2T16-20D Magnet: Built-in | Mounting: Trunnion | Bore: 16 mm | Stroke: 20 mm | Rod end: Male thread
CDJP2T16-20D-B Magnet: Built-in | Mounting: Trunnion | Bore: 16 mm | Stroke: 20 mm | Rod end: No thread
CDJP2T16-25D Magnet: Built-in | Mounting: Trunnion | Bore: 16 mm | Stroke: 25 mm | Rod end: Male thread
CDJP2T16-25D-B Magnet: Built-in | Mounting: Trunnion | Bore: 16 mm | Stroke: 25 mm | Rod end: No thread
CDJP2T16-30D Magnet: Built-in | Mounting: Trunnion | Bore: 16 mm | Stroke: 30 mm | Rod end: Male thread
CDJP2T16-30D-B Magnet: Built-in | Mounting: Trunnion | Bore: 16 mm | Stroke: 30 mm | Rod end: No thread
CDJP2T16-35D Magnet: Built-in | Mounting: Trunnion | Bore: 16 mm | Stroke: 35 mm | Rod end: Male thread
CDJP2T16-35D-B Magnet: Built-in | Mounting: Trunnion | Bore: 16 mm | Stroke: 35 mm | Rod end: No thread
CDJP2T16-40D Magnet: Built-in | Mounting: Trunnion | Bore: 16 mm | Stroke: 40 mm | Rod end: Male thread
CDJP2T16-40D-B Magnet: Built-in | Mounting: Trunnion | Bore: 16 mm | Stroke: 40 mm | Rod end: No thread
Round Body CylindersSMC
434 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC CJP2 Pin Cylinder (Double Acting, Bore 4 to 16 mm)

Brand SMC·Round Body Cylinders

Available part numbers (434)

CJP2B4-5D, CJP2B4-5D-B, CJP2B4-10D, CJP2B4-10D-B, CJP2B4-15D, CJP2B4-15D-B, CJP2B4-20D, CJP2B4-20D-B, CJP2B6-5D, CJP2B6-5D-B + 424 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CJP2B4-5DMagnet: Without | Mounting: Basic | Bore: 4 mm | Stroke: 5 mm | Rod end: Male thread
CJP2B4-5D-BMagnet: Without | Mounting: Basic | Bore: 4 mm | Stroke: 5 mm | Rod end: No thread
CJP2B4-10DMagnet: Without | Mounting: Basic | Bore: 4 mm | Stroke: 10 mm | Rod end: Male thread
CJP2B4-10D-BMagnet: Without | Mounting: Basic | Bore: 4 mm | Stroke: 10 mm | Rod end: No thread
CJP2B4-15DMagnet: Without | Mounting: Basic | Bore: 4 mm | Stroke: 15 mm | Rod end: Male thread
CJP2B4-15D-BMagnet: Without | Mounting: Basic | Bore: 4 mm | Stroke: 15 mm | Rod end: No thread
CJP2B4-20DMagnet: Without | Mounting: Basic | Bore: 4 mm | Stroke: 20 mm | Rod end: Male thread
CJP2B4-20D-BMagnet: Without | Mounting: Basic | Bore: 4 mm | Stroke: 20 mm | Rod end: No thread
CJP2B6-5DMagnet: Without | Mounting: Basic | Bore: 6 mm | Stroke: 5 mm | Rod end: Male thread
CJP2B6-5D-BMagnet: Without | Mounting: Basic | Bore: 6 mm | Stroke: 5 mm | Rod end: No thread
CJP2B6-10DMagnet: Without | Mounting: Basic | Bore: 6 mm | Stroke: 10 mm | Rod end: Male thread
CJP2B6-10D-BMagnet: Without | Mounting: Basic | Bore: 6 mm | Stroke: 10 mm | Rod end: No thread
CJP2B6-15DMagnet: Without | Mounting: Basic | Bore: 6 mm | Stroke: 15 mm | Rod end: Male thread
CJP2B6-15D-BMagnet: Without | Mounting: Basic | Bore: 6 mm | Stroke: 15 mm | Rod end: No thread
CJP2B6-20DMagnet: Without | Mounting: Basic | Bore: 6 mm | Stroke: 20 mm | Rod end: Male thread
CJP2B6-20D-BMagnet: Without | Mounting: Basic | Bore: 6 mm | Stroke: 20 mm | Rod end: No thread
CJP2B6-25DMagnet: Without | Mounting: Basic | Bore: 6 mm | Stroke: 25 mm | Rod end: Male thread
CJP2B6-25D-BMagnet: Without | Mounting: Basic | Bore: 6 mm | Stroke: 25 mm | Rod end: No thread
CJP2F6-5DMagnet: Without | Mounting: Flange | Bore: 6 mm | Stroke: 5 mm | Rod end: Male thread
CJP2F6-5D-BMagnet: Without | Mounting: Flange | Bore: 6 mm | Stroke: 5 mm | Rod end: No thread
CJP2F6-10DMagnet: Without | Mounting: Flange | Bore: 6 mm | Stroke: 10 mm | Rod end: Male thread
CJP2F6-10D-BMagnet: Without | Mounting: Flange | Bore: 6 mm | Stroke: 10 mm | Rod end: No thread
CJP2F6-15DMagnet: Without | Mounting: Flange | Bore: 6 mm | Stroke: 15 mm | Rod end: Male thread
CJP2F6-15D-BMagnet: Without | Mounting: Flange | Bore: 6 mm | Stroke: 15 mm | Rod end: No thread
CJP2F6-20DMagnet: Without | Mounting: Flange | Bore: 6 mm | Stroke: 20 mm | Rod end: Male thread
CJP2F6-20D-BMagnet: Without | Mounting: Flange | Bore: 6 mm | Stroke: 20 mm | Rod end: No thread
CJP2F6-25DMagnet: Without | Mounting: Flange | Bore: 6 mm | Stroke: 25 mm | Rod end: Male thread
CJP2F6-25D-BMagnet: Without | Mounting: Flange | Bore: 6 mm | Stroke: 25 mm | Rod end: No thread
CJP2L6-5DMagnet: Without | Mounting: Foot | Bore: 6 mm | Stroke: 5 mm | Rod end: Male thread
CJP2L6-5D-BMagnet: Without | Mounting: Foot | Bore: 6 mm | Stroke: 5 mm | Rod end: No thread
CJP2L6-10DMagnet: Without | Mounting: Foot | Bore: 6 mm | Stroke: 10 mm | Rod end: Male thread
CJP2L6-10D-BMagnet: Without | Mounting: Foot | Bore: 6 mm | Stroke: 10 mm | Rod end: No thread
CJP2L6-15DMagnet: Without | Mounting: Foot | Bore: 6 mm | Stroke: 15 mm | Rod end: Male thread
CJP2L6-15D-BMagnet: Without | Mounting: Foot | Bore: 6 mm | Stroke: 15 mm | Rod end: No thread
CJP2L6-20DMagnet: Without | Mounting: Foot | Bore: 6 mm | Stroke: 20 mm | Rod end: Male thread
CJP2L6-20D-BMagnet: Without | Mounting: Foot | Bore: 6 mm | Stroke: 20 mm | Rod end: No thread
CJP2L6-25DMagnet: Without | Mounting: Foot | Bore: 6 mm | Stroke: 25 mm | Rod end: Male thread
CJP2L6-25D-BMagnet: Without | Mounting: Foot | Bore: 6 mm | Stroke: 25 mm | Rod end: No thread
CJP2D6-5DMagnet: Without | Mounting: Clevis | Bore: 6 mm | Stroke: 5 mm | Rod end: Male thread
CJP2D6-5D-BMagnet: Without | Mounting: Clevis | Bore: 6 mm | Stroke: 5 mm | Rod end: No thread
CJP2D6-10DMagnet: Without | Mounting: Clevis | Bore: 6 mm | Stroke: 10 mm | Rod end: Male thread
CJP2D6-10D-BMagnet: Without | Mounting: Clevis | Bore: 6 mm | Stroke: 10 mm | Rod end: No thread
CJP2D6-15DMagnet: Without | Mounting: Clevis | Bore: 6 mm | Stroke: 15 mm | Rod end: Male thread
CJP2D6-15D-BMagnet: Without | Mounting: Clevis | Bore: 6 mm | Stroke: 15 mm | Rod end: No thread
CJP2D6-20DMagnet: Without | Mounting: Clevis | Bore: 6 mm | Stroke: 20 mm | Rod end: Male thread
CJP2D6-20D-BMagnet: Without | Mounting: Clevis | Bore: 6 mm | Stroke: 20 mm | Rod end: No thread
CJP2D6-25DMagnet: Without | Mounting: Clevis | Bore: 6 mm | Stroke: 25 mm | Rod end: Male thread
CJP2D6-25D-BMagnet: Without | Mounting: Clevis | Bore: 6 mm | Stroke: 25 mm | Rod end: No thread
CJP2T6-5DMagnet: Without | Mounting: Trunnion | Bore: 6 mm | Stroke: 5 mm | Rod end: Male thread
CJP2T6-5D-BMagnet: Without | Mounting: Trunnion | Bore: 6 mm | Stroke: 5 mm | Rod end: No thread
CJP2T6-10DMagnet: Without | Mounting: Trunnion | Bore: 6 mm | Stroke: 10 mm | Rod end: Male thread
CJP2T6-10D-BMagnet: Without | Mounting: Trunnion | Bore: 6 mm | Stroke: 10 mm | Rod end: No thread
CJP2T6-15DMagnet: Without | Mounting: Trunnion | Bore: 6 mm | Stroke: 15 mm | Rod end: Male thread
CJP2T6-15D-BMagnet: Without | Mounting: Trunnion | Bore: 6 mm | Stroke: 15 mm | Rod end: No thread
CJP2T6-20DMagnet: Without | Mounting: Trunnion | Bore: 6 mm | Stroke: 20 mm | Rod end: Male thread
CJP2T6-20D-BMagnet: Without | Mounting: Trunnion | Bore: 6 mm | Stroke: 20 mm | Rod end: No thread
CJP2T6-25DMagnet: Without | Mounting: Trunnion | Bore: 6 mm | Stroke: 25 mm | Rod end: Male thread
CJP2T6-25D-BMagnet: Without | Mounting: Trunnion | Bore: 6 mm | Stroke: 25 mm | Rod end: No thread
CJP2B10-5DMagnet: Without | Mounting: Basic | Bore: 10 mm | Stroke: 5 mm | Rod end: Male thread
CJP2B10-5D-BMagnet: Without | Mounting: Basic | Bore: 10 mm | Stroke: 5 mm | Rod end: No thread
CJP2B10-10DMagnet: Without | Mounting: Basic | Bore: 10 mm | Stroke: 10 mm | Rod end: Male thread
CJP2B10-10D-BMagnet: Without | Mounting: Basic | Bore: 10 mm | Stroke: 10 mm | Rod end: No thread
CJP2B10-15DMagnet: Without | Mounting: Basic | Bore: 10 mm | Stroke: 15 mm | Rod end: Male thread
CJP2B10-15D-BMagnet: Without | Mounting: Basic | Bore: 10 mm | Stroke: 15 mm | Rod end: No thread
CJP2B10-20DMagnet: Without | Mounting: Basic | Bore: 10 mm | Stroke: 20 mm | Rod end: Male thread
CJP2B10-20D-BMagnet: Without | Mounting: Basic | Bore: 10 mm | Stroke: 20 mm | Rod end: No thread
CJP2B10-25DMagnet: Without | Mounting: Basic | Bore: 10 mm | Stroke: 25 mm | Rod end: Male thread
CJP2B10-25D-BMagnet: Without | Mounting: Basic | Bore: 10 mm | Stroke: 25 mm | Rod end: No thread
CJP2B10-30DMagnet: Without | Mounting: Basic | Bore: 10 mm | Stroke: 30 mm | Rod end: Male thread
CJP2B10-30D-BMagnet: Without | Mounting: Basic | Bore: 10 mm | Stroke: 30 mm | Rod end: No thread
CJP2B10-35DMagnet: Without | Mounting: Basic | Bore: 10 mm | Stroke: 35 mm | Rod end: Male thread
CJP2B10-35D-BMagnet: Without | Mounting: Basic | Bore: 10 mm | Stroke: 35 mm | Rod end: No thread
CJP2B10-40DMagnet: Without | Mounting: Basic | Bore: 10 mm | Stroke: 40 mm | Rod end: Male thread
CJP2B10-40D-BMagnet: Without | Mounting: Basic | Bore: 10 mm | Stroke: 40 mm | Rod end: No thread
CJP2F10-5DMagnet: Without | Mounting: Flange | Bore: 10 mm | Stroke: 5 mm | Rod end: Male thread
CJP2F10-5D-BMagnet: Without | Mounting: Flange | Bore: 10 mm | Stroke: 5 mm | Rod end: No thread
CJP2F10-10DMagnet: Without | Mounting: Flange | Bore: 10 mm | Stroke: 10 mm | Rod end: Male thread
CJP2F10-10D-BMagnet: Without | Mounting: Flange | Bore: 10 mm | Stroke: 10 mm | Rod end: No thread
CJP2F10-15DMagnet: Without | Mounting: Flange | Bore: 10 mm | Stroke: 15 mm | Rod end: Male thread
CJP2F10-15D-BMagnet: Without | Mounting: Flange | Bore: 10 mm | Stroke: 15 mm | Rod end: No thread
CJP2F10-20DMagnet: Without | Mounting: Flange | Bore: 10 mm | Stroke: 20 mm | Rod end: Male thread
CJP2F10-20D-BMagnet: Without | Mounting: Flange | Bore: 10 mm | Stroke: 20 mm | Rod end: No thread
CJP2F10-25DMagnet: Without | Mounting: Flange | Bore: 10 mm | Stroke: 25 mm | Rod end: Male thread
CJP2F10-25D-BMagnet: Without | Mounting: Flange | Bore: 10 mm | Stroke: 25 mm | Rod end: No thread
CJP2F10-30DMagnet: Without | Mounting: Flange | Bore: 10 mm | Stroke: 30 mm | Rod end: Male thread
CJP2F10-30D-BMagnet: Without | Mounting: Flange | Bore: 10 mm | Stroke: 30 mm | Rod end: No thread
CJP2F10-35DMagnet: Without | Mounting: Flange | Bore: 10 mm | Stroke: 35 mm | Rod end: Male thread
CJP2F10-35D-BMagnet: Without | Mounting: Flange | Bore: 10 mm | Stroke: 35 mm | Rod end: No thread
CJP2F10-40DMagnet: Without | Mounting: Flange | Bore: 10 mm | Stroke: 40 mm | Rod end: Male thread
CJP2F10-40D-BMagnet: Without | Mounting: Flange | Bore: 10 mm | Stroke: 40 mm | Rod end: No thread
CJP2L10-5DMagnet: Without | Mounting: Foot | Bore: 10 mm | Stroke: 5 mm | Rod end: Male thread
CJP2L10-5D-BMagnet: Without | Mounting: Foot | Bore: 10 mm | Stroke: 5 mm | Rod end: No thread
CJP2L10-10DMagnet: Without | Mounting: Foot | Bore: 10 mm | Stroke: 10 mm | Rod end: Male thread
CJP2L10-10D-BMagnet: Without | Mounting: Foot | Bore: 10 mm | Stroke: 10 mm | Rod end: No thread
CJP2L10-15DMagnet: Without | Mounting: Foot | Bore: 10 mm | Stroke: 15 mm | Rod end: Male thread
CJP2L10-15D-BMagnet: Without | Mounting: Foot | Bore: 10 mm | Stroke: 15 mm | Rod end: No thread
CJP2L10-20DMagnet: Without | Mounting: Foot | Bore: 10 mm | Stroke: 20 mm | Rod end: Male thread
CJP2L10-20D-BMagnet: Without | Mounting: Foot | Bore: 10 mm | Stroke: 20 mm | Rod end: No thread
CJP2L10-25DMagnet: Without | Mounting: Foot | Bore: 10 mm | Stroke: 25 mm | Rod end: Male thread
CJP2L10-25D-BMagnet: Without | Mounting: Foot | Bore: 10 mm | Stroke: 25 mm | Rod end: No thread
CJP2L10-30DMagnet: Without | Mounting: Foot | Bore: 10 mm | Stroke: 30 mm | Rod end: Male thread
CJP2L10-30D-BMagnet: Without | Mounting: Foot | Bore: 10 mm | Stroke: 30 mm | Rod end: No thread
CJP2L10-35DMagnet: Without | Mounting: Foot | Bore: 10 mm | Stroke: 35 mm | Rod end: Male thread
CJP2L10-35D-BMagnet: Without | Mounting: Foot | Bore: 10 mm | Stroke: 35 mm | Rod end: No thread
CJP2L10-40DMagnet: Without | Mounting: Foot | Bore: 10 mm | Stroke: 40 mm | Rod end: Male thread
CJP2L10-40D-BMagnet: Without | Mounting: Foot | Bore: 10 mm | Stroke: 40 mm | Rod end: No thread
CJP2D10-5DMagnet: Without | Mounting: Clevis | Bore: 10 mm | Stroke: 5 mm | Rod end: Male thread
CJP2D10-5D-BMagnet: Without | Mounting: Clevis | Bore: 10 mm | Stroke: 5 mm | Rod end: No thread
CJP2D10-10DMagnet: Without | Mounting: Clevis | Bore: 10 mm | Stroke: 10 mm | Rod end: Male thread
CJP2D10-10D-BMagnet: Without | Mounting: Clevis | Bore: 10 mm | Stroke: 10 mm | Rod end: No thread
CJP2D10-15DMagnet: Without | Mounting: Clevis | Bore: 10 mm | Stroke: 15 mm | Rod end: Male thread
CJP2D10-15D-BMagnet: Without | Mounting: Clevis | Bore: 10 mm | Stroke: 15 mm | Rod end: No thread
CJP2D10-20DMagnet: Without | Mounting: Clevis | Bore: 10 mm | Stroke: 20 mm | Rod end: Male thread
CJP2D10-20D-BMagnet: Without | Mounting: Clevis | Bore: 10 mm | Stroke: 20 mm | Rod end: No thread
CJP2D10-25DMagnet: Without | Mounting: Clevis | Bore: 10 mm | Stroke: 25 mm | Rod end: Male thread
CJP2D10-25D-BMagnet: Without | Mounting: Clevis | Bore: 10 mm | Stroke: 25 mm | Rod end: No thread
CJP2D10-30DMagnet: Without | Mounting: Clevis | Bore: 10 mm | Stroke: 30 mm | Rod end: Male thread
CJP2D10-30D-BMagnet: Without | Mounting: Clevis | Bore: 10 mm | Stroke: 30 mm | Rod end: No thread
CJP2D10-35DMagnet: Without | Mounting: Clevis | Bore: 10 mm | Stroke: 35 mm | Rod end: Male thread
CJP2D10-35D-BMagnet: Without | Mounting: Clevis | Bore: 10 mm | Stroke: 35 mm | Rod end: No thread
CJP2D10-40DMagnet: Without | Mounting: Clevis | Bore: 10 mm | Stroke: 40 mm | Rod end: Male thread
CJP2D10-40D-BMagnet: Without | Mounting: Clevis | Bore: 10 mm | Stroke: 40 mm | Rod end: No thread
CJP2T10-5DMagnet: Without | Mounting: Trunnion | Bore: 10 mm | Stroke: 5 mm | Rod end: Male thread
CJP2T10-5D-BMagnet: Without | Mounting: Trunnion | Bore: 10 mm | Stroke: 5 mm | Rod end: No thread
CJP2T10-10DMagnet: Without | Mounting: Trunnion | Bore: 10 mm | Stroke: 10 mm | Rod end: Male thread
CJP2T10-10D-BMagnet: Without | Mounting: Trunnion | Bore: 10 mm | Stroke: 10 mm | Rod end: No thread
CJP2T10-15DMagnet: Without | Mounting: Trunnion | Bore: 10 mm | Stroke: 15 mm | Rod end: Male thread
CJP2T10-15D-BMagnet: Without | Mounting: Trunnion | Bore: 10 mm | Stroke: 15 mm | Rod end: No thread
CJP2T10-20DMagnet: Without | Mounting: Trunnion | Bore: 10 mm | Stroke: 20 mm | Rod end: Male thread
CJP2T10-20D-BMagnet: Without | Mounting: Trunnion | Bore: 10 mm | Stroke: 20 mm | Rod end: No thread
CJP2T10-25DMagnet: Without | Mounting: Trunnion | Bore: 10 mm | Stroke: 25 mm | Rod end: Male thread
CJP2T10-25D-BMagnet: Without | Mounting: Trunnion | Bore: 10 mm | Stroke: 25 mm | Rod end: No thread
CJP2T10-30DMagnet: Without | Mounting: Trunnion | Bore: 10 mm | Stroke: 30 mm | Rod end: Male thread
CJP2T10-30D-BMagnet: Without | Mounting: Trunnion | Bore: 10 mm | Stroke: 30 mm | Rod end: No thread
CJP2T10-35DMagnet: Without | Mounting: Trunnion | Bore: 10 mm | Stroke: 35 mm | Rod end: Male thread
CJP2T10-35D-BMagnet: Without | Mounting: Trunnion | Bore: 10 mm | Stroke: 35 mm | Rod end: No thread
CJP2T10-40DMagnet: Without | Mounting: Trunnion | Bore: 10 mm | Stroke: 40 mm | Rod end: Male thread
CJP2T10-40D-BMagnet: Without | Mounting: Trunnion | Bore: 10 mm | Stroke: 40 mm | Rod end: No thread
CJP2B16-5DMagnet: Without | Mounting: Basic | Bore: 16 mm | Stroke: 5 mm | Rod end: Male thread
CJP2B16-5D-BMagnet: Without | Mounting: Basic | Bore: 16 mm | Stroke: 5 mm | Rod end: No thread
CJP2B16-10DMagnet: Without | Mounting: Basic | Bore: 16 mm | Stroke: 10 mm | Rod end: Male thread
CJP2B16-10D-BMagnet: Without | Mounting: Basic | Bore: 16 mm | Stroke: 10 mm | Rod end: No thread
CJP2B16-15DMagnet: Without | Mounting: Basic | Bore: 16 mm | Stroke: 15 mm | Rod end: Male thread
CJP2B16-15D-BMagnet: Without | Mounting: Basic | Bore: 16 mm | Stroke: 15 mm | Rod end: No thread
CJP2B16-20DMagnet: Without | Mounting: Basic | Bore: 16 mm | Stroke: 20 mm | Rod end: Male thread
CJP2B16-20D-BMagnet: Without | Mounting: Basic | Bore: 16 mm | Stroke: 20 mm | Rod end: No thread
CJP2B16-25DMagnet: Without | Mounting: Basic | Bore: 16 mm | Stroke: 25 mm | Rod end: Male thread
CJP2B16-25D-BMagnet: Without | Mounting: Basic | Bore: 16 mm | Stroke: 25 mm | Rod end: No thread
CJP2B16-30DMagnet: Without | Mounting: Basic | Bore: 16 mm | Stroke: 30 mm | Rod end: Male thread
CJP2B16-30D-BMagnet: Without | Mounting: Basic | Bore: 16 mm | Stroke: 30 mm | Rod end: No thread
CJP2B16-35DMagnet: Without | Mounting: Basic | Bore: 16 mm | Stroke: 35 mm | Rod end: Male thread
CJP2B16-35D-BMagnet: Without | Mounting: Basic | Bore: 16 mm | Stroke: 35 mm | Rod end: No thread
CJP2B16-40DMagnet: Without | Mounting: Basic | Bore: 16 mm | Stroke: 40 mm | Rod end: Male thread
CJP2B16-40D-BMagnet: Without | Mounting: Basic | Bore: 16 mm | Stroke: 40 mm | Rod end: No thread
CJP2F16-5DMagnet: Without | Mounting: Flange | Bore: 16 mm | Stroke: 5 mm | Rod end: Male thread
CJP2F16-5D-BMagnet: Without | Mounting: Flange | Bore: 16 mm | Stroke: 5 mm | Rod end: No thread
CJP2F16-10DMagnet: Without | Mounting: Flange | Bore: 16 mm | Stroke: 10 mm | Rod end: Male thread
CJP2F16-10D-BMagnet: Without | Mounting: Flange | Bore: 16 mm | Stroke: 10 mm | Rod end: No thread
CJP2F16-15DMagnet: Without | Mounting: Flange | Bore: 16 mm | Stroke: 15 mm | Rod end: Male thread
CJP2F16-15D-BMagnet: Without | Mounting: Flange | Bore: 16 mm | Stroke: 15 mm | Rod end: No thread
CJP2F16-20DMagnet: Without | Mounting: Flange | Bore: 16 mm | Stroke: 20 mm | Rod end: Male thread
CJP2F16-20D-BMagnet: Without | Mounting: Flange | Bore: 16 mm | Stroke: 20 mm | Rod end: No thread
CJP2F16-25DMagnet: Without | Mounting: Flange | Bore: 16 mm | Stroke: 25 mm | Rod end: Male thread
CJP2F16-25D-BMagnet: Without | Mounting: Flange | Bore: 16 mm | Stroke: 25 mm | Rod end: No thread
CJP2F16-30DMagnet: Without | Mounting: Flange | Bore: 16 mm | Stroke: 30 mm | Rod end: Male thread
CJP2F16-30D-BMagnet: Without | Mounting: Flange | Bore: 16 mm | Stroke: 30 mm | Rod end: No thread
CJP2F16-35DMagnet: Without | Mounting: Flange | Bore: 16 mm | Stroke: 35 mm | Rod end: Male thread
CJP2F16-35D-BMagnet: Without | Mounting: Flange | Bore: 16 mm | Stroke: 35 mm | Rod end: No thread
CJP2F16-40DMagnet: Without | Mounting: Flange | Bore: 16 mm | Stroke: 40 mm | Rod end: Male thread
CJP2F16-40D-BMagnet: Without | Mounting: Flange | Bore: 16 mm | Stroke: 40 mm | Rod end: No thread
CJP2L16-5DMagnet: Without | Mounting: Foot | Bore: 16 mm | Stroke: 5 mm | Rod end: Male thread
CJP2L16-5D-BMagnet: Without | Mounting: Foot | Bore: 16 mm | Stroke: 5 mm | Rod end: No thread
CJP2L16-10DMagnet: Without | Mounting: Foot | Bore: 16 mm | Stroke: 10 mm | Rod end: Male thread
CJP2L16-10D-BMagnet: Without | Mounting: Foot | Bore: 16 mm | Stroke: 10 mm | Rod end: No thread
CJP2L16-15DMagnet: Without | Mounting: Foot | Bore: 16 mm | Stroke: 15 mm | Rod end: Male thread
CJP2L16-15D-BMagnet: Without | Mounting: Foot | Bore: 16 mm | Stroke: 15 mm | Rod end: No thread
CJP2L16-20DMagnet: Without | Mounting: Foot | Bore: 16 mm | Stroke: 20 mm | Rod end: Male thread
CJP2L16-20D-BMagnet: Without | Mounting: Foot | Bore: 16 mm | Stroke: 20 mm | Rod end: No thread
CJP2L16-25DMagnet: Without | Mounting: Foot | Bore: 16 mm | Stroke: 25 mm | Rod end: Male thread
CJP2L16-25D-BMagnet: Without | Mounting: Foot | Bore: 16 mm | Stroke: 25 mm | Rod end: No thread
CJP2L16-30DMagnet: Without | Mounting: Foot | Bore: 16 mm | Stroke: 30 mm | Rod end: Male thread
CJP2L16-30D-BMagnet: Without | Mounting: Foot | Bore: 16 mm | Stroke: 30 mm | Rod end: No thread
CJP2L16-35DMagnet: Without | Mounting: Foot | Bore: 16 mm | Stroke: 35 mm | Rod end: Male thread
CJP2L16-35D-BMagnet: Without | Mounting: Foot | Bore: 16 mm | Stroke: 35 mm | Rod end: No thread
CJP2L16-40DMagnet: Without | Mounting: Foot | Bore: 16 mm | Stroke: 40 mm | Rod end: Male thread
CJP2L16-40D-BMagnet: Without | Mounting: Foot | Bore: 16 mm | Stroke: 40 mm | Rod end: No thread
CJP2D16-5DMagnet: Without | Mounting: Clevis | Bore: 16 mm | Stroke: 5 mm | Rod end: Male thread
CJP2D16-5D-BMagnet: Without | Mounting: Clevis | Bore: 16 mm | Stroke: 5 mm | Rod end: No thread
CJP2D16-10DMagnet: Without | Mounting: Clevis | Bore: 16 mm | Stroke: 10 mm | Rod end: Male thread
CJP2D16-10D-BMagnet: Without | Mounting: Clevis | Bore: 16 mm | Stroke: 10 mm | Rod end: No thread
CJP2D16-15DMagnet: Without | Mounting: Clevis | Bore: 16 mm | Stroke: 15 mm | Rod end: Male thread
CJP2D16-15D-BMagnet: Without | Mounting: Clevis | Bore: 16 mm | Stroke: 15 mm | Rod end: No thread
CJP2D16-20DMagnet: Without | Mounting: Clevis | Bore: 16 mm | Stroke: 20 mm | Rod end: Male thread
CJP2D16-20D-BMagnet: Without | Mounting: Clevis | Bore: 16 mm | Stroke: 20 mm | Rod end: No thread
CJP2D16-25DMagnet: Without | Mounting: Clevis | Bore: 16 mm | Stroke: 25 mm | Rod end: Male thread
CJP2D16-25D-BMagnet: Without | Mounting: Clevis | Bore: 16 mm | Stroke: 25 mm | Rod end: No thread
CJP2D16-30DMagnet: Without | Mounting: Clevis | Bore: 16 mm | Stroke: 30 mm | Rod end: Male thread
CJP2D16-30D-BMagnet: Without | Mounting: Clevis | Bore: 16 mm | Stroke: 30 mm | Rod end: No thread
CJP2D16-35DMagnet: Without | Mounting: Clevis | Bore: 16 mm | Stroke: 35 mm | Rod end: Male thread
CJP2D16-35D-BMagnet: Without | Mounting: Clevis | Bore: 16 mm | Stroke: 35 mm | Rod end: No thread
CJP2D16-40DMagnet: Without | Mounting: Clevis | Bore: 16 mm | Stroke: 40 mm | Rod end: Male thread
CJP2D16-40D-BMagnet: Without | Mounting: Clevis | Bore: 16 mm | Stroke: 40 mm | Rod end: No thread
CJP2T16-5DMagnet: Without | Mounting: Trunnion | Bore: 16 mm | Stroke: 5 mm | Rod end: Male thread
CJP2T16-5D-BMagnet: Without | Mounting: Trunnion | Bore: 16 mm | Stroke: 5 mm | Rod end: No thread
CJP2T16-10DMagnet: Without | Mounting: Trunnion | Bore: 16 mm | Stroke: 10 mm | Rod end: Male thread
CJP2T16-10D-BMagnet: Without | Mounting: Trunnion | Bore: 16 mm | Stroke: 10 mm | Rod end: No thread
CJP2T16-15DMagnet: Without | Mounting: Trunnion | Bore: 16 mm | Stroke: 15 mm | Rod end: Male thread
CJP2T16-15D-BMagnet: Without | Mounting: Trunnion | Bore: 16 mm | Stroke: 15 mm | Rod end: No thread
CJP2T16-20DMagnet: Without | Mounting: Trunnion | Bore: 16 mm | Stroke: 20 mm | Rod end: Male thread
CJP2T16-20D-BMagnet: Without | Mounting: Trunnion | Bore: 16 mm | Stroke: 20 mm | Rod end: No thread
CJP2T16-25DMagnet: Without | Mounting: Trunnion | Bore: 16 mm | Stroke: 25 mm | Rod end: Male thread
CJP2T16-25D-BMagnet: Without | Mounting: Trunnion | Bore: 16 mm | Stroke: 25 mm | Rod end: No thread
CJP2T16-30DMagnet: Without | Mounting: Trunnion | Bore: 16 mm | Stroke: 30 mm | Rod end: Male thread
CJP2T16-30D-BMagnet: Without | Mounting: Trunnion | Bore: 16 mm | Stroke: 30 mm | Rod end: No thread
CJP2T16-35DMagnet: Without | Mounting: Trunnion | Bore: 16 mm | Stroke: 35 mm | Rod end: Male thread
CJP2T16-35D-BMagnet: Without | Mounting: Trunnion | Bore: 16 mm | Stroke: 35 mm | Rod end: No thread
CJP2T16-40DMagnet: Without | Mounting: Trunnion | Bore: 16 mm | Stroke: 40 mm | Rod end: Male thread
CJP2T16-40D-BMagnet: Without | Mounting: Trunnion | Bore: 16 mm | Stroke: 40 mm | Rod end: No thread
CDJP2B4-5DMagnet: Built-in | Mounting: Basic | Bore: 4 mm | Stroke: 5 mm | Rod end: Male thread
CDJP2B4-5D-BMagnet: Built-in | Mounting: Basic | Bore: 4 mm | Stroke: 5 mm | Rod end: No thread
CDJP2B4-10DMagnet: Built-in | Mounting: Basic | Bore: 4 mm | Stroke: 10 mm | Rod end: Male thread
CDJP2B4-10D-BMagnet: Built-in | Mounting: Basic | Bore: 4 mm | Stroke: 10 mm | Rod end: No thread
CDJP2B4-15DMagnet: Built-in | Mounting: Basic | Bore: 4 mm | Stroke: 15 mm | Rod end: Male thread
CDJP2B4-15D-BMagnet: Built-in | Mounting: Basic | Bore: 4 mm | Stroke: 15 mm | Rod end: No thread
CDJP2B6-5DMagnet: Built-in | Mounting: Basic | Bore: 6 mm | Stroke: 5 mm | Rod end: Male thread
CDJP2B6-5D-BMagnet: Built-in | Mounting: Basic | Bore: 6 mm | Stroke: 5 mm | Rod end: No thread
CDJP2B6-10DMagnet: Built-in | Mounting: Basic | Bore: 6 mm | Stroke: 10 mm | Rod end: Male thread
CDJP2B6-10D-BMagnet: Built-in | Mounting: Basic | Bore: 6 mm | Stroke: 10 mm | Rod end: No thread
CDJP2B6-15DMagnet: Built-in | Mounting: Basic | Bore: 6 mm | Stroke: 15 mm | Rod end: Male thread
CDJP2B6-15D-BMagnet: Built-in | Mounting: Basic | Bore: 6 mm | Stroke: 15 mm | Rod end: No thread
CDJP2B6-20DMagnet: Built-in | Mounting: Basic | Bore: 6 mm | Stroke: 20 mm | Rod end: Male thread
CDJP2B6-20D-BMagnet: Built-in | Mounting: Basic | Bore: 6 mm | Stroke: 20 mm | Rod end: No thread
CDJP2B6-25DMagnet: Built-in | Mounting: Basic | Bore: 6 mm | Stroke: 25 mm | Rod end: Male thread
CDJP2B6-25D-BMagnet: Built-in | Mounting: Basic | Bore: 6 mm | Stroke: 25 mm | Rod end: No thread
CDJP2F6-5DMagnet: Built-in | Mounting: Flange | Bore: 6 mm | Stroke: 5 mm | Rod end: Male thread
CDJP2F6-5D-BMagnet: Built-in | Mounting: Flange | Bore: 6 mm | Stroke: 5 mm | Rod end: No thread
CDJP2F6-10DMagnet: Built-in | Mounting: Flange | Bore: 6 mm | Stroke: 10 mm | Rod end: Male thread
CDJP2F6-10D-BMagnet: Built-in | Mounting: Flange | Bore: 6 mm | Stroke: 10 mm | Rod end: No thread
CDJP2F6-15DMagnet: Built-in | Mounting: Flange | Bore: 6 mm | Stroke: 15 mm | Rod end: Male thread
CDJP2F6-15D-BMagnet: Built-in | Mounting: Flange | Bore: 6 mm | Stroke: 15 mm | Rod end: No thread
CDJP2F6-20DMagnet: Built-in | Mounting: Flange | Bore: 6 mm | Stroke: 20 mm | Rod end: Male thread
CDJP2F6-20D-BMagnet: Built-in | Mounting: Flange | Bore: 6 mm | Stroke: 20 mm | Rod end: No thread
CDJP2F6-25DMagnet: Built-in | Mounting: Flange | Bore: 6 mm | Stroke: 25 mm | Rod end: Male thread
CDJP2F6-25D-BMagnet: Built-in | Mounting: Flange | Bore: 6 mm | Stroke: 25 mm | Rod end: No thread
CDJP2L6-5DMagnet: Built-in | Mounting: Foot | Bore: 6 mm | Stroke: 5 mm | Rod end: Male thread
CDJP2L6-5D-BMagnet: Built-in | Mounting: Foot | Bore: 6 mm | Stroke: 5 mm | Rod end: No thread
CDJP2L6-10DMagnet: Built-in | Mounting: Foot | Bore: 6 mm | Stroke: 10 mm | Rod end: Male thread
CDJP2L6-10D-BMagnet: Built-in | Mounting: Foot | Bore: 6 mm | Stroke: 10 mm | Rod end: No thread
CDJP2L6-15DMagnet: Built-in | Mounting: Foot | Bore: 6 mm | Stroke: 15 mm | Rod end: Male thread
CDJP2L6-15D-BMagnet: Built-in | Mounting: Foot | Bore: 6 mm | Stroke: 15 mm | Rod end: No thread
CDJP2L6-20DMagnet: Built-in | Mounting: Foot | Bore: 6 mm | Stroke: 20 mm | Rod end: Male thread
CDJP2L6-20D-BMagnet: Built-in | Mounting: Foot | Bore: 6 mm | Stroke: 20 mm | Rod end: No thread
CDJP2L6-25DMagnet: Built-in | Mounting: Foot | Bore: 6 mm | Stroke: 25 mm | Rod end: Male thread
CDJP2L6-25D-BMagnet: Built-in | Mounting: Foot | Bore: 6 mm | Stroke: 25 mm | Rod end: No thread
CDJP2D6-5DMagnet: Built-in | Mounting: Clevis | Bore: 6 mm | Stroke: 5 mm | Rod end: Male thread
CDJP2D6-5D-BMagnet: Built-in | Mounting: Clevis | Bore: 6 mm | Stroke: 5 mm | Rod end: No thread
CDJP2D6-10DMagnet: Built-in | Mounting: Clevis | Bore: 6 mm | Stroke: 10 mm | Rod end: Male thread
CDJP2D6-10D-BMagnet: Built-in | Mounting: Clevis | Bore: 6 mm | Stroke: 10 mm | Rod end: No thread
CDJP2D6-15DMagnet: Built-in | Mounting: Clevis | Bore: 6 mm | Stroke: 15 mm | Rod end: Male thread
CDJP2D6-15D-BMagnet: Built-in | Mounting: Clevis | Bore: 6 mm | Stroke: 15 mm | Rod end: No thread
CDJP2D6-20DMagnet: Built-in | Mounting: Clevis | Bore: 6 mm | Stroke: 20 mm | Rod end: Male thread
CDJP2D6-20D-BMagnet: Built-in | Mounting: Clevis | Bore: 6 mm | Stroke: 20 mm | Rod end: No thread
CDJP2D6-25DMagnet: Built-in | Mounting: Clevis | Bore: 6 mm | Stroke: 25 mm | Rod end: Male thread
CDJP2D6-25D-BMagnet: Built-in | Mounting: Clevis | Bore: 6 mm | Stroke: 25 mm | Rod end: No thread
CDJP2T6-5DMagnet: Built-in | Mounting: Trunnion | Bore: 6 mm | Stroke: 5 mm | Rod end: Male thread
CDJP2T6-5D-BMagnet: Built-in | Mounting: Trunnion | Bore: 6 mm | Stroke: 5 mm | Rod end: No thread
CDJP2T6-10DMagnet: Built-in | Mounting: Trunnion | Bore: 6 mm | Stroke: 10 mm | Rod end: Male thread
CDJP2T6-10D-BMagnet: Built-in | Mounting: Trunnion | Bore: 6 mm | Stroke: 10 mm | Rod end: No thread
CDJP2T6-15DMagnet: Built-in | Mounting: Trunnion | Bore: 6 mm | Stroke: 15 mm | Rod end: Male thread
CDJP2T6-15D-BMagnet: Built-in | Mounting: Trunnion | Bore: 6 mm | Stroke: 15 mm | Rod end: No thread
CDJP2T6-20DMagnet: Built-in | Mounting: Trunnion | Bore: 6 mm | Stroke: 20 mm | Rod end: Male thread
CDJP2T6-20D-BMagnet: Built-in | Mounting: Trunnion | Bore: 6 mm | Stroke: 20 mm | Rod end: No thread
CDJP2T6-25DMagnet: Built-in | Mounting: Trunnion | Bore: 6 mm | Stroke: 25 mm | Rod end: Male thread
CDJP2T6-25D-BMagnet: Built-in | Mounting: Trunnion | Bore: 6 mm | Stroke: 25 mm | Rod end: No thread
CDJP2B10-5DMagnet: Built-in | Mounting: Basic | Bore: 10 mm | Stroke: 5 mm | Rod end: Male thread
CDJP2B10-5D-BMagnet: Built-in | Mounting: Basic | Bore: 10 mm | Stroke: 5 mm | Rod end: No thread
CDJP2B10-10DMagnet: Built-in | Mounting: Basic | Bore: 10 mm | Stroke: 10 mm | Rod end: Male thread
CDJP2B10-10D-BMagnet: Built-in | Mounting: Basic | Bore: 10 mm | Stroke: 10 mm | Rod end: No thread
CDJP2B10-15DMagnet: Built-in | Mounting: Basic | Bore: 10 mm | Stroke: 15 mm | Rod end: Male thread
CDJP2B10-15D-BMagnet: Built-in | Mounting: Basic | Bore: 10 mm | Stroke: 15 mm | Rod end: No thread
CDJP2B10-20DMagnet: Built-in | Mounting: Basic | Bore: 10 mm | Stroke: 20 mm | Rod end: Male thread
CDJP2B10-20D-BMagnet: Built-in | Mounting: Basic | Bore: 10 mm | Stroke: 20 mm | Rod end: No thread
CDJP2B10-25DMagnet: Built-in | Mounting: Basic | Bore: 10 mm | Stroke: 25 mm | Rod end: Male thread
CDJP2B10-25D-BMagnet: Built-in | Mounting: Basic | Bore: 10 mm | Stroke: 25 mm | Rod end: No thread
CDJP2B10-30DMagnet: Built-in | Mounting: Basic | Bore: 10 mm | Stroke: 30 mm | Rod end: Male thread
CDJP2B10-30D-BMagnet: Built-in | Mounting: Basic | Bore: 10 mm | Stroke: 30 mm | Rod end: No thread
CDJP2B10-35DMagnet: Built-in | Mounting: Basic | Bore: 10 mm | Stroke: 35 mm | Rod end: Male thread
CDJP2B10-35D-BMagnet: Built-in | Mounting: Basic | Bore: 10 mm | Stroke: 35 mm | Rod end: No thread
CDJP2B10-40DMagnet: Built-in | Mounting: Basic | Bore: 10 mm | Stroke: 40 mm | Rod end: Male thread
CDJP2B10-40D-BMagnet: Built-in | Mounting: Basic | Bore: 10 mm | Stroke: 40 mm | Rod end: No thread
CDJP2F10-5DMagnet: Built-in | Mounting: Flange | Bore: 10 mm | Stroke: 5 mm | Rod end: Male thread
CDJP2F10-5D-BMagnet: Built-in | Mounting: Flange | Bore: 10 mm | Stroke: 5 mm | Rod end: No thread
CDJP2F10-10DMagnet: Built-in | Mounting: Flange | Bore: 10 mm | Stroke: 10 mm | Rod end: Male thread
CDJP2F10-10D-BMagnet: Built-in | Mounting: Flange | Bore: 10 mm | Stroke: 10 mm | Rod end: No thread
CDJP2F10-15DMagnet: Built-in | Mounting: Flange | Bore: 10 mm | Stroke: 15 mm | Rod end: Male thread
CDJP2F10-15D-BMagnet: Built-in | Mounting: Flange | Bore: 10 mm | Stroke: 15 mm | Rod end: No thread
CDJP2F10-20DMagnet: Built-in | Mounting: Flange | Bore: 10 mm | Stroke: 20 mm | Rod end: Male thread
CDJP2F10-20D-BMagnet: Built-in | Mounting: Flange | Bore: 10 mm | Stroke: 20 mm | Rod end: No thread
CDJP2F10-25DMagnet: Built-in | Mounting: Flange | Bore: 10 mm | Stroke: 25 mm | Rod end: Male thread
CDJP2F10-25D-BMagnet: Built-in | Mounting: Flange | Bore: 10 mm | Stroke: 25 mm | Rod end: No thread
CDJP2F10-30DMagnet: Built-in | Mounting: Flange | Bore: 10 mm | Stroke: 30 mm | Rod end: Male thread
CDJP2F10-30D-BMagnet: Built-in | Mounting: Flange | Bore: 10 mm | Stroke: 30 mm | Rod end: No thread
CDJP2F10-35DMagnet: Built-in | Mounting: Flange | Bore: 10 mm | Stroke: 35 mm | Rod end: Male thread
CDJP2F10-35D-BMagnet: Built-in | Mounting: Flange | Bore: 10 mm | Stroke: 35 mm | Rod end: No thread
CDJP2F10-40DMagnet: Built-in | Mounting: Flange | Bore: 10 mm | Stroke: 40 mm | Rod end: Male thread
CDJP2F10-40D-BMagnet: Built-in | Mounting: Flange | Bore: 10 mm | Stroke: 40 mm | Rod end: No thread
CDJP2L10-5DMagnet: Built-in | Mounting: Foot | Bore: 10 mm | Stroke: 5 mm | Rod end: Male thread
CDJP2L10-5D-BMagnet: Built-in | Mounting: Foot | Bore: 10 mm | Stroke: 5 mm | Rod end: No thread
CDJP2L10-10DMagnet: Built-in | Mounting: Foot | Bore: 10 mm | Stroke: 10 mm | Rod end: Male thread
CDJP2L10-10D-BMagnet: Built-in | Mounting: Foot | Bore: 10 mm | Stroke: 10 mm | Rod end: No thread
CDJP2L10-15DMagnet: Built-in | Mounting: Foot | Bore: 10 mm | Stroke: 15 mm | Rod end: Male thread
CDJP2L10-15D-BMagnet: Built-in | Mounting: Foot | Bore: 10 mm | Stroke: 15 mm | Rod end: No thread
CDJP2L10-20DMagnet: Built-in | Mounting: Foot | Bore: 10 mm | Stroke: 20 mm | Rod end: Male thread
CDJP2L10-20D-BMagnet: Built-in | Mounting: Foot | Bore: 10 mm | Stroke: 20 mm | Rod end: No thread
CDJP2L10-25DMagnet: Built-in | Mounting: Foot | Bore: 10 mm | Stroke: 25 mm | Rod end: Male thread
CDJP2L10-25D-BMagnet: Built-in | Mounting: Foot | Bore: 10 mm | Stroke: 25 mm | Rod end: No thread
CDJP2L10-30DMagnet: Built-in | Mounting: Foot | Bore: 10 mm | Stroke: 30 mm | Rod end: Male thread
CDJP2L10-30D-BMagnet: Built-in | Mounting: Foot | Bore: 10 mm | Stroke: 30 mm | Rod end: No thread
CDJP2L10-35DMagnet: Built-in | Mounting: Foot | Bore: 10 mm | Stroke: 35 mm | Rod end: Male thread
CDJP2L10-35D-BMagnet: Built-in | Mounting: Foot | Bore: 10 mm | Stroke: 35 mm | Rod end: No thread
CDJP2L10-40DMagnet: Built-in | Mounting: Foot | Bore: 10 mm | Stroke: 40 mm | Rod end: Male thread
CDJP2L10-40D-BMagnet: Built-in | Mounting: Foot | Bore: 10 mm | Stroke: 40 mm | Rod end: No thread
CDJP2D10-5DMagnet: Built-in | Mounting: Clevis | Bore: 10 mm | Stroke: 5 mm | Rod end: Male thread
CDJP2D10-5D-BMagnet: Built-in | Mounting: Clevis | Bore: 10 mm | Stroke: 5 mm | Rod end: No thread
CDJP2D10-10DMagnet: Built-in | Mounting: Clevis | Bore: 10 mm | Stroke: 10 mm | Rod end: Male thread
CDJP2D10-10D-BMagnet: Built-in | Mounting: Clevis | Bore: 10 mm | Stroke: 10 mm | Rod end: No thread
CDJP2D10-15DMagnet: Built-in | Mounting: Clevis | Bore: 10 mm | Stroke: 15 mm | Rod end: Male thread
CDJP2D10-15D-BMagnet: Built-in | Mounting: Clevis | Bore: 10 mm | Stroke: 15 mm | Rod end: No thread
CDJP2D10-20DMagnet: Built-in | Mounting: Clevis | Bore: 10 mm | Stroke: 20 mm | Rod end: Male thread
CDJP2D10-20D-BMagnet: Built-in | Mounting: Clevis | Bore: 10 mm | Stroke: 20 mm | Rod end: No thread
CDJP2D10-25DMagnet: Built-in | Mounting: Clevis | Bore: 10 mm | Stroke: 25 mm | Rod end: Male thread
CDJP2D10-25D-BMagnet: Built-in | Mounting: Clevis | Bore: 10 mm | Stroke: 25 mm | Rod end: No thread
CDJP2D10-30DMagnet: Built-in | Mounting: Clevis | Bore: 10 mm | Stroke: 30 mm | Rod end: Male thread
CDJP2D10-30D-BMagnet: Built-in | Mounting: Clevis | Bore: 10 mm | Stroke: 30 mm | Rod end: No thread
CDJP2D10-35DMagnet: Built-in | Mounting: Clevis | Bore: 10 mm | Stroke: 35 mm | Rod end: Male thread
CDJP2D10-35D-BMagnet: Built-in | Mounting: Clevis | Bore: 10 mm | Stroke: 35 mm | Rod end: No thread
CDJP2D10-40DMagnet: Built-in | Mounting: Clevis | Bore: 10 mm | Stroke: 40 mm | Rod end: Male thread
CDJP2D10-40D-BMagnet: Built-in | Mounting: Clevis | Bore: 10 mm | Stroke: 40 mm | Rod end: No thread
CDJP2T10-5DMagnet: Built-in | Mounting: Trunnion | Bore: 10 mm | Stroke: 5 mm | Rod end: Male thread
CDJP2T10-5D-BMagnet: Built-in | Mounting: Trunnion | Bore: 10 mm | Stroke: 5 mm | Rod end: No thread
CDJP2T10-10DMagnet: Built-in | Mounting: Trunnion | Bore: 10 mm | Stroke: 10 mm | Rod end: Male thread
CDJP2T10-10D-BMagnet: Built-in | Mounting: Trunnion | Bore: 10 mm | Stroke: 10 mm | Rod end: No thread
CDJP2T10-15DMagnet: Built-in | Mounting: Trunnion | Bore: 10 mm | Stroke: 15 mm | Rod end: Male thread
CDJP2T10-15D-BMagnet: Built-in | Mounting: Trunnion | Bore: 10 mm | Stroke: 15 mm | Rod end: No thread
CDJP2T10-20DMagnet: Built-in | Mounting: Trunnion | Bore: 10 mm | Stroke: 20 mm | Rod end: Male thread
CDJP2T10-20D-BMagnet: Built-in | Mounting: Trunnion | Bore: 10 mm | Stroke: 20 mm | Rod end: No thread
CDJP2T10-25DMagnet: Built-in | Mounting: Trunnion | Bore: 10 mm | Stroke: 25 mm | Rod end: Male thread
CDJP2T10-25D-BMagnet: Built-in | Mounting: Trunnion | Bore: 10 mm | Stroke: 25 mm | Rod end: No thread
CDJP2T10-30DMagnet: Built-in | Mounting: Trunnion | Bore: 10 mm | Stroke: 30 mm | Rod end: Male thread
CDJP2T10-30D-BMagnet: Built-in | Mounting: Trunnion | Bore: 10 mm | Stroke: 30 mm | Rod end: No thread
CDJP2T10-35DMagnet: Built-in | Mounting: Trunnion | Bore: 10 mm | Stroke: 35 mm | Rod end: Male thread
CDJP2T10-35D-BMagnet: Built-in | Mounting: Trunnion | Bore: 10 mm | Stroke: 35 mm | Rod end: No thread
CDJP2T10-40DMagnet: Built-in | Mounting: Trunnion | Bore: 10 mm | Stroke: 40 mm | Rod end: Male thread
CDJP2T10-40D-BMagnet: Built-in | Mounting: Trunnion | Bore: 10 mm | Stroke: 40 mm | Rod end: No thread
CDJP2B16-5DMagnet: Built-in | Mounting: Basic | Bore: 16 mm | Stroke: 5 mm | Rod end: Male thread
CDJP2B16-5D-BMagnet: Built-in | Mounting: Basic | Bore: 16 mm | Stroke: 5 mm | Rod end: No thread
CDJP2B16-10DMagnet: Built-in | Mounting: Basic | Bore: 16 mm | Stroke: 10 mm | Rod end: Male thread
CDJP2B16-10D-BMagnet: Built-in | Mounting: Basic | Bore: 16 mm | Stroke: 10 mm | Rod end: No thread
CDJP2B16-15DMagnet: Built-in | Mounting: Basic | Bore: 16 mm | Stroke: 15 mm | Rod end: Male thread
CDJP2B16-15D-BMagnet: Built-in | Mounting: Basic | Bore: 16 mm | Stroke: 15 mm | Rod end: No thread
CDJP2B16-20DMagnet: Built-in | Mounting: Basic | Bore: 16 mm | Stroke: 20 mm | Rod end: Male thread
CDJP2B16-20D-BMagnet: Built-in | Mounting: Basic | Bore: 16 mm | Stroke: 20 mm | Rod end: No thread
CDJP2B16-25DMagnet: Built-in | Mounting: Basic | Bore: 16 mm | Stroke: 25 mm | Rod end: Male thread
CDJP2B16-25D-BMagnet: Built-in | Mounting: Basic | Bore: 16 mm | Stroke: 25 mm | Rod end: No thread
CDJP2B16-30DMagnet: Built-in | Mounting: Basic | Bore: 16 mm | Stroke: 30 mm | Rod end: Male thread
CDJP2B16-30D-BMagnet: Built-in | Mounting: Basic | Bore: 16 mm | Stroke: 30 mm | Rod end: No thread
CDJP2B16-35DMagnet: Built-in | Mounting: Basic | Bore: 16 mm | Stroke: 35 mm | Rod end: Male thread
CDJP2B16-35D-BMagnet: Built-in | Mounting: Basic | Bore: 16 mm | Stroke: 35 mm | Rod end: No thread
CDJP2B16-40DMagnet: Built-in | Mounting: Basic | Bore: 16 mm | Stroke: 40 mm | Rod end: Male thread
CDJP2B16-40D-BMagnet: Built-in | Mounting: Basic | Bore: 16 mm | Stroke: 40 mm | Rod end: No thread
CDJP2F16-5DMagnet: Built-in | Mounting: Flange | Bore: 16 mm | Stroke: 5 mm | Rod end: Male thread
CDJP2F16-5D-BMagnet: Built-in | Mounting: Flange | Bore: 16 mm | Stroke: 5 mm | Rod end: No thread
CDJP2F16-10DMagnet: Built-in | Mounting: Flange | Bore: 16 mm | Stroke: 10 mm | Rod end: Male thread
CDJP2F16-10D-BMagnet: Built-in | Mounting: Flange | Bore: 16 mm | Stroke: 10 mm | Rod end: No thread
CDJP2F16-15DMagnet: Built-in | Mounting: Flange | Bore: 16 mm | Stroke: 15 mm | Rod end: Male thread
CDJP2F16-15D-BMagnet: Built-in | Mounting: Flange | Bore: 16 mm | Stroke: 15 mm | Rod end: No thread
CDJP2F16-20DMagnet: Built-in | Mounting: Flange | Bore: 16 mm | Stroke: 20 mm | Rod end: Male thread
CDJP2F16-20D-BMagnet: Built-in | Mounting: Flange | Bore: 16 mm | Stroke: 20 mm | Rod end: No thread
CDJP2F16-25DMagnet: Built-in | Mounting: Flange | Bore: 16 mm | Stroke: 25 mm | Rod end: Male thread
CDJP2F16-25D-BMagnet: Built-in | Mounting: Flange | Bore: 16 mm | Stroke: 25 mm | Rod end: No thread
CDJP2F16-30DMagnet: Built-in | Mounting: Flange | Bore: 16 mm | Stroke: 30 mm | Rod end: Male thread
CDJP2F16-30D-BMagnet: Built-in | Mounting: Flange | Bore: 16 mm | Stroke: 30 mm | Rod end: No thread
CDJP2F16-35DMagnet: Built-in | Mounting: Flange | Bore: 16 mm | Stroke: 35 mm | Rod end: Male thread
CDJP2F16-35D-BMagnet: Built-in | Mounting: Flange | Bore: 16 mm | Stroke: 35 mm | Rod end: No thread
CDJP2F16-40DMagnet: Built-in | Mounting: Flange | Bore: 16 mm | Stroke: 40 mm | Rod end: Male thread
CDJP2F16-40D-BMagnet: Built-in | Mounting: Flange | Bore: 16 mm | Stroke: 40 mm | Rod end: No thread
CDJP2L16-5DMagnet: Built-in | Mounting: Foot | Bore: 16 mm | Stroke: 5 mm | Rod end: Male thread
CDJP2L16-5D-BMagnet: Built-in | Mounting: Foot | Bore: 16 mm | Stroke: 5 mm | Rod end: No thread
CDJP2L16-10DMagnet: Built-in | Mounting: Foot | Bore: 16 mm | Stroke: 10 mm | Rod end: Male thread
CDJP2L16-10D-BMagnet: Built-in | Mounting: Foot | Bore: 16 mm | Stroke: 10 mm | Rod end: No thread
CDJP2L16-15DMagnet: Built-in | Mounting: Foot | Bore: 16 mm | Stroke: 15 mm | Rod end: Male thread
CDJP2L16-15D-BMagnet: Built-in | Mounting: Foot | Bore: 16 mm | Stroke: 15 mm | Rod end: No thread
CDJP2L16-20DMagnet: Built-in | Mounting: Foot | Bore: 16 mm | Stroke: 20 mm | Rod end: Male thread
CDJP2L16-20D-BMagnet: Built-in | Mounting: Foot | Bore: 16 mm | Stroke: 20 mm | Rod end: No thread
CDJP2L16-25DMagnet: Built-in | Mounting: Foot | Bore: 16 mm | Stroke: 25 mm | Rod end: Male thread
CDJP2L16-25D-BMagnet: Built-in | Mounting: Foot | Bore: 16 mm | Stroke: 25 mm | Rod end: No thread
CDJP2L16-30DMagnet: Built-in | Mounting: Foot | Bore: 16 mm | Stroke: 30 mm | Rod end: Male thread
CDJP2L16-30D-BMagnet: Built-in | Mounting: Foot | Bore: 16 mm | Stroke: 30 mm | Rod end: No thread
CDJP2L16-35DMagnet: Built-in | Mounting: Foot | Bore: 16 mm | Stroke: 35 mm | Rod end: Male thread
CDJP2L16-35D-BMagnet: Built-in | Mounting: Foot | Bore: 16 mm | Stroke: 35 mm | Rod end: No thread
CDJP2L16-40DMagnet: Built-in | Mounting: Foot | Bore: 16 mm | Stroke: 40 mm | Rod end: Male thread
CDJP2L16-40D-BMagnet: Built-in | Mounting: Foot | Bore: 16 mm | Stroke: 40 mm | Rod end: No thread
CDJP2D16-5DMagnet: Built-in | Mounting: Clevis | Bore: 16 mm | Stroke: 5 mm | Rod end: Male thread
CDJP2D16-5D-BMagnet: Built-in | Mounting: Clevis | Bore: 16 mm | Stroke: 5 mm | Rod end: No thread
CDJP2D16-10DMagnet: Built-in | Mounting: Clevis | Bore: 16 mm | Stroke: 10 mm | Rod end: Male thread
CDJP2D16-10D-BMagnet: Built-in | Mounting: Clevis | Bore: 16 mm | Stroke: 10 mm | Rod end: No thread
CDJP2D16-15DMagnet: Built-in | Mounting: Clevis | Bore: 16 mm | Stroke: 15 mm | Rod end: Male thread
CDJP2D16-15D-BMagnet: Built-in | Mounting: Clevis | Bore: 16 mm | Stroke: 15 mm | Rod end: No thread
CDJP2D16-20DMagnet: Built-in | Mounting: Clevis | Bore: 16 mm | Stroke: 20 mm | Rod end: Male thread
CDJP2D16-20D-BMagnet: Built-in | Mounting: Clevis | Bore: 16 mm | Stroke: 20 mm | Rod end: No thread
CDJP2D16-25DMagnet: Built-in | Mounting: Clevis | Bore: 16 mm | Stroke: 25 mm | Rod end: Male thread
CDJP2D16-25D-BMagnet: Built-in | Mounting: Clevis | Bore: 16 mm | Stroke: 25 mm | Rod end: No thread
CDJP2D16-30DMagnet: Built-in | Mounting: Clevis | Bore: 16 mm | Stroke: 30 mm | Rod end: Male thread
CDJP2D16-30D-BMagnet: Built-in | Mounting: Clevis | Bore: 16 mm | Stroke: 30 mm | Rod end: No thread
CDJP2D16-35DMagnet: Built-in | Mounting: Clevis | Bore: 16 mm | Stroke: 35 mm | Rod end: Male thread
CDJP2D16-35D-BMagnet: Built-in | Mounting: Clevis | Bore: 16 mm | Stroke: 35 mm | Rod end: No thread
CDJP2D16-40DMagnet: Built-in | Mounting: Clevis | Bore: 16 mm | Stroke: 40 mm | Rod end: Male thread
CDJP2D16-40D-BMagnet: Built-in | Mounting: Clevis | Bore: 16 mm | Stroke: 40 mm | Rod end: No thread
CDJP2T16-5DMagnet: Built-in | Mounting: Trunnion | Bore: 16 mm | Stroke: 5 mm | Rod end: Male thread
CDJP2T16-5D-BMagnet: Built-in | Mounting: Trunnion | Bore: 16 mm | Stroke: 5 mm | Rod end: No thread
CDJP2T16-10DMagnet: Built-in | Mounting: Trunnion | Bore: 16 mm | Stroke: 10 mm | Rod end: Male thread
CDJP2T16-10D-BMagnet: Built-in | Mounting: Trunnion | Bore: 16 mm | Stroke: 10 mm | Rod end: No thread
CDJP2T16-15DMagnet: Built-in | Mounting: Trunnion | Bore: 16 mm | Stroke: 15 mm | Rod end: Male thread
CDJP2T16-15D-BMagnet: Built-in | Mounting: Trunnion | Bore: 16 mm | Stroke: 15 mm | Rod end: No thread
CDJP2T16-20DMagnet: Built-in | Mounting: Trunnion | Bore: 16 mm | Stroke: 20 mm | Rod end: Male thread
CDJP2T16-20D-BMagnet: Built-in | Mounting: Trunnion | Bore: 16 mm | Stroke: 20 mm | Rod end: No thread
CDJP2T16-25DMagnet: Built-in | Mounting: Trunnion | Bore: 16 mm | Stroke: 25 mm | Rod end: Male thread
CDJP2T16-25D-BMagnet: Built-in | Mounting: Trunnion | Bore: 16 mm | Stroke: 25 mm | Rod end: No thread
CDJP2T16-30DMagnet: Built-in | Mounting: Trunnion | Bore: 16 mm | Stroke: 30 mm | Rod end: Male thread
CDJP2T16-30D-BMagnet: Built-in | Mounting: Trunnion | Bore: 16 mm | Stroke: 30 mm | Rod end: No thread
CDJP2T16-35DMagnet: Built-in | Mounting: Trunnion | Bore: 16 mm | Stroke: 35 mm | Rod end: Male thread
CDJP2T16-35D-BMagnet: Built-in | Mounting: Trunnion | Bore: 16 mm | Stroke: 35 mm | Rod end: No thread
CDJP2T16-40DMagnet: Built-in | Mounting: Trunnion | Bore: 16 mm | Stroke: 40 mm | Rod end: Male thread
CDJP2T16-40D-BMagnet: Built-in | Mounting: Trunnion | Bore: 16 mm | Stroke: 40 mm | Rod end: No thread

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
