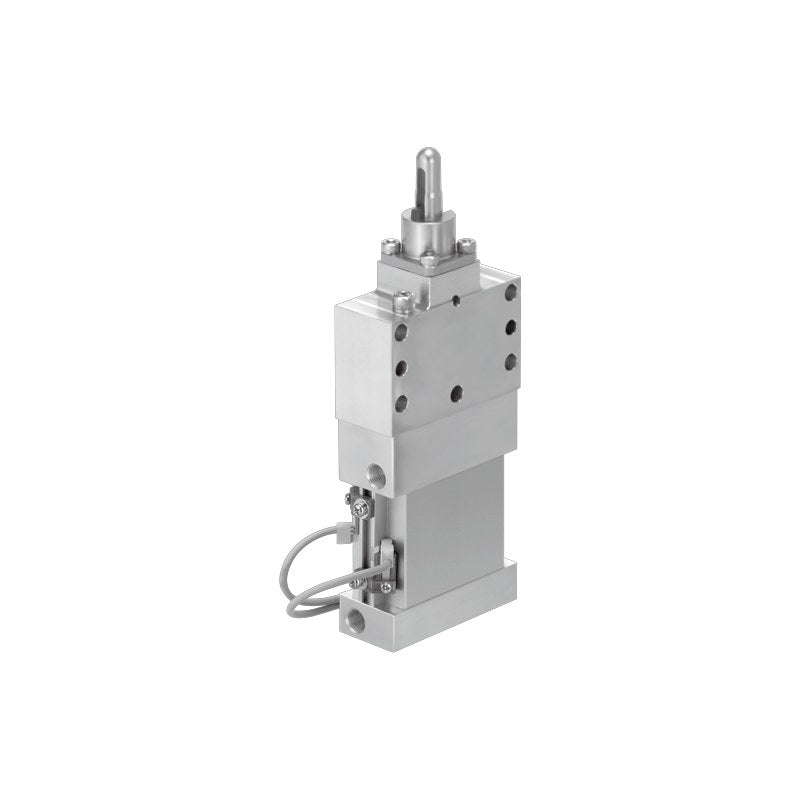

SMC CKU32/CLKU32 Pin Clamp Cylinder (ø32, Plate Cylinder Type)

SMC CKU32/CLKU32 Pin Clamp Cylinder (ø32, Plate Cylinder Type)

SMC C(L)KU32 ø32-equivalent pin clamp cylinder, plate cylinder type, with optional spring lock, for locating and clamping sheet work on holes ø8 to ø20.

Key features

  • Plate cylinder body, 29 mm thick and 70 mm wide, for mounting directly on jig plates
  • 66 guide pins ø7.5 to ø20.0; diamond shape from ø9.5 (work hole ø10 and up)
  • Clamp height LOW (-X2321, 30 mm) or HIGH (-X2322, 100 mm); clamp arm toward or away from the port face
  • CLKU32: unclamp-direction spring lock holds the work on air loss (holding force 402 N)
  • Auto switches D-P3DWA (welding-resistant), D-M9 compact and D-A7 types ordered as suffix

Specifications

Action Double acting
Bore size ø32 equivalent
Fluid Air
Cylinder / clamp stroke 12.5 mm (no work) / 10 mm
Min. operating pressure CKU 0.1 MPa, CLKU 0.15 MPa
Max. operating pressure 0.7 MPa
Clamp force 325 N at 0.5 MPa
Ambient and fluid temperature -10 to 60°C (no freezing)
Cushion None
Clamp speed 50 to 150 mm/s
Port thread Rc1/8
Source SMC Korea catalog CKQG32/CKU32 (SMCKR_CKQG32_CKU32.pdf), p. 527, 536-537 (PDF p. 1, 10-11)
CKU32-075RAL-X2321 Lock: None (CKU32) | Work hole: ø8 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-075RAH-X2322 Lock: None (CKU32) | Work hole: ø8 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-075RBL-X2321 Lock: None (CKU32) | Work hole: ø8 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-075RBH-X2322 Lock: None (CKU32) | Work hole: ø8 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-076RAL-X2321 Lock: None (CKU32) | Work hole: ø8 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-076RAH-X2322 Lock: None (CKU32) | Work hole: ø8 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-076RBL-X2321 Lock: None (CKU32) | Work hole: ø8 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-076RBH-X2322 Lock: None (CKU32) | Work hole: ø8 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-077RAL-X2321 Lock: None (CKU32) | Work hole: ø8 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-077RAH-X2322 Lock: None (CKU32) | Work hole: ø8 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-077RBL-X2321 Lock: None (CKU32) | Work hole: ø8 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-077RBH-X2322 Lock: None (CKU32) | Work hole: ø8 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-078RAL-X2321 Lock: None (CKU32) | Work hole: ø8 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-078RAH-X2322 Lock: None (CKU32) | Work hole: ø8 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-078RBL-X2321 Lock: None (CKU32) | Work hole: ø8 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-078RBH-X2322 Lock: None (CKU32) | Work hole: ø8 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-079RAL-X2321 Lock: None (CKU32) | Work hole: ø8 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-079RAH-X2322 Lock: None (CKU32) | Work hole: ø8 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-079RBL-X2321 Lock: None (CKU32) | Work hole: ø8 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-079RBH-X2322 Lock: None (CKU32) | Work hole: ø8 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-080RAL-X2321 Lock: None (CKU32) | Work hole: ø8 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-080RAH-X2322 Lock: None (CKU32) | Work hole: ø8 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-080RBL-X2321 Lock: None (CKU32) | Work hole: ø8 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-080RBH-X2322 Lock: None (CKU32) | Work hole: ø8 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-085RAL-X2321 Lock: None (CKU32) | Work hole: ø9 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-085RAH-X2322 Lock: None (CKU32) | Work hole: ø9 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-085RBL-X2321 Lock: None (CKU32) | Work hole: ø9 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-085RBH-X2322 Lock: None (CKU32) | Work hole: ø9 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-086RAL-X2321 Lock: None (CKU32) | Work hole: ø9 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-086RAH-X2322 Lock: None (CKU32) | Work hole: ø9 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-086RBL-X2321 Lock: None (CKU32) | Work hole: ø9 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-086RBH-X2322 Lock: None (CKU32) | Work hole: ø9 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-087RAL-X2321 Lock: None (CKU32) | Work hole: ø9 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-087RAH-X2322 Lock: None (CKU32) | Work hole: ø9 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-087RBL-X2321 Lock: None (CKU32) | Work hole: ø9 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-087RBH-X2322 Lock: None (CKU32) | Work hole: ø9 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-088RAL-X2321 Lock: None (CKU32) | Work hole: ø9 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-088RAH-X2322 Lock: None (CKU32) | Work hole: ø9 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-088RBL-X2321 Lock: None (CKU32) | Work hole: ø9 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-088RBH-X2322 Lock: None (CKU32) | Work hole: ø9 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-089RAL-X2321 Lock: None (CKU32) | Work hole: ø9 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-089RAH-X2322 Lock: None (CKU32) | Work hole: ø9 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-089RBL-X2321 Lock: None (CKU32) | Work hole: ø9 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-089RBH-X2322 Lock: None (CKU32) | Work hole: ø9 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-090RAL-X2321 Lock: None (CKU32) | Work hole: ø9 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-090RAH-X2322 Lock: None (CKU32) | Work hole: ø9 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-090RBL-X2321 Lock: None (CKU32) | Work hole: ø9 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-090RBH-X2322 Lock: None (CKU32) | Work hole: ø9 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-095RAL-X2321 Lock: None (CKU32) | Work hole: ø10 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-095RAH-X2322 Lock: None (CKU32) | Work hole: ø10 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-095RBL-X2321 Lock: None (CKU32) | Work hole: ø10 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-095RBH-X2322 Lock: None (CKU32) | Work hole: ø10 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-095DAL-X2321 Lock: None (CKU32) | Work hole: ø10 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-095DAH-X2322 Lock: None (CKU32) | Work hole: ø10 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-095DBL-X2321 Lock: None (CKU32) | Work hole: ø10 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-095DBH-X2322 Lock: None (CKU32) | Work hole: ø10 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-096RAL-X2321 Lock: None (CKU32) | Work hole: ø10 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-096RAH-X2322 Lock: None (CKU32) | Work hole: ø10 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-096RBL-X2321 Lock: None (CKU32) | Work hole: ø10 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-096RBH-X2322 Lock: None (CKU32) | Work hole: ø10 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-096DAL-X2321 Lock: None (CKU32) | Work hole: ø10 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-096DAH-X2322 Lock: None (CKU32) | Work hole: ø10 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-096DBL-X2321 Lock: None (CKU32) | Work hole: ø10 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-096DBH-X2322 Lock: None (CKU32) | Work hole: ø10 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-097RAL-X2321 Lock: None (CKU32) | Work hole: ø10 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-097RAH-X2322 Lock: None (CKU32) | Work hole: ø10 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-097RBL-X2321 Lock: None (CKU32) | Work hole: ø10 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-097RBH-X2322 Lock: None (CKU32) | Work hole: ø10 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-097DAL-X2321 Lock: None (CKU32) | Work hole: ø10 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-097DAH-X2322 Lock: None (CKU32) | Work hole: ø10 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-097DBL-X2321 Lock: None (CKU32) | Work hole: ø10 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-097DBH-X2322 Lock: None (CKU32) | Work hole: ø10 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-098RAL-X2321 Lock: None (CKU32) | Work hole: ø10 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-098RAH-X2322 Lock: None (CKU32) | Work hole: ø10 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-098RBL-X2321 Lock: None (CKU32) | Work hole: ø10 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-098RBH-X2322 Lock: None (CKU32) | Work hole: ø10 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-098DAL-X2321 Lock: None (CKU32) | Work hole: ø10 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-098DAH-X2322 Lock: None (CKU32) | Work hole: ø10 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-098DBL-X2321 Lock: None (CKU32) | Work hole: ø10 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-098DBH-X2322 Lock: None (CKU32) | Work hole: ø10 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-099RAL-X2321 Lock: None (CKU32) | Work hole: ø10 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-099RAH-X2322 Lock: None (CKU32) | Work hole: ø10 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-099RBL-X2321 Lock: None (CKU32) | Work hole: ø10 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-099RBH-X2322 Lock: None (CKU32) | Work hole: ø10 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-099DAL-X2321 Lock: None (CKU32) | Work hole: ø10 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-099DAH-X2322 Lock: None (CKU32) | Work hole: ø10 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-099DBL-X2321 Lock: None (CKU32) | Work hole: ø10 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-099DBH-X2322 Lock: None (CKU32) | Work hole: ø10 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-100RAL-X2321 Lock: None (CKU32) | Work hole: ø10 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-100RAH-X2322 Lock: None (CKU32) | Work hole: ø10 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-100RBL-X2321 Lock: None (CKU32) | Work hole: ø10 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-100RBH-X2322 Lock: None (CKU32) | Work hole: ø10 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-100DAL-X2321 Lock: None (CKU32) | Work hole: ø10 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-100DAH-X2322 Lock: None (CKU32) | Work hole: ø10 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-100DBL-X2321 Lock: None (CKU32) | Work hole: ø10 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-100DBH-X2322 Lock: None (CKU32) | Work hole: ø10 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-105RAL-X2321 Lock: None (CKU32) | Work hole: ø11 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-105RAH-X2322 Lock: None (CKU32) | Work hole: ø11 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-105RBL-X2321 Lock: None (CKU32) | Work hole: ø11 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-105RBH-X2322 Lock: None (CKU32) | Work hole: ø11 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-105DAL-X2321 Lock: None (CKU32) | Work hole: ø11 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-105DAH-X2322 Lock: None (CKU32) | Work hole: ø11 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-105DBL-X2321 Lock: None (CKU32) | Work hole: ø11 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-105DBH-X2322 Lock: None (CKU32) | Work hole: ø11 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-106RAL-X2321 Lock: None (CKU32) | Work hole: ø11 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-106RAH-X2322 Lock: None (CKU32) | Work hole: ø11 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-106RBL-X2321 Lock: None (CKU32) | Work hole: ø11 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-106RBH-X2322 Lock: None (CKU32) | Work hole: ø11 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-106DAL-X2321 Lock: None (CKU32) | Work hole: ø11 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-106DAH-X2322 Lock: None (CKU32) | Work hole: ø11 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-106DBL-X2321 Lock: None (CKU32) | Work hole: ø11 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-106DBH-X2322 Lock: None (CKU32) | Work hole: ø11 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-107RAL-X2321 Lock: None (CKU32) | Work hole: ø11 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-107RAH-X2322 Lock: None (CKU32) | Work hole: ø11 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-107RBL-X2321 Lock: None (CKU32) | Work hole: ø11 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-107RBH-X2322 Lock: None (CKU32) | Work hole: ø11 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-107DAL-X2321 Lock: None (CKU32) | Work hole: ø11 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-107DAH-X2322 Lock: None (CKU32) | Work hole: ø11 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-107DBL-X2321 Lock: None (CKU32) | Work hole: ø11 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-107DBH-X2322 Lock: None (CKU32) | Work hole: ø11 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-108RAL-X2321 Lock: None (CKU32) | Work hole: ø11 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-108RAH-X2322 Lock: None (CKU32) | Work hole: ø11 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-108RBL-X2321 Lock: None (CKU32) | Work hole: ø11 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-108RBH-X2322 Lock: None (CKU32) | Work hole: ø11 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-108DAL-X2321 Lock: None (CKU32) | Work hole: ø11 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-108DAH-X2322 Lock: None (CKU32) | Work hole: ø11 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-108DBL-X2321 Lock: None (CKU32) | Work hole: ø11 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-108DBH-X2322 Lock: None (CKU32) | Work hole: ø11 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-109RAL-X2321 Lock: None (CKU32) | Work hole: ø11 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-109RAH-X2322 Lock: None (CKU32) | Work hole: ø11 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-109RBL-X2321 Lock: None (CKU32) | Work hole: ø11 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-109RBH-X2322 Lock: None (CKU32) | Work hole: ø11 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-109DAL-X2321 Lock: None (CKU32) | Work hole: ø11 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-109DAH-X2322 Lock: None (CKU32) | Work hole: ø11 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-109DBL-X2321 Lock: None (CKU32) | Work hole: ø11 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-109DBH-X2322 Lock: None (CKU32) | Work hole: ø11 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-110RAL-X2321 Lock: None (CKU32) | Work hole: ø11 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-110RAH-X2322 Lock: None (CKU32) | Work hole: ø11 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-110RBL-X2321 Lock: None (CKU32) | Work hole: ø11 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-110RBH-X2322 Lock: None (CKU32) | Work hole: ø11 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-110DAL-X2321 Lock: None (CKU32) | Work hole: ø11 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-110DAH-X2322 Lock: None (CKU32) | Work hole: ø11 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-110DBL-X2321 Lock: None (CKU32) | Work hole: ø11 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-110DBH-X2322 Lock: None (CKU32) | Work hole: ø11 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-115RAL-X2321 Lock: None (CKU32) | Work hole: ø12 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-115RAH-X2322 Lock: None (CKU32) | Work hole: ø12 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-115RBL-X2321 Lock: None (CKU32) | Work hole: ø12 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-115RBH-X2322 Lock: None (CKU32) | Work hole: ø12 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-115DAL-X2321 Lock: None (CKU32) | Work hole: ø12 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-115DAH-X2322 Lock: None (CKU32) | Work hole: ø12 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-115DBL-X2321 Lock: None (CKU32) | Work hole: ø12 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-115DBH-X2322 Lock: None (CKU32) | Work hole: ø12 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-116RAL-X2321 Lock: None (CKU32) | Work hole: ø12 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-116RAH-X2322 Lock: None (CKU32) | Work hole: ø12 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-116RBL-X2321 Lock: None (CKU32) | Work hole: ø12 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-116RBH-X2322 Lock: None (CKU32) | Work hole: ø12 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-116DAL-X2321 Lock: None (CKU32) | Work hole: ø12 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-116DAH-X2322 Lock: None (CKU32) | Work hole: ø12 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-116DBL-X2321 Lock: None (CKU32) | Work hole: ø12 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-116DBH-X2322 Lock: None (CKU32) | Work hole: ø12 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-117RAL-X2321 Lock: None (CKU32) | Work hole: ø12 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-117RAH-X2322 Lock: None (CKU32) | Work hole: ø12 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-117RBL-X2321 Lock: None (CKU32) | Work hole: ø12 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-117RBH-X2322 Lock: None (CKU32) | Work hole: ø12 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-117DAL-X2321 Lock: None (CKU32) | Work hole: ø12 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-117DAH-X2322 Lock: None (CKU32) | Work hole: ø12 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-117DBL-X2321 Lock: None (CKU32) | Work hole: ø12 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-117DBH-X2322 Lock: None (CKU32) | Work hole: ø12 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-118RAL-X2321 Lock: None (CKU32) | Work hole: ø12 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-118RAH-X2322 Lock: None (CKU32) | Work hole: ø12 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-118RBL-X2321 Lock: None (CKU32) | Work hole: ø12 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-118RBH-X2322 Lock: None (CKU32) | Work hole: ø12 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-118DAL-X2321 Lock: None (CKU32) | Work hole: ø12 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-118DAH-X2322 Lock: None (CKU32) | Work hole: ø12 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-118DBL-X2321 Lock: None (CKU32) | Work hole: ø12 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-118DBH-X2322 Lock: None (CKU32) | Work hole: ø12 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-119RAL-X2321 Lock: None (CKU32) | Work hole: ø12 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-119RAH-X2322 Lock: None (CKU32) | Work hole: ø12 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-119RBL-X2321 Lock: None (CKU32) | Work hole: ø12 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-119RBH-X2322 Lock: None (CKU32) | Work hole: ø12 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-119DAL-X2321 Lock: None (CKU32) | Work hole: ø12 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-119DAH-X2322 Lock: None (CKU32) | Work hole: ø12 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-119DBL-X2321 Lock: None (CKU32) | Work hole: ø12 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-119DBH-X2322 Lock: None (CKU32) | Work hole: ø12 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-120RAL-X2321 Lock: None (CKU32) | Work hole: ø12 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-120RAH-X2322 Lock: None (CKU32) | Work hole: ø12 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-120RBL-X2321 Lock: None (CKU32) | Work hole: ø12 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-120RBH-X2322 Lock: None (CKU32) | Work hole: ø12 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-120DAL-X2321 Lock: None (CKU32) | Work hole: ø12 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-120DAH-X2322 Lock: None (CKU32) | Work hole: ø12 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-120DBL-X2321 Lock: None (CKU32) | Work hole: ø12 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-120DBH-X2322 Lock: None (CKU32) | Work hole: ø12 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-125RAL-X2321 Lock: None (CKU32) | Work hole: ø13 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-125RAH-X2322 Lock: None (CKU32) | Work hole: ø13 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-125RBL-X2321 Lock: None (CKU32) | Work hole: ø13 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-125RBH-X2322 Lock: None (CKU32) | Work hole: ø13 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-125DAL-X2321 Lock: None (CKU32) | Work hole: ø13 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-125DAH-X2322 Lock: None (CKU32) | Work hole: ø13 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-125DBL-X2321 Lock: None (CKU32) | Work hole: ø13 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-125DBH-X2322 Lock: None (CKU32) | Work hole: ø13 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-126RAL-X2321 Lock: None (CKU32) | Work hole: ø13 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-126RAH-X2322 Lock: None (CKU32) | Work hole: ø13 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-126RBL-X2321 Lock: None (CKU32) | Work hole: ø13 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-126RBH-X2322 Lock: None (CKU32) | Work hole: ø13 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-126DAL-X2321 Lock: None (CKU32) | Work hole: ø13 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-126DAH-X2322 Lock: None (CKU32) | Work hole: ø13 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-126DBL-X2321 Lock: None (CKU32) | Work hole: ø13 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-126DBH-X2322 Lock: None (CKU32) | Work hole: ø13 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-127RAL-X2321 Lock: None (CKU32) | Work hole: ø13 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-127RAH-X2322 Lock: None (CKU32) | Work hole: ø13 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-127RBL-X2321 Lock: None (CKU32) | Work hole: ø13 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-127RBH-X2322 Lock: None (CKU32) | Work hole: ø13 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-127DAL-X2321 Lock: None (CKU32) | Work hole: ø13 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-127DAH-X2322 Lock: None (CKU32) | Work hole: ø13 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-127DBL-X2321 Lock: None (CKU32) | Work hole: ø13 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-127DBH-X2322 Lock: None (CKU32) | Work hole: ø13 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-128RAL-X2321 Lock: None (CKU32) | Work hole: ø13 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-128RAH-X2322 Lock: None (CKU32) | Work hole: ø13 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-128RBL-X2321 Lock: None (CKU32) | Work hole: ø13 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-128RBH-X2322 Lock: None (CKU32) | Work hole: ø13 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-128DAL-X2321 Lock: None (CKU32) | Work hole: ø13 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-128DAH-X2322 Lock: None (CKU32) | Work hole: ø13 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-128DBL-X2321 Lock: None (CKU32) | Work hole: ø13 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-128DBH-X2322 Lock: None (CKU32) | Work hole: ø13 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-129RAL-X2321 Lock: None (CKU32) | Work hole: ø13 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-129RAH-X2322 Lock: None (CKU32) | Work hole: ø13 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-129RBL-X2321 Lock: None (CKU32) | Work hole: ø13 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-129RBH-X2322 Lock: None (CKU32) | Work hole: ø13 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-129DAL-X2321 Lock: None (CKU32) | Work hole: ø13 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-129DAH-X2322 Lock: None (CKU32) | Work hole: ø13 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-129DBL-X2321 Lock: None (CKU32) | Work hole: ø13 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-129DBH-X2322 Lock: None (CKU32) | Work hole: ø13 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-130RAL-X2321 Lock: None (CKU32) | Work hole: ø13 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-130RAH-X2322 Lock: None (CKU32) | Work hole: ø13 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-130RBL-X2321 Lock: None (CKU32) | Work hole: ø13 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-130RBH-X2322 Lock: None (CKU32) | Work hole: ø13 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-130DAL-X2321 Lock: None (CKU32) | Work hole: ø13 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-130DAH-X2322 Lock: None (CKU32) | Work hole: ø13 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-130DBL-X2321 Lock: None (CKU32) | Work hole: ø13 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-130DBH-X2322 Lock: None (CKU32) | Work hole: ø13 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-135RAL-X2321 Lock: None (CKU32) | Work hole: ø14 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-135RAH-X2322 Lock: None (CKU32) | Work hole: ø14 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-135RBL-X2321 Lock: None (CKU32) | Work hole: ø14 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-135RBH-X2322 Lock: None (CKU32) | Work hole: ø14 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-135DAL-X2321 Lock: None (CKU32) | Work hole: ø14 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-135DAH-X2322 Lock: None (CKU32) | Work hole: ø14 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-135DBL-X2321 Lock: None (CKU32) | Work hole: ø14 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-135DBH-X2322 Lock: None (CKU32) | Work hole: ø14 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-136RAL-X2321 Lock: None (CKU32) | Work hole: ø14 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-136RAH-X2322 Lock: None (CKU32) | Work hole: ø14 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-136RBL-X2321 Lock: None (CKU32) | Work hole: ø14 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-136RBH-X2322 Lock: None (CKU32) | Work hole: ø14 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-136DAL-X2321 Lock: None (CKU32) | Work hole: ø14 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-136DAH-X2322 Lock: None (CKU32) | Work hole: ø14 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-136DBL-X2321 Lock: None (CKU32) | Work hole: ø14 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-136DBH-X2322 Lock: None (CKU32) | Work hole: ø14 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-137RAL-X2321 Lock: None (CKU32) | Work hole: ø14 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-137RAH-X2322 Lock: None (CKU32) | Work hole: ø14 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-137RBL-X2321 Lock: None (CKU32) | Work hole: ø14 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-137RBH-X2322 Lock: None (CKU32) | Work hole: ø14 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-137DAL-X2321 Lock: None (CKU32) | Work hole: ø14 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-137DAH-X2322 Lock: None (CKU32) | Work hole: ø14 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-137DBL-X2321 Lock: None (CKU32) | Work hole: ø14 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-137DBH-X2322 Lock: None (CKU32) | Work hole: ø14 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-138RAL-X2321 Lock: None (CKU32) | Work hole: ø14 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-138RAH-X2322 Lock: None (CKU32) | Work hole: ø14 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-138RBL-X2321 Lock: None (CKU32) | Work hole: ø14 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-138RBH-X2322 Lock: None (CKU32) | Work hole: ø14 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-138DAL-X2321 Lock: None (CKU32) | Work hole: ø14 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-138DAH-X2322 Lock: None (CKU32) | Work hole: ø14 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-138DBL-X2321 Lock: None (CKU32) | Work hole: ø14 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-138DBH-X2322 Lock: None (CKU32) | Work hole: ø14 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-139RAL-X2321 Lock: None (CKU32) | Work hole: ø14 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-139RAH-X2322 Lock: None (CKU32) | Work hole: ø14 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-139RBL-X2321 Lock: None (CKU32) | Work hole: ø14 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-139RBH-X2322 Lock: None (CKU32) | Work hole: ø14 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-139DAL-X2321 Lock: None (CKU32) | Work hole: ø14 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-139DAH-X2322 Lock: None (CKU32) | Work hole: ø14 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-139DBL-X2321 Lock: None (CKU32) | Work hole: ø14 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-139DBH-X2322 Lock: None (CKU32) | Work hole: ø14 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-140RAL-X2321 Lock: None (CKU32) | Work hole: ø14 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-140RAH-X2322 Lock: None (CKU32) | Work hole: ø14 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-140RBL-X2321 Lock: None (CKU32) | Work hole: ø14 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-140RBH-X2322 Lock: None (CKU32) | Work hole: ø14 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-140DAL-X2321 Lock: None (CKU32) | Work hole: ø14 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-140DAH-X2322 Lock: None (CKU32) | Work hole: ø14 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-140DBL-X2321 Lock: None (CKU32) | Work hole: ø14 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-140DBH-X2322 Lock: None (CKU32) | Work hole: ø14 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-145RAL-X2321 Lock: None (CKU32) | Work hole: ø15 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-145RAH-X2322 Lock: None (CKU32) | Work hole: ø15 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-145RBL-X2321 Lock: None (CKU32) | Work hole: ø15 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-145RBH-X2322 Lock: None (CKU32) | Work hole: ø15 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-145DAL-X2321 Lock: None (CKU32) | Work hole: ø15 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-145DAH-X2322 Lock: None (CKU32) | Work hole: ø15 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-145DBL-X2321 Lock: None (CKU32) | Work hole: ø15 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-145DBH-X2322 Lock: None (CKU32) | Work hole: ø15 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-146RAL-X2321 Lock: None (CKU32) | Work hole: ø15 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-146RAH-X2322 Lock: None (CKU32) | Work hole: ø15 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-146RBL-X2321 Lock: None (CKU32) | Work hole: ø15 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-146RBH-X2322 Lock: None (CKU32) | Work hole: ø15 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-146DAL-X2321 Lock: None (CKU32) | Work hole: ø15 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-146DAH-X2322 Lock: None (CKU32) | Work hole: ø15 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-146DBL-X2321 Lock: None (CKU32) | Work hole: ø15 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-146DBH-X2322 Lock: None (CKU32) | Work hole: ø15 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-147RAL-X2321 Lock: None (CKU32) | Work hole: ø15 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-147RAH-X2322 Lock: None (CKU32) | Work hole: ø15 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-147RBL-X2321 Lock: None (CKU32) | Work hole: ø15 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-147RBH-X2322 Lock: None (CKU32) | Work hole: ø15 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-147DAL-X2321 Lock: None (CKU32) | Work hole: ø15 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-147DAH-X2322 Lock: None (CKU32) | Work hole: ø15 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-147DBL-X2321 Lock: None (CKU32) | Work hole: ø15 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-147DBH-X2322 Lock: None (CKU32) | Work hole: ø15 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-148RAL-X2321 Lock: None (CKU32) | Work hole: ø15 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-148RAH-X2322 Lock: None (CKU32) | Work hole: ø15 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-148RBL-X2321 Lock: None (CKU32) | Work hole: ø15 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-148RBH-X2322 Lock: None (CKU32) | Work hole: ø15 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-148DAL-X2321 Lock: None (CKU32) | Work hole: ø15 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-148DAH-X2322 Lock: None (CKU32) | Work hole: ø15 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-148DBL-X2321 Lock: None (CKU32) | Work hole: ø15 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-148DBH-X2322 Lock: None (CKU32) | Work hole: ø15 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-149RAL-X2321 Lock: None (CKU32) | Work hole: ø15 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-149RAH-X2322 Lock: None (CKU32) | Work hole: ø15 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-149RBL-X2321 Lock: None (CKU32) | Work hole: ø15 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-149RBH-X2322 Lock: None (CKU32) | Work hole: ø15 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-149DAL-X2321 Lock: None (CKU32) | Work hole: ø15 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-149DAH-X2322 Lock: None (CKU32) | Work hole: ø15 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-149DBL-X2321 Lock: None (CKU32) | Work hole: ø15 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-149DBH-X2322 Lock: None (CKU32) | Work hole: ø15 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-150RAL-X2321 Lock: None (CKU32) | Work hole: ø15 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-150RAH-X2322 Lock: None (CKU32) | Work hole: ø15 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-150RBL-X2321 Lock: None (CKU32) | Work hole: ø15 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-150RBH-X2322 Lock: None (CKU32) | Work hole: ø15 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-150DAL-X2321 Lock: None (CKU32) | Work hole: ø15 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-150DAH-X2322 Lock: None (CKU32) | Work hole: ø15 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-150DBL-X2321 Lock: None (CKU32) | Work hole: ø15 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-150DBH-X2322 Lock: None (CKU32) | Work hole: ø15 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-155RAL-X2321 Lock: None (CKU32) | Work hole: ø16 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-155RAH-X2322 Lock: None (CKU32) | Work hole: ø16 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-155RBL-X2321 Lock: None (CKU32) | Work hole: ø16 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-155RBH-X2322 Lock: None (CKU32) | Work hole: ø16 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-155DAL-X2321 Lock: None (CKU32) | Work hole: ø16 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-155DAH-X2322 Lock: None (CKU32) | Work hole: ø16 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-155DBL-X2321 Lock: None (CKU32) | Work hole: ø16 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-155DBH-X2322 Lock: None (CKU32) | Work hole: ø16 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-156RAL-X2321 Lock: None (CKU32) | Work hole: ø16 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-156RAH-X2322 Lock: None (CKU32) | Work hole: ø16 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-156RBL-X2321 Lock: None (CKU32) | Work hole: ø16 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-156RBH-X2322 Lock: None (CKU32) | Work hole: ø16 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-156DAL-X2321 Lock: None (CKU32) | Work hole: ø16 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-156DAH-X2322 Lock: None (CKU32) | Work hole: ø16 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-156DBL-X2321 Lock: None (CKU32) | Work hole: ø16 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-156DBH-X2322 Lock: None (CKU32) | Work hole: ø16 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-157RAL-X2321 Lock: None (CKU32) | Work hole: ø16 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-157RAH-X2322 Lock: None (CKU32) | Work hole: ø16 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-157RBL-X2321 Lock: None (CKU32) | Work hole: ø16 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-157RBH-X2322 Lock: None (CKU32) | Work hole: ø16 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-157DAL-X2321 Lock: None (CKU32) | Work hole: ø16 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-157DAH-X2322 Lock: None (CKU32) | Work hole: ø16 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-157DBL-X2321 Lock: None (CKU32) | Work hole: ø16 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-157DBH-X2322 Lock: None (CKU32) | Work hole: ø16 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-158RAL-X2321 Lock: None (CKU32) | Work hole: ø16 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-158RAH-X2322 Lock: None (CKU32) | Work hole: ø16 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-158RBL-X2321 Lock: None (CKU32) | Work hole: ø16 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-158RBH-X2322 Lock: None (CKU32) | Work hole: ø16 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-158DAL-X2321 Lock: None (CKU32) | Work hole: ø16 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-158DAH-X2322 Lock: None (CKU32) | Work hole: ø16 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-158DBL-X2321 Lock: None (CKU32) | Work hole: ø16 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-158DBH-X2322 Lock: None (CKU32) | Work hole: ø16 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-159RAL-X2321 Lock: None (CKU32) | Work hole: ø16 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-159RAH-X2322 Lock: None (CKU32) | Work hole: ø16 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-159RBL-X2321 Lock: None (CKU32) | Work hole: ø16 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-159RBH-X2322 Lock: None (CKU32) | Work hole: ø16 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-159DAL-X2321 Lock: None (CKU32) | Work hole: ø16 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-159DAH-X2322 Lock: None (CKU32) | Work hole: ø16 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-159DBL-X2321 Lock: None (CKU32) | Work hole: ø16 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-159DBH-X2322 Lock: None (CKU32) | Work hole: ø16 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-160RAL-X2321 Lock: None (CKU32) | Work hole: ø16 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-160RAH-X2322 Lock: None (CKU32) | Work hole: ø16 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-160RBL-X2321 Lock: None (CKU32) | Work hole: ø16 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-160RBH-X2322 Lock: None (CKU32) | Work hole: ø16 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-160DAL-X2321 Lock: None (CKU32) | Work hole: ø16 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-160DAH-X2322 Lock: None (CKU32) | Work hole: ø16 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-160DBL-X2321 Lock: None (CKU32) | Work hole: ø16 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-160DBH-X2322 Lock: None (CKU32) | Work hole: ø16 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-175RAL-X2321 Lock: None (CKU32) | Work hole: ø18 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-175RAH-X2322 Lock: None (CKU32) | Work hole: ø18 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-175RBL-X2321 Lock: None (CKU32) | Work hole: ø18 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-175RBH-X2322 Lock: None (CKU32) | Work hole: ø18 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-175DAL-X2321 Lock: None (CKU32) | Work hole: ø18 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-175DAH-X2322 Lock: None (CKU32) | Work hole: ø18 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-175DBL-X2321 Lock: None (CKU32) | Work hole: ø18 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-175DBH-X2322 Lock: None (CKU32) | Work hole: ø18 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-176RAL-X2321 Lock: None (CKU32) | Work hole: ø18 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-176RAH-X2322 Lock: None (CKU32) | Work hole: ø18 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-176RBL-X2321 Lock: None (CKU32) | Work hole: ø18 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-176RBH-X2322 Lock: None (CKU32) | Work hole: ø18 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-176DAL-X2321 Lock: None (CKU32) | Work hole: ø18 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-176DAH-X2322 Lock: None (CKU32) | Work hole: ø18 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-176DBL-X2321 Lock: None (CKU32) | Work hole: ø18 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-176DBH-X2322 Lock: None (CKU32) | Work hole: ø18 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-177RAL-X2321 Lock: None (CKU32) | Work hole: ø18 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-177RAH-X2322 Lock: None (CKU32) | Work hole: ø18 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-177RBL-X2321 Lock: None (CKU32) | Work hole: ø18 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-177RBH-X2322 Lock: None (CKU32) | Work hole: ø18 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-177DAL-X2321 Lock: None (CKU32) | Work hole: ø18 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-177DAH-X2322 Lock: None (CKU32) | Work hole: ø18 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-177DBL-X2321 Lock: None (CKU32) | Work hole: ø18 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-177DBH-X2322 Lock: None (CKU32) | Work hole: ø18 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-178RAL-X2321 Lock: None (CKU32) | Work hole: ø18 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-178RAH-X2322 Lock: None (CKU32) | Work hole: ø18 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-178RBL-X2321 Lock: None (CKU32) | Work hole: ø18 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-178RBH-X2322 Lock: None (CKU32) | Work hole: ø18 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-178DAL-X2321 Lock: None (CKU32) | Work hole: ø18 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-178DAH-X2322 Lock: None (CKU32) | Work hole: ø18 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-178DBL-X2321 Lock: None (CKU32) | Work hole: ø18 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-178DBH-X2322 Lock: None (CKU32) | Work hole: ø18 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-179RAL-X2321 Lock: None (CKU32) | Work hole: ø18 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-179RAH-X2322 Lock: None (CKU32) | Work hole: ø18 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-179RBL-X2321 Lock: None (CKU32) | Work hole: ø18 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-179RBH-X2322 Lock: None (CKU32) | Work hole: ø18 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-179DAL-X2321 Lock: None (CKU32) | Work hole: ø18 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-179DAH-X2322 Lock: None (CKU32) | Work hole: ø18 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-179DBL-X2321 Lock: None (CKU32) | Work hole: ø18 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-179DBH-X2322 Lock: None (CKU32) | Work hole: ø18 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-180RAL-X2321 Lock: None (CKU32) | Work hole: ø18 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-180RAH-X2322 Lock: None (CKU32) | Work hole: ø18 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-180RBL-X2321 Lock: None (CKU32) | Work hole: ø18 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-180RBH-X2322 Lock: None (CKU32) | Work hole: ø18 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-180DAL-X2321 Lock: None (CKU32) | Work hole: ø18 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-180DAH-X2322 Lock: None (CKU32) | Work hole: ø18 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-180DBL-X2321 Lock: None (CKU32) | Work hole: ø18 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-180DBH-X2322 Lock: None (CKU32) | Work hole: ø18 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-195RAL-X2321 Lock: None (CKU32) | Work hole: ø20 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-195RAH-X2322 Lock: None (CKU32) | Work hole: ø20 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-195RBL-X2321 Lock: None (CKU32) | Work hole: ø20 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-195RBH-X2322 Lock: None (CKU32) | Work hole: ø20 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-195DAL-X2321 Lock: None (CKU32) | Work hole: ø20 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-195DAH-X2322 Lock: None (CKU32) | Work hole: ø20 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-195DBL-X2321 Lock: None (CKU32) | Work hole: ø20 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-195DBH-X2322 Lock: None (CKU32) | Work hole: ø20 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-196RAL-X2321 Lock: None (CKU32) | Work hole: ø20 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-196RAH-X2322 Lock: None (CKU32) | Work hole: ø20 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-196RBL-X2321 Lock: None (CKU32) | Work hole: ø20 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-196RBH-X2322 Lock: None (CKU32) | Work hole: ø20 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-196DAL-X2321 Lock: None (CKU32) | Work hole: ø20 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-196DAH-X2322 Lock: None (CKU32) | Work hole: ø20 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-196DBL-X2321 Lock: None (CKU32) | Work hole: ø20 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-196DBH-X2322 Lock: None (CKU32) | Work hole: ø20 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-197RAL-X2321 Lock: None (CKU32) | Work hole: ø20 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-197RAH-X2322 Lock: None (CKU32) | Work hole: ø20 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-197RBL-X2321 Lock: None (CKU32) | Work hole: ø20 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-197RBH-X2322 Lock: None (CKU32) | Work hole: ø20 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-197DAL-X2321 Lock: None (CKU32) | Work hole: ø20 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-197DAH-X2322 Lock: None (CKU32) | Work hole: ø20 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-197DBL-X2321 Lock: None (CKU32) | Work hole: ø20 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-197DBH-X2322 Lock: None (CKU32) | Work hole: ø20 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-198RAL-X2321 Lock: None (CKU32) | Work hole: ø20 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-198RAH-X2322 Lock: None (CKU32) | Work hole: ø20 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-198RBL-X2321 Lock: None (CKU32) | Work hole: ø20 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-198RBH-X2322 Lock: None (CKU32) | Work hole: ø20 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-198DAL-X2321 Lock: None (CKU32) | Work hole: ø20 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-198DAH-X2322 Lock: None (CKU32) | Work hole: ø20 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-198DBL-X2321 Lock: None (CKU32) | Work hole: ø20 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-198DBH-X2322 Lock: None (CKU32) | Work hole: ø20 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-199RAL-X2321 Lock: None (CKU32) | Work hole: ø20 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-199RAH-X2322 Lock: None (CKU32) | Work hole: ø20 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-199RBL-X2321 Lock: None (CKU32) | Work hole: ø20 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-199RBH-X2322 Lock: None (CKU32) | Work hole: ø20 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-199DAL-X2321 Lock: None (CKU32) | Work hole: ø20 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-199DAH-X2322 Lock: None (CKU32) | Work hole: ø20 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-199DBL-X2321 Lock: None (CKU32) | Work hole: ø20 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-199DBH-X2322 Lock: None (CKU32) | Work hole: ø20 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-200RAL-X2321 Lock: None (CKU32) | Work hole: ø20 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-200RAH-X2322 Lock: None (CKU32) | Work hole: ø20 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-200RBL-X2321 Lock: None (CKU32) | Work hole: ø20 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-200RBH-X2322 Lock: None (CKU32) | Work hole: ø20 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-200DAL-X2321 Lock: None (CKU32) | Work hole: ø20 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-200DAH-X2322 Lock: None (CKU32) | Work hole: ø20 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-200DBL-X2321 Lock: None (CKU32) | Work hole: ø20 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-200DBH-X2322 Lock: None (CKU32) | Work hole: ø20 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-075RAL-X2321 Lock: With lock (CLKU32) | Work hole: ø8 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-075RAH-X2322 Lock: With lock (CLKU32) | Work hole: ø8 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-075RBL-X2321 Lock: With lock (CLKU32) | Work hole: ø8 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-075RBH-X2322 Lock: With lock (CLKU32) | Work hole: ø8 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-076RAL-X2321 Lock: With lock (CLKU32) | Work hole: ø8 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-076RAH-X2322 Lock: With lock (CLKU32) | Work hole: ø8 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-076RBL-X2321 Lock: With lock (CLKU32) | Work hole: ø8 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-076RBH-X2322 Lock: With lock (CLKU32) | Work hole: ø8 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-077RAL-X2321 Lock: With lock (CLKU32) | Work hole: ø8 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-077RAH-X2322 Lock: With lock (CLKU32) | Work hole: ø8 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-077RBL-X2321 Lock: With lock (CLKU32) | Work hole: ø8 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-077RBH-X2322 Lock: With lock (CLKU32) | Work hole: ø8 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-078RAL-X2321 Lock: With lock (CLKU32) | Work hole: ø8 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-078RAH-X2322 Lock: With lock (CLKU32) | Work hole: ø8 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-078RBL-X2321 Lock: With lock (CLKU32) | Work hole: ø8 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-078RBH-X2322 Lock: With lock (CLKU32) | Work hole: ø8 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-079RAL-X2321 Lock: With lock (CLKU32) | Work hole: ø8 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-079RAH-X2322 Lock: With lock (CLKU32) | Work hole: ø8 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-079RBL-X2321 Lock: With lock (CLKU32) | Work hole: ø8 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-079RBH-X2322 Lock: With lock (CLKU32) | Work hole: ø8 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-080RAL-X2321 Lock: With lock (CLKU32) | Work hole: ø8 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-080RAH-X2322 Lock: With lock (CLKU32) | Work hole: ø8 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-080RBL-X2321 Lock: With lock (CLKU32) | Work hole: ø8 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-080RBH-X2322 Lock: With lock (CLKU32) | Work hole: ø8 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-085RAL-X2321 Lock: With lock (CLKU32) | Work hole: ø9 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-085RAH-X2322 Lock: With lock (CLKU32) | Work hole: ø9 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-085RBL-X2321 Lock: With lock (CLKU32) | Work hole: ø9 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-085RBH-X2322 Lock: With lock (CLKU32) | Work hole: ø9 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-086RAL-X2321 Lock: With lock (CLKU32) | Work hole: ø9 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-086RAH-X2322 Lock: With lock (CLKU32) | Work hole: ø9 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-086RBL-X2321 Lock: With lock (CLKU32) | Work hole: ø9 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-086RBH-X2322 Lock: With lock (CLKU32) | Work hole: ø9 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-087RAL-X2321 Lock: With lock (CLKU32) | Work hole: ø9 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-087RAH-X2322 Lock: With lock (CLKU32) | Work hole: ø9 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-087RBL-X2321 Lock: With lock (CLKU32) | Work hole: ø9 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-087RBH-X2322 Lock: With lock (CLKU32) | Work hole: ø9 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-088RAL-X2321 Lock: With lock (CLKU32) | Work hole: ø9 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-088RAH-X2322 Lock: With lock (CLKU32) | Work hole: ø9 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-088RBL-X2321 Lock: With lock (CLKU32) | Work hole: ø9 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-088RBH-X2322 Lock: With lock (CLKU32) | Work hole: ø9 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-089RAL-X2321 Lock: With lock (CLKU32) | Work hole: ø9 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-089RAH-X2322 Lock: With lock (CLKU32) | Work hole: ø9 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-089RBL-X2321 Lock: With lock (CLKU32) | Work hole: ø9 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-089RBH-X2322 Lock: With lock (CLKU32) | Work hole: ø9 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-090RAL-X2321 Lock: With lock (CLKU32) | Work hole: ø9 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-090RAH-X2322 Lock: With lock (CLKU32) | Work hole: ø9 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-090RBL-X2321 Lock: With lock (CLKU32) | Work hole: ø9 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-090RBH-X2322 Lock: With lock (CLKU32) | Work hole: ø9 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-095RAL-X2321 Lock: With lock (CLKU32) | Work hole: ø10 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-095RAH-X2322 Lock: With lock (CLKU32) | Work hole: ø10 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-095RBL-X2321 Lock: With lock (CLKU32) | Work hole: ø10 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-095RBH-X2322 Lock: With lock (CLKU32) | Work hole: ø10 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-095DAL-X2321 Lock: With lock (CLKU32) | Work hole: ø10 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-095DAH-X2322 Lock: With lock (CLKU32) | Work hole: ø10 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-095DBL-X2321 Lock: With lock (CLKU32) | Work hole: ø10 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-095DBH-X2322 Lock: With lock (CLKU32) | Work hole: ø10 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-096RAL-X2321 Lock: With lock (CLKU32) | Work hole: ø10 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-096RAH-X2322 Lock: With lock (CLKU32) | Work hole: ø10 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-096RBL-X2321 Lock: With lock (CLKU32) | Work hole: ø10 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-096RBH-X2322 Lock: With lock (CLKU32) | Work hole: ø10 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-096DAL-X2321 Lock: With lock (CLKU32) | Work hole: ø10 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-096DAH-X2322 Lock: With lock (CLKU32) | Work hole: ø10 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-096DBL-X2321 Lock: With lock (CLKU32) | Work hole: ø10 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-096DBH-X2322 Lock: With lock (CLKU32) | Work hole: ø10 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-097RAL-X2321 Lock: With lock (CLKU32) | Work hole: ø10 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-097RAH-X2322 Lock: With lock (CLKU32) | Work hole: ø10 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-097RBL-X2321 Lock: With lock (CLKU32) | Work hole: ø10 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-097RBH-X2322 Lock: With lock (CLKU32) | Work hole: ø10 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-097DAL-X2321 Lock: With lock (CLKU32) | Work hole: ø10 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-097DAH-X2322 Lock: With lock (CLKU32) | Work hole: ø10 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-097DBL-X2321 Lock: With lock (CLKU32) | Work hole: ø10 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-097DBH-X2322 Lock: With lock (CLKU32) | Work hole: ø10 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-098RAL-X2321 Lock: With lock (CLKU32) | Work hole: ø10 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-098RAH-X2322 Lock: With lock (CLKU32) | Work hole: ø10 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-098RBL-X2321 Lock: With lock (CLKU32) | Work hole: ø10 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-098RBH-X2322 Lock: With lock (CLKU32) | Work hole: ø10 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-098DAL-X2321 Lock: With lock (CLKU32) | Work hole: ø10 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-098DAH-X2322 Lock: With lock (CLKU32) | Work hole: ø10 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-098DBL-X2321 Lock: With lock (CLKU32) | Work hole: ø10 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-098DBH-X2322 Lock: With lock (CLKU32) | Work hole: ø10 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-099RAL-X2321 Lock: With lock (CLKU32) | Work hole: ø10 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-099RAH-X2322 Lock: With lock (CLKU32) | Work hole: ø10 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-099RBL-X2321 Lock: With lock (CLKU32) | Work hole: ø10 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-099RBH-X2322 Lock: With lock (CLKU32) | Work hole: ø10 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-099DAL-X2321 Lock: With lock (CLKU32) | Work hole: ø10 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-099DAH-X2322 Lock: With lock (CLKU32) | Work hole: ø10 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-099DBL-X2321 Lock: With lock (CLKU32) | Work hole: ø10 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-099DBH-X2322 Lock: With lock (CLKU32) | Work hole: ø10 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-100RAL-X2321 Lock: With lock (CLKU32) | Work hole: ø10 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-100RAH-X2322 Lock: With lock (CLKU32) | Work hole: ø10 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-100RBL-X2321 Lock: With lock (CLKU32) | Work hole: ø10 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-100RBH-X2322 Lock: With lock (CLKU32) | Work hole: ø10 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-100DAL-X2321 Lock: With lock (CLKU32) | Work hole: ø10 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-100DAH-X2322 Lock: With lock (CLKU32) | Work hole: ø10 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-100DBL-X2321 Lock: With lock (CLKU32) | Work hole: ø10 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-100DBH-X2322 Lock: With lock (CLKU32) | Work hole: ø10 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-105RAL-X2321 Lock: With lock (CLKU32) | Work hole: ø11 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-105RAH-X2322 Lock: With lock (CLKU32) | Work hole: ø11 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-105RBL-X2321 Lock: With lock (CLKU32) | Work hole: ø11 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-105RBH-X2322 Lock: With lock (CLKU32) | Work hole: ø11 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-105DAL-X2321 Lock: With lock (CLKU32) | Work hole: ø11 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-105DAH-X2322 Lock: With lock (CLKU32) | Work hole: ø11 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-105DBL-X2321 Lock: With lock (CLKU32) | Work hole: ø11 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-105DBH-X2322 Lock: With lock (CLKU32) | Work hole: ø11 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-106RAL-X2321 Lock: With lock (CLKU32) | Work hole: ø11 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-106RAH-X2322 Lock: With lock (CLKU32) | Work hole: ø11 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-106RBL-X2321 Lock: With lock (CLKU32) | Work hole: ø11 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-106RBH-X2322 Lock: With lock (CLKU32) | Work hole: ø11 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-106DAL-X2321 Lock: With lock (CLKU32) | Work hole: ø11 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-106DAH-X2322 Lock: With lock (CLKU32) | Work hole: ø11 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-106DBL-X2321 Lock: With lock (CLKU32) | Work hole: ø11 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-106DBH-X2322 Lock: With lock (CLKU32) | Work hole: ø11 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-107RAL-X2321 Lock: With lock (CLKU32) | Work hole: ø11 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-107RAH-X2322 Lock: With lock (CLKU32) | Work hole: ø11 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-107RBL-X2321 Lock: With lock (CLKU32) | Work hole: ø11 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-107RBH-X2322 Lock: With lock (CLKU32) | Work hole: ø11 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-107DAL-X2321 Lock: With lock (CLKU32) | Work hole: ø11 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-107DAH-X2322 Lock: With lock (CLKU32) | Work hole: ø11 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-107DBL-X2321 Lock: With lock (CLKU32) | Work hole: ø11 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-107DBH-X2322 Lock: With lock (CLKU32) | Work hole: ø11 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-108RAL-X2321 Lock: With lock (CLKU32) | Work hole: ø11 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-108RAH-X2322 Lock: With lock (CLKU32) | Work hole: ø11 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-108RBL-X2321 Lock: With lock (CLKU32) | Work hole: ø11 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-108RBH-X2322 Lock: With lock (CLKU32) | Work hole: ø11 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-108DAL-X2321 Lock: With lock (CLKU32) | Work hole: ø11 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-108DAH-X2322 Lock: With lock (CLKU32) | Work hole: ø11 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-108DBL-X2321 Lock: With lock (CLKU32) | Work hole: ø11 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-108DBH-X2322 Lock: With lock (CLKU32) | Work hole: ø11 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-109RAL-X2321 Lock: With lock (CLKU32) | Work hole: ø11 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-109RAH-X2322 Lock: With lock (CLKU32) | Work hole: ø11 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-109RBL-X2321 Lock: With lock (CLKU32) | Work hole: ø11 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-109RBH-X2322 Lock: With lock (CLKU32) | Work hole: ø11 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-109DAL-X2321 Lock: With lock (CLKU32) | Work hole: ø11 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-109DAH-X2322 Lock: With lock (CLKU32) | Work hole: ø11 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-109DBL-X2321 Lock: With lock (CLKU32) | Work hole: ø11 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-109DBH-X2322 Lock: With lock (CLKU32) | Work hole: ø11 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-110RAL-X2321 Lock: With lock (CLKU32) | Work hole: ø11 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-110RAH-X2322 Lock: With lock (CLKU32) | Work hole: ø11 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-110RBL-X2321 Lock: With lock (CLKU32) | Work hole: ø11 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-110RBH-X2322 Lock: With lock (CLKU32) | Work hole: ø11 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-110DAL-X2321 Lock: With lock (CLKU32) | Work hole: ø11 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-110DAH-X2322 Lock: With lock (CLKU32) | Work hole: ø11 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-110DBL-X2321 Lock: With lock (CLKU32) | Work hole: ø11 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-110DBH-X2322 Lock: With lock (CLKU32) | Work hole: ø11 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-115RAL-X2321 Lock: With lock (CLKU32) | Work hole: ø12 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-115RAH-X2322 Lock: With lock (CLKU32) | Work hole: ø12 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-115RBL-X2321 Lock: With lock (CLKU32) | Work hole: ø12 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-115RBH-X2322 Lock: With lock (CLKU32) | Work hole: ø12 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-115DAL-X2321 Lock: With lock (CLKU32) | Work hole: ø12 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-115DAH-X2322 Lock: With lock (CLKU32) | Work hole: ø12 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-115DBL-X2321 Lock: With lock (CLKU32) | Work hole: ø12 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-115DBH-X2322 Lock: With lock (CLKU32) | Work hole: ø12 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-116RAL-X2321 Lock: With lock (CLKU32) | Work hole: ø12 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-116RAH-X2322 Lock: With lock (CLKU32) | Work hole: ø12 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-116RBL-X2321 Lock: With lock (CLKU32) | Work hole: ø12 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-116RBH-X2322 Lock: With lock (CLKU32) | Work hole: ø12 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-116DAL-X2321 Lock: With lock (CLKU32) | Work hole: ø12 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-116DAH-X2322 Lock: With lock (CLKU32) | Work hole: ø12 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-116DBL-X2321 Lock: With lock (CLKU32) | Work hole: ø12 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-116DBH-X2322 Lock: With lock (CLKU32) | Work hole: ø12 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-117RAL-X2321 Lock: With lock (CLKU32) | Work hole: ø12 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-117RAH-X2322 Lock: With lock (CLKU32) | Work hole: ø12 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-117RBL-X2321 Lock: With lock (CLKU32) | Work hole: ø12 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-117RBH-X2322 Lock: With lock (CLKU32) | Work hole: ø12 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-117DAL-X2321 Lock: With lock (CLKU32) | Work hole: ø12 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-117DAH-X2322 Lock: With lock (CLKU32) | Work hole: ø12 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-117DBL-X2321 Lock: With lock (CLKU32) | Work hole: ø12 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-117DBH-X2322 Lock: With lock (CLKU32) | Work hole: ø12 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-118RAL-X2321 Lock: With lock (CLKU32) | Work hole: ø12 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-118RAH-X2322 Lock: With lock (CLKU32) | Work hole: ø12 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-118RBL-X2321 Lock: With lock (CLKU32) | Work hole: ø12 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-118RBH-X2322 Lock: With lock (CLKU32) | Work hole: ø12 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-118DAL-X2321 Lock: With lock (CLKU32) | Work hole: ø12 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-118DAH-X2322 Lock: With lock (CLKU32) | Work hole: ø12 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-118DBL-X2321 Lock: With lock (CLKU32) | Work hole: ø12 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-118DBH-X2322 Lock: With lock (CLKU32) | Work hole: ø12 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-119RAL-X2321 Lock: With lock (CLKU32) | Work hole: ø12 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-119RAH-X2322 Lock: With lock (CLKU32) | Work hole: ø12 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-119RBL-X2321 Lock: With lock (CLKU32) | Work hole: ø12 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-119RBH-X2322 Lock: With lock (CLKU32) | Work hole: ø12 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-119DAL-X2321 Lock: With lock (CLKU32) | Work hole: ø12 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-119DAH-X2322 Lock: With lock (CLKU32) | Work hole: ø12 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-119DBL-X2321 Lock: With lock (CLKU32) | Work hole: ø12 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-119DBH-X2322 Lock: With lock (CLKU32) | Work hole: ø12 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-120RAL-X2321 Lock: With lock (CLKU32) | Work hole: ø12 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-120RAH-X2322 Lock: With lock (CLKU32) | Work hole: ø12 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-120RBL-X2321 Lock: With lock (CLKU32) | Work hole: ø12 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-120RBH-X2322 Lock: With lock (CLKU32) | Work hole: ø12 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-120DAL-X2321 Lock: With lock (CLKU32) | Work hole: ø12 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-120DAH-X2322 Lock: With lock (CLKU32) | Work hole: ø12 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-120DBL-X2321 Lock: With lock (CLKU32) | Work hole: ø12 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-120DBH-X2322 Lock: With lock (CLKU32) | Work hole: ø12 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-125RAL-X2321 Lock: With lock (CLKU32) | Work hole: ø13 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-125RAH-X2322 Lock: With lock (CLKU32) | Work hole: ø13 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-125RBL-X2321 Lock: With lock (CLKU32) | Work hole: ø13 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-125RBH-X2322 Lock: With lock (CLKU32) | Work hole: ø13 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-125DAL-X2321 Lock: With lock (CLKU32) | Work hole: ø13 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-125DAH-X2322 Lock: With lock (CLKU32) | Work hole: ø13 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-125DBL-X2321 Lock: With lock (CLKU32) | Work hole: ø13 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-125DBH-X2322 Lock: With lock (CLKU32) | Work hole: ø13 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-126RAL-X2321 Lock: With lock (CLKU32) | Work hole: ø13 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-126RAH-X2322 Lock: With lock (CLKU32) | Work hole: ø13 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-126RBL-X2321 Lock: With lock (CLKU32) | Work hole: ø13 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-126RBH-X2322 Lock: With lock (CLKU32) | Work hole: ø13 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-126DAL-X2321 Lock: With lock (CLKU32) | Work hole: ø13 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-126DAH-X2322 Lock: With lock (CLKU32) | Work hole: ø13 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-126DBL-X2321 Lock: With lock (CLKU32) | Work hole: ø13 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-126DBH-X2322 Lock: With lock (CLKU32) | Work hole: ø13 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-127RAL-X2321 Lock: With lock (CLKU32) | Work hole: ø13 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-127RAH-X2322 Lock: With lock (CLKU32) | Work hole: ø13 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-127RBL-X2321 Lock: With lock (CLKU32) | Work hole: ø13 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-127RBH-X2322 Lock: With lock (CLKU32) | Work hole: ø13 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-127DAL-X2321 Lock: With lock (CLKU32) | Work hole: ø13 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-127DAH-X2322 Lock: With lock (CLKU32) | Work hole: ø13 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-127DBL-X2321 Lock: With lock (CLKU32) | Work hole: ø13 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-127DBH-X2322 Lock: With lock (CLKU32) | Work hole: ø13 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-128RAL-X2321 Lock: With lock (CLKU32) | Work hole: ø13 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-128RAH-X2322 Lock: With lock (CLKU32) | Work hole: ø13 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-128RBL-X2321 Lock: With lock (CLKU32) | Work hole: ø13 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-128RBH-X2322 Lock: With lock (CLKU32) | Work hole: ø13 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-128DAL-X2321 Lock: With lock (CLKU32) | Work hole: ø13 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-128DAH-X2322 Lock: With lock (CLKU32) | Work hole: ø13 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-128DBL-X2321 Lock: With lock (CLKU32) | Work hole: ø13 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-128DBH-X2322 Lock: With lock (CLKU32) | Work hole: ø13 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-129RAL-X2321 Lock: With lock (CLKU32) | Work hole: ø13 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-129RAH-X2322 Lock: With lock (CLKU32) | Work hole: ø13 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-129RBL-X2321 Lock: With lock (CLKU32) | Work hole: ø13 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-129RBH-X2322 Lock: With lock (CLKU32) | Work hole: ø13 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-129DAL-X2321 Lock: With lock (CLKU32) | Work hole: ø13 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-129DAH-X2322 Lock: With lock (CLKU32) | Work hole: ø13 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-129DBL-X2321 Lock: With lock (CLKU32) | Work hole: ø13 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-129DBH-X2322 Lock: With lock (CLKU32) | Work hole: ø13 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-130RAL-X2321 Lock: With lock (CLKU32) | Work hole: ø13 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-130RAH-X2322 Lock: With lock (CLKU32) | Work hole: ø13 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-130RBL-X2321 Lock: With lock (CLKU32) | Work hole: ø13 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-130RBH-X2322 Lock: With lock (CLKU32) | Work hole: ø13 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-130DAL-X2321 Lock: With lock (CLKU32) | Work hole: ø13 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-130DAH-X2322 Lock: With lock (CLKU32) | Work hole: ø13 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-130DBL-X2321 Lock: With lock (CLKU32) | Work hole: ø13 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-130DBH-X2322 Lock: With lock (CLKU32) | Work hole: ø13 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-135RAL-X2321 Lock: With lock (CLKU32) | Work hole: ø14 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-135RAH-X2322 Lock: With lock (CLKU32) | Work hole: ø14 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-135RBL-X2321 Lock: With lock (CLKU32) | Work hole: ø14 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-135RBH-X2322 Lock: With lock (CLKU32) | Work hole: ø14 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-135DAL-X2321 Lock: With lock (CLKU32) | Work hole: ø14 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-135DAH-X2322 Lock: With lock (CLKU32) | Work hole: ø14 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-135DBL-X2321 Lock: With lock (CLKU32) | Work hole: ø14 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-135DBH-X2322 Lock: With lock (CLKU32) | Work hole: ø14 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-136RAL-X2321 Lock: With lock (CLKU32) | Work hole: ø14 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-136RAH-X2322 Lock: With lock (CLKU32) | Work hole: ø14 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-136RBL-X2321 Lock: With lock (CLKU32) | Work hole: ø14 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-136RBH-X2322 Lock: With lock (CLKU32) | Work hole: ø14 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-136DAL-X2321 Lock: With lock (CLKU32) | Work hole: ø14 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-136DAH-X2322 Lock: With lock (CLKU32) | Work hole: ø14 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-136DBL-X2321 Lock: With lock (CLKU32) | Work hole: ø14 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-136DBH-X2322 Lock: With lock (CLKU32) | Work hole: ø14 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-137RAL-X2321 Lock: With lock (CLKU32) | Work hole: ø14 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-137RAH-X2322 Lock: With lock (CLKU32) | Work hole: ø14 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-137RBL-X2321 Lock: With lock (CLKU32) | Work hole: ø14 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-137RBH-X2322 Lock: With lock (CLKU32) | Work hole: ø14 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-137DAL-X2321 Lock: With lock (CLKU32) | Work hole: ø14 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-137DAH-X2322 Lock: With lock (CLKU32) | Work hole: ø14 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-137DBL-X2321 Lock: With lock (CLKU32) | Work hole: ø14 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-137DBH-X2322 Lock: With lock (CLKU32) | Work hole: ø14 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-138RAL-X2321 Lock: With lock (CLKU32) | Work hole: ø14 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-138RAH-X2322 Lock: With lock (CLKU32) | Work hole: ø14 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-138RBL-X2321 Lock: With lock (CLKU32) | Work hole: ø14 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-138RBH-X2322 Lock: With lock (CLKU32) | Work hole: ø14 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-138DAL-X2321 Lock: With lock (CLKU32) | Work hole: ø14 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-138DAH-X2322 Lock: With lock (CLKU32) | Work hole: ø14 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-138DBL-X2321 Lock: With lock (CLKU32) | Work hole: ø14 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-138DBH-X2322 Lock: With lock (CLKU32) | Work hole: ø14 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-139RAL-X2321 Lock: With lock (CLKU32) | Work hole: ø14 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-139RAH-X2322 Lock: With lock (CLKU32) | Work hole: ø14 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-139RBL-X2321 Lock: With lock (CLKU32) | Work hole: ø14 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-139RBH-X2322 Lock: With lock (CLKU32) | Work hole: ø14 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-139DAL-X2321 Lock: With lock (CLKU32) | Work hole: ø14 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-139DAH-X2322 Lock: With lock (CLKU32) | Work hole: ø14 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-139DBL-X2321 Lock: With lock (CLKU32) | Work hole: ø14 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-139DBH-X2322 Lock: With lock (CLKU32) | Work hole: ø14 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-140RAL-X2321 Lock: With lock (CLKU32) | Work hole: ø14 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-140RAH-X2322 Lock: With lock (CLKU32) | Work hole: ø14 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-140RBL-X2321 Lock: With lock (CLKU32) | Work hole: ø14 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-140RBH-X2322 Lock: With lock (CLKU32) | Work hole: ø14 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-140DAL-X2321 Lock: With lock (CLKU32) | Work hole: ø14 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-140DAH-X2322 Lock: With lock (CLKU32) | Work hole: ø14 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-140DBL-X2321 Lock: With lock (CLKU32) | Work hole: ø14 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-140DBH-X2322 Lock: With lock (CLKU32) | Work hole: ø14 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-145RAL-X2321 Lock: With lock (CLKU32) | Work hole: ø15 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-145RAH-X2322 Lock: With lock (CLKU32) | Work hole: ø15 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-145RBL-X2321 Lock: With lock (CLKU32) | Work hole: ø15 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-145RBH-X2322 Lock: With lock (CLKU32) | Work hole: ø15 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-145DAL-X2321 Lock: With lock (CLKU32) | Work hole: ø15 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-145DAH-X2322 Lock: With lock (CLKU32) | Work hole: ø15 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-145DBL-X2321 Lock: With lock (CLKU32) | Work hole: ø15 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-145DBH-X2322 Lock: With lock (CLKU32) | Work hole: ø15 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-146RAL-X2321 Lock: With lock (CLKU32) | Work hole: ø15 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-146RAH-X2322 Lock: With lock (CLKU32) | Work hole: ø15 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-146RBL-X2321 Lock: With lock (CLKU32) | Work hole: ø15 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-146RBH-X2322 Lock: With lock (CLKU32) | Work hole: ø15 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-146DAL-X2321 Lock: With lock (CLKU32) | Work hole: ø15 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-146DAH-X2322 Lock: With lock (CLKU32) | Work hole: ø15 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-146DBL-X2321 Lock: With lock (CLKU32) | Work hole: ø15 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-146DBH-X2322 Lock: With lock (CLKU32) | Work hole: ø15 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-147RAL-X2321 Lock: With lock (CLKU32) | Work hole: ø15 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-147RAH-X2322 Lock: With lock (CLKU32) | Work hole: ø15 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-147RBL-X2321 Lock: With lock (CLKU32) | Work hole: ø15 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-147RBH-X2322 Lock: With lock (CLKU32) | Work hole: ø15 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-147DAL-X2321 Lock: With lock (CLKU32) | Work hole: ø15 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-147DAH-X2322 Lock: With lock (CLKU32) | Work hole: ø15 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-147DBL-X2321 Lock: With lock (CLKU32) | Work hole: ø15 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-147DBH-X2322 Lock: With lock (CLKU32) | Work hole: ø15 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-148RAL-X2321 Lock: With lock (CLKU32) | Work hole: ø15 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-148RAH-X2322 Lock: With lock (CLKU32) | Work hole: ø15 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-148RBL-X2321 Lock: With lock (CLKU32) | Work hole: ø15 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-148RBH-X2322 Lock: With lock (CLKU32) | Work hole: ø15 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-148DAL-X2321 Lock: With lock (CLKU32) | Work hole: ø15 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-148DAH-X2322 Lock: With lock (CLKU32) | Work hole: ø15 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-148DBL-X2321 Lock: With lock (CLKU32) | Work hole: ø15 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-148DBH-X2322 Lock: With lock (CLKU32) | Work hole: ø15 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-149RAL-X2321 Lock: With lock (CLKU32) | Work hole: ø15 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-149RAH-X2322 Lock: With lock (CLKU32) | Work hole: ø15 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-149RBL-X2321 Lock: With lock (CLKU32) | Work hole: ø15 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-149RBH-X2322 Lock: With lock (CLKU32) | Work hole: ø15 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-149DAL-X2321 Lock: With lock (CLKU32) | Work hole: ø15 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-149DAH-X2322 Lock: With lock (CLKU32) | Work hole: ø15 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-149DBL-X2321 Lock: With lock (CLKU32) | Work hole: ø15 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-149DBH-X2322 Lock: With lock (CLKU32) | Work hole: ø15 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-150RAL-X2321 Lock: With lock (CLKU32) | Work hole: ø15 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-150RAH-X2322 Lock: With lock (CLKU32) | Work hole: ø15 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-150RBL-X2321 Lock: With lock (CLKU32) | Work hole: ø15 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-150RBH-X2322 Lock: With lock (CLKU32) | Work hole: ø15 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-150DAL-X2321 Lock: With lock (CLKU32) | Work hole: ø15 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-150DAH-X2322 Lock: With lock (CLKU32) | Work hole: ø15 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-150DBL-X2321 Lock: With lock (CLKU32) | Work hole: ø15 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-150DBH-X2322 Lock: With lock (CLKU32) | Work hole: ø15 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-155RAL-X2321 Lock: With lock (CLKU32) | Work hole: ø16 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-155RAH-X2322 Lock: With lock (CLKU32) | Work hole: ø16 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-155RBL-X2321 Lock: With lock (CLKU32) | Work hole: ø16 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-155RBH-X2322 Lock: With lock (CLKU32) | Work hole: ø16 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-155DAL-X2321 Lock: With lock (CLKU32) | Work hole: ø16 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-155DAH-X2322 Lock: With lock (CLKU32) | Work hole: ø16 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-155DBL-X2321 Lock: With lock (CLKU32) | Work hole: ø16 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-155DBH-X2322 Lock: With lock (CLKU32) | Work hole: ø16 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-156RAL-X2321 Lock: With lock (CLKU32) | Work hole: ø16 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-156RAH-X2322 Lock: With lock (CLKU32) | Work hole: ø16 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-156RBL-X2321 Lock: With lock (CLKU32) | Work hole: ø16 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-156RBH-X2322 Lock: With lock (CLKU32) | Work hole: ø16 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-156DAL-X2321 Lock: With lock (CLKU32) | Work hole: ø16 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-156DAH-X2322 Lock: With lock (CLKU32) | Work hole: ø16 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-156DBL-X2321 Lock: With lock (CLKU32) | Work hole: ø16 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-156DBH-X2322 Lock: With lock (CLKU32) | Work hole: ø16 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-157RAL-X2321 Lock: With lock (CLKU32) | Work hole: ø16 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-157RAH-X2322 Lock: With lock (CLKU32) | Work hole: ø16 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-157RBL-X2321 Lock: With lock (CLKU32) | Work hole: ø16 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-157RBH-X2322 Lock: With lock (CLKU32) | Work hole: ø16 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-157DAL-X2321 Lock: With lock (CLKU32) | Work hole: ø16 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-157DAH-X2322 Lock: With lock (CLKU32) | Work hole: ø16 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-157DBL-X2321 Lock: With lock (CLKU32) | Work hole: ø16 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-157DBH-X2322 Lock: With lock (CLKU32) | Work hole: ø16 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-158RAL-X2321 Lock: With lock (CLKU32) | Work hole: ø16 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-158RAH-X2322 Lock: With lock (CLKU32) | Work hole: ø16 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-158RBL-X2321 Lock: With lock (CLKU32) | Work hole: ø16 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-158RBH-X2322 Lock: With lock (CLKU32) | Work hole: ø16 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-158DAL-X2321 Lock: With lock (CLKU32) | Work hole: ø16 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-158DAH-X2322 Lock: With lock (CLKU32) | Work hole: ø16 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-158DBL-X2321 Lock: With lock (CLKU32) | Work hole: ø16 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-158DBH-X2322 Lock: With lock (CLKU32) | Work hole: ø16 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-159RAL-X2321 Lock: With lock (CLKU32) | Work hole: ø16 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-159RAH-X2322 Lock: With lock (CLKU32) | Work hole: ø16 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-159RBL-X2321 Lock: With lock (CLKU32) | Work hole: ø16 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-159RBH-X2322 Lock: With lock (CLKU32) | Work hole: ø16 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-159DAL-X2321 Lock: With lock (CLKU32) | Work hole: ø16 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-159DAH-X2322 Lock: With lock (CLKU32) | Work hole: ø16 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-159DBL-X2321 Lock: With lock (CLKU32) | Work hole: ø16 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-159DBH-X2322 Lock: With lock (CLKU32) | Work hole: ø16 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-160RAL-X2321 Lock: With lock (CLKU32) | Work hole: ø16 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-160RAH-X2322 Lock: With lock (CLKU32) | Work hole: ø16 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-160RBL-X2321 Lock: With lock (CLKU32) | Work hole: ø16 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-160RBH-X2322 Lock: With lock (CLKU32) | Work hole: ø16 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-160DAL-X2321 Lock: With lock (CLKU32) | Work hole: ø16 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-160DAH-X2322 Lock: With lock (CLKU32) | Work hole: ø16 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-160DBL-X2321 Lock: With lock (CLKU32) | Work hole: ø16 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-160DBH-X2322 Lock: With lock (CLKU32) | Work hole: ø16 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-175RAL-X2321 Lock: With lock (CLKU32) | Work hole: ø18 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-175RAH-X2322 Lock: With lock (CLKU32) | Work hole: ø18 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-175RBL-X2321 Lock: With lock (CLKU32) | Work hole: ø18 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-175RBH-X2322 Lock: With lock (CLKU32) | Work hole: ø18 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-175DAL-X2321 Lock: With lock (CLKU32) | Work hole: ø18 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-175DAH-X2322 Lock: With lock (CLKU32) | Work hole: ø18 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-175DBL-X2321 Lock: With lock (CLKU32) | Work hole: ø18 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-175DBH-X2322 Lock: With lock (CLKU32) | Work hole: ø18 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-176RAL-X2321 Lock: With lock (CLKU32) | Work hole: ø18 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-176RAH-X2322 Lock: With lock (CLKU32) | Work hole: ø18 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-176RBL-X2321 Lock: With lock (CLKU32) | Work hole: ø18 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-176RBH-X2322 Lock: With lock (CLKU32) | Work hole: ø18 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-176DAL-X2321 Lock: With lock (CLKU32) | Work hole: ø18 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-176DAH-X2322 Lock: With lock (CLKU32) | Work hole: ø18 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-176DBL-X2321 Lock: With lock (CLKU32) | Work hole: ø18 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-176DBH-X2322 Lock: With lock (CLKU32) | Work hole: ø18 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-177RAL-X2321 Lock: With lock (CLKU32) | Work hole: ø18 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-177RAH-X2322 Lock: With lock (CLKU32) | Work hole: ø18 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-177RBL-X2321 Lock: With lock (CLKU32) | Work hole: ø18 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-177RBH-X2322 Lock: With lock (CLKU32) | Work hole: ø18 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-177DAL-X2321 Lock: With lock (CLKU32) | Work hole: ø18 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-177DAH-X2322 Lock: With lock (CLKU32) | Work hole: ø18 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-177DBL-X2321 Lock: With lock (CLKU32) | Work hole: ø18 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-177DBH-X2322 Lock: With lock (CLKU32) | Work hole: ø18 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-178RAL-X2321 Lock: With lock (CLKU32) | Work hole: ø18 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-178RAH-X2322 Lock: With lock (CLKU32) | Work hole: ø18 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-178RBL-X2321 Lock: With lock (CLKU32) | Work hole: ø18 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-178RBH-X2322 Lock: With lock (CLKU32) | Work hole: ø18 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-178DAL-X2321 Lock: With lock (CLKU32) | Work hole: ø18 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-178DAH-X2322 Lock: With lock (CLKU32) | Work hole: ø18 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-178DBL-X2321 Lock: With lock (CLKU32) | Work hole: ø18 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-178DBH-X2322 Lock: With lock (CLKU32) | Work hole: ø18 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-179RAL-X2321 Lock: With lock (CLKU32) | Work hole: ø18 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-179RAH-X2322 Lock: With lock (CLKU32) | Work hole: ø18 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-179RBL-X2321 Lock: With lock (CLKU32) | Work hole: ø18 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-179RBH-X2322 Lock: With lock (CLKU32) | Work hole: ø18 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-179DAL-X2321 Lock: With lock (CLKU32) | Work hole: ø18 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-179DAH-X2322 Lock: With lock (CLKU32) | Work hole: ø18 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-179DBL-X2321 Lock: With lock (CLKU32) | Work hole: ø18 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-179DBH-X2322 Lock: With lock (CLKU32) | Work hole: ø18 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-180RAL-X2321 Lock: With lock (CLKU32) | Work hole: ø18 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-180RAH-X2322 Lock: With lock (CLKU32) | Work hole: ø18 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-180RBL-X2321 Lock: With lock (CLKU32) | Work hole: ø18 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-180RBH-X2322 Lock: With lock (CLKU32) | Work hole: ø18 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-180DAL-X2321 Lock: With lock (CLKU32) | Work hole: ø18 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-180DAH-X2322 Lock: With lock (CLKU32) | Work hole: ø18 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-180DBL-X2321 Lock: With lock (CLKU32) | Work hole: ø18 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-180DBH-X2322 Lock: With lock (CLKU32) | Work hole: ø18 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-195RAL-X2321 Lock: With lock (CLKU32) | Work hole: ø20 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-195RAH-X2322 Lock: With lock (CLKU32) | Work hole: ø20 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-195RBL-X2321 Lock: With lock (CLKU32) | Work hole: ø20 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-195RBH-X2322 Lock: With lock (CLKU32) | Work hole: ø20 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-195DAL-X2321 Lock: With lock (CLKU32) | Work hole: ø20 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-195DAH-X2322 Lock: With lock (CLKU32) | Work hole: ø20 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-195DBL-X2321 Lock: With lock (CLKU32) | Work hole: ø20 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-195DBH-X2322 Lock: With lock (CLKU32) | Work hole: ø20 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-196RAL-X2321 Lock: With lock (CLKU32) | Work hole: ø20 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-196RAH-X2322 Lock: With lock (CLKU32) | Work hole: ø20 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-196RBL-X2321 Lock: With lock (CLKU32) | Work hole: ø20 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-196RBH-X2322 Lock: With lock (CLKU32) | Work hole: ø20 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-196DAL-X2321 Lock: With lock (CLKU32) | Work hole: ø20 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-196DAH-X2322 Lock: With lock (CLKU32) | Work hole: ø20 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-196DBL-X2321 Lock: With lock (CLKU32) | Work hole: ø20 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-196DBH-X2322 Lock: With lock (CLKU32) | Work hole: ø20 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-197RAL-X2321 Lock: With lock (CLKU32) | Work hole: ø20 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-197RAH-X2322 Lock: With lock (CLKU32) | Work hole: ø20 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-197RBL-X2321 Lock: With lock (CLKU32) | Work hole: ø20 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-197RBH-X2322 Lock: With lock (CLKU32) | Work hole: ø20 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-197DAL-X2321 Lock: With lock (CLKU32) | Work hole: ø20 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-197DAH-X2322 Lock: With lock (CLKU32) | Work hole: ø20 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-197DBL-X2321 Lock: With lock (CLKU32) | Work hole: ø20 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-197DBH-X2322 Lock: With lock (CLKU32) | Work hole: ø20 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-198RAL-X2321 Lock: With lock (CLKU32) | Work hole: ø20 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-198RAH-X2322 Lock: With lock (CLKU32) | Work hole: ø20 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-198RBL-X2321 Lock: With lock (CLKU32) | Work hole: ø20 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-198RBH-X2322 Lock: With lock (CLKU32) | Work hole: ø20 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-198DAL-X2321 Lock: With lock (CLKU32) | Work hole: ø20 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-198DAH-X2322 Lock: With lock (CLKU32) | Work hole: ø20 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-198DBL-X2321 Lock: With lock (CLKU32) | Work hole: ø20 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-198DBH-X2322 Lock: With lock (CLKU32) | Work hole: ø20 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-199RAL-X2321 Lock: With lock (CLKU32) | Work hole: ø20 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-199RAH-X2322 Lock: With lock (CLKU32) | Work hole: ø20 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-199RBL-X2321 Lock: With lock (CLKU32) | Work hole: ø20 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-199RBH-X2322 Lock: With lock (CLKU32) | Work hole: ø20 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-199DAL-X2321 Lock: With lock (CLKU32) | Work hole: ø20 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-199DAH-X2322 Lock: With lock (CLKU32) | Work hole: ø20 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-199DBL-X2321 Lock: With lock (CLKU32) | Work hole: ø20 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-199DBH-X2322 Lock: With lock (CLKU32) | Work hole: ø20 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-200RAL-X2321 Lock: With lock (CLKU32) | Work hole: ø20 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-200RAH-X2322 Lock: With lock (CLKU32) | Work hole: ø20 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-200RBL-X2321 Lock: With lock (CLKU32) | Work hole: ø20 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-200RBH-X2322 Lock: With lock (CLKU32) | Work hole: ø20 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-200DAL-X2321 Lock: With lock (CLKU32) | Work hole: ø20 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-200DAH-X2322 Lock: With lock (CLKU32) | Work hole: ø20 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-200DBL-X2321 Lock: With lock (CLKU32) | Work hole: ø20 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-200DBH-X2322 Lock: With lock (CLKU32) | Work hole: ø20 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
Clamp CylindersSMC
960 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC CKU32/CLKU32 Pin Clamp Cylinder (ø32, Plate Cylinder Type)

Brand SMC·Clamp Cylinders

Available part numbers (960)

CKU32-075RAL-X2321, CKU32-075RAH-X2322, CKU32-075RBL-X2321, CKU32-075RBH-X2322, CKU32-076RAL-X2321, CKU32-076RAH-X2322, CKU32-076RBL-X2321, CKU32-076RBH-X2322, CKU32-077RAL-X2321, CKU32-077RAH-X2322 + 950 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CKU32-075RAL-X2321Lock: None (CKU32) | Work hole: ø8 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-075RAH-X2322Lock: None (CKU32) | Work hole: ø8 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-075RBL-X2321Lock: None (CKU32) | Work hole: ø8 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-075RBH-X2322Lock: None (CKU32) | Work hole: ø8 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-076RAL-X2321Lock: None (CKU32) | Work hole: ø8 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-076RAH-X2322Lock: None (CKU32) | Work hole: ø8 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-076RBL-X2321Lock: None (CKU32) | Work hole: ø8 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-076RBH-X2322Lock: None (CKU32) | Work hole: ø8 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-077RAL-X2321Lock: None (CKU32) | Work hole: ø8 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-077RAH-X2322Lock: None (CKU32) | Work hole: ø8 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-077RBL-X2321Lock: None (CKU32) | Work hole: ø8 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-077RBH-X2322Lock: None (CKU32) | Work hole: ø8 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-078RAL-X2321Lock: None (CKU32) | Work hole: ø8 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-078RAH-X2322Lock: None (CKU32) | Work hole: ø8 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-078RBL-X2321Lock: None (CKU32) | Work hole: ø8 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-078RBH-X2322Lock: None (CKU32) | Work hole: ø8 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-079RAL-X2321Lock: None (CKU32) | Work hole: ø8 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-079RAH-X2322Lock: None (CKU32) | Work hole: ø8 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-079RBL-X2321Lock: None (CKU32) | Work hole: ø8 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-079RBH-X2322Lock: None (CKU32) | Work hole: ø8 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-080RAL-X2321Lock: None (CKU32) | Work hole: ø8 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-080RAH-X2322Lock: None (CKU32) | Work hole: ø8 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-080RBL-X2321Lock: None (CKU32) | Work hole: ø8 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-080RBH-X2322Lock: None (CKU32) | Work hole: ø8 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-085RAL-X2321Lock: None (CKU32) | Work hole: ø9 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-085RAH-X2322Lock: None (CKU32) | Work hole: ø9 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-085RBL-X2321Lock: None (CKU32) | Work hole: ø9 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-085RBH-X2322Lock: None (CKU32) | Work hole: ø9 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-086RAL-X2321Lock: None (CKU32) | Work hole: ø9 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-086RAH-X2322Lock: None (CKU32) | Work hole: ø9 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-086RBL-X2321Lock: None (CKU32) | Work hole: ø9 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-086RBH-X2322Lock: None (CKU32) | Work hole: ø9 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-087RAL-X2321Lock: None (CKU32) | Work hole: ø9 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-087RAH-X2322Lock: None (CKU32) | Work hole: ø9 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-087RBL-X2321Lock: None (CKU32) | Work hole: ø9 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-087RBH-X2322Lock: None (CKU32) | Work hole: ø9 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-088RAL-X2321Lock: None (CKU32) | Work hole: ø9 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-088RAH-X2322Lock: None (CKU32) | Work hole: ø9 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-088RBL-X2321Lock: None (CKU32) | Work hole: ø9 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-088RBH-X2322Lock: None (CKU32) | Work hole: ø9 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-089RAL-X2321Lock: None (CKU32) | Work hole: ø9 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-089RAH-X2322Lock: None (CKU32) | Work hole: ø9 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-089RBL-X2321Lock: None (CKU32) | Work hole: ø9 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-089RBH-X2322Lock: None (CKU32) | Work hole: ø9 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-090RAL-X2321Lock: None (CKU32) | Work hole: ø9 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-090RAH-X2322Lock: None (CKU32) | Work hole: ø9 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-090RBL-X2321Lock: None (CKU32) | Work hole: ø9 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-090RBH-X2322Lock: None (CKU32) | Work hole: ø9 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-095RAL-X2321Lock: None (CKU32) | Work hole: ø10 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-095RAH-X2322Lock: None (CKU32) | Work hole: ø10 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-095RBL-X2321Lock: None (CKU32) | Work hole: ø10 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-095RBH-X2322Lock: None (CKU32) | Work hole: ø10 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-095DAL-X2321Lock: None (CKU32) | Work hole: ø10 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-095DAH-X2322Lock: None (CKU32) | Work hole: ø10 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-095DBL-X2321Lock: None (CKU32) | Work hole: ø10 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-095DBH-X2322Lock: None (CKU32) | Work hole: ø10 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-096RAL-X2321Lock: None (CKU32) | Work hole: ø10 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-096RAH-X2322Lock: None (CKU32) | Work hole: ø10 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-096RBL-X2321Lock: None (CKU32) | Work hole: ø10 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-096RBH-X2322Lock: None (CKU32) | Work hole: ø10 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-096DAL-X2321Lock: None (CKU32) | Work hole: ø10 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-096DAH-X2322Lock: None (CKU32) | Work hole: ø10 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-096DBL-X2321Lock: None (CKU32) | Work hole: ø10 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-096DBH-X2322Lock: None (CKU32) | Work hole: ø10 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-097RAL-X2321Lock: None (CKU32) | Work hole: ø10 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-097RAH-X2322Lock: None (CKU32) | Work hole: ø10 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-097RBL-X2321Lock: None (CKU32) | Work hole: ø10 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-097RBH-X2322Lock: None (CKU32) | Work hole: ø10 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-097DAL-X2321Lock: None (CKU32) | Work hole: ø10 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-097DAH-X2322Lock: None (CKU32) | Work hole: ø10 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-097DBL-X2321Lock: None (CKU32) | Work hole: ø10 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-097DBH-X2322Lock: None (CKU32) | Work hole: ø10 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-098RAL-X2321Lock: None (CKU32) | Work hole: ø10 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-098RAH-X2322Lock: None (CKU32) | Work hole: ø10 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-098RBL-X2321Lock: None (CKU32) | Work hole: ø10 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-098RBH-X2322Lock: None (CKU32) | Work hole: ø10 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-098DAL-X2321Lock: None (CKU32) | Work hole: ø10 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-098DAH-X2322Lock: None (CKU32) | Work hole: ø10 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-098DBL-X2321Lock: None (CKU32) | Work hole: ø10 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-098DBH-X2322Lock: None (CKU32) | Work hole: ø10 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-099RAL-X2321Lock: None (CKU32) | Work hole: ø10 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-099RAH-X2322Lock: None (CKU32) | Work hole: ø10 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-099RBL-X2321Lock: None (CKU32) | Work hole: ø10 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-099RBH-X2322Lock: None (CKU32) | Work hole: ø10 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-099DAL-X2321Lock: None (CKU32) | Work hole: ø10 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-099DAH-X2322Lock: None (CKU32) | Work hole: ø10 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-099DBL-X2321Lock: None (CKU32) | Work hole: ø10 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-099DBH-X2322Lock: None (CKU32) | Work hole: ø10 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-100RAL-X2321Lock: None (CKU32) | Work hole: ø10 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-100RAH-X2322Lock: None (CKU32) | Work hole: ø10 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-100RBL-X2321Lock: None (CKU32) | Work hole: ø10 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-100RBH-X2322Lock: None (CKU32) | Work hole: ø10 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-100DAL-X2321Lock: None (CKU32) | Work hole: ø10 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-100DAH-X2322Lock: None (CKU32) | Work hole: ø10 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-100DBL-X2321Lock: None (CKU32) | Work hole: ø10 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-100DBH-X2322Lock: None (CKU32) | Work hole: ø10 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-105RAL-X2321Lock: None (CKU32) | Work hole: ø11 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-105RAH-X2322Lock: None (CKU32) | Work hole: ø11 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-105RBL-X2321Lock: None (CKU32) | Work hole: ø11 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-105RBH-X2322Lock: None (CKU32) | Work hole: ø11 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-105DAL-X2321Lock: None (CKU32) | Work hole: ø11 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-105DAH-X2322Lock: None (CKU32) | Work hole: ø11 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-105DBL-X2321Lock: None (CKU32) | Work hole: ø11 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-105DBH-X2322Lock: None (CKU32) | Work hole: ø11 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-106RAL-X2321Lock: None (CKU32) | Work hole: ø11 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-106RAH-X2322Lock: None (CKU32) | Work hole: ø11 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-106RBL-X2321Lock: None (CKU32) | Work hole: ø11 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-106RBH-X2322Lock: None (CKU32) | Work hole: ø11 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-106DAL-X2321Lock: None (CKU32) | Work hole: ø11 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-106DAH-X2322Lock: None (CKU32) | Work hole: ø11 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-106DBL-X2321Lock: None (CKU32) | Work hole: ø11 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-106DBH-X2322Lock: None (CKU32) | Work hole: ø11 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-107RAL-X2321Lock: None (CKU32) | Work hole: ø11 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-107RAH-X2322Lock: None (CKU32) | Work hole: ø11 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-107RBL-X2321Lock: None (CKU32) | Work hole: ø11 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-107RBH-X2322Lock: None (CKU32) | Work hole: ø11 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-107DAL-X2321Lock: None (CKU32) | Work hole: ø11 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-107DAH-X2322Lock: None (CKU32) | Work hole: ø11 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-107DBL-X2321Lock: None (CKU32) | Work hole: ø11 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-107DBH-X2322Lock: None (CKU32) | Work hole: ø11 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-108RAL-X2321Lock: None (CKU32) | Work hole: ø11 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-108RAH-X2322Lock: None (CKU32) | Work hole: ø11 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-108RBL-X2321Lock: None (CKU32) | Work hole: ø11 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-108RBH-X2322Lock: None (CKU32) | Work hole: ø11 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-108DAL-X2321Lock: None (CKU32) | Work hole: ø11 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-108DAH-X2322Lock: None (CKU32) | Work hole: ø11 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-108DBL-X2321Lock: None (CKU32) | Work hole: ø11 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-108DBH-X2322Lock: None (CKU32) | Work hole: ø11 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-109RAL-X2321Lock: None (CKU32) | Work hole: ø11 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-109RAH-X2322Lock: None (CKU32) | Work hole: ø11 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-109RBL-X2321Lock: None (CKU32) | Work hole: ø11 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-109RBH-X2322Lock: None (CKU32) | Work hole: ø11 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-109DAL-X2321Lock: None (CKU32) | Work hole: ø11 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-109DAH-X2322Lock: None (CKU32) | Work hole: ø11 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-109DBL-X2321Lock: None (CKU32) | Work hole: ø11 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-109DBH-X2322Lock: None (CKU32) | Work hole: ø11 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-110RAL-X2321Lock: None (CKU32) | Work hole: ø11 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-110RAH-X2322Lock: None (CKU32) | Work hole: ø11 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-110RBL-X2321Lock: None (CKU32) | Work hole: ø11 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-110RBH-X2322Lock: None (CKU32) | Work hole: ø11 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-110DAL-X2321Lock: None (CKU32) | Work hole: ø11 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-110DAH-X2322Lock: None (CKU32) | Work hole: ø11 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-110DBL-X2321Lock: None (CKU32) | Work hole: ø11 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-110DBH-X2322Lock: None (CKU32) | Work hole: ø11 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-115RAL-X2321Lock: None (CKU32) | Work hole: ø12 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-115RAH-X2322Lock: None (CKU32) | Work hole: ø12 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-115RBL-X2321Lock: None (CKU32) | Work hole: ø12 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-115RBH-X2322Lock: None (CKU32) | Work hole: ø12 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-115DAL-X2321Lock: None (CKU32) | Work hole: ø12 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-115DAH-X2322Lock: None (CKU32) | Work hole: ø12 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-115DBL-X2321Lock: None (CKU32) | Work hole: ø12 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-115DBH-X2322Lock: None (CKU32) | Work hole: ø12 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-116RAL-X2321Lock: None (CKU32) | Work hole: ø12 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-116RAH-X2322Lock: None (CKU32) | Work hole: ø12 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-116RBL-X2321Lock: None (CKU32) | Work hole: ø12 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-116RBH-X2322Lock: None (CKU32) | Work hole: ø12 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-116DAL-X2321Lock: None (CKU32) | Work hole: ø12 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-116DAH-X2322Lock: None (CKU32) | Work hole: ø12 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-116DBL-X2321Lock: None (CKU32) | Work hole: ø12 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-116DBH-X2322Lock: None (CKU32) | Work hole: ø12 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-117RAL-X2321Lock: None (CKU32) | Work hole: ø12 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-117RAH-X2322Lock: None (CKU32) | Work hole: ø12 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-117RBL-X2321Lock: None (CKU32) | Work hole: ø12 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-117RBH-X2322Lock: None (CKU32) | Work hole: ø12 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-117DAL-X2321Lock: None (CKU32) | Work hole: ø12 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-117DAH-X2322Lock: None (CKU32) | Work hole: ø12 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-117DBL-X2321Lock: None (CKU32) | Work hole: ø12 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-117DBH-X2322Lock: None (CKU32) | Work hole: ø12 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-118RAL-X2321Lock: None (CKU32) | Work hole: ø12 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-118RAH-X2322Lock: None (CKU32) | Work hole: ø12 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-118RBL-X2321Lock: None (CKU32) | Work hole: ø12 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-118RBH-X2322Lock: None (CKU32) | Work hole: ø12 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-118DAL-X2321Lock: None (CKU32) | Work hole: ø12 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-118DAH-X2322Lock: None (CKU32) | Work hole: ø12 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-118DBL-X2321Lock: None (CKU32) | Work hole: ø12 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-118DBH-X2322Lock: None (CKU32) | Work hole: ø12 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-119RAL-X2321Lock: None (CKU32) | Work hole: ø12 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-119RAH-X2322Lock: None (CKU32) | Work hole: ø12 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-119RBL-X2321Lock: None (CKU32) | Work hole: ø12 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-119RBH-X2322Lock: None (CKU32) | Work hole: ø12 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-119DAL-X2321Lock: None (CKU32) | Work hole: ø12 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-119DAH-X2322Lock: None (CKU32) | Work hole: ø12 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-119DBL-X2321Lock: None (CKU32) | Work hole: ø12 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-119DBH-X2322Lock: None (CKU32) | Work hole: ø12 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-120RAL-X2321Lock: None (CKU32) | Work hole: ø12 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-120RAH-X2322Lock: None (CKU32) | Work hole: ø12 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-120RBL-X2321Lock: None (CKU32) | Work hole: ø12 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-120RBH-X2322Lock: None (CKU32) | Work hole: ø12 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-120DAL-X2321Lock: None (CKU32) | Work hole: ø12 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-120DAH-X2322Lock: None (CKU32) | Work hole: ø12 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-120DBL-X2321Lock: None (CKU32) | Work hole: ø12 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-120DBH-X2322Lock: None (CKU32) | Work hole: ø12 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-125RAL-X2321Lock: None (CKU32) | Work hole: ø13 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-125RAH-X2322Lock: None (CKU32) | Work hole: ø13 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-125RBL-X2321Lock: None (CKU32) | Work hole: ø13 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-125RBH-X2322Lock: None (CKU32) | Work hole: ø13 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-125DAL-X2321Lock: None (CKU32) | Work hole: ø13 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-125DAH-X2322Lock: None (CKU32) | Work hole: ø13 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-125DBL-X2321Lock: None (CKU32) | Work hole: ø13 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-125DBH-X2322Lock: None (CKU32) | Work hole: ø13 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-126RAL-X2321Lock: None (CKU32) | Work hole: ø13 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-126RAH-X2322Lock: None (CKU32) | Work hole: ø13 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-126RBL-X2321Lock: None (CKU32) | Work hole: ø13 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-126RBH-X2322Lock: None (CKU32) | Work hole: ø13 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-126DAL-X2321Lock: None (CKU32) | Work hole: ø13 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-126DAH-X2322Lock: None (CKU32) | Work hole: ø13 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-126DBL-X2321Lock: None (CKU32) | Work hole: ø13 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-126DBH-X2322Lock: None (CKU32) | Work hole: ø13 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-127RAL-X2321Lock: None (CKU32) | Work hole: ø13 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-127RAH-X2322Lock: None (CKU32) | Work hole: ø13 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-127RBL-X2321Lock: None (CKU32) | Work hole: ø13 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-127RBH-X2322Lock: None (CKU32) | Work hole: ø13 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-127DAL-X2321Lock: None (CKU32) | Work hole: ø13 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-127DAH-X2322Lock: None (CKU32) | Work hole: ø13 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-127DBL-X2321Lock: None (CKU32) | Work hole: ø13 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-127DBH-X2322Lock: None (CKU32) | Work hole: ø13 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-128RAL-X2321Lock: None (CKU32) | Work hole: ø13 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-128RAH-X2322Lock: None (CKU32) | Work hole: ø13 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-128RBL-X2321Lock: None (CKU32) | Work hole: ø13 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-128RBH-X2322Lock: None (CKU32) | Work hole: ø13 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-128DAL-X2321Lock: None (CKU32) | Work hole: ø13 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-128DAH-X2322Lock: None (CKU32) | Work hole: ø13 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-128DBL-X2321Lock: None (CKU32) | Work hole: ø13 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-128DBH-X2322Lock: None (CKU32) | Work hole: ø13 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-129RAL-X2321Lock: None (CKU32) | Work hole: ø13 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-129RAH-X2322Lock: None (CKU32) | Work hole: ø13 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-129RBL-X2321Lock: None (CKU32) | Work hole: ø13 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-129RBH-X2322Lock: None (CKU32) | Work hole: ø13 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-129DAL-X2321Lock: None (CKU32) | Work hole: ø13 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-129DAH-X2322Lock: None (CKU32) | Work hole: ø13 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-129DBL-X2321Lock: None (CKU32) | Work hole: ø13 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-129DBH-X2322Lock: None (CKU32) | Work hole: ø13 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-130RAL-X2321Lock: None (CKU32) | Work hole: ø13 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-130RAH-X2322Lock: None (CKU32) | Work hole: ø13 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-130RBL-X2321Lock: None (CKU32) | Work hole: ø13 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-130RBH-X2322Lock: None (CKU32) | Work hole: ø13 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-130DAL-X2321Lock: None (CKU32) | Work hole: ø13 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-130DAH-X2322Lock: None (CKU32) | Work hole: ø13 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-130DBL-X2321Lock: None (CKU32) | Work hole: ø13 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-130DBH-X2322Lock: None (CKU32) | Work hole: ø13 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-135RAL-X2321Lock: None (CKU32) | Work hole: ø14 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-135RAH-X2322Lock: None (CKU32) | Work hole: ø14 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-135RBL-X2321Lock: None (CKU32) | Work hole: ø14 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-135RBH-X2322Lock: None (CKU32) | Work hole: ø14 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-135DAL-X2321Lock: None (CKU32) | Work hole: ø14 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-135DAH-X2322Lock: None (CKU32) | Work hole: ø14 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-135DBL-X2321Lock: None (CKU32) | Work hole: ø14 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-135DBH-X2322Lock: None (CKU32) | Work hole: ø14 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-136RAL-X2321Lock: None (CKU32) | Work hole: ø14 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-136RAH-X2322Lock: None (CKU32) | Work hole: ø14 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-136RBL-X2321Lock: None (CKU32) | Work hole: ø14 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-136RBH-X2322Lock: None (CKU32) | Work hole: ø14 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-136DAL-X2321Lock: None (CKU32) | Work hole: ø14 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-136DAH-X2322Lock: None (CKU32) | Work hole: ø14 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-136DBL-X2321Lock: None (CKU32) | Work hole: ø14 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-136DBH-X2322Lock: None (CKU32) | Work hole: ø14 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-137RAL-X2321Lock: None (CKU32) | Work hole: ø14 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-137RAH-X2322Lock: None (CKU32) | Work hole: ø14 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-137RBL-X2321Lock: None (CKU32) | Work hole: ø14 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-137RBH-X2322Lock: None (CKU32) | Work hole: ø14 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-137DAL-X2321Lock: None (CKU32) | Work hole: ø14 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-137DAH-X2322Lock: None (CKU32) | Work hole: ø14 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-137DBL-X2321Lock: None (CKU32) | Work hole: ø14 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-137DBH-X2322Lock: None (CKU32) | Work hole: ø14 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-138RAL-X2321Lock: None (CKU32) | Work hole: ø14 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-138RAH-X2322Lock: None (CKU32) | Work hole: ø14 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-138RBL-X2321Lock: None (CKU32) | Work hole: ø14 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-138RBH-X2322Lock: None (CKU32) | Work hole: ø14 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-138DAL-X2321Lock: None (CKU32) | Work hole: ø14 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-138DAH-X2322Lock: None (CKU32) | Work hole: ø14 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-138DBL-X2321Lock: None (CKU32) | Work hole: ø14 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-138DBH-X2322Lock: None (CKU32) | Work hole: ø14 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-139RAL-X2321Lock: None (CKU32) | Work hole: ø14 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-139RAH-X2322Lock: None (CKU32) | Work hole: ø14 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-139RBL-X2321Lock: None (CKU32) | Work hole: ø14 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-139RBH-X2322Lock: None (CKU32) | Work hole: ø14 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-139DAL-X2321Lock: None (CKU32) | Work hole: ø14 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-139DAH-X2322Lock: None (CKU32) | Work hole: ø14 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-139DBL-X2321Lock: None (CKU32) | Work hole: ø14 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-139DBH-X2322Lock: None (CKU32) | Work hole: ø14 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-140RAL-X2321Lock: None (CKU32) | Work hole: ø14 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-140RAH-X2322Lock: None (CKU32) | Work hole: ø14 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-140RBL-X2321Lock: None (CKU32) | Work hole: ø14 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-140RBH-X2322Lock: None (CKU32) | Work hole: ø14 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-140DAL-X2321Lock: None (CKU32) | Work hole: ø14 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-140DAH-X2322Lock: None (CKU32) | Work hole: ø14 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-140DBL-X2321Lock: None (CKU32) | Work hole: ø14 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-140DBH-X2322Lock: None (CKU32) | Work hole: ø14 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-145RAL-X2321Lock: None (CKU32) | Work hole: ø15 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-145RAH-X2322Lock: None (CKU32) | Work hole: ø15 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-145RBL-X2321Lock: None (CKU32) | Work hole: ø15 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-145RBH-X2322Lock: None (CKU32) | Work hole: ø15 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-145DAL-X2321Lock: None (CKU32) | Work hole: ø15 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-145DAH-X2322Lock: None (CKU32) | Work hole: ø15 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-145DBL-X2321Lock: None (CKU32) | Work hole: ø15 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-145DBH-X2322Lock: None (CKU32) | Work hole: ø15 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-146RAL-X2321Lock: None (CKU32) | Work hole: ø15 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-146RAH-X2322Lock: None (CKU32) | Work hole: ø15 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-146RBL-X2321Lock: None (CKU32) | Work hole: ø15 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-146RBH-X2322Lock: None (CKU32) | Work hole: ø15 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-146DAL-X2321Lock: None (CKU32) | Work hole: ø15 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-146DAH-X2322Lock: None (CKU32) | Work hole: ø15 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-146DBL-X2321Lock: None (CKU32) | Work hole: ø15 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-146DBH-X2322Lock: None (CKU32) | Work hole: ø15 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-147RAL-X2321Lock: None (CKU32) | Work hole: ø15 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-147RAH-X2322Lock: None (CKU32) | Work hole: ø15 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-147RBL-X2321Lock: None (CKU32) | Work hole: ø15 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-147RBH-X2322Lock: None (CKU32) | Work hole: ø15 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-147DAL-X2321Lock: None (CKU32) | Work hole: ø15 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-147DAH-X2322Lock: None (CKU32) | Work hole: ø15 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-147DBL-X2321Lock: None (CKU32) | Work hole: ø15 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-147DBH-X2322Lock: None (CKU32) | Work hole: ø15 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-148RAL-X2321Lock: None (CKU32) | Work hole: ø15 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-148RAH-X2322Lock: None (CKU32) | Work hole: ø15 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-148RBL-X2321Lock: None (CKU32) | Work hole: ø15 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-148RBH-X2322Lock: None (CKU32) | Work hole: ø15 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-148DAL-X2321Lock: None (CKU32) | Work hole: ø15 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-148DAH-X2322Lock: None (CKU32) | Work hole: ø15 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-148DBL-X2321Lock: None (CKU32) | Work hole: ø15 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-148DBH-X2322Lock: None (CKU32) | Work hole: ø15 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-149RAL-X2321Lock: None (CKU32) | Work hole: ø15 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-149RAH-X2322Lock: None (CKU32) | Work hole: ø15 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-149RBL-X2321Lock: None (CKU32) | Work hole: ø15 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-149RBH-X2322Lock: None (CKU32) | Work hole: ø15 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-149DAL-X2321Lock: None (CKU32) | Work hole: ø15 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-149DAH-X2322Lock: None (CKU32) | Work hole: ø15 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-149DBL-X2321Lock: None (CKU32) | Work hole: ø15 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-149DBH-X2322Lock: None (CKU32) | Work hole: ø15 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-150RAL-X2321Lock: None (CKU32) | Work hole: ø15 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-150RAH-X2322Lock: None (CKU32) | Work hole: ø15 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-150RBL-X2321Lock: None (CKU32) | Work hole: ø15 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-150RBH-X2322Lock: None (CKU32) | Work hole: ø15 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-150DAL-X2321Lock: None (CKU32) | Work hole: ø15 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-150DAH-X2322Lock: None (CKU32) | Work hole: ø15 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-150DBL-X2321Lock: None (CKU32) | Work hole: ø15 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-150DBH-X2322Lock: None (CKU32) | Work hole: ø15 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-155RAL-X2321Lock: None (CKU32) | Work hole: ø16 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-155RAH-X2322Lock: None (CKU32) | Work hole: ø16 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-155RBL-X2321Lock: None (CKU32) | Work hole: ø16 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-155RBH-X2322Lock: None (CKU32) | Work hole: ø16 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-155DAL-X2321Lock: None (CKU32) | Work hole: ø16 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-155DAH-X2322Lock: None (CKU32) | Work hole: ø16 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-155DBL-X2321Lock: None (CKU32) | Work hole: ø16 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-155DBH-X2322Lock: None (CKU32) | Work hole: ø16 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-156RAL-X2321Lock: None (CKU32) | Work hole: ø16 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-156RAH-X2322Lock: None (CKU32) | Work hole: ø16 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-156RBL-X2321Lock: None (CKU32) | Work hole: ø16 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-156RBH-X2322Lock: None (CKU32) | Work hole: ø16 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-156DAL-X2321Lock: None (CKU32) | Work hole: ø16 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-156DAH-X2322Lock: None (CKU32) | Work hole: ø16 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-156DBL-X2321Lock: None (CKU32) | Work hole: ø16 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-156DBH-X2322Lock: None (CKU32) | Work hole: ø16 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-157RAL-X2321Lock: None (CKU32) | Work hole: ø16 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-157RAH-X2322Lock: None (CKU32) | Work hole: ø16 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-157RBL-X2321Lock: None (CKU32) | Work hole: ø16 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-157RBH-X2322Lock: None (CKU32) | Work hole: ø16 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-157DAL-X2321Lock: None (CKU32) | Work hole: ø16 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-157DAH-X2322Lock: None (CKU32) | Work hole: ø16 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-157DBL-X2321Lock: None (CKU32) | Work hole: ø16 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-157DBH-X2322Lock: None (CKU32) | Work hole: ø16 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-158RAL-X2321Lock: None (CKU32) | Work hole: ø16 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-158RAH-X2322Lock: None (CKU32) | Work hole: ø16 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-158RBL-X2321Lock: None (CKU32) | Work hole: ø16 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-158RBH-X2322Lock: None (CKU32) | Work hole: ø16 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-158DAL-X2321Lock: None (CKU32) | Work hole: ø16 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-158DAH-X2322Lock: None (CKU32) | Work hole: ø16 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-158DBL-X2321Lock: None (CKU32) | Work hole: ø16 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-158DBH-X2322Lock: None (CKU32) | Work hole: ø16 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-159RAL-X2321Lock: None (CKU32) | Work hole: ø16 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-159RAH-X2322Lock: None (CKU32) | Work hole: ø16 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-159RBL-X2321Lock: None (CKU32) | Work hole: ø16 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-159RBH-X2322Lock: None (CKU32) | Work hole: ø16 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-159DAL-X2321Lock: None (CKU32) | Work hole: ø16 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-159DAH-X2322Lock: None (CKU32) | Work hole: ø16 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-159DBL-X2321Lock: None (CKU32) | Work hole: ø16 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-159DBH-X2322Lock: None (CKU32) | Work hole: ø16 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-160RAL-X2321Lock: None (CKU32) | Work hole: ø16 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-160RAH-X2322Lock: None (CKU32) | Work hole: ø16 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-160RBL-X2321Lock: None (CKU32) | Work hole: ø16 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-160RBH-X2322Lock: None (CKU32) | Work hole: ø16 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-160DAL-X2321Lock: None (CKU32) | Work hole: ø16 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-160DAH-X2322Lock: None (CKU32) | Work hole: ø16 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-160DBL-X2321Lock: None (CKU32) | Work hole: ø16 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-160DBH-X2322Lock: None (CKU32) | Work hole: ø16 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-175RAL-X2321Lock: None (CKU32) | Work hole: ø18 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-175RAH-X2322Lock: None (CKU32) | Work hole: ø18 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-175RBL-X2321Lock: None (CKU32) | Work hole: ø18 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-175RBH-X2322Lock: None (CKU32) | Work hole: ø18 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-175DAL-X2321Lock: None (CKU32) | Work hole: ø18 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-175DAH-X2322Lock: None (CKU32) | Work hole: ø18 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-175DBL-X2321Lock: None (CKU32) | Work hole: ø18 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-175DBH-X2322Lock: None (CKU32) | Work hole: ø18 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-176RAL-X2321Lock: None (CKU32) | Work hole: ø18 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-176RAH-X2322Lock: None (CKU32) | Work hole: ø18 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-176RBL-X2321Lock: None (CKU32) | Work hole: ø18 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-176RBH-X2322Lock: None (CKU32) | Work hole: ø18 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-176DAL-X2321Lock: None (CKU32) | Work hole: ø18 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-176DAH-X2322Lock: None (CKU32) | Work hole: ø18 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-176DBL-X2321Lock: None (CKU32) | Work hole: ø18 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-176DBH-X2322Lock: None (CKU32) | Work hole: ø18 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-177RAL-X2321Lock: None (CKU32) | Work hole: ø18 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-177RAH-X2322Lock: None (CKU32) | Work hole: ø18 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-177RBL-X2321Lock: None (CKU32) | Work hole: ø18 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-177RBH-X2322Lock: None (CKU32) | Work hole: ø18 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-177DAL-X2321Lock: None (CKU32) | Work hole: ø18 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-177DAH-X2322Lock: None (CKU32) | Work hole: ø18 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-177DBL-X2321Lock: None (CKU32) | Work hole: ø18 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-177DBH-X2322Lock: None (CKU32) | Work hole: ø18 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-178RAL-X2321Lock: None (CKU32) | Work hole: ø18 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-178RAH-X2322Lock: None (CKU32) | Work hole: ø18 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-178RBL-X2321Lock: None (CKU32) | Work hole: ø18 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-178RBH-X2322Lock: None (CKU32) | Work hole: ø18 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-178DAL-X2321Lock: None (CKU32) | Work hole: ø18 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-178DAH-X2322Lock: None (CKU32) | Work hole: ø18 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-178DBL-X2321Lock: None (CKU32) | Work hole: ø18 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-178DBH-X2322Lock: None (CKU32) | Work hole: ø18 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-179RAL-X2321Lock: None (CKU32) | Work hole: ø18 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-179RAH-X2322Lock: None (CKU32) | Work hole: ø18 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-179RBL-X2321Lock: None (CKU32) | Work hole: ø18 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-179RBH-X2322Lock: None (CKU32) | Work hole: ø18 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-179DAL-X2321Lock: None (CKU32) | Work hole: ø18 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-179DAH-X2322Lock: None (CKU32) | Work hole: ø18 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-179DBL-X2321Lock: None (CKU32) | Work hole: ø18 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-179DBH-X2322Lock: None (CKU32) | Work hole: ø18 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-180RAL-X2321Lock: None (CKU32) | Work hole: ø18 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-180RAH-X2322Lock: None (CKU32) | Work hole: ø18 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-180RBL-X2321Lock: None (CKU32) | Work hole: ø18 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-180RBH-X2322Lock: None (CKU32) | Work hole: ø18 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-180DAL-X2321Lock: None (CKU32) | Work hole: ø18 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-180DAH-X2322Lock: None (CKU32) | Work hole: ø18 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-180DBL-X2321Lock: None (CKU32) | Work hole: ø18 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-180DBH-X2322Lock: None (CKU32) | Work hole: ø18 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-195RAL-X2321Lock: None (CKU32) | Work hole: ø20 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-195RAH-X2322Lock: None (CKU32) | Work hole: ø20 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-195RBL-X2321Lock: None (CKU32) | Work hole: ø20 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-195RBH-X2322Lock: None (CKU32) | Work hole: ø20 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-195DAL-X2321Lock: None (CKU32) | Work hole: ø20 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-195DAH-X2322Lock: None (CKU32) | Work hole: ø20 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-195DBL-X2321Lock: None (CKU32) | Work hole: ø20 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-195DBH-X2322Lock: None (CKU32) | Work hole: ø20 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-196RAL-X2321Lock: None (CKU32) | Work hole: ø20 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-196RAH-X2322Lock: None (CKU32) | Work hole: ø20 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-196RBL-X2321Lock: None (CKU32) | Work hole: ø20 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-196RBH-X2322Lock: None (CKU32) | Work hole: ø20 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-196DAL-X2321Lock: None (CKU32) | Work hole: ø20 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-196DAH-X2322Lock: None (CKU32) | Work hole: ø20 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-196DBL-X2321Lock: None (CKU32) | Work hole: ø20 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-196DBH-X2322Lock: None (CKU32) | Work hole: ø20 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-197RAL-X2321Lock: None (CKU32) | Work hole: ø20 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-197RAH-X2322Lock: None (CKU32) | Work hole: ø20 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-197RBL-X2321Lock: None (CKU32) | Work hole: ø20 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-197RBH-X2322Lock: None (CKU32) | Work hole: ø20 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-197DAL-X2321Lock: None (CKU32) | Work hole: ø20 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-197DAH-X2322Lock: None (CKU32) | Work hole: ø20 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-197DBL-X2321Lock: None (CKU32) | Work hole: ø20 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-197DBH-X2322Lock: None (CKU32) | Work hole: ø20 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-198RAL-X2321Lock: None (CKU32) | Work hole: ø20 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-198RAH-X2322Lock: None (CKU32) | Work hole: ø20 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-198RBL-X2321Lock: None (CKU32) | Work hole: ø20 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-198RBH-X2322Lock: None (CKU32) | Work hole: ø20 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-198DAL-X2321Lock: None (CKU32) | Work hole: ø20 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-198DAH-X2322Lock: None (CKU32) | Work hole: ø20 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-198DBL-X2321Lock: None (CKU32) | Work hole: ø20 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-198DBH-X2322Lock: None (CKU32) | Work hole: ø20 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-199RAL-X2321Lock: None (CKU32) | Work hole: ø20 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-199RAH-X2322Lock: None (CKU32) | Work hole: ø20 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-199RBL-X2321Lock: None (CKU32) | Work hole: ø20 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-199RBH-X2322Lock: None (CKU32) | Work hole: ø20 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-199DAL-X2321Lock: None (CKU32) | Work hole: ø20 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-199DAH-X2322Lock: None (CKU32) | Work hole: ø20 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-199DBL-X2321Lock: None (CKU32) | Work hole: ø20 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-199DBH-X2322Lock: None (CKU32) | Work hole: ø20 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-200RAL-X2321Lock: None (CKU32) | Work hole: ø20 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-200RAH-X2322Lock: None (CKU32) | Work hole: ø20 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-200RBL-X2321Lock: None (CKU32) | Work hole: ø20 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-200RBH-X2322Lock: None (CKU32) | Work hole: ø20 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CKU32-200DAL-X2321Lock: None (CKU32) | Work hole: ø20 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CKU32-200DAH-X2322Lock: None (CKU32) | Work hole: ø20 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CKU32-200DBL-X2321Lock: None (CKU32) | Work hole: ø20 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CKU32-200DBH-X2322Lock: None (CKU32) | Work hole: ø20 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-075RAL-X2321Lock: With lock (CLKU32) | Work hole: ø8 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-075RAH-X2322Lock: With lock (CLKU32) | Work hole: ø8 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-075RBL-X2321Lock: With lock (CLKU32) | Work hole: ø8 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-075RBH-X2322Lock: With lock (CLKU32) | Work hole: ø8 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-076RAL-X2321Lock: With lock (CLKU32) | Work hole: ø8 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-076RAH-X2322Lock: With lock (CLKU32) | Work hole: ø8 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-076RBL-X2321Lock: With lock (CLKU32) | Work hole: ø8 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-076RBH-X2322Lock: With lock (CLKU32) | Work hole: ø8 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-077RAL-X2321Lock: With lock (CLKU32) | Work hole: ø8 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-077RAH-X2322Lock: With lock (CLKU32) | Work hole: ø8 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-077RBL-X2321Lock: With lock (CLKU32) | Work hole: ø8 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-077RBH-X2322Lock: With lock (CLKU32) | Work hole: ø8 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-078RAL-X2321Lock: With lock (CLKU32) | Work hole: ø8 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-078RAH-X2322Lock: With lock (CLKU32) | Work hole: ø8 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-078RBL-X2321Lock: With lock (CLKU32) | Work hole: ø8 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-078RBH-X2322Lock: With lock (CLKU32) | Work hole: ø8 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-079RAL-X2321Lock: With lock (CLKU32) | Work hole: ø8 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-079RAH-X2322Lock: With lock (CLKU32) | Work hole: ø8 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-079RBL-X2321Lock: With lock (CLKU32) | Work hole: ø8 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-079RBH-X2322Lock: With lock (CLKU32) | Work hole: ø8 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-080RAL-X2321Lock: With lock (CLKU32) | Work hole: ø8 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-080RAH-X2322Lock: With lock (CLKU32) | Work hole: ø8 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-080RBL-X2321Lock: With lock (CLKU32) | Work hole: ø8 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-080RBH-X2322Lock: With lock (CLKU32) | Work hole: ø8 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-085RAL-X2321Lock: With lock (CLKU32) | Work hole: ø9 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-085RAH-X2322Lock: With lock (CLKU32) | Work hole: ø9 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-085RBL-X2321Lock: With lock (CLKU32) | Work hole: ø9 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-085RBH-X2322Lock: With lock (CLKU32) | Work hole: ø9 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-086RAL-X2321Lock: With lock (CLKU32) | Work hole: ø9 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-086RAH-X2322Lock: With lock (CLKU32) | Work hole: ø9 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-086RBL-X2321Lock: With lock (CLKU32) | Work hole: ø9 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-086RBH-X2322Lock: With lock (CLKU32) | Work hole: ø9 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-087RAL-X2321Lock: With lock (CLKU32) | Work hole: ø9 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-087RAH-X2322Lock: With lock (CLKU32) | Work hole: ø9 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-087RBL-X2321Lock: With lock (CLKU32) | Work hole: ø9 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-087RBH-X2322Lock: With lock (CLKU32) | Work hole: ø9 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-088RAL-X2321Lock: With lock (CLKU32) | Work hole: ø9 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-088RAH-X2322Lock: With lock (CLKU32) | Work hole: ø9 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-088RBL-X2321Lock: With lock (CLKU32) | Work hole: ø9 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-088RBH-X2322Lock: With lock (CLKU32) | Work hole: ø9 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-089RAL-X2321Lock: With lock (CLKU32) | Work hole: ø9 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-089RAH-X2322Lock: With lock (CLKU32) | Work hole: ø9 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-089RBL-X2321Lock: With lock (CLKU32) | Work hole: ø9 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-089RBH-X2322Lock: With lock (CLKU32) | Work hole: ø9 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-090RAL-X2321Lock: With lock (CLKU32) | Work hole: ø9 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-090RAH-X2322Lock: With lock (CLKU32) | Work hole: ø9 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-090RBL-X2321Lock: With lock (CLKU32) | Work hole: ø9 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-090RBH-X2322Lock: With lock (CLKU32) | Work hole: ø9 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-095RAL-X2321Lock: With lock (CLKU32) | Work hole: ø10 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-095RAH-X2322Lock: With lock (CLKU32) | Work hole: ø10 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-095RBL-X2321Lock: With lock (CLKU32) | Work hole: ø10 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-095RBH-X2322Lock: With lock (CLKU32) | Work hole: ø10 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-095DAL-X2321Lock: With lock (CLKU32) | Work hole: ø10 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-095DAH-X2322Lock: With lock (CLKU32) | Work hole: ø10 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-095DBL-X2321Lock: With lock (CLKU32) | Work hole: ø10 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-095DBH-X2322Lock: With lock (CLKU32) | Work hole: ø10 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-096RAL-X2321Lock: With lock (CLKU32) | Work hole: ø10 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-096RAH-X2322Lock: With lock (CLKU32) | Work hole: ø10 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-096RBL-X2321Lock: With lock (CLKU32) | Work hole: ø10 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-096RBH-X2322Lock: With lock (CLKU32) | Work hole: ø10 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-096DAL-X2321Lock: With lock (CLKU32) | Work hole: ø10 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-096DAH-X2322Lock: With lock (CLKU32) | Work hole: ø10 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-096DBL-X2321Lock: With lock (CLKU32) | Work hole: ø10 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-096DBH-X2322Lock: With lock (CLKU32) | Work hole: ø10 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-097RAL-X2321Lock: With lock (CLKU32) | Work hole: ø10 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-097RAH-X2322Lock: With lock (CLKU32) | Work hole: ø10 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-097RBL-X2321Lock: With lock (CLKU32) | Work hole: ø10 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-097RBH-X2322Lock: With lock (CLKU32) | Work hole: ø10 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-097DAL-X2321Lock: With lock (CLKU32) | Work hole: ø10 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-097DAH-X2322Lock: With lock (CLKU32) | Work hole: ø10 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-097DBL-X2321Lock: With lock (CLKU32) | Work hole: ø10 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-097DBH-X2322Lock: With lock (CLKU32) | Work hole: ø10 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-098RAL-X2321Lock: With lock (CLKU32) | Work hole: ø10 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-098RAH-X2322Lock: With lock (CLKU32) | Work hole: ø10 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-098RBL-X2321Lock: With lock (CLKU32) | Work hole: ø10 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-098RBH-X2322Lock: With lock (CLKU32) | Work hole: ø10 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-098DAL-X2321Lock: With lock (CLKU32) | Work hole: ø10 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-098DAH-X2322Lock: With lock (CLKU32) | Work hole: ø10 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-098DBL-X2321Lock: With lock (CLKU32) | Work hole: ø10 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-098DBH-X2322Lock: With lock (CLKU32) | Work hole: ø10 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-099RAL-X2321Lock: With lock (CLKU32) | Work hole: ø10 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-099RAH-X2322Lock: With lock (CLKU32) | Work hole: ø10 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-099RBL-X2321Lock: With lock (CLKU32) | Work hole: ø10 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-099RBH-X2322Lock: With lock (CLKU32) | Work hole: ø10 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-099DAL-X2321Lock: With lock (CLKU32) | Work hole: ø10 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-099DAH-X2322Lock: With lock (CLKU32) | Work hole: ø10 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-099DBL-X2321Lock: With lock (CLKU32) | Work hole: ø10 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-099DBH-X2322Lock: With lock (CLKU32) | Work hole: ø10 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-100RAL-X2321Lock: With lock (CLKU32) | Work hole: ø10 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-100RAH-X2322Lock: With lock (CLKU32) | Work hole: ø10 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-100RBL-X2321Lock: With lock (CLKU32) | Work hole: ø10 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-100RBH-X2322Lock: With lock (CLKU32) | Work hole: ø10 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-100DAL-X2321Lock: With lock (CLKU32) | Work hole: ø10 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-100DAH-X2322Lock: With lock (CLKU32) | Work hole: ø10 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-100DBL-X2321Lock: With lock (CLKU32) | Work hole: ø10 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-100DBH-X2322Lock: With lock (CLKU32) | Work hole: ø10 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-105RAL-X2321Lock: With lock (CLKU32) | Work hole: ø11 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-105RAH-X2322Lock: With lock (CLKU32) | Work hole: ø11 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-105RBL-X2321Lock: With lock (CLKU32) | Work hole: ø11 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-105RBH-X2322Lock: With lock (CLKU32) | Work hole: ø11 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-105DAL-X2321Lock: With lock (CLKU32) | Work hole: ø11 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-105DAH-X2322Lock: With lock (CLKU32) | Work hole: ø11 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-105DBL-X2321Lock: With lock (CLKU32) | Work hole: ø11 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-105DBH-X2322Lock: With lock (CLKU32) | Work hole: ø11 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-106RAL-X2321Lock: With lock (CLKU32) | Work hole: ø11 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-106RAH-X2322Lock: With lock (CLKU32) | Work hole: ø11 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-106RBL-X2321Lock: With lock (CLKU32) | Work hole: ø11 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-106RBH-X2322Lock: With lock (CLKU32) | Work hole: ø11 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-106DAL-X2321Lock: With lock (CLKU32) | Work hole: ø11 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-106DAH-X2322Lock: With lock (CLKU32) | Work hole: ø11 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-106DBL-X2321Lock: With lock (CLKU32) | Work hole: ø11 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-106DBH-X2322Lock: With lock (CLKU32) | Work hole: ø11 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-107RAL-X2321Lock: With lock (CLKU32) | Work hole: ø11 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-107RAH-X2322Lock: With lock (CLKU32) | Work hole: ø11 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-107RBL-X2321Lock: With lock (CLKU32) | Work hole: ø11 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-107RBH-X2322Lock: With lock (CLKU32) | Work hole: ø11 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-107DAL-X2321Lock: With lock (CLKU32) | Work hole: ø11 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-107DAH-X2322Lock: With lock (CLKU32) | Work hole: ø11 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-107DBL-X2321Lock: With lock (CLKU32) | Work hole: ø11 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-107DBH-X2322Lock: With lock (CLKU32) | Work hole: ø11 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-108RAL-X2321Lock: With lock (CLKU32) | Work hole: ø11 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-108RAH-X2322Lock: With lock (CLKU32) | Work hole: ø11 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-108RBL-X2321Lock: With lock (CLKU32) | Work hole: ø11 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-108RBH-X2322Lock: With lock (CLKU32) | Work hole: ø11 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-108DAL-X2321Lock: With lock (CLKU32) | Work hole: ø11 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-108DAH-X2322Lock: With lock (CLKU32) | Work hole: ø11 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-108DBL-X2321Lock: With lock (CLKU32) | Work hole: ø11 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-108DBH-X2322Lock: With lock (CLKU32) | Work hole: ø11 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-109RAL-X2321Lock: With lock (CLKU32) | Work hole: ø11 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-109RAH-X2322Lock: With lock (CLKU32) | Work hole: ø11 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-109RBL-X2321Lock: With lock (CLKU32) | Work hole: ø11 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-109RBH-X2322Lock: With lock (CLKU32) | Work hole: ø11 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-109DAL-X2321Lock: With lock (CLKU32) | Work hole: ø11 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-109DAH-X2322Lock: With lock (CLKU32) | Work hole: ø11 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-109DBL-X2321Lock: With lock (CLKU32) | Work hole: ø11 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-109DBH-X2322Lock: With lock (CLKU32) | Work hole: ø11 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-110RAL-X2321Lock: With lock (CLKU32) | Work hole: ø11 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-110RAH-X2322Lock: With lock (CLKU32) | Work hole: ø11 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-110RBL-X2321Lock: With lock (CLKU32) | Work hole: ø11 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-110RBH-X2322Lock: With lock (CLKU32) | Work hole: ø11 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-110DAL-X2321Lock: With lock (CLKU32) | Work hole: ø11 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-110DAH-X2322Lock: With lock (CLKU32) | Work hole: ø11 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-110DBL-X2321Lock: With lock (CLKU32) | Work hole: ø11 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-110DBH-X2322Lock: With lock (CLKU32) | Work hole: ø11 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-115RAL-X2321Lock: With lock (CLKU32) | Work hole: ø12 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-115RAH-X2322Lock: With lock (CLKU32) | Work hole: ø12 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-115RBL-X2321Lock: With lock (CLKU32) | Work hole: ø12 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-115RBH-X2322Lock: With lock (CLKU32) | Work hole: ø12 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-115DAL-X2321Lock: With lock (CLKU32) | Work hole: ø12 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-115DAH-X2322Lock: With lock (CLKU32) | Work hole: ø12 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-115DBL-X2321Lock: With lock (CLKU32) | Work hole: ø12 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-115DBH-X2322Lock: With lock (CLKU32) | Work hole: ø12 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-116RAL-X2321Lock: With lock (CLKU32) | Work hole: ø12 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-116RAH-X2322Lock: With lock (CLKU32) | Work hole: ø12 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-116RBL-X2321Lock: With lock (CLKU32) | Work hole: ø12 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-116RBH-X2322Lock: With lock (CLKU32) | Work hole: ø12 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-116DAL-X2321Lock: With lock (CLKU32) | Work hole: ø12 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-116DAH-X2322Lock: With lock (CLKU32) | Work hole: ø12 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-116DBL-X2321Lock: With lock (CLKU32) | Work hole: ø12 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-116DBH-X2322Lock: With lock (CLKU32) | Work hole: ø12 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-117RAL-X2321Lock: With lock (CLKU32) | Work hole: ø12 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-117RAH-X2322Lock: With lock (CLKU32) | Work hole: ø12 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-117RBL-X2321Lock: With lock (CLKU32) | Work hole: ø12 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-117RBH-X2322Lock: With lock (CLKU32) | Work hole: ø12 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-117DAL-X2321Lock: With lock (CLKU32) | Work hole: ø12 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-117DAH-X2322Lock: With lock (CLKU32) | Work hole: ø12 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-117DBL-X2321Lock: With lock (CLKU32) | Work hole: ø12 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-117DBH-X2322Lock: With lock (CLKU32) | Work hole: ø12 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-118RAL-X2321Lock: With lock (CLKU32) | Work hole: ø12 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-118RAH-X2322Lock: With lock (CLKU32) | Work hole: ø12 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-118RBL-X2321Lock: With lock (CLKU32) | Work hole: ø12 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-118RBH-X2322Lock: With lock (CLKU32) | Work hole: ø12 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-118DAL-X2321Lock: With lock (CLKU32) | Work hole: ø12 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-118DAH-X2322Lock: With lock (CLKU32) | Work hole: ø12 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-118DBL-X2321Lock: With lock (CLKU32) | Work hole: ø12 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-118DBH-X2322Lock: With lock (CLKU32) | Work hole: ø12 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-119RAL-X2321Lock: With lock (CLKU32) | Work hole: ø12 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-119RAH-X2322Lock: With lock (CLKU32) | Work hole: ø12 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-119RBL-X2321Lock: With lock (CLKU32) | Work hole: ø12 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-119RBH-X2322Lock: With lock (CLKU32) | Work hole: ø12 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-119DAL-X2321Lock: With lock (CLKU32) | Work hole: ø12 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-119DAH-X2322Lock: With lock (CLKU32) | Work hole: ø12 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-119DBL-X2321Lock: With lock (CLKU32) | Work hole: ø12 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-119DBH-X2322Lock: With lock (CLKU32) | Work hole: ø12 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-120RAL-X2321Lock: With lock (CLKU32) | Work hole: ø12 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-120RAH-X2322Lock: With lock (CLKU32) | Work hole: ø12 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-120RBL-X2321Lock: With lock (CLKU32) | Work hole: ø12 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-120RBH-X2322Lock: With lock (CLKU32) | Work hole: ø12 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-120DAL-X2321Lock: With lock (CLKU32) | Work hole: ø12 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-120DAH-X2322Lock: With lock (CLKU32) | Work hole: ø12 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-120DBL-X2321Lock: With lock (CLKU32) | Work hole: ø12 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-120DBH-X2322Lock: With lock (CLKU32) | Work hole: ø12 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-125RAL-X2321Lock: With lock (CLKU32) | Work hole: ø13 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-125RAH-X2322Lock: With lock (CLKU32) | Work hole: ø13 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-125RBL-X2321Lock: With lock (CLKU32) | Work hole: ø13 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-125RBH-X2322Lock: With lock (CLKU32) | Work hole: ø13 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-125DAL-X2321Lock: With lock (CLKU32) | Work hole: ø13 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-125DAH-X2322Lock: With lock (CLKU32) | Work hole: ø13 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-125DBL-X2321Lock: With lock (CLKU32) | Work hole: ø13 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-125DBH-X2322Lock: With lock (CLKU32) | Work hole: ø13 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-126RAL-X2321Lock: With lock (CLKU32) | Work hole: ø13 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-126RAH-X2322Lock: With lock (CLKU32) | Work hole: ø13 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-126RBL-X2321Lock: With lock (CLKU32) | Work hole: ø13 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-126RBH-X2322Lock: With lock (CLKU32) | Work hole: ø13 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-126DAL-X2321Lock: With lock (CLKU32) | Work hole: ø13 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-126DAH-X2322Lock: With lock (CLKU32) | Work hole: ø13 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-126DBL-X2321Lock: With lock (CLKU32) | Work hole: ø13 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-126DBH-X2322Lock: With lock (CLKU32) | Work hole: ø13 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-127RAL-X2321Lock: With lock (CLKU32) | Work hole: ø13 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-127RAH-X2322Lock: With lock (CLKU32) | Work hole: ø13 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-127RBL-X2321Lock: With lock (CLKU32) | Work hole: ø13 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-127RBH-X2322Lock: With lock (CLKU32) | Work hole: ø13 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-127DAL-X2321Lock: With lock (CLKU32) | Work hole: ø13 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-127DAH-X2322Lock: With lock (CLKU32) | Work hole: ø13 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-127DBL-X2321Lock: With lock (CLKU32) | Work hole: ø13 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-127DBH-X2322Lock: With lock (CLKU32) | Work hole: ø13 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-128RAL-X2321Lock: With lock (CLKU32) | Work hole: ø13 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-128RAH-X2322Lock: With lock (CLKU32) | Work hole: ø13 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-128RBL-X2321Lock: With lock (CLKU32) | Work hole: ø13 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-128RBH-X2322Lock: With lock (CLKU32) | Work hole: ø13 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-128DAL-X2321Lock: With lock (CLKU32) | Work hole: ø13 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-128DAH-X2322Lock: With lock (CLKU32) | Work hole: ø13 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-128DBL-X2321Lock: With lock (CLKU32) | Work hole: ø13 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-128DBH-X2322Lock: With lock (CLKU32) | Work hole: ø13 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-129RAL-X2321Lock: With lock (CLKU32) | Work hole: ø13 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-129RAH-X2322Lock: With lock (CLKU32) | Work hole: ø13 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-129RBL-X2321Lock: With lock (CLKU32) | Work hole: ø13 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-129RBH-X2322Lock: With lock (CLKU32) | Work hole: ø13 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-129DAL-X2321Lock: With lock (CLKU32) | Work hole: ø13 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-129DAH-X2322Lock: With lock (CLKU32) | Work hole: ø13 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-129DBL-X2321Lock: With lock (CLKU32) | Work hole: ø13 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-129DBH-X2322Lock: With lock (CLKU32) | Work hole: ø13 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-130RAL-X2321Lock: With lock (CLKU32) | Work hole: ø13 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-130RAH-X2322Lock: With lock (CLKU32) | Work hole: ø13 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-130RBL-X2321Lock: With lock (CLKU32) | Work hole: ø13 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-130RBH-X2322Lock: With lock (CLKU32) | Work hole: ø13 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-130DAL-X2321Lock: With lock (CLKU32) | Work hole: ø13 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-130DAH-X2322Lock: With lock (CLKU32) | Work hole: ø13 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-130DBL-X2321Lock: With lock (CLKU32) | Work hole: ø13 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-130DBH-X2322Lock: With lock (CLKU32) | Work hole: ø13 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-135RAL-X2321Lock: With lock (CLKU32) | Work hole: ø14 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-135RAH-X2322Lock: With lock (CLKU32) | Work hole: ø14 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-135RBL-X2321Lock: With lock (CLKU32) | Work hole: ø14 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-135RBH-X2322Lock: With lock (CLKU32) | Work hole: ø14 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-135DAL-X2321Lock: With lock (CLKU32) | Work hole: ø14 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-135DAH-X2322Lock: With lock (CLKU32) | Work hole: ø14 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-135DBL-X2321Lock: With lock (CLKU32) | Work hole: ø14 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-135DBH-X2322Lock: With lock (CLKU32) | Work hole: ø14 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-136RAL-X2321Lock: With lock (CLKU32) | Work hole: ø14 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-136RAH-X2322Lock: With lock (CLKU32) | Work hole: ø14 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-136RBL-X2321Lock: With lock (CLKU32) | Work hole: ø14 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-136RBH-X2322Lock: With lock (CLKU32) | Work hole: ø14 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-136DAL-X2321Lock: With lock (CLKU32) | Work hole: ø14 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-136DAH-X2322Lock: With lock (CLKU32) | Work hole: ø14 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-136DBL-X2321Lock: With lock (CLKU32) | Work hole: ø14 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-136DBH-X2322Lock: With lock (CLKU32) | Work hole: ø14 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-137RAL-X2321Lock: With lock (CLKU32) | Work hole: ø14 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-137RAH-X2322Lock: With lock (CLKU32) | Work hole: ø14 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-137RBL-X2321Lock: With lock (CLKU32) | Work hole: ø14 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-137RBH-X2322Lock: With lock (CLKU32) | Work hole: ø14 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-137DAL-X2321Lock: With lock (CLKU32) | Work hole: ø14 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-137DAH-X2322Lock: With lock (CLKU32) | Work hole: ø14 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-137DBL-X2321Lock: With lock (CLKU32) | Work hole: ø14 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-137DBH-X2322Lock: With lock (CLKU32) | Work hole: ø14 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-138RAL-X2321Lock: With lock (CLKU32) | Work hole: ø14 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-138RAH-X2322Lock: With lock (CLKU32) | Work hole: ø14 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-138RBL-X2321Lock: With lock (CLKU32) | Work hole: ø14 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-138RBH-X2322Lock: With lock (CLKU32) | Work hole: ø14 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-138DAL-X2321Lock: With lock (CLKU32) | Work hole: ø14 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-138DAH-X2322Lock: With lock (CLKU32) | Work hole: ø14 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-138DBL-X2321Lock: With lock (CLKU32) | Work hole: ø14 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-138DBH-X2322Lock: With lock (CLKU32) | Work hole: ø14 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-139RAL-X2321Lock: With lock (CLKU32) | Work hole: ø14 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-139RAH-X2322Lock: With lock (CLKU32) | Work hole: ø14 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-139RBL-X2321Lock: With lock (CLKU32) | Work hole: ø14 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-139RBH-X2322Lock: With lock (CLKU32) | Work hole: ø14 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-139DAL-X2321Lock: With lock (CLKU32) | Work hole: ø14 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-139DAH-X2322Lock: With lock (CLKU32) | Work hole: ø14 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-139DBL-X2321Lock: With lock (CLKU32) | Work hole: ø14 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-139DBH-X2322Lock: With lock (CLKU32) | Work hole: ø14 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-140RAL-X2321Lock: With lock (CLKU32) | Work hole: ø14 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-140RAH-X2322Lock: With lock (CLKU32) | Work hole: ø14 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-140RBL-X2321Lock: With lock (CLKU32) | Work hole: ø14 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-140RBH-X2322Lock: With lock (CLKU32) | Work hole: ø14 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-140DAL-X2321Lock: With lock (CLKU32) | Work hole: ø14 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-140DAH-X2322Lock: With lock (CLKU32) | Work hole: ø14 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-140DBL-X2321Lock: With lock (CLKU32) | Work hole: ø14 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-140DBH-X2322Lock: With lock (CLKU32) | Work hole: ø14 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-145RAL-X2321Lock: With lock (CLKU32) | Work hole: ø15 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-145RAH-X2322Lock: With lock (CLKU32) | Work hole: ø15 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-145RBL-X2321Lock: With lock (CLKU32) | Work hole: ø15 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-145RBH-X2322Lock: With lock (CLKU32) | Work hole: ø15 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-145DAL-X2321Lock: With lock (CLKU32) | Work hole: ø15 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-145DAH-X2322Lock: With lock (CLKU32) | Work hole: ø15 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-145DBL-X2321Lock: With lock (CLKU32) | Work hole: ø15 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-145DBH-X2322Lock: With lock (CLKU32) | Work hole: ø15 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-146RAL-X2321Lock: With lock (CLKU32) | Work hole: ø15 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-146RAH-X2322Lock: With lock (CLKU32) | Work hole: ø15 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-146RBL-X2321Lock: With lock (CLKU32) | Work hole: ø15 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-146RBH-X2322Lock: With lock (CLKU32) | Work hole: ø15 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-146DAL-X2321Lock: With lock (CLKU32) | Work hole: ø15 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-146DAH-X2322Lock: With lock (CLKU32) | Work hole: ø15 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-146DBL-X2321Lock: With lock (CLKU32) | Work hole: ø15 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-146DBH-X2322Lock: With lock (CLKU32) | Work hole: ø15 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-147RAL-X2321Lock: With lock (CLKU32) | Work hole: ø15 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-147RAH-X2322Lock: With lock (CLKU32) | Work hole: ø15 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-147RBL-X2321Lock: With lock (CLKU32) | Work hole: ø15 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-147RBH-X2322Lock: With lock (CLKU32) | Work hole: ø15 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-147DAL-X2321Lock: With lock (CLKU32) | Work hole: ø15 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-147DAH-X2322Lock: With lock (CLKU32) | Work hole: ø15 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-147DBL-X2321Lock: With lock (CLKU32) | Work hole: ø15 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-147DBH-X2322Lock: With lock (CLKU32) | Work hole: ø15 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-148RAL-X2321Lock: With lock (CLKU32) | Work hole: ø15 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-148RAH-X2322Lock: With lock (CLKU32) | Work hole: ø15 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-148RBL-X2321Lock: With lock (CLKU32) | Work hole: ø15 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-148RBH-X2322Lock: With lock (CLKU32) | Work hole: ø15 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-148DAL-X2321Lock: With lock (CLKU32) | Work hole: ø15 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-148DAH-X2322Lock: With lock (CLKU32) | Work hole: ø15 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-148DBL-X2321Lock: With lock (CLKU32) | Work hole: ø15 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-148DBH-X2322Lock: With lock (CLKU32) | Work hole: ø15 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-149RAL-X2321Lock: With lock (CLKU32) | Work hole: ø15 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-149RAH-X2322Lock: With lock (CLKU32) | Work hole: ø15 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-149RBL-X2321Lock: With lock (CLKU32) | Work hole: ø15 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-149RBH-X2322Lock: With lock (CLKU32) | Work hole: ø15 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-149DAL-X2321Lock: With lock (CLKU32) | Work hole: ø15 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-149DAH-X2322Lock: With lock (CLKU32) | Work hole: ø15 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-149DBL-X2321Lock: With lock (CLKU32) | Work hole: ø15 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-149DBH-X2322Lock: With lock (CLKU32) | Work hole: ø15 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-150RAL-X2321Lock: With lock (CLKU32) | Work hole: ø15 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-150RAH-X2322Lock: With lock (CLKU32) | Work hole: ø15 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-150RBL-X2321Lock: With lock (CLKU32) | Work hole: ø15 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-150RBH-X2322Lock: With lock (CLKU32) | Work hole: ø15 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-150DAL-X2321Lock: With lock (CLKU32) | Work hole: ø15 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-150DAH-X2322Lock: With lock (CLKU32) | Work hole: ø15 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-150DBL-X2321Lock: With lock (CLKU32) | Work hole: ø15 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-150DBH-X2322Lock: With lock (CLKU32) | Work hole: ø15 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-155RAL-X2321Lock: With lock (CLKU32) | Work hole: ø16 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-155RAH-X2322Lock: With lock (CLKU32) | Work hole: ø16 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-155RBL-X2321Lock: With lock (CLKU32) | Work hole: ø16 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-155RBH-X2322Lock: With lock (CLKU32) | Work hole: ø16 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-155DAL-X2321Lock: With lock (CLKU32) | Work hole: ø16 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-155DAH-X2322Lock: With lock (CLKU32) | Work hole: ø16 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-155DBL-X2321Lock: With lock (CLKU32) | Work hole: ø16 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-155DBH-X2322Lock: With lock (CLKU32) | Work hole: ø16 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-156RAL-X2321Lock: With lock (CLKU32) | Work hole: ø16 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-156RAH-X2322Lock: With lock (CLKU32) | Work hole: ø16 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-156RBL-X2321Lock: With lock (CLKU32) | Work hole: ø16 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-156RBH-X2322Lock: With lock (CLKU32) | Work hole: ø16 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-156DAL-X2321Lock: With lock (CLKU32) | Work hole: ø16 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-156DAH-X2322Lock: With lock (CLKU32) | Work hole: ø16 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-156DBL-X2321Lock: With lock (CLKU32) | Work hole: ø16 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-156DBH-X2322Lock: With lock (CLKU32) | Work hole: ø16 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-157RAL-X2321Lock: With lock (CLKU32) | Work hole: ø16 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-157RAH-X2322Lock: With lock (CLKU32) | Work hole: ø16 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-157RBL-X2321Lock: With lock (CLKU32) | Work hole: ø16 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-157RBH-X2322Lock: With lock (CLKU32) | Work hole: ø16 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-157DAL-X2321Lock: With lock (CLKU32) | Work hole: ø16 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-157DAH-X2322Lock: With lock (CLKU32) | Work hole: ø16 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-157DBL-X2321Lock: With lock (CLKU32) | Work hole: ø16 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-157DBH-X2322Lock: With lock (CLKU32) | Work hole: ø16 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-158RAL-X2321Lock: With lock (CLKU32) | Work hole: ø16 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-158RAH-X2322Lock: With lock (CLKU32) | Work hole: ø16 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-158RBL-X2321Lock: With lock (CLKU32) | Work hole: ø16 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-158RBH-X2322Lock: With lock (CLKU32) | Work hole: ø16 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-158DAL-X2321Lock: With lock (CLKU32) | Work hole: ø16 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-158DAH-X2322Lock: With lock (CLKU32) | Work hole: ø16 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-158DBL-X2321Lock: With lock (CLKU32) | Work hole: ø16 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-158DBH-X2322Lock: With lock (CLKU32) | Work hole: ø16 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-159RAL-X2321Lock: With lock (CLKU32) | Work hole: ø16 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-159RAH-X2322Lock: With lock (CLKU32) | Work hole: ø16 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-159RBL-X2321Lock: With lock (CLKU32) | Work hole: ø16 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-159RBH-X2322Lock: With lock (CLKU32) | Work hole: ø16 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-159DAL-X2321Lock: With lock (CLKU32) | Work hole: ø16 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-159DAH-X2322Lock: With lock (CLKU32) | Work hole: ø16 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-159DBL-X2321Lock: With lock (CLKU32) | Work hole: ø16 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-159DBH-X2322Lock: With lock (CLKU32) | Work hole: ø16 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-160RAL-X2321Lock: With lock (CLKU32) | Work hole: ø16 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-160RAH-X2322Lock: With lock (CLKU32) | Work hole: ø16 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-160RBL-X2321Lock: With lock (CLKU32) | Work hole: ø16 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-160RBH-X2322Lock: With lock (CLKU32) | Work hole: ø16 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-160DAL-X2321Lock: With lock (CLKU32) | Work hole: ø16 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-160DAH-X2322Lock: With lock (CLKU32) | Work hole: ø16 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-160DBL-X2321Lock: With lock (CLKU32) | Work hole: ø16 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-160DBH-X2322Lock: With lock (CLKU32) | Work hole: ø16 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-175RAL-X2321Lock: With lock (CLKU32) | Work hole: ø18 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-175RAH-X2322Lock: With lock (CLKU32) | Work hole: ø18 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-175RBL-X2321Lock: With lock (CLKU32) | Work hole: ø18 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-175RBH-X2322Lock: With lock (CLKU32) | Work hole: ø18 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-175DAL-X2321Lock: With lock (CLKU32) | Work hole: ø18 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-175DAH-X2322Lock: With lock (CLKU32) | Work hole: ø18 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-175DBL-X2321Lock: With lock (CLKU32) | Work hole: ø18 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-175DBH-X2322Lock: With lock (CLKU32) | Work hole: ø18 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-176RAL-X2321Lock: With lock (CLKU32) | Work hole: ø18 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-176RAH-X2322Lock: With lock (CLKU32) | Work hole: ø18 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-176RBL-X2321Lock: With lock (CLKU32) | Work hole: ø18 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-176RBH-X2322Lock: With lock (CLKU32) | Work hole: ø18 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-176DAL-X2321Lock: With lock (CLKU32) | Work hole: ø18 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-176DAH-X2322Lock: With lock (CLKU32) | Work hole: ø18 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-176DBL-X2321Lock: With lock (CLKU32) | Work hole: ø18 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-176DBH-X2322Lock: With lock (CLKU32) | Work hole: ø18 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-177RAL-X2321Lock: With lock (CLKU32) | Work hole: ø18 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-177RAH-X2322Lock: With lock (CLKU32) | Work hole: ø18 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-177RBL-X2321Lock: With lock (CLKU32) | Work hole: ø18 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-177RBH-X2322Lock: With lock (CLKU32) | Work hole: ø18 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-177DAL-X2321Lock: With lock (CLKU32) | Work hole: ø18 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-177DAH-X2322Lock: With lock (CLKU32) | Work hole: ø18 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-177DBL-X2321Lock: With lock (CLKU32) | Work hole: ø18 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-177DBH-X2322Lock: With lock (CLKU32) | Work hole: ø18 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-178RAL-X2321Lock: With lock (CLKU32) | Work hole: ø18 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-178RAH-X2322Lock: With lock (CLKU32) | Work hole: ø18 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-178RBL-X2321Lock: With lock (CLKU32) | Work hole: ø18 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-178RBH-X2322Lock: With lock (CLKU32) | Work hole: ø18 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-178DAL-X2321Lock: With lock (CLKU32) | Work hole: ø18 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-178DAH-X2322Lock: With lock (CLKU32) | Work hole: ø18 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-178DBL-X2321Lock: With lock (CLKU32) | Work hole: ø18 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-178DBH-X2322Lock: With lock (CLKU32) | Work hole: ø18 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-179RAL-X2321Lock: With lock (CLKU32) | Work hole: ø18 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-179RAH-X2322Lock: With lock (CLKU32) | Work hole: ø18 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-179RBL-X2321Lock: With lock (CLKU32) | Work hole: ø18 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-179RBH-X2322Lock: With lock (CLKU32) | Work hole: ø18 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-179DAL-X2321Lock: With lock (CLKU32) | Work hole: ø18 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-179DAH-X2322Lock: With lock (CLKU32) | Work hole: ø18 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-179DBL-X2321Lock: With lock (CLKU32) | Work hole: ø18 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-179DBH-X2322Lock: With lock (CLKU32) | Work hole: ø18 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-180RAL-X2321Lock: With lock (CLKU32) | Work hole: ø18 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-180RAH-X2322Lock: With lock (CLKU32) | Work hole: ø18 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-180RBL-X2321Lock: With lock (CLKU32) | Work hole: ø18 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-180RBH-X2322Lock: With lock (CLKU32) | Work hole: ø18 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-180DAL-X2321Lock: With lock (CLKU32) | Work hole: ø18 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-180DAH-X2322Lock: With lock (CLKU32) | Work hole: ø18 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-180DBL-X2321Lock: With lock (CLKU32) | Work hole: ø18 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-180DBH-X2322Lock: With lock (CLKU32) | Work hole: ø18 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-195RAL-X2321Lock: With lock (CLKU32) | Work hole: ø20 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-195RAH-X2322Lock: With lock (CLKU32) | Work hole: ø20 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-195RBL-X2321Lock: With lock (CLKU32) | Work hole: ø20 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-195RBH-X2322Lock: With lock (CLKU32) | Work hole: ø20 mm | Pin undersize: 0.5 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-195DAL-X2321Lock: With lock (CLKU32) | Work hole: ø20 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-195DAH-X2322Lock: With lock (CLKU32) | Work hole: ø20 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-195DBL-X2321Lock: With lock (CLKU32) | Work hole: ø20 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-195DBH-X2322Lock: With lock (CLKU32) | Work hole: ø20 mm | Pin undersize: 0.5 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-196RAL-X2321Lock: With lock (CLKU32) | Work hole: ø20 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-196RAH-X2322Lock: With lock (CLKU32) | Work hole: ø20 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-196RBL-X2321Lock: With lock (CLKU32) | Work hole: ø20 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-196RBH-X2322Lock: With lock (CLKU32) | Work hole: ø20 mm | Pin undersize: 0.4 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-196DAL-X2321Lock: With lock (CLKU32) | Work hole: ø20 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-196DAH-X2322Lock: With lock (CLKU32) | Work hole: ø20 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-196DBL-X2321Lock: With lock (CLKU32) | Work hole: ø20 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-196DBH-X2322Lock: With lock (CLKU32) | Work hole: ø20 mm | Pin undersize: 0.4 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-197RAL-X2321Lock: With lock (CLKU32) | Work hole: ø20 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-197RAH-X2322Lock: With lock (CLKU32) | Work hole: ø20 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-197RBL-X2321Lock: With lock (CLKU32) | Work hole: ø20 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-197RBH-X2322Lock: With lock (CLKU32) | Work hole: ø20 mm | Pin undersize: 0.3 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-197DAL-X2321Lock: With lock (CLKU32) | Work hole: ø20 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-197DAH-X2322Lock: With lock (CLKU32) | Work hole: ø20 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-197DBL-X2321Lock: With lock (CLKU32) | Work hole: ø20 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-197DBH-X2322Lock: With lock (CLKU32) | Work hole: ø20 mm | Pin undersize: 0.3 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-198RAL-X2321Lock: With lock (CLKU32) | Work hole: ø20 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-198RAH-X2322Lock: With lock (CLKU32) | Work hole: ø20 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-198RBL-X2321Lock: With lock (CLKU32) | Work hole: ø20 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-198RBH-X2322Lock: With lock (CLKU32) | Work hole: ø20 mm | Pin undersize: 0.2 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-198DAL-X2321Lock: With lock (CLKU32) | Work hole: ø20 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-198DAH-X2322Lock: With lock (CLKU32) | Work hole: ø20 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-198DBL-X2321Lock: With lock (CLKU32) | Work hole: ø20 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-198DBH-X2322Lock: With lock (CLKU32) | Work hole: ø20 mm | Pin undersize: 0.2 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-199RAL-X2321Lock: With lock (CLKU32) | Work hole: ø20 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-199RAH-X2322Lock: With lock (CLKU32) | Work hole: ø20 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-199RBL-X2321Lock: With lock (CLKU32) | Work hole: ø20 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-199RBH-X2322Lock: With lock (CLKU32) | Work hole: ø20 mm | Pin undersize: 0.1 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-199DAL-X2321Lock: With lock (CLKU32) | Work hole: ø20 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-199DAH-X2322Lock: With lock (CLKU32) | Work hole: ø20 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-199DBL-X2321Lock: With lock (CLKU32) | Work hole: ø20 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-199DBH-X2322Lock: With lock (CLKU32) | Work hole: ø20 mm | Pin undersize: 0.1 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-200RAL-X2321Lock: With lock (CLKU32) | Work hole: ø20 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-200RAH-X2322Lock: With lock (CLKU32) | Work hole: ø20 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-200RBL-X2321Lock: With lock (CLKU32) | Work hole: ø20 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-200RBH-X2322Lock: With lock (CLKU32) | Work hole: ø20 mm | Pin undersize: 0.0 mm | Pin shape: Round | Arm position: B (opposite port) | Clamp height: HIGH 100 mm
CLKU32-200DAL-X2321Lock: With lock (CLKU32) | Work hole: ø20 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: LOW 30 mm
CLKU32-200DAH-X2322Lock: With lock (CLKU32) | Work hole: ø20 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: A (same as port) | Clamp height: HIGH 100 mm
CLKU32-200DBL-X2321Lock: With lock (CLKU32) | Work hole: ø20 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: LOW 30 mm
CLKU32-200DBH-X2322Lock: With lock (CLKU32) | Work hole: ø20 mm | Pin undersize: 0.0 mm | Pin shape: Diamond | Arm position: B (opposite port) | Clamp height: HIGH 100 mm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
