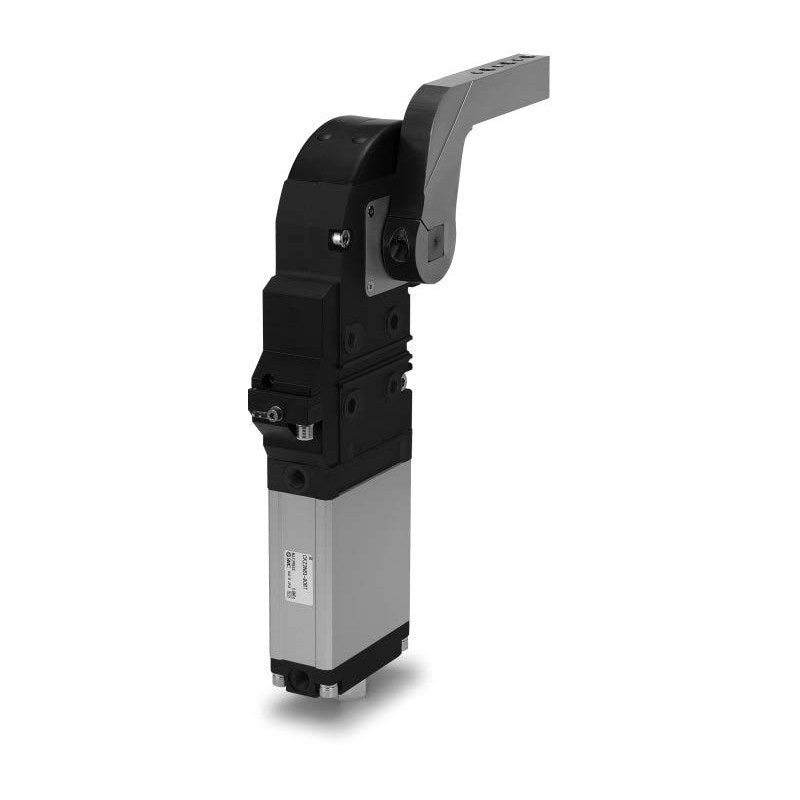

SMC CKZ2N NAAMS Power Clamp Cylinder (ø50 to ø80)

SMC CKZ2N NAAMS Power Clamp Cylinder (ø50 to ø80)

SMC CKZ2N series NAAMS-standard power clamp cylinder with toggle lock for welding fixtures, ø50 to ø80 bore.

Key features

  • NAAMS compliant mounting
  • High clamp force 8800 N (ø80, arm length 100 mm, 0.5 MPa); toggle mechanism holds position when air is exhausted
  • Spatter-resistant structure prevents ingress of spatter; proximity switch suitable for welding environments
  • Arm opening 30° to 135° in 15° steps; clamp arm position right, left or both sides
  • TURCK or P&F proximity switch (PNP); port thread NPT (no symbol) or G (TF)
  • Clamp arms CKZ-A0 ordered separately

Specifications

Action Double acting
Fluid Air
Proof pressure 1.2 MPa
Max. operating pressure 0.8 MPa
Min. operating pressure 0.3 MPa
Ambient and fluid temperature -10 to 60°C
Cushion Clamp side none, unclamp side rubber cushion
Operating time Clamp 1 s or more, unclamp 1 s or more
Max. holding moment ø50 800, ø63 1500, ø80 2500 N·m
Port size 1/4
Switch TURCK or P&F proximity: DC10-30V, N.O. PNP, M12 connector
Source SMC Korea catalog CKZ2N (SMCKR_CKZ2N.pdf), p. 115-116 (PDF p. 2-3)
CKZ2N50-30RT Bore: ø50 | Port thread: NPT | Arm opening: 30° | Arm position: Right | Switch: TURCK proximity
CKZ2N50-30RP Bore: ø50 | Port thread: NPT | Arm opening: 30° | Arm position: Right | Switch: P&F proximity
CKZ2N50-30LT Bore: ø50 | Port thread: NPT | Arm opening: 30° | Arm position: Left | Switch: TURCK proximity
CKZ2N50-30LP Bore: ø50 | Port thread: NPT | Arm opening: 30° | Arm position: Left | Switch: P&F proximity
CKZ2N50-30DT Bore: ø50 | Port thread: NPT | Arm opening: 30° | Arm position: Both sides | Switch: TURCK proximity
CKZ2N50-30DP Bore: ø50 | Port thread: NPT | Arm opening: 30° | Arm position: Both sides | Switch: P&F proximity
CKZ2N50-45RT Bore: ø50 | Port thread: NPT | Arm opening: 45° | Arm position: Right | Switch: TURCK proximity
CKZ2N50-45RP Bore: ø50 | Port thread: NPT | Arm opening: 45° | Arm position: Right | Switch: P&F proximity
CKZ2N50-45LT Bore: ø50 | Port thread: NPT | Arm opening: 45° | Arm position: Left | Switch: TURCK proximity
CKZ2N50-45LP Bore: ø50 | Port thread: NPT | Arm opening: 45° | Arm position: Left | Switch: P&F proximity
CKZ2N50-45DT Bore: ø50 | Port thread: NPT | Arm opening: 45° | Arm position: Both sides | Switch: TURCK proximity
CKZ2N50-45DP Bore: ø50 | Port thread: NPT | Arm opening: 45° | Arm position: Both sides | Switch: P&F proximity
CKZ2N50-60RT Bore: ø50 | Port thread: NPT | Arm opening: 60° | Arm position: Right | Switch: TURCK proximity
CKZ2N50-60RP Bore: ø50 | Port thread: NPT | Arm opening: 60° | Arm position: Right | Switch: P&F proximity
CKZ2N50-60LT Bore: ø50 | Port thread: NPT | Arm opening: 60° | Arm position: Left | Switch: TURCK proximity
CKZ2N50-60LP Bore: ø50 | Port thread: NPT | Arm opening: 60° | Arm position: Left | Switch: P&F proximity
CKZ2N50-60DT Bore: ø50 | Port thread: NPT | Arm opening: 60° | Arm position: Both sides | Switch: TURCK proximity
CKZ2N50-60DP Bore: ø50 | Port thread: NPT | Arm opening: 60° | Arm position: Both sides | Switch: P&F proximity
CKZ2N50-75RT Bore: ø50 | Port thread: NPT | Arm opening: 75° | Arm position: Right | Switch: TURCK proximity
CKZ2N50-75RP Bore: ø50 | Port thread: NPT | Arm opening: 75° | Arm position: Right | Switch: P&F proximity
CKZ2N50-75LT Bore: ø50 | Port thread: NPT | Arm opening: 75° | Arm position: Left | Switch: TURCK proximity
CKZ2N50-75LP Bore: ø50 | Port thread: NPT | Arm opening: 75° | Arm position: Left | Switch: P&F proximity
CKZ2N50-75DT Bore: ø50 | Port thread: NPT | Arm opening: 75° | Arm position: Both sides | Switch: TURCK proximity
CKZ2N50-75DP Bore: ø50 | Port thread: NPT | Arm opening: 75° | Arm position: Both sides | Switch: P&F proximity
CKZ2N50-90RT Bore: ø50 | Port thread: NPT | Arm opening: 90° | Arm position: Right | Switch: TURCK proximity
CKZ2N50-90RP Bore: ø50 | Port thread: NPT | Arm opening: 90° | Arm position: Right | Switch: P&F proximity
CKZ2N50-90LT Bore: ø50 | Port thread: NPT | Arm opening: 90° | Arm position: Left | Switch: TURCK proximity
CKZ2N50-90LP Bore: ø50 | Port thread: NPT | Arm opening: 90° | Arm position: Left | Switch: P&F proximity
CKZ2N50-90DT Bore: ø50 | Port thread: NPT | Arm opening: 90° | Arm position: Both sides | Switch: TURCK proximity
CKZ2N50-90DP Bore: ø50 | Port thread: NPT | Arm opening: 90° | Arm position: Both sides | Switch: P&F proximity
CKZ2N50-105RT Bore: ø50 | Port thread: NPT | Arm opening: 105° | Arm position: Right | Switch: TURCK proximity
CKZ2N50-105RP Bore: ø50 | Port thread: NPT | Arm opening: 105° | Arm position: Right | Switch: P&F proximity
CKZ2N50-105LT Bore: ø50 | Port thread: NPT | Arm opening: 105° | Arm position: Left | Switch: TURCK proximity
CKZ2N50-105LP Bore: ø50 | Port thread: NPT | Arm opening: 105° | Arm position: Left | Switch: P&F proximity
CKZ2N50-105DT Bore: ø50 | Port thread: NPT | Arm opening: 105° | Arm position: Both sides | Switch: TURCK proximity
CKZ2N50-105DP Bore: ø50 | Port thread: NPT | Arm opening: 105° | Arm position: Both sides | Switch: P&F proximity
CKZ2N50-120RT Bore: ø50 | Port thread: NPT | Arm opening: 120° | Arm position: Right | Switch: TURCK proximity
CKZ2N50-120RP Bore: ø50 | Port thread: NPT | Arm opening: 120° | Arm position: Right | Switch: P&F proximity
CKZ2N50-120LT Bore: ø50 | Port thread: NPT | Arm opening: 120° | Arm position: Left | Switch: TURCK proximity
CKZ2N50-120LP Bore: ø50 | Port thread: NPT | Arm opening: 120° | Arm position: Left | Switch: P&F proximity
CKZ2N50-120DT Bore: ø50 | Port thread: NPT | Arm opening: 120° | Arm position: Both sides | Switch: TURCK proximity
CKZ2N50-120DP Bore: ø50 | Port thread: NPT | Arm opening: 120° | Arm position: Both sides | Switch: P&F proximity
CKZ2N50-135RT Bore: ø50 | Port thread: NPT | Arm opening: 135° | Arm position: Right | Switch: TURCK proximity
CKZ2N50-135RP Bore: ø50 | Port thread: NPT | Arm opening: 135° | Arm position: Right | Switch: P&F proximity
CKZ2N50-135LT Bore: ø50 | Port thread: NPT | Arm opening: 135° | Arm position: Left | Switch: TURCK proximity
CKZ2N50-135LP Bore: ø50 | Port thread: NPT | Arm opening: 135° | Arm position: Left | Switch: P&F proximity
CKZ2N50-135DT Bore: ø50 | Port thread: NPT | Arm opening: 135° | Arm position: Both sides | Switch: TURCK proximity
CKZ2N50-135DP Bore: ø50 | Port thread: NPT | Arm opening: 135° | Arm position: Both sides | Switch: P&F proximity
CKZ2N50TF-30RT Bore: ø50 | Port thread: G | Arm opening: 30° | Arm position: Right | Switch: TURCK proximity
CKZ2N50TF-30RP Bore: ø50 | Port thread: G | Arm opening: 30° | Arm position: Right | Switch: P&F proximity
CKZ2N50TF-30LT Bore: ø50 | Port thread: G | Arm opening: 30° | Arm position: Left | Switch: TURCK proximity
CKZ2N50TF-30LP Bore: ø50 | Port thread: G | Arm opening: 30° | Arm position: Left | Switch: P&F proximity
CKZ2N50TF-30DT Bore: ø50 | Port thread: G | Arm opening: 30° | Arm position: Both sides | Switch: TURCK proximity
CKZ2N50TF-30DP Bore: ø50 | Port thread: G | Arm opening: 30° | Arm position: Both sides | Switch: P&F proximity
CKZ2N50TF-45RT Bore: ø50 | Port thread: G | Arm opening: 45° | Arm position: Right | Switch: TURCK proximity
CKZ2N50TF-45RP Bore: ø50 | Port thread: G | Arm opening: 45° | Arm position: Right | Switch: P&F proximity
CKZ2N50TF-45LT Bore: ø50 | Port thread: G | Arm opening: 45° | Arm position: Left | Switch: TURCK proximity
CKZ2N50TF-45LP Bore: ø50 | Port thread: G | Arm opening: 45° | Arm position: Left | Switch: P&F proximity
CKZ2N50TF-45DT Bore: ø50 | Port thread: G | Arm opening: 45° | Arm position: Both sides | Switch: TURCK proximity
CKZ2N50TF-45DP Bore: ø50 | Port thread: G | Arm opening: 45° | Arm position: Both sides | Switch: P&F proximity
CKZ2N50TF-60RT Bore: ø50 | Port thread: G | Arm opening: 60° | Arm position: Right | Switch: TURCK proximity
CKZ2N50TF-60RP Bore: ø50 | Port thread: G | Arm opening: 60° | Arm position: Right | Switch: P&F proximity
CKZ2N50TF-60LT Bore: ø50 | Port thread: G | Arm opening: 60° | Arm position: Left | Switch: TURCK proximity
CKZ2N50TF-60LP Bore: ø50 | Port thread: G | Arm opening: 60° | Arm position: Left | Switch: P&F proximity
CKZ2N50TF-60DT Bore: ø50 | Port thread: G | Arm opening: 60° | Arm position: Both sides | Switch: TURCK proximity
CKZ2N50TF-60DP Bore: ø50 | Port thread: G | Arm opening: 60° | Arm position: Both sides | Switch: P&F proximity
CKZ2N50TF-75RT Bore: ø50 | Port thread: G | Arm opening: 75° | Arm position: Right | Switch: TURCK proximity
CKZ2N50TF-75RP Bore: ø50 | Port thread: G | Arm opening: 75° | Arm position: Right | Switch: P&F proximity
CKZ2N50TF-75LT Bore: ø50 | Port thread: G | Arm opening: 75° | Arm position: Left | Switch: TURCK proximity
CKZ2N50TF-75LP Bore: ø50 | Port thread: G | Arm opening: 75° | Arm position: Left | Switch: P&F proximity
CKZ2N50TF-75DT Bore: ø50 | Port thread: G | Arm opening: 75° | Arm position: Both sides | Switch: TURCK proximity
CKZ2N50TF-75DP Bore: ø50 | Port thread: G | Arm opening: 75° | Arm position: Both sides | Switch: P&F proximity
CKZ2N50TF-90RT Bore: ø50 | Port thread: G | Arm opening: 90° | Arm position: Right | Switch: TURCK proximity
CKZ2N50TF-90RP Bore: ø50 | Port thread: G | Arm opening: 90° | Arm position: Right | Switch: P&F proximity
CKZ2N50TF-90LT Bore: ø50 | Port thread: G | Arm opening: 90° | Arm position: Left | Switch: TURCK proximity
CKZ2N50TF-90LP Bore: ø50 | Port thread: G | Arm opening: 90° | Arm position: Left | Switch: P&F proximity
CKZ2N50TF-90DT Bore: ø50 | Port thread: G | Arm opening: 90° | Arm position: Both sides | Switch: TURCK proximity
CKZ2N50TF-90DP Bore: ø50 | Port thread: G | Arm opening: 90° | Arm position: Both sides | Switch: P&F proximity
CKZ2N50TF-105RT Bore: ø50 | Port thread: G | Arm opening: 105° | Arm position: Right | Switch: TURCK proximity
CKZ2N50TF-105RP Bore: ø50 | Port thread: G | Arm opening: 105° | Arm position: Right | Switch: P&F proximity
CKZ2N50TF-105LT Bore: ø50 | Port thread: G | Arm opening: 105° | Arm position: Left | Switch: TURCK proximity
CKZ2N50TF-105LP Bore: ø50 | Port thread: G | Arm opening: 105° | Arm position: Left | Switch: P&F proximity
CKZ2N50TF-105DT Bore: ø50 | Port thread: G | Arm opening: 105° | Arm position: Both sides | Switch: TURCK proximity
CKZ2N50TF-105DP Bore: ø50 | Port thread: G | Arm opening: 105° | Arm position: Both sides | Switch: P&F proximity
CKZ2N50TF-120RT Bore: ø50 | Port thread: G | Arm opening: 120° | Arm position: Right | Switch: TURCK proximity
CKZ2N50TF-120RP Bore: ø50 | Port thread: G | Arm opening: 120° | Arm position: Right | Switch: P&F proximity
CKZ2N50TF-120LT Bore: ø50 | Port thread: G | Arm opening: 120° | Arm position: Left | Switch: TURCK proximity
CKZ2N50TF-120LP Bore: ø50 | Port thread: G | Arm opening: 120° | Arm position: Left | Switch: P&F proximity
CKZ2N50TF-120DT Bore: ø50 | Port thread: G | Arm opening: 120° | Arm position: Both sides | Switch: TURCK proximity
CKZ2N50TF-120DP Bore: ø50 | Port thread: G | Arm opening: 120° | Arm position: Both sides | Switch: P&F proximity
CKZ2N50TF-135RT Bore: ø50 | Port thread: G | Arm opening: 135° | Arm position: Right | Switch: TURCK proximity
CKZ2N50TF-135RP Bore: ø50 | Port thread: G | Arm opening: 135° | Arm position: Right | Switch: P&F proximity
CKZ2N50TF-135LT Bore: ø50 | Port thread: G | Arm opening: 135° | Arm position: Left | Switch: TURCK proximity
CKZ2N50TF-135LP Bore: ø50 | Port thread: G | Arm opening: 135° | Arm position: Left | Switch: P&F proximity
CKZ2N50TF-135DT Bore: ø50 | Port thread: G | Arm opening: 135° | Arm position: Both sides | Switch: TURCK proximity
CKZ2N50TF-135DP Bore: ø50 | Port thread: G | Arm opening: 135° | Arm position: Both sides | Switch: P&F proximity
CKZ2N63-30RT Bore: ø63 | Port thread: NPT | Arm opening: 30° | Arm position: Right | Switch: TURCK proximity
CKZ2N63-30RP Bore: ø63 | Port thread: NPT | Arm opening: 30° | Arm position: Right | Switch: P&F proximity
CKZ2N63-30LT Bore: ø63 | Port thread: NPT | Arm opening: 30° | Arm position: Left | Switch: TURCK proximity
CKZ2N63-30LP Bore: ø63 | Port thread: NPT | Arm opening: 30° | Arm position: Left | Switch: P&F proximity
CKZ2N63-30DT Bore: ø63 | Port thread: NPT | Arm opening: 30° | Arm position: Both sides | Switch: TURCK proximity
CKZ2N63-30DP Bore: ø63 | Port thread: NPT | Arm opening: 30° | Arm position: Both sides | Switch: P&F proximity
CKZ2N63-45RT Bore: ø63 | Port thread: NPT | Arm opening: 45° | Arm position: Right | Switch: TURCK proximity
CKZ2N63-45RP Bore: ø63 | Port thread: NPT | Arm opening: 45° | Arm position: Right | Switch: P&F proximity
CKZ2N63-45LT Bore: ø63 | Port thread: NPT | Arm opening: 45° | Arm position: Left | Switch: TURCK proximity
CKZ2N63-45LP Bore: ø63 | Port thread: NPT | Arm opening: 45° | Arm position: Left | Switch: P&F proximity
CKZ2N63-45DT Bore: ø63 | Port thread: NPT | Arm opening: 45° | Arm position: Both sides | Switch: TURCK proximity
CKZ2N63-45DP Bore: ø63 | Port thread: NPT | Arm opening: 45° | Arm position: Both sides | Switch: P&F proximity
CKZ2N63-60RT Bore: ø63 | Port thread: NPT | Arm opening: 60° | Arm position: Right | Switch: TURCK proximity
CKZ2N63-60RP Bore: ø63 | Port thread: NPT | Arm opening: 60° | Arm position: Right | Switch: P&F proximity
CKZ2N63-60LT Bore: ø63 | Port thread: NPT | Arm opening: 60° | Arm position: Left | Switch: TURCK proximity
CKZ2N63-60LP Bore: ø63 | Port thread: NPT | Arm opening: 60° | Arm position: Left | Switch: P&F proximity
CKZ2N63-60DT Bore: ø63 | Port thread: NPT | Arm opening: 60° | Arm position: Both sides | Switch: TURCK proximity
CKZ2N63-60DP Bore: ø63 | Port thread: NPT | Arm opening: 60° | Arm position: Both sides | Switch: P&F proximity
CKZ2N63-75RT Bore: ø63 | Port thread: NPT | Arm opening: 75° | Arm position: Right | Switch: TURCK proximity
CKZ2N63-75RP Bore: ø63 | Port thread: NPT | Arm opening: 75° | Arm position: Right | Switch: P&F proximity
CKZ2N63-75LT Bore: ø63 | Port thread: NPT | Arm opening: 75° | Arm position: Left | Switch: TURCK proximity
CKZ2N63-75LP Bore: ø63 | Port thread: NPT | Arm opening: 75° | Arm position: Left | Switch: P&F proximity
CKZ2N63-75DT Bore: ø63 | Port thread: NPT | Arm opening: 75° | Arm position: Both sides | Switch: TURCK proximity
CKZ2N63-75DP Bore: ø63 | Port thread: NPT | Arm opening: 75° | Arm position: Both sides | Switch: P&F proximity
CKZ2N63-90RT Bore: ø63 | Port thread: NPT | Arm opening: 90° | Arm position: Right | Switch: TURCK proximity
CKZ2N63-90RP Bore: ø63 | Port thread: NPT | Arm opening: 90° | Arm position: Right | Switch: P&F proximity
CKZ2N63-90LT Bore: ø63 | Port thread: NPT | Arm opening: 90° | Arm position: Left | Switch: TURCK proximity
CKZ2N63-90LP Bore: ø63 | Port thread: NPT | Arm opening: 90° | Arm position: Left | Switch: P&F proximity
CKZ2N63-90DT Bore: ø63 | Port thread: NPT | Arm opening: 90° | Arm position: Both sides | Switch: TURCK proximity
CKZ2N63-90DP Bore: ø63 | Port thread: NPT | Arm opening: 90° | Arm position: Both sides | Switch: P&F proximity
CKZ2N63-105RT Bore: ø63 | Port thread: NPT | Arm opening: 105° | Arm position: Right | Switch: TURCK proximity
CKZ2N63-105RP Bore: ø63 | Port thread: NPT | Arm opening: 105° | Arm position: Right | Switch: P&F proximity
CKZ2N63-105LT Bore: ø63 | Port thread: NPT | Arm opening: 105° | Arm position: Left | Switch: TURCK proximity
CKZ2N63-105LP Bore: ø63 | Port thread: NPT | Arm opening: 105° | Arm position: Left | Switch: P&F proximity
CKZ2N63-105DT Bore: ø63 | Port thread: NPT | Arm opening: 105° | Arm position: Both sides | Switch: TURCK proximity
CKZ2N63-105DP Bore: ø63 | Port thread: NPT | Arm opening: 105° | Arm position: Both sides | Switch: P&F proximity
CKZ2N63-120RT Bore: ø63 | Port thread: NPT | Arm opening: 120° | Arm position: Right | Switch: TURCK proximity
CKZ2N63-120RP Bore: ø63 | Port thread: NPT | Arm opening: 120° | Arm position: Right | Switch: P&F proximity
CKZ2N63-120LT Bore: ø63 | Port thread: NPT | Arm opening: 120° | Arm position: Left | Switch: TURCK proximity
CKZ2N63-120LP Bore: ø63 | Port thread: NPT | Arm opening: 120° | Arm position: Left | Switch: P&F proximity
CKZ2N63-120DT Bore: ø63 | Port thread: NPT | Arm opening: 120° | Arm position: Both sides | Switch: TURCK proximity
CKZ2N63-120DP Bore: ø63 | Port thread: NPT | Arm opening: 120° | Arm position: Both sides | Switch: P&F proximity
CKZ2N63-135RT Bore: ø63 | Port thread: NPT | Arm opening: 135° | Arm position: Right | Switch: TURCK proximity
CKZ2N63-135RP Bore: ø63 | Port thread: NPT | Arm opening: 135° | Arm position: Right | Switch: P&F proximity
CKZ2N63-135LT Bore: ø63 | Port thread: NPT | Arm opening: 135° | Arm position: Left | Switch: TURCK proximity
CKZ2N63-135LP Bore: ø63 | Port thread: NPT | Arm opening: 135° | Arm position: Left | Switch: P&F proximity
CKZ2N63-135DT Bore: ø63 | Port thread: NPT | Arm opening: 135° | Arm position: Both sides | Switch: TURCK proximity
CKZ2N63-135DP Bore: ø63 | Port thread: NPT | Arm opening: 135° | Arm position: Both sides | Switch: P&F proximity
CKZ2N63TF-30RT Bore: ø63 | Port thread: G | Arm opening: 30° | Arm position: Right | Switch: TURCK proximity
CKZ2N63TF-30RP Bore: ø63 | Port thread: G | Arm opening: 30° | Arm position: Right | Switch: P&F proximity
CKZ2N63TF-30LT Bore: ø63 | Port thread: G | Arm opening: 30° | Arm position: Left | Switch: TURCK proximity
CKZ2N63TF-30LP Bore: ø63 | Port thread: G | Arm opening: 30° | Arm position: Left | Switch: P&F proximity
CKZ2N63TF-30DT Bore: ø63 | Port thread: G | Arm opening: 30° | Arm position: Both sides | Switch: TURCK proximity
CKZ2N63TF-30DP Bore: ø63 | Port thread: G | Arm opening: 30° | Arm position: Both sides | Switch: P&F proximity
CKZ2N63TF-45RT Bore: ø63 | Port thread: G | Arm opening: 45° | Arm position: Right | Switch: TURCK proximity
CKZ2N63TF-45RP Bore: ø63 | Port thread: G | Arm opening: 45° | Arm position: Right | Switch: P&F proximity
CKZ2N63TF-45LT Bore: ø63 | Port thread: G | Arm opening: 45° | Arm position: Left | Switch: TURCK proximity
CKZ2N63TF-45LP Bore: ø63 | Port thread: G | Arm opening: 45° | Arm position: Left | Switch: P&F proximity
CKZ2N63TF-45DT Bore: ø63 | Port thread: G | Arm opening: 45° | Arm position: Both sides | Switch: TURCK proximity
CKZ2N63TF-45DP Bore: ø63 | Port thread: G | Arm opening: 45° | Arm position: Both sides | Switch: P&F proximity
CKZ2N63TF-60RT Bore: ø63 | Port thread: G | Arm opening: 60° | Arm position: Right | Switch: TURCK proximity
CKZ2N63TF-60RP Bore: ø63 | Port thread: G | Arm opening: 60° | Arm position: Right | Switch: P&F proximity
CKZ2N63TF-60LT Bore: ø63 | Port thread: G | Arm opening: 60° | Arm position: Left | Switch: TURCK proximity
CKZ2N63TF-60LP Bore: ø63 | Port thread: G | Arm opening: 60° | Arm position: Left | Switch: P&F proximity
CKZ2N63TF-60DT Bore: ø63 | Port thread: G | Arm opening: 60° | Arm position: Both sides | Switch: TURCK proximity
CKZ2N63TF-60DP Bore: ø63 | Port thread: G | Arm opening: 60° | Arm position: Both sides | Switch: P&F proximity
CKZ2N63TF-75RT Bore: ø63 | Port thread: G | Arm opening: 75° | Arm position: Right | Switch: TURCK proximity
CKZ2N63TF-75RP Bore: ø63 | Port thread: G | Arm opening: 75° | Arm position: Right | Switch: P&F proximity
CKZ2N63TF-75LT Bore: ø63 | Port thread: G | Arm opening: 75° | Arm position: Left | Switch: TURCK proximity
CKZ2N63TF-75LP Bore: ø63 | Port thread: G | Arm opening: 75° | Arm position: Left | Switch: P&F proximity
CKZ2N63TF-75DT Bore: ø63 | Port thread: G | Arm opening: 75° | Arm position: Both sides | Switch: TURCK proximity
CKZ2N63TF-75DP Bore: ø63 | Port thread: G | Arm opening: 75° | Arm position: Both sides | Switch: P&F proximity
CKZ2N63TF-90RT Bore: ø63 | Port thread: G | Arm opening: 90° | Arm position: Right | Switch: TURCK proximity
CKZ2N63TF-90RP Bore: ø63 | Port thread: G | Arm opening: 90° | Arm position: Right | Switch: P&F proximity
CKZ2N63TF-90LT Bore: ø63 | Port thread: G | Arm opening: 90° | Arm position: Left | Switch: TURCK proximity
CKZ2N63TF-90LP Bore: ø63 | Port thread: G | Arm opening: 90° | Arm position: Left | Switch: P&F proximity
CKZ2N63TF-90DT Bore: ø63 | Port thread: G | Arm opening: 90° | Arm position: Both sides | Switch: TURCK proximity
CKZ2N63TF-90DP Bore: ø63 | Port thread: G | Arm opening: 90° | Arm position: Both sides | Switch: P&F proximity
CKZ2N63TF-105RT Bore: ø63 | Port thread: G | Arm opening: 105° | Arm position: Right | Switch: TURCK proximity
CKZ2N63TF-105RP Bore: ø63 | Port thread: G | Arm opening: 105° | Arm position: Right | Switch: P&F proximity
CKZ2N63TF-105LT Bore: ø63 | Port thread: G | Arm opening: 105° | Arm position: Left | Switch: TURCK proximity
CKZ2N63TF-105LP Bore: ø63 | Port thread: G | Arm opening: 105° | Arm position: Left | Switch: P&F proximity
CKZ2N63TF-105DT Bore: ø63 | Port thread: G | Arm opening: 105° | Arm position: Both sides | Switch: TURCK proximity
CKZ2N63TF-105DP Bore: ø63 | Port thread: G | Arm opening: 105° | Arm position: Both sides | Switch: P&F proximity
CKZ2N63TF-120RT Bore: ø63 | Port thread: G | Arm opening: 120° | Arm position: Right | Switch: TURCK proximity
CKZ2N63TF-120RP Bore: ø63 | Port thread: G | Arm opening: 120° | Arm position: Right | Switch: P&F proximity
CKZ2N63TF-120LT Bore: ø63 | Port thread: G | Arm opening: 120° | Arm position: Left | Switch: TURCK proximity
CKZ2N63TF-120LP Bore: ø63 | Port thread: G | Arm opening: 120° | Arm position: Left | Switch: P&F proximity
CKZ2N63TF-120DT Bore: ø63 | Port thread: G | Arm opening: 120° | Arm position: Both sides | Switch: TURCK proximity
CKZ2N63TF-120DP Bore: ø63 | Port thread: G | Arm opening: 120° | Arm position: Both sides | Switch: P&F proximity
CKZ2N63TF-135RT Bore: ø63 | Port thread: G | Arm opening: 135° | Arm position: Right | Switch: TURCK proximity
CKZ2N63TF-135RP Bore: ø63 | Port thread: G | Arm opening: 135° | Arm position: Right | Switch: P&F proximity
CKZ2N63TF-135LT Bore: ø63 | Port thread: G | Arm opening: 135° | Arm position: Left | Switch: TURCK proximity
CKZ2N63TF-135LP Bore: ø63 | Port thread: G | Arm opening: 135° | Arm position: Left | Switch: P&F proximity
CKZ2N63TF-135DT Bore: ø63 | Port thread: G | Arm opening: 135° | Arm position: Both sides | Switch: TURCK proximity
CKZ2N63TF-135DP Bore: ø63 | Port thread: G | Arm opening: 135° | Arm position: Both sides | Switch: P&F proximity
CKZ2N80-30RT Bore: ø80 | Port thread: NPT | Arm opening: 30° | Arm position: Right | Switch: TURCK proximity
CKZ2N80-30RP Bore: ø80 | Port thread: NPT | Arm opening: 30° | Arm position: Right | Switch: P&F proximity
CKZ2N80-30LT Bore: ø80 | Port thread: NPT | Arm opening: 30° | Arm position: Left | Switch: TURCK proximity
CKZ2N80-30LP Bore: ø80 | Port thread: NPT | Arm opening: 30° | Arm position: Left | Switch: P&F proximity
CKZ2N80-30DT Bore: ø80 | Port thread: NPT | Arm opening: 30° | Arm position: Both sides | Switch: TURCK proximity
CKZ2N80-30DP Bore: ø80 | Port thread: NPT | Arm opening: 30° | Arm position: Both sides | Switch: P&F proximity
CKZ2N80-45RT Bore: ø80 | Port thread: NPT | Arm opening: 45° | Arm position: Right | Switch: TURCK proximity
CKZ2N80-45RP Bore: ø80 | Port thread: NPT | Arm opening: 45° | Arm position: Right | Switch: P&F proximity
CKZ2N80-45LT Bore: ø80 | Port thread: NPT | Arm opening: 45° | Arm position: Left | Switch: TURCK proximity
CKZ2N80-45LP Bore: ø80 | Port thread: NPT | Arm opening: 45° | Arm position: Left | Switch: P&F proximity
CKZ2N80-45DT Bore: ø80 | Port thread: NPT | Arm opening: 45° | Arm position: Both sides | Switch: TURCK proximity
CKZ2N80-45DP Bore: ø80 | Port thread: NPT | Arm opening: 45° | Arm position: Both sides | Switch: P&F proximity
CKZ2N80-60RT Bore: ø80 | Port thread: NPT | Arm opening: 60° | Arm position: Right | Switch: TURCK proximity
CKZ2N80-60RP Bore: ø80 | Port thread: NPT | Arm opening: 60° | Arm position: Right | Switch: P&F proximity
CKZ2N80-60LT Bore: ø80 | Port thread: NPT | Arm opening: 60° | Arm position: Left | Switch: TURCK proximity
CKZ2N80-60LP Bore: ø80 | Port thread: NPT | Arm opening: 60° | Arm position: Left | Switch: P&F proximity
CKZ2N80-60DT Bore: ø80 | Port thread: NPT | Arm opening: 60° | Arm position: Both sides | Switch: TURCK proximity
CKZ2N80-60DP Bore: ø80 | Port thread: NPT | Arm opening: 60° | Arm position: Both sides | Switch: P&F proximity
CKZ2N80-75RT Bore: ø80 | Port thread: NPT | Arm opening: 75° | Arm position: Right | Switch: TURCK proximity
CKZ2N80-75RP Bore: ø80 | Port thread: NPT | Arm opening: 75° | Arm position: Right | Switch: P&F proximity
CKZ2N80-75LT Bore: ø80 | Port thread: NPT | Arm opening: 75° | Arm position: Left | Switch: TURCK proximity
CKZ2N80-75LP Bore: ø80 | Port thread: NPT | Arm opening: 75° | Arm position: Left | Switch: P&F proximity
CKZ2N80-75DT Bore: ø80 | Port thread: NPT | Arm opening: 75° | Arm position: Both sides | Switch: TURCK proximity
CKZ2N80-75DP Bore: ø80 | Port thread: NPT | Arm opening: 75° | Arm position: Both sides | Switch: P&F proximity
CKZ2N80-90RT Bore: ø80 | Port thread: NPT | Arm opening: 90° | Arm position: Right | Switch: TURCK proximity
CKZ2N80-90RP Bore: ø80 | Port thread: NPT | Arm opening: 90° | Arm position: Right | Switch: P&F proximity
CKZ2N80-90LT Bore: ø80 | Port thread: NPT | Arm opening: 90° | Arm position: Left | Switch: TURCK proximity
CKZ2N80-90LP Bore: ø80 | Port thread: NPT | Arm opening: 90° | Arm position: Left | Switch: P&F proximity
CKZ2N80-90DT Bore: ø80 | Port thread: NPT | Arm opening: 90° | Arm position: Both sides | Switch: TURCK proximity
CKZ2N80-90DP Bore: ø80 | Port thread: NPT | Arm opening: 90° | Arm position: Both sides | Switch: P&F proximity
CKZ2N80-105RT Bore: ø80 | Port thread: NPT | Arm opening: 105° | Arm position: Right | Switch: TURCK proximity
CKZ2N80-105RP Bore: ø80 | Port thread: NPT | Arm opening: 105° | Arm position: Right | Switch: P&F proximity
CKZ2N80-105LT Bore: ø80 | Port thread: NPT | Arm opening: 105° | Arm position: Left | Switch: TURCK proximity
CKZ2N80-105LP Bore: ø80 | Port thread: NPT | Arm opening: 105° | Arm position: Left | Switch: P&F proximity
CKZ2N80-105DT Bore: ø80 | Port thread: NPT | Arm opening: 105° | Arm position: Both sides | Switch: TURCK proximity
CKZ2N80-105DP Bore: ø80 | Port thread: NPT | Arm opening: 105° | Arm position: Both sides | Switch: P&F proximity
CKZ2N80-120RT Bore: ø80 | Port thread: NPT | Arm opening: 120° | Arm position: Right | Switch: TURCK proximity
CKZ2N80-120RP Bore: ø80 | Port thread: NPT | Arm opening: 120° | Arm position: Right | Switch: P&F proximity
CKZ2N80-120LT Bore: ø80 | Port thread: NPT | Arm opening: 120° | Arm position: Left | Switch: TURCK proximity
CKZ2N80-120LP Bore: ø80 | Port thread: NPT | Arm opening: 120° | Arm position: Left | Switch: P&F proximity
CKZ2N80-120DT Bore: ø80 | Port thread: NPT | Arm opening: 120° | Arm position: Both sides | Switch: TURCK proximity
CKZ2N80-120DP Bore: ø80 | Port thread: NPT | Arm opening: 120° | Arm position: Both sides | Switch: P&F proximity
CKZ2N80-135RT Bore: ø80 | Port thread: NPT | Arm opening: 135° | Arm position: Right | Switch: TURCK proximity
CKZ2N80-135RP Bore: ø80 | Port thread: NPT | Arm opening: 135° | Arm position: Right | Switch: P&F proximity
CKZ2N80-135LT Bore: ø80 | Port thread: NPT | Arm opening: 135° | Arm position: Left | Switch: TURCK proximity
CKZ2N80-135LP Bore: ø80 | Port thread: NPT | Arm opening: 135° | Arm position: Left | Switch: P&F proximity
CKZ2N80-135DT Bore: ø80 | Port thread: NPT | Arm opening: 135° | Arm position: Both sides | Switch: TURCK proximity
CKZ2N80-135DP Bore: ø80 | Port thread: NPT | Arm opening: 135° | Arm position: Both sides | Switch: P&F proximity
CKZ2N80TF-30RT Bore: ø80 | Port thread: G | Arm opening: 30° | Arm position: Right | Switch: TURCK proximity
CKZ2N80TF-30RP Bore: ø80 | Port thread: G | Arm opening: 30° | Arm position: Right | Switch: P&F proximity
CKZ2N80TF-30LT Bore: ø80 | Port thread: G | Arm opening: 30° | Arm position: Left | Switch: TURCK proximity
CKZ2N80TF-30LP Bore: ø80 | Port thread: G | Arm opening: 30° | Arm position: Left | Switch: P&F proximity
CKZ2N80TF-30DT Bore: ø80 | Port thread: G | Arm opening: 30° | Arm position: Both sides | Switch: TURCK proximity
CKZ2N80TF-30DP Bore: ø80 | Port thread: G | Arm opening: 30° | Arm position: Both sides | Switch: P&F proximity
CKZ2N80TF-45RT Bore: ø80 | Port thread: G | Arm opening: 45° | Arm position: Right | Switch: TURCK proximity
CKZ2N80TF-45RP Bore: ø80 | Port thread: G | Arm opening: 45° | Arm position: Right | Switch: P&F proximity
CKZ2N80TF-45LT Bore: ø80 | Port thread: G | Arm opening: 45° | Arm position: Left | Switch: TURCK proximity
CKZ2N80TF-45LP Bore: ø80 | Port thread: G | Arm opening: 45° | Arm position: Left | Switch: P&F proximity
CKZ2N80TF-45DT Bore: ø80 | Port thread: G | Arm opening: 45° | Arm position: Both sides | Switch: TURCK proximity
CKZ2N80TF-45DP Bore: ø80 | Port thread: G | Arm opening: 45° | Arm position: Both sides | Switch: P&F proximity
CKZ2N80TF-60RT Bore: ø80 | Port thread: G | Arm opening: 60° | Arm position: Right | Switch: TURCK proximity
CKZ2N80TF-60RP Bore: ø80 | Port thread: G | Arm opening: 60° | Arm position: Right | Switch: P&F proximity
CKZ2N80TF-60LT Bore: ø80 | Port thread: G | Arm opening: 60° | Arm position: Left | Switch: TURCK proximity
CKZ2N80TF-60LP Bore: ø80 | Port thread: G | Arm opening: 60° | Arm position: Left | Switch: P&F proximity
CKZ2N80TF-60DT Bore: ø80 | Port thread: G | Arm opening: 60° | Arm position: Both sides | Switch: TURCK proximity
CKZ2N80TF-60DP Bore: ø80 | Port thread: G | Arm opening: 60° | Arm position: Both sides | Switch: P&F proximity
CKZ2N80TF-75RT Bore: ø80 | Port thread: G | Arm opening: 75° | Arm position: Right | Switch: TURCK proximity
CKZ2N80TF-75RP Bore: ø80 | Port thread: G | Arm opening: 75° | Arm position: Right | Switch: P&F proximity
CKZ2N80TF-75LT Bore: ø80 | Port thread: G | Arm opening: 75° | Arm position: Left | Switch: TURCK proximity
CKZ2N80TF-75LP Bore: ø80 | Port thread: G | Arm opening: 75° | Arm position: Left | Switch: P&F proximity
CKZ2N80TF-75DT Bore: ø80 | Port thread: G | Arm opening: 75° | Arm position: Both sides | Switch: TURCK proximity
CKZ2N80TF-75DP Bore: ø80 | Port thread: G | Arm opening: 75° | Arm position: Both sides | Switch: P&F proximity
CKZ2N80TF-90RT Bore: ø80 | Port thread: G | Arm opening: 90° | Arm position: Right | Switch: TURCK proximity
CKZ2N80TF-90RP Bore: ø80 | Port thread: G | Arm opening: 90° | Arm position: Right | Switch: P&F proximity
CKZ2N80TF-90LT Bore: ø80 | Port thread: G | Arm opening: 90° | Arm position: Left | Switch: TURCK proximity
CKZ2N80TF-90LP Bore: ø80 | Port thread: G | Arm opening: 90° | Arm position: Left | Switch: P&F proximity
CKZ2N80TF-90DT Bore: ø80 | Port thread: G | Arm opening: 90° | Arm position: Both sides | Switch: TURCK proximity
CKZ2N80TF-90DP Bore: ø80 | Port thread: G | Arm opening: 90° | Arm position: Both sides | Switch: P&F proximity
CKZ2N80TF-105RT Bore: ø80 | Port thread: G | Arm opening: 105° | Arm position: Right | Switch: TURCK proximity
CKZ2N80TF-105RP Bore: ø80 | Port thread: G | Arm opening: 105° | Arm position: Right | Switch: P&F proximity
CKZ2N80TF-105LT Bore: ø80 | Port thread: G | Arm opening: 105° | Arm position: Left | Switch: TURCK proximity
CKZ2N80TF-105LP Bore: ø80 | Port thread: G | Arm opening: 105° | Arm position: Left | Switch: P&F proximity
CKZ2N80TF-105DT Bore: ø80 | Port thread: G | Arm opening: 105° | Arm position: Both sides | Switch: TURCK proximity
CKZ2N80TF-105DP Bore: ø80 | Port thread: G | Arm opening: 105° | Arm position: Both sides | Switch: P&F proximity
CKZ2N80TF-120RT Bore: ø80 | Port thread: G | Arm opening: 120° | Arm position: Right | Switch: TURCK proximity
CKZ2N80TF-120RP Bore: ø80 | Port thread: G | Arm opening: 120° | Arm position: Right | Switch: P&F proximity
CKZ2N80TF-120LT Bore: ø80 | Port thread: G | Arm opening: 120° | Arm position: Left | Switch: TURCK proximity
CKZ2N80TF-120LP Bore: ø80 | Port thread: G | Arm opening: 120° | Arm position: Left | Switch: P&F proximity
CKZ2N80TF-120DT Bore: ø80 | Port thread: G | Arm opening: 120° | Arm position: Both sides | Switch: TURCK proximity
CKZ2N80TF-120DP Bore: ø80 | Port thread: G | Arm opening: 120° | Arm position: Both sides | Switch: P&F proximity
CKZ2N80TF-135RT Bore: ø80 | Port thread: G | Arm opening: 135° | Arm position: Right | Switch: TURCK proximity
CKZ2N80TF-135RP Bore: ø80 | Port thread: G | Arm opening: 135° | Arm position: Right | Switch: P&F proximity
CKZ2N80TF-135LT Bore: ø80 | Port thread: G | Arm opening: 135° | Arm position: Left | Switch: TURCK proximity
CKZ2N80TF-135LP Bore: ø80 | Port thread: G | Arm opening: 135° | Arm position: Left | Switch: P&F proximity
CKZ2N80TF-135DT Bore: ø80 | Port thread: G | Arm opening: 135° | Arm position: Both sides | Switch: TURCK proximity
CKZ2N80TF-135DP Bore: ø80 | Port thread: G | Arm opening: 135° | Arm position: Both sides | Switch: P&F proximity
Clamp CylindersSMC
288 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC CKZ2N NAAMS Power Clamp Cylinder (ø50 to ø80)

Brand SMC·Clamp Cylinders

Available part numbers (288)

CKZ2N50-30RT, CKZ2N50-30RP, CKZ2N50-30LT, CKZ2N50-30LP, CKZ2N50-30DT, CKZ2N50-30DP, CKZ2N50-45RT, CKZ2N50-45RP, CKZ2N50-45LT, CKZ2N50-45LP + 278 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CKZ2N50-30RTBore: ø50 | Port thread: NPT | Arm opening: 30° | Arm position: Right | Switch: TURCK proximity
CKZ2N50-30RPBore: ø50 | Port thread: NPT | Arm opening: 30° | Arm position: Right | Switch: P&F proximity
CKZ2N50-30LTBore: ø50 | Port thread: NPT | Arm opening: 30° | Arm position: Left | Switch: TURCK proximity
CKZ2N50-30LPBore: ø50 | Port thread: NPT | Arm opening: 30° | Arm position: Left | Switch: P&F proximity
CKZ2N50-30DTBore: ø50 | Port thread: NPT | Arm opening: 30° | Arm position: Both sides | Switch: TURCK proximity
CKZ2N50-30DPBore: ø50 | Port thread: NPT | Arm opening: 30° | Arm position: Both sides | Switch: P&F proximity
CKZ2N50-45RTBore: ø50 | Port thread: NPT | Arm opening: 45° | Arm position: Right | Switch: TURCK proximity
CKZ2N50-45RPBore: ø50 | Port thread: NPT | Arm opening: 45° | Arm position: Right | Switch: P&F proximity
CKZ2N50-45LTBore: ø50 | Port thread: NPT | Arm opening: 45° | Arm position: Left | Switch: TURCK proximity
CKZ2N50-45LPBore: ø50 | Port thread: NPT | Arm opening: 45° | Arm position: Left | Switch: P&F proximity
CKZ2N50-45DTBore: ø50 | Port thread: NPT | Arm opening: 45° | Arm position: Both sides | Switch: TURCK proximity
CKZ2N50-45DPBore: ø50 | Port thread: NPT | Arm opening: 45° | Arm position: Both sides | Switch: P&F proximity
CKZ2N50-60RTBore: ø50 | Port thread: NPT | Arm opening: 60° | Arm position: Right | Switch: TURCK proximity
CKZ2N50-60RPBore: ø50 | Port thread: NPT | Arm opening: 60° | Arm position: Right | Switch: P&F proximity
CKZ2N50-60LTBore: ø50 | Port thread: NPT | Arm opening: 60° | Arm position: Left | Switch: TURCK proximity
CKZ2N50-60LPBore: ø50 | Port thread: NPT | Arm opening: 60° | Arm position: Left | Switch: P&F proximity
CKZ2N50-60DTBore: ø50 | Port thread: NPT | Arm opening: 60° | Arm position: Both sides | Switch: TURCK proximity
CKZ2N50-60DPBore: ø50 | Port thread: NPT | Arm opening: 60° | Arm position: Both sides | Switch: P&F proximity
CKZ2N50-75RTBore: ø50 | Port thread: NPT | Arm opening: 75° | Arm position: Right | Switch: TURCK proximity
CKZ2N50-75RPBore: ø50 | Port thread: NPT | Arm opening: 75° | Arm position: Right | Switch: P&F proximity
CKZ2N50-75LTBore: ø50 | Port thread: NPT | Arm opening: 75° | Arm position: Left | Switch: TURCK proximity
CKZ2N50-75LPBore: ø50 | Port thread: NPT | Arm opening: 75° | Arm position: Left | Switch: P&F proximity
CKZ2N50-75DTBore: ø50 | Port thread: NPT | Arm opening: 75° | Arm position: Both sides | Switch: TURCK proximity
CKZ2N50-75DPBore: ø50 | Port thread: NPT | Arm opening: 75° | Arm position: Both sides | Switch: P&F proximity
CKZ2N50-90RTBore: ø50 | Port thread: NPT | Arm opening: 90° | Arm position: Right | Switch: TURCK proximity
CKZ2N50-90RPBore: ø50 | Port thread: NPT | Arm opening: 90° | Arm position: Right | Switch: P&F proximity
CKZ2N50-90LTBore: ø50 | Port thread: NPT | Arm opening: 90° | Arm position: Left | Switch: TURCK proximity
CKZ2N50-90LPBore: ø50 | Port thread: NPT | Arm opening: 90° | Arm position: Left | Switch: P&F proximity
CKZ2N50-90DTBore: ø50 | Port thread: NPT | Arm opening: 90° | Arm position: Both sides | Switch: TURCK proximity
CKZ2N50-90DPBore: ø50 | Port thread: NPT | Arm opening: 90° | Arm position: Both sides | Switch: P&F proximity
CKZ2N50-105RTBore: ø50 | Port thread: NPT | Arm opening: 105° | Arm position: Right | Switch: TURCK proximity
CKZ2N50-105RPBore: ø50 | Port thread: NPT | Arm opening: 105° | Arm position: Right | Switch: P&F proximity
CKZ2N50-105LTBore: ø50 | Port thread: NPT | Arm opening: 105° | Arm position: Left | Switch: TURCK proximity
CKZ2N50-105LPBore: ø50 | Port thread: NPT | Arm opening: 105° | Arm position: Left | Switch: P&F proximity
CKZ2N50-105DTBore: ø50 | Port thread: NPT | Arm opening: 105° | Arm position: Both sides | Switch: TURCK proximity
CKZ2N50-105DPBore: ø50 | Port thread: NPT | Arm opening: 105° | Arm position: Both sides | Switch: P&F proximity
CKZ2N50-120RTBore: ø50 | Port thread: NPT | Arm opening: 120° | Arm position: Right | Switch: TURCK proximity
CKZ2N50-120RPBore: ø50 | Port thread: NPT | Arm opening: 120° | Arm position: Right | Switch: P&F proximity
CKZ2N50-120LTBore: ø50 | Port thread: NPT | Arm opening: 120° | Arm position: Left | Switch: TURCK proximity
CKZ2N50-120LPBore: ø50 | Port thread: NPT | Arm opening: 120° | Arm position: Left | Switch: P&F proximity
CKZ2N50-120DTBore: ø50 | Port thread: NPT | Arm opening: 120° | Arm position: Both sides | Switch: TURCK proximity
CKZ2N50-120DPBore: ø50 | Port thread: NPT | Arm opening: 120° | Arm position: Both sides | Switch: P&F proximity
CKZ2N50-135RTBore: ø50 | Port thread: NPT | Arm opening: 135° | Arm position: Right | Switch: TURCK proximity
CKZ2N50-135RPBore: ø50 | Port thread: NPT | Arm opening: 135° | Arm position: Right | Switch: P&F proximity
CKZ2N50-135LTBore: ø50 | Port thread: NPT | Arm opening: 135° | Arm position: Left | Switch: TURCK proximity
CKZ2N50-135LPBore: ø50 | Port thread: NPT | Arm opening: 135° | Arm position: Left | Switch: P&F proximity
CKZ2N50-135DTBore: ø50 | Port thread: NPT | Arm opening: 135° | Arm position: Both sides | Switch: TURCK proximity
CKZ2N50-135DPBore: ø50 | Port thread: NPT | Arm opening: 135° | Arm position: Both sides | Switch: P&F proximity
CKZ2N50TF-30RTBore: ø50 | Port thread: G | Arm opening: 30° | Arm position: Right | Switch: TURCK proximity
CKZ2N50TF-30RPBore: ø50 | Port thread: G | Arm opening: 30° | Arm position: Right | Switch: P&F proximity
CKZ2N50TF-30LTBore: ø50 | Port thread: G | Arm opening: 30° | Arm position: Left | Switch: TURCK proximity
CKZ2N50TF-30LPBore: ø50 | Port thread: G | Arm opening: 30° | Arm position: Left | Switch: P&F proximity
CKZ2N50TF-30DTBore: ø50 | Port thread: G | Arm opening: 30° | Arm position: Both sides | Switch: TURCK proximity
CKZ2N50TF-30DPBore: ø50 | Port thread: G | Arm opening: 30° | Arm position: Both sides | Switch: P&F proximity
CKZ2N50TF-45RTBore: ø50 | Port thread: G | Arm opening: 45° | Arm position: Right | Switch: TURCK proximity
CKZ2N50TF-45RPBore: ø50 | Port thread: G | Arm opening: 45° | Arm position: Right | Switch: P&F proximity
CKZ2N50TF-45LTBore: ø50 | Port thread: G | Arm opening: 45° | Arm position: Left | Switch: TURCK proximity
CKZ2N50TF-45LPBore: ø50 | Port thread: G | Arm opening: 45° | Arm position: Left | Switch: P&F proximity
CKZ2N50TF-45DTBore: ø50 | Port thread: G | Arm opening: 45° | Arm position: Both sides | Switch: TURCK proximity
CKZ2N50TF-45DPBore: ø50 | Port thread: G | Arm opening: 45° | Arm position: Both sides | Switch: P&F proximity
CKZ2N50TF-60RTBore: ø50 | Port thread: G | Arm opening: 60° | Arm position: Right | Switch: TURCK proximity
CKZ2N50TF-60RPBore: ø50 | Port thread: G | Arm opening: 60° | Arm position: Right | Switch: P&F proximity
CKZ2N50TF-60LTBore: ø50 | Port thread: G | Arm opening: 60° | Arm position: Left | Switch: TURCK proximity
CKZ2N50TF-60LPBore: ø50 | Port thread: G | Arm opening: 60° | Arm position: Left | Switch: P&F proximity
CKZ2N50TF-60DTBore: ø50 | Port thread: G | Arm opening: 60° | Arm position: Both sides | Switch: TURCK proximity
CKZ2N50TF-60DPBore: ø50 | Port thread: G | Arm opening: 60° | Arm position: Both sides | Switch: P&F proximity
CKZ2N50TF-75RTBore: ø50 | Port thread: G | Arm opening: 75° | Arm position: Right | Switch: TURCK proximity
CKZ2N50TF-75RPBore: ø50 | Port thread: G | Arm opening: 75° | Arm position: Right | Switch: P&F proximity
CKZ2N50TF-75LTBore: ø50 | Port thread: G | Arm opening: 75° | Arm position: Left | Switch: TURCK proximity
CKZ2N50TF-75LPBore: ø50 | Port thread: G | Arm opening: 75° | Arm position: Left | Switch: P&F proximity
CKZ2N50TF-75DTBore: ø50 | Port thread: G | Arm opening: 75° | Arm position: Both sides | Switch: TURCK proximity
CKZ2N50TF-75DPBore: ø50 | Port thread: G | Arm opening: 75° | Arm position: Both sides | Switch: P&F proximity
CKZ2N50TF-90RTBore: ø50 | Port thread: G | Arm opening: 90° | Arm position: Right | Switch: TURCK proximity
CKZ2N50TF-90RPBore: ø50 | Port thread: G | Arm opening: 90° | Arm position: Right | Switch: P&F proximity
CKZ2N50TF-90LTBore: ø50 | Port thread: G | Arm opening: 90° | Arm position: Left | Switch: TURCK proximity
CKZ2N50TF-90LPBore: ø50 | Port thread: G | Arm opening: 90° | Arm position: Left | Switch: P&F proximity
CKZ2N50TF-90DTBore: ø50 | Port thread: G | Arm opening: 90° | Arm position: Both sides | Switch: TURCK proximity
CKZ2N50TF-90DPBore: ø50 | Port thread: G | Arm opening: 90° | Arm position: Both sides | Switch: P&F proximity
CKZ2N50TF-105RTBore: ø50 | Port thread: G | Arm opening: 105° | Arm position: Right | Switch: TURCK proximity
CKZ2N50TF-105RPBore: ø50 | Port thread: G | Arm opening: 105° | Arm position: Right | Switch: P&F proximity
CKZ2N50TF-105LTBore: ø50 | Port thread: G | Arm opening: 105° | Arm position: Left | Switch: TURCK proximity
CKZ2N50TF-105LPBore: ø50 | Port thread: G | Arm opening: 105° | Arm position: Left | Switch: P&F proximity
CKZ2N50TF-105DTBore: ø50 | Port thread: G | Arm opening: 105° | Arm position: Both sides | Switch: TURCK proximity
CKZ2N50TF-105DPBore: ø50 | Port thread: G | Arm opening: 105° | Arm position: Both sides | Switch: P&F proximity
CKZ2N50TF-120RTBore: ø50 | Port thread: G | Arm opening: 120° | Arm position: Right | Switch: TURCK proximity
CKZ2N50TF-120RPBore: ø50 | Port thread: G | Arm opening: 120° | Arm position: Right | Switch: P&F proximity
CKZ2N50TF-120LTBore: ø50 | Port thread: G | Arm opening: 120° | Arm position: Left | Switch: TURCK proximity
CKZ2N50TF-120LPBore: ø50 | Port thread: G | Arm opening: 120° | Arm position: Left | Switch: P&F proximity
CKZ2N50TF-120DTBore: ø50 | Port thread: G | Arm opening: 120° | Arm position: Both sides | Switch: TURCK proximity
CKZ2N50TF-120DPBore: ø50 | Port thread: G | Arm opening: 120° | Arm position: Both sides | Switch: P&F proximity
CKZ2N50TF-135RTBore: ø50 | Port thread: G | Arm opening: 135° | Arm position: Right | Switch: TURCK proximity
CKZ2N50TF-135RPBore: ø50 | Port thread: G | Arm opening: 135° | Arm position: Right | Switch: P&F proximity
CKZ2N50TF-135LTBore: ø50 | Port thread: G | Arm opening: 135° | Arm position: Left | Switch: TURCK proximity
CKZ2N50TF-135LPBore: ø50 | Port thread: G | Arm opening: 135° | Arm position: Left | Switch: P&F proximity
CKZ2N50TF-135DTBore: ø50 | Port thread: G | Arm opening: 135° | Arm position: Both sides | Switch: TURCK proximity
CKZ2N50TF-135DPBore: ø50 | Port thread: G | Arm opening: 135° | Arm position: Both sides | Switch: P&F proximity
CKZ2N63-30RTBore: ø63 | Port thread: NPT | Arm opening: 30° | Arm position: Right | Switch: TURCK proximity
CKZ2N63-30RPBore: ø63 | Port thread: NPT | Arm opening: 30° | Arm position: Right | Switch: P&F proximity
CKZ2N63-30LTBore: ø63 | Port thread: NPT | Arm opening: 30° | Arm position: Left | Switch: TURCK proximity
CKZ2N63-30LPBore: ø63 | Port thread: NPT | Arm opening: 30° | Arm position: Left | Switch: P&F proximity
CKZ2N63-30DTBore: ø63 | Port thread: NPT | Arm opening: 30° | Arm position: Both sides | Switch: TURCK proximity
CKZ2N63-30DPBore: ø63 | Port thread: NPT | Arm opening: 30° | Arm position: Both sides | Switch: P&F proximity
CKZ2N63-45RTBore: ø63 | Port thread: NPT | Arm opening: 45° | Arm position: Right | Switch: TURCK proximity
CKZ2N63-45RPBore: ø63 | Port thread: NPT | Arm opening: 45° | Arm position: Right | Switch: P&F proximity
CKZ2N63-45LTBore: ø63 | Port thread: NPT | Arm opening: 45° | Arm position: Left | Switch: TURCK proximity
CKZ2N63-45LPBore: ø63 | Port thread: NPT | Arm opening: 45° | Arm position: Left | Switch: P&F proximity
CKZ2N63-45DTBore: ø63 | Port thread: NPT | Arm opening: 45° | Arm position: Both sides | Switch: TURCK proximity
CKZ2N63-45DPBore: ø63 | Port thread: NPT | Arm opening: 45° | Arm position: Both sides | Switch: P&F proximity
CKZ2N63-60RTBore: ø63 | Port thread: NPT | Arm opening: 60° | Arm position: Right | Switch: TURCK proximity
CKZ2N63-60RPBore: ø63 | Port thread: NPT | Arm opening: 60° | Arm position: Right | Switch: P&F proximity
CKZ2N63-60LTBore: ø63 | Port thread: NPT | Arm opening: 60° | Arm position: Left | Switch: TURCK proximity
CKZ2N63-60LPBore: ø63 | Port thread: NPT | Arm opening: 60° | Arm position: Left | Switch: P&F proximity
CKZ2N63-60DTBore: ø63 | Port thread: NPT | Arm opening: 60° | Arm position: Both sides | Switch: TURCK proximity
CKZ2N63-60DPBore: ø63 | Port thread: NPT | Arm opening: 60° | Arm position: Both sides | Switch: P&F proximity
CKZ2N63-75RTBore: ø63 | Port thread: NPT | Arm opening: 75° | Arm position: Right | Switch: TURCK proximity
CKZ2N63-75RPBore: ø63 | Port thread: NPT | Arm opening: 75° | Arm position: Right | Switch: P&F proximity
CKZ2N63-75LTBore: ø63 | Port thread: NPT | Arm opening: 75° | Arm position: Left | Switch: TURCK proximity
CKZ2N63-75LPBore: ø63 | Port thread: NPT | Arm opening: 75° | Arm position: Left | Switch: P&F proximity
CKZ2N63-75DTBore: ø63 | Port thread: NPT | Arm opening: 75° | Arm position: Both sides | Switch: TURCK proximity
CKZ2N63-75DPBore: ø63 | Port thread: NPT | Arm opening: 75° | Arm position: Both sides | Switch: P&F proximity
CKZ2N63-90RTBore: ø63 | Port thread: NPT | Arm opening: 90° | Arm position: Right | Switch: TURCK proximity
CKZ2N63-90RPBore: ø63 | Port thread: NPT | Arm opening: 90° | Arm position: Right | Switch: P&F proximity
CKZ2N63-90LTBore: ø63 | Port thread: NPT | Arm opening: 90° | Arm position: Left | Switch: TURCK proximity
CKZ2N63-90LPBore: ø63 | Port thread: NPT | Arm opening: 90° | Arm position: Left | Switch: P&F proximity
CKZ2N63-90DTBore: ø63 | Port thread: NPT | Arm opening: 90° | Arm position: Both sides | Switch: TURCK proximity
CKZ2N63-90DPBore: ø63 | Port thread: NPT | Arm opening: 90° | Arm position: Both sides | Switch: P&F proximity
CKZ2N63-105RTBore: ø63 | Port thread: NPT | Arm opening: 105° | Arm position: Right | Switch: TURCK proximity
CKZ2N63-105RPBore: ø63 | Port thread: NPT | Arm opening: 105° | Arm position: Right | Switch: P&F proximity
CKZ2N63-105LTBore: ø63 | Port thread: NPT | Arm opening: 105° | Arm position: Left | Switch: TURCK proximity
CKZ2N63-105LPBore: ø63 | Port thread: NPT | Arm opening: 105° | Arm position: Left | Switch: P&F proximity
CKZ2N63-105DTBore: ø63 | Port thread: NPT | Arm opening: 105° | Arm position: Both sides | Switch: TURCK proximity
CKZ2N63-105DPBore: ø63 | Port thread: NPT | Arm opening: 105° | Arm position: Both sides | Switch: P&F proximity
CKZ2N63-120RTBore: ø63 | Port thread: NPT | Arm opening: 120° | Arm position: Right | Switch: TURCK proximity
CKZ2N63-120RPBore: ø63 | Port thread: NPT | Arm opening: 120° | Arm position: Right | Switch: P&F proximity
CKZ2N63-120LTBore: ø63 | Port thread: NPT | Arm opening: 120° | Arm position: Left | Switch: TURCK proximity
CKZ2N63-120LPBore: ø63 | Port thread: NPT | Arm opening: 120° | Arm position: Left | Switch: P&F proximity
CKZ2N63-120DTBore: ø63 | Port thread: NPT | Arm opening: 120° | Arm position: Both sides | Switch: TURCK proximity
CKZ2N63-120DPBore: ø63 | Port thread: NPT | Arm opening: 120° | Arm position: Both sides | Switch: P&F proximity
CKZ2N63-135RTBore: ø63 | Port thread: NPT | Arm opening: 135° | Arm position: Right | Switch: TURCK proximity
CKZ2N63-135RPBore: ø63 | Port thread: NPT | Arm opening: 135° | Arm position: Right | Switch: P&F proximity
CKZ2N63-135LTBore: ø63 | Port thread: NPT | Arm opening: 135° | Arm position: Left | Switch: TURCK proximity
CKZ2N63-135LPBore: ø63 | Port thread: NPT | Arm opening: 135° | Arm position: Left | Switch: P&F proximity
CKZ2N63-135DTBore: ø63 | Port thread: NPT | Arm opening: 135° | Arm position: Both sides | Switch: TURCK proximity
CKZ2N63-135DPBore: ø63 | Port thread: NPT | Arm opening: 135° | Arm position: Both sides | Switch: P&F proximity
CKZ2N63TF-30RTBore: ø63 | Port thread: G | Arm opening: 30° | Arm position: Right | Switch: TURCK proximity
CKZ2N63TF-30RPBore: ø63 | Port thread: G | Arm opening: 30° | Arm position: Right | Switch: P&F proximity
CKZ2N63TF-30LTBore: ø63 | Port thread: G | Arm opening: 30° | Arm position: Left | Switch: TURCK proximity
CKZ2N63TF-30LPBore: ø63 | Port thread: G | Arm opening: 30° | Arm position: Left | Switch: P&F proximity
CKZ2N63TF-30DTBore: ø63 | Port thread: G | Arm opening: 30° | Arm position: Both sides | Switch: TURCK proximity
CKZ2N63TF-30DPBore: ø63 | Port thread: G | Arm opening: 30° | Arm position: Both sides | Switch: P&F proximity
CKZ2N63TF-45RTBore: ø63 | Port thread: G | Arm opening: 45° | Arm position: Right | Switch: TURCK proximity
CKZ2N63TF-45RPBore: ø63 | Port thread: G | Arm opening: 45° | Arm position: Right | Switch: P&F proximity
CKZ2N63TF-45LTBore: ø63 | Port thread: G | Arm opening: 45° | Arm position: Left | Switch: TURCK proximity
CKZ2N63TF-45LPBore: ø63 | Port thread: G | Arm opening: 45° | Arm position: Left | Switch: P&F proximity
CKZ2N63TF-45DTBore: ø63 | Port thread: G | Arm opening: 45° | Arm position: Both sides | Switch: TURCK proximity
CKZ2N63TF-45DPBore: ø63 | Port thread: G | Arm opening: 45° | Arm position: Both sides | Switch: P&F proximity
CKZ2N63TF-60RTBore: ø63 | Port thread: G | Arm opening: 60° | Arm position: Right | Switch: TURCK proximity
CKZ2N63TF-60RPBore: ø63 | Port thread: G | Arm opening: 60° | Arm position: Right | Switch: P&F proximity
CKZ2N63TF-60LTBore: ø63 | Port thread: G | Arm opening: 60° | Arm position: Left | Switch: TURCK proximity
CKZ2N63TF-60LPBore: ø63 | Port thread: G | Arm opening: 60° | Arm position: Left | Switch: P&F proximity
CKZ2N63TF-60DTBore: ø63 | Port thread: G | Arm opening: 60° | Arm position: Both sides | Switch: TURCK proximity
CKZ2N63TF-60DPBore: ø63 | Port thread: G | Arm opening: 60° | Arm position: Both sides | Switch: P&F proximity
CKZ2N63TF-75RTBore: ø63 | Port thread: G | Arm opening: 75° | Arm position: Right | Switch: TURCK proximity
CKZ2N63TF-75RPBore: ø63 | Port thread: G | Arm opening: 75° | Arm position: Right | Switch: P&F proximity
CKZ2N63TF-75LTBore: ø63 | Port thread: G | Arm opening: 75° | Arm position: Left | Switch: TURCK proximity
CKZ2N63TF-75LPBore: ø63 | Port thread: G | Arm opening: 75° | Arm position: Left | Switch: P&F proximity
CKZ2N63TF-75DTBore: ø63 | Port thread: G | Arm opening: 75° | Arm position: Both sides | Switch: TURCK proximity
CKZ2N63TF-75DPBore: ø63 | Port thread: G | Arm opening: 75° | Arm position: Both sides | Switch: P&F proximity
CKZ2N63TF-90RTBore: ø63 | Port thread: G | Arm opening: 90° | Arm position: Right | Switch: TURCK proximity
CKZ2N63TF-90RPBore: ø63 | Port thread: G | Arm opening: 90° | Arm position: Right | Switch: P&F proximity
CKZ2N63TF-90LTBore: ø63 | Port thread: G | Arm opening: 90° | Arm position: Left | Switch: TURCK proximity
CKZ2N63TF-90LPBore: ø63 | Port thread: G | Arm opening: 90° | Arm position: Left | Switch: P&F proximity
CKZ2N63TF-90DTBore: ø63 | Port thread: G | Arm opening: 90° | Arm position: Both sides | Switch: TURCK proximity
CKZ2N63TF-90DPBore: ø63 | Port thread: G | Arm opening: 90° | Arm position: Both sides | Switch: P&F proximity
CKZ2N63TF-105RTBore: ø63 | Port thread: G | Arm opening: 105° | Arm position: Right | Switch: TURCK proximity
CKZ2N63TF-105RPBore: ø63 | Port thread: G | Arm opening: 105° | Arm position: Right | Switch: P&F proximity
CKZ2N63TF-105LTBore: ø63 | Port thread: G | Arm opening: 105° | Arm position: Left | Switch: TURCK proximity
CKZ2N63TF-105LPBore: ø63 | Port thread: G | Arm opening: 105° | Arm position: Left | Switch: P&F proximity
CKZ2N63TF-105DTBore: ø63 | Port thread: G | Arm opening: 105° | Arm position: Both sides | Switch: TURCK proximity
CKZ2N63TF-105DPBore: ø63 | Port thread: G | Arm opening: 105° | Arm position: Both sides | Switch: P&F proximity
CKZ2N63TF-120RTBore: ø63 | Port thread: G | Arm opening: 120° | Arm position: Right | Switch: TURCK proximity
CKZ2N63TF-120RPBore: ø63 | Port thread: G | Arm opening: 120° | Arm position: Right | Switch: P&F proximity
CKZ2N63TF-120LTBore: ø63 | Port thread: G | Arm opening: 120° | Arm position: Left | Switch: TURCK proximity
CKZ2N63TF-120LPBore: ø63 | Port thread: G | Arm opening: 120° | Arm position: Left | Switch: P&F proximity
CKZ2N63TF-120DTBore: ø63 | Port thread: G | Arm opening: 120° | Arm position: Both sides | Switch: TURCK proximity
CKZ2N63TF-120DPBore: ø63 | Port thread: G | Arm opening: 120° | Arm position: Both sides | Switch: P&F proximity
CKZ2N63TF-135RTBore: ø63 | Port thread: G | Arm opening: 135° | Arm position: Right | Switch: TURCK proximity
CKZ2N63TF-135RPBore: ø63 | Port thread: G | Arm opening: 135° | Arm position: Right | Switch: P&F proximity
CKZ2N63TF-135LTBore: ø63 | Port thread: G | Arm opening: 135° | Arm position: Left | Switch: TURCK proximity
CKZ2N63TF-135LPBore: ø63 | Port thread: G | Arm opening: 135° | Arm position: Left | Switch: P&F proximity
CKZ2N63TF-135DTBore: ø63 | Port thread: G | Arm opening: 135° | Arm position: Both sides | Switch: TURCK proximity
CKZ2N63TF-135DPBore: ø63 | Port thread: G | Arm opening: 135° | Arm position: Both sides | Switch: P&F proximity
CKZ2N80-30RTBore: ø80 | Port thread: NPT | Arm opening: 30° | Arm position: Right | Switch: TURCK proximity
CKZ2N80-30RPBore: ø80 | Port thread: NPT | Arm opening: 30° | Arm position: Right | Switch: P&F proximity
CKZ2N80-30LTBore: ø80 | Port thread: NPT | Arm opening: 30° | Arm position: Left | Switch: TURCK proximity
CKZ2N80-30LPBore: ø80 | Port thread: NPT | Arm opening: 30° | Arm position: Left | Switch: P&F proximity
CKZ2N80-30DTBore: ø80 | Port thread: NPT | Arm opening: 30° | Arm position: Both sides | Switch: TURCK proximity
CKZ2N80-30DPBore: ø80 | Port thread: NPT | Arm opening: 30° | Arm position: Both sides | Switch: P&F proximity
CKZ2N80-45RTBore: ø80 | Port thread: NPT | Arm opening: 45° | Arm position: Right | Switch: TURCK proximity
CKZ2N80-45RPBore: ø80 | Port thread: NPT | Arm opening: 45° | Arm position: Right | Switch: P&F proximity
CKZ2N80-45LTBore: ø80 | Port thread: NPT | Arm opening: 45° | Arm position: Left | Switch: TURCK proximity
CKZ2N80-45LPBore: ø80 | Port thread: NPT | Arm opening: 45° | Arm position: Left | Switch: P&F proximity
CKZ2N80-45DTBore: ø80 | Port thread: NPT | Arm opening: 45° | Arm position: Both sides | Switch: TURCK proximity
CKZ2N80-45DPBore: ø80 | Port thread: NPT | Arm opening: 45° | Arm position: Both sides | Switch: P&F proximity
CKZ2N80-60RTBore: ø80 | Port thread: NPT | Arm opening: 60° | Arm position: Right | Switch: TURCK proximity
CKZ2N80-60RPBore: ø80 | Port thread: NPT | Arm opening: 60° | Arm position: Right | Switch: P&F proximity
CKZ2N80-60LTBore: ø80 | Port thread: NPT | Arm opening: 60° | Arm position: Left | Switch: TURCK proximity
CKZ2N80-60LPBore: ø80 | Port thread: NPT | Arm opening: 60° | Arm position: Left | Switch: P&F proximity
CKZ2N80-60DTBore: ø80 | Port thread: NPT | Arm opening: 60° | Arm position: Both sides | Switch: TURCK proximity
CKZ2N80-60DPBore: ø80 | Port thread: NPT | Arm opening: 60° | Arm position: Both sides | Switch: P&F proximity
CKZ2N80-75RTBore: ø80 | Port thread: NPT | Arm opening: 75° | Arm position: Right | Switch: TURCK proximity
CKZ2N80-75RPBore: ø80 | Port thread: NPT | Arm opening: 75° | Arm position: Right | Switch: P&F proximity
CKZ2N80-75LTBore: ø80 | Port thread: NPT | Arm opening: 75° | Arm position: Left | Switch: TURCK proximity
CKZ2N80-75LPBore: ø80 | Port thread: NPT | Arm opening: 75° | Arm position: Left | Switch: P&F proximity
CKZ2N80-75DTBore: ø80 | Port thread: NPT | Arm opening: 75° | Arm position: Both sides | Switch: TURCK proximity
CKZ2N80-75DPBore: ø80 | Port thread: NPT | Arm opening: 75° | Arm position: Both sides | Switch: P&F proximity
CKZ2N80-90RTBore: ø80 | Port thread: NPT | Arm opening: 90° | Arm position: Right | Switch: TURCK proximity
CKZ2N80-90RPBore: ø80 | Port thread: NPT | Arm opening: 90° | Arm position: Right | Switch: P&F proximity
CKZ2N80-90LTBore: ø80 | Port thread: NPT | Arm opening: 90° | Arm position: Left | Switch: TURCK proximity
CKZ2N80-90LPBore: ø80 | Port thread: NPT | Arm opening: 90° | Arm position: Left | Switch: P&F proximity
CKZ2N80-90DTBore: ø80 | Port thread: NPT | Arm opening: 90° | Arm position: Both sides | Switch: TURCK proximity
CKZ2N80-90DPBore: ø80 | Port thread: NPT | Arm opening: 90° | Arm position: Both sides | Switch: P&F proximity
CKZ2N80-105RTBore: ø80 | Port thread: NPT | Arm opening: 105° | Arm position: Right | Switch: TURCK proximity
CKZ2N80-105RPBore: ø80 | Port thread: NPT | Arm opening: 105° | Arm position: Right | Switch: P&F proximity
CKZ2N80-105LTBore: ø80 | Port thread: NPT | Arm opening: 105° | Arm position: Left | Switch: TURCK proximity
CKZ2N80-105LPBore: ø80 | Port thread: NPT | Arm opening: 105° | Arm position: Left | Switch: P&F proximity
CKZ2N80-105DTBore: ø80 | Port thread: NPT | Arm opening: 105° | Arm position: Both sides | Switch: TURCK proximity
CKZ2N80-105DPBore: ø80 | Port thread: NPT | Arm opening: 105° | Arm position: Both sides | Switch: P&F proximity
CKZ2N80-120RTBore: ø80 | Port thread: NPT | Arm opening: 120° | Arm position: Right | Switch: TURCK proximity
CKZ2N80-120RPBore: ø80 | Port thread: NPT | Arm opening: 120° | Arm position: Right | Switch: P&F proximity
CKZ2N80-120LTBore: ø80 | Port thread: NPT | Arm opening: 120° | Arm position: Left | Switch: TURCK proximity
CKZ2N80-120LPBore: ø80 | Port thread: NPT | Arm opening: 120° | Arm position: Left | Switch: P&F proximity
CKZ2N80-120DTBore: ø80 | Port thread: NPT | Arm opening: 120° | Arm position: Both sides | Switch: TURCK proximity
CKZ2N80-120DPBore: ø80 | Port thread: NPT | Arm opening: 120° | Arm position: Both sides | Switch: P&F proximity
CKZ2N80-135RTBore: ø80 | Port thread: NPT | Arm opening: 135° | Arm position: Right | Switch: TURCK proximity
CKZ2N80-135RPBore: ø80 | Port thread: NPT | Arm opening: 135° | Arm position: Right | Switch: P&F proximity
CKZ2N80-135LTBore: ø80 | Port thread: NPT | Arm opening: 135° | Arm position: Left | Switch: TURCK proximity
CKZ2N80-135LPBore: ø80 | Port thread: NPT | Arm opening: 135° | Arm position: Left | Switch: P&F proximity
CKZ2N80-135DTBore: ø80 | Port thread: NPT | Arm opening: 135° | Arm position: Both sides | Switch: TURCK proximity
CKZ2N80-135DPBore: ø80 | Port thread: NPT | Arm opening: 135° | Arm position: Both sides | Switch: P&F proximity
CKZ2N80TF-30RTBore: ø80 | Port thread: G | Arm opening: 30° | Arm position: Right | Switch: TURCK proximity
CKZ2N80TF-30RPBore: ø80 | Port thread: G | Arm opening: 30° | Arm position: Right | Switch: P&F proximity
CKZ2N80TF-30LTBore: ø80 | Port thread: G | Arm opening: 30° | Arm position: Left | Switch: TURCK proximity
CKZ2N80TF-30LPBore: ø80 | Port thread: G | Arm opening: 30° | Arm position: Left | Switch: P&F proximity
CKZ2N80TF-30DTBore: ø80 | Port thread: G | Arm opening: 30° | Arm position: Both sides | Switch: TURCK proximity
CKZ2N80TF-30DPBore: ø80 | Port thread: G | Arm opening: 30° | Arm position: Both sides | Switch: P&F proximity
CKZ2N80TF-45RTBore: ø80 | Port thread: G | Arm opening: 45° | Arm position: Right | Switch: TURCK proximity
CKZ2N80TF-45RPBore: ø80 | Port thread: G | Arm opening: 45° | Arm position: Right | Switch: P&F proximity
CKZ2N80TF-45LTBore: ø80 | Port thread: G | Arm opening: 45° | Arm position: Left | Switch: TURCK proximity
CKZ2N80TF-45LPBore: ø80 | Port thread: G | Arm opening: 45° | Arm position: Left | Switch: P&F proximity
CKZ2N80TF-45DTBore: ø80 | Port thread: G | Arm opening: 45° | Arm position: Both sides | Switch: TURCK proximity
CKZ2N80TF-45DPBore: ø80 | Port thread: G | Arm opening: 45° | Arm position: Both sides | Switch: P&F proximity
CKZ2N80TF-60RTBore: ø80 | Port thread: G | Arm opening: 60° | Arm position: Right | Switch: TURCK proximity
CKZ2N80TF-60RPBore: ø80 | Port thread: G | Arm opening: 60° | Arm position: Right | Switch: P&F proximity
CKZ2N80TF-60LTBore: ø80 | Port thread: G | Arm opening: 60° | Arm position: Left | Switch: TURCK proximity
CKZ2N80TF-60LPBore: ø80 | Port thread: G | Arm opening: 60° | Arm position: Left | Switch: P&F proximity
CKZ2N80TF-60DTBore: ø80 | Port thread: G | Arm opening: 60° | Arm position: Both sides | Switch: TURCK proximity
CKZ2N80TF-60DPBore: ø80 | Port thread: G | Arm opening: 60° | Arm position: Both sides | Switch: P&F proximity
CKZ2N80TF-75RTBore: ø80 | Port thread: G | Arm opening: 75° | Arm position: Right | Switch: TURCK proximity
CKZ2N80TF-75RPBore: ø80 | Port thread: G | Arm opening: 75° | Arm position: Right | Switch: P&F proximity
CKZ2N80TF-75LTBore: ø80 | Port thread: G | Arm opening: 75° | Arm position: Left | Switch: TURCK proximity
CKZ2N80TF-75LPBore: ø80 | Port thread: G | Arm opening: 75° | Arm position: Left | Switch: P&F proximity
CKZ2N80TF-75DTBore: ø80 | Port thread: G | Arm opening: 75° | Arm position: Both sides | Switch: TURCK proximity
CKZ2N80TF-75DPBore: ø80 | Port thread: G | Arm opening: 75° | Arm position: Both sides | Switch: P&F proximity
CKZ2N80TF-90RTBore: ø80 | Port thread: G | Arm opening: 90° | Arm position: Right | Switch: TURCK proximity
CKZ2N80TF-90RPBore: ø80 | Port thread: G | Arm opening: 90° | Arm position: Right | Switch: P&F proximity
CKZ2N80TF-90LTBore: ø80 | Port thread: G | Arm opening: 90° | Arm position: Left | Switch: TURCK proximity
CKZ2N80TF-90LPBore: ø80 | Port thread: G | Arm opening: 90° | Arm position: Left | Switch: P&F proximity
CKZ2N80TF-90DTBore: ø80 | Port thread: G | Arm opening: 90° | Arm position: Both sides | Switch: TURCK proximity
CKZ2N80TF-90DPBore: ø80 | Port thread: G | Arm opening: 90° | Arm position: Both sides | Switch: P&F proximity
CKZ2N80TF-105RTBore: ø80 | Port thread: G | Arm opening: 105° | Arm position: Right | Switch: TURCK proximity
CKZ2N80TF-105RPBore: ø80 | Port thread: G | Arm opening: 105° | Arm position: Right | Switch: P&F proximity
CKZ2N80TF-105LTBore: ø80 | Port thread: G | Arm opening: 105° | Arm position: Left | Switch: TURCK proximity
CKZ2N80TF-105LPBore: ø80 | Port thread: G | Arm opening: 105° | Arm position: Left | Switch: P&F proximity
CKZ2N80TF-105DTBore: ø80 | Port thread: G | Arm opening: 105° | Arm position: Both sides | Switch: TURCK proximity
CKZ2N80TF-105DPBore: ø80 | Port thread: G | Arm opening: 105° | Arm position: Both sides | Switch: P&F proximity
CKZ2N80TF-120RTBore: ø80 | Port thread: G | Arm opening: 120° | Arm position: Right | Switch: TURCK proximity
CKZ2N80TF-120RPBore: ø80 | Port thread: G | Arm opening: 120° | Arm position: Right | Switch: P&F proximity
CKZ2N80TF-120LTBore: ø80 | Port thread: G | Arm opening: 120° | Arm position: Left | Switch: TURCK proximity
CKZ2N80TF-120LPBore: ø80 | Port thread: G | Arm opening: 120° | Arm position: Left | Switch: P&F proximity
CKZ2N80TF-120DTBore: ø80 | Port thread: G | Arm opening: 120° | Arm position: Both sides | Switch: TURCK proximity
CKZ2N80TF-120DPBore: ø80 | Port thread: G | Arm opening: 120° | Arm position: Both sides | Switch: P&F proximity
CKZ2N80TF-135RTBore: ø80 | Port thread: G | Arm opening: 135° | Arm position: Right | Switch: TURCK proximity
CKZ2N80TF-135RPBore: ø80 | Port thread: G | Arm opening: 135° | Arm position: Right | Switch: P&F proximity
CKZ2N80TF-135LTBore: ø80 | Port thread: G | Arm opening: 135° | Arm position: Left | Switch: TURCK proximity
CKZ2N80TF-135LPBore: ø80 | Port thread: G | Arm opening: 135° | Arm position: Left | Switch: P&F proximity
CKZ2N80TF-135DTBore: ø80 | Port thread: G | Arm opening: 135° | Arm position: Both sides | Switch: TURCK proximity
CKZ2N80TF-135DPBore: ø80 | Port thread: G | Arm opening: 135° | Arm position: Both sides | Switch: P&F proximity

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
