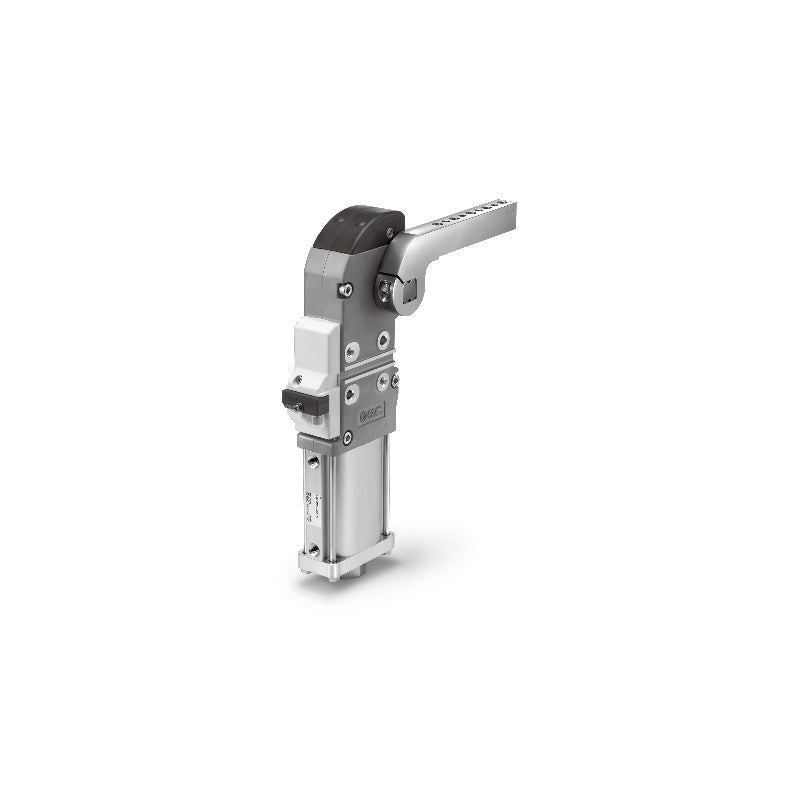

SMC CKZ3N NAAMS Power Clamp Cylinder (ø50, ø63, Manual Handle -X2568)

SMC CKZ3N-X2568 NAAMS-standard power clamp cylinder with manual handle (lock type), ø50 and ø63 bore, handle mounted left (L) or right (R).

Key features

NAAMS compliant; aluminum body up to 38% lighter than CKZ2N (ø63: 7.2 kg to 4.4 kg)
Clamp force up to 4000 N (ø63, arm length 100 mm, 0.5 MPa); toggle lock mechanism
Easy switch adjustment via switch cassette when arm opening is changed
Clamp arm position right, left or both sides; TURCK or P&F proximity switch or no switch
Manual handle type for manual work-setting processes; holds the handle in the unclamp position; includes metal cassette cover (C) and front mounting holes (F); arm opening 15° to 120°
Top cover rubber (UL94 V0 equivalent) or metal (M)

Specifications

Action	Double acting
Fluid	Air
Proof pressure	1.2 MPa
Max. operating pressure	0.8 MPa
Min. operating pressure	0.3 MPa
Ambient and fluid temperature	-10 to 60°C (no freezing)
Cushion	Clamp side none, unclamp side rubber cushion
Operating time	Clamp 1 s or more, unclamp 1 s or more
Max. holding moment	ø50 800 N·m, ø63 1500 N·m
Port thread	Rc (TP)
Switch	Proximity switch TURCK or P&F: DC10-30V, N.O. PNP, M12 connector
Cassette cover / front holes	Metal cassette cover (C), front mounting holes (F) standard
Source	SMC Korea catalog CKZ3N (SMCKR_CKZ3N.pdf), p. 97-98 (PDF p. 2-3)

CKZ3N50TP-15RTCF-X2568L		Bore: ø50 \| Arm opening: 15° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Left
CKZ3N50TP-15RTCF-X2568R		Bore: ø50 \| Arm opening: 15° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Right
CKZ3N50TP-15RTCFM-X2568L		Bore: ø50 \| Arm opening: 15° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Left
CKZ3N50TP-15RTCFM-X2568R		Bore: ø50 \| Arm opening: 15° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Right
CKZ3N50TP-15RPCF-X2568L		Bore: ø50 \| Arm opening: 15° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Left
CKZ3N50TP-15RPCF-X2568R		Bore: ø50 \| Arm opening: 15° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Right
CKZ3N50TP-15RPCFM-X2568L		Bore: ø50 \| Arm opening: 15° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Left
CKZ3N50TP-15RPCFM-X2568R		Bore: ø50 \| Arm opening: 15° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Right
CKZ3N50TP-15RWCF-X2568L		Bore: ø50 \| Arm opening: 15° \| Arm position: Right \| Switch: Without switch \| Top cover: Rubber \| Handle side: Left
CKZ3N50TP-15RWCF-X2568R		Bore: ø50 \| Arm opening: 15° \| Arm position: Right \| Switch: Without switch \| Top cover: Rubber \| Handle side: Right
CKZ3N50TP-15RWCFM-X2568L		Bore: ø50 \| Arm opening: 15° \| Arm position: Right \| Switch: Without switch \| Top cover: Metal \| Handle side: Left
CKZ3N50TP-15RWCFM-X2568R		Bore: ø50 \| Arm opening: 15° \| Arm position: Right \| Switch: Without switch \| Top cover: Metal \| Handle side: Right
CKZ3N50TP-15LTCF-X2568L		Bore: ø50 \| Arm opening: 15° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Left
CKZ3N50TP-15LTCF-X2568R		Bore: ø50 \| Arm opening: 15° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Right
CKZ3N50TP-15LTCFM-X2568L		Bore: ø50 \| Arm opening: 15° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Left
CKZ3N50TP-15LTCFM-X2568R		Bore: ø50 \| Arm opening: 15° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Right
CKZ3N50TP-15LPCF-X2568L		Bore: ø50 \| Arm opening: 15° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Left
CKZ3N50TP-15LPCF-X2568R		Bore: ø50 \| Arm opening: 15° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Right
CKZ3N50TP-15LPCFM-X2568L		Bore: ø50 \| Arm opening: 15° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Left
CKZ3N50TP-15LPCFM-X2568R		Bore: ø50 \| Arm opening: 15° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Right
CKZ3N50TP-15LWCF-X2568L		Bore: ø50 \| Arm opening: 15° \| Arm position: Left \| Switch: Without switch \| Top cover: Rubber \| Handle side: Left
CKZ3N50TP-15LWCF-X2568R		Bore: ø50 \| Arm opening: 15° \| Arm position: Left \| Switch: Without switch \| Top cover: Rubber \| Handle side: Right
CKZ3N50TP-15LWCFM-X2568L		Bore: ø50 \| Arm opening: 15° \| Arm position: Left \| Switch: Without switch \| Top cover: Metal \| Handle side: Left
CKZ3N50TP-15LWCFM-X2568R		Bore: ø50 \| Arm opening: 15° \| Arm position: Left \| Switch: Without switch \| Top cover: Metal \| Handle side: Right
CKZ3N50TP-15DTCF-X2568L		Bore: ø50 \| Arm opening: 15° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Left
CKZ3N50TP-15DTCF-X2568R		Bore: ø50 \| Arm opening: 15° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Right
CKZ3N50TP-15DTCFM-X2568L		Bore: ø50 \| Arm opening: 15° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Left
CKZ3N50TP-15DTCFM-X2568R		Bore: ø50 \| Arm opening: 15° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Right
CKZ3N50TP-15DPCF-X2568L		Bore: ø50 \| Arm opening: 15° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Left
CKZ3N50TP-15DPCF-X2568R		Bore: ø50 \| Arm opening: 15° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Right
CKZ3N50TP-15DPCFM-X2568L		Bore: ø50 \| Arm opening: 15° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Left
CKZ3N50TP-15DPCFM-X2568R		Bore: ø50 \| Arm opening: 15° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Right
CKZ3N50TP-15DWCF-X2568L		Bore: ø50 \| Arm opening: 15° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Rubber \| Handle side: Left
CKZ3N50TP-15DWCF-X2568R		Bore: ø50 \| Arm opening: 15° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Rubber \| Handle side: Right
CKZ3N50TP-15DWCFM-X2568L		Bore: ø50 \| Arm opening: 15° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Metal \| Handle side: Left
CKZ3N50TP-15DWCFM-X2568R		Bore: ø50 \| Arm opening: 15° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Metal \| Handle side: Right
CKZ3N50TP-30RTCF-X2568L		Bore: ø50 \| Arm opening: 30° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Left
CKZ3N50TP-30RTCF-X2568R		Bore: ø50 \| Arm opening: 30° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Right
CKZ3N50TP-30RTCFM-X2568L		Bore: ø50 \| Arm opening: 30° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Left
CKZ3N50TP-30RTCFM-X2568R		Bore: ø50 \| Arm opening: 30° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Right
CKZ3N50TP-30RPCF-X2568L		Bore: ø50 \| Arm opening: 30° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Left
CKZ3N50TP-30RPCF-X2568R		Bore: ø50 \| Arm opening: 30° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Right
CKZ3N50TP-30RPCFM-X2568L		Bore: ø50 \| Arm opening: 30° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Left
CKZ3N50TP-30RPCFM-X2568R		Bore: ø50 \| Arm opening: 30° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Right
CKZ3N50TP-30RWCF-X2568L		Bore: ø50 \| Arm opening: 30° \| Arm position: Right \| Switch: Without switch \| Top cover: Rubber \| Handle side: Left
CKZ3N50TP-30RWCF-X2568R		Bore: ø50 \| Arm opening: 30° \| Arm position: Right \| Switch: Without switch \| Top cover: Rubber \| Handle side: Right
CKZ3N50TP-30RWCFM-X2568L		Bore: ø50 \| Arm opening: 30° \| Arm position: Right \| Switch: Without switch \| Top cover: Metal \| Handle side: Left
CKZ3N50TP-30RWCFM-X2568R		Bore: ø50 \| Arm opening: 30° \| Arm position: Right \| Switch: Without switch \| Top cover: Metal \| Handle side: Right
CKZ3N50TP-30LTCF-X2568L		Bore: ø50 \| Arm opening: 30° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Left
CKZ3N50TP-30LTCF-X2568R		Bore: ø50 \| Arm opening: 30° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Right
CKZ3N50TP-30LTCFM-X2568L		Bore: ø50 \| Arm opening: 30° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Left
CKZ3N50TP-30LTCFM-X2568R		Bore: ø50 \| Arm opening: 30° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Right
CKZ3N50TP-30LPCF-X2568L		Bore: ø50 \| Arm opening: 30° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Left
CKZ3N50TP-30LPCF-X2568R		Bore: ø50 \| Arm opening: 30° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Right
CKZ3N50TP-30LPCFM-X2568L		Bore: ø50 \| Arm opening: 30° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Left
CKZ3N50TP-30LPCFM-X2568R		Bore: ø50 \| Arm opening: 30° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Right
CKZ3N50TP-30LWCF-X2568L		Bore: ø50 \| Arm opening: 30° \| Arm position: Left \| Switch: Without switch \| Top cover: Rubber \| Handle side: Left
CKZ3N50TP-30LWCF-X2568R		Bore: ø50 \| Arm opening: 30° \| Arm position: Left \| Switch: Without switch \| Top cover: Rubber \| Handle side: Right
CKZ3N50TP-30LWCFM-X2568L		Bore: ø50 \| Arm opening: 30° \| Arm position: Left \| Switch: Without switch \| Top cover: Metal \| Handle side: Left
CKZ3N50TP-30LWCFM-X2568R		Bore: ø50 \| Arm opening: 30° \| Arm position: Left \| Switch: Without switch \| Top cover: Metal \| Handle side: Right
CKZ3N50TP-30DTCF-X2568L		Bore: ø50 \| Arm opening: 30° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Left
CKZ3N50TP-30DTCF-X2568R		Bore: ø50 \| Arm opening: 30° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Right
CKZ3N50TP-30DTCFM-X2568L		Bore: ø50 \| Arm opening: 30° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Left
CKZ3N50TP-30DTCFM-X2568R		Bore: ø50 \| Arm opening: 30° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Right
CKZ3N50TP-30DPCF-X2568L		Bore: ø50 \| Arm opening: 30° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Left
CKZ3N50TP-30DPCF-X2568R		Bore: ø50 \| Arm opening: 30° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Right
CKZ3N50TP-30DPCFM-X2568L		Bore: ø50 \| Arm opening: 30° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Left
CKZ3N50TP-30DPCFM-X2568R		Bore: ø50 \| Arm opening: 30° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Right
CKZ3N50TP-30DWCF-X2568L		Bore: ø50 \| Arm opening: 30° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Rubber \| Handle side: Left
CKZ3N50TP-30DWCF-X2568R		Bore: ø50 \| Arm opening: 30° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Rubber \| Handle side: Right
CKZ3N50TP-30DWCFM-X2568L		Bore: ø50 \| Arm opening: 30° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Metal \| Handle side: Left
CKZ3N50TP-30DWCFM-X2568R		Bore: ø50 \| Arm opening: 30° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Metal \| Handle side: Right
CKZ3N50TP-45RTCF-X2568L		Bore: ø50 \| Arm opening: 45° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Left
CKZ3N50TP-45RTCF-X2568R		Bore: ø50 \| Arm opening: 45° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Right
CKZ3N50TP-45RTCFM-X2568L		Bore: ø50 \| Arm opening: 45° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Left
CKZ3N50TP-45RTCFM-X2568R		Bore: ø50 \| Arm opening: 45° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Right
CKZ3N50TP-45RPCF-X2568L		Bore: ø50 \| Arm opening: 45° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Left
CKZ3N50TP-45RPCF-X2568R		Bore: ø50 \| Arm opening: 45° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Right
CKZ3N50TP-45RPCFM-X2568L		Bore: ø50 \| Arm opening: 45° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Left
CKZ3N50TP-45RPCFM-X2568R		Bore: ø50 \| Arm opening: 45° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Right
CKZ3N50TP-45RWCF-X2568L		Bore: ø50 \| Arm opening: 45° \| Arm position: Right \| Switch: Without switch \| Top cover: Rubber \| Handle side: Left
CKZ3N50TP-45RWCF-X2568R		Bore: ø50 \| Arm opening: 45° \| Arm position: Right \| Switch: Without switch \| Top cover: Rubber \| Handle side: Right
CKZ3N50TP-45RWCFM-X2568L		Bore: ø50 \| Arm opening: 45° \| Arm position: Right \| Switch: Without switch \| Top cover: Metal \| Handle side: Left
CKZ3N50TP-45RWCFM-X2568R		Bore: ø50 \| Arm opening: 45° \| Arm position: Right \| Switch: Without switch \| Top cover: Metal \| Handle side: Right
CKZ3N50TP-45LTCF-X2568L		Bore: ø50 \| Arm opening: 45° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Left
CKZ3N50TP-45LTCF-X2568R		Bore: ø50 \| Arm opening: 45° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Right
CKZ3N50TP-45LTCFM-X2568L		Bore: ø50 \| Arm opening: 45° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Left
CKZ3N50TP-45LTCFM-X2568R		Bore: ø50 \| Arm opening: 45° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Right
CKZ3N50TP-45LPCF-X2568L		Bore: ø50 \| Arm opening: 45° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Left
CKZ3N50TP-45LPCF-X2568R		Bore: ø50 \| Arm opening: 45° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Right
CKZ3N50TP-45LPCFM-X2568L		Bore: ø50 \| Arm opening: 45° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Left
CKZ3N50TP-45LPCFM-X2568R		Bore: ø50 \| Arm opening: 45° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Right
CKZ3N50TP-45LWCF-X2568L		Bore: ø50 \| Arm opening: 45° \| Arm position: Left \| Switch: Without switch \| Top cover: Rubber \| Handle side: Left
CKZ3N50TP-45LWCF-X2568R		Bore: ø50 \| Arm opening: 45° \| Arm position: Left \| Switch: Without switch \| Top cover: Rubber \| Handle side: Right
CKZ3N50TP-45LWCFM-X2568L		Bore: ø50 \| Arm opening: 45° \| Arm position: Left \| Switch: Without switch \| Top cover: Metal \| Handle side: Left
CKZ3N50TP-45LWCFM-X2568R		Bore: ø50 \| Arm opening: 45° \| Arm position: Left \| Switch: Without switch \| Top cover: Metal \| Handle side: Right
CKZ3N50TP-45DTCF-X2568L		Bore: ø50 \| Arm opening: 45° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Left
CKZ3N50TP-45DTCF-X2568R		Bore: ø50 \| Arm opening: 45° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Right
CKZ3N50TP-45DTCFM-X2568L		Bore: ø50 \| Arm opening: 45° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Left
CKZ3N50TP-45DTCFM-X2568R		Bore: ø50 \| Arm opening: 45° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Right
CKZ3N50TP-45DPCF-X2568L		Bore: ø50 \| Arm opening: 45° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Left
CKZ3N50TP-45DPCF-X2568R		Bore: ø50 \| Arm opening: 45° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Right
CKZ3N50TP-45DPCFM-X2568L		Bore: ø50 \| Arm opening: 45° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Left
CKZ3N50TP-45DPCFM-X2568R		Bore: ø50 \| Arm opening: 45° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Right
CKZ3N50TP-45DWCF-X2568L		Bore: ø50 \| Arm opening: 45° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Rubber \| Handle side: Left
CKZ3N50TP-45DWCF-X2568R		Bore: ø50 \| Arm opening: 45° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Rubber \| Handle side: Right
CKZ3N50TP-45DWCFM-X2568L		Bore: ø50 \| Arm opening: 45° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Metal \| Handle side: Left
CKZ3N50TP-45DWCFM-X2568R		Bore: ø50 \| Arm opening: 45° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Metal \| Handle side: Right
CKZ3N50TP-60RTCF-X2568L		Bore: ø50 \| Arm opening: 60° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Left
CKZ3N50TP-60RTCF-X2568R		Bore: ø50 \| Arm opening: 60° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Right
CKZ3N50TP-60RTCFM-X2568L		Bore: ø50 \| Arm opening: 60° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Left
CKZ3N50TP-60RTCFM-X2568R		Bore: ø50 \| Arm opening: 60° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Right
CKZ3N50TP-60RPCF-X2568L		Bore: ø50 \| Arm opening: 60° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Left
CKZ3N50TP-60RPCF-X2568R		Bore: ø50 \| Arm opening: 60° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Right
CKZ3N50TP-60RPCFM-X2568L		Bore: ø50 \| Arm opening: 60° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Left
CKZ3N50TP-60RPCFM-X2568R		Bore: ø50 \| Arm opening: 60° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Right
CKZ3N50TP-60RWCF-X2568L		Bore: ø50 \| Arm opening: 60° \| Arm position: Right \| Switch: Without switch \| Top cover: Rubber \| Handle side: Left
CKZ3N50TP-60RWCF-X2568R		Bore: ø50 \| Arm opening: 60° \| Arm position: Right \| Switch: Without switch \| Top cover: Rubber \| Handle side: Right
CKZ3N50TP-60RWCFM-X2568L		Bore: ø50 \| Arm opening: 60° \| Arm position: Right \| Switch: Without switch \| Top cover: Metal \| Handle side: Left
CKZ3N50TP-60RWCFM-X2568R		Bore: ø50 \| Arm opening: 60° \| Arm position: Right \| Switch: Without switch \| Top cover: Metal \| Handle side: Right
CKZ3N50TP-60LTCF-X2568L		Bore: ø50 \| Arm opening: 60° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Left
CKZ3N50TP-60LTCF-X2568R		Bore: ø50 \| Arm opening: 60° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Right
CKZ3N50TP-60LTCFM-X2568L		Bore: ø50 \| Arm opening: 60° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Left
CKZ3N50TP-60LTCFM-X2568R		Bore: ø50 \| Arm opening: 60° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Right
CKZ3N50TP-60LPCF-X2568L		Bore: ø50 \| Arm opening: 60° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Left
CKZ3N50TP-60LPCF-X2568R		Bore: ø50 \| Arm opening: 60° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Right
CKZ3N50TP-60LPCFM-X2568L		Bore: ø50 \| Arm opening: 60° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Left
CKZ3N50TP-60LPCFM-X2568R		Bore: ø50 \| Arm opening: 60° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Right
CKZ3N50TP-60LWCF-X2568L		Bore: ø50 \| Arm opening: 60° \| Arm position: Left \| Switch: Without switch \| Top cover: Rubber \| Handle side: Left
CKZ3N50TP-60LWCF-X2568R		Bore: ø50 \| Arm opening: 60° \| Arm position: Left \| Switch: Without switch \| Top cover: Rubber \| Handle side: Right
CKZ3N50TP-60LWCFM-X2568L		Bore: ø50 \| Arm opening: 60° \| Arm position: Left \| Switch: Without switch \| Top cover: Metal \| Handle side: Left
CKZ3N50TP-60LWCFM-X2568R		Bore: ø50 \| Arm opening: 60° \| Arm position: Left \| Switch: Without switch \| Top cover: Metal \| Handle side: Right
CKZ3N50TP-60DTCF-X2568L		Bore: ø50 \| Arm opening: 60° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Left
CKZ3N50TP-60DTCF-X2568R		Bore: ø50 \| Arm opening: 60° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Right
CKZ3N50TP-60DTCFM-X2568L		Bore: ø50 \| Arm opening: 60° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Left
CKZ3N50TP-60DTCFM-X2568R		Bore: ø50 \| Arm opening: 60° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Right
CKZ3N50TP-60DPCF-X2568L		Bore: ø50 \| Arm opening: 60° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Left
CKZ3N50TP-60DPCF-X2568R		Bore: ø50 \| Arm opening: 60° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Right
CKZ3N50TP-60DPCFM-X2568L		Bore: ø50 \| Arm opening: 60° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Left
CKZ3N50TP-60DPCFM-X2568R		Bore: ø50 \| Arm opening: 60° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Right
CKZ3N50TP-60DWCF-X2568L		Bore: ø50 \| Arm opening: 60° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Rubber \| Handle side: Left
CKZ3N50TP-60DWCF-X2568R		Bore: ø50 \| Arm opening: 60° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Rubber \| Handle side: Right
CKZ3N50TP-60DWCFM-X2568L		Bore: ø50 \| Arm opening: 60° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Metal \| Handle side: Left
CKZ3N50TP-60DWCFM-X2568R		Bore: ø50 \| Arm opening: 60° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Metal \| Handle side: Right
CKZ3N50TP-75RTCF-X2568L		Bore: ø50 \| Arm opening: 75° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Left
CKZ3N50TP-75RTCF-X2568R		Bore: ø50 \| Arm opening: 75° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Right
CKZ3N50TP-75RTCFM-X2568L		Bore: ø50 \| Arm opening: 75° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Left
CKZ3N50TP-75RTCFM-X2568R		Bore: ø50 \| Arm opening: 75° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Right
CKZ3N50TP-75RPCF-X2568L		Bore: ø50 \| Arm opening: 75° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Left
CKZ3N50TP-75RPCF-X2568R		Bore: ø50 \| Arm opening: 75° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Right
CKZ3N50TP-75RPCFM-X2568L		Bore: ø50 \| Arm opening: 75° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Left
CKZ3N50TP-75RPCFM-X2568R		Bore: ø50 \| Arm opening: 75° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Right
CKZ3N50TP-75RWCF-X2568L		Bore: ø50 \| Arm opening: 75° \| Arm position: Right \| Switch: Without switch \| Top cover: Rubber \| Handle side: Left
CKZ3N50TP-75RWCF-X2568R		Bore: ø50 \| Arm opening: 75° \| Arm position: Right \| Switch: Without switch \| Top cover: Rubber \| Handle side: Right
CKZ3N50TP-75RWCFM-X2568L		Bore: ø50 \| Arm opening: 75° \| Arm position: Right \| Switch: Without switch \| Top cover: Metal \| Handle side: Left
CKZ3N50TP-75RWCFM-X2568R		Bore: ø50 \| Arm opening: 75° \| Arm position: Right \| Switch: Without switch \| Top cover: Metal \| Handle side: Right
CKZ3N50TP-75LTCF-X2568L		Bore: ø50 \| Arm opening: 75° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Left
CKZ3N50TP-75LTCF-X2568R		Bore: ø50 \| Arm opening: 75° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Right
CKZ3N50TP-75LTCFM-X2568L		Bore: ø50 \| Arm opening: 75° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Left
CKZ3N50TP-75LTCFM-X2568R		Bore: ø50 \| Arm opening: 75° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Right
CKZ3N50TP-75LPCF-X2568L		Bore: ø50 \| Arm opening: 75° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Left
CKZ3N50TP-75LPCF-X2568R		Bore: ø50 \| Arm opening: 75° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Right
CKZ3N50TP-75LPCFM-X2568L		Bore: ø50 \| Arm opening: 75° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Left
CKZ3N50TP-75LPCFM-X2568R		Bore: ø50 \| Arm opening: 75° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Right
CKZ3N50TP-75LWCF-X2568L		Bore: ø50 \| Arm opening: 75° \| Arm position: Left \| Switch: Without switch \| Top cover: Rubber \| Handle side: Left
CKZ3N50TP-75LWCF-X2568R		Bore: ø50 \| Arm opening: 75° \| Arm position: Left \| Switch: Without switch \| Top cover: Rubber \| Handle side: Right
CKZ3N50TP-75LWCFM-X2568L		Bore: ø50 \| Arm opening: 75° \| Arm position: Left \| Switch: Without switch \| Top cover: Metal \| Handle side: Left
CKZ3N50TP-75LWCFM-X2568R		Bore: ø50 \| Arm opening: 75° \| Arm position: Left \| Switch: Without switch \| Top cover: Metal \| Handle side: Right
CKZ3N50TP-75DTCF-X2568L		Bore: ø50 \| Arm opening: 75° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Left
CKZ3N50TP-75DTCF-X2568R		Bore: ø50 \| Arm opening: 75° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Right
CKZ3N50TP-75DTCFM-X2568L		Bore: ø50 \| Arm opening: 75° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Left
CKZ3N50TP-75DTCFM-X2568R		Bore: ø50 \| Arm opening: 75° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Right
CKZ3N50TP-75DPCF-X2568L		Bore: ø50 \| Arm opening: 75° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Left
CKZ3N50TP-75DPCF-X2568R		Bore: ø50 \| Arm opening: 75° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Right
CKZ3N50TP-75DPCFM-X2568L		Bore: ø50 \| Arm opening: 75° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Left
CKZ3N50TP-75DPCFM-X2568R		Bore: ø50 \| Arm opening: 75° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Right
CKZ3N50TP-75DWCF-X2568L		Bore: ø50 \| Arm opening: 75° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Rubber \| Handle side: Left
CKZ3N50TP-75DWCF-X2568R		Bore: ø50 \| Arm opening: 75° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Rubber \| Handle side: Right
CKZ3N50TP-75DWCFM-X2568L		Bore: ø50 \| Arm opening: 75° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Metal \| Handle side: Left
CKZ3N50TP-75DWCFM-X2568R		Bore: ø50 \| Arm opening: 75° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Metal \| Handle side: Right
CKZ3N50TP-90RTCF-X2568L		Bore: ø50 \| Arm opening: 90° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Left
CKZ3N50TP-90RTCF-X2568R		Bore: ø50 \| Arm opening: 90° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Right
CKZ3N50TP-90RTCFM-X2568L		Bore: ø50 \| Arm opening: 90° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Left
CKZ3N50TP-90RTCFM-X2568R		Bore: ø50 \| Arm opening: 90° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Right
CKZ3N50TP-90RPCF-X2568L		Bore: ø50 \| Arm opening: 90° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Left
CKZ3N50TP-90RPCF-X2568R		Bore: ø50 \| Arm opening: 90° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Right
CKZ3N50TP-90RPCFM-X2568L		Bore: ø50 \| Arm opening: 90° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Left
CKZ3N50TP-90RPCFM-X2568R		Bore: ø50 \| Arm opening: 90° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Right
CKZ3N50TP-90RWCF-X2568L		Bore: ø50 \| Arm opening: 90° \| Arm position: Right \| Switch: Without switch \| Top cover: Rubber \| Handle side: Left
CKZ3N50TP-90RWCF-X2568R		Bore: ø50 \| Arm opening: 90° \| Arm position: Right \| Switch: Without switch \| Top cover: Rubber \| Handle side: Right
CKZ3N50TP-90RWCFM-X2568L		Bore: ø50 \| Arm opening: 90° \| Arm position: Right \| Switch: Without switch \| Top cover: Metal \| Handle side: Left
CKZ3N50TP-90RWCFM-X2568R		Bore: ø50 \| Arm opening: 90° \| Arm position: Right \| Switch: Without switch \| Top cover: Metal \| Handle side: Right
CKZ3N50TP-90LTCF-X2568L		Bore: ø50 \| Arm opening: 90° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Left
CKZ3N50TP-90LTCF-X2568R		Bore: ø50 \| Arm opening: 90° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Right
CKZ3N50TP-90LTCFM-X2568L		Bore: ø50 \| Arm opening: 90° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Left
CKZ3N50TP-90LTCFM-X2568R		Bore: ø50 \| Arm opening: 90° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Right
CKZ3N50TP-90LPCF-X2568L		Bore: ø50 \| Arm opening: 90° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Left
CKZ3N50TP-90LPCF-X2568R		Bore: ø50 \| Arm opening: 90° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Right
CKZ3N50TP-90LPCFM-X2568L		Bore: ø50 \| Arm opening: 90° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Left
CKZ3N50TP-90LPCFM-X2568R		Bore: ø50 \| Arm opening: 90° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Right
CKZ3N50TP-90LWCF-X2568L		Bore: ø50 \| Arm opening: 90° \| Arm position: Left \| Switch: Without switch \| Top cover: Rubber \| Handle side: Left
CKZ3N50TP-90LWCF-X2568R		Bore: ø50 \| Arm opening: 90° \| Arm position: Left \| Switch: Without switch \| Top cover: Rubber \| Handle side: Right
CKZ3N50TP-90LWCFM-X2568L		Bore: ø50 \| Arm opening: 90° \| Arm position: Left \| Switch: Without switch \| Top cover: Metal \| Handle side: Left
CKZ3N50TP-90LWCFM-X2568R		Bore: ø50 \| Arm opening: 90° \| Arm position: Left \| Switch: Without switch \| Top cover: Metal \| Handle side: Right
CKZ3N50TP-90DTCF-X2568L		Bore: ø50 \| Arm opening: 90° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Left
CKZ3N50TP-90DTCF-X2568R		Bore: ø50 \| Arm opening: 90° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Right
CKZ3N50TP-90DTCFM-X2568L		Bore: ø50 \| Arm opening: 90° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Left
CKZ3N50TP-90DTCFM-X2568R		Bore: ø50 \| Arm opening: 90° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Right
CKZ3N50TP-90DPCF-X2568L		Bore: ø50 \| Arm opening: 90° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Left
CKZ3N50TP-90DPCF-X2568R		Bore: ø50 \| Arm opening: 90° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Right
CKZ3N50TP-90DPCFM-X2568L		Bore: ø50 \| Arm opening: 90° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Left
CKZ3N50TP-90DPCFM-X2568R		Bore: ø50 \| Arm opening: 90° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Right
CKZ3N50TP-90DWCF-X2568L		Bore: ø50 \| Arm opening: 90° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Rubber \| Handle side: Left
CKZ3N50TP-90DWCF-X2568R		Bore: ø50 \| Arm opening: 90° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Rubber \| Handle side: Right
CKZ3N50TP-90DWCFM-X2568L		Bore: ø50 \| Arm opening: 90° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Metal \| Handle side: Left
CKZ3N50TP-90DWCFM-X2568R		Bore: ø50 \| Arm opening: 90° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Metal \| Handle side: Right
CKZ3N50TP-105RTCF-X2568L		Bore: ø50 \| Arm opening: 105° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Left
CKZ3N50TP-105RTCF-X2568R		Bore: ø50 \| Arm opening: 105° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Right
CKZ3N50TP-105RTCFM-X2568L		Bore: ø50 \| Arm opening: 105° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Left
CKZ3N50TP-105RTCFM-X2568R		Bore: ø50 \| Arm opening: 105° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Right
CKZ3N50TP-105RPCF-X2568L		Bore: ø50 \| Arm opening: 105° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Left
CKZ3N50TP-105RPCF-X2568R		Bore: ø50 \| Arm opening: 105° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Right
CKZ3N50TP-105RPCFM-X2568L		Bore: ø50 \| Arm opening: 105° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Left
CKZ3N50TP-105RPCFM-X2568R		Bore: ø50 \| Arm opening: 105° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Right
CKZ3N50TP-105RWCF-X2568L		Bore: ø50 \| Arm opening: 105° \| Arm position: Right \| Switch: Without switch \| Top cover: Rubber \| Handle side: Left
CKZ3N50TP-105RWCF-X2568R		Bore: ø50 \| Arm opening: 105° \| Arm position: Right \| Switch: Without switch \| Top cover: Rubber \| Handle side: Right
CKZ3N50TP-105RWCFM-X2568L		Bore: ø50 \| Arm opening: 105° \| Arm position: Right \| Switch: Without switch \| Top cover: Metal \| Handle side: Left
CKZ3N50TP-105RWCFM-X2568R		Bore: ø50 \| Arm opening: 105° \| Arm position: Right \| Switch: Without switch \| Top cover: Metal \| Handle side: Right
CKZ3N50TP-105LTCF-X2568L		Bore: ø50 \| Arm opening: 105° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Left
CKZ3N50TP-105LTCF-X2568R		Bore: ø50 \| Arm opening: 105° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Right
CKZ3N50TP-105LTCFM-X2568L		Bore: ø50 \| Arm opening: 105° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Left
CKZ3N50TP-105LTCFM-X2568R		Bore: ø50 \| Arm opening: 105° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Right
CKZ3N50TP-105LPCF-X2568L		Bore: ø50 \| Arm opening: 105° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Left
CKZ3N50TP-105LPCF-X2568R		Bore: ø50 \| Arm opening: 105° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Right
CKZ3N50TP-105LPCFM-X2568L		Bore: ø50 \| Arm opening: 105° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Left
CKZ3N50TP-105LPCFM-X2568R		Bore: ø50 \| Arm opening: 105° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Right
CKZ3N50TP-105LWCF-X2568L		Bore: ø50 \| Arm opening: 105° \| Arm position: Left \| Switch: Without switch \| Top cover: Rubber \| Handle side: Left
CKZ3N50TP-105LWCF-X2568R		Bore: ø50 \| Arm opening: 105° \| Arm position: Left \| Switch: Without switch \| Top cover: Rubber \| Handle side: Right
CKZ3N50TP-105LWCFM-X2568L		Bore: ø50 \| Arm opening: 105° \| Arm position: Left \| Switch: Without switch \| Top cover: Metal \| Handle side: Left
CKZ3N50TP-105LWCFM-X2568R		Bore: ø50 \| Arm opening: 105° \| Arm position: Left \| Switch: Without switch \| Top cover: Metal \| Handle side: Right
CKZ3N50TP-105DTCF-X2568L		Bore: ø50 \| Arm opening: 105° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Left
CKZ3N50TP-105DTCF-X2568R		Bore: ø50 \| Arm opening: 105° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Right
CKZ3N50TP-105DTCFM-X2568L		Bore: ø50 \| Arm opening: 105° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Left
CKZ3N50TP-105DTCFM-X2568R		Bore: ø50 \| Arm opening: 105° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Right
CKZ3N50TP-105DPCF-X2568L		Bore: ø50 \| Arm opening: 105° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Left
CKZ3N50TP-105DPCF-X2568R		Bore: ø50 \| Arm opening: 105° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Right
CKZ3N50TP-105DPCFM-X2568L		Bore: ø50 \| Arm opening: 105° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Left
CKZ3N50TP-105DPCFM-X2568R		Bore: ø50 \| Arm opening: 105° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Right
CKZ3N50TP-105DWCF-X2568L		Bore: ø50 \| Arm opening: 105° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Rubber \| Handle side: Left
CKZ3N50TP-105DWCF-X2568R		Bore: ø50 \| Arm opening: 105° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Rubber \| Handle side: Right
CKZ3N50TP-105DWCFM-X2568L		Bore: ø50 \| Arm opening: 105° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Metal \| Handle side: Left
CKZ3N50TP-105DWCFM-X2568R		Bore: ø50 \| Arm opening: 105° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Metal \| Handle side: Right
CKZ3N50TP-120RTCF-X2568L		Bore: ø50 \| Arm opening: 120° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Left
CKZ3N50TP-120RTCF-X2568R		Bore: ø50 \| Arm opening: 120° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Right
CKZ3N50TP-120RTCFM-X2568L		Bore: ø50 \| Arm opening: 120° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Left
CKZ3N50TP-120RTCFM-X2568R		Bore: ø50 \| Arm opening: 120° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Right
CKZ3N50TP-120RPCF-X2568L		Bore: ø50 \| Arm opening: 120° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Left
CKZ3N50TP-120RPCF-X2568R		Bore: ø50 \| Arm opening: 120° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Right
CKZ3N50TP-120RPCFM-X2568L		Bore: ø50 \| Arm opening: 120° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Left
CKZ3N50TP-120RPCFM-X2568R		Bore: ø50 \| Arm opening: 120° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Right
CKZ3N50TP-120RWCF-X2568L		Bore: ø50 \| Arm opening: 120° \| Arm position: Right \| Switch: Without switch \| Top cover: Rubber \| Handle side: Left
CKZ3N50TP-120RWCF-X2568R		Bore: ø50 \| Arm opening: 120° \| Arm position: Right \| Switch: Without switch \| Top cover: Rubber \| Handle side: Right
CKZ3N50TP-120RWCFM-X2568L		Bore: ø50 \| Arm opening: 120° \| Arm position: Right \| Switch: Without switch \| Top cover: Metal \| Handle side: Left
CKZ3N50TP-120RWCFM-X2568R		Bore: ø50 \| Arm opening: 120° \| Arm position: Right \| Switch: Without switch \| Top cover: Metal \| Handle side: Right
CKZ3N50TP-120LTCF-X2568L		Bore: ø50 \| Arm opening: 120° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Left
CKZ3N50TP-120LTCF-X2568R		Bore: ø50 \| Arm opening: 120° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Right
CKZ3N50TP-120LTCFM-X2568L		Bore: ø50 \| Arm opening: 120° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Left
CKZ3N50TP-120LTCFM-X2568R		Bore: ø50 \| Arm opening: 120° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Right
CKZ3N50TP-120LPCF-X2568L		Bore: ø50 \| Arm opening: 120° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Left
CKZ3N50TP-120LPCF-X2568R		Bore: ø50 \| Arm opening: 120° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Right
CKZ3N50TP-120LPCFM-X2568L		Bore: ø50 \| Arm opening: 120° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Left
CKZ3N50TP-120LPCFM-X2568R		Bore: ø50 \| Arm opening: 120° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Right
CKZ3N50TP-120LWCF-X2568L		Bore: ø50 \| Arm opening: 120° \| Arm position: Left \| Switch: Without switch \| Top cover: Rubber \| Handle side: Left
CKZ3N50TP-120LWCF-X2568R		Bore: ø50 \| Arm opening: 120° \| Arm position: Left \| Switch: Without switch \| Top cover: Rubber \| Handle side: Right
CKZ3N50TP-120LWCFM-X2568L		Bore: ø50 \| Arm opening: 120° \| Arm position: Left \| Switch: Without switch \| Top cover: Metal \| Handle side: Left
CKZ3N50TP-120LWCFM-X2568R		Bore: ø50 \| Arm opening: 120° \| Arm position: Left \| Switch: Without switch \| Top cover: Metal \| Handle side: Right
CKZ3N50TP-120DTCF-X2568L		Bore: ø50 \| Arm opening: 120° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Left
CKZ3N50TP-120DTCF-X2568R		Bore: ø50 \| Arm opening: 120° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Right
CKZ3N50TP-120DTCFM-X2568L		Bore: ø50 \| Arm opening: 120° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Left
CKZ3N50TP-120DTCFM-X2568R		Bore: ø50 \| Arm opening: 120° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Right
CKZ3N50TP-120DPCF-X2568L		Bore: ø50 \| Arm opening: 120° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Left
CKZ3N50TP-120DPCF-X2568R		Bore: ø50 \| Arm opening: 120° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Right
CKZ3N50TP-120DPCFM-X2568L		Bore: ø50 \| Arm opening: 120° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Left
CKZ3N50TP-120DPCFM-X2568R		Bore: ø50 \| Arm opening: 120° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Right
CKZ3N50TP-120DWCF-X2568L		Bore: ø50 \| Arm opening: 120° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Rubber \| Handle side: Left
CKZ3N50TP-120DWCF-X2568R		Bore: ø50 \| Arm opening: 120° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Rubber \| Handle side: Right
CKZ3N50TP-120DWCFM-X2568L		Bore: ø50 \| Arm opening: 120° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Metal \| Handle side: Left
CKZ3N50TP-120DWCFM-X2568R		Bore: ø50 \| Arm opening: 120° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Metal \| Handle side: Right
CKZ3N63TP-15RTCF-X2568L		Bore: ø63 \| Arm opening: 15° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Left
CKZ3N63TP-15RTCF-X2568R		Bore: ø63 \| Arm opening: 15° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Right
CKZ3N63TP-15RTCFM-X2568L		Bore: ø63 \| Arm opening: 15° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Left
CKZ3N63TP-15RTCFM-X2568R		Bore: ø63 \| Arm opening: 15° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Right
CKZ3N63TP-15RPCF-X2568L		Bore: ø63 \| Arm opening: 15° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Left
CKZ3N63TP-15RPCF-X2568R		Bore: ø63 \| Arm opening: 15° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Right
CKZ3N63TP-15RPCFM-X2568L		Bore: ø63 \| Arm opening: 15° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Left
CKZ3N63TP-15RPCFM-X2568R		Bore: ø63 \| Arm opening: 15° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Right
CKZ3N63TP-15RWCF-X2568L		Bore: ø63 \| Arm opening: 15° \| Arm position: Right \| Switch: Without switch \| Top cover: Rubber \| Handle side: Left
CKZ3N63TP-15RWCF-X2568R		Bore: ø63 \| Arm opening: 15° \| Arm position: Right \| Switch: Without switch \| Top cover: Rubber \| Handle side: Right
CKZ3N63TP-15RWCFM-X2568L		Bore: ø63 \| Arm opening: 15° \| Arm position: Right \| Switch: Without switch \| Top cover: Metal \| Handle side: Left
CKZ3N63TP-15RWCFM-X2568R		Bore: ø63 \| Arm opening: 15° \| Arm position: Right \| Switch: Without switch \| Top cover: Metal \| Handle side: Right
CKZ3N63TP-15LTCF-X2568L		Bore: ø63 \| Arm opening: 15° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Left
CKZ3N63TP-15LTCF-X2568R		Bore: ø63 \| Arm opening: 15° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Right
CKZ3N63TP-15LTCFM-X2568L		Bore: ø63 \| Arm opening: 15° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Left
CKZ3N63TP-15LTCFM-X2568R		Bore: ø63 \| Arm opening: 15° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Right
CKZ3N63TP-15LPCF-X2568L		Bore: ø63 \| Arm opening: 15° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Left
CKZ3N63TP-15LPCF-X2568R		Bore: ø63 \| Arm opening: 15° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Right
CKZ3N63TP-15LPCFM-X2568L		Bore: ø63 \| Arm opening: 15° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Left
CKZ3N63TP-15LPCFM-X2568R		Bore: ø63 \| Arm opening: 15° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Right
CKZ3N63TP-15LWCF-X2568L		Bore: ø63 \| Arm opening: 15° \| Arm position: Left \| Switch: Without switch \| Top cover: Rubber \| Handle side: Left
CKZ3N63TP-15LWCF-X2568R		Bore: ø63 \| Arm opening: 15° \| Arm position: Left \| Switch: Without switch \| Top cover: Rubber \| Handle side: Right
CKZ3N63TP-15LWCFM-X2568L		Bore: ø63 \| Arm opening: 15° \| Arm position: Left \| Switch: Without switch \| Top cover: Metal \| Handle side: Left
CKZ3N63TP-15LWCFM-X2568R		Bore: ø63 \| Arm opening: 15° \| Arm position: Left \| Switch: Without switch \| Top cover: Metal \| Handle side: Right
CKZ3N63TP-15DTCF-X2568L		Bore: ø63 \| Arm opening: 15° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Left
CKZ3N63TP-15DTCF-X2568R		Bore: ø63 \| Arm opening: 15° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Right
CKZ3N63TP-15DTCFM-X2568L		Bore: ø63 \| Arm opening: 15° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Left
CKZ3N63TP-15DTCFM-X2568R		Bore: ø63 \| Arm opening: 15° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Right
CKZ3N63TP-15DPCF-X2568L		Bore: ø63 \| Arm opening: 15° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Left
CKZ3N63TP-15DPCF-X2568R		Bore: ø63 \| Arm opening: 15° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Right
CKZ3N63TP-15DPCFM-X2568L		Bore: ø63 \| Arm opening: 15° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Left
CKZ3N63TP-15DPCFM-X2568R		Bore: ø63 \| Arm opening: 15° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Right
CKZ3N63TP-15DWCF-X2568L		Bore: ø63 \| Arm opening: 15° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Rubber \| Handle side: Left
CKZ3N63TP-15DWCF-X2568R		Bore: ø63 \| Arm opening: 15° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Rubber \| Handle side: Right
CKZ3N63TP-15DWCFM-X2568L		Bore: ø63 \| Arm opening: 15° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Metal \| Handle side: Left
CKZ3N63TP-15DWCFM-X2568R		Bore: ø63 \| Arm opening: 15° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Metal \| Handle side: Right
CKZ3N63TP-30RTCF-X2568L		Bore: ø63 \| Arm opening: 30° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Left
CKZ3N63TP-30RTCF-X2568R		Bore: ø63 \| Arm opening: 30° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Right
CKZ3N63TP-30RTCFM-X2568L		Bore: ø63 \| Arm opening: 30° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Left
CKZ3N63TP-30RTCFM-X2568R		Bore: ø63 \| Arm opening: 30° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Right
CKZ3N63TP-30RPCF-X2568L		Bore: ø63 \| Arm opening: 30° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Left
CKZ3N63TP-30RPCF-X2568R		Bore: ø63 \| Arm opening: 30° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Right
CKZ3N63TP-30RPCFM-X2568L		Bore: ø63 \| Arm opening: 30° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Left
CKZ3N63TP-30RPCFM-X2568R		Bore: ø63 \| Arm opening: 30° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Right
CKZ3N63TP-30RWCF-X2568L		Bore: ø63 \| Arm opening: 30° \| Arm position: Right \| Switch: Without switch \| Top cover: Rubber \| Handle side: Left
CKZ3N63TP-30RWCF-X2568R		Bore: ø63 \| Arm opening: 30° \| Arm position: Right \| Switch: Without switch \| Top cover: Rubber \| Handle side: Right
CKZ3N63TP-30RWCFM-X2568L		Bore: ø63 \| Arm opening: 30° \| Arm position: Right \| Switch: Without switch \| Top cover: Metal \| Handle side: Left
CKZ3N63TP-30RWCFM-X2568R		Bore: ø63 \| Arm opening: 30° \| Arm position: Right \| Switch: Without switch \| Top cover: Metal \| Handle side: Right
CKZ3N63TP-30LTCF-X2568L		Bore: ø63 \| Arm opening: 30° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Left
CKZ3N63TP-30LTCF-X2568R		Bore: ø63 \| Arm opening: 30° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Right
CKZ3N63TP-30LTCFM-X2568L		Bore: ø63 \| Arm opening: 30° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Left
CKZ3N63TP-30LTCFM-X2568R		Bore: ø63 \| Arm opening: 30° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Right
CKZ3N63TP-30LPCF-X2568L		Bore: ø63 \| Arm opening: 30° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Left
CKZ3N63TP-30LPCF-X2568R		Bore: ø63 \| Arm opening: 30° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Right
CKZ3N63TP-30LPCFM-X2568L		Bore: ø63 \| Arm opening: 30° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Left
CKZ3N63TP-30LPCFM-X2568R		Bore: ø63 \| Arm opening: 30° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Right
CKZ3N63TP-30LWCF-X2568L		Bore: ø63 \| Arm opening: 30° \| Arm position: Left \| Switch: Without switch \| Top cover: Rubber \| Handle side: Left
CKZ3N63TP-30LWCF-X2568R		Bore: ø63 \| Arm opening: 30° \| Arm position: Left \| Switch: Without switch \| Top cover: Rubber \| Handle side: Right
CKZ3N63TP-30LWCFM-X2568L		Bore: ø63 \| Arm opening: 30° \| Arm position: Left \| Switch: Without switch \| Top cover: Metal \| Handle side: Left
CKZ3N63TP-30LWCFM-X2568R		Bore: ø63 \| Arm opening: 30° \| Arm position: Left \| Switch: Without switch \| Top cover: Metal \| Handle side: Right
CKZ3N63TP-30DTCF-X2568L		Bore: ø63 \| Arm opening: 30° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Left
CKZ3N63TP-30DTCF-X2568R		Bore: ø63 \| Arm opening: 30° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Right
CKZ3N63TP-30DTCFM-X2568L		Bore: ø63 \| Arm opening: 30° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Left
CKZ3N63TP-30DTCFM-X2568R		Bore: ø63 \| Arm opening: 30° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Right
CKZ3N63TP-30DPCF-X2568L		Bore: ø63 \| Arm opening: 30° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Left
CKZ3N63TP-30DPCF-X2568R		Bore: ø63 \| Arm opening: 30° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Right
CKZ3N63TP-30DPCFM-X2568L		Bore: ø63 \| Arm opening: 30° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Left
CKZ3N63TP-30DPCFM-X2568R		Bore: ø63 \| Arm opening: 30° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Right
CKZ3N63TP-30DWCF-X2568L		Bore: ø63 \| Arm opening: 30° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Rubber \| Handle side: Left
CKZ3N63TP-30DWCF-X2568R		Bore: ø63 \| Arm opening: 30° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Rubber \| Handle side: Right
CKZ3N63TP-30DWCFM-X2568L		Bore: ø63 \| Arm opening: 30° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Metal \| Handle side: Left
CKZ3N63TP-30DWCFM-X2568R		Bore: ø63 \| Arm opening: 30° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Metal \| Handle side: Right
CKZ3N63TP-45RTCF-X2568L		Bore: ø63 \| Arm opening: 45° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Left
CKZ3N63TP-45RTCF-X2568R		Bore: ø63 \| Arm opening: 45° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Right
CKZ3N63TP-45RTCFM-X2568L		Bore: ø63 \| Arm opening: 45° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Left
CKZ3N63TP-45RTCFM-X2568R		Bore: ø63 \| Arm opening: 45° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Right
CKZ3N63TP-45RPCF-X2568L		Bore: ø63 \| Arm opening: 45° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Left
CKZ3N63TP-45RPCF-X2568R		Bore: ø63 \| Arm opening: 45° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Right
CKZ3N63TP-45RPCFM-X2568L		Bore: ø63 \| Arm opening: 45° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Left
CKZ3N63TP-45RPCFM-X2568R		Bore: ø63 \| Arm opening: 45° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Right
CKZ3N63TP-45RWCF-X2568L		Bore: ø63 \| Arm opening: 45° \| Arm position: Right \| Switch: Without switch \| Top cover: Rubber \| Handle side: Left
CKZ3N63TP-45RWCF-X2568R		Bore: ø63 \| Arm opening: 45° \| Arm position: Right \| Switch: Without switch \| Top cover: Rubber \| Handle side: Right
CKZ3N63TP-45RWCFM-X2568L		Bore: ø63 \| Arm opening: 45° \| Arm position: Right \| Switch: Without switch \| Top cover: Metal \| Handle side: Left
CKZ3N63TP-45RWCFM-X2568R		Bore: ø63 \| Arm opening: 45° \| Arm position: Right \| Switch: Without switch \| Top cover: Metal \| Handle side: Right
CKZ3N63TP-45LTCF-X2568L		Bore: ø63 \| Arm opening: 45° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Left
CKZ3N63TP-45LTCF-X2568R		Bore: ø63 \| Arm opening: 45° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Right
CKZ3N63TP-45LTCFM-X2568L		Bore: ø63 \| Arm opening: 45° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Left
CKZ3N63TP-45LTCFM-X2568R		Bore: ø63 \| Arm opening: 45° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Right
CKZ3N63TP-45LPCF-X2568L		Bore: ø63 \| Arm opening: 45° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Left
CKZ3N63TP-45LPCF-X2568R		Bore: ø63 \| Arm opening: 45° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Right
CKZ3N63TP-45LPCFM-X2568L		Bore: ø63 \| Arm opening: 45° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Left
CKZ3N63TP-45LPCFM-X2568R		Bore: ø63 \| Arm opening: 45° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Right
CKZ3N63TP-45LWCF-X2568L		Bore: ø63 \| Arm opening: 45° \| Arm position: Left \| Switch: Without switch \| Top cover: Rubber \| Handle side: Left
CKZ3N63TP-45LWCF-X2568R		Bore: ø63 \| Arm opening: 45° \| Arm position: Left \| Switch: Without switch \| Top cover: Rubber \| Handle side: Right
CKZ3N63TP-45LWCFM-X2568L		Bore: ø63 \| Arm opening: 45° \| Arm position: Left \| Switch: Without switch \| Top cover: Metal \| Handle side: Left
CKZ3N63TP-45LWCFM-X2568R		Bore: ø63 \| Arm opening: 45° \| Arm position: Left \| Switch: Without switch \| Top cover: Metal \| Handle side: Right
CKZ3N63TP-45DTCF-X2568L		Bore: ø63 \| Arm opening: 45° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Left
CKZ3N63TP-45DTCF-X2568R		Bore: ø63 \| Arm opening: 45° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Right
CKZ3N63TP-45DTCFM-X2568L		Bore: ø63 \| Arm opening: 45° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Left
CKZ3N63TP-45DTCFM-X2568R		Bore: ø63 \| Arm opening: 45° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Right
CKZ3N63TP-45DPCF-X2568L		Bore: ø63 \| Arm opening: 45° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Left
CKZ3N63TP-45DPCF-X2568R		Bore: ø63 \| Arm opening: 45° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Right
CKZ3N63TP-45DPCFM-X2568L		Bore: ø63 \| Arm opening: 45° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Left
CKZ3N63TP-45DPCFM-X2568R		Bore: ø63 \| Arm opening: 45° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Right
CKZ3N63TP-45DWCF-X2568L		Bore: ø63 \| Arm opening: 45° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Rubber \| Handle side: Left
CKZ3N63TP-45DWCF-X2568R		Bore: ø63 \| Arm opening: 45° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Rubber \| Handle side: Right
CKZ3N63TP-45DWCFM-X2568L		Bore: ø63 \| Arm opening: 45° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Metal \| Handle side: Left
CKZ3N63TP-45DWCFM-X2568R		Bore: ø63 \| Arm opening: 45° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Metal \| Handle side: Right
CKZ3N63TP-60RTCF-X2568L		Bore: ø63 \| Arm opening: 60° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Left
CKZ3N63TP-60RTCF-X2568R		Bore: ø63 \| Arm opening: 60° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Right
CKZ3N63TP-60RTCFM-X2568L		Bore: ø63 \| Arm opening: 60° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Left
CKZ3N63TP-60RTCFM-X2568R		Bore: ø63 \| Arm opening: 60° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Right
CKZ3N63TP-60RPCF-X2568L		Bore: ø63 \| Arm opening: 60° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Left
CKZ3N63TP-60RPCF-X2568R		Bore: ø63 \| Arm opening: 60° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Right
CKZ3N63TP-60RPCFM-X2568L		Bore: ø63 \| Arm opening: 60° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Left
CKZ3N63TP-60RPCFM-X2568R		Bore: ø63 \| Arm opening: 60° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Right
CKZ3N63TP-60RWCF-X2568L		Bore: ø63 \| Arm opening: 60° \| Arm position: Right \| Switch: Without switch \| Top cover: Rubber \| Handle side: Left
CKZ3N63TP-60RWCF-X2568R		Bore: ø63 \| Arm opening: 60° \| Arm position: Right \| Switch: Without switch \| Top cover: Rubber \| Handle side: Right
CKZ3N63TP-60RWCFM-X2568L		Bore: ø63 \| Arm opening: 60° \| Arm position: Right \| Switch: Without switch \| Top cover: Metal \| Handle side: Left
CKZ3N63TP-60RWCFM-X2568R		Bore: ø63 \| Arm opening: 60° \| Arm position: Right \| Switch: Without switch \| Top cover: Metal \| Handle side: Right
CKZ3N63TP-60LTCF-X2568L		Bore: ø63 \| Arm opening: 60° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Left
CKZ3N63TP-60LTCF-X2568R		Bore: ø63 \| Arm opening: 60° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Right
CKZ3N63TP-60LTCFM-X2568L		Bore: ø63 \| Arm opening: 60° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Left
CKZ3N63TP-60LTCFM-X2568R		Bore: ø63 \| Arm opening: 60° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Right
CKZ3N63TP-60LPCF-X2568L		Bore: ø63 \| Arm opening: 60° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Left
CKZ3N63TP-60LPCF-X2568R		Bore: ø63 \| Arm opening: 60° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Right
CKZ3N63TP-60LPCFM-X2568L		Bore: ø63 \| Arm opening: 60° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Left
CKZ3N63TP-60LPCFM-X2568R		Bore: ø63 \| Arm opening: 60° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Right
CKZ3N63TP-60LWCF-X2568L		Bore: ø63 \| Arm opening: 60° \| Arm position: Left \| Switch: Without switch \| Top cover: Rubber \| Handle side: Left
CKZ3N63TP-60LWCF-X2568R		Bore: ø63 \| Arm opening: 60° \| Arm position: Left \| Switch: Without switch \| Top cover: Rubber \| Handle side: Right
CKZ3N63TP-60LWCFM-X2568L		Bore: ø63 \| Arm opening: 60° \| Arm position: Left \| Switch: Without switch \| Top cover: Metal \| Handle side: Left
CKZ3N63TP-60LWCFM-X2568R		Bore: ø63 \| Arm opening: 60° \| Arm position: Left \| Switch: Without switch \| Top cover: Metal \| Handle side: Right
CKZ3N63TP-60DTCF-X2568L		Bore: ø63 \| Arm opening: 60° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Left
CKZ3N63TP-60DTCF-X2568R		Bore: ø63 \| Arm opening: 60° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Right
CKZ3N63TP-60DTCFM-X2568L		Bore: ø63 \| Arm opening: 60° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Left
CKZ3N63TP-60DTCFM-X2568R		Bore: ø63 \| Arm opening: 60° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Right
CKZ3N63TP-60DPCF-X2568L		Bore: ø63 \| Arm opening: 60° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Left
CKZ3N63TP-60DPCF-X2568R		Bore: ø63 \| Arm opening: 60° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Right
CKZ3N63TP-60DPCFM-X2568L		Bore: ø63 \| Arm opening: 60° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Left
CKZ3N63TP-60DPCFM-X2568R		Bore: ø63 \| Arm opening: 60° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Right
CKZ3N63TP-60DWCF-X2568L		Bore: ø63 \| Arm opening: 60° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Rubber \| Handle side: Left
CKZ3N63TP-60DWCF-X2568R		Bore: ø63 \| Arm opening: 60° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Rubber \| Handle side: Right
CKZ3N63TP-60DWCFM-X2568L		Bore: ø63 \| Arm opening: 60° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Metal \| Handle side: Left
CKZ3N63TP-60DWCFM-X2568R		Bore: ø63 \| Arm opening: 60° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Metal \| Handle side: Right
CKZ3N63TP-75RTCF-X2568L		Bore: ø63 \| Arm opening: 75° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Left
CKZ3N63TP-75RTCF-X2568R		Bore: ø63 \| Arm opening: 75° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Right
CKZ3N63TP-75RTCFM-X2568L		Bore: ø63 \| Arm opening: 75° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Left
CKZ3N63TP-75RTCFM-X2568R		Bore: ø63 \| Arm opening: 75° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Right
CKZ3N63TP-75RPCF-X2568L		Bore: ø63 \| Arm opening: 75° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Left
CKZ3N63TP-75RPCF-X2568R		Bore: ø63 \| Arm opening: 75° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Right
CKZ3N63TP-75RPCFM-X2568L		Bore: ø63 \| Arm opening: 75° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Left
CKZ3N63TP-75RPCFM-X2568R		Bore: ø63 \| Arm opening: 75° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Right
CKZ3N63TP-75RWCF-X2568L		Bore: ø63 \| Arm opening: 75° \| Arm position: Right \| Switch: Without switch \| Top cover: Rubber \| Handle side: Left
CKZ3N63TP-75RWCF-X2568R		Bore: ø63 \| Arm opening: 75° \| Arm position: Right \| Switch: Without switch \| Top cover: Rubber \| Handle side: Right
CKZ3N63TP-75RWCFM-X2568L		Bore: ø63 \| Arm opening: 75° \| Arm position: Right \| Switch: Without switch \| Top cover: Metal \| Handle side: Left
CKZ3N63TP-75RWCFM-X2568R		Bore: ø63 \| Arm opening: 75° \| Arm position: Right \| Switch: Without switch \| Top cover: Metal \| Handle side: Right
CKZ3N63TP-75LTCF-X2568L		Bore: ø63 \| Arm opening: 75° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Left
CKZ3N63TP-75LTCF-X2568R		Bore: ø63 \| Arm opening: 75° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Right
CKZ3N63TP-75LTCFM-X2568L		Bore: ø63 \| Arm opening: 75° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Left
CKZ3N63TP-75LTCFM-X2568R		Bore: ø63 \| Arm opening: 75° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Right
CKZ3N63TP-75LPCF-X2568L		Bore: ø63 \| Arm opening: 75° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Left
CKZ3N63TP-75LPCF-X2568R		Bore: ø63 \| Arm opening: 75° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Right
CKZ3N63TP-75LPCFM-X2568L		Bore: ø63 \| Arm opening: 75° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Left
CKZ3N63TP-75LPCFM-X2568R		Bore: ø63 \| Arm opening: 75° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Right
CKZ3N63TP-75LWCF-X2568L		Bore: ø63 \| Arm opening: 75° \| Arm position: Left \| Switch: Without switch \| Top cover: Rubber \| Handle side: Left
CKZ3N63TP-75LWCF-X2568R		Bore: ø63 \| Arm opening: 75° \| Arm position: Left \| Switch: Without switch \| Top cover: Rubber \| Handle side: Right
CKZ3N63TP-75LWCFM-X2568L		Bore: ø63 \| Arm opening: 75° \| Arm position: Left \| Switch: Without switch \| Top cover: Metal \| Handle side: Left
CKZ3N63TP-75LWCFM-X2568R		Bore: ø63 \| Arm opening: 75° \| Arm position: Left \| Switch: Without switch \| Top cover: Metal \| Handle side: Right
CKZ3N63TP-75DTCF-X2568L		Bore: ø63 \| Arm opening: 75° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Left
CKZ3N63TP-75DTCF-X2568R		Bore: ø63 \| Arm opening: 75° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Right
CKZ3N63TP-75DTCFM-X2568L		Bore: ø63 \| Arm opening: 75° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Left
CKZ3N63TP-75DTCFM-X2568R		Bore: ø63 \| Arm opening: 75° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Right
CKZ3N63TP-75DPCF-X2568L		Bore: ø63 \| Arm opening: 75° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Left
CKZ3N63TP-75DPCF-X2568R		Bore: ø63 \| Arm opening: 75° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Right
CKZ3N63TP-75DPCFM-X2568L		Bore: ø63 \| Arm opening: 75° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Left
CKZ3N63TP-75DPCFM-X2568R		Bore: ø63 \| Arm opening: 75° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Right
CKZ3N63TP-75DWCF-X2568L		Bore: ø63 \| Arm opening: 75° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Rubber \| Handle side: Left
CKZ3N63TP-75DWCF-X2568R		Bore: ø63 \| Arm opening: 75° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Rubber \| Handle side: Right
CKZ3N63TP-75DWCFM-X2568L		Bore: ø63 \| Arm opening: 75° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Metal \| Handle side: Left
CKZ3N63TP-75DWCFM-X2568R		Bore: ø63 \| Arm opening: 75° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Metal \| Handle side: Right
CKZ3N63TP-90RTCF-X2568L		Bore: ø63 \| Arm opening: 90° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Left
CKZ3N63TP-90RTCF-X2568R		Bore: ø63 \| Arm opening: 90° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Right
CKZ3N63TP-90RTCFM-X2568L		Bore: ø63 \| Arm opening: 90° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Left
CKZ3N63TP-90RTCFM-X2568R		Bore: ø63 \| Arm opening: 90° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Right
CKZ3N63TP-90RPCF-X2568L		Bore: ø63 \| Arm opening: 90° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Left
CKZ3N63TP-90RPCF-X2568R		Bore: ø63 \| Arm opening: 90° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Right
CKZ3N63TP-90RPCFM-X2568L		Bore: ø63 \| Arm opening: 90° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Left
CKZ3N63TP-90RPCFM-X2568R		Bore: ø63 \| Arm opening: 90° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Right
CKZ3N63TP-90RWCF-X2568L		Bore: ø63 \| Arm opening: 90° \| Arm position: Right \| Switch: Without switch \| Top cover: Rubber \| Handle side: Left
CKZ3N63TP-90RWCF-X2568R		Bore: ø63 \| Arm opening: 90° \| Arm position: Right \| Switch: Without switch \| Top cover: Rubber \| Handle side: Right
CKZ3N63TP-90RWCFM-X2568L		Bore: ø63 \| Arm opening: 90° \| Arm position: Right \| Switch: Without switch \| Top cover: Metal \| Handle side: Left
CKZ3N63TP-90RWCFM-X2568R		Bore: ø63 \| Arm opening: 90° \| Arm position: Right \| Switch: Without switch \| Top cover: Metal \| Handle side: Right
CKZ3N63TP-90LTCF-X2568L		Bore: ø63 \| Arm opening: 90° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Left
CKZ3N63TP-90LTCF-X2568R		Bore: ø63 \| Arm opening: 90° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Right
CKZ3N63TP-90LTCFM-X2568L		Bore: ø63 \| Arm opening: 90° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Left
CKZ3N63TP-90LTCFM-X2568R		Bore: ø63 \| Arm opening: 90° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Right
CKZ3N63TP-90LPCF-X2568L		Bore: ø63 \| Arm opening: 90° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Left
CKZ3N63TP-90LPCF-X2568R		Bore: ø63 \| Arm opening: 90° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Right
CKZ3N63TP-90LPCFM-X2568L		Bore: ø63 \| Arm opening: 90° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Left
CKZ3N63TP-90LPCFM-X2568R		Bore: ø63 \| Arm opening: 90° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Right
CKZ3N63TP-90LWCF-X2568L		Bore: ø63 \| Arm opening: 90° \| Arm position: Left \| Switch: Without switch \| Top cover: Rubber \| Handle side: Left
CKZ3N63TP-90LWCF-X2568R		Bore: ø63 \| Arm opening: 90° \| Arm position: Left \| Switch: Without switch \| Top cover: Rubber \| Handle side: Right
CKZ3N63TP-90LWCFM-X2568L		Bore: ø63 \| Arm opening: 90° \| Arm position: Left \| Switch: Without switch \| Top cover: Metal \| Handle side: Left
CKZ3N63TP-90LWCFM-X2568R		Bore: ø63 \| Arm opening: 90° \| Arm position: Left \| Switch: Without switch \| Top cover: Metal \| Handle side: Right
CKZ3N63TP-90DTCF-X2568L		Bore: ø63 \| Arm opening: 90° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Left
CKZ3N63TP-90DTCF-X2568R		Bore: ø63 \| Arm opening: 90° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Right
CKZ3N63TP-90DTCFM-X2568L		Bore: ø63 \| Arm opening: 90° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Left
CKZ3N63TP-90DTCFM-X2568R		Bore: ø63 \| Arm opening: 90° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Right
CKZ3N63TP-90DPCF-X2568L		Bore: ø63 \| Arm opening: 90° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Left
CKZ3N63TP-90DPCF-X2568R		Bore: ø63 \| Arm opening: 90° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Right
CKZ3N63TP-90DPCFM-X2568L		Bore: ø63 \| Arm opening: 90° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Left
CKZ3N63TP-90DPCFM-X2568R		Bore: ø63 \| Arm opening: 90° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Right
CKZ3N63TP-90DWCF-X2568L		Bore: ø63 \| Arm opening: 90° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Rubber \| Handle side: Left
CKZ3N63TP-90DWCF-X2568R		Bore: ø63 \| Arm opening: 90° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Rubber \| Handle side: Right
CKZ3N63TP-90DWCFM-X2568L		Bore: ø63 \| Arm opening: 90° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Metal \| Handle side: Left
CKZ3N63TP-90DWCFM-X2568R		Bore: ø63 \| Arm opening: 90° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Metal \| Handle side: Right
CKZ3N63TP-105RTCF-X2568L		Bore: ø63 \| Arm opening: 105° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Left
CKZ3N63TP-105RTCF-X2568R		Bore: ø63 \| Arm opening: 105° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Right
CKZ3N63TP-105RTCFM-X2568L		Bore: ø63 \| Arm opening: 105° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Left
CKZ3N63TP-105RTCFM-X2568R		Bore: ø63 \| Arm opening: 105° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Right
CKZ3N63TP-105RPCF-X2568L		Bore: ø63 \| Arm opening: 105° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Left
CKZ3N63TP-105RPCF-X2568R		Bore: ø63 \| Arm opening: 105° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Right
CKZ3N63TP-105RPCFM-X2568L		Bore: ø63 \| Arm opening: 105° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Left
CKZ3N63TP-105RPCFM-X2568R		Bore: ø63 \| Arm opening: 105° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Right
CKZ3N63TP-105RWCF-X2568L		Bore: ø63 \| Arm opening: 105° \| Arm position: Right \| Switch: Without switch \| Top cover: Rubber \| Handle side: Left
CKZ3N63TP-105RWCF-X2568R		Bore: ø63 \| Arm opening: 105° \| Arm position: Right \| Switch: Without switch \| Top cover: Rubber \| Handle side: Right
CKZ3N63TP-105RWCFM-X2568L		Bore: ø63 \| Arm opening: 105° \| Arm position: Right \| Switch: Without switch \| Top cover: Metal \| Handle side: Left
CKZ3N63TP-105RWCFM-X2568R		Bore: ø63 \| Arm opening: 105° \| Arm position: Right \| Switch: Without switch \| Top cover: Metal \| Handle side: Right
CKZ3N63TP-105LTCF-X2568L		Bore: ø63 \| Arm opening: 105° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Left
CKZ3N63TP-105LTCF-X2568R		Bore: ø63 \| Arm opening: 105° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Right
CKZ3N63TP-105LTCFM-X2568L		Bore: ø63 \| Arm opening: 105° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Left
CKZ3N63TP-105LTCFM-X2568R		Bore: ø63 \| Arm opening: 105° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Right
CKZ3N63TP-105LPCF-X2568L		Bore: ø63 \| Arm opening: 105° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Left
CKZ3N63TP-105LPCF-X2568R		Bore: ø63 \| Arm opening: 105° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Right
CKZ3N63TP-105LPCFM-X2568L		Bore: ø63 \| Arm opening: 105° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Left
CKZ3N63TP-105LPCFM-X2568R		Bore: ø63 \| Arm opening: 105° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Right
CKZ3N63TP-105LWCF-X2568L		Bore: ø63 \| Arm opening: 105° \| Arm position: Left \| Switch: Without switch \| Top cover: Rubber \| Handle side: Left
CKZ3N63TP-105LWCF-X2568R		Bore: ø63 \| Arm opening: 105° \| Arm position: Left \| Switch: Without switch \| Top cover: Rubber \| Handle side: Right
CKZ3N63TP-105LWCFM-X2568L		Bore: ø63 \| Arm opening: 105° \| Arm position: Left \| Switch: Without switch \| Top cover: Metal \| Handle side: Left
CKZ3N63TP-105LWCFM-X2568R		Bore: ø63 \| Arm opening: 105° \| Arm position: Left \| Switch: Without switch \| Top cover: Metal \| Handle side: Right
CKZ3N63TP-105DTCF-X2568L		Bore: ø63 \| Arm opening: 105° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Left
CKZ3N63TP-105DTCF-X2568R		Bore: ø63 \| Arm opening: 105° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Right
CKZ3N63TP-105DTCFM-X2568L		Bore: ø63 \| Arm opening: 105° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Left
CKZ3N63TP-105DTCFM-X2568R		Bore: ø63 \| Arm opening: 105° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Right
CKZ3N63TP-105DPCF-X2568L		Bore: ø63 \| Arm opening: 105° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Left
CKZ3N63TP-105DPCF-X2568R		Bore: ø63 \| Arm opening: 105° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Right
CKZ3N63TP-105DPCFM-X2568L		Bore: ø63 \| Arm opening: 105° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Left
CKZ3N63TP-105DPCFM-X2568R		Bore: ø63 \| Arm opening: 105° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Right
CKZ3N63TP-105DWCF-X2568L		Bore: ø63 \| Arm opening: 105° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Rubber \| Handle side: Left
CKZ3N63TP-105DWCF-X2568R		Bore: ø63 \| Arm opening: 105° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Rubber \| Handle side: Right
CKZ3N63TP-105DWCFM-X2568L		Bore: ø63 \| Arm opening: 105° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Metal \| Handle side: Left
CKZ3N63TP-105DWCFM-X2568R		Bore: ø63 \| Arm opening: 105° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Metal \| Handle side: Right
CKZ3N63TP-120RTCF-X2568L		Bore: ø63 \| Arm opening: 120° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Left
CKZ3N63TP-120RTCF-X2568R		Bore: ø63 \| Arm opening: 120° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Right
CKZ3N63TP-120RTCFM-X2568L		Bore: ø63 \| Arm opening: 120° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Left
CKZ3N63TP-120RTCFM-X2568R		Bore: ø63 \| Arm opening: 120° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Right
CKZ3N63TP-120RPCF-X2568L		Bore: ø63 \| Arm opening: 120° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Left
CKZ3N63TP-120RPCF-X2568R		Bore: ø63 \| Arm opening: 120° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Right
CKZ3N63TP-120RPCFM-X2568L		Bore: ø63 \| Arm opening: 120° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Left
CKZ3N63TP-120RPCFM-X2568R		Bore: ø63 \| Arm opening: 120° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Right
CKZ3N63TP-120RWCF-X2568L		Bore: ø63 \| Arm opening: 120° \| Arm position: Right \| Switch: Without switch \| Top cover: Rubber \| Handle side: Left
CKZ3N63TP-120RWCF-X2568R		Bore: ø63 \| Arm opening: 120° \| Arm position: Right \| Switch: Without switch \| Top cover: Rubber \| Handle side: Right
CKZ3N63TP-120RWCFM-X2568L		Bore: ø63 \| Arm opening: 120° \| Arm position: Right \| Switch: Without switch \| Top cover: Metal \| Handle side: Left
CKZ3N63TP-120RWCFM-X2568R		Bore: ø63 \| Arm opening: 120° \| Arm position: Right \| Switch: Without switch \| Top cover: Metal \| Handle side: Right
CKZ3N63TP-120LTCF-X2568L		Bore: ø63 \| Arm opening: 120° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Left
CKZ3N63TP-120LTCF-X2568R		Bore: ø63 \| Arm opening: 120° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Right
CKZ3N63TP-120LTCFM-X2568L		Bore: ø63 \| Arm opening: 120° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Left
CKZ3N63TP-120LTCFM-X2568R		Bore: ø63 \| Arm opening: 120° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Right
CKZ3N63TP-120LPCF-X2568L		Bore: ø63 \| Arm opening: 120° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Left
CKZ3N63TP-120LPCF-X2568R		Bore: ø63 \| Arm opening: 120° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Right
CKZ3N63TP-120LPCFM-X2568L		Bore: ø63 \| Arm opening: 120° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Left
CKZ3N63TP-120LPCFM-X2568R		Bore: ø63 \| Arm opening: 120° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Right
CKZ3N63TP-120LWCF-X2568L		Bore: ø63 \| Arm opening: 120° \| Arm position: Left \| Switch: Without switch \| Top cover: Rubber \| Handle side: Left
CKZ3N63TP-120LWCF-X2568R		Bore: ø63 \| Arm opening: 120° \| Arm position: Left \| Switch: Without switch \| Top cover: Rubber \| Handle side: Right
CKZ3N63TP-120LWCFM-X2568L		Bore: ø63 \| Arm opening: 120° \| Arm position: Left \| Switch: Without switch \| Top cover: Metal \| Handle side: Left
CKZ3N63TP-120LWCFM-X2568R		Bore: ø63 \| Arm opening: 120° \| Arm position: Left \| Switch: Without switch \| Top cover: Metal \| Handle side: Right
CKZ3N63TP-120DTCF-X2568L		Bore: ø63 \| Arm opening: 120° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Left
CKZ3N63TP-120DTCF-X2568R		Bore: ø63 \| Arm opening: 120° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Right
CKZ3N63TP-120DTCFM-X2568L		Bore: ø63 \| Arm opening: 120° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Left
CKZ3N63TP-120DTCFM-X2568R		Bore: ø63 \| Arm opening: 120° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Right
CKZ3N63TP-120DPCF-X2568L		Bore: ø63 \| Arm opening: 120° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Left
CKZ3N63TP-120DPCF-X2568R		Bore: ø63 \| Arm opening: 120° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Right
CKZ3N63TP-120DPCFM-X2568L		Bore: ø63 \| Arm opening: 120° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Left
CKZ3N63TP-120DPCFM-X2568R		Bore: ø63 \| Arm opening: 120° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Right
CKZ3N63TP-120DWCF-X2568L		Bore: ø63 \| Arm opening: 120° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Rubber \| Handle side: Left
CKZ3N63TP-120DWCF-X2568R		Bore: ø63 \| Arm opening: 120° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Rubber \| Handle side: Right
CKZ3N63TP-120DWCFM-X2568L		Bore: ø63 \| Arm opening: 120° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Metal \| Handle side: Left
CKZ3N63TP-120DWCFM-X2568R		Bore: ø63 \| Arm opening: 120° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Metal \| Handle side: Right

Clamp CylindersSMC

576 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC CKZ3N NAAMS Power Clamp Cylinder (ø50, ø63, Manual Handle -X2568)

Brand SMC·Clamp Cylinders

Available part numbers (576)

CKZ3N50TP-15RTCF-X2568L, CKZ3N50TP-15RTCF-X2568R, CKZ3N50TP-15RTCFM-X2568L, CKZ3N50TP-15RTCFM-X2568R, CKZ3N50TP-15RPCF-X2568L, CKZ3N50TP-15RPCF-X2568R, CKZ3N50TP-15RPCFM-X2568L, CKZ3N50TP-15RPCFM-X2568R, CKZ3N50TP-15RWCF-X2568L, CKZ3N50TP-15RWCF-X2568R + 566 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	CKZ3N50TP-15RTCF-X2568L	Bore: ø50 \| Arm opening: 15° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Left
	CKZ3N50TP-15RTCF-X2568R	Bore: ø50 \| Arm opening: 15° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Right
	CKZ3N50TP-15RTCFM-X2568L	Bore: ø50 \| Arm opening: 15° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Left
	CKZ3N50TP-15RTCFM-X2568R	Bore: ø50 \| Arm opening: 15° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Right
	CKZ3N50TP-15RPCF-X2568L	Bore: ø50 \| Arm opening: 15° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Left
	CKZ3N50TP-15RPCF-X2568R	Bore: ø50 \| Arm opening: 15° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Right
	CKZ3N50TP-15RPCFM-X2568L	Bore: ø50 \| Arm opening: 15° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Left
	CKZ3N50TP-15RPCFM-X2568R	Bore: ø50 \| Arm opening: 15° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Right
	CKZ3N50TP-15RWCF-X2568L	Bore: ø50 \| Arm opening: 15° \| Arm position: Right \| Switch: Without switch \| Top cover: Rubber \| Handle side: Left
	CKZ3N50TP-15RWCF-X2568R	Bore: ø50 \| Arm opening: 15° \| Arm position: Right \| Switch: Without switch \| Top cover: Rubber \| Handle side: Right
	CKZ3N50TP-15RWCFM-X2568L	Bore: ø50 \| Arm opening: 15° \| Arm position: Right \| Switch: Without switch \| Top cover: Metal \| Handle side: Left
	CKZ3N50TP-15RWCFM-X2568R	Bore: ø50 \| Arm opening: 15° \| Arm position: Right \| Switch: Without switch \| Top cover: Metal \| Handle side: Right
	CKZ3N50TP-15LTCF-X2568L	Bore: ø50 \| Arm opening: 15° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Left
	CKZ3N50TP-15LTCF-X2568R	Bore: ø50 \| Arm opening: 15° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Right
	CKZ3N50TP-15LTCFM-X2568L	Bore: ø50 \| Arm opening: 15° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Left
	CKZ3N50TP-15LTCFM-X2568R	Bore: ø50 \| Arm opening: 15° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Right
	CKZ3N50TP-15LPCF-X2568L	Bore: ø50 \| Arm opening: 15° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Left
	CKZ3N50TP-15LPCF-X2568R	Bore: ø50 \| Arm opening: 15° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Right
	CKZ3N50TP-15LPCFM-X2568L	Bore: ø50 \| Arm opening: 15° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Left
	CKZ3N50TP-15LPCFM-X2568R	Bore: ø50 \| Arm opening: 15° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Right
	CKZ3N50TP-15LWCF-X2568L	Bore: ø50 \| Arm opening: 15° \| Arm position: Left \| Switch: Without switch \| Top cover: Rubber \| Handle side: Left
	CKZ3N50TP-15LWCF-X2568R	Bore: ø50 \| Arm opening: 15° \| Arm position: Left \| Switch: Without switch \| Top cover: Rubber \| Handle side: Right
	CKZ3N50TP-15LWCFM-X2568L	Bore: ø50 \| Arm opening: 15° \| Arm position: Left \| Switch: Without switch \| Top cover: Metal \| Handle side: Left
	CKZ3N50TP-15LWCFM-X2568R	Bore: ø50 \| Arm opening: 15° \| Arm position: Left \| Switch: Without switch \| Top cover: Metal \| Handle side: Right
	CKZ3N50TP-15DTCF-X2568L	Bore: ø50 \| Arm opening: 15° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Left
	CKZ3N50TP-15DTCF-X2568R	Bore: ø50 \| Arm opening: 15° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Right
	CKZ3N50TP-15DTCFM-X2568L	Bore: ø50 \| Arm opening: 15° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Left
	CKZ3N50TP-15DTCFM-X2568R	Bore: ø50 \| Arm opening: 15° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Right
	CKZ3N50TP-15DPCF-X2568L	Bore: ø50 \| Arm opening: 15° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Left
	CKZ3N50TP-15DPCF-X2568R	Bore: ø50 \| Arm opening: 15° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Right
	CKZ3N50TP-15DPCFM-X2568L	Bore: ø50 \| Arm opening: 15° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Left
	CKZ3N50TP-15DPCFM-X2568R	Bore: ø50 \| Arm opening: 15° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Right
	CKZ3N50TP-15DWCF-X2568L	Bore: ø50 \| Arm opening: 15° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Rubber \| Handle side: Left
	CKZ3N50TP-15DWCF-X2568R	Bore: ø50 \| Arm opening: 15° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Rubber \| Handle side: Right
	CKZ3N50TP-15DWCFM-X2568L	Bore: ø50 \| Arm opening: 15° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Metal \| Handle side: Left
	CKZ3N50TP-15DWCFM-X2568R	Bore: ø50 \| Arm opening: 15° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Metal \| Handle side: Right
	CKZ3N50TP-30RTCF-X2568L	Bore: ø50 \| Arm opening: 30° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Left
	CKZ3N50TP-30RTCF-X2568R	Bore: ø50 \| Arm opening: 30° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Right
	CKZ3N50TP-30RTCFM-X2568L	Bore: ø50 \| Arm opening: 30° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Left
	CKZ3N50TP-30RTCFM-X2568R	Bore: ø50 \| Arm opening: 30° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Right
	CKZ3N50TP-30RPCF-X2568L	Bore: ø50 \| Arm opening: 30° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Left
	CKZ3N50TP-30RPCF-X2568R	Bore: ø50 \| Arm opening: 30° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Right
	CKZ3N50TP-30RPCFM-X2568L	Bore: ø50 \| Arm opening: 30° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Left
	CKZ3N50TP-30RPCFM-X2568R	Bore: ø50 \| Arm opening: 30° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Right
	CKZ3N50TP-30RWCF-X2568L	Bore: ø50 \| Arm opening: 30° \| Arm position: Right \| Switch: Without switch \| Top cover: Rubber \| Handle side: Left
	CKZ3N50TP-30RWCF-X2568R	Bore: ø50 \| Arm opening: 30° \| Arm position: Right \| Switch: Without switch \| Top cover: Rubber \| Handle side: Right
	CKZ3N50TP-30RWCFM-X2568L	Bore: ø50 \| Arm opening: 30° \| Arm position: Right \| Switch: Without switch \| Top cover: Metal \| Handle side: Left
	CKZ3N50TP-30RWCFM-X2568R	Bore: ø50 \| Arm opening: 30° \| Arm position: Right \| Switch: Without switch \| Top cover: Metal \| Handle side: Right
	CKZ3N50TP-30LTCF-X2568L	Bore: ø50 \| Arm opening: 30° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Left
	CKZ3N50TP-30LTCF-X2568R	Bore: ø50 \| Arm opening: 30° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Right
	CKZ3N50TP-30LTCFM-X2568L	Bore: ø50 \| Arm opening: 30° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Left
	CKZ3N50TP-30LTCFM-X2568R	Bore: ø50 \| Arm opening: 30° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Right
	CKZ3N50TP-30LPCF-X2568L	Bore: ø50 \| Arm opening: 30° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Left
	CKZ3N50TP-30LPCF-X2568R	Bore: ø50 \| Arm opening: 30° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Right
	CKZ3N50TP-30LPCFM-X2568L	Bore: ø50 \| Arm opening: 30° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Left
	CKZ3N50TP-30LPCFM-X2568R	Bore: ø50 \| Arm opening: 30° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Right
	CKZ3N50TP-30LWCF-X2568L	Bore: ø50 \| Arm opening: 30° \| Arm position: Left \| Switch: Without switch \| Top cover: Rubber \| Handle side: Left
	CKZ3N50TP-30LWCF-X2568R	Bore: ø50 \| Arm opening: 30° \| Arm position: Left \| Switch: Without switch \| Top cover: Rubber \| Handle side: Right
	CKZ3N50TP-30LWCFM-X2568L	Bore: ø50 \| Arm opening: 30° \| Arm position: Left \| Switch: Without switch \| Top cover: Metal \| Handle side: Left
	CKZ3N50TP-30LWCFM-X2568R	Bore: ø50 \| Arm opening: 30° \| Arm position: Left \| Switch: Without switch \| Top cover: Metal \| Handle side: Right
	CKZ3N50TP-30DTCF-X2568L	Bore: ø50 \| Arm opening: 30° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Left
	CKZ3N50TP-30DTCF-X2568R	Bore: ø50 \| Arm opening: 30° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Right
	CKZ3N50TP-30DTCFM-X2568L	Bore: ø50 \| Arm opening: 30° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Left
	CKZ3N50TP-30DTCFM-X2568R	Bore: ø50 \| Arm opening: 30° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Right
	CKZ3N50TP-30DPCF-X2568L	Bore: ø50 \| Arm opening: 30° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Left
	CKZ3N50TP-30DPCF-X2568R	Bore: ø50 \| Arm opening: 30° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Right
	CKZ3N50TP-30DPCFM-X2568L	Bore: ø50 \| Arm opening: 30° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Left
	CKZ3N50TP-30DPCFM-X2568R	Bore: ø50 \| Arm opening: 30° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Right
	CKZ3N50TP-30DWCF-X2568L	Bore: ø50 \| Arm opening: 30° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Rubber \| Handle side: Left
	CKZ3N50TP-30DWCF-X2568R	Bore: ø50 \| Arm opening: 30° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Rubber \| Handle side: Right
	CKZ3N50TP-30DWCFM-X2568L	Bore: ø50 \| Arm opening: 30° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Metal \| Handle side: Left
	CKZ3N50TP-30DWCFM-X2568R	Bore: ø50 \| Arm opening: 30° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Metal \| Handle side: Right
	CKZ3N50TP-45RTCF-X2568L	Bore: ø50 \| Arm opening: 45° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Left
	CKZ3N50TP-45RTCF-X2568R	Bore: ø50 \| Arm opening: 45° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Right
	CKZ3N50TP-45RTCFM-X2568L	Bore: ø50 \| Arm opening: 45° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Left
	CKZ3N50TP-45RTCFM-X2568R	Bore: ø50 \| Arm opening: 45° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Right
	CKZ3N50TP-45RPCF-X2568L	Bore: ø50 \| Arm opening: 45° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Left
	CKZ3N50TP-45RPCF-X2568R	Bore: ø50 \| Arm opening: 45° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Right
	CKZ3N50TP-45RPCFM-X2568L	Bore: ø50 \| Arm opening: 45° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Left
	CKZ3N50TP-45RPCFM-X2568R	Bore: ø50 \| Arm opening: 45° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Right
	CKZ3N50TP-45RWCF-X2568L	Bore: ø50 \| Arm opening: 45° \| Arm position: Right \| Switch: Without switch \| Top cover: Rubber \| Handle side: Left
	CKZ3N50TP-45RWCF-X2568R	Bore: ø50 \| Arm opening: 45° \| Arm position: Right \| Switch: Without switch \| Top cover: Rubber \| Handle side: Right
	CKZ3N50TP-45RWCFM-X2568L	Bore: ø50 \| Arm opening: 45° \| Arm position: Right \| Switch: Without switch \| Top cover: Metal \| Handle side: Left
	CKZ3N50TP-45RWCFM-X2568R	Bore: ø50 \| Arm opening: 45° \| Arm position: Right \| Switch: Without switch \| Top cover: Metal \| Handle side: Right
	CKZ3N50TP-45LTCF-X2568L	Bore: ø50 \| Arm opening: 45° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Left
	CKZ3N50TP-45LTCF-X2568R	Bore: ø50 \| Arm opening: 45° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Right
	CKZ3N50TP-45LTCFM-X2568L	Bore: ø50 \| Arm opening: 45° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Left
	CKZ3N50TP-45LTCFM-X2568R	Bore: ø50 \| Arm opening: 45° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Right
	CKZ3N50TP-45LPCF-X2568L	Bore: ø50 \| Arm opening: 45° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Left
	CKZ3N50TP-45LPCF-X2568R	Bore: ø50 \| Arm opening: 45° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Right
	CKZ3N50TP-45LPCFM-X2568L	Bore: ø50 \| Arm opening: 45° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Left
	CKZ3N50TP-45LPCFM-X2568R	Bore: ø50 \| Arm opening: 45° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Right
	CKZ3N50TP-45LWCF-X2568L	Bore: ø50 \| Arm opening: 45° \| Arm position: Left \| Switch: Without switch \| Top cover: Rubber \| Handle side: Left
	CKZ3N50TP-45LWCF-X2568R	Bore: ø50 \| Arm opening: 45° \| Arm position: Left \| Switch: Without switch \| Top cover: Rubber \| Handle side: Right
	CKZ3N50TP-45LWCFM-X2568L	Bore: ø50 \| Arm opening: 45° \| Arm position: Left \| Switch: Without switch \| Top cover: Metal \| Handle side: Left
	CKZ3N50TP-45LWCFM-X2568R	Bore: ø50 \| Arm opening: 45° \| Arm position: Left \| Switch: Without switch \| Top cover: Metal \| Handle side: Right
	CKZ3N50TP-45DTCF-X2568L	Bore: ø50 \| Arm opening: 45° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Left
	CKZ3N50TP-45DTCF-X2568R	Bore: ø50 \| Arm opening: 45° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Right
	CKZ3N50TP-45DTCFM-X2568L	Bore: ø50 \| Arm opening: 45° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Left
	CKZ3N50TP-45DTCFM-X2568R	Bore: ø50 \| Arm opening: 45° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Right
	CKZ3N50TP-45DPCF-X2568L	Bore: ø50 \| Arm opening: 45° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Left
	CKZ3N50TP-45DPCF-X2568R	Bore: ø50 \| Arm opening: 45° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Right
	CKZ3N50TP-45DPCFM-X2568L	Bore: ø50 \| Arm opening: 45° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Left
	CKZ3N50TP-45DPCFM-X2568R	Bore: ø50 \| Arm opening: 45° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Right
	CKZ3N50TP-45DWCF-X2568L	Bore: ø50 \| Arm opening: 45° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Rubber \| Handle side: Left
	CKZ3N50TP-45DWCF-X2568R	Bore: ø50 \| Arm opening: 45° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Rubber \| Handle side: Right
	CKZ3N50TP-45DWCFM-X2568L	Bore: ø50 \| Arm opening: 45° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Metal \| Handle side: Left
	CKZ3N50TP-45DWCFM-X2568R	Bore: ø50 \| Arm opening: 45° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Metal \| Handle side: Right
	CKZ3N50TP-60RTCF-X2568L	Bore: ø50 \| Arm opening: 60° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Left
	CKZ3N50TP-60RTCF-X2568R	Bore: ø50 \| Arm opening: 60° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Right
	CKZ3N50TP-60RTCFM-X2568L	Bore: ø50 \| Arm opening: 60° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Left
	CKZ3N50TP-60RTCFM-X2568R	Bore: ø50 \| Arm opening: 60° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Right
	CKZ3N50TP-60RPCF-X2568L	Bore: ø50 \| Arm opening: 60° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Left
	CKZ3N50TP-60RPCF-X2568R	Bore: ø50 \| Arm opening: 60° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Right
	CKZ3N50TP-60RPCFM-X2568L	Bore: ø50 \| Arm opening: 60° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Left
	CKZ3N50TP-60RPCFM-X2568R	Bore: ø50 \| Arm opening: 60° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Right
	CKZ3N50TP-60RWCF-X2568L	Bore: ø50 \| Arm opening: 60° \| Arm position: Right \| Switch: Without switch \| Top cover: Rubber \| Handle side: Left
	CKZ3N50TP-60RWCF-X2568R	Bore: ø50 \| Arm opening: 60° \| Arm position: Right \| Switch: Without switch \| Top cover: Rubber \| Handle side: Right
	CKZ3N50TP-60RWCFM-X2568L	Bore: ø50 \| Arm opening: 60° \| Arm position: Right \| Switch: Without switch \| Top cover: Metal \| Handle side: Left
	CKZ3N50TP-60RWCFM-X2568R	Bore: ø50 \| Arm opening: 60° \| Arm position: Right \| Switch: Without switch \| Top cover: Metal \| Handle side: Right
	CKZ3N50TP-60LTCF-X2568L	Bore: ø50 \| Arm opening: 60° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Left
	CKZ3N50TP-60LTCF-X2568R	Bore: ø50 \| Arm opening: 60° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Right
	CKZ3N50TP-60LTCFM-X2568L	Bore: ø50 \| Arm opening: 60° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Left
	CKZ3N50TP-60LTCFM-X2568R	Bore: ø50 \| Arm opening: 60° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Right
	CKZ3N50TP-60LPCF-X2568L	Bore: ø50 \| Arm opening: 60° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Left
	CKZ3N50TP-60LPCF-X2568R	Bore: ø50 \| Arm opening: 60° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Right
	CKZ3N50TP-60LPCFM-X2568L	Bore: ø50 \| Arm opening: 60° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Left
	CKZ3N50TP-60LPCFM-X2568R	Bore: ø50 \| Arm opening: 60° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Right
	CKZ3N50TP-60LWCF-X2568L	Bore: ø50 \| Arm opening: 60° \| Arm position: Left \| Switch: Without switch \| Top cover: Rubber \| Handle side: Left
	CKZ3N50TP-60LWCF-X2568R	Bore: ø50 \| Arm opening: 60° \| Arm position: Left \| Switch: Without switch \| Top cover: Rubber \| Handle side: Right
	CKZ3N50TP-60LWCFM-X2568L	Bore: ø50 \| Arm opening: 60° \| Arm position: Left \| Switch: Without switch \| Top cover: Metal \| Handle side: Left
	CKZ3N50TP-60LWCFM-X2568R	Bore: ø50 \| Arm opening: 60° \| Arm position: Left \| Switch: Without switch \| Top cover: Metal \| Handle side: Right
	CKZ3N50TP-60DTCF-X2568L	Bore: ø50 \| Arm opening: 60° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Left
	CKZ3N50TP-60DTCF-X2568R	Bore: ø50 \| Arm opening: 60° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Right
	CKZ3N50TP-60DTCFM-X2568L	Bore: ø50 \| Arm opening: 60° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Left
	CKZ3N50TP-60DTCFM-X2568R	Bore: ø50 \| Arm opening: 60° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Right
	CKZ3N50TP-60DPCF-X2568L	Bore: ø50 \| Arm opening: 60° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Left
	CKZ3N50TP-60DPCF-X2568R	Bore: ø50 \| Arm opening: 60° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Right
	CKZ3N50TP-60DPCFM-X2568L	Bore: ø50 \| Arm opening: 60° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Left
	CKZ3N50TP-60DPCFM-X2568R	Bore: ø50 \| Arm opening: 60° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Right
	CKZ3N50TP-60DWCF-X2568L	Bore: ø50 \| Arm opening: 60° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Rubber \| Handle side: Left
	CKZ3N50TP-60DWCF-X2568R	Bore: ø50 \| Arm opening: 60° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Rubber \| Handle side: Right
	CKZ3N50TP-60DWCFM-X2568L	Bore: ø50 \| Arm opening: 60° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Metal \| Handle side: Left
	CKZ3N50TP-60DWCFM-X2568R	Bore: ø50 \| Arm opening: 60° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Metal \| Handle side: Right
	CKZ3N50TP-75RTCF-X2568L	Bore: ø50 \| Arm opening: 75° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Left
	CKZ3N50TP-75RTCF-X2568R	Bore: ø50 \| Arm opening: 75° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Right
	CKZ3N50TP-75RTCFM-X2568L	Bore: ø50 \| Arm opening: 75° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Left
	CKZ3N50TP-75RTCFM-X2568R	Bore: ø50 \| Arm opening: 75° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Right
	CKZ3N50TP-75RPCF-X2568L	Bore: ø50 \| Arm opening: 75° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Left
	CKZ3N50TP-75RPCF-X2568R	Bore: ø50 \| Arm opening: 75° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Right
	CKZ3N50TP-75RPCFM-X2568L	Bore: ø50 \| Arm opening: 75° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Left
	CKZ3N50TP-75RPCFM-X2568R	Bore: ø50 \| Arm opening: 75° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Right
	CKZ3N50TP-75RWCF-X2568L	Bore: ø50 \| Arm opening: 75° \| Arm position: Right \| Switch: Without switch \| Top cover: Rubber \| Handle side: Left
	CKZ3N50TP-75RWCF-X2568R	Bore: ø50 \| Arm opening: 75° \| Arm position: Right \| Switch: Without switch \| Top cover: Rubber \| Handle side: Right
	CKZ3N50TP-75RWCFM-X2568L	Bore: ø50 \| Arm opening: 75° \| Arm position: Right \| Switch: Without switch \| Top cover: Metal \| Handle side: Left
	CKZ3N50TP-75RWCFM-X2568R	Bore: ø50 \| Arm opening: 75° \| Arm position: Right \| Switch: Without switch \| Top cover: Metal \| Handle side: Right
	CKZ3N50TP-75LTCF-X2568L	Bore: ø50 \| Arm opening: 75° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Left
	CKZ3N50TP-75LTCF-X2568R	Bore: ø50 \| Arm opening: 75° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Right
	CKZ3N50TP-75LTCFM-X2568L	Bore: ø50 \| Arm opening: 75° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Left
	CKZ3N50TP-75LTCFM-X2568R	Bore: ø50 \| Arm opening: 75° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Right
	CKZ3N50TP-75LPCF-X2568L	Bore: ø50 \| Arm opening: 75° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Left
	CKZ3N50TP-75LPCF-X2568R	Bore: ø50 \| Arm opening: 75° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Right
	CKZ3N50TP-75LPCFM-X2568L	Bore: ø50 \| Arm opening: 75° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Left
	CKZ3N50TP-75LPCFM-X2568R	Bore: ø50 \| Arm opening: 75° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Right
	CKZ3N50TP-75LWCF-X2568L	Bore: ø50 \| Arm opening: 75° \| Arm position: Left \| Switch: Without switch \| Top cover: Rubber \| Handle side: Left
	CKZ3N50TP-75LWCF-X2568R	Bore: ø50 \| Arm opening: 75° \| Arm position: Left \| Switch: Without switch \| Top cover: Rubber \| Handle side: Right
	CKZ3N50TP-75LWCFM-X2568L	Bore: ø50 \| Arm opening: 75° \| Arm position: Left \| Switch: Without switch \| Top cover: Metal \| Handle side: Left
	CKZ3N50TP-75LWCFM-X2568R	Bore: ø50 \| Arm opening: 75° \| Arm position: Left \| Switch: Without switch \| Top cover: Metal \| Handle side: Right
	CKZ3N50TP-75DTCF-X2568L	Bore: ø50 \| Arm opening: 75° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Left
	CKZ3N50TP-75DTCF-X2568R	Bore: ø50 \| Arm opening: 75° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Right
	CKZ3N50TP-75DTCFM-X2568L	Bore: ø50 \| Arm opening: 75° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Left
	CKZ3N50TP-75DTCFM-X2568R	Bore: ø50 \| Arm opening: 75° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Right
	CKZ3N50TP-75DPCF-X2568L	Bore: ø50 \| Arm opening: 75° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Left
	CKZ3N50TP-75DPCF-X2568R	Bore: ø50 \| Arm opening: 75° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Right
	CKZ3N50TP-75DPCFM-X2568L	Bore: ø50 \| Arm opening: 75° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Left
	CKZ3N50TP-75DPCFM-X2568R	Bore: ø50 \| Arm opening: 75° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Right
	CKZ3N50TP-75DWCF-X2568L	Bore: ø50 \| Arm opening: 75° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Rubber \| Handle side: Left
	CKZ3N50TP-75DWCF-X2568R	Bore: ø50 \| Arm opening: 75° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Rubber \| Handle side: Right
	CKZ3N50TP-75DWCFM-X2568L	Bore: ø50 \| Arm opening: 75° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Metal \| Handle side: Left
	CKZ3N50TP-75DWCFM-X2568R	Bore: ø50 \| Arm opening: 75° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Metal \| Handle side: Right
	CKZ3N50TP-90RTCF-X2568L	Bore: ø50 \| Arm opening: 90° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Left
	CKZ3N50TP-90RTCF-X2568R	Bore: ø50 \| Arm opening: 90° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Right
	CKZ3N50TP-90RTCFM-X2568L	Bore: ø50 \| Arm opening: 90° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Left
	CKZ3N50TP-90RTCFM-X2568R	Bore: ø50 \| Arm opening: 90° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Right
	CKZ3N50TP-90RPCF-X2568L	Bore: ø50 \| Arm opening: 90° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Left
	CKZ3N50TP-90RPCF-X2568R	Bore: ø50 \| Arm opening: 90° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Right
	CKZ3N50TP-90RPCFM-X2568L	Bore: ø50 \| Arm opening: 90° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Left
	CKZ3N50TP-90RPCFM-X2568R	Bore: ø50 \| Arm opening: 90° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Right
	CKZ3N50TP-90RWCF-X2568L	Bore: ø50 \| Arm opening: 90° \| Arm position: Right \| Switch: Without switch \| Top cover: Rubber \| Handle side: Left
	CKZ3N50TP-90RWCF-X2568R	Bore: ø50 \| Arm opening: 90° \| Arm position: Right \| Switch: Without switch \| Top cover: Rubber \| Handle side: Right
	CKZ3N50TP-90RWCFM-X2568L	Bore: ø50 \| Arm opening: 90° \| Arm position: Right \| Switch: Without switch \| Top cover: Metal \| Handle side: Left
	CKZ3N50TP-90RWCFM-X2568R	Bore: ø50 \| Arm opening: 90° \| Arm position: Right \| Switch: Without switch \| Top cover: Metal \| Handle side: Right
	CKZ3N50TP-90LTCF-X2568L	Bore: ø50 \| Arm opening: 90° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Left
	CKZ3N50TP-90LTCF-X2568R	Bore: ø50 \| Arm opening: 90° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Right
	CKZ3N50TP-90LTCFM-X2568L	Bore: ø50 \| Arm opening: 90° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Left
	CKZ3N50TP-90LTCFM-X2568R	Bore: ø50 \| Arm opening: 90° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Right
	CKZ3N50TP-90LPCF-X2568L	Bore: ø50 \| Arm opening: 90° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Left
	CKZ3N50TP-90LPCF-X2568R	Bore: ø50 \| Arm opening: 90° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Right
	CKZ3N50TP-90LPCFM-X2568L	Bore: ø50 \| Arm opening: 90° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Left
	CKZ3N50TP-90LPCFM-X2568R	Bore: ø50 \| Arm opening: 90° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Right
	CKZ3N50TP-90LWCF-X2568L	Bore: ø50 \| Arm opening: 90° \| Arm position: Left \| Switch: Without switch \| Top cover: Rubber \| Handle side: Left
	CKZ3N50TP-90LWCF-X2568R	Bore: ø50 \| Arm opening: 90° \| Arm position: Left \| Switch: Without switch \| Top cover: Rubber \| Handle side: Right
	CKZ3N50TP-90LWCFM-X2568L	Bore: ø50 \| Arm opening: 90° \| Arm position: Left \| Switch: Without switch \| Top cover: Metal \| Handle side: Left
	CKZ3N50TP-90LWCFM-X2568R	Bore: ø50 \| Arm opening: 90° \| Arm position: Left \| Switch: Without switch \| Top cover: Metal \| Handle side: Right
	CKZ3N50TP-90DTCF-X2568L	Bore: ø50 \| Arm opening: 90° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Left
	CKZ3N50TP-90DTCF-X2568R	Bore: ø50 \| Arm opening: 90° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Right
	CKZ3N50TP-90DTCFM-X2568L	Bore: ø50 \| Arm opening: 90° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Left
	CKZ3N50TP-90DTCFM-X2568R	Bore: ø50 \| Arm opening: 90° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Right
	CKZ3N50TP-90DPCF-X2568L	Bore: ø50 \| Arm opening: 90° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Left
	CKZ3N50TP-90DPCF-X2568R	Bore: ø50 \| Arm opening: 90° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Right
	CKZ3N50TP-90DPCFM-X2568L	Bore: ø50 \| Arm opening: 90° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Left
	CKZ3N50TP-90DPCFM-X2568R	Bore: ø50 \| Arm opening: 90° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Right
	CKZ3N50TP-90DWCF-X2568L	Bore: ø50 \| Arm opening: 90° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Rubber \| Handle side: Left
	CKZ3N50TP-90DWCF-X2568R	Bore: ø50 \| Arm opening: 90° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Rubber \| Handle side: Right
	CKZ3N50TP-90DWCFM-X2568L	Bore: ø50 \| Arm opening: 90° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Metal \| Handle side: Left
	CKZ3N50TP-90DWCFM-X2568R	Bore: ø50 \| Arm opening: 90° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Metal \| Handle side: Right
	CKZ3N50TP-105RTCF-X2568L	Bore: ø50 \| Arm opening: 105° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Left
	CKZ3N50TP-105RTCF-X2568R	Bore: ø50 \| Arm opening: 105° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Right
	CKZ3N50TP-105RTCFM-X2568L	Bore: ø50 \| Arm opening: 105° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Left
	CKZ3N50TP-105RTCFM-X2568R	Bore: ø50 \| Arm opening: 105° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Right
	CKZ3N50TP-105RPCF-X2568L	Bore: ø50 \| Arm opening: 105° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Left
	CKZ3N50TP-105RPCF-X2568R	Bore: ø50 \| Arm opening: 105° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Right
	CKZ3N50TP-105RPCFM-X2568L	Bore: ø50 \| Arm opening: 105° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Left
	CKZ3N50TP-105RPCFM-X2568R	Bore: ø50 \| Arm opening: 105° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Right
	CKZ3N50TP-105RWCF-X2568L	Bore: ø50 \| Arm opening: 105° \| Arm position: Right \| Switch: Without switch \| Top cover: Rubber \| Handle side: Left
	CKZ3N50TP-105RWCF-X2568R	Bore: ø50 \| Arm opening: 105° \| Arm position: Right \| Switch: Without switch \| Top cover: Rubber \| Handle side: Right
	CKZ3N50TP-105RWCFM-X2568L	Bore: ø50 \| Arm opening: 105° \| Arm position: Right \| Switch: Without switch \| Top cover: Metal \| Handle side: Left
	CKZ3N50TP-105RWCFM-X2568R	Bore: ø50 \| Arm opening: 105° \| Arm position: Right \| Switch: Without switch \| Top cover: Metal \| Handle side: Right
	CKZ3N50TP-105LTCF-X2568L	Bore: ø50 \| Arm opening: 105° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Left
	CKZ3N50TP-105LTCF-X2568R	Bore: ø50 \| Arm opening: 105° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Right
	CKZ3N50TP-105LTCFM-X2568L	Bore: ø50 \| Arm opening: 105° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Left
	CKZ3N50TP-105LTCFM-X2568R	Bore: ø50 \| Arm opening: 105° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Right
	CKZ3N50TP-105LPCF-X2568L	Bore: ø50 \| Arm opening: 105° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Left
	CKZ3N50TP-105LPCF-X2568R	Bore: ø50 \| Arm opening: 105° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Right
	CKZ3N50TP-105LPCFM-X2568L	Bore: ø50 \| Arm opening: 105° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Left
	CKZ3N50TP-105LPCFM-X2568R	Bore: ø50 \| Arm opening: 105° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Right
	CKZ3N50TP-105LWCF-X2568L	Bore: ø50 \| Arm opening: 105° \| Arm position: Left \| Switch: Without switch \| Top cover: Rubber \| Handle side: Left
	CKZ3N50TP-105LWCF-X2568R	Bore: ø50 \| Arm opening: 105° \| Arm position: Left \| Switch: Without switch \| Top cover: Rubber \| Handle side: Right
	CKZ3N50TP-105LWCFM-X2568L	Bore: ø50 \| Arm opening: 105° \| Arm position: Left \| Switch: Without switch \| Top cover: Metal \| Handle side: Left
	CKZ3N50TP-105LWCFM-X2568R	Bore: ø50 \| Arm opening: 105° \| Arm position: Left \| Switch: Without switch \| Top cover: Metal \| Handle side: Right
	CKZ3N50TP-105DTCF-X2568L	Bore: ø50 \| Arm opening: 105° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Left
	CKZ3N50TP-105DTCF-X2568R	Bore: ø50 \| Arm opening: 105° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Right
	CKZ3N50TP-105DTCFM-X2568L	Bore: ø50 \| Arm opening: 105° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Left
	CKZ3N50TP-105DTCFM-X2568R	Bore: ø50 \| Arm opening: 105° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Right
	CKZ3N50TP-105DPCF-X2568L	Bore: ø50 \| Arm opening: 105° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Left
	CKZ3N50TP-105DPCF-X2568R	Bore: ø50 \| Arm opening: 105° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Right
	CKZ3N50TP-105DPCFM-X2568L	Bore: ø50 \| Arm opening: 105° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Left
	CKZ3N50TP-105DPCFM-X2568R	Bore: ø50 \| Arm opening: 105° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Right
	CKZ3N50TP-105DWCF-X2568L	Bore: ø50 \| Arm opening: 105° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Rubber \| Handle side: Left
	CKZ3N50TP-105DWCF-X2568R	Bore: ø50 \| Arm opening: 105° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Rubber \| Handle side: Right
	CKZ3N50TP-105DWCFM-X2568L	Bore: ø50 \| Arm opening: 105° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Metal \| Handle side: Left
	CKZ3N50TP-105DWCFM-X2568R	Bore: ø50 \| Arm opening: 105° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Metal \| Handle side: Right
	CKZ3N50TP-120RTCF-X2568L	Bore: ø50 \| Arm opening: 120° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Left
	CKZ3N50TP-120RTCF-X2568R	Bore: ø50 \| Arm opening: 120° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Right
	CKZ3N50TP-120RTCFM-X2568L	Bore: ø50 \| Arm opening: 120° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Left
	CKZ3N50TP-120RTCFM-X2568R	Bore: ø50 \| Arm opening: 120° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Right
	CKZ3N50TP-120RPCF-X2568L	Bore: ø50 \| Arm opening: 120° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Left
	CKZ3N50TP-120RPCF-X2568R	Bore: ø50 \| Arm opening: 120° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Right
	CKZ3N50TP-120RPCFM-X2568L	Bore: ø50 \| Arm opening: 120° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Left
	CKZ3N50TP-120RPCFM-X2568R	Bore: ø50 \| Arm opening: 120° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Right
	CKZ3N50TP-120RWCF-X2568L	Bore: ø50 \| Arm opening: 120° \| Arm position: Right \| Switch: Without switch \| Top cover: Rubber \| Handle side: Left
	CKZ3N50TP-120RWCF-X2568R	Bore: ø50 \| Arm opening: 120° \| Arm position: Right \| Switch: Without switch \| Top cover: Rubber \| Handle side: Right
	CKZ3N50TP-120RWCFM-X2568L	Bore: ø50 \| Arm opening: 120° \| Arm position: Right \| Switch: Without switch \| Top cover: Metal \| Handle side: Left
	CKZ3N50TP-120RWCFM-X2568R	Bore: ø50 \| Arm opening: 120° \| Arm position: Right \| Switch: Without switch \| Top cover: Metal \| Handle side: Right
	CKZ3N50TP-120LTCF-X2568L	Bore: ø50 \| Arm opening: 120° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Left
	CKZ3N50TP-120LTCF-X2568R	Bore: ø50 \| Arm opening: 120° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Right
	CKZ3N50TP-120LTCFM-X2568L	Bore: ø50 \| Arm opening: 120° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Left
	CKZ3N50TP-120LTCFM-X2568R	Bore: ø50 \| Arm opening: 120° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Right
	CKZ3N50TP-120LPCF-X2568L	Bore: ø50 \| Arm opening: 120° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Left
	CKZ3N50TP-120LPCF-X2568R	Bore: ø50 \| Arm opening: 120° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Right
	CKZ3N50TP-120LPCFM-X2568L	Bore: ø50 \| Arm opening: 120° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Left
	CKZ3N50TP-120LPCFM-X2568R	Bore: ø50 \| Arm opening: 120° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Right
	CKZ3N50TP-120LWCF-X2568L	Bore: ø50 \| Arm opening: 120° \| Arm position: Left \| Switch: Without switch \| Top cover: Rubber \| Handle side: Left
	CKZ3N50TP-120LWCF-X2568R	Bore: ø50 \| Arm opening: 120° \| Arm position: Left \| Switch: Without switch \| Top cover: Rubber \| Handle side: Right
	CKZ3N50TP-120LWCFM-X2568L	Bore: ø50 \| Arm opening: 120° \| Arm position: Left \| Switch: Without switch \| Top cover: Metal \| Handle side: Left
	CKZ3N50TP-120LWCFM-X2568R	Bore: ø50 \| Arm opening: 120° \| Arm position: Left \| Switch: Without switch \| Top cover: Metal \| Handle side: Right
	CKZ3N50TP-120DTCF-X2568L	Bore: ø50 \| Arm opening: 120° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Left
	CKZ3N50TP-120DTCF-X2568R	Bore: ø50 \| Arm opening: 120° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Right
	CKZ3N50TP-120DTCFM-X2568L	Bore: ø50 \| Arm opening: 120° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Left
	CKZ3N50TP-120DTCFM-X2568R	Bore: ø50 \| Arm opening: 120° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Right
	CKZ3N50TP-120DPCF-X2568L	Bore: ø50 \| Arm opening: 120° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Left
	CKZ3N50TP-120DPCF-X2568R	Bore: ø50 \| Arm opening: 120° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Right
	CKZ3N50TP-120DPCFM-X2568L	Bore: ø50 \| Arm opening: 120° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Left
	CKZ3N50TP-120DPCFM-X2568R	Bore: ø50 \| Arm opening: 120° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Right
	CKZ3N50TP-120DWCF-X2568L	Bore: ø50 \| Arm opening: 120° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Rubber \| Handle side: Left
	CKZ3N50TP-120DWCF-X2568R	Bore: ø50 \| Arm opening: 120° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Rubber \| Handle side: Right
	CKZ3N50TP-120DWCFM-X2568L	Bore: ø50 \| Arm opening: 120° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Metal \| Handle side: Left
	CKZ3N50TP-120DWCFM-X2568R	Bore: ø50 \| Arm opening: 120° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Metal \| Handle side: Right
	CKZ3N63TP-15RTCF-X2568L	Bore: ø63 \| Arm opening: 15° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Left
	CKZ3N63TP-15RTCF-X2568R	Bore: ø63 \| Arm opening: 15° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Right
	CKZ3N63TP-15RTCFM-X2568L	Bore: ø63 \| Arm opening: 15° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Left
	CKZ3N63TP-15RTCFM-X2568R	Bore: ø63 \| Arm opening: 15° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Right
	CKZ3N63TP-15RPCF-X2568L	Bore: ø63 \| Arm opening: 15° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Left
	CKZ3N63TP-15RPCF-X2568R	Bore: ø63 \| Arm opening: 15° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Right
	CKZ3N63TP-15RPCFM-X2568L	Bore: ø63 \| Arm opening: 15° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Left
	CKZ3N63TP-15RPCFM-X2568R	Bore: ø63 \| Arm opening: 15° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Right
	CKZ3N63TP-15RWCF-X2568L	Bore: ø63 \| Arm opening: 15° \| Arm position: Right \| Switch: Without switch \| Top cover: Rubber \| Handle side: Left
	CKZ3N63TP-15RWCF-X2568R	Bore: ø63 \| Arm opening: 15° \| Arm position: Right \| Switch: Without switch \| Top cover: Rubber \| Handle side: Right
	CKZ3N63TP-15RWCFM-X2568L	Bore: ø63 \| Arm opening: 15° \| Arm position: Right \| Switch: Without switch \| Top cover: Metal \| Handle side: Left
	CKZ3N63TP-15RWCFM-X2568R	Bore: ø63 \| Arm opening: 15° \| Arm position: Right \| Switch: Without switch \| Top cover: Metal \| Handle side: Right
	CKZ3N63TP-15LTCF-X2568L	Bore: ø63 \| Arm opening: 15° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Left
	CKZ3N63TP-15LTCF-X2568R	Bore: ø63 \| Arm opening: 15° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Right
	CKZ3N63TP-15LTCFM-X2568L	Bore: ø63 \| Arm opening: 15° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Left
	CKZ3N63TP-15LTCFM-X2568R	Bore: ø63 \| Arm opening: 15° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Right
	CKZ3N63TP-15LPCF-X2568L	Bore: ø63 \| Arm opening: 15° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Left
	CKZ3N63TP-15LPCF-X2568R	Bore: ø63 \| Arm opening: 15° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Right
	CKZ3N63TP-15LPCFM-X2568L	Bore: ø63 \| Arm opening: 15° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Left
	CKZ3N63TP-15LPCFM-X2568R	Bore: ø63 \| Arm opening: 15° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Right
	CKZ3N63TP-15LWCF-X2568L	Bore: ø63 \| Arm opening: 15° \| Arm position: Left \| Switch: Without switch \| Top cover: Rubber \| Handle side: Left
	CKZ3N63TP-15LWCF-X2568R	Bore: ø63 \| Arm opening: 15° \| Arm position: Left \| Switch: Without switch \| Top cover: Rubber \| Handle side: Right
	CKZ3N63TP-15LWCFM-X2568L	Bore: ø63 \| Arm opening: 15° \| Arm position: Left \| Switch: Without switch \| Top cover: Metal \| Handle side: Left
	CKZ3N63TP-15LWCFM-X2568R	Bore: ø63 \| Arm opening: 15° \| Arm position: Left \| Switch: Without switch \| Top cover: Metal \| Handle side: Right
	CKZ3N63TP-15DTCF-X2568L	Bore: ø63 \| Arm opening: 15° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Left
	CKZ3N63TP-15DTCF-X2568R	Bore: ø63 \| Arm opening: 15° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Right
	CKZ3N63TP-15DTCFM-X2568L	Bore: ø63 \| Arm opening: 15° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Left
	CKZ3N63TP-15DTCFM-X2568R	Bore: ø63 \| Arm opening: 15° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Right
	CKZ3N63TP-15DPCF-X2568L	Bore: ø63 \| Arm opening: 15° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Left
	CKZ3N63TP-15DPCF-X2568R	Bore: ø63 \| Arm opening: 15° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Right
	CKZ3N63TP-15DPCFM-X2568L	Bore: ø63 \| Arm opening: 15° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Left
	CKZ3N63TP-15DPCFM-X2568R	Bore: ø63 \| Arm opening: 15° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Right
	CKZ3N63TP-15DWCF-X2568L	Bore: ø63 \| Arm opening: 15° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Rubber \| Handle side: Left
	CKZ3N63TP-15DWCF-X2568R	Bore: ø63 \| Arm opening: 15° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Rubber \| Handle side: Right
	CKZ3N63TP-15DWCFM-X2568L	Bore: ø63 \| Arm opening: 15° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Metal \| Handle side: Left
	CKZ3N63TP-15DWCFM-X2568R	Bore: ø63 \| Arm opening: 15° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Metal \| Handle side: Right
	CKZ3N63TP-30RTCF-X2568L	Bore: ø63 \| Arm opening: 30° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Left
	CKZ3N63TP-30RTCF-X2568R	Bore: ø63 \| Arm opening: 30° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Right
	CKZ3N63TP-30RTCFM-X2568L	Bore: ø63 \| Arm opening: 30° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Left
	CKZ3N63TP-30RTCFM-X2568R	Bore: ø63 \| Arm opening: 30° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Right
	CKZ3N63TP-30RPCF-X2568L	Bore: ø63 \| Arm opening: 30° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Left
	CKZ3N63TP-30RPCF-X2568R	Bore: ø63 \| Arm opening: 30° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Right
	CKZ3N63TP-30RPCFM-X2568L	Bore: ø63 \| Arm opening: 30° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Left
	CKZ3N63TP-30RPCFM-X2568R	Bore: ø63 \| Arm opening: 30° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Right
	CKZ3N63TP-30RWCF-X2568L	Bore: ø63 \| Arm opening: 30° \| Arm position: Right \| Switch: Without switch \| Top cover: Rubber \| Handle side: Left
	CKZ3N63TP-30RWCF-X2568R	Bore: ø63 \| Arm opening: 30° \| Arm position: Right \| Switch: Without switch \| Top cover: Rubber \| Handle side: Right
	CKZ3N63TP-30RWCFM-X2568L	Bore: ø63 \| Arm opening: 30° \| Arm position: Right \| Switch: Without switch \| Top cover: Metal \| Handle side: Left
	CKZ3N63TP-30RWCFM-X2568R	Bore: ø63 \| Arm opening: 30° \| Arm position: Right \| Switch: Without switch \| Top cover: Metal \| Handle side: Right
	CKZ3N63TP-30LTCF-X2568L	Bore: ø63 \| Arm opening: 30° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Left
	CKZ3N63TP-30LTCF-X2568R	Bore: ø63 \| Arm opening: 30° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Right
	CKZ3N63TP-30LTCFM-X2568L	Bore: ø63 \| Arm opening: 30° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Left
	CKZ3N63TP-30LTCFM-X2568R	Bore: ø63 \| Arm opening: 30° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Right
	CKZ3N63TP-30LPCF-X2568L	Bore: ø63 \| Arm opening: 30° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Left
	CKZ3N63TP-30LPCF-X2568R	Bore: ø63 \| Arm opening: 30° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Right
	CKZ3N63TP-30LPCFM-X2568L	Bore: ø63 \| Arm opening: 30° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Left
	CKZ3N63TP-30LPCFM-X2568R	Bore: ø63 \| Arm opening: 30° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Right
	CKZ3N63TP-30LWCF-X2568L	Bore: ø63 \| Arm opening: 30° \| Arm position: Left \| Switch: Without switch \| Top cover: Rubber \| Handle side: Left
	CKZ3N63TP-30LWCF-X2568R	Bore: ø63 \| Arm opening: 30° \| Arm position: Left \| Switch: Without switch \| Top cover: Rubber \| Handle side: Right
	CKZ3N63TP-30LWCFM-X2568L	Bore: ø63 \| Arm opening: 30° \| Arm position: Left \| Switch: Without switch \| Top cover: Metal \| Handle side: Left
	CKZ3N63TP-30LWCFM-X2568R	Bore: ø63 \| Arm opening: 30° \| Arm position: Left \| Switch: Without switch \| Top cover: Metal \| Handle side: Right
	CKZ3N63TP-30DTCF-X2568L	Bore: ø63 \| Arm opening: 30° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Left
	CKZ3N63TP-30DTCF-X2568R	Bore: ø63 \| Arm opening: 30° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Right
	CKZ3N63TP-30DTCFM-X2568L	Bore: ø63 \| Arm opening: 30° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Left
	CKZ3N63TP-30DTCFM-X2568R	Bore: ø63 \| Arm opening: 30° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Right
	CKZ3N63TP-30DPCF-X2568L	Bore: ø63 \| Arm opening: 30° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Left
	CKZ3N63TP-30DPCF-X2568R	Bore: ø63 \| Arm opening: 30° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Right
	CKZ3N63TP-30DPCFM-X2568L	Bore: ø63 \| Arm opening: 30° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Left
	CKZ3N63TP-30DPCFM-X2568R	Bore: ø63 \| Arm opening: 30° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Right
	CKZ3N63TP-30DWCF-X2568L	Bore: ø63 \| Arm opening: 30° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Rubber \| Handle side: Left
	CKZ3N63TP-30DWCF-X2568R	Bore: ø63 \| Arm opening: 30° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Rubber \| Handle side: Right
	CKZ3N63TP-30DWCFM-X2568L	Bore: ø63 \| Arm opening: 30° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Metal \| Handle side: Left
	CKZ3N63TP-30DWCFM-X2568R	Bore: ø63 \| Arm opening: 30° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Metal \| Handle side: Right
	CKZ3N63TP-45RTCF-X2568L	Bore: ø63 \| Arm opening: 45° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Left
	CKZ3N63TP-45RTCF-X2568R	Bore: ø63 \| Arm opening: 45° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Right
	CKZ3N63TP-45RTCFM-X2568L	Bore: ø63 \| Arm opening: 45° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Left
	CKZ3N63TP-45RTCFM-X2568R	Bore: ø63 \| Arm opening: 45° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Right
	CKZ3N63TP-45RPCF-X2568L	Bore: ø63 \| Arm opening: 45° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Left
	CKZ3N63TP-45RPCF-X2568R	Bore: ø63 \| Arm opening: 45° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Right
	CKZ3N63TP-45RPCFM-X2568L	Bore: ø63 \| Arm opening: 45° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Left
	CKZ3N63TP-45RPCFM-X2568R	Bore: ø63 \| Arm opening: 45° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Right
	CKZ3N63TP-45RWCF-X2568L	Bore: ø63 \| Arm opening: 45° \| Arm position: Right \| Switch: Without switch \| Top cover: Rubber \| Handle side: Left
	CKZ3N63TP-45RWCF-X2568R	Bore: ø63 \| Arm opening: 45° \| Arm position: Right \| Switch: Without switch \| Top cover: Rubber \| Handle side: Right
	CKZ3N63TP-45RWCFM-X2568L	Bore: ø63 \| Arm opening: 45° \| Arm position: Right \| Switch: Without switch \| Top cover: Metal \| Handle side: Left
	CKZ3N63TP-45RWCFM-X2568R	Bore: ø63 \| Arm opening: 45° \| Arm position: Right \| Switch: Without switch \| Top cover: Metal \| Handle side: Right
	CKZ3N63TP-45LTCF-X2568L	Bore: ø63 \| Arm opening: 45° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Left
	CKZ3N63TP-45LTCF-X2568R	Bore: ø63 \| Arm opening: 45° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Right
	CKZ3N63TP-45LTCFM-X2568L	Bore: ø63 \| Arm opening: 45° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Left
	CKZ3N63TP-45LTCFM-X2568R	Bore: ø63 \| Arm opening: 45° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Right
	CKZ3N63TP-45LPCF-X2568L	Bore: ø63 \| Arm opening: 45° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Left
	CKZ3N63TP-45LPCF-X2568R	Bore: ø63 \| Arm opening: 45° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Right
	CKZ3N63TP-45LPCFM-X2568L	Bore: ø63 \| Arm opening: 45° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Left
	CKZ3N63TP-45LPCFM-X2568R	Bore: ø63 \| Arm opening: 45° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Right
	CKZ3N63TP-45LWCF-X2568L	Bore: ø63 \| Arm opening: 45° \| Arm position: Left \| Switch: Without switch \| Top cover: Rubber \| Handle side: Left
	CKZ3N63TP-45LWCF-X2568R	Bore: ø63 \| Arm opening: 45° \| Arm position: Left \| Switch: Without switch \| Top cover: Rubber \| Handle side: Right
	CKZ3N63TP-45LWCFM-X2568L	Bore: ø63 \| Arm opening: 45° \| Arm position: Left \| Switch: Without switch \| Top cover: Metal \| Handle side: Left
	CKZ3N63TP-45LWCFM-X2568R	Bore: ø63 \| Arm opening: 45° \| Arm position: Left \| Switch: Without switch \| Top cover: Metal \| Handle side: Right
	CKZ3N63TP-45DTCF-X2568L	Bore: ø63 \| Arm opening: 45° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Left
	CKZ3N63TP-45DTCF-X2568R	Bore: ø63 \| Arm opening: 45° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Right
	CKZ3N63TP-45DTCFM-X2568L	Bore: ø63 \| Arm opening: 45° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Left
	CKZ3N63TP-45DTCFM-X2568R	Bore: ø63 \| Arm opening: 45° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Right
	CKZ3N63TP-45DPCF-X2568L	Bore: ø63 \| Arm opening: 45° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Left
	CKZ3N63TP-45DPCF-X2568R	Bore: ø63 \| Arm opening: 45° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Right
	CKZ3N63TP-45DPCFM-X2568L	Bore: ø63 \| Arm opening: 45° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Left
	CKZ3N63TP-45DPCFM-X2568R	Bore: ø63 \| Arm opening: 45° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Right
	CKZ3N63TP-45DWCF-X2568L	Bore: ø63 \| Arm opening: 45° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Rubber \| Handle side: Left
	CKZ3N63TP-45DWCF-X2568R	Bore: ø63 \| Arm opening: 45° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Rubber \| Handle side: Right
	CKZ3N63TP-45DWCFM-X2568L	Bore: ø63 \| Arm opening: 45° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Metal \| Handle side: Left
	CKZ3N63TP-45DWCFM-X2568R	Bore: ø63 \| Arm opening: 45° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Metal \| Handle side: Right
	CKZ3N63TP-60RTCF-X2568L	Bore: ø63 \| Arm opening: 60° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Left
	CKZ3N63TP-60RTCF-X2568R	Bore: ø63 \| Arm opening: 60° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Right
	CKZ3N63TP-60RTCFM-X2568L	Bore: ø63 \| Arm opening: 60° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Left
	CKZ3N63TP-60RTCFM-X2568R	Bore: ø63 \| Arm opening: 60° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Right
	CKZ3N63TP-60RPCF-X2568L	Bore: ø63 \| Arm opening: 60° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Left
	CKZ3N63TP-60RPCF-X2568R	Bore: ø63 \| Arm opening: 60° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Right
	CKZ3N63TP-60RPCFM-X2568L	Bore: ø63 \| Arm opening: 60° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Left
	CKZ3N63TP-60RPCFM-X2568R	Bore: ø63 \| Arm opening: 60° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Right
	CKZ3N63TP-60RWCF-X2568L	Bore: ø63 \| Arm opening: 60° \| Arm position: Right \| Switch: Without switch \| Top cover: Rubber \| Handle side: Left
	CKZ3N63TP-60RWCF-X2568R	Bore: ø63 \| Arm opening: 60° \| Arm position: Right \| Switch: Without switch \| Top cover: Rubber \| Handle side: Right
	CKZ3N63TP-60RWCFM-X2568L	Bore: ø63 \| Arm opening: 60° \| Arm position: Right \| Switch: Without switch \| Top cover: Metal \| Handle side: Left
	CKZ3N63TP-60RWCFM-X2568R	Bore: ø63 \| Arm opening: 60° \| Arm position: Right \| Switch: Without switch \| Top cover: Metal \| Handle side: Right
	CKZ3N63TP-60LTCF-X2568L	Bore: ø63 \| Arm opening: 60° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Left
	CKZ3N63TP-60LTCF-X2568R	Bore: ø63 \| Arm opening: 60° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Right
	CKZ3N63TP-60LTCFM-X2568L	Bore: ø63 \| Arm opening: 60° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Left
	CKZ3N63TP-60LTCFM-X2568R	Bore: ø63 \| Arm opening: 60° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Right
	CKZ3N63TP-60LPCF-X2568L	Bore: ø63 \| Arm opening: 60° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Left
	CKZ3N63TP-60LPCF-X2568R	Bore: ø63 \| Arm opening: 60° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Right
	CKZ3N63TP-60LPCFM-X2568L	Bore: ø63 \| Arm opening: 60° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Left
	CKZ3N63TP-60LPCFM-X2568R	Bore: ø63 \| Arm opening: 60° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Right
	CKZ3N63TP-60LWCF-X2568L	Bore: ø63 \| Arm opening: 60° \| Arm position: Left \| Switch: Without switch \| Top cover: Rubber \| Handle side: Left
	CKZ3N63TP-60LWCF-X2568R	Bore: ø63 \| Arm opening: 60° \| Arm position: Left \| Switch: Without switch \| Top cover: Rubber \| Handle side: Right
	CKZ3N63TP-60LWCFM-X2568L	Bore: ø63 \| Arm opening: 60° \| Arm position: Left \| Switch: Without switch \| Top cover: Metal \| Handle side: Left
	CKZ3N63TP-60LWCFM-X2568R	Bore: ø63 \| Arm opening: 60° \| Arm position: Left \| Switch: Without switch \| Top cover: Metal \| Handle side: Right
	CKZ3N63TP-60DTCF-X2568L	Bore: ø63 \| Arm opening: 60° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Left
	CKZ3N63TP-60DTCF-X2568R	Bore: ø63 \| Arm opening: 60° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Right
	CKZ3N63TP-60DTCFM-X2568L	Bore: ø63 \| Arm opening: 60° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Left
	CKZ3N63TP-60DTCFM-X2568R	Bore: ø63 \| Arm opening: 60° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Right
	CKZ3N63TP-60DPCF-X2568L	Bore: ø63 \| Arm opening: 60° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Left
	CKZ3N63TP-60DPCF-X2568R	Bore: ø63 \| Arm opening: 60° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Right
	CKZ3N63TP-60DPCFM-X2568L	Bore: ø63 \| Arm opening: 60° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Left
	CKZ3N63TP-60DPCFM-X2568R	Bore: ø63 \| Arm opening: 60° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Right
	CKZ3N63TP-60DWCF-X2568L	Bore: ø63 \| Arm opening: 60° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Rubber \| Handle side: Left
	CKZ3N63TP-60DWCF-X2568R	Bore: ø63 \| Arm opening: 60° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Rubber \| Handle side: Right
	CKZ3N63TP-60DWCFM-X2568L	Bore: ø63 \| Arm opening: 60° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Metal \| Handle side: Left
	CKZ3N63TP-60DWCFM-X2568R	Bore: ø63 \| Arm opening: 60° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Metal \| Handle side: Right
	CKZ3N63TP-75RTCF-X2568L	Bore: ø63 \| Arm opening: 75° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Left
	CKZ3N63TP-75RTCF-X2568R	Bore: ø63 \| Arm opening: 75° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Right
	CKZ3N63TP-75RTCFM-X2568L	Bore: ø63 \| Arm opening: 75° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Left
	CKZ3N63TP-75RTCFM-X2568R	Bore: ø63 \| Arm opening: 75° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Right
	CKZ3N63TP-75RPCF-X2568L	Bore: ø63 \| Arm opening: 75° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Left
	CKZ3N63TP-75RPCF-X2568R	Bore: ø63 \| Arm opening: 75° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Right
	CKZ3N63TP-75RPCFM-X2568L	Bore: ø63 \| Arm opening: 75° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Left
	CKZ3N63TP-75RPCFM-X2568R	Bore: ø63 \| Arm opening: 75° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Right
	CKZ3N63TP-75RWCF-X2568L	Bore: ø63 \| Arm opening: 75° \| Arm position: Right \| Switch: Without switch \| Top cover: Rubber \| Handle side: Left
	CKZ3N63TP-75RWCF-X2568R	Bore: ø63 \| Arm opening: 75° \| Arm position: Right \| Switch: Without switch \| Top cover: Rubber \| Handle side: Right
	CKZ3N63TP-75RWCFM-X2568L	Bore: ø63 \| Arm opening: 75° \| Arm position: Right \| Switch: Without switch \| Top cover: Metal \| Handle side: Left
	CKZ3N63TP-75RWCFM-X2568R	Bore: ø63 \| Arm opening: 75° \| Arm position: Right \| Switch: Without switch \| Top cover: Metal \| Handle side: Right
	CKZ3N63TP-75LTCF-X2568L	Bore: ø63 \| Arm opening: 75° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Left
	CKZ3N63TP-75LTCF-X2568R	Bore: ø63 \| Arm opening: 75° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Right
	CKZ3N63TP-75LTCFM-X2568L	Bore: ø63 \| Arm opening: 75° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Left
	CKZ3N63TP-75LTCFM-X2568R	Bore: ø63 \| Arm opening: 75° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Right
	CKZ3N63TP-75LPCF-X2568L	Bore: ø63 \| Arm opening: 75° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Left
	CKZ3N63TP-75LPCF-X2568R	Bore: ø63 \| Arm opening: 75° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Right
	CKZ3N63TP-75LPCFM-X2568L	Bore: ø63 \| Arm opening: 75° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Left
	CKZ3N63TP-75LPCFM-X2568R	Bore: ø63 \| Arm opening: 75° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Right
	CKZ3N63TP-75LWCF-X2568L	Bore: ø63 \| Arm opening: 75° \| Arm position: Left \| Switch: Without switch \| Top cover: Rubber \| Handle side: Left
	CKZ3N63TP-75LWCF-X2568R	Bore: ø63 \| Arm opening: 75° \| Arm position: Left \| Switch: Without switch \| Top cover: Rubber \| Handle side: Right
	CKZ3N63TP-75LWCFM-X2568L	Bore: ø63 \| Arm opening: 75° \| Arm position: Left \| Switch: Without switch \| Top cover: Metal \| Handle side: Left
	CKZ3N63TP-75LWCFM-X2568R	Bore: ø63 \| Arm opening: 75° \| Arm position: Left \| Switch: Without switch \| Top cover: Metal \| Handle side: Right
	CKZ3N63TP-75DTCF-X2568L	Bore: ø63 \| Arm opening: 75° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Left
	CKZ3N63TP-75DTCF-X2568R	Bore: ø63 \| Arm opening: 75° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Right
	CKZ3N63TP-75DTCFM-X2568L	Bore: ø63 \| Arm opening: 75° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Left
	CKZ3N63TP-75DTCFM-X2568R	Bore: ø63 \| Arm opening: 75° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Right
	CKZ3N63TP-75DPCF-X2568L	Bore: ø63 \| Arm opening: 75° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Left
	CKZ3N63TP-75DPCF-X2568R	Bore: ø63 \| Arm opening: 75° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Right
	CKZ3N63TP-75DPCFM-X2568L	Bore: ø63 \| Arm opening: 75° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Left
	CKZ3N63TP-75DPCFM-X2568R	Bore: ø63 \| Arm opening: 75° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Right
	CKZ3N63TP-75DWCF-X2568L	Bore: ø63 \| Arm opening: 75° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Rubber \| Handle side: Left
	CKZ3N63TP-75DWCF-X2568R	Bore: ø63 \| Arm opening: 75° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Rubber \| Handle side: Right
	CKZ3N63TP-75DWCFM-X2568L	Bore: ø63 \| Arm opening: 75° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Metal \| Handle side: Left
	CKZ3N63TP-75DWCFM-X2568R	Bore: ø63 \| Arm opening: 75° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Metal \| Handle side: Right
	CKZ3N63TP-90RTCF-X2568L	Bore: ø63 \| Arm opening: 90° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Left
	CKZ3N63TP-90RTCF-X2568R	Bore: ø63 \| Arm opening: 90° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Right
	CKZ3N63TP-90RTCFM-X2568L	Bore: ø63 \| Arm opening: 90° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Left
	CKZ3N63TP-90RTCFM-X2568R	Bore: ø63 \| Arm opening: 90° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Right
	CKZ3N63TP-90RPCF-X2568L	Bore: ø63 \| Arm opening: 90° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Left
	CKZ3N63TP-90RPCF-X2568R	Bore: ø63 \| Arm opening: 90° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Right
	CKZ3N63TP-90RPCFM-X2568L	Bore: ø63 \| Arm opening: 90° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Left
	CKZ3N63TP-90RPCFM-X2568R	Bore: ø63 \| Arm opening: 90° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Right
	CKZ3N63TP-90RWCF-X2568L	Bore: ø63 \| Arm opening: 90° \| Arm position: Right \| Switch: Without switch \| Top cover: Rubber \| Handle side: Left
	CKZ3N63TP-90RWCF-X2568R	Bore: ø63 \| Arm opening: 90° \| Arm position: Right \| Switch: Without switch \| Top cover: Rubber \| Handle side: Right
	CKZ3N63TP-90RWCFM-X2568L	Bore: ø63 \| Arm opening: 90° \| Arm position: Right \| Switch: Without switch \| Top cover: Metal \| Handle side: Left
	CKZ3N63TP-90RWCFM-X2568R	Bore: ø63 \| Arm opening: 90° \| Arm position: Right \| Switch: Without switch \| Top cover: Metal \| Handle side: Right
	CKZ3N63TP-90LTCF-X2568L	Bore: ø63 \| Arm opening: 90° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Left
	CKZ3N63TP-90LTCF-X2568R	Bore: ø63 \| Arm opening: 90° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Right
	CKZ3N63TP-90LTCFM-X2568L	Bore: ø63 \| Arm opening: 90° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Left
	CKZ3N63TP-90LTCFM-X2568R	Bore: ø63 \| Arm opening: 90° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Right
	CKZ3N63TP-90LPCF-X2568L	Bore: ø63 \| Arm opening: 90° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Left
	CKZ3N63TP-90LPCF-X2568R	Bore: ø63 \| Arm opening: 90° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Right
	CKZ3N63TP-90LPCFM-X2568L	Bore: ø63 \| Arm opening: 90° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Left
	CKZ3N63TP-90LPCFM-X2568R	Bore: ø63 \| Arm opening: 90° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Right
	CKZ3N63TP-90LWCF-X2568L	Bore: ø63 \| Arm opening: 90° \| Arm position: Left \| Switch: Without switch \| Top cover: Rubber \| Handle side: Left
	CKZ3N63TP-90LWCF-X2568R	Bore: ø63 \| Arm opening: 90° \| Arm position: Left \| Switch: Without switch \| Top cover: Rubber \| Handle side: Right
	CKZ3N63TP-90LWCFM-X2568L	Bore: ø63 \| Arm opening: 90° \| Arm position: Left \| Switch: Without switch \| Top cover: Metal \| Handle side: Left
	CKZ3N63TP-90LWCFM-X2568R	Bore: ø63 \| Arm opening: 90° \| Arm position: Left \| Switch: Without switch \| Top cover: Metal \| Handle side: Right
	CKZ3N63TP-90DTCF-X2568L	Bore: ø63 \| Arm opening: 90° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Left
	CKZ3N63TP-90DTCF-X2568R	Bore: ø63 \| Arm opening: 90° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Right
	CKZ3N63TP-90DTCFM-X2568L	Bore: ø63 \| Arm opening: 90° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Left
	CKZ3N63TP-90DTCFM-X2568R	Bore: ø63 \| Arm opening: 90° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Right
	CKZ3N63TP-90DPCF-X2568L	Bore: ø63 \| Arm opening: 90° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Left
	CKZ3N63TP-90DPCF-X2568R	Bore: ø63 \| Arm opening: 90° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Right
	CKZ3N63TP-90DPCFM-X2568L	Bore: ø63 \| Arm opening: 90° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Left
	CKZ3N63TP-90DPCFM-X2568R	Bore: ø63 \| Arm opening: 90° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Right
	CKZ3N63TP-90DWCF-X2568L	Bore: ø63 \| Arm opening: 90° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Rubber \| Handle side: Left
	CKZ3N63TP-90DWCF-X2568R	Bore: ø63 \| Arm opening: 90° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Rubber \| Handle side: Right
	CKZ3N63TP-90DWCFM-X2568L	Bore: ø63 \| Arm opening: 90° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Metal \| Handle side: Left
	CKZ3N63TP-90DWCFM-X2568R	Bore: ø63 \| Arm opening: 90° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Metal \| Handle side: Right
	CKZ3N63TP-105RTCF-X2568L	Bore: ø63 \| Arm opening: 105° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Left
	CKZ3N63TP-105RTCF-X2568R	Bore: ø63 \| Arm opening: 105° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Right
	CKZ3N63TP-105RTCFM-X2568L	Bore: ø63 \| Arm opening: 105° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Left
	CKZ3N63TP-105RTCFM-X2568R	Bore: ø63 \| Arm opening: 105° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Right
	CKZ3N63TP-105RPCF-X2568L	Bore: ø63 \| Arm opening: 105° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Left
	CKZ3N63TP-105RPCF-X2568R	Bore: ø63 \| Arm opening: 105° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Right
	CKZ3N63TP-105RPCFM-X2568L	Bore: ø63 \| Arm opening: 105° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Left
	CKZ3N63TP-105RPCFM-X2568R	Bore: ø63 \| Arm opening: 105° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Right
	CKZ3N63TP-105RWCF-X2568L	Bore: ø63 \| Arm opening: 105° \| Arm position: Right \| Switch: Without switch \| Top cover: Rubber \| Handle side: Left
	CKZ3N63TP-105RWCF-X2568R	Bore: ø63 \| Arm opening: 105° \| Arm position: Right \| Switch: Without switch \| Top cover: Rubber \| Handle side: Right
	CKZ3N63TP-105RWCFM-X2568L	Bore: ø63 \| Arm opening: 105° \| Arm position: Right \| Switch: Without switch \| Top cover: Metal \| Handle side: Left
	CKZ3N63TP-105RWCFM-X2568R	Bore: ø63 \| Arm opening: 105° \| Arm position: Right \| Switch: Without switch \| Top cover: Metal \| Handle side: Right
	CKZ3N63TP-105LTCF-X2568L	Bore: ø63 \| Arm opening: 105° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Left
	CKZ3N63TP-105LTCF-X2568R	Bore: ø63 \| Arm opening: 105° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Right
	CKZ3N63TP-105LTCFM-X2568L	Bore: ø63 \| Arm opening: 105° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Left
	CKZ3N63TP-105LTCFM-X2568R	Bore: ø63 \| Arm opening: 105° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Right
	CKZ3N63TP-105LPCF-X2568L	Bore: ø63 \| Arm opening: 105° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Left
	CKZ3N63TP-105LPCF-X2568R	Bore: ø63 \| Arm opening: 105° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Right
	CKZ3N63TP-105LPCFM-X2568L	Bore: ø63 \| Arm opening: 105° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Left
	CKZ3N63TP-105LPCFM-X2568R	Bore: ø63 \| Arm opening: 105° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Right
	CKZ3N63TP-105LWCF-X2568L	Bore: ø63 \| Arm opening: 105° \| Arm position: Left \| Switch: Without switch \| Top cover: Rubber \| Handle side: Left
	CKZ3N63TP-105LWCF-X2568R	Bore: ø63 \| Arm opening: 105° \| Arm position: Left \| Switch: Without switch \| Top cover: Rubber \| Handle side: Right
	CKZ3N63TP-105LWCFM-X2568L	Bore: ø63 \| Arm opening: 105° \| Arm position: Left \| Switch: Without switch \| Top cover: Metal \| Handle side: Left
	CKZ3N63TP-105LWCFM-X2568R	Bore: ø63 \| Arm opening: 105° \| Arm position: Left \| Switch: Without switch \| Top cover: Metal \| Handle side: Right
	CKZ3N63TP-105DTCF-X2568L	Bore: ø63 \| Arm opening: 105° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Left
	CKZ3N63TP-105DTCF-X2568R	Bore: ø63 \| Arm opening: 105° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Right
	CKZ3N63TP-105DTCFM-X2568L	Bore: ø63 \| Arm opening: 105° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Left
	CKZ3N63TP-105DTCFM-X2568R	Bore: ø63 \| Arm opening: 105° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Right
	CKZ3N63TP-105DPCF-X2568L	Bore: ø63 \| Arm opening: 105° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Left
	CKZ3N63TP-105DPCF-X2568R	Bore: ø63 \| Arm opening: 105° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Right
	CKZ3N63TP-105DPCFM-X2568L	Bore: ø63 \| Arm opening: 105° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Left
	CKZ3N63TP-105DPCFM-X2568R	Bore: ø63 \| Arm opening: 105° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Right
	CKZ3N63TP-105DWCF-X2568L	Bore: ø63 \| Arm opening: 105° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Rubber \| Handle side: Left
	CKZ3N63TP-105DWCF-X2568R	Bore: ø63 \| Arm opening: 105° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Rubber \| Handle side: Right
	CKZ3N63TP-105DWCFM-X2568L	Bore: ø63 \| Arm opening: 105° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Metal \| Handle side: Left
	CKZ3N63TP-105DWCFM-X2568R	Bore: ø63 \| Arm opening: 105° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Metal \| Handle side: Right
	CKZ3N63TP-120RTCF-X2568L	Bore: ø63 \| Arm opening: 120° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Left
	CKZ3N63TP-120RTCF-X2568R	Bore: ø63 \| Arm opening: 120° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Right
	CKZ3N63TP-120RTCFM-X2568L	Bore: ø63 \| Arm opening: 120° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Left
	CKZ3N63TP-120RTCFM-X2568R	Bore: ø63 \| Arm opening: 120° \| Arm position: Right \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Right
	CKZ3N63TP-120RPCF-X2568L	Bore: ø63 \| Arm opening: 120° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Left
	CKZ3N63TP-120RPCF-X2568R	Bore: ø63 \| Arm opening: 120° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Right
	CKZ3N63TP-120RPCFM-X2568L	Bore: ø63 \| Arm opening: 120° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Left
	CKZ3N63TP-120RPCFM-X2568R	Bore: ø63 \| Arm opening: 120° \| Arm position: Right \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Right
	CKZ3N63TP-120RWCF-X2568L	Bore: ø63 \| Arm opening: 120° \| Arm position: Right \| Switch: Without switch \| Top cover: Rubber \| Handle side: Left
	CKZ3N63TP-120RWCF-X2568R	Bore: ø63 \| Arm opening: 120° \| Arm position: Right \| Switch: Without switch \| Top cover: Rubber \| Handle side: Right
	CKZ3N63TP-120RWCFM-X2568L	Bore: ø63 \| Arm opening: 120° \| Arm position: Right \| Switch: Without switch \| Top cover: Metal \| Handle side: Left
	CKZ3N63TP-120RWCFM-X2568R	Bore: ø63 \| Arm opening: 120° \| Arm position: Right \| Switch: Without switch \| Top cover: Metal \| Handle side: Right
	CKZ3N63TP-120LTCF-X2568L	Bore: ø63 \| Arm opening: 120° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Left
	CKZ3N63TP-120LTCF-X2568R	Bore: ø63 \| Arm opening: 120° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Right
	CKZ3N63TP-120LTCFM-X2568L	Bore: ø63 \| Arm opening: 120° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Left
	CKZ3N63TP-120LTCFM-X2568R	Bore: ø63 \| Arm opening: 120° \| Arm position: Left \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Right
	CKZ3N63TP-120LPCF-X2568L	Bore: ø63 \| Arm opening: 120° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Left
	CKZ3N63TP-120LPCF-X2568R	Bore: ø63 \| Arm opening: 120° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Right
	CKZ3N63TP-120LPCFM-X2568L	Bore: ø63 \| Arm opening: 120° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Left
	CKZ3N63TP-120LPCFM-X2568R	Bore: ø63 \| Arm opening: 120° \| Arm position: Left \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Right
	CKZ3N63TP-120LWCF-X2568L	Bore: ø63 \| Arm opening: 120° \| Arm position: Left \| Switch: Without switch \| Top cover: Rubber \| Handle side: Left
	CKZ3N63TP-120LWCF-X2568R	Bore: ø63 \| Arm opening: 120° \| Arm position: Left \| Switch: Without switch \| Top cover: Rubber \| Handle side: Right
	CKZ3N63TP-120LWCFM-X2568L	Bore: ø63 \| Arm opening: 120° \| Arm position: Left \| Switch: Without switch \| Top cover: Metal \| Handle side: Left
	CKZ3N63TP-120LWCFM-X2568R	Bore: ø63 \| Arm opening: 120° \| Arm position: Left \| Switch: Without switch \| Top cover: Metal \| Handle side: Right
	CKZ3N63TP-120DTCF-X2568L	Bore: ø63 \| Arm opening: 120° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Left
	CKZ3N63TP-120DTCF-X2568R	Bore: ø63 \| Arm opening: 120° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Rubber \| Handle side: Right
	CKZ3N63TP-120DTCFM-X2568L	Bore: ø63 \| Arm opening: 120° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Left
	CKZ3N63TP-120DTCFM-X2568R	Bore: ø63 \| Arm opening: 120° \| Arm position: Both sides \| Switch: TURCK proximity \| Top cover: Metal \| Handle side: Right
	CKZ3N63TP-120DPCF-X2568L	Bore: ø63 \| Arm opening: 120° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Left
	CKZ3N63TP-120DPCF-X2568R	Bore: ø63 \| Arm opening: 120° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Rubber \| Handle side: Right
	CKZ3N63TP-120DPCFM-X2568L	Bore: ø63 \| Arm opening: 120° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Left
	CKZ3N63TP-120DPCFM-X2568R	Bore: ø63 \| Arm opening: 120° \| Arm position: Both sides \| Switch: P&F proximity \| Top cover: Metal \| Handle side: Right
	CKZ3N63TP-120DWCF-X2568L	Bore: ø63 \| Arm opening: 120° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Rubber \| Handle side: Left
	CKZ3N63TP-120DWCF-X2568R	Bore: ø63 \| Arm opening: 120° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Rubber \| Handle side: Right
	CKZ3N63TP-120DWCFM-X2568L	Bore: ø63 \| Arm opening: 120° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Metal \| Handle side: Left
	CKZ3N63TP-120DWCFM-X2568R	Bore: ø63 \| Arm opening: 120° \| Arm position: Both sides \| Switch: Without switch \| Top cover: Metal \| Handle side: Right

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

SMC CKZ3N NAAMS Power Clamp Cylinder (ø50, ø63, Manual Handle -X2568)
